Types of Power Cords: Discover Their Different Classifications, Standards and Adaptors

Chapter 1: What is a Power Cord?

A power cord, often referred to as a line cord or power cable, functions as a connection medium between electronic devices and their power sources, facilitating the transmission of electricity. Typically, they feature copper wires encased within an insulating material and covered by a non-conductive protective layer. These cords come with plugs that meet international standards, ensuring they are compatible with different regions around the globe. Power cords are generally categorized into two types: basic power cords, which have a plug at one end and bare wires at the other, and connector power cords, which include a connector at one end and wires at the opposite end.

The National Electrical Manufacturers Association (NEMA) establishes criteria for designing and producing electrical plugs, covering aspects like voltage ratings and socket designs. There are 15 different plug types existing globally, named from Type A to Type O. Various adapters are available from electrical suppliers to bridge the gap between these plug variations worldwide. In the United States, Types A and B are prevalently used.

Typically, power cords consist of three primary components: a plug, a socket, and the cord itself. Certain high-priority power cords are equipped with locking features to avoid accidental disconnections, which is of particular importance for medical equipment and heavy-duty applications.

Power cords are classified according to their voltage or kilovolt capacity, which indicates how much power they can convey. The rating of power cords depends on the wires, plugs, and connectors. The lowest rated component of the three determines the overall rating of the cord set. The plug also plays an important role, as it specifies where the cord set is intended for use and its manufacturing origin.

The ability of a power cord to carry an electrical load relies on the wire gauge and the length of the cord. The thickness or diameter of the wire affects its capacity for carrying current and the extent to which it heats. Moreover, the length of the cord impacts voltage drop—a reduction in voltage that happens from the connector to the cord's end.

The gauge rating is a basic number assigned by the American Wire Gauge (AWG) standard numbering system. For example, a 12 AWG is a 120-volt cord with a 12-gauge wire suitable for connecting to 120-volt outlets. In the AWG system, a lower number signifies a thicker wire.

As the length of a power cord extends, the voltage drop similarly increases due to power loss from the connector to the cable's far end. Shorter cords maintain stable power levels from the outlet to their endpoint. However, for very lengthy power cords, especially those extending beyond 50 feet, higher-rated American Wire Gauge (AWG) wires are necessary to manage increased resistance, alleviating significant voltage drop.

The History of the Power Cord

In 1882, Thomas Edison devised the power distribution system by insulating a copper rod with jute, a soft, shiny plant fiber. This jute-wrapped copper rod was then inserted into a pipe lined with a bituminous compound, contributing to his project of electrifying New York City.

Although vulcanized rubber emerged in 1844, its application in electrical wiring did not occur until 1880. Rubber-coated cords were standard until the 1930s when metal-sheathed cable, known as armored cable, gained popularity due to its durability, though it was costly and used until the 1950s. It was eventually replaced by two-wire PVC insulated cables.

Today, PVC-coated cords dominate the market thanks to their ability to withstand high temperatures and endure tough use. It has proven to be an effective and robust solution for manufacturing power cords.

Chapter 2: What are the different types of power cords?

Examining the various types of power cords diverges significantly from analyzing other equipment or systems. While most industrial and residential items can be classified by type within a single country, power cords do not follow this straightforward approach. Instead, their types vary depending on the country of origin.

Anyone traveling internationally with devices like laptops, smartphones, or tablets quickly becomes aware of the differences in power cord types, as each country has its own standards for plugs and power supplies. There are 14 distinct plug types used globally. The standards for these plugs have been set by organizations such as the International Electrotechnical Commission (IEC), the National Electrical Manufacturers Association (NEMA), and the International Commission on Rules for the Approval of Electrical Equipment (CEE). These bodies define various male and female connectors for power cords.

AC Power Cords

AC power cords supply alternating current from a power source to electrical equipment or appliances. They are used with applications like electrical power tools, lighting, household appliances, musical instruments, shop equipment, and for personal uses.

AC power cords are composed of several key components: a cable assembly with internal wires, insulation sheathing made from polymer or rubber, and plugs featuring prongs, casings, and wire terminals, each with varying voltage ratings.

Manufacturers adhere to stringent guidelines when producing AC power cords, which include specifications for voltage and current ratings, wire dimensions and shape, overall length, sheathing material, and plug types. The connector interfaces with the appliance or device, while the plug connects to the electrical outlet or power source.

Because different countries utilize various voltages and frequencies for AC power, cords must be compatible with these local standards to function properly. AC plugs are categorized from Type A to Type O, with further subdivisions reflecting minor variations.

Modern AC cords are designed with grounding or polarization features for safety. This is crucial for high-voltage appliances and equipment to minimize the risk of electric shock. Polarization ensures that the equipment connects to the neutral, grounded side of the circuit, thereby enhancing safety. All sensitive electronic devices use polarized or grounded power cords for this reason.

NEMA Power Cords

NEMA power cords are the standard for North American electrical plugs, cord voltage capacities, and electrical receptacle configurations. The most common NEMA plugs used to be Type A with two conducting blades or prongs. Type A plugs have been replaced by Type B, which has an additional third grounding rod. The international configuration of plugs varies extensively with many countries using some form of type A plugs.

Devices that meet NEMA standards are generally designed as either one-wire or two-wire systems, depending on whether they are polarized or grounded. When selecting electrical components, it's important to consider the intended use of the power cord, the type of plug or connectors, the expected energy load, and the specific requirements for power transfer. Note that NEMA standards are specific to North America and do not apply elsewhere. For travel outside North America, having an appropriate adapter for the destination country is essential.

NEMA power cord connectors fall into two main categories: straight blade and locking. Straight blade connectors, commonly found in consumer products, feature metal prongs or blades. These prongs are either flat or folded metal pieces, with the ground pin typically being a round, straight pin.

Locking connectors are used in critical industrial environments where accidental disconnection could pose risks to safety or operations. These connectors have curved blades arranged in sets of three, and they lock into place by twisting the connector when it is plugged in, ensuring a secure connection.

NEMA non-locking and straight connectors are categorized into 25 distinct subtypes, while locking connectors are classified into 24 subtypes. Each subtype within these categories has its own specification codes, allowing for more precise identification of the connectors.

NEMA 5 15p Power Cords

NEMA products are available in ranges from 15 to 60 amperes and 125 to 600 volts, with each type distinguished by specific classifications. For instance, NEMA 1 power cords feature a two-prong design, while NEMA 5 power cords have a three-prong configuration. NEMA 5 devices, which include a grounding wire, are rated for a maximum voltage of 125 volts. Specifically, the NEMA 5-15 rating is a grounded version of the NEMA 1-15 device. Higher classifications, such as NEMA 6 and above, are generally used to supply power to large machinery or household appliances.

While all NEMA 5 15P power cords have three prongs, some are designed with different ends. For cords that are used behind furniture, the head of the cord turns sideways so that it can be flush with the wall. Others have a traditional head that goes straight into the wall. Some NEMA power cords have multiple outlets so that one power source can be extended and used to power several devices at the same time.

Generator Power Cords

Generator power cords are available in a wide range of styles that include 15 amp ratings to 30 amp ones along with a series of different connectors. The most common types of generator power cords are 5, L5, L14, 14, TT and CS, which are related to the receptacle labels where L14-30P means that it is a twist lock, 30 amp plug. There are several options when looking for a generator power cord with different connectors from generator power cord manufacturers, who can produce custom power cords in order to ensure the exact wire sizes and minimize voltage losses for a desired wire length.

When choosing a generator power cord, it's crucial to remember that generators are rated in watts, while generator power cords are rated in amps. Power cords with higher amp ratings can handle more electrical current. These higher amp cords are also thicker, allowing them to manage greater wattage. Most generators come with multiple receptacles, each capable of supporting different amp levels.

Generator power cord plugs vary in type: 3-prong plugs can handle 120 volts, while 4-prong plugs support both 120 and 240 volts. Since many homes are equipped with 240-volt receptacles, 4-prong plugs are often more common. It is advisable to use thicker generator cords because long or thin cords may reduce the power efficiency provided by the generator. Additionally, ensure that the generator power cord has a wattage rating higher than the requirements of the connected electrical device.

Power Supply Power Cords

A power supply cord, or electric cord, serves as a connector between an electrically powered piece of equipment and an electric power source. Power supply cords are used to power lighting and sound equipment, power tools, and household appliances. They consist of copper wire protected and insulated by rubber or some form of polymer and can be detachable or permanently connected.

Power supply cords can be flat or rounded depending on their application and may come in coiled or retractable designs for added convenience. These cords are available in various lengths to facilitate easy connection and storage. Typically, power supply cords are kept short to stay close to the device they power.

The amperage rating of a power supply cord is determined by the device it powers. This rating indicates the maximum current the cord can safely carry and is crucial for ensuring optimal performance. Power supply cord gauges range from 18 to 10, with 14 being the most commonly used. Additionally, voltage ratings for power supply cords vary based on the country of use. In the United States, standard voltages are 110V or 120V, while European countries typically use 220V to 240V. Other countries may have standard voltages ranging from 100V to 127V.

Cord Sets

Cord sets conduct electricity and involve a conductor, such as copper wire, insulation material, and a protective covering. Other components include electrical fuses to prevent surges in voltage, a current leak detection component, and a method for monitoring voltage. With sensitive equipment, protective material is included to minimize the effects of electromagnetic interference (EMI).

The structure of cord sets consists of a molded plug and a country appropriate molded connector. Cord sets are designed to connect directly to the power supply and provide power to an appliance, application, or process. An essential aspect of cord sets is ensuring that they have the proper plug pattern for where they are used. As with all forms of power cords, the amperage and voltage rating should match the requirements of the equipment to be powered.

Cord sets are utilized across various settings, including retail, commercial, industrial, and residential environments, and are typically used with AC power. Extension cords are a type of longer cord set that allows for electricity to be supplied from a main power source over distances of up to hundreds of feet.

The National Electrical Manufacturers Association (NEMA) establishes standards for the manufacturing and quality of cord sets, electrical plugs, voltage ratings, and receptacle configurations in North America to ensure operator safety. International standards govern the electrical cord components used in other countries, which may have different voltages and plug configurations.

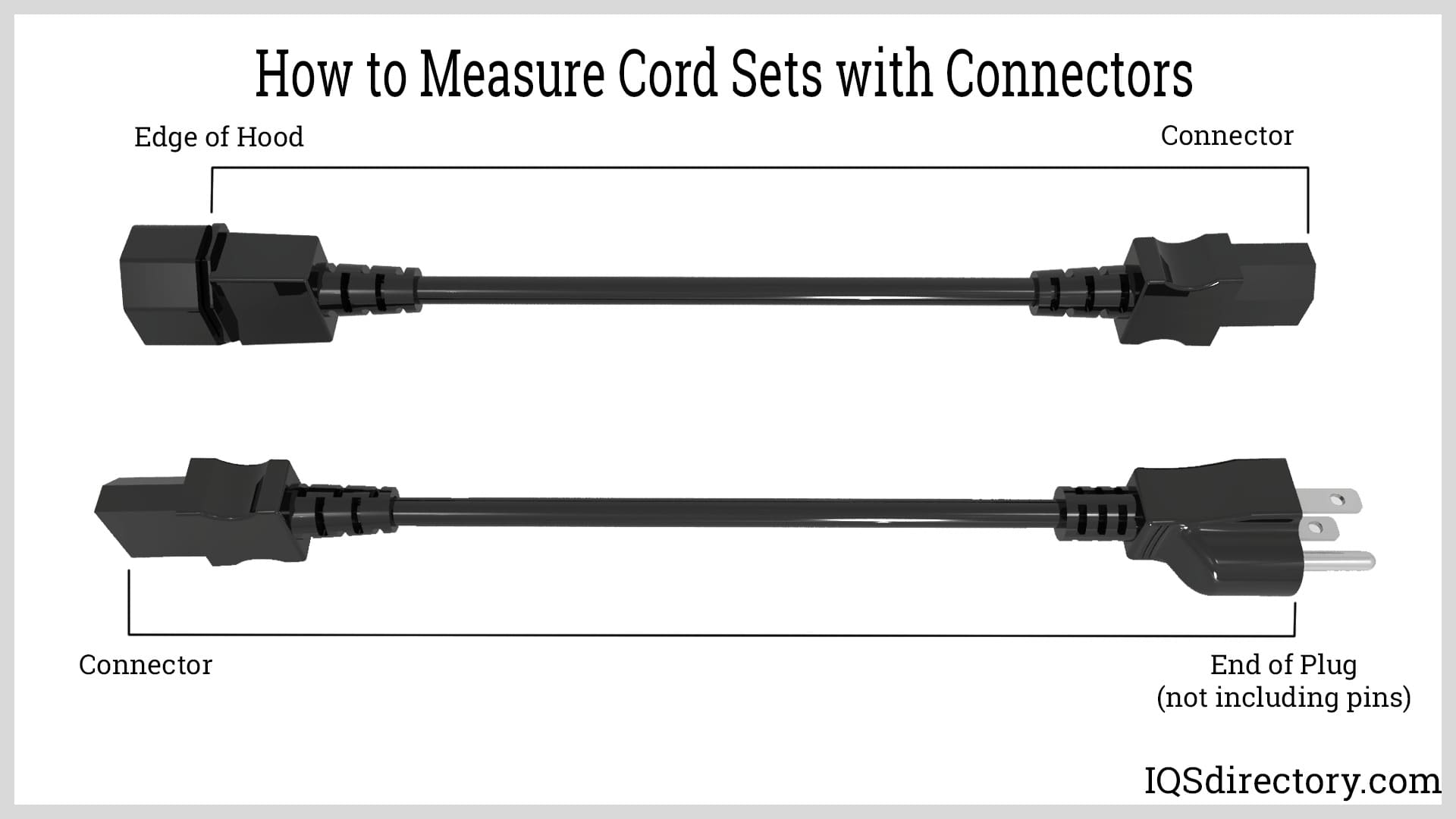

One crucial aspect of cord sets is their length, which varies based on their intended use. It is important to adhere to specific standards when measuring a cord set to ensure that the correct length is used for each application.

Custom Power Cords

When choosing custom power cords, it is important to know the limitations and challenges of an application before consulting a custom power cord manufacturer. Custom power cords are designed for a specific application and process. They are minutely engineered to fit a set of predetermined conditions and may not adhere to NEMA standards due to their unique design. Typically, custom power cords include the heaviest wire and grounding pin. Wet applications require custom power cords with a sealed plug to prevent moisture from getting into the receptacle.

The color of custom power cords are a safety measure that is used to indicate certain types of cords. Brightly colored cords reduce hazards and make it easy to identify the location of a power cord. Some custom power cord designs include surge protectors to protect tools or machines.

Custom power cords offer a range of options tailored to specific needs, including precise length, amperage, strength, durability, and the number of outlets. Manufacturers collaborate closely with customers to ensure that the custom power cord meets all design specifications. The primary goal is to create a power cord that exactly fulfills the customer’s requirements and application needs.

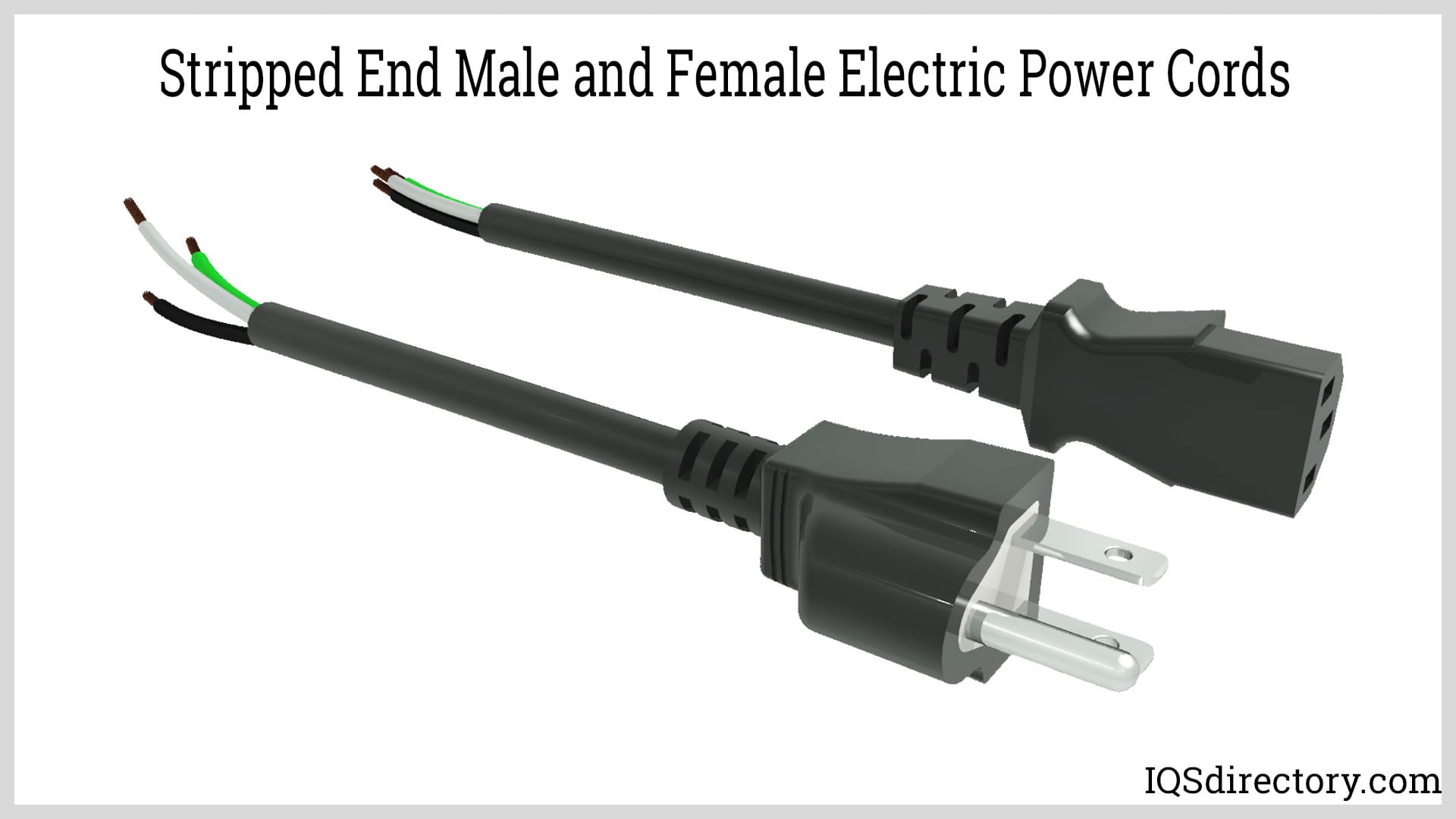

Electric Power Cords

Any piece of electrical equipment that requires connection to a power source, such as machinery, domestic appliances, and computers, has an electric cord, which can be flexible or semi-rigid. For the cord to transfer electrical energy successfully and safely between the power source and the appliance, the connection between the plug and the receptacle of an electric power cord are tightly fitted.

Electrical receptacles, also known as female connectors, are made from insulating materials such as nickel, silver, galvanized steel, or plastic. Standard receptacles are designed for 120-volt systems, while higher voltage applications, like industrial machinery, use heavy-duty 240-volt receptacles. Most modern power cords include a ground pin for polarization.

Non-detachable power cords are permanently wired into equipment or appliances and are not designed to be removed. These cords feature a plug and a strain relief connector, which is attached to the equipment using a double-crimped lug or ring terminal. The design and specifications of non-detachable power cords vary depending on the type of equipment they are connected to, and it's important to monitor these cords closely to prevent damage.

Detachable power cords, commonly used both in residential and industrial settings, are also known as line cords. They consist of a flexible cord with male and female electrical connectors. The male end features a molded plug with prongs or blades, while the female end has a molded receptacle. The molding of the cord ends ensures that the prongs or blades are enclosed, protecting them from exposure.

Chapter 3: What are NEMA power cords?

NEMA power cords are cables equipped with plugs and connectors designed for alternating current (AC) power, as specified by the National Electrical Manufacturers Association. Established in 1926, NEMA aimed to create standardized electrical power supplies to enhance consumer safety. NEMA has developed standards for plugs and receptacles to ensure compatibility across all electrical systems in the United States.

NEMA connectors are initially categorized into two main types: straight blade non-locking and curved blade locking. The straight blade connectors feature a neutral wire, hot wire, and a grounding pin or wire. They plug directly into wall outlets and are rated for current from 15 amps to 60 amps and voltage from 125 V to 600 V. Non-locking blade connectors are commonly found in residential settings.

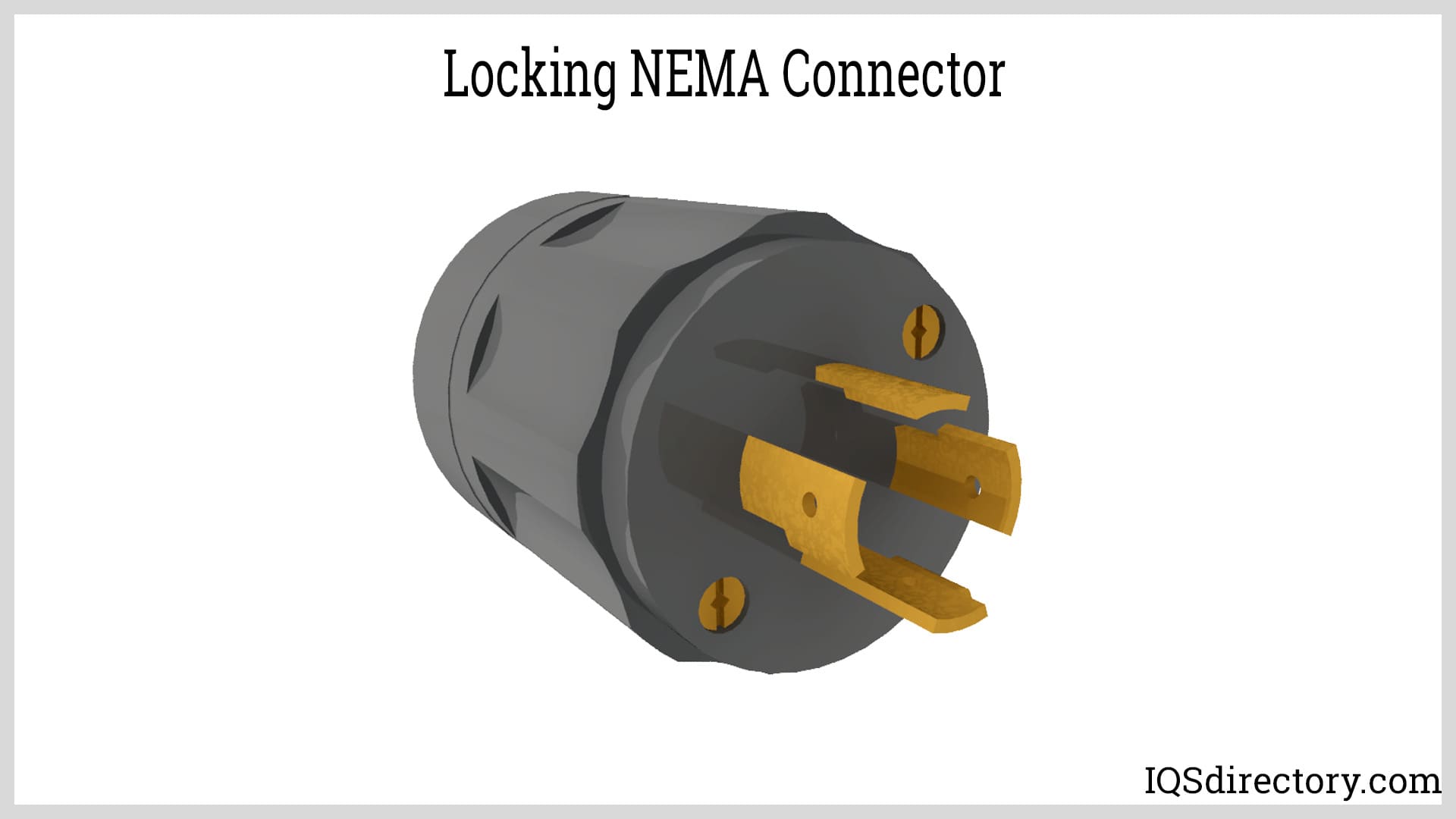

Curved blade locking connectors offer enhanced security with a locking mechanism. These connectors plug into wall outlets and are twisted to secure them in place, preventing accidental disconnections. They consist of a neutral conductor, hot conductor, and ground. Locking connectors are often utilized in industrial and commercial environments due to their secure connection.

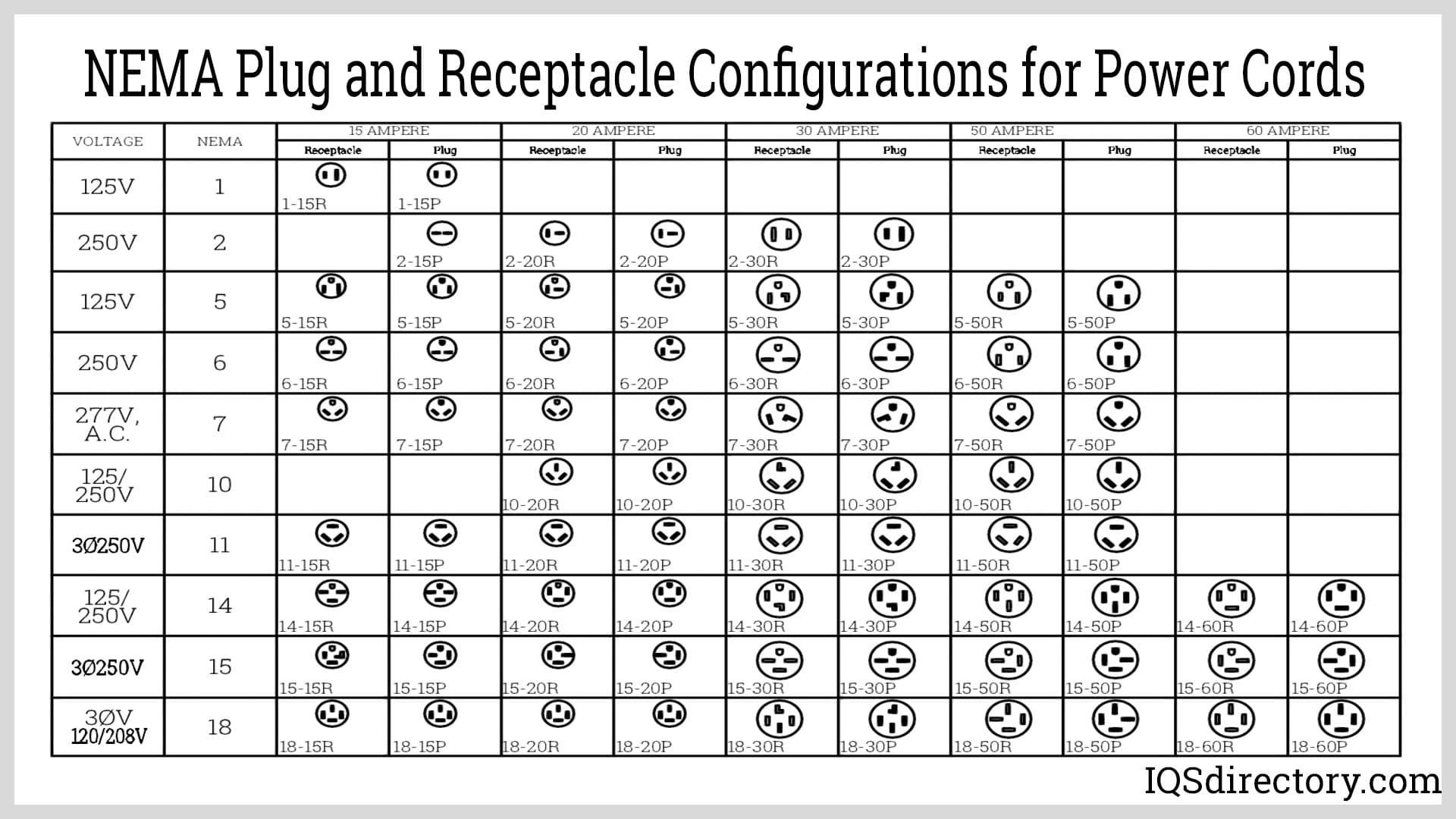

There are 25 types of non-locking NEMA plugs and receptacles, numbered from NEMA 1 to NEMA 24, including the travel trailer connector NEMA TT-30. NEMA 2 and NEMA 10 have been phased out and replaced by newer types. Among these, NEMA 1, NEMA 5, NEMA 6, and NEMA 14 are the most frequently used, with NEMA 1 being the most basic, featuring two blades and no grounding pin.

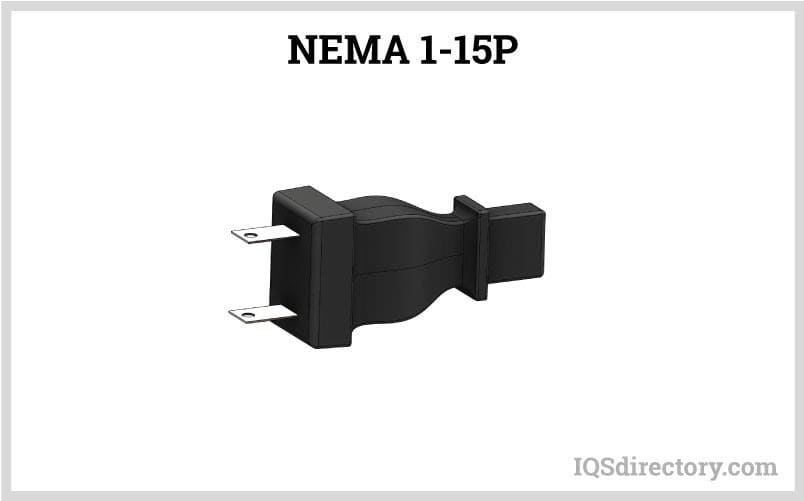

NEMA 1 plugs and receptacles, rated for 125 V, are typical in household applications. However, their use has declined in favor of grounded plugs and receptacles, which offer enhanced safety.

NEMA locking connectors are designated from NEMA L1 to NEMA L23 and are categorized into three main types: two-pole ungrounded, two-pole grounded, and three-pole ungrounded. These connectors are rated for 125 V and include midget locking plugs labeled with "ML." The "L" in the NEMA designation signifies that the connector features a locking mechanism. Among the various locking connectors, NEMA L5, NEMA L6, NEMA L7, NEMA L14, NEMA L15, NEMA L21, and NEMA L22 are the most frequently utilized.

NEMA Codes

To standardize electrical connectors, the National Electrical Manufacturer’s Association (NEMA) established a naming convention. This system uses a pair of numbers to define connectors: the first number indicates the plug configuration, including voltage rating, number of poles, and wires. The second number, separated by a dash, denotes the current rating, with standard values being 15 amps, 20 amps, 30 amps, 50 amps, and 60 amps. For instance, NEMA 5-15 describes a two-pole, two-wire connector with a 125 V voltage rating and a 15 amp current rating.

Additional letters can be used for further specification of connectors. For example, a letter "L" before the first number signifies that the connector is locking. An example would be NEMA L5-30P, which is a locking plug with two poles, two wires, a voltage rating of 125 V, and a 30 amp current rating.

Although NEMA standards are widely adopted, non-NEMA plugs are still in use, often tailored for specific applications and not covered by NEMA regulations. These non-standard plugs can vary significantly in quality concerning their blades, wiring, and grounding features.

Chapter 4: What are extension cords?

Extension cords supply power to equipment and are used in locations that do not have a convenient power source such as construction sites, emergency medical defibrillators, and power tools. They have a long cable that has a power plug at one end and receptacles at the other end and can be used as power adapters or “adapter cords”. Available in countless numbers of designs and options, extension cords are the best accommodation for a room that does not have a sufficient number of power boards.

When selecting an extension cord, flexibility is a crucial factor, as they vary in size, gauge, construction, and intended use. Unlike permanently installed power supplies, extension cords are meant for temporary use, although they are built to be rugged and durable. Extension cords are categorized into light duty, medium duty, and heavy duty types.

• Light Duty Extension Cords - Light duty extension cords are the least expensive of the extension cords and are very similar to lamp wired cords. They are typically used to connect lamps, clocks, chargers, and other devices with amperage of less than 7 amps.
• Medium Duty Extension Cords - Medium duty extension cords have wiring similar to light duty extension cords with an amperage rating of 10. They are used to connect televisions, computers, music players, and speakers. The 16 AWG versions have cords up to 25 feet while the 14 AWG versions can have cords up to 50 feet. The longest medium duty extension cords are for the 12 AWG versions, which can be up to 100 feet.
• Heavy Duty Extension Cords - Heavy duty extension cords have amperage of 15 amps and come in sizes of 14 AWG at 25 feet, 12 AWG at 50 feet, and 10 AWG at 100 feet. They are used to connect space heaters and appliances.

Letter Codes for Extension Cords

Similar to NEMA codes, extension cords use a letter coding system to specify their usage capabilities. This system includes six letters—S, W, J, T, P, O, and E—each with various subcategories. For example, the code SJOOW represents a heavy-duty, portable service extension cord suitable for both indoor and outdoor use. It features synthetic rubber insulation and a neoprene rubber jacket for added durability.

Chapter 5: What are power cord splitters?

Power cord splitters, also referred to as cord splitters or power cable splitters, enable the use of a single outlet to power multiple devices. They split a single power source into several outlets, increasing the number of available electrical connections. These splitters come in various configurations, including three-way, four-way, and more complex designs.

Although power splitters may be assumed to be a version of extension cords, they have a very striking difference. Splitters are designed to provide power to devices that are in close proximity to the power supply, which is unlike extension cords that provide power at a distance from the power supply. Power cord splitters are used in relation to the power load they are able to handle and are a safe solution for multiple power distributions.

A power cord splitter enables the connection of two or more devices to a single outlet. Commonly used in home entertainment setups, computer systems, workshops, and office environments, these splitters are available in 10 or 15 amps and can handle voltages of 125 V or 250 V. They come in various wire gauges, including 12, 14, 16, or 18, with heavier gauges designed for more demanding applications.

Leading Manufacturers and Suppliers

Chapter 6: What are electrical receptacles?

Electrical receptacles are crafted from various insulating materials, including nickel, silver, galvanized steel, or plastic. These receptacles serve as the entry points for plugging in devices to access electrical current. Most standard receptacles operate on a 120-volt system, while higher voltage receptacles, such as those rated for 240 volts, are used for heavy-duty equipment like industrial machinery. All receptacles must be properly grounded. For scenarios where multiple devices need to be connected, cord splitters facilitate the use of a single receptacle for several devices, with options available to accommodate different wire sizes and voltage levels.

Specifications for electric cords include factors such as cable temperature, jacket materials, wire configuration, wire size, cord length, current rating, voltage rating, and the types of plugs and receptacles used. In North America, the National Electrical Manufacturers Association (NEMA) sets the standards for these configurations and voltage capacities.

The NEMA system, as well as other international sets of standards, assist in maintaining consistency in fabricating electric cords to minimize the risk of malfunctions. Polarizing, or grounding, reduces the risk of electric shock or electrocution, which allows the plug to be inserted in only one direction to the socket ensuring the connected circuit is neutral, or grounded.

Electrical plugs vary globally, as do the types of outlets or receptacles. While the three-prong grounded version is commonly used, some regions still use two-prong designs. Many of these designs allow the plug to be inserted only in one direction, with prongs positioned at an angle.

Electrical receptacles can pose risks such as electric shocks, power surges, or fires. Self-testing receptacles provide protection by conducting automatic tests on the device every second to detect potential hazards.

Self-testing receptacles are equipped with features to prevent overloads or short circuits. They alert users to the need for a Ground Fault Circuit Interrupter (GFCI) replacement with a flashing light when a fault is detected. These receptacles also include a ground terminal back wire clamp, an auto ground clip, and two back wire holes per termination to offer flexibility and save space within the electrical box.

Most electrical receptacles operate on alternating current and include live (or phase), neutral, and ground components. They are constructed from insulating materials like nickel, silver, plastic, and galvanized steel, typically featuring three slots to accommodate two prongs and a grounding prong.

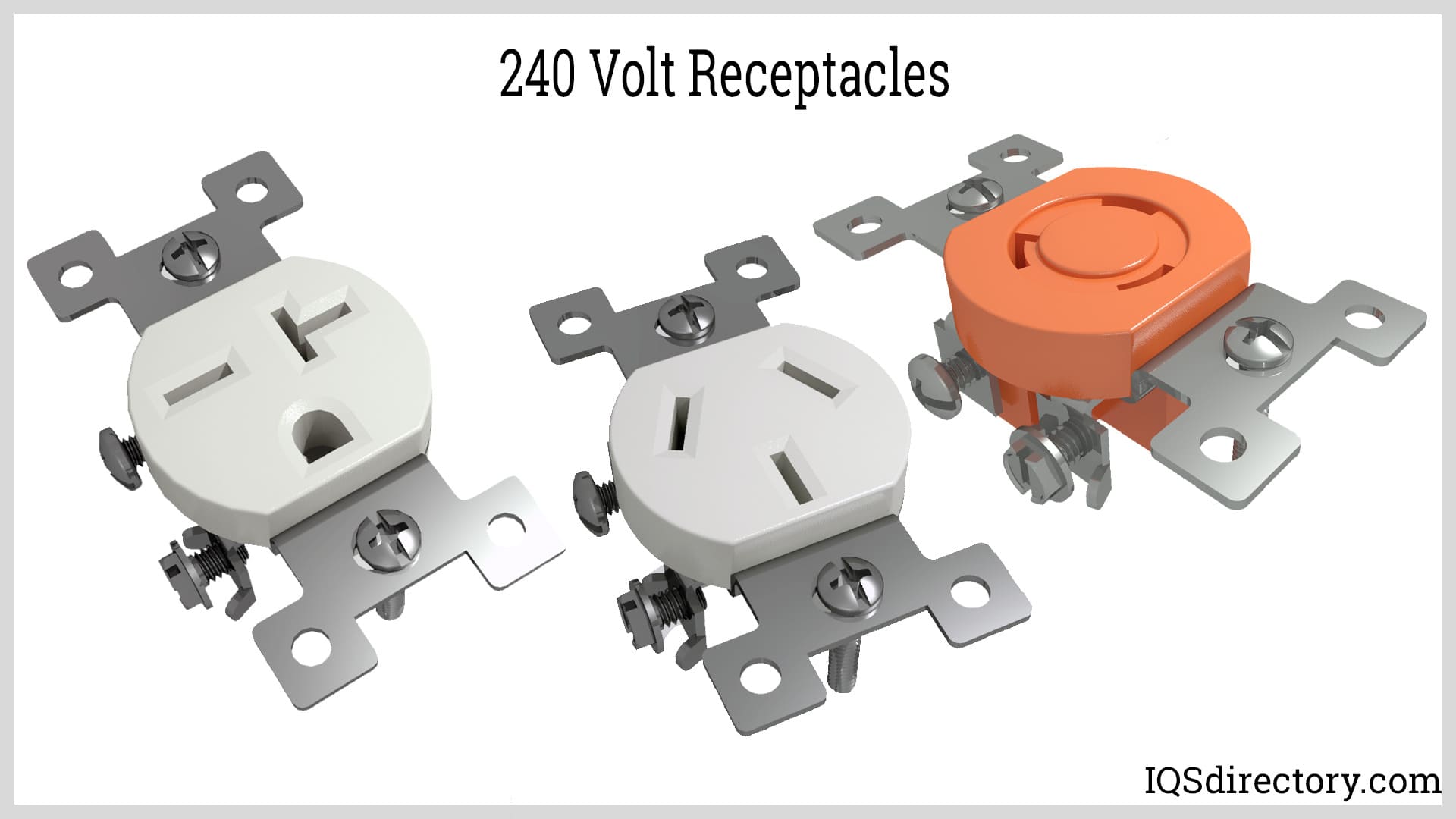

Electrical receptacles in the United States use a standard 120-volt system. Heavy-duty, 240-volt receptacles are designed for equipment with higher voltage such as electric ranges or industrial machinery. Aside from standard grounding or polarization, other safety features for receptacles include tamper and corrosion resistance for uses in harsh or hazardous conditions.

Chapter 7: What are plug adapters?

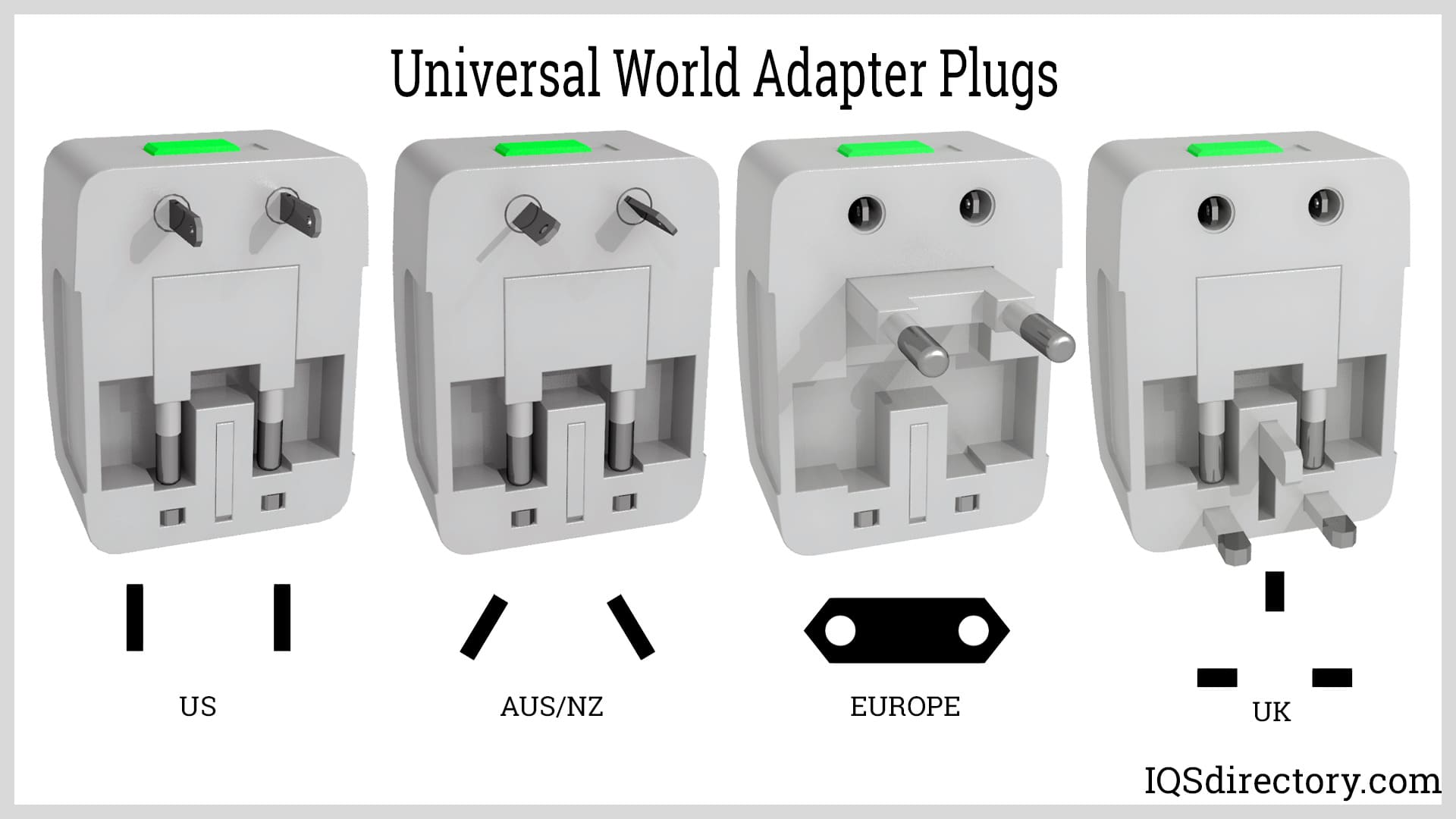

Plug adapters are designed to enable plugs from various devices to fit into different types of outlets. They typically allow three-prong plugs to be used with older two-prong outlets by bypassing the grounding pin. However, plug adapters are not a long-term solution and should be used cautiously. They are generally suitable for locations with a metal breaker box and an established grounding system.

Plug adapters, or plug converters, allow electrical devices to connect to sockets and plugs that are incompatible, which is determined by the configuration of the electrical receptacle where the prongs of the plug do not match the holes of the receptacle. Aside from making it possible for unlike plugs to connect, a plug adapter can also step voltage up or down to even out electrical differences. Voltage adapter converters are necessary for higher or lower voltage systems where electrical equipment will overload a device or not provide enough power.

In the United States, plug adapters commonly accommodate two-prong receptacles that lack a grounding pin. These adapters are particularly crucial for international travel, as different countries use various types of outlets and voltage levels not compatible with those in the U.S.

Plug adapters generally feature a socket and a plug. The socket is designed to connect with the electrical device, while the plug aligns with the configuration of the power source, typically a wall outlet. Universal plug adapters are equipped with a socket that can fit plug types from nearly any country, though they typically do not cover South Africa.

Chapter 8: What are electrical plugs?

The most prevalent plug types include Type A, which has two prongs for conducting, one for live and one for neutral connections, and Type B, which adds a third prong for grounding, enhancing safety against electrical shock. Both plug types feature a plastic casing, known as a "jack," that separates the two prongs and connects them to the cord through the plug body.

Electricity flows through the blades, the blade-cord connection, and the power supply cord. Safety standards for electrical plugs were established in 1962 requiring all plugs to be three pronged grounded plugs forcing the plug to be connected to a socket in only one direction.

Globally, there are 15 distinct plug types, ranging from Type A to Type O. Type A, which features two prongs, is largely obsolete. Since 1962, Type B, which includes a grounding prong, has been the standard in the United States, Canada, and Mexico. Other types, from C to O, are used across various regions worldwide, with Type C commonly found in Europe, South America, and Asia.

Chapter 9: What are plug outlet covers?

Outlet plug covers are safety additions that help prevent accidents and injuries from electrical shock. They protect outlets from environmental hazards and temperature changes. Plug covers allow electrical cords to be plugged and unplugged while blocking access to the receptacle when it is not in use.

For harsh or corrosive environments, specialized plug outlet covers are essential. These covers are designed for durability and resistance to extreme conditions. While dummy covers can provide some protection, a full switch cover with a closing door offers more robust security. These covers are typically made from durable plastics to withstand tough environments.

In addition to outlet covers, various accessories such as cord grips, dust shields, and tamper-resistant covers are also used. For the most demanding and hazardous environments, industrial-grade grounding systems are employed to ensure safety and reliability.

• Dummy Plugs – Dummy plugs are childproof and keep receptacles clean and free of dirt and dust. They can be plugs or caps that are inserted into a receptacle’s plate holes with a self-closing cover that slides or swings open when the outlet is to be used.
• Weatherproof Plugs/Plates – Weatherproof plates are gasketed, self-closing, and are used in wet or damp locations. They protect against fine particles and splashing.
• Twist-Lock Plugs/Plates – Twist-lock plug plates are intended to minimize disconnections. One-piece locking plugs, connectors, and receptacles terminate wiring for easy connection.
• Anti-Dust Caps – Anti-dust caps provide a secure fit to protect female DC power jacks or male DC power plugs from physical damage, dirt, dust, grime, and liquids.

Conclusion

• A power cord is a line cord or electrical cable that connects various devices to an electrical power supply to provide electrical current
• The standards for the different types of power cords have been established by International Standards (IEC), the National Electrical Manufacturers Association (NEMA), and the International Commission on Rules for the Approval of Electrical Equipment (CEE).
• Every power cord is composed of a set, which includes a plug, socket, and cord.
• The simplest way of describing a power cord splitter is to simply say that it allows the plugging in of two or more machines or tools into a single outlet.
• As the types of plugs vary in the world, so do the types of outlets, receptacles, or sockets.
