Ultrasonic Cleaners

Chapter 1: What is an Ultrasonic Cleaner?

An ultrasonic cleaner is a cleaning device that uses mechanical vibrations to produce sound waves in a solution that lead to microscopic implosions of bubbles creating a vacuum-like scrubbing action that removes contaminants and dirt, a process known as cavitation. The combination of cavitation, sonic irrigation, and detergents provides a highly efficient cleaning system for delicate, sensitive, and precision instruments and devices. The effect the compression and refraction of the cleaning medium as the miniscule vibrations spread throughout at ultrasonic frequencies.

The effectiveness of the process is dependent on the design of the ultrasonic system and its frequency and power density, which are the main factors when purchasing an ultrasonic cleaner.

How Does Cleaning Happen?

Cavitation is a physical phenomenon that occurs when there is a presence of fluctuating high-pressure regions that oscillate in short periods. In an ultrasonic cleaning machine, the fluctuating pressure is created by transmitting a wave into the cleaning solution at an extremely high frequency. Tiny bubbles or voids are formed, which instantaneously implode. The implosions produce small but powerful shockwaves. These shockwaves are invisible to the naked eye, but at the microscopic level, they chip away debris from the part being cleaned.

In other industrial equipment, cavitation is considered as a severely damaging event which can easily erode metal parts such as pump impellers and casings. That is why when used in cleaning applications, cleaner process parameters must be carefully controlled. Producing strong cavitation may damage the part being cleaned.

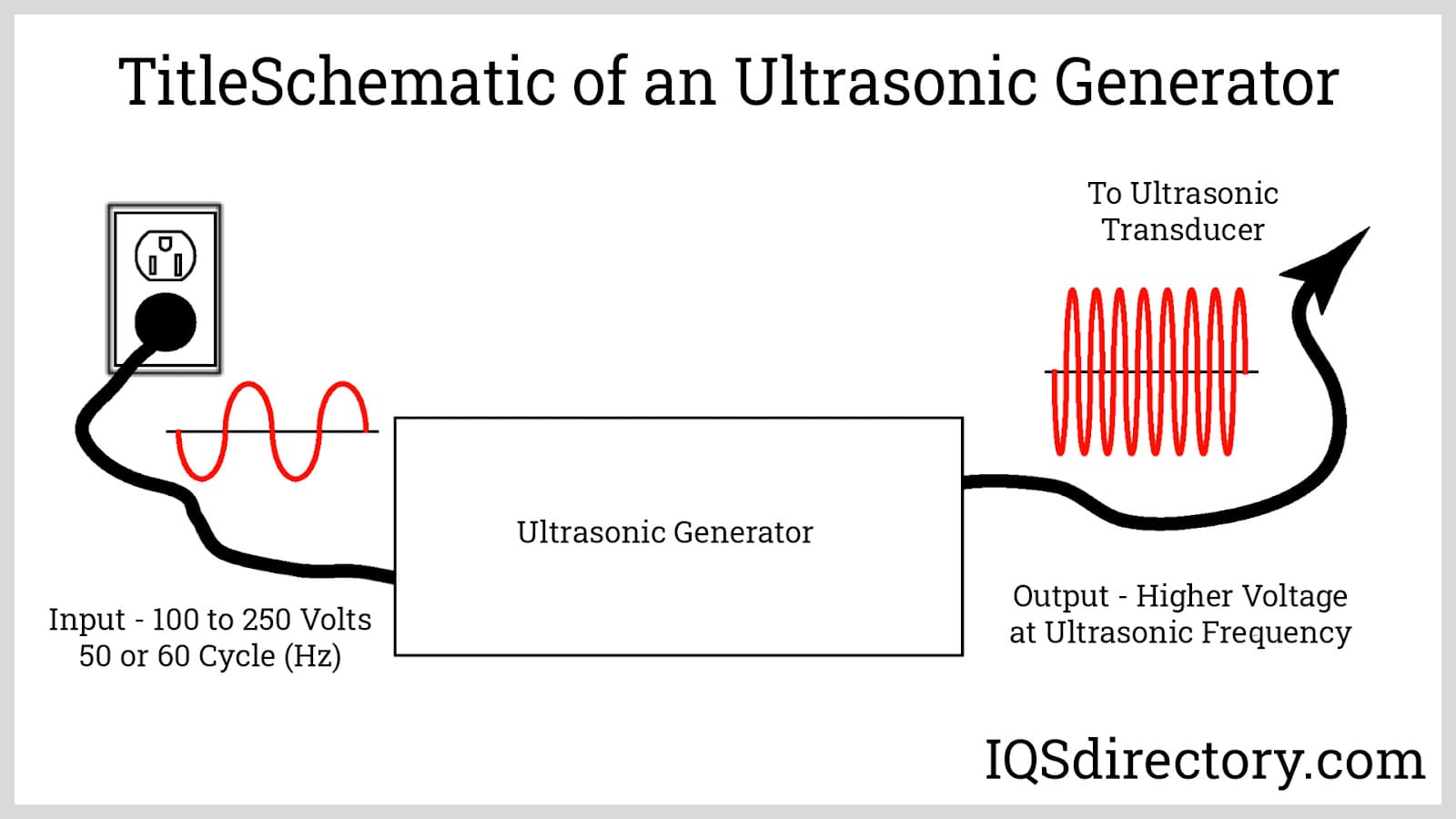

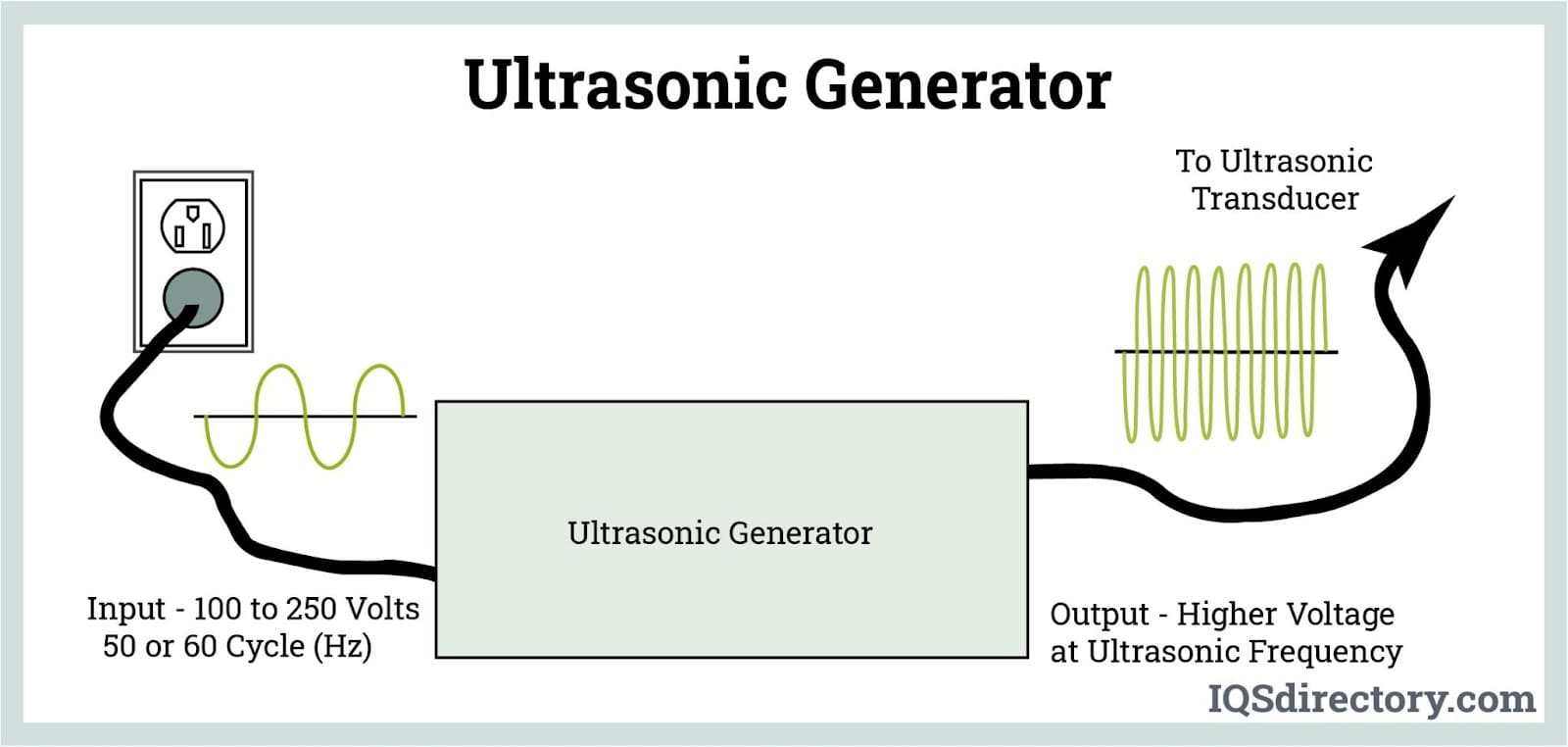

An ultrasonic cleaner is composed of three main parts: generator, transducer, and tank. The ultrasonic generator is the main component responsible for receiving utility power and converting it to an electrical signal. This electrical signal oscillates at the target process frequency. The standard utility power frequency is typically at 50 or 60 Hz. In contrast, the generator output frequency is thousands of times higher, ranging from 20 kHz to 80 kHz. Megasonic frequencies, or 100 kHz and above, are also now possible with today’s technology.

The second part is the ultrasonic transducer that converts electrical signal into mechanical vibrations. This is achieved either through the inverse-piezoelectric effect or the magnetostrictive phenomenon. Upon applying an electric signal, the piezoelectric/magnetostrictive material changes its dimensions in the order of 1 to 0.1 microns.

A magnetistricive transducer is a form of mechanical transducer that operates on the idea that ferrous metals expand and contract in a magnetic field. The expansion and contraction causes the canister of the ultrasonic cleaner to resonate and generate mechanical ultrasonic waves in an elliptical motion.

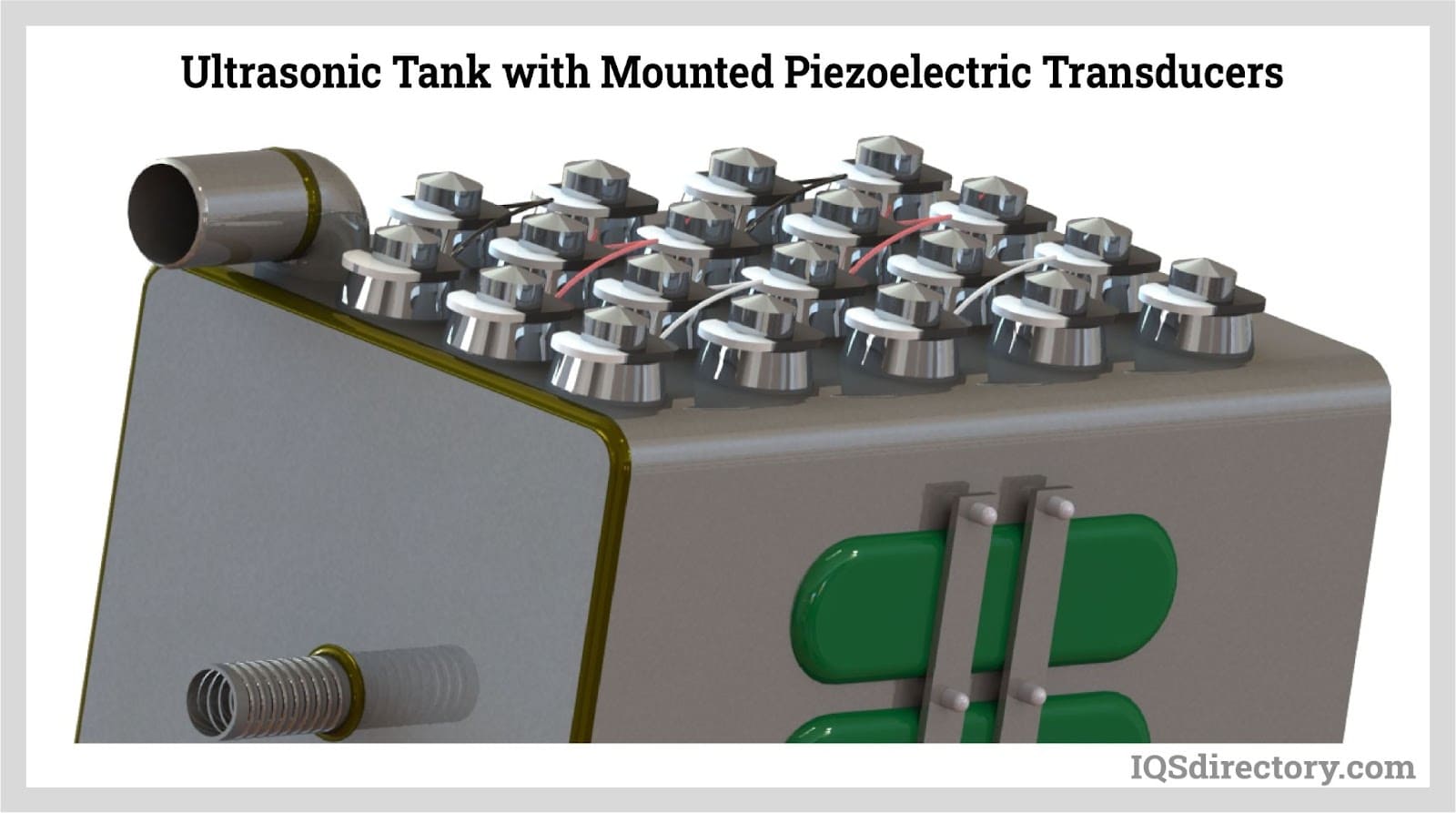

Piezoelectric transducers have crystals with electrical properties. When electricity passes through the crystals, they change shape and produce linear vibrations. Piezoelectric transducers are mainly used in Europe and Asia.

The type of transducer is a key factor to the ultrasonic process. Originally, metal transducers were used to create mechanical vibrations. They produced more aggressive vibrations and damaged instruments. Modern ultrasonic cleaners use ceramic transducers that are gentler and more effective.

The last major part is the ultrasonic cleaner tank. The tank is used to contain the cleaning solution and the part. This is also where the transducers are mounted. Most tanks are made of corrosion-resistant materials such as stainless steel. Some, however, are made from other materials such as plastics and ceramics. Tanks vary in size in accordance with the number of gallons of solvent they can contain and are designed to last and are highly durable.

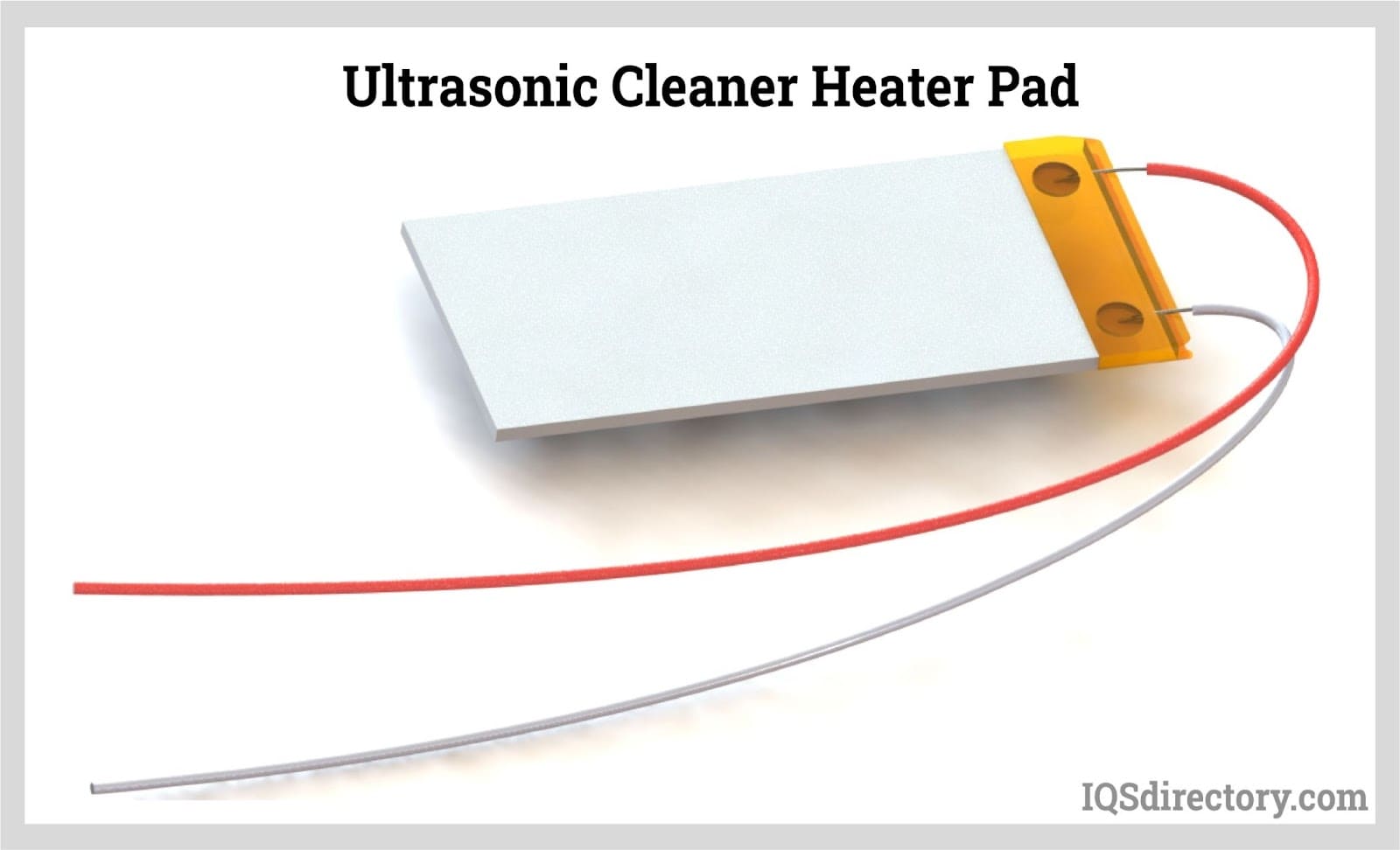

Other components of ultrasonic cleaners include a heater and strainer basket. The heater is used to control the temperature of the cleaning solution. In physics, the strength of cavitation depends on the vaporization pressure of the fluid, and thus, the temperature. Precisely controlling the temperature will greatly affect cleaning quality and care for the part.

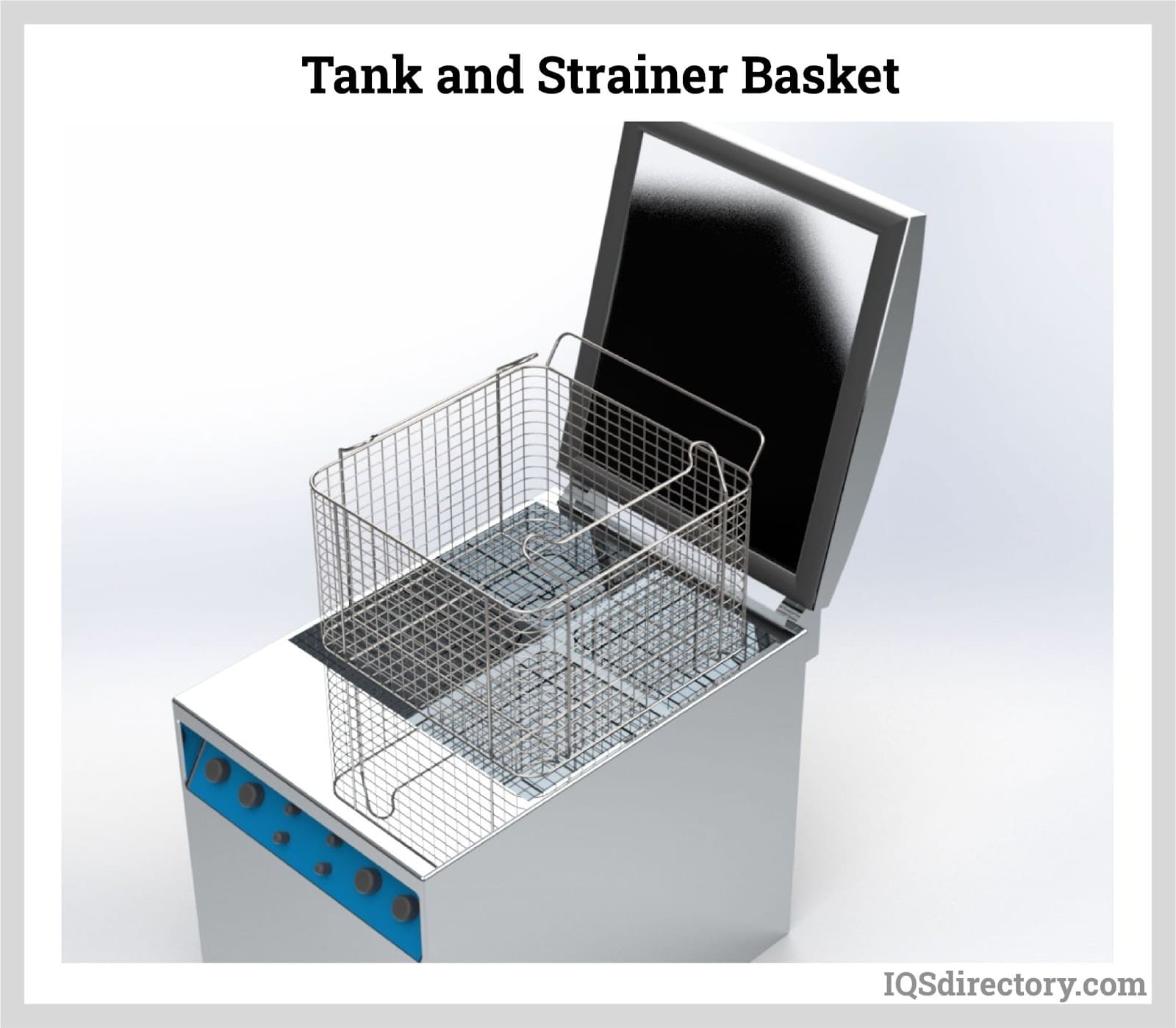

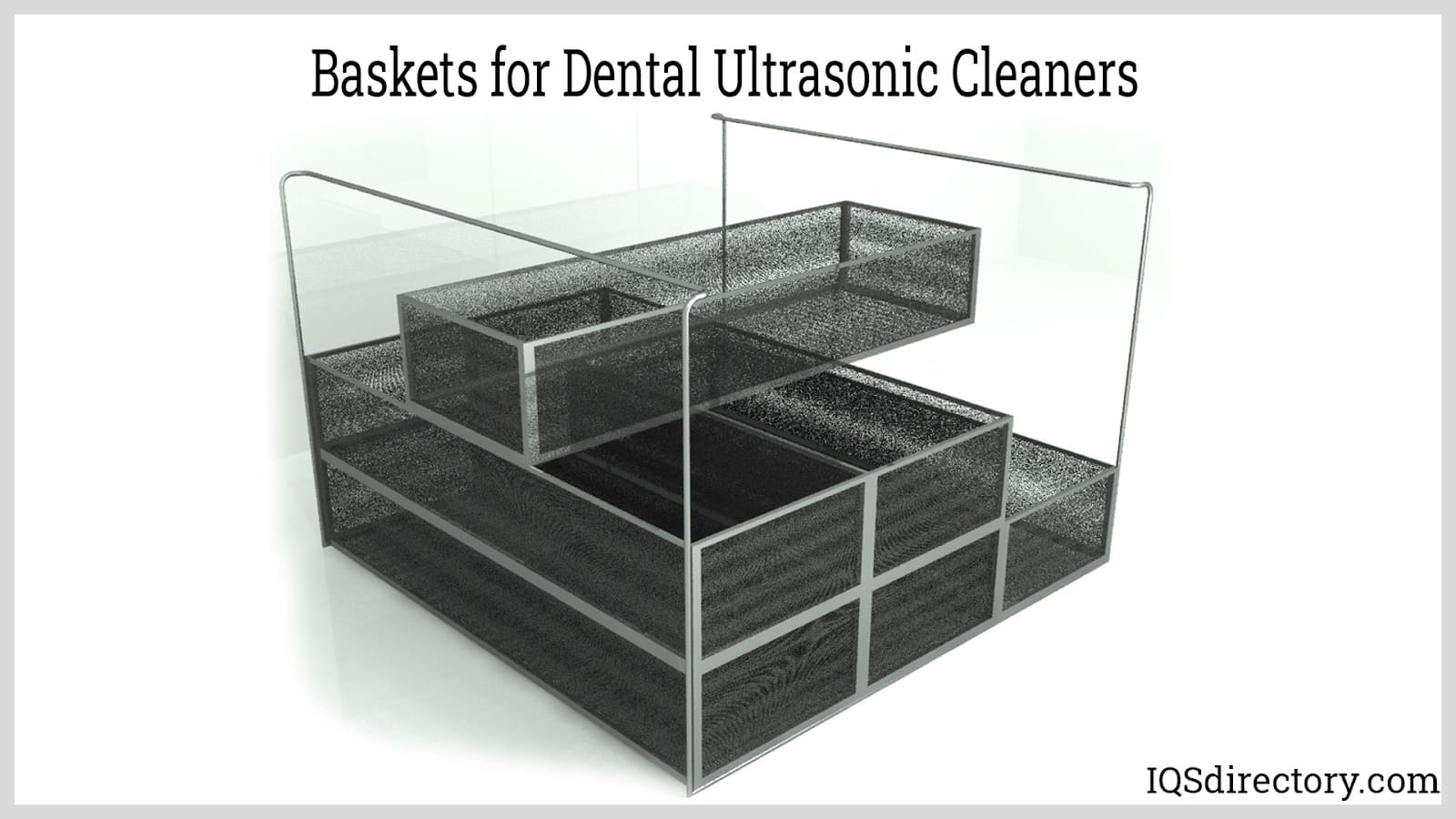

The strainer basket holds the part in place while it is submerged. Most setups do not allow the part to touch the bottom or sides of the tank since it can affect the quality of vibrations being sent to the cleaning solution.

Chapter 2: Advantages of Ultrasonic Cleaners

Ultrasonic cleaners have gradually become accepted as an alternative cleaning method in a vast array of industries. Its typical applications include medicine, dentistry, electronics, plastics, metal processing, and machine parts manufacturing. Below are several benefits of using ultrasonic cleaning machines.

• Highly Suitable for Delicate Parts: Unlike traditional cleaning methods such as brushing, polishing, scrubbing, water jet or spray cleaning, compressed air cleaning, and chemical cleaning, ultrasonic cleaning does not damage the part being cleaned. Aside from dirt and debris, mechanical and chemical tools can remove some surface material from the part being cleaned. This can cause unpleasant surface defects, scratches, corrosion, and discoloration. This makes ultrasonic cleaners highly suitable for cleaning delicate and sensitive items such as jewelry, dental and surgical equipment, microelectronics, and intricate machine parts.

• Precise and Uniform Cleaning: Ultrasonic cleaner works by applying vibrations throughout the whole cleaning medium. Thus, all wetted surfaces are cleaned at the same rate. This helps prevent excessively cleaning a specific region which may eventually cause damage to the part. Moreover, by properly wetting the part, even hard-to-reach places such as crevices and cavities are reached and cleaned thoroughly.
• Faster and More Thorough Cleaning: Ultrasonic cleaners are both quick and effective. The usual time of cleaning is only 10 to 15 minutes, even for the most delicate of parts. Cleaning only takes one cycle. More cycles are usually not needed to increase cleaning effectiveness. Its speed is also attributed to multi-tank setups where multiple parts can be cleaned at the same time. The parts are submerged in several tanks which comprise only one ultrasonic cleaner unit.

• Able to Remove Most Contaminants: Ultrasonic is not limited to removing dirt, but other unwanted materials as well. Examples of these are mineral deposits, rust, oil and grease, carbonized material, plastic and elastic residues, pigments, molds, and proteins. This makes ultrasonic cleaners a piece of all-around cleaning equipment. Targeting various debris is easily achieved by changing the machine parameters and using the appropriate cleaning solution.
• Relatively High Power Efficiency: Compared to other mechanical cleaning methods, an ultrasonic cleaning process takes less power. Other methods use motors, pumps, and compressors, which consume a lot of power while converting only a small amount into actual cleaning action. Ultrasonic cleaning, on the other hand, can easily convert electrical energy into vibrations. The ultrasonic generator has an efficiency of 95%, while the transducer has 65% to 70%. The overall efficiency of ultrasonic cleaners, particularly the piezoelectric types, can reach around 70% or higher.

• Takes Minimal Space: Ultrasonic cleaners are compact and space-efficient. It only needs the tank to contain the cleaning bath and the part. No other equipment and accessories are needed. In some setups, another tank is used to rinse the solution. This is entirely different from other cleaning methods such as chemical cleaning which uses multiple chemical baths, or water spray, and compressed air cleaning, which uses pumps and compressors to pressurize its cleaning medium.
• Easy to Operate: The controls of ultrasonic cleaners are mostly digital, and some are even automatic. Most tabletop machines only require an input of cleaning time from the user. Industrial and manufacturing ultrasonic cleaners can modify parameters such as temperature, power density, wave amplitude, and frequency. After setting the operating parameters, the operator only needs to submerge the part into the tank and let the machine do its work. Rinsing is usually done afterward. This straightforward process sits in contrast with other methods which need an operator throughout the cleaning process.

Chapter 3: Different Ultrasonic Cleaning Machines

There are different kinds of ultrasonic cleaners available in the market. They mostly differ according to the type of part or material they are designed to clean. Each is tuned for a specific application.

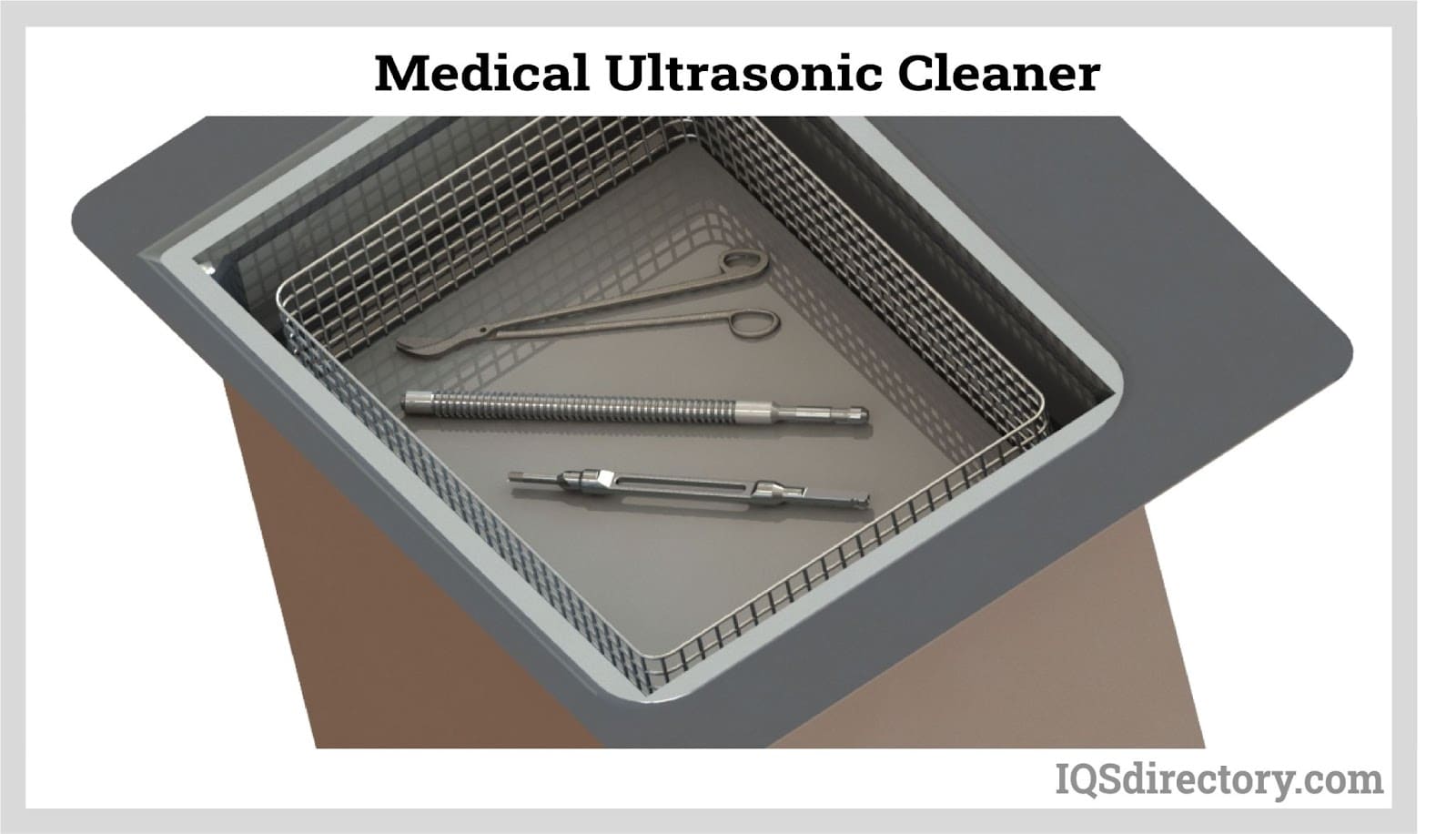

• Medical and Dental Ultrasonic Cleaners: Ultrasonic cleaners can remove blood, tissue, and protein-based contaminants, which is achieved while maintaining the delicate surface of the instrument. They are used to prepare instruments for the sterilization process since they can attack most contaminants. Common medical and dental items prepared for sterilization are surgical instruments, implants, surgical screws and fasteners, needles, blades, cutters, labware, and more.

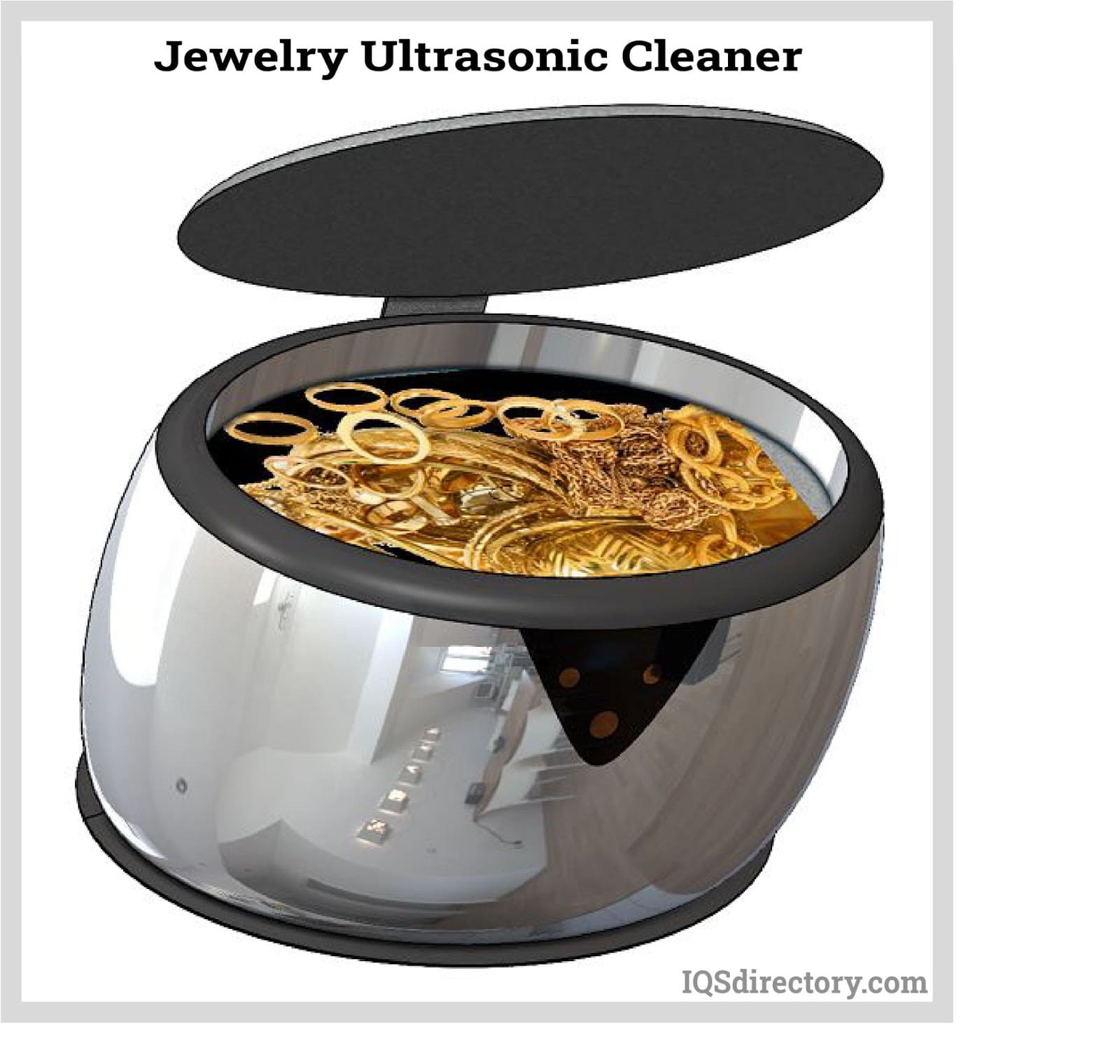

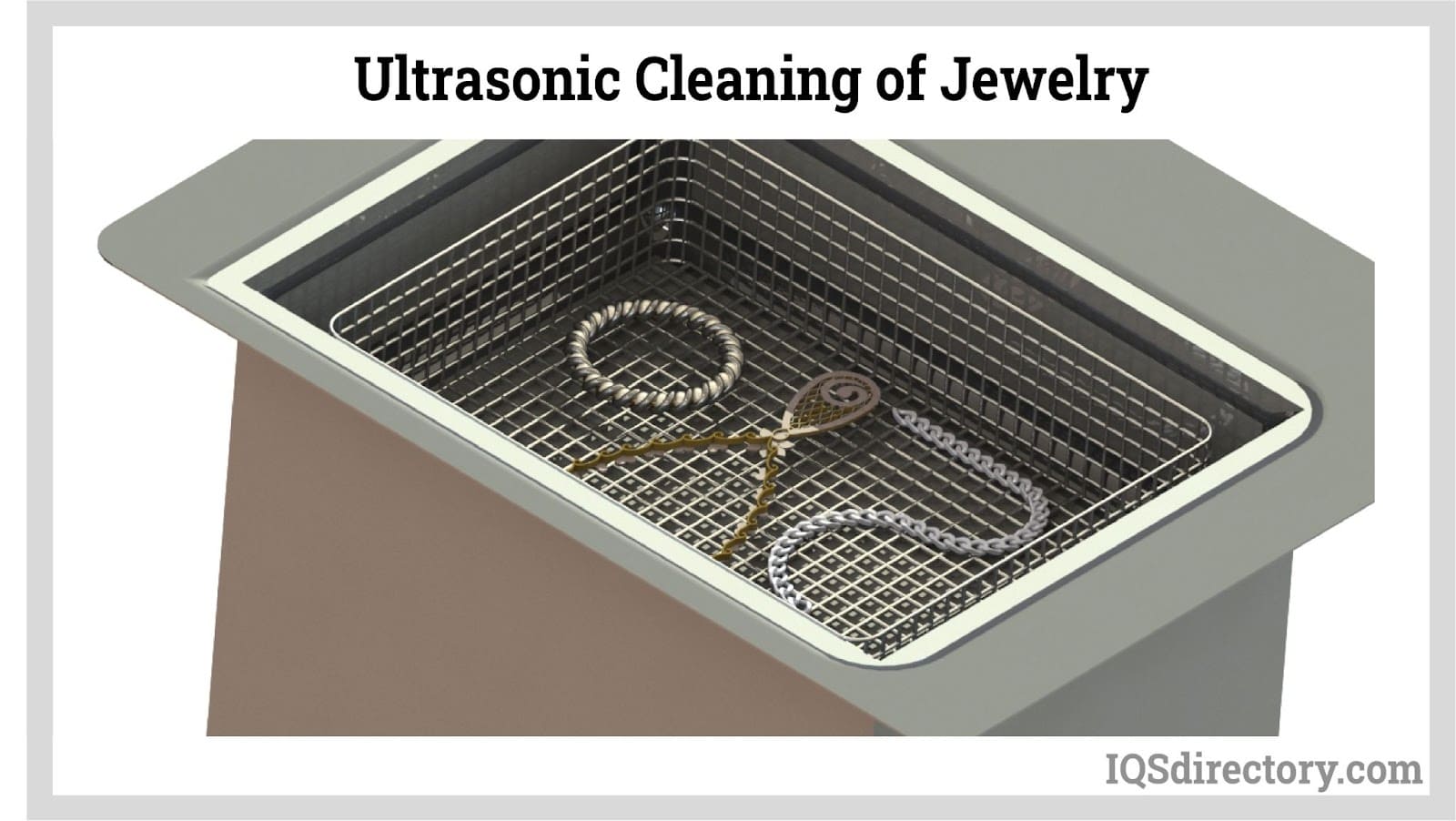

• Jewelry Ultrasonic Cleaners: Ultrasonic cleaning is a popular method involved in jewelry crafting. The process takes advantage of the gentle and precise cleaning of ultrasonic cleaners. Ultrasonic cleaners can create cavitation in hard-to-reach areas. It also does not scratch or damage the intricate surface of the jewelry which is particularly important in the crafting process. On top of that, ultrasonic cleaning can be coupled with ultrasonic polishing to create a luster far better than that of other cleaning methods.

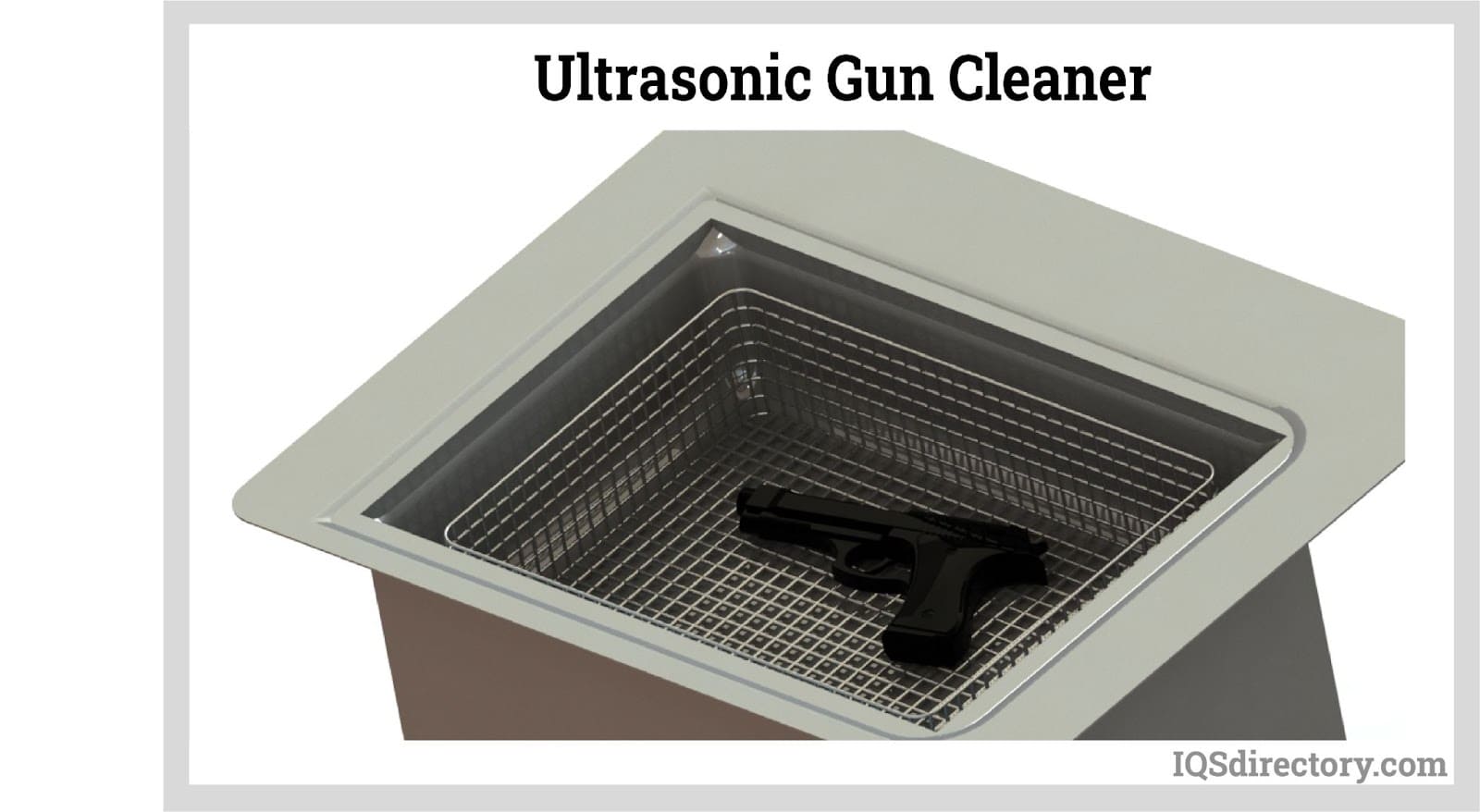

• Ultrasonic Gun Cleaners: Guns have many hollow areas, cavities, and crevices in their assembly that brushes and polishers cannot reach. Even in the gun’s disassembled state, there are still areas inaccessible to hand washing or brushing. Moreover, traditional cleaning for guns uses solvents that are usually harmful to the environment. This is not the case with ultrasonic gun cleaners. Ultrasonic gun cleaners, also known as ultrasonic firearm cleaners, can reach all areas as long as they are properly wetted with the cleaning solution. Ultrasonic gun cleaners can also be used with ultrasonic gun lubrication. Both processes are similar: they use cavitation. The complete ultrasonic cleaning and lubricating process eliminates the need to have the gun dismantled every time it needs maintenance.

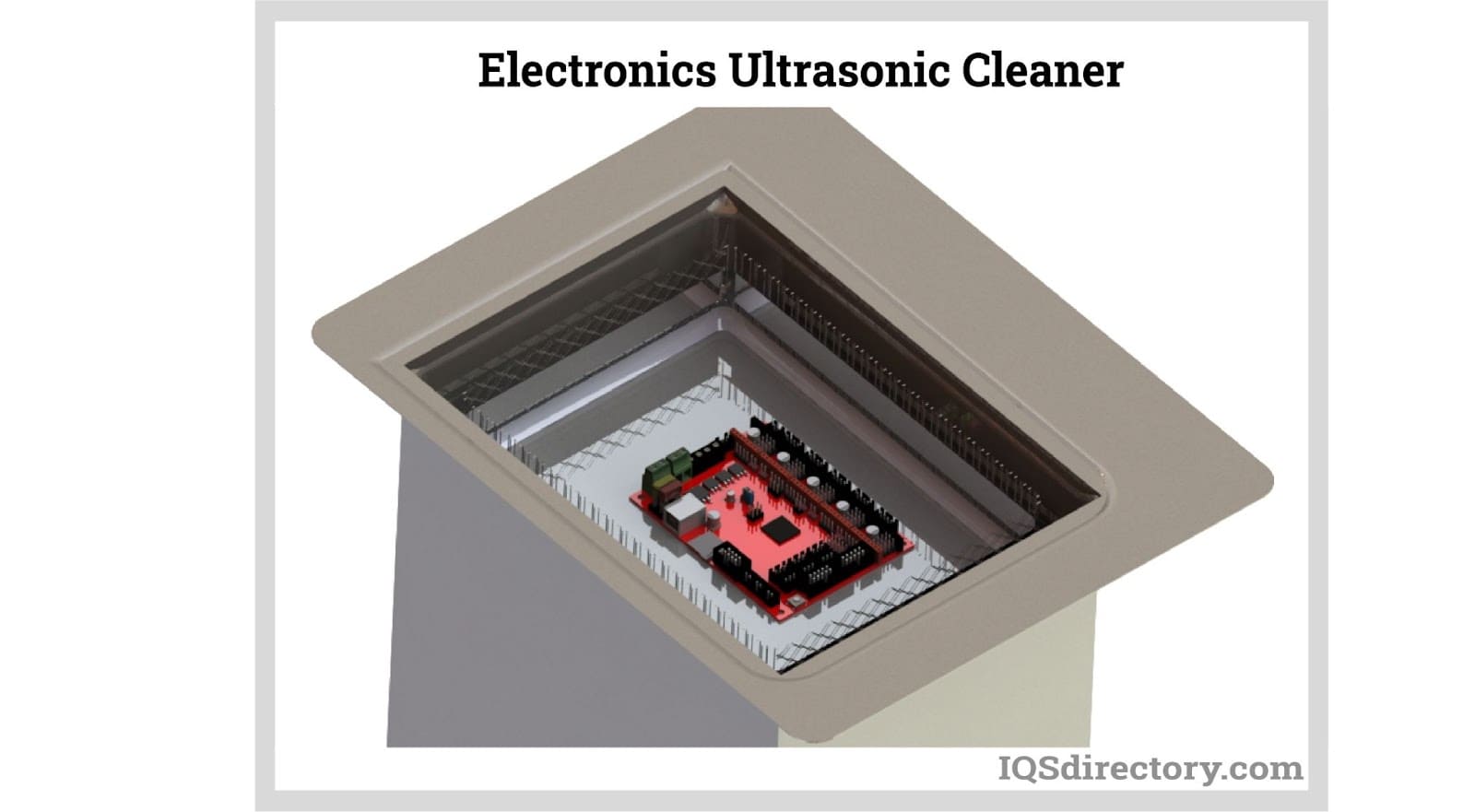

• Electronics Ultrasonic Cleaner: Because of its simple operation, high throughput, and precise cleaning, ultrasonic cleaners are employed in circuit boards and electronics cleaning. Electronics ultrasonic cleaners can remove different types of debris usually found in semiconductors and electronics manufacturing processes. Small metal chips and burrs can be removed while keeping the small features of the electronic components unharmed. This ensures a defect-free product that performs reliably.

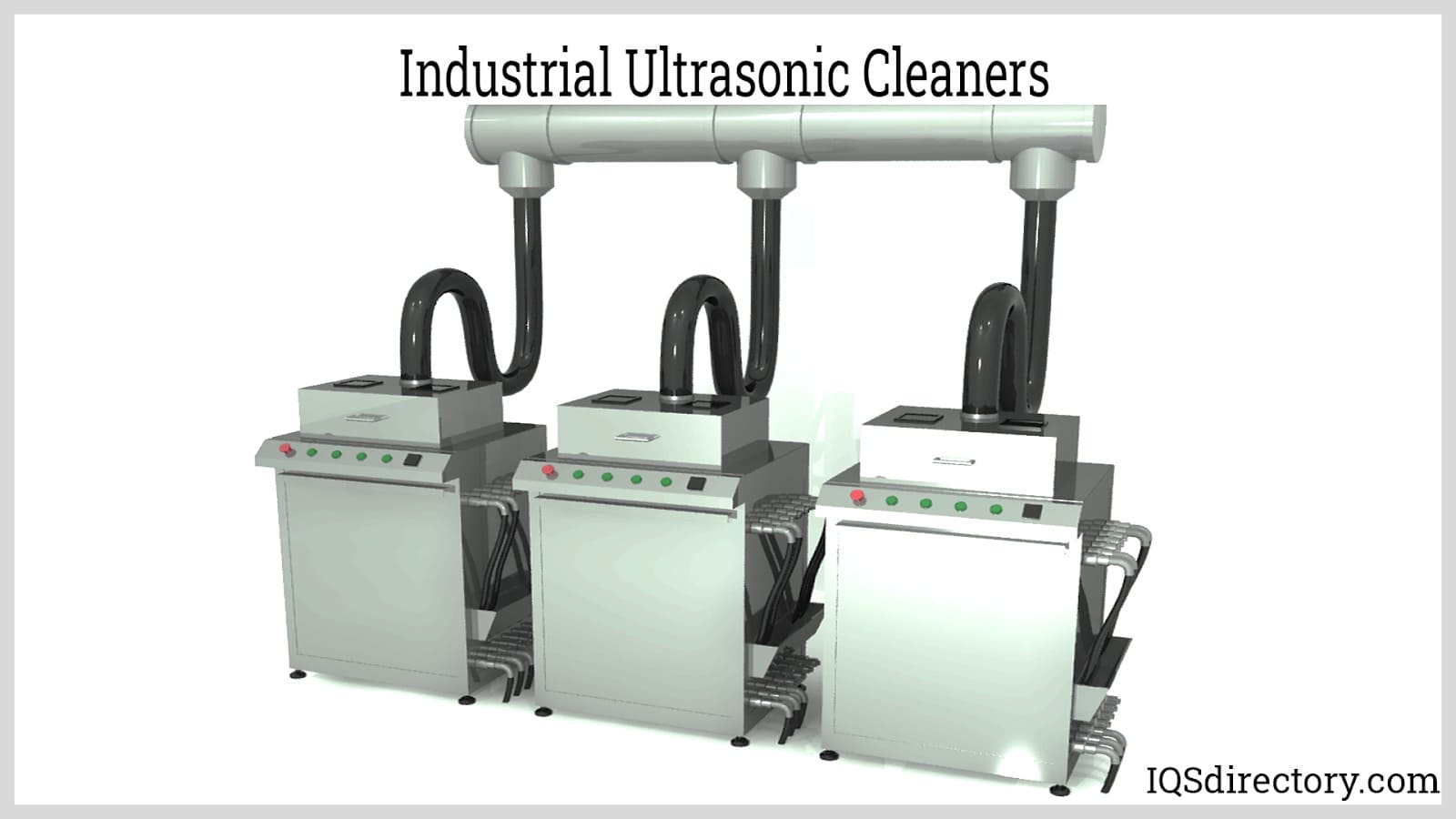

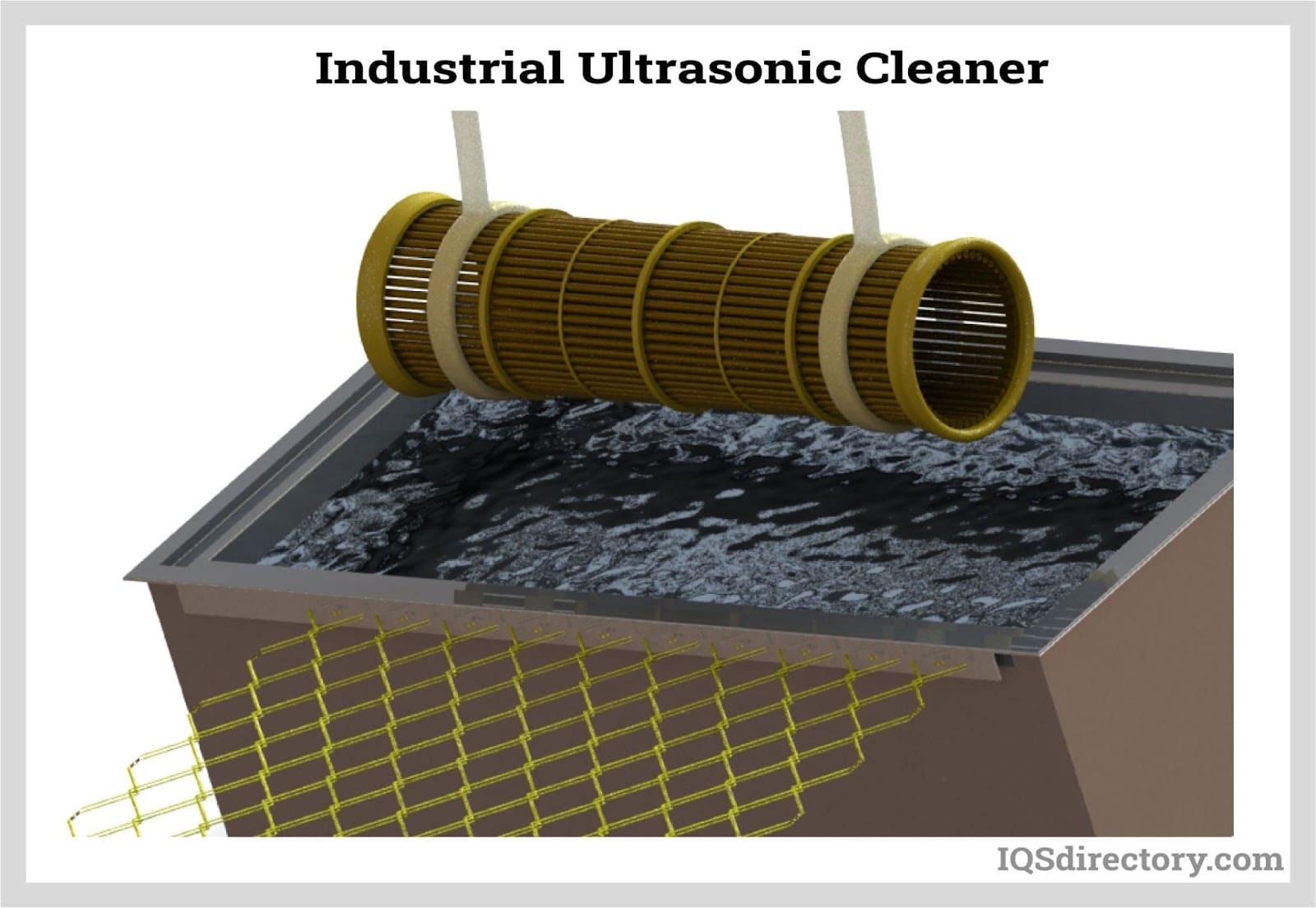

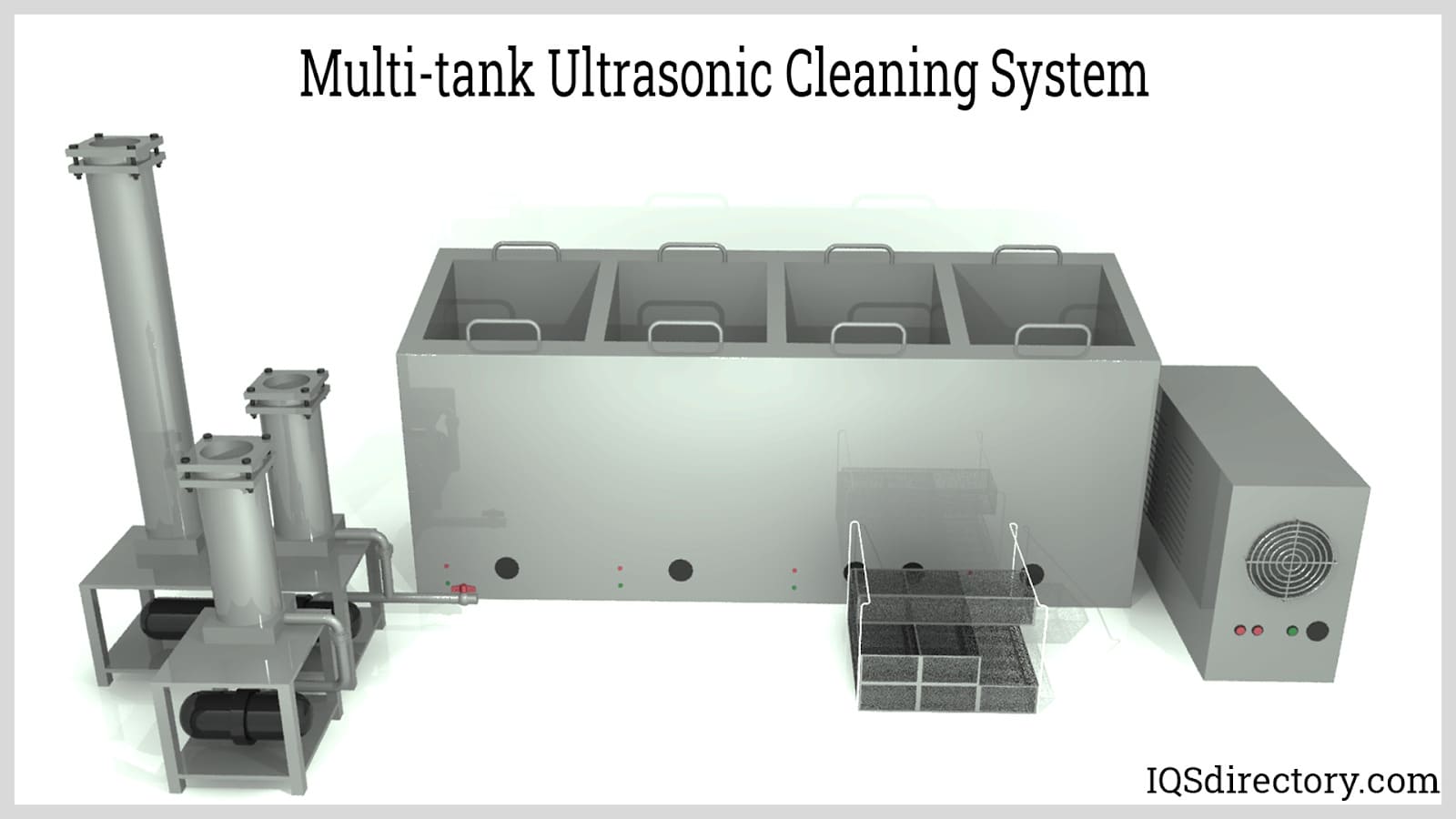

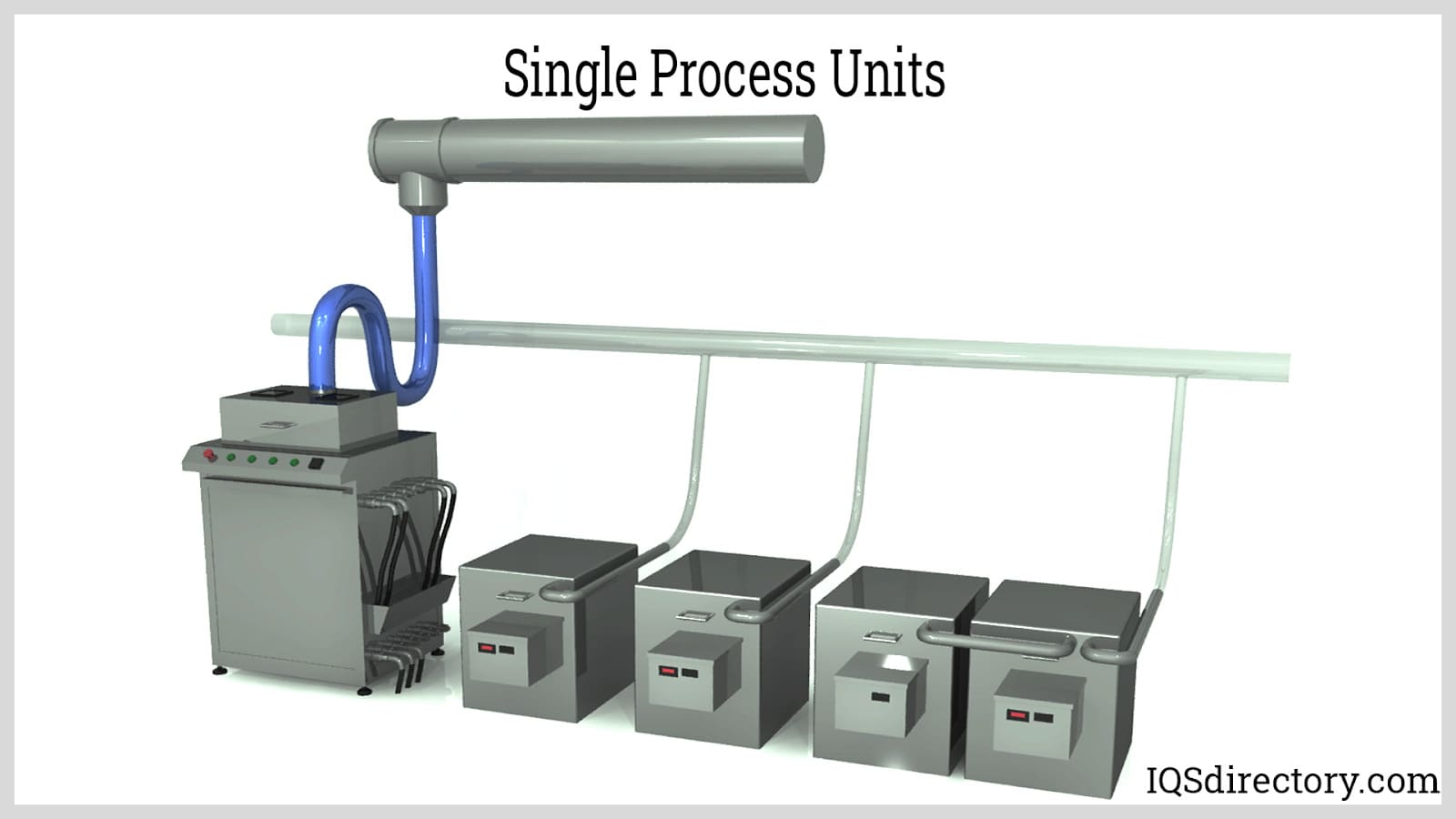

• Industrial Ultrasonic Cleaners: Industrial ultrasonic cleaners clean different machine elements and automobile and aircraft components. These are large cleaning machines designed to contain parts such as compressors, radiators, pumps, valves, and gear assemblies. They are highly effective in removing oil and grease. Also, despite the large size of the component being cleaned, the cycle time is only a few minutes more than that of the smaller types. However, cleaning is done uniformly throughout the wetted surfaces of the component.

• Medical Parts Cleaning During Manufacturing:Sanitation and sterilization are vital to eliminating potentially harmful microorganisms from medical devices. Additionally, the component parts of medical instruments need to be cleaned prior to assembly and sterilization.

  The purpose of cleaning medical devices prior to sterilization is to remove contaminants such as particulates and fluids that may have accumulated during machining and assembly. For example, devices made of stainless steel and titanium, such as joint implants, may have metal shavings stuck in holes or connecting points. The fluids used to cut and shape implants must be removed prior to the next steps of production. Medical instruments products are cleaned multiple times during assembly and before the product is sterilized.

  Ultrasonic precision-cleaning is the industry standard for cleaning medical devices during manufacture. It is particularly effective in cleaning intricately designed parts and hard-to-reach crevices or blind holes and in further improving subsequent surface treatment processes. It has proven to be the ideal solution for the precision cleaning of everything from surgical instruments, implants, surgical screws and fasteners, needles, blades, and cannulas to catheters, stents, hospital and labware, and test instruments.

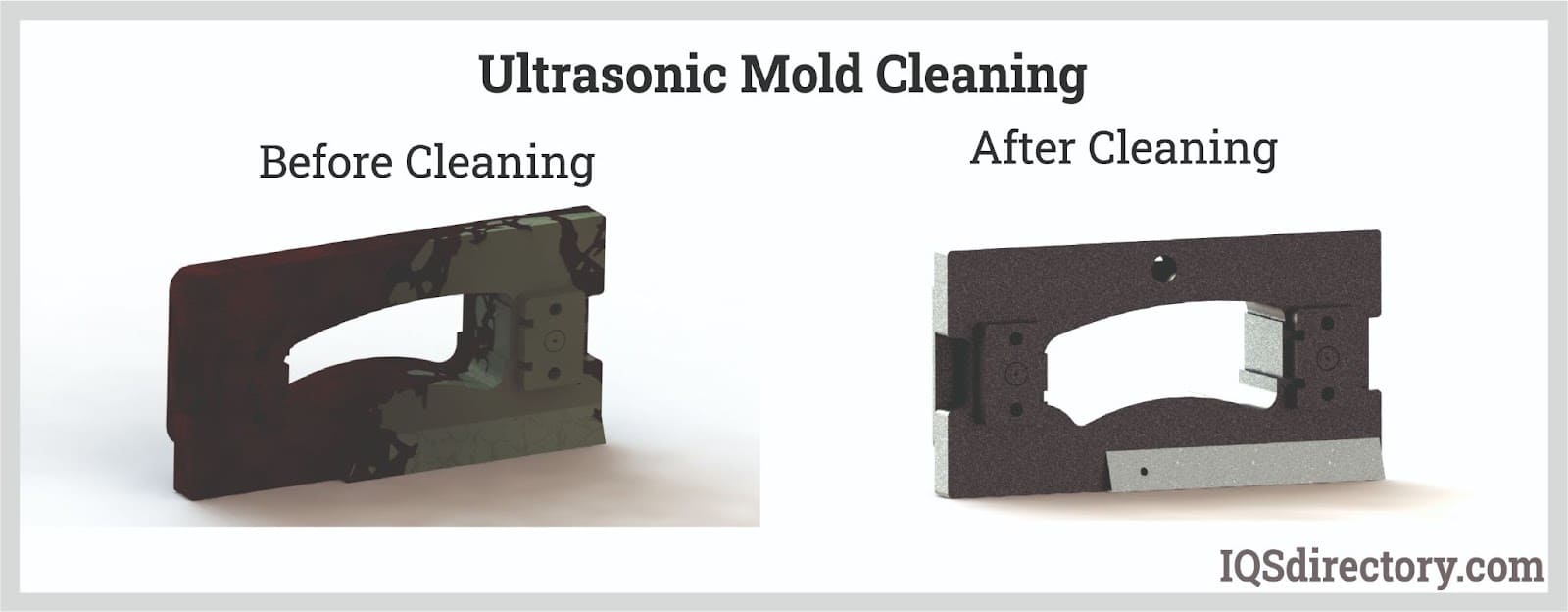

• Ultrasonic Mold Cleaners:Ultrasonic cleaners are used for cleaning molds for plastics and other materials due to the noncontact aspect of their system that does not change, damage, modify, or alter the design of mold cavity details. A critical part of mold geometry is strict adherence to mold tolerances, which is necessary to guarantee the quality of formed products. Unlike other cleaning methods that use harsh toxic chemicals, ultrasonic cleaning does not touch the surface of a mold but is still capable of precision cleaning of a mold's most intricate and detailed sections.

  The turbulence of ultrasonic cavitation increases cleaning action, exposing surfaces to fresh chemical cleaning. When combined with heat and cleaning solvents, the process creates cleaning action that penetrates blind holes, tiny crevices, and the complex design features of molds. Residual burnt polymers and mold releases from mold components are removed, extending the useful life of a mold without harming or damaging its surface. Buildup from cooling ports and channels are removed, which assists in improving polymer flow.

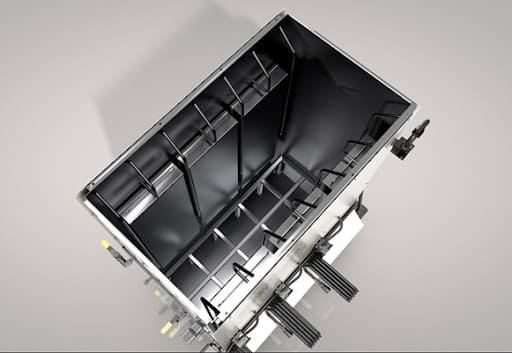

  Side mounted immersible transducers are a recent innovation in ultrasonic cleaning and provide more intense and focused cavitation, compared to transducers mounted on the bottom of the tank. Plastic injection molds are rectangular with design details on their surface that face the side of the tank. Side mounted transducers provide a more effective and concentrated cleaning process for the position of a mold’s most complex details.

The turbulence of ultrasonic cavitation increases cleaning action, exposing surfaces to fresh chemical cleaning. When combined with heat and cleaning solvents, the process creates cleaning action that penetrates blind holes, tiny crevices, and the complex design features of molds. Residual burnt polymers and mold releases from mold components are removed, extending the useful life of a mold without harming or damaging its surface. Buildup from cooling ports and channels are removed, which assists in improving polymer flow.

Side mounted immersible transducers are a recent innovation in ultrasonic cleaning and provide more intense and focused cavitation, compared to transducers mounted on the bottom of the tank. Plastic injection molds are rectangular with design details on their surface that face the side of the tank. Side mounted transducers provide a more effective and concentrated cleaning process for the position of a mold’s most complex details.

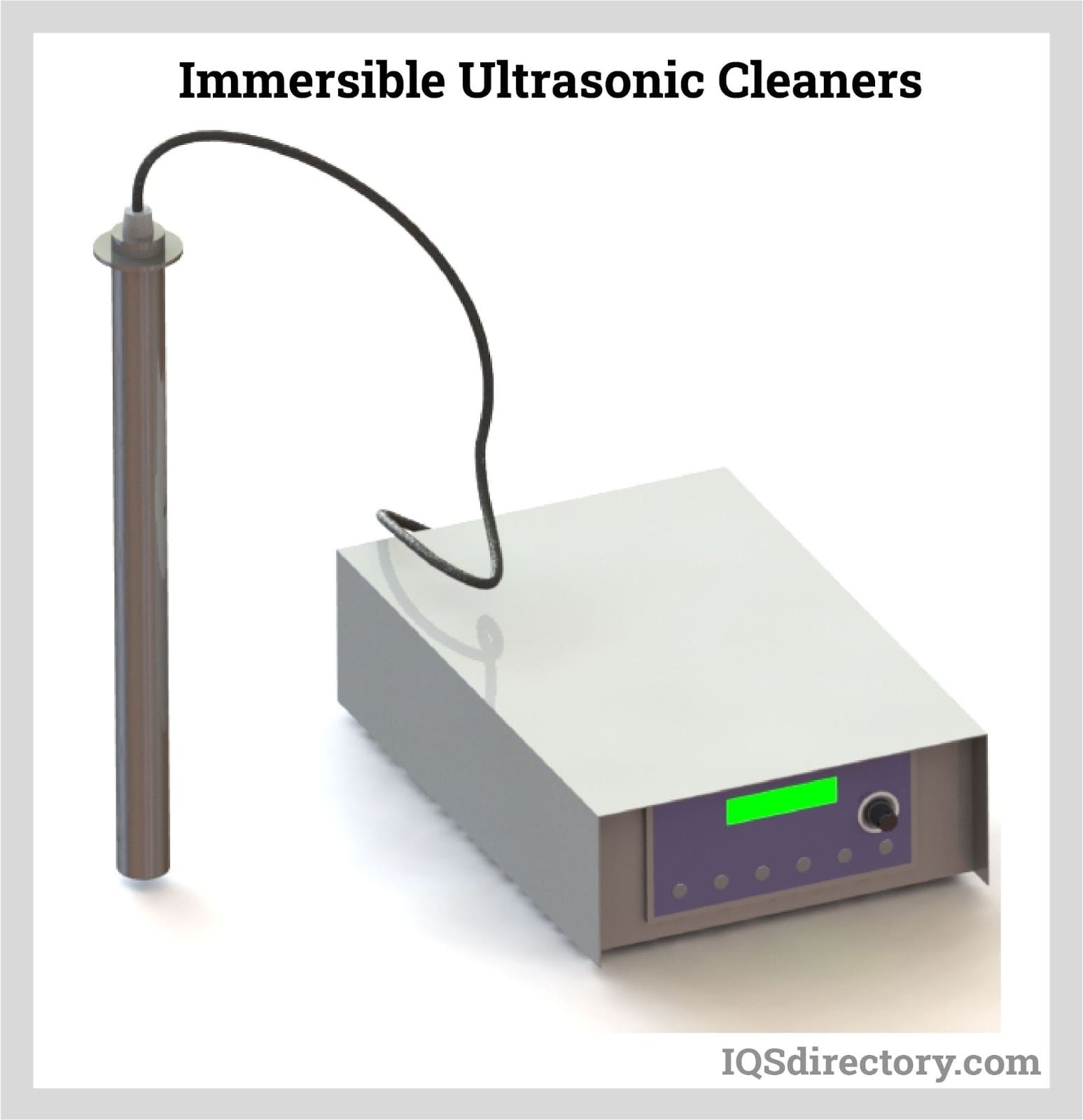

• Immersible Ultrasonic Cleaners: Immersible ultrasonic cleaners, sometimes referred to as submersible cleaners, are machines composed of only two parts: the ultrasonic generator and transducer. The transducer is connected to the generator by a cable and is immersed into the cleaning bath. Any container can act as a tank as long as it can hold a sufficient amount of solution. These types are designed to be portable. However, this advantage is offset by the machine’s poor cleaning quality.

Chapter 4: Ultrasonic Cleaning Solutions

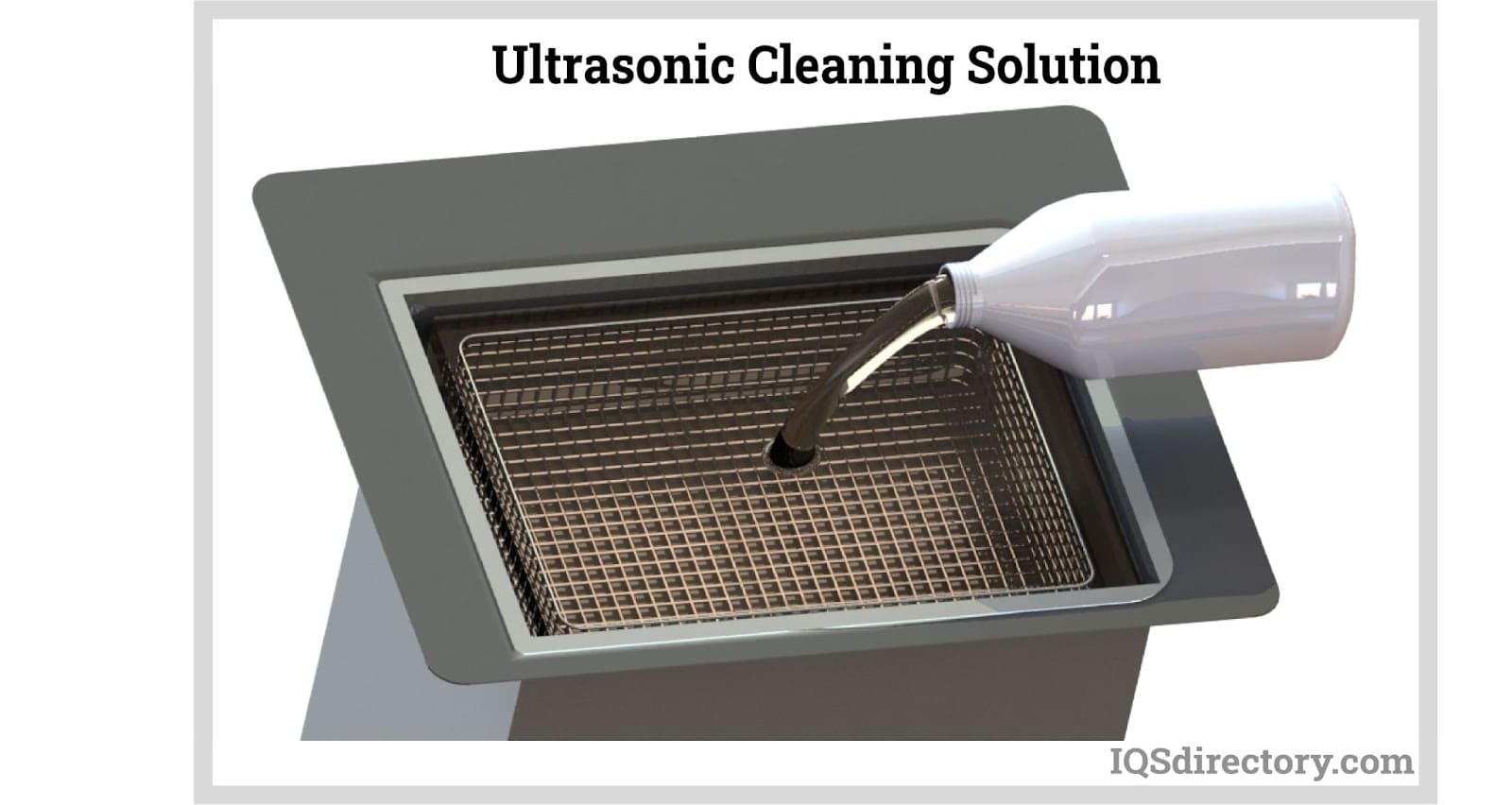

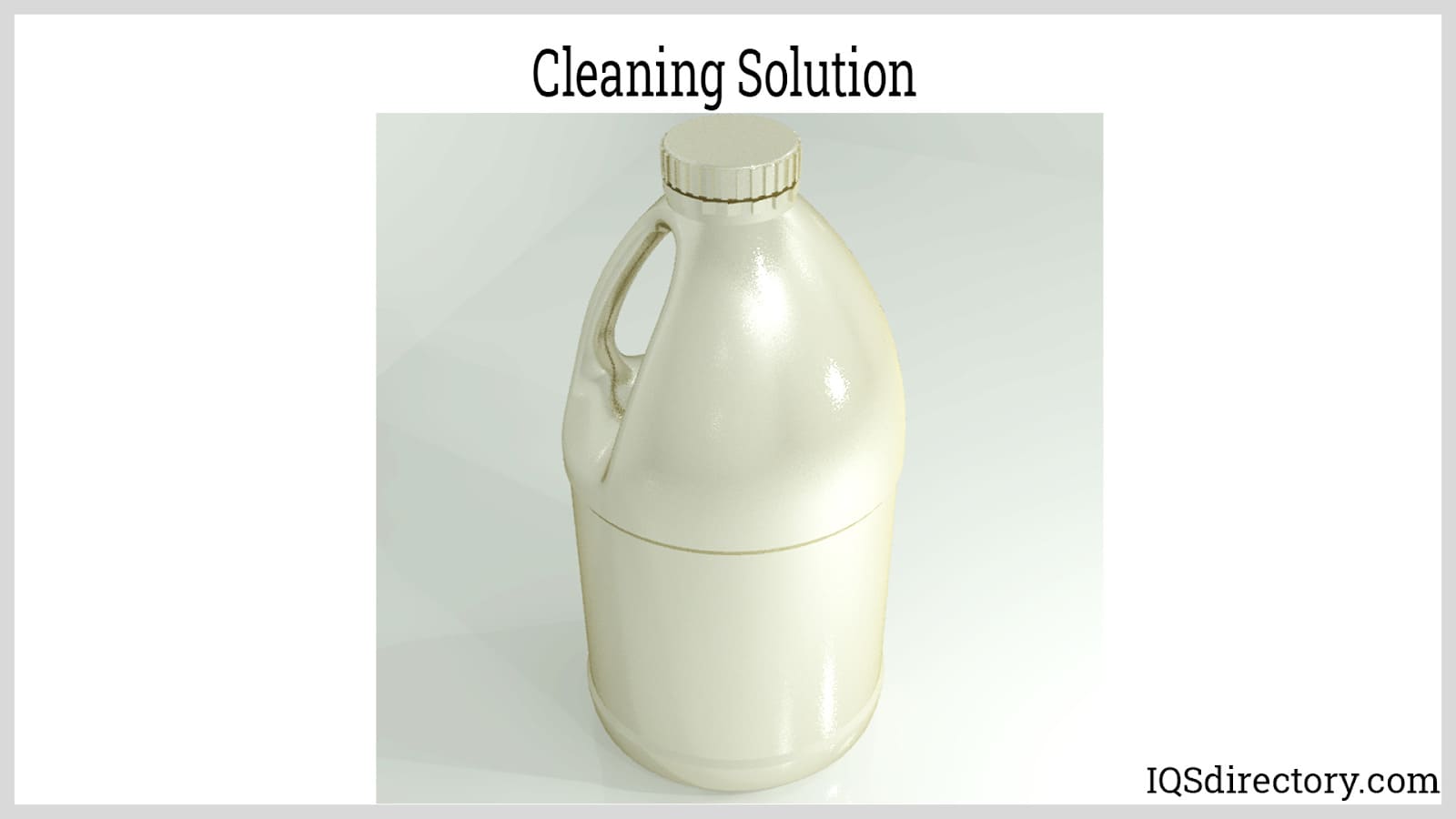

The quality of cleaning depends not only on the power and precision of the ultrasonic machine but also on the kind of cleaning solution used. Using water alone will not help with the cleaning process. It is important that cleaning solutions:

• Do not attack the material being cleaned
• Do not foam excessively
• Can easily facilitate cavitation
• Can effectively wet all submerged surfaces
• Rinse easily

Ultrasonic cleaning solutions are typically composed of alkaline detergents, surfactants, acids, and enzymes, which are diluted in deionized water. The composition of the cleaning solution depends on the type of debris or contaminant to be removed.

• Deionized Water: Deionized water is the main solvent where all other ultrasonic cleaning compounds are diluted. It is made from ordinary water, which has been treated by ultrafiltration and softening to remove almost all minerals, salts, metals, and other contaminants. Because of its purity, it can readily absorb contaminants making the cleaning process fast and effective.

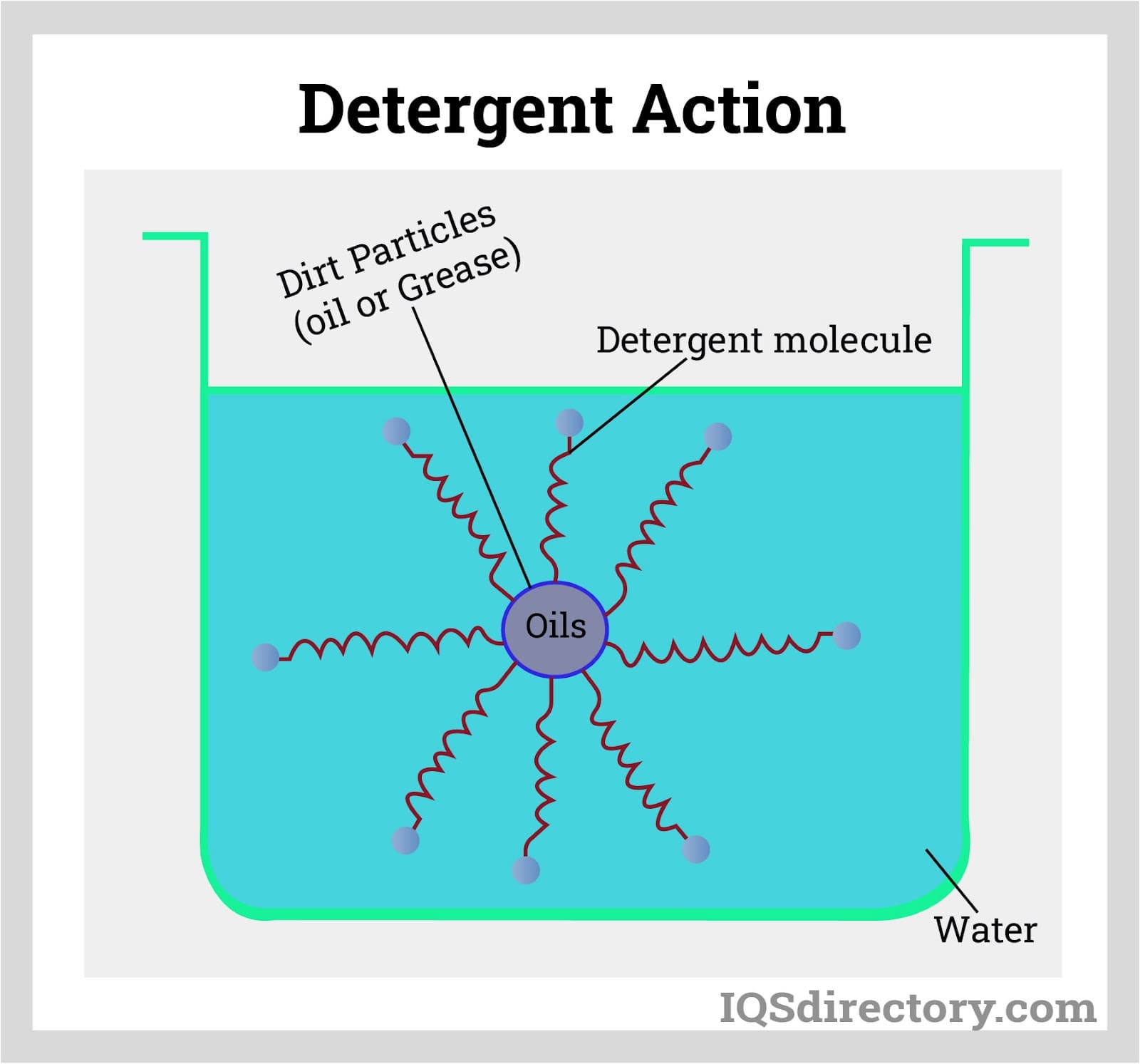

• Alkaline Detergents: Alkaline detergents are used for removing organic and petroleum-based contaminants such as oil, grease, and waxes. They generally have a pH number of 10 and above. Alkaline detergents are almost synonymous with caustic solutions and surfactants. Their main action is to reduce the surface tension of water. This allows oils to dissolve easily into the solution. Moreover, lowering surface tension enhances the wettability of the part, which then helps in its immersion to the solution.

• Acids: Acids are used to aggressively clean mineral deposits, scale, fouling, rust, and small metal shavings and burrs. Compared to alkaline detergents, they are at the opposite side of the pH spectrum, which is six or below. Automotive, aerospace, and metal fabrication industries typically use acid solutions for ultrasonic cleaning. This is followed by a rinsing or corrosion inhibition process since the acid residue will continue to react with the surface of the part causing damage, tarnishing, and corrosion.

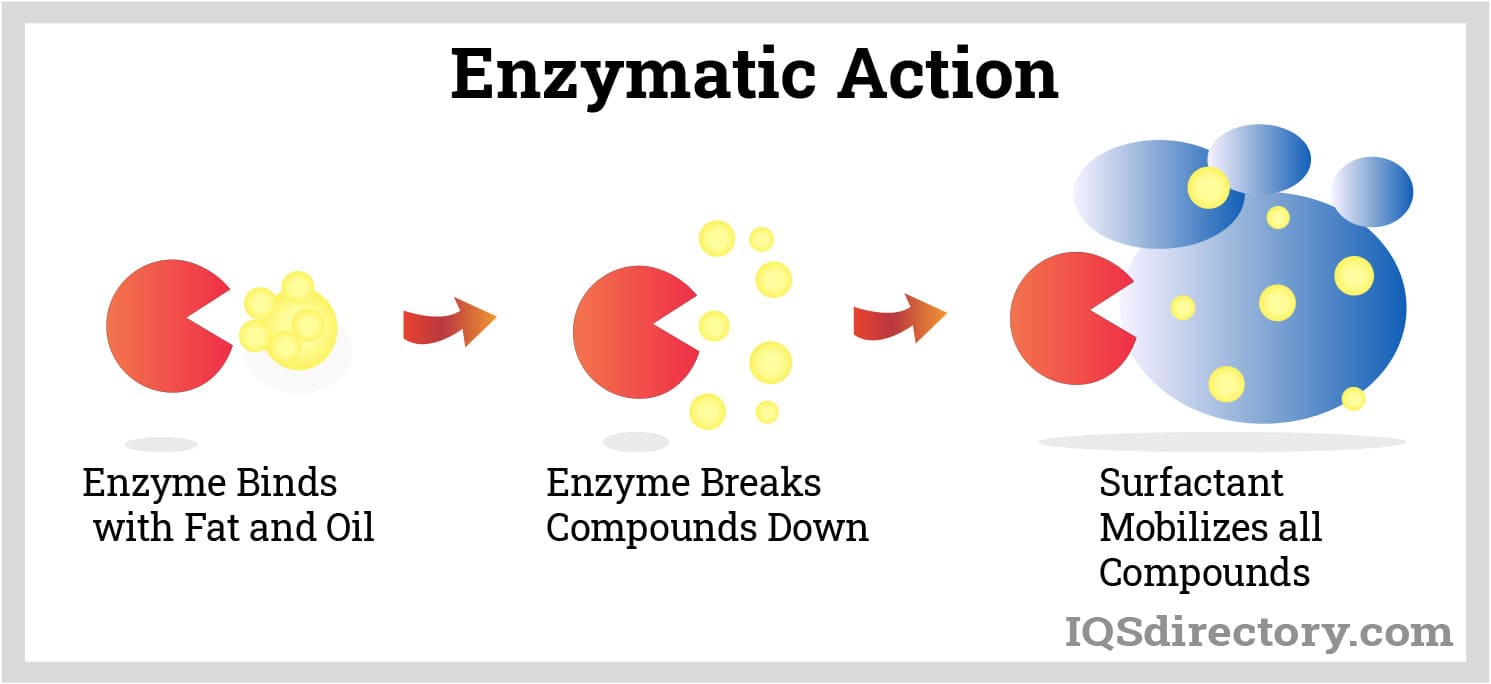

• Enzymes: Enzymes are particularly used in medical and dental ultrasonic cleaners. These are catalysts made from active strings of proteins that break down biological matter. They are safe to use since they are biodegradable and pH neutral. They are used to remove blood, bone, tissue, fats, and other soils that cannot be easily removed using typical detergents. Enzymatic cleaning agents are available in concentrated solutions or dissolvable powder and tablets.

• EDTA (Ethylene Diamine Tetra Acetic Acid): EDTA is a chemical compound that is used to remove or neutralize metal ions in the cleaning solution. This prevents the metal ion impurities from changing the color of the material being cleaned. It also stabilizes the solution making it last for more cleaning cycles.

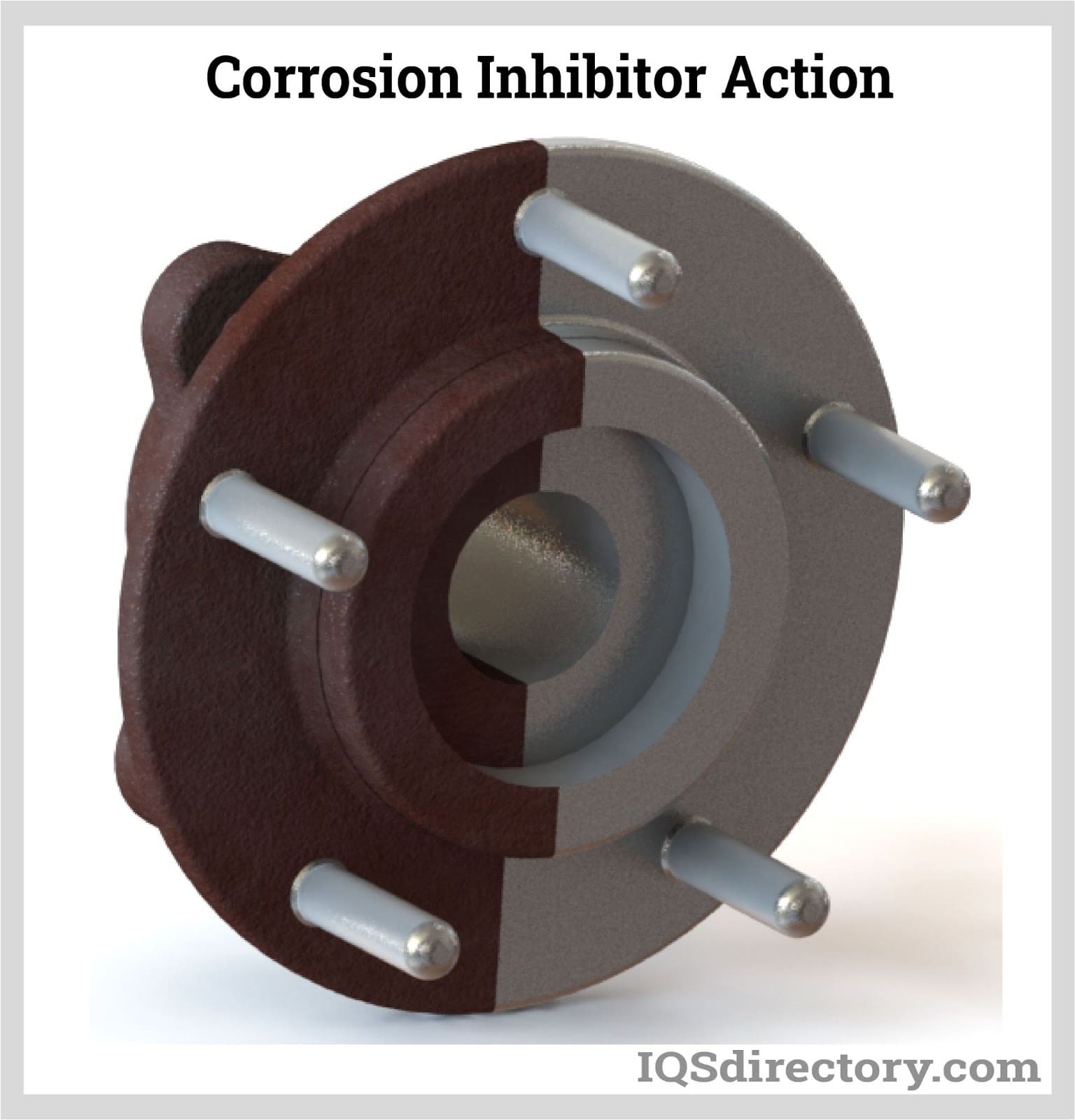

• Corrosion Inhibitors: Corrosion inhibitors are chemical additives that significantly reduce the oxidative attack on the material. These are commonly used in cleaning metallic objects such as jewelry, electronics, automotive, and aerospace parts. Since some ultrasonic cleaning solutions contain acids, a rinsing bath with corrosion inhibitors can be applied to protect the material. These added chemicals protect and maintain the cleaner tank from corrosion as well.

• Ammonia: Ammonia is a popular compound used in most homemade cleaning solutions. It acts similarly to detergents which remove most dirt, grime, and oil-based residues. It is cheaper since a cleaning solution only requires a very small amount. Ammonia is typically used for cleaning pieces of jewelry.

Chapter 5: Ultrasonic Cleaning Operation

Ultrasonic cleaning is a very simple process that mainly involves preparing the cleaning bath and the machine. The actual washing process is done without much intervention from the operator. Additional processes can also be performed after the washing. Below is the general procedure in performing ultrasonic cleaning.

1. Pre-Rinsing: Before a part is placed into an ultrasonic cleaner, loose dirt, soil, and large particles should be removed. Flushing or brushing a component is advised to increase the efficiency of the ultrasonic cleaner. This step is important when there are large numbers of contaminants to be removed. The process can be completed using lukewarm water. Dipping parts in a pre-rinse can be helpful and increase efficiency.
2. Solution Preparation: This step covers all initial work, such as formulation of the cleaning solution and its transfer to the cleaner tank. Ready-to-use ultrasonic cleaning formulations are commonly available in the market, eliminating the need for trial-and-error. Just keep in mind the type of contaminant to be removed. Different types of contaminants require specific cleaning solution components and additives. Also, check whether the solution is compatible with the material being cleaned. An acidic solution can corrode metallic objects without proper rinsing or corrosion inhibition.
3. Setting the Bath Temperature: Most ultrasonic cleaners, especially in industrial setups, have a mounted heater for controlling the temperature. The temperature directly affects the machine’s efficiency in generating cavitation. On top of that, other fluid properties such as surface tension, viscosity, and density are affected by temperature. Higher temperature also results in more chemical activity in the solution.

4. Setting the Generator Parameters: This step is usually performed when working with industrial ultrasonic cleaners. Modifying the generator parameters allows the operator to control the intensity of the cavitation. This is important when cleaning parts that have different sizes and weights. Common tabletop ultrasonic cleaners do not have this function and have preset generator values.

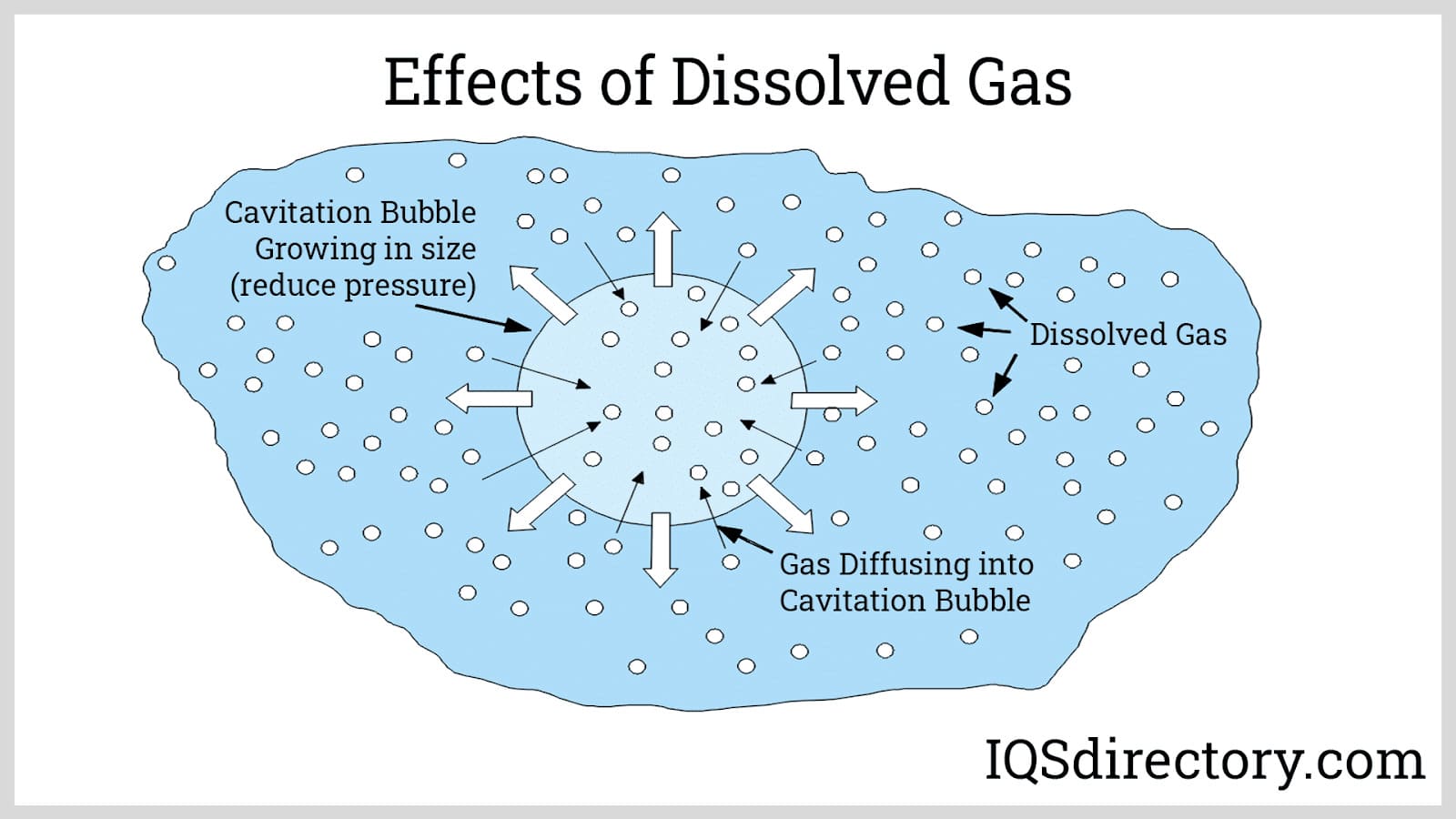

5. Solution Degassing: Dissolved gases in the cleaning solution decreases the intensity of cavitation. Gases are dissolved in the solution through minuscule bubbles. Upon applying the positive and negative pressure phases, the cavitation voids migrate into the gas bubbles. The extra volume prevents the voids from collapsing, which severely muffles the shockwaves produced by the cavitation.

To degas the solution, the ultrasonic cleaner is first operated without load for a few minutes. Most of the dissolved gases will eventually rise to the surface of the fluid. The rising of gases can be observed by the naked eye since the gases collect at the surface creating larger bubbles.

6. Ultrasonic Washing: After fully setting up the machine, it is time for the washing process to begin. Ultrasonic washing simply involves submerging the part into the cleaning solution. Strainer baskets are used to hold the part and maintain a clearance or around two or more inches from the walls of the tank. Washing time may take about 10 minutes, more or less. This depends on the amount and nature of contaminants to be removed.
7. Rinsing: Rinsing is an optional process that removes the cleaning solution from the surface of the part. This is an important step when working with acidic solutions. Rinsing baths use either pure, deionized water or deionized water with additives such as corrosion inhibitors.

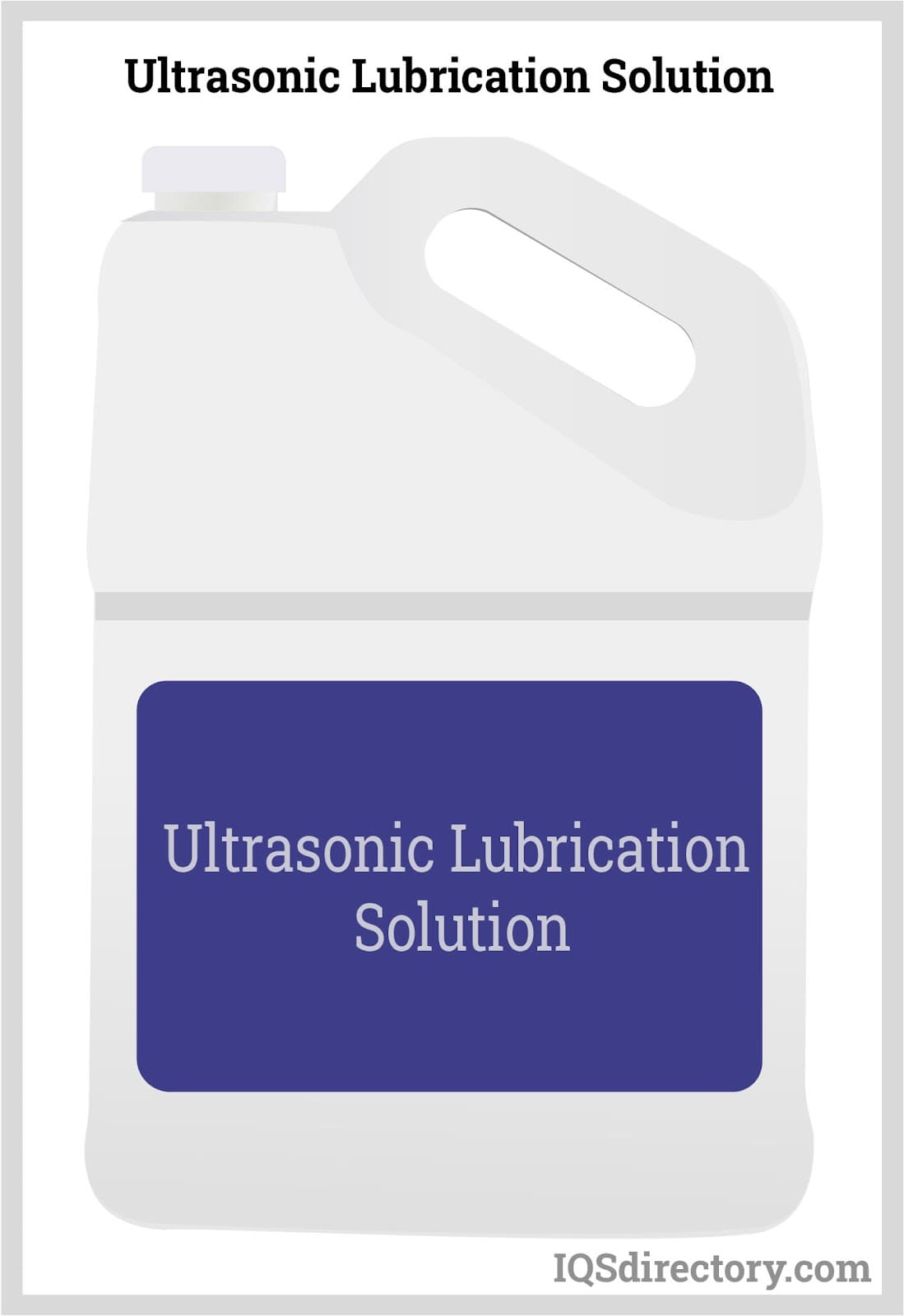

8. Secondary Processes: Secondary processes are optional steps that may include polishing and lubricating. These processes use different solvents, which add desirable surface properties to the material. The additional polishing step is usually done in cleaning pieces of jewelry, while the lubricating step is performed in servicing firearms.

• Drying: This process involves introducing the part to hot air or ordinary room air. A fan or blower is used to accelerate this process and is commonly seen in manufacturing lines that require drying in short periods.

Maintaining an Ultrasonic Cleaner

The importance of ultrasonic cleaners necessitates procedures that will maintain their integrity. Proper maintenance enhances the productivity of the system and guarantees its cleaning processes. Here are suggestions for prosper maintenance.

• The system should be operated when there is a sufficient amount of solution. This will prevent damage to the transducers.
• The solution must be level to avoid it running into the ultrasonic cleaner.
• The ultrasonic cleaning device should not touch the bottom of the tank where it could scratch or etch the machine.
• Avoid the use of solutions that are high in alkaline or have high acid levels.
• Ultrasonic cleaning devices should not be set on wet surfaces, damp towels, or wet clothing.

Conclusion

• An ultrasonic cleaner is a type of sonic cleaner or sonic cleaning machine that uses cavitation to remove unwanted material. The term ultrasonic denotes that cavitation is induced from pressure waves oscillating at extremely high frequencies (above 20kHz).
• Ultrasonic cleaners are used for their gentle and precise operation, high rate of cleaning, flexibility, efficiency, and simplicity.
• An ultrasonic cleaner is composed of a generator, transducer, and tank. Secondary components may include a strainer basket and heating elements.
• Another important aspect of ultrasonic cleaning is the cleaning solution. The formulation of the cleaning solution depends on the contaminant to be removed.
