This article will take an in-depth look at metal fabrication.
After reading this information, you will understand more about topics such as:
What is Metal Fabrication and What Steps are Involved in Metal Fabrication?
Metal Fabrication Processes
Technologies, Metals, and Other Considerations in Metal Fabrication
Advantages, Disadvantages, and Applications of Metal Fabrication
And much more......
Chapter 1: What is Metal Fabrication and What Steps are Involved in Metal Fabrication?
Metal fabrication is the process of turning sheet metal and other flat metals into predetermined forms. The process begins with sheet metal no thicker than a quarter inch. The metal is malleable enough to take on various shapes at this thickness. Next, fabricators modify this metal sheet to a specified shape. Cutting, stamping, shaping, folding, and welding are used to accomplish this. Custom fabrication, or the production of new, unique parts using creative combinations of these processes, is another related practice.
Steps in Metal Fabrication
In the design stage, an item’s design is examined and modified, where needed, for manufacturing. Either a general design or a custom design created by a metal fabricator may be used. As for custom designs, this step is frequently finished only by adhering to their customer's requirements; however, the fabrication service provider is frequently involved in unique projects to provide their insights and expertise. The manufacturer's design team uses CAD (computer-aided design) software to create designs while collaborating with their customer to identify the project's needs, manufacturing strategies, and potential improvement areas. The designer and fabricator must collaborate as well to make necessary changes to the product at the fabrication design stage in order to resolve conflicts between the original design and the fabrication technique that will be used to construct the part. Steel detailing is the collective term for this activity.
Typically, the next stage in the process is prototyping; however, it's optional for all projects. Prototyping is mainly applied if it's a custom fabrication for a customer. Prototyping is done to give the client a preview of the finished product. A quick prototype, or sample, is created during this stage using either rapid sheet metal prototyping or 3D printing, which constructs an item by laying down repeated coatings of various materials, including metals. Before moving on to the next manufacturing stage, the prototype is evaluated for its viability in relation to the desired object. Then, the customer and design team can decide whether any changes need to be made.
Sheet Metal Prototyping:
Sheet metal prototyping is essential for the successful creation of many metal goods. The adjustments, material losses, and time incurred due to missing this crucial step during a large run of a crucial piece could cost tens of thousands of dollars on even a small project. To avoid significant expenses, later on, quality steel fabrication relies on testing and adjusting from the design stage through manufacturing. In addition, sheet metal prototyping enables businesses to view and better comprehend the product they are creating.
Using 3D computer-aided design (CAD), rapid prototyping is the quick manufacture of a physical part, model, or assembly. Typically, additive manufacturing, also known as 3D printing, is used to create the item, model, or assembly as a part of the process. Advantages of rapid prototyping include: the fact that new product development is completed more quickly through an early design/concept confirmation of an item’s fit, form, and function; this confirmation, in turn, provides verification of the product’s final stage validity regarding both technical requirements and a company’s business goals.
The product's finalized CAD design is then converted into programming to be used with all computer-controlled devices used in the production process as soon as possible. For example, programming is frequently necessary for automated cutting, punching, and turning equipment. However, this step applies only to metal fabricators that use automated metal fabrication equipment.
Once the programming is finished, fabrication can begin. The intricacy of the part, the procedures required, and the workload of the machine shop all affect how long it takes to produce (fabricate) something. Depending on the item being created, numerous steps may be involved in the fabrication process, including cutting, punching, folding, machining, welding, and more.
After creating the object, the fabrication company may also finish the product. This frequently entails smoothing down surfaces and edges or applying different coatings, including powder coating.
Some fabrication companies also provide assembly services, including electrical connections or welding.
Chapter 2: Metal Fabrication Processes
Although shearing is a type of cutting, it is classified differently because of how it is done. Shearing is accomplished by using two tools—one below and one above the raw metal piece— to make a single, lengthy cut. First, the cut is initiated by pressing down on a metal piece with the upper portion of a machine (formed like a blade), which causes a fracture. Next, a cut is made by continuously applying pressure to the broken metal, and the sheared edges can then be burred as this process helps in both the forming, and cleaning up, of the edges of the material pieces after shearing.
Cutting a workpiece to divide it into smaller portions is a relatively typical method of metal production. While sawing is still the most common way to cut, more recent techniques include laser, waterjet, power scissors, and plasma arc cutting, which uses hot plasma to cut through electrically- conductive material. Cutting can be done using a variety of instruments, including hand and power tools, as well as computer numerical control (CNC) cutters. Cutting might be the first step of a more involved fabrication process or the sole one.
Another method of cutting metal that employs a die is known as die cutting. Two traditional methods include rotary die cutting and flatbed die cutting. A rotary die uses a cylindrical die that rotates in one location to cut some particular pieces of material. In rotary die cutting, the material is cut using a rotating cylindrical die fed via a press. On other metal materials, flatbed die cutting is often employed where the die is stamped down on the metal to cut out shapes. A flatbed die, which employs far more force and a flat surface than the other methods, is intended exclusively for stronger and thicker materials.

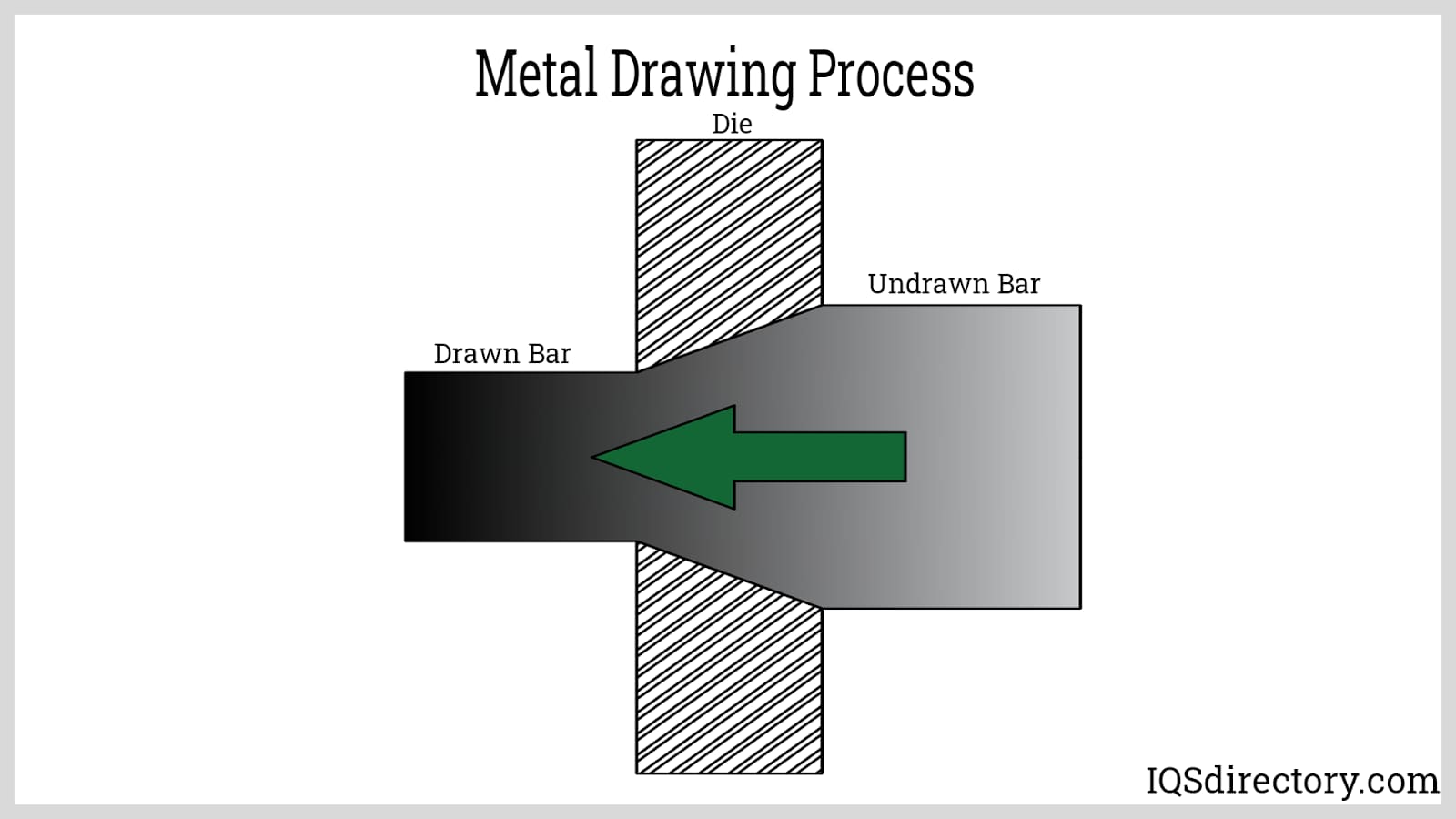

Drawing is a technique for stretching materials into narrower shapes and involves pushing metal through a tapered die. The source material can be heated to lessen the force required to draw it through the process although drawing can often still be done at room temperature.
Deep drawing is a different sort of drawing used to shape sheet metal into cylindrical or box-shaped vessels when the depth of the finished product is equal to or greater than its radius.
Welding is the method by which several pieces of metal can be joined into one by simply applying heat and pressure. It is a well-known technique due to its adaptability and can be used to join almost any metal element with another. The common types of welding are FCAW, MIG/GMAW, SMAW, and TIG.
Flux Cored Arc Welding, or FCAW, eliminates the requirement for a secondary gas source by using a wire electrode with a core that produces shielding gas. This welding is generally identical to MIG welding (inert metal gas). However, this welding procedure prevents a metal piece from interacting with most immediate conditions by using an external gas supply with a solid wire electrode, which speeds up and improves the consistency of the process.
The most basic type of welding instrument is called SMAW, or shielded metal arc welding; it consists of an electrode stick that creates an electric arc when it comes into contact with metal. The high temperature of the arc's impact is what joins the metal pieces together.
MIG, metal inert gas welding, uses a mechanism featuring a solid wire electrode that forms an arc between this electrode and the material being worked, and the parts are then fused together.
TIG, or tungsten inert gas welding, is a type of welding that is more suited to heavy metals such as carbon steels. It uses a tungsten electrode rod to produce brief arcs. Even though it is one of the trickier types of welding and needs a highly skilled professional to use it properly, it is effective for most metal-based items.
Another metal fabrication procedure is folding, which correctly leads the raw metal material in the die. There are three primary folding techniques in manufacturing metal, the most popular of which uses a brake press (or press brake).
With a brake press, the raw metal is held between the punch and the die. Pressure is applied to the raw material and into the die, where the material takes on its desired shape. This kind of procedure is frequently used for shaping sheet metal.
A material can also be folded manually, with the use of a special machine called a folder. This machine itself is relatively simple; it consists of a flat surface with a clamping bar that secures a piece of raw material (sheet metal) and a front panel that is raised higher which causes the extended part of sheet metal to bend.

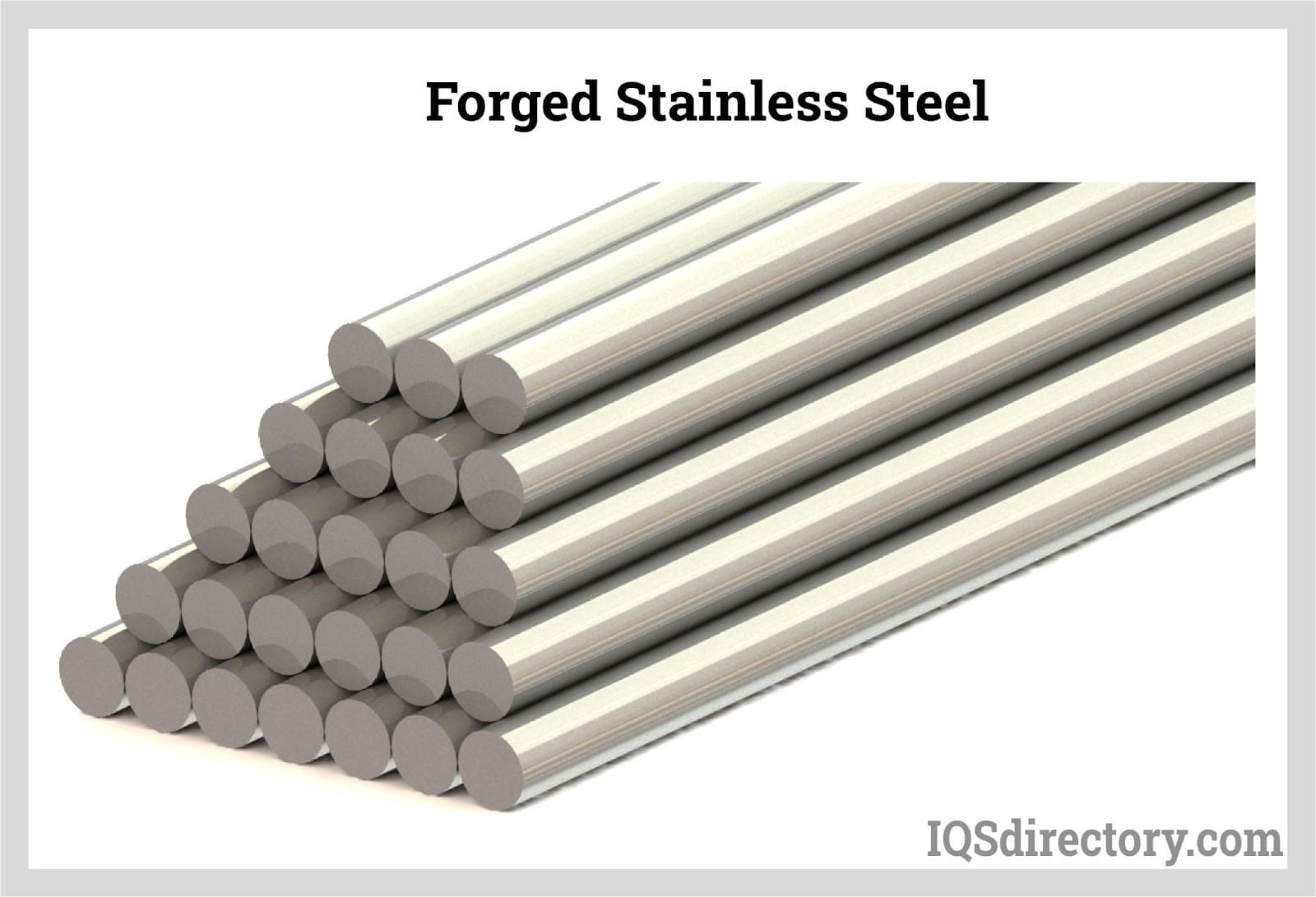

Another well-known metal fabrication method is forging, which involves striking the raw metal with a hammer or a die to give it the required shape. This process is known as "applying compressive force."
Just like other metal fabrication procedures, the forging process has some variants.
Cold forging is the original forging method and is carried out at room temperature.
Warm forging is performed at a temperature between room temperature and one slightly below a material’s recrystallization temperature.
Hot forging refers to forging performed at a metal’s recrystallization temperature.
Crystallization temperature is basically the temperature at which a molten material begins to turn into a solid.
Recrystallization is a process used to remove impurities created during crystallization and recrystallization temperatures are lower than the original crystallization temperature where the impurities were created.
Casting is pouring molten metal into a die or a mould and allowing it to cool to produce an item. It's a procedure that works almost perfectly for producing identical goods by using the same mould, making it especially helpful for mass production. There are, of course, several casting variations. For instance, in die casting, a die is used to hold molten metal rather than a mould (or mold, depending on the spelling in your region). The die is what determines the shape of the finished product under this process.
Another method is permanent mould casting, which involves "storing" the molten metal in a mould. Although the finished product is stronger than other casting techniques, removing the mould once the product has finished cooling and taking shape may be difficult, and time-consuming if it is required for additional use.
The issues of continually removing a mould could be resolved, theoretically, by a semi-permanent mould or, perhaps, a different casting. A semi-permanent mould uses a disposable core in the mould to simplify the removal process associated with permanent molds.
Sand casting will be the final metal fabrication technique discussed. In this process, sand serves as the mould material with the desired form created within it. When complex designs are required, this particular procedure takes longer than the others but is also a little more cost-effective since the mould material is so plentiful.
Extrusion is a slightly more challenging metal fabrication process and is used to create cylindrical components, typically used for wiring or plumbing. In this method an object is formed by pushing material through a die. This process's most typical raw material is in the form of a metal slug or cylinder. The diameter of a piece of raw material is reduced to match the size of the die's cross-section. As a result, the cavity required to form objects like wiring is created inside the material piece by being pressed around a die.
Additionally, this procedure has two variants: hot extrusion and cold extrusion.
Hot extrusion is frequently employed when working with materials like copper or aluminum since it raises the temperature of the material, increasing its likelihood of being moulded into a certain shape. In contrast, room-temperature cold extrusion is used to fabricate steel metal to increase product durability.
Machining is a procedure that removes extra material from bits of raw metal. In theory, machining is a rather straightforward procedure. However, there are variations to be found. Turning, milling, and drilling are three of the more commonly used machining techniques.
Milling removes extra material from a raw metal component using specialized multi-point cutting tools. This procedure can be carried out manually or with the aid of a CNC milling machine. Milling, in general, is more frequently employed as a secondary metal fabrication procedure.
Another type of machining is turning, which employs a specialized machine called a lathe to produce cylindrical-shaped pieces by using a cutting tool to remove portions of raw metal pieces as they rotate in one direction. This complete procedure can also be carried out manually or with a CNC turning machine; the latter is employed when the utmost precision is required.
The simplest of the three machining processes is drilling, which involves using a drill and a rotary cutting tool to create holes in a piece of raw metal.

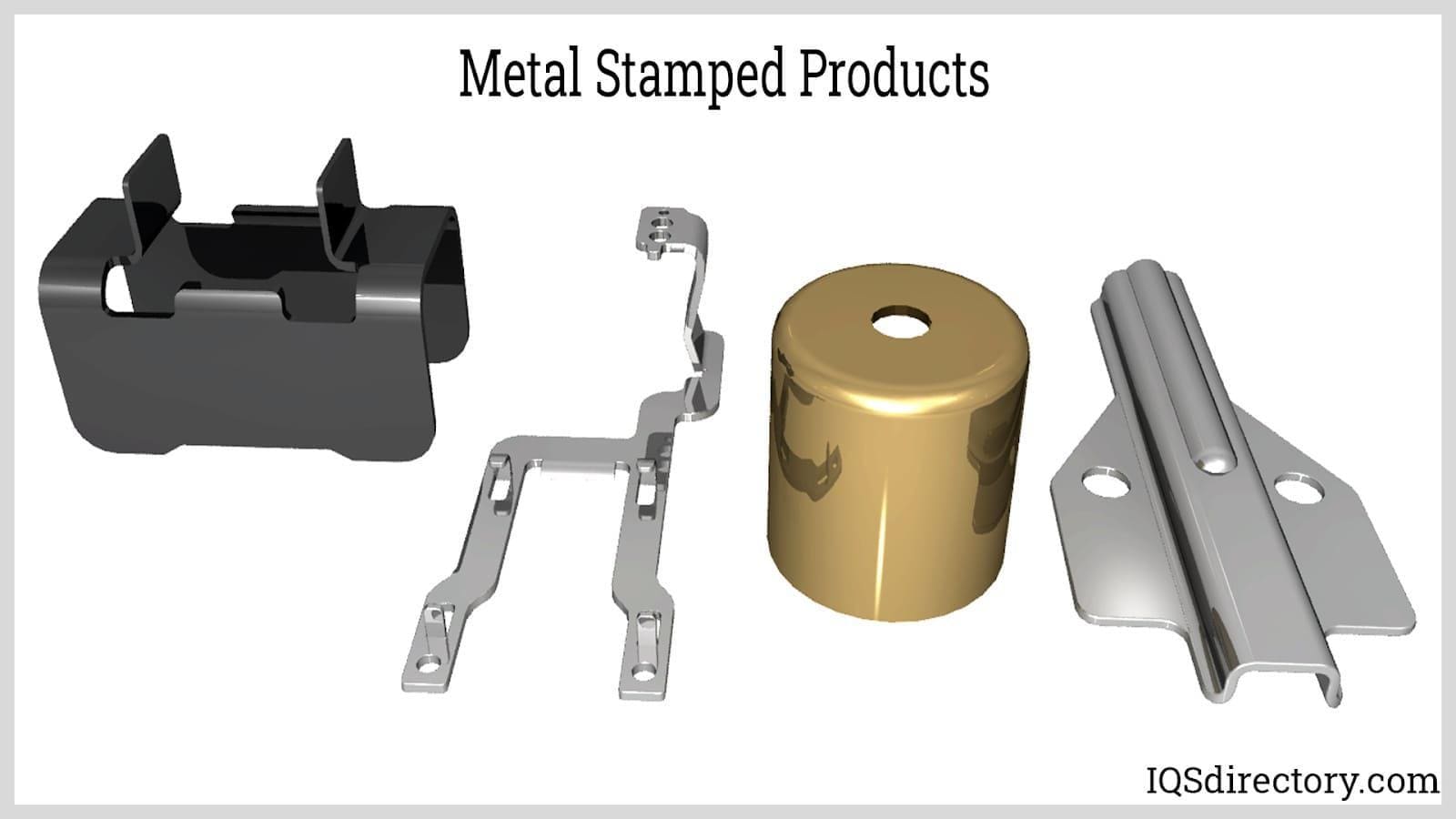

Stamping makes an indentation into the raw material piece rather than a hole in it. Stamping is frequently used to produce different symbols, such as letters, numbers, or images, on the surface of a material object.
Currently, mechanical stamping presses, using electricity, and hydraulic stamping presses, using pressurized liquids, are the two major types available. Most of the time, stamping is done on metal sheets with a thickness of 14 inches or less, and it produces a wide variety of goods, such as coins (coining is a process), smaller metal parts for electronics (four-slide shaping), and so on.
Leading Manufacturers and Suppliers
Chapter 3: Technologies, Metals, and Other Considerations in Metal Fabrication
Technologies Used in Metal Fabrication
The fabrication process has been transformed thanks to automation. More and more fabrication equipment is being built with programming capabilities, enabling such equipment to execute projects automatically according to predetermined requirements and with little human assistance. Automation enables less-expensive operation and enhances precision and reproduction. In addition, there are automated tools for many different procedures, including cutting, welding, folding, and numerous machining operations.
Using automated machinery in manufacturing and fabrication processes has various benefits. The speed and accuracy of an automated machine will most likely be higher than the performance of a human performing repetitive operations. This accuracy is crucial in sectors like aerospace and defense, where there is little room for error and high demand for on-time deliveries of substantial output. In addition, using machines to undertake hazardous jobs reduces the risk of workplace accidents and employing them in hazardous environments reduces employee exposure to unsafe conditions.
Today, software for computer-aided design (CAD) has become essential for planning projects involving metal manufacturing. Engineers use CAD software to create designs that fabrication companies can use during manufacturing. This software solution enables the creation of 3D models and quick design updates and modifications. For programming fabrication machinery, CAD software also makes programming language translations simple. With a computer-aided design, it is much simpler to fine-tune parts, and engineers can instantly determine vital data, such as information on potential structurally-weak regions of an item.
Using CAD allows one to evaluate the tool path required to produce a product before the material is even cut, saving the expense of cutting an expensive metal incorrectly. In addition, users can estimate supply and delivery timeframes using CAD simulation to determine how long production runs will take.
Laser cutting is the industry standard for precise, quick manufacturing. A strong laser may create precise incisions in sheet metal by actually melting the metal. Under this process, a laser beam is combined with high-pressure gasses- usually nitrogen or oxygen. A cutting head moves over the metal plate to produce an exothermic reaction that results in precise cut details. When performed by experienced users, laser equipment can also be used to etch material, however a laser engraver made expressly to etch and mark materials can perform the task more effectively. On the other hand, laser engraving equipment isn't specifically designed to cut through materials. Although both devices are designed to perform specific tasks better, they are often used interchangeably.

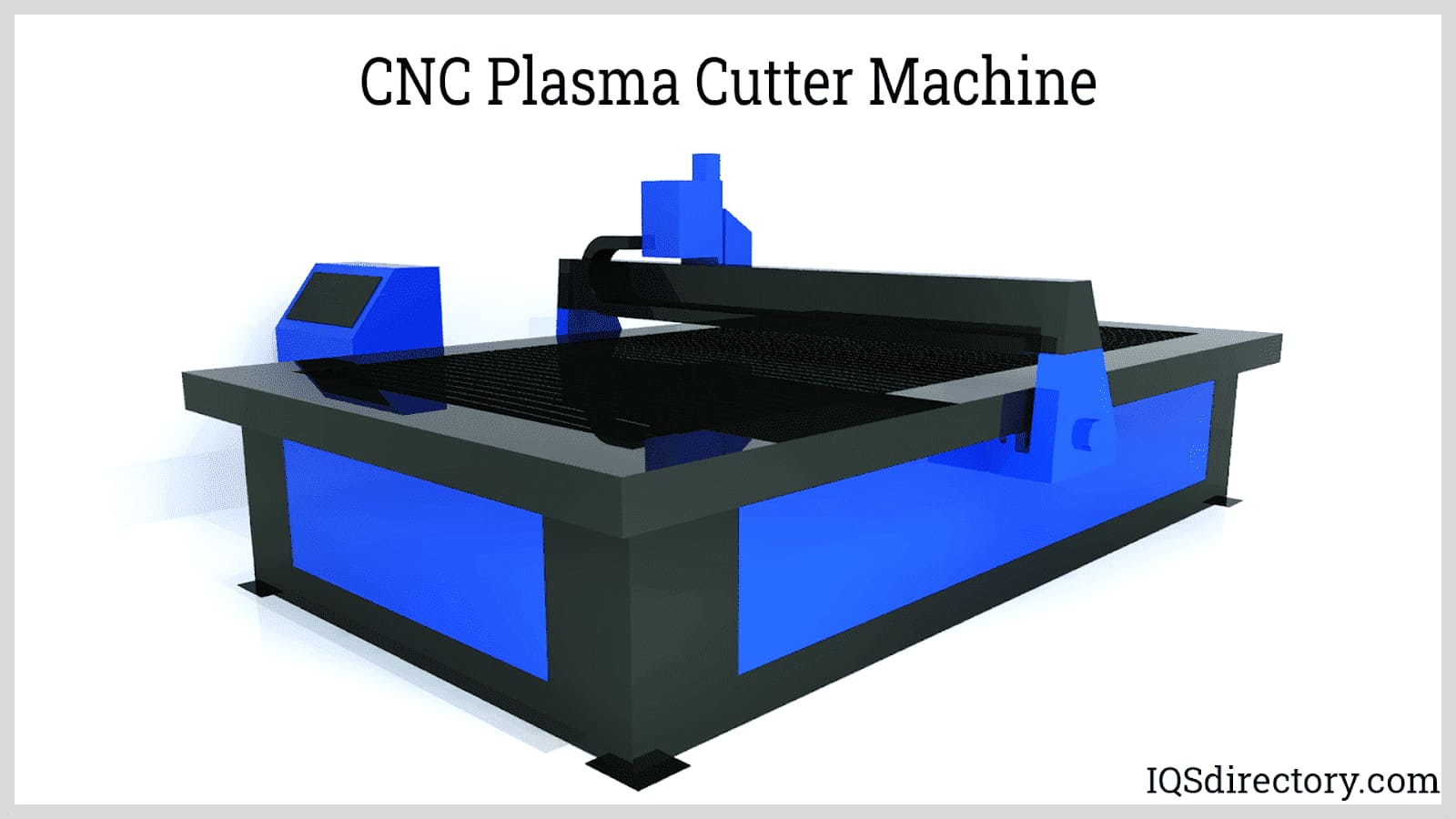

A fine stream of gas concentrated from a jet of ionized, highly heated plasma is used to cut through metal during plasma cutting. Plasma heating employs heat to cut the metal, making plasma cutting a thermal method. Solid, liquid, and gas are the three well-recognized types of matter. However, there are four states of matter. The fourth state of matter, plasma, is frequently disregarded but is incredibly useful for making metal due to its tendency to carry a significant amount of charged ions and electrons.
A plasma arc cutter is frequently used in metal fabrication due to its quicker cutting speed and capacity for precision cutting. These characteristics are advantageous for metal manufacturing since they save costs while ensuring acceptable cut quality. For these reasons, plasma cutting is developing quickly as a preferred method for cutting in the metal fabrication business.
Water Jet Cutting
One of the most rapidly expanding machining techniques today is using a water jet cutter, a piece of manufacturing equipment that has actually been around for decades. Water jet cutters use a water jet with high pressure and velocity to cut through metal or, virtually any, other material. The material is sliced through by a jet of fast-moving water discharged from the cutter's nozzle after it is coupled to a high-pressure water pump. They can also mix water and abrasive material to boost cutting power. This is a concentrated and accelerated version of natural water erosion.
Power scissors may utilize either batteries or an electric source to function. Power scissors typically resemble a knife with dual blades at one end. These blades are designed to cut through various fabrics, paper, and other softer materials. Occasionally, they may be employed to cut very thin layers of some metals.
Commonly Fabricated Metals
Carbon steels are the most common metals for industrial use and the ones that metal fabricators utilize the most since they can be used for anything from the construction of buildings to the assembly of various machines. Carbon steels are also referred to as low-carbon steels or plain-carbon steels. Despite being very cheap and with low tensile strength, they are appropriate for many uses. In addition, they are malleable and pliable. These materials are simple to work with and popular among fabricators because there are many different methods to finish them. The strength and durability of carbon steels are well known. They can endure extreme conditions in industrial locations and are easily accessible in various thicknesses and stock sizes.
The silver mirror coating of stainless steel is well known. Due to its ease of usage, this metal is frequently used by fabricators. In addition, this is an excellent material for welding due to the material's ease of bending. This material is made of chromium, which does not rust. Therefore, stainless steel is frequently used in applications requiring corrosion resistance.
Because it is lightweight, aluminum is a preferred material for manufacturing in applications that require metal for projects requiring less weight than other metals or other materials. Examples of industries frequently using this lightweight material include the automobile and aerospace sectors. Aluminum is a wonderful choice for so many uses because it is not just lightweight, it is strong as well. In addition, aluminum has good thermal qualities and is very adaptable.
Brass alloys are largely composed of copper and zinc. Brass alloys are simple to cast because they have high malleability and a low melting point. Due to their lovely reddish-yellow color, brass alloys are typically used decoratively. Brass alloys are also used as the material in many medical devices requiring its antibacterial impact on diseases and microbes. Brass metal formers can also alter the composition of these metals to change their properties, such as strength, machinability, corrosion resistance, etc.
Bronze is a copper alloy with tin as its main component. It is resistant to corrosion and metal fatigue, especially corrosion brought on by seawater. Additionally, it is a good heat and electrical conductor. Bronze is also strong and malleable.
Copper is a naturally-occurring metal and, unlike many other metals, is available for use without requiring additional steps to create it. Some of copper’s assets include electrical and thermal conductivity, ductility, malleability, and softness. As a result of these characteristics, copper metal is often used as wiring and is regularly found in the components of industrial machinery. Copper also serves as the primary component of both bronze and brass.
Titanium is a lightweight but extremely strong transition metal. Seawater, and chlorine do not cause it to corrode so it is often found in desalination plants. Titanium has been found to attach well to bone and is used in various medical applications like joint replacements. Additionally, it has good electrical and thermal conductivity.
This unique form of steel is used to build bridges, homes, and other constructions. Because structural steel is carbon steel, it contains up to 2.1% carbon by weight. Carbon is the second-most crucial component in carbon steel after iron. High-strength and low-ductility materials are produced when the carbon content of steel is increased. The required carbon amount or content will depend on how the steel will be used. The safety and quality standards for manufacturing structural steel differ by regional and national standards. Because of this, structural steel typically needs to be made to order.
Considerations for Steel in Metal Fabrication
Type of Material: There are numerous types of steel. Slight modifications to the metallurgic composition of an iron and carbon alloy can significantly impact the tensile strength, flexibility, and hardness of the metal produced. One of the benefits of buying steel from a reliable supplier is that they can provide quality guarantees regarding these important qualities. Additionally, it implies that the steel will be created using the exact formula needed. For example, carbon steel is frequently used as barriers because of its hardness. Welding applications, however, require steel with low elasticity. A reputable supplier will know the specific qualities needed for a particular use so working with an established organization might be advantageous.
Finishing: Even when carbon atoms in a steel alloy bind to iron, oxidation is still possible. Therefore it makes sense to add a line of defense. Steel barriers, for example, can have a huge range of coatings. Some treatments, like powder coating, enhance the metal's look while providing protection. Others, like a hot zinc spray treatment, are made to be less expensive while improving things like corrosion resistance. A hot zinc dip is used to galvanize steel, which is more time-consuming and expensive than hot zinc spraying. Galvanized steel has traditionally been the material of choice for most fabricated metal applications.
Design:When working with any steel, a design of its intended use is essential. This is crucial for any item’s feasibility, structural soundness, and efficient use of the available resources. Design is done using 3D CAD blueprints, a form of computer modeling that allows designs to be completely evaluated, adjusted, and finalized before manufacturing.
Fabrication: Each job varies a little bit in how it will be best achieved. As discussed, there are a variety of metals and metal fabrication processes available, all better suited for specific projects. Fabrication is a collaborative activity that requires the expertise of numerous specialists.
Chapter 4: Advantages, Disadvantages, and Applications of Metal Fabrication
Advantages of Metal Fabrication
Metal constructions are robust and long-lasting. This is due to metals’ strength and resistance to damage. Metal creations can last many years without needing to be replaced if properly maintained. They are a great option for projects that need to last because of these qualities.
Numerous jobs call for specialized fabrication. Customizing metal fabrication is simple. Metal fabrications may now be tailored to fit the unique requirements of any project. Thus, one can obtain the ideal project size, shape, and design through metal fabrication.
Metal fabrication provides versatility. Metal can be used for a wide range of large and minor applications. Metal fabrication can be utilized for more difficult projects like construction. As a result of their versatility, metal fabrications may provide a significant asset for any company or person.
Metal fabrication is a competitively priced choice in the manufacture of numerous items. Even in cases where the item is initially more expensive to construct, metal fabrications are long-lasting. They will therefore enable one to save money over time. Additionally, metal fabrications are frequently more affordable than their plastic counterparts. So, metal fabrication is a fantastic option for individuals on a tight budget.
Metal fabrications are also very simple to maintain. Many metal creations can persist for many years without regular maintenance. Metal creations can be designed to be resistant to rust and corrosion, making them a great option for outdoor applications. Metal fabrications can be tailored to be heat- and fire-resistant. As a result of their versatility in required traits, metal fabrications can serve well in both industrial and commercial environments.
Disadvantages of Metal Fabrication
Even though creating items made through metal materials may be less expensive in the long term based on their durability, their initial cost can be much higher than other materials. In addition, metal fabrication takes longer when customized tooling is required.
After fabrication, some metals are more likely to need additional finishing procedures like painting and deburring, which can lengthen production times and raise prices overall.
Metals can impose design constraints when constructing a complicated system that calls for components with unusual forms, small sizes, or different sizes.
Applications of Metal Fabrication
Construction: As a sort of metal fabrication itself, steel and steel-fabricated goods are preferred by the majority of architects and engineers for their projects. The essential framework for buildings, bridges, warehouses, and numerous mega structures is made with the steel beams, girders, ladders, handrails, and platforms that metal fabricators produce. It would be impossible to envision the construction sector without metal fabrication.
Aerospace: Metal fabrication is utilized for aircraft, from simple military planes to complex commercial planes. This is another sector that could not exist without metal fabrication.
Energy: Metal fabrication is also utilized in the energy industry, which includes businesses that produce electricity from the sun, wind, nuclear sources, and oil and gas. Oil and gas wells and platforms, pipelines, electrical power turbine parts, wind turbines, transmission towers, electromagnets, transformer cores, and electromagnetic shields are a few of the goods used in these sectors. Metal fabrication is used in the production of each of these items.
Mining: Steel is a necessary component of the mining industry since so many of the tools, ranging from simple shovels and pickaxes to heavy-duty equipment like pumps and bulldozers require steel in their construction. Ironically, steel may also be considered a byproduct of the mining industry since steel could not exist without the metals required to produce it.
Shipbuilding:Metal fabrication items are extensively used in various equipment by the shipbuilding sector. Some main industry items are steel flooring, grating, ladders, steel sheets for hulls, conveyance tubing, stairs, and platforms.
Military Applications: The military industry depends on metal fabrication for items ranging from ammunition, to body armor, to subs and aircraft.
Leading Manufacturers and Suppliers
Contract manufacturing is a business model in which a company hires a contract manufacturer to produce its products or components of its products. It is a strategic action widely adopted by companies to save extensive resources and...
Precision sheet metal fabrication is a common manufacturing process where the structure of a metal workpiece is cut, bent, and assembled by machining. There are any number of operations that are performed in the creation of a finished sheet metal product...
Sheet Metal Fabrication
Sheet metal fabrication is metal that has been formed into thin and flat sheets which is then cut and bent into various shapes. Different metals, brass, steel, copper, tin, titanium, aluminium, etc., can be made into sheet metal...
Stainless Steel Fabrication
Stainless steel can be fabricated using any of the traditional forming and shaping methods. Austenitic stainless steel can be rolled, spun, deep drawn, cold forged, hot forged, or stippled using force and stress...
Secondary manufacturing processes, or fabrication, work on products from primary processes to create a metal part or structure that is suitable for end-use. In these processes, semi-finished metal products are reshaped and joined...
Laser cutting is a non-traditional machining method that uses an intensely focused, coherent stream of light called lasers to cut through the material. This is a type of subtractive machining process where the material is continuously removed during the cutting process...
Plastic fabrication is the process of designing, manufacturing, and assembling a product made out of plastic material or composites that contain plastic. There are numerous plastic fabrication methods known today, considering...
Water Jet Cutting
Water jet cutting is a manufacturing process that uses high pressure jets of water provided by pressurizing pumps that deliver a supersonic stream of water to cut and shape various types of materials. The water in water jet cutting is...
