This article will provide information about abrasive blasting.
The article will give details on the following topics:
Industries worldwide use abrasive blasting for various purposes, including cleaning rust and oil, removing surface coatings like paint and pollutants, preparing surfaces for paint and coatings, reinforcing metal surfaces and adhesion, and carving stone.
Abrasive media is shot against a surface using a blasting device under pressure to clean, smoothen, roughen, or shape the surface. The initial blasting method was invented more than 150 years ago and has since become the method of choice for numerous applications.
Other names for the procedure, like sandblasting, include media blasting, grit blasting, and others that incorporate the name of the material or the equipment used. Over alternatives like sanding, wire brushing, or the use of hazardous chemical strippers and solvents, blasting procedures offer significant financial and time savings.
The needed surface polish can be achieved using various abrasive materials. Utilizing the proper abrasive media for surface preparation and finishing is essential because the anchor pattern, or etch profile, that the abrasive creates can directly influence how well the following coatings stick to the surface.
The abrasive media's size, shape, hardness, and density affect how the surface will turn out.
Size: With fewer strikes, larger particles will leave deeper impressions than an equivalent volume of smaller particles. The optimal strategy is to employ the least amount of media to achieve the intended outcome. Mesh size, grit size, or microns are used to measure abrasives.
Media size is frequently categorized by mesh size. A range is frequently offered to show what size sieve 95% of the mix will fall through and what size it will not. The mesh size number represents a variety of mesh lines per square inch in the sieve. The amount of grit that goes through or is retained at particular sieve sizes determines grit size, much like mesh size. And the metric unit of measurement for length is the micron.
Shape: How deeply it cuts into the surface depends on the form of the medium. The four media shape categories of angular, sub-angular, rounded, and round impact the anchor profile. Angular materials are jagged, produce a higher etch, remove rust more quickly, form sharper, deeper anchor patterns, and have a higher cleaning rate. Round or sub-rounded materials are smoother or more spherical and produce a more uniform, dimpled profile. Crushed glass and aluminum oxide are coarse media that can be angular or sub-angular. Glass beads are categorized as round. Still, garnet and plastic abrasives are sub-angular or sub-rounded because they contain fewer angles.
Shape: The Mohs scale of mineral hardness is used to assess abrasive hardness. Higher Mohs values denote tougher materials, while lower ones denote softer materials. For instance, the Mohs hardness scale ranges from 9 for aluminum oxide, to 5 to 6 for glass beads, to 3 or 4 for plastic.
A harder abrasive will typically result in a deeper profile. Hard media include aluminum oxide, garnet, silicon carbide, steel shot, steel grit, and glass beads. Hard abrasives polish metal surfaces, create a profile and remove rust, corrosion, and scale from hard metals.
Soft abrasives include walnut shells, plastic, corn cob media, baking soda, and wheat starch. A gentler abrasive produces a finer polish. Grease and light coatings are removed from delicate surfaces using soft abrasive media without etching, pitting, or marring them.
Density: The deeper the profile, the denser the particle, and the greater its impact over a smaller surface area. Additionally, dense medium deforms less under the impact, absorbing less energy. Specific gravity is a unit used to describe density. Higher specific gravity values indicate more dense particles. For example, aluminum oxide has a specific gravity of 3.94 to 3.96, glass beads have a density of 2.5, whereas steel shot and steel grit have a gravity of 4.8 to 7.8.
Abrasive blast systems are among the most well-liked and often-used methods for finishing machine parts and components. To get rid of carbon deposits, oxides, and discolorations, an abrasive blast cabinet, wet abrasive blasting system, or slurry blast cabinet is utilized. In addition, abrasive blasting systems typically prepare surfaces for coatings, platings, painting, and cosmetics.
Abrasive blasting system equipment can help one rapidly and easily complete procedures such as cleaning precision parts, stampings, dies, molds, castings, pistons, and valves. Heat treat scale, carbon deposits, slag, oxides, discoloration, mild machine burrs, paint, varnish, lacquer, and rust are all removed by abrasive blasting.
Surfaces can be prepared for plating, painting, anodizing, and the adhesion of coatings by using abrasive blasting. Furthermore, peening can be done with abrasive blast systems to improve the fatigue resistance of crucial parts, the resilience of parts that work in corrosive environments, and to relieve stress at weld locations. The automobile, appliance, jewelry, and photographic sectors can benefit from attractive, high-quality finishes produced by abrasive blasting.
Abrasive blast cleaning methods and techniques typically use aluminum oxide, plastic abrasive, glass beads, steel grit, ceramic media, corn cob, and others to achieve various finishes.
Different applications and parts require different abrasive blast systems for finishing. Here's a look at some of the most common abrasive blast systems one might consider:

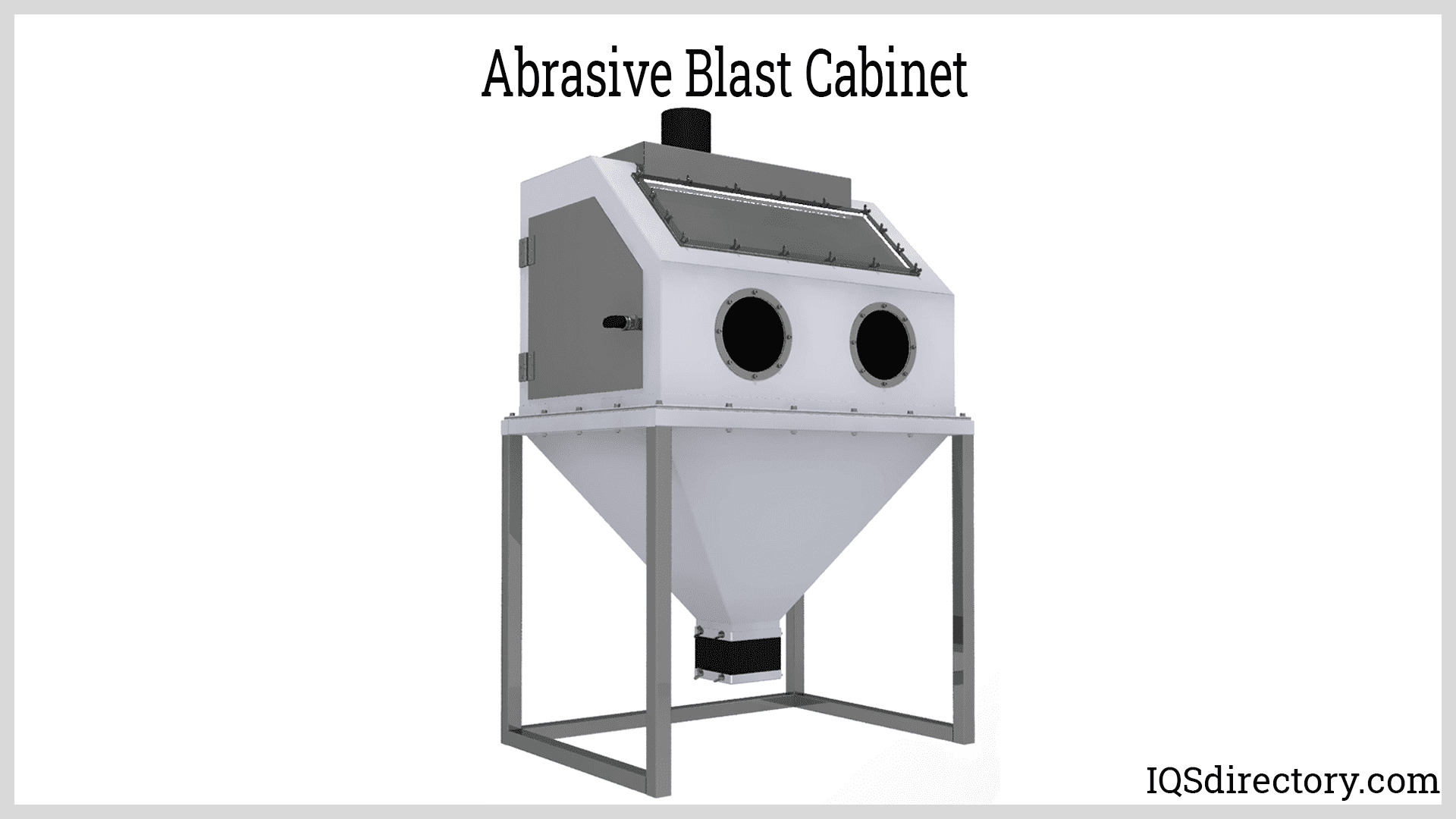

Abrasive Blast Cabinets: Precision parts, dies, castings, valves, pistons, molds, and stampings are best cleaned in abrasive blast cabinets.
Wet Blast: A wet abrasive blasting technique is the optimum method for preparing surfaces for final surface coatings. It is well recognized that a wet blast can clean, deflash, and descale texturing bits and pieces. The wet blast method uses an abrasive and water propelled by a specially designed pump to attain the desired polish.
Slurry Blast: Slurry blast cabinets are wet blast techniques that use Proceco®-exclusive technology. This method is renowned for providing quick and efficient part cleaning in minutes. Although white metal and aluminum respond best, nearly all metals can be blasted with slurry.

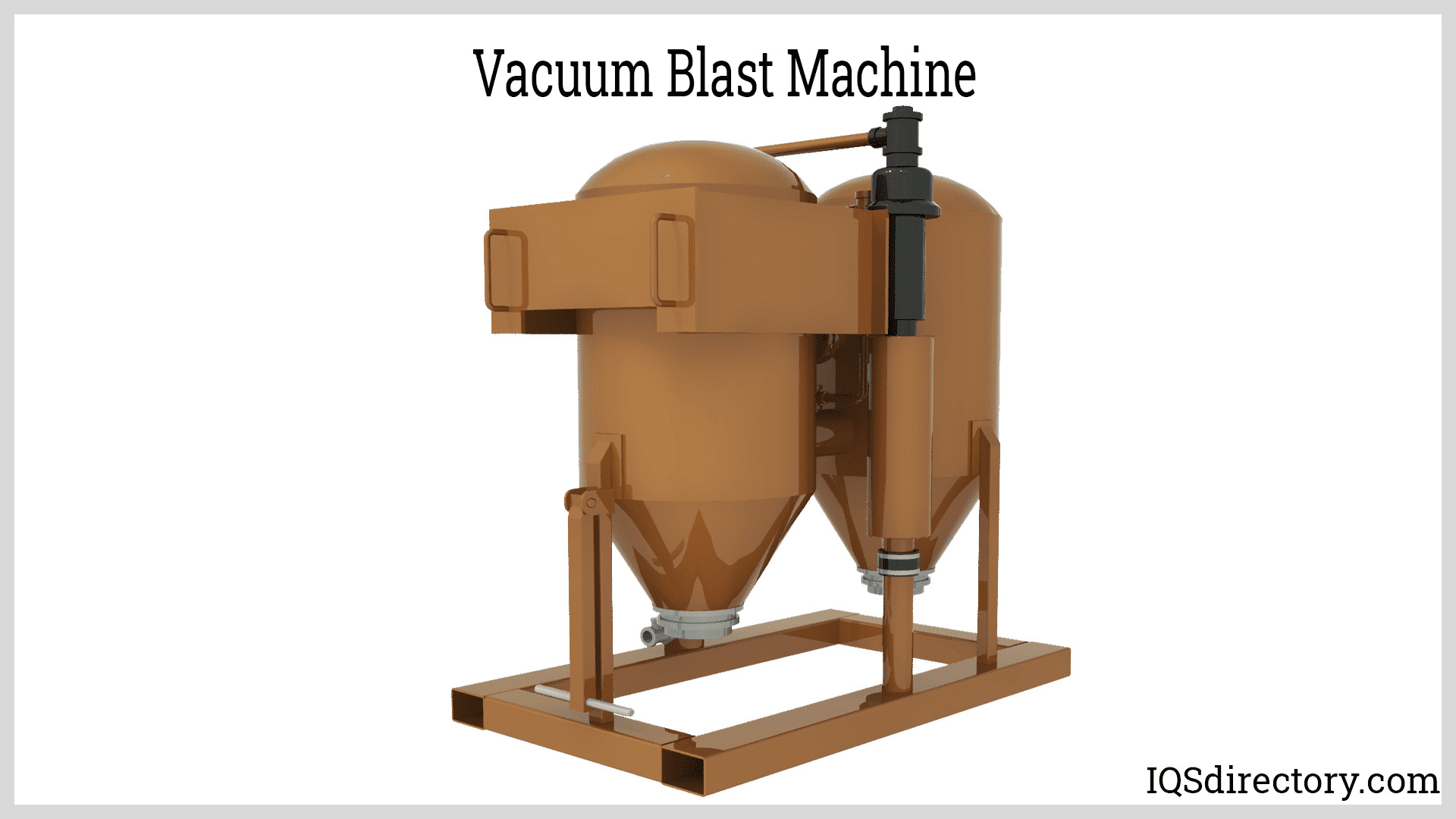

Vacuum Blast: This technology, called dustless blasting, removes impurities and abrasives from surfaces using a suction process. Advantages include less clean-up and improved effectiveness when recycling used materials. This approach is also a reasonably priced option.

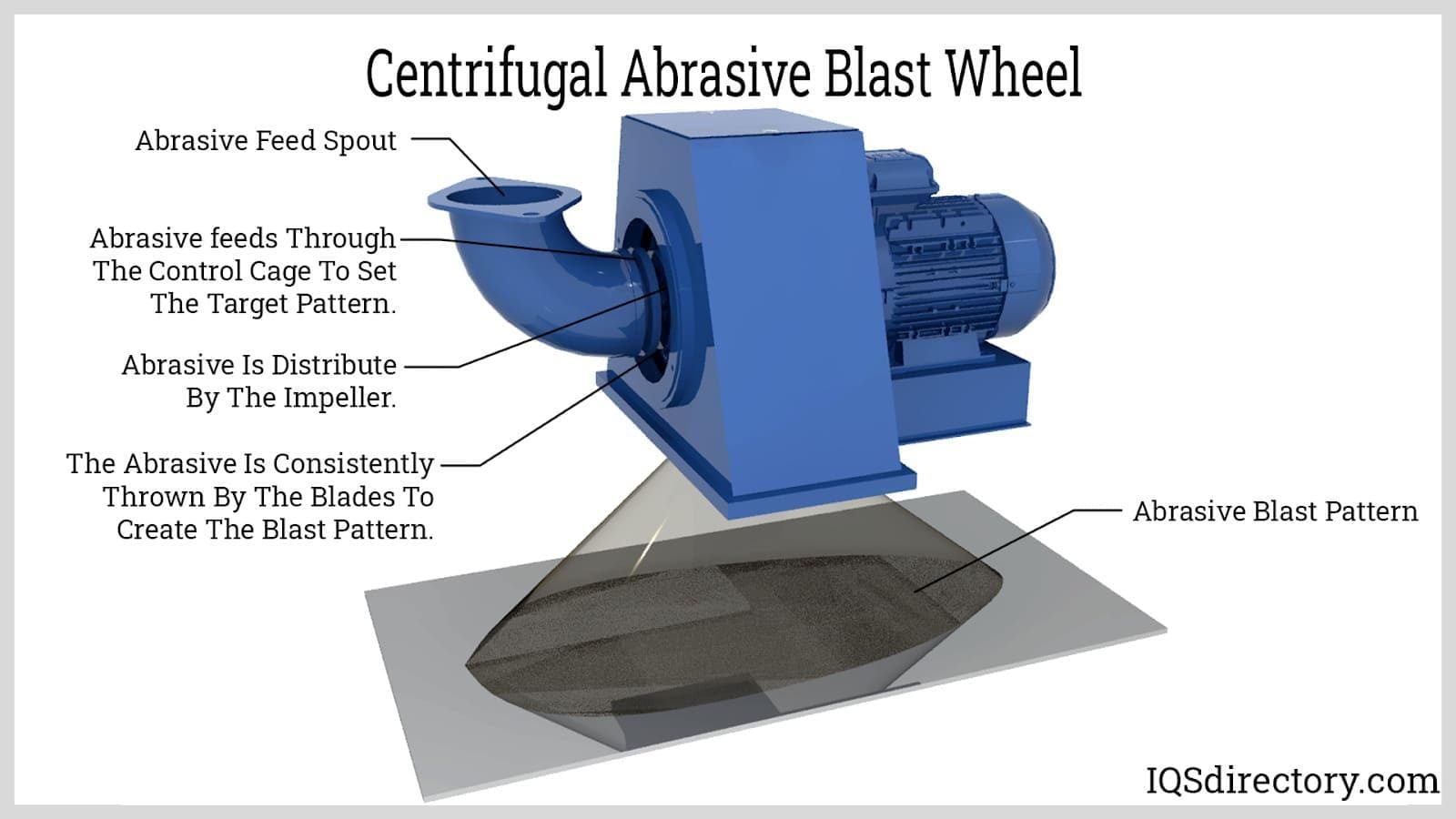

Centrifugal Blast: This method produces high-speed blasting results using a motor-powered blade wheel. Additionally, it creates homogeneous, clean surfaces that aid in more dependable coating adhesion. Frequent centrifugal blasting is the best option for tasks demanding high throughput and optimal efficiency.

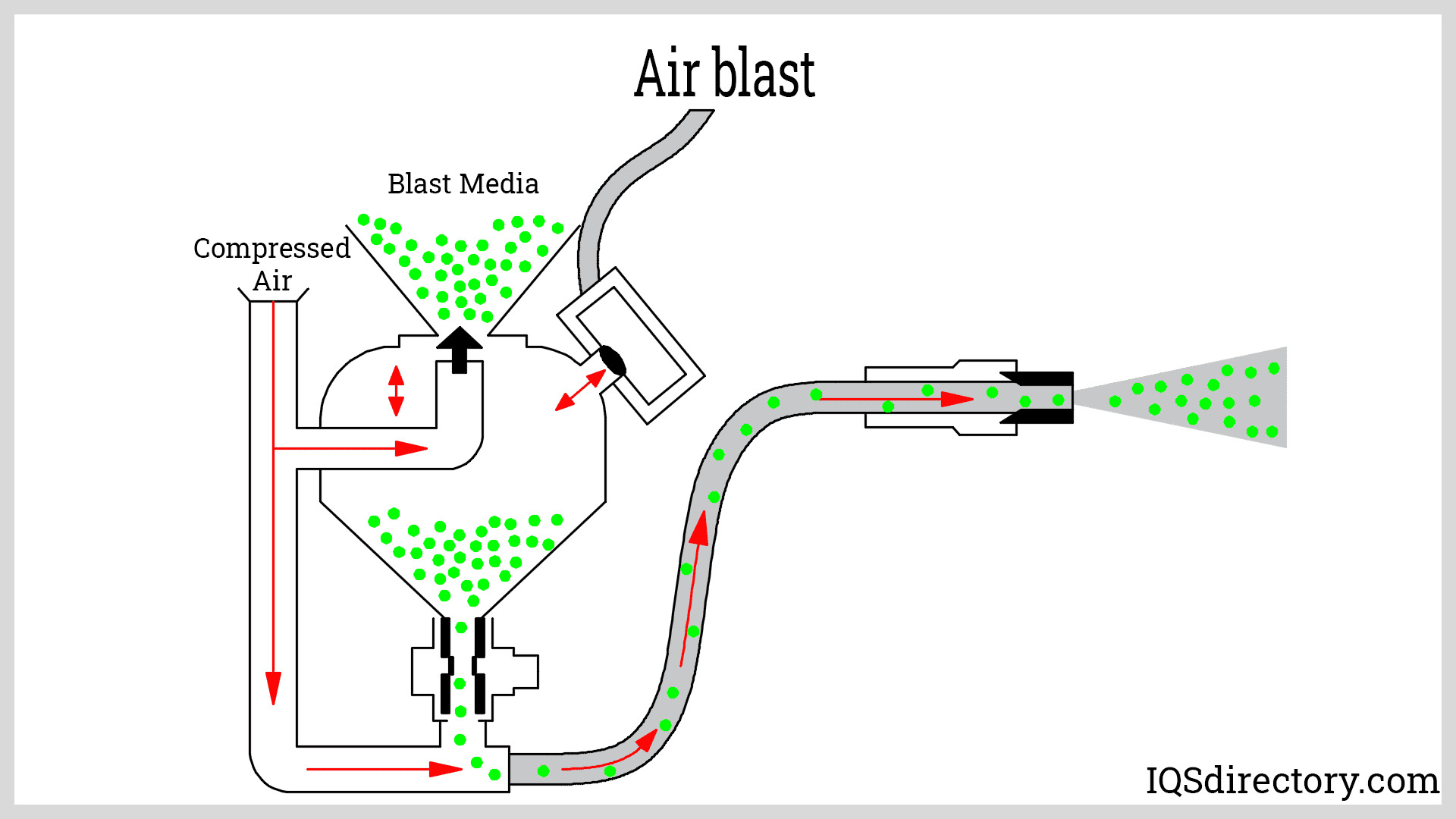

Air Blast: In this method, dry abrasive materials are pushed against the surface by compressed air. This method is used to remove rust or outdated paint. This method works for various blasting applications because it's simple to change the blasting outcomes by modifying the compression speed.
Bristle Blast: This technique uses steel wire bristles to remove impurities, in contrast to many other blast systems that use an abrasive material to accomplish the intended result. It is efficient for cleaning corroded metal surfaces.
Pencil Blast: This technique, also known as microblasting, combines fine powder with compressed air at high pressure. The apparatus has a nozzle that can be adjusted so that the user can regulate the stream. Any blasting application that calls for good cleaning is perfect for this approach.

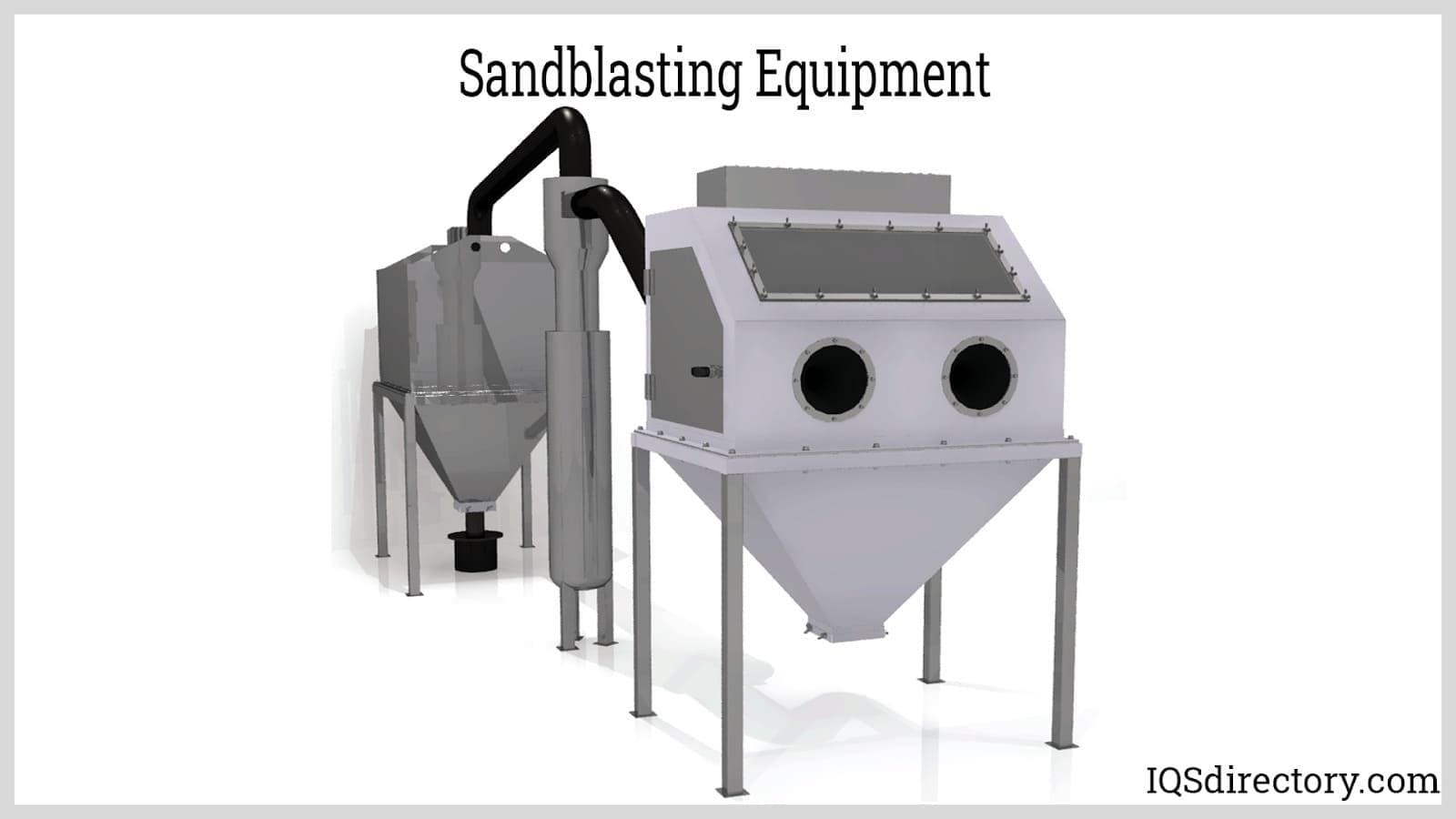

For preparing recently manufactured components for their ultimate application, abrasive blasting devices are necessary. An abrasive blast cabinet may shape surfaces, clean pollutants off of surfaces, and roughen smooth surfaces as needed. These different blasting systems ensure that components are prepared to function dependably and durably over the long run.
By directing a stream of the abrasive particles against a part or a surface, abrasive blasters and sandblasters clean and prepare surfaces. Blast wheels, pressurized water, or compressed air propel the abrasive or blasting media. Blasting is done by degreasing, deburring, deflashing, descaling, stripping coatings, and surface preparation of products made of metal, wood, plastic, glass, or other materials. Specialized micro-blast or micro-jet equipment is available for applications requiring precise surface preparation, material removal, and finishing. In addition, the surface created by blasting is ideal for other coating processes like thermal spraying, painting, or plating.
Sandblasters and abrasive blasting equipment both have several significant parts. The pressure generator uses crankshaft or plunger pumps to raise the carrier's pressure. From a hopper or tank, abrasive injectors supply the material to a blasting wheel or straight to a nozzle, cannon, head, or lance. Smaller workpieces are stored in blast cabinets, while larger ones are done in blast rooms. The dust collection/filtration system takes fine abrasive media and blasts waste particles out of the air by the dust collection/filtration system. Similarly, the media separator/reclaimer removes undersized abrasive, media, or coarse debris.
The standards for sandblasters and abrasive blasting equipment are very significant. The pace at which the abrasive grain enters the system is known as the media flow. The pressure of water or air used to produce a jet or blast stream for cutting or launching abrasive particles is known as blast pressure. The particle velocity of abrasive grains as they are initially projected from the blast disk or nozzle is known as the abrasive linear speed. The term "abrasive particle velocity" refers mostly to blast wheel equipment.
The size and positioning of sandblasters and abrasive blasting equipment vary. Some tools can be mounted on a bench, pedestal, cart, hand truck, floor, or skid, or they can be tiny enough to be carried about or used hands-free. Other systems are big enough to be put on a trailer or a truck that can be moved to the job site that needs blasting, like the side of a steel tank, a ship's hull, or a building wall. Crawler or track-mounted machines may scan a surface in a controlled and repeatable manner to clean or roughen it uniformly. Small vehicles called crawlers use magnetic or vacuum-mounted feet mounted on tracks to grasp onto a surface. The jet cutter head of track-mounted devices is moved around the surface by a track.
Operators move sandblasters and abrasive blast equipment across huge fixed surfaces to cut or clean the surface. Smaller surfaces, however, frequently need workpiece loading. Parts may be installed on a conveyor, tumbler, or spinner. They can also be set on a gantry, rotating table, or held in hand. The abrasive delivery can be automated and controlled using CNC controllers and PC interfaces in conjunction with abrasive blasters and sandblasters.
One can employ various metal finishing techniques to guarantee the quality of metal parts produced for industrial and commercial applications. Tumble blasting is one of the most efficient processes for processing tiny components. Here are some important details about this worthwhile process.

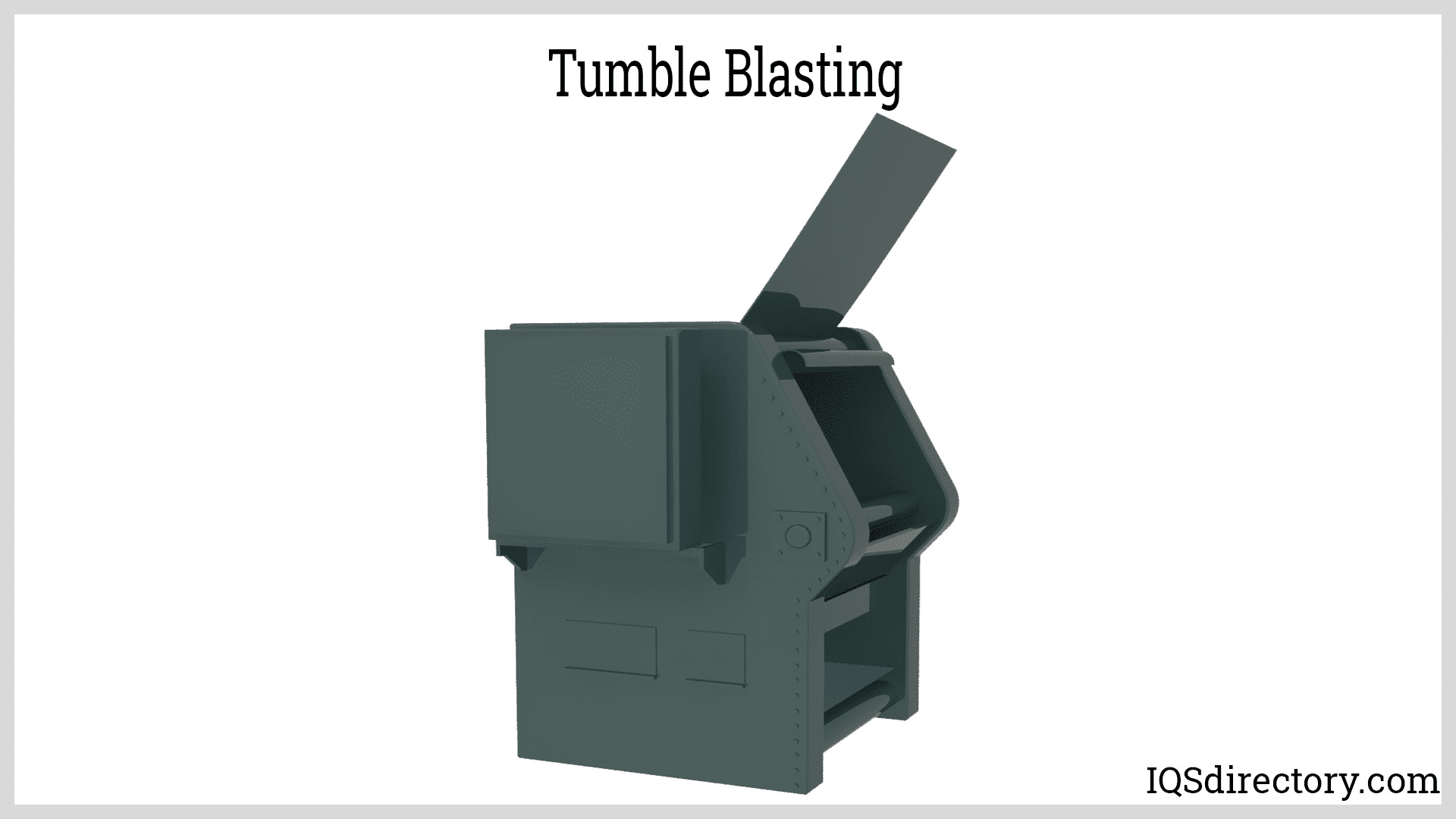

Smaller metal items are processed in batches using this type of wheel blasting. The system's cabinet drives a flighted belt made of steel or rubber, and the pieces that need finishing fall beneath the blast wheel. The components inside the tumble blaster are continuously bombarded with finishing media from a single compressed air pistol. The majority of tumble blasters have capacities between 1.5 and 12 cubic feet. Flashes and burrs that could be challenging to remove with conventional finishing techniques are intended to be removed by tumble blasting. The tumbling action effectively covers the part's entire surface because of its random character.
Tumble blasters' distinctive construction makes it possible for them to complete tiny metal components quickly and effectively. Most tumble blasters can get rid of burrs as little as .01 inch in diameter. Depending on the complexity of the task, blast pressure, medium, and cycle duration can all be modified, while the majority of jobs can be finished in under 20 minutes. While still producing effective results, a relatively low rotating speed guarantees that delicate parts aren’t harmed.

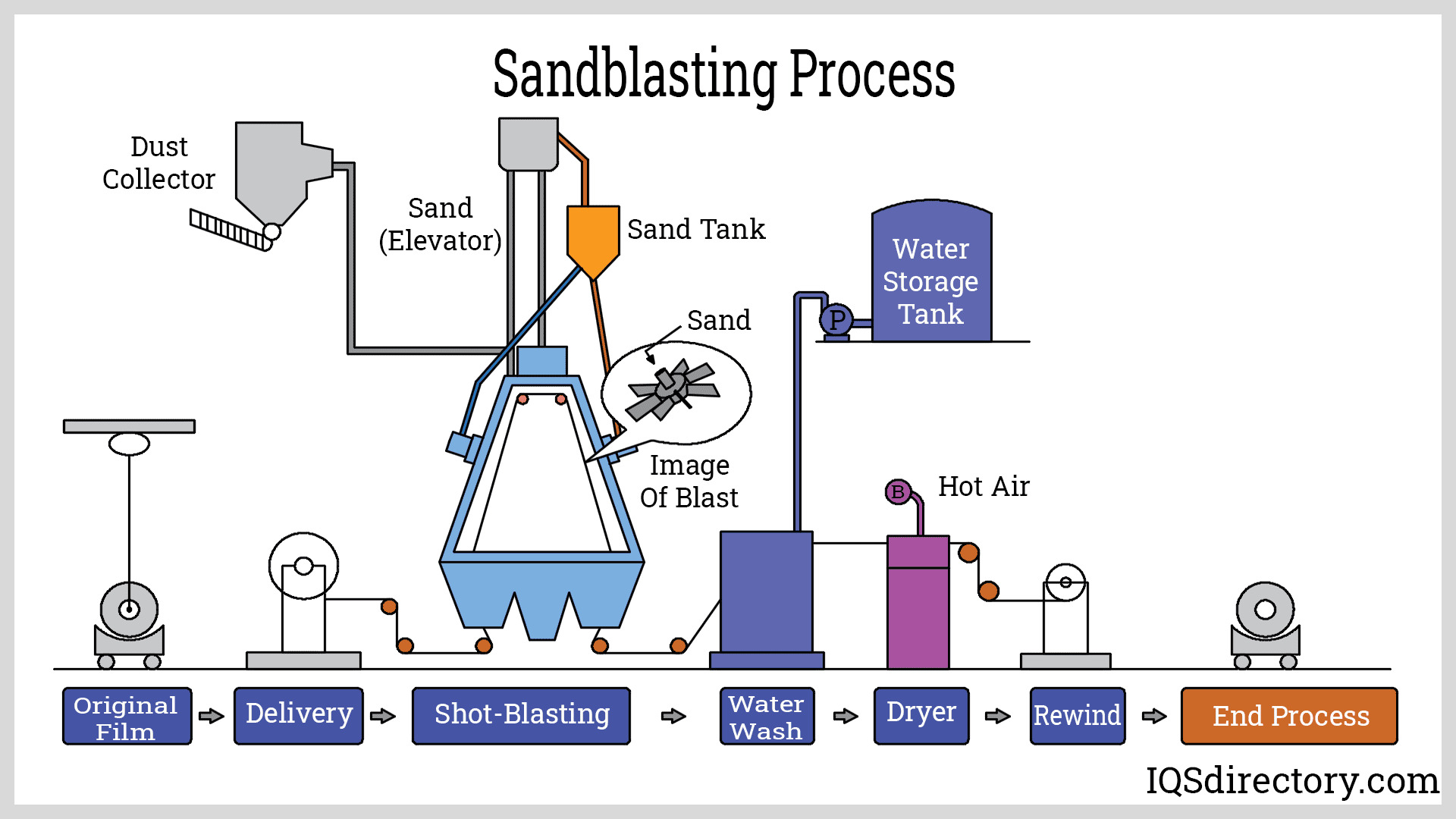

Sandblasting uses compressed air to blast sand across a hard surface of the equipment to clean and smooth it out. The surface becomes bright and smooth as a result. Sand particles are accelerated and compressed at high pressure onto the surface using air compressors or sandblasting equipment.
It is a tried-and-true method of prefinishing. Rust, paint, and oxidation are effectively removed from the surface of materials using the sandblasting technique. Removing casting flaws, welding flaws, and scratches from the surface enhances the surface finish.
The process of sandblasting has four variables.
Sand is pumped into the chamber of the sandblasting machine in the first step from the top. The machine is connected to the air source, commonly an air compressor, once the sand chamber is filled with sand.
The workpiece is held in the sandblasting cabinet. It has a workpiece-appropriate clamping system and an openable door for changing the workpiece.
When ready, the compressor is turned on to push sand with high air pressure through the nozzle onto the workpiece. Sand content and air pressure can both be adjusted as needed.
Surface smoothness is produced by applying high-pressure sand pressures to the workpiece's surfaces. The sand’s characteristics and abrasiveness determine the surface finish.
The operation may occasionally be repeated to get a good surface smoothness. This repetition is required because of the amount of dust gathered in the dust collection container after the process.
Large equipment must be placed in an open area before being subjected to sandblasting using compressed air.
Rust, paint, and oxidation are effectively removed from the surface of materials using the sandblasting technique. In addition, removing casting flaws, welding flaws, and scratches from the surface enhances the surface finish.
The first step is throwing the grit blast material in a highly regulated manner at a high speed of 65 to 110 m/second into a grit blasting machine. By using an abrasive impact, it cleans the surface of any contaminants. Grit blasting is at its height right now. The grit blast media is propelled by compressed air. This technique is still used to remove metal frames.
There is a danger that sand could hurt the eyes and ears during the sandblasting procedure. Additionally, there is a danger that breathing in the sand will cause damage to the respiratory system. Therefore, personal protection equipment, such as a helmet, goggles, face mask, and protective suit, is required.
The compressor must be kept under enough pressure at all times. High pressure can occasionally accidentally cause the compressor to explode.
The most crucial step is to store sand in a designated location. Since there is a potential that the workers will drive sand to other working areas, workplace problems may result from it.
The machine must be kept in good working order. If a machine isn't in good shape, it could leak sand while working. Additionally, a mishap could be brought on by the machine's poor condition.

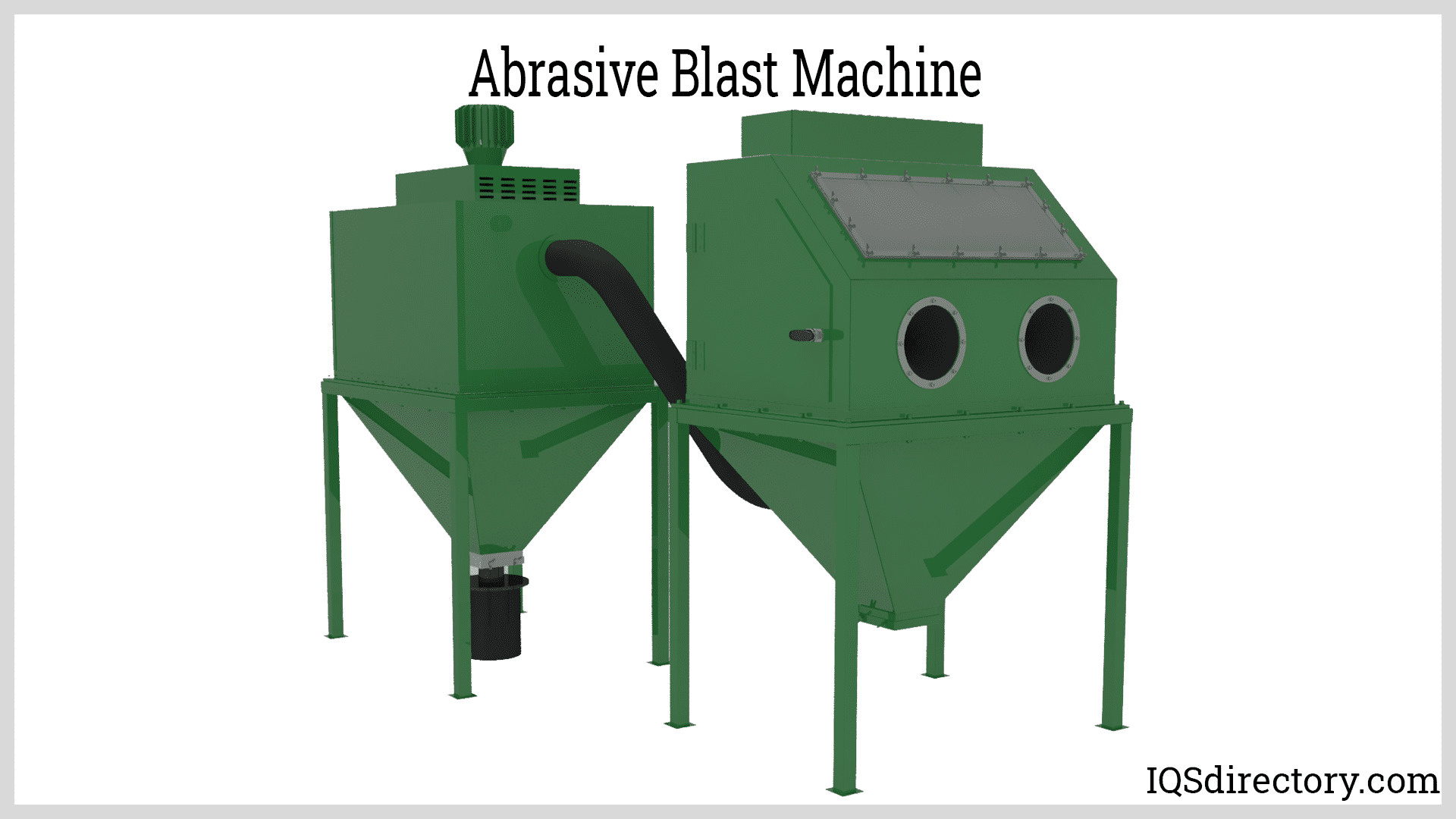

An abrasive blasting machine needs essential equipment to clean or treat metal surfaces effectively. An apparatus known as an abrasive blasting machine uses compressed air as a power source to project abrasive particles. Compressed air and stationary abrasive particles can be combined to create an efficient cleaning process using a combination of common sense and technical components. Each component greatly influences the effectiveness of an abrasive blasting system. The entire system will operate below the expected level if one component malfunctions.
Abrasive blasting is often used to clean steel substrates like bridges, ships, and other structures from the outside. In enclosed systems, it is a very effective method of cleaning and treating metal surfaces. Examples of enclosed systems range from manually-operated sandblasting cabinets with the operator outside the blast chamber to enormous rooms with one or more operating inside the enclosures. Enclosed systems in this price category offer a wide range of pre-built and custom automation capabilities tailored to particular production and treatment requirements whether the work is carried out indoors or outside, manually or automatically. The act of blasting anything with abrasive particles is known as abrasive blasting. The choice and use of effective parts determine machine productivity.
Suction blasting and pressure blasting are the two different types of blasting methods. Suction machines are frequently small machinery used for simple jobs or light cleaning. The suction principle is most frequently applied in blast cabinets with constrained workspaces and light blasting demands. Pressure blast devices are also used with cabinets for tough cleaning tasks. Pressure blasting is employed in applications in blast rooms.
An abrasive sandblasting nozzle is used to force abrasive particles out of a non-pressurized container into a gun chamber through suction, often known as "venturi." In a suction system, a blast gun is often employed containing two air and abrasive hoses, along with a canister for abrasives. The blast gun has a gun body, hose connectors, and an air jet with a nozzle in front of it. Compressed air from the air jet will flow through the gun's body and produce a drawing movement. As a result, abrasive is forced into the gun body through the abrasive hose and accelerated into the nozzle.
Suction blasting has a one-fourth to one-third lower velocity and surface impact than pressure blasting. Suction blasting is, therefore, more appropriate for light to medium-duty applications. The most frequent uses involve soft, sophisticated metals where small deburring, light shot peening, and thin scale removal are necessary without significantly penetrating the base metal. Suction blasting is used, for instance, to finish automotive and aerospace components consisting of magnesium, titanium, and aluminum.

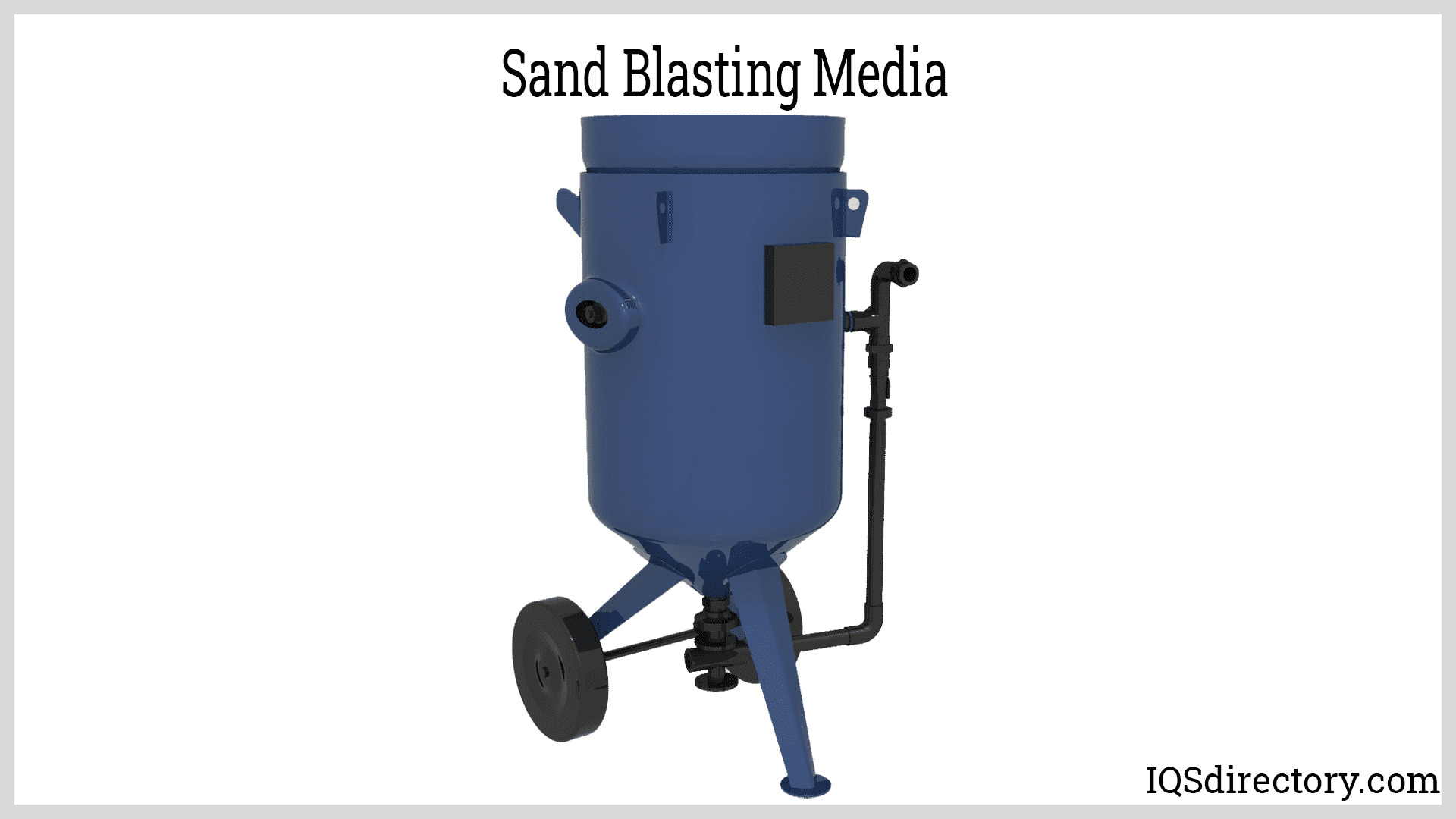

In contrast to suction blast systems, pressure blast systems only employ one hose to feed the nozzle. Through a single blast pipe, air and abrasives move at high air pressure and rapid speed, causing a harsh surface impact.
Abrasive blasting can be used for a variety of purposes. Although the most famous, blasting steel bridges and concrete structures can strengthen high-stress materials, enhance component appearance, and remove undesirable buns and flashing. And finally, sandblasters and abrasive blasters have different uses. While other machines deburr sharp edges, remove the flashing, wash parts, or peel undesirable elements like heat-treat scale, some refine, roughen, or clean surfaces. Other machines burnish or peen media with smooth, rounded shapes like glass beads, metal shots, etc. For instance, peening increases metallic materials' fatigue strength by applying residual compressive stress to the parts, which is why shafts and turbine blades are occasionally peened or shot blasted.
This application area includes the process of preparing surfaces for coating materials. It is commonly known that steel may be cleaned quickly to get rid of old paint, corrosion, and other impurities. If the steel is fresh, it can also be cleaned quickly to eliminate the mill scale gathered on the surface during manufacturing. Creating a surface profile is the second most crucial task when blasting steel. Profile often called "etch" or "roughness," is the surface texture produced by the collision of abrasive particles. Coating producers often specify the type of profile required to ensure that their coating material operates as intended.
Other materials like steel and masonry can also benefit from surface treatment. Blasting is used on fiberglass materials to remove the top layer of the glaze and reveal air bubbles (gelcoat). If advanced metals like aluminum, titanium, magnesium, and others are to be coated, corrosive debris must be removed along with a surface profile. High-tech materials used in the aerospace and aviation industries, such as composites, are blasted using newer, gentler abrasive media. To remove degraded paint, plastic, wheat starch, and agricultural media are shot at low air pressures into aircraft, helicopters, car bodies, lorries, and boats.
Abrasive blasting differs from surface preparation in that it aims to enhance a product's appearance and functioning rather than to get it ready for coating. Common surface finishing procedures include deflashing and deburring mold-formed parts, removing production imperfections, and improving aesthetics.
The most frequent abrasive blasting uses are metal foundries, which produce parts via die casting, permanent mold casting, and sand casting. Small burrs must be removed from cast pieces for functional and aesthetic reasons because they are almost always present. Another benefit of blasting cast parts is that it can spot tiny flaws and faults that would otherwise go undetected. This benefit is especially beneficial to aircraft maintenance facilities that refurbish airplane wheels.
The specialty discipline of abrasive blasting, which compresses a surface, is essential for the longevity of high-stress components. Abrasive blasting is used in the compression process known as shot peening. Blasting metal surfaces with a high-velocity spray of chosen spherical balls can increase the fatigue strength of those surfaces. The most popular media for shot peening include steel, glass, and ceramic shots. Peening has the effect of stretching and compressing the surface, reducing operational stress. As a result, shot-peened components outlast non-peened ones in terms of durability.
The safest and most efficient approach to getting a metal ready for polishing is in an abrasive blast room. By collecting and recycling abrasive materials repeatedly, an abrasive blast room can help save time, money, and the environment.
Abrasive blasting removes mill scale, an earlier covering (paint), and rust to restore or repaint a metal component. The surface will be blended for an even texture using abrasive blasting.

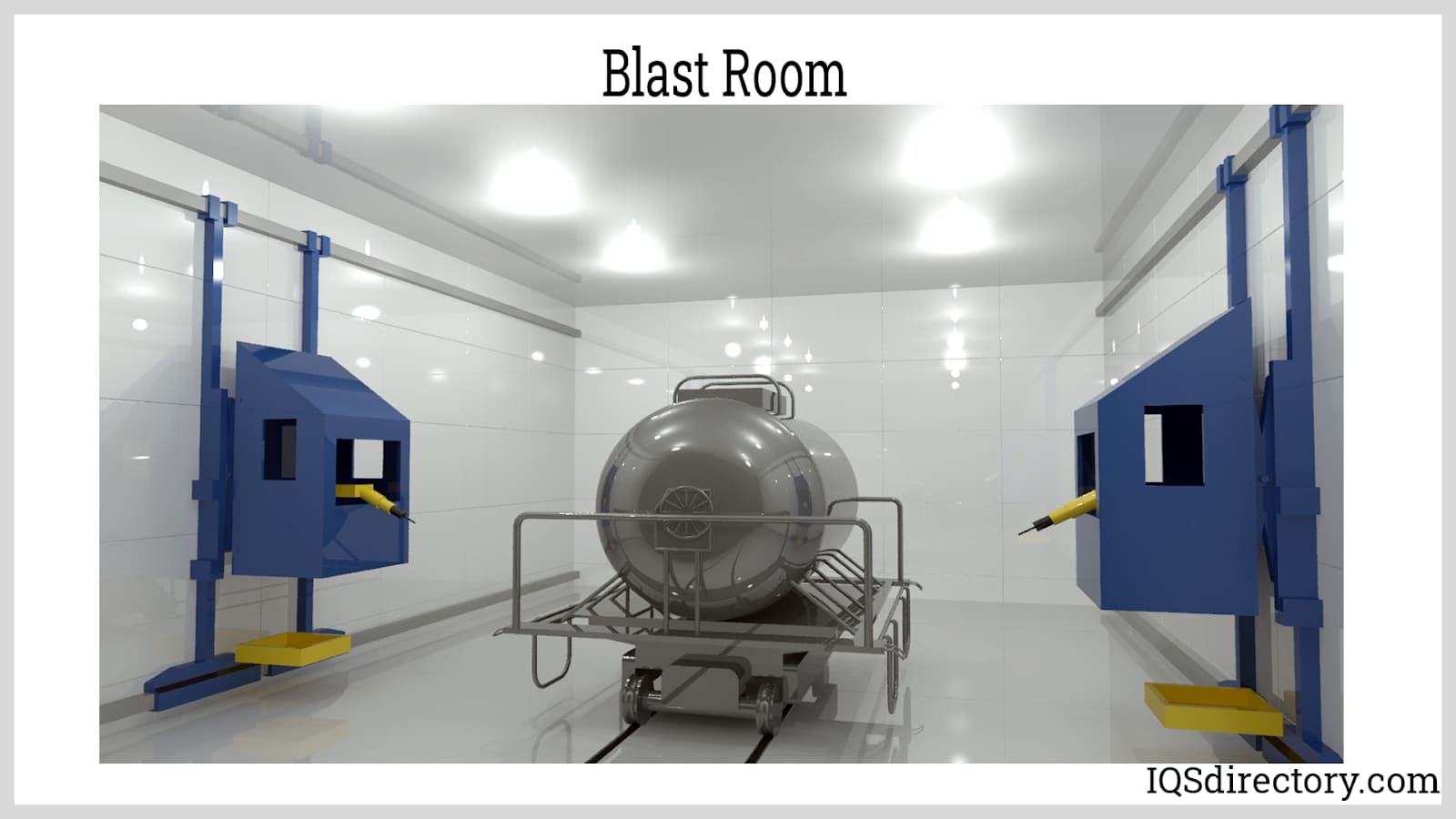

"Abrasive blast rooms" or "blast booths" store abrasive blast pots, gather used abrasive material, and recycle the blast abrasive. A mechanism for recovering abrasive material and an enclosure that keeps fine abrasive material from accessing the outside air make up a blast room.
Once recovered, the leftover abrasive is sent to a recovery system so that dust may be separated from the leftovers and the high-quality abrasives can be reused. One can save money by effectively recovering and reusing abrasive material that is still suitable for reuse by employing an abrasive blast room.
Blast enclosure: hinders the escape of abrasive material into the open air.
Blasting system: contains pressurized air and abrasive materials, and the flow can be stopped and started by employees using valves. Booths for sandblasting are a common option.
Abrasive recovery system: Blasting waste abrasive is automatically recovered and swept or suctioned into a dust collector.
Dust collector: prevents particulate matter from escaping into the outside air by filtering the air in the room.
Recycling station: sorts through residual abrasive to distinguish high-quality, reusable grit from the fine dust.
By using abrasive blasting hoses and nozzles designed for each project type, abrasive blasting can be done manually. There are also mechanical abrasive blasting rigs that run automatically on railroads.
Unfinished goods can be cleaned of paint, mold, and rust during abrasive blasting to produce a smooth and even surface suitable for finishing—the abrasive and tiny dust particles created during blasting fall to the ground.
A recovery system collects the remaining abrasive material on the floor once the blasting is finished. Recovery systems come in various configurations, some of which use sweepers, moving walls, air jets, or even moving floors to collect all waste into a recycling system.
After passing through the recycling system, the mixture is cleaned and reinserted into the blasting pot, which removes fine particles and dust.
Blasting chambers can be changed to better suit the requirements of any product. They can have manual blasting hoses, rail blasting systems, and various types of recovery systems installed. There is no conventional blasting room because there are so many customization options.
A focussed stream of air and an abrasive are employed in micro-abrasive blasting, an improved type of sandblasting. It applies a thin stream of abrasive material to a small portion of a bigger material using fine nozzles ranging in size from 0.25mm to 1.25mm.
Micro abrasive blasting can be done manually or mechanically and is used for extremely specialized activities (areas as small as 1.3mm x 2.0mm). While automated blasting has significantly advanced recently, manual micro-abrasive blasting has been used extensively for a long time.
Micro abrasive blasting, which has become more popular in medical parts manufacturing, provides an effective way to clean small workpieces. The production of these devices significantly impacts cleaning procedures as medical parts get smaller and more complex. Small flaws must be fixed to ensure the gadget performs as intended because they might significantly impact usage.
To remove residue and graphite master remnants from the mold cavities of injection molding tools, micro-abrasive blasting is performed. Blasting a molded object with a gentle abrasive will remove the graphite compounds without harming the cavities because a buildup of residue can affect the finish.
Micro-abrasive blasting is also advantageous for laser-machined molds because it removes deposits that precision etching leaves behind the mold.
Medical items such as surgical instruments and implantable devices like pacemakers can be cleaned using micro-abrasive blasting. Additionally, it can be used to clean device parts and remove silicon insulation, cleaning residue from tools and preventing the need for replacements. However, these flaws could harm the device's performance and lifespan if they are not fixed. Micro-abrasive blasting provides high accuracy, precision, and dependability in each of these applications.
For surface preparation applications, abrasive blast systems can help a business in several ways.
Efficiency: Abrasive blasting is one of the most effective methods for preparing metal surfaces for coating, painting, or other finishing treatments. One can quickly get outstanding results and do away with the uncertainty that many alternative procedures entail.
High-Quality Products: One may rely on blast systems to remove the most complex compounds and impurities from metal surfaces because of their effectiveness. The coating will stick to the surface more firmly, improving the quality of the end product.
Damage Prevention: Blasting systems are a great technique to guarantee the durability of the workpiece. It provides a dependable method for stopping corrosion and rust, which enhances the final product. In addition, one may anticipate long-term protection in the most difficult settings when used with paint or powder coating.
Operator Safety: There is no need to employ hazardous chemicals or other poisonous materials while using abrasive blast systems. Used blasting media disposal normally doesn't harm the environment or overflowing landfills. They can be used in any institution with complete confidence.
