This article will take an in-depth look at types of metal finishing.
The article will bring more detail on topics such as:
This chapter delves into the realm of metal finishing and examines the myriad processes it encompasses.
Metal finishing is a comprehensive set of techniques and processes designed to apply a protective coating to the surface of a metal part. This procedure involves various cleaning and polishing methods, alongside other treatments that enhance the surface quality of metal products. Among the techniques utilized are electroplating, electroless plating, and a host of other processes that bestow benefits such as corrosion resistance, rust prevention, and increased strength.
Electroplating is a specific technique that uses electrical current to deposit metal ions onto a substrate. Despite initial appearances, electroplating is often grouped with various finishing techniques due to their similar objectives.
The plating procedure involves electrostatically applying metal to a conductive surface, representing one of many contemporary finishing techniques. The term "finishing" broadly refers to numerous processes designed to improve both the appearance and functionality of metal items commonly utilized in domestic and workplace settings.
Raw metal, sourced directly from the earth, presents as rugged and visually unappealing. To enhance its utility, this metal must undergo polishing, finishing, and various transformation methods. Metal finishing represents a critical phase in the metalworking sequence.
During this final phase, the metal product is subjected to a variety of techniques aimed at improving its visual allure. Finishing substantially curtails the wear of metal items, enhancing both their longevity and aesthetic value.
Metal finishing improves numerous characteristics of the material, including electrical and chemical resistance, durability, and vulcanization. Beyond improving aesthetics, finishing plays a vital role in industrial uses, boosting resistance to torque and facilitating soldering processes.
Preventing corrosion is paramount for all metal types. Metal finishing greatly decreases corrosion risks and serves as a preparative coating for painting. Moreover, comprehensive finishing processes can minimize cleaning demands by addressing surface defects. Industries dedicated to metal production employ a range of finishing techniques to ensure product durability and lifespan. Such finishing is an indispensable component of producing top-quality metal items.
In manufacturing, selecting a metal finishing technique that aligns with final product specifications is vital. Each method provides distinct treatments to achieve specific surface attributes.
Each metal finishing technique also includes mechanical modifications to metal surfaces. Careful consideration is essential, as each procedure offers unique advantages.
The finishing process is integral to achieving the final desired appearance and texture for metal products. It ensures adherence to design specifications while protecting against rust and tarnish. Additionally, it improves strength, thickness, durability, and hardness.
The choice of finishing methods is crucial for maximizing product value. One must consider factors like costs for water, coatings, energy, consumables, labor, cleaning, and waste management.
Beyond direct expenses, fixed costs for operating and maintaining equipment must be evaluated. The type of metal, from stainless steel to aluminum alloys, further influences the finishing method decision. These factors require thorough assessment to ensure a profitable outcome. Time considerations for completing the finishing process also impact delivery schedules and supply chain efficiency.
While electroplating may be time-consuming, quicker alternatives like buffing and polishing can be more efficient, affecting both delivery timelines and overall supply chain performance.
Metal finishing is a crucial step in the production of metal products, directly impacting durability, performance, and aesthetics. Various types of metal finishing include metal plating, chemical coating, grinding, buffing, electroplating, and sandblasting. Modern metal finishing processes are essential for industries such as automotive, aerospace, electronics, construction, and manufacturing to achieve corrosion resistance, improved conductivity, and enhanced surface protection. All these processes start with surface preparation, a key factor influencing the overall quality and lifespan of metal fabrication projects.
Metal finishing can involve a range of techniques, from advanced technical processes such as electroplating and powder coating to simple manual techniques like buffing and polishing. The choice of metal finishing method depends on specific requirements such as desired surface finish, environmental resistance, functional coatings, part geometry, industry standards, and the intended application. Understanding the primary types of metal finishing enables engineers, manufacturers, and product designers to select optimal finishing solutions for their metal parts, balancing cost, efficiency, and performance.
Successful metal surface finishing relies heavily on proper surface preparation. If the surface is not prepared correctly, coatings, platings, and other materials may not adhere properly, leading to premature failures such as flaking, peeling, or corrosion. The initial step in surface preparation involves cleaning the metal, which can be done using various chemicals, industrial degreasers, mineral spirits, or simply wiping with a clean, dry cloth. Light sanding may also be required to remove any gloss, oxides, or contaminants from the surface to ensure optimal bonding of subsequent coatings or platings.
Inspecting the metal surface for rust and oxidation is crucial, as rust can impede the finishing process and negatively affect the final product's appearance and structural integrity. Rust can be eliminated through sanding, using a wire brush, or applying a rust-removal chemical.
Proper pretreatment, as outlined above, is essential for optimal paint adhesion, powder coating application, and reducing the risk of surface defects during finishing operations. The correct sequence increases long-term corrosion protection and ensures the quality of final decorative or protective coatings.
Metal plating involves depositing a layer of metal on the substrate of a conductive metal. This key type of metal finishing is widely used in electronics, automotive, medical devices, and decorative hardware to enhance appearance and provide wear, chemical, and corrosion resistance. It is accomplished through processes such as electroplating or electroless plating. The process of metal plating can modify the surface conductivity, create a barrier layer, and improve properties like solderability for electronic components.
Metal plating involves several steps: pretreatment and preparation, setup, the actual plating process, and post-treatment. Common metals used for plating include zinc, copper, gold, chrome, nickel, and tin, among others.
Aside from electroplating and electroless plating, other methods of plating are immersion, carburizing, physical vapor deposition (PVD), and plasma spray coating. Metal plating is an essential part of ensuring that products have an excellent appearance and resistance to wear and tear, corrosion, and rust. Plating services are often customized according to thickness specifications, finish gloss, and the type of end-use environment.
Metal plating enhances a metal's strength and extends its lifespan. Different metal finishing companies offer a variety of options for choosing the plating metal, depending on the desired functionality and design. The selection should consider the purpose of the plating, whether for aesthetic and decorative reasons or for improved strength, durability, corrosion resistance, conductivity, or solderability.
Chrome Plating - Chrome plating is an electroplating process that uses hexavalent chromium, chromium sulfate, or chromium chloride to apply a layer of chrome to the substrate. Hard chrome electroplating is renowned for its wear resistance and is frequently used in hydraulic cylinders, automotive components, and industrial machinery to increase surface hardness.
Hard Chrome Plating - Hard chrome plating is an electroplating technique that employs a chromic acid solution to deposit a layer of chrome with a thickness ranging from 2 microns (µ) to 250 µ. Types of hard chrome include micro-cracked chromium, micro-porous chromium, porous chromium, and crack-free chromium. Hard chrome is valued for its low coefficient of friction and excellent resistance to abrasion and corrosion, making it ideal for high-stress industrial parts.
Nickel Plating - Nickel plating is completed by electroless plating of a nickel phosphorus alloy with the percentage of phosphorus varying between 2% up to 14%. Higher levels of phosphorus increase the hardness and corrosion resistance of the plating. Nickel coatings are extensively used in electronics, aerospace, and marine applications for their ability to resist harsh environments and improve solderability and electrical conductivity.
Teflon (PTFE) Plating - Teflon plating involves an electroless process that co-deposits nickel phosphorus and polytetrafluoroethylene (PTFE) onto the metal substrate. The resulting finish has a dull silver-gray appearance, combining the properties of nickel with the lubricity of PTFE. This type of non-stick, low-friction coating is commonly used in food processing equipment and industrial rollers.
Tin Plating - Tin plating is achieved through electrodeposition and hot dipping, with brass or copper often added to enhance solderability. Tin coatings provide additional benefits such as non-toxicity, ductility, and corrosion resistance. It is frequently applied to copper and nickel substrates, especially in electronics and food-safe applications for its non-toxic protective layer.
Zinc Plating - Zinc plating, also known as electro-galvanization, involves applying zinc through an electroplating process to provide the substrate with resistance to oxidation and corrosion. This process is commonly used to galvanize steel, automotive fasteners, and hardware, as zinc acts as a sacrificial coating that prevents rusting of the base metal.
Gold Plating - Gold plating is an electroplating technique that applies a thin layer of gold onto substrates such as silver, steel, or copper. The quality of gold plating can vary based on the purity of the gold and the quality of the underlying metal. Gold is primarily chosen for its exceptional electrical conductivity, tarnish resistance, and use in high-end decorative or electronic connectors.

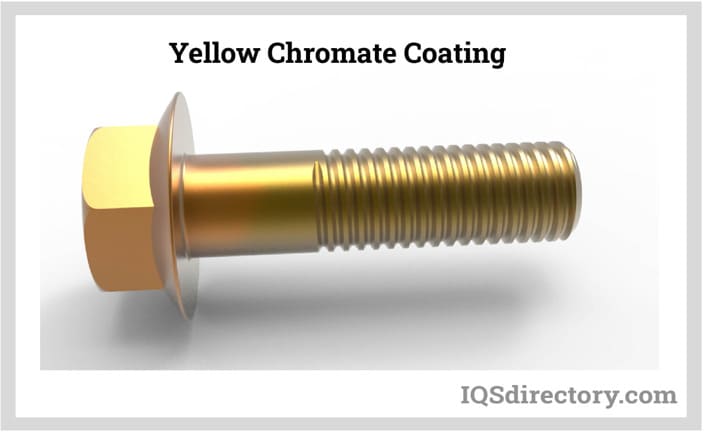

Conversion coating is a passivation process that modifies the surface of a metal to create a protective metal oxide or phosphate layer. This layer guards against corrosion, rust, and wear. The conversion coating process typically involves acidic baths or electrical treatments to develop a metal oxide coating, offering protection from oxygen, moisture, and corrosive agents. Examples include iridite on aluminum, chromate, phosphate, and black oxide. Anodizing is a specialized type of conversion coating widely used in aluminum finishing for architectural and consumer products.
In the conversion coating process, a chemical reaction occurs on the metal surface. Unlike plating, which adds a new metal layer, conversion coating alters the existing surface layer of the metal to improve adhesion for paint, powder coating, or further finishing. It is often used as a preparatory step for further surface treatments or painting and helps increase surface energy to enhance bonding strength.
Conversion coating utilizes some of the substrate metal to create the coating. As the coating forms, it integrates into the part and increases in volume compared to the original metal, providing enhanced protection. Choosing the right type of conversion coating is critical for industries requiring strong chemical resistance, such as aerospace, defense, and electronics, where long-term protection against environmental exposure is vital for product longevity.
Alodine Coating - Alodine coating is a chromate-based chemical conversion coating used to protect aluminum and other metals from corrosion. It provides a surface with enhanced adhesion and maintains electrical conductivity. The thickness of Alodine coatings ranges from 0.00001 inch to 0.00004 inch (0.25 µm to 1 μm), making it suitable for aerospace parts where both environmental protection and electrical continuity are mandatory.
Black Oxide Coating - Black oxide is a conversion coating that imparts a matte black finish to parts through an electrochemical or chemical treatment process. The coating forms when a part is immersed in an alkaline aqueous salt solution at 285°F (140°C), where a reaction between the iron in the metal and the oxide bath creates magnetite. Black oxide coatings improve the appearance of parts, reduce light reflection, and enhance dimensional stability. This finish is popular for fasteners, cutting tools, and firearms due to its attractive dark appearance and moderate corrosion protection when combined with oiling.
Electroplating, also known as electrodeposition, is a popular metal finishing method that involves using electric current to dissolve metal and deposit its ions onto the surface of a workpiece. The primary components of electroplating include an anode, cathode, solution, and power source. The anode is a positively charged electrode that provides the metal for plating, while the cathode is the substrate to be plated and acts as a negatively charged electrode.
The solution used in electroplating is electrolytic, containing metal salts such as copper sulfate to aid in the flow of electricity. A power source delivers electrical current to the anode. When the anode and cathode are submerged in the solution and a DC current is applied, the metal at the anode oxidizes, causing metal atoms to dissolve into the solution. Metal ions then migrate to the negatively charged substrate, where they are deposited, forming an even, durable metal layer.
This process is the industry standard for applying wear-resistant coatings and finishes to automotive parts, circuit boards, jewelry, and precision aerospace components. It enables product designers to enhance surface hardness, create functional surface finishes, and add corrosion protection to machined or fabricated metal parts.
Electropolishing utilizes electrical current and chemicals to polish metal parts, similar to electroplating but in reverse. This process removes material from the metal surface with precision up to 0.0002 inches. Electropolishing enhances the surface finish, eliminates tiny imperfections, and thoroughly cleans and deburrs metal surfaces to a microscopic level. This technique is especially beneficial for stainless steel, titanium, and specialty alloys in the medical, food processing, and semiconductor industries.
During electropolishing, parts are submerged in a tank containing an electrolyte solution made of phosphoric and sulfuric acid. Metal plates lining the tank act as cathodes, and a positive DC current is passed through the solution to dissolve a thin layer of metal from the pieces. The treated parts emerge with a clean, smooth, passivated surface and are rinsed multiple times to eliminate any remaining electrolyte solution, resulting in a surface less prone to corrosion, contamination, and bacterial growth.
As a passivation method, electropolishing removes free iron from the metal surface, reaching beneath the surface layer to level out peaks and valleys. It is considered a more effective passivation process compared to traditional methods and is a go-to choice for achieving ultra-smooth, mirror-like finishes and precise dimensional tolerances.

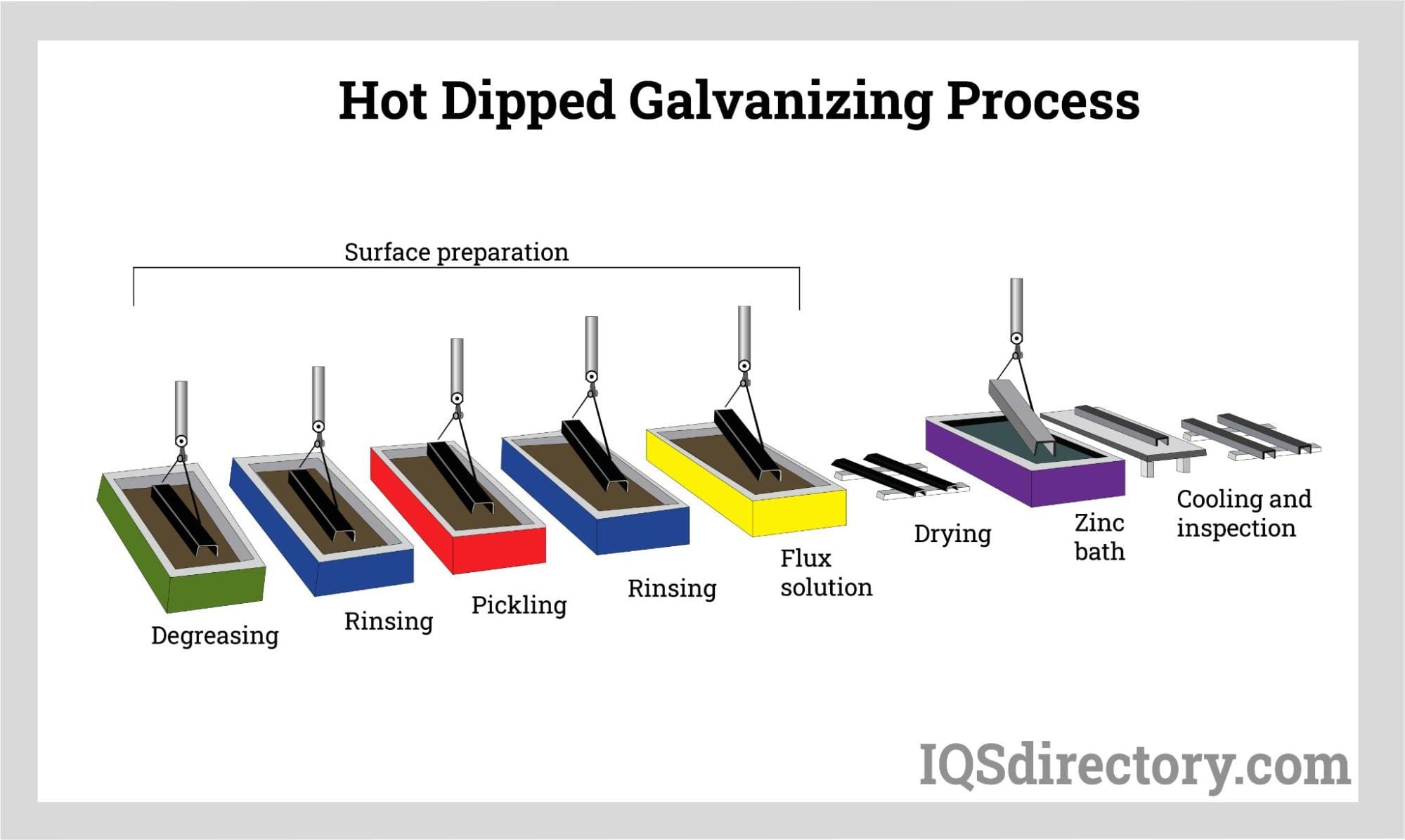

Hot-dip galvanizing is a robust industrial finishing process that involves coating steel or iron by immersing it in a molten zinc bath. The process consists of three main steps: surface preparation, galvanizing, and inspection. Surface preparation is critical and includes degreasing, pickling, and fluxing. Pickling involves an acidic bath, while fluxing removes oxides and coatings. Proper surface preparation is essential for the zinc to adhere to the steel surface effectively, ensuring maximum protection.
After preparation, the steel is dipped into a molten zinc bath, which contains approximately 98% zinc heated to about 830°F (443°C). The steel is immersed in the bath to ensure that the coating covers all parts of the steel uniformly. Hot-dip galvanizing results in a durable zinc-iron alloy layer that prevents corrosion, making this process indispensable for structural steel, utility poles, guardrails, and construction hardware exposed to harsh environmental conditions.
Metalized sprayed coatings, also known as thermal spray or metal spraying, are used to provide advanced corrosion protection and surface restoration for worn or damaged components. This method involves spraying heated metals, which are heated either electrically or with a flame, onto various surfaces such as concrete or steel. Metalized coatings can be applied in a range of environmental conditions and cure instantly upon application, minimizing downtime during repairs or manufacturing lines.
Metalized sprayed coatings are often preferred over other methods, such as epoxy or paint, due to their durability, extended service life, and ability to create specific surface properties such as enhanced hardness, abrasion resistance, or thermal barriers. Structures treated with metalized coatings exhibit resistance to impacts and ultraviolet rays. Common metals used in metalized sprayed coatings include zinc, aluminum, and their alloys, making the process especially valuable in bridge construction, pipeline maintenance, and marine environments where corrosion resistance is paramount.
Anodizing refers to a type of conversion coating process applied primarily to aluminum, though it can also be used for magnesium, titanium, niobium, or tantalum. Unlike general conversion coatings, anodizing involves both an electric current and a chemical conversion at the metal surface to create the coating, resulting in a thick, porous oxide layer that can be sealed for increased resistance or colored for decorative purposes.
The application of current accelerates the anodizing process, allowing the layer to form thicker and faster compared to a purely chemical reaction. Additionally, anodizing creates tiny microscopic pores in the coating, which can be filled with dyes to produce a range of colors for the parts. This is commonly used for architectural aluminum, consumer electronics housings, and automotive trim, providing enhanced corrosion resistance, improved paint adhesion, and decorative finishes.
The painting process involves applying a liquid organic coating to various substrates, which can include wood, plastic, metal, ceramic, paper, or foam. Industrial metal painting remains one of the most versatile finishing options, offering a wide array of colors and finishes, from matte to high-gloss. The types of paint used can vary from solvent-based to solid paints, including UV-curing liquids, low-VOC paints, and high-performance epoxies that meet environmental and regulatory standards.
As a result, paint can be in the form of a liquid due to various carriers, such as water or solvents, or it can be a two-part epoxy paint that cures through cross-linking rather than simply drying by the evaporation of the carrier. Several spraying methods can be used to apply the paint, such as airless spray, electrostatic spray, and aerosol, each with its own advantages for particular product requirements and production scales. A few painting methods are described below:

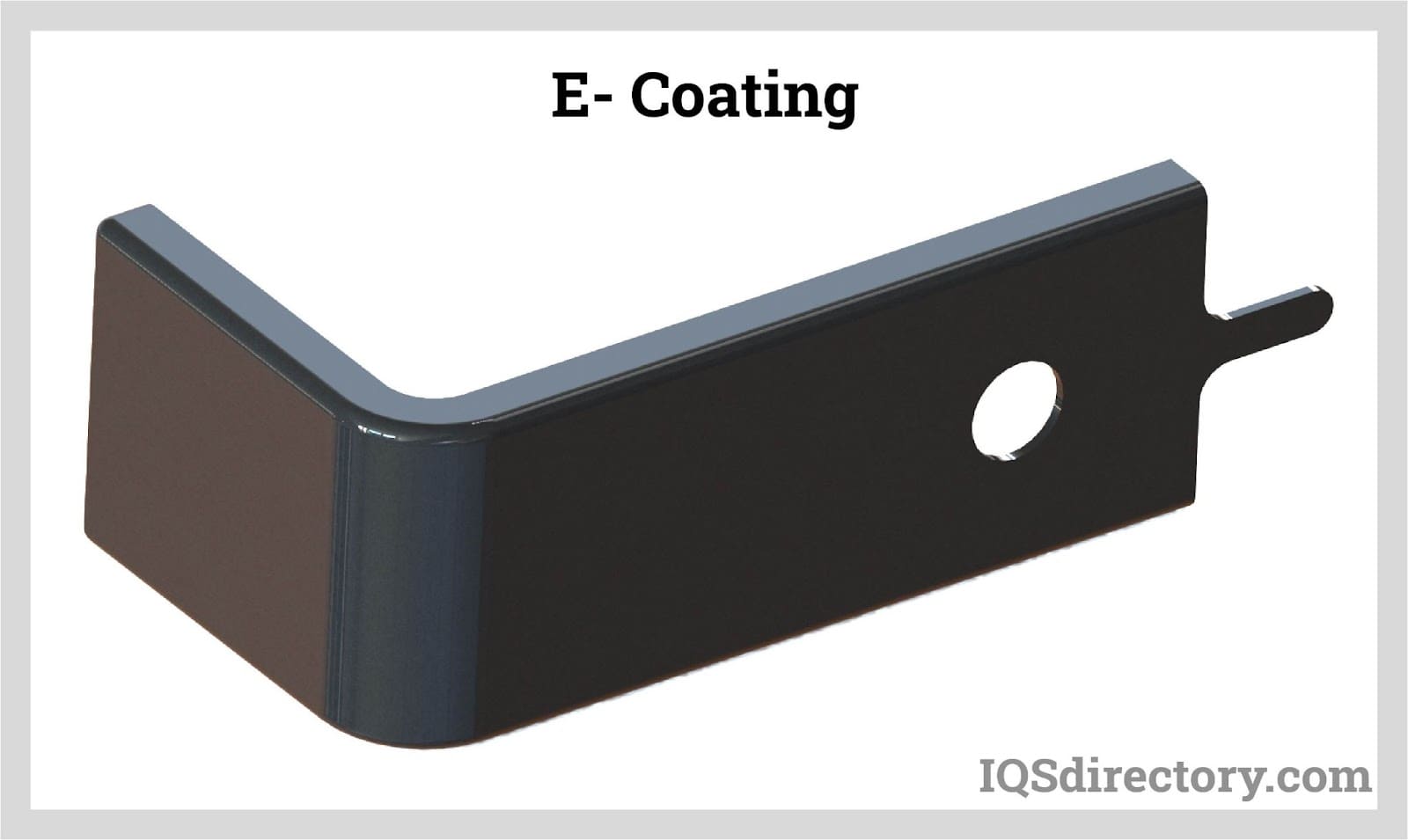

The E-coat painting process, also known as electrophoretic deposition, is a hybrid method combining elements of plating and painting. In this process, a metal part is dipped into a water-based solution containing a paint emulsion. An electric voltage is then applied to the part, causing the paint emulsion to deposit onto the surface through electrophoretic deposition.
Wherever the liquid can access the metal surface, the part can be coated both inside and out. E-coating provides uniform coverage, outstanding corrosion protection, and is popular in automobile manufacturing, appliances, and metal furniture industries. The voltage applied controls the coating thickness, with areas experiencing higher voltage becoming insulated as the coating builds up, while areas with lower voltage accumulate more coating. This ensures that even the interior surfaces, which are fully insulated by the coating, receive coverage. After coating, the part is rinsed to remove any residual emulsion, which is then recycled back to the paint tank through ultrafiltration.

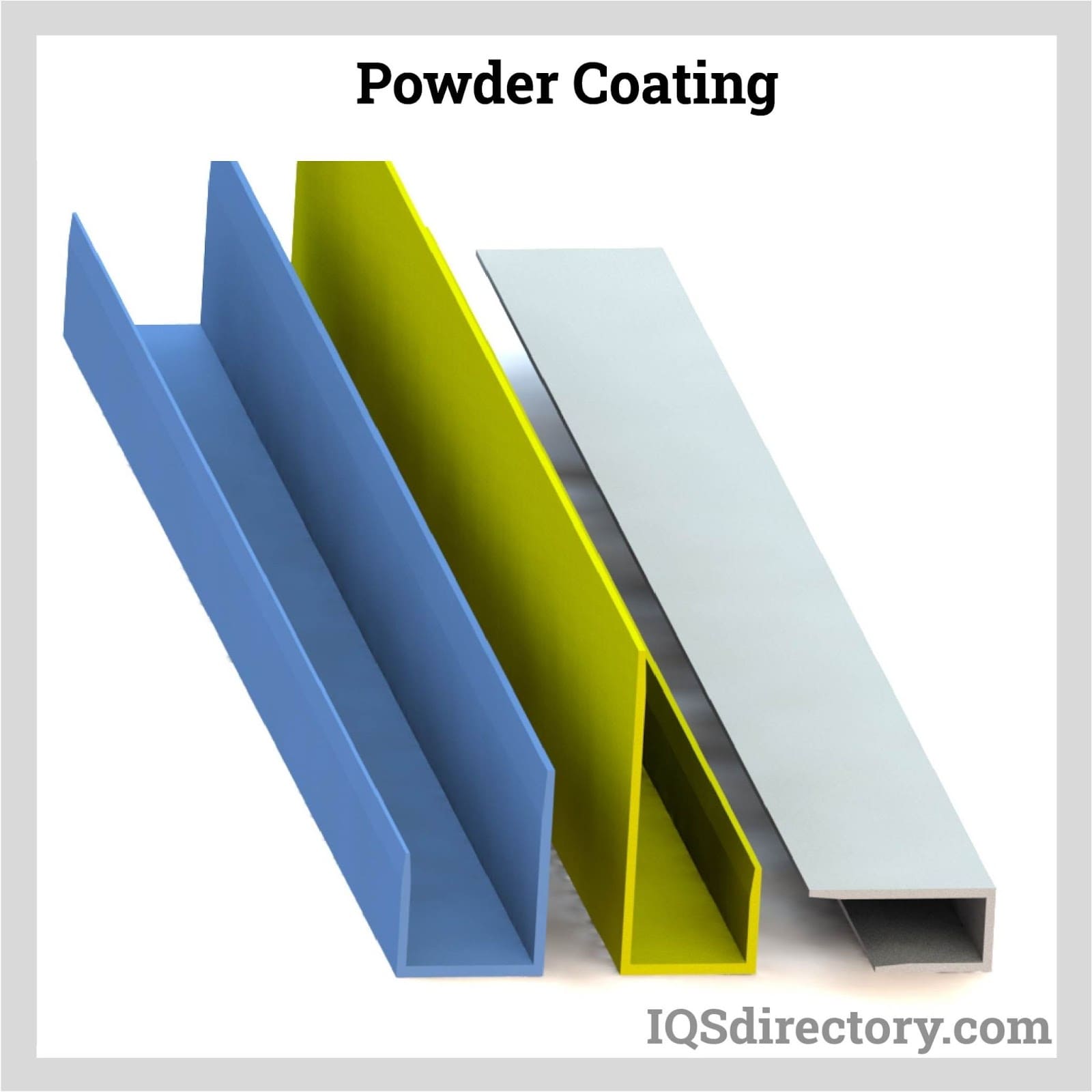

The process of powder coating is similar to painting, except that the coating used is a dry powder rather than a liquid. The powder adheres to parts due to electrostatic charging of the powder and grounding of the parts. Powder coating is renowned for producing a high-quality, durable, and uniform finish and is increasingly favored for environmental sustainability, as it contains no solvents and produces virtually no hazardous emissions or volatile organic compounds (VOCs).
Substrates that can withstand the heat required for powder curing and that can be electrically grounded to improve the adhesion of the charged particles can be used. During the heating process, the powder melts and cures to form a seamless, tough finish resistant to chipping, scratching, and fading. Powder coating offers several advantages over traditional paints, including:
Despite its advantages, powder coating has some limitations when compared to traditional paints. One issue is that it tends to exhibit less evenness in the final finish, particularly on sharp corners and intricate geometries. Additionally, the curing process for powder coatings requires significantly more energy due to the higher temperatures involved, which may not be suitable for heat-sensitive materials or assemblies.

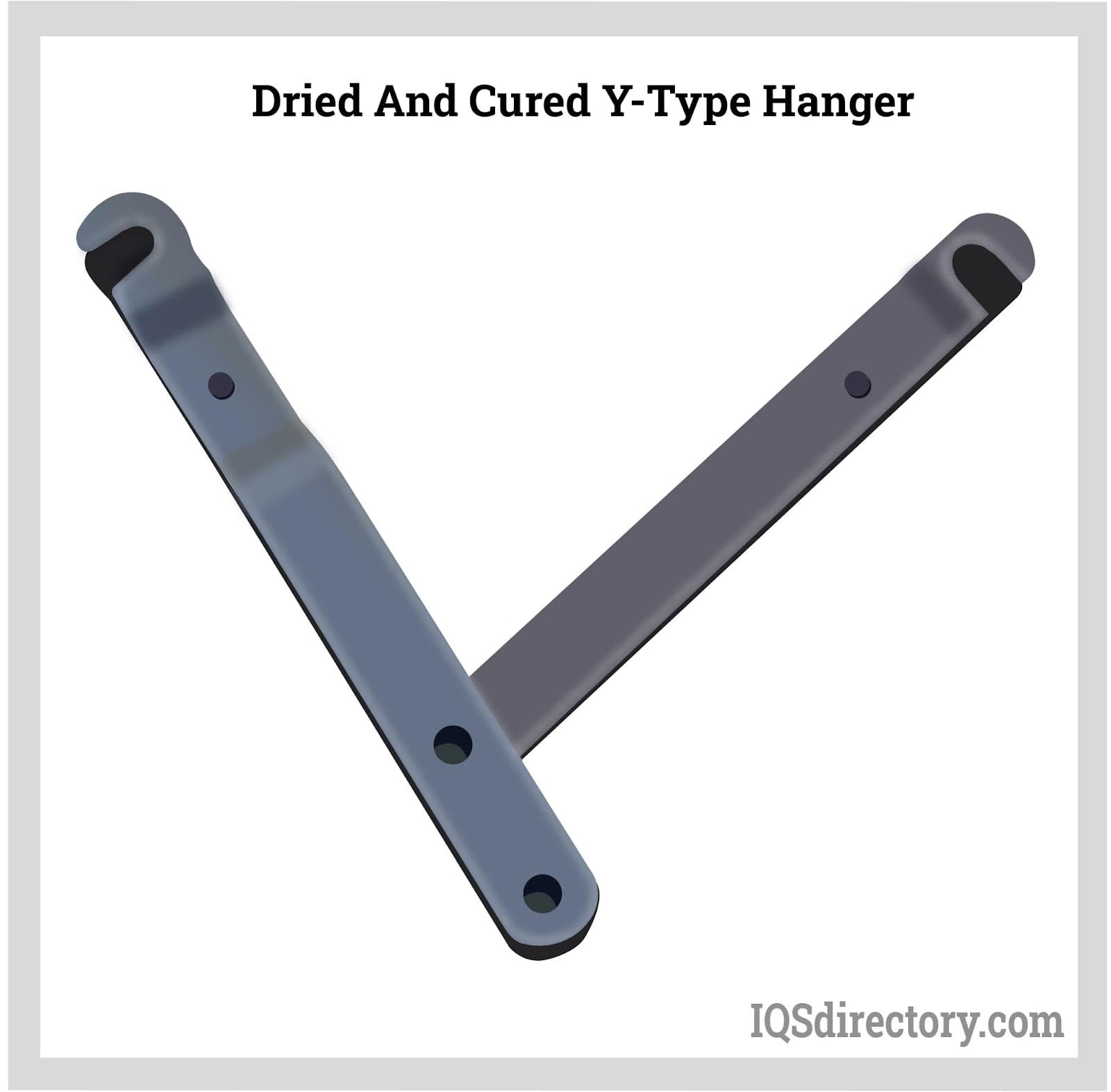

Curing and drying operations are very energy intensive operations in the powder coating and painting processes. The drying and curing operations typically rely on convection ovens. Using convection heating can be costly and slow, especially if the parts are heavy and large. This is because the evaporation or curing will be greatly dependent on the part temperature. The part must be hot enough for the surface to dry or for powder coat curing. Large air volumes need to be exhausted and heated from the convection oven to dry or cure parts effectively, adding to operational overhead.
Heating with infrared has notable benefits for powder coating curing. This method provides consistent and rapid heating of the surface, enhancing the flow of the powder and reducing the likelihood of defects caused by dirt or dust. The minimal airflow associated with infrared heating helps to prevent particle deposition and issues related to convection heating. With faster cure cycles and less energy consumption, infrared ovens are increasingly adopted in automated finishing lines to improve throughput and quality.
Additionally, infrared curing proves advantageous for liquid paints as well. Unlike convection curing, which heats the paint and can lead to trapped solvents or uneven drying, infrared light warms the part surface directly. This approach facilitates drying from the inside out, preventing the paint from forming a skin or trapping moisture beneath the surface, resulting in a smoother, defect-free finish.

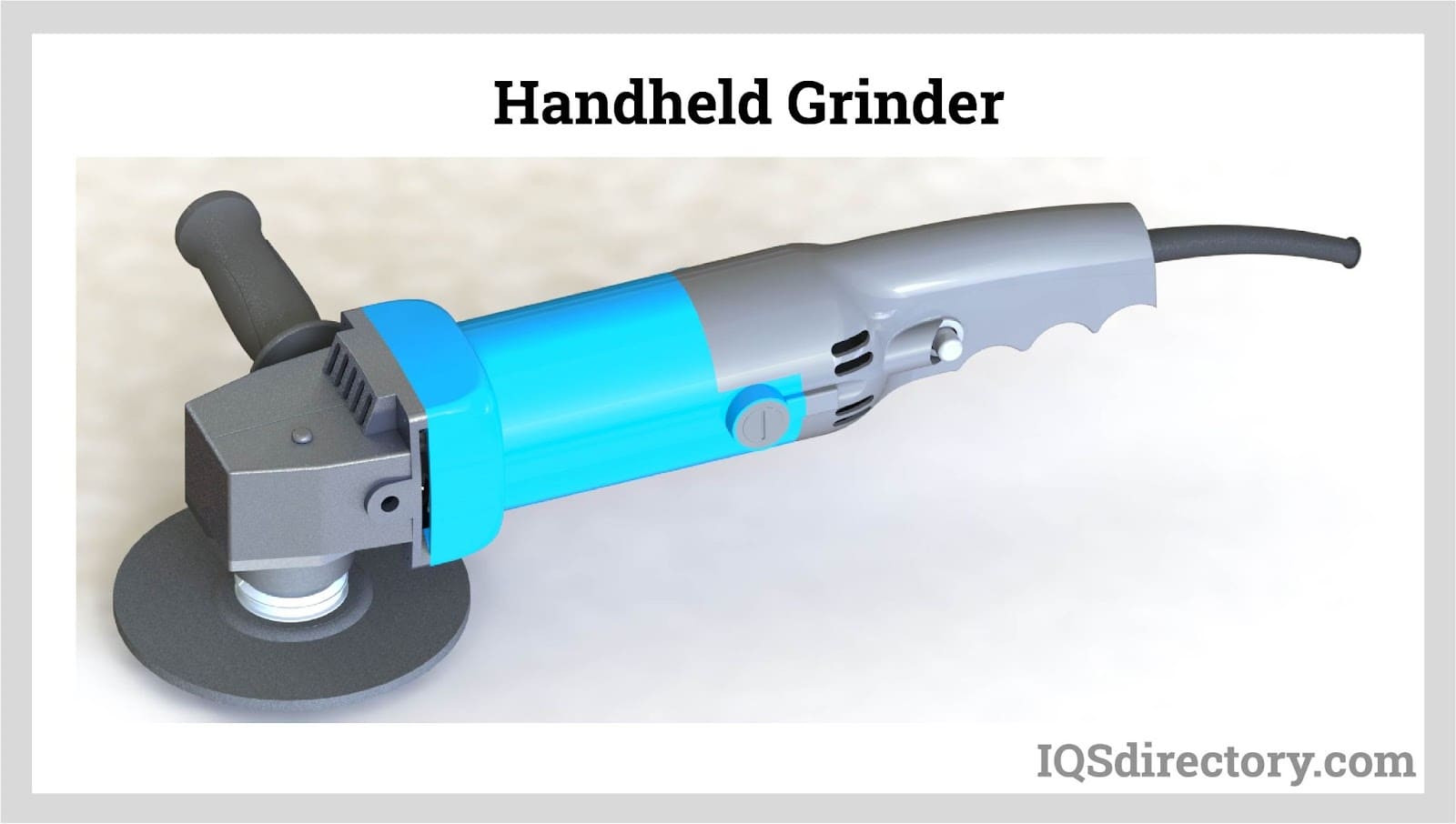

Grinding metal is a fundamental finishing operation used to refine surfaces by removing rough edges, smoothing welds, deburring, and producing sharp edges or distinctive finishes. Metal grinding provides precise surface finishes, dimensional accuracy, and is often a required step before additional coatings are applied. Grinding is typically carried out using either stationary machines or handheld tools equipped with industrial grinding wheels, abrasive belts, or disks. Professionals often select the optimal grinding and finishing equipment based on the alloy, geometry, and desired finish.
Grinding primarily relies on techniques such as attrition, friction, or compression to refine the metal surface. The degree of smoothness achieved is typically influenced by the type of grinding machine used. Various grinding techniques can be employed to achieve the desired shape, size, and characteristics of the final product, including flatness, gloss, or brushing. Grinding methods include electrochemical, centerless, cylindrical, and surface grinding, among others. Choosing the appropriate method is essential based on the type of metal and the specifications of the final product, with the goal of minimizing defects and maximizing production throughput for large scale manufacturing.
Tumbling finishing, also known as barrel tumbling or vibratory finishing, involves loading parts, abrasive media, and various compounds into a rotating barrel. This process smooths corners, deburrs, grinds, descares, burnishes, and polishes parts in bulk. Friction generated between the parts, media, and compounds drives the tumbling action. Tumbling methods are categorized as wet or dry, with wet tumbling designed for removing excess material and dry tumbling suited for a range of finishing tasks like polishing or burnishing.
The specific requirements of different parts and metals determine the choice of tumbling media and method for achieving the best finish. Vibratory tumbling is ideal for creating smooth and polished surfaces on delicate components. It utilizes the combined action of abrasive media and water in a machine that vibrates rapidly, and is widely used in manufacturing small or intricate metal parts, jewelry, and precision components.
Dry tumbling involves a vibratory bowl equipped with an electric motor and media. As the bowl vibrates, the parts are agitated against the media, each other, and the bowl's interior. Common media used in dry tumbling include corn cob and walnut shells. Corn cob media—which is also employed in sandblasting—delivers a high-gloss finish but requires longer processing time. Walnut shell media is more abrasive and results in a satin-like finish. The choice of abrasive media, cycle time, and equipment impacts production rates, efficiency, and the quality of the finished product.

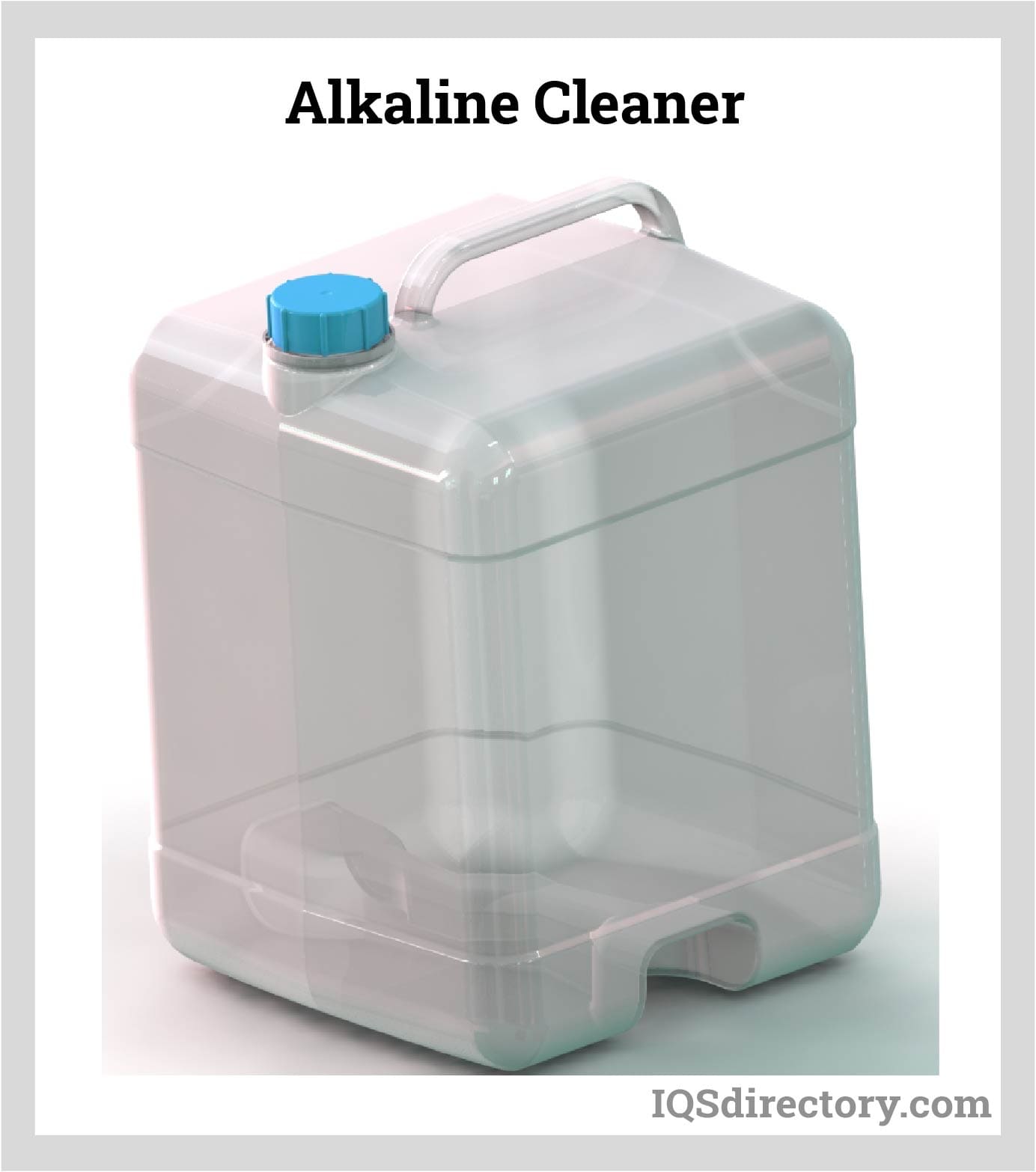

Alkaline cleaning is another important finishing technique. The process begins with the setup of alkaline cleaning tanks, which are then used to tackle the majority of contaminants such as wax, grease, oils, dirt, particulates, and light oxides from the surfaces of parts. Alkaline cleaning is a standard pretreatment process in metal plating, powder coating, and surface finishing, ensuring optimal coating adhesion and long-term performance. This process is widely used in industrial metal fabrication, automotive remanufacturing, and electronic component assembly.
Detergent additives in the tanks can lead to the accumulation of oil emulsions, surface oils, suspended solids, and sludge at the bottom of the tank. Acids used in cleaning help to remove these contaminants and prevent their redeposition during the process. Advanced cleaning systems may include agitation, ultrasonic treatment, and multi-stage rinsing to optimize cleaning performance for complex metal assemblies or high-volume production runs.
Initially, it's important to implement a method or procedure to assess the effectiveness of the alkaline cleaning bath. This can range from complex chemical analysis of samples to simple pH measurements. The chemical supplier may either test various methods to monitor the bath or provide test kits, and they can adjust the cleaning chemistry as it deteriorates over time. Monitoring bath chemistry helps reduce operating costs, extend the lifespan of cleaning agents, and maintain a consistently high standard of parts cleanliness before finishing or coating processes.

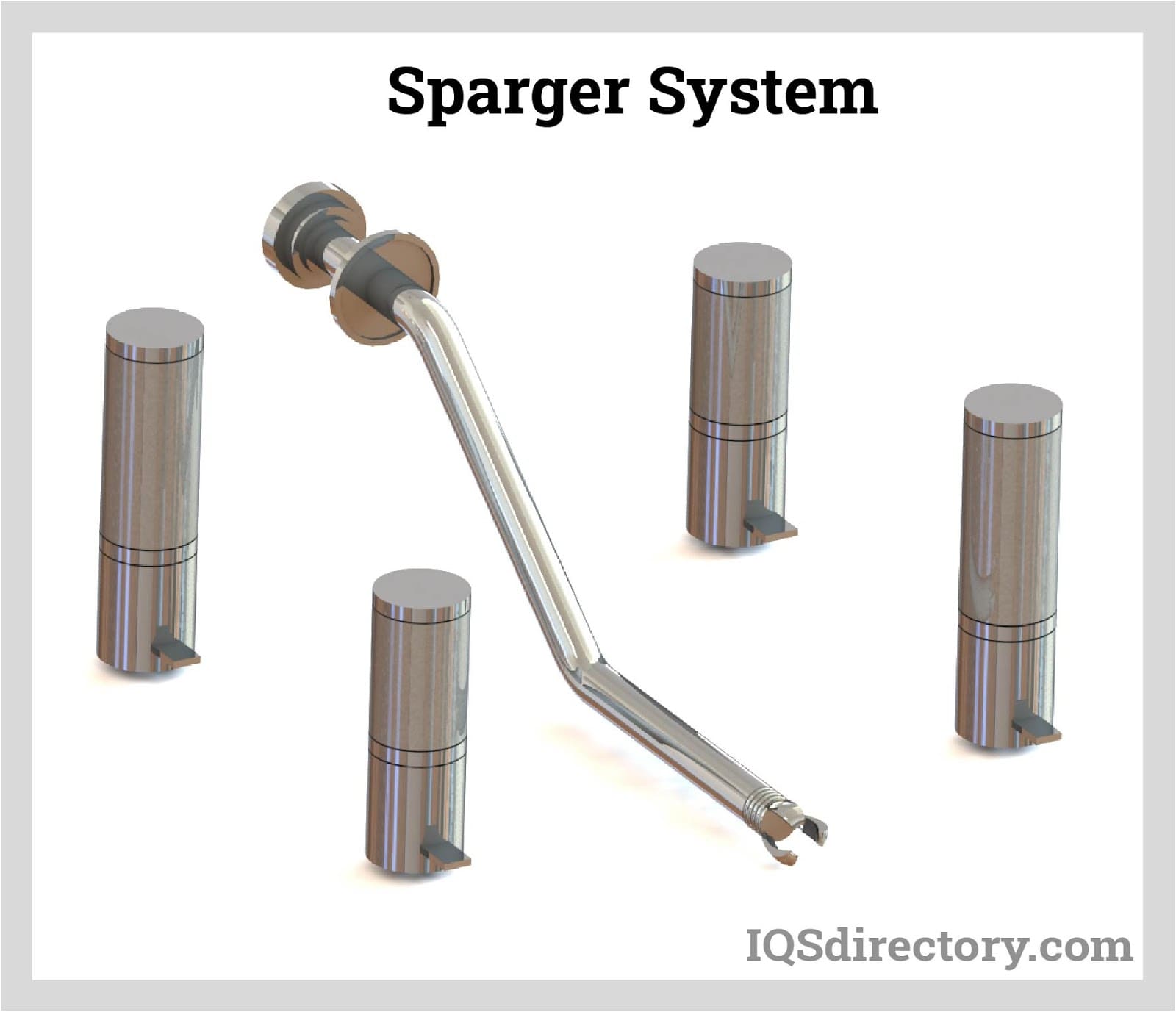

To eliminate surface oils, a combination of surface sparging and the use of various oil skimmers can be employed to extract accumulated oil from the weir. It's important to address potential dead zones on the tank surface to ensure effective removal. Advanced oil-removal technologies are crucial in industries where oil contamination can interfere with high-precision coating or plating, further ensuring robust finish quality.
This is where oils can accumulate and redeposit as the parts exit the tank. An effective sparger will push a layer of surface water across the tank and over the weir. Several methods can then be employed, such as disk skimmers, belt skimmers, and concentrator vanes, to maintain optimal cleaning conditions.
Heavy particles settling at the bottom of the tank can be removed using bag filtration or other basic filtration methods. This step is crucial, particularly when ultrasonic transducers are present on the tank bottom, as a layer of dirt can significantly reduce their cleaning efficiency. For parts with substantial soil, a dual filter system may be necessary. This system allows for switching between filters as one becomes loaded, enabling filter replacements without interrupting the process, and ensuring continuous cleaning effectiveness across large or automated finishing operations.
Emulsified oils and suspended solids present additional challenges, as they are difficult to remove with standard filtration techniques. Ultrafiltration is a method that effectively breaks down oil emulsions and separates suspended solids without disturbing the active cleaning chemistry. The effectiveness of ultrafiltration depends on the cleaning chemistry's pH level and the bath temperature. Some ultrafiltration systems are designed to handle a wide pH range from 0 to 14 and temperatures up to 158°F, making them suitable for various industrial cleaning and surface preparation applications.
Media blasting utilizes various materials to clean and remove debris, dirt, scale, rust, paint, or surface oxides from metal surfaces. While often called sand blasting, sand is just one of many blasting media options. Modern abrasive blasting employs a wide range of blast media and blasting technologies to achieve specific surface characteristics, texture, and cleanliness levels for downstream finishing or coating.
Frequently, media blasting eliminates the need for additional finishing steps, thus saving both time and cost. Among finishing methods, media blasting is one of the quickest, providing high throughput for surface preparation and boosting both efficiency and productivity in fabrication and remanufacturing workflows.

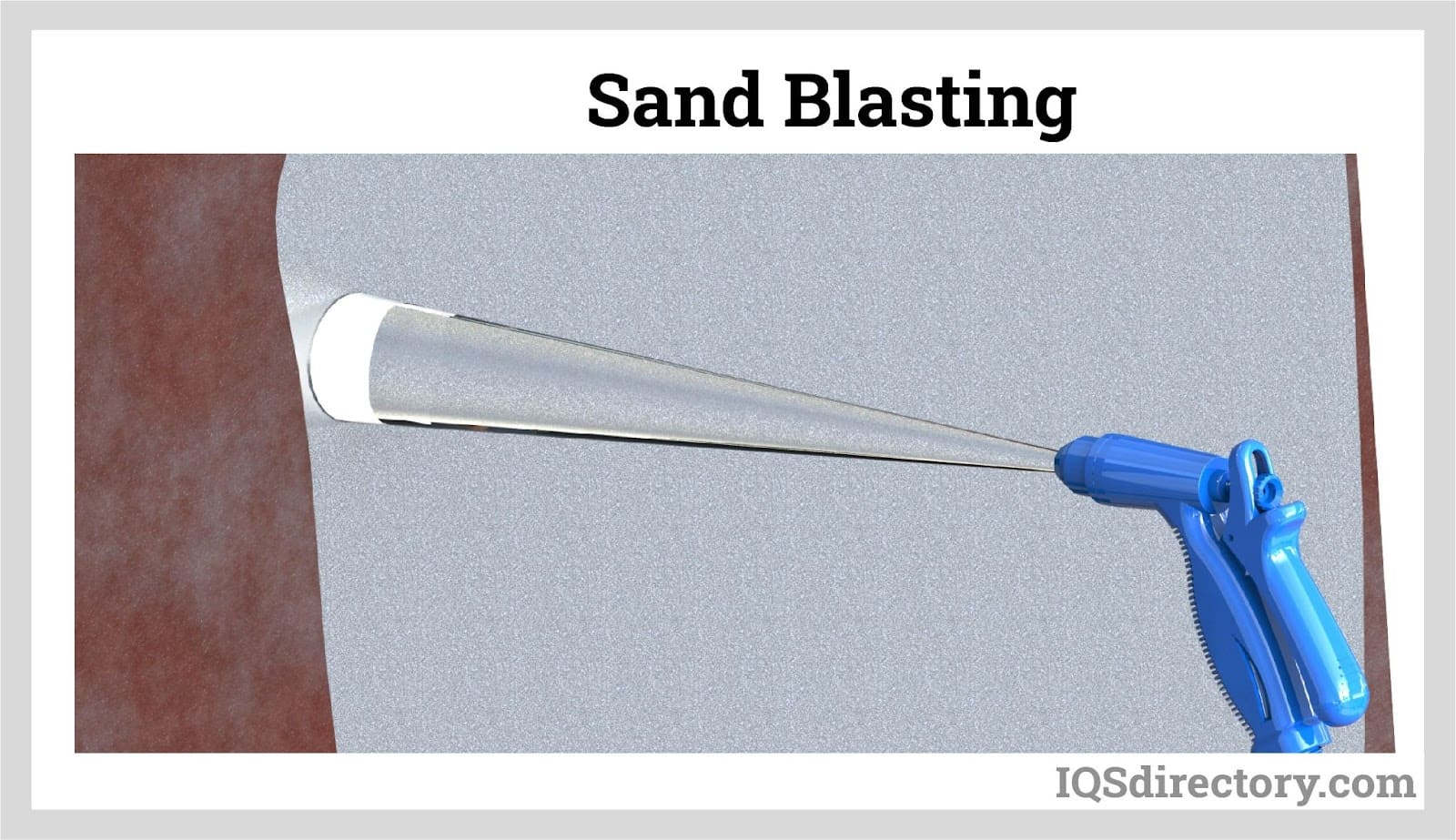

The media blasting process employs various abrasive materials such as aluminum oxide, silica sand, crushed glass, nut shells, silicon carbide, corn cob grit, plastic abrasives, and glass beads. The choice of blasting media is determined by the desired surface roughness, material hardness, part geometry, and environmental requirements for the project.
The process of micro sand blasting is used for areas as small as 1.3 mm by 2 mm (0.051 in by 0.08 in) and is widely used for cleaning small workpieces such as medical instruments. Small minute imperfections on an instrument can radically affect an instrument’s performance. Blasting it with a soft abrasive removes built up residue without damaging the instrument.
Wet media blasting, also referred to as vapor blasting or vapor honing, utilizes a combination of abrasive material, liquid, and compressed air to achieve a refined surface finish. Water is used as the liquid to ensure a smoother and more consistent result, reducing static cling and minimizing dust. The choice of blasting media in wet media blasting significantly affects the effectiveness of the process and the quality of the resulting surface finish.
The primary goal of wet media blasting is to provide superior operator safety and achieve high-quality finishes on sensitive materials. Water helps to mitigate dust generated during blasting and adds weight to the particles, making them more efficient in achieving the desired finish while reducing health risks and environmental impact. Wet blasting is widely used on delicate alloys, restoration work, and where a decorative or satin surface finish is desired.
Brushed metal treatment is a specialized finishing process that involves using friction to smooth out imperfections while creating a distinctive, textured grain pattern on the surface. This process typically employs fine bristle brushes or abrasive belts, resulting in a non-reflective, matte finish commonly seen on stainless steel appliances, automotive interiors, and architectural components.
The orientation and pattern of the grain are influenced by the type and placement of the abrasive used. Brushing metal not only reduces its shine but also imparts a unique tactile appearance. Various finishes can be achieved using power-driven stainless steel brushes, wire wheels, back sander heads, nylon discs, and various abrasive cloths. Brushed metal finishing is ideal for producing modern, visually appealing surfaces that hide fingerprints and increase resistance to minor scratches.

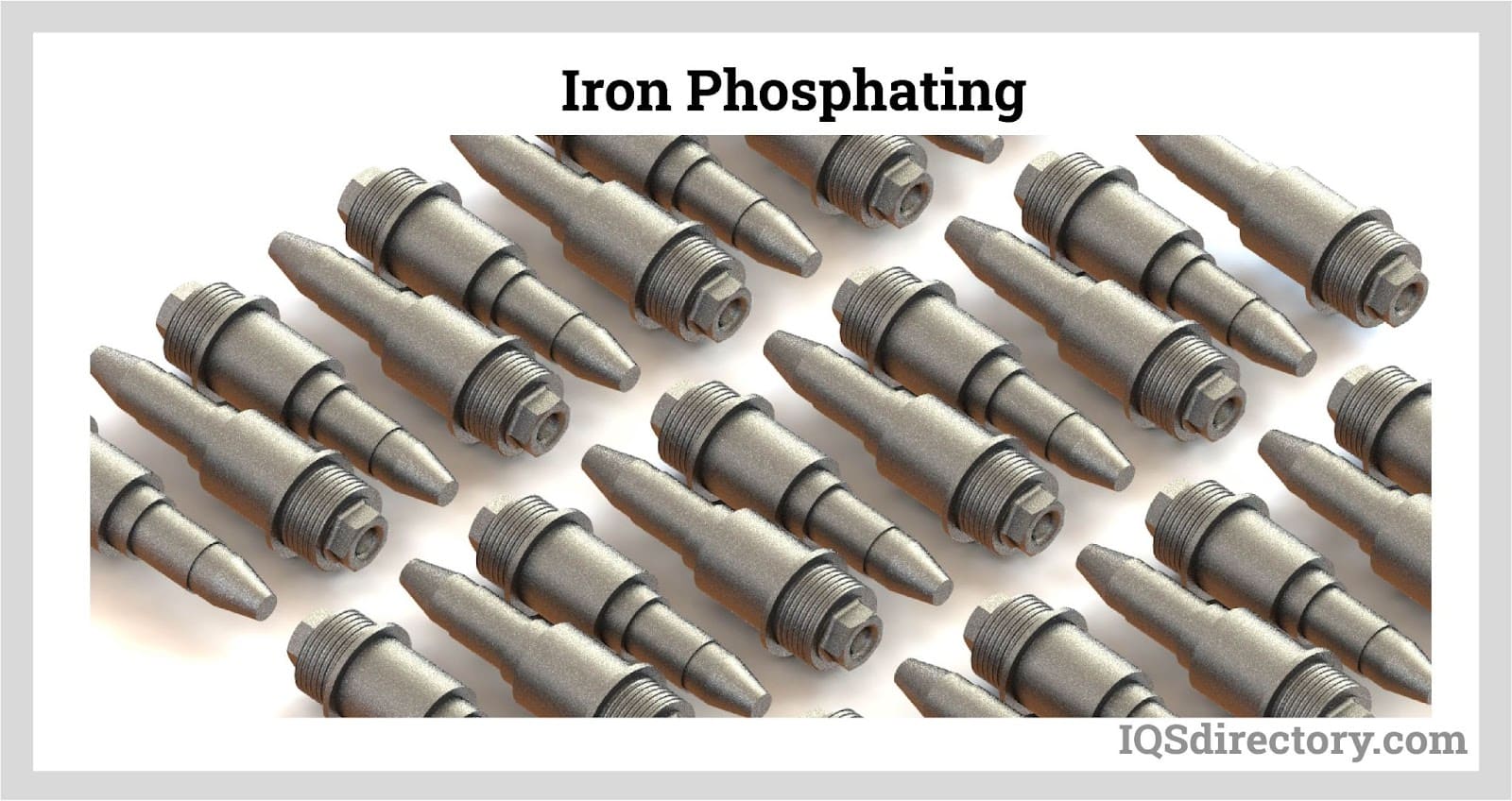

The phosphating process is typically classified as a conversion coating process, as phosphate treatment removes metal and deposits a crystalline phosphate layer on the metal surface. Unlike processes such as black oxide or anodizing, the phosphate coating reaction is a precipitation reaction. The final surface is a layer of phosphate crystals adhering robustly to the metal.
Phosphates play a crucial role in both paint and powder coatings, serving two main purposes. First, they enhance the adhesion of the coating by providing anchoring sites through the organic nature of phosphate crystals. Second, the phosphate layer acts as a protective barrier against corrosion, especially in areas where the coating might be scratched. When evaluating rust resistance, the presence of a phosphate layer significantly reduces rust creep compared to scenarios where no conversion layer is used beneath the organic coating. Phosphating is routinely used in the automotive, appliance, and heavy equipment industries to optimize part longevity.
Phosphate coatings can also be applied independently to enhance properties such as lubrication, anti-galling, and break-in performance for manufacturing components. Common types of phosphating include zinc phosphate, iron phosphate, and manganese phosphate. Unlike traditional methods, some phosphating processes, such as plaforizing, use a single-step approach and are classified as organo-phosphates. These treatments are unique because they interact with both metal surfaces and organic contaminants, making them especially useful for high-speed manufacturing and painted metal assemblies.
Passivation is a chemical process primarily used for stainless steel and other corrosion-resistant alloys. This finishing technique involves treating the metal to enhance its resistance to corrosion by making it less reactive to its environment. Passivation treatment creates a passive oxide layer through the reaction between the metal and oxygen. This oxide layer forms a protective barrier that helps to prevent corrosion from penetrating beyond the surface of the steel or stainless steel, extending the lifespan of critical components in demanding environments.
The protective bond formed between the metal and the corrosion layer acts as a seal, stopping corrosion from spreading deeper into the metal. In passivated metals, if the surface is scratched or otherwise damaged, the treatment helps to naturally repair itself using molecules from underlying layers, ensuring long-term protection. Passivation is a vital finishing process for food-grade equipment, medical implants, and precision machined parts, where even minor corrosion can compromise performance or safety.
The success of passivation relies on the type of oxides formed during treatment, as not all oxides offer effective protection. Porous oxides, for instance, may allow oxygen to pass through and fail to create a proper seal, leading to potential corrosion of the underlying metal. Effective passivation solutions and quality control are integral to the production of high-grade stainless steel components in regulated industries.
The various processes under part drying are :
To prevent water spotting—common in high-purity manufacturing and finishing—using deionized water for the final rinse is an effective solution. Water spots typically occur due to minerals present in regular tap water, which can be eliminated by using water free of these minerals. Another approach to minimizing water spots is to use an air blow-off technique to expel water droplets before they have a chance to dry. The success of this method depends on the orientation and arrangement of the parts on the racks. If the air stream cannot reach certain areas due to the parts' geometry or because parts are obstructing each other, spotting may still occur in those locations.
Finishing processes require the use of water and various compounds to achieve the desired surface quality. To prevent issues in subsequent manufacturing steps, it's crucial to ensure that parts are thoroughly dried before moving them on for additional processing. Although drying is less complex than finishing, selecting the appropriate drying method is essential to guarantee that the workpiece is completely dry. Considerations should include the size, shape, and number of parts being processed, as well as acceptable drying times for production schedules.
Drying equipment can be categorized based on the drying medium or the application of hot air. Simple workpieces with straightforward shapes can be dried rapidly at lower temperatures. Conversely, complex parts with intricate features like undercuts and internal passages need extended drying times and higher temperatures to ensure thorough drying.
After finishing, a variety of dryers can be employed, including rotary vibratory, belt, drum, and centrifugal types. Common drying media include maizorb, which is derived from crushed corn cobs and typically comes in granule sizes ranging from 0.002 inches to 0.2 inches (0.5 mm to 5 mm). This media may need replacement every few days if it becomes contaminated with residual substances like oil.
Rotary vibratory and drum dryers are suitable for drying small to medium-sized parts using a drying media. Belt dryers and drying centrifuges, on the other hand, use hot air. Very small parts that cannot be processed with other methods are typically dried in drying centrifuges. Belt dryers are particularly effective for large, complex components to prevent media from becoming trapped in intricate features. In high-volume manufacturing, efficient part drying is critical for preventing defects in powder coating, painting, or assembly operations.
Rinsing, like other metal finishing processes, is essential and requires meticulous planning to achieve optimal results. Its main role is to remove and dilute surface residues and contaminants, thereby reducing the risk of part failure or coating delamination. Rinsing involves using a medium to clean the surface, preparing the part for subsequent processes, such as plating or painting.
Water is typically employed in the rinsing process, and efficiency is crucial to optimize water usage. Key factors to consider in a rinsing process include water purity, the mechanical action of the rinse, the duration, and the water temperature. Industrial systems may use multi-stage rinsing tanks to ensure thorough cleaning for high-value parts.
Common sources of water for rinsing include city water and well water. While these are readily available, they may contain chlorides or sulfates that can contribute to corrosion. Deionized (DI) water or water filtered through reverse osmosis (RO) are preferred as they have fewer impurities. Agitation during rinsing improves the effectiveness by increasing water contact with the part. Additionally, heating the water to between 75°F and 85°F (24°C to 29°C) enhances the rinsing process and speeds up drying.
Air drying methods fall into two main categories, which can be used alone or together for optimal results.
High Velocity Air: This method focuses on swiftly removing water from parts rather than fully drying them, using compressed or forced air jets in drying tunnels or at workstations.
Heated Air: This technique uses blowers that blow heated air to assist in the drying process, substantially reducing drying times and improving production line efficiency. Proper air drying is vital for avoiding water spots and preparing parts for downstream metal finishing or assembly operations.
This chapter will explore the various applications and advantages of metal finishing.
Metal finishing has a wide range of applications across various industries. In manufacturing, finished metals are employed to protect materials that are highly susceptible to oxidation. The coatings used in this process help prevent unwanted chemical reactions.
In the automotive sector, metal finishing is crucial for safeguarding components of the combustion engine from extreme temperatures. Similarly, in the aerospace industry, finished metals are essential for preventing corrosion and wear within engine blocks.
For industrial purposes, finished metals play a significant role in maintaining machinery. They help protect against corrosion, wear and tear, and other factors that can lead to rapid deformation.
In household settings, metal finishing is valued for its aesthetic and decorative applications. The process not only enhances appearance but also contributes to the longevity of metal products.
Finished metals offer several key advantages, including enhanced resistance to wear and tear. Metal finishing can also improve mechanical properties, making products less prone to corrosion. Additionally, it helps preserve the aesthetic qualities of the metal.
Finished metals can accommodate a range of microstructures and perform well under both low and high atmospheric pressures. They may feature varying levels of porosity throughout their thickness and can be both decorative and resistant to high temperatures. The finishing processes used are generally cost-effective, and these metals are also suitable for biomedical applications. Moreover, they offer high adhesion properties and can be manufactured into complex geometries.
Despite their advantages, metal finished products also have some limitations. Each product has a specific operational range due to the varying mechanical properties of the coatings or finishes used. Consequently, performance can vary between different metal products depending on the pressure and temperature conditions. In industrial applications, there is often a need for metals that offer exceptional vacuum or corrosion resistance, high melting points, and substantial tensile strength.
