This article will take an in-depth look at aluminum tubing and piping.
The article will bring more detail on topics such as:
This chapter delves into defining aluminum tubing and piping, exploring their production methods, and identifying crucial considerations in their selection.
Aluminum tubing and piping are renowned for their silvery-white appearance, softness, and pliability. Part of the boron group, aluminum ranks as the third most plentiful element on Earth. It boasts a low density and forms a protective, passivating layer on its surface in corrosive conditions, safeguarding its internal structure. Usually, aluminum is alloyed with other elements like copper, manganese, zinc, magnesium, and silicon to boost its attributes.
Weighing in at just about 30% of copper’s density, aluminum piping and tubing maintain effective electrical and thermal conductivity. Under certain conditions, aluminum acts as a superconductor, demonstrating efficient electricity conduction at low temperatures.
Piping describes cylindrical tubes used for moving gases and fluids, often sized to provide a general sense of the capacity of the system. Tubing, however, might be circular, oval, rectangular, or square, defined by its outer diameter and wall thickness, measured in millimeters or inches.
Determining the ideal tubing can be overwhelming, given that both aluminum and stainless steel present numerous alloys and tempers, each with unique mechanical and physical properties.
Strength is quantified using Young’s modulus of elasticity, gauging force per unit area. This helps evaluate aluminum and steel tubing strength.
Young’s Modulus – At 70°F, aluminum's elasticity modulus is about 10 million psi, while steel’s is roughly 30 million psi, indicating steel tubing's strength surpasses aluminum by approximately three times for equivalent dimensions.
Material Weight – Steel weighs approximately three times more than aluminum when comparing similar sizes. Therefore, to match steel's strength, aluminum tubing walls need to be three times thicker, diminishing aluminum's weight advantage.
Diameter – The tubing’s strength, whether aluminum or steel, is affected by the tubing's diameter; larger diameters generally enhance strength, while smaller diameters reduce it.
Aluminum tubing and piping are produced through several methods, such as:
Aluminum extrusion involves forcing aluminum alloy metal through a die with a specific cross-sectional shape.
Aluminum extrusion is akin to squeezing toothpaste from a tube. A powerful ram propels aluminum through a die, molding it as it emerges from the die’s opening. The resulting profile mirrors the die shape and moves along a run-out table. Essentially, aluminum extrusion is straightforward.
Similar to pressing toothpaste out of its tube, where it takes the tube’s shape, aluminum takes the shape of the extrusion die. Frequently extruded profiles encompass round and square shapes, among others.
Illustrated above are diagrams for creating dies. This extrusion procedure can produce complex shapes and profiles.
Circular dies are generally made from H13 steel. When a suitable die is available, it is retrieved from storage. Prior heating of the die to 450-500°C is essential, prolonging its life and ensuring stable metal flow during extrusion. The preheated die then fits into the extrusion press.

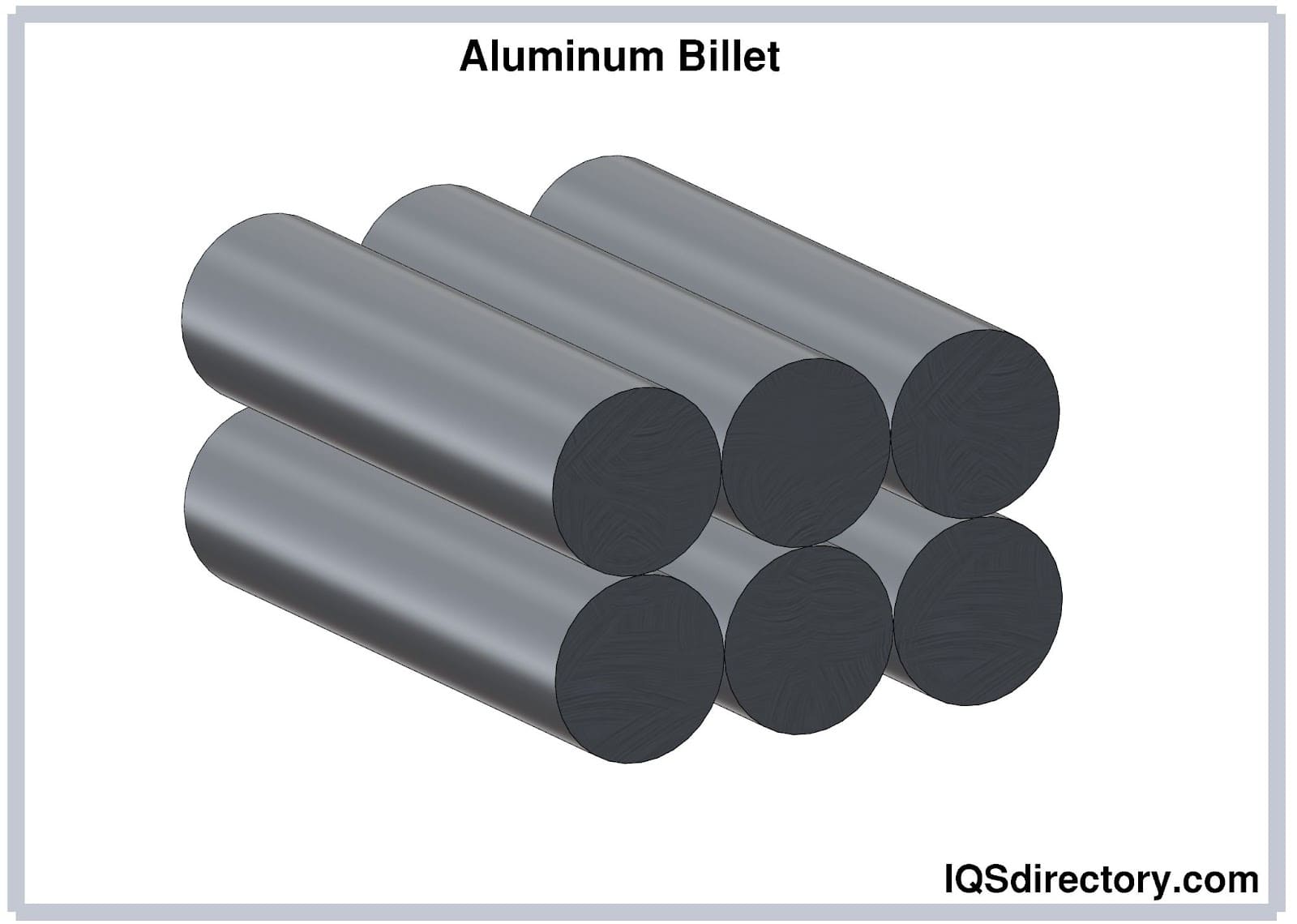

Initially, a cylindrical aluminum alloy block, or billet, is cut from a larger alloy batch. This billet goes into an oven, heated between 400-500°C. This treatment softens the billet for extrusion without liquefying it.
The preheated billet is methodically transferred to the extrusion press. A lubricating agent is applied to both the billet and the press ram to prevent them from adhering.
The softened billet enters the extrusion press, where a hydraulic ram imposes 15,000 tons of force. This extraordinary pressure pushes the billet deeper into the chamber, making it expand and adapt to the chamber walls.
Once the metal fills the chamber, it meets the extrusion die under pressure. This constriction allows the aluminum to exit only through the die apertures, producing a finished pipe or tube.
Upon exiting the die, a puller maneuvers the extrusion along the run-out table, keeping pace with its press exit speed. Concurrently, it's "quenched" or cooled continuously using a fan or a water bath.
When the extrusion reaches the table's end, a heated saw cuts it to separate it from the extrusion process. Temperature plays an integral role throughout. Even after rapid cooling post-press, the extrusion remains warm, without fully cooling.
The cut extrusions transfer to a cooling table, permitting them to return to room temperature. Once cooled, the subsequent stage involves stretching the tubes or pipes.
With natural twists in pipes or tubes, alignment is obligatory. Using a stretcher, each piece is clamped and stretched until perfectly straight and compliant.
Once aligned and work-hardened, extrusions shift to the saw table for cutting into specific lengths, generally between 8-21 feet (2.4-6.4 meters). They initially exhibit a T4 temper. Subsequent oven aging may further treat them to attain T6 or T5 temper.
Post-extrusion, pipes and tubes may undergo heat treatments to bolster their properties. Various surface finishes strengthen their appearance and corrosion resistance.
The tubing or piping may also undergo fabrication processes to finalize dimensions.
The 7000, 6000, and 2000 series alloys can be heat-treated to improve yield stress and tensile strength.
This improvement arises in aging ovens, expediting aging, and resulting in T6 or T5 tempers.
What changes do these treatments trigger? Untreated 6061 aluminum (T4) yields a 241 MPa (35,000 psi) tensile strength, whereas treated 6061 aluminum (T6) achieves 310 MPa (45,000 psi).
After heat treatment, finishing is executed.

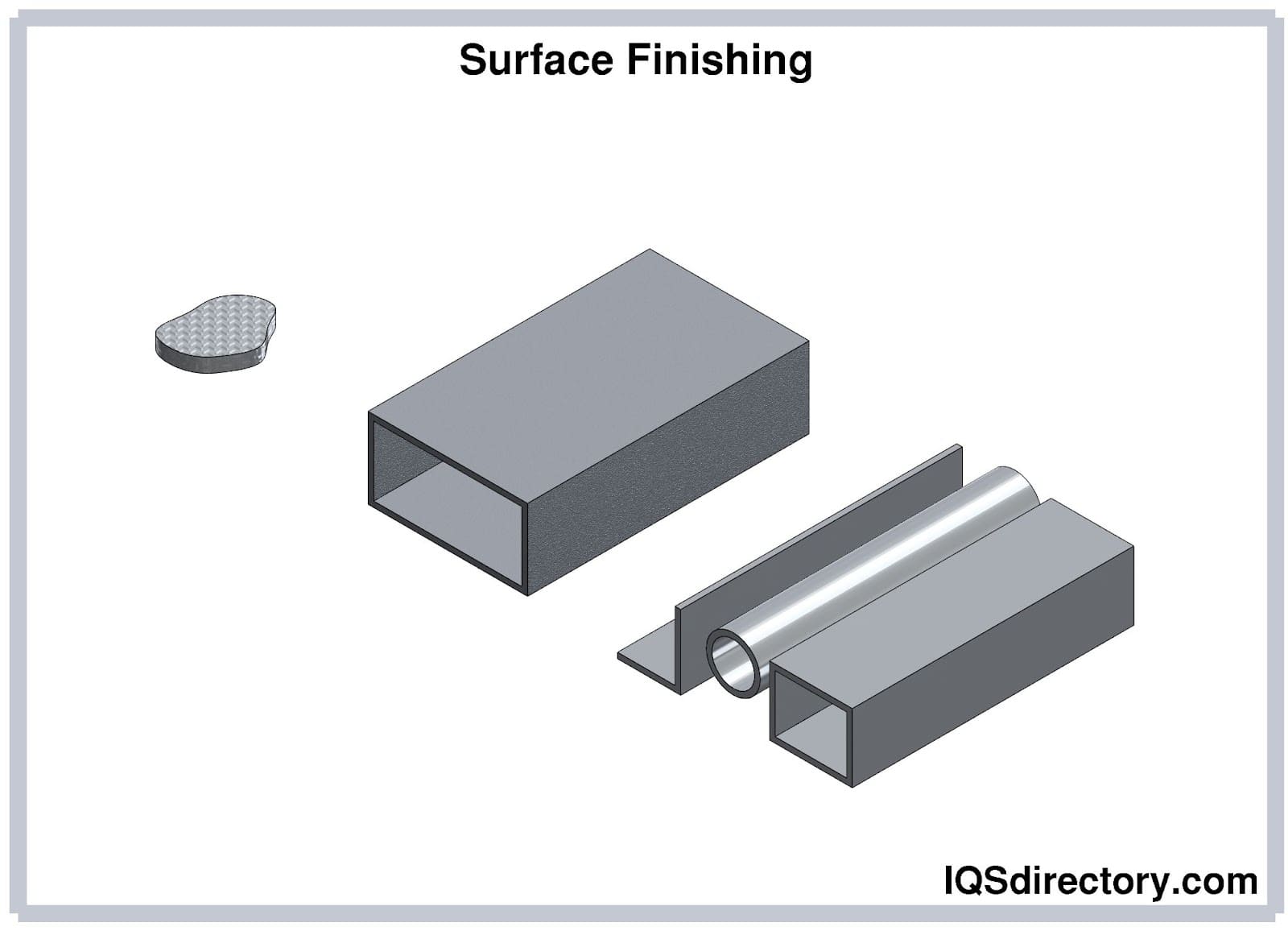

Aluminum pipes often receive various finishing treatments for enhanced aesthetics and improved corrosion defense.
Anodizing thickens aluminum’s natural oxide layer, boosting corrosion and wear resistance, while providing a porous surface for dye absorption, increasing emissivity, and allowing different color variants.
Additional techniques such as powder coating, sandblasting, painting, and sublimation provide more options for achieving desired results.

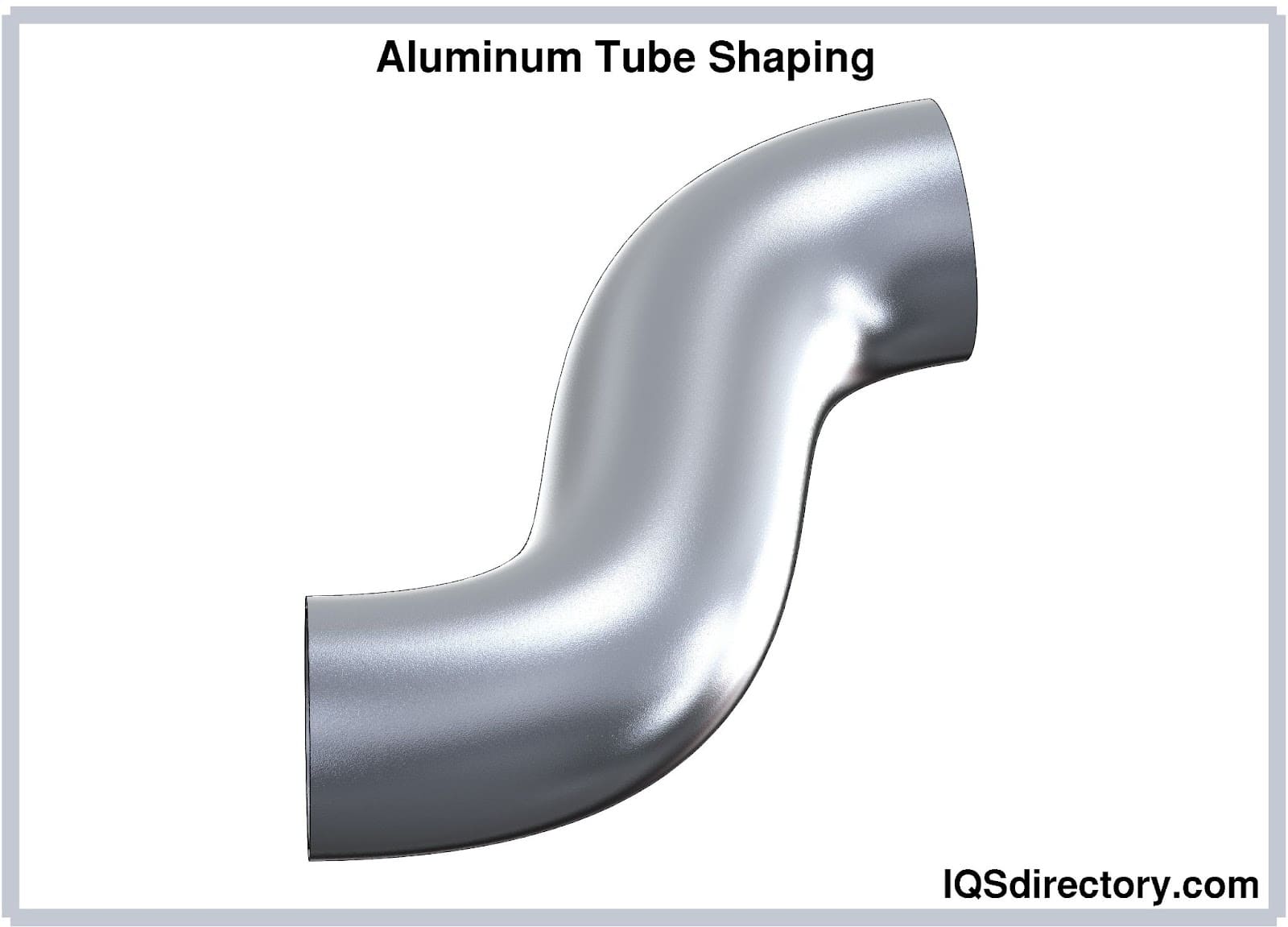

Fabrication enables customization of extrusions to meet specific dimension requirements. Tubing or piping can be drilled, punched, cut, and machined to meet exact standards. Numerous methods allow aluminum tubing to be tailored for any project’s demands.
Key aluminum alloys for tubing comprise 2024, 3003, 6061, 5052, and 7075. Distinct alloying elements like magnesium, manganese, copper, zinc, and silicon give each alloy unique mechanical and physical properties.
Lightweight and offering excellent thermal and electrical conductivity alongside corrosion resistance, aluminum tubes are versatile. Alloys like 7075, 6061, and 2024 are favored in aerospace for their high strength-to-weight ratio with good fatigue resistance. While 7075 and 2024 boast higher strength, they are more vulnerable to corrosion than the more weldable 6061. Despite higher costs, 7075 is chosen for superior strength.
Alloy 3003 is apt for applications demanding corrosion resistance and moderate strength over ductility. Alloy 5052 excels in welding projects due to its remarkable weldability.
Heat treatment significantly impacts aluminum alloy properties. An "O" temper indicates softness with maximum ductility but minimal strength. "T" tempers, like T6, T4, and T3, involve processes like aging or cold working to enhance strength at the molecular level.
After selecting the right alloy and temper, specifying dimensions and fabrications follows. Aluminum tubing spans outer diameters of 0.062-3.00 inches with wall thicknesses from 0.010-0.250 inches. Suppliers cater to custom requirements, with aluminum tubing recyclable at service life’s end due to its 99.8% pure alloy composition.
Factors to think about when choosing aluminum tubing and piping include:

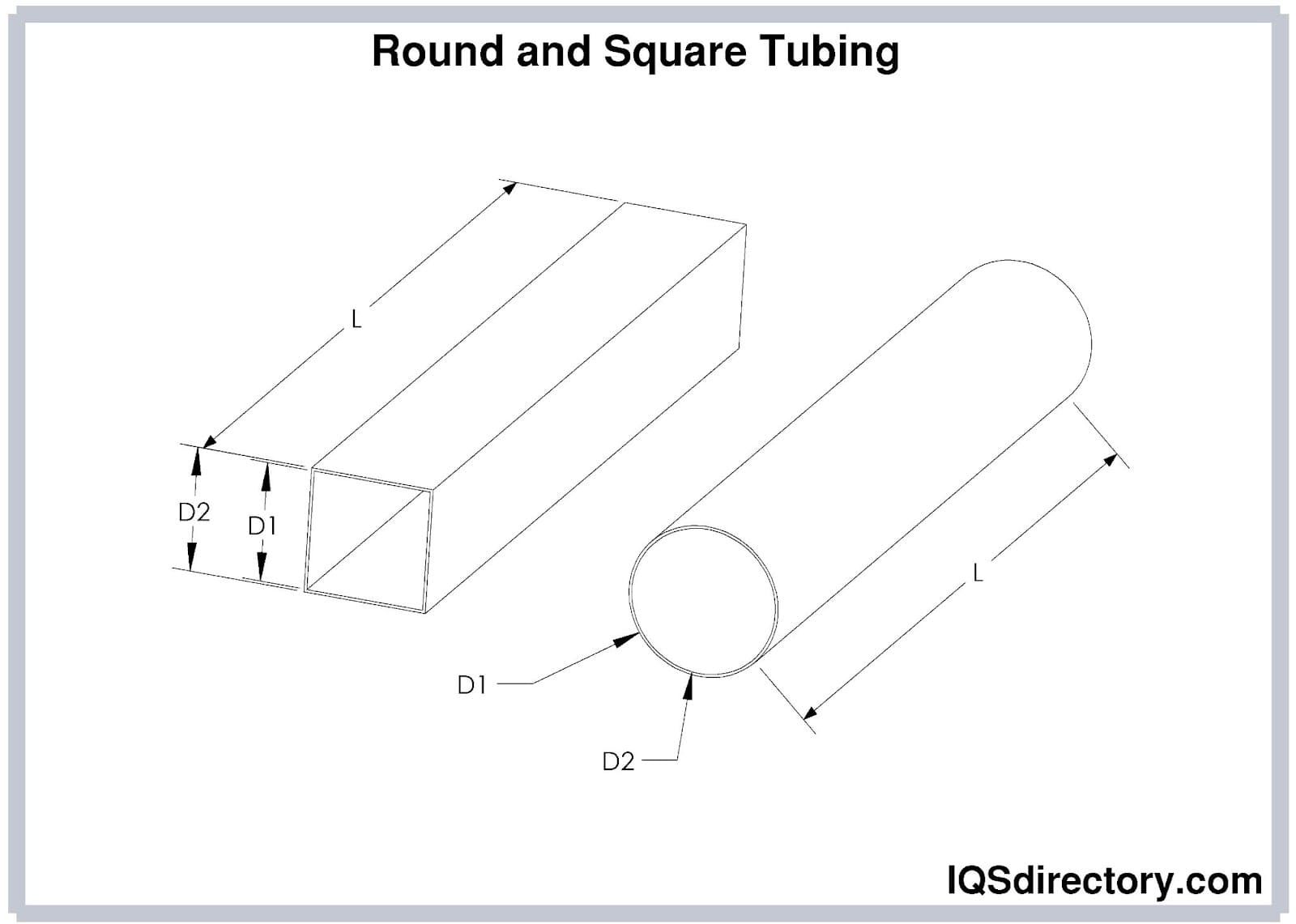

With its inherent rigidity maintaining shape, most tubing designed for smooth fluid flow is round, while other shapes like rectangular, oval, and square are available. Custom shapes are pricier than standard options, though circular tubing is widely favored for delivering uniform distribution along the tube's length.
When selecting metal tubing, ensure it meets these performance criteria:
Assess piping features prior to purchasing. Essential attributes of metal piping include:
Metal tubing’s interior and exterior require specific finishing and coating, including:
This section will explore the different varieties of aluminum tubing and piping available for industrial, structural, automotive, and marine applications. Choosing the right type of aluminum pipe or tube is essential in maximizing performance, longevity, and safety, and understanding the distinctive features of each alloy can help users and engineers select the ideal product for their particular needs.
The 5052 aluminum pipe is a specialized aluminum-magnesium alloy designed for enhanced performance in corrosion resistance. This material stands out in harsh and marine environments, making it a top choice for saltwater conduits, chemical handling systems, and food processing pipelines. It is a non-heat-treatable, moderate-strength alloy, incorporating small amounts of iron, silicon, manganese, and copper among other elements. Its versatility and balance of strength and flexibility make it valuable for a broad range of applications.
The seamless 5052 aluminum pipe is manufactured from solid metal using extrusion, ensuring the pipe is free from welds and maintains precise internal and external dimensions. Seamless aluminum tubing is especially sought after for applications where leak resistance and high pressure performance are critical, such as in compressed air systems and hydraulic piping.
The 5052 aluminum box pipe is ideal for structural applications requiring substantial rigidity, long-term durability, and resistance to environmental stressors. Its superior fatigue strength and excellent machinability make it popular in the manufacture of handrails, frames, and marine components. The mechanical properties of this aluminum alloy can vary based on the tubing shape and fabrication process, with round, square, rectangular, and custom profiles available for project-specific purposes.
Welded from aluminum sheets, the 5052-0 aluminum welded pipe offers greater strength than basic aluminum tubes. However, the 5052-0 ERW (Electric Resistance Welded) pipe can only be strengthened further through cold working, since it is not suitable for heat treatment. This makes it a cost-effective solution for low- to moderate-pressure piping systems.
5052 aluminum alloy hollow pipes come in a diverse array of forms, including round, square, box, hexagonal, rectangular, and hydraulic types. Among these options, round pipe is the most frequently specified for fluid transportation and pneumatic systems, while square and rectangular pipes are popular for structural frameworks, automotives, and modular assemblies. This breadth of shapes allows manufacturers and specifiers to match the optimal cross-section for load-bearing, flow, and assembly requirements.
5083 aluminum pipes are renowned for their exceptional corrosion resistance and high strength, especially in saltwater and marine environments. Certified to standards such as ASTM B241 for seamless pipe, this alloy is prized for its fine-grained structure, excellent weldability, and ability to undergo precise anodizing. The addition of magnesium and trace elements greatly enhances 5083 aluminum’s suitability for shipbuilding, offshore platforms, and chemical storage tanks.
The superior corrosion resistance of 5083 aluminum alloy stems from its tight grain structure and the protective layer formed on its surface. It is non-heat-treatable—any increases in strength are achieved through cold working. This property makes EN AW-5083 aluminum welded pipes particularly robust under dynamic loading in marine hulls, pressure vessels, and cryogenic storage.
AA 5083 aluminum ERW pipes offer outstanding welding characteristics, allowing for seamless integration with other aluminum piping or metal systems. Round pipes from ASTM B210 are commonly used for marine piping, fuel lines, and hydraulic systems, but square, rectangular, and custom-profile tubes also serve in industrial frameworks and marine architecture.
Specialized 5083 marine-grade aluminum pipes are produced with different wall thicknesses (including Schedule 40 and Schedule 80) to withstand varying internal pressures and mechanical stresses. When specifying 5083-grade piping, selecting the optimal diameter and thickness ensures both corrosion resistance and load-carrying capability.

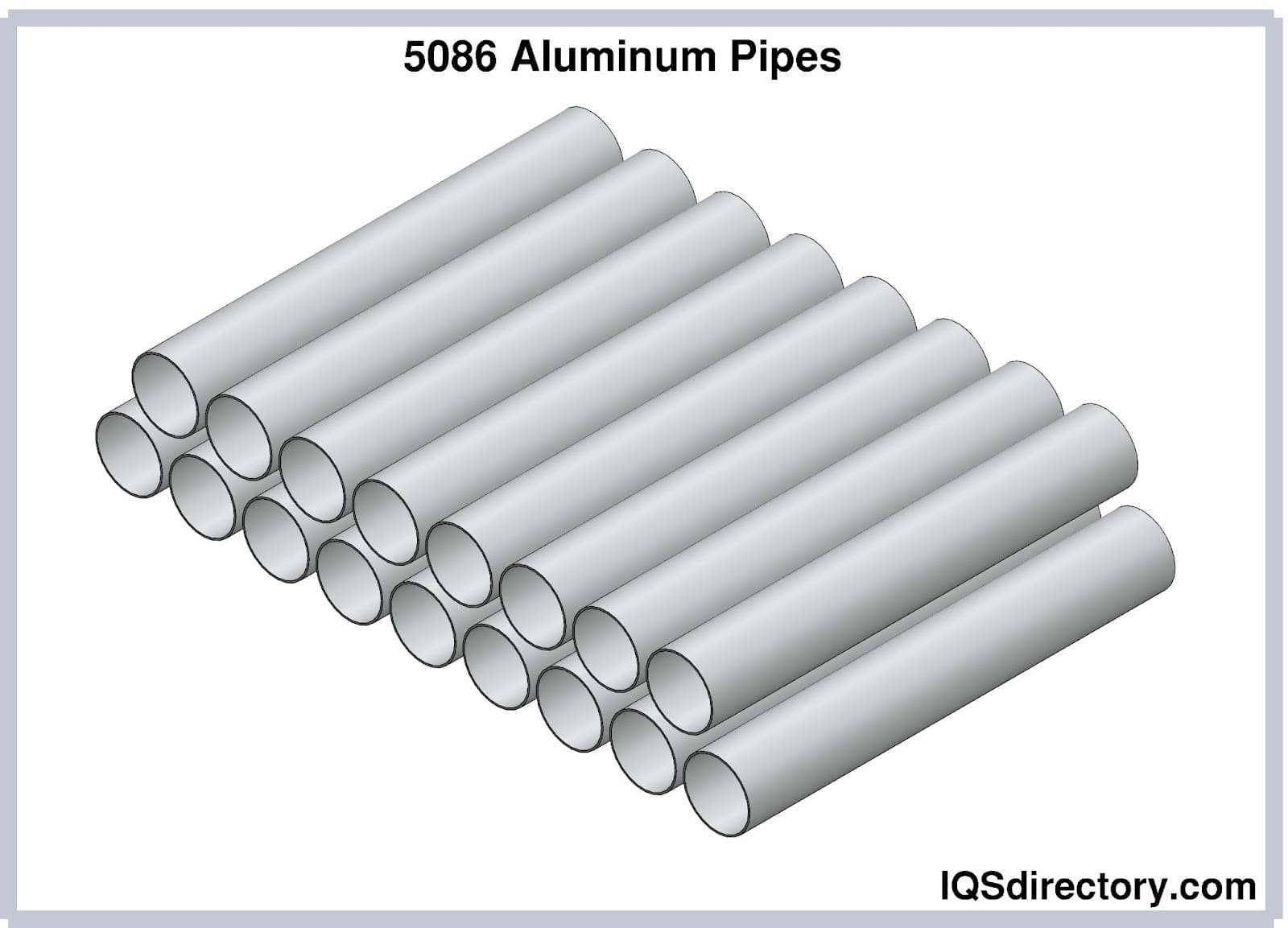

The 5086 aluminum pipe is engineered for superior strength and resistance to saltwater corrosion, making it an industry standard in marine, shipbuilding, oil & gas, and chemical processing. While aluminum is lightweight and naturally corrosion-resistant, 5086 H32 alloy introduces manganese and magnesium to substantially improve mechanical properties and overall stability, especially in aquatic and harsh chemical environments.
Manganese in 5086 aluminum pipes not only boosts strength, but also enhances ductility, ensuring the material can withstand vibration and high loads over time. This makes 5086 H32 pipes perfect for seawater cooling lines, marine deck structures, underwater pipelines, and offshore installations.
One of the hallmarks of aluminum alloys is their lightweight nature, directly contributing to significant fuel and energy savings, particularly in transportation and aerospace industries. This property also leads to easier handling and installation on construction sites, reducing labor costs.
5086 aluminum piping is available in box, round, square, and rectangular profiles—each suited to specific structural, piping, and framework applications. The 5086-H32 aluminum welded pipe and 5086-H32 ERW pipes deliver ease of fabrication and optimal compatibility with existing metal piping. This makes them favored for petroleum refining, shipyard equipment, LNG plants, and modular process skids.
Among the 5086 aluminum pipe options, hollow round pipes are predominant in fluid handling, pressured systems, and underwater piping. Square and box types are regularly selected for robust industrial framing and transport systems. The widespread adoption of aluminum in key industries is due to its combination of strength, corrosion resistance, lightweight structure, and design flexibility.

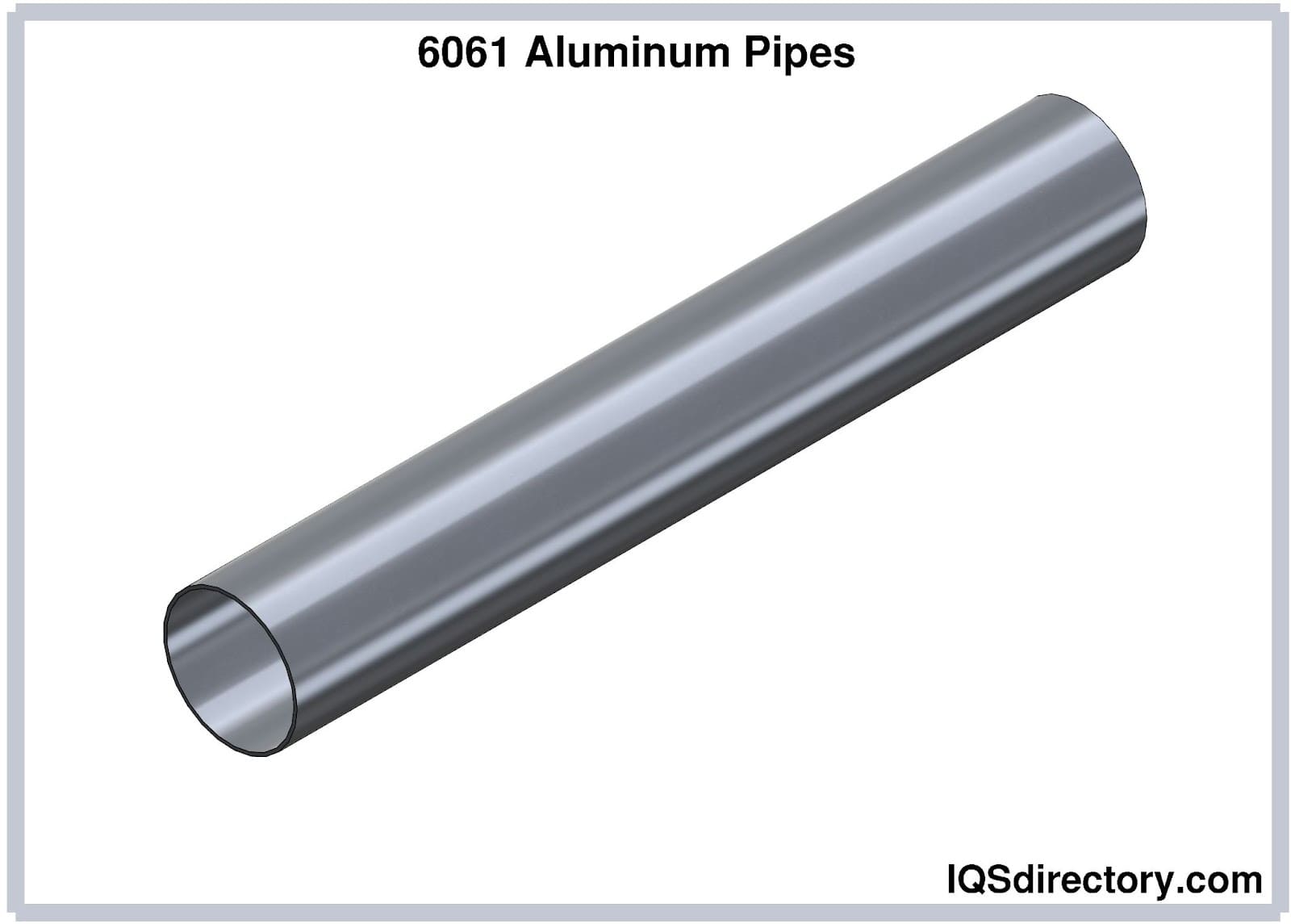

The 6061 aluminum pipe is a versatile, heat-treatable alloy widely used in construction, aerospace, automotive, marine, and heavy machinery industries. Manufactured using aluminum with silicon and magnesium, this alloy delivers a unique blend of strength, corrosion resistance, weldability, and workability. Various schedules (such as Schedule 40 and Schedule 80) define the pressure ratings and wall thicknesses of these pipes, making them ideal for pressurized systems, fluid transfer, and structural frameworks. For example, 6061 T6 schedule 80 aluminum pipe is engineered to withstand significant internal pressures in residential and industrial environments.
6061 aluminum piping exhibits outstanding resistance to oxidation and chemical corrosion, making it a preferred choice for architectural structures, utility-grade conduits, and high-performance equipment. Manganese and silicon alloying elements impart higher yield strength compared to pure aluminum pipes. The 6061 Schedule 40 aluminum pipes stand out in situations where moderate to high pressure is expected, and resistance to deformation is necessary.
The 6061-T6 aluminum piping is heat-treated and artificially aged, providing a balance between medium to high strength and excellent toughness. It is regularly used in load-bearing frameworks, scaffolding, structural bridges, and automotive chassis components. While inherently stronger than unalloyed aluminum, the tailored tempering and processing further improve its mechanical performance.
The 6061 aluminum thin-walled pipe delivers a premium surface finish, supporting aesthetic installations, display systems, and precision instrumentation. Almost all 6000-series aluminum piping offers a visually appealing finish, making it suitable for architectural details and exposed structures. However, because aluminum can react with water—forming oxides—6061 is not typically recommended for domestic plumbing carrying potable water.
6061-T6 aluminum seamless piping is extensively used in aerospace, aircraft fuselage, race car roll cages, and critical weight-sensitive engineering projects due to its optimized combination of lightness and mechanical performance. For applications demanding solid welds and easy joining processes, 6061 T651 aluminum welded piping and 6061 ERW piping are chosen for their ease of fabrication and reliable mechanical strength, making them a staple in modular construction and complex assemblies.
6063-T6 aluminum pipes are alloys of aluminum enhanced by silicon and magnesium, engineered to meet the needs of architectural, ornamental, and light structural applications. After extrusion, these pipes are heat treated to achieve the T6 temper, providing superior surface quality and higher strength against impact and bending. For instance, 6063-T5 aluminum pipes are also commonly specified, with slightly different elongation and strength properties.
6063 schedule 40 aluminum pipes, with diameter sizes ranging from 1.25 inches (3.18 cm) to 6 inches (15.24 cm), offer consistent wall thickness—making them adaptable for window and door frames, balcony railings, curtain wall systems, and signage structures. These pipes are valued in the building industry for their excellent extrudability and corrosion resistance, which support long-term exposure to weather and industrial atmospheres.
6063 aluminum seamless pipes are used where an attractive finish, precise dimensions, and effective anodizing are required. High integrity makes them ideal for both functional and decorative purposes. Welded 6063 pipes (including TIG welded) are cost-effective for non-critical applications and support custom project designs, retail fixtures, and modular displays.
6063 aluminum is especially popular in visible architectural applications, combining visual appeal with medium mechanical strength. While the round 6063-T6 pipes are most common for structural and decorative installations, rectangular, hexagonal, and square forms are also available. Large-scale use includes storefronts, roof structures, light poles, and greenhouses.
For high-strength requirements beyond what 6063 provides, consider using alloys such as 6061 or 6062. The 6063-T5 schedule 40 pipes allow architects and engineers to specify both wall thickness and diameter for customized building projects or industrial systems.

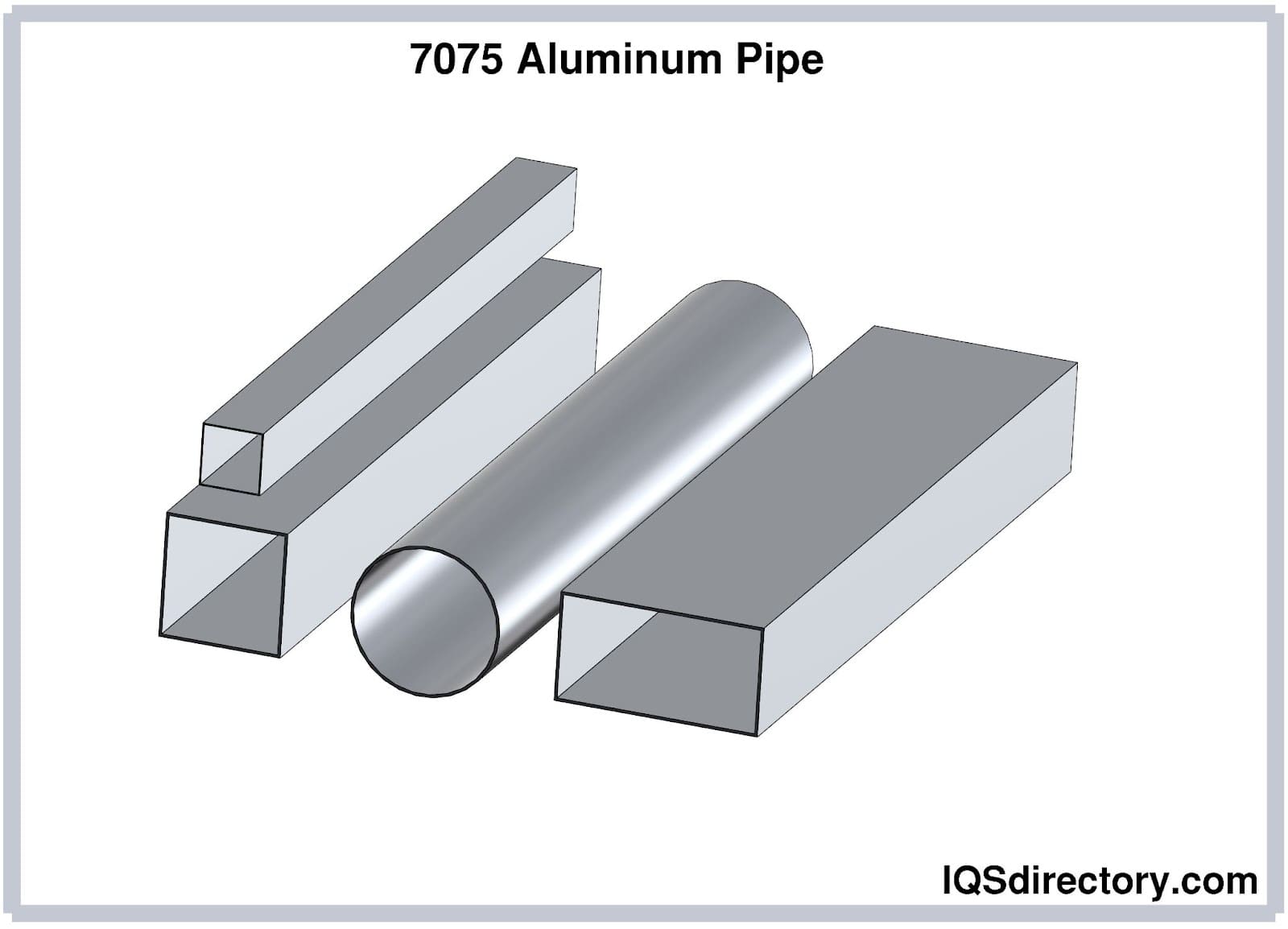

7075 Aluminum Piping, commonly known as aircraft-grade aluminum pipe, is a high-strength zinc-aluminum alloy acclaimed for its use in aerospace, defense, high-performance sporting equipment, and critical load-bearing applications. Its superior strength-to-weight ratio surpasses that of many other aluminum alloys, making it the primary choice for structural components exposed to extreme stresses.
7075 aluminum seamless pipes are manufactured with precise dimensional tolerances necessary for the aerospace sector, UAV frames, and military-grade installations. The availability of 7075 box and square tubes supports their application in hydraulic systems, industrial jigs, heavy equipment arms, and high-strength support beams.
The 7075 aluminum alloy hollow pipe is regularly specified for critical assemblies, fuselage structures, bicycle frames, precision robots, and space-constrained machinery. Its machinability and resistance to fatigue ensure longevity in intensive use scenarios, and it is preferred whenever maximum mechanical performance outweighs cost considerations.
It’s important to note that 7075 aluminum is not as resistant to corrosion as some marine-grade alloys like 5052 or 5086, so it’s best employed in dry or controlled environments where ultimate strength is the priority.
Aluminum pipe is a fundamental metal pipe product fabricated from aluminum alloy and is widely employed across industrial, commercial, transportation, architectural, and manufacturing sectors. While more cost-effective than copper, aluminum piping is not generally recommended for domestic plumbing or potable water systems, due to its susceptibility to corrosion and oxidation in water, which can potentially lead to water quality concerns.
Seamless Aluminum Pipe is extruded directly from solid aluminum billets, eliminating any welded seams for superior leak protection and internal pressure resistance. This type of pipe is favored in high-performance HVAC, compressed air lines, and hydraulic and pneumatic applications. Seamless aluminum pipes are offered in a range of diameters, thicknesses, and shapes (such as round, rectangular, square, and oval) to address diverse engineering needs.
Aluminum Square Pipes provide enhanced bending strength and resistance to collapse, making them an optimal choice for frameworks, racking systems, and industrial machine supports. The corners of square tubes add rigidity and facilitate straightforward connections in modular construction or prefabricated building projects.
Aluminum Section Pipes—including custom profile options—excel in aerospace, aviation, fuel distribution, oil and gas, and precision mechanical assemblies. Their lightweight profile reduces overall equipment mass, streamlines transportation, and offers improved structural efficiency. Aluminum seamless pipes are particularly suitable for fluid and gas transfer, where maintaining dimensional stability and minimizing leaks is vital. Connections are typically made using compatible aluminum pipe fittings and threaded joints for versatility.
Threaded Aluminum Pipes are used extensively in modular piping systems for easy disassembly and reconfiguration. They come in multiple diameters to suit both small and large-scale applications, with larger diameters requiring additional bracing or support (such as lattice frameworks) to maintain alignment and prevent sagging in overhead installations.
Spiral-Welded Aluminum Pipes are produced by spirally forming and welding aluminum plates and are used in specialty applications requiring wider diameters or unique geometric profiles.
Anodized Aluminum Pipes undergo a controlled electrolytic process that creates a hard, corrosion-resistant oxide layer on the surface. This not only improves their chemical and mechanical durability but also enhances their aesthetic qualities with options for colored finishes, making them ideal for exposed architectural elements and designer fixtures.
Jindal Black Anodized Aluminum Pipes are a specialty product with a durable black anodized finish. This finish both decorates and increases corrosion resistance, making these pipes excellent for exterior facades, handrails, curtain walls, and water line systems where both strength and appearance are critical.
Overall, aluminum piping solutions deliver a combination of lightweight performance, corrosion resistance, design flexibility, and ease of installation, allowing engineers, architects, and manufacturers to specify products that meet safety codes, improve operational efficiency, and extend the lifecycle of industrial and structural systems.
This section will explore the various uses and advantages of aluminum tubing and piping.
Aluminum's excellent heat absorption makes it an ideal choice for temperature regulation applications, such as in solar power systems, refrigerators, and air conditioning units.
The lightweight yet durable nature of aluminum tubing makes it valuable in hydraulic systems, structural braces, fuel lines, and frameworks.
Both aluminum pipes and tubes are widely utilized across various industries and construction projects. Additionally, they are increasingly popular among automotive manufacturers and homeowners, reflecting their versatile applications. The previous sections have highlighted many of these uses.
The advantages of using aluminum tubing and piping include:
Aluminum tubing may not offer the best strength-to-weight ratio compared to other materials. Some aluminum alloys also lack the corrosion resistance found in stainless steel, which makes them less suitable for applications like electrical cables.
Welding aluminum tubes requires specific techniques due to the oxide layer that forms on their surface. This oxide can wear out welding tools more quickly, making the process more expensive compared to welding steel.
