This article will give a detailed discussion on aluminum coil
After reading this article, one should better understand:
The term "aluminum coil" describes aluminum that has been flattened into sheets where their width is significantly higher than their thickness and then "coiled" into a roll. Stacks of individual aluminum sheets are difficult to store due to the potential of inconsistent sizes and individual sheets are difficult to retrieve and carry. Coils of aluminum sheets, on the other hand, are easy to store and transport.
A coil of aluminum may go through various processing steps once it arrives at a metalworking facility. For example, aluminum coils can be cut, welded, bent, stamped, engraved, and affixed to other metal items. Aluminum suppliers provide aluminum coils to production facilities, metal fabricators, and other metalworking operations requiring this metal to produce so many of the objects our world has come to rely on ranging from auto parts to the cans we rely on to protect and store food and countless other items.
Even in industrial environments where other metals are frequently corroded, aluminum is extremely resistant to weathering and corrosion. Several acids won't cause it to corrode. Aluminum naturally generates a thin but effective oxide layer that inhibits further oxidation, giving it exceptional corrosion resistance. As a result, objects made from aluminum oxide are nearly impermeable to many corrosive substances.
Since it melts more readily than steel, aluminum coil is more pliable and simpler to pour into molds. Aluminum castings are also less stiff than steel, making them easier to work with while steel castings need a lot more effort. It is one of the most machinable metals available, making processing time cost-effective.
Aluminum coil is lightweight and portable since it has a low density. This makes it the chosen metal for use in the construction of airplanes. It may be considered as being even more durable since it can be recycled.
Aluminum is non-magnetic because of its crystalline structure. An oxide layer is quickly formed after any scratch making it non-sparking.
Free electrons in the structure of aluminum coils make it a good electrical conductor. Since there is a steady flow of these electrons, the aluminum coil is therefore a good conductor of heat.
Aluminum coils are soft because of the available free electrons for bonding.
Exposure to aluminum is not harmful to the body.
Since aluminum is more pliable than the majority of other metals, shaping the coils is simpler. Because of the increased flexibility, engineers may bend coils into effective designs. For instance, microchannel coils improve heat transfer, decrease leaks, and have higher corrosion resistance.
Aluminum has low density, is non-toxic, has a high thermal conductivity, has excellent corrosion resistance and can be easily cast, machined and formed. It is also non-magnetic and non-sparking. It is the second most malleable metal and is highly ductile for use in transforming this material into wire.
Aluminum coils frequently come in sizes with internal diameters of 508 mm, 406 mm, and 610 mm. The coil's outer diameter is defined as the diameter created by its outer, circular contour. The capacity and geometrical features of the recoiler machine being used to process the aluminum coil typically determine its dimension. The space between the aluminum coil's two adjacent surfaces measured perpendicularly refers to how thick the coil is. Engineers must consider the coating material's dimensions for the aluminum coil because a difference of just 0.06 mm can substantially impact the precision of design calculations. The coil width is the aluminum coil's transverse dimension.
For coils of aluminum, the weight of an aluminum coil is calculated as (Coil Diameter*1/2*3.142 - Inner Diameter*1/2*3.142)*Coil Width*2.7(Density of Aluminium)
This formula only provides a rough estimate of the weight of an aluminum coil roll because different alloys have varied densities and measurement mistakes always exist for diameters. In addition, the manufacturer's feeding frame capacity affects the weight of the aluminum coil.
The thickness of an aluminum coil might be anywhere from 0.2 to 8mm. Most rolls of aluminum, however, are between 0.2mm and 2mm thick. These various thicknesses determine the specific use of aluminum coil. Consider an insulation aluminum coil, where 0.75mm is the most common thickness. The coated aluminum roof coil, which is equally popular, is only 0.6 to 1.0mm thick. Only the special-purpose aluminum rolls are thicker. Of course, customers are free to request any thickness less than 8mm from the provider based on their specific requirements.
Aluminum is one of the best and most popular metals in use today. This is seen from the variety of industries in which it is used. Before buying aluminum from a provider of aluminum coil, the following aspects may need to be considered.
There are numerous options for suppliers of aluminum coils— the decision of which to choose, and why, is challenging. The experience of the supplier should be the primary point of reference. Working with a supplier with a track record of providing these aluminum coils is preferable. A seller who has yet to generate a lot of revenue can only provide a little information on the caliber and kinds of materials they're selling. A credible supplier should also have an established history and online presence because no company exists in solitude. Before entering into any agreement, it is preferable to discover how long the company has been in operation and how previous customers have regarded their experience with them.
Ease of machining should be considered when choosing an aluminum coil that needs to be integrated with other metals. The machining process should consider whether it is compatible with the aluminum coils to be selected. Weldability should also be considered in the machining process. Some aluminum grades can be welded easily, while others cannot. The supplier should provide this information to the customers. Some aluminum types cannot be welded properly to other metals.
Various grades of aluminum exist. If one only has a basic understanding of this, it would be best to deal with an aluminum coil supplier who is informed about it and can assist in clarifying things. There are several classes of coils, based on their intended usage and on their heat capacity. Even though lower-grade coils may be less expensive, higher grades must be considered based on the intended use of the material. Only use an aluminum coil supplier that knows about these various grades, what applications are suitable for each grade, and seeks to find the appropriate grade based on your intended use.
The degree of deformation achieved during a metal-forming process without causing an undesired state, such as cracking, necking, buckling, or the development of folds and defects, is known as formability. Different aluminum coils have different formability levels. This requires to be noted when one is selecting an aluminum coil.
Customers should choose a provider with a significant stock of the material selected unless it is a one-off buy. They would have to start the vetting procedure over if they changed suppliers. Whenever possible, most suppliers are prepared to produce and provide the quantity needed and will have a sizable warehouse packed with the aluminum coils you need.
There are different coil grades, and while some may be readily available and cheaper, they may only be suitable for some end-use applications. This is an important consideration in choosing the proper aluminum coil.
Customers need to realize that a competitive, “fair” price should serve as a warranty of the material’s quality. Various manufacturers of aluminum coils offer price ranges based on the grade of the material and as a result of other questionable factors. Some aluminum coil firms, for example, cut production costs by thinning the coating. It is up to each individual to locate and select the supplier who offers the best value without compromising quality.
Extractive metallurgy uses smelting to create metal from its ore. Heat and a chemical reduction agent are used in smelting to break down the ore, removing other components as gasses or slag (the stonelike waste material removed from a metal during smelting) and leaving only the metal left. The reducing agent is frequently a carbon source like coal, coke, or charcoal. Aluminum is normally separated from its oxide, alumina, in the Hall-Heroult process during the smelting stage. The Bayer process is used in an alumina refinery to remove alumina from the bauxite ore. Both the Hall-Heroult process and the Bayer process are explained below.

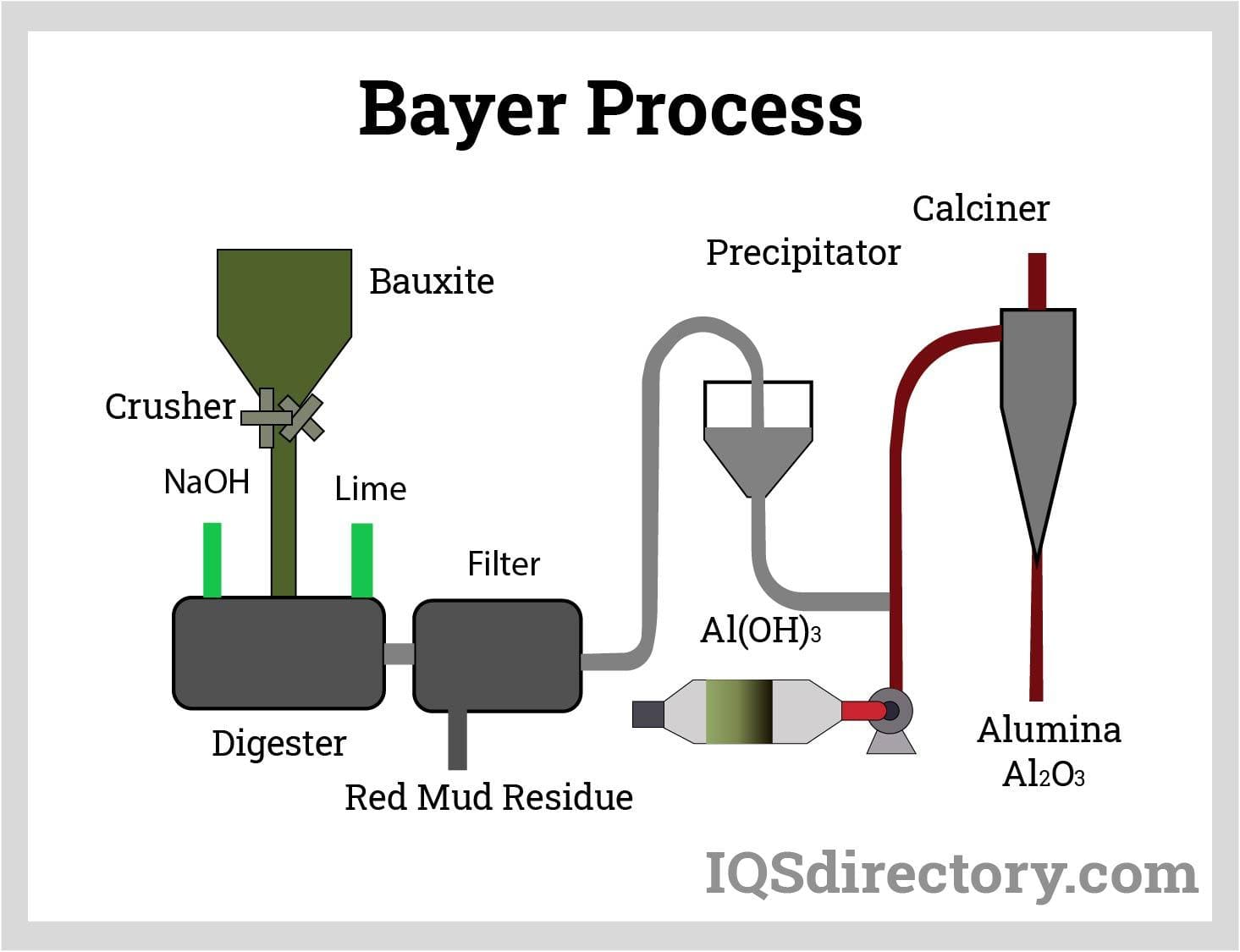

Alumina, water atoms, and other minerals make up bauxite rock. The Bayer process dissolves the particle's constituent parts to remove alumina, which is further refined through filtration. After isolating the alumina from the bauxite, the smelter will discard the other components. In addition to aluminum, bauxite may also contain various other substances. The general process is the same even if each chemical in bauxite requires a separate extraction technique. The precise extraction technique will depend on the specific aluminum component. After separating the residue, the gibbsite (a mineral form of aluminum hydroxide) is cooled and seeded. The mineral gibbsite, with the structural formula [Al(OH)3], is an aluminum hydroxide belonging to the oxides and hydroxides group. Octahedral sheets of aluminum hydroxide are stacked to form the structure of the gibbsite. Aluminum oxide from bauxite changes into soluble sodium aluminate during extraction. At the same time, other substances in the bauxite remain solid, and the silica dissolves. A rotational sand trap (a system of separating unwanted particles from the waste) filters out any pollutants like red mud. Red mud, also known as bauxite residue, is a type of industrial waste created during the Bayer process used to convert bauxite into alumina. Depending on where the bauxite ore came from, red mud typically contains titanium dioxide, aluminum oxide, and iron oxide. Its vivid red color results from the iron present in the form of oxides and hydroxides, which may be of interest for separate use.

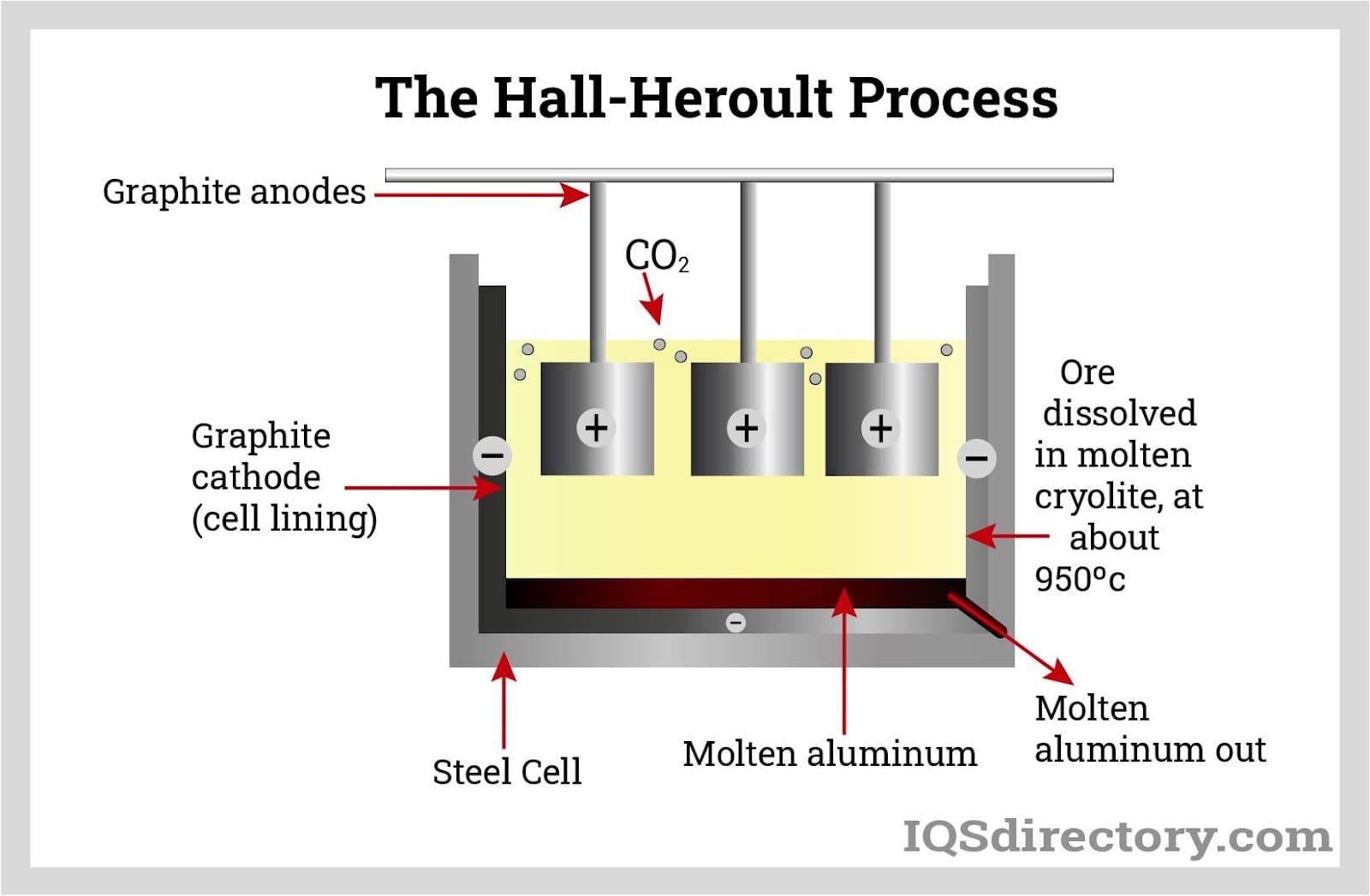

The Hall-Heroult process lowers the melting point for electrolysis by dissolving alumina in molten synthetic cryolite, a white, crystalline powder created by mixing hydrofluoric acid, sodium carbonate, and aluminum. Synthetic cryolite is mostly employed in a state of flux in the electrolytic manufacture of aluminum. In addition, cryolite has the advantages of transmitting electricity, having a lower density than aluminum, and making it simple to dissolve alumina, an aluminum containing compound. Liquid aluminum collects at the cathode during the electrolysis process, while at the same time, carbon and oxygen from the alums combine to form carbon dioxide.
Aluminum is made using electrolysis on an industrial scale and aluminum smelters need a lot of energy to run efficiently. Smelters are frequently located adjacent to major power plants due to their requirement for energy. Any increase in the cost of power, or the amount of power required to refine aluminum to a higher grade, increases the costs of aluminum coils. In addition, aluminum that has been dissolved separates and goes to a collection area. This technique also has considerable energy requirements, which impacts the aluminum market prices as well.

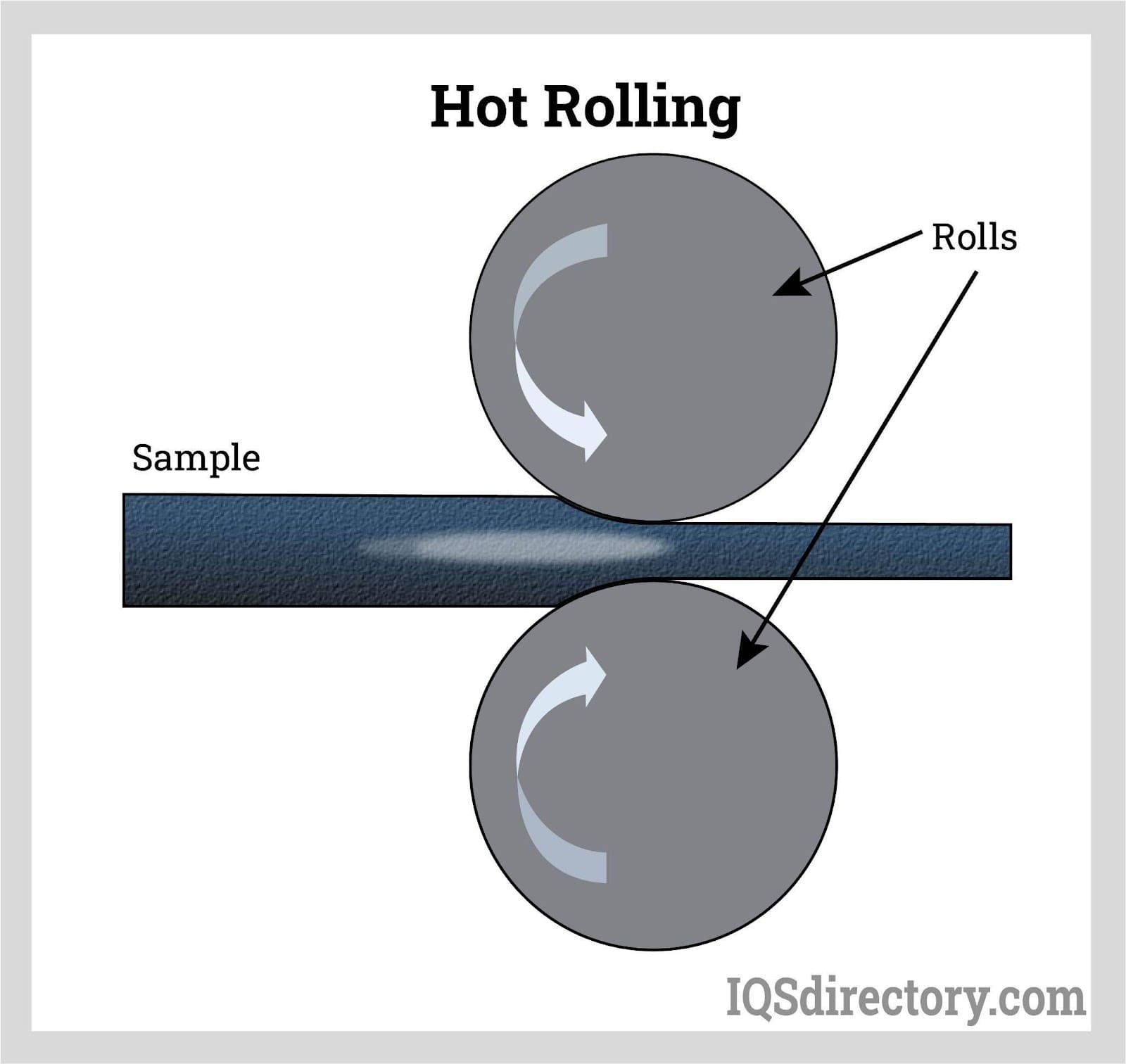

Hot rolling is one of the most often used ways to thin an aluminum slab. In hot rolling, metal is heated above the point of recrystallization to deform and further shape it. Then, this metal stock is passed through one or more pairs of rolls. This is done to reduce thickness, make thickness uniform, and to achieve a desired mechanical quality. An aluminum coil is created by processing the sheet at 1700 degrees Fahrenheit.
This method can produce shapes with the appropriate geometrical parameters and material characteristics while keeping the metal volume constant. These operations are crucial in producing semi-finished and finished items, such as plates and sheets. However, finished rolled products differ from cold rolled coils, which will be explained below, in that they have less uniform thickness because of tiny debris on the surface.

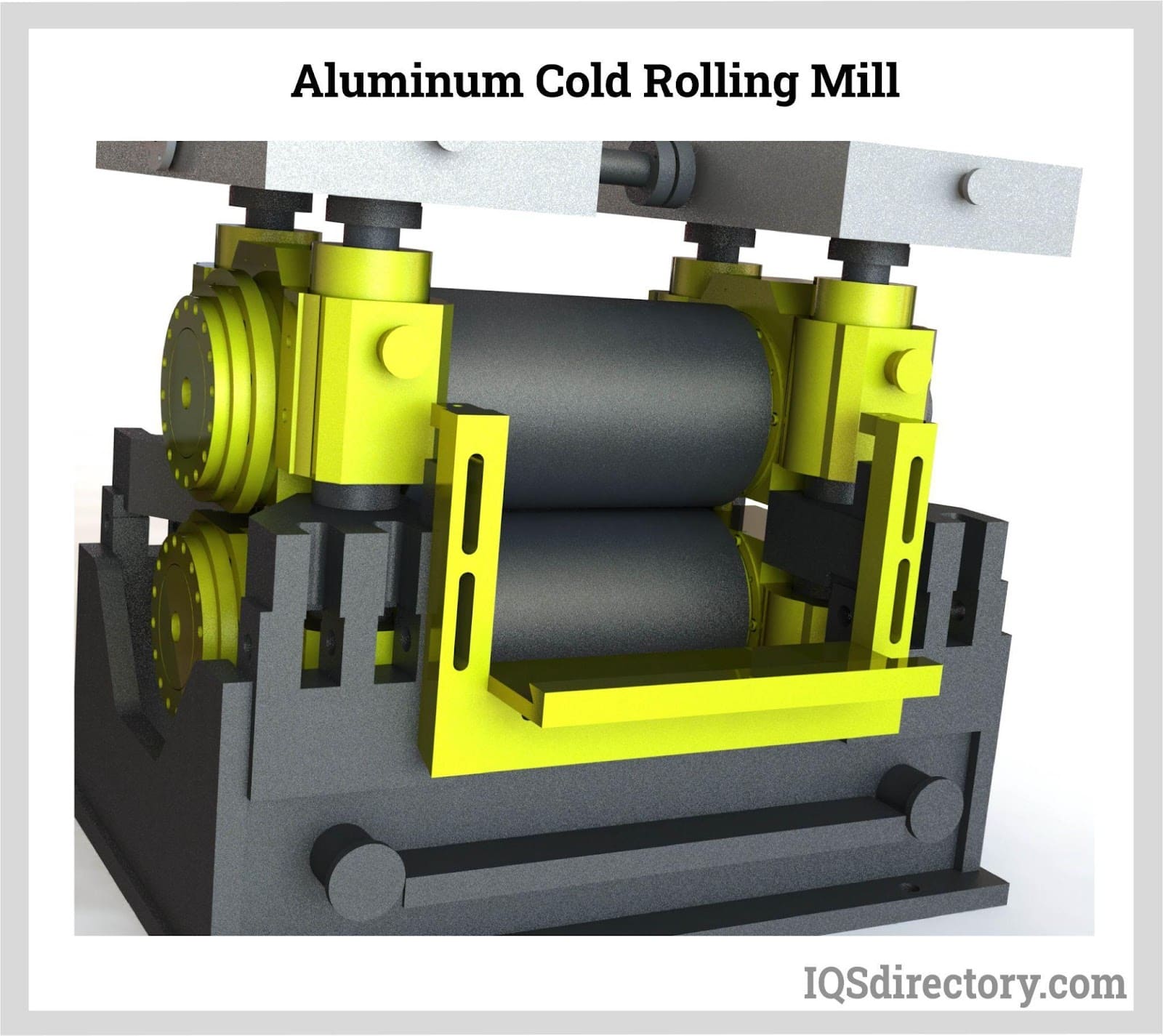

Cold rolling of metal strips is a unique area of the metalworking sector. The process of "cold rolling" involves putting aluminum through rollers at a temperature lower than its recrystallization temperatures. Squeezing and compressing the metal increases its yield strength and hardness. Cold rolling occurs at the work-hardening temperature (the temperature below a material’s recrystallization temperature), and hot rolling occurs above the work hardening temperature- this is the difference between hot rolling and cold rolling.
Many industries use the metal treatment procedure known as cold rolling to produce strip and sheet metal with the desired final gauge. The rolls are frequently heated to help the aluminum be more workable, and lubricant is used to prevent the aluminum strip from sticking to the rolls. For operational fine-tuning, the rolls' movement and heat can be changed. An aluminum strip, which has already undergone hot rolling, and other procedures, including cleaning and treating, is cooled to room temperature before being placed into a cold mill rolling line in the aluminum industry. Aluminum is cleaned by rinsing it with detergent and this treatment makes the aluminum coil hard enough to withstand cold rolling.
After these preparatory steps have been addressed, the strips undergo repeated passage through rollers, progressively losing thickness. The metal's lattice planes are disrupted and off-set throughout the process, which results in a harder, stronger final product. Cold rolling is among the most popular methods for hardening aluminum because it reduces the thickness of the aluminum as it is crushed and pushed through rollers. A cold rolling technique can lower an aluminum coil's thickness by up to 0.15 mm.

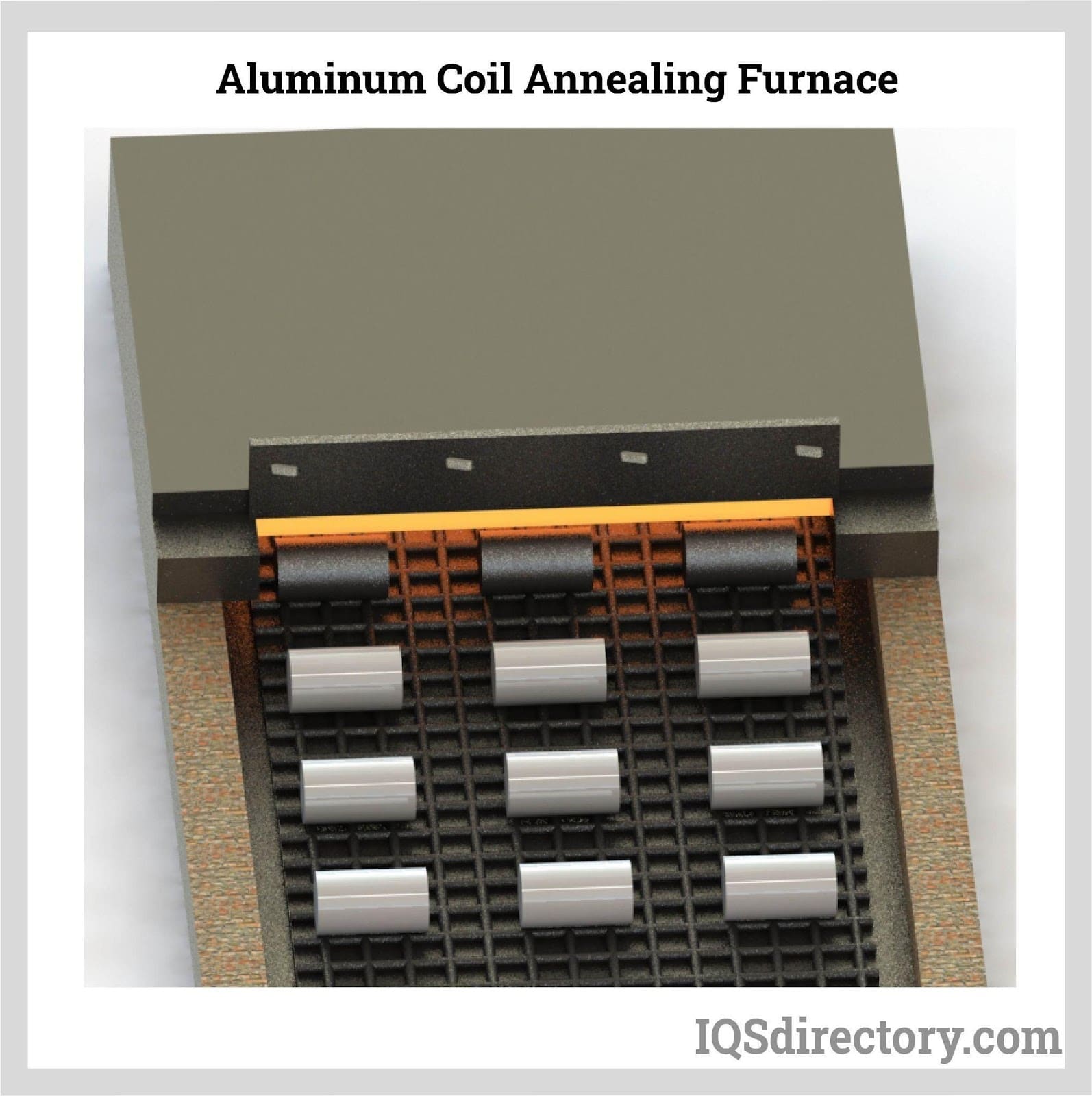

An annealing process is a heat treatment used primarily to make a material more malleable and less rigid. The decrease in dislocations in the crystal structure of the material being annealed causes this shift in hardness and flexibility. To avoid brittle failure or to make a material more workable for following operations, annealing is frequently done after a material has undergone a hardening or cold working procedure.
By effectively resetting the crystalline grain structure, annealing restores slip planes and enables further shaping of the part without excessive force. A work-hardened aluminum alloy must be heated to a specific temperature between 570°F and 770°F for a predetermined period, ranging from about thirty minutes to three hours. The size of the part being annealed and the alloy it is made of determine the temperature and time requirements, respectively.
Annealing also stabilizes a part's dimensions, eliminates problems brought on by internal strains, and reduces internal stresses that may arise, in part, during procedures like cold forging or casting. Additionally, aluminum alloys that are not heat-treatable can also be successfully annealed. Therefore, it is frequently applied to cast, extruded, or forged aluminum parts.
A material's ability to be formed is enhanced by annealing. Pressing or bending hard, brittle materials can be challenging without causing a fracture. Annealing aids in removing this risk. Additionally, annealing can increase machinability. The extreme brittleness of a material might result in excessive tool wear. Through annealing, a material's hardness can be decreased, which can lessen tool wear. Any remaining tensions are eliminated by annealing. It is usually best to reduce residual tensions wherever feasible because they might lead to cracks and other mechanical issues.
This procedure minimizes internal mechanical loads brought on by hard work, casting, or welding and operates at a relatively low temperature.
The metal's crystalline structure is changed in this state. The nuclei generated in the cold wrought metal begin to grow new grains if the alloy reaches the recrystallization or annealing temperature. The cold deformation-induced flaws and distortions are absorbed by the new grains. The grains are independent of the old grain structure and equally axed. Due to recrystallization, the alloy's mechanical characteristics (strength, flexibility) return to their pre-cold-work state.
This is the growth of new grains at the expense of their neighbors. It happens above the recrystallization temperature. This undesired process causes the grain structure to become coarser.

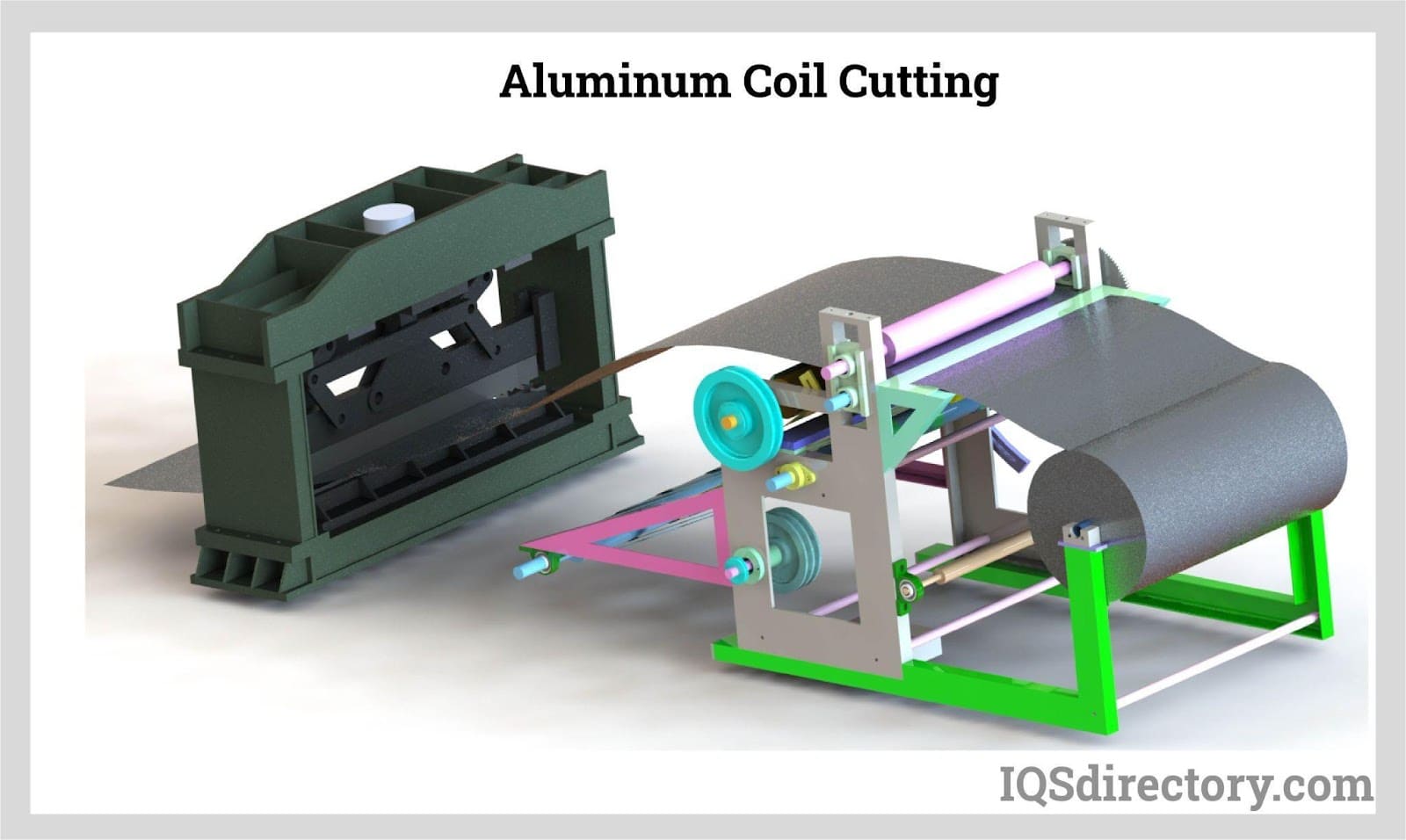

Aluminum coils could be manufactured in one very long continuous roll. To pack the coil into smaller rolls, however, they need to be sliced. To perform this function, aluminum rolls are run through slitting equipment where incredibly sharp blades make accurate cuts. A lot of force is required to perform this operation. Slitters split the roll into smaller pieces when the applied force exceeds the aluminum's tensile strength.
To start the slitting process, the aluminum is placed in an uncoiler. Afterward, it is passed through a set of rotary knives. The blades are positioned to obtain the best slit edge, considering the desired width and clearance. To direct the slit material to the recoiler, the material is subsequently fed through separators. The aluminum is then bundled and wrapped into a coil to prepare for shipping.
Aluminum coils come in several grades, including the 6000 series, 7000 series, 8011 series, and 3000 series to mention just a few. These grades are based on their composition and manufacturing applications. These differences allow aluminum coils to be used by different industries. For example, some coils are harder than others, while others are more pliable. Knowing the required grade of aluminum also depends upon the fabrication and welding processes suitable for that aluminum type. Therefore, one would require understanding the area they want to apply the coil in order to pick the best grade of aluminum coil for their specific application.

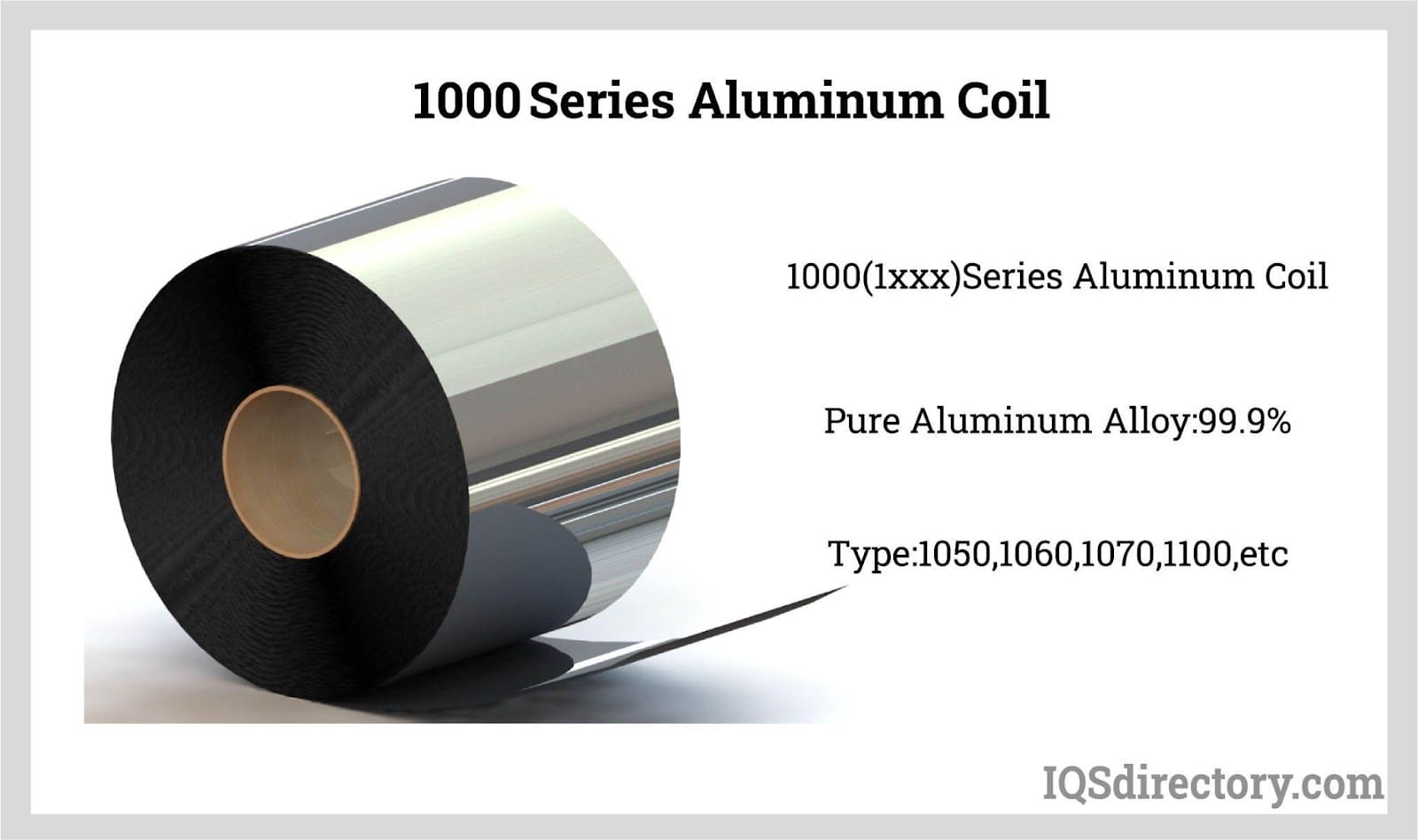

According to the worldwide brand name principle, a product must contain 99.5% or more aluminum to be approved as 1000 series aluminum, which is considered commercially pure aluminum. Despite not being heat-treatable, aluminum from the 1000 series has outstanding workability, excellent corrosion resistance, and high electrical and thermal conductivity. It can be welded, but only with specific precautions. Heating this aluminum does not alter its look. When welding this aluminum, it is significantly more difficult to distinguish between cold and hot material. 1050, 1100, and 1060 series make up most of the aluminum products on the market because they are the most pure. Typically, 1050, 1100 and 1060 aluminum is used to create cookware, curtain wall plates, and decorating elements for buildings.
Copper is added to the 2000 series aluminum coil, which then undergoes precipitation hardening to achieve steel-like strengths. The usual copper content of 2000 series aluminum coils ranges from 2% to 10%, with minor additions of other elements. It is extensively used in the aviation sector to make airplanes. This grade is employed here because of its availability and lightness.
Copper serves as the main alloying ingredient in the 2024 aluminum alloy. It is utilized in situations where a high strength-to-weight ratio and superior fatigue resistance are necessary, such as in aircraft structural components like the fuselage and wing structures, carrying tension strains, aviation fittings, truck wheels, and hydraulic manifolds. It has a fair degree of machinability and can only be joined through friction welding.
Manganese is rarely used as a principal alloying element and is only normally added to aluminum in small amounts. However, manganese is the primary alloying element in 3000 series aluminum alloys, and this series of aluminum is often non-heat treatable. As a result, this series of aluminum is more brittle than pure aluminum while being well-formed and resistant to corrosion. These alloys are good for welding and anodizing but cannot be heated. The alloys 3003 and 3004 make up most of the 3000 series aluminum coil. These two aluminums are used due to their strength, exceptional corrosion resistance, outstanding formability, good workability, and good “drawing” properties that make sheet metal forming processes easier. They have a wide range of applications. Beverage cans, chemical apparatus, hardware, storage containers, and lamp bases are some of the applications of 3003 and 3004 grades.
The alloys of the 4000 series aluminum coil have fairly-high silicon concentrations and are not frequently utilized for extrusion. Instead, they are used for sheets, forgings, welding, and brazing. Aluminum's melting temperature is lowered, and its flexibility is raised by the addition of silicon. Due to these qualities, it is the ideal alloy for die casting.
The distinguishing features of 5000 series aluminum coil are its smooth surface and exceptional deep-drawability. This alloy series is a popular option for various applications because it is significantly harder than other aluminum sheets. It is the perfect material for heat sinks and equipment casings due to its strength and fluidity. Furthermore, its excellent corrosion resistance is ideal for mobile homes, residential wall panels, and other applications. Aluminum magnesium alloys include 5052, 5005, and 5A05. These alloys are low in density and have strong tensile strength. As a result, they are found in many industrial applications and have a wide range of uses.
The 5000 series aluminum coil is a great option for most marine applications due to its significantly greater weight savings over other series of aluminum. The 5000 series aluminum sheet is. furthermore, a preferred option for marine applications since it is extremely resistant to acid and alkali corrosion.
Aluminum alloy 5754 principally contains magnesium and chromium. It cannot be created using casting methods; rolling, extrusion, and forging may be used to create it. Aluminum 5754 exhibits excellent corrosion resistance, particularly in the presence of seawater and industrially polluted air. Body panels and interior components for the automotive industry are typical usages. Additionally, it can be applied to flooring, shipbuilding, and food processing applications.
6000 series aluminum alloy coil is represented by 6061, which is mostly composed of silicon and magnesium atoms. 6061 aluminum coil is a cold-treated aluminum forging product which is appropriate for applications needing a high oxidation and corrosion resistance level. It possesses great interface properties, facile coating, and good workability, in addition to good serviceability. It can be applied to aircraft joints and low-pressure armaments. It can counteract the negative effects of iron due to its particular content of manganese and chromium. Occasionally, a small amount of copper or zinc is added to boost the alloy's strength without considerably lowering its corrosion resistance. Excellent interface properties, ease of coating, high strength, outstanding serviceability, and strong corrosion resistance are among the general qualities of 6000 aluminum coils.
Aluminum 6062 is a wrought aluminum alloy featuring magnesium silicide. It responds to heat treatment to age-harden it. This grade can be used in the manufacture of submarines because of its corrosion- resistance in fresh and saltwater.
For aeronautical applications, 7000 series aluminum coil is very beneficial. Thanks to its low melting point and great corrosion resistance, it works well with applications requiring these traits. However, there are some significant distinctions between these various aluminum coil types. Al-Zn-Mg-Cu series alloys make up the majority of the 7000 series aluminum alloys. The aerospace industry and other high-demand industries favor these alloys because they provide the maximum strength of all aluminum series. In addition, they are perfect for various manufacturing applications due to their high hardness and resistance to corrosion. These aluminum alloys are used in various radiators, aircraft parts, and other things.
Zinc serves as the main alloying ingredient in the 7075 aluminum alloy. It demonstrates exceptional ductility, high strength, toughness, and good resistance to fatigue in addition to having outstanding mechanical qualities.
7075 series aluminum coil is frequently employed for the production of airplane parts like wings and fuselages. In other industries, its strength and small weight are also advantageous. Aluminum alloy 7075 is frequently used to make bicycle parts and equipment for rock climbing.
Another of the many models of aluminum coil is the 8000 series. Mostly lithium and tin make up the mix of alloys in this series of aluminum. Adding other metals can also be added to effectively increase the stiffness of the aluminum coil and improve the metal properties of the 8000 series aluminum coil.
High strength and outstanding formability are features of the 8000 series aluminum alloy coil. The other beneficial characteristics of the 8000 series include: high-corrosion resistance, excellent electrical conductivity and bending ability, and less metallic weight. The 8000 series is usually applied in areas where there is need for high electrical-conductivity such as electrical cable wires.
Aluminum is a particularly useful metal due to its distinguishing qualities, including malleability, resistance to rust and corrosion, etc. Numerous industries have taken aluminum coil and utilized it in a variety of ways. Below, we feature some specific applications of aluminum coil.

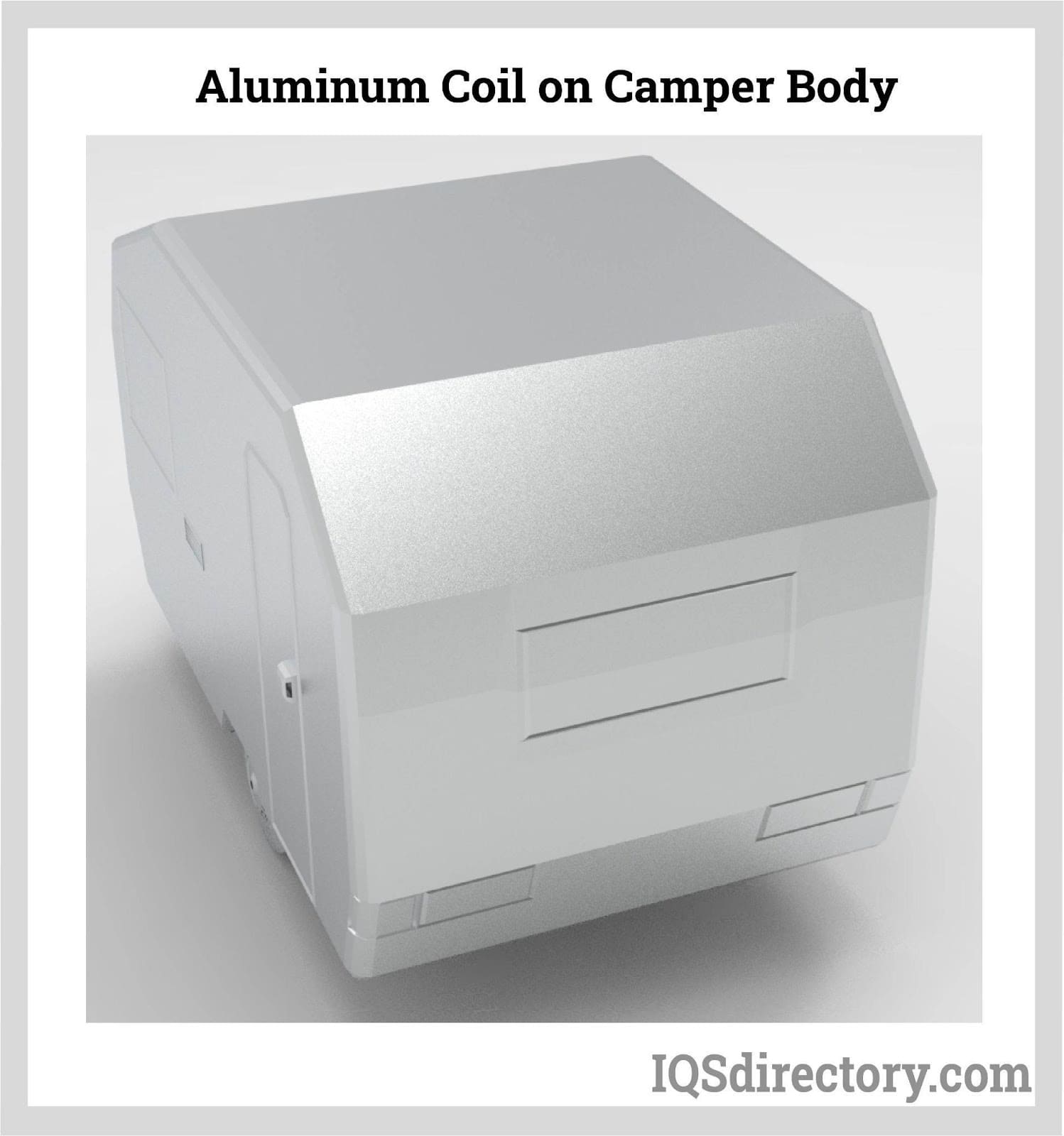

Aluminum coil is frequently utilized in the automotive sector. For example, aluminum coils are used to create the components used to build cars and trucks. This is because these vehicles need parts that are durable, strong but comparatively light, and resistant to corrosion. After all, these machines will be used frequently, be required to provide both occupant safety and maximum gas mileage, and be required to withstand the various weather conditions one may encounter when driving them. Therefore, engine parts, air conditioners, radiators, wheel hubs, automobile doors, and many more components of most vehicles are made using aluminum coil.
A trim coil is a thin sheet of aluminum normally coated with polyester and is used to cover exposed wood trim on your home. This trim coil safeguards the underlying wood by preventing heat and moisture from destroying the trim's wood fibers.
Aluminum coil will frequently be used for architectural ornamentation due to its resistance to corrosion, strength, and exceptional processing and welding performance. In addition, most construction projects use an aluminum coil to create structures, doors, windows, ceilings, curtain wall profiles, pressure plates, color coating sheets, etc., and surface decoration.

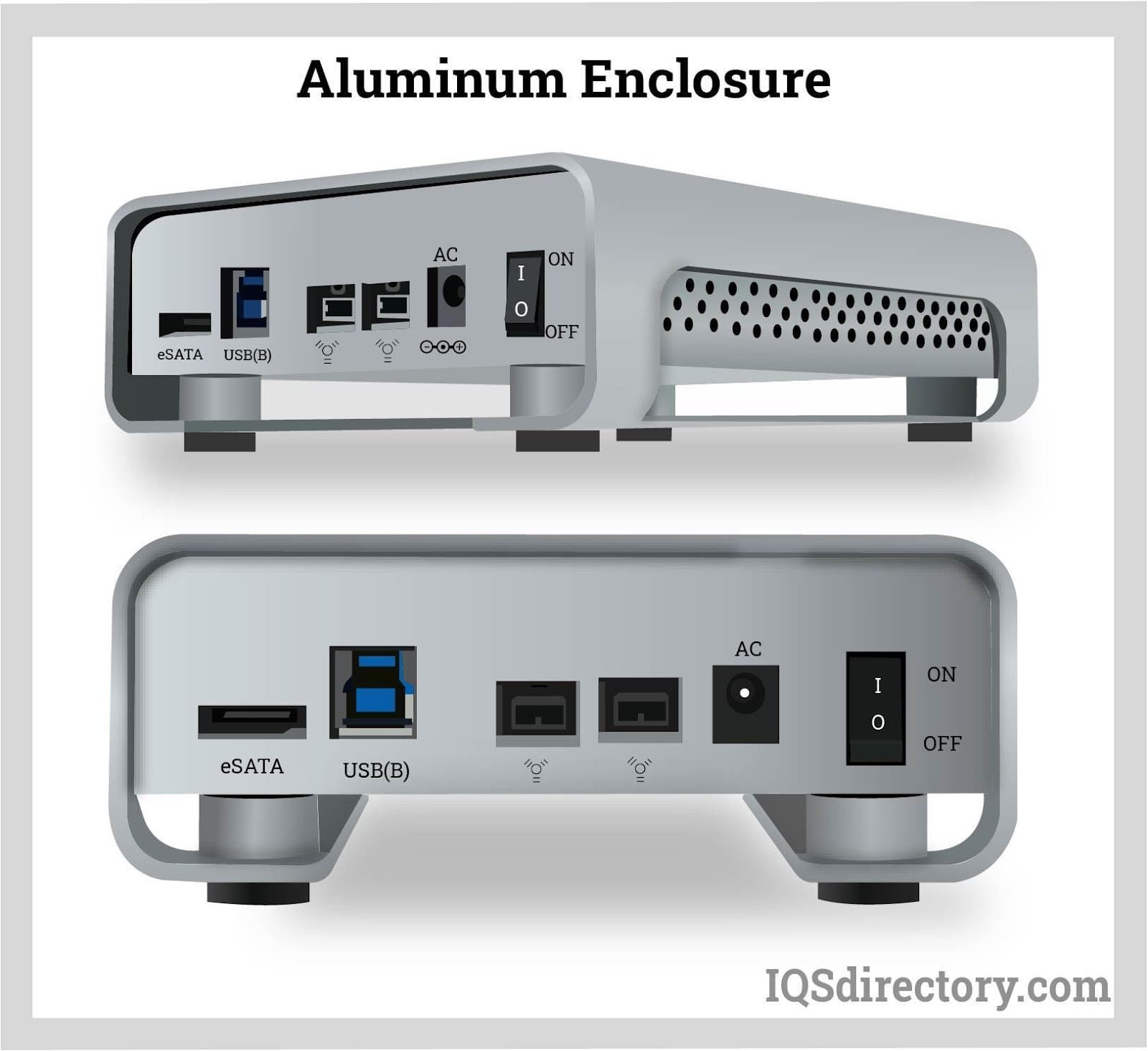

Although aluminum is not as electrically conductive as some other metals, numerous electronics frequently use aluminum coils. Since aluminum's resistance to corrosion ensures that wires will last a long time in hostile conditions, it is frequently used in wiring. Because of this, items containing electrical components, such as power cables and air conditioners, can endure the elements for a long time. Because of its corrosion resistance, most electronics can expect to have a reasonably long lifespan in general.

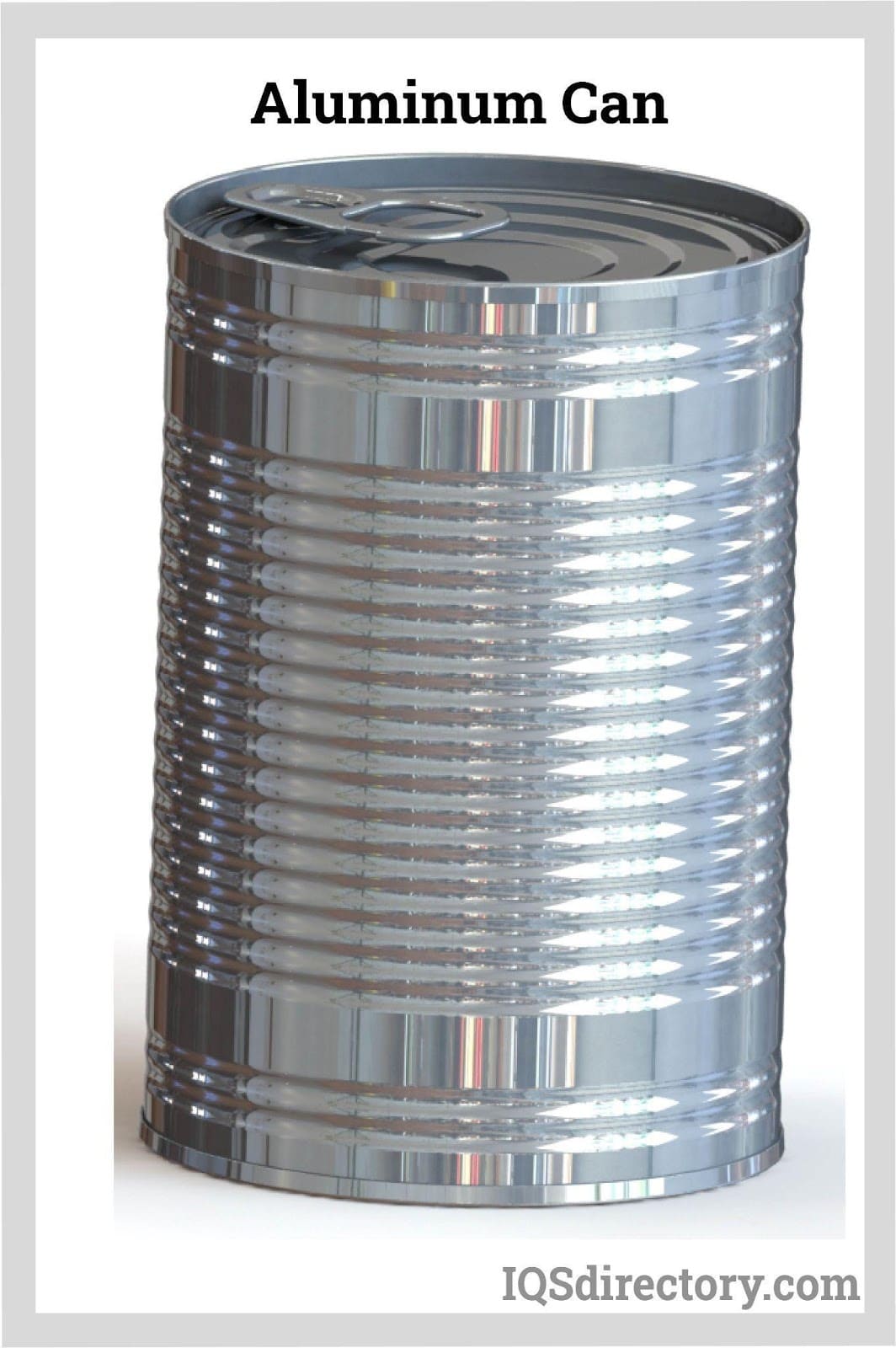

Aluminum's malleability, resistance to rust, and corrosion make it the material of choice for food cans. Aluminum is malleable, making it possible to produce cans in large quantities with no difficulty. In addition, aluminum can ensure that the food inside can stay fresh for a long time due to its resistance to rust and corrosion. In addition to cans, aluminum coils are used to make other containers like metal bottles, and their lid caps.
In some countries, aluminum coils are used to make license plates for automobiles because of this material’s flexibility and ease of machining.
Because of their decorative nature, aluminum coils are often used to make home ceilings.
Partitioning walls in offices can be made using aluminum coils.
Some billboards use aluminum coils because of this material’s lightweight and corrosion-resistance qualities.

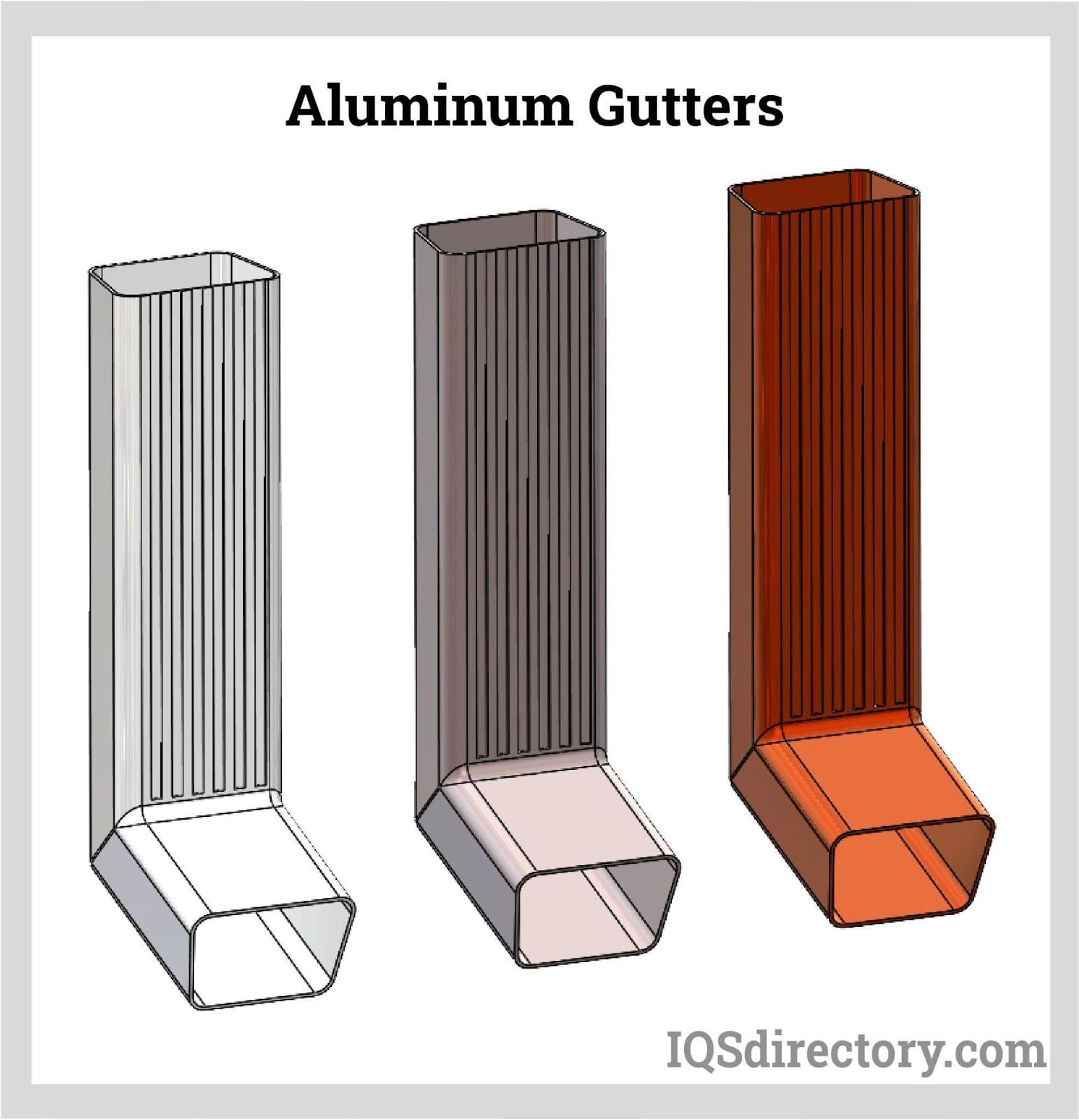

Aluminum coils can be used to make gutters which collect rainfall and distribute it properly. This is because the coils can be slit into smaller parts and, subsequently, be put together for rain trapping.
