Chapter 1: What is a Toroidal Transformer?

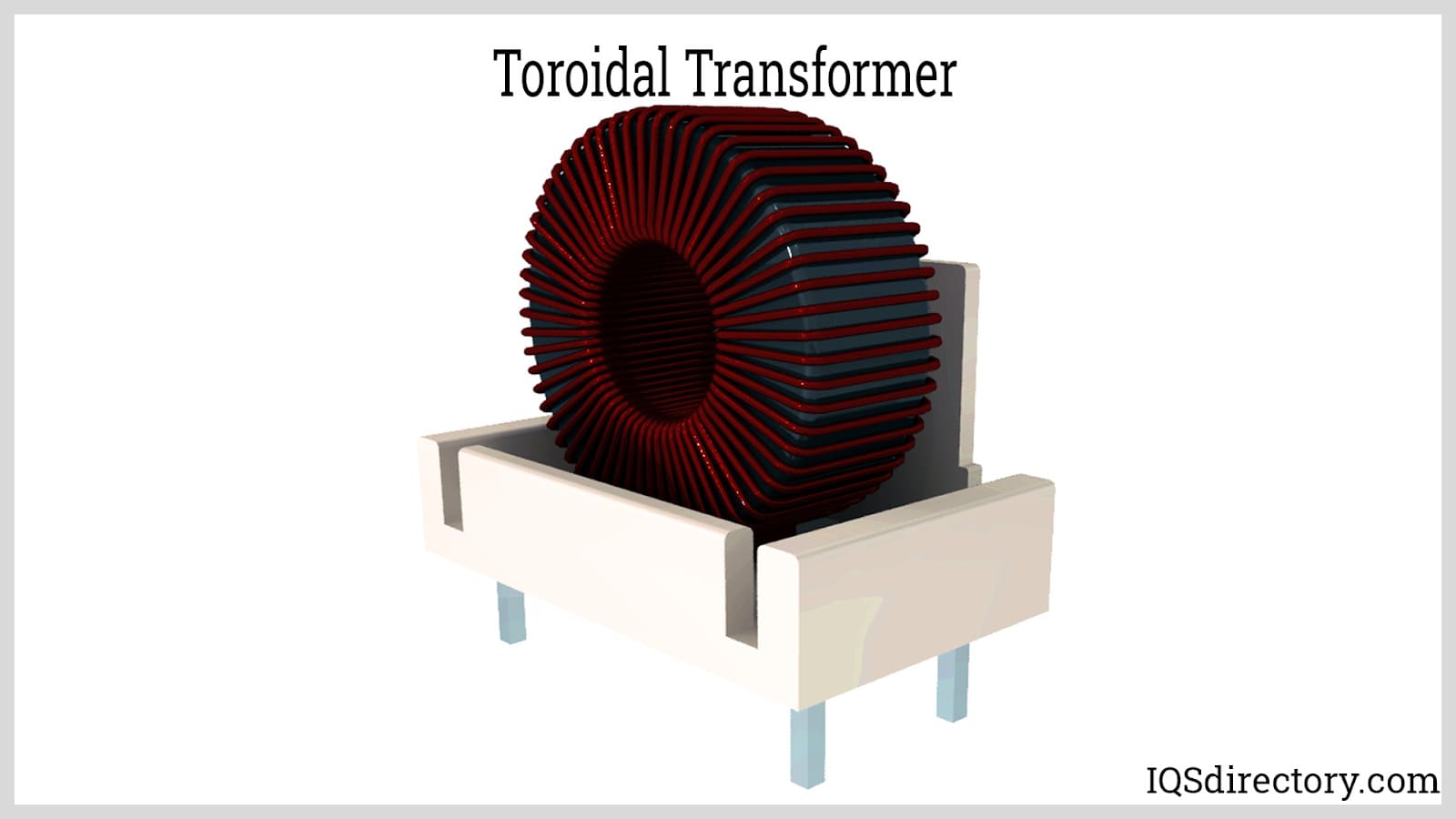

A toroidal transformer is a type of electrical transformer constructed with a torus or donut-shaped core. Its primary and secondary windings are wound across the entire surface of the torus core separated by an insulating material. In this configuration, the magnetic flux leakage is minimized. The core of a toroidal transformer is regarded as the ideal transformer core design.
Toroidal transformers are well suited in sensitive and critical electronic circuits because of several advantages over traditional square and rectangular-shaped transformers. Some of these advantages are high efficiency, quiet operation, minimal heat generation, and compact size. They are mostly seen in power supply systems, audio systems, control equipment, power inverters, and other electronic devices.
Chapter 2: Operating Principle
Before going into the specifics of toroidal transformers, it is best to first understand the basic operating principles of electrical transformers. An electrical transformer is a passive machine that transfers electrical energy from one circuit to another using a magnetic field to induce an electromotive force. This is done while being electrically isolated from each other. Transformers are used to increase (step-up) or decrease (step-down) voltages without changing the frequency of the electric current.
Faraday’s Law of Induction
Electrical transformers operate based on Faraday’s law of induction. This physical law states the relationship between the rate of change of a magnetic flux and the induced electromotive force. A magnetic flux is created when magnetic field lines pass through a conductor. It was observed that placing a conductor near a magnetic field with varying amplitude generates an electric current in that conductor.
The magnetic field involved in electromagnetic induction is typically from an electromagnet with a varying electric current. This varying electric current is commonly known as alternating current (AC). As the electrical current is generated and collapsed continuously at a given frequency, the magnetic field is also created and collapsed the same way. This magnetic field with varying amplitude induces an electric current to a second conductor. The induced electrical current in the second conductor has the same frequency as the electrical current from the electromagnet circuit.
A magnetic field with varying amplitude is not the only way to induce a current. A magnetic field can be imagined as a field with many lines of induction. Making the conductor “cut” through these magnetic field lines can cause an electric current to be generated. This phenomenon is seen in electrical generators.
The Basic Transformer
The simplest transformer is a single-phase transformer. It has two electrical coils called primary and secondary windings. The primary winding is where the power supply is connected, while the secondary winding is where electricity is induced. These windings are wrapped to a closed-loop magnetic core.
The two windings are not electrically connected but are coupled by a magnetic field. Voltage can be increased or decreased in the secondary winding by altering the number of coils of a winding relative to the other. Since the transformer is considered a linear device, the voltage generated in the secondary winding can be predicted by determining the ratio of the number of turns of the windings. The result is known as the turns ratio (TR).
Power and Efficiency
To simply put, power is obtained by multiplying voltage by the current. A transformer without any losses can be considered as a constant power device, meaning the generated power in the secondary winding is the same as the power supply in the primary winding. Thus, to increase the voltage, the current must be decreased, and vice versa.
The common power rating of transformers ranges from 88 to 99%. Power losses are attributed to iron or core losses, copper loss, stray loss, and dielectric loss.
Core losses are from hysteresis or eddy currents. Hysteresis is due to the required power to reverse the magnetic field as it changes direction. This is given off as heat which will then be dissipated from the machine. Eddy currents, on the other hand, are produced by the magnetic field from the primary winding within the core and are not part of the current generated for useful work. They are minimized by using laminated cores.
Copper loss is due to the resistance of the copper windings. All conductors have electrical resistances which cause a voltage drop as an electrical current passes through it. This loss cannot be easily reduced since it requires increasing the cross-section of the conductor. Consequently, this will require a larger and more expensive transformer. This loss causes a release in energy from the windings in the form of heat.
Stray loss is from the leakage of the magnetic field that influences other conductive parts of the transformer. Since this magnetic field is weak compared to what is present in the iron core, the eddy currents produced by stray magnetic fields cause negligible effect.
Transformer dielectric materials are the turn-to-turn or layer-to-layer insulation of the windings. Larger transformers also use transformer oil to insulate while preventing arcing and dissipating heat. Dielectric loss is caused by the degradation of the insulating materials and the transformer oil.
Chapter 3: Toroidal Vs. Solenoid Cores
Transformer core shapes can be generally classified as solenoids and toroids. A solenoid is defined as a long, thin conductor that is coiled into tightly packed loops. Its conductor coils are helically wound to a straight direction. They are mostly seen in square and rectangular transformers. Common examples of solenoid cores are laminated EI and UI cores.
On the other hand, a toroid is similar to a solenoid but is constructed to have a circular profile. Because of its profile, a continuous structure is created. Toroid cores are specific to toroid transformers.
An ideal solenoid is infinitely long with tightly packed coils where each coil falls into a plane perpendicular to its central axis. In this solenoid, the generated magnetic field of the electric current is concentrated inside the solenoid coil. The intensity of the magnetic field outside the solenoid coil is theoretically zero.
However, this is not the case in an actual solenoid where its length is always finite. Magnetic field lines always form closed loops. Because of this, some of the flux escapes at the ends of the solenoid to complete the loop. Without a conductive material to contain the magnetic flux, it can pass through other conductors outside the solenoid. This then contributes to the energy losses of the transformer.
To contain the magnetic flux in solenoid cores, additional material is used to create a return path. These additional paths, or limbs, contribute to the larger construction of the solenoid core.

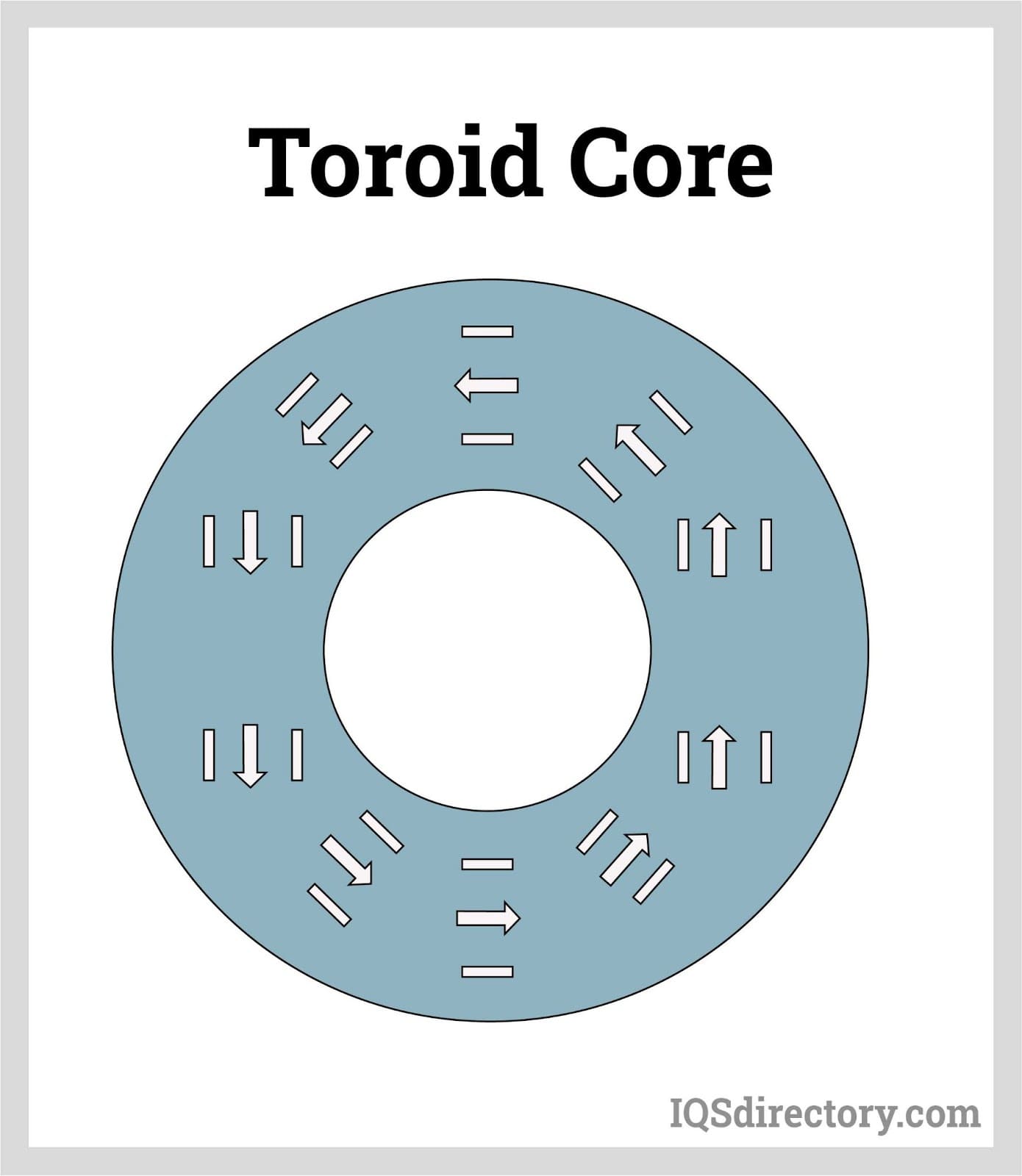

Similar to an ideal solenoid, an ideal toroid perfectly contains the magnetic flux. The magnetic flux density is concentrated inside the coil while none is present in the outside regions. The ideal design of a toroid core is much more achievable than that of a solenoid. It does not need to be infinitely long since it is configured into a loop. The only requirement for achieving a perfect design is to create windings that are uniformly and tightly wound to the whole toroid. Probably this is why Faraday, in his experiment where he discovered induction, used a toroidal core instead of a solenoid. Moreover, since a toroid is circular in construction, the magnetic flux easily forms a loop without requiring an additional return path.
Chapter 4: Advantages and Disadvantages of Toroidal Transformers
The previous chapter discussed the fundamental differences between solenoid and toroid cores. By further analyzing these concepts, the benefits and limitations of both designs can be determined. Below are the advantages and disadvantages of toroidal transformers in comparison with other transformer types.
Transformer efficiency is the ratio of the output power of the secondary windings to the supplied power to the primary windings. Toroidal transformers have higher efficiencies than other transformers. Their efficiencies are typically around 95 to 99%. This can be attributed to its near-ideal design which perfectly contains the magnetic flux inside the windings. Thus, there is no leakage flux. Since the magnetic flux is highly concentrated inside the coil windings, and the windings are evenly distributed to the whole toroid core, the magnetic flux is efficiently utilized to couple the primary and secondary windings.
Because of the effective containment of the magnetic flux, toroidal cores inherently shield adjacent components from electromagnetic interference (EMI). This characteristic makes them suitable for electronic devices with sensitive components. Transformers with solenoid cores are prone to leaking magnetic flux. To prevent solenoid cores from creating EMI, additional shielding is used. The additional shielding only adds to its cost and size.
Minimal signal distortion:
Minimal signal distortion is an advantage of transformers with low leakage flux. Leakage flux or stray magnetic fields can induce stray currents when their magnetic field lines cross nearby conductors. This allows unwanted signals to appear or interfere with other sensitive signals. This problem is highly evident in low power circuits where the signal can be easily distorted. That is why toroidal transformers are extensively used in audio systems, medical devices, measuring instruments, and power analyzers where high signal resolution is required.
More compact construction:
In single-phase transformers with EI and UI cores, additional material is added to its construction to provide a return path for the magnetic flux. EI cores have three limbs, only one of which is used for bearing the conductor coil. Thus, the core utilized is less than a third of the structure. For UI cores, there are two limbs, and both are used for carrying the coil. This makes the core utilization of UI cores higher. However, in this construction, the yoke is made larger than that of an EI core. Both the yokes of the EI and UI cores do not carry the conductor coils.
These problems are eliminated in toroidal cores. Transformers employing toroidal cores utilize the entirety of the core. There are no additional return paths to be added since the core is already looped in construction. This allows its construction to be made much smaller than similarly rated EI and UI-cored transformers.
Better magnetic core material:
This advantage is a direct consequence of having a smaller core construction. Having a smaller core means fewer materials are used. The typical material for transformer cores is silicon steel. For more specialized applications, more expensive core materials and constructions are preferred because of their desirable characteristics such as high permeability, low hysteresis, and low eddy currents generation. Examples of these core materials are permalloys, cobalt-based amorphous alloys, and nanocrystalline materials.
Lower Off-load Losses:
Off-load losses are transformer losses caused by magnetizing the core even when there is no load connected to the secondary circuit. Transformers tend to consume power even in the standby state. Because of their efficient construction, core losses in a toroidal transformer are lower than ordinary solenoid-core transformers. This means toroidal types have better off-load losses.
No air gap:
Toroidal cores are constructed differently than solenoid cores. They have a continuous construction with virtually no air gap. Air gap contributes to different negative effects such as magnetic flux spreading, known as fringing, and noise. A common solenoid core such as an EI core has three air gaps. At these locations, magnetic flux leaks and passes through adjacent external components.
Low mechanical humming:
Transformer noise is due to mechanical humming generated by its core. It is produced when a core material vibrates and impacts adjacent core parts. Vibration is an effect produced by a phenomenon called magnetostriction. This is the changing of a material’s dimension upon magnetizat
Mechanical humming is more evident in transformer cores with loose components. EI and UI cores are typically constructed with laminated iron cores. These laminated cores can become loose over time which can vibrate and produce noise. Moreover, their structure is not continuous. They have air gaps between some of their limbs and yokes which can impact one another when vibrating. These problems are not present in toroidal transformers. Most toroidal cores do not use laminated cores. Also, they have a continuous structure with no air gaps.
Lower heat generation:
Again, this is an effect of having higher efficiency. Electrical energy losses in a transformer are eventually converted into vibrations and heat. Heat is generated mostly from eddy currents, hysteresis, and copper resistance. For larger transformers, an oil cooling system is used for dissipating heat. For transformers in small electronic devices, a metal heat sink is typically used. Because of the toroidal transformer’s high efficiency, they generate less heat and can function even without cooling systems or heat sinks.
Even though toroidal transformers have smaller profiles and use fewer materials, they are more expensive to make than other transformer types. This is due to the difficulty of winding the conductor coils into the toroid core. The process takes longer since each coil must be wound one at a time. The case is different with EI and UI coils. They are initially disassembled to their E and I piece. The limbs on which the coils are wounded are easily accessible. This enables mass-production.
Not suitable for more than one phase application:

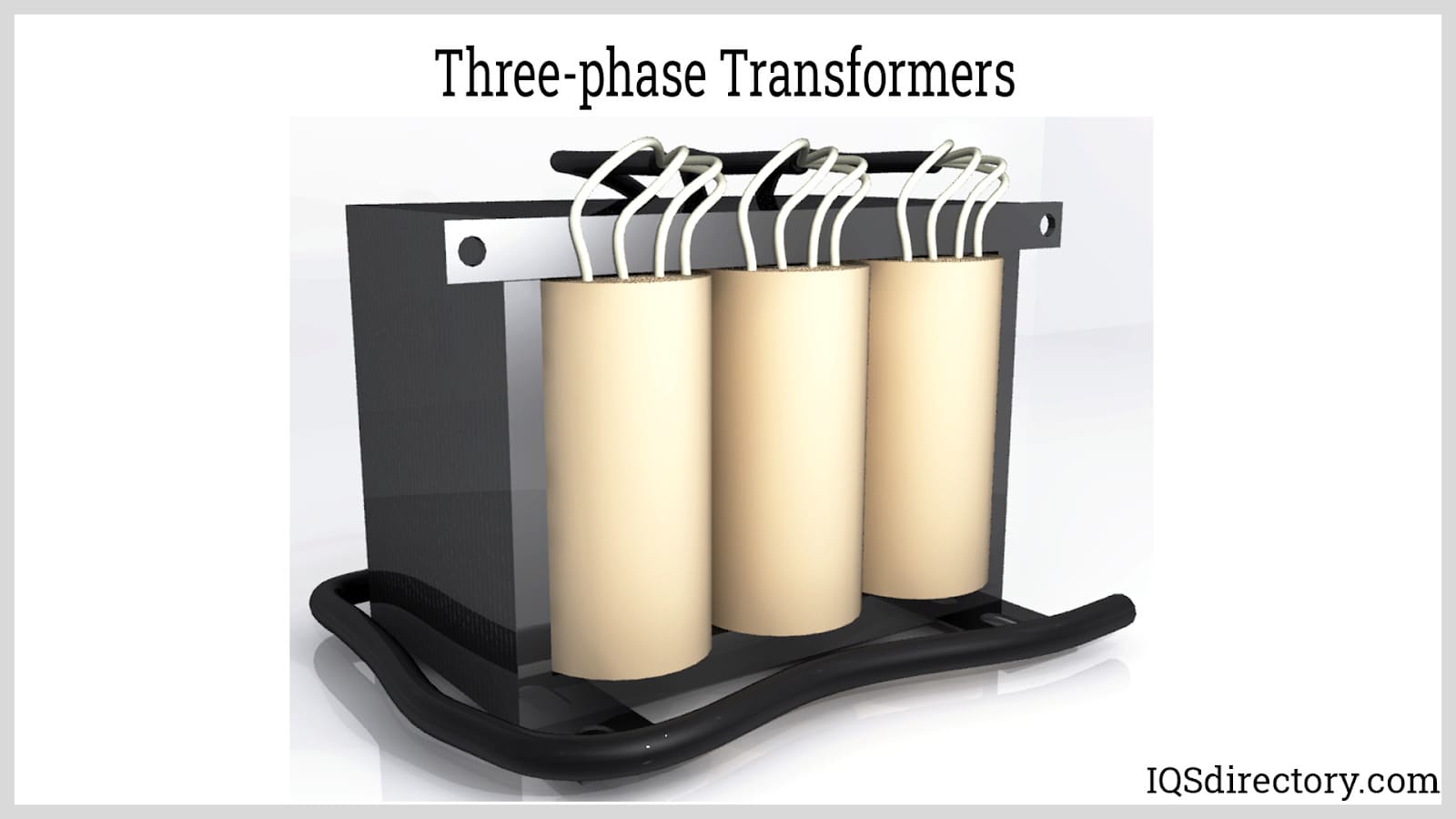

Toroidal transformers are practically limited to single-phase applications. There are three-phase toroidal transformers available in the market, but they are less popular than the conventional core and shell-type transformers. Three-phase toroidal transformers are only used in special applications.
In a three-phase toroidal transformer, three separate toroids must be used. This significantly multiplies the cost of the transformer. This is not the case in core and shell types. In these transformers, the coils can be wound on limbs that are adjacent to each other. Core-types have three limbs while shell-types have five. Their limbs have a common top and bottom yoke. Because of this configuration, their profile is greatly minimized instead of using three separate single-phase transformers.
Higher inrush current:
Inrush current is the current spike when the transformer is turned on. This is due to the large initial current drawn by the primary circuit when there is a load connected to the secondary. The magnitude of inrush current is higher in transformers with high efficiency such as toroid transformers. Inrush currents in ordinary EI and UI-core transformers are typically 6 to 10 times. On the other hand, the inrush current for toroidal transformers is 10 to 15 times.
Chapter 5: Core Types
A transformer core is made from magnetic materials. These materials can have varying levels of effective magnetic permeability, electrical resistivity, hysteresis, and so on. The efficiency of the transformer depends on the qualities of these magnetic materials as the core contributes to most of the transformer losses. The common types of cores used in toroidal transformers are enumerated below.
Ferrite cores are made from a metal-oxide ceramic, iron oxide, mixed with other metals such as cobalt, copper, nickel, manganese, and zinc. The two common types of ferrite cores are manganese-zinc ferrite and nickel-zinc ferrite cores. When compared to other types, its characteristics are at the lower end. They have relatively low permeability, low saturation flux density, and low Curie temperature. Their biggest advantage is their high electrical resistivity. This helps reduce eddy currents from being generated.
Powdered Metal Cores:
A powdered iron core is made by mixing and binding grains of metal alloys with an insulating material. The metal grains and binders are then pressed into the desired density and shape. The characteristics of powdered metal cores depend on the type of metal used and the size of the grains. Popular examples of powdered metal cores used in toroidal transformers are molybdenum permalloy and carbonyl iron.
Laminated Iron Alloy Cores:
This is widely used in conventional transformers that operate at low to medium frequencies. Fabrication of laminated cores involves rolling the metal into sheets and stamping them to the required shape. The stampings are then stacked with an insulating layer in between. The laminated construction reduces the eddy currents as they are confined within the thickness of each lamination. There are two leading materials used for laminated cores: silicon-iron and nickel-iron. Transformers made from silicon iron are used in high-power transformers. For high-frequency applications, nickel-iron alloys are preferred. Nickel-iron alloys are more commonly used in toroidal transformers than silicon-iron.
Tape Wound Cores:
In principle, tape wound cores are the same as laminated cores. They are more commonly used for making toroidal transformers than laminated cores. Instead of stacking ring-shaped laminations, tape wound cores are made from insulated metal ribbons wound into a spiral. It is then encapsulated by a thin sheet made from aluminum, or plastic.
Chapter 6: Important Specifications
Aside from specifying the type of transformer and core material, other specifications must also be given to complete the design. Below are some important transformer specifications that are included in the product datasheet.
Transformer Power Rating:
Power rating is the measure of transformer capacity. This is the amount of power that the transformer can accept or deliver. It is specified in VA or volt-amperes.
Primary and Secondary Voltages:
These are the rated input and output voltages. Typically, it is specified together with an approximate range. For example, a primary voltage of 220V ±10% has a voltage range of 198V to 242V.
Number of Primary and Secondary Windings:A simple toroidal transformer has only one primary and one secondary winding. To add better flexibility, more windings can be added. In a usual design, there is one primary and two secondary windings. These designs have six lead wires. The secondary windings are used independently and can be configured to be in parallel or series.
This is the intended frequency of the AC supply. For utility applications, the frequencies can either be 50Hz or 60Hz. For more specialized applications, the frequencies can range much higher. Aerospace and military applications use transformers that are rated 400Hz.
In most datasheets, instead of specifying transformer efficiency in terms of output and input power ratio, power losses are given. Loss is the amount of power dropped by the transformer due to core and coil losses. This is usually specified in Watts.
Approvals and Certifications:
Like any other electronic components, toroidal transformers are subject to product approval and certifications. This is to ensure the quality of the product. Approvals and certifications are granted by national and international organizations. Widely accepted certifications are UL, CE, IEC, EN, and ISO.
- A toroidal transformer is a type of electrical transformer constructed with a torus or donut-shaped core. Its primary and secondary windings are wound across the entire surface of the torus core separated by an insulating material.
- An electrical transformer is a passive machine that transfers electrical energy from one circuit to another using a magnetic field to induce an electromotive force.
- Another transformer core classification is the solenoid. A solenoid has conductor coils that are helically wound to a straight direction. They are mostly seen in square and rectangular transformers.
- Some of the advantages of toroidal transformers are higher efficiency, inherent EMI shielding, minimal signal distortion, more compact construction, low mechanical humming, low heat, and small off-load losses.
- Its disadvantages are more expensive construction, limitations on multi-phase systems, and higher inrush current.
