Titanium (Ti) Pricing

Chapter 1: What is Titanium?

Titanium is a chemical element with an atomic number of 22 and can be alloyed with iron, vanadium, aluminum, and molybdenum. It is a strong, lightweight alloy with a high strength to weight ratio, low density, and ductility. The characteristics of titanium gives it a rare combination of mechanical, chemical, and physical properties. It is the 9th most abundant element on earth and is mined from ilmenite, sphene, and rutile. In many cases, titanium is alloyed with other elements to enhance its physical and chemical properties, especially its resistance to corrosion.

There are approximately 50 grades of alloyed and pure titanium that are divided into three classes. Grades 1, 2, 3, and 4 are pure titanium and are referred to as alpha titanium. Grade 5, workhorse titanium, is the most used grade and has significant amounts of aluminum and vanadium. Grades 7 and 11 are nearly pure grades of titanium with a half per cent of palladium added to give the alloys high resistance to corrosion.

Titanium is a critical part of a wide range of products including aerospace components, jewelry, cookware, and medical implants. The two properties for which titanium is best known is its high strength to density ratio and its exceptional resistance to corrosion. Like aluminum, oxygen molecules combine with titanium to form titanium oxide, which is the same relationship that aluminum has with oxygen. The result of the combination is a passive titanium layer that does not flake and is resistant to chemical compounds, such as chlorine.

Although titanium is a light weight metal, it has exceptional strength, such as grade 5 being as strong as mild steel. This property of titanium has made it a viable metal for use in aircraft and space ships, a factor that helps with fuel efficiency.

Chapter 2: The Cost of Titanium

One of the issues that is regularly discussed regarding the use of titanium is its cost, which varies in accordance with the grade of titanium, production method, and shipping costs. As with all metals, the quality of titanium is a major determinate, a factor that makes it difficult to pinpoint titanium’s cost. Manufacturers and producers constantly watch the titanium market in order to find a source that matches the quality and purity of the titanium required for a project. When exploring the purchase of titanium, it is essential to work with experts in the industry in order to understand the factors that influence titanium’s pricing.

Titanium is sold by the pound or kilogram with per pound costs ranging from $3 up to $16 while kilogram prices range from $4 up to $150. Industrial Grade 2 pure titanium has a kilogram cost of $15 up to $30 while the cost of Grade 5 titanium can be as high as $75 to $150 per kilogram. The purity, grade, supply, quality, certification, and other factors all influence pricing. As any manufacturer can attest, the purchase of titanium is a complex and intricate process that requires careful consideration and up to date information.

Factors that Influence the Cost of Titanium

When discussing the cost of titanium, it is important to understand the significance of titanium in the international marketplace. Much of the reason for the fluctuations in the price of titanium is in regard to the stability of international relations that can vary according to trade friction, the geopolitical climate, supply and demand, and speculation.

Grade and Purity

The most important factors that influence the price of titanium are its grade and purity. The alpha and beta classifications are further categorized by their crystalline structure, grain sizes, and their properties. In addition, high purity titanium has had any interstitial elements, such as oxygen, nitrogen, carbon, or hydrogen, removed, which increases the strength and hardness of titanium.

Market Demand

The normal factors that influence the demand for a product also apply to the demand for titanium. Aerospace, automobile industry, chemical processing, and medical fields play an important role in determining the demand for titanium. In addition to these industrial needs, governmental regulations and requirements further influence the price. As with many raw materials, the cost of titanium is influenced by a complex and intricate set of factors that cause the fluctuations in its cost.

Exchange Rates

The manufacture of titanium takes place all over the world, which adds to the complexity of its cost. As anyone who has traveled overseas can tell you, currency values are constantly changing, a factor that impacts the cost of titanium. Economics, politics, international relations, and a list of other factors further complicate its purchase.

Pricing Indices

Each metal industry develops pricing benchmarks based on demand trends for all metals. The interplay between other metals and titanium allows experts to decide on the price of a kilogram or pound of titanium. There is a list of metal exchanges, such as the London Metal Exchange, around the world that decide on the benchmark pricing for titanium. Such organizations study supply and demand trends, market directions, and the fluctuations in pricing.

Certification

Titanium, as with other metals, are certified after being tested in regard to chemical properties, mechanical properties, and dimensional accuracy. Each grade of titanium is quality tested to ensure it meets the highest standards. As with all metals, titanium certification is in accordance with the stipulations of ASTM, MIL, and ISO. Titanium dealers are certified and approved regarding the quality of the titanium they offer. The certification of suppliers and manufacturers removes some of the stress regarding the purchase of titanium since certified experts in the field offer authoritative guidance and assistance.

Extraction Process

The Kroll process is a high energy method for extracting titanium. Although titanium is the 9th most common element on earth, the ores that contain titanium are less common and are present in specific regions of the planet. The transportation of the ore by processing further adds to the cost.

The Cost of Titanium by Grades

Several industries rely on titanium as a raw material for the production of their products or the completion of an application. Rutile titanium is the most widely traded type of titanium with an average cost of $1772 up to $2100 per metric ton. The variations in the cost are in regard to the origin of titanium. Sponges, ingots, and alloy ingots vary in price and are constantly fluctuating with market value. This aspect of the pricing adds to the complexity of purchasing titanium.

• Pure Titanium – Grades 1 and 2 – Price range between $6 per pound up to $10 per pound.
• Grades 3 and 4 – Price range of $7 per pound up to $12 per pound.
• Grade 5 (Ti-6Al-4V) – Price range of $10 up to $16. It is more expensive due to its toughness, wear resistance, and general ruggedness.
• Titanium Scrap – The average cost of titanium scrap is between $2 per pound and $4 per pound. Since titanium scrap is processed, it has a significantly lower cost than that of titanium alloys.
• Titanium Powder – Titanium powder is used in the growing industry of 3D printing. It has a higher cost than any of the other forms of titanium ranging between $20 per pound up to $35 per pound. The additional cost is due to the processing necessary to produce the powder.

The generally accepted pricing for titanium is its cost per pound or per kilogram.

In the age of the metric system, sellers also offer titanium at prices per gram or per kilogram. The conversion of pounds to kilograms involves the formula of a pound being equal to 0.453 kilograms. For example, three pounds would be 1.36 kilograms.

Titanium is the most expensive of the metals used for industrial applications. Aluminum, brass, copper, and stainless steel cost far less and are more readily available. Although titanium is less expensive than gold and silver, of the three metals, titanium is the only metal that is widely used in automobiles, airplanes, chemical processing, and power plants.

The cost of titanium is the reason that manufacturers carefully consider its use as an alternative to other metals, since its inclusion in a product radically increases the cost of a product. The upside of titanium is its mechanical properties and characteristics that add to the life expectancy of a product.

The interplay between the different factors adds to the complexity of the pricing of titanium. Tariffs, wars, political disagreements, and international relations, unrelated to titanium production, impact its price and cause restrictions to its use. Although manufacturers rely on the many positive aspects of titanium to produce their products, the processing and shipping of titanium is wound up in a complex network of factors that influence its cost and use.

Chapter 3: Cost of Titanium Compared to Other Metals

Titanium is one of the most valuable and viable metals used to manufacture a wide range of products. It is an important part of aircraft assemblies and dental prosthetics. Its light weight, exceptional strength, and formability make it ideal and preferred over other metals. The factor that complicates the use of titanium is its cost, which is lower than gold or silver but higher than other types of metals.

When making a design decision to use titanium, it is important to understand how it compares to other metals. As with aluminum, stainless steel, bronze, copper, and other metals, the price of titanium varies in accordance with its purity and grades. Although the data regarding the cost of titanium changes daily or hourly, there are valid sources that can provide accurate pricing data that can assist in determining production costs.

Cost of Grades of Titanium Per Pound

• Commercially Pure Titanium – Grades 1 and 2 – Grades 1 and 2 are the least expensive grades of titanium with a price range of $6 up to $9 per pound. The lower cost is due to its poor strength.
• Titanium 6-4 Alloy – Grade 5 – The cost of Grade 5 is between $10 and $15 per pound. It is the most commonly used titanium due to its high strength, corrosion resistance, and biocompatibility. The many positive aspects of Grade 5 makes it one of the most expensive titanium.
• Scrap Titanium – Titanium scrap is reclaimed titanium that is left over waste from manufacturing processes. It costs $2 to $4 per pound and has the same purity and quality as virgin titanium. The price of scrap titanium fluctuates due to market conditions and the costs of refining it.
• Titanium Sheets – Titanium sheets have added cost due to the rolling, cutting, and finishing required to form them. This additional processing increases the costs of the sheets to $15 to $30 per pound.

Cost of Titanium Compared to Steel, Aluminum, Stainless Steel, and Copper

The many positive properties of titanium have made it a highly desirable metal. Its strength, formability, corrosion resistance, and appearance are far superior compared to all other metals, but its cost causes manufacturers to hesitate in using it. In many cases, titanium is 20 to 50 times more expensive than other metals.

• Aluminum – Aluminum is more affordable, abundant, and easier to process. The widespread availability of aluminum significantly lowers its cost compared to titanium. It does not have the same level of strength or resistance to corrosion as titanium. The most significant difference between the metals is their cost. Aluminum costs $0.75 to $2.50 per pound, a fraction of the cost of the least expensive virgin titanium.
• Stainless Steel – As with aluminum, stainless steel is less expensive and easier to find than titanium. In kilograms, stainless steel costs $1.00 to $1.50 per kilogram compared to titanium at $35 to $50 per kilogram. Like titanium, stainless steel comes in different grades, each of which have unique properties. The lower cost of stainless is the reason for its wide use, as well as its strength, resistance to corrosion, and appearance.
• Carbon Steel – Carbon steel is commonly the first choice for applications that require a strong metal at low cost. It lacks the resistance to corrosion and strength of titanium and is not as long lasting, which is part of the reason for its lower cost. Carbon steel is sold at $0.50 up to $2.00 per pound. It is a significantly cheaper alternative to titanium but does not have any of titanium’s positive properties.
• Copper – Unlike carbon steel, stainless steel, and aluminum, copper is more expensive with a cost of $4.00 up to $10.00 per pound, which is still less than the cost of virgin titanium. Copper is preferred over titanium, aside from the cost, due to its conductive properties. In addition, copper is heavier than titanium and less durable in regard to resisting corrosion.
• Nickel Alloys – Nickel alloys and titanium have comparable cost, depending on the alloy being used. Some nickel alloys, such as Inconel, can be more expensive than titanium with the general price for all nickel alloys being between $8.00 up to $50 per pound. Under most circumstances, titanium is the best choice except in conditions of extreme heat.

Ways to Avoid the High Cost of Titanium

There are ways to avoid the negative cost factors of titanium, which can reduce its cost, improve affordability, and make titanium available for an application. As every engineer knows, cost is the driving factor behind the development of any design or process. Finding methods to use the many positive aspects of titanium while lowering the cost of using it can be beneficial and make a product more marketable.

• Mineral Sources – The majority of titanium is made from ilmenite and rutile, which are expensive metals to process. There are less expensive ores, recycled titanium parts, and less expensive extraction methods that can lower the cost of virgin titanium.
• Refining Methods – A large portion of the cost of titanium is related to the method by which it is processed. The Kroll process is the most used method for extracting titanium from raw minerals, but it isn’t the only method. New and progressive techniques are being developed that lower the length of time and processing method.
• Scrap – As with many metals, and the emphasis on recycling, scrap titanium is a potential alternative to purchasing virgin titanium. Although the processing can be expensive, it is less than the effort necessary to produce virgin titanium. Recycling lowers production costs without sacrificing quality.
• Waste Control – There are several titanium production methods that help reduce waste and improve efficiency. Casting techniques, 3D printing, and injection molding make it possible to produce high quality parts from titanium that are close to shape with high tolerances. Less material is wasted, and less machining time is required.
• Automation – The use of automation in the manufacture of titanium parts can decrease the number of steps necessary to form a component. Efficient use of personnel and resources with the addition of automation can assist in lowering costs but still produce high quality parts.

Since the introduction of titanium during the first industrial revolution, there have been numerous strides made in the production and processing of titanium. Although it is one of the most expensive metals, its many positive properties make it the ideal choice for applications that require a reliable, stable, and strong metal.

Chapter 4: The Titanium Market

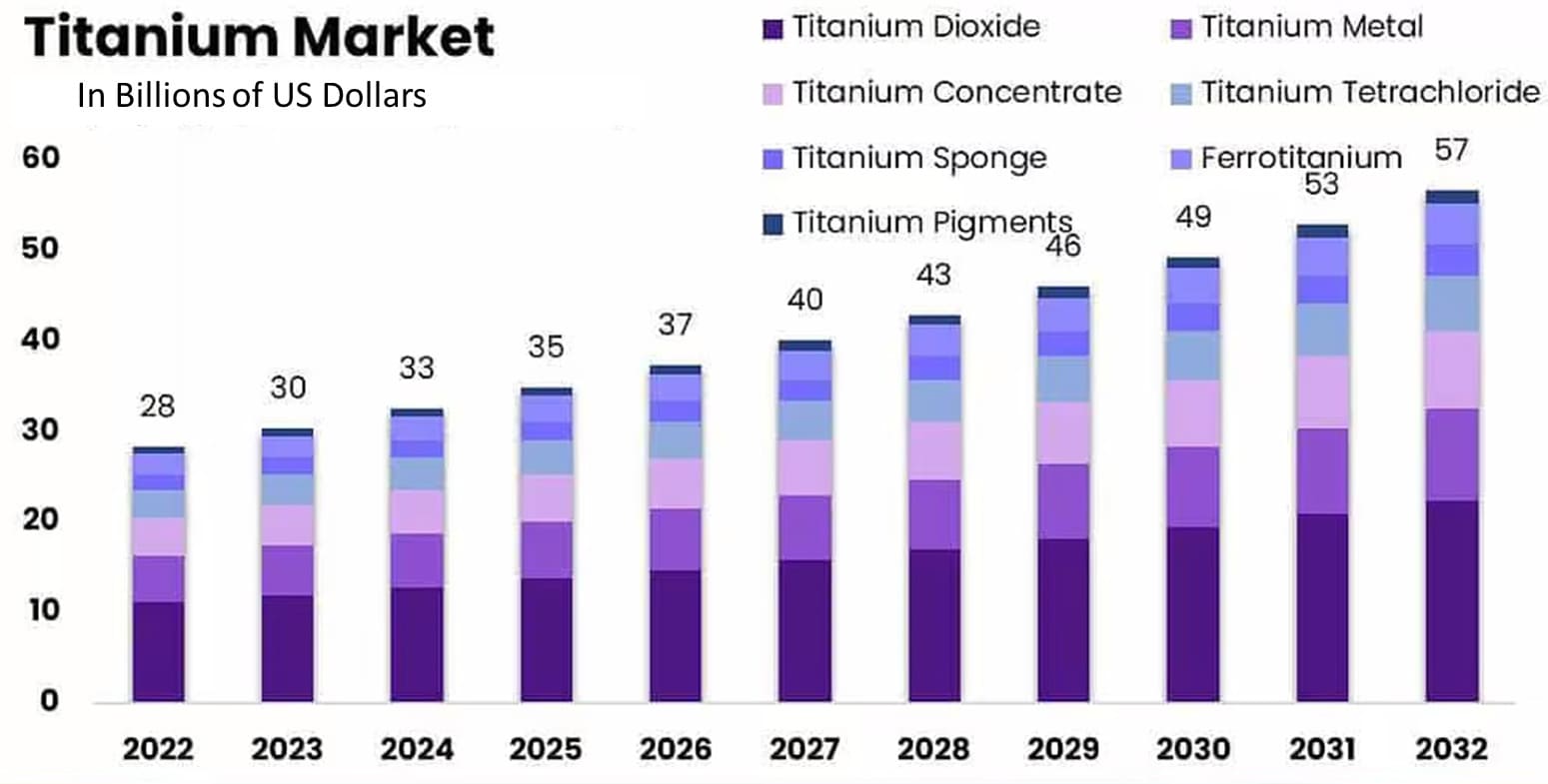

The titanium market is expected to rapidly grow over the next seven years with a common annual growth rate (CAGR) of 7% per year. The market value for titanium includes a wide spectrum of components, with extraction, processing, use, and trading having significant influence. The alloys produced from titanium are valued for their exceptional properties and longevity. The factor that influences the market for titanium the most is the various world regulatory agencies that control the distribution of titanium due to the impact titanium has on national defense and foreign policy.

The United States is the world leader in the import of titanium with annual imports valued at over $800 million. Japan, China, and Germany are the main suppliers with Japan being the leader at over $280 million per year. Exports of titanium products from the United States have been steadily increasing over the last few years with the United Kingdom, Japan, and France being the leading customers.

The international dynamics of titanium are the critical reason for the tight regulatory measures taken to control the importing and exporting of titanium. Trade agreements determine the fate of titanium and its position in the market. They are designed to manage the market and support the use of titanium in critical sectors of the economy.

The Present Market for Titanium

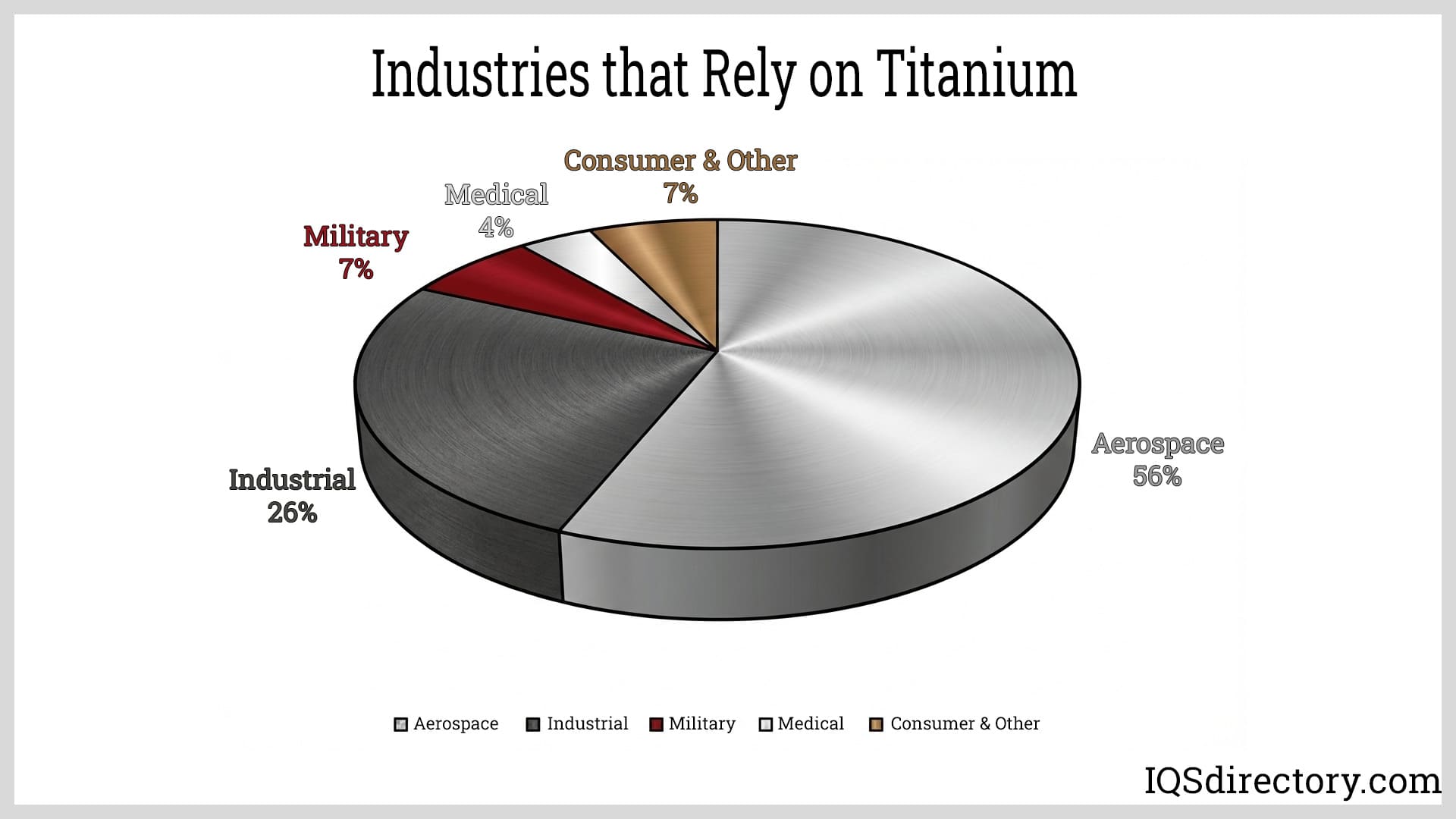

There are several segments of industry who rely on titanium for the completion and quality of their products. These markets are the major users of titanium and are the reason that titanium is so valued in the United States.

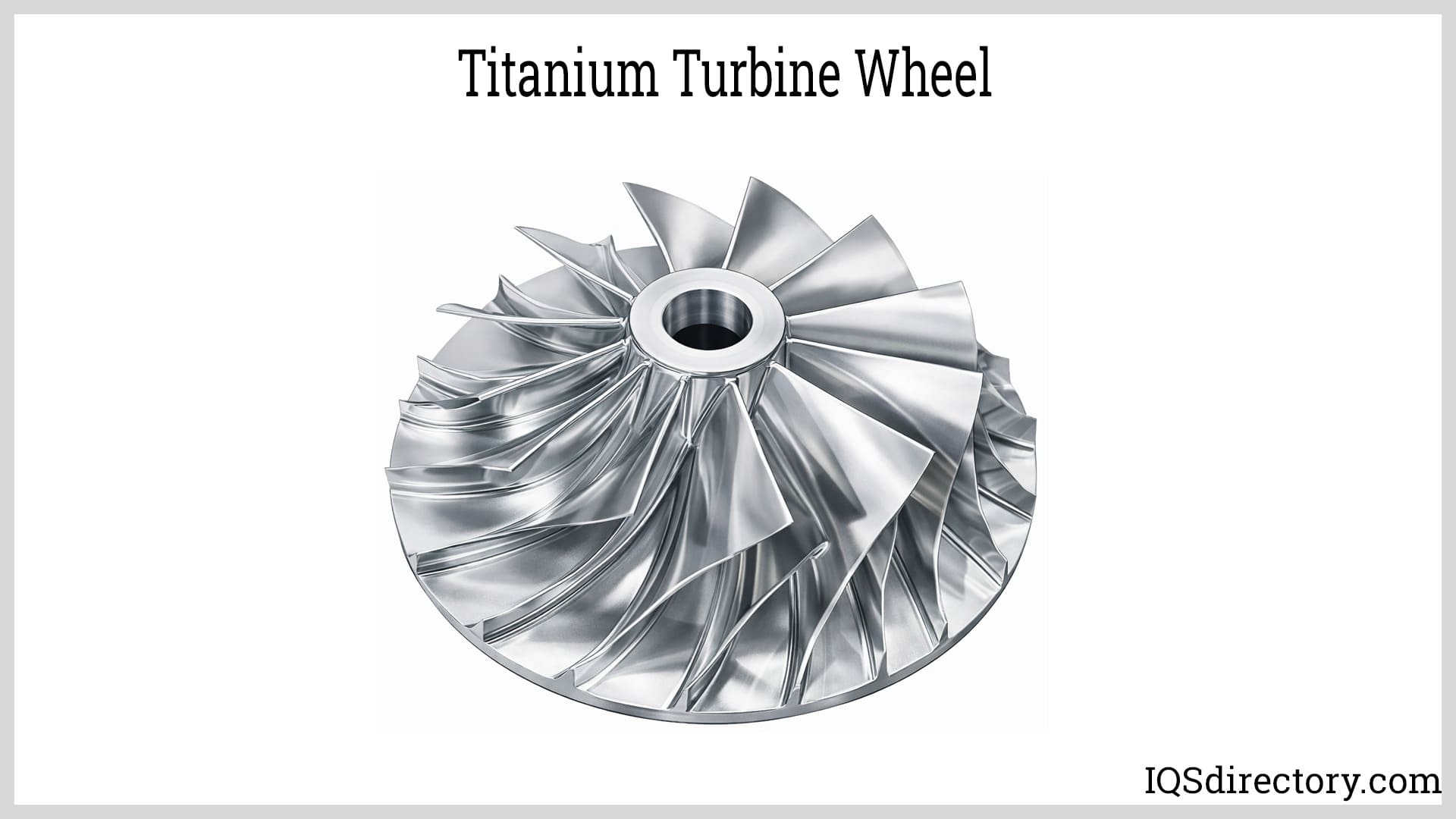

• Aerospace – The high strength to weight ratio, substantial corrosion resistance, and ability to withstand high temperatures are the reasons titanium is so valued by the aerospace industry. The reliance on titanium as a critical component of aerospace manufacturing has a significant influence on market trends and pricing.
• Renewable Energy – Titanium has become an important part of renewable energy due to its resistance to corrosion, exceptional strength, and its ability to endure harsh weather. Offshore wind turbine and solar panel manufacturers use titanium to strengthen their products to increase stability and reliability.
• Medical Devices – The biocompatibility of titanium has enabled engineers to design an array of prosthetic devices that are used to replace bones and joints. The many titanium implants are long lasting and durable. It is estimated that titanium implants can last up to 20 years without any deleterious effects.
• Household Products – Titanium oxide is used for paint pigments, inks, paper, plastics, and food products. It is used in the structure of laptops to produce lightweight cases and frames.
• Sporting Goods – In the twenty-first century, titanium has become a highly valued part of the production of bicycles, tennis rackets, and golf clubs. Mountain climbers depend on titanium for safety equipment, due to titanium’s durability, lightweight, and longevity.

Expansion

The manufacturing factor that is trending that will have the greatest impact on the use of titanium in the future is 3D printing technology, which is gradually transforming the manufacturing landscape. The process is capable of creating complex and intricate components with exceptional precision to meet the requirements of aerospace, medicine, and automotive production. The use of 3D printing enhances the performance and efficiency of titanium products as well as provides an ever-growing market for the use of titanium. Titanium designs that were previously impossible to create can be efficiently produced using 3D printing.

The increased use of titanium is indicated in another market, renewable energy. As the world shifts from traditional energy generation to renewable energy, titanium will find greater use and more importance as the raw material that is necessary part of energy producing equipment. The use of titanium extends the useful life of renewable energy structures by making them more durable. In the coming decades, it is perceived that there will be a gradual shift in energy production to sustainable energy solutions.

Market experts believe that new titanium alloys will be created that will lower the cost of titanium and produce materials with greater strength and lighter weight. The introduction of these alloys will broaden its use and increase the applications for which titanium was previously considered to be too expensive.

Although the United States is a leading importer of titanium, new world markets have increased the demand, especially in the Asia Pacific Region. Chinese industries have seen significant increases in the demand for titanium due to advancements in production technology and processing. The Asia Pacific Region accounts for 37% of the global market, driven by industrial growth in Japan, India, and China.

Underdeveloped regions, such as the Middle East, Africa, and Latin America, are experiencing growth due to increases in their industrial sectors. Improved infrastructure and greater emphasis on industry have led to an increased demand for titanium. Expansion in these areas is occurring at a slower rate than the Asia Pacific Region, but will impact the availability of titanium.

Chapter 5: Metal Price Setting Organizations

International trade of metals is one of the most complex and intricate processes in the world. There is a long list of organizations, exchanges, and agencies that report, examine, monitor, and establish benchmark prices for metals, globally. These organizations oversee the market for every type of metal from gold and silver to aluminum and steel. They establish prices and predict future prices, a factor that influences the prices of products and components in the world.

A major factor in the pricing of metals is tariffs that restrict trade and the movement of metals, as well as increases costs. In turn, products produced using titanium are impacted by the increase in the cost of the metal. Although tariffs are a major factor, there are a whole array of other issues that are used by monitoring organizations to set the price of a metal. Each of these are used by producers to purchase raw materials for their products. In all of this, it is essential and business wise to work with a company and organization that deals daily with the constant shift in the cost of metals.

World Leading Metal and Titanium Marketplaces

The nature of the metals marketplace and its volatility requires sophisticated organizations that oversee the trading of metals, provide solid benchmarks for pricing, and monitor physical delivery. They hedge against price risks and allow producers and users to have some form of stability in the purchase of metals.

The complexity of the metal marketplace makes it difficult to have a single company oversee every metal that is sold. In many cases, monitoring organizations specialize in certain metals in order to provide better data and control. Metal exchanges set daily pricing for industrial metals. Due to the nature of international trade, metal marketplaces operate every day of the week in order to keep ahead of the ever changing market.

World Organizations that Facilitate the Trading of Metals and Set Prices

This list of organizations deals with ferrous, non-ferrous, and precious metals, but not titanium. They oversee the sale of aluminum, steel, copper, nickel, gold, silver and all other forms of metals.

• London Bullion Market Association (LBMA)
• London Metal Exchange (LME)
• CME Group (COMEX)
• Fastmarkets
• S&P Global Commodity Insights (Platts)
• Argus Media
• CRU (Commodities Research Unit)
• MetalMiner

Titanium Suppliers, Exchanges, and Producers

The world market for titanium is handled by a special group of organizations rather than public exchanges. This is partially due to the unique nature of the titanium market as well as its importance to the medical and aerospace industries.

• Metalshub - Metalshub is a German software company that connects buyers and sellers in the titanium marketplace. As with similar organizations, Metalshub establishes market price indices, facilitates transactions, and has a digitized supply chain. It is one of the few organizations that offers cobalt, silicon, and titanium.
• Goldman Titanium - Goldman Titanium specializes in the purchase and processing of scrap titanium. Since 1958, the company has offered a variety of titanium products. Goldman products include cobbles, feedstock, solids, sponge, and sheets.
• All Titanium Metals (All-Ti Metals) - All-Ti Metals supplies a diverse range of titanium products, including bars, plates, sheets, and tubes. The company produces commercially pure titanium for the world market.
• Service Steel Aerospace (SSA) Corp. - SSA supplies titanium for the aerospace and defense markets as well as other industries. The company offers value added services, such as cut to size, heat treating, trepanning, water jet cutting, sonic inspection, and mechanical testing.
• Cada Stainless & Alloys - Cada is a supplier of high performance titanium for challenging environments and stressful conditions. The company supplies titanium to the aerospace industry, chemical processing, marine applications, and medical implant and instrument producers.
• All Metal Sales, Inc. - All Metal Sales offers the full range of titanium grades, alloys, and products. The company can supply or fabricate a titanium product that perfectly meets the needs of an application, process, or product.
• TMS Titanium - TMS specializes in producing titanium components for demanding applications where strength, high corrosion resistance, and dependability are a must. Each type of TMS titanium is expertly processed and configured to meet the strictest mechanical and chemical requirements.
• Universal Metals - Universal Metals’ titanium is found where strength, endurance, longevity, and corrosion resistance are a necessity. The focus of the company is on producing titanium that can endure demanding industrial and manufacturing conditions in a wide range of applications.

Each of the organizations listed above have the experience and know how to help in the development and use of titanium products. They work closely with their partners, customers and clients to provide lasting solutions. It is essential for anyone looking to procure titanium that they work with people who are experienced in the industry and have the tools necessary for quality and practical results.

Leading Manufacturers and Suppliers

Chapter 6: How Titanium is Made

The extraction of titanium from the earth involves a number of processes, which vary in accordance with the application for which the metal will be used. The essence of the method for obtaining titanium is to change the microstructure of the ore to a necessary level. As the level of risk of failure increases, the microstructure is more studiously adjusted and followed to ensure the success of an application.

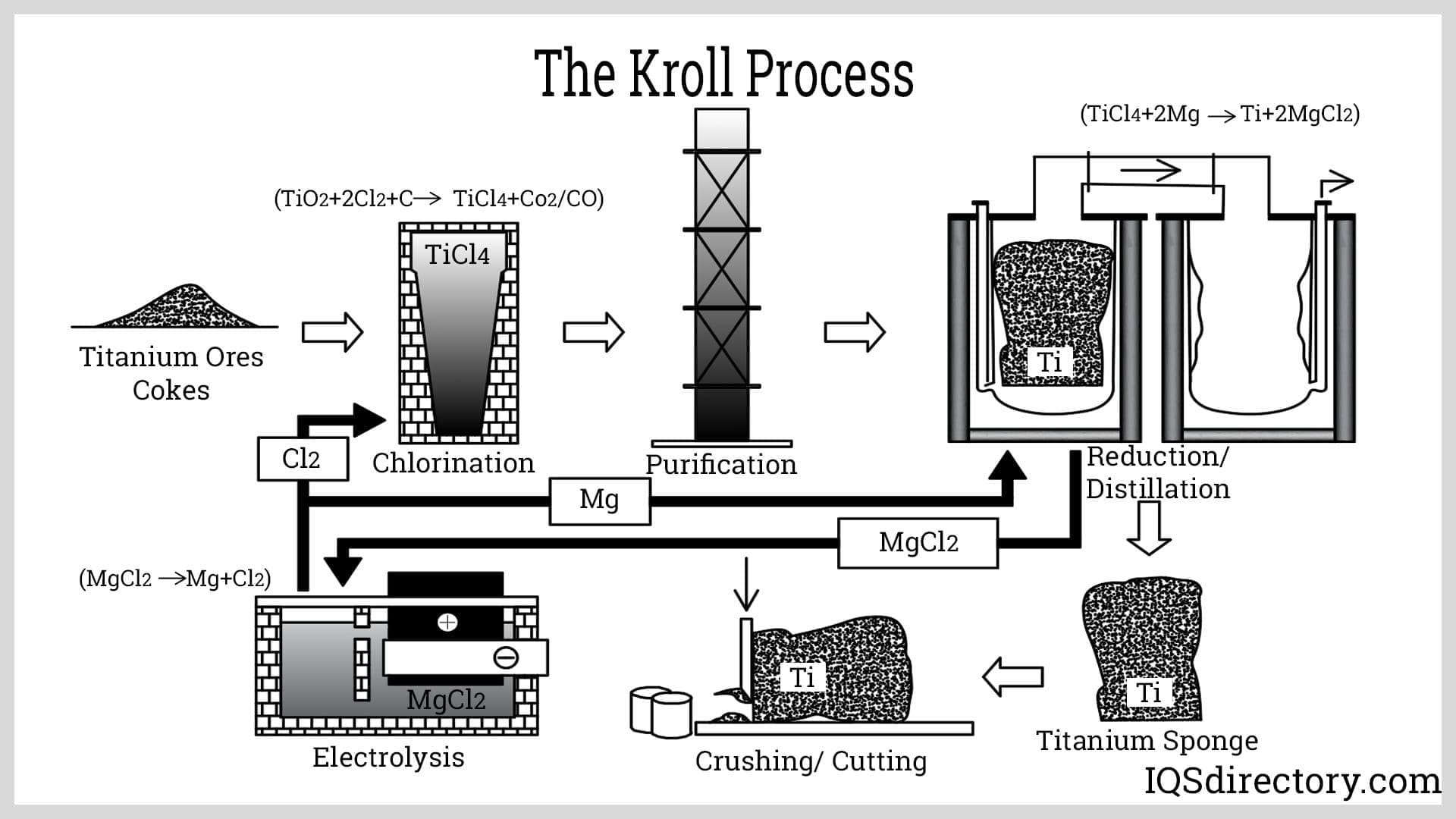

The Kroll Process

The history of titanium is rather interesting as regards its discovery and use. Titanium, or the ore from which titanium is extracted, was first discovered in 1791 by an English gentleman, whose achievement went unrecognized. Four years later, it was discovered a second time by a German chemist. Although the discoveries happened in the 18th century, the extraction of titanium was far too difficult for its practical use. It wasn’t until the end of the first industrial revolution that a practical method was used to isolate and extract the metal. From that time on, there have been improvements in the ways to access and refine the metal.

The method that is used today is the Kroll process, which was introduced during the Great Depression by William Kroll of Luxemburg. Over the years since, incremental changes have been made to the process that have led to an increase in the purity of titanium. The emphasis in the processing of titanium focuses on ensuring the purity of the metal, since the slightest defects in output can lead to catastrophic consequences.

The Kroll process is a multistage extraction method that begins with the minerals ilmenite (FeTiO₃) or rutile (TiO₂), which are the most common sources of titanium. Other minerals with titanium content are anatase (TiO₂), leucoxene, perovskite (CaTiO₃), brookite (TiO₂) and titanite. The use of ilmenite and rutile is due to their availability and lower cost.

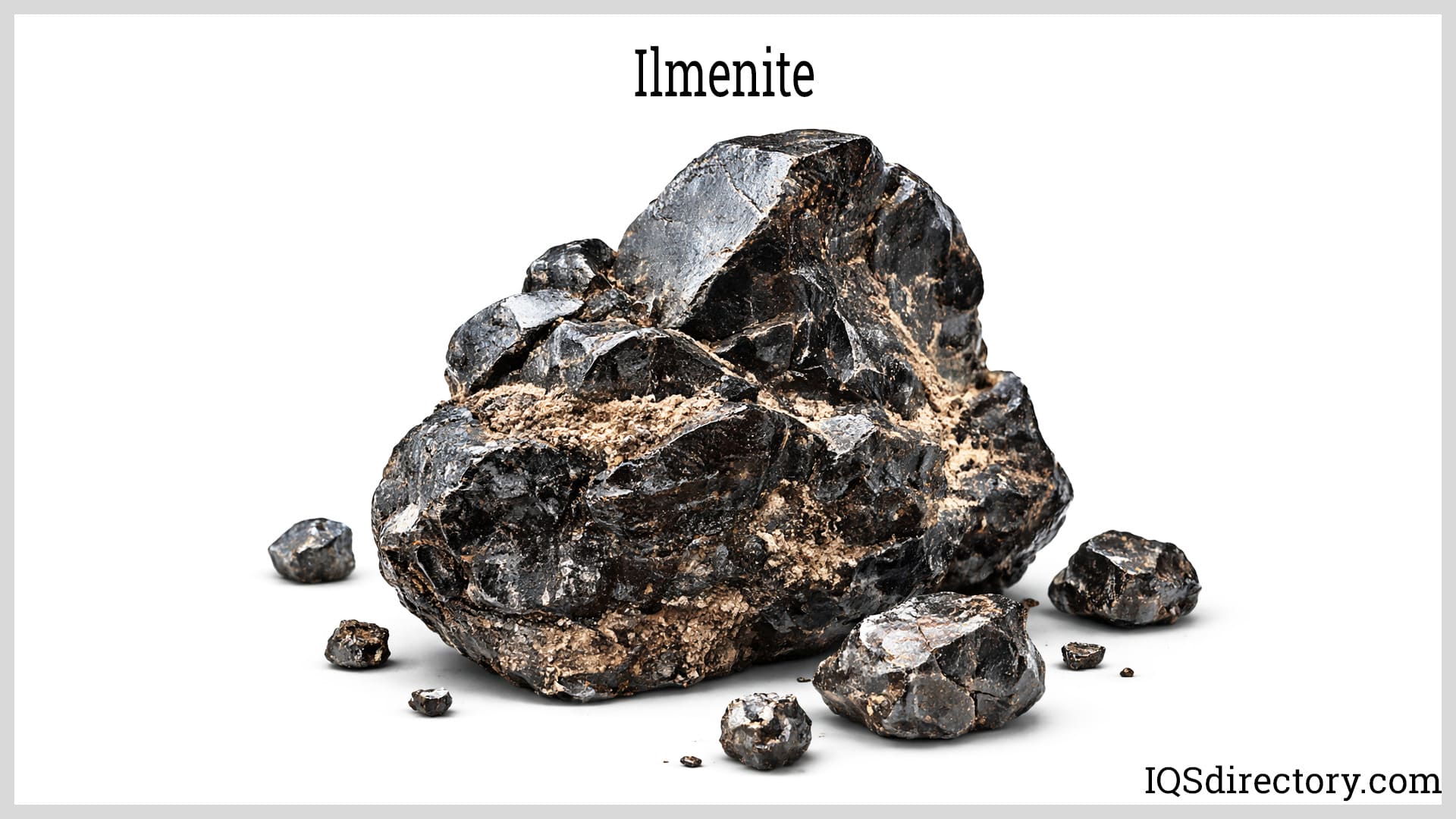

• Ilmenite – Ilmenite is a magnetically weak mineral sand that is black and grey and has a triangular crystalline structure. It is named for the Il’menski Mountains of Russia where it was discovered. Iron and titanium ions appear in alternating layers perpendicular to the trigonal c axis. When ilmenite is changed, it forms the mineral leucoxene, which is a source for titanium. Ilmenite is found in igneous rocks, sediment, and sedimentary rocks. Rocks containing ilmenite weather, dispersing grains of ilmenite in the sediment, which causes them to accumulate as heavy mineral sand that is black and easily recognizable.






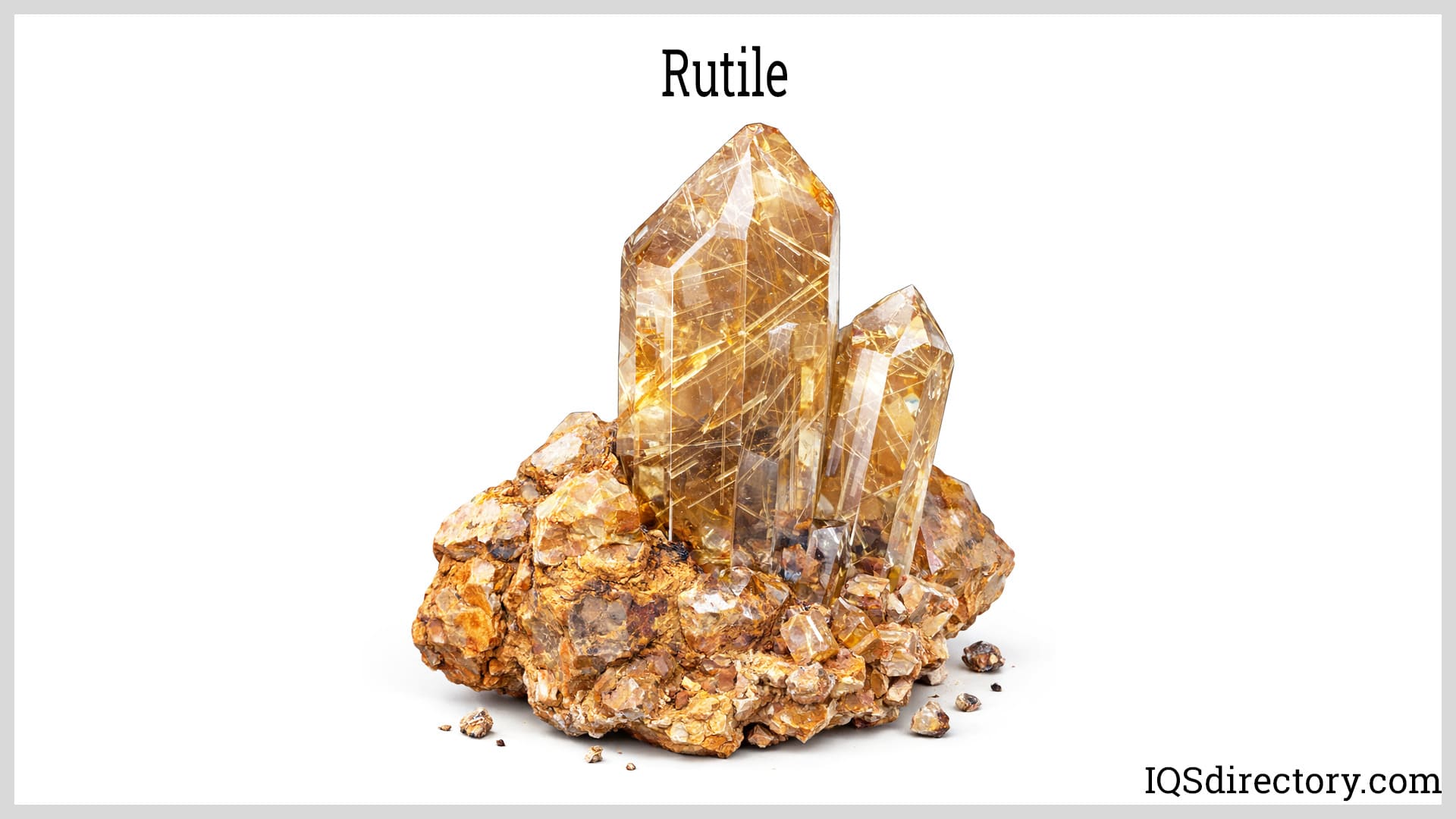

• Rutile – Rutile, referred to as red schorl, crystallizes as grains, masses, prismatic crystals, and needle crystals. The term rutile is Latin for red, which was the color of the first specimen of the mineral. It is found in Sierra Leone, Brazil, Madagascar, Switzerland, and South Africa. Rutile is the most common and stable form of titanium oxide. Although red when rutile was first discovered, it can appear as reddish brown, pale yellow, pale blue, violet, grass green, and black. Rutile is surface mined and dredged from dense beach sand. It is the most common natural form of titanium. Rutile has a euhedral tetragonal crystalline structure with square or octagonal sections.






Ore Conversion

The conversion process involves placing the ore in a chlorinator where an electric charge is applied to the ore. Chlorinators are steel containers that infuse chlorine gas into the ore to convert titanium oxide ore into titanium tetrachloride. The chlorination chemical reaction requires 800°C up to 1000°C (1472°F up to 1832°F) to complete the process. Any impurities are fractionally distilled in order to produce a pure mixture of titanium. The created titanium gas is a colorless and volatile liquid with a pungent odor. The result of the process is titanium that has been isolated from oxygen without impurities and titanium in a chlorinated state.

Purification

The titanium tetrachloride from chlorination has byproducts that influence and corrupt its purity. To remove the impurities, the titanium tetrachloride undergoes fractional distillation that uses differences in boiling points to remove the impurities. The process begins with cooling the titanium tetrachloride vapor to condense it into a liquid. The liquid is fed into columns that have different boiling points. The less volatile impurities condense while the more volatile titanium tetrachloride rises to the top.

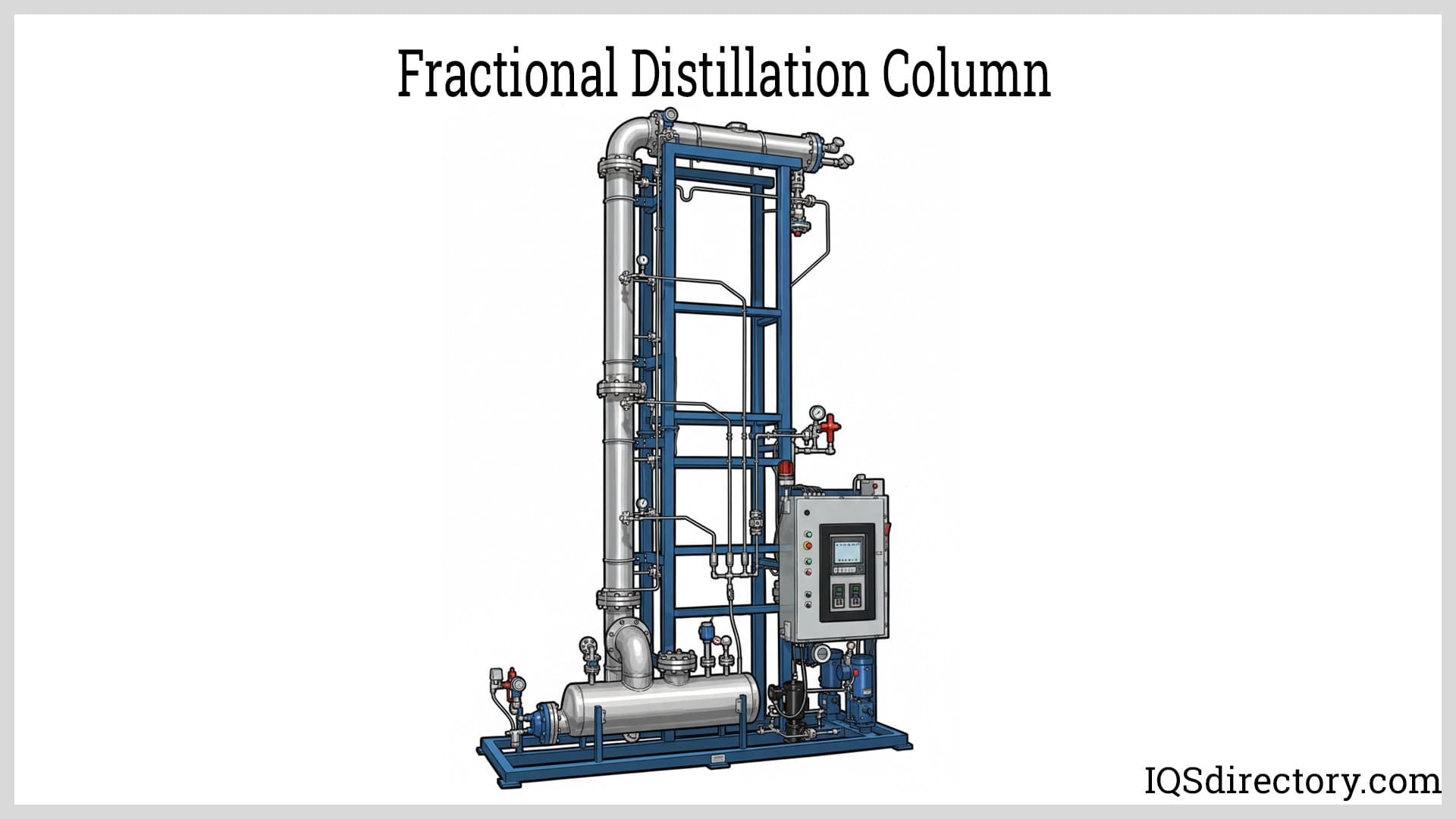

The purification of titanium tetrachloride is a necessity to prepare the element for the next steps of the process. Any elements that are close to the titanium are separated further by precipitation.

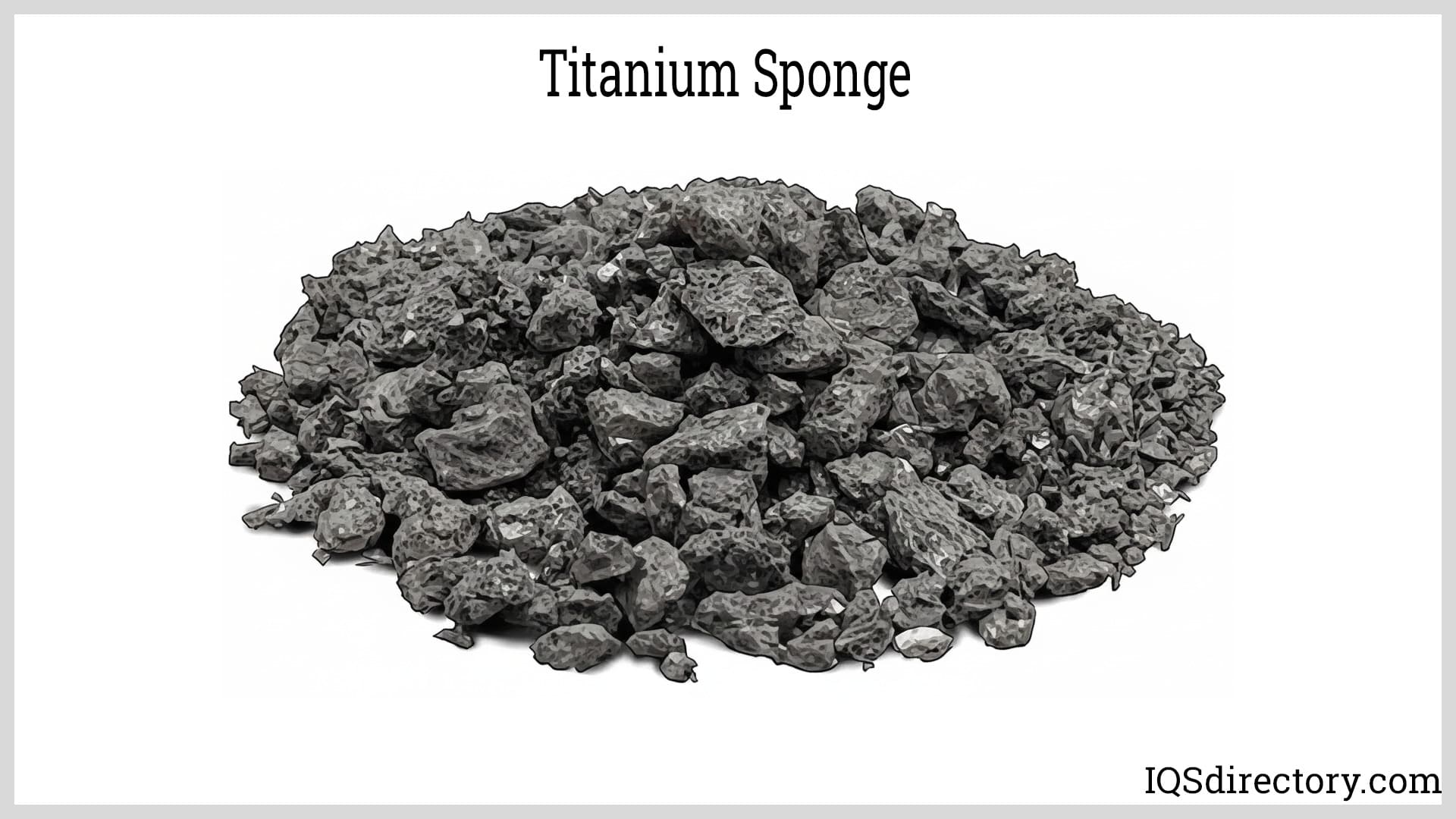

Titanium Sponge

The purified titanium tetrachloride, retrieved from fractional distillation, is placed in a sealed reactor where it is combined with molten magnesium. The titanium tetrachloride reacts with the magnesium to produce a porous titanium metal sponge and magnesium chloride. As with all aspects of the Kroll process, precision and control are necessary to achieve the desired results.

The titanium sponge is a light grey sponge like mass that is the raw material for the manufacture of titanium. Sponges are classified into seven grades that range from MHT 95 up to MHT 200. The numbers in the classification refers to the Brinell hardness maximum value. Titanium sponge has a titanium purity level of 98.5% up to 99.8% with impurities at 0.05% up to 0.30%.

Titanium Sponge Purification

To achieve necessary purity, the titanium sponge material has to be cleaned to remove leftover magnesium chloride. There are several methods used to remove the unnecessary elements, including vacuum distillation, the FFC Cambridge method, the ITP Armstrong process, and leaching.

Vacuum distillation uses the varying vapor pressures of metals to separate the magnesium chloride. Different vapor pressures used to separate the metals, along with increases in temperature, causes the metals to separate. Metals with high vapor pressure evaporate while low pressure metals remain. The process causes the unwanted metals to vaporize, preserving the pure titanium.

Leaching involves the use of various processes including pressure, atmospheric process, and ultrasound assistance. The efficiency of the process is enhanced through the use of high temperatures. The method commonly used to purify titanium involves the use of acids or other chemical solvents that extract titanium and remove the magnesium.

The purification process is an essential part of the manufacture of titanium to ensure its stability in regard to certain conditions and exposure to impurities. The purer forms of titanium are used for space craft and the aerospace industry.

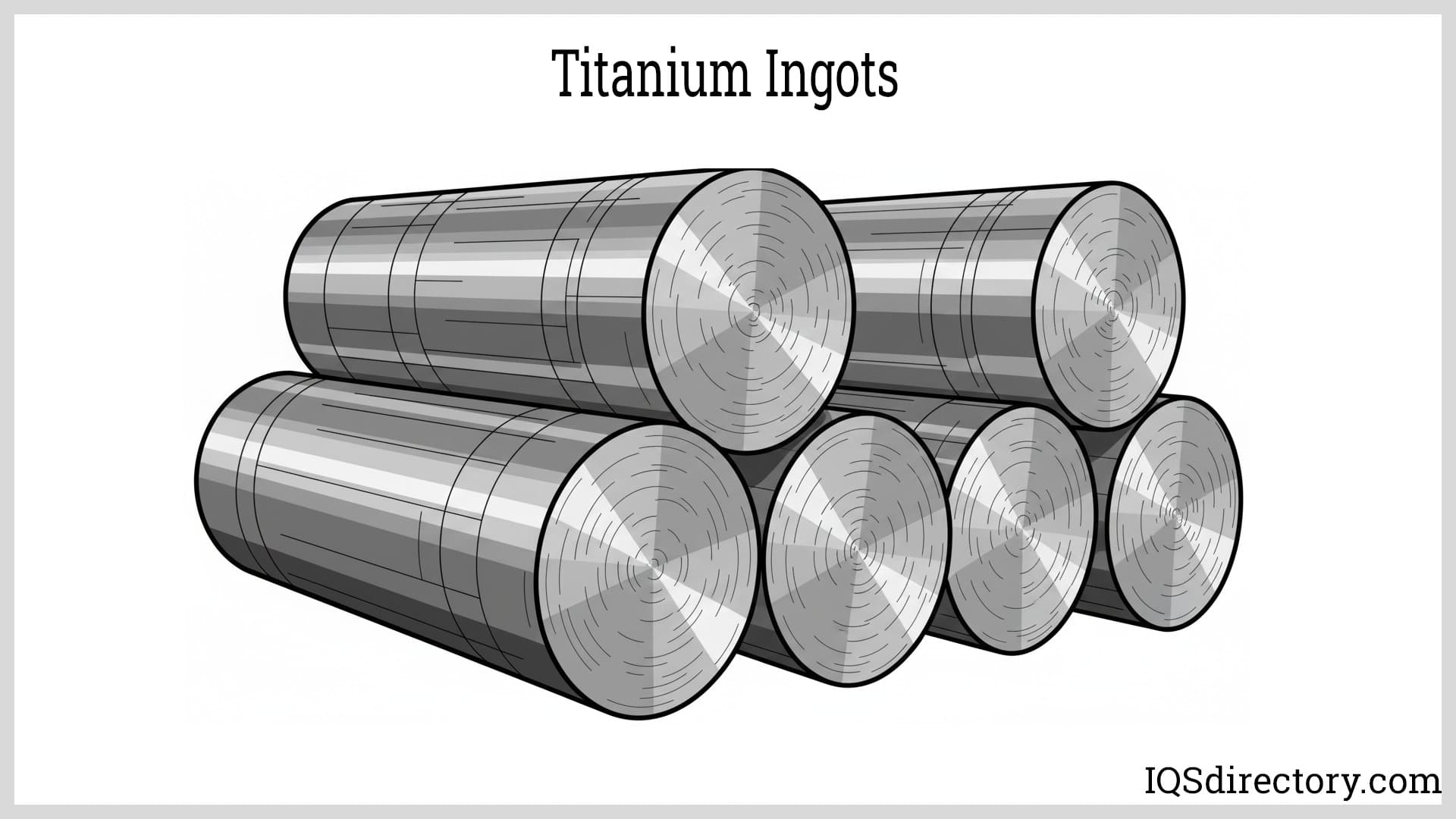

Ingots

The purified titanium is crushed to form small granules, destroying the sponge form. The pure titanium of the granules is normally mixed with other metals to form titanium alloys. The different types of alloys are added to improve the properties and characteristics of the pure titanium in order to conform to the application for which the titanium is being produced. Extreme pressure is used to compact the granule mixture to form blocks, which are welded together to make electrodes.

The electrodes are melted using an arc melting process in a vacuum or some form of inert atmosphere. During the melting process, an arc forms between the titanium electrode and a crucible. As the electrode melts, the titanium flows into the crucible where it cools to form the first ingot. To ensure the purity of the titanium, the first ingots are used as electrodes a second time for remelting.

The completed ingots can be heated and forged to create a wide array of products. Common alloying elements for titanium are aluminum, vanadium, and molybdenum, which are added to improve the properties of titanium, such as its strength to weight ratio, toughness, and resistance to corrosion.

Chapter 7: Pure Grades of Titanium

As with most metals, the grades of titanium are classified by their chemical composition and mechanical properties. Each grade is designed to fulfill the requirements of an application or a specific purpose. The American Society for Testing and Materials (ASTM) has developed the specifications and details regarding each of the various grades. Pure grades of titanium are classified as alpha titanium as one of the three classifications of titanium.

Most Commonly Used Grades of Titanium

• Grade 1 - Commercially pure titanium
• Grade 2 – Like Grade 1 with higher strength
• Grade 3 - Higher strength with good corrosion resistance and ductility
• Grade 4 - Strongest commercial titanium grades

Grade 1

Titanium Grade 1 is the softest, most ductile, and formable of the different grades of titanium. In essence, Grade 1 is pure titanium that has exceptional resistance to corrosion and is easy to weld with average impact toughness. The ductility of Grade 1 enables it to be easily formed and shaped, making it ideal for products that are bent or molded. Its resistance to corrosion has led to its wide use in marine applications. Like other titanium grades, Grade 1 is biocompatible enabling it to be used for implants and medical devices.

Grade 2

Titanium Grade 2 is valued for its moderate strength, ductility, and resistance to corrosion. It is used in environments containing calcium chloride, cupric chloride, ferric chloride, concentrations of acetic acid, high temperature seawater, and organic media. Due to Grade 2’s resistance to chlorine, it is used to make chlorine dioxide mixers, pipes, and fasteners in bleach production plants. Grade 2 is stronger than Grade 1 but has the same level of resistance to corrosion as Grade 1. It is referred to as the workhorse of titanium due to its wide industrial use

The factor that differentiates Grade 2 titanium from other grades, and the reason for its common use, is its lower cost. As with Grade 1 titanium, Grade 2 is used for applications in chemical processing, aerospace, marine environments, and desalination plants.

Grade 3

Grade 3 titanium is another form of pure titanium. It is stronger than titanium Grades 1 and 2 but is flexible and has the same corrosion resistance. Grade 3 titanium is found in applications that require high strength but need flexibility. It has the highest American Society of Mechanical Engineers (ASME) design stress rating for any form of commercial titanium.

As with all pure titanium grades, Grade 3 is biocompatible and exceptionally resistant to corrosion with good formability and impact properties at low temperatures. It is 98.8% pure titanium with small amounts of iron, carbon, nitrogen, and hydrogen. The applications for which Grade 3 titanium is used are the same as those for Grades 1 and 2 with the addition of parts for the auto industry, power generation, and specific types of industrial machinery.

Grade 4

Titanium Grade 4 is reputed to be the strongest of the pure titanium grades but is the least moldable. It is commonly cold formed to produce medical devices and is highly valued for its strength, durability, and weldability. As with all forms of pure titanium grades, Grade 4 is resistant to corrosion and is widely used in environments containing seawater and various chemicals.

The inability to shape Grade 4 titanium makes its use for different applications challenging. This aspect of Grade 4 is balanced against its ability to be easily welded using any of the normal welding techniques. The dependency on Grade 4 titanium is built on its strength, corrosion resistance, and its easy weldability. Grade 4 titanium is used as parts of heat exchangers and turbine blades for power plants, which depend on its strength.

Grade 4 titanium is the last of the pure titanium grades, which are known as the Commercially Pure (CP) Titanium or Alpha (α) titanium. As is evident from the discussion, the grades of these pure titanium differ in accordance with their corrosion resistance, strength, ductility, and flexibility. Of the four, Grade 1 titanium has the highest corrosion resistance and formability but the lowest strength, while Grade 4 titanium has the highest strength but limited ductility.

Chapter 8: Alloyed Titanium Grades

Titanium alloys are mainly pure titanium mixed with other metals or chemicals to change the characteristics and properties of titanium. Although pure titanium is strong, with strength that is the same as steel, it becomes even stronger with the addition of alloys. Titanium alloys are divided into three classes, which are alpha, beta, and alpha beta. These three classifications represent fifty different grades of titanium alloys, with only 31 being recognized by ASTM. Titanium alloys have been developed to meet the specific requirements of a variety of applications.

The alpha class of titanium consists of four elements that are composed of pure titanium with small percentages of other elements including aluminum. They are known for their weldability and exceptional corrosion resistance. Alpha alloys maintain their strength regardless of the temperature, which is due to their creep resistance, a tendency to deform under stress. The strength of alpha titanium can not be enhanced through heat treatment.

The beta class of titanium includes the alloys vanadium, chromium, and molybdenum with a titanium content of 99% and all of the positive properties of titanium. Unlike alpha class titanium, beta class titanium can be heat treated to achieve exceptional tensile strength, which makes beta titanium ideal for the aerospace industry. The formability of beta class titanium enables it to be used for shaping complex components with high strength.

With the alpha beta class of titanium, the percentage of titanium decreases to 88% up to 90% with certain grades having a slightly higher titanium content. The alpha beta class of titanium provides the best features of the alpha and beta classes. This class of titanium is described as the workhorse of titanium.

Titanium Alloys

Of the long list of titanium alloys, only a few are widely used. This aspect of titanium is in regard to the specialized alloys that are manufactured for a specific purpose. The short list of alloys that are used in a wide range of products is in regard to their cost, availability, versatility, and formability. The many positive properties of titanium come at a cost, which is why manufacturers carefully consider the use of titanium in a product.

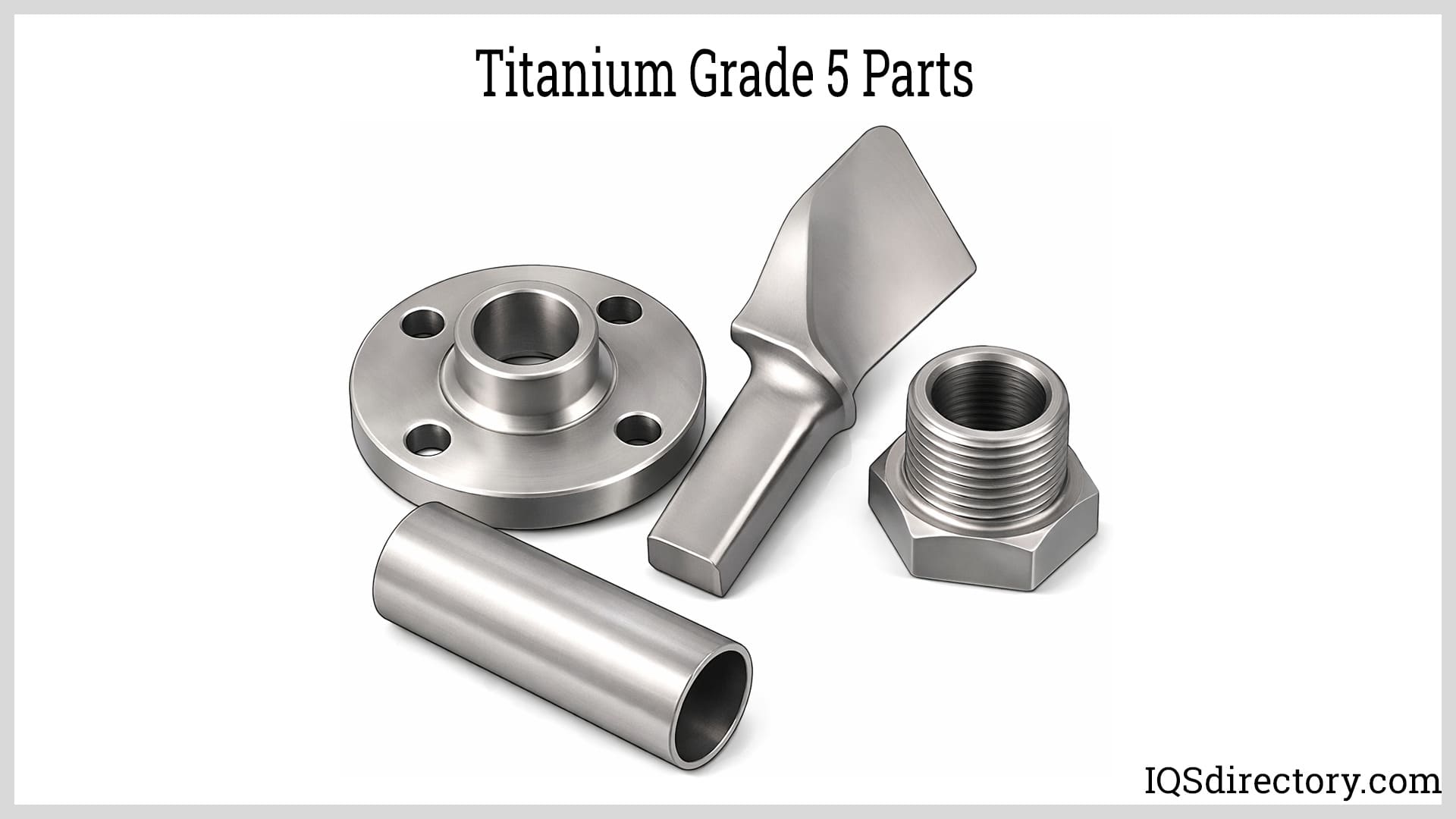

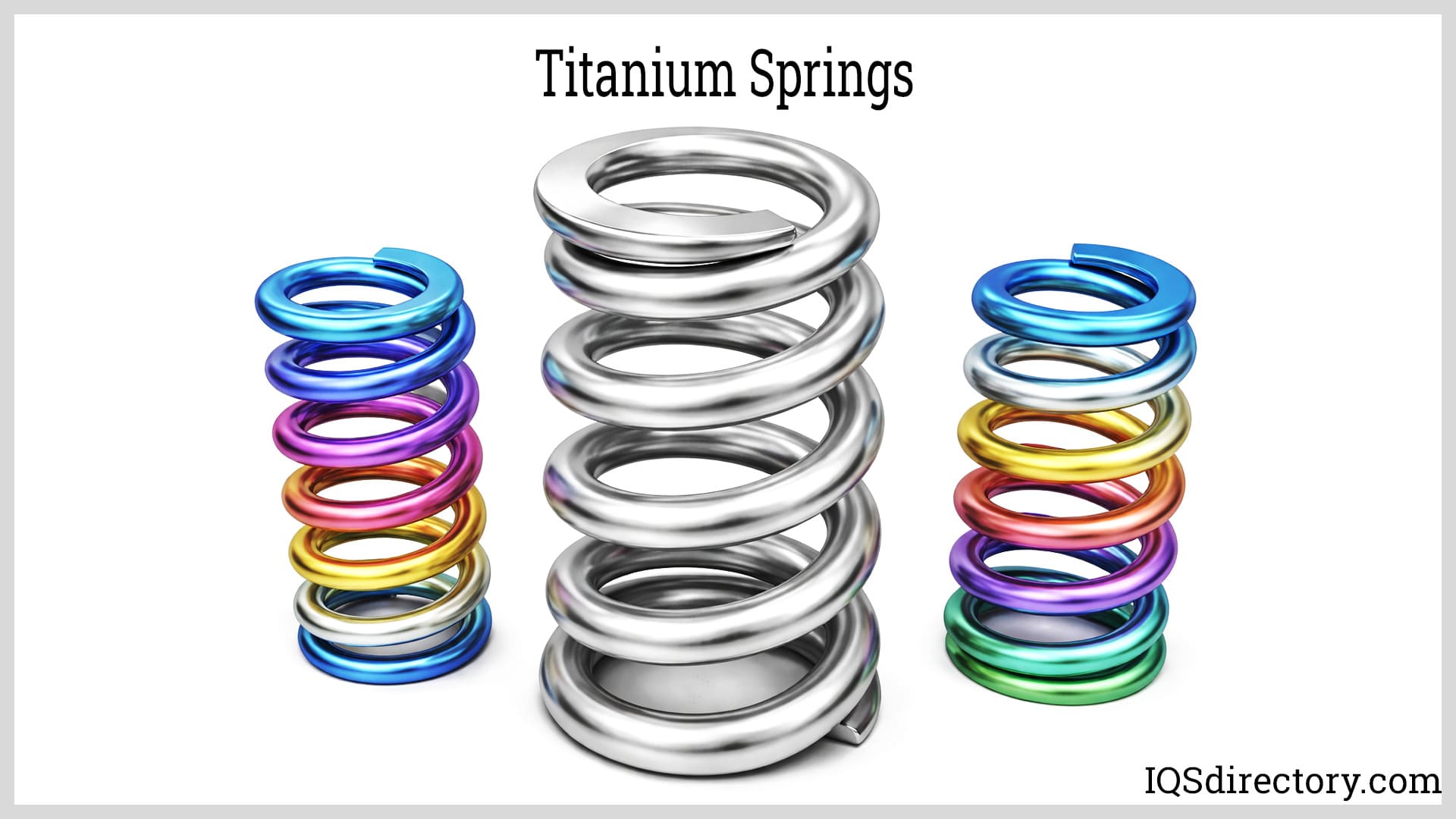

Grade 5 (Ti-6Al-4V)

Grade 5 is an alpha beta class titanium alloy that contains aluminum and vanadium, elements that make Grade 5 adaptable, versatile, and highly reliable. The aluminum content adds to the strength of titanium improving its strength in high temperature applications and its creep resistance. In essence, aluminum serves as the structural backbone of the alloy. Vanadium stabilizes the alloy, which is crucial during heat treatment. It adds toughness and other strength capabilities.

The property of Grade 5, also known as TC4, that is most valued is its strength, which can reach 1000 MPa with a yield strength of 900 MPa. As with all forms of titanium, Grade 5 has exceptional corrosion resistance that is reflected in its ability to withstand oxidation, nitration, and chlorination. Grade 5, in its powder form, is used for the 3D printing of aircraft parts.

Grade 5 titanium includes 6% aluminum (Al), 0.25% iron (Fe), 90% titanium, and 4% vanadium (V). The hardness of Grade 5 as well as its high strength is indicated by a Brinell hardness number of 334, which is comparable to steel.

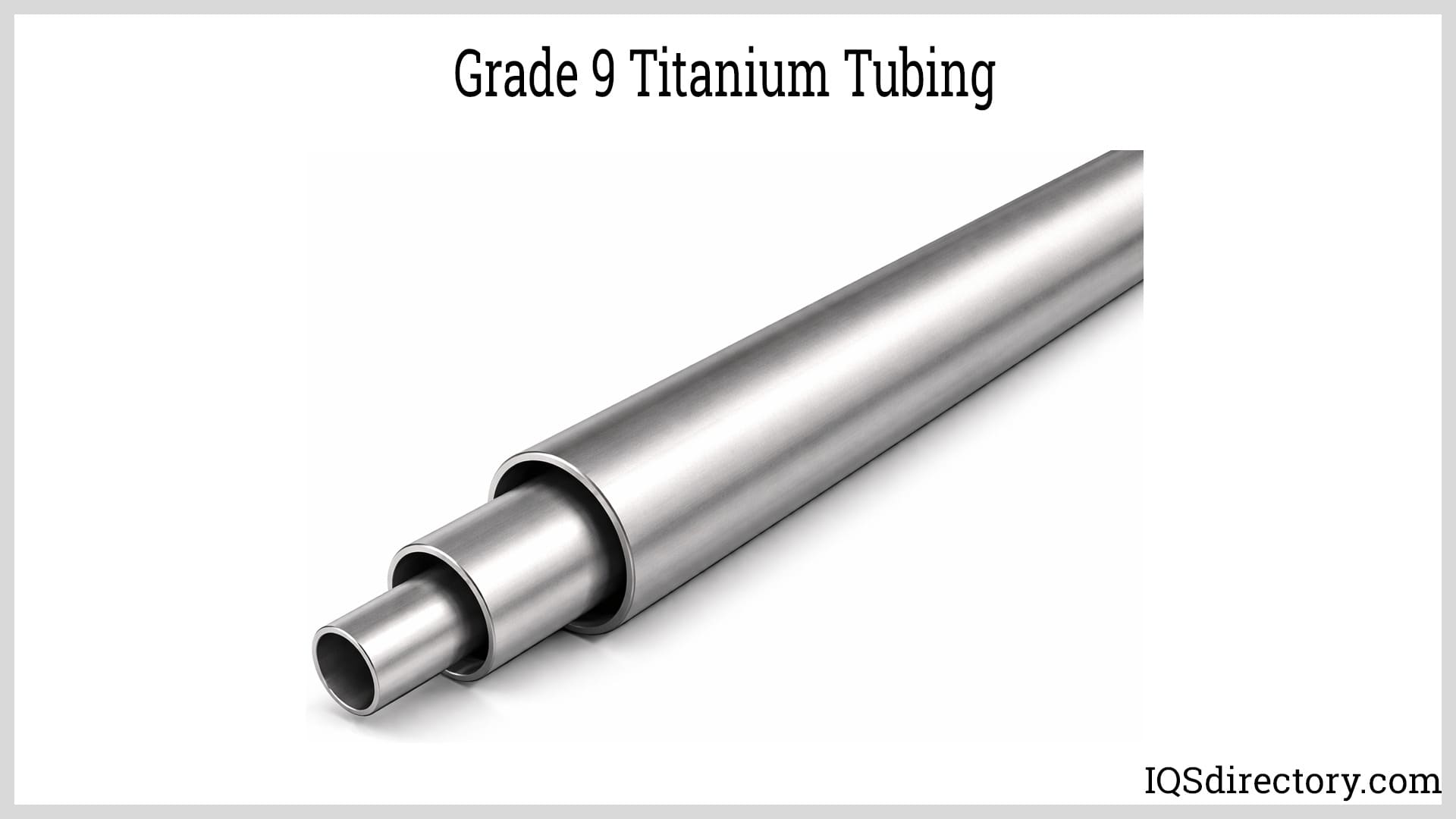

Grade 9 (Ti-3Al-2.5V)

Grade 9 titanium has a similar content as that of Grade 5 but with a decrease in its aluminum and vanadium content. Unlike Grade 5, Grade 9 is cold formable, which makes it ideal for forming or welding parts that require more strength than alpha class titanium. The superior fatigue strength of Grade 9 makes it a great choice for applications that are cyclically loaded. Although Grade 9 is an alpha beta class titanium, it leans strongly toward an alpha classification due to its low beta stabilizer content. Grade 9 is referred to as a medium strength alloy that is a bridge between CP titanium and Grade 5 titanium.

The level of strength of Grade 9 is approximately 20% to 30% greater than Grade 2 titanium. The formability of Grade 9 enables it to be used to produce tubing for aerospace and sports equipment and sheets for stamping and deep draw parts. Grade 9 tubing is used in chemical and power plants for heat exchangers that operate at high pressure and require corrosion protection.

Grade 7 (Ti-0.15Pd)

Titanium Grade 7 is more resistant to corrosion than other grades of titanium due to its palladium content. The structure of Grade 7 is similar to that of Grade 2, such as its medium strength and ductility. Grade 7 has a tensile strength of 485 MPa with a yield strength of 350 MPa. It is made up of small amounts of iron, carbon, nitrogen, and hydrogen as well as 0.12% up to 0.25% palladium. The titanium content of Grade 7 is over 99%.

Grade 7 titanium is very weldable due to its microstructure being unaffected by thermal treatments. An unusual aspect of Grade 7 is its ability to be annealed, which is not common for titanium. Annealing is performed at 650°C up to 760°C (1202°F up to 1400°F) for six minutes up to two hours. When stress relief is necessary, Grade 7 is heated to 480°C up to 595°C (896°F up to 1103°F) for 15 minutes up to 4 hours. In both cases, air cooling is used.

The list of uses for Grade 7 extends through a wide range of components and capabilities. Included in the applications for which Grade 7 is used are cathodes, air pollution control equipment, paper bleaching, hydrometallurgical extraction, and desalination. The high titanium content matched with palladium gives Grade 7 an unusual set of beneficial and productive properties.

Grade 11

Grade 11 titanium, as with Grade 7 titanium, is a product of the alloying of titanium and palladium. It is categorized as part of the CP group of titanium with a titanium content of 99% and a palladium content of 0.12% up to 0.25%. As with Grade 7, the addition of palladium improves Grade 11’s resistance to corrosion. The alloying of Grade 11 gives it higher strength than alpha titanium. Compared to Grade 7 titanium, which has the same palladium content, Grade 11 is more weldable, costs less, and is more accessible for industrial use.

The palladium content of Grade 11 titanium increases its resistance to harsh conditions, such ones that contain hydrochloric acid or sulfuric acid. The temperature stability of Grade 11 enables it to be used in multiple types of environments, minimizing potential equipment failures. As with other forms of titanium, Grade 11 titanium is widely used in desalination, chemical processing, and marine industries. When being prepared for shipping, Grade 11 titanium is shaped into rods or tubes.

Grade 12 (Ti-0.3Mo-0.8Ni)

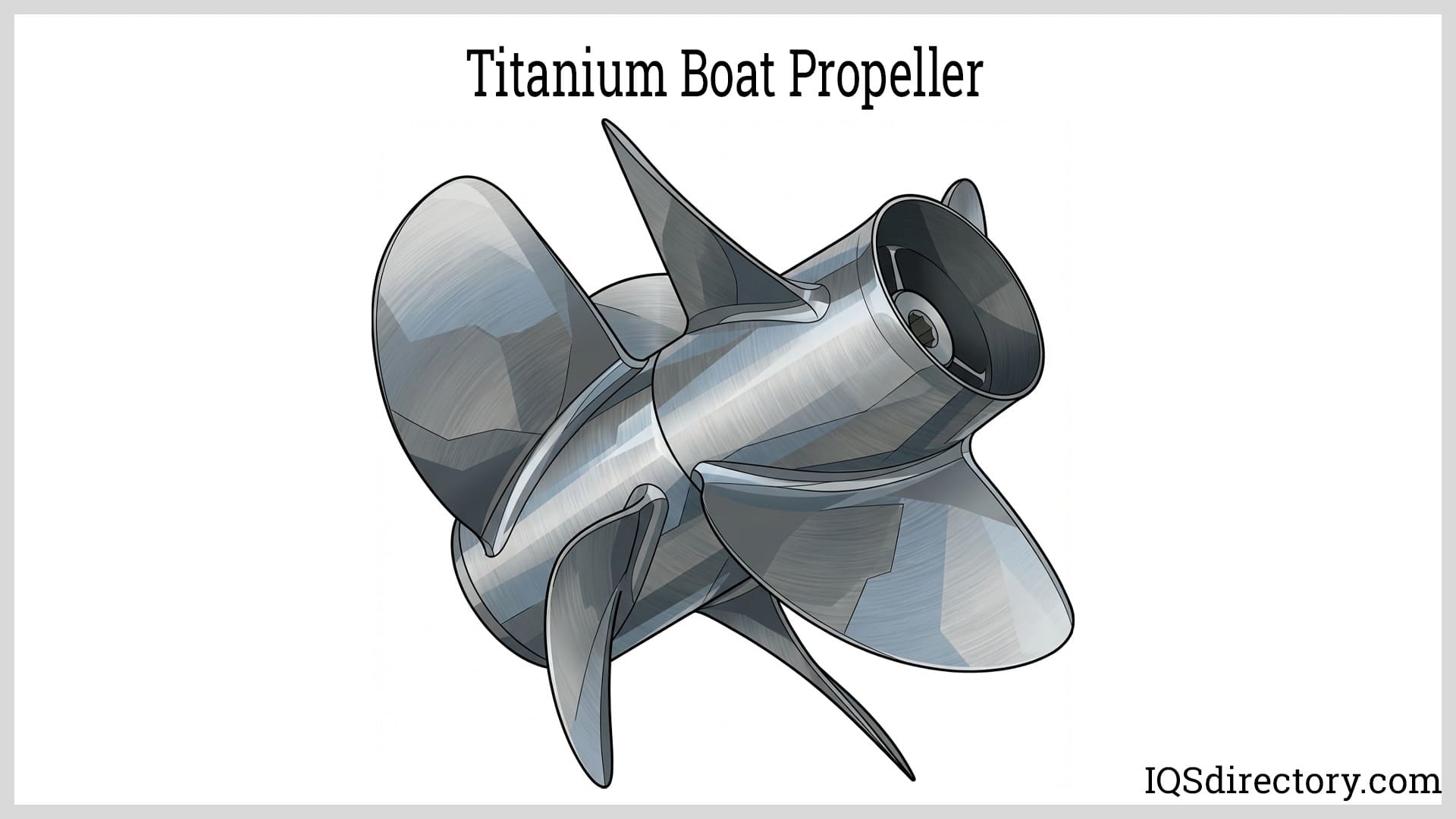

Grade 12 titanium has strength that is similar to series 300 steels. Its weldability and formability enable it to be used for fabricating heat exchangers, marine equipment, and various aerospace components. The addition of molybdenum and nickel increases the corrosion resistance of Grade 12 at lower cost than that of Grades 7 and 11 that contain palladium. Although it is stronger than alpha titanium, it is formable regardless of its Brinell hardness of 235 and Rockwell C hardness of 11.

The use of Grade 12 titanium is similar to the other grades of titanium that are used in chemical processing, heat exchangers, valves, and pumps. The resilience and strength of titanium make an ideal metal for applications that demand high endurance and stability.

Grade 23 (Ti-6Al-4V ELI)

Grade 23 titanium is similar to Grade 5 titanium but with a lower oxygen, nitrogen, and iron content but with the same ductility and fracture toughness. It is made up of small amounts of carbon, oxygen, nitrogen, hydrogen, vanadium, aluminum, and iron. As with all forms of titanium, it is highly resistant to corrosion and is available in bars, wire, plates, sheets, and welding wire.

Along with its high corrosion resistance, Grade 23 titanium is known for its mechanical properties of low density and high strength. In its powder form, Grade 23 titanium is used to 3D manufacture parts, which can be machined, shot peened, and polished. Parts manufactured using Grade 23 have good elongation and toughness.

The list of titanium grades described above are a small sampling of the over 50 grades of titanium available on the market. Of the six grades discussed, Grade 5 titanium, referred to as the workhorse alloy, accounts for 50% of the usage of titanium in the world. Its aluminum and vanadium content gives it high strength, low weight, and enables it to be heat treated, a critical factor for parts produced for the aerospace, automobile, and medical industries.

An alpha class grade that is also widely used is Grade 2 titanium, which is known for its exceptional resistance to corrosion and weldability. Although other grades of titanium are used by marine applications and the manufacture of heat exchangers, Grade 2 titanium leads the list of materials preferred for such products.

In order to appreciate the versatility and reliability of titanium, it is important to examine all of the different forms of titanium, especially in incidences when it is being used to produce a product. The chemical adjustments that have been made to titanium structure it to perfectly match the specific requirements of an application.

Conclusion

• Titanium is a chemical element that is found in nature as an oxide and is mined from rutile and ilmenite. It is the ninth most abundant element on earth and is prized for its corrosion resistance and exceptional strength to weight ratio.
• The price of titanium varies from $3 per pound up to $15 per pound or higher. The variations in the price of titanium are in regard to the different grades with high grade alloys costing more than scrap titanium.
• The biocompatibility of titanium has led to its wide use in the medical field for implants and medical devices. Titanium is used as hip and knee implants, pacemaker cases, dental implants, and craniofacial plates.
• Titanium is able to maintain its strength at high temperatures due to its high melting point. It is a durable metal with a long useful life due to its tensile strength, hardness, and fatigue resistance.
• The three classes of titanium are alpha, beta, and alpha beta with alpha being the purest form of titanium while beta and alpha beta are alloyed forms of titanium. The different classes are designed to serve different functions depending on an application.
