Explanations of plug-in transformers, lists of manufacturers, and descriptions of uses for plug-in transformers
You will learn:

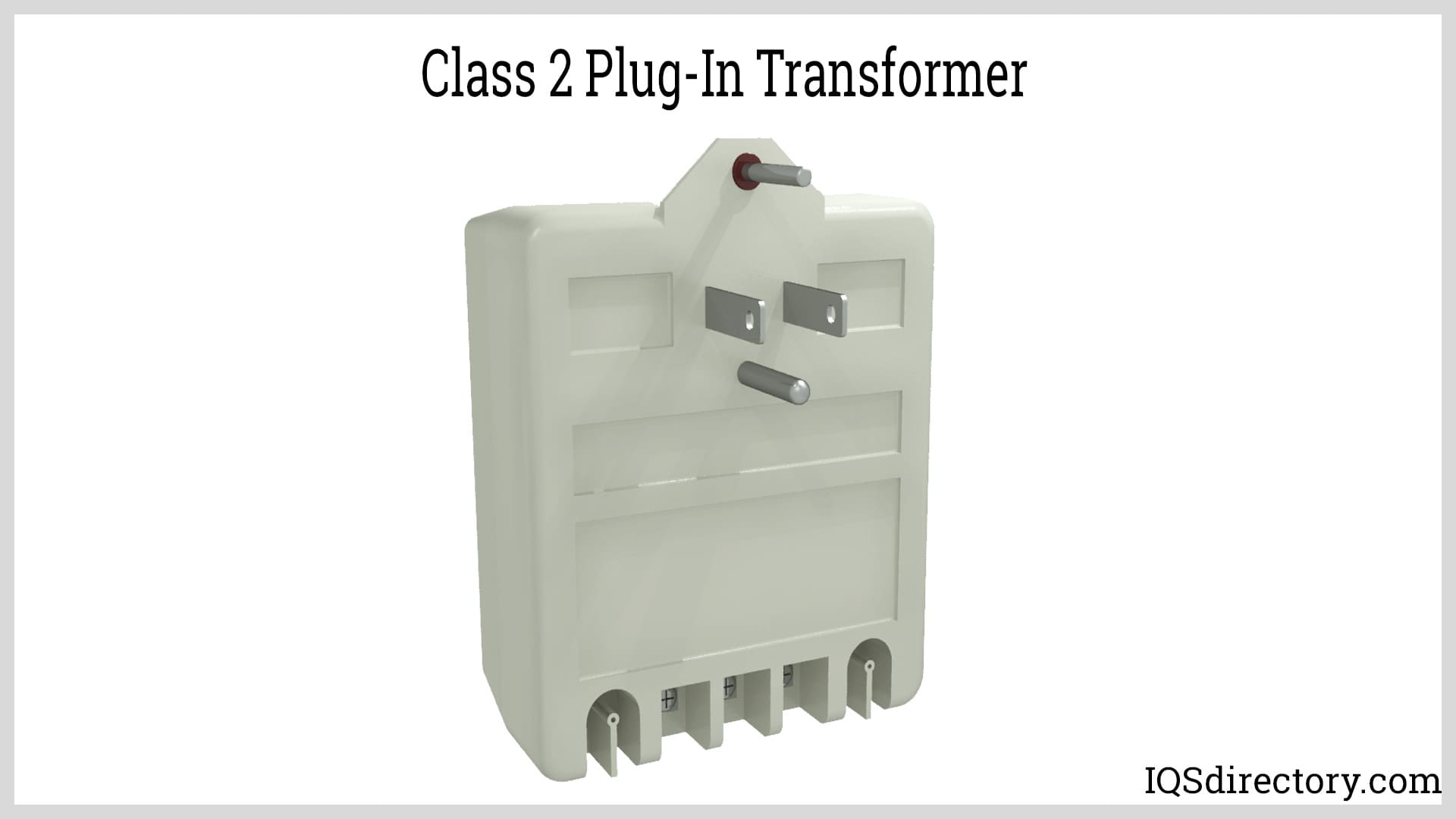

Plug-in transformers, classified as class 2 power supplies, are engineered for attachment to 15 amp, 120 or 240-volt alternating current (AC) branch circuits. The distinction of class 2 power supplies is established by Underwriters Laboratory (UL) 1310, which outlines the safety criteria for class 2 power units and battery chargers. UL1310 ensures user safety by adhering to these stringent standards. Plug-in transformers function as AC adapters, power supplies, or class 2 power units.
There are three definitive restrictions for plug-in transformers: they must not deliver more than 100 VAS of continuous power, should not provide current under short circuit situations, and must maintain a safety extra-low voltage (SELV) compliant open circuit voltage of either 90V DC or 42.4 V peak AC.
Compact plug-in transformers are designed to connect directly into wall outlets, delivering low direct current voltages ideal for powering electronic gadgets. They safeguard low-voltage electronics from exposure to higher voltages and eliminate the need for cooling mechanisms. This enables plug-in transformers to be more compact, lightweight, and space-efficient. They reduce heat impact on delicate circuits and provide a lower power output.
Plug-in transformers are essential electromagnetic devices for converting electrical power from one voltage to another, making devices safe and compatible with different electrical systems. Whether in household appliances, consumer electronics, or industrial automation, plug-in transformers ensure efficient voltage regulation, protection, and energy isolation. Understanding their operation is crucial for engineers, electricians, and users who must choose the right transformer for specific voltage, current, and application needs. The typical structure of a plug-in transformer includes a magnetic core and two sets of wire coils, known as the primary and secondary windings. When alternating current (AC) flows through the primary winding, it generates a magnetic field in the core. This magnetic field then induces an electromotive force (EMF) in the secondary winding, resulting in the transformation of voltage and current levels. This step-down or step-up process allows electrical devices to operate safely at required voltages, minimizing risk and maximizing performance.

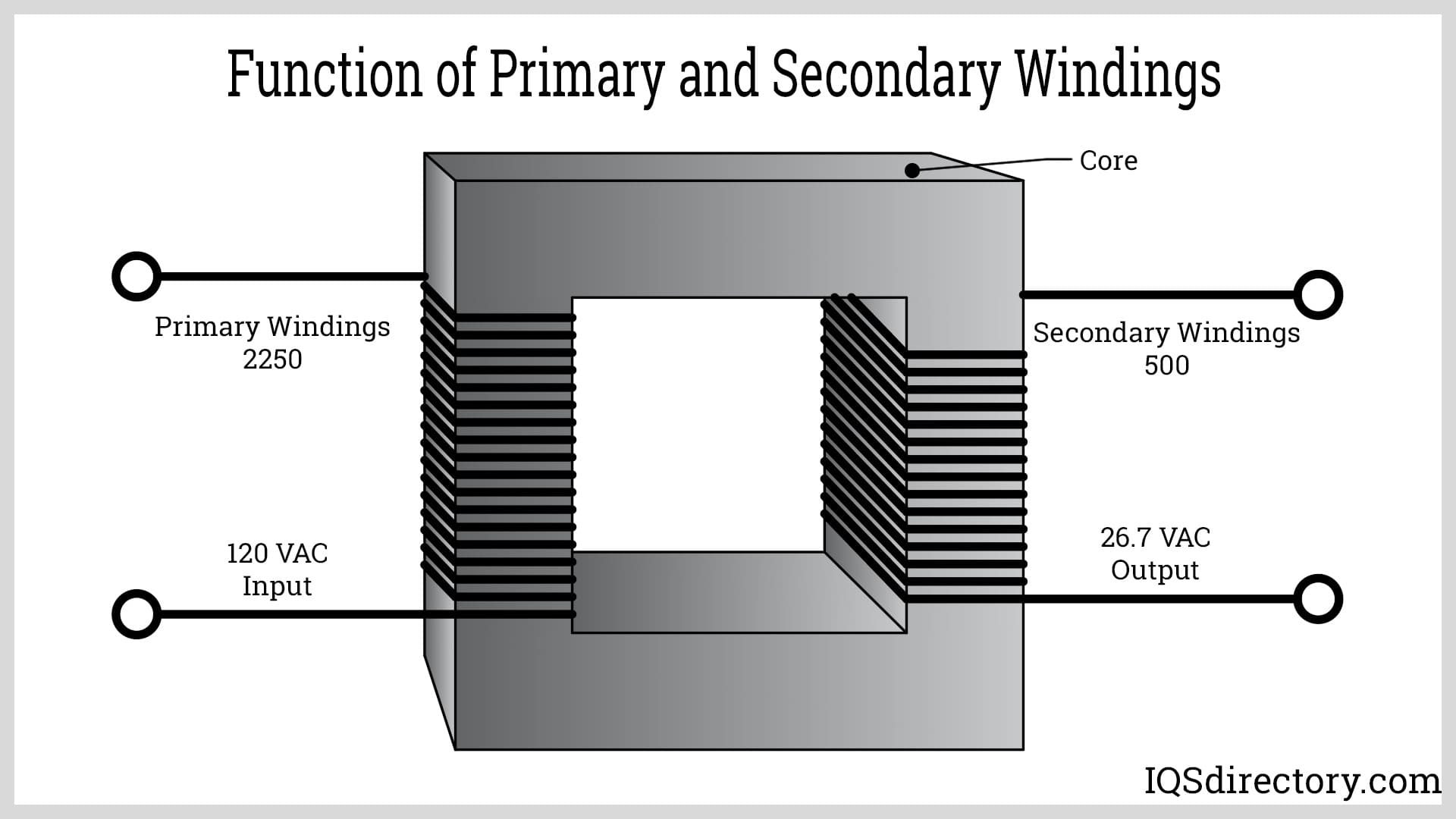

The primary winding in a plug-in transformer is responsible for receiving input voltage—most commonly standard 120-volt AC for North American households or 240 volts in European regions. By converting the incoming AC voltage to a manageable, often lower, output voltage, plug-in transformers ensure electrical safety and device compatibility. The core—often made from high-permeability steel laminations—runs through the middle of the windings to maximize energy transfer and reduce core losses. As current enters the primary winding, a time-varying magnetic field is established, which is a prerequisite for electromagnetic induction in the secondary coil. The effectiveness of voltage transformation depends partly on how efficiently the magnetic field is transmitted through the core.
The secondary winding is tasked with delivering the transformed output voltage to the load or device. The voltage that appears here is determined by the turns ratio—the relative number of coil turns on the secondary winding compared to the primary. This principle underpins the design of step-down transformers (reducing voltage for low-voltage electronics, chargers, and adapters) and step-up transformers (raising voltage where required). For example, if the turn ratio between the primary and secondary coil is 2:1, the output voltage is half the input. Conversely, higher-value secondary windings can increase output. For a voltage drop to just 3 volts at the secondary, the primary coil might need up to 40 times the turns. This scalability makes plug-in transformers versatile for various voltage conversion needs in power supplies, adapters, and converters for different types of equipment.
Both windings are wrapped around a shared magnetic core, which channels the magnetic flux generated during operation. The core serves as the foundation for efficient electromagnetic energy transfer—optimizing magnetic permeability and minimizing magnetic reluctance are critical design requirements for transformer cores. In plug-in transformer construction, the core may be laminated or toroidal to further minimize energy loss from eddy currents and hysteresis, boosting transformer efficiency. Core construction varies: some units have separate windings positioned side-by-side or layered, while others employ a continuous winding structure. Typically, materials such as silicon steel and ferrite are chosen for their high saturation flux density and low energy loss. These differences allow manufacturers to optimize plug-in transformers for compactness, heat dissipation, and noise reduction, making them suitable for a range of applications, from simple power adapters to high-precision instrumentation.
The design and quality of the core directly affect energy efficiency, longevity, and safety. Adhering to international standards—such as UL, IEC, and RoHS—is vital for ensuring plug-in transformer reliability and safe operation. Compliance with these standards also impacts the acceptance of plug-in transformers in commercial and consumer markets.
Magnetic permeability and minimal resistance, or reluctance, are essential core features, promoting effective energy transfer. Choosing the proper core shape and material helps minimize losses and heat, addressing user concerns about transformer efficiency, noise, and warming during prolonged use. Some high-performance plug-in transformers use grain-oriented laminated cores, further reducing core loss.
Plug-in transformers utilize windings made from either copper or aluminum wire. Copper is typically favored due to its superior electrical conductivity—approximately 0.6 times the resistivity of aluminum—resulting in lower energy losses and higher transformer efficiency. Aluminum windings, while lighter and less expensive, must be larger to carry the same current as copper, resulting in bulkier designs. Insulation is applied to the windings to ensure safety and prevent short circuits. The winding configuration—such as layer winding, bifilar winding, or universal winding—can impact performance factors, including frequency response, inductance, and electromagnetic interference (EMI) shielding. These technical aspects are significant considerations for power supply manufacturers, engineers choosing AC-DC adapters, and consumers seeking plug-and-play transformers for sensitive electronics or charging devices.
The primary winding is connected to the power input source (e.g., wall outlet), while the secondary winding supplies power to the electrical load. Selection of the winding material and configuration directly influences electrical isolation, voltage regulation, and product durability—critical factors for users in applications from industrial control to consumer electronics.

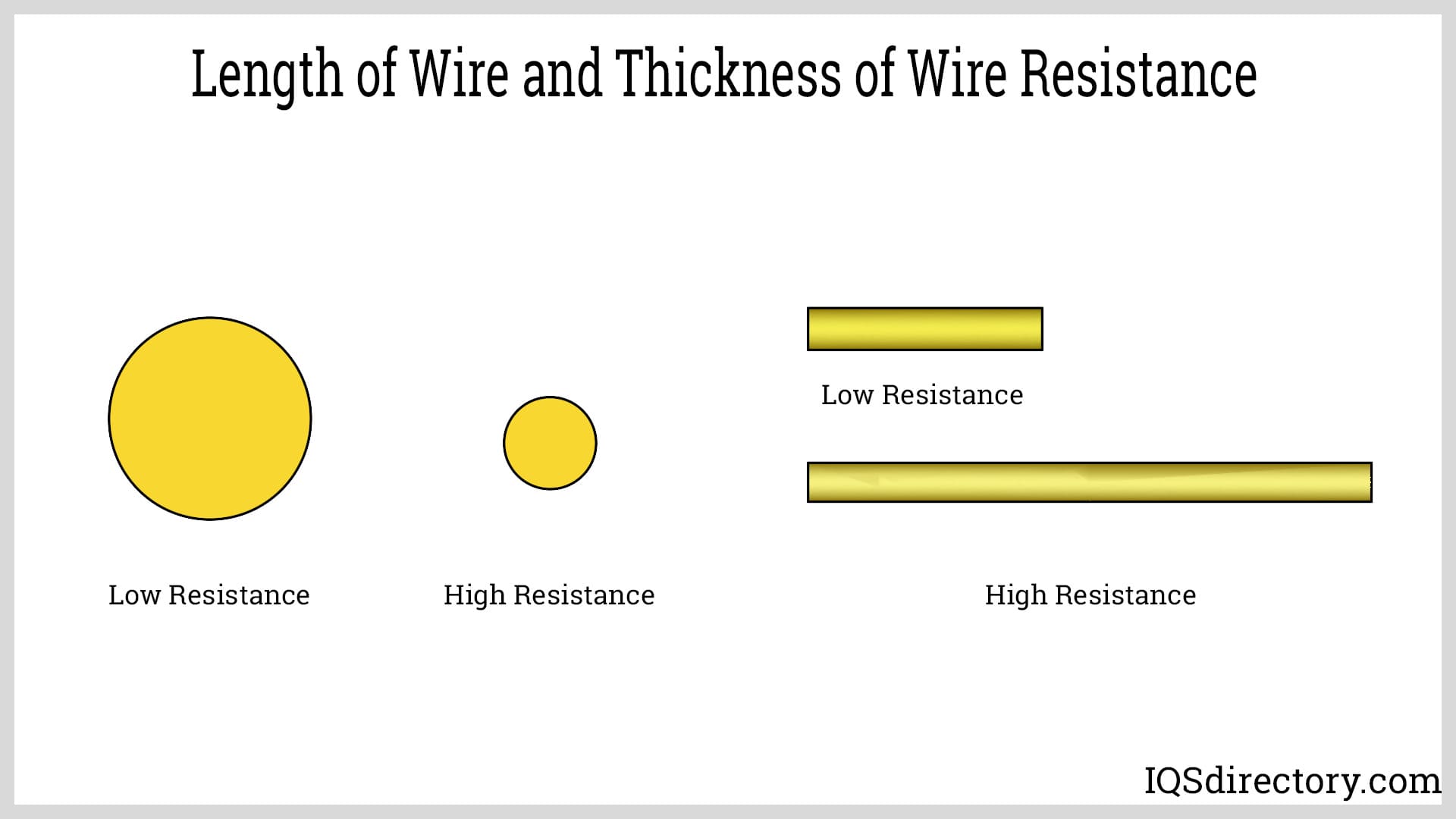

Wire resistance has a significant impact on plug-in transformer performance and energy efficiency. Measured in ohms (Ω), resistance affects the current flow, voltage drop, and potential power loss inside the transformer. Influencing factors include the core and wire materials, wire length, ambient temperature, and wire thickness (gauge). Longer wires increase resistance, leading to more heat and reduced transformer efficiency. Thicker wires, with larger cross-sectional areas, decrease resistance, allow more current flow, and reduce undesirable heating—especially important in plug-in transformers designed for high-current applications or continuous operation.
The material's resistivity, typically lower for copper than aluminum, and proper winding gauge selection are crucial for optimizing transformer design. In practice, the primary winding is engineered for low resistance to maximize the amount of current it can carry effectively, while the secondary winding (often with thinner wires) may have higher resistance, affecting the voltage delivered to the end device. High resistance causes voltage drop and power loss, both of which decrease the efficiency and output performance of the plug-in transformer. Electrical engineers, repair technicians, and end-users therefore consider wire resistance and transformer ratings (such as VA rating, efficiency, and load capacity) when selecting the right plug-in transformer product for their needs.
Thermal management is a key factor in the longevity and safe operation of plug-in transformers. All electronic devices, including plug-in voltage converters and adapters, generate heat as a function of energy conversion. Excessive temperature rise in transformer windings, caused by resistance or inadequate heat dissipation, can degrade insulation, reduce efficiency, and shorten transformer lifespan. Manufacturers use high-temperature insulation materials—rated according to international classifications (Class A, B, F, H, etc.)—to ensure operational safety and reliability.
Insulation rating defines the maximum permissible operating temperature, accounting for ambient conditions, internal heat rise, and permissible overload. Reliable thermal management not only prolongs the service life of plug-in transformers but is also a major selling point for users concerned about device safety, efficiency, and continuous running capability. For best performance, select plug-in transformers tested for overload resistance, low heat generation, and certified by recognized safety agencies. Regular inspection and correct installation, in line with manufacturer specifications, further minimize overheating risks.
Plug-in transformers are one of the most widely used types of electronic devices. They make sure that electronic equipment receives the correct amount of voltage. The three categories of electronic devices are dual voltage, 110V-120V, or 220V-240V. Plug-in transformers are used with 110V-120V and 220V-240V but are not required for dual voltage devices.
Many electronics require lower voltage than what is commonly provided through electric outlets. Wall plug-in transformers, known as wall bumps, power cubes, wall adapters, and wall warts, come in the form of plastic boxes that can plug directly into a wall socket. They are available in a wide range of voltages, power levels, and polarities. The use of plug-in transformers gives product designers greater freedom when confronted with high voltage issues for various types of electronics. In essence, plug-in transformers serve as a form of protection from high voltages for low voltage equipment.
The initial factors that differentiate the types of plug-in transformers are their voltages, power levels, and reversed polarities, which can be additive or subtractive. The performance of a plug-in transformer depends on how the winding coils are connected and the direction of the windings. If the finish end is connected to the start end, the transformer is additive. If the coils are connected in reverse, the transformer is subtractive.
The reference to polarity is in regard to how the primary and secondary windings relate to each other. With additive polarity, the windings add to each other. With subtractive polarity, voltage is subtracted from each winding. An understanding of the polarity of a transformer is important for designers and engineers when they are working with electrical power systems.

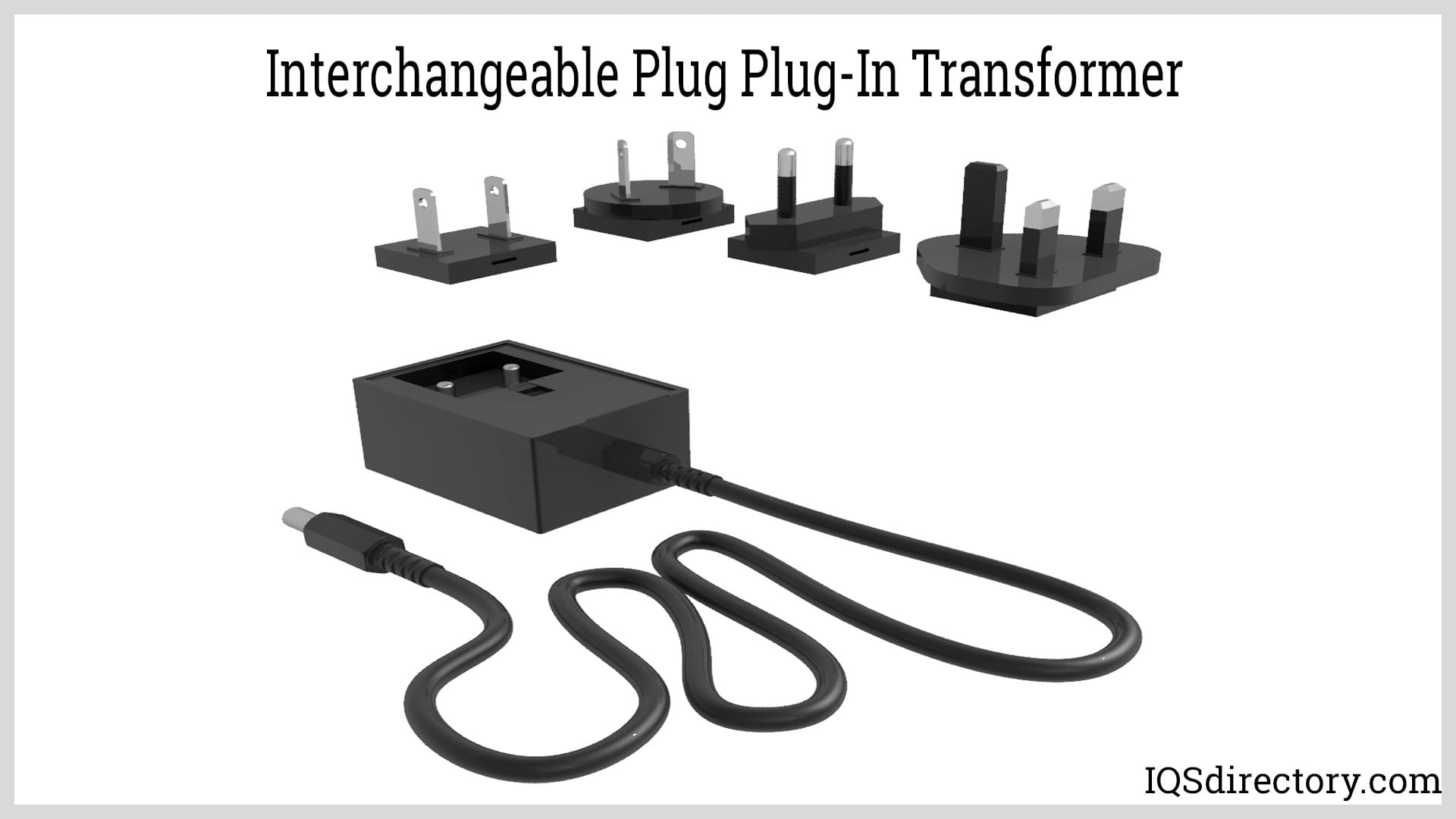

Interchangeable plug plug-in transformers refers to changes in the AC power supply using a removable plug. The design of interchangeable plug plug-in transformers makes it possible to select a plug configuration that fits the socket head of the local main. The most common use of interchangeable plug plug-in transformers is for international travel when plug configurations vary from one country to another.
The use of interchangeable plug plug-in transformers allows for versatility to meet the requirements of international power supplies. They are available with 100V up to 240V input with 24W5 up to 24VDC output with exceptionally high efficiency.

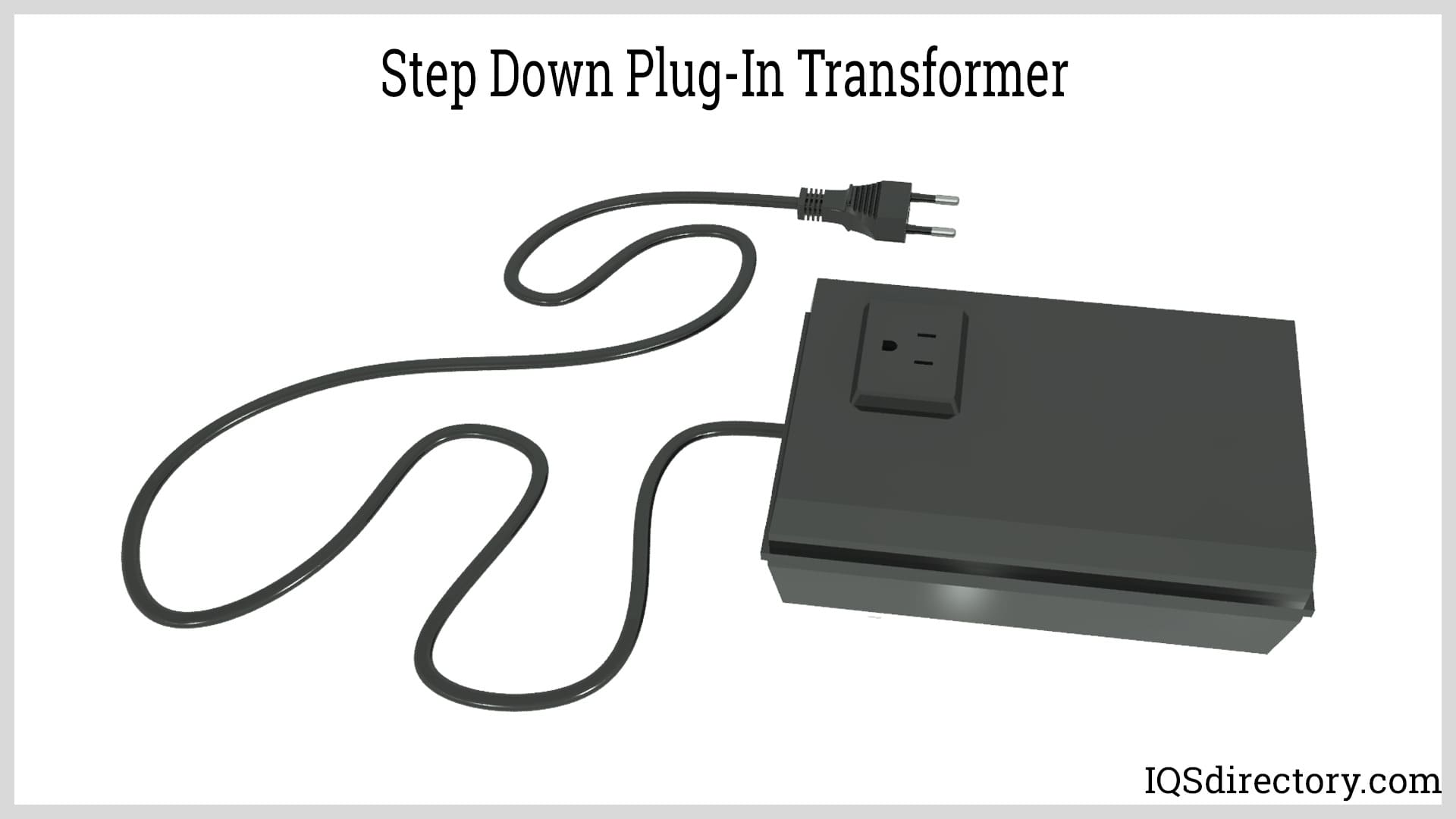

While North America has 110V to 120V coming out of outlets, the rest of the world has 220V up to 240V, which are also used in North America for large appliances. In order to use American electronics that have a lower voltage rating in other parts of the world, the voltage has to be lowered using a plug-in voltage transformer. The use of plug-in transformers is to protect American electronic devices from the higher voltages, such as 240V.
There is a wide assortment of plug-in transformers that can be used for converting voltages. It is important to examine the label on an electronic device to determine the voltage that it requires. Plug-in transformers can be purchased to match the voltage a device requires. All electronic devices identify their wattage with the letter “W”, which determines the plug-in transformer that is required.

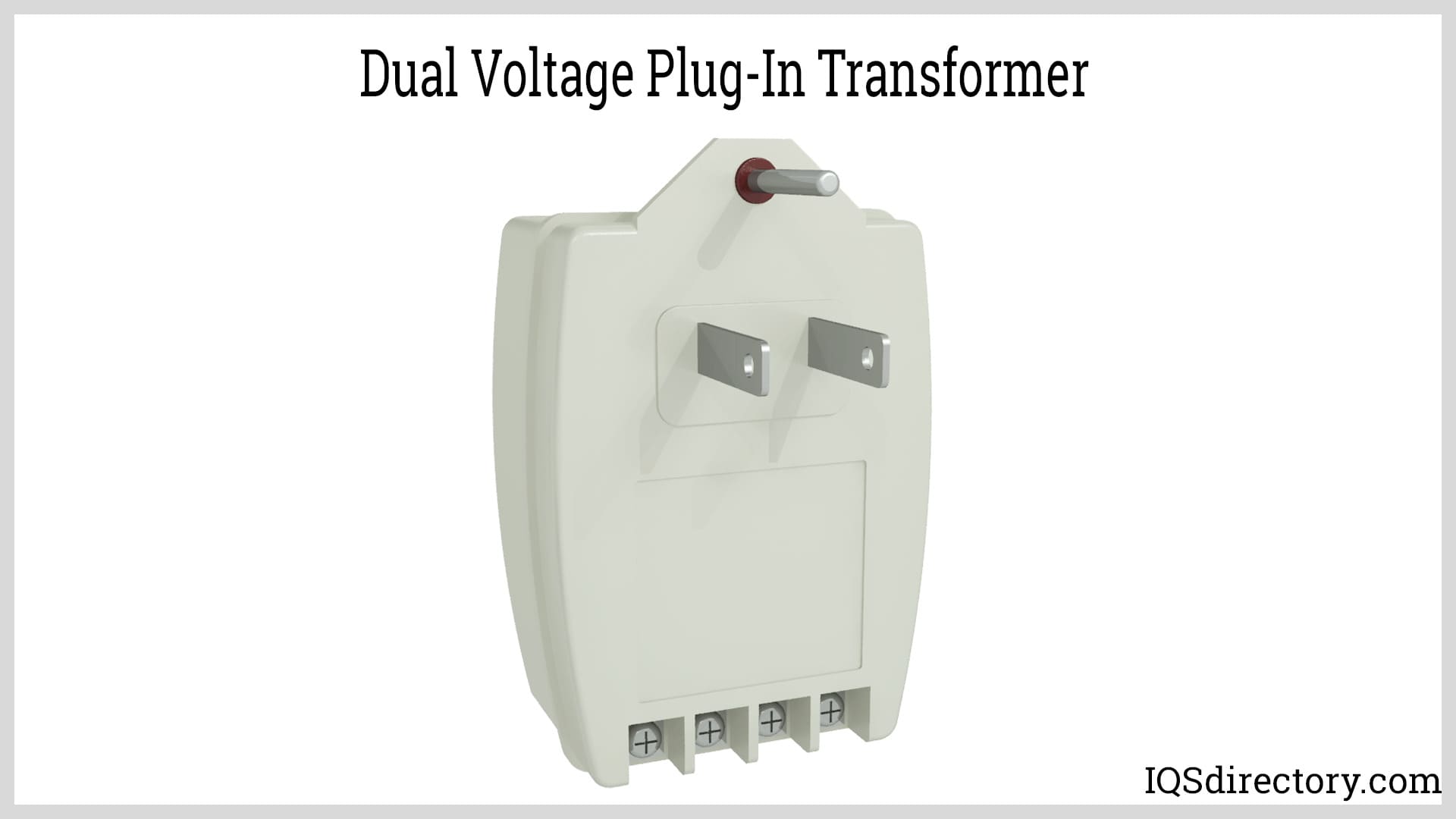

A dual voltage plug-in transformer has one or more windings with two voltages, which makes it possible for the plug-in transformer to provide two different voltage values. The factor that determines a dual voltage plug-in transformer is its number of windings that are able to circulate different currents and voltages. Plug-in transformers that can handle multiple voltages have it printed on their label, a factor that is common to many modern electronics.
A transformer that converts input voltage to one or more output voltages is referred to as a dual voltage transformer. With most plug-in transformers, dual plug-in transformers step down voltage to meet differing electrical requirements. They have multiple tap settings that allow users to select the voltage levels and isolate voltages for safety. Dual voltage plug-in transformers offer flexibility and efficiency when managing power supplies for electronics with different voltage inputs.
AC to DC plug-in transformers are a simple method for powering electronics from an AC main. With an AC to DC plug-in transformer, the transformer is connected to an AC rectification circuit. After the AC voltage is increased or decreased, the rectification circuit converts the AC voltage to DC voltage. The central part of an AC to DC plug-in transformer is the rectification circuit with full wave rectification being the best way to convert AC voltage.

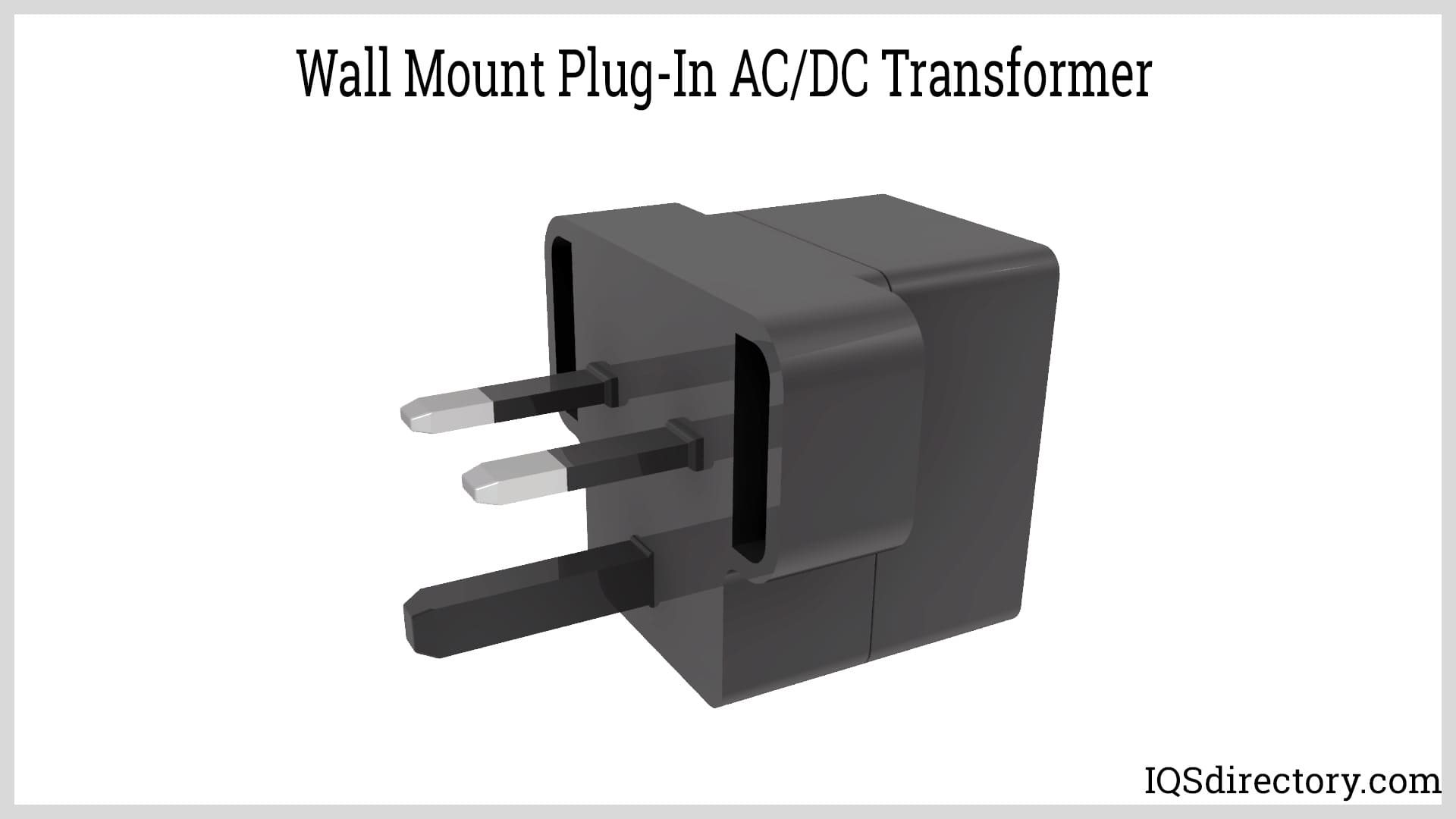

The two versions of AC to DC plug-in transformers are wall mount and desk mount. Wall mount AC to DC plug-in transformers plug directly into a wall socket and are connected to the load by a cable. Desk mount AC to DC plug-in transformers may be a stretch of the plug-in definition in that they are placed between the load and the plug-in socket.

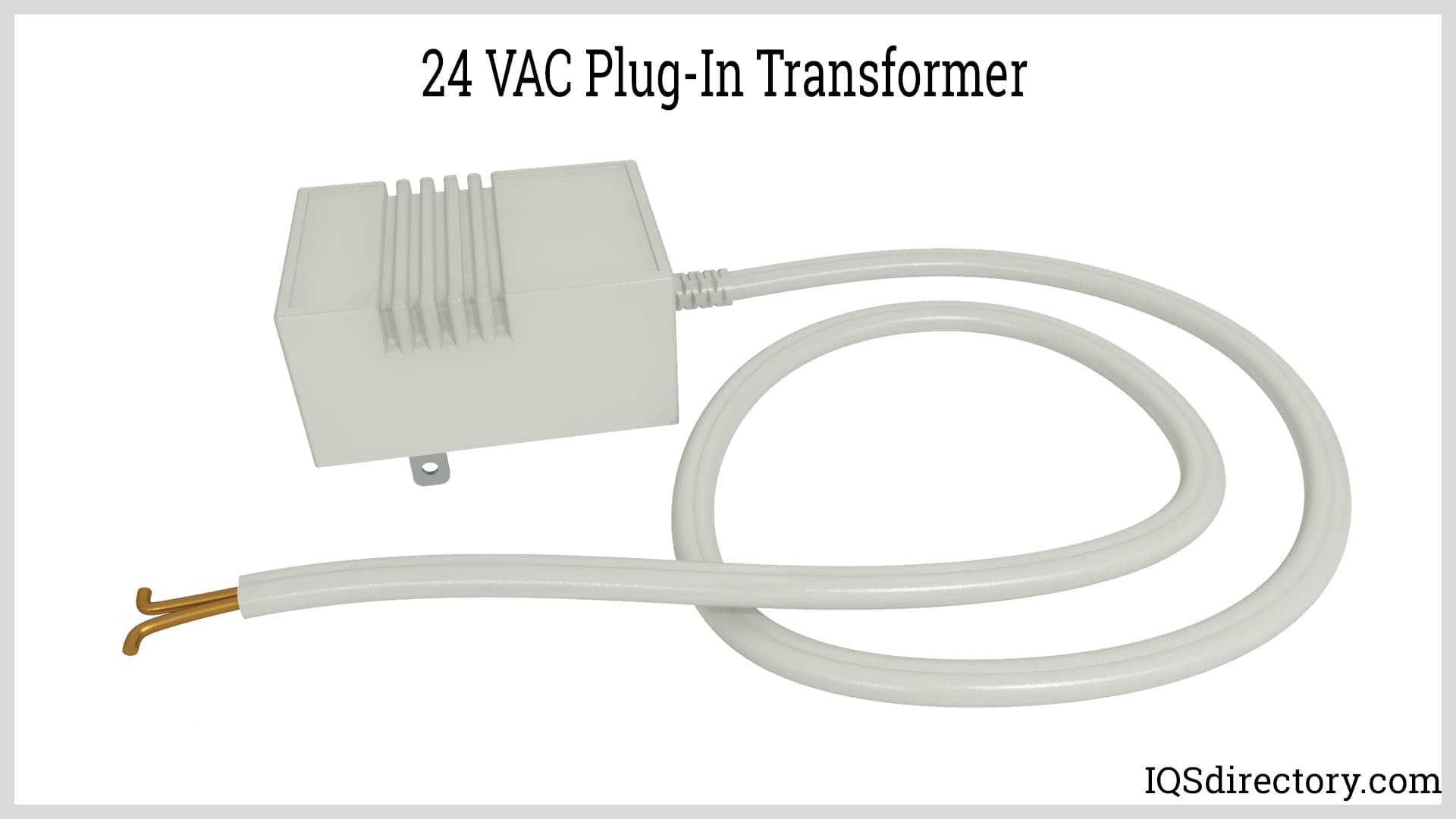

Of the various types of plug-in transformers, 24 VAC plug-in transformers are the most common. They are used to step down 120 VAC or 115 VAC to 24 VAC that is used for low voltage lights, door bells, and other electronic devices. The use of 24 VAC plug-in transformers is for convenience and safety. They are easy to install and eliminate any concern regarding electrical shock. There are many varieties of 24 VAC plug-in transformers that come with varying lengths of cable. Like all forms of plug in transformers, 24 VAC plug-in transformers supply the correct amount of voltage to avoid damage to electronic devices.
Isolation transformers separate primary and secondary windings to keep the two circuits physically and electrically separated. The primary purpose of isolation transformers is to eliminate voltage spikes in supply lines that can cause disruptions in service and damage equipment. They are a reliable and safe device that reduce power surges, noise disruptions, provide harmonic corrections, and improve power quality. The wide variety of isolation transformers include ultra, galvanic, drive, and dry isolation transformers, which are designed for specific purposes and applications.
The function of isolation transformers is the same as that of all other forms of plug-in transformers. They adjust input voltage to match the required output voltage of the load. What differentiates them from other plug-in transformers is their ability to keep electrical equipment separated from the power source.
The six plug-in transformers that are described above are a small sample of the many plug-in transformers that are available. They are very flexible tools that come in several varieties to meet the requirements of an assortment of applications. While the majority of plug-in transformers are easy to purchase, install, and use, there are certain features and uses for plug-in transformers that can be explained by the manufacturers.
One of the challenges of working with electricity is its production of electromagnetic fields that can interfere with the performance of other electronics. While electromagnetic fields are a danger in industrial and manufacturing operations, protection against them is especially critical in the medical profession where multiple electronic devices may be positioned in a recovery room or surgical bay. Plug-in power transformers are an essential tool for such situations that helps protect equipment and patients.

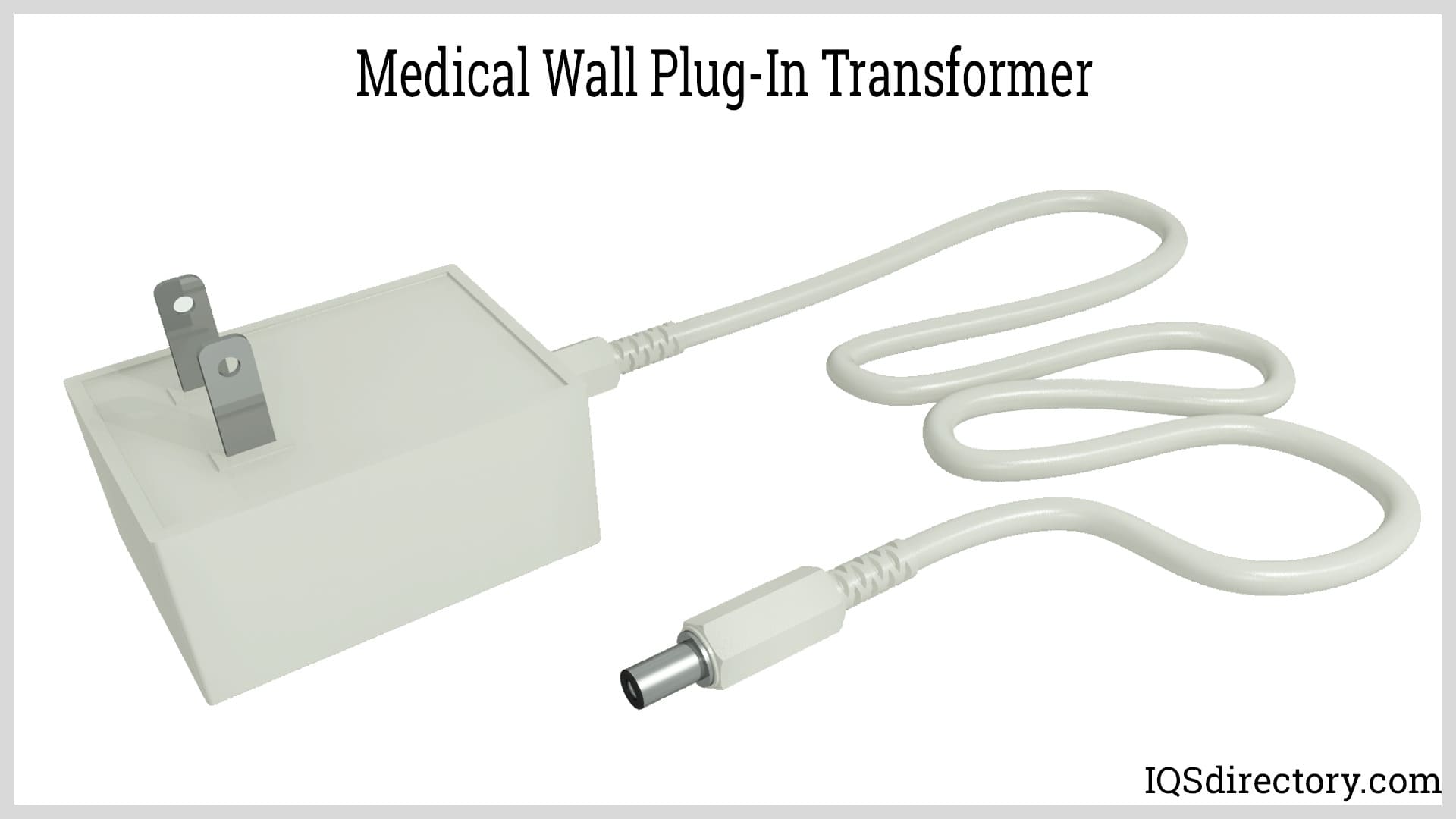

The types of medical equipment that depend on plug-in transformers include dental tools, testing labs, and heart monitors. The inclusion of plug-in transformers ensures that medical devices perform properly and provide accurate readouts. Every aspect of human health requires stable electrical supplies that are protected from surges, spikes, and instabilities by plug-in transformers.

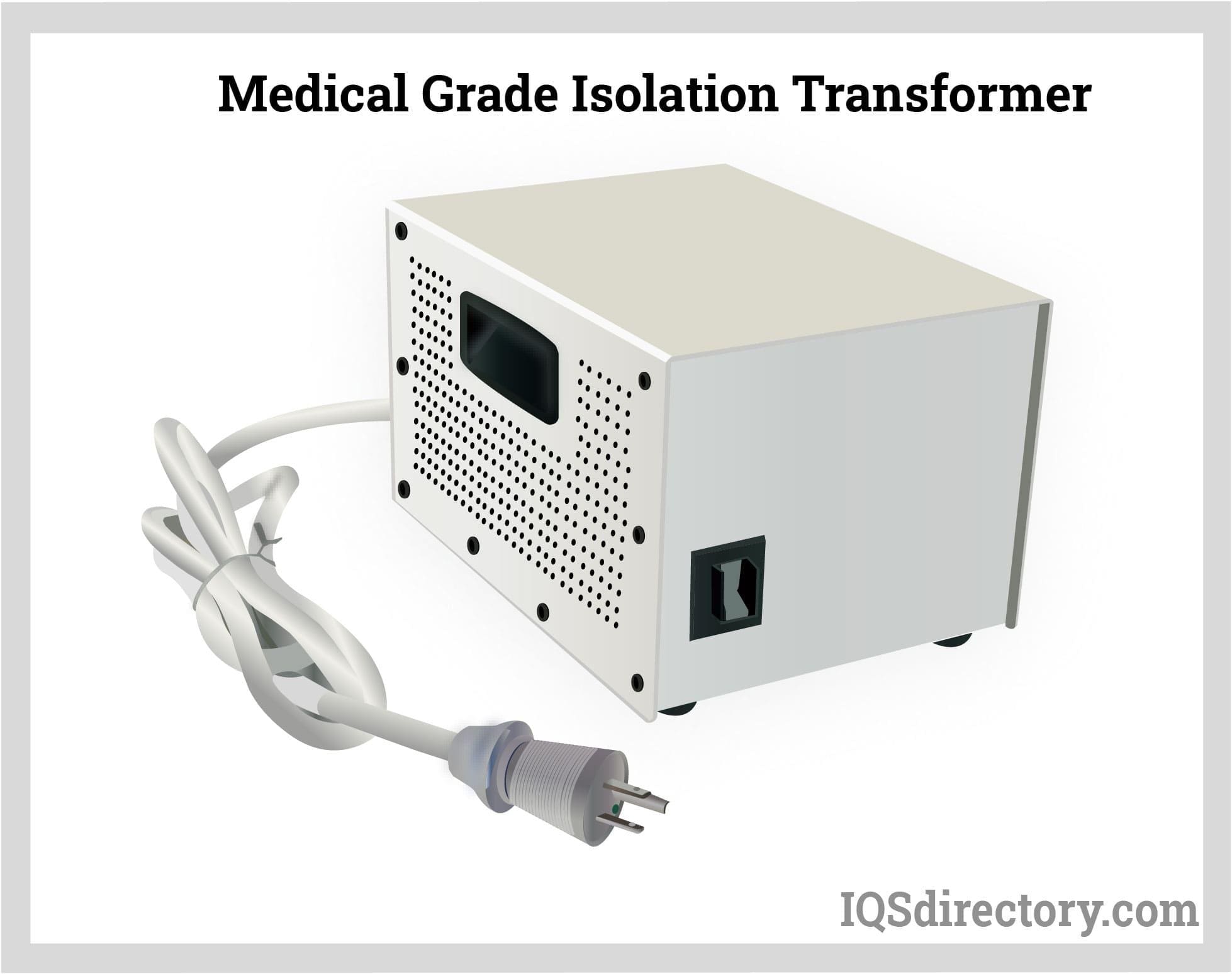

Isolation transformers for medical use act as a buffer between the power supply and hospital and medical equipment. As with all forms of plug-in transformers, isolation transformers lower voltage to fit the requirements of medical equipment. Their key feature is their ability to eliminate electrical spikes and surges, which can seriously damage sensitive and delicate equipment.

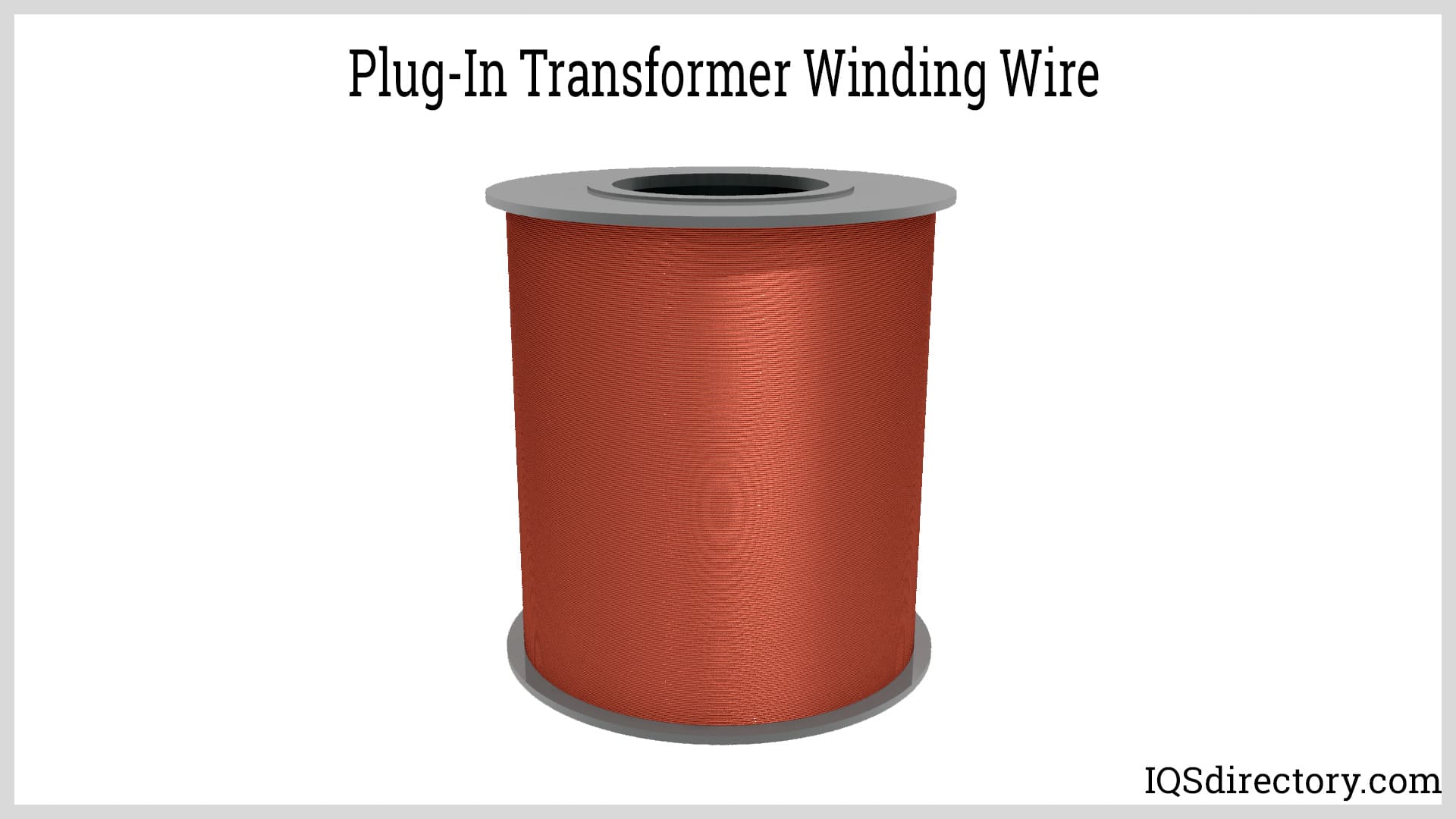

Wire selection when designing a plug-in transformer is an exceptionally critical factor since each type of wire provides benefits and drawbacks regarding the performance of a plug-in transformer. The most commonly used type of wire is insulated round copper wire, which is the wire to which most people are accustomed. The two forms of wire that are used in the manufacture of plug-in transformers are round wire and flat wire.
Wire for plug-in transformers are made of copper or aluminum with copper being the most popular due to the disadvantages associated with aluminum. The argument of copper or aluminum has been going on for years with aluminum being lighter while copper is a better conductor but bulkier.

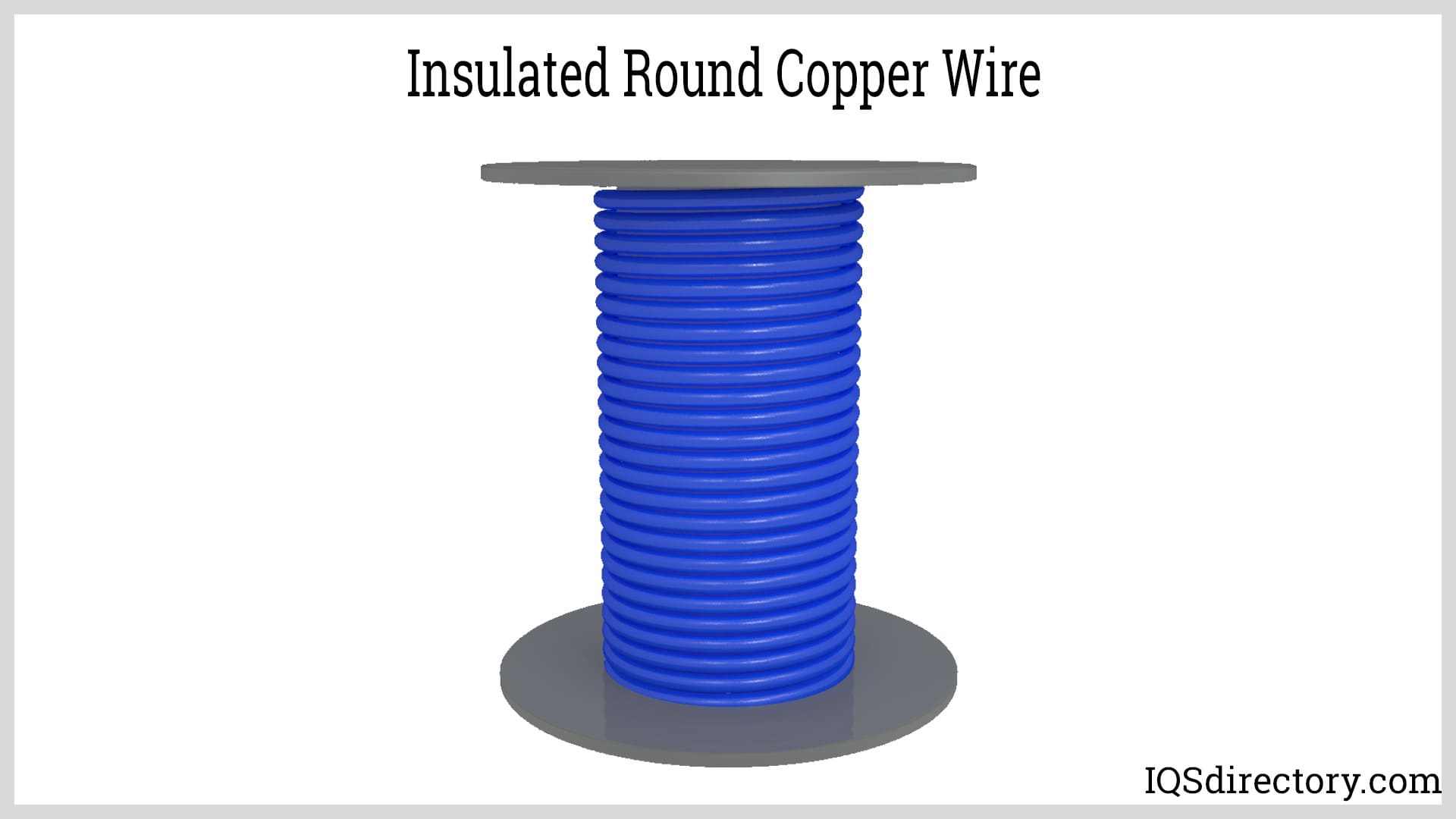

Round wire has a round conducting section that is covered with an insulation that can be made of polyglass, polyamide, or polyester. The insulation for round wire comes in a wide variety of types, which are used in accordance with the application for which the wire is used.
The traditional option for the manufacture of plug-in transformers is round wire, which is less expensive and is the most efficient. With higher frequencies, round wire can suffer the skin effect, where current flows along the surface of the wire, increases the wire’s resistance, a factor that can be overcome using Litz wire.

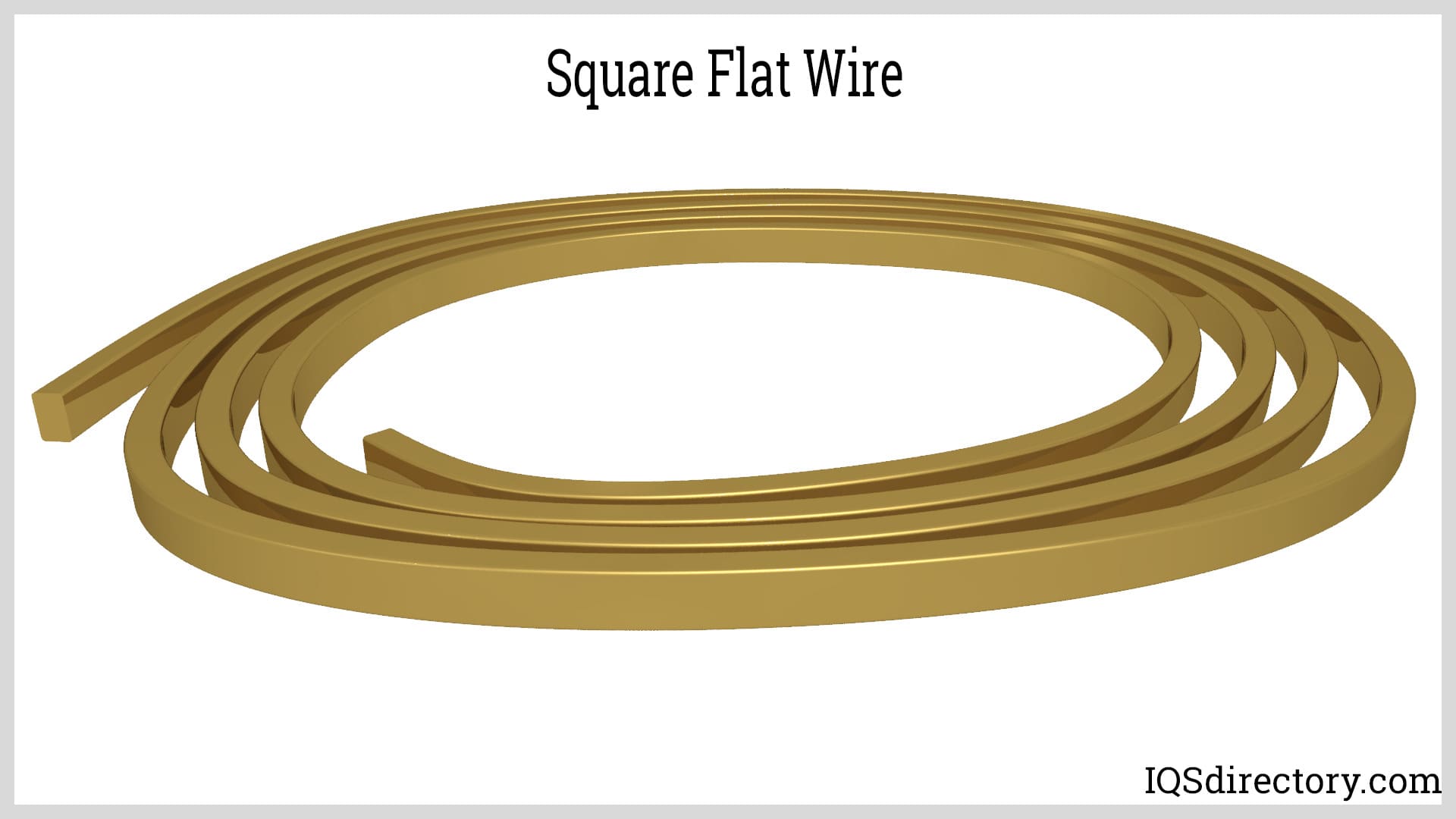

The cross-sectional appearance of flat wire is rectangular or square, a shape that has benefits that are unlike those offered by round wire. It is manufactured by pulling or drawing copper or aluminum through a die with the cross-sectional appearance of the required shape. The result of the process is thinner wire with the same width as round wire.
The shape of flat wire makes it more flexible, easier to shape, and allows for more contact points. Since space is limited in plug-in transformers, flat wire is ideal since it can fit into any space regardless of the size of the space. In addition, it has 60% more surface area but with the same cross-sectional area, which limits the skin effect at higher frequencies that leads to efficient performance.
Flat wire has higher energy storage, higher thermal efficiency, and limits the skin effect at higher frequencies. The downside of flat wire is its cost and being less available.

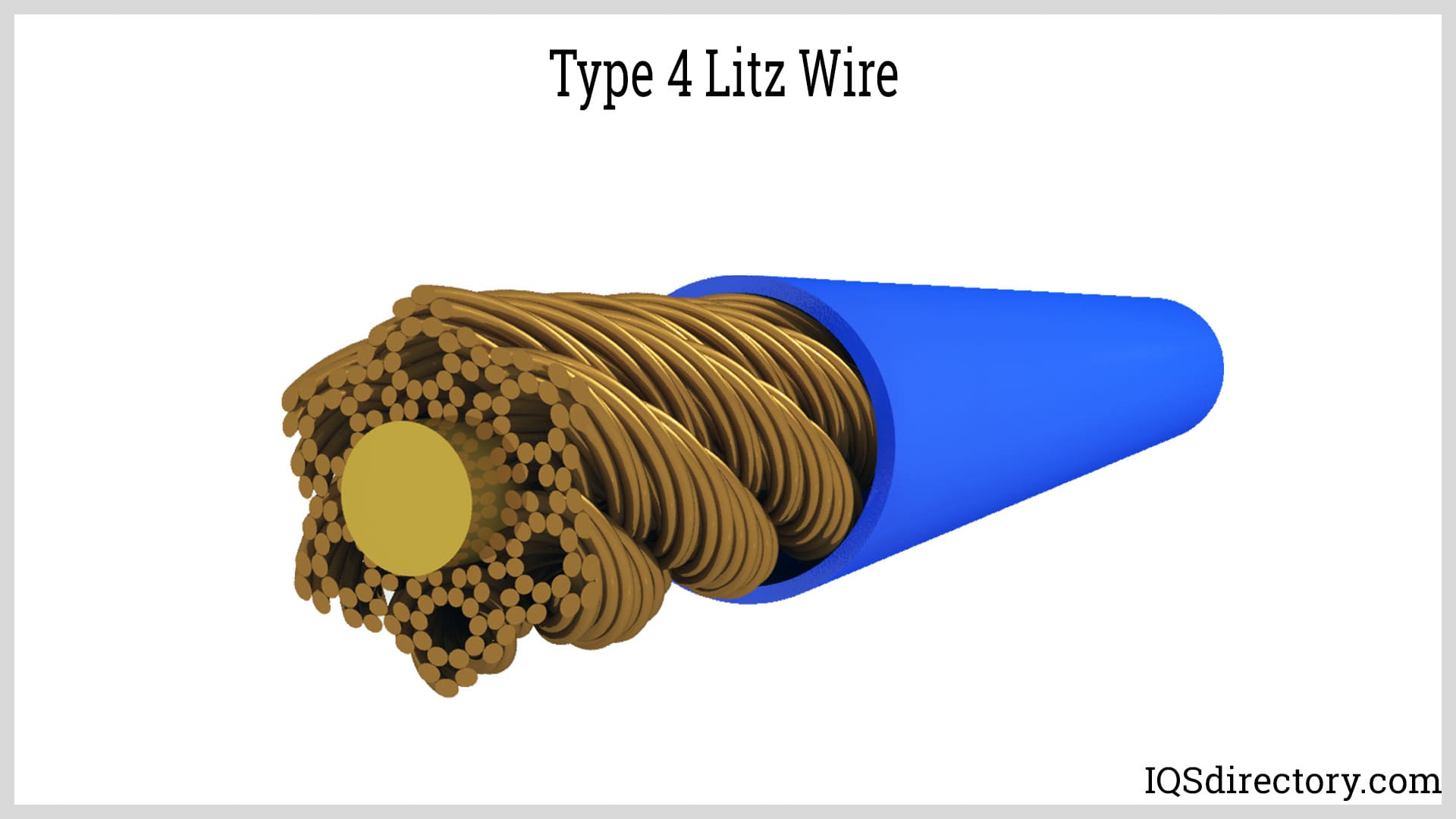

Litz wire is made of several tiny strands of wire that have been woven together in a specific pattern. It is a very flexible wire that is easy to use and commonly used for high frequency plug-in transformers. Unlike flat wire and round wire, Litz wire seldom suffers from the skin effect. It is available in a wide range of sizes that are differentiated by the number of stands (N) and the American Wire Gauge (AWG or XX).
There are eight common forms of Litz wire numbered type 1 to type 8, which vary in their structure, method of twisting, insultation, and other factors.
Plug-in transformers are specifically designed to be low energy devices with a secondary winding that has an impedance, resistance to electrical current flow, that is higher and helps limit current flow to a load. For safety purposes, plug-in transformers are double insulated, making them safe to use if there is not a protective ground present.
The National Electric Code (NEC) defines a plug-in transformer as a portion of a system that is between the load and power source and is connected to a piece of electrical equipment. The power limitations of plug-in transformers make them safe from causing fires as well as providing protection from power spikes and power surges. Plug-in transformers are designed and constructed with high impedance, which is why they are able to offer protection for low energy devices.
The use of wall plug-in transformers is important for the protection of low voltage devices that could be damaged by higher voltages. The design of plug-in transformers removes the need for various cooling methods since electronics can overheat during use. This factor makes it possible for manufacturers to produce smaller, lighter, and intricate devices with sensitive circuits.
The main factor for audio plug-in transformers is their impedance, which is provided to microphones, amplifiers, loudspeakers, and recording equipment. Impedance is measured in Ohms, the measure of resistance between two points of a conductor. When the impedance of a plug-in transformer is high, the measure of Ohms is high and the amount of interference in a speaker or headset is lower. Headsets that are used to listen to music around the house have low resistance at 30 Ohms. Professional sound engineers have headsets with high resistance at 300 Ohms.
Plug-in transformers efficiently match impedance levels for audio equipment for efficient power transfer without any distortions or overloads. The key factor is the avoidance of distortions especially in cases where music is being recorded or being projected through speakers.
In the early days of international travel, when Americans were mainly going to Europe, travelers were shocked at the different electrical sockets they found in different countries. At the time, such differences were inconsequential since electrical devices such as computers and cell phones had not been invented. As the number of electronics have rapidly grown, it has become necessary for international travelers to be prepared of the different types of electrical supplies and socket types that are found in foreign nations. This is especially necessary for computers that can be damaged by the higher levels of output found in foreign countries, which can be up to 240 VAC.

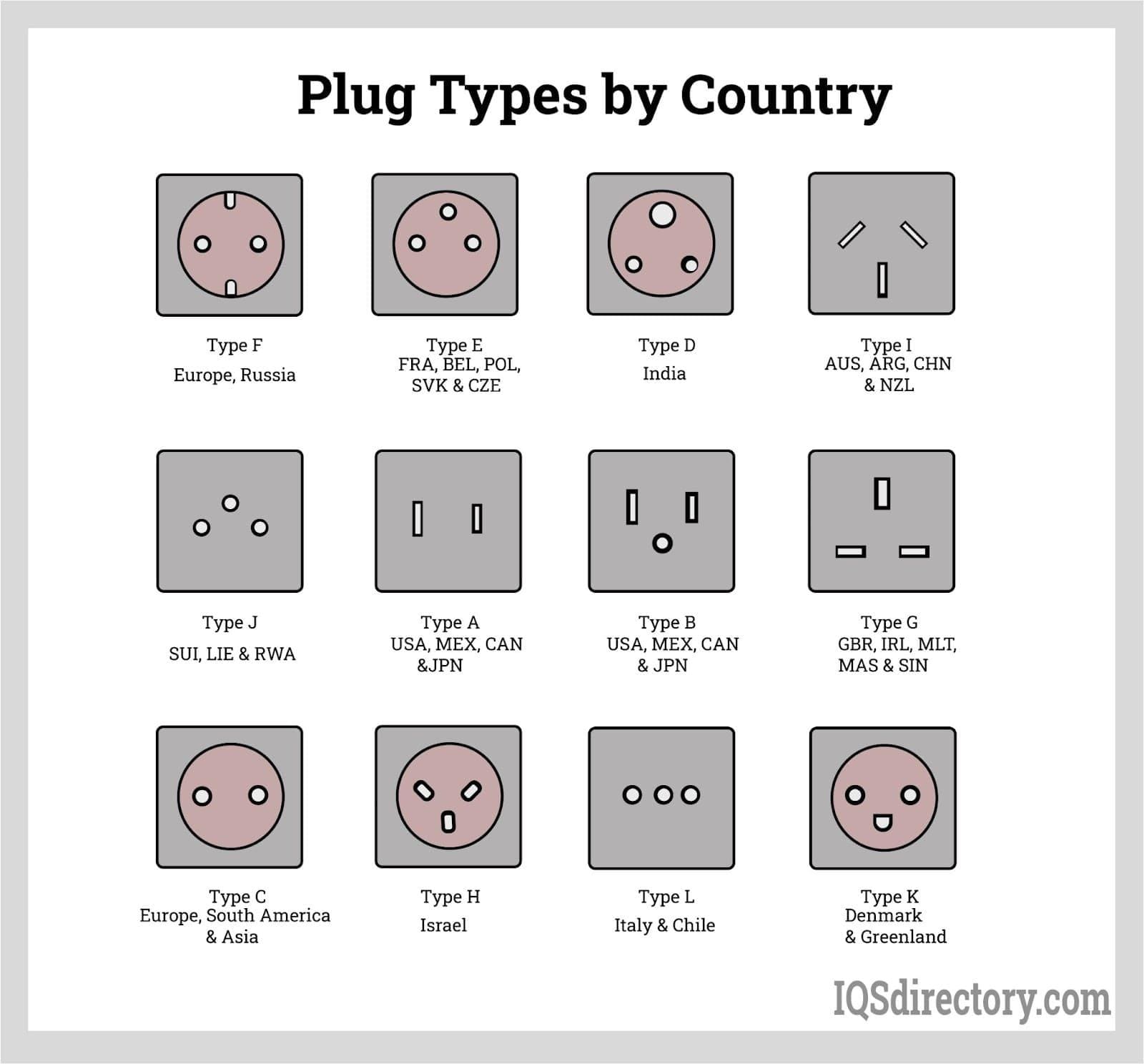

International plugs are classified by types with certain types being used in different countries. England uses type G plugs while Denmark uses types C, E, F, and K. A very common form of tour of Europe is to land in London and cross the English Channel by ferry to the Netherlands to begin a tour of the continent. Describing such a trip using sockets and voltage types, in England, a power source is 230 VAC and requires a type G plug-in transformer. When the ferry lands in the Netherlands, the voltage remains the same but the type of plug-in transformers changes to types C and F.
Plug-in transformer manufacturers are very aware of the challenges of traveling internationally and provide safe and reliable transformers that have interchangeable input plugs. This makes it possible for a traveler to immediately adapt to the power supply of a country.
The purchase of highly sensitive technical equipment involves a huge investment that can be destroyed with the use of the wrong type of power supply. Plug-in transformers have been used for years to protect sensitive electronics and enhance their power supply. They smooth power disturbances and reduce electrical noise that can diminish the performance of sensitive devices. In essence, plug-in transformers clean up power delivered from in-home and office outlets.
Technological devices can malfunction or be damaged when the power they receive is inconsistent with the power they require for their operation. Medical equipment, computers, and audio systems necessitate the transforming of power for their proper operation. Plug-in transformers, designed to step down power input, work as a valuable tool to protect sensitive devices and ensure their safe operation.
