Introduction
This article contains everything you need to know about Dust Collection Systems.
You will learn:
What is a Dust Collection System?
How a Dust Collection System Works
Types of Dust Collection Systems
Benefits of Having a Dust Collection System
And much more…
Chapter One – What is a Dust Collection System?
A dust collection system is a system that removes particulate contaminants from the air in production facilities, workshops, and industrial complexes. The system cleans air by forcing it through a series of airtight filters. Once the air is cleaned, it is expelled outside or recirculated, after it has achieved the proper emission‘s standards.
As concerns for the environment have grown, dust collection systems have become a necessity for industries that produce large amounts of dust particles and ambient gases. Manufacturers of dust collection systems are required to adhere to strict government guidelines and assure their customers of the efficiency of their systems as well as their compliance with EPA, NFPA, and MSHA standards.
Chapter Two – How a Dust Collection System Works
In simple terms, a dust collection system is designed to remove particulates from the air produced during a production operation. This short definition is an extreme simplification of the ingenuity required to design and produce a means of capturing harmful contaminants.
The basic components of a dust collection system include a blower, dust filter, cleaning system, receptacle, ductwork, and means of collecting the particulate matter. The common types of dust collecting equipment include fabric filter baghouses, inertial separators - sometimes referred to as mechanical cyclones, cartridge collectors, wet scrubbers, and electrostatic precipitators. Baghouse dust collectors are the most commonly used since they have a 99% efficiency.
The types of pollutants removed differ according to the industry. Dust collector manufacturers design and develop equipment to specifically meet the needs of each environment condition.
How a Dust Collection System Works

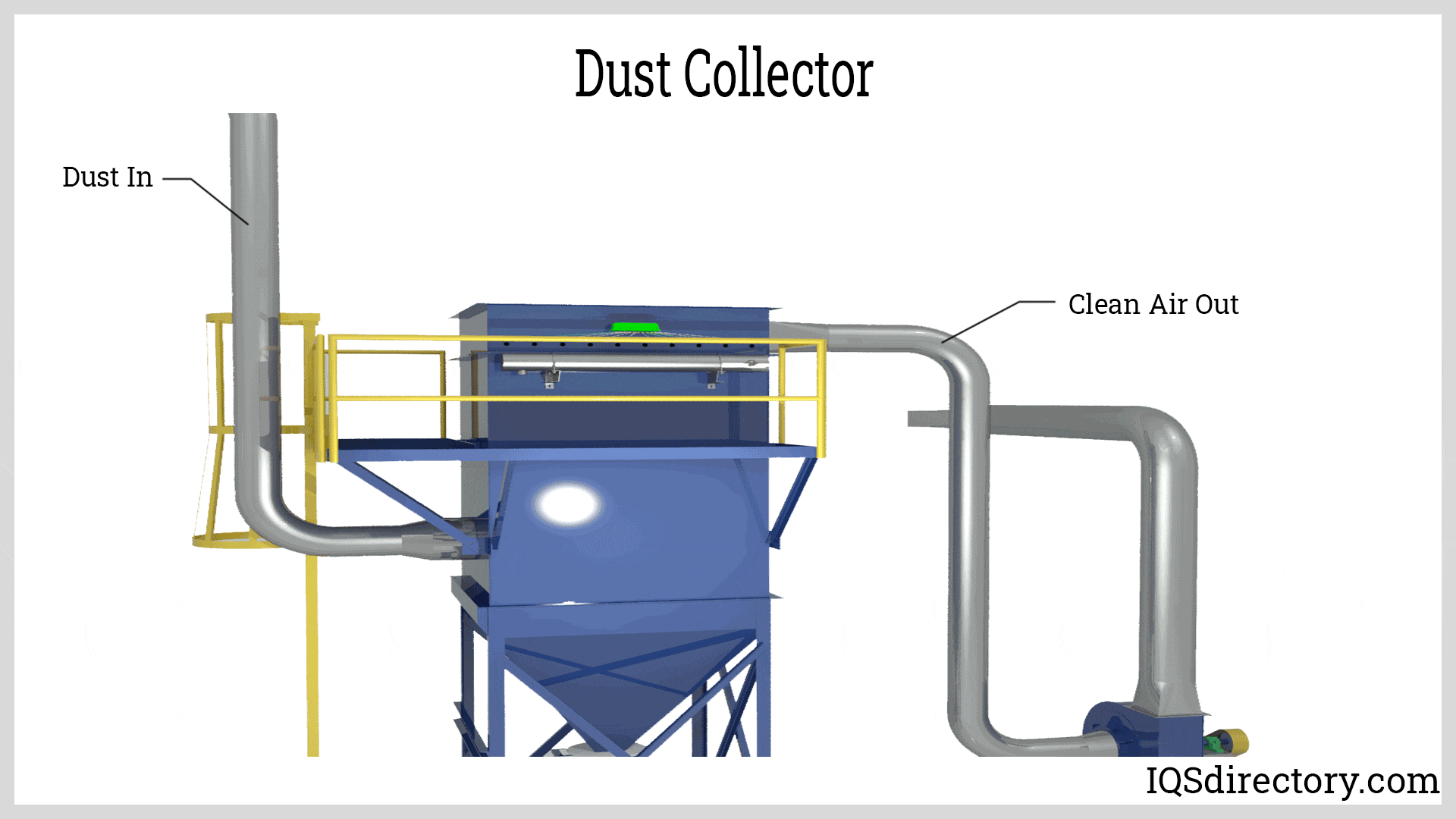

Dust collection systems have ductwork to draw in the air, an air purifier, and receptable. These basic elements are configured differently for each type of system.
Dust Collection Ductwork
The design of the ductwork may seem to be simple but has to be carefully considered to ensure proper performance of the system. The size of the pipe used depends on the tool size, air requirements, length of needed pipe, number of machines being serviced, and the types of particulates being extracted. The size of the ductwork changes throughout the system and collects the air drawn in by fans and collectors.

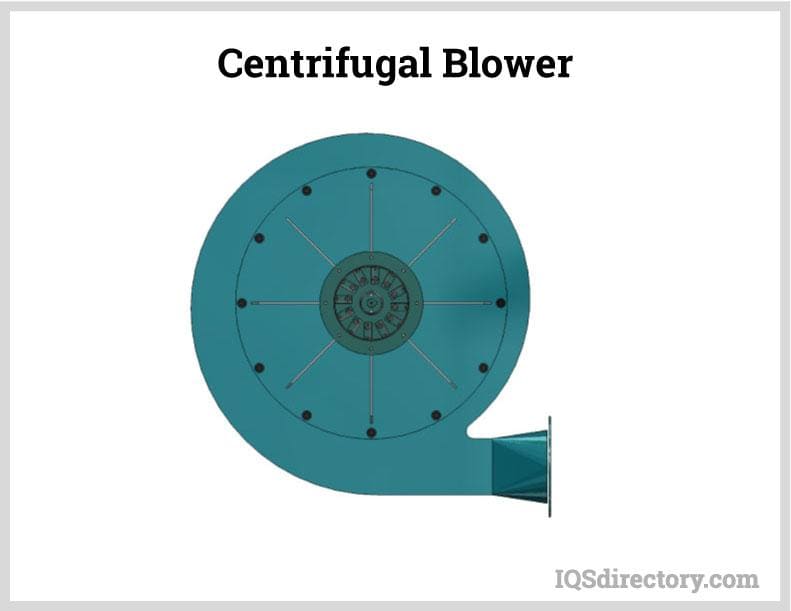

Fans or Blower
Though a fan or blower may have a simple design, when installed in a dust collection system, several factors have to be considered. First of those factors is the volume of air that needs to be moved. This is measured in cubic feet per minute (CFM). The next consideration is the static pressure throughout the whole system. Other variables are the temperature, substances in the air, and the level of moisture.
The blower or fan is a critical element in a dust collection system since it is the mechanism that pulls the contaminated air into the ductwork away from the workplace and sends it to the filtration and cleaning systems. The basic types of blowers are centrifugal and axial. The centrifugal type has wheels in a housing, while the axial type has propellers.
Dust Filter
The dust filter is the air cleaning portion of the dust collection system. There isn‘t any one standard of dust collection filter. In essence, the blower pulls the air from the location into the filter that removes the particulates from the air. The air to cloth ratio is the amount of air that passes through a square foot of the filter. The lower the ratio, the higher quality of the filtration system's efficiency.
Dust Filter Cleaning System
As can be imagined, the filtration system for a dust collection system can become filled and clogged as particulates build up on the surface of the filter. There are a variety of methods used to clean filters some of which involve shutting down the system. For systems that have to be in continuous operation, this is not an option and during operation alternate methods have to be used.
An on-demand system has a controller with a pressure sensor for monitoring the static differential on the filter. The system measures the pressure differential between the clean air plenum and the dirty air plenum on the filter. When the levels are too high, it sends a signal to a diaphragm valve to release compressed air into the filter to remove the accumulated particles. This is referred to as a pulse jet baghouse or pulse jet dust collector and is the most common form of particulate air pollution control equipment. A magnehelic gauge monitors the pressure while a photohelic gauge, connected to the timer board, communicates with the pulse down cleaning system.
Other systems produce an alarm to advise operators that a significantly high pressure has been reached. Most systems, whether they are on demand or not, have control devices that make operators aware of a collection failure or drop in pressure across the filter.
Receptacle
Once the particulate matter passes through the system and is removed from the filter, it falls into a container or receptacle for collection. The design of the container depends on the type of material being filtered and its loading rate. The main types of mechanisms are:
Enclosed box – collected material is funneled into a receptacle.
Drum or bag – a mechanism that requires replacement of the drum or bag that collects the matter.
Rotary valve – is used to replace a slide gate to allow replacing the container without worrying about the hopper being full.
Screw conveyor – a conveyor system that moves matter along to a storage or disposal location.
Pneumatic conveying systems - are used to move the collected dust and particles to another location.
Dust collection systems are a critical part of several industries. Their design and engineering have to match the needs of the industry where they are being used with the main purpose of controlling, reducing, and removing contaminants, harmful matter, gas fumes, and dust. They are engineered to purify and filter air such that it can be released into the surrounding environment or back into the workspace.
Each industry has a different array of pollutants and harmful particles to be removed. Dust collectors must meet the specific extraction needs required by each industry to provide optimum air purification.
As the standards for clean air have become more rigid, manufacturers of dust collection systems have risen to the demand and produced air purification devices that meet and exceed government requirements.
Types of Dust Collection Systems
Shaker Dust Collection Systems

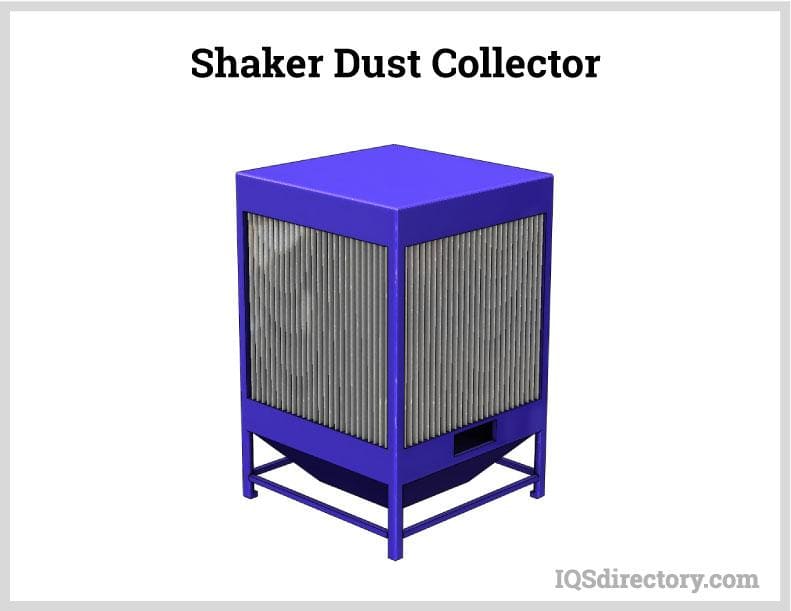

The shaker design of dust collection systems is a baghouse system that shakes the fiters to release the particles into the collection bin or hopper. They operate using one of two systems, which are compartmentalized or when the air flow is stopped. The compartment design is more practical since it allows for continuous operation without needing to take the whole system offline. They are used where it is not possible to supply compressed air to clean the filter such as foundries, steel mills, mines, and smelting plants.
Cyclone Dust Collection Systems
Cyclone dust collection systems are a form of inertial separator that uses centrifugal force to separate particulates. The cyclone is created in a self-contained chamber where the air is purified by cyclonic action. The circulated airflow, which is somewhat similar to a vortex, pushes the heavier contaminants against the walls of the chamber. Once collected, they slide down the sides of the chamber into a collection hopper. They are used by woodshops, paper mills, shot blasting processes, and grain mills.
Baghouse Dust Collection Systems
The most common form of dust collecting system is the baghouse. It is the most efficient system that uses a fan to create a vacuum to force contaminants through a filter in a bag. Baghouse methods are divided by how they clear their filters. The shaker method shakes the filter to remove the collected dust. The jet version uses a burst of air when a sensor detects the filter is full. The reverse air method forces fresh air through the filter. Some of the industries that use baghouse systems are powder coating companies, cement plants, paper manufacturers, and rubber recycling.
Dust cakes on the outside of the bags and is removed down into collection hoppers by a blast of compressed air or being shaken. They operate continuously to collect particles of any size. The design of the system allows for easy access for maintenance.

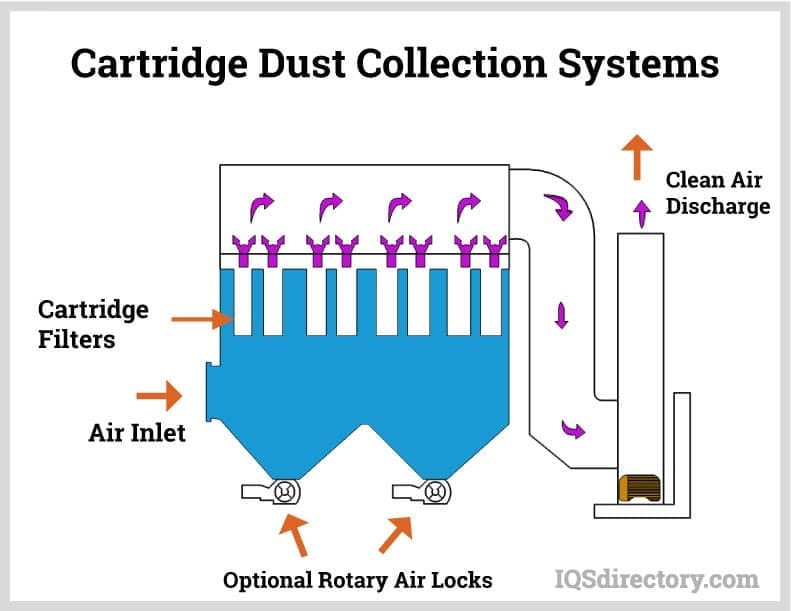

Cartridge Dust Collection Systems
There are different forms of cartridge dust collection systems with some systems having the cartridges hung vertically while other systems have the cartridges placed horizontally. The design of the two systems is to meet the needs of different air filtering processes.

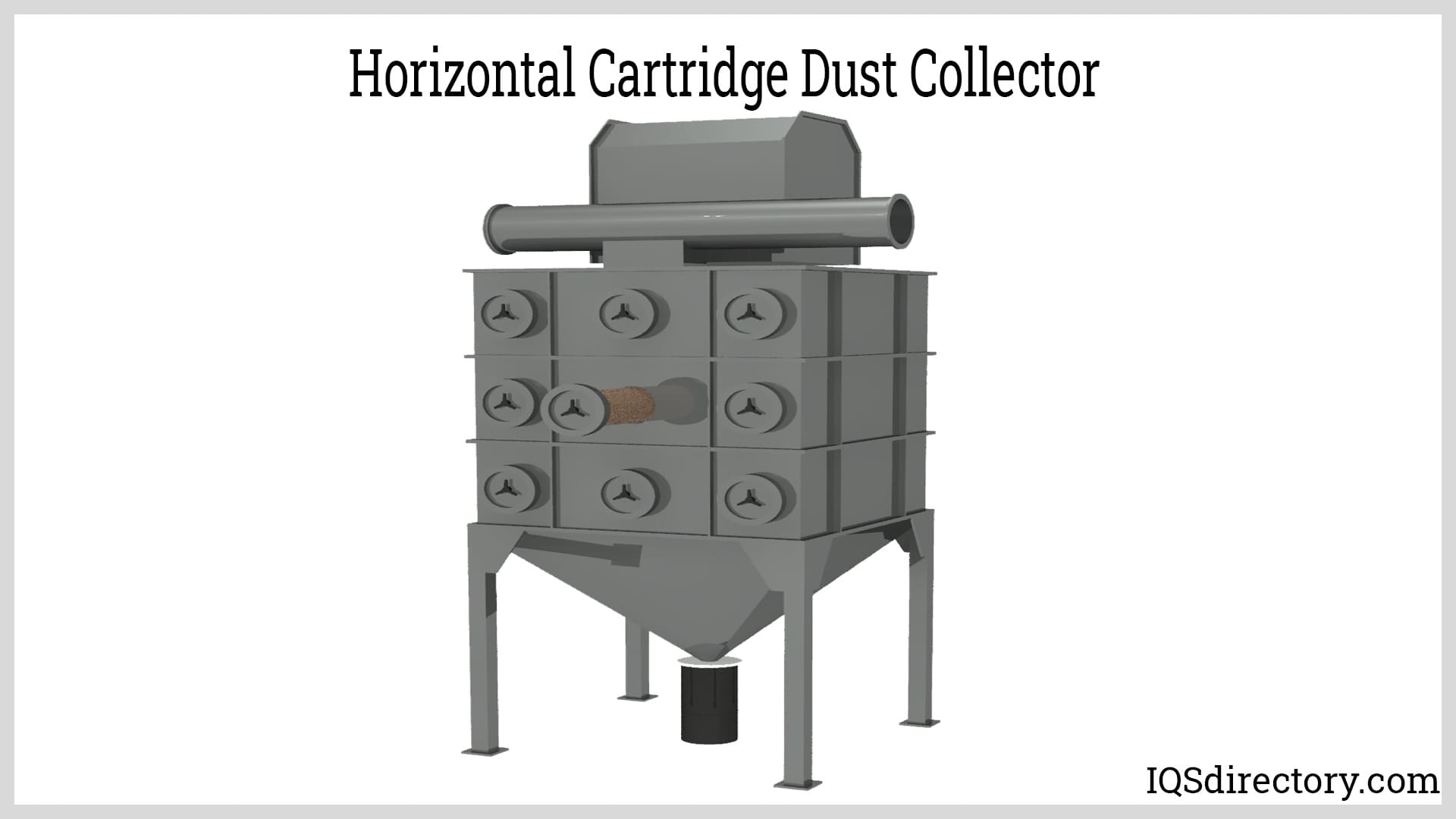

With a horizontal system, dirty air enters the cartridge at high velocity. The top row of cartridges have deflectors to protect the other cartridges and to ensure the cartridges do not get clogged. As the dirty air goes through the cartridges, it is deposited on the external part of the filter. In cyclical fashion, a burst of air is injected into the cartridge that creates a wave effect through the filter shaking the collected material into the hopper. The horizontal system allows for permanent and perfect cartridge alignment without yokes, sagging, or cracking. Gaskets are used to create a tight and secure seal along the housing and filters.

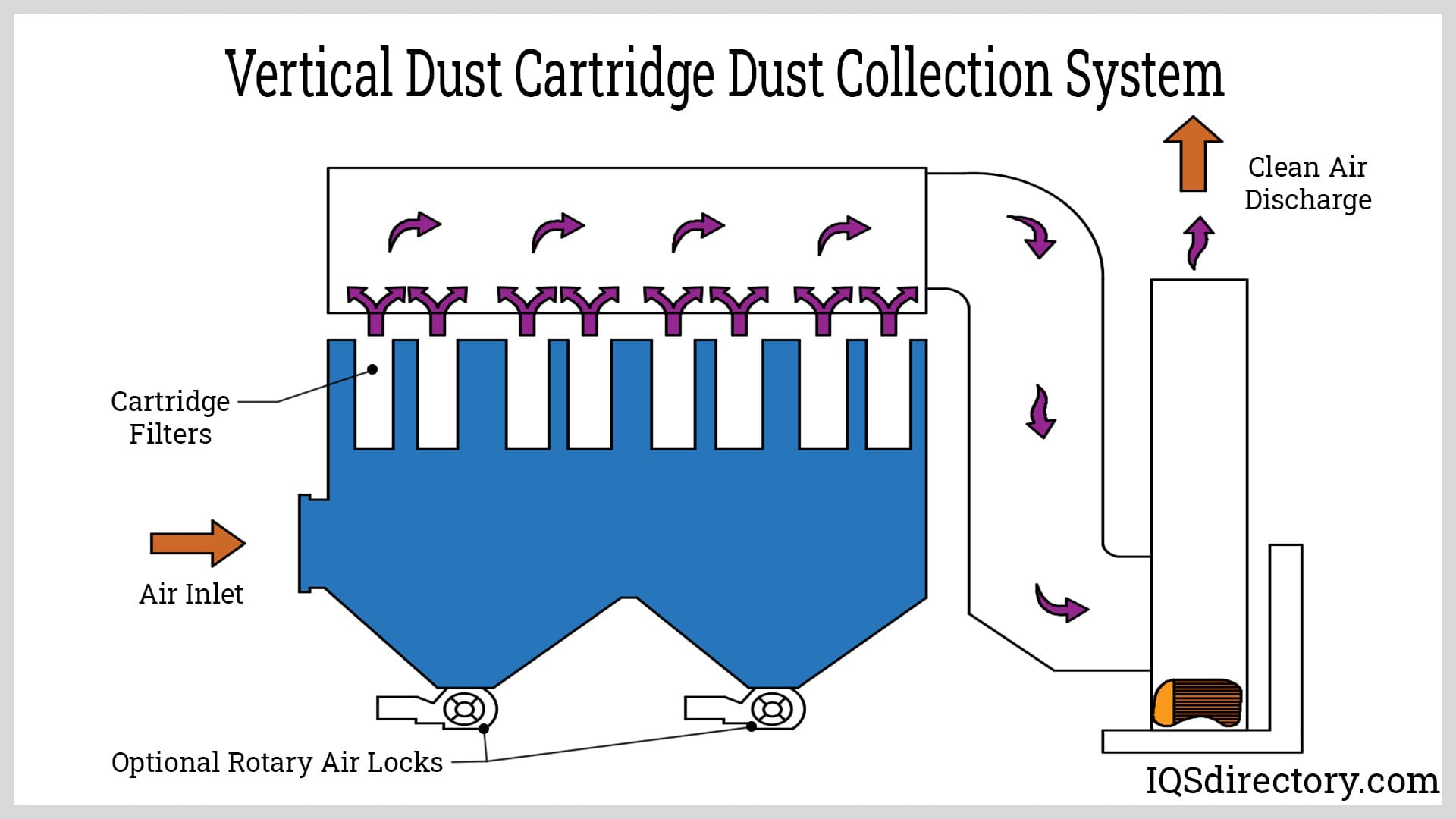

Vertical cartridge dust collecting system replaces bags with cylindrical or oval shaped cartridges that are open on both ends and are lined with pleated filtering media. One end of the cartridge is sealed with the open end used for clean exhaust. The air stream is forced through the outside of the cartridge to the inside. The cartridges are kept clean by compressed air blown into them, which removes built up dust that falls into the hopper below.

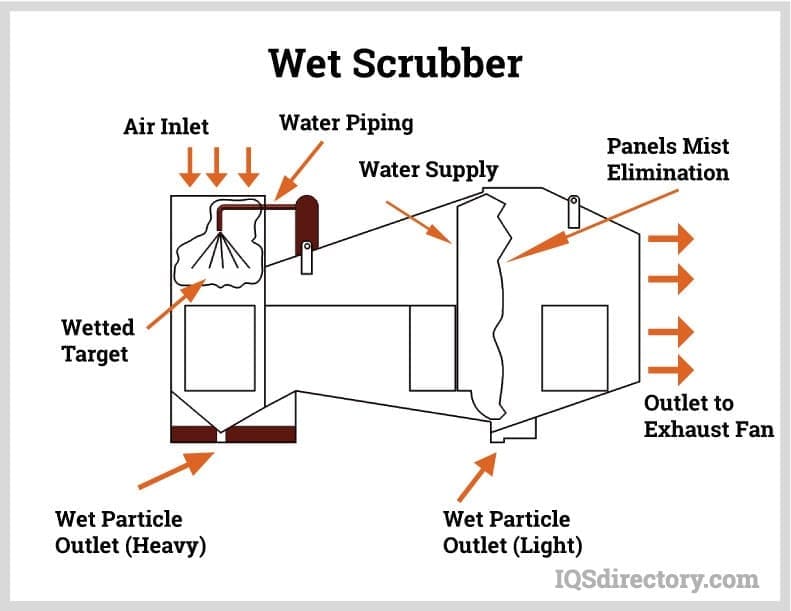

Wet Scrubber Dust Collection Systems
A wet scrubber dust collection system uses droplets of water to capture the dust particles. The system has two whirling blades that turn in opposition to each other. The first blade pulls the dust ladened air into the mechanism and saturates it with water. As the rotation accelerates, a mist eliminator forces the watered dust particles into the disposal unit. When the dust particles are soaked with water, they increase in size, which makes them easier to remove. Types of scrubbers include gravity spray towers, cyclone spray chambers, impingement scrubbers, packed bed scrubbers, and venturi scrubbers.
Downdraft Table

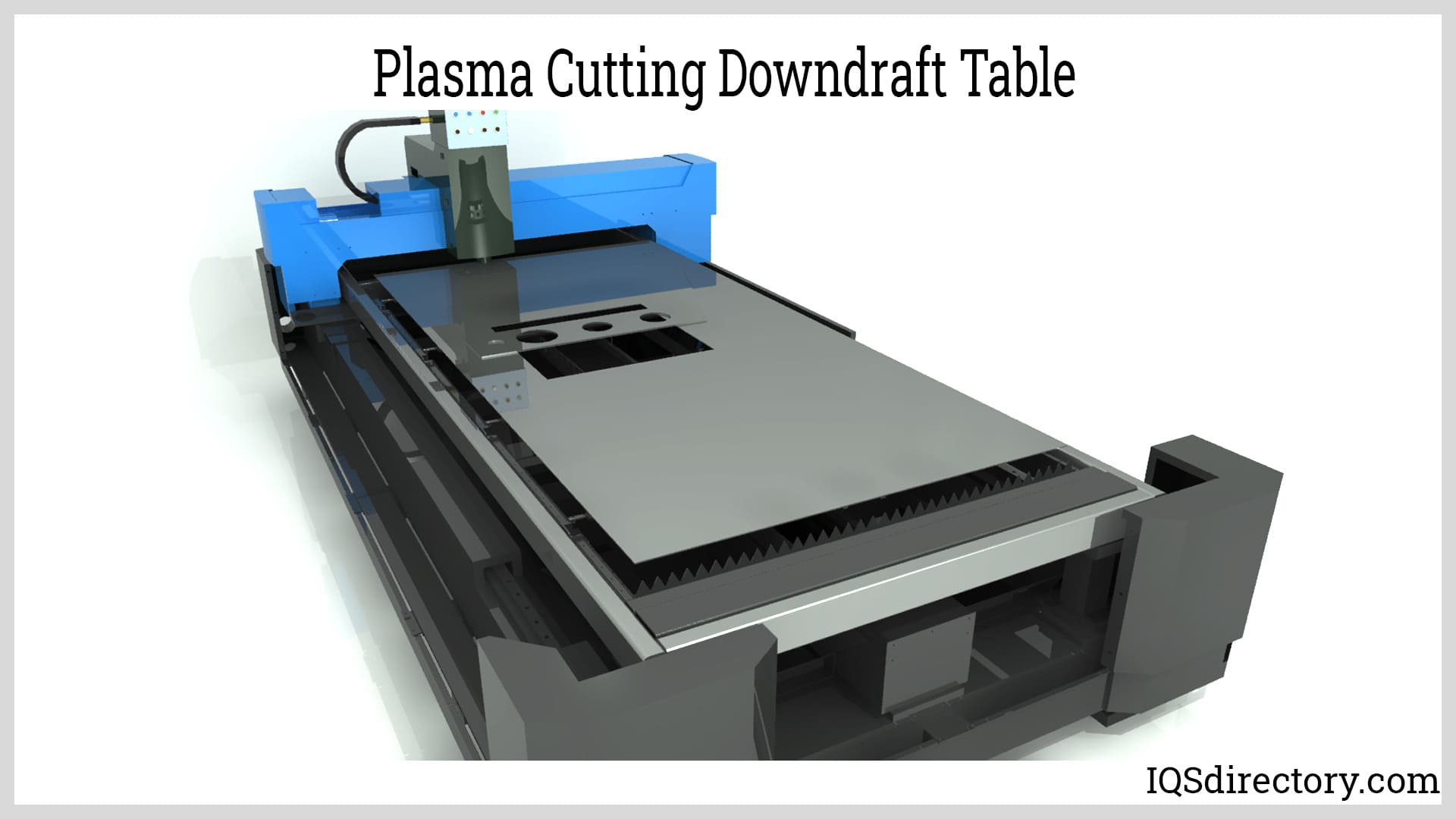

Downdraft tables are self-contained dust collection systems that suck particulate matter from the table into a filtration system. They are portable dust collection systems that function as a workspace and are used for small jobs. They are normally made of steel with a powerful suction motor. Downdraft tables are referred to as extractors or grinding tables. To allow for airflow, the top of a downdraft table is perforated. The size of the perforations influences the airflow and efficiency of the table.
Self-Contained, Internal Return Dust Collection Systems
A very viable solution for dust collection for processes that create dust as part of manufacturing and processing is a self-contained, internal return dust collection system that uses a set of fans, filters, and collection bags to remove dust from workstations and manufacturing. They are a type of positive pressure bag collector and are used in facilities where particles do not reach the submicron level. Unlike dust collection systems that send environmental air to a filtering system, a self-contained, internal system removes dust where it accumulates and sends it to be filtered and collected.
This type of system is the least expensive and extremely efficient. It is designed to collect wood chips, plastic particles, and materials that accumulate on solid surfaces. The system is completely self-contained, meaning that it does not discharge air into the atmosphere and comes in sizes to fit any operation.
Ambient Dust Collection System
An ambient dust collection system is used for fume and dust collection and uses a cartridge type filtration system with pleated bags. The efficiency of an ambient dust collection system can change the air in a building. A capture system that uses hoods, arms, and capture points is a part of an ambient dust collection system. As the cleaned air returns to a building, it forces dirty air into the ambient dust collection system.
The advantages of ambient systems are their ability to remove dirty air from the work area and return filtered clean air without the use of ductwork. Ambient systems are push pull where they remove dirty air and return clean air. The system is capable of removing fugitive dust or fumes from portable sources.
An ambient system includes multiple, smaller collectors instead of one very large one. In shops with variable production, two or more small systems may be preferable to one large system. Such a system allows for adjustments to be made to meet present conditions.
The main feature of a push pull ambient system is cleaning the air and returning it. This is unlike a system that cleans the air and releases the clean air outside the building, which can be wasteful. The push pull method is highly efficient and energy saving and takes advantage of heating and cooling systems that do not exist with air being vented outside.
Needlepoint Bipolar Ionization (NPBI)
A part of ambient dust collection systems is bipolar ionization, known as needlepoint bipolar ionization (NPBI), which is a process that uses air purification technology to kill airborne viruses. The installation of NPBI technology improves indoor air quality for healthier working conditions. Filters provide filtration for the air while the ionizers take the exhaust and give it passive air filtration to enrich the air being returned to the building. The ions from the system move in the airstream and clean the air everywhere, even in unseen places.
NPBI uses an electronic charge to create a plasma field filled with a high concentration of ± ions that are like ions found in nature. As they enter the airstream, they attach to particles, pathogens, gasses, and odors, including submicron particles. The particule become attracted to each other and large enough to be easily filtered. The ions kill the particles by removing their hydrogen, which is essential for their existence.

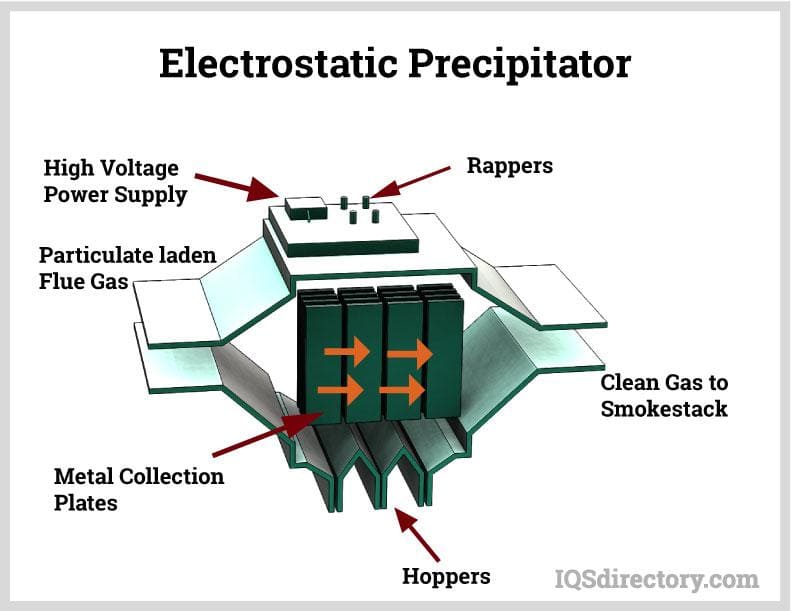

Electrostatic Precipitator System
Though filtration systems are a popular form of dust collection, there are systems that do not use filters. One of these is an electrostatic precipitator, which uses the force of electrostatic energy to remove particles from the air and has discharge wires and collecting plates. As particles pass through the system, they are ionized and charged, which causes them to be accumulated on a collecting plate. From the collecting plate, the particles are removed by rapping or vibration. The process can be seen in the diagram below.
Electrostatic precipitator dust collectors (ESPS) are effective with large air flow. Common users of ESPS are coal fired power plants and paper mills that have a high volume of gas passing through boilers and process high volumes of air, which is too large for a baghouse system.
A problem with ESPS systems is how slow particles are to take on an electric charge. For the system to be effective, the particles in the air must be capable of taking on a charge rapidly for quick removal.

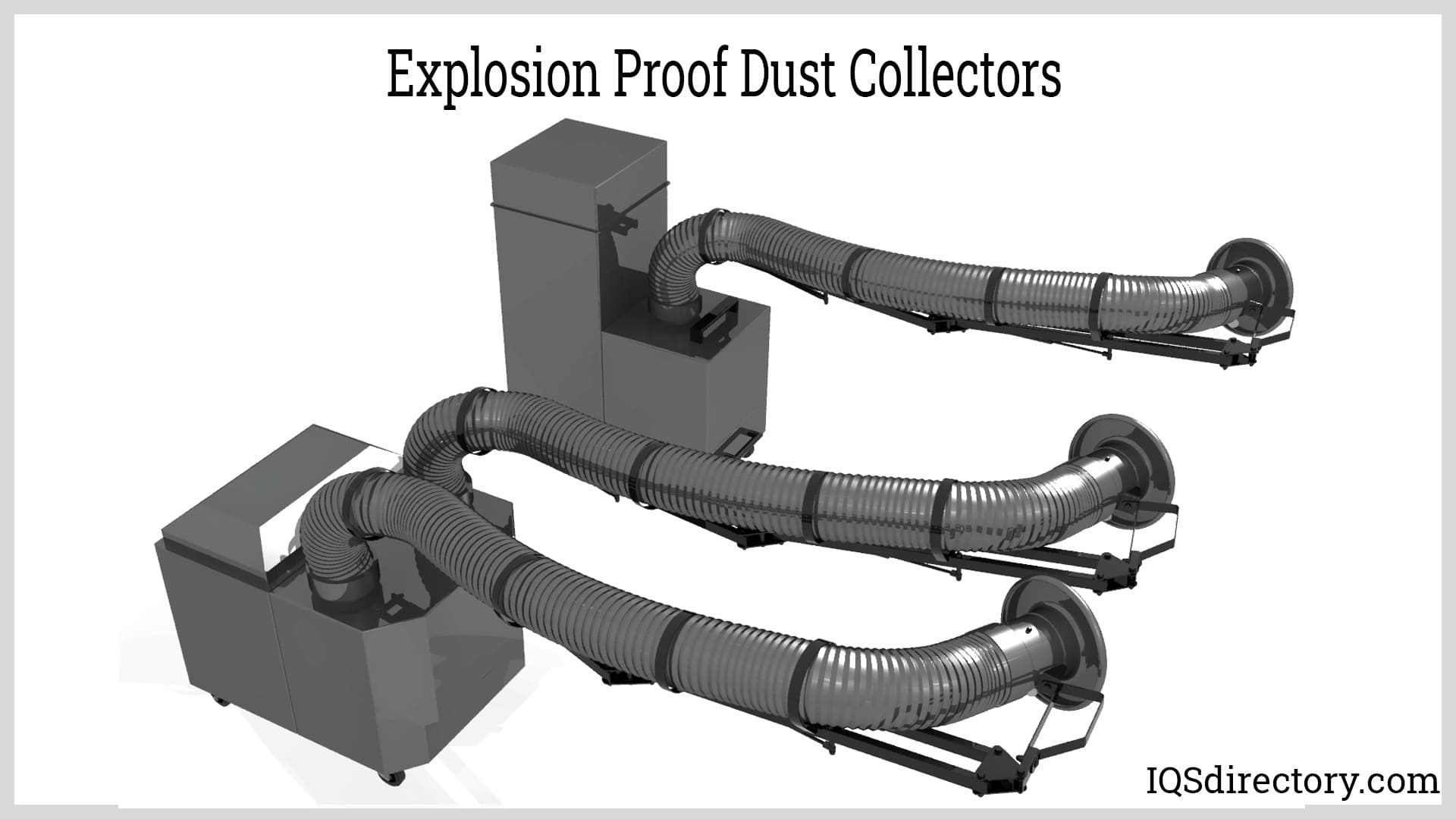

Explosion Proof
The main function of dust collectors is to collect dust and clean the air. The majority are not designed to extract flammable materials or explosive dust collected in the dust collection system. These hazards require special explosion proof dust collectors that are made of materials and have systems to prevent and control explosive materials.
The first step in selecting an explosive proof dust collection system is identifying the types of dust that a process creates. Various types of dust have to be controlled and monitored differently in order to be controlled. Although explosion proof dust collectors are designed to suppress explosions, each type is manufactured to meet the requirements of different forms of dust and have to be selected according to their criteria. It is important to know that all organic dust is explosive and requires an explosion proof dust collector.
In cases where there are potential explosive or flammable particles, the process starts with a “go or no go” testing where dust is sent to be evaluated. The process provides guidance in helping in selecting the proper dust collecting system.
Chapter Four – Benefits of a Dust Collection System
As the number of regulations and standards for air pollutants rise, dust collection systems are becoming a necessity, though at one time they were considered to be an add on luxury. Manufacturers of dust collection systems keep strict watch on government standards and design systems that expertly adhere to the requirements.
Aside from the various regulations, there are practical reasons for installing a dust collection system. The first consideration is the protection of the health of workers who have to work in gas filled and dust saturated environments.
Benefits of a Dust Collection System
When making the decision as to installing a dust collection system, there are certain factors that should be considered. Though less expensive systems may be more attractive for financial reasons, the most important factor is the quality of the air in the workspace and the area around the facility.
Fire Suppression
Whenever there is a concentration of dust and gas, there is always the potential for fire. By having a dust collection system, especially one with a spark arrestor, the concern for fire is significantly reduced. A dust collection system has dust constantly moving, which prevents it from collecting and becoming a hazard.
Explosion
Prior to the development of dust collection systems, dust explosions, especially in woodworking shops, were very common. The problem was so prevalent that many shops had a wall that was open to the outside. Much like fire prevention, dust collection systems keep air moving and circulating to prevent the possibility of dust collecting sufficiently to produce an explosion bubble.
Odor Reduction
Air in a dust collection system is constantly circulating and being refreshed, which assists in keeping odorous contaminants out. Though dust collection systems may get confused with air conditioning, they have far more benefits. When polluted air is sent through filtration, it removes the contaminants and the odors that they create. Odor reduction is not common to all dust collection systems. Where odor is a concern, carbon impregnated filters are used.
Respiratory Health
One of the major areas of concern for the Occupational Safety and Health Administration (OSHA), the National institute for Occupational Health and Safety (NIOSH), and the Center for Disease Control (CDC) is the safety of the workspace for workers. Regarding dust and contaminants, they have specific requirements regarding the allowable percentage of particulates in a cubic foot of air. Violation of these standards can lead to a business being closed, which makes the installation of an acceptable dust collection system essential.
Personal Safety
Something that is rarely considered in an industrial environment is the quality of the floor and whether it is clean. One of the benefits of a dust collection system is the removal of the need to constantly clean the floor. There may be slight accumulations during a workday, but a dust collection system significantly reduces the need to sweep the floor or dust off a workspace.
Worker Morale
Psychological studies have proven, such as the Hawthorne Study, that a clean well lit work environment produces more productivity and improved worker morale. Workers who are not constantly confronted with offensive odors and unclean workspaces tend to enjoy their workday and are more productive. A dust collecting system is an essential factor in producing the ideal conditions. In many ways, investing in a dust collecting system can be beneficial to the bottom line.
Governmental Regulations
Of all of the motivating factors for the installation of a dust collection system compliance with government regulations is the most important factor. Companies that do not have the proper particulate percentage can be fined or forced to cease operations. OSHA and NIOSH closely monitor potentially harmful working conditions and do random inspections.
Chapter Five – Manufacturing Operations that Use Dust Collection Systems
A dust collection system is essential for any industry that produces gases, dust, overspray, or other forms of particulate matter. These highly technical and efficient units, which were once thought to be only part of a woodworking shop, have become common in a wide variety of industrial operations.
Operations that Use Dust Collection Systems
Many of the operations that use dust collection systems are mainly concerned about safety since several operations involve the use of gases.
Plasma Cutting
Plasma cutters produce fine smoke and fumes, which need to be removed for the protection of the operator. Dust collection systems for plasma cutters use specially designed downdraft tables to draw the fumes away from the workspace and worker.
Welding
Welding fumes contain particulate matter and various forms of gases, which are in the workspace of the welder. There are various types of dust collection systems that are used to capture and collect the hazardous matter produced by welding. Since welding fumes and dust can be explosive, the material produced must be tested for its fire and explosive characteristics in accordance with OSHA and the National Fire Protection Association‘s (NFPA) standards.
The most common form of system used for welding operations is a cartridge filtration, which is highly efficient at capturing small particles.
Seed and Grain Operations
The volatility of the dust from seed and grain operations is so high that OSHA has a set of standards that are specifically designed for these operations. Dust from seed and grain operations varies according to the types of materials being moved. It can be abrasive, sticky, or extremely fine. This is further complicated by the wide variety of equipment used in seed and grain operations, which include conveyors, elevators, bins, various forms of vents, silos, and mixers.
The most common form of dust collecting system for seed and grain operations is a baghouse collector since they can be easily placed in hard to reach locations or places with limited space. Baghouse collectors are used for their high efficiency of 99% and reliability.
Woodworking
The initial concern for air quality in the workplace began with woodworking since it produces large volumes of saw dust and fumes. As producers have investigated the various woodworking operations, they have found that there is a wide variety of particulate matter that is produced. The determining factor is the type of work that is being done.
Lumber mills and sawmills require a different type of dust collection system than that which is used by a wood pellet manufacturer. Each type of operation requires a different form of collection system.
Regardless of the type of woodworking operation, wood dust has been found to be the major cause of dust accidents. The dangers of dust from woodworking operations are highly underestimated. Wood dust easily ignites and spreads rapidly, which makes having a dust collection system essential.
The two types of dust collection systems for woodworking operations are cartridge and baghouse with baghouse being the most efficient. Regardless of the type of system chosen, it has to be designed and engineered to specifically fit the operation and production process of the customer.
Food Processing
The central concern for dust collection systems in the food processing industry is transport, storage, and mixing, which are the areas that accumulate the most dust. Sugar, powders, flour, meals, spices, and starch are materials that produce dust that needs to be controlled and monitored.
The processing of food involves the use of conveyors, packing equipment, mixers, shelling machines, and concentrated storage areas. Filtration systems can be connected to each of these types of equipment and locations. The special needs of food processing require the use of stainless steel since it is approved for operations involved in food manufacturing.

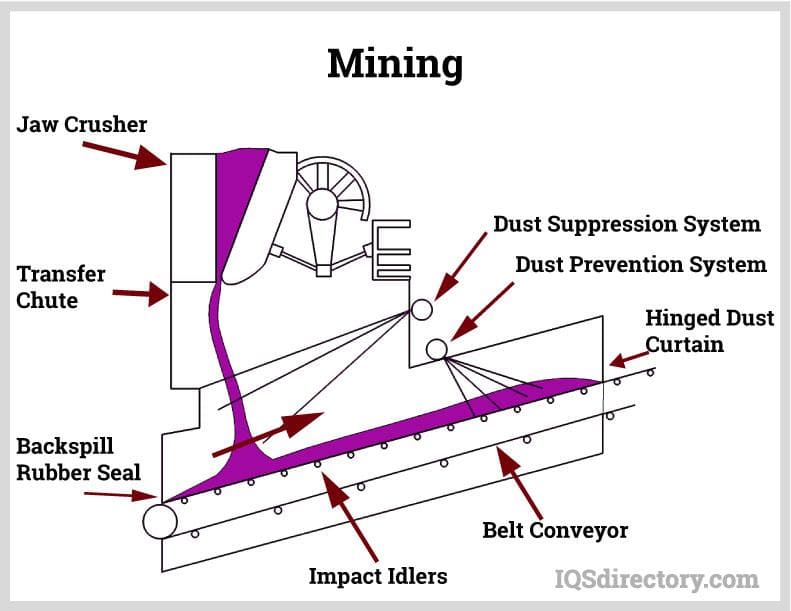

Mining
The two agencies that regulate air quality for mining operations are the Environmental Protection Agency (EPA) and the Mine Safety and Health Administration (MSHA), a branch of the Department of Labor. The main concern for mining regulations is silicosis and black lung disease.
Dust control systems for mining operations have to be able to withstand heavy use but flexible enough to adapt to the wide variety of conditions. The nature of mining dust requires very sturdy and reliable equipment since mining dust can be rough and abrasive as well as extremely fine. The various types of mining determine the type of dust collection system. Dust from rock mines tends to be less combustible and unstable while dust from coal mines is highly volatile.
Regardless of the operation, mining dust control systems are designed to suppress explosions, isolate fumes, and control odors from gases. The common types of dust collection systems for mines are baghouse and cartridge.
Fiberglass
Fiberglass dust is a very serious and a dangerous health risk since it can cause eye, skin, and lung irritation. The size of the dust particles varies depending on the type of operation with certain resins having the potential of being combustible. Fiberglass is composed of silica and other minerals, which is extruded and reinforced with resin. The dust particles from fiberglass tend to stick together regardless if the process is grinding, cutting, or some other form of shaping.
To meet the standard of OSHA and NFPA, fiberglass dust collection systems are required to have fire and explosion protection components. The air quality for fiberglass dust control systems is closely monitored due to the health risks. Cartridge dust collecting systems are normally used for fiberglass operations.
Foundry
The challenges for foundry dust collection systems revolve around crystalline silica dust, carbon monoxide, and heat, which are a toxic combination. These factors make meeting air quality standards difficult and demanding. When selecting a dust control system for a foundry, the first consideration is the ability of the unit to withstand the harsh and hazardous conditions of the workplace.
The environmental conditions of a foundry make the selection of the proper dust control system difficult. Aside from the obvious conditions, the selected equipment has to meet the regulations of OSHA, the EPA, and the NFPA. To meet those standards, dust collection systems employ shakeout enclosures, collection hoods, melt, mold pouring, and cooling hoods as well as exhaust stacks.
Pleated bag style collectors, cartridge style, have a highly efficient filtration system as well as a compact size and reduced pressure drop. In operations where there are lead or silica particles, a HEPA after filter is added to ensure zero emissions.
Coating
Coating or thermal spray applies heated material to metals to coat their surfaces. Dust collection systems for this type of operation have to be specifically designed to fit the type of coating being applied. The purpose of the system is to control and minimize overspray and dust.
The typical thermal spray dust control system uses ducts to move air to the collection device. The duct work is attached to the booth or cell where the spray is being applied. Though it would seem likely to increase airflow and movement, this type of solution may waste energy and not be efficient. The design of the booth is dependent on air that enters the cell or booth and at what force. For most systems, it is important to have a slight vacuum in the booth to avoid possible positive pressure.
One of the more efficient designs is to have a makeup air connection opposite the air extraction unit, which creates cross ventilation. Another method is to simply place the makeup air connection on the top of the booth. Regardless of the design, it is important for the cleansing of the air to have cross ventilation.
Much like a cleanroom, airflow in a thermal spray booth can be either horizontal or downward, though the downward design is best for dust collection systems. With the downward design, the floor of the booth is a grating, a design that takes advantage of gravity for air movement.

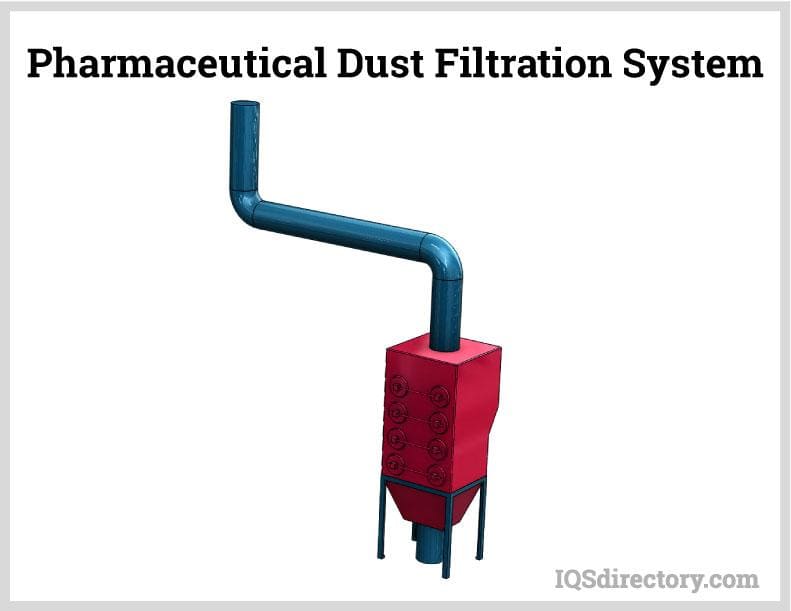

Pharmaceuticals
The pharmaceutical industry is one of the most highly controlled industries with very extensive and precise regulations. Dust from pharmaceuticals is generated mostly during the production and packaging of products. Each of the various steps of producing a drug, which include granulating, drying, mixing, pressing, coating, and grinding, all produce large amounts of dust that needs to be removed. The dust produced can easily migrate across the factory floor and contaminate workers and other products. Intercepting and controlling this dissemination is the function of the dust control system.
When designing a dust control system for a pharmaceutical plant, the first consideration is mapping the ventilation system to track the path of dust, fumes, existing airflow patterns, and possible evolutionary changes. Since many pharmaceutical dusts are combustible, the design of the ventilation system is extremely critical.
The two types of dust collection systems used by pharmaceutical concerns are baghouse and cartridge since the filters do not have to be replaced that often and are self cleaning through pressure air spray. HEPA filters are commonly found in pharmaceutical dust control systems since they are the most efficient and reliable. As with a foundry system, they are installed as a secondary protection to achieve zero emissions.
Recycling Facilities
The recycling process produces a great deal of dust as a natural outcome of diminishing items to their raw materials. This is particularly true in recycling rubber, metals, and plastic. Dust originates after materials are shredded, had paint or lacquer removed, or have been crushed.
All recycling facilities are required to adhere to air quality standards. As they work to meet quality standards and control pollutants, they have recognized that control of dust is a major issue and has led to the wide use of dust collection systems to mitigate and contain the problem.
Chapter Six - The Dangers of Explosive Dust
A necessary consideration dealing with dust filtering and collection is its potential combustibility, which relates to any type of dust that has the ability to catch fire or explode when it is mixed with a concentration of air. In the right conditions, collected dust can become dangerous, hazardous, and explosive. Any build up of dust, in the presence of the right ignition source, can create an explosion.
In certain situations, dust can self ignite without needing an igniting agent such as when static builds up as the particles rub together. Combustible dust can be found in mining, chemical industries, plastics production, pharmaceuticals, and metalworking.
Prevention of Explosive Dust
An initial understanding of the set of conditions that create explosive dust provides companies with the knowledge to be able to prevent such conditions and be proactive in their response. Since there is a potential for explosions and harm to workers, the Office for Safety and Health Administration (OSHA) has developed a set of standards to guide companies in ensuring employee safety.
OSHA Standards: According to OSHA, any fine material burns rapidly when suspended in the air and can become explosive. Regardless of the type of material, when it is in dust form, it can become flammable and explosive. For the protection of workers, OSHA has accepted the standards outlined by the National Fire Protection Agency (NFPA) as guidelines for the safe handling of dust.
The specific industries for which dust accumulation is the greatest concern are agriculture, chemical manufacturing, pharmaceutical production, furniture, textiles, fossil fuel power generation, recycling operations, metal working, processing of additives, and 3D printing.
NFPA: NFPA publishes guidelines to help prevent, minimize, and avoid death or serious injury from combustible and flammable materials. Some of the codes are:
484 - Standard for Combustible Metals
61 - Standard for the Prevention of Fires and Dust Explosions in Agricultural and Food Processing Facilities
664 - Standard for the Prevention of Fires and Explosions in Wood Processing and Woodworking Facilities
Nationally Recognized Testing Lab (NRTL): NRTL facilities are testing sites that have been created by OSHA to ensure the proper testing of various types of equipment to be certified as safe for the workplace. It is a private sector organization that meets OSHA’s legal standard 29 CFR 1910.7.
Other actions that can assist in making a dust filled environment safe are:
Explosion Vents: Explosion vents can be installed on a dust collector system to provide alternative ways for flames or expanding gasses to escape. They relieve the internal pressure and rupture when the pressure level is exceeded.
Explosion Latches: Explosion latches operate under the same principle as explosion vents. They open when the dust pressure level is too high.
Preventative Maintenance Plan: Of the various methods to deal with potentially explosive issues, proper care of property and keeping areas clean are the easiest and most logical methods for avoiding explosive and combustible conditions. Such plans are normally developed in coordination with safety personnel and authorities that have control or jurisdiction.
Spark Arrestor
A spark arrestor is a combustion preventative measure that is an add-on for systems that have the potential for combustion. They trap exhaust and lower the temperature of heated particles before they enter a dust collecting device. Industries involved in heating metals commonly have spark arrestors as a safety measure. Spark arrestors are required to meet the specifications of the National Fire Protection Association (NFPA) number 69. They channel sparks and embers away from the dust collection system, where the sparks are cooled to prevent explosions and fire.
Chapter Seven – Materials and Particles Removed by Dust Collection Systems
Although dust collection systems are designed to collect all forms of particulate matter, certain systems perform better with specific materials. When manufacturers are choosing a dust control system, they are advised by producers about the type of system that would best fit their needs since purchasing and installing a dust control system is a major investment.
Types of Materials and Particles Collected by Dust Collection Systems
Particulate matter comes in a wide variety of forms from silicon dust to wood chips and sawdust. The type and design of the dust control system for each type of matter is differentiated by how efficiently and economical it removes dangerous materials. Below is a short list of the types of particles that dust collection systems can remove.
Gypsum – Gypsum requires a high efficiency baghouse system capable of operating at temperatures near 220°.
Felt – Felt is used in the production of apparel and requires dust collection systems at three stages of the process.
Glass Recycling – The glass recycling process produces very fine silica dust and requires the use of Teflon bags to remove the particulates.
Carbon – Fine carbon dust can be found in a wide variety of production processes and is removed using polyester filters.
Molybdenum – Molybdenum dust is created during the mining process and is removed using a baghouse system.
Spice Dust – Spice dust is created by the production of any form of spice from cinnamon to sesame seeds. Dust collection systems are necessary in warehousing and processing plants.
Metal Chips – Grinding operations produce metal chips that need to be removed for the safety of workers. Baghouses and scrubbers are used for airflow filtration.
Sawdust – This is the most common of the material removed by dust collection systems. Cartridge or baghouse methods can be used with baghouse being the most efficient.
Aluminum Dust –
There are several types of aluminum forming operations that produce aluminum dust such as polishing and sanding. Fabric filter bags in a cartridge system prove to be the most efficient method for collecting the dust.
Cement – Cement dust is created during the movement and transport of the product. Dust collection systems are covered to contain the dust and clean the air.
Clay –Clay dust is produced in the production of bricks. Dust collection systems are used to capture random clay pieces.
Plastic Dust – High Density Polyethylene (HDPE) dust is produced in the production of plastic panels when they are being shaped and formed on an edge trimmer, grinder, or miter saw.
Paper Dust – One of the more common forms of dust is paper dust that is the side effect in the production of various types of paper. In the past, workers wore face masks and ventilators. With the introduction of dust collection systems, workers are safer and more protected.
Sugar – Sugar dust is the by-product from the production of candy. Pulse jet systems are used to keep the filters of the dust collection system particulate free. The collected material is removed and collected in drums.
Zinc – Zinc dust is produced in the galvanizing process. Dust collection systems remove chemicals from the heating process. A baghouse system is the preferred system.
Rice Dust – Rice dust has very fine and minute particles that accumulate during the production of rice based products. A dust collection system is required for the protection and safety of workers.
Silica – Silica is one of the most common substances on earth and is a central part of several production operations such as the production of glass, ceramic tile, cement, and asphalt. OSHA has increased the restrictions on the control of silica dust, which has forced producers to install highly sophisticated dust collection systems.
Cosmetic Powders – The production and manufacture of cosmetic products creates a great deal of dust that easily migrates to all areas of the production facility and makes the air hazardous. To control the problem, producers install dust collection systems such as baghouse and cartridge types.
Shot Blasting – Dust collection systems for shot blasting and sandblasting are needed to collect the blasting material, debris, and dust. The blasting process is used to prepare the surface of metals for painting and coating. The material from the process can damage equipment. The dust collection system assists by removing blast material.
Rock Dust – Rock dust collection systems are used at quarries and mining operations. They are heavy duty equipment designed to operate in harsh and hazardous conditions. Their main function is to control ambient dust that is a part of the mining process such that it does not spread from the area of the operation.
Chapter Eight – Dust Collection System Regulations
With growing concern for the environment, dust collection systems have become a vital part of several industrial and manufacturing operations. Government regulatory agencies regularly publish regulations and standards regarding the permitted quality of air released from production facilities. The organizations and administrations that focus on air quality are the Occupational Safety and Health Administration (OSHA), the Mine Safety and Health Administration (MSHA), Environmental Protection Agency (EPA), the National Institute for Occupational Safety and Health (NIOSH), and the National Fire Protection Association (NFPA).
Dust Collection System Regulations
OSHA
Though OSHA does not have dust collection system regulations, it does have regulations regarding the amount of dust that can accumulate in a production facility. There are requirements regarding combustible dust particles and how they are removed. The main focus of OSHA standards is a stipulation of the precautions being taken by a company to protect the health of its employees.
Regardless of the absence of dust collection standards, OSHA does prefer that manufacturers have a dust collection system to control dust accumulation. The regulations regarding dust collection relate to the factors for keeping employees safe.
OSHA does have regulations related to exposure to dust and describes the types of dust that are harmful and dangerous. The organization has published exposure limits for each form of harmful dust.
In 2020, OSHA published specific regulations regarding silica dust in an effort to reduce the exposure to crystalline silica.
OSHA Regulation 1910.272 is specifically written to cover the standards required for seed and grain operations. It covers in detail the various operations that expose workers to harmful dust.
NFPA
Since dust and its accumulation is a potential fire hazard, the NFPA has developed requirements and standards for dust collection systems regarding fire and explosion suppression.
NFPA 68 – specifies how fires should be vented
NFPA 69 – delineates procedures for explosion control
NFPA 652 and 654 – are the standards for safe and controlled handling of combustible materials and dust
NFPA 484 – describes the procedures for handling combustible metals
EPA
The EPA regularly reviews air quality standards as specified by the Clean Air Act‘s National Ambient Air Quality Standard for Particulate Matter. The agency has established Dust Lead Hazard Standards (DLHS) under the Toxic Substance Control Act (TSCA). The stipulations of the DLHS are guidelines for health inspectors.
MSHA
MSHA-P13-03 – covers the sampling procedures for mine respirable dust samplings.
Under the Continuous Personal Dust Monitor (CPDM) certification system, mines have to apply for certification every three years with a personal examination that shows competency in sampling procedures, maintenance, and calibration.
Phase III of the program implemented in 2016 has specific respirable dust rules:
The concentration limits for respirable coal mine dust are 1.5 mg/m3 at underground and surface coal mines.
The concentration limits for respirable coal mine dust are 0.5 mg/m3 for intake air at underground mines.
NIOSH
The NIOSH has established standards for rating filtration systems, which is governed by Part 84 of Title 42 of the Code of Federal Regulations. Mechanisms designed for respiratory protection are classified under air purifying respirators and chemical protection cartridges.
NIOSH classifies respiratory systems by their efficiency level when exposed to lubricants, cutting fluids, and glycerine, to name a few. When a filter is tested, it must demonstrate a minimum efficiency level as set by the NIOSH.
Conclusion
A dust collection system is a method for removing particulate contaminants from the air in production facilities, workshops, and industrial complexes.
As concerns for the environment have grown, dust collection systems have become a necessity for industries that produce large amounts of dust particles and ambient gasses.
The basic components of a dust collection system include a blower, dust filter, cleaning system, receptacle, ductwork, and means of removing the dangerous materials.
Each industry has a different array of pollutants and harmful particles to be removed.
With the growing concern for the environment, dust collection systems have become a vital part of several industrial and manufacturing operations.
A baghouse is a pollution control device that uses tubes, envelopes, or cartridges to remove, capture, and separate dirt, particulate matter, and dust from the air of a manufacturing or processing facility. The main components of a baghouse are the media or bags used to filter the particles from the air as it passes through the system...
Jet Dust Collectors
A jet dust collector is a suction filtration unit that pulls dust ladened air into a filtration system that collects particulate matter and releases clean air. The filters of jet dust collectors are cleaned by compressed air that uses...
Types of Dust Collectors
During the Industrial Revolution, when companies began producing high volumes of industrial waste like fine dust, wood dust, and other particles, an American, in 1852, S.T. Jones, applied for the first dust collector patents, a single bag filter...
Automation Systems
An automation system is an integration of sensors, controls, and actuators designed to perform a function with minimal or no human intervention. The field concerned in this subject is called Mechatronics which is an interdisciplinary branch of engineering that combines mechanical, electrical, and electronic systems...
Central Vacuum Systems
A central vacuum system is a cleaning mechanism that is built into a building for ease of use, access, and maintenance. Vacuum and pressure are created by a centrally located motor to remove dirt, dust, and debris...
Centrifugal Blowers
A centrifugal blower is an air moving device that uses an impeller to pull air into a tube like structure and release it at a 90o angle. The impeller is a set of blades inside the blower that rotates at a high rate to pressurize and move air...
Cobots and Collaborative Robots
Collaborative robots, also abbreviated as Cobots, are the newest technology in robotics. They have changed the automation world significantly. These robots can work safely together with workers, hence are...
Industrial Blowers
An industrial blower is a device that enhances the air flow in a workspace effectively and efficiently using an electric motor, impeller, and airfoils. The purpose and function of industrial blowers is to be a permanent addition to a workspace to increase airflow and...
Industrial Fans
An industrial fan is a highly efficient, heavy duty air flow device that is constructed from exceptionally durable materials and components to withstand stringent environments and operate longer to provide constant air flow and pressure. The strength of industrial fans is due to the materials used...
Industrial Robots
An industrial robot is an autonomous system of sensors, controllers, and actuators that executes specific functions and operations in a manufacturing or processing line. They operate continuously through repetitive movement cycles as instructed by a set of commands called a program...
Industrial Vacuum Cleaners
An industrial vacuum cleaner is a heavy duty piece of cleaning equipment designed to remove debris, industrial waste, construction refuse, and matter that remains after a manufacturing process or construction project...
Types of Vacuum Cleaners
Vacuum cleaners use suction to collect dirt, dust, waste products from industrial processes, and other debris for disposal, recycling, or reuse. They are mainly used for building maintenance and cleaning of industrial space...
