HEPA Vacuum Cleaners

Chapter One: What Are HEPA Vacuum Cleaners?

A HEPA vacuum cleaner is a vacuum cleaner that accepts high efficiency particulate air (HEPA) filters, is tightly sealed, and allows air to only pass through the HEPA filter. They are designed to capture particles of dust, dirt, and contaminants as small as 0.3 microns (µ) from the air.

In a HEPA vacuum cleaner, the HEPA filter is mounted in an airtight casing that forces the air from the inlet port to pass through the filter. The collection bag, dustbin, or collection chamber and motor exhaust are sealed to ensure the efficiency of the vacuum system. HEPA vacuum cleaner filters collect large quantities of particulate matter and need to be carefully monitored to ensure optimum performance.

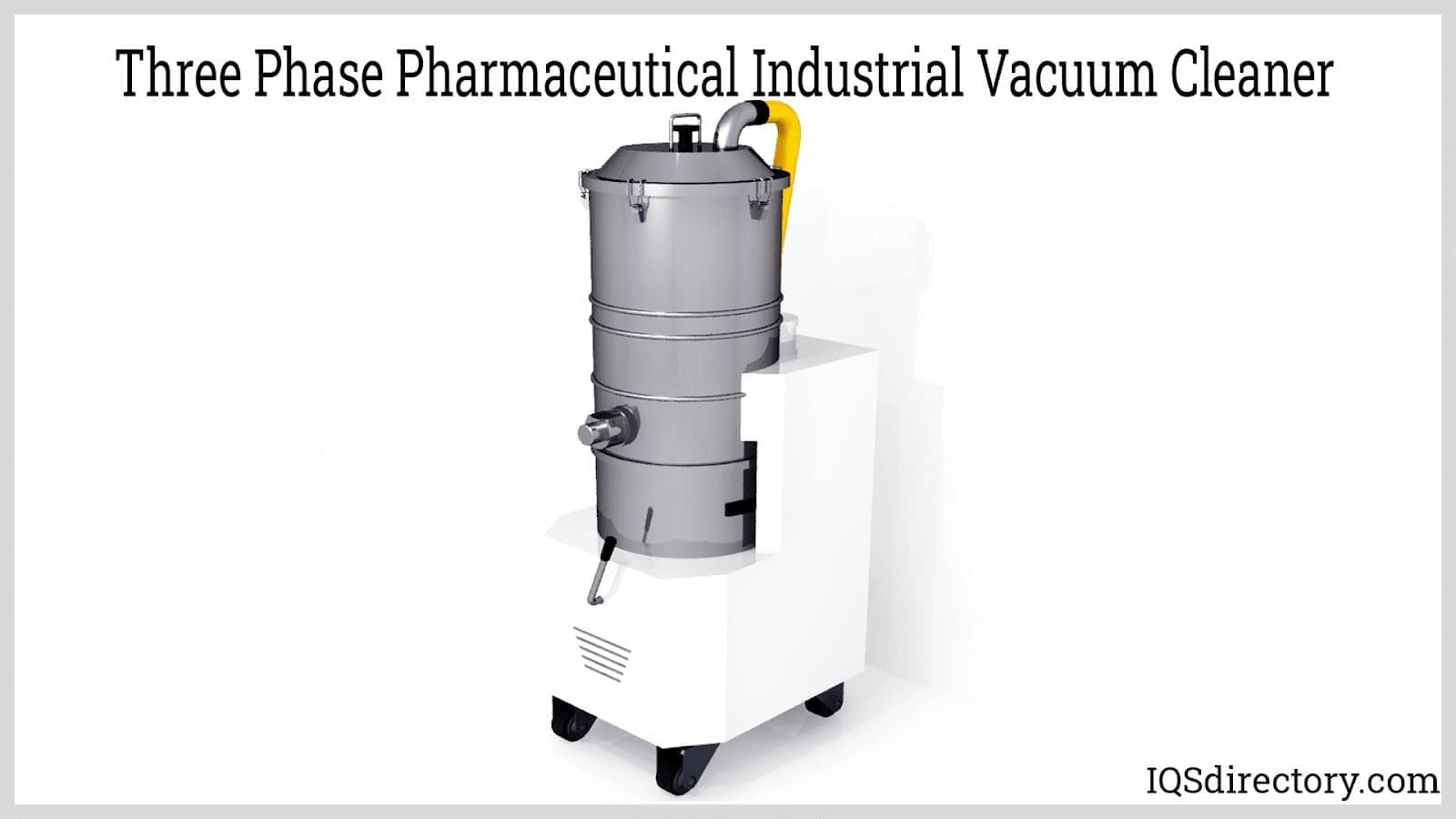

HEPA vacuum cleaners are used in hospitals, laboratories, and cleanrooms where it is important to maintain a high level of air quality. They are available in different styles and sizes from ones for the home to ones for heavy industrial use.

Chapter Two: Benefits of HEPA Vacuum Cleaners

The use of a HEPA vacuum cleaner radically improves the air in homes, offices, industrial locations, and cleanrooms. Typical vacuums release ultrafine particulate matter back into the environment where they are inhaled occupants. HEPA vacuum cleaners eliminate such conditions by trapping the most minute particles and cleaning the air.

Improved Air Quality

HEPA vacuum cleaners are designed to trap and remove small particles from the air, such as dust, pollen, and pet dander. By doing so, they improve the air quality in the surrounding area, making it cleaner and healthier to breathe. This is especially beneficial for individuals with allergies or respiratory issues.

Viral particles are typically 0.3 µ to 100 µ in diameter. A micron is one millionth of a meter and is referred to as a micrometer, which is 0.0000039372 of an inch. HEPA vacuum cleaners are able to remove 0.1 µ out of the air and capture 99.7% of particles that are 0.3 µ, which makes them a highly effective defense against the spread of viruses.

Increased Cleaning Efficiency

HEPA vacuum cleaners are highly efficient at removing dust and other small particles from surfaces, such as carpets, floors, and upholstery. They are designed to capture even the tiniest particles, which can be missed by regular vacuum cleaners. This results in a more thorough and effective cleaning process.

Reduction in Allergens

HEPA vacuum cleaners are highly effective at removing allergens, such as pet dander, dust mites, and pollen, which helps reduce the symptoms of allergies, such as sneezing, runny nose, and itchy eyes.

Improved Indoor Environment

HEPA vacuum cleaners can help create a cleaner and healthier indoor environment by removing pollutants, such as mold spores, bacteria, and viruses. This can help reduce the spread of illness and improve overall indoor air quality.

Cost-Effective

Although HEPA vacuum cleaners may be more expensive than regular vacuum cleaners, they can be cost-effective in the long run. By removing small particles and pollutants, HEPA vacuum cleaners can help prevent damage to carpets, floors, and upholstery, resulting in lower repair and replacement costs.

Better for the Environment

HEPA vacuum cleaners are more environmentally friendly than regular vacuum cleaners because they reduce the amount of pollutants released into the air. They are also more energy-efficient and use less electricity, which helps reduce carbon emissions and saves energy.

Chapter Three: Components of a HEPA Vacuum Cleaner

Vacuum cleaners with HEPA filters are highly efficient and effective cleaning tools for the reduction of allergens and the removal of contaminants. The name of a HEPA vacuum cleaner comes from its HEPA filter, which is the main component in its filtration system.

Motor

The motor is the heart of a vacuum cleaner and provides the power to run the suction motor and the brush roll motor. HEPA vacuum cleaners have powerful motors to handle the increased resistance caused by the dense HEPA filter.

The level of suction and cleaning level of a HEPA vacuum cleaner depend on its motor. The power of a HEPA vacuum cleaners motor is measured in watts with an amp rating that determines the amount of electricity used when operating. HEPA vacuum cleaners with high wattage and high amps are powerful cleaning tools.

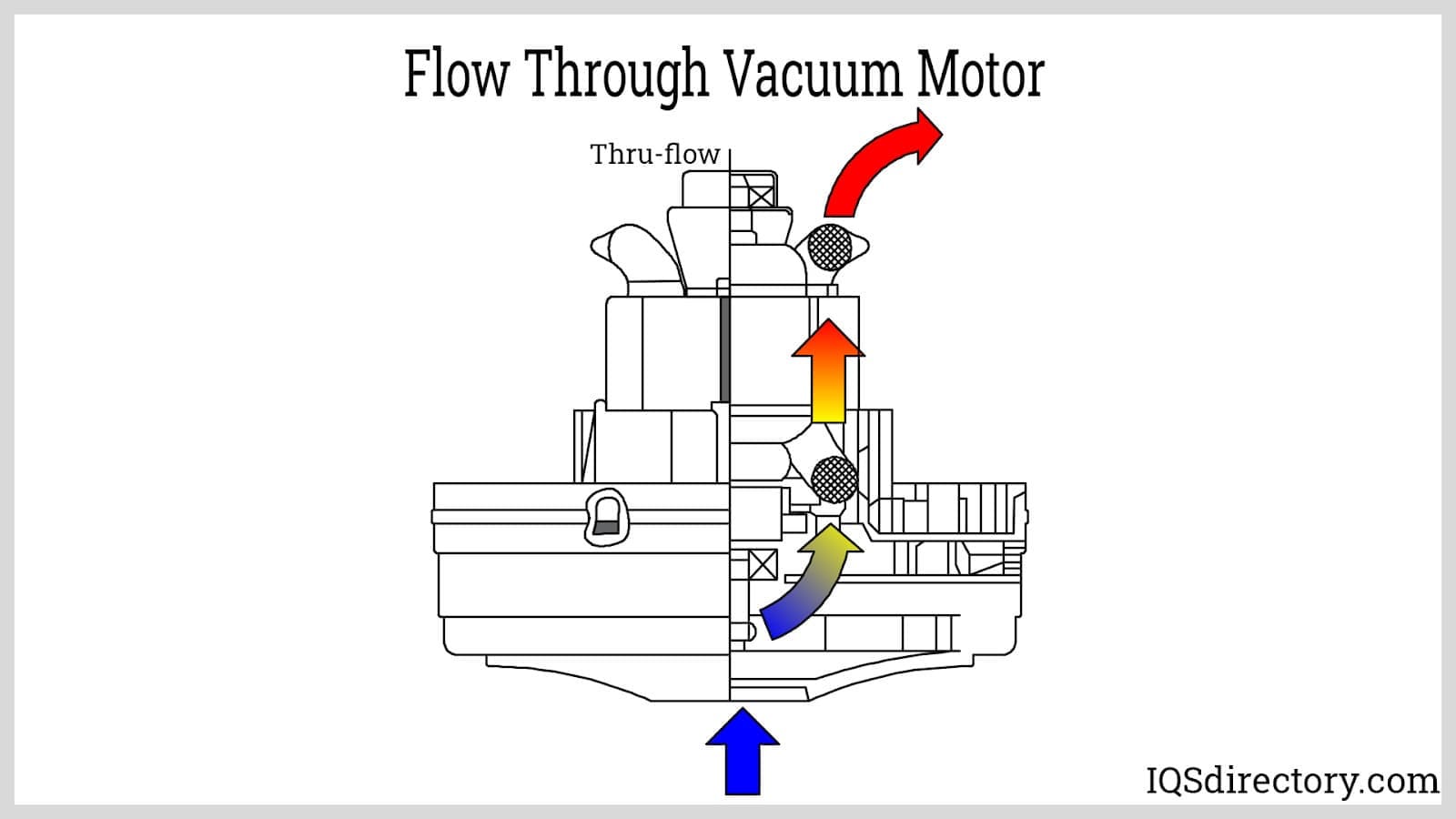

Suction Motor

The suction motor creates a pressure drop behind a rotating fan motor that rotates at 30,000 to 35,000 rpm. The effects of the pressure drop creates a partial vacuum that sucks dirt and debris through the intake from the vacuumed surface. In a HEPA vacuum cleaner, it is the central and most powerful part of the vacuum system capable of pulling air through the intake to the HEPA filter, a process that can cause increased resistance, and releasing clean air through the exhaust port. The power of a suction motor is measured by multiplying the rate of air flow by the vacuum pressure.

Brush Roll Motor

In some styles of HEPA vacuum cleaners, brushes are located in the handle that agitate dust, dirt, debris, and allergens from the vacuumed surface up the air stream of the vacuum to the HEPA filter.

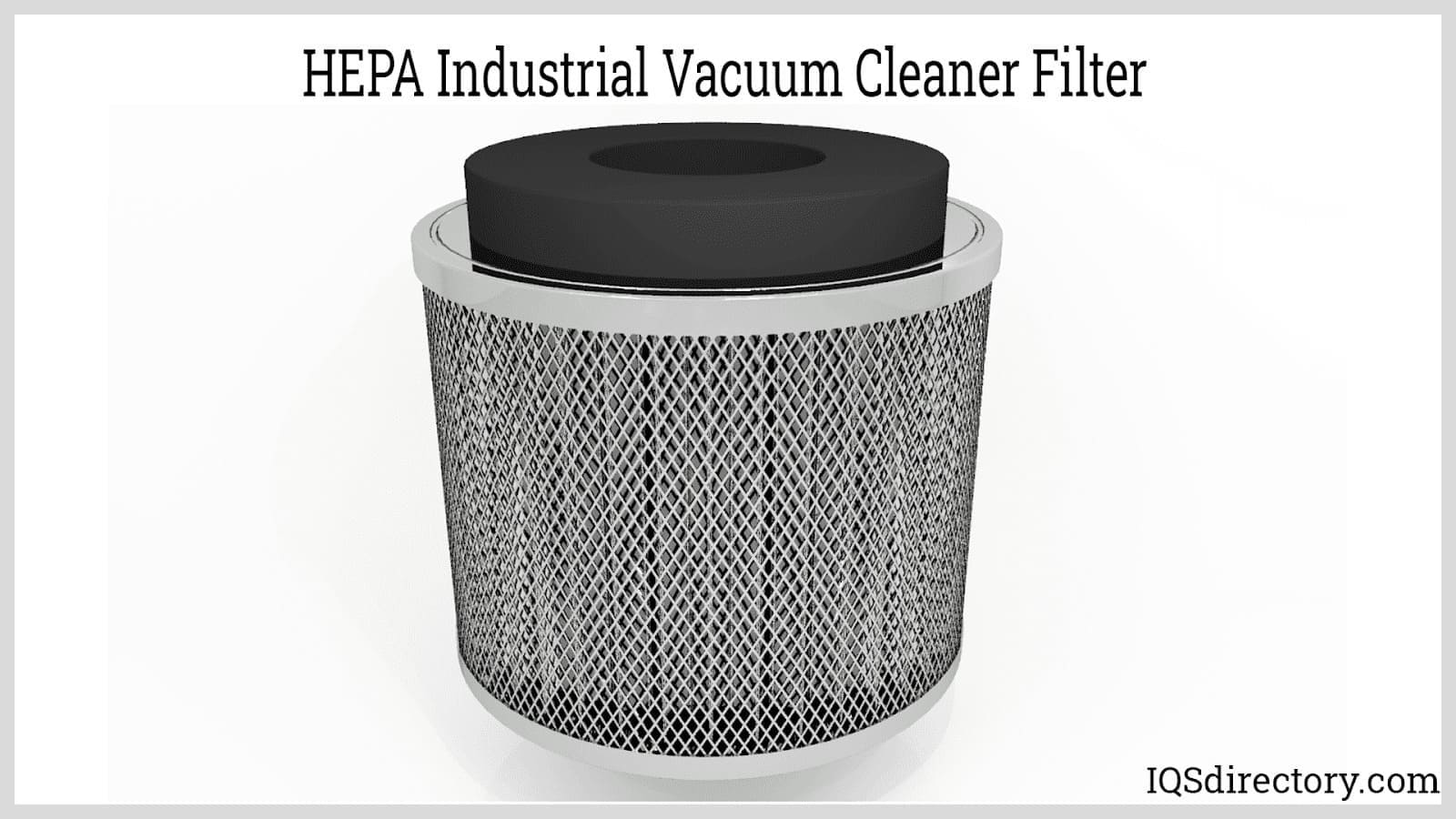

HEPA Filter

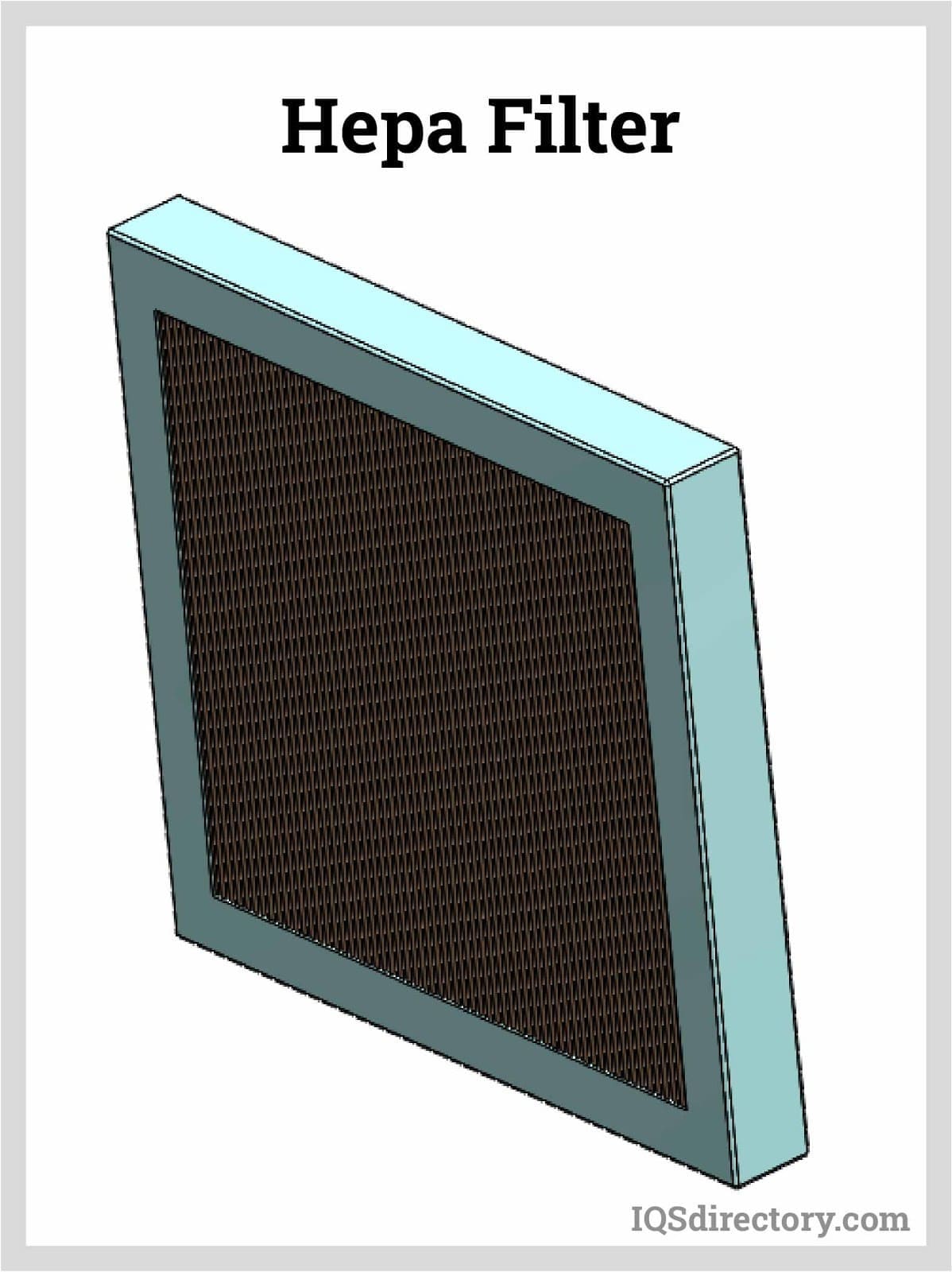

The HEPA filter is the key component of a HEPA vacuum cleaner. It is designed to capture tiny particles, including allergens and pollutants, that other vacuum cleaners may miss. The HEPA filter must be properly installed and sealed to prevent air from bypassing the filter and reducing its effectiveness. It receives particulate matter from the intake port, filters the air, and releases clean, filtered air through the exhaust port.

Collection Bin

As dirt and debris are sucked up by the vacuum created by the suction motor, large particles are collected and deposited in the collection bin, which is the first part of the filtration process. The air stream moves from the collection bag or bin to the HEPA filter where the minute, extremely small micron particles are captured.

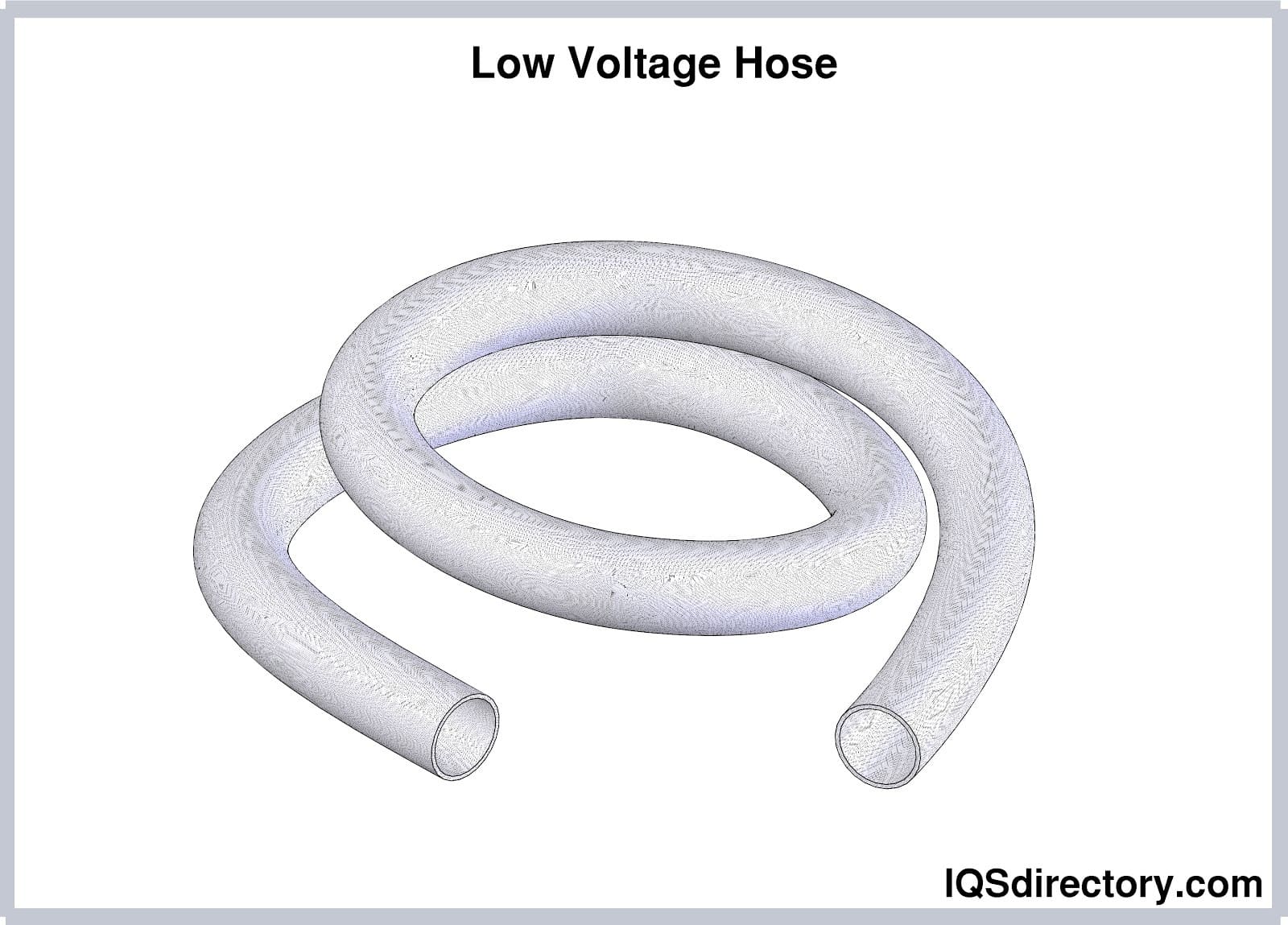

Hose

With canister HEPA vacuum cleaners, the hose is a flexible tube that connects the main body of the vacuum to the cleaning tool or attachment. It transports the dirt and debris that is suctioned to the dust bin or collection bag. In a HEPA vacuum cleaner, these components work together to create a high-powered suction system that captures tiny particles to improve indoor air quality.

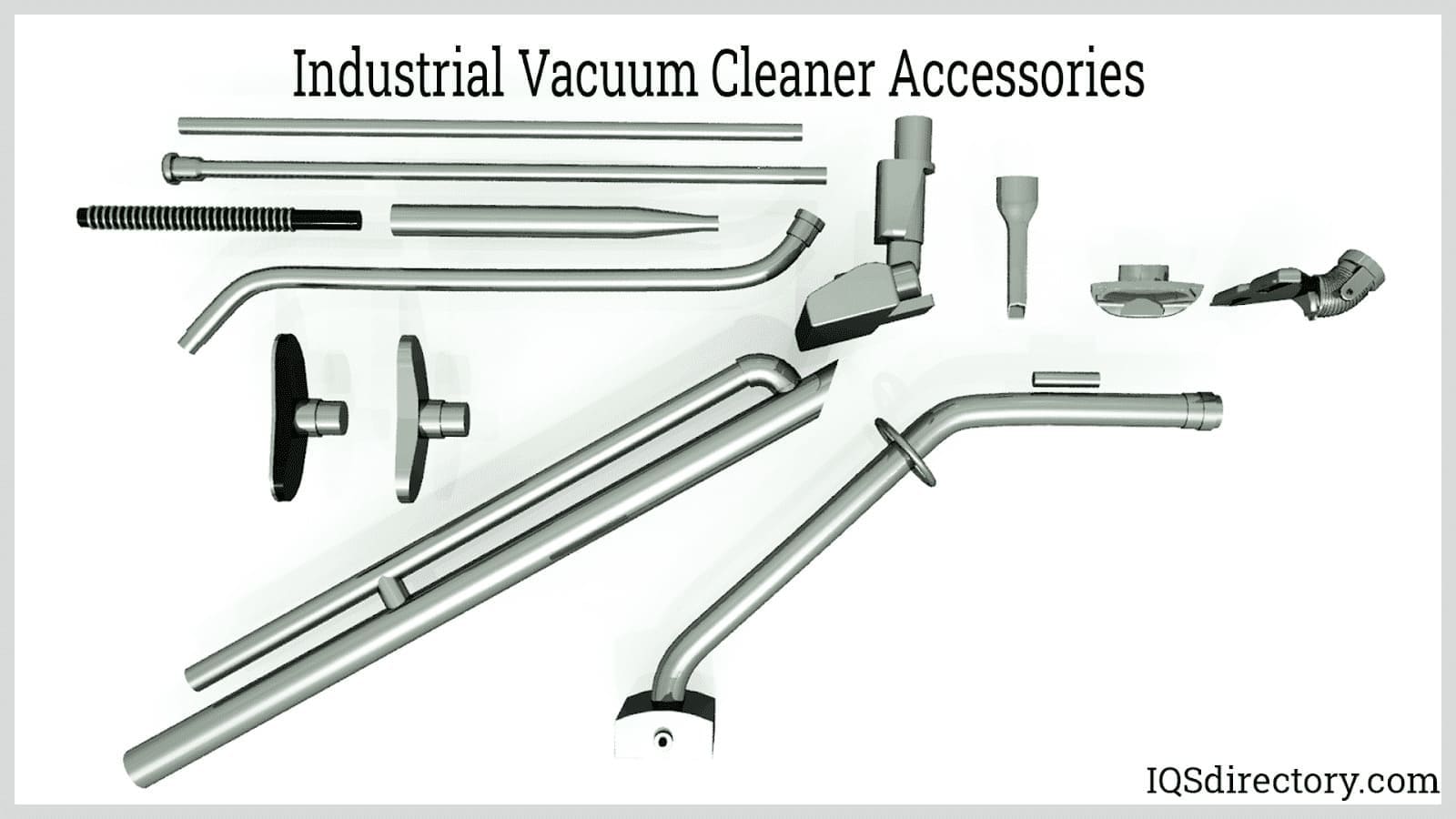

Attachments and Accessories

HEPA vacuum cleaners vary in terms of their attachments, which are crucial components that help clean different types of surfaces and hard-to-reach areas. HEPA vacuum cleaners come with attachments and accessories, such as crevice tools, dusting brushes, upholstery tools, extension wands, and floor nozzles.

Four Inch Smooth Bore Polyurethane Industrial Vacuum Cleaner Hose

Crevice Tools - are thin and long, allowing the user to clean narrow spaces like corners, between cushions, and under the car seats. Dusting brushes, on the other hand, are soft and gentle, making them ideal for cleaning delicate surfaces like lampshades, curtains, and blinds.

Upholstery Tools - are designed to remove dust, pet hair, and other debris from upholstery, mattresses, and stairs. They are usually small and have a rotating brush that agitates the fibers to lift dirt and debris.

Extension Wands - are used to extend the reach of the vacuum cleaner. They come in handy when cleaning high or hard-to-reach areas like ceilings, fans, and light fixtures.

Floor Nozzles - are designed to clean floors and come in different sizes and shapes. Some floor nozzles are wide and flat, making them ideal for cleaning large areas like carpets and hardwood floors. Others are narrow and round, making them perfect for cleaning crevices and corners.

Chapter Four: Types of HEPA Filters and HEPA Vacuum Cleaners

The unique structure of HEPA filters is how their fibers are arranged, which is in a random and interweaving pattern that does not allow for particulate matter to move in a straight line. It is this design that makes HEPA filters so effective.

There are many types of filters that are labeled as HEPA filters but only a specific type fits the full definition of a HEPA filter. When purchasing a HEPA filter for a vacuum cleaner identified as having a HEPA filter, it is essential to purchase a true HEPA filter and not one that is labeled as being a HEPA filter.

Types of HEPA Filters

True HEPA

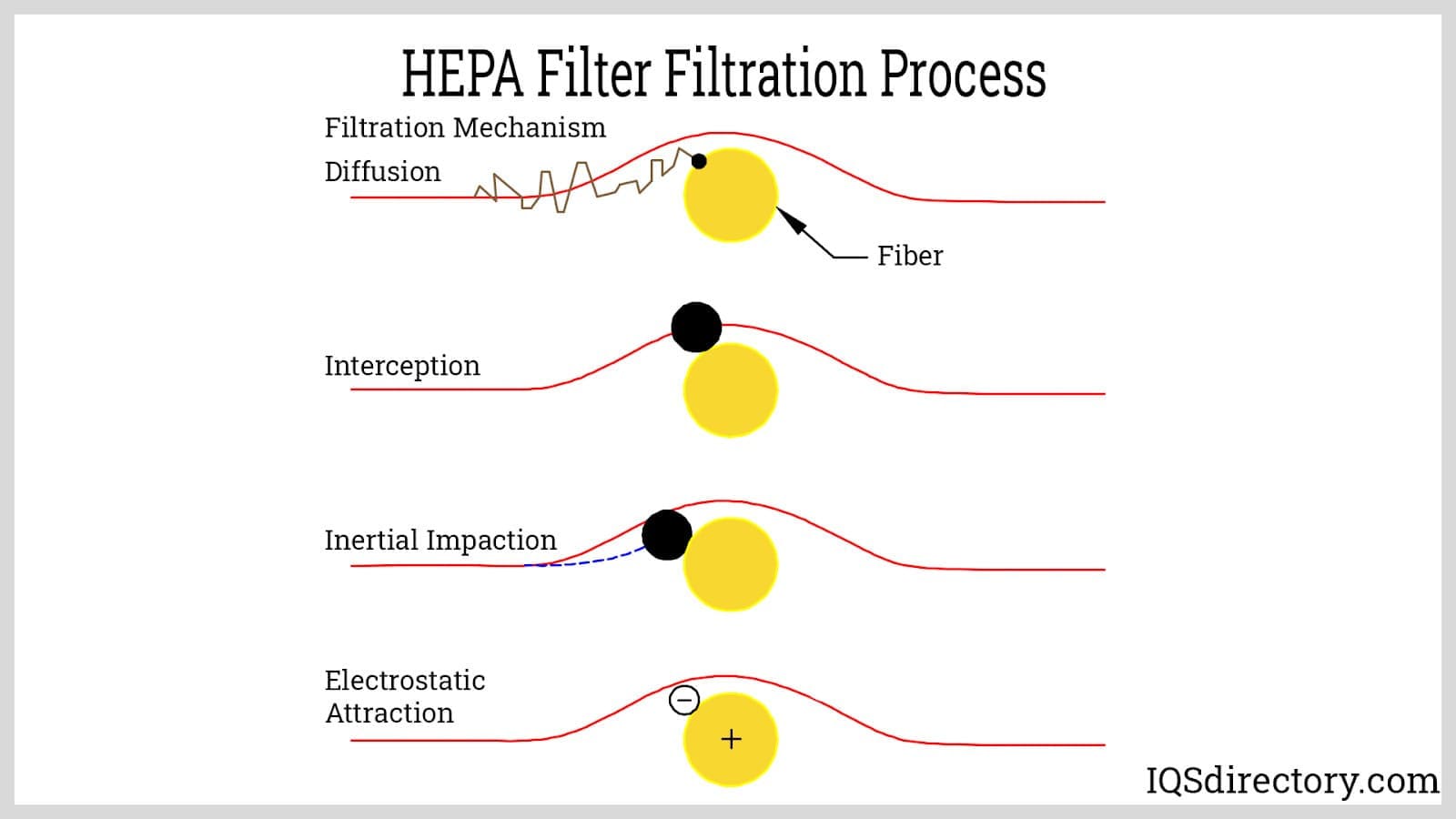

A True HEPA filter must capture at least 99.97% of particles that are 0.3 microns (µ) or larger. These filters are the most effective at removing tiny particles from the air, including pollen, dust mites, and pet dander. The three physical mechanisms that true HEPA filters use are inertial impact, interception, and diffusion.

• Inertial Impaction - When particles enter a HEPA filter, they continue in a straight line due to their inertia. Since they are moving rapidly, they collide with the randomly placed fibers of the filter and become trapped.
• Interception - Smaller particles of 0.3 µ up to 2.0 µ continue past the larger particles but are trapped by the distance between the fibers.
• Diffusion - Diffusion is the most difficult aspect of particle movement since particles move randomly in multiple directions due to their collision with gas molecules, which is referred to as Brownian motion. It is this characteristic of particle movement that led to the development of the HEPA filter. The interwoven and random positioning of HEPA fibers makes it possible for the filter to capture the smallest particles.

HEPA-Type

HEPA-Type filters are similar to True HEPA filters, but are not as effective. These filters may only capture 85-95% of particles that are 0.3 µ or larger. While HEPA-Type filters are less expensive than True HEPA filters, they may not be suitable for people with severe allergies or asthma.

HEPA-Like

HEPA-like filters are the least effective type of filter, since they capture 50-70% of particles that are 0.3 µ or larger. These filters are used in low end vacuum cleaners and air purifiers and are not suitable for people with allergies or respiratory issues.

Types of HEPA Vacuum Cleaners

Sealed HEPA

A sealed HEPA vacuum cleaner is designed to prevent particles from escaping back into the air. They have an airtight sealed housing that prevents dust and allergens from escaping into the atmosphere. Sealed vacuums are guaranteed to prevent the release of unclean air and are used in healthcare facilities and homes where individuals have severe allergies or asthma. Sealed HEPA vacuum cleaners are more expensive than non-sealed models.

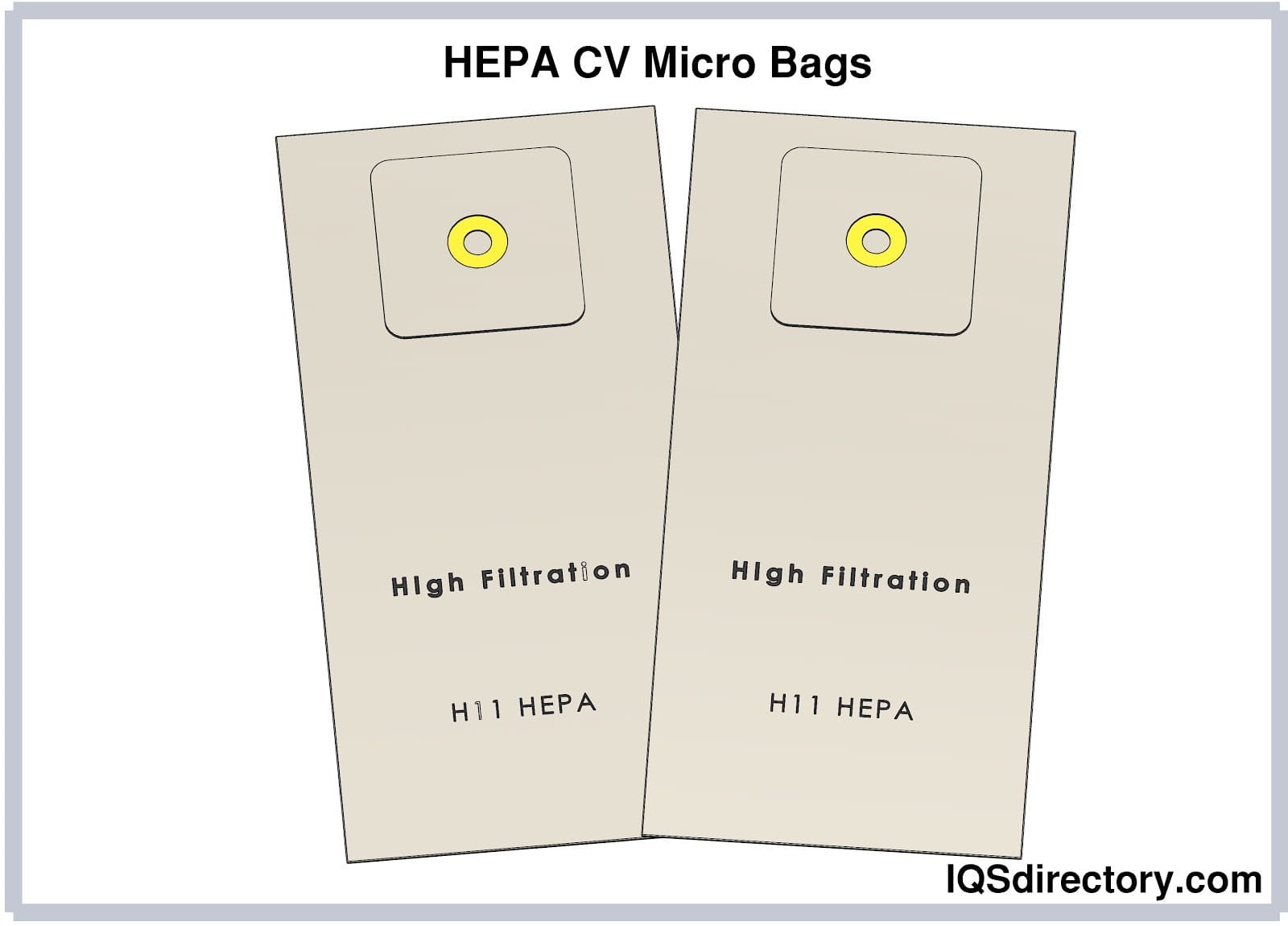

Bagged

A bagged HEPA vacuum cleaner has a disposable bag to collect dirt, dust, and debris to prevent them from escaping into the air. The inconvenience of bagged HEPA vacuum cleaners is the necessity for replacing the bag when it is full. They do enhance the cleaning process and add an extra layer of protection.

Bagless

Bagless HEPA vacuum cleaners may have a set of filters including a HEPA filter as additional protection against the escape of contaminants. The collection bin is clear, which makes the collected debris visible and gives the user the ability to monitor when to empty the collection bin. Bagless HEPA vacuum cleaners do not lose suction due to the bag being full and provide continuous powerful suction.

Upright

Upright HEPA vacuum cleaners have an all in one design with the motors, HEPA filter, intake port, and exhaust port incorporated in an upright design. They are a powerful vacuum that provides deep cleaning. The all in one configuration makes them easy to store and accessible.

Cyclonic

Cyclonic HEPA vacuums are a type of bagless vacuum that spins air from the intake at high speed like a centrifuge. They have two HEPA filters located below their collection bin, which releases clean air out the exhaust port. The spinning motion forces dust and dirt out of the air.

Canister

With a canister HEPA vacuum, the main unit is separated from the handle of the vacuum and is connected by a hose. The design is used for industrial HEPA vacuum cleaners that come in several varieties, which vary from backpack models to large rolling units with huge collection chambers. The division into the two components makes the unit easily maneuverable, a necessity in industrial settings.

The design of the handle and hose make it possible to vacuum walls, shelves, furniture, machinery, and conveyors that are above floor level. Accessories and attachments can be connected to the handle or the hose, which makes the use of a canister unit more flexible.

When choosing a HEPA vacuum cleaner, it is important to consider the type and quality of the HEPA filter, as well as its design and features. True HEPA filters are more effective but are more expensive. Sealed HEPA vacuum cleaners are a specialized form of HEPA vacuum cleaner that is necessary for environments such as cleanrooms and laboratories as well as places where people suffer from allergies or asthma.

Although canister vacuums were the initial form of vacuum that created a vacuum using a hand pump, canister HEPA vacuum cleaners have found use beyond households and have become a part of industrial cleaning. Upright vacuums are an exceptionally convenient cleaning tool that has a smaller footprint and is very easy to use.

Chapter Five: Maintenance of HEPA Vacuum Cleaners

Regular maintenance and monitoring of HEPA vacuum cleaners ensures that they operate at peak efficiency and remove the maximum amount of dirt and debris from the air. Maintenance procedures may differ depending on the model, use, environment, and level of the HEPA vacuum cleaner

Check and Replace Filters Regularly

The HEPA filter is an essential component of the vacuum cleaner that traps tiny particles from the air. It is crucial to check the filter regularly and replace it when it becomes dirty or clogged. For optimal performance, it is recommended to replace the filter at least once every six months or as specified by the manufacturer.

Clean the Brush Roll

The brush roll is the rotating part of the vacuum cleaner that comes into contact with the surface being cleaned. Over time, debris gets tangled around the brush roll and reduces its effectiveness. It is essential to clean it regularly using a pair of scissors or a comb.

Empty the Dustbin Regularly

The dustbin collects the dirt and debris picked up by the vacuum cleaner. It should be emptied after every use and thoroughly cleaned to prevent the growth of bacteria and mold.

Check for Blockages

Blockages occur in certain types of HEPA vacuum cleaners and can reduce the vacuum cleaners ability to produce a vacuum. Hoses, accessories, and attachments can become blocked, which reduces suction power and affects the vacuum’s performance. Blockages can present a major problem for HEPA vacuum cleaners since they can cause the different motors to overwork.

Use the Right Attachments

HEPA vacuum cleaners come with attachments, such as crevice tools, dusting brushes, and upholstery tools. Using the right attachment increases cleaning efficiency and prevents damage to surfaces.

Different levels of HEPA vacuum cleaners require different maintenance procedures. Some HEPA vacuum cleaners have washable filters that can be cleaned and reused, while others require replacement filters. Manufacturer's instructions offer maintenance instructions and requirements. HEPA vacuum cleaners, with additional features, such as UV-C light technology, require periodic replacement of the UV-C bulb.

Leading Manufacturers and Suppliers

Chapter Six: Regulations and Standards for HEPA Vacuum Cleaners

There are several organizations and laws that regulate HEPA vacuum cleaners and their use. In the United States, the Environmental Protection Agency (EPA), the American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE), the Occupational Safety and Health Administration (OSHA), and Underwriters Laboratories (UL) provide guidance, regulations, and oversight for the use of HEPA filters.

The United States congress has enacted the Clean Air Act, the Consumer Product Safety Act, and the Occupational Safety and Health Act as protective measures. These pieces of legislation are constantly changing and being updated to meet new innovations and changes in working conditions.

Environmental Protection Agency (EPA)

The EPA sets standards for indoor air quality and regulates the emissions of air pollutants from various sources, including vacuum cleaners. The EPA established a voluntary program called the "Design for the Environment", which encourages manufacturers to produce more environmentally friendly products, including HEPA vacuum cleaners.

American Society of Heating, Refrigerating and Air-Conditioning Engineers (ASHRAE)

ASHRAE is a professional organization that develops standards and guidelines for the design and operation of heating, ventilation, air conditioning, and refrigeration systems, including those used in buildings. ASHRAE Standard 52.2 is the standard for testing and rating the performance of air-cleaning devices, including HEPA filters.

Occupational Safety and Health Administration (OSHA)

OSHA is a federal agency that sets and enforces safety and health standards in the workplace. OSHA regulates exposure to airborne contaminants, including those generated by vacuum cleaners, and requires employers to provide appropriate respiratory protection to employees.

Underwriters Laboratories (UL)

UL is an independent organization that tests and certifies products for safety and performance. UL 60335-2-69 is the standard for safety and performance of household electrical appliances, including vacuum cleaners.

Several laws and regulations in the United States have been enacted that affect the use of HEPA vacuum cleaners.

Clean Air Act

The Clean Air Act regulates the emissions of air pollutants from various sources, including vacuum cleaners. Vacuum cleaners that emit too much dust or other pollutants are subject to fines and other penalties.

Consumer Product Safety Act

The Consumer Product Safety Act regulates the safety of consumer products, including vacuum cleaners. Vacuum cleaners that are found to be unsafe are subject to recalls and corrective actions.

Occupational Safety and Health Act

The Occupational Safety and Health Act requires employers to provide a safe and healthy workplace for their employees. This includes providing appropriate respiratory protection for employees who may be exposed to airborne contaminants generated by vacuum cleaners.

Chapter Seven: HEPA Vacuum Cleaner Certification

HEPA vacuum cleaner certification ensures that all standards and requirements have been met.

To be certified as a HEPA vacuum cleaner, a vacuum cleaner must meet the standards for filtration efficiency. In the United States, a vacuum cleaner must be able to capture at least 99.97% of particles that are 0.3 µ in size or larger in order to be certified as a true HEPA vacuum cleaner.

Several organizations certify HEPA vacuum cleaners, including the National Air Filtration Association (NAFA) and the Asthma and Allergy Foundation of America (AAFA). The certification process includes a verification of a vacuum cleaner’s filtration efficiency and air flow.

NAFA Certification

NAFA certification requires that vacuum cleaners have a minimum efficiency of 99.97% for particles larger than or equal to 0.3 µ and be capable of maintaining this efficiency as the filter becomes loaded with particles.

AAFA Certification

AAFA certification requires that vacuum cleaners be able to remove a minimum of 95% of airborne particles that are 0.3 µ or larger and be able to minimize the release of particles back into the air during use.

The Carpet and Rug Institute (CRI) provides a Green Label certification program, which includes testing for filtration efficiency. CRI certification is not specifically focused on HEPA filters but can be a useful tool for consumers who are looking for a vacuum cleaner that has been tested for its ability to capture particles.

The American Society of Heating, Refrigerating and Air-Conditioning Engineers has standards for HEPA filters used in HVAC systems. These standards are not specific to vacuum cleaners but can be useful in evaluating the performance of HEPA filters.

Chapter Eight: Negative Aspects of HEPA Vacuum Cleaners

As with all forms of equipment, there are negative aspects regarding the use of HEPA vacuum cleaners, much of which revolves around the cost of a high performance HEPA filter. These factors have to be considered when planning to use a HEPA vacuum cleaner as part of a cleaning process. The cost of HEPA vacuum cleaners progresses upward for ones that are purchased to clean large facilities and industrial applications.

Cost

HEPA vacuum cleaners with true HEPA filters are more expensive than traditional vacuum cleaners with HEPA like filters, which is due to the advanced filtration technology used in HEPA filters. However, the cost is worth it for environments that require high efficiency cleaning and sanitized conditions.

Maintenance

HEPA vacuum cleaners require regular maintenance to keep them functioning properly. This includes replacing filters, cleaning the dustbin, and checking the suction power. Failure to perform regular maintenance can result in reduced suction power and lower filtration efficiency.

Noise

HEPA vacuum cleaners tend to be louder than regular vacuum cleaners due to the powerful suction motor and advanced filtration system. In industrial environments, workers are required to wear noise suppression headsets with warnings for employees in the area.

Weight

HEPA vacuum cleaners can be heavier than regular vacuum cleaners due to the additional components required for the advanced filtration system. This makes them difficult to maneuver. It is for this reason that industrial HEPA vacuum cleaners are mounted on wheels. Regardless of the addition of wheels, moving a HEPA vacuum cleaner mounted is still difficult.

Energy Consumption

HEPA vacuum cleaners require more energy to operate due to their powerful motors and advanced filtration system, which results in higher energy costs and increased carbon emissions.

Replacement Filters

HEPA filters need to be replaced regularly, which can be an additional expense. However, it is important to use high-quality replacement filters to maintain the efficiency of the vacuum cleaner. HEPA filters are resource intensive. Their production can have a negative environmental impact and their disposal can be a challenge.

HEPA Vacuum Cleaner Effectiveness

The effectiveness of HEPA vacuum cleaners can vary depending on the quality of the filter, the design of the vacuum cleaner, and the cleaning habits of the user. Studies have found that HEPA vacuum cleaners can be effective at reducing indoor air pollution and improving air quality. A study published in the Indoor Air journal found that the use of a HEPA vacuum cleaner led to significant reductions in particulate matter in the air.

HEPA vacuum cleaners are limited by factors such as the frequency of use, the age and quality of the filter, and the type and amount of pollutants present in the indoor environment.

To get the most out of a HEPA vacuum cleaner, it's important to use it regularly and follow the manufacturer's instructions for maintenance and filter replacement. Aside from the use of a HEPA vacuum cleaner, there are actions that can be taken to improve indoor air quality, such as reducing the use of harsh chemicals and increasing ventilation.

Chapter Nine: Applications for HEPA Vacuum Cleaners

HEPA filters and HEPA vacuum cleaners are two of the fastest growing products due to the concerns for the quality of life, sustainability initiatives, and natural environment concerns. It is for these reasons that HEPA vacuum cleaners are found in so many industries.

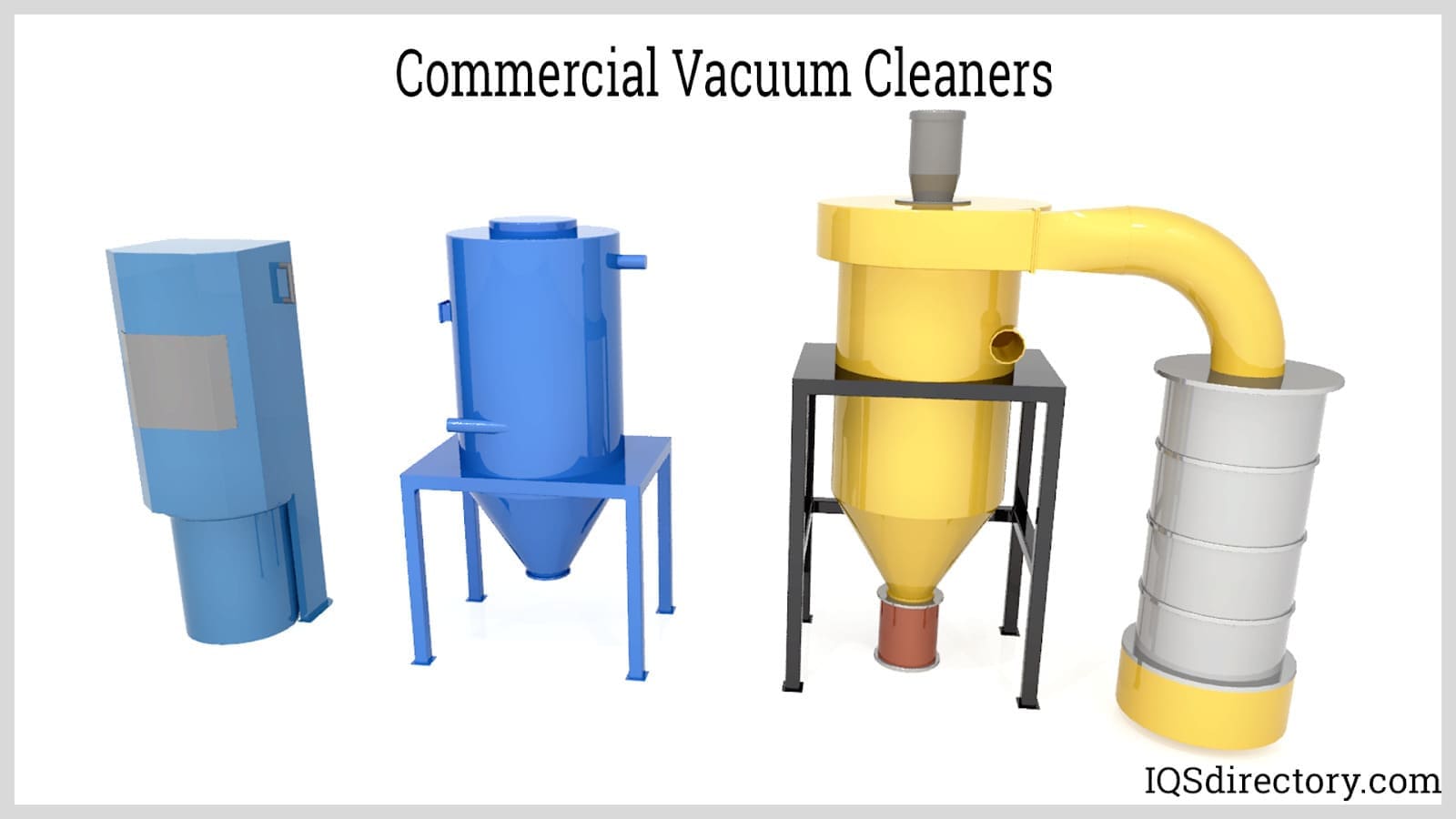

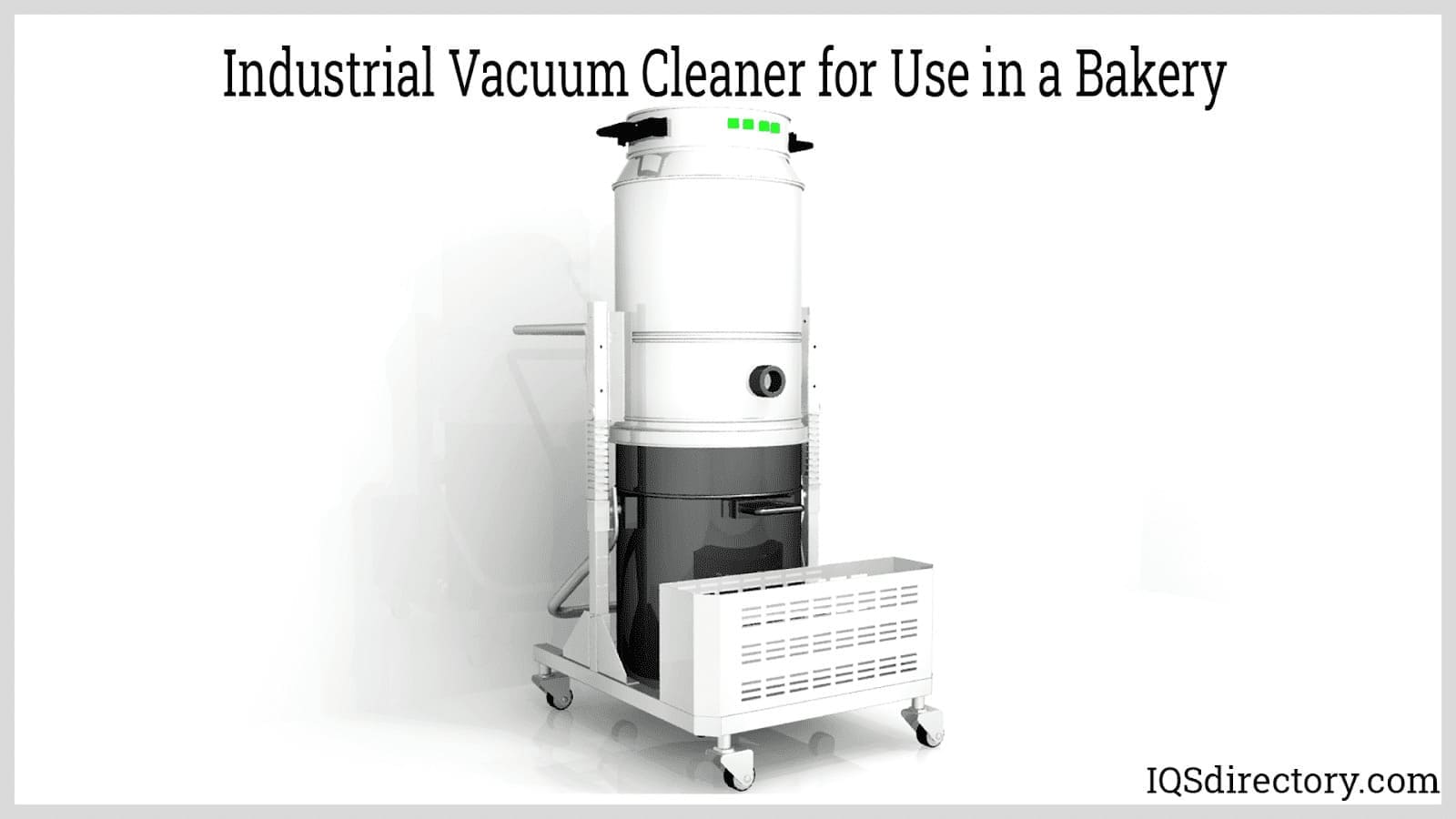

Commercial and Industrial Use

HEPA vacuum cleaners are essential in commercial and industrial settings where the removal of small particles and pollutants from the air is critical. They are commonly used in manufacturing facilities where air quality is a concern. In these settings, HEPA vacuum cleaners are used to remove contaminants such as dust, debris, and hazardous materials.

Medical, Hospital, and Laboratory Settings

HEPA vacuum cleaners are critical in medical, hospital, and laboratory settings where cleanliness and air quality are of utmost importance. They are used to remove bacteria, viruses, and other harmful particles that can contaminate the air and compromise the safety of patients and laboratory workers.

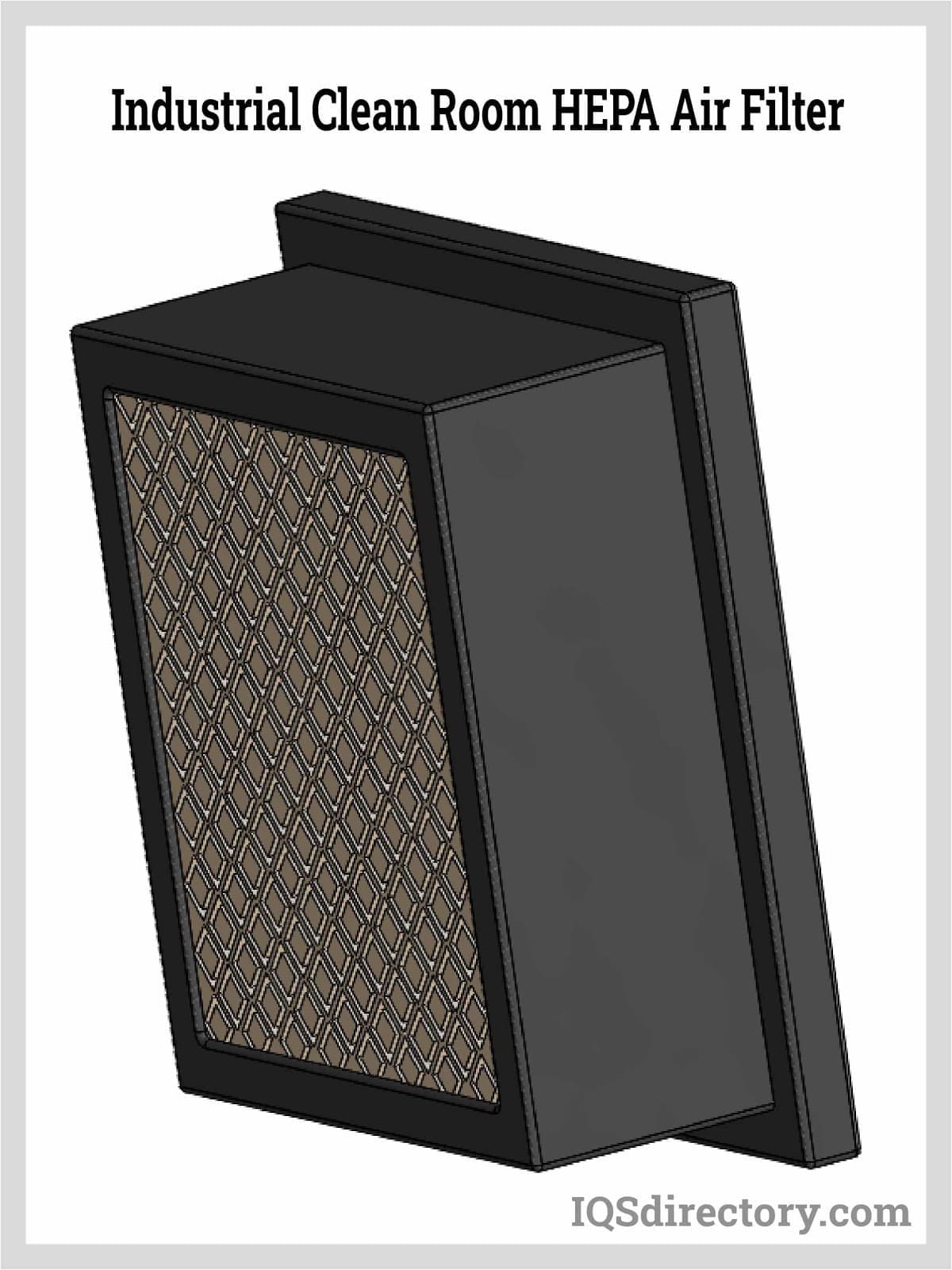

Cleanrooms

HEPA vacuum cleaners used in cleanrooms must have a higher level of filtration efficiency than standard HEPA filters. The cleanliness standards for cleanrooms have several levels with each level having a different particle size and count per cubic meter. HEPA vacuum cleaners for this sophisticated and specialized environment have to meet the highest standards and have the most efficient type of HEPA filter.

Hazardous Material Cleanup

HEPA vacuum cleaners are used in hazardous material cleanup to remove harmful particles from the air. They are used in situations where hazardous materials such as asbestos, lead, and mold need to be removed from a building or other structure. HEPA vacuum cleaners are used in conjunction with other protective equipment such as respirators and protective clothing to ensure the safety of cleanup workers. Additionally, the housing for HEPA vacuum cleaners for hazardous material cleanup are explosion proof.

Automotive Industry

HEPA vacuum cleaners are used in the automotive industry to remove dust, debris, and other small particles from car interiors and engines. They are especially useful in detail shops, where they are used to clean carpets, seats, and other interior surfaces.

Construction Industry

HEPA vacuum cleaners are commonly used in the construction industry to remove dust and debris from construction sites. They are used to clean up after demolition work, sanding, and other activities that generate large amounts of dust and debris.

Janitorial Services

HEPA vacuum cleaners are used by janitorial services to clean commercial and industrial buildings to remove dust, debris, and other small particles from floors, carpets, and other surfaces.

Public Transportation

HEPA vacuum cleaners are used in public transportation, such as buses and trains, to remove dust and other small particles from the air and improve air quality and cleanliness for passengers and staff.

Aerospace Industry

HEPA vacuum cleaners are used in the aerospace industry to remove dust and other small particles from manufacturing facilities and cleanrooms. They ensure the cleanliness of the environment during the manufacturing of aircraft and spacecraft.

Hospitality Industry

HEPA vacuum cleaners are used in the hospitality industry, such as hotels and resorts, to maintain clean and healthy environments for guests, and clean carpets, upholstery, and other surfaces, removing dust, debris, and other small particles.

Educational Facilities

HEPA vacuum cleaners are used in educational facilities, such as schools and universities, to improve air quality and cleanliness in classrooms, laboratories, and other areas. They are used to remove dust, debris, and other small particles from carpets, floors, and other surfaces.

Retail Stores

HEPA vacuum cleaners are used in retail stores to remove dust and other small particles from floors, carpets, and other surfaces. They are used to maintain a clean and healthy environment for shoppers and staff.

Government Agencies

HEPA vacuum cleaners are used in various government agencies, such as federal buildings and military facilities, to maintain clean and healthy environments. They are used to remove dust, debris, and other small particles from floors, carpets, and other surfaces.

Home and Residential Use

HEPA vacuum cleaners are used in homes and residential settings to improve indoor air quality and cleanliness. They are especially beneficial for individuals with allergies, asthma, or other respiratory conditions. They help remove the irritants that can exacerbate those conditions. HEPA vacuum cleaners are also beneficial in homes with pets, as they help remove pet hair and dander from the air.

Chapter Ten: HEPA Vacuum Cleaners in the Future

A potential future role for HEPA vacuum cleaners is in smart homes and buildings. With the rise of the Internet of Things (IoT), it may be possible to integrate HEPA vacuum cleaners with other smart devices in order to create a more efficient and automated cleaning process. For example, a smart vacuum cleaner could be programmed to turn on automatically when indoor air quality reaches a certain threshold or could be controlled remotely via a smartphone app.

HEPA vacuum cleaners are likely to be more important in the future as concerns about air pollution and indoor air quality continue to increase. As people become aware of the health risks associated with poor indoor air quality, the demand for HEPA vacuum cleaners is likely to increase. HEPA vacuum cleaners may also become even more efficient at capturing particles, making them an increasingly important tool for maintaining good indoor air quality.
