This article contains everything you will need to know about automatic screwdrivers and their use.
You will learn:
An automatic screwdriver is a device designed to insert screws into products automatically during assembly and manufacturing processes. Given that each production environment has its own specific needs, automatic screwdrivers come in various sizes, designs, capabilities, and configurations. Despite these variations, the primary function of all automatic screwdrivers is the insertion of screws. These tools enhance speed, precision, quality, and efficiency in modern production settings.
The operation of an automatic screwdriver involves feeding screws into the device, which then securely fastens them to an assembly. This process is managed by three main components: the screw driving unit, the controller, and the screw feeder. Together, these elements coordinate to execute the screwing or fastening tasks.
Automated screwdrivers are particularly beneficial under certain conditions. If a large number of personnel are required for the screw driving task, an automatic screwdriver offers a labor-saving advantage. Additionally, for processes that consistently use the same type of screw, an automatic screwdriver serves as a cost-effective solution, enhancing production efficiency.
Automatic screwdrivers are crucial for enhancing bulk productivity, controlling process rates, and providing flexibility in production operations. They excel in speed, reliability, and efficiency, requiring minimal maintenance. A standout feature of automatic screwdrivers is their ability to operate rapidly without requiring worker intervention. They consistently place, attach, and secure thousands of screws with exceptional accuracy and programmed torque.
When evaluating automatic screwdrivers, two key factors come into play: the mechanism of the screwdriver itself and its delivery system, which often includes robotic arms. There are numerous varieties of automatic screwdrivers, each tailored with specific features to fit into various automatic screwdriver systems. The choice of delivery mechanism is influenced by the type of product and the size of the screwdriver.
The five automatic screwdriver systems described below represent just a fraction of the many types available. Custom-designed systems are continually being developed to meet specific assembly processes or applications. Additionally, the number of automatic screwdrivers in a system and the level of programmability are factors that further differentiate the various types. Manufacturers are actively exploring these aspects to enhance the functionality of automatic screwdrivers.

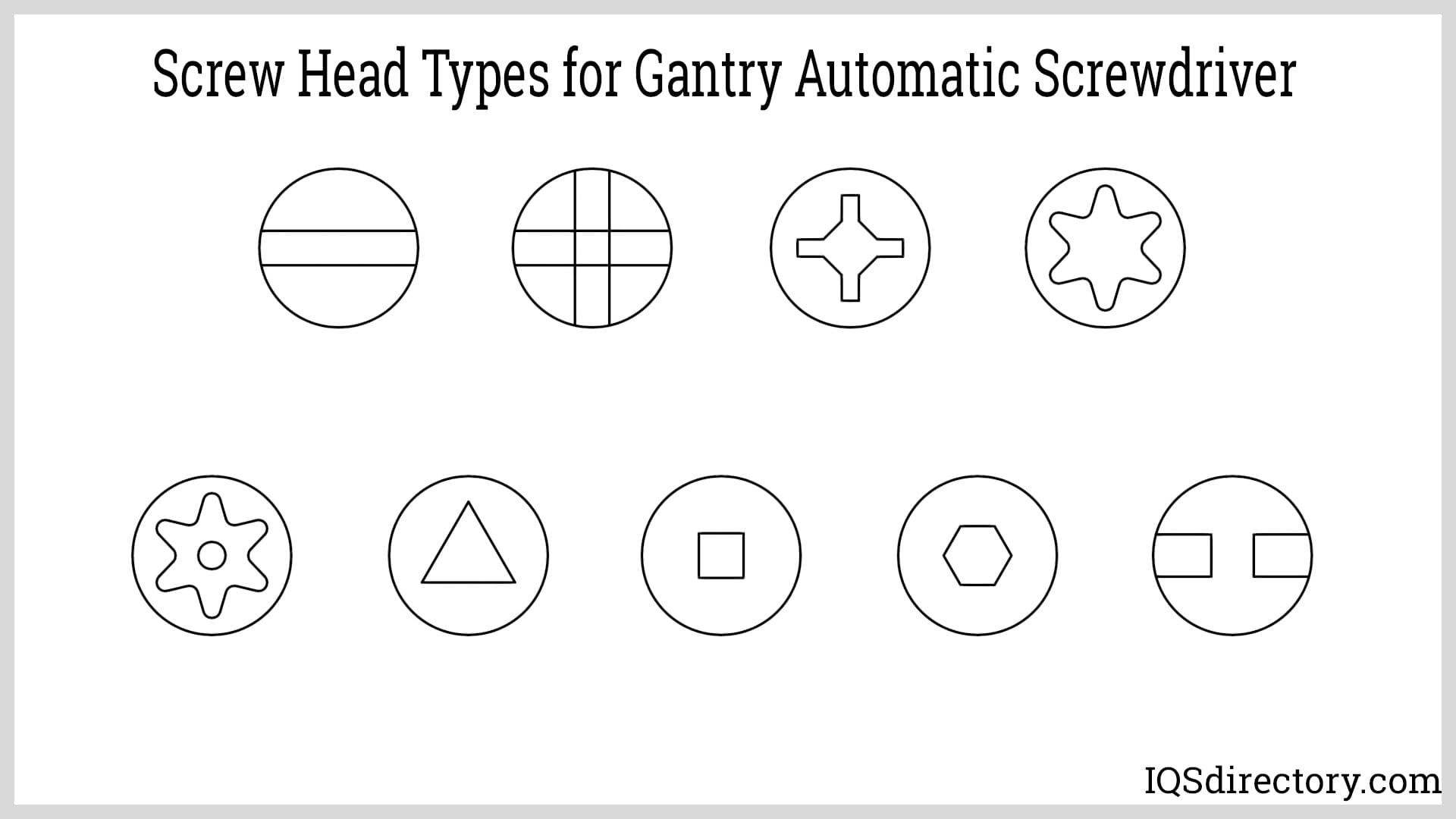

The gantry-style automatic screwdriver operates along the X and Y axes, utilizing a servo motor and sliding table system. It features X-axis rails and Y-axis bracket rails to accurately position assemblies. This type of screwdriver is programmable and can be paired with automatic screw feeders. It may include several screwdrivers that are adjusted via the X-axis movement, while components are placed on a Y-axis platform that moves based on pre-set programming.
Although the gantry automatic screwdriver automates the fastening process, it requires an operator for loading and unloading materials. Unlike automatic screwdrivers embedded in assembly lines, this model is portable and not fixed to a robotic system. It is versatile and can be adjusted to accommodate different screw types and sizes, enhancing its adaptability for various tasks.
One important feature of gantry automatic screwdrivers is their torque monitoring capability. This system is vital for setting and adjusting torque specifications to match the requirements of both the screws and the assembly. Proper torque adjustment ensures the quality and effectiveness of the fastening process.

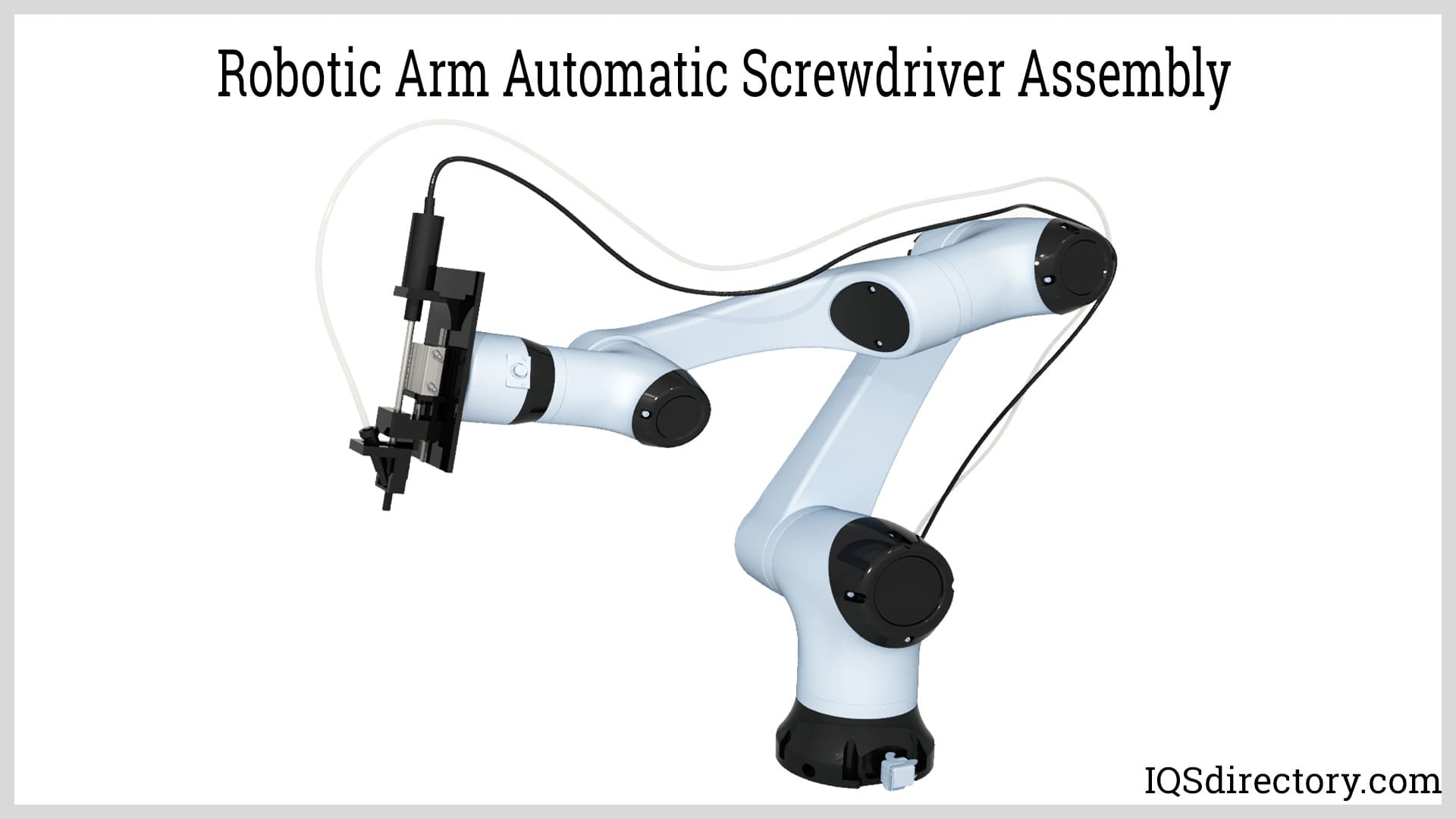

Robotic screwdrivers are engineered to handle the repetitive actions of fastening and unfastening bolts, nuts, or screws. These robots are programmed to execute these tasks with high precision, enhancing efficiency and reducing labor expenses, ultimately boosting productivity.
An automatic screwdriver robotic system is comprised of several key components: a robotic arm, a screwdriver attachment, a vision system, a control system, and a user interface. The robotic arm handles the movement and placement of the screwdriver, equipped with joints that enable smooth and precise motion. The screwdriver units themselves vary, ranging from standard models to those tailored for specific, custom applications.
In contemporary robotic systems, vision systems are essential. These systems include cameras and sensors that track the screwdriver’s position and alignment, ensuring accurate operations. The functionality of these visual systems is akin to those used in quality control comparators, providing critical feedback for precision.
The final aspect of an automatic screwdriver robot is its user interface, which facilitates programming of parameters such as torque settings, screw types, movement sequences, and operational procedures. These interfaces are often customized to meet specific needs and processes, reflecting the diversity in applications for automatic screwdrivers.
The economic benefits and efficiency improvements provided by automatic screwdriver robots have led to their widespread adoption, as manufacturers recognize their cost-effectiveness and ease of integration into various production processes.

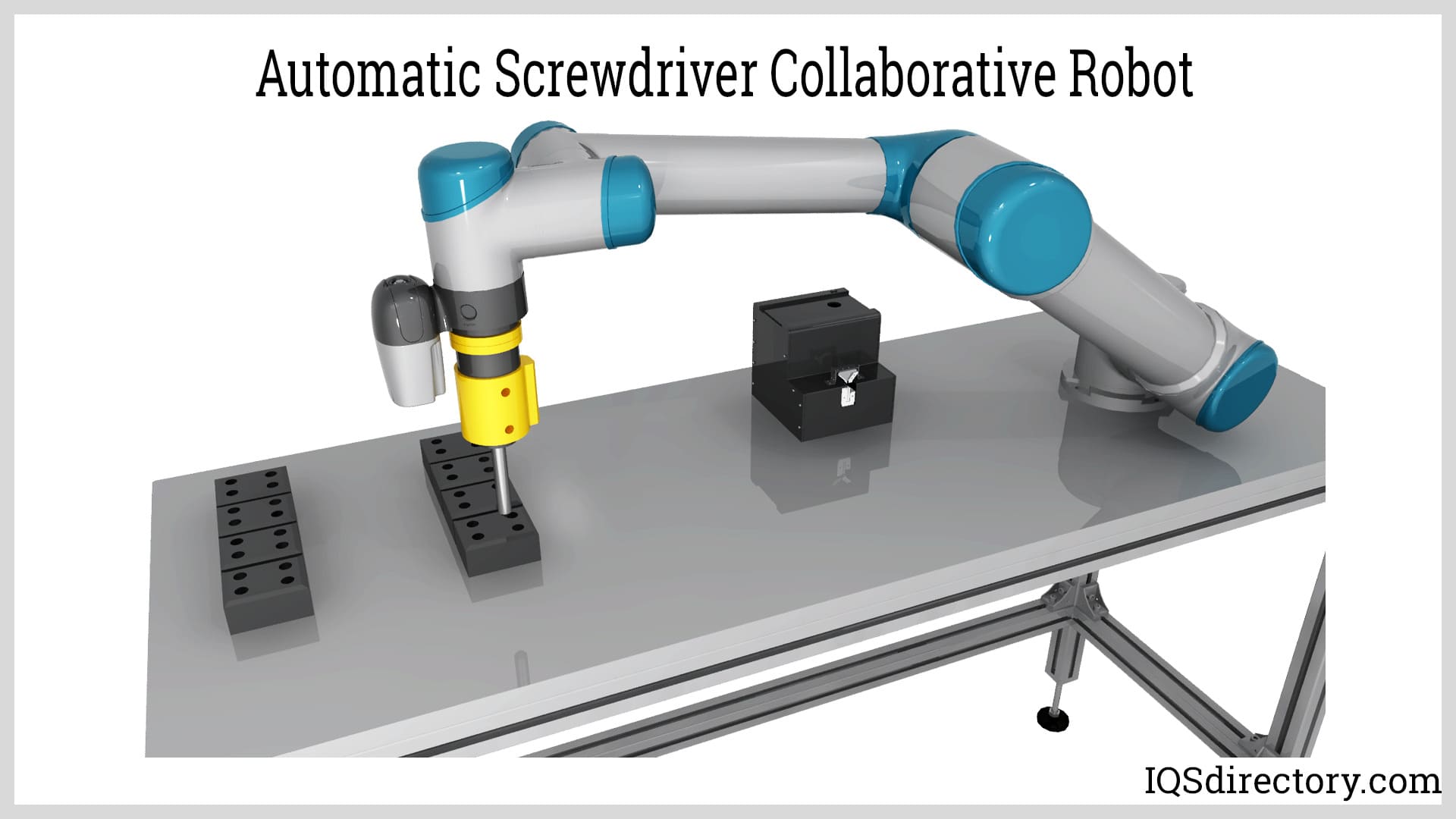

In recent years, collaborative robots (cobots) have seen significant growth in use as they effectively combine human operators with technological advancements, enhancing productivity and product quality. Collaborative automatic screwdrivers are specifically designed to work alongside human workers and other manufacturing systems. Their popularity stems from their compact size, affordability, versatility, precision, and their ability to collaborate effectively with people.
Unlike larger and more complex robotic systems, collaborative automatic screwdrivers are smaller, require less operational space, and are more budget-friendly. For a cobot system to be considered suitable for integration, it must seamlessly fit into existing processes and ensure operator safety. Advances in engineering and technology have led to the creation of collaborative automatic screwdrivers that offer performance comparable to larger models but with greater practicality for diverse applications.
Enhancements in effector technology have also contributed to the improved utilization of cobots. The effector, or end-of-arm tool, is the component at the end of the robotic arm that holds and operates the screwdriver. It is designed to respond to both human commands and software instructions, reacting to environmental cues and completing the screw driving task.
In a cobot system, the effector plays a critical role in the screw driving process. While the robotic arm is programmed to position the tool and screw, the effector maintains the tool's position to finalize the operation. Proper functioning of all components is crucial, but the effector is indispensable for the final execution of the task.

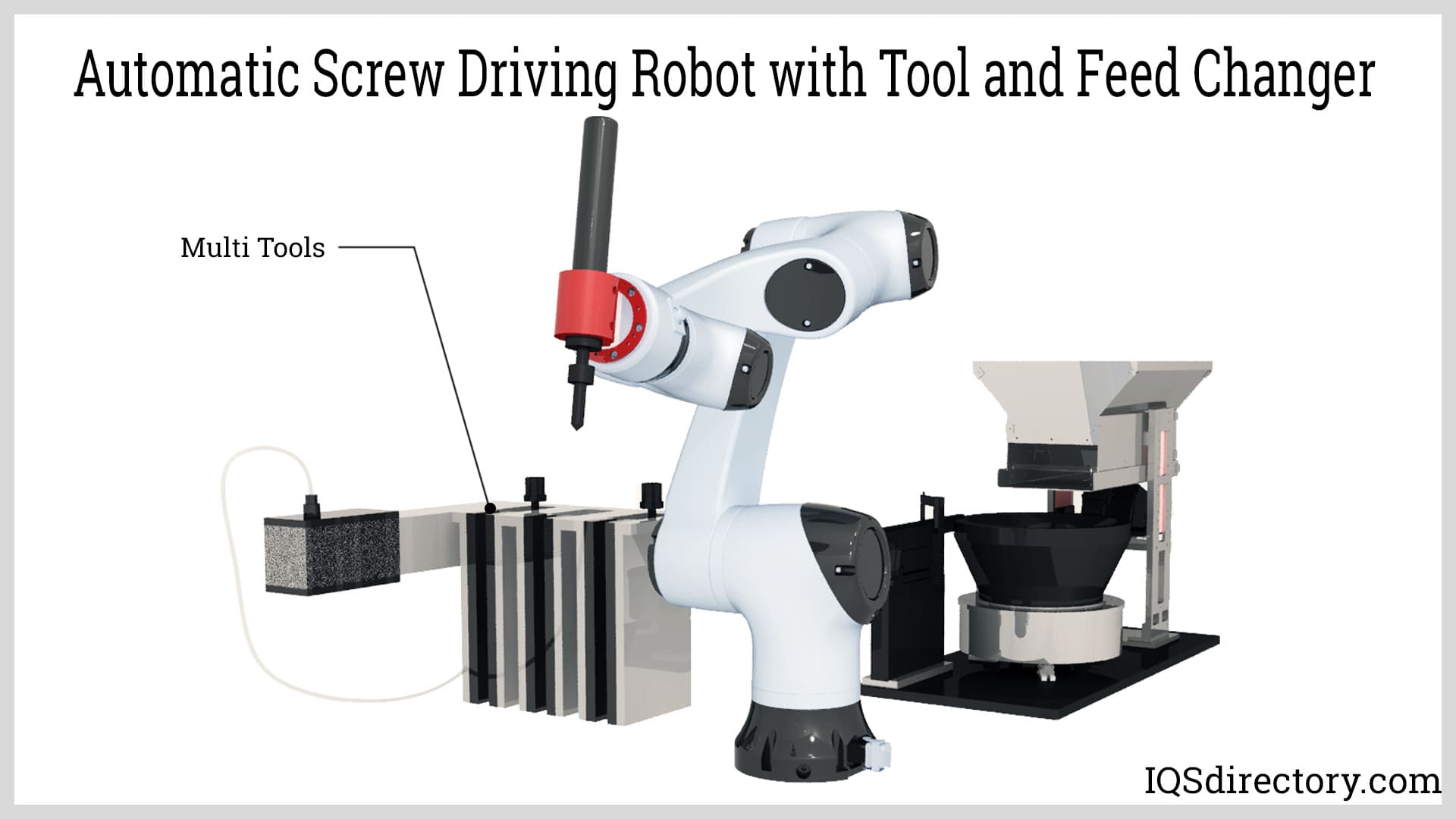

Automatic screwdrivers are typically designed to handle one type of screw repeatedly with efficiency. They streamline the process by feeding workpieces through the system, attaching screws, and then moving them to the next stage. This efficiency is a key reason for their widespread use. As demand has grown, there has been a push for automatic screwdrivers that can handle multiple screw types simultaneously.
To accommodate different screw shapes and sizes, various feed mechanisms and tool heads are required. Advanced automatic screw driving robots have been developed to accommodate these needs by allowing for automatic changes in feed systems and tool heads. These systems are governed by software that can be programmed with sequences of operations. Besides screw driving, these robots are capable of handling additional tasks such as placing workpieces, positioning boards, setting pins and balls, and performing gripping operations.
An automatic tool changer screwdriver system includes a screw driving unit equipped with an effector that supports quick tool changes. The system can be programmed with multiple feed units based on the variety and quantity of screws used. These feed units can be configured to be either internal or external to the system.
The tool changing mechanism is secured in a tool station, and an encoder provides the correct tool selection through a coded system. This ensures that only the appropriate tool is used for each process. The design includes safety features that halt the system and stop robotic operations if manual interference is detected.

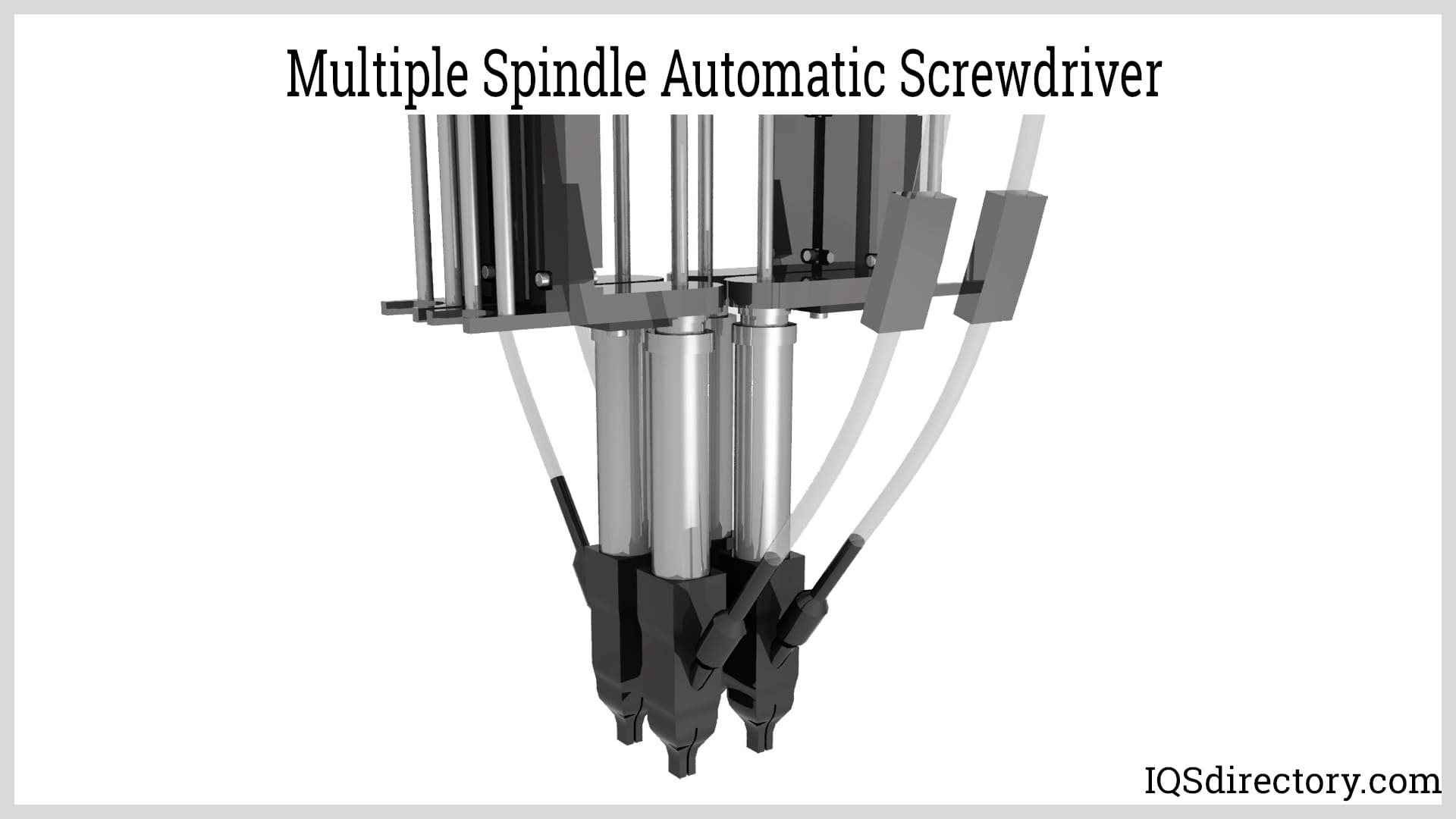

The drive head of a multi-spindle automatic screwdriver system is designed to insert multiple screws of varying sizes and types simultaneously or at programmed intervals. Each spindle can be individually programmed to meet the specific needs of the application. The system utilizes a blow feeder and is adaptable for driving bolts, pins, rivets, and set screws.
Multi-spindle automatic screwdrivers feature several screwdrivers mounted together, which allows for simultaneous hole boring in a workpiece. This setup offers a space-saving alternative to using multiple individual screwdrivers. Typically, these systems are mounted on platen assemblies that can be positioned on fixtures, robotic arms, or indexing stations. Feeding units may include single or dual exit configurations and are integrated with the multi-head attachment, often combined with a single bowl feeder for handling one type of screw.
Automatic screwdrivers are designed to make the process of screwing more efficient, organized, and automated. Key components of an automatic screwdriver include the screw feeder, the screwdriver unit, and various control systems. The screw feeder's role is to sort and dispense screws, while the screwdriver units receive these screws and insert them into the designated assembly, component, or product. These elements work together, with the control system programming and managing the operation. The controller adjusts parameters such as the feed rate, screwdriver torque, and screw positioning to ensure optimal performance.
An automatic screw drive system includes a variety of feeders responsible for supplying screws to the screwdriver unit. These feeders typically consist of a hopper for screw storage, a feeding mechanism, and a tracking system that directs the screws to the screwdriver. The efficiency of the system largely depends on the sophistication of the tracking system, which ensures that screws are accurately positioned for insertion into the workpiece.
Screw feeders are commonly mounted on top of the screwdriver system and are designed to automatically deliver screws to a fixed location where they are picked up by either a magnetic bit or a vacuum assembly. They come in various sizes, lengths, and configurations to fit different applications seamlessly.
In a vacuum feeder system, screws are lifted by a suction tube using negative pressure and are positioned directly over the screw hole. Once correctly aligned, the screwdriver descends to drive the screw in place. This feeding mechanism can support single or multiple screwdrivers, depending on whether it needs to supply one screwdriver or several, as in a multi-spindle system.
The screws stored in the hopper are sorted and directed through a trackway that aligns them properly for the screwdriver. When the screws reach the screwdriver unit, they are engaged by a bit holder that uses either a vacuum or magnetic system to ensure precise positioning for insertion into the workpiece.
Screwdriver units come in various configurations, including single screwdriver setups, multi-screwdriver arrangements, and those designed to handle different types of screws. Each unit features a motor to provide power, a clutch to manage torque, and a bit holder to secure the bit. Once a screw is positioned by the feeder unit, the motor engages to drive the screw into the workpiece or assembly.
Torque regulation is managed by the control unit and is critical to the screw insertion process. Proper torque ensures that screws are tightened adequately without damaging the material. This adjustment capability allows automatic screwdrivers to adapt to different assembly requirements, offering versatility across various applications.
There are three main types of screwdriver units: handheld, fixed, and movable. Handheld screwdrivers are commonly used for personal or DIY tasks. Fixed automatic screwdrivers are integrated into production lines, where they receive screws from feeders and insert them into workpieces. These units are typically stationary and designed for continuous operation in manufacturing environments.
Movable screwdriver units can be either semi-fixed or part of a robotic arm. Semi-fixed screwdrivers are often mounted on rotating platforms, allowing them to move along the X and Y axes to access different areas of a workpiece, similar to gantry-type systems.
Robotic movable screwdriver units represent the pinnacle of technological advancement in automatic screwdrivers. These sophisticated systems are used in complex manufacturing and assembly tasks. Equipped with a screwdriver attached to a robotic arm (effector), they offer precise positioning and torque control. The movement and operation of robotic screwdrivers are programmed using advanced computer software, enabling them to handle delicate and intricate assembly tasks with high accuracy.

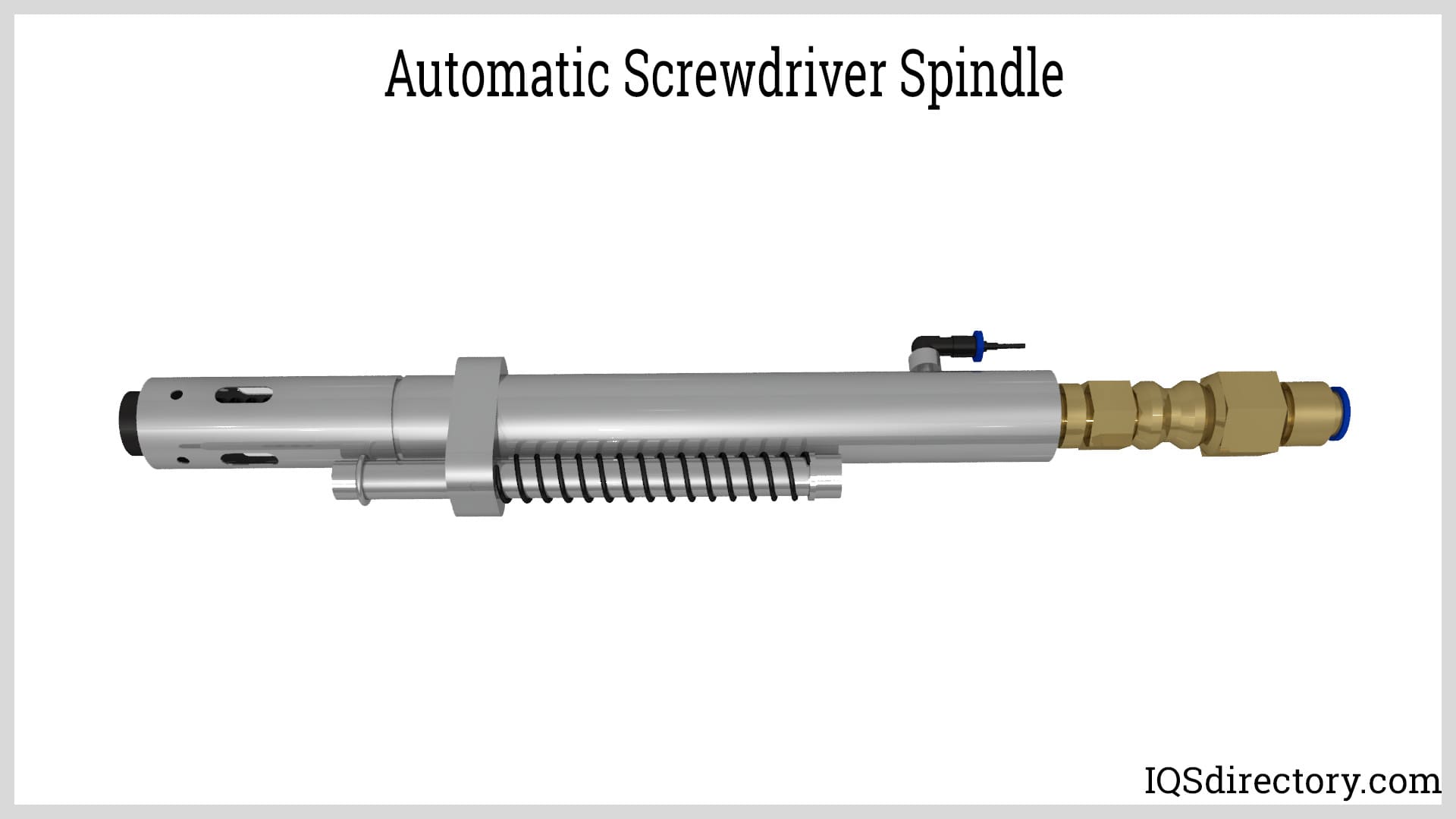

Automatic screwdrivers utilize spindles that vary in design based on the specific type of screwdriver. Despite these design differences, the primary role of the spindle remains consistent: to rotate and fasten screws. The spindle is driven by a motor located at one end, which powers the bit to insert the screw into the workpiece. For optimal performance and safety, a torque sensor is installed between the motor and the spindle to monitor the tightness of the connection. Additionally, a depth sensor is used to measure how deeply the screw is driven, ensuring it aligns with the preset configuration.
Different spindles are suited for various screwing tasks, with their design tailored to accommodate factors such as the material of the workpiece and the dimensions of the screws. When adjusting or replacing a spindle, its new settings must be input into the control system to ensure proper operation.
Automatic screwdriver spindles are equipped with stroke compensation features that control the end load pressure. This functionality adjusts to various screwdriving needs by managing stroke lengths, integrating sensors, and configuring drive units. The spindle can be powered either electrically or pneumatically, with the control system ensuring it does not exceed the workpiece's base.

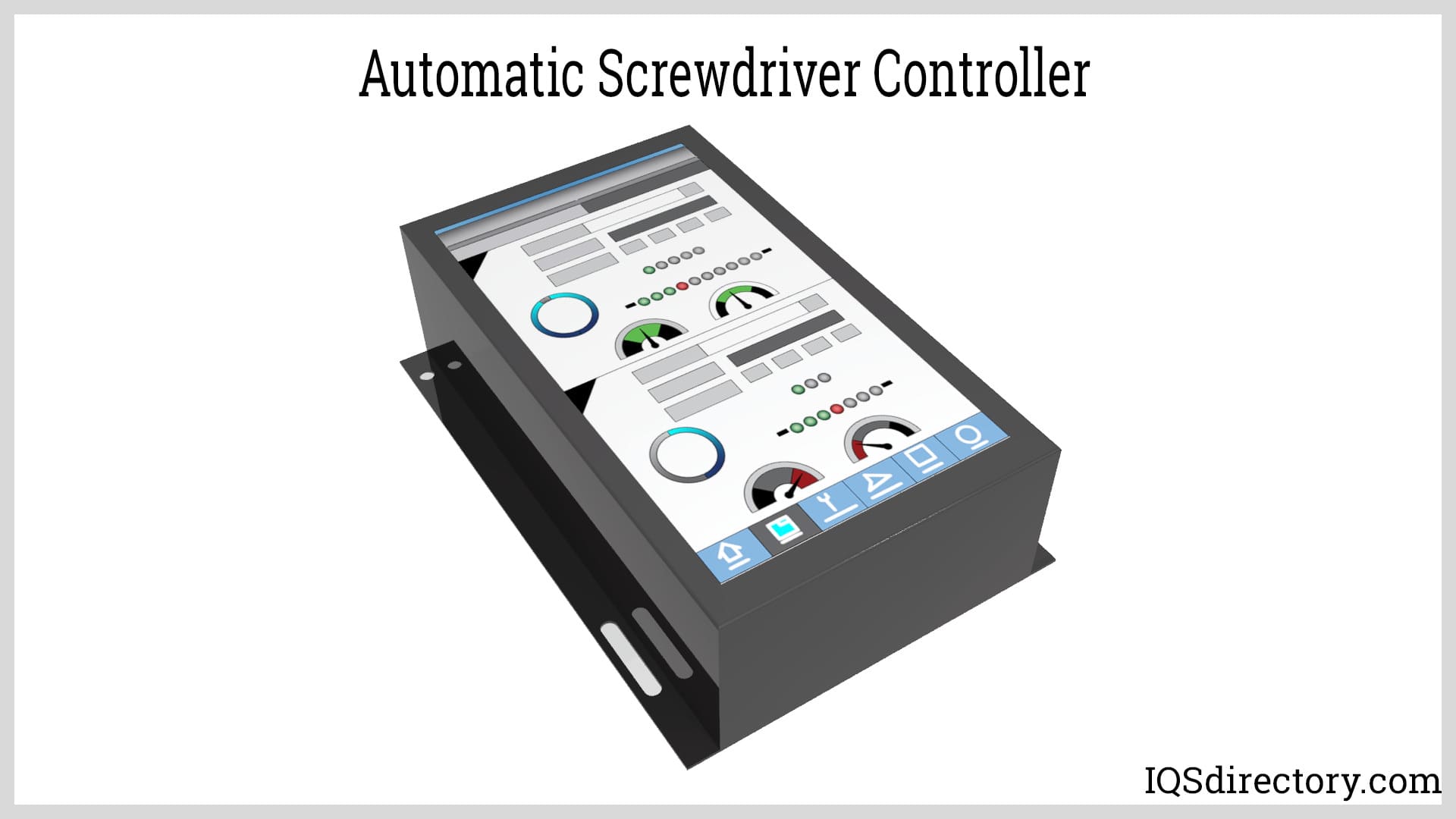

Controllers are a critical component of an automated screwdriver system, responsible for overseeing and managing the screwdriving operations to ensure precise control over speed, accuracy, torque, depth, and feed. They regulate the spindle stroke and coordinate with other elements of the assembly process. Controllers vary widely, ranging from basic models with straightforward settings to advanced systems with multiple interfaces for detailed process analysis. Most controllers feature touch screen displays, with some offering handheld units for remote adjustments.
Advanced controllers often include sensors and inspection cameras to ensure high process accuracy and quality control. These sophisticated units can identify and correct errors during the assembly process, gathering data on screw insertion, workpiece angle, torque levels, and feeding rates.
The high-speed operation of automatic screwdriver systems requires comprehensive control mechanisms to monitor every stage of the process. This includes continuous oversight of feeding, picking, insertion, and screwing. If the feeding hopper runs out of screws, the system halts and resumes operation once the hopper is replenished.

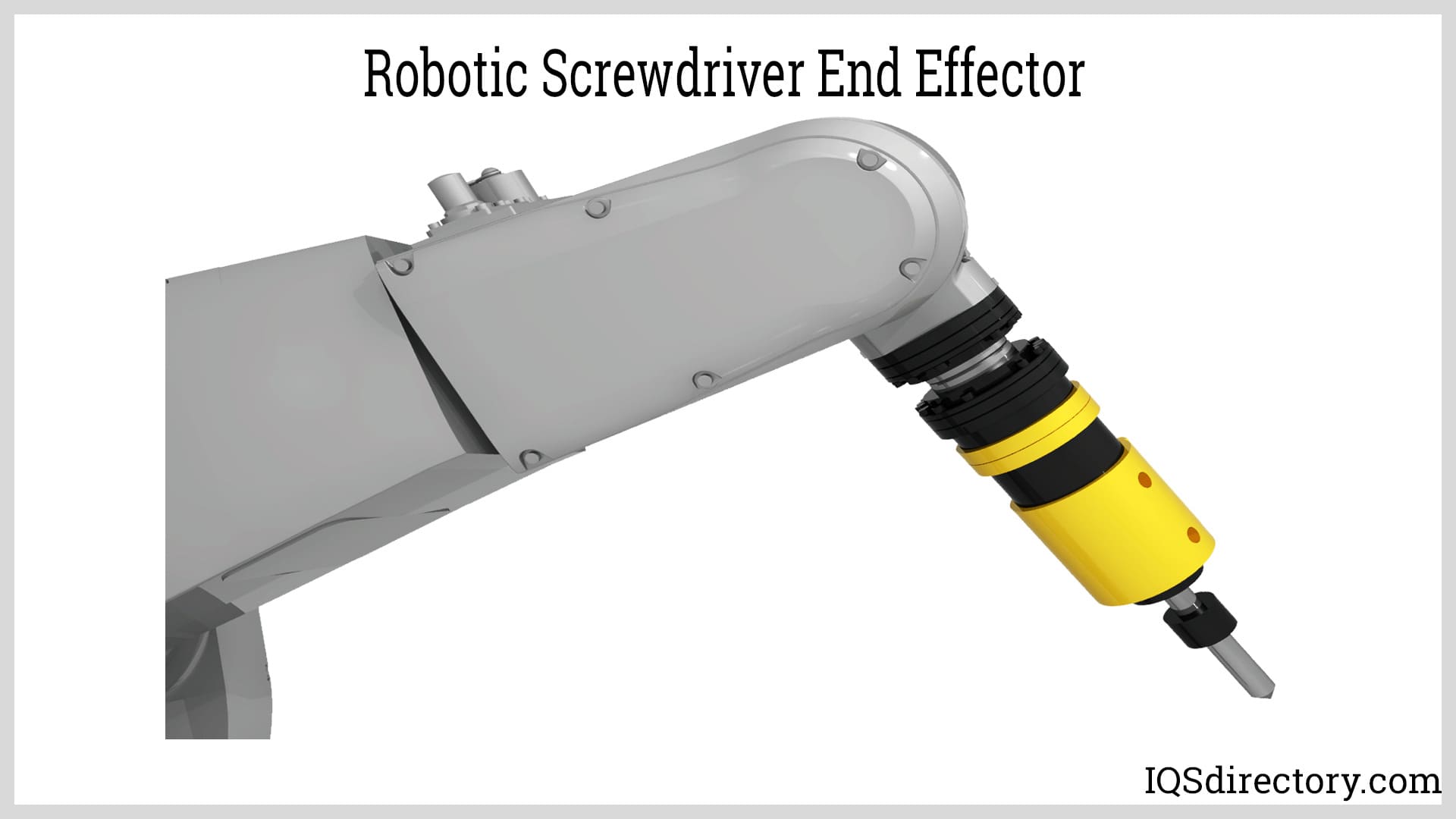

An effector is a critical component attached to the end of a robotic arm, functioning similarly to a hand. Effectors come in various forms, serving a wide range of industrial purposes. In the context of automatic screwdrivers, effectors are essential elements, particularly in collaborative processes or CoBots. Essentially, a robotic arm is incomplete without an effector, as it enables the arm to perform practical tasks.
Effectors can be highly advanced, incorporating various programmed functions to enhance the screwing process's quality and efficiency. They may include error detection capabilities and be designed to handle screws of different sizes, allowing a single effector to perform multiple tasks within a single cycle. The primary roles of an effector in screw driving are to grasp the screw and drive it into the workpiece.
The grasping mechanism of an effector typically features two fingers and a joint that allows for roll, yaw, and pitch adjustments, using a V-shaped groove to align the screw. Above the gripper, the driving component includes two rigid links and one flexible link. A link guide restricts the flexible link's movement, enabling precise up-and-down motion. The robotic arm, equipped with the gripper and screwdriver, collaborates to securely connect, insert, and tighten screws.
The effectiveness of an automatic screwdriver system largely hinges on the type of power it utilizes, which varies based on the system's design. Ensuring accurate and reliable connections is critical, and the selection of the power system directly impacts accuracy, timing, speed, and torque.
When selecting an automatic screwdriver, the power source is a crucial consideration. The two primary options are electric and pneumatic systems. Each type offers distinct benefits and is widely used in high-volume production environments. While some operations still rely on manual screwdrivers, many manufacturers are transitioning to automatic screwdriver systems due to their enhanced efficiency and precision.
Electric automatic screwdrivers offer programmable speed and torque settings, allowing adjustments during operation as needed. Unlike pneumatic screwdrivers, electric models enable real-time changes to speed and torque based on feedback from torque sensors integrated into the system. These screwdrivers can be precisely calibrated for torque levels and angular adjustments to ensure a secure fit.
The torque in electric automatic screwdrivers is assessed by measuring motor load, which is both precise and cost-effective. The widespread adoption of electric screwdrivers is attributed to their accuracy and the ability to finely control their operation. While they are generally more expensive than pneumatic models due to their advanced control features, their precision justifies the higher cost.
High-performance electric automatic screwdrivers are equipped with transducers that measure the applied torque at each joint. This data is sent to the controller, which uses it to identify and correct any tightening issues. Unlike clutch-based screwdrivers, those with transducers allow users to set specific torque levels tailored to the job and screw type, enhancing overall flexibility and accuracy.
Pneumatic automatic screwdrivers operate using vane air motors powered by compressed air. A mechanical clutch mechanism stops the screwdriver once it reaches the preset torque level. These screwdrivers are favored for their high accuracy and precision in tightening applications. They feature adjustable settings and a transducer for torque modification. Pneumatic models are renowned for their efficiency, high power-to-weight ratio, and low maintenance requirements, making them suitable for both hard and soft joints.
Designed for industrial use, pneumatic automatic screwdrivers are robust, facilitate rapid assembly, and are generally more affordable than their electric counterparts. They integrate seamlessly with automated screw feeding systems and are adaptable to various levels of automation. Their versatility allows them to fit into diverse manufacturing environments, providing a cost-effective solution for fully automated production processes.
The screw feeder plays a crucial role in ensuring a steady supply of screws to an automatic screwdriver unit, thereby minimizing cycle times. It positions the screws accurately so they are ready for insertion. The complexity of screw feeders arises from the challenge of accurately picking and positioning screws, especially smaller ones, which requires careful programming. Incorporating the screwing process into an assembly operation further complicates the feeder’s role.
Screw feeders are designed to guide screws to a designated point where they are captured by an automatic screwdriver using either a magnetic bit or a vacuum system. They are available in various sizes and configurations and are typically constructed from materials such as steel, stainless steel, or aluminum. Features like variable or stepped pitch, tapered diameter, and mass flow handling capabilities are common in these feeders.
Among the fundamental types of screw feeders are bowl feeders, rail feeders, and hopper feeders. The selection of a screw feeding system depends on factors such as screw size, orientation, interface requirements, and loading method.

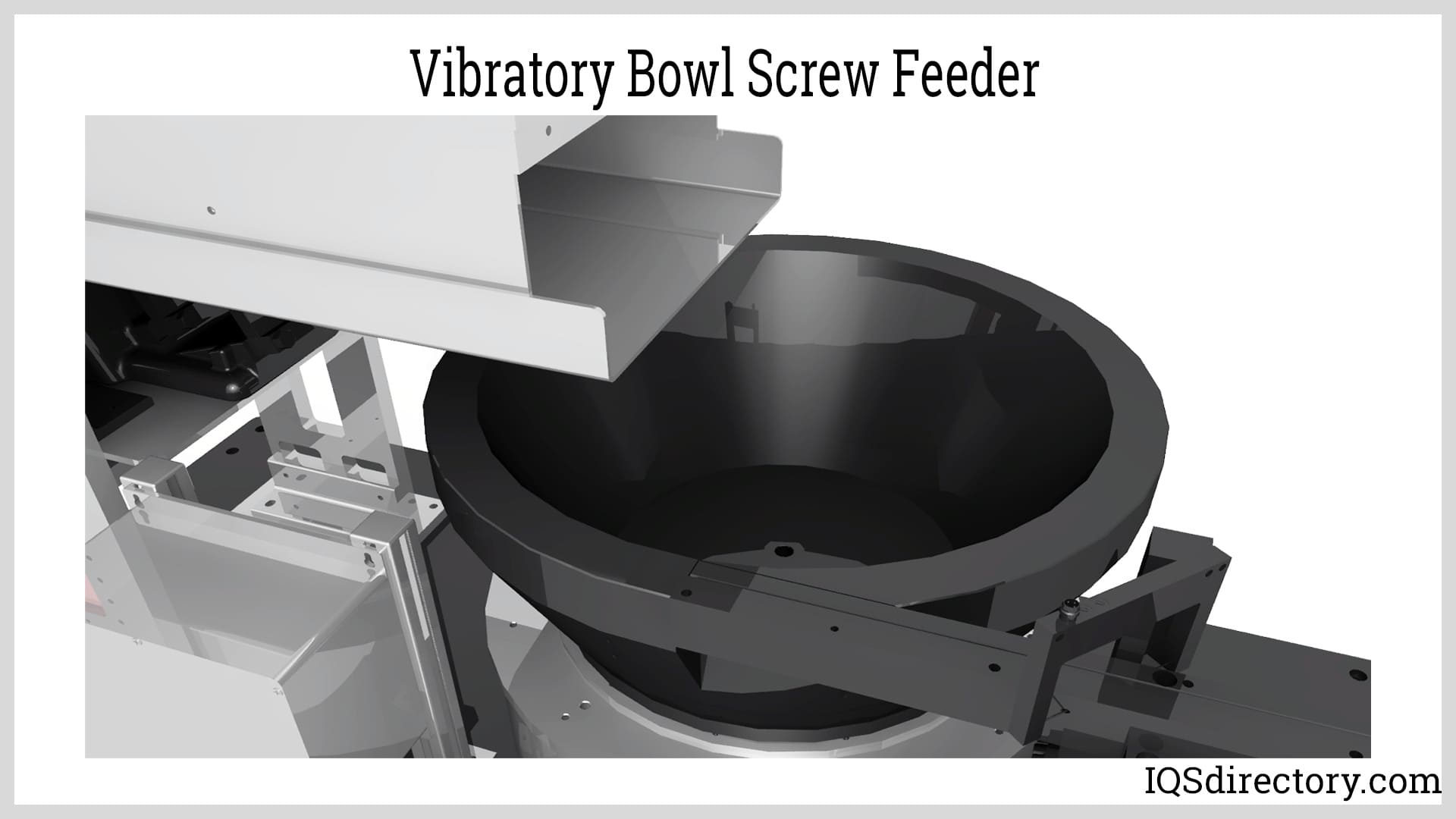

Vibratory bowl feeders, commonly referred to as bowl feeders, are extensively used to orient and feed components in assembly operations. They are particularly effective for delivering bulk quantities of parts to machines, such as automatic screwdrivers. Their popularity stems from their capability to handle a diverse range of part sizes while occupying minimal space.
In a bowl feeder, electromagnets generate vibrations that align and transport screws to the screwdriver unit. These vibrations are transformed into mechanical movements that facilitate the movement of screws along a conveying track to the screwdriver unit.
Screw conveyor hoppers, also known as hopper feeders, consist of a hopper combined with a screw conveyor or rail system. These feeders release one screw at a time using vibrations, pneumatic systems, or mechanical mechanisms. The screw is then correctly oriented and directed through a feed tube or along a rail to the screwdriver tip for attachment to the workpiece. After a screw is inserted and positioned, the hopper continuously releases the next screw, ensuring a smooth and uninterrupted feeding process.

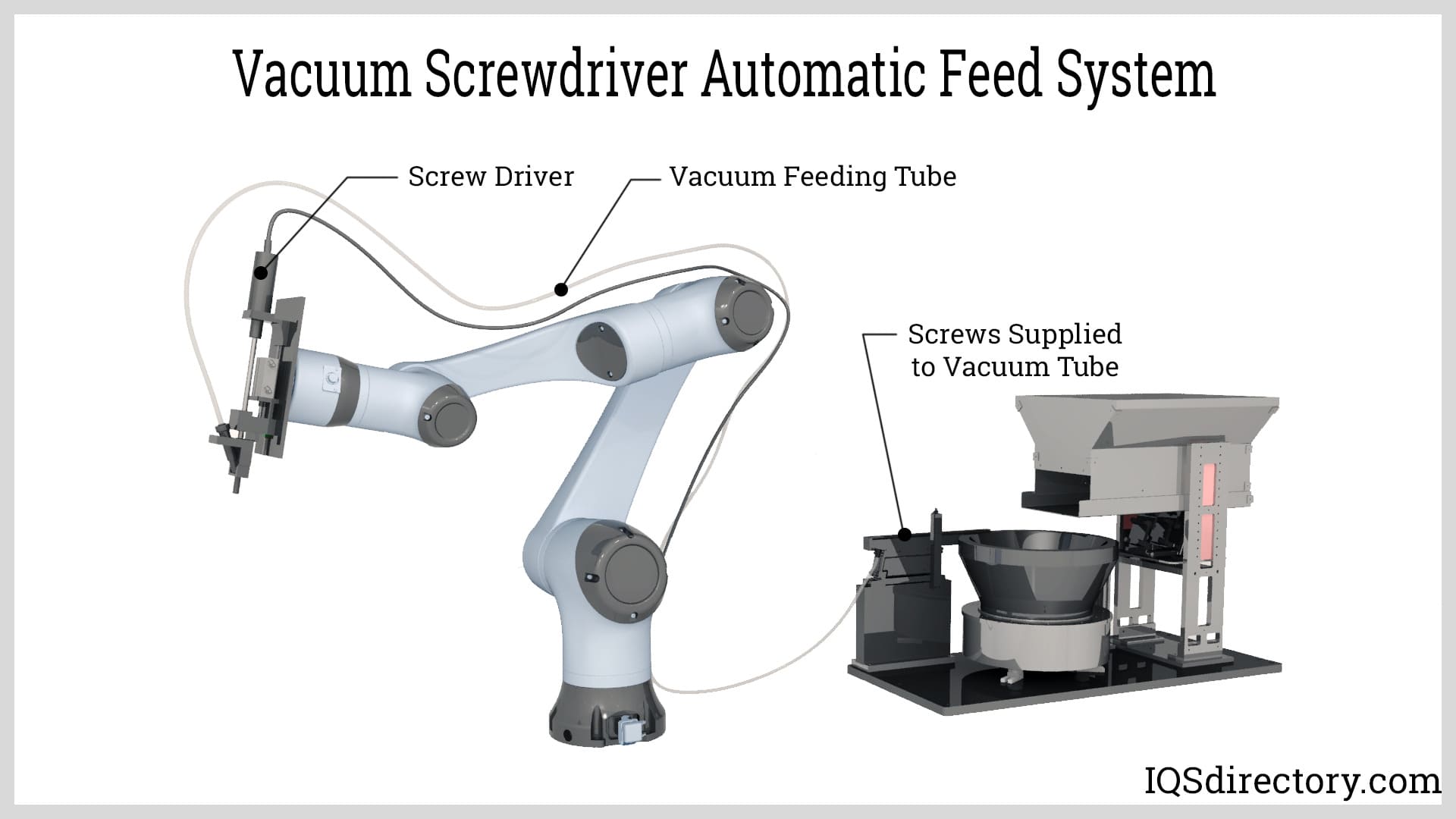

In a vacuum-based automatic screwdriver system, screws are captured using a vacuum with negative pressure and carefully positioned above the screw hole. The screwdriver is equipped with a nosepiece connected to the vacuum pump, which draws the screw in and secures it for fastening. This rapid and efficient process enhances the speed of screw insertion and reduces overall assembly time.
Unlike magnetic systems, which are limited to working with ferrous metals, vacuum systems are versatile and can handle non-magnetic metals and plastics. The nosepieces and hoses can be adjusted to accommodate various screw head types. Vacuum pickup systems are particularly useful in automated screwdrivers for their precision in placing screws in challenging or confined spaces.

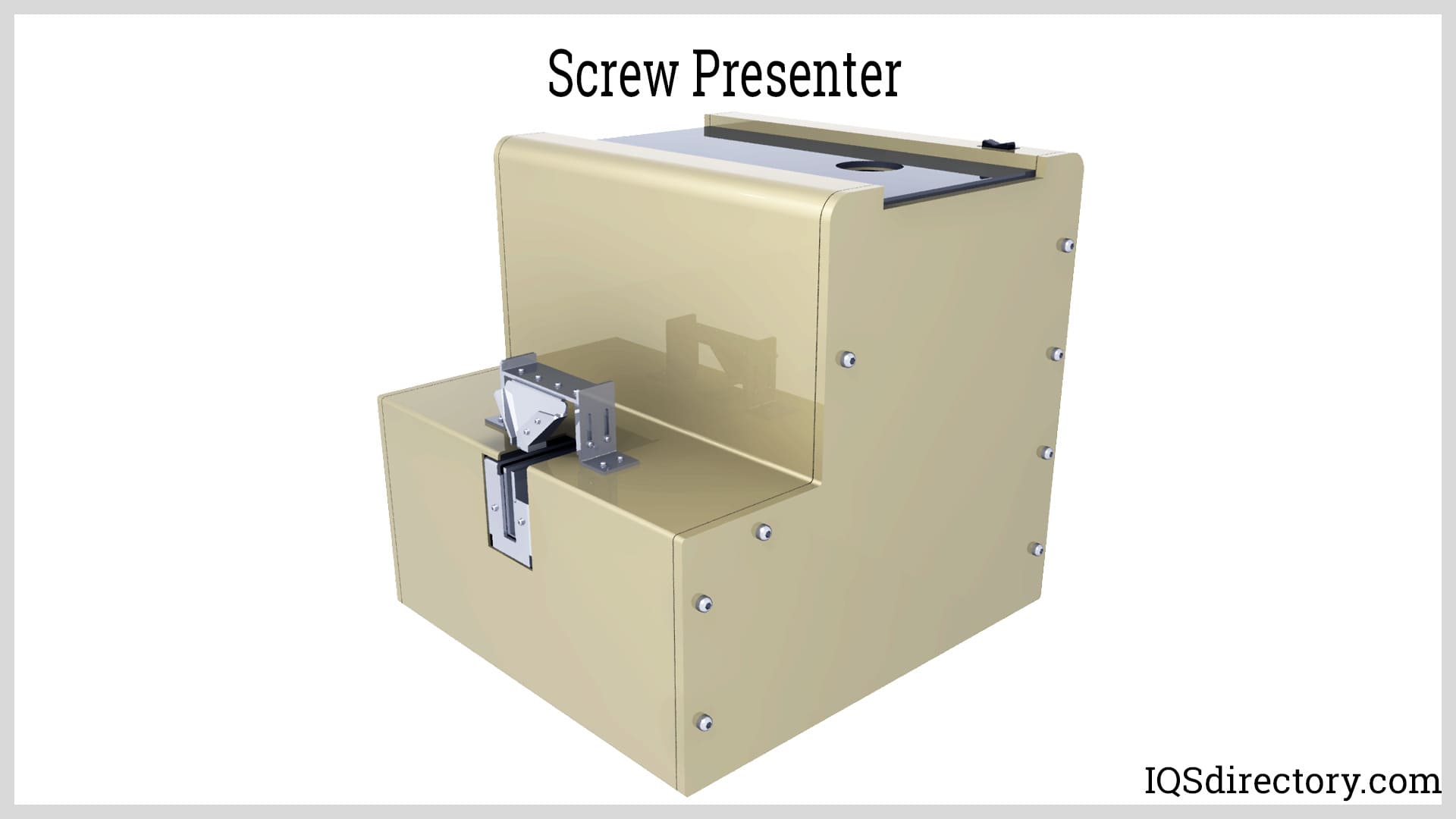

Screw presenters operate similarly to screw feeders by positioning screws at a fixed pickup location where a robotic arm can easily retrieve them. However, unlike larger screw feeders such as hoppers or vibratory feeders, screw presenters are compact and designed to be placed in close proximity to assembly tasks for convenient access. In this system, screws are arranged on a flat metal surface, allowing them to be picked up head first by the tip of the screwdriver unit.
Compared to the larger and more costly screw feeders, screw presenters are smaller and more affordable. They are ideal for smaller-scale operations where precision in securing joints and components is needed. Available in various sizes, screw presenters are suitable for use on tabletops or workbenches, making them a versatile choice for different applications.
Step screw feeders utilize a series of ascending steps to elevate screws onto a vibratory conveyor, which then transports them to a mechanism that delivers the screws to the screwdriver unit. The lifting process involves a stepped mechanism that gently raises the screws incrementally. The conveyor rail, which vibrates, ensures that the screws are properly aligned and delivered for feeding. This vibration minimizes friction between the screws, making step feeders particularly well-suited for handling screws used in surface-coated applications.
Automation and robotics have become integral to modern manufacturing processes. Technological innovations have greatly enhanced the efficiency, accuracy, and speed of assembly operations. Traditionally, joining components was a labor-intensive, time-consuming task. However, the advent of automatic screwdrivers in various designs has significantly accelerated production rates and enhanced product quality.
Incorporating sensors into the assembly process has markedly improved the precision of screwing operations. Accurate screw placement at the correct angle ensures optimal joint connections, enhancing overall product quality. With their high repeatability, various automated screwdrivers ensure that each screwing task is executed with exceptional accuracy.
The diverse selection of automatic screwdrivers allows for tailored solutions that precisely fit specific application requirements. The automation spectrum includes everything from basic manually operated screwdrivers to advanced machine-driven systems and robotic arms with computer controls. These screwdrivers range from compact table-top and workbench models to large, multi-feed systems. Essentially, there is an automatic screwdriver designed to meet every possible application need.
The primary advantage of adopting an automatic screwdriver system is its efficiency. Tasks that might take hours for manual workers can be accomplished in minutes with these systems. Automatic screwdrivers streamline the processes of selecting, inserting, and tightening screws, performing these tasks rapidly and with minimal effort, eliminating the need for staff intervention. This speed significantly shortens the time required to complete assemblies.
The range of automatic screwdrivers includes a variety of sizes and costs, catering to different needs. Some are designed for integration into assembly lines and large-scale production environments, while others are intended to assist staff with simpler tasks. Moreover, manufacturers collaborate closely with clients to create and refine custom screwdrivers tailored to meet specific requirements and conditions.
Worker health and safety have become crucial considerations in modern manufacturing, both for cost efficiency and overall productivity. Repetitive tasks can lead to worker fatigue, injuries, and absenteeism. By automating simple tasks like screw fastening, manufacturers not only alleviate these health concerns but also enhance worker morale, leading to a more productive and positive work environment.
