Introduction

This article takes an in depth look at screw conveyors.

Read further to learn more about topics such as:

  • What are screw conveyors?
  • Components of screw conveyors
  • Screw conveyor configurations
  • Screw conveyor considerations
  • And much more…
Screw Conveyor

Chapter 1: What are Screw Conveyors?

Screw conveyors, or auger conveyors, are industrial equipment used in transporting bulk quantities of granular solids (e.g., powder, grains, granules), semi-solids, liquids, and even non-flowing materials from one point to another. They uphold high operational efficiency by eliminating the need for the workers to manually move around loads. Screw conveyors primarily consist of a rotating screw shaft that is installed within a trough. As the screw shaft rotates, the material moves linearly. They can be designed to provide horizontal, vertical, and inclined travel paths.

Basic Screw Conveyor Operation

Several types of screw conveyors are designated to handle a specific material behavior. Bulk materials may be abrasive, non-free-flowing, fluidizing, hygroscopic, or hazardous. The products handled by screw conveyors are the likes of cereals, fertilizers, animal feeds, ash, gravel, cement, and solid wastes.

The first screw conveyor was the Archimedes screw, which was developed around 250 B.C. An Archimedes screw is a form of positive displacement pump that was used to lift water from low-lying lands to the elevated irrigation ditches. The construction and driving system of Archimedes screws were improved throughout the years to increase their efficiency, durability, and speed while adapting the original mechanism.

Archimedes Screw

Chapter 2: Components of Screw Conveyors

The components of screw conveyors and their types (based on design aspects) are as follows:

Components of Screw Conveyors

Conveyor Screw

The conveyor screw is the main component of a screw conveyor; it is responsible for pushing the solids through the length of the trough. It is composed of a shaft with a wide blade running helically around its length. This helical structure is called flight. Conveyor screws work like enormous screws; the material travels one pitch as the conveyor screw rotates in full revolution. The pitch of the conveyor screw is the axial distance between two flight crests. The conveyor screw stays in its position and does not move axially as it rotates to move the material across its length.

Conveyor Screw

The following are the types of screw conveyors based on their flight and pitch design:

Standard Pitch Screw Conveyors

In standard pitch screw conveyors, the pitch is equivalent to the screw diameter. The screw diameter is the radial distance between two flight crests. They are commonly used in horizontal screw conveyors and inclined screw conveyors with below 10° inclination. They are suitable for handling most materials.

Standard Pitch

Variable Pitch Screw Conveyors

In variable pitch screw conveyors, the pitches increase variably across the screw flight. The pitch is longer at the inlet side to provide additional space for the fed materials as they are being discharged from hoppers, bins, or silos. Variable pitch screw conveyors are used in screw feeders for a controlled volumetric flow rate of materials.

Variable Pitch

Short Pitch Screw Conveyors

In short pitch screw conveyors, the pitch is equivalent to two-thirds of the screw diameter. They are commonly used in inclined and vertical screw conveyors and in transporting free-flowing materials to prevent flushing.

Short Pitch

Half Pitch Screw Conveyors

In half pitch screw conveyors, the pitch is equivalent to half of the screw diameter. Half-pitch screw conveyors are also used in inclined and vertical screw conveyors.

Half Pitch

Long Pitch Screw Conveyors

In long-pitch screw conveyors, the pitch is equivalent to one and a half times the screw diameter. They are used for transporting liquids and other free-flowing materials and for rapid material conveying processes. They can also assist in the agitation of the transported materials.

Long Pitch

Double Flight Screw Conveyors

In double flight screw conveyors, there are two sets of flights running helically around the length of the conveyor screw; this accelerates the conveying process. The starts of the flights are 180° apart. Like the standard pitch screw conveyors, the pitch of double flight screw conveyors is equal to the screw diameter. They ensure a uniform flow rate of material and smoothness during transportation.

Double Flight, Standard Pitch

Tapered Flight Screw Conveyors

In tapered flight screw conveyors, the pitch remains constant, and the flight width gradually increases from two-thirds of the screw diameter on the inlet side to full diameter on the discharge side. Tapered flight screw conveyors offer additional space for the fed material at the inlet to draw off material evenly. They are an economical alternative to variable pitch screw conveyors and are suitable for lumpy solids.

Tapered Flight

Mass Flow Screw Conveyors

Mass flow screw conveyors have a conical conveyor screw with constant flight pitches adjacent to the feed inlet. Their narrower end is continuously attached to a variable pitch conveyor screw that progresses toward the feed discharge. They are used to provide uniform material withdrawal from hoppers, bins, or silos. They help material flow evenly. The material volume swept incrementally increases with every flight.

Mass Flow Conveyor Screw

The following are the types of screw conveyors based on the flight construction:

Helicoid Flight Screw Conveyors

In helicoid flight screw conveyors, the flights are constructed from a flat steel bar or strip that is cold rolled to form a helix. The stock metal strip is cold-rolled to produce a work-hardened, strengthened, and smooth flighting material. The material of the helicoid flights has a greater thickness at its base and gradually becomes thinner at the outer edge. The helicoid flight conveyor screw is then assembled by mounting and welding the short, individual flights to the center shaft. The flights running across the length of the shaft are connected and fastened by intermittent welds at every end of each flight.

Helicoid flight screw conveyors have high strength and load capacity and are cost-effective. They are used in handling light to moderately abrasive materials such as limestone, cement, and fertilizer.

Helicoid Flight Screw Conveyor

Sectional Flight Screw Conveyors

In sectional flight screw conveyors, the flights are constructed from flat steel discs with uniform inside and outside diameters. The discs are cut to extend its length using a plasma, water jet, or laser cutter and pressed to form a helix or the individual flight which corresponds to one revolution. The sectional flight conveyor screw is assembled in the same manner as the helicoid conveyor screw.

Sectional flights have constant material thickness. Thicker sectional flights are also available. Hence, sectional flight screw conveyors are ideal for conveying extremely abrasive materials such as glass cullet and alumina.

Sectional Flight Screw Conveyor

There are special designs of conveyor screw flights that have different geometrical designs and serve other functions in addition to material transportation:

Cut Flight Screw Conveyors

In cut flight screw conveyors, the outer edge of the screw flight is deeply notched at regular intervals. These notches help in mixing and agitating the bulk material being conveyed. Cut flight screw conveyors are suitable in handling materials that tend to pack, such as hydrated lime, dried milk, and talc.

Cut Flight

Cut and Folded Flight Screw Conveyors

In cut and folded flight screw conveyors, the outer edge of the screw flight has both notches and folds. The folds are raised from the surface of the flight. The notches and folds partially retard the flow and assist in the thorough mixing of the material being conveyed. They also help in the aeration of light substances, as well as in achieving uniform temperature during heating and cooling.

Cut and Folded Flight

Ribbon Screw Conveyors

Ribbon screw conveyors have an open gap between the inner edges of the flight and the shaft. Ribbon screw conveyors can be constructed to have single and double flighting:

Single Flight Ribbon Screw Conveyors

Usually are ideal in transporting sticky and viscous materials that tend to build up at the conveyor screw shaft.

Single Flight Ribbon

Double Flight Ribbon Screw Conveyors are also suitable for conveying sticky materials and provide more uniform discharge. They can also be designed for mixing dry materials; the double-flight ribbon conveyor screw has an outer ribbon flight and an inner ribbon flight with a smaller diameter. Both flights are opposite-handed. This design moves the material back-and-forth, ensuring a thorough mixing action.

Double Flight Ribbon

Standard Pitch Single Flight Screw Conveyors with Paddles

This type of screw conveyor gently and thoroughly mixes the bulk material by positioning paddles in between screw flights.

Standard Pitch Single Flight with Paddles

Standard Pitch Screw Conveyors with Paddles

This type of screw conveyor only consists of adjustable paddles positioned helically across the length of the conveyor screw shaft. A pitch may contain up to four paddles to aggressively mix the bulk material and control its flow. This type provides the greatest mixing action among all types, but it has the least efficiency.

Standard Pitch with Paddles

Screw Conveyor Handedness

The handedness of a screw conveyor determines the direction of the material flow with respect to the direction in which the conveyor screw is rotated. A conveyor screw can be right-handed or left-handed. A right-hand screw conveyor pulls the bulk material toward the end of its conveyor screw when it is rotated clockwise. A left-hand screw conveyor pulls the bulk material toward the end of its conveyor screw when it is rotated counterclockwise. The direction of material flow is reversed as the conveyor screw is rotated in the opposite direction. However, it is not advisable to operate screw conveyors in this manner because the bulk material should always be handled on the carrying side of the flight.

Screw conveyor handedness is determined by viewing the end of the conveyor screw. The flighting is wrapped around the shaft in a clockwise direction for right-hand screw conveyors and in a counterclockwise direction for left-hand screw conveyors. Right-hand screw conveyors are more common than left-hand screw conveyors.

Left-Hand and Right Hand Conveyor Screws

Trough

The trough of a screw conveyor houses the conveyor screw and supports the bulk material during transportation. Its length can be supported by saddles or flanged feet. A rigid, removable flat cover is present across the length of the trough to protect the bulk material from contamination, dust, and hazardous elements.

The trough provides access for bulk material feeding and withdrawal. The trough inlet is typically connected to another device, like belt conveyors, rotary valves, and screw feeders that meter or control the volume of the material entering the screw conveyor. These devices are usually connected to hoppers, silos, and bins which serve as a storage vessel for the bulk material. The trough inlet can also be located directly on the discharge side of an upstream process equipment.

The following are the types of screw conveyor troughs:

U-shaped Trough

The U-shaped trough is the most common and versatile type of screw conveyor trough. They are cost-effective and have a simple construction.

  • Angle Flange Trough
  • Formed Flange Trough
  • Double Formed Flanged Trough
  • Formed Channel Trough
  • Drop Bottom Trough
  • Flared Trough
U-Shaped Trough

Rectangular Trough

Rectangular troughs can withstand abrasive bulk materials during transportation. The gap between the conveyor screw and the trough walls is filled with bulk material. The static layer of the bulk material protects the trough walls from wear and fatigue.

  • Angle Flange Trough
  • Formed Flange Trough
  • Angle Flange – Top and Bottom Trough
  • Formed Flange – Top and Bottom Trough
Rectangular Trough

Tubular Trough

Tubular troughs can accommodate larger screw diameters and contain and protect bulk materials from weathering, dust, and contaminants. They operate at higher speeds with a higher capacity per revolution and conveying jumps of 1% to 2% based on minute to minute weighed samples. Tubular troughs can be used with inclined screw conveyors.

The wide use of tubular troughs is due to their accuracy, which is greater than “U” shaped troughs due to the fact that screw and material are confined to a close fit tube that creates a defined volume. Additionally, vibrating the tube further enhances accuracy by eliminating density variations, air pockets, and material clumps.

The types of tubular troughs based on their construction method are the non-split and split tubular troughs, which have single- and double-piece constructions respectively. The halves of the split tubular troughs are joined by forming flanges.

Tubular Trough

A jacketed trough is a special type of screw conveyor trough that assists in heating and cooling the material during its transit from one point of the process to another. They also help in maintaining the temperature of the bulk material. Jacketed troughs are usually made from concentric troughs where the utility fluid flows between them.

Jacketed Trough

Trough Materials

The type of material used to produce the trough varies according to the application, the type of screw conveyor, and amount of corrosion or abrasion resistance the trough may have to endure.

  • Mild Steel – Mild steel is the most common type of material used to produce screw conveyor troughs and is suitable for every conveying application.
  • Stainless Steel Grades 304 and 316 – Stainless steel screw conveyors are used due stainless steel’s resistance to corrosion, abrasions, and high impact due to it being work hardened.
  • Abrasion Resistant Steel Grades AR235 or AR400 – Abrasion resistant steel screw conveyor troughs are used for abrasive materials because it is two to four times harder than mild steel.
Stainless Steel Trough

Hanger bearings support the multiple conveyor screw sections and provide a bearing surface for them. They consist of a plain linear bearing, which is suspended and housed in a frame that fits on the conveyor screw trough.

Hanger Bearing

Couplings facilitate the transmission of torque between multiple screw sections by compensating for the misalignment between the screw shafts. They increase the efficiency of the screw conveyor. Couplings and hanger bearings are both critical components when extension of the length of the screw conveyor is desired.

Couplings

The internal collar is a seamless tubing that is installed at the end of the screw shaft. It is used to reduce the inside diameter of the shaft to be compatible with standard-sized fittings.

Internal Collar

End lugs are installed on the non-carrying side of the first and last flights of the conveyor screw. They prevent flow obstruction by preventing material build-up at the ends of the conveyor screw. They also provide additional support to the screw.

End Lug

Electric Motor

Screw conveyors are powered by an electric motor that is located near the trough discharge. This arrangement allows the natural pulling of the bulk material to the drive end and puts tension on the screw flights; this results in less fatigue and wear to the screw conveyor components.

Drive Assembly

There is an endless number of drive assemblies for screw conveyors. A typical drive assembly consists of a double or single shaft mounted speed reducer with a V belt drive and motor mounted on the screw conveyor housing.The drive can be mounted vertically or horizontally.

Gear motor drives can be direct low speed couplings mounted on the conveyor shaft or roller chain drives with the couplings mounted on the trough ends and chain drives on the top of the conveyor. Gear drives are used for their high horsepower and variable speed rates.

Screw Conveyor Drive

Leading Manufacturers and Suppliers

GET YOUR COMPANY LISTED ABOVE

Chapter 3: Screw Conveyor Configurations

The following are the types of screw conveyors based on the flow path they offer for the bulk materials:

Horizontal Screw Conveyors

Horizontal screw conveyors are the simplest form of screw conveyors. This configuration can handle a wide range of bulk material characteristics. They can efficiently distribute the bulk materials to various locations of the screw conveyor through use of multiple inlets and discharge points. They are designed to have a trough loading of 15-45%.

Trough loading refers to the maximum depth at which the trough can be loaded to prevent undue wear and fatigue on the screw conveyor components. It depends on the characteristics of the bulk material to be handled and it is an important factor in screw conveyor sizing. Generally, trough loading can be higher for light, free-flowing, and non-abrasive materials, and must be lower for viscous, heavy, and abrasive materials.

Horizontal Screw Conveyor

Inclined Screw Conveyors

Inclined screw conveyors offer an inclined path that eliminates the need for additional conveying equipment for transporting bulk materials to or from an elevated surface. An alternative to this type is the use of two pieces of conveying equipment: one piece of equipment for horizontal transportation and one for vertical transportation. However, this setup is expensive and consumes more space.

The angle of inclination of an inclined screw conveyor ranges from 0° to 45° above the horizontal. As the angle of inclination increases, the efficiency and load capacity of the screw conveyor decreases while the power requirement increases due to the gravitational pull and fallback of the bulk material. The negative effects of inclination are compensated for by use of a reduced pitch conveyor screw (e.g., one-half or two-thirds of the screw diameter) as it provides a better conveying surface and reduces material fallback. The use of tubular troughs also reduces material fallback.

Inclined Screw Conveyor

Vertical Screw Conveyors

Vertical screw conveyors transport bulk materials on vertical paths and very steep inclines with an angle of inclination greater than 45° above the horizontal. They are also space- and cost-efficient in transporting bulk materials. Controlling the amount of bulk material fed to the screw conveyor is critical for vertical screw conveyors to maintain a constant speed, reduce wear and power consumption, and increase the conveyor efficiency. Hence, bulk metering devices such as screw feeders are necessary.

Vertical Screw Conveyor

The other types of screw conveyors are the following:

Shaftless Screw Conveyors

With shaftless screw conveyors, a conveyor shaft screw and internal bearings are not used eliminating material build-up and flow obstruction making them ideal for conveying sticky, viscous, and sluggish materials. Shaftless screw conveyors make the conveying process easier and improve conveying efficiency. They are used to convey products from mixers, centrifuges, and filters.

The shaftless spiral of a shaftless conveyor allows for higher filling rates and lower RPMs resulting in less wear and any need for maintenance or downtimes. Spirals can be made of several different types of materials. A special type of steel from Sweden has exceptional mechanical properties that gives spirals high tensile strength.

Shaftless spiral conveyors are designed to transport difficult to handle materials, such as municipal dewatered sludge, wastewater screenings, grit, industrial sludges and sticky, viscous, and stringy materials.

A benefit of shaftless spiral conveyors is their ability to efficiently and directly transfer - horizontally, on an incline, or vertically – into another conveyor. Their longevity can be increased with the application of a liner, such as Duraflo SPX® that has a wear indicator and can be snapped on or off for easy replacement.

Shaftless screw conveyors can be completely enclosed to prevent spillage and to contain odors. Additionally, direct drive provides clean and efficient material movement.

Shaftless Screw Conveyor

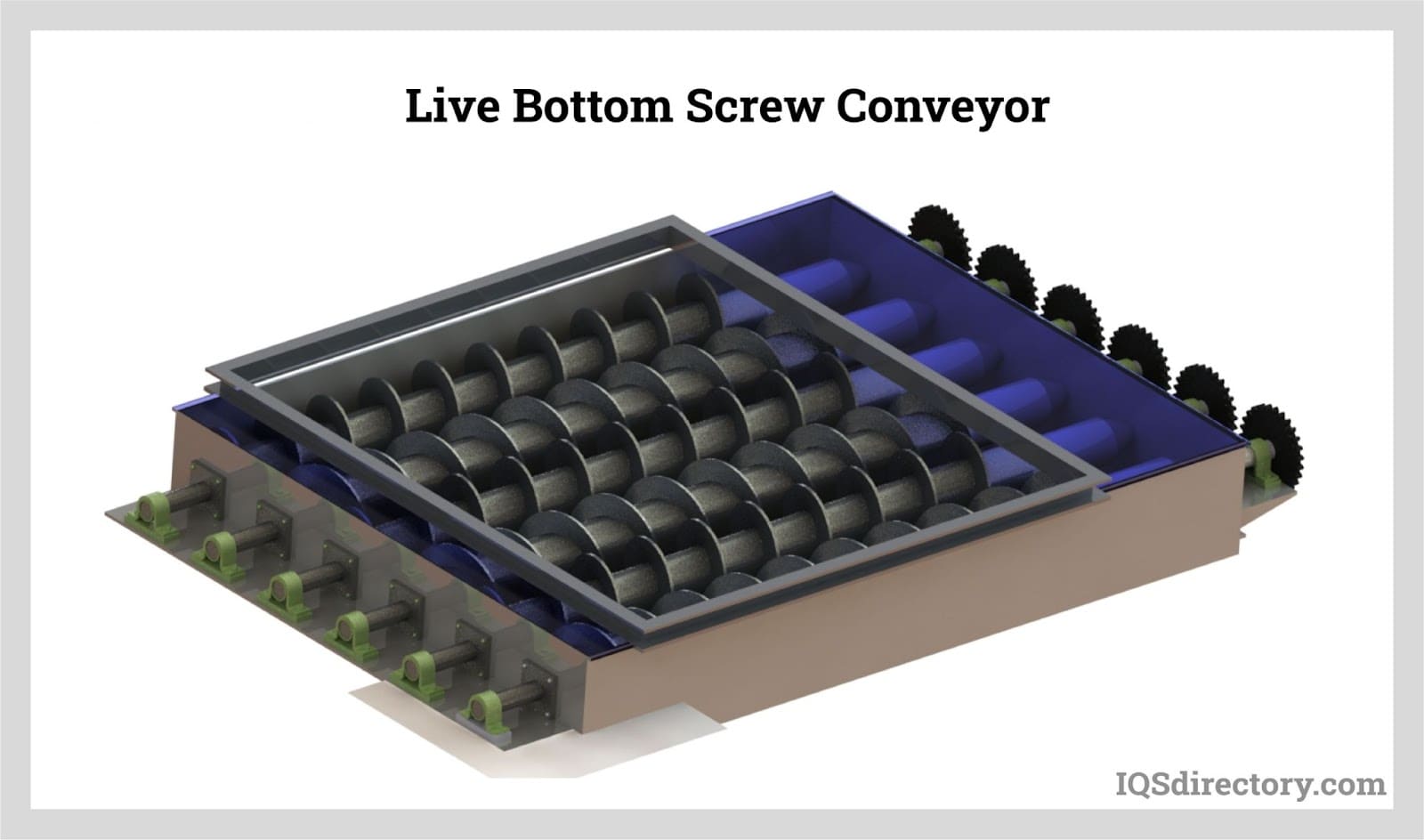

Live Bottom Screw Conveyors

Live bottom screw conveyors are used to meter and control the volume of the flowing bulk material drawn from hoppers, bins, and silos. They are usually installed at the bottom of these vessels. They consist of multiple tapered, variable pitch, or mass flow conveyor screws to accommodate the fluctuations in bulk material volume at the screw conveyor inlet. They can be used as a screw feeder to another screw conveyor.

Live Bottom Screw Conveyor

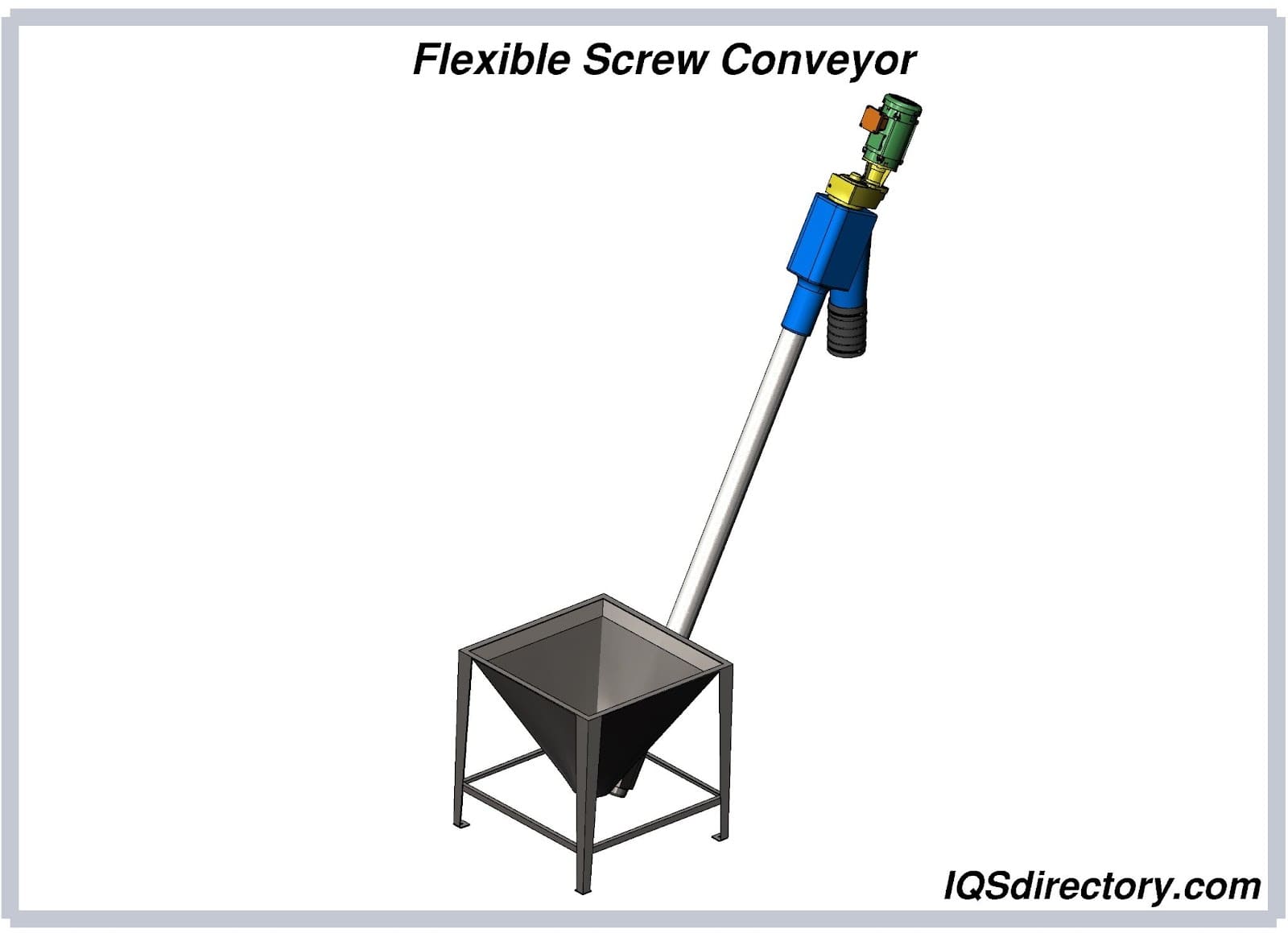

Flexible Screw Conveyors

Flexible screw conveyors are made up of a shaftless conveyor screw and a flexible tubular trough made from UHMW polyethylene. Since both conveyor screw and trough are made from flexible and bendable materials, flexible screw conveyors can transport bulk materials over a wide range of distances, angles, and elevations.

The unique design of flexible screw conveyors saves space since the path for the bulk materials can easily be routed and the electric motor and discharge outlet can be conveniently positioned. The conveyor screw can either have a round or flat spiral profile, which is installed for additional flexibility and strength. A flat spiral profile is used for higher feed rates.

Flexible Screw Conveyor

Chapter 4: Screw Conveyor Considerations

The nature of the bulk material to be handled must be considered in selecting and designing a screw conveyor.

  • The material of construction is critical for abrasive materials.Hence, the screw conveyor must be constructed from a hard and abrasion-resistant metal such as hardened steel, carbon steel, or rolled steel. Reducing the angle of inclination below 15° will minimize the abrasive wear induced on the screw conveyor components.
  • Fluidizing materials tend to "flood" and flow uncontrollably when agitated or aerated. The easiest way to avoid this is to reduce the conveyor speed. Shorter pitch conveyor screws can also be used to slow down the speed of these materials.
  • For sticky, hygroscopic, and viscous materials, a ribbon-type flight or shaftless screw conveyor must be used to prevent material build-up. The components may be lined with PTFE to keep materials from adhering. The internal components of screw conveyors handling hygroscopic materials must be free from air and vapor to prevent the absorption of moisture.

Other properties of the bulk material such as density and particle size must be known. An estimate of the volumetric and mass feed rate must also be determined. These data are important for determining the structural and strength requirements and screw conveyor sizing.

Lastly, the distance and environment of the path to be traveled by the bulk material must also be considered.

Summary

  • A screw conveyor efficiently transports bulk quantities of materials. The materials may be granular solids, semi-solids, liquids, and non-flowing solids.
  • The components of the screw conveyor include the conveyor screw, trough, hanger bearings, couplings, internal collar, end lugs, and electric motor.
  • The types of screw conveyors (based on the pitch and flight design) are the standard pitch screw conveyors, variable pitch screw conveyors, half-pitch screw conveyors, long pitch screw conveyors, short pitch screw conveyors, double flight screw conveyors, tapered flight screw conveyors, and mass flow screw conveyors.
  • The special types of screw conveyors that have different geometrical designs are the cut flight screw conveyors, cut and folded screw conveyors, ribbon screw conveyors, standard pitch flight screw conveyors with paddles, and standard pitch screw conveyors with paddles.
  • The types of screw conveyors according to the method of construction of their flights are the helicoid flight screw conveyors and the sectional flight screw conveyors.
  • Screw conveyors may be right-handed or left-handed. The handedness determines the material flow direction when the conveyor screw is rotated in a specific direction.
  • The main types of troughs are the U-shaped trough, rectangular trough, and tubular trough. A U-shaped trough is more common. Tubular troughs are ideal for inclined screw conveyors.
  • The types of screw conveyors (based on flow path) are the horizontal screw conveyor, inclined screw conveyor, and vertical screw conveyor. Other types of screw conveyors include the shaftless screw conveyor and the live bottom screw conveyor.
  • The nature, maximum particle size, and density of the bulk material, volumetric feed rate, mass feed rate, and the distance and environment of the path must be considered in designing, selecting, and operating a screw conveyor.
