This article will give detailed information on flat belts.
The article will look at the following:
What are flat belts?
Types of flat belts
Materials Used to make flat belts
Applications of flat belts
Advantages and Disadvantages of Flat Belts
Chapter 1: What are Flat Belts
Flat belts are power transmission belts that are flat and made of rubber, synthetic composites, or leather. They are used to transfer rotational power in industrial equipment and conveyor systems. Flat belts have a low profile with a positive grip, which makes them suitable for high-speed drive applications.
The design of flat belts consists of a flat cross-sectional shape with a trapezoidal profile that reduces slippage and improves power transmission efficiency. Flat belts are made of a combination of rubber and reinforcing fibers in sizes and strengths to meet the requirements of different applications.
Chapter 2: Types of Flat Belts
There are several types of flat belts, including:
Rubber flat belts were originally introduced as a replacement for leather belts but were replaced by V-belts due to mistracking and problems with high tension. However, recent technological developments in the manufacturing of flat belts have made them more practical and cost-effective. In addition, they have high elasticity and offer excellent grip, making them suitable for high-speed and heavy-duty applications.
The rise in the use of flat belts is due to their excellent efficiency and low bending loss from their thin cross-section and low creep. Additionally, flat belts have less wear than V-belts and come in widths to fit any application.
Timing belts have rubber teeth on their inner side to provide a positive grip for precision timing and power transmission. They are used to maintain timing between components of mechanical systems and are essential for machine performance.
The materials used to manufacture timing belts include natural rubber and synthetic rubbers such as neoprene, polyurethane, and saturated nitrile. The rubber material is reinforced with cords to reduce the tendency of rubber to stretch and deform.
Unlike other flat belts, timing belts have teeth used to grip the pulleys of machines. The teeth have a trapezoidal or curvilinear shape to fit into the pulleys to which they are attached.
V-belts have a trapezoidal cross-sectional shape and are used to transmit power from driving components. Their design aims to avoid slippage and improve gripping, making them more dependable and efficient. In addition, the V-shape increases contact between the belt and pulleys it drives, making V-belts suitable for high-torque applications.
All V-belts are made of rubber with reinforcing cords to enhance their strength. In addition, to give V-belts increased durability and toughness, they are covered with a protective fabric or wrapped in rubber.

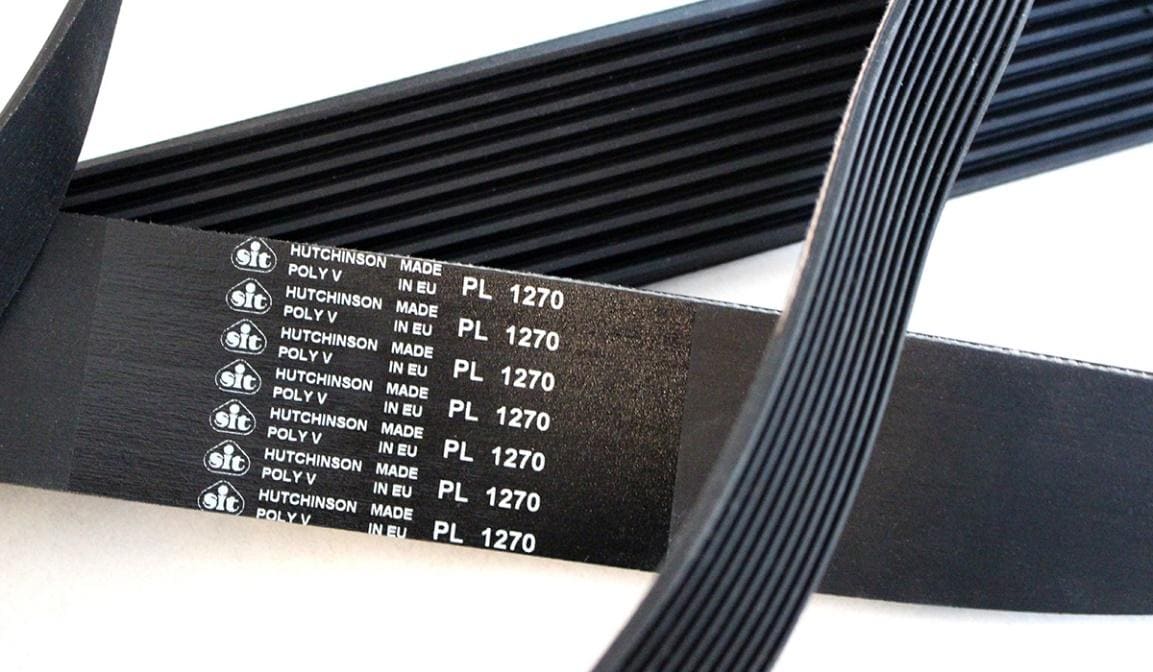

Flat poly V-belts have multiple V-shaped ribs on their inner surface that mesh with pulley grooves to increase grip and reduce slippage. The ribs of a poly V-belt run along the full length of the belt longitudinally to make contact with the grooves of a pulley. As a result, the tension of a poly flat V-belt is evenly distributed over the width of the pulley.
The multiple ribs of poly V-belts reduce the thickness of the belt to give the belt greater flexibility and the ability to be wound tightly.
Wedgelock belts are a subset of V-belts with steeply angled walls to increase their load-bearing wedging capabilities. They have the typical trapezoidal shape with variations in their dimensions to meet their wedging capacity.
The design of wedgelock belts helps prevent slippage and improves power transmission efficiency. They are commonly used in heavy-duty applications, such as industrial machinery and power transmissions, and are made of various forms of rubber.

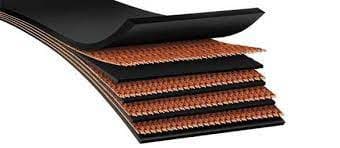

Fabric Ply Belts
Made with multiple layers of fabric material and designed for applications requiring heavy-duty strength and durability. The fabric layers are typically reinforced with synthetic materials such as polyester or nylon to increase resistance to stretching and wear.
Fabric Cord Belts
Similar to fabric ply belts, but made with a single layer of fabric material that is reinforced with cords. The cords provide additional strength and stability to the belt, making them ideal for applications requiring high-tension loads.
Synthetic Flat Belts
Made with synthetic materials such as polyurethane or silicone, synthetic flat belts are known for their durability, flexibility, and resistance to wear and abrasion. Synthetic flat belts are used in a variety of industrial applications, including packaging, food processing, and power transmission.
In general, the choice between fabric ply, fabric cord, and synthetic flat belts will depend on the specific application requirements and operating conditions, such as load capacity, temperature, and exposure to chemicals.
Raw Edge Belts
Raw edge belts are designed to provide maximum grip and prevent slippage, making them ideal for high-torque applications. They are typically made from a combination of synthetic rubber and reinforcing fibers and are available in a range of sizes and strengths.
Flat Wrapped Belts
Flat wrapped belts are similar to raw edge belts, but feature a wrapped construction that helps to provide additional stability and strength. This type of belt is often used in high-stress applications, such as power transmissions and industrial machinery.
Leather belts were introduced during the first industrial revolution and were used through the end of the 19th and into the 20th century. They were replaced by flat rubber belts but are still used for some applications today and are available in one, two, or three ply. Leather belts have a smooth surface and are flexible, which makes them ideal for small diameter pulleys.
Chapter 3: Working Principle Of Flat Belt And Flat Belt System.
Flat belts operate on the friction between the belt and a pulley. For example, when a drive pulley rotates, it creates tension in the flat belt that is transmitted to the driven pulley. The friction between the belt and the pulley provides the force necessary to transfer rotational power.
In a flat belt system, the pulleys must be correctly aligned and the tension properly adjusted to ensure efficient power transmission. The belt must also be lubricated to reduce friction and wear.
The quietest and least vibrational drives are belt drives. The upper portion of the belt, also known as the slack side of the belt, is under tension when the belt is rotating counterclockwise, moving from the driver to the driven pulley or moving forward. This part is always being compressed. The tight side of the belt is the lowest section that is under tension.
The degree of friction between the pulley and the belt determines how much power is transmitted in a belt-drive system. By running the belt at a slower speed, slippage can be removed. To prevent the belt from exiting the pulley, it is crowned, which keeps the belt centered and able to run at faster speeds.
V-belts are used for short distances while flat belt drives are used when there is a greater distance between pulleys or shafts.
The width, thickness, and length of the belt in Figure 7 serves as the specifications for flat belts. While V-belt specifications include length, thickness, angle created by the side surfaces, and width at the higher and lower portions.
Belt ends are fastened with rivets, nuts, bolts, or by lacing or cementing. Ends can also be linked using wires, which is simpler and faster. The surface of a pulley's rim is cambered or slightly rounded, as shown in Figure 8. Crowning or cambering is a process where a flat belt is warped such that it has a bow shape. The camber is the outside edge of a flat belt with the concave middle referred to as the bow.
Belt drives are the quietest and least vibrational drives. The upper portion of the belt, also known as the slack side, is under tension when the belt is rotating counterclockwise, moving from the driver to the driven pulley or moving forward. This part is always being compressed, while the belt's tight side is the lowest section under tension.
The degree of friction between the pulley and the belt determines how much power is transmitted in a belt-drive system. Therefore, slippage can be removed by running the belt at a slower speed. In addition, to prevent the belt from exiting the pulley, it is crowned, which keeps the belt centered and able to run at faster speeds.V-belts are used for short distances, while flat belt drives are used when there is a greater distance between pulleys or shafts.
The belt's width, thickness, and length in Figure 7 serve as the specifications for flat belts. In comparison, the V-belt specifications include length, thickness, angle created by the side surfaces, and width at the higher and lower portions.
Belt ends are fastened with rivets, nuts, bolts, or lacing or cementing. Ends can also be linked using wires, which is simpler and faster. The surface of a pulley's rim is cambered or slightly rounded, as shown in Figure 8. Crowning or cambering is a process where a flat belt is warped with a bow shape. The camber is the outside edge of a flat belt with the concave middle referred to as the bow.
Flat belts travel the furthest distance from the pulley axis due to centrifugal force, which is feasible if the belt is in the middle of the pulley. In addition, crowning or cambering minimizes belt slippage when a pulley rotates.
Construction of Flats Belts
Flat belts are typically made from a combination of rubber and reinforcing fibers. Rubber provides elasticity and resilience for effective power transmission, while the reinforcing fibers provide the strength and stability needed to maintain the belt's shape and prevent stretching.
The rubber used in flat belts can be natural or synthetic. Natural rubber is derived from the sap of the Hevea brasiliensis tree and has excellent elasticity and resilience, but it is susceptible to degradation by heat, oil, or ozone. Synthetic rubbers are made from petroleum products and have improved heat, oil, and ozone resistance. Common types of synthetic rubbers are polychloroprene (neoprene), polyisoprene (IR), and styrene-butadiene rubber (SBR).

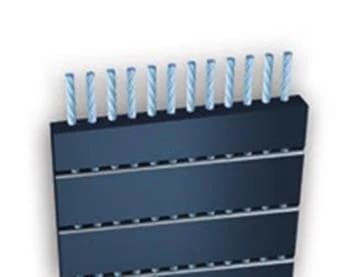

The reinforcing fibers added to rubber improve flat belts' tensile strength and stability. The most common reinforcing fibers used are polyester, Kevlar, and fiberglass. Polyester fibers are strong, durable, and resistant to elongation, moisture, and chemicals, which makes them a popular choice for flat belts. Kevlar fibers have exceptional strength and toughness and are often used in high-stress applications. However, they are more expensive than polyester fibers and have limited resistance to heat. Finally, fiberglass fibers are inexpensive and have resistance to moisture and chemicals. However, they have limited strength compared to polyester and Kevlar fibers.
In addition to rubber and reinforcing fibers, flat belts can contain other materials, such as fillers, antioxidants, and antiozonants, to improve their performance and extend their lifespan. Fillers are added to increase the hardness of the belts, while antioxidants and antiozonants protect the rubber from degradation by heat, ozone, and other environmental factors.
Chapter 4: How Flat Belts Are Made
The process of making flat belts begins with selecting the type of rubber and reinforcing materials that will be mixed, molded, cured, cut, and joined. Flat belts are made from natural rubber or synthetic rubbers with additives, such as cords, fabric coverings, and other features. The result of the process is a durable and reliable flat belt.
The selected materials for a flat belt are blended, heated, and placed in a mold under pressure to cure the rubber. Molds for manufacturing flat rubber belts are made of hardened steel and other forms of metal, with steel being the most common.
The key to manufacturing rubber flat belts is vulcanization, which changes the properties of rubber to increase its strength, elasticity, and durability. There are several forms of vulcanization, with all types using sulfur as an activation agent. The vulcanization process cross-links the rubber molecules to give a flat belt its tensile strength and resistance to stretching.
Once the rubber has cured, the mold is opened, and the cured belt is removed. It is then cut to the desired lengths and has its ends joined to form a continuous loop, a process that is completed using heat and pressure.
In addition to the basic process for making flat belts, manufacturers may add additional features to improve belts' performance and longevity, such as coating the surface of the belt to increase its resistance to heat, oil, and abrasion. In addition, notches may be added to increase a belt's grip and prevent slippage.
Chapter 5: Applications of Flat Belts
Flat belts, also known as flat belt drive systems, are commonly used in industrial and mechanical settings to transmit power from one pulley to another. They are typically made from flexible and durable rubber or synthetic rubber and have a flat, smooth surface.
Power transmission by a flat belt can take many forms and are part of two pulley drives, including a drive pulley, a driven pulley, and a flat belt. A major feature of flat belts is their ability to be customized to fit any application. For example, they can be designed with tracking sleeves or can have the coefficient friction adjusted to prevent slippage.
Flat belts are often used in conveyor systems to transport materials such as boxes, packages, and raw materials from one location to another.
Flat belts are used in printing presses to transfer power from the motor to the printing cylinders.
In machine tools such as lathes, flat belts are used to transfer power from the motor to the cutting tools.
Flat belts can be used in power transmission systems to transfer power from a motor to a machine, such as an agricultural pump or a generator.
Flat belts are used in textile machinery to transfer power to spindles, needles, and other components. Textile industry flat belts are used for a variety of applications within the textile industry, including power transmission, material handling, and process control. They are commonly used for driving and conveying equipment, such as spinning and weaving machines, calenders, and finishing machines.
In the textile industry, flat belts are often preferred over round belts because they offer a larger surface area for carrying the load and they can be made in different widths and thicknesses to match specific requirements.
The key factors to consider when selecting flat belts for the textile industry include the load to be transferred, the speed of the belt, the center-to-center distance between the pulleys, and the operating environment (temperature, exposure to chemicals, etc.). It is important to select a belt that is suitable for the specific conditions of the application to ensure optimal performance and long service life.
Some popular types of flat belts used in the textile industry include leather belts, synthetic belts, and rubber belts. It is important to choose a belt material that is durable, flexible, and resistant to the specific conditions of the application.
Flat belts are often used in agricultural equipment to transfer power from the engine to the implements such as plows and harrows. Agricultural equipment flat belts are used to drive and power various types of farm machinery, such as threshers, combine harvesters, balers, and plows. Flat belts are preferred in agricultural equipment due to their ability to transmit power over a larger surface area and their ability to be made in different widths and thicknesses to match specific requirements.
The key factors to consider when selecting flat belts for agricultural equipment include the load to be transferred, the speed of the belt, the center-to-center distance between the pulleys, and the operating environment (exposure to moisture, dust, and other harsh conditions).
It is important to choose a belt material that is durable, flexible, and resistant to the specific conditions of the application. Some popular materials for flat belts in agricultural equipment include rubber, leather, and synthetic materials.
It is also important to consider the type of machinery and its specific requirements, such as the need for belt tracking and the potential for belt slippage. Selecting the appropriate flat belt can ensure optimal performance, reliable power transmission, and long service life in agricultural equipment applications.
Flat belts are used in woodworking machinery to transfer power from the motor to the cutting blades and other components.
Woodworking machinery flat belts are used in a variety of wood working applications to drive and power machinery. Flat belts are preferred over round belts in wood working machinery due to their ability to transmit power over a larger surface area and their ability to be made in different widths and thicknesses to match specific requirements.
The key factors to consider when selecting flat belts for woodworking machinery include the load to be transferred, the speed of the belt, the center-to-center distance between the pulleys, and the operating environment (temperature, exposure to dust and debris, etc.).
It is important to choose a belt material that is durable, flexible, and resistant to the specific conditions of the application. Some popular materials for flat belts in woodworking machinery include rubber, leather, and synthetic materials.
It is also important to consider the type of machinery and its specific requirements, such as the need for belt tracking and the potential for belt slippage. Selecting the appropriate flat belt can ensure optimal performance, reliable power transmission, and long service life in woodworking machinery applications.
Chapter 6: Flat Belt Terms and Calculations

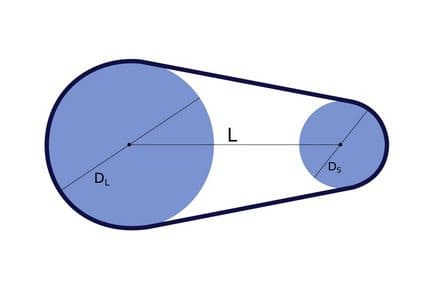

Calculations to Determine the Correct Flat Belt
Belt Length: Belt length is the measure of the distance between the two pulleys and the distance around the circumference of the pulley. It is calculated using the following formula: Belt Length = 2π x Pulley Radius + 2 x Arc Length.
Pulley Diameter: The belt needs to fit the diameter of the pulley and its grooves properly. The diameter affects the belt length as specified by the manufacturer.
Center-to-Center Distance: The center-to-center distance is the distance between the centers of the pulleys and is part of the calculation of the belt length.
Operating Tension: The belt's width has to handle the load and provide sufficient grip on the pulley. The operating tension is the amount of tension needed to transmit the load and is used to determine belt width.
Load to be Transferred: The load to be transferred is used to determine the operating tension and the appropriate belt width.
Belt Speed: The speed at which the belt runs affects the operating tension and is typically specified by the manufacturer.
Considerations when Using a Flat Belt
Maintenance: Maintenance requirements refer to the cost of repairs or replacements.
Noise level: The noise level generated by a flat belt and its pulley system.
Belt material: Selecting the right material for the job necessitates examining the environment, including temperature, humidity, and chemical exposure.
Compatibility: The belt and pulley materials should be compatible to avoid slippage and failure.
Cost: Cost is an aspect of every industrial purchase. When examining flat belts, the initial cost may be high due to the type of material. However, if the selected materials are long-lasting, the cost can be amortized over the belt's lifespan (up to several years) before replacement. The cost of the replacement belt is another factor.
Chapter 7: Advantages and Disadvantages of Flat Belts
Advantages of Flat Belts
Flat belts have several advantages compared to other types of power transmission belts such as round belts or V-belts. Some of these advantages include:
High Speed: Flat belts can operate at higher speeds than other types of belts, making them ideal for applications that require quick and efficient power transmission.
Efficient Power Transmission: Flat belts are designed to transmit power with minimal loss, making them more efficient than other types of belts.
Durability: Flat belts are made from durable materials such as leather, rubber, or synthetic materials, which makes them resistant to wear and tear. They are therefore perfect for usage in challenging industrial settings.
Reduced Noise: Flat belts operate quietly, reducing the level of noise in a manufacturing facility or industrial environment.
Versatile: Flat belts can be used in a variety of applications, from high-speed machinery to conveyors and packaging equipment.
Positive Drive: Flat belts are designed to provide a positive drive, which ensures that the belt does not slip or lose power transmission.
Ease of Installation: Flat belts are easy to install and maintain, reducing downtime and maintenance costs.
No Stretch: Flat belts are designed to not stretch over time, which reduces the need for frequent tension adjustments.
Clean Operation: Flat belts do not generate debris or oil, making them ideal for use in clean environments.
Cost-effective: Flat belts are generally more cost-effective than other types of belts, making them a cost-effective solution for power transmission needs.
Easy to Customize: Flat belts can be easily customized to meet specific needs and requirements, making them a versatile solution for a wide range of applications.
High Strength: Flat belts are designed to be strong and durable, making them ideal for use in heavy-duty industrial applications.
Flat belts offer a number of advantages over other types of power transmission belts, making them a popular choice for a wide range of applications. Whether one are looking for a solution for high-speed machinery or a cost-effective way to transmit power, flat belts are a reliable and versatile option.
Disadvantages of Flat Belts
Although flat belts offer several advantages, there are also some disadvantages that should be considered before choosing flat belts for a specific application. Some of these disadvantages include:
Limited Flexibility: Flat belts are not as flexible as round or V-belts, making them less suitable for applications that require a flexible power transmission solution.
Complex Design: Flat belts have a more complex design than other types of belts, which can make them more difficult to install and maintain.
Limited Speed Range: Flat belts are designed for high-speed applications, and may not perform well at lower speeds.
Vibration: Flat belts can generate vibration, which can cause noise and wear on the belt and surrounding components.
Short Life Span: Flat belts have a shorter life span compared to other types of belts, making them less suitable for applications that require long-term power transmission.
Limited Power Capacity: Flat belts have a limited power capacity compared to other types of belts, making them less suitable for applications that require high levels of power transmission.
Requires Tensioning: Flat belts require tensioning to maintain proper operation, which can increase maintenance requirements and downtime.
Higher Initial Cost: Flat belts are generally more expensive than other types of belts, making them a less cost-effective solution for some applications.
Not suitable for curved paths: Flat belts are designed for straight path power transmission and may not perform well when used on curved paths.
Requires Support: Flat belts require support along their length to maintain proper alignment, which can increase the complexity of the system and increase the number of components required.
Requires Lubrication: Flat belts may require lubrication to reduce friction and wear, which can increase maintenance requirements and increase the risk of contamination.
Flat belts are flat power transmission belts made of rubber, synthetic composites, or leather. They are used to transfer rotational power in industrial equipment and conveyor systems.
The rise in the use of flat belts is due to their excellent efficiency and low bending loss from their thin cross-section and low creep.
In a flat belt system, the pulleys must be correctly aligned and the tension properly adjusted to ensure efficient power transmission.
Also known as flat belt drive systems, flat belts are commonly used in industrial and mechanical settings as a means of transmitting power from one pulley to another. They are typically made from flexible and durable rubber or synthetic rubber and have a flat, smooth surface.
Although, at one time considered to be outdated, flat belts have found new use due to their high power transmission efficiency, cost-effectiveness, and ease of use.
