This Article takes an In-depth look at Casting Processes
You will learn more about topics such as:
Casting is an ancient art with roots extending back over millennia, with archaeological evidence pointing to its use as early as 3000 BC or BCE. Excavations reveal that primitive casting methods involved two-piece pottery molds tied with rope, featuring an aperture for pouring molten metal. This technique was likely used to craft early weapons and tools for hunting.
The ancient Egyptians specialized in casting techniques to produce plaster masks for mummies, reflecting their cultural beliefs. They also crafted jewelry and various artifacts using these methods. While Egyptians advanced these techniques, cultures in the East were independently developing similar practices.
When casting found its way to Greek and Roman societies, it evolved into a sophisticated art form used to create bronze statues through the hollow wax casting method. Each segment of a sculpture was cast individually. The core was made of clay, coated with wax, then topped with a layer of clay. It was heated to melt the wax, creating a cavity, and heated again to remove remaining wax. Once prepared, molten metal was poured into the void left by the wax, a precursor to what we know today as investment casting.
During the Renaissance, artists and sculptors drew inspiration from Greek and Roman achievements, further refining the casting process. They developed more intricate molds from materials like wood, terracotta, or plaster. A notable challenge in this era was to ensure molds captured the precise proportions of their target designs.
In ancient China, casting was initiated around 1000 BCE for practical items such as tools and bowls. The Chinese innovated mass production of agricultural tools and weaponry using iron. This technique didn't reach Europe until much later, where it was adapted for making cannons and ammunition. With the advent of the industrial revolution across America and Europe, casting became a pivotal manufacturing technique. Discovering new metals and refining methods improved both the quality and longevity of cast products. Today, diverse casting techniques produce a wide array of commercial and industrial products.
As the industrial revolution unfolded in America and Europe, casting was established as a foundational manufacturing process, as it remains today. The discovery of new metals and enhancements in methods resulted in products with superior quality and durability. Presently, a range of metal casting techniques are employed to make everyday commercial and industrial goods.
Over the centuries, metal casting techniques evolved significantly as methods for melting and manipulating metals advanced. Gold became the first metal to be cast owing to its pliability and low melting point. One of the oldest examples of metal casting is a copper frog dating to 1500 BCE. China's advancements included sand casting and the use of pig iron.
Notable progress during the first industrial revolution substantially impacted casting methods. In 1809, A.G. Eckhart developed centrifugal casting to evenly distribute molten metal by spinning the mold. In 1837, Jarvis Adams invented the first casting machine, specifically for creating printing press letters. Later, in 1856, Sir Henry Bessemer made a landmark advancement by introducing an oxygen-blowing technique to remove excess carbon and impurities from molten metal, simplifying the casting process.
Foundries have a long-standing history, dating back to an era when casting relied on basic tools and manual labor. They have advanced from small workshops to significant industrial enterprises. Foundries are responsible for creating castings by melting metal and pouring it into molds. Modern foundries are highly automated, considerably reducing the need for manual work. They are equipped with advanced machinery such as furnaces, ladles, forklifts, cranes, conveyors, and transport containers, all designed to withstand and operate under extreme temperatures.
Foundries are classified according to the metals they handle, necessitating specialized equipment for different metal types. For example, steel foundries utilize electric arc furnaces, while copper foundries use induction furnaces. The equipment in foundries varies greatly, from small tabletop models to enormous machines weighing several tons, with production capabilities ranging from a few ounces to several tons. Foundries present a demanding and hazardous environment due to the intense heat needed for melting and forming metals.
The most common casting processes include sand casting, die casting, investment casting, permanent mold casting, centrifugal casting, plaster casting, and vacuum casting. Each method offers unique benefits for part complexity, volume, and material requirements.
Modern casting uses automation, 3D modeling, CNC machining, simulation software, and real-time monitoring. These advancements enable higher precision, tighter tolerances, quick defect detection, and greater efficiency throughout the entire casting process.
Common metals for casting are aluminum, iron, carbon steel, stainless steel, copper alloys, magnesium, nickel alloys, and zinc. Selection depends on application needs like strength, corrosion resistance, weight, and required detail or volume.
Die casting injects molten metal into steel molds under pressure, achieving high precision and fast production for non-ferrous metals. Sand casting uses sand-based molds, is more versatile for sizes and materials, and is cost-effective for low-volume or complex shapes.
Investment casting, also known as lost wax casting, produces parts with excellent dimensional tolerances, high accuracy, intricate details, and minimal finishing required, making it ideal for precision applications.
Yes. American companies like Waupaca Foundry, Shibaura Machine Company of America, Birch Machinery Company, and RDO Induction, Inc. manufacture advanced casting machines for various metals and applications.
In the metal casting industry, each manufactured component has distinct performance requirements—including mechanical strength, durability, corrosion resistance, and complexity of shape. Achieving these specifications starts with carefully selecting the most suitable metal or alloy for the casting job. This decision is critical for engineering optimal product performance and cost-effectiveness, making it vital to understand the unique properties of casting metals as well as their behavior in various casting techniques such as sand casting, die casting, investment casting, and permanent mold casting.
Aluminum alloys are highly favored for casting due to their excellent machinability, lightweight nature, and cost-effectiveness. The inherent properties of aluminum—such as a high strength-to-weight ratio, resistance to corrosion, and excellent thermal and electrical conductivity—make it ideal for industrial, automotive, aerospace, and consumer product applications. Aluminum can be cast using several methods, including die casting, sand casting, gravity casting, and investment casting. The resulting aluminum castings are found in components such as engine blocks, housings, brackets, and intricate machinery parts.
Carbon steel is recognized for its excellent machinability, weldability, and remarkable toughness. This alloy is widely used in casting processes where strength, durability, and wear resistance under high pressure are essential, such as in the production of valves, pumps, and structural components. The mechanical properties of carbon steel are determined by its carbon content, with higher levels leading to increased hardness and tensile strength. Low- to medium-carbon steels—often utilized in investment casting—deliver a balance of ductility and strength, making them suited for a variety of engineering and architectural applications.
Copper, an extremely malleable metal, has long been used in metal casting for applications ranging from plumbing components to electrical connectors. Most casting is done with copper alloys due to the inherent challenges and porosity associated with pure copper. Alloys from C80000 to C9999 are selected for their improved strength, wear resistance, conductivity, and corrosion resistance. Key cast copper alloys include brass (copper and zinc) and bronze (copper and tin), each offering specific advantages in applications requiring heat transfer, conductivity, or aesthetic appeal. Copper-based alloys are preferred for architectural details, musical instruments, and marine hardware due to their unique combination of properties.
Magnesium alloys are prominently used where extreme lightness and high strength are required, such as in the automotive, aerospace, and electronics industries. The most common alloy, AZ91D, is prized for its minimal density (magnesium is 75% lighter than steel), excellent castability, and high impact resistance. Magnesium casting techniques—particularly high-pressure die casting—enable the formation of complex, thin-walled parts with outstanding dimensional stability. The unique casting process involves injecting molten magnesium under pressure, allowing for rapid solidification and high production speed. The ability to produce lightweight parts contributes to energy savings and increased fuel efficiency in transportation and consumer electronics.
Nickel and nickel-based superalloys have become essential in high-performance and high-temperature environments, such as gas turbines, chemical plants, and marine applications. Monel, an alloy containing nickel and copper with trace elements, and Inconel, an austenitic nickel-chromium alloy, are two highly sought-after casting materials for their exceptional corrosion resistance, oxidation resistance, and mechanical strength at elevated temperatures. Nickel casting is typically performed using investment casting due to its ability to produce detailed and complex shapes. Components made from nickel alloys can achieve tensile strengths comparable to carbon steel, along with high ductility and long-term durability in harsh environments where standard steels might fail.
Iron remains the cornerstone of metal casting, with applications ranging from infrastructure to machinery. Its various forms—including gray iron, white iron, malleable iron, ductile iron, and compacted graphite iron—are each tailored for specific casting needs. Cast iron generally contains 2% to 4% carbon and 1% to 3% silicon, resulting in a distinctive microcrystalline structure that provides good castability, vibration damping, and wear resistance. Gray iron castings are commonly used for engine blocks, pipes, and manhole covers, while ductile iron is relied on for parts demanding toughness and impact resistance. Each type of iron casting offers unique benefits for manufacturers, addressing diverse market needs in construction, transportation, and municipal applications.
Stainless steel is a family of iron-based alloys containing at least 10.5% chromium, which ensures excellent corrosion resistance, heat resistance, and durability for demanding environments. Popular casting grades include the 300 series, 400 series, 14-4 PH, 15-5 PH, 17-4 PH, and 2205 series, each formulated for specific performance criteria. Low-carbon grades exhibit outstanding corrosion resistance and are used in medical, food processing, and marine industries, while high-carbon varieties provide superior heat resistance for furnace parts and automotive components. Most stainless steel castings are produced via investment casting, delivering intricate geometries and excellent surface finishes, well-suited for intricate hardware and high-precision machinery.
Zinc stands out for its low melting point, energy-efficient processing, and ability to create parts with fine detail at relatively low cost. It is a preferred metal in hot chamber die casting, which increases tool life and allows for rapid, high-volume production of small, complex parts. Zinc castings are prevalent in automotive parts, electrical housings, consumer goods, and hardware because of their mechanical properties and dimensional accuracy. Compared to aluminum and magnesium dies, zinc casting dies have superior longevity, making zinc a cost-effective option for mass production where consistency and efficiency are vital.
Despite the integration of advanced technologies such as automation, 3D modeling, and CNC machining, the core method of metal casting—pouring molten metal into a mold—remains fundamentally unchanged from ancient times. However, modern casting processes have achieved unparalleled precision, tighter tolerances, and higher repeatability due to computer-aided design (CAD), robotics, and quality control systems. This evolution has made casting an indispensable fabrication process for countless manufacturing sectors.
Significant breakthroughs in casting technology have accelerated production speed and enabled the cost-effective manufacturing of complex parts previously deemed impossible. Today, components for the automotive, aerospace, energy, medical device, and consumer electronics sectors rely on foundry innovation. The integration of simulation software and real-time monitoring also minimizes defects and waste, ensuring higher yield for every batch.
Virtually every engineered product—from vehicle engines and turbine blades to precision medical devices and consumer appliances—incorporates cast components. Today's advanced foundries leverage robotics and digital controls to achieve the detailed dimensional accuracy and repeatability required for mass production. The greatest leap forward in recent decades is the ability to predict, measure, and control outcomes at every step of the casting process, reducing the occurrence of casting defects such as porosity, inclusions, and warping.
The metal casting process begins with pattern design, which establishes the mold's geometry and surface characteristics. Computer-aided engineering tools are often used to simulate mold filling, solidification, and cooling dynamics to optimize for strength and minimal defects. Patternmaking is followed by the development of runners, gates, and risers to ensure complete mold filling and gas escape. Designers also account for factors like metal shrinkage, draft angles, and release mechanisms to guarantee the cast part's structural integrity.
Core making plays a vital role in producing parts with complex internal features, such as passages or cavities. In industry, sand cores, shell cores, and metal cores are chosen based on the casting method and final part requirements. These temporary inserts shape interior spaces for automotive engines, valve bodies, and pumps, allowing for lightweight designs and efficient fluid flow—key considerations in both traditional sand casting, die casting, and precision investment casting.
Mold preparation is another crucial stage, where the selected mold material—be it sand, ceramic, or metal—is packed or formed around the pattern. After removing the pattern, the mold is meticulously inspected for uniformity, then may be baked, coated, or reinforced to withstand the thermal and mechanical stresses of molten metal. For mass-produced parts, permanent steel molds increase efficiency and part consistency.
Once the mold is ready, melting and pouring of metal takes place. Furnaces specific to the metal—such as induction furnaces for steel, crucibles for aluminum, or holding furnaces for magnesium—melt the raw material to precise temperatures. The molten metal is transferred and poured into the mold via the sprue system, runners, and gates, with environment controls in place to prevent contamination and ensure optimal metallurgical quality. Upon solidification and cooling, the mold is opened or destroyed to extract the casting.
Finally, the finished cast product undergoes a finishing process that includes removing excess metal, gating, and riser material, as well as surface cleaning, machining, heat treating, or coating. These steps refine the product to meet exact customer specifications, industry certifications, and desired appearance. Quality control inspections—such as X-ray analysis, ultrasonic testing, and dimensional verification—ensure each cast part is free of defects and ready for its application, whether it be structural, decorative, or functional.
While metals of all types can be formed via casting—from hardened steel, ductile iron, and stainless steel to copper, zinc, and magnesium—aluminum casting has become especially popular across diverse industries due to aluminum’s excellent strength-to-weight ratio, corrosion resistance, thermal conductivity, electrical conductivity, and attractive surface finish. Its versatility makes aluminum casting the preferred choice for transportation parts, aerospace structures, electronics, and architectural elements. Foundries employ several casting processes tailored for different production volumes, complexities, and material properties.
When considering aluminum casting services, engineers and buyers should evaluate key factors such as the intended application, required tolerances, expected production volume, and budget. Proper selection of the aluminum alloy and casting process ensures optimal performance, part longevity, and compliance with industry standards. For more on choosing the best casting process, consult with an experienced foundry or casting supplier.
The fundamental techniques from ancient times have evolved into a wide range of specialized casting methods, each tailored for specific purposes. These various processes can all produce high-quality parts, offering distinct manufacturing advantages. Understanding the pros and cons of each method is crucial in selecting the right approach to meet individual production needs. Some of the most popular casting processes include sand, die, investment, and plaster casting. While the basic principles may seem similar, the execution of each process and the quality of the resulting products differ significantly.

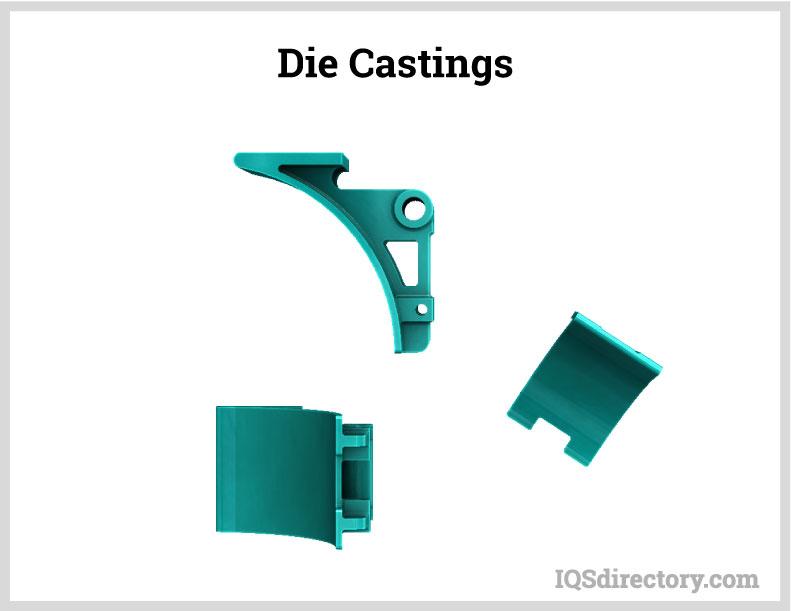

Die casting forms parts or designs by injecting molten metal into a die or mold using high pressure. An extinct method of printing called linotype used the die casting method to produce printing plates for large printing presses. Its development replaced or added to the gravure process that preceded it. With the development of the computer, linotype machines disappeared, replaced by efficient technical methods.
Die casting can be categorized into two types: cold chamber and hot chamber (also known as piston or gooseneck). These methods differ in how the molten metal is injected into the die. Understanding the distinctions between these processes is essential for selecting the appropriate production method based on the specific design requirements of a part.
Cold chamber die casting is used with metals that have a high melting point. Common materials used in this process are metal alloys such as aluminum, brass, and copper. The cold chamber process requires the use of a furnace and ladle for pouring molten metal. There are two methods of introducing the molten metal to the die in the cold chamber process – ladling or by a high pressure plunger. Cold chamber die casting requires much higher pressure than other die casting methods but takes a few minutes for the molten metal to solidify. Also, the dies can have multiple chambers making it possible to produce several parts at the same time.
In the piston or gooseneck process, the piston is removed, and the die is submerged in molten metal. Once fully immersed and the gooseneck is filled, the piston forces the molten metal out of the gooseneck and into the die. This process has a rapid cycle time of approximately 15 minutes, allowing for quick and efficient production of parts. However, it is limited to metals with low melting points and cannot be used with aluminum, as it tends to stick to the sides of the die.
The die casting process begins with the fabrication of two sections of a reusable steel mold. To facilitate the removal of the casting and manage temperature, a lubricant is applied. This lubricant aids in both temperature regulation and easy separation of the die. Once the two mold sections are securely clamped together, molten metal is injected into the mold. Die casting can produce highly complex and intricate parts as well as simple ones, but it is limited to non-ferrous metals.
Die casting molds fall into four basic categories: single cavity, multiple cavity, combination, and unit. Single cavity dies have just one chamber, whereas multiple cavity dies feature two or more chambers, which can be either identical or varied depending on the process. Combination dies are a subset of multiple cavity dies with different cavities. Unit dies, on the other hand, contain several cavities connected by a sprue, allowing multiple parts to be produced in a single casting.
Despite its restriction to non-ferrous metals, die casting offers the advantage of producing parts with precise dimensions and excellent shape tolerance. Its ability to maintain dimensional consistency and uniform design has made it a popular choice for many years. Additionally, die-cast parts typically require minimal machining after casting, similar to some other casting techniques.
The primary drawback of die casting is its high cost, primarily due to the creation and tooling of the die. Although die designs can be engineered using computer software, the process relies on molten steel, which limits experimentation and prototyping. However, since dies can be stored and reused, die casting is cost-effective for producing large quantities of parts, reducing the initial investment per unit. It is not ideal for single parts, prototypes, or small production runs.
Die cast parts have limitations in their mechanical properties and are generally not suited for use as structural components. They are typically designed for immediate use, such as engine blocks, rather than for applications requiring significant structural integrity.
In gravity die casting, molten metal is poured directly into the mold cavity using a ladle or similar container. The core principle is to rely on gravity to fill the mold cavity. The process aims to minimize turbulence during filling to reduce oxidation and foaming, which in turn helps to minimize porosity and inclusions, ensuring optimal characteristics in the final product.
Tilting the mold during gravity die casting results in denser, higher-quality castings with increased strength and stiffness. This makes the process particularly advantageous for producing components like brake and suspension systems. Gravity die casting is well-suited for high production runs and automated manufacturing.
Pressure die casting involves injecting molten metal into a closed die at high speed and pressure. The die consists of a stationary half and a moveable half, both mounted on the platen of the casting machine. Molten metal is delivered through a sprue connected to the stationary half and injected by a hydraulic piston that generates the required pressure. Toggles and hydraulics maintain the die's closure under pressure. Within a few seconds, the molten metal solidifies into a finished cast part.
Pressure die casting primarily utilizes metals such as aluminum, zinc, and magnesium. This method is capable of producing large quantities of lightweight alloy products with remarkable speed and efficiency. After casting, the products typically require minimal or no additional finishing processes.
Miniature die casting is employed to create small, detailed, and intricate components using specialized dies and die casting machines. While the process mirrors that of standard die casting, it features faster cycle times, contributing to a longer lifespan for the die casting tools. In addition to reduced tool costs, miniature die casting offers exceptional precision, achieving tolerances of +/- 0.001 inches and wall thicknesses of 0.020 inches in parts weighing up to 0.75 lbs (0.34 kg).
Parts manufactured through miniature die casting include control units, computer hardware, telecommunication components, and various electronic devices. Similar to pressure die casting, miniature die cast parts typically require minimal to no post-casting finishing.
Aluminum is the most commonly used non-ferrous metal in casting. It produces highly durable, lightweight parts while preserving its inherent properties and characteristics. Aluminum die cast parts offer various surface finishing options and can withstand higher operating temperatures compared to other non-ferrous metals. Like high-pressure and miniature casting, aluminum casting benefits from rapid cycle times, enabling high-volume production.
Aluminum die casting excels at producing highly complex shapes with intricate features, achieving exceptional tolerances and superior part finishes that often eliminate the need for additional surface finishing. This process typically uses aluminum alloys, with A380, 383, B390, A413, A360, and CC401 being the most common. The choice of alloy depends on the intended application of the cast part, as each alloy offers specific properties and characteristics suited to different uses.
Sand casting uses sand molds to form and shape castings. It is a common production method for the manufacture of metal parts of varying sizes and weights and can produce complex detailed parts using any type of metal alloy. Though sand casting is a cost effective and economical method, it is capable of efficiently producing high quality parts. All of the materials used in the process are reusable and recyclable, which adds to its low cost.
The sand casting method is one of the few processes to be used with metals that have a high melting point such as certain types of steel, nickel, and titanium. The flexibility and heat resistance of sand casting as well as its low cost has made it the most widely used casting process.
Castings are created by pouring molten metal into a mold cavity. The sands used in casting have special bonding materials that enhance their resistance to heat and ability to retain shape. Traditionally, green sand, a mixture of sand, coal, bentonite clay, and water, has been the primary choice for creating castings. However, silica (SiO2) has recently become more widely used due to its superior properties.
There are several characteristics of sand molding, aside from low cost, that have made it a popular process. Sand molds retain their shape under mechanical stress but are permeable enough to release gases and steam. When sand is applied to the pattern, it can fill small recesses to create a precise mold of minute details. Though molding of large heavy parts is a difficult process, sand casting easily adapts and adjusts to produce parts of any size and can cast ferrous and non-ferrous metals.
Despite its popularity, sand casting has some drawbacks and limitations, including less precise dimensional accuracy and difficulty in producing parts with high tolerances. Additionally, parts produced through sand casting often have a rough or coarse finish.
Despite these disadvantages, sand casting remains one of the most popular and cost-effective methods for part production.

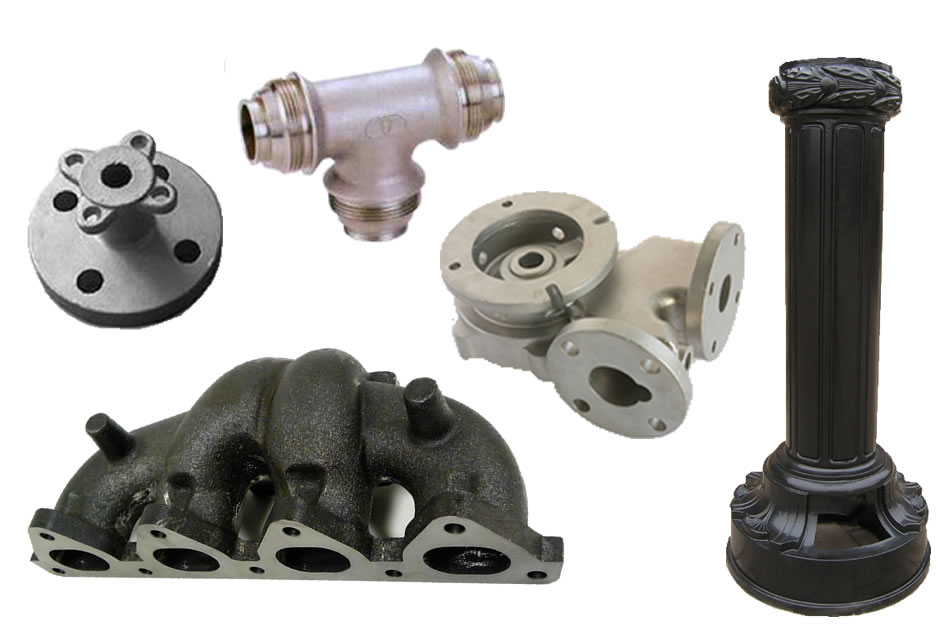

Gray iron casting involves pouring molten iron into a mold cavity and allowing it to solidify. As one of the oldest casting methods, gray iron casting has been used for centuries to produce a variety of items, including weapons, cookware, tools, and utensils. The type of gray iron cast depends on the alloys added to the iron. Key differentiators between types of gray iron include the amount of carbon they contain, which affects their melting temperature, weldability, and machinability.
Gray iron casting, also known as grey iron casting, utilizes smelted gray iron, an alloy composed of iron and carbon with traces of phosphorus, sulfur, silicon, and manganese. The materials used in gray iron casting exhibit a graphitic microstructure, which is an indicator of the strength and impact resistance of the iron castings.
A common practice in the production of gray iron castings involves heat treatments to enhance the casting's mechanical properties. These treatments improve thermal conductivity, strength, durability, and machinability while also affecting the overall cost. Finished gray iron castings are then subjected to various finishing processes to achieve the required tolerances.
Gray iron castings are used in a variety of applications, including valves, engine blocks, brake drums, pump housings, and cookware. The methods for producing gray iron castings include lost foam, mold casting, and sand casting.

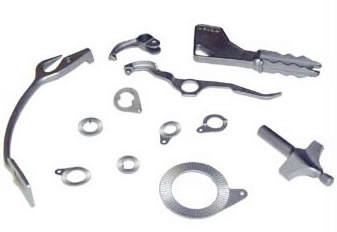

Investment casting uses a wax pattern coated with a ceramic material, which hardens to the shape of the casting. Once the ceramic sets, the wax is melted away and molten metal is poured into the emptied cavity. When the metal solidifies, the casting is broken to release the metal part. Also known as lost wax processing, it is a method that has existed for over 5000 years and dates back to the time of the ancient Egyptians and Chinese.
The first step in the investment casting process is to produce a wax pattern, which can be made from plastic but is most often made from wax. The mold can be cast or machined with its dimensions carefully calculated and engineered to avoid shrinkage. Since the process requires precise measurements, several trials may be necessary to reach the proper proportions, which makes investment casting molds expensive.
Investment casting is used to produce precision parts from several alloys or metals, including aluminum, stainless steel, carbon steel, brass, and bronze. The parts produced are found in several industries including fluid power, oil and gas, food and dairy, military, firearms, aerospace, and aviation as well as agriculture.
Investment casting parts offer excellent dimensional tolerances and high accuracy, often requiring minimal finishing or machining. This process can produce complex shapes with intricate designs. Similar to sand casting, investment casting generates minimal waste, as the ceramic material used can be recycled. Additionally, it is versatile and capable of producing parts from a variety of alloys.
Though investment casting is an expensive process compared to sand casting, the quality of the parts it produces makes its use appealing. Parts have an excellent finish and require very little machining or finishing, which can compensate for the added initial cost.
Investment casting can be performed using two methods: gravity fed and vacuum. In the gravity fed process, molten metal flows into the mold solely through the force of gravity, without the aid of pressure or other mechanisms. Vacuum casting, on the other hand, is a precision technique used for components such as aircraft parts. It involves drawing molten metal into the mold under negative pressure, ensuring greater accuracy and quality.
Vacuum casting differs from traditional investment casting in that it uses a vacuum to draw the molten metal into the mold. The process starts with a two-part mold placed in a vacuum chamber, where negative pressure pulls the molten metal into the mold. Unlike investment casting, which allows the workpiece to cool in the sand mold, vacuum casting solidifies the casting in an oven.
As the name implies, permanent mold casting uses reusable molds much like die and centrifugal casting and has a variety of applications for jobs that require mass production or duplication. Though it is more expensive than the other forms of casting, it is ideal for the production of parts for major industrial operations.
In permanent mold casting, molds are typically made of metals with high melting points, such as steel, graphite, bronze, or cast iron. The mold consists of two tightly fitting sections with an opening at the top for the molten metal to enter. Once the molten metal cools and solidifies, the two sections of the mold are separated to release the finished part.
The permanent mold casting process starts with heating the mold to remove any moisture and to prevent damage from thermal expansion when the molten metal is introduced. Preheating the mold also helps maintain the temperature of the molten metal, preventing it from cooling too quickly during the casting process.
There are different methods for introducing the molten metal into the mold include gravity, pressure assisted, vacuum assisted, and slush casting. With the gravity method, the molten metal is simply poured into the mold. It is the least expensive method. When a mold requires fine details, low pressure is used to force the molten metal into the mold. With the vacuum method, air is removed from the mold creating a vacuum that sucks the molten metal into the mold. The use of low pressure and vacuum is for parts with small spaces and fine details. In the slush method, the molten metal is poured into the mold and allowed to harden against the outer surface of the mold. Once the surface material is solidified, the remaining molten metal in the center is poured off leaving a hollow casting. The slush method is used to make hollow chocolate Easter bunnies.

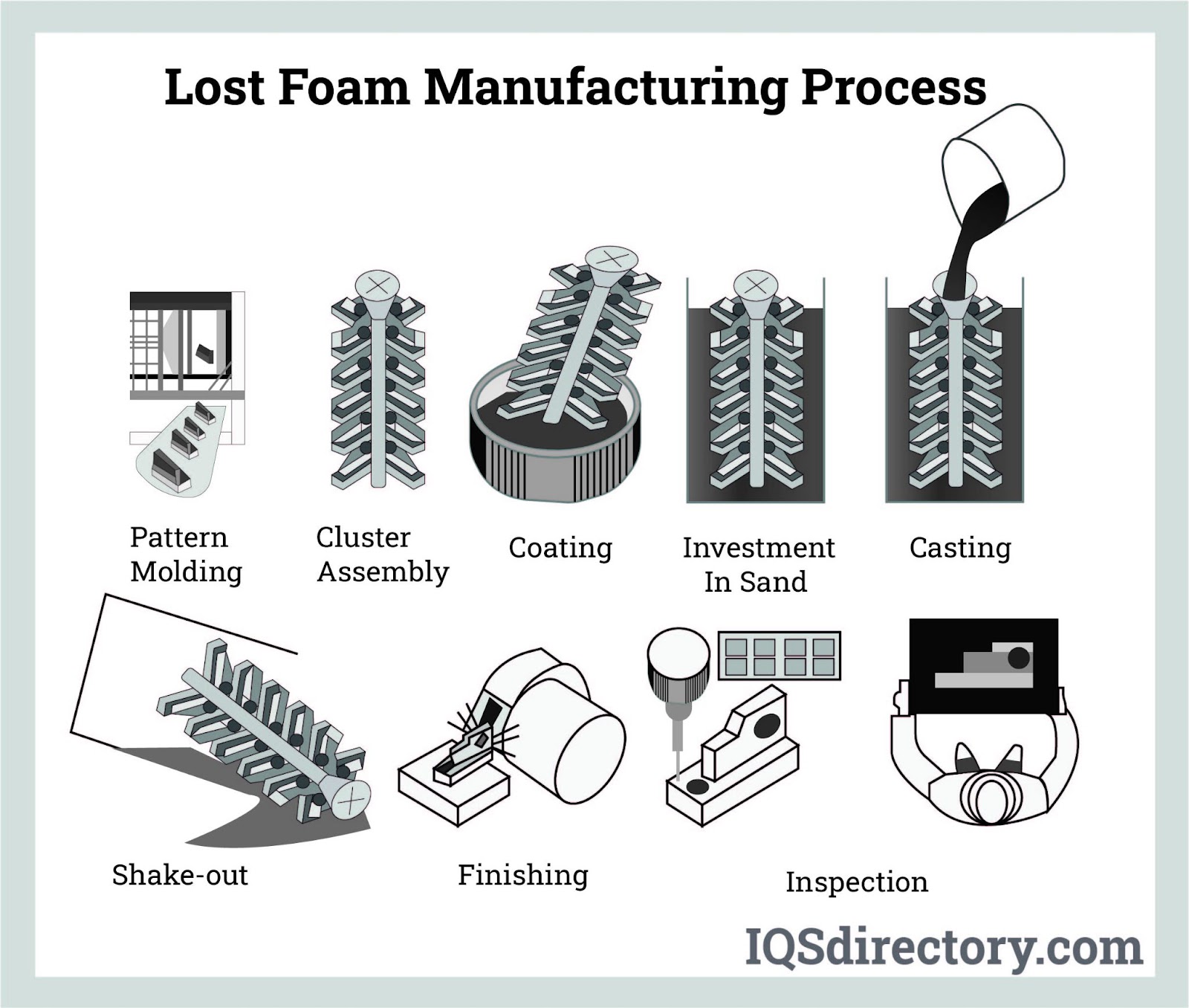

In the lost foam casting process, the mold is made from polystyrene foam, which can be shaped from a block of foam or created through injection molding. This method is a variant of investment casting, where foam replaces wax to form the mold. Introduced in 1958 by H. F. Shroyer, who patented the use of polystyrene in green sand for forming foam patterns, lost foam casting offers an innovative approach to creating complex castings.
The tooling for lost foam casting involves using a split cavity aluminum die to produce the foam pattern. These lost foam patterns are quite similar to permanent die casting molds and demand a comparable level of expertise and experience in their tooling. Aluminum dies used in lost foam casting are exceptionally durable, offering a long life cycle.
The pattern-making process for lost foam casting involves creating a foam pattern complete with a gating system, typically produced using a foam press. This process also includes the addition of risers and gates. Precision in pattern making is crucial for the quality and value of the final casting, requiring meticulous attention to detail. Patterns can be formed using a closed die or shaped from a solid piece of polystyrene.
A single or multiple parts can be produced from a lost foam pattern. The gating system and pattern are collectively known as a cluster, which must be coated with a permeable ceramic refractory. This coating process can be achieved through dipping, brushing, spraying, or flow coating. The primary purpose of the coating is to create a barrier between the foam surface and the surrounding sand. Additionally, the coating manages permeability and allows gases from the vaporizing foam to escape into the sand.
The cluster is allowed to dry and harden before being placed in a foundry flask filled with loose, unbounded sand. To create a tight, compact seal around the pattern, the flask, sand, and pattern are vibrated, impressing the shape and pattern into the sand. A special type of sand known as green sand is used in the lost foam process. This mixture consists of sand, clay, sludge, anthracite, and water. It is called green sand not because of its color, but because it remains unset and pliable.
Once the sand is tightly packed and the impression of the pattern is securely encased, molten metal is poured into the top of the gating system. As the molten metal fills the mold, it causes the polystyrene foam pattern to vaporize. The quantity of molten metal is carefully calculated and measured before pouring. Air vents on the sides of the flask allow the vapor from the foam to escape, ensuring a clean casting.
The solidification of the casting varies depending on the type of metal used. Cooling starts immediately after pouring and may take several minutes. As the temperature decreases, the molten metal begins to form crystals near the walls of the sand mold, continuing until the entire casting is solidified.
Once the casting has sufficiently hardened, it is removed from the sand mold. The sand is typically shaken off or extracted from the flask. After removing the sand, the gating system is dismantled, leaving behind the finished parts.
The fully shaped and formed part is now ready for various post-treatments aimed at perfecting and enhancing the cast piece. These treatments include removing gates, risers, and runners, as well as sandblasting or grinding the metal workpiece to achieve the desired smoothness, tolerance, and shape. Additionally, a range of machining processes may be employed to further refine the final component.
Centrifugal casting, also known as the deLavaud process, uses a spinning mold to produce lengths of pipe through the use of G force created by rapidly rotating the mold. The concept was invented by French engineer Dimitri Sensaud deLavaud as a more efficient method of producing iron pipe.
The centrifugal process consists of a spinning steel mold enclosed in a jacket of water or water spray. Molten metal is injected into the casting by a ladle through a trough, which rides on a movable carriage or platform. As the molten metal enters the casting, it stretches to the full length of the mold. The molten metal is first ladled into a bell from which it enters the casting and continues to enter the mold until the full length is full to the spigot end. The centrifugal movement forces the iron to the wall of the mold where it solidifies to a seamless pipe. Joints are created by a resin coated core of sand of the correct dimensions for the mold, which prevents molten metal from escaping.
To increase the adhesion of the mold, it is peened to improve surface friction and enhances the life of the mold. Also, peening helps sprays stick to the walls of the mold to make removal of the casting more efficient. During the casting process, the die can be spinning vertically or horizontally depending on the configuration of the part to be produced where ring and cylinder parts are shaped vertically, and tube shapes are made horizontally.
The centrifugal force in the process expels less dense materials such as impurities and "floats." Solidification occurs under the pressure of the spinning force, resulting in a defect-free part with no cavities or gas pockets.
In addition to pipes, centrifugal casting is used to produce flywheels, cylinder liners, and axi-symmetric parts. The high quality achieved with cylinder liners and sleeve valves through centrifugal casting is unmatched by other casting methods.
Pressure casting, a form of centrifugal casting, is used for asymmetrical parts that cannot be spun around their own axis. The method is quick and cost effective for the production of high volume parts with a tight tolerance. A molten metal alloy is injected into a steel mold under high pressure and solidifies almost immediately to be extracted. This method can be used for large gear rings and other such items.
Plaster casting is a process used to manufacture non-ferrous alloy parts with a smooth, even finish. This method is ideal for producing precise, detailed parts with high dimensional accuracy. Typically, the pattern for the casting is designed using CAD or similar software, with allowances made for shrinkage.
The mold-making process starts with a plaster mixture composed of gypsum or calcium sulfate, combined with talc, asbestos, sand, sodium silicate, and water. This forms a slurry that is sprayed onto the pattern, which has been treated with an anti-adhesive to prevent the plaster from sticking. The molds form within minutes, are removed from the pattern, and allowed to dry. Once dry, the cores and mold are assembled, and molten metal is poured into them. As with investment casting, the mold is broken away once the metal has cooled and hardened to release the finished part.
There are limitations with plaster casting since the process is complicated and takes time, which increases its cost. Its greatest success is with materials that have a low melting point such as aluminum, copper, magnesium, or zinc. Since it takes little time to produce a mold, it is an excellent method for taking a CAD rendering and making a prototype.
Final products produced using plaster casting feature smooth, even surfaces with exceptional detail. Unlike other casting methods, this process accurately replicates intricate and complex features, even in parts with thin walls. Additionally, plaster casting can handle large parts made from non-ferrous metals with low melting points, similar to sand casting.
Vacuum casting, also known as urethane or polyurethane casting, differs from permanent mold casting and die casting by using silicone molds to produce plastic and rubber components. The process begins with creating a silicone mold using 3D modeling techniques, followed by the traditional injection molding process. The pattern is equipped with cores, inserts, and gates before being placed in the casting box. Risers are then added to allow air to escape from the mold.
In the vacuum casting process, silicone is poured over the master pattern under pressure to ensure it thoroughly covers and captures every detail. The silicone mold is then cured at 40°C (104°F) for 8 to 16 hours, depending on its size. Once curing is complete, the casting box and risers are removed, leaving behind a precise silicone mold ready for casting.
After curing, the mold is cut along a wavy pattern to reveal the negative cavity of the part. This wavy pattern helps ensure proper alignment of the mold halves during production. The resin for the part is then prepared and mixed with precise proportions, potentially including colors, and placed in a pouring bowl. To eliminate air pockets and ensure a smooth flow, the resin mixture is poured into the mold under a vacuum, which helps create a bubble-free casting and reduces resistance to the resin's flow.
After the resin is cast, the mold is placed in a heated chamber for curing. Once the curing process is complete, the part is removed from the mold. The finished part undergoes additional finishing steps, including clipping off the gates and risers and addressing any imperfections or rough surfaces to achieve the final desired quality.
Vacuum casting is ideal for producing small batches of high-quality parts, making it suitable for prototyping and low-volume production. It offers a wide range of resins to meet various application needs, including clear, rubbery, flame retardant, and colored options. Resin types can be easily switched without changing the tooling, allowing for flexibility in testing different materials to find the best fit for specific applications.
Squeeze casting merges the processes of casting and forging, where molten metal solidifies under pressure within a closed die positioned between the plates of a hydraulic press. In the direct squeeze casting method, molten metal is poured into one half of a preheated die, and the upper half is then closed over it, forcing the metal to fill the die. During solidification, pressures ranging from 70 MPa to 140 MPa or more are applied using a hydraulic press. The indirect squeeze casting method involves injecting liquid metal into an indirect squeeze casting machine through a shot sleeve and then into the die chamber through a gate.
As the molten metal begins to solidify, the upper half of the die is pressed with increasing force into the lower half until the casting is fully set. This pressurization ensures that the molten metal is evenly distributed, preventing defects such as separation or breakage in the metal part. Once solidification is complete, the hydraulic press ram retracts, and the casting is ejected. The pressure applied by the hydraulic press during squeeze casting is significantly lower than that used in forging, resulting in improved uniformity of the metal structure and enhanced mechanical properties.
Continuous casting involves pouring molten metal into a mold that solidifies it quickly, resulting in a fine, uniform grain structure and excellent physical properties. In this process, molten metal is continuously fed from an induction furnace into the mold through a series of openings at the top. The mold is surrounded by a water-cooled jacket, which accelerates the solidification of the metal. Additionally, the molten metal above the mold acts as a riser, maintaining the fill level in the die and preventing shrinkage.
After the molten metal solidifies, it is ejected from the bottom of the mold using a mechanical device. The flow of metal is precisely controlled until it reaches the desired length, at which point it is cut off by a saw. The combination of low casting temperatures, a chilled mold, and directional solidification results in castings with a homogeneous, fine-grain structure and high density.
Continuous casting can be performed using two main methods: horizontal and vertical. In the horizontal method, the equipment operates on a single horizontal level, utilizing gravity to produce hollow tubes. Both methods can create various shapes, including rectangular, hexagonal, square, and gear teeth. Continuous casting is particularly well-suited for producing long tubular forms and small inside diameters, which are challenging for other casting techniques. The primary advantage of continuous casting is its capability to produce extended, consistent tubular shapes efficiently.
Shell molding is akin to sand casting but differs in that it uses a hardened sand shell to form the mold cavity based on the pattern of the part. In this process, finer sand mixed with resin is heat-treated to create a shell around the metal pattern. The sand-resin mixture is poured into a heated mold, reaching temperatures between 204°C and 371°C (400°F to 700°F), which activates the resin. As the sand mixture contacts the pattern, it forms a solid shell on the inner surface, establishing the mold.
The mold in shell molding is typically a metal form that shapes the shell mold around the desired part. Unlike the patterns, which are reusable, the formed molds are disposable, similar to sand casting molds. Shell molding can accommodate both ferrous and non-ferrous metals, including cast iron, alloy steel, stainless steel, aluminum alloys, and copper alloys. Common parts produced using shell casting include gear housings, cylinder heads, connecting rods, and level arms. The patterns used in shell casting are often made from different metals, with steel and iron being the most common choices. However, aluminum may also be used for low-volume production or graphite casting.
Waupaca Foundry specializes in producing ductile iron and gray iron castings through advanced technological methods. Serving top markets in automotive, agricultural, construction, and industrial sectors, the company is committed to minimizing its environmental footprint and enhancing efficiency. Notably, Waupaca has boosted its energy efficiency by over 13% through its compressed air optimization project.
Shibaura is a leading provider of high-pressure die casting (HPDC) machines, offering a range of equipment for aluminum and magnesium casting, including high pressure, cold chamber, and semi-solid machines with capacities ranging from 1,350 kN to 35,000 kN. Their comprehensive line of die casting machines features models in small, medium, and large sizes, as well as the E-series, which integrates the speed of an electric servo motor with three-platen toggle clamping.
BMC specializes in the manufacture of aluminum and zinc die casting machines and trim presses. In addition to production, the company offers rebuilding and remanufacturing services for die casting, injection molding, blow molding, and trim press machines. BMC provides a comprehensive range of hot and cold chamber machines known for their exceptional reliability and low maintenance. The company's double pump system ensures continuous high flow and pressure for its die actuating operations.
RDO specializes in manufacturing vacuum induction casting machines and induction heaters for casting prototypes. Their CS casting system is designed for both high-volume small parts and low-volume large parts. The SuperCast Pro system, used by foundries, metal recyclers, and large casting manufacturers, serves as an advanced investment casting solution that offers similar capabilities to traditional rotocasting systems. RDO’s CS1, CS2, and CS3 models are versatile, accommodating a wide range of metals and alloys.
Gesswein manufactures induction-heated, pressure-over-vacuum casting machines designed for producing dense castings. Their product lineup includes the Galloni G1, Galloni G3, Galloni Heavy Duty, and Galloni Pressovac Dual Touch. Gesswein’s high-production casting machines efficiently cast platinum, gold, silver, and steel, achieving cycle times of 3 to 4 minutes for gold and platinum. Castings from Gesswein’s vacuum casting machines feature exceptionally smooth surfaces and a dense molecular structure.
The die casting industry uses aluminum and zinc alloys due to their malleability and ease of being cast into a wide range of shapes and configurations. The initial step in the die casting process is to select the correct metal for the component to be cast. This aspect of the process is crucial in regard to choosing the type of material that will meet the purposes, requirements, and design of a component as well as ensuring its optimization and utilization.
Since aluminum and zinc are the two most widely used metals for die casting, it is important to have an understanding of the differences between them in order to select the right metal for a component or part. Although zinc and aluminum are easy to melt, inject, and mold, they have very different characteristics and properties that determine their viability.
The unique characteristics of zinc and aluminum have led to their wide use in die casting. They are easy to form and are cost effective. Zinc alloys contain zinc that is alloyed with aluminum, magnesium, copper, cadmium, lead, titanium, and other low temperature alloys. The fluidity of zinc enables it produce very small, minute products with precision and extraordinary details.
In liquid its form, zinc is 204.4°C (400°F) cooler than aluminum, a factor that impacts the life and use of dies. Unlike aluminum, zinc does not have a chemical reaction with dies, which lengthens the life of dies 3 to 4 times over dies used for casting aluminum.
Zinc can be cast using the hot chamber process, which increases the speed of die casting. Unlike cold chamber die casting, hot chamber machines have the chamber or gooseneck submerged in a furnace filled with zinc. If the same process were used with aluminum, the gooseneck would melt due to the increased heat.
Aluminum comes in a long list of grades that range from 99% aluminum content up to ones with 95% aluminum content. The variations between the grades are in regard to the types of alloys the aluminum has been alloyed with. Common aluminum alloys are copper, silicon, magnesium, zinc, and magnesium with secondary alloys being nickel, iron, titanium, chromium, and lithium. Although aluminum has lower density than steel, it has an exceptional strength to weight ratio with some aluminum alloys being stronger than steel.
In their pure forms, zinc and aluminum are quite different. Pure, unalloyed zinc is harder than pure aluminum. This differentiation changes after the metals are alloyed with aluminum becoming much harder and stronger than zinc.
The hardness of aluminum on the Vicker’s hardness scale is 15 to 30 HV in its pure form, while Zinc’s hardness is 30 to 60 HV in its pure form. On the Brinell and Rockwell C scales zinc and aluminum are very soft when compared to steel.
Aluminum alloys have greater tensile strength and yield strength than pure zinc with some aluminum alloys being vastly stronger than zinc alloys.
At -10° to -20°C (14° to -4°F), zinc becomes brittle while aluminum retains its ductility. The strength of both metals changes slightly with the addition of alloys.
Zinc is a preferred metal for die casting, coatings, and the manufacture of bearings. It has a higher as cast hardness than pure aluminum. Various aluminum alloys have very high strength to weight ratios and exceptional fatigue resistance.
The three metals that are commonly used for die casting are magnesium, zinc and aluminum. Each metal has excellent properties and is ideal for the die casting process. There are conditions, situations, and applications where one of the metals is a better choice than the others.
Zinc alloys are used for die casting due to its low cost, strength, and stability. It has exceptional electrical and thermal conductivity and is corrosion resistance, ensuring that components will last long. Zinc is easily castable due to its low melting temperature.
Aluminum is economical and versatile. The wide use of aluminum is due to its ability to withstand high operating temperatures. It is more expensive than zinc but has benefits that outweigh its cost. The main characteristics that have made aluminum so popular in modern industry is its lightweight, high strength-to-weight ratio, and long useful life.
Zinc and aluminum are very cyclable metals with aluminum saving 95% of energy needed for new production. The recycling of zinc is more challenging due its impurities and the need for complex processes. The recyclability of both metals significantly reduces energy consumption compared to other metals. Recycled aluminum and zinc are used for the manufacture of new products without losing their properties.
Aluminum is easily recycled with about 80% of aluminum products being made from it. Compared to primary aluminum, recycled aluminum requires 5% of the necessary energy needed to smelt it, which reduces emissions and production costs. Over 75% of aluminum processed as primary aluminum is still in circulation today thanks to the many concerted recycling efforts.
Nearly four times more recycled aluminum or secondary aluminum is produced than primary aluminum. Recycled aluminum accounts for 34% of the new supply of aluminum. The key to the success of recycling of aluminum are the many collection efforts that gathers alloy scrap, casting scraps, beverage cans, car parts, and other used aluminum products.
Prior to recycled or secondary aluminum being used for manufacturing, it undergoes a pre-treatment where the scrap is baled, shredded, crushed, decoated, and demagnetized. Decoating removes paint while demagnetizing removes iron particles that cling to aluminum scraps. In addition, pre-treatment improves the metals density and removes contaminants to make the melting process more efficient and produce cleaner aluminum that does not have dross formations.
Once the scrap aluminum is prepared, the manufacturing process follows the same steps as those used with primary aluminum. It is melted, treated, and refined before being injected into a mold. The one step in the process that is added is inclusion of chlorine gas to remove any impurities that may remain after the previous treatments.
The wide use of recycled aluminum is due to its energy and environmental savings. The use of recycled aluminum supports the world’s decarbonization efforts that has the goal of significantly reducing greenhouse emissions.
About 70% of zinc products are made from mined zinc ore with 30% of products being produced from recycled or secondary zinc. The recycling of zinc is a major part of sustainability efforts that have the aim of minimizing the environmental impact connected with manufacture of zinc. As with aluminum, zinc has a high recycling rate, which is derived from collecting scrap zinc from industrial waste, end of life products, and manufacturing offcuts. Just like aluminum, the collected scrap zinc is shredded and sorted before being melted for reuse.
Unlike aluminum, the recycling of zinc faces several challenges due to zinc’s impurities and alloying elements. The nature of the recycling concerns is in regard to the effect of the impurities on the quality and properties of the products produced from recycled zinc. The inclusion of impurities in zinc necessitates the use of time consuming and expensive purification methods.
Although aluminum collection has a vast network, zinc recycling has logistic and processing problems that are complex and resource intensive with a limited infrastructure. Unlike traditional collection methods for recycling, zinc recycling collection does not always produce high quality zinc that is reliable and reuseable. In addition, the ever-changing prices of zinc and its demand impact the economic viability of any recycling efforts, which discourages recycling operators from putting any effort into recycling zinc. Improper handling of the recycling process can cause dangerous emissions and waste creating an environmental impact and contamination.
Zinc scrap is classified by the Institute of Scrap Recycling Industries (ISRI) into different categories based on composition and source of zinc. The most common and reliable sources of zinc scrap, referred to as new zinc scrap, are sheets, pipes, or stampings. Old zinc scrap includes materials from demolitions, renovations, and end of life products, which include galvanized steel scrap, zinc die-castings, and zinc dross. The new plated zinc die cast scrap category includes clean, plated zinc die cast scrap from manufacturing operations
The ISRI provides stipulations in regard to the types of recycled zinc alloys that conform to the chemical specifications for zinc that is suitable for reprocessing. Zinc scraps are carefully sorted and processed for recycling, in accordance with ISRI requirements.
Regardless of the difficulties associated with the recycling of zinc, manufacturers have worked diligently to develop methods to streamline the process. The difficulties with recycling zinc is related to separating it from galvanized steel. The most widely used recycling method is electric arc furnace (EAF) heating, which heats scrap until the zinc content volatizes and separates as a gas. As the gas is treated and collected, the zinc decomposes into a dust that is treated in a Waelz kiln where the dust becomes zinc oxide that is used for the production of zinc metal.
As of the present, 40% of zinc that is used for manufacturing comes from reclaimed zinc sources. It is the hope of manufacturers that with technological advances that zinc recycling will become more viable increasing the amount of reclaimed zinc and lowering the impact of zinc production on the environment.
Aluminum and zinc are key elements in the manufacture of 21st century products. Their similarities and differences enable them to be configured and shaped to meet the requirements of different applications. As widely used as aluminum and zinc products are, manufacturers, in an effort to comply with sustainability efforts and reduce environmental impact, are constantly working to find methods for reusing existing sources of these metals without having to return to constantly return to primary sources.
An understanding of the various casting methods is critical to making the decision of how to produce a conceptualization. Each of the different types has their advantages. The major considerations are the cost of production and the number of parts to be produced. Casting manufacturers specialize in one of the varieties of approaches. There are a few producers who will offer a variety of production methods. Carefully reviewing the qualifications of each producer as listed in the IQS Directory can assist in selecting the proper company for the job.
Aluminum casting is a method for producing high tolerance and high quality parts by inserting molten aluminum into a precisely designed and precision engineered die, mold, or form. It is an efficient process for the production of complex, intricate, detailed parts that exactly match the specifications of the original design...
Die casting is a high pressure metal casting process that forces molten metal into a mold. It produces dimensionally accurate precision metal parts that have a flawless smooth finish...
Investment casting is a metal working process that uses a ceramic shell built over a wax pattern to produce parts with extraordinarily uniform and smooth surfaces. The wax pattern is produced from an aluminum die.The final products of investment casting are without parting lines, mold half marks, or other deformities...
An iron casting is a hard product obtained from combining iron with carbon. This can be readily cast in a mold, and it contains a higher proportion of carbon compared to steel. The proportion typically ranges from 2 to 4.3...

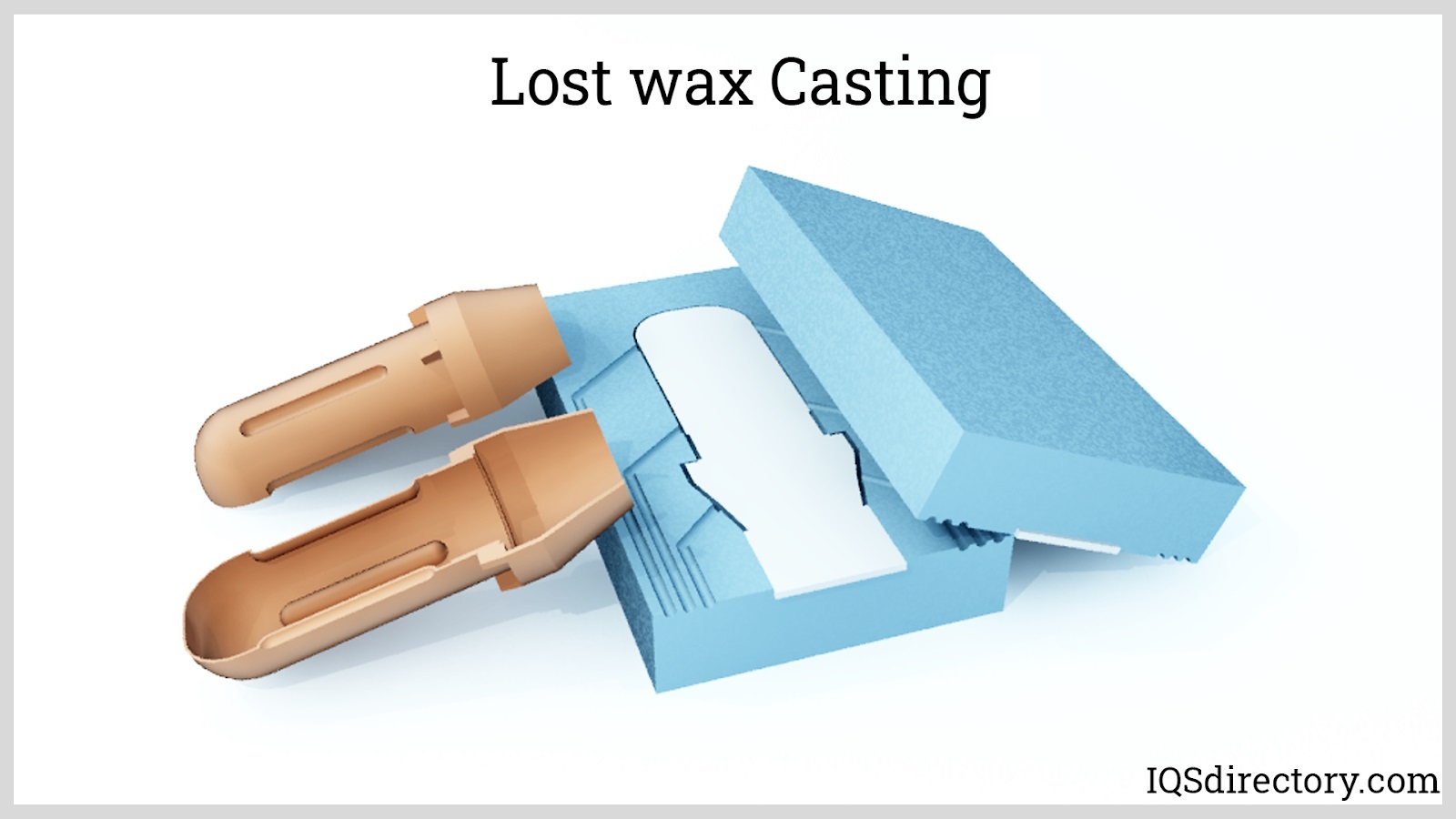

Lost wax casting is a casting process that uses a wax pattern to create a ceramic mold for creating a part or product design. It has been known over the years as lost wax or precision casting due to its accuracy in recreating parts with precise tolerances...
Permanent molding casting is a casting process that uses strong durable reusable molds to produce parts and components using molten metals. The molds for permanent mold casting are made from steel or...
Sand casting is a manufacturing process in which liquid metal is poured into a sand mold, which contains a hollow cavity of the desired shape and then allowed to solidify. Casting is a manufacturing process in which...
Aluminum forging is a method for processing aluminum alloys using pressure and heat to form high strength, durable products. The process of aluminum forging involves pressing, pounding, and...
Cold forging is a metal shaping & manufacturing process in which bar stock is inserted into a die and squeezed into a second closed die. The process, completed is at room temperature or below the...
Copper and brass forging is the deformation of copper and brass for the purpose of manufacturing complex and intricate shapes. The temperature at which copper and brass are forged is precision controlled and...
Forging is a metal working process that manipulates, shapes, deforms, and compresses metal to achieve a desired form, configuration, or appearance outlined by a metal processing design or diagram...
In this article, there are key terms that are typically used with open and closed die forging and it is necessary to understand their meaning. Forging is a process in manufacturing that involves pressing, hammering, or...
Rolled ring forging is a metal working process that involves punching a hole in a thick, solid, round metal piece to create a donut shape and then squeezing and pressuring the donut shape into a thin ring...
Forging steel is a manufacturing process used to shape steel by using localized compressive forces, which include hammering, pressing, and rolling. It is a widely used method for producing high quality steel products...

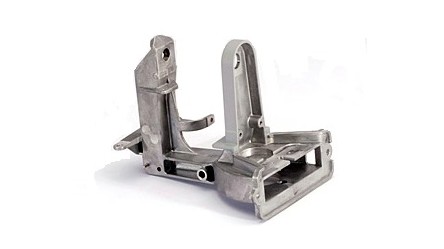

Zinc die casting is a casting process where molten zinc is injected into a die cavity made of steel that has the shape, size, and dimensions of the part or component being produced. The finished cast zinc product has...
The ancient art of forging falls into two distinct categories – hot and cold where hot forging has been around for centuries while cold did not begin until the industrial revolution of the 19th Century. Though they are quite different ...
