This article takes an in-depth look at investment casting.
You will learn more about topics such as:
Investment casting is a metalworking technique that entails forming a ceramic shell around a wax model to create components with remarkably smooth and consistent surfaces. The wax model is generally crafted using an aluminum die. Post-casting, the end products display minimal parting lines or mold marks, which are then eliminated during secondary finishing to achieve the required smoothness and uniformity.
This process yields parts, components, and items while minimizing waste and energy usage. The standout characteristic of investment casting is the high precision and excellent tolerances found in the final products.
Investment casting, also known as lost wax casting or cire perdue in French, is an ancient metalworking method that dates back thousands of years. Originally developed in China, this precision metal casting technique was largely overlooked by modern industry until the 20th century, when advancements in manufacturing technologies made it easier and more efficient to remove the wax from the ceramic shell mold. Today, investment casting is a critical process for producing complex, high-precision components with excellent surface quality and tight tolerances, making it a preferred choice in the aerospace, automotive, medical, and energy sectors.
During World War II, investment casting experienced significant growth due to its ability to produce exceptionally precise and flawless parts that traditional manufacturing methods, like sand casting or machining, could not achieve. Following the war, investment casting became the preferred process for industrial applications requiring complex and intricate designs, such as turbine blades, impellers, and orthopedic implants, where dimensional accuracy and superior surface finish are critical.
The investment casting process, sometimes referred to as precision casting, involves several meticulous steps, each contributing to the overall quality and consistency of the final metal part. By employing highly engineered patterns, shell coatings, and controlled heating cycles, investment casting enables the production of near-net-shape parts, reducing the need for extensive post-processing machining. Below, we’ll detail each step of the process and highlight the key considerations for optimizing part quality, cost-effectiveness, and material selection for different project requirements.

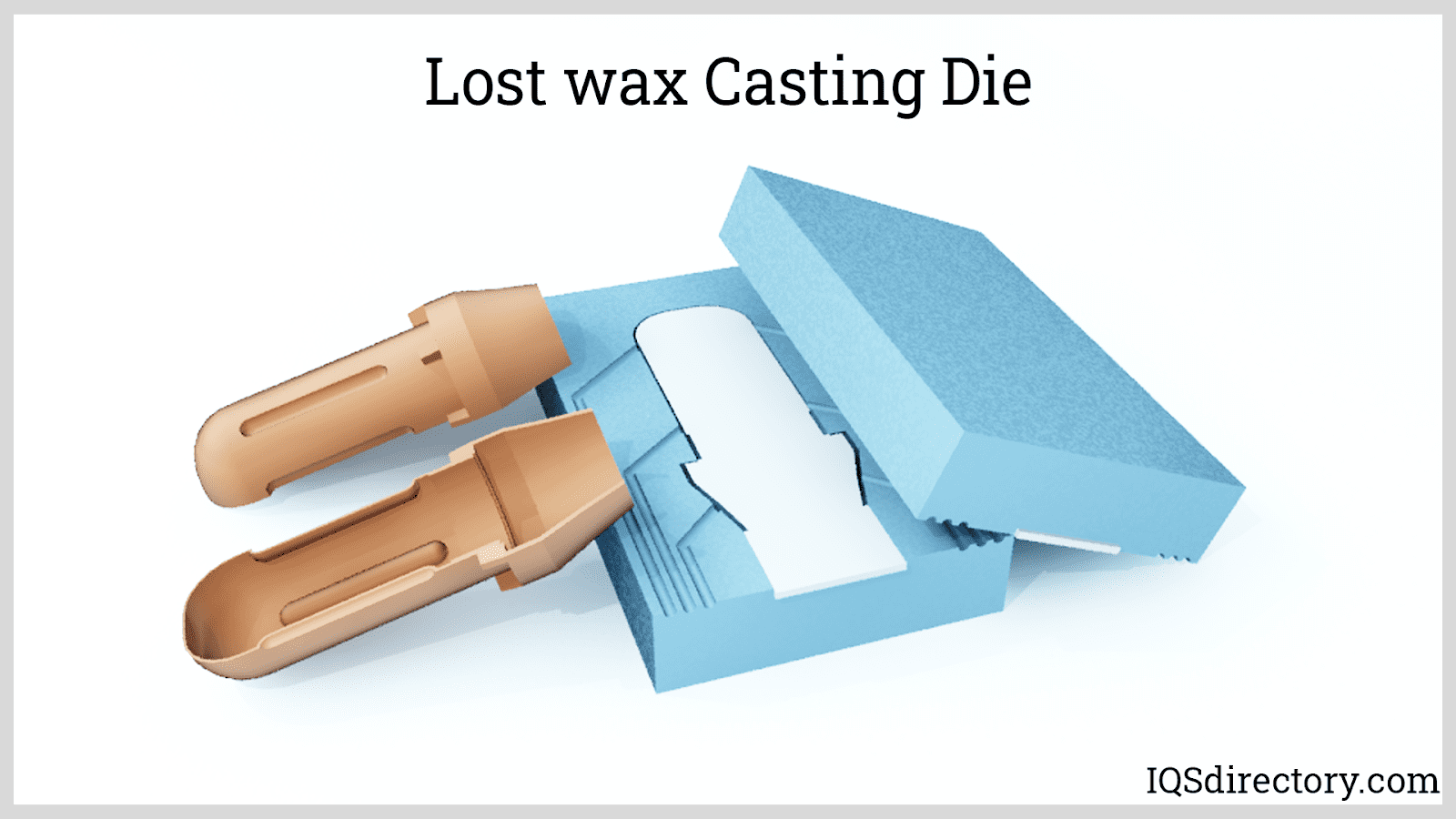

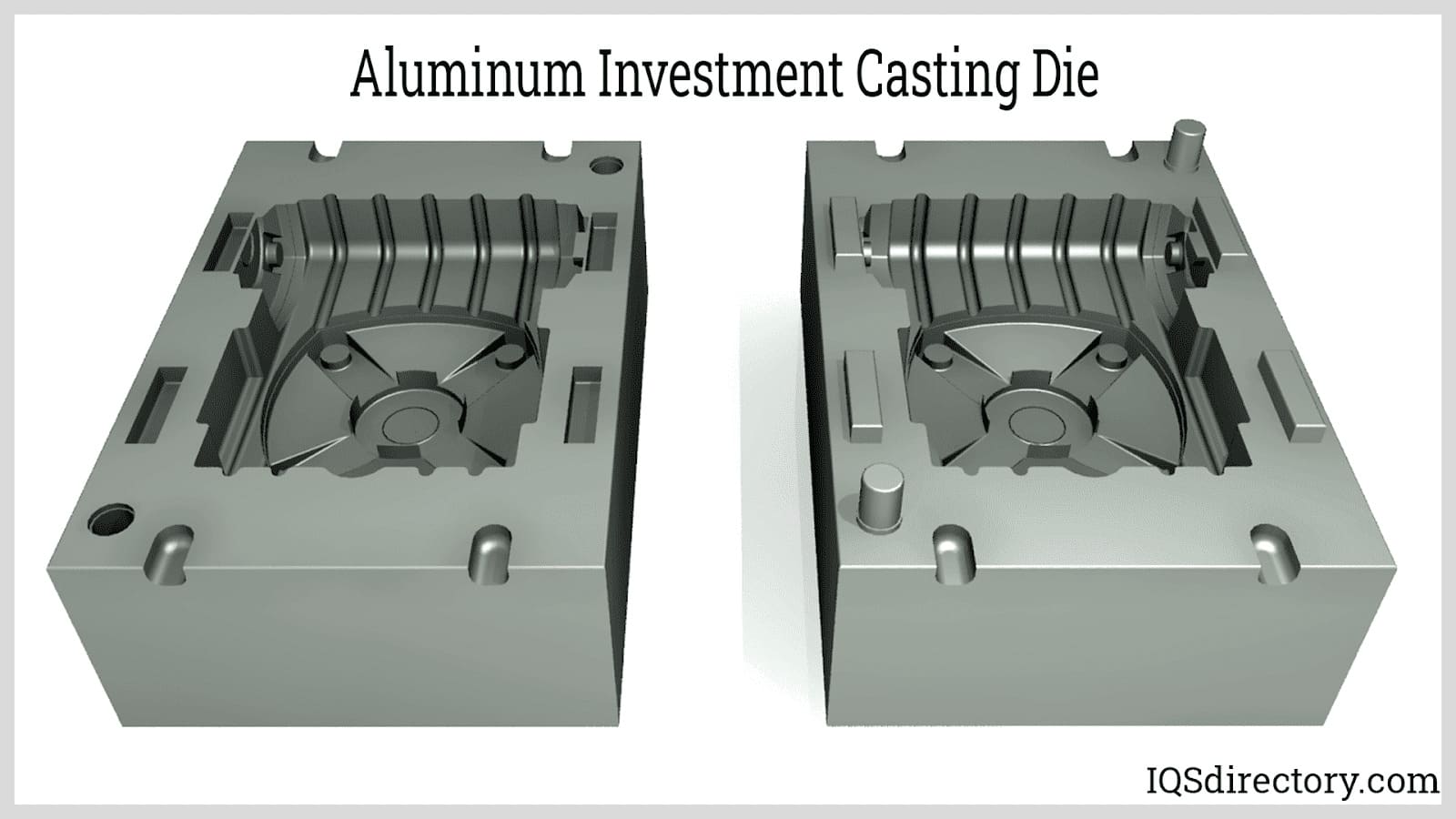

Tooling for investment casting revolves around the wax injection dies used to create detailed wax patterns that are essential for the lost wax process. Precision tooling ensures dimensional consistency, repeatability, and optimal surface finish in the final castings. The specific tooling required depends on factors such as part geometry, tolerances, production volume, and chosen alloy material, all determined by the project’s engineering team and end-user requirements. Tooling is integral to the design and prototyping phase and includes Advanced Product Quality Planning (APQP), a comprehensive design planning and quality management method developed in the 1980s commonly used within the automotive and aerospace industries.
At the core of Advanced Product Quality Planning (APQP) is a thorough examination of the production process and evaluation of each stage to prevent errors, minimize scrap, and avoid unnecessary repetitions. During APQP, every aspect of the end product is scrutinized, engineered, and discussed to ensure that the tooling—including injection dies, patterns, and ceramic cores—is precision-designed for defect prevention and streamlined process flow. Successful tooling development is critical for projects with complex undercuts, thin walls, or specific mechanical property requirements.
The wax injection die is the outcome of the APQP process, acting as the foundation for creating each wax pattern. Wax injection dies are typically fabricated from high-grade aluminum due to its excellent thermal conductivity, which allows fast heat dissipation, supports efficient cycle times, and minimizes defects such as shrinkage or warping. Aluminum’s malleability and pliability make it easy to shape and form to complex geometries, and its resistance to wear from repeated wax injection enhances the die's lifespan in high-volume manufacturing environments. In some cases, steel tooling may be used when superior durability or extremely tight tolerances are required.
Various types of waxes are used to create wax patterns in lost wax investment casting, each selected based on factors like flow properties, melting temperature, reclaimability, dimensional consistency, achievable surface finish, and specific application requirements. The choice of wax is a critical variable influencing process yield, repeatability, production speed, and the ultimate quality of the cast part. Common waxes include:

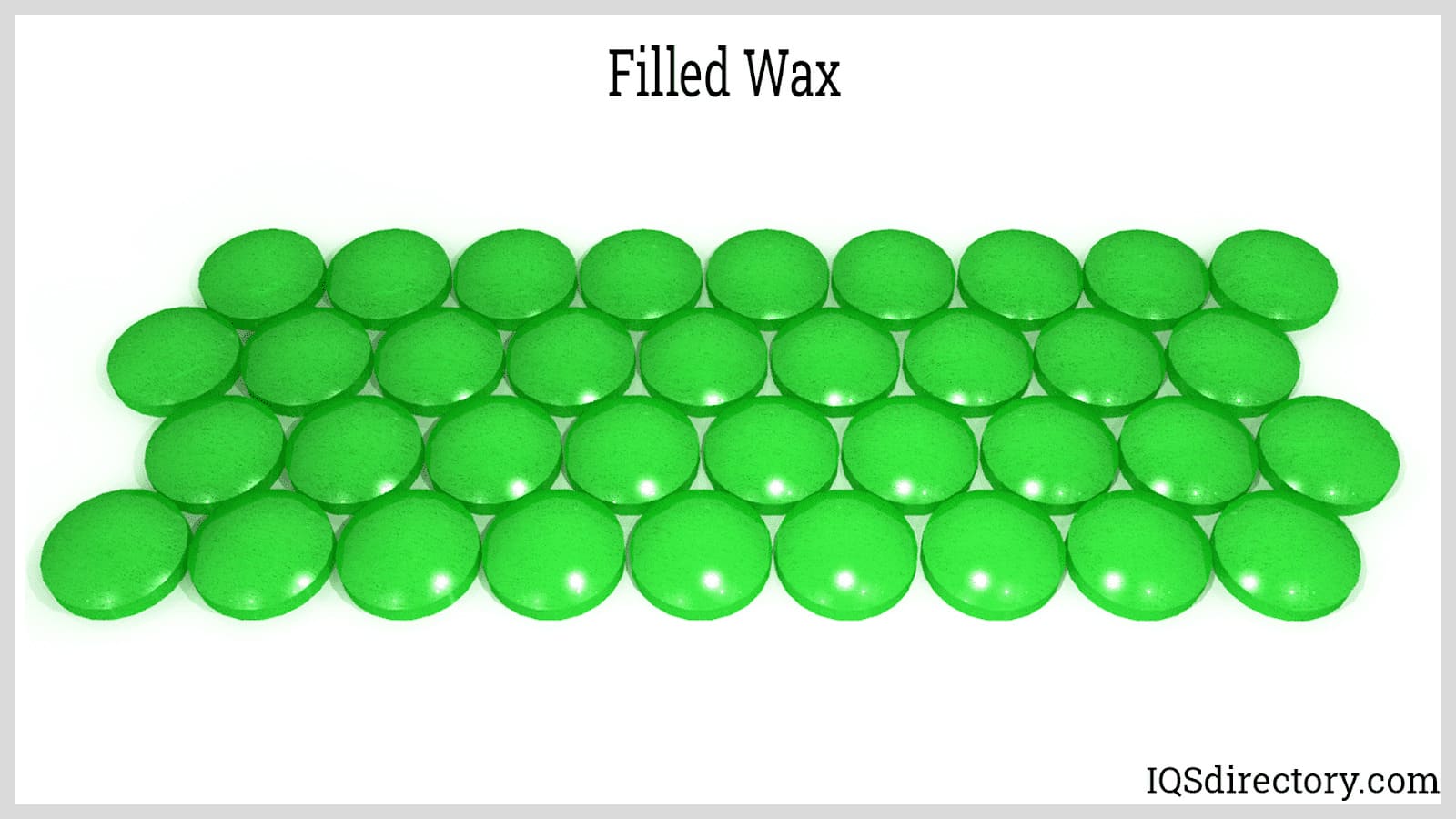

Filled pattern waxes contain additives and fillers to increase the casting's dimensional stability, strength, resistance to thermal expansion, and reduce shrinkage. Common fillers include bisphenol, organic compounds, terephthalic acid, and cross-linked polystyrene. These waxes are particularly valued in the investment casting process for large or intricately detailed parts where maintaining precise tolerances and minimizing pattern distortion are essential for success in demanding sectors like aerospace and industrial machinery.

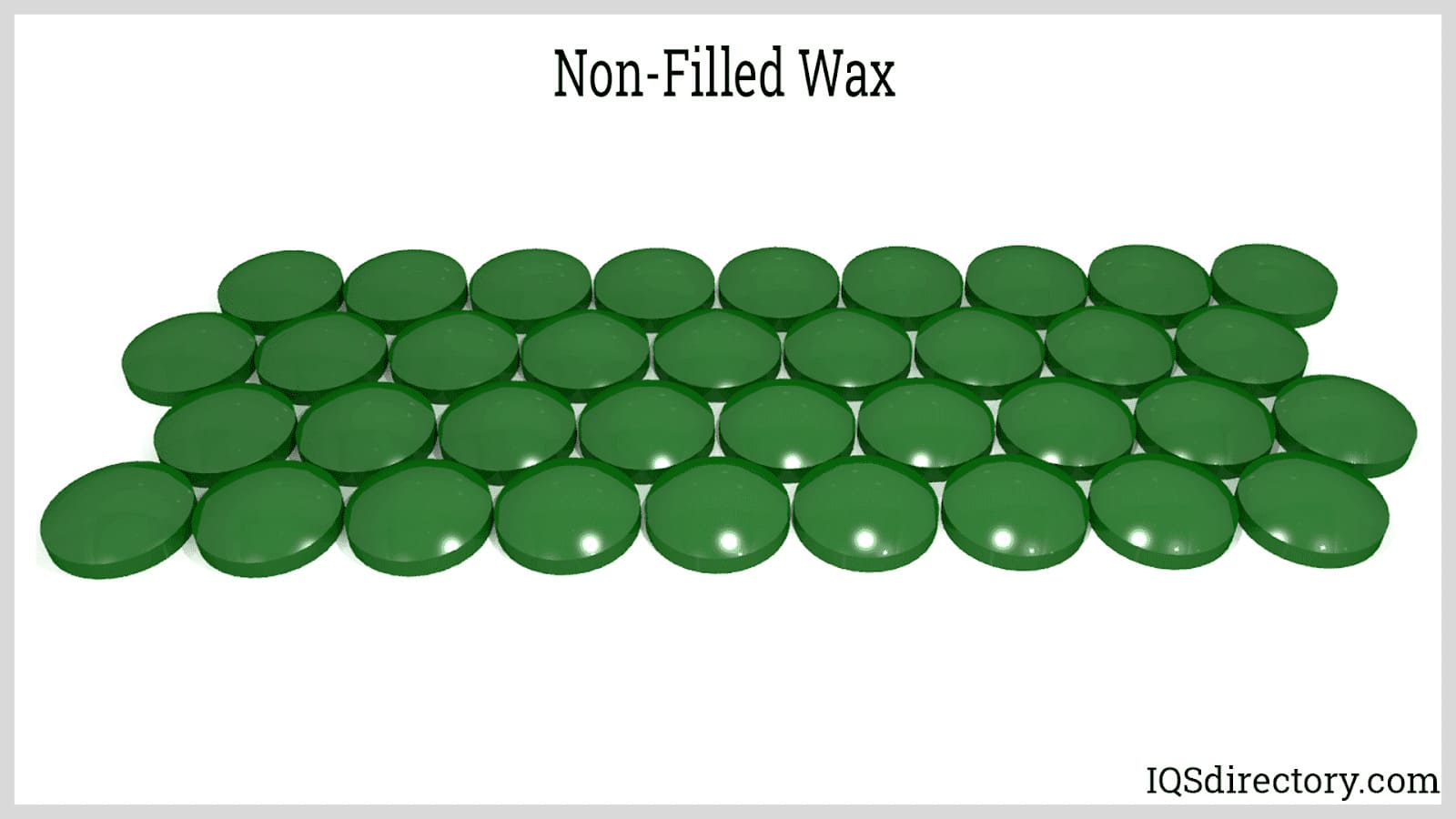

Non-filled waxes contain small amounts of filler—less than filled waxes—but still deliver excellent mechanical properties and consistent thermal performance. These waxes are preferred for creating challenging geometries, undercuts, and exceptionally smooth, detailed patterns. Due to their lower filler content, non-filled waxes are easier to dewax and are often used for high-precision investment castings in industries such as medical device manufacturing and precision instrumentation.
Runner waxes are engineered for castings requiring high mechanical strength and flexibility of use but with a lower viscosity for process efficiency. The low melting point of runner wax enables rapid draining from the ceramic shell during the dewaxing stage, supporting fast cycle times and minimizing the risk of shell cracking or deformation.
Water-soluble wax enables the creation of parts with highly complex internal patterns or geometries involving removable, intricate cores. After the main core is completed, the water-soluble wax pattern is positioned around or within it. As the pattern cools, the soluble wax is selectively dissolved, leaving behind the designed internal cavities, which are key for fabricating aerospace components, medical implants, and gas turbine blades. Multi-component assemblies benefit from this technology due to the precise internal detailing it allows.
After injecting the wax pattern around the soluble wax, the soluble wax is carefully removed by immersing the assembly in a water bath with a mild acid additive, such as citric or acetic acid, to accelerate the leaching and ensure a clean cavity without residue—this is integral to high-integrity part production.

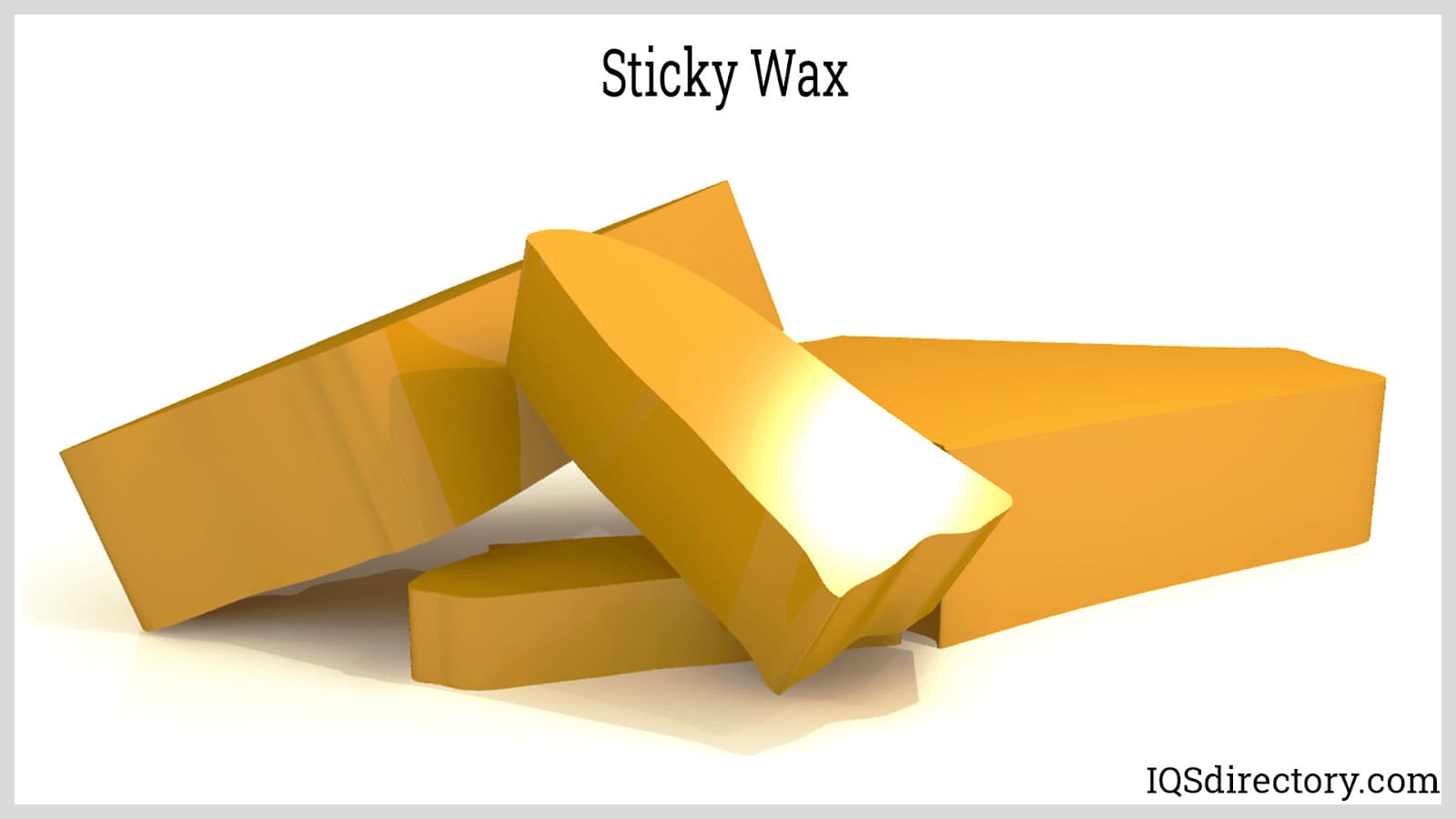

Sticky wax is an essential assembly aid used to bond and secure pattern waxes together prior to the ceramic shell application. Its strong, long-lasting adhesion ensures alignment and rigidity during the assembly process, preventing pattern movement or separation during handling and multiple coating dips, critical for both small and large batch production runs.

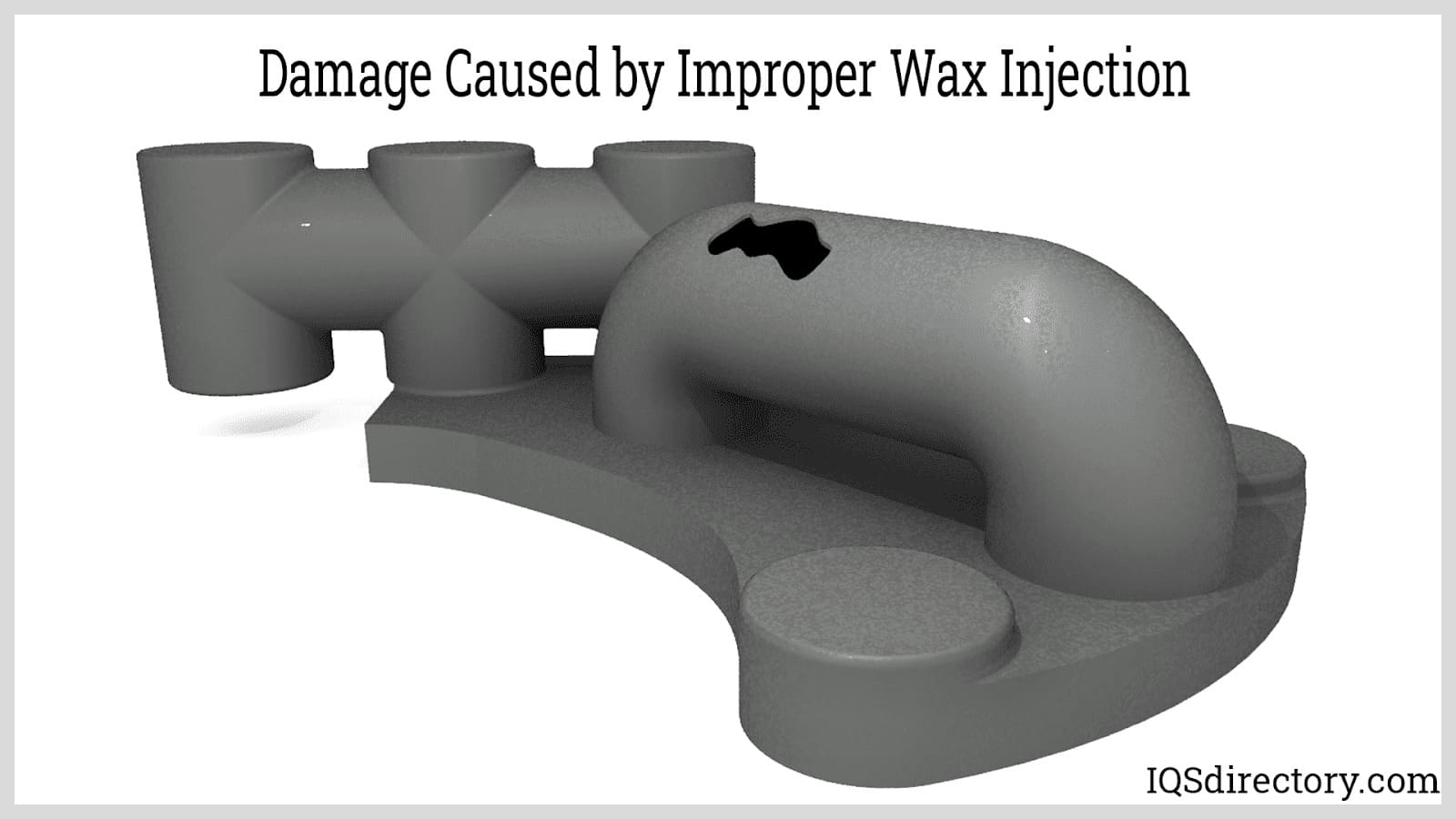

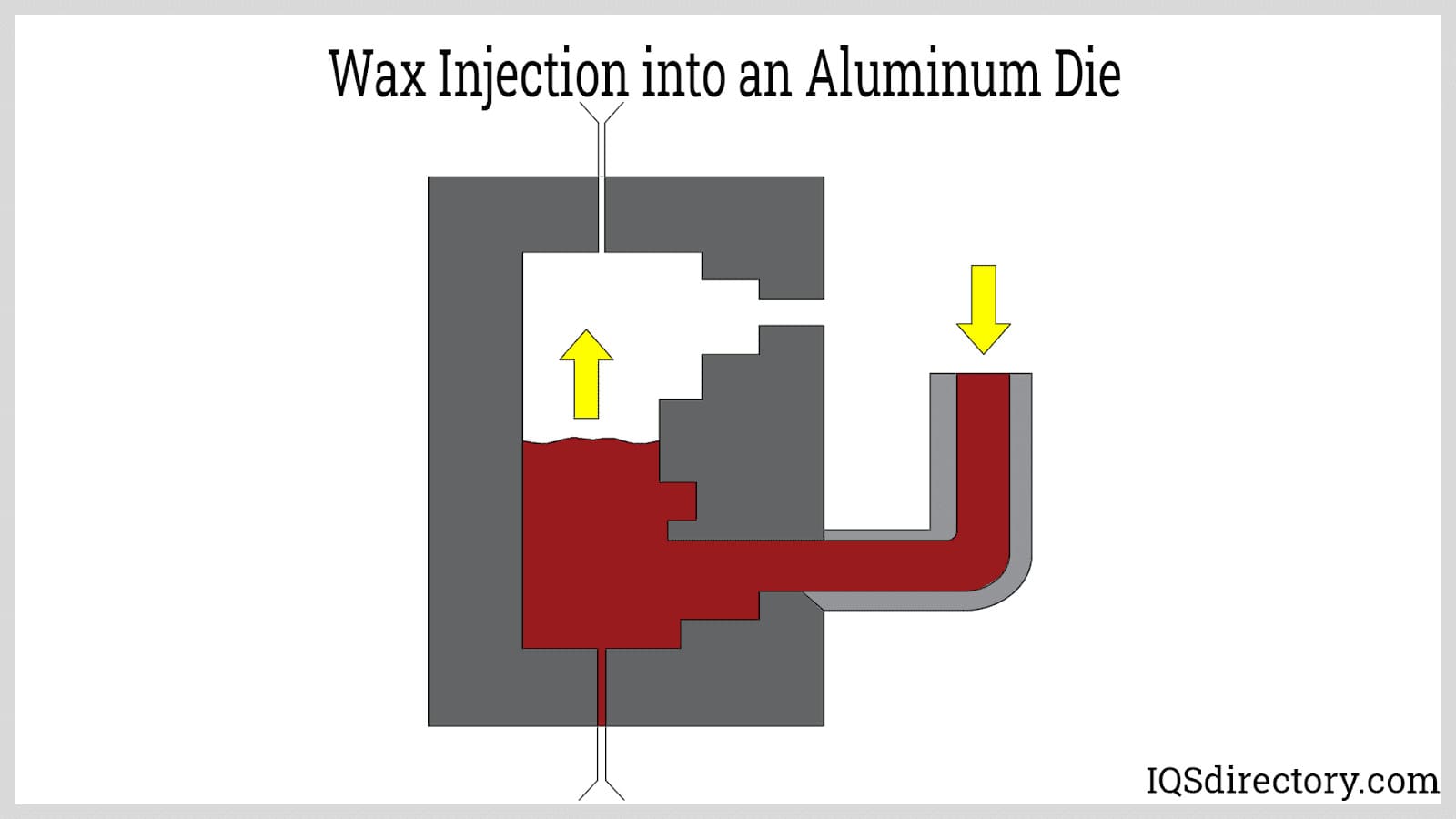

Wax is injected into the die or mold at a controlled temperature and pressure to precisely form the desired pattern, a step fundamental to the accuracy of the final investment cast part. The wax pattern is intentionally designed slightly oversized compared to the finished metal product to account for shrinkage that naturally occurs during both the ceramic shell formation and metal solidification. The die is then securely clamped shut, and an injection nozzle aligns with the sprue (the dedicated channel through which the wax flows into the die cavity).
In this stage, wax pellets are melted in a holding tank, connected to the injection press. This tank continuously agitates the molten wax mixture to maintain its chemical uniformity and optimal viscosity. A hydraulic-powered cylinder or plunger then pushes the molten wax through a heated hose directly into the sprue, filling every recess of the die cavity. This high precision process is essential for replicating sharp details and fine features—qualities for which investment casting is recognized over other casting processes.
Investment casting achieves exceptional dimensional accuracy and cost-effective, large-batch production by assembling multiple individual wax patterns onto a central wax runner system. Pattern assembly is a vital stage, as it not only organizes the patterns for batch processing but also forms the gating and feeding network for molten metal during casting. The wax runner, made via the same injection technique as the patterns, acts as a distribution tree to channel metal to each part, allowing for simultaneous production and consistent quality throughout a run.
Wax runners are produced using the same method as the patterns. A metal element is placed at the end of the runner, around which the wax is injected. A pin attached to the metal element extends outward and will be connected to a hanger plate later in the process. Additionally, a ceramic cup is incorporated as a funnel to guide molten metal into the runner and attached patterns. Strategic placement of gates and risers in this assembly helps regulate flow and mitigate common casting defects such as porosity or incomplete filling.

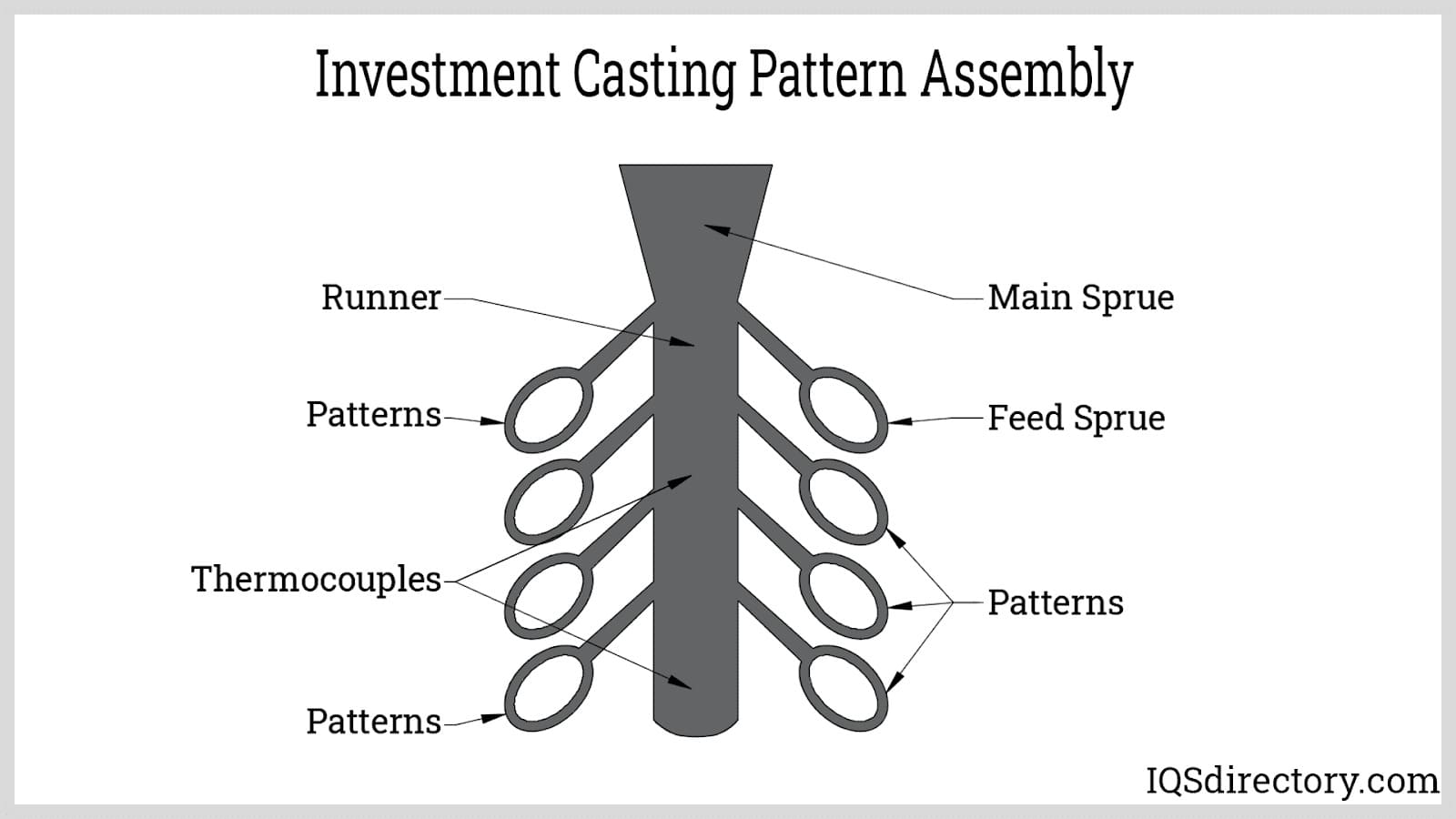

The gates of the patterns are attached to the runner by melting the end of the gates on the surface, dipping them in a hot melt adhesive wax such as sticky wax, and then pressing them onto the runner. As the melted wax cools, it forms a solid bond. A small torch may then be applied to weld and smooth the connection for a secure mechanical and thermal fit, ensuring structural integrity of the wax assembly before moving to the shell building stage.
After assembling and setting the casting pattern, the entire wax assembly is repeatedly dipped into a slurry mixture to initiate the shell building phase. This specialized slurry—composed of fine-grained refractory silica, water, advanced binding agents, and anti-foaming additives—forms a robust ceramic coating over the wax patterns. The pattern is typically dipped multiple times, alternating with applications of refractory stucco (coarse sand or refractory grain), to progressively build up the shell to the thickness required for the metal pour and desired final part strength.

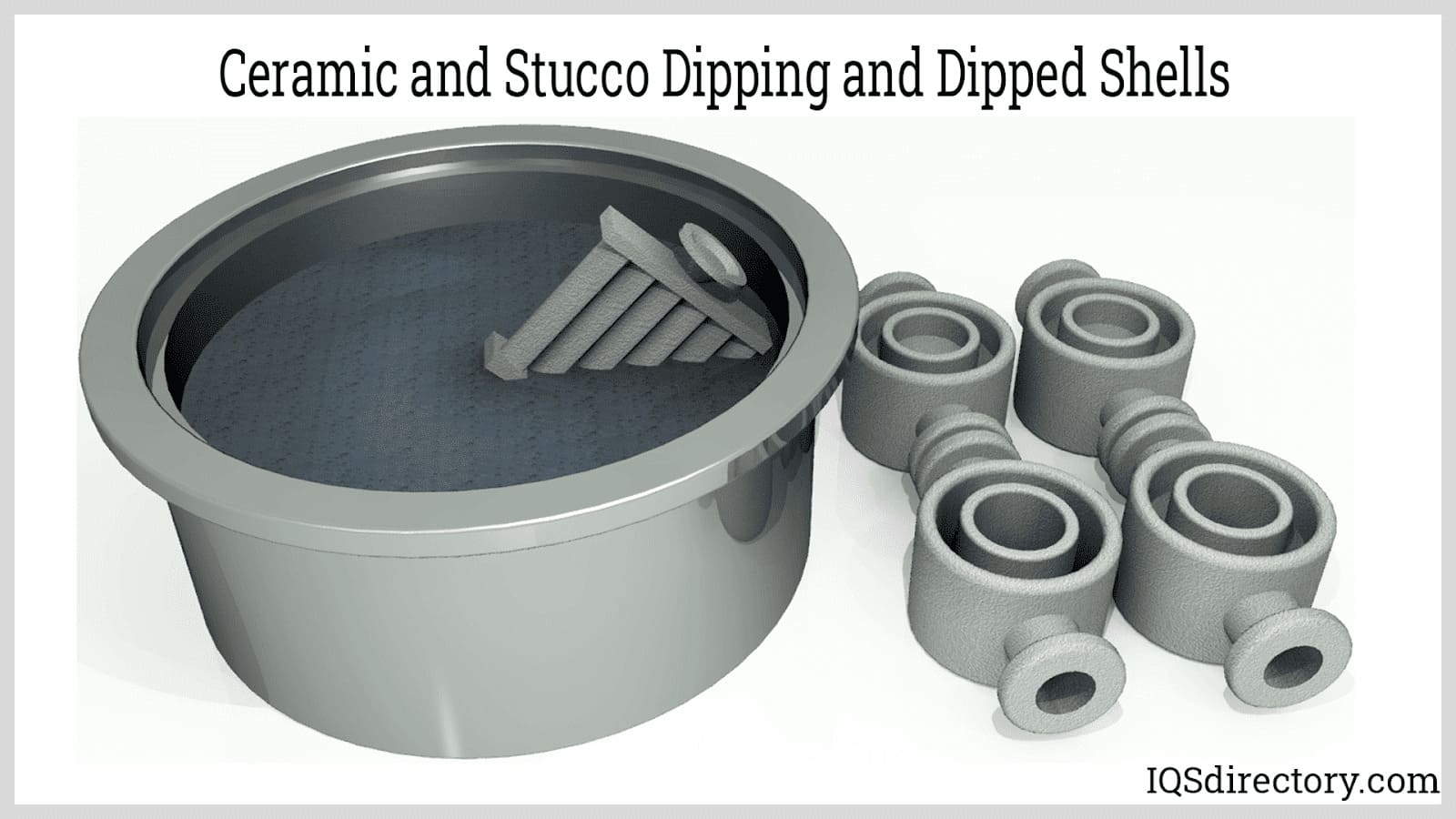

After the initial slurry dipping, the pattern assembly is coated with stucco as specified in the APQP. The sequence starts with a thin primary coat for surface smoothness and advances to thicker backup layers, each allowed to dry thoroughly before the next application. This multi-layer shell construction is crucial, as it must withstand both the evacuation of wax during dewaxing and the high thermal and mechanical stresses of molten metal casting.
The shell coating is a fundamental element of the investment casting process, directly impacting surface quality, mechanical strength, and the successful release of the finished part. Multiple dips and carefully controlled drying cycles ensure the shell’s stability and durability, while consistent layer thickness prevents issues such as cracking, distortion, or metal penetration in final castings.

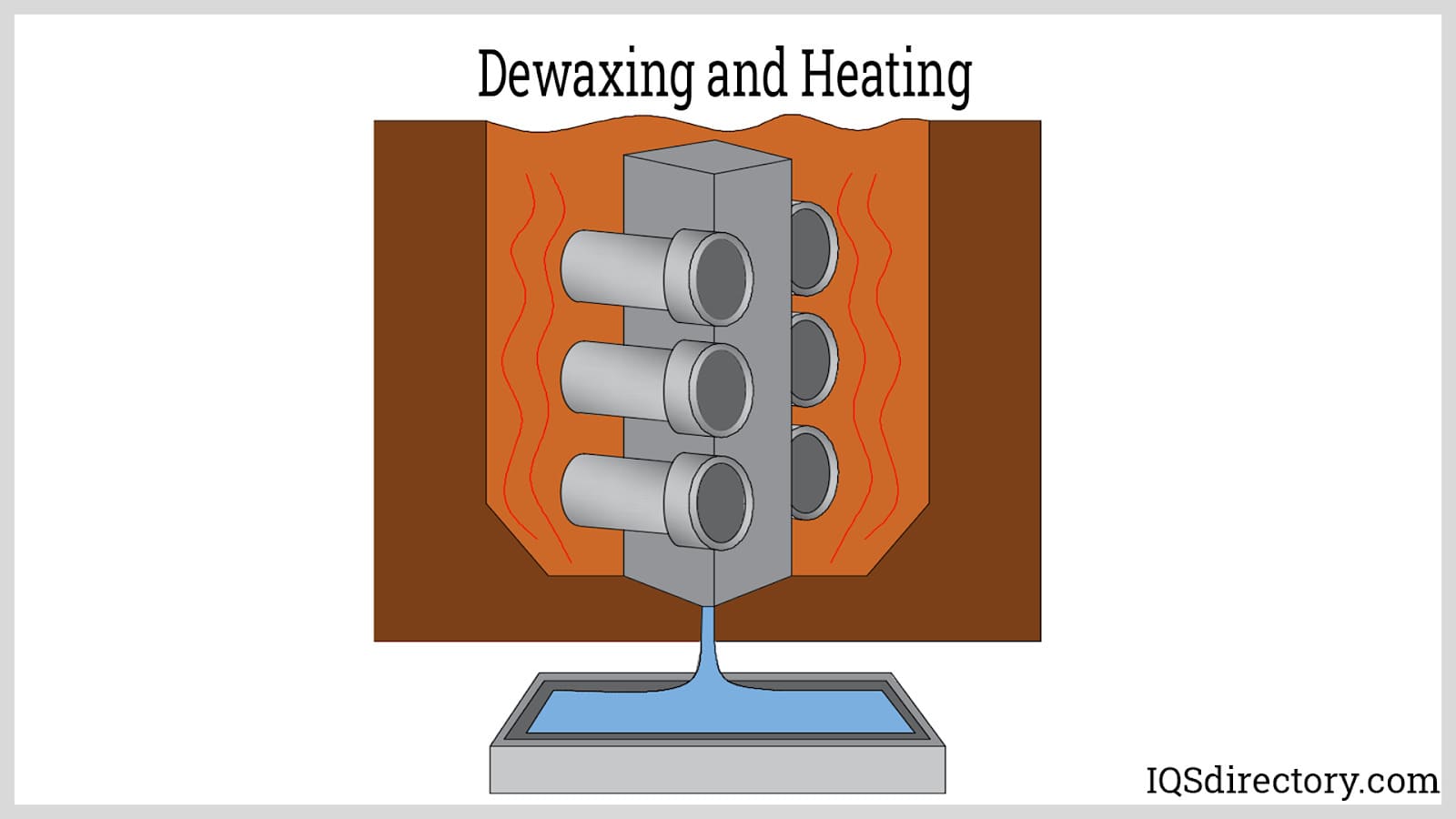

Different heating methods are employed to remove the wax from the hardened ceramic shell, a step known as dewaxing. The most common modern technique uses an industrial autoclave, where steam at carefully regulated temperatures efficiently melts and evacuates the wax, reducing shell cracking and preventing defects. This also removes any potentially volatile materials or residues. For most alloys, investment casting molds are then heated in a furnace to 1800 °F (982 °C) to thoroughly clean and sinter the ceramic shell, improving its strength and permeability, and preparing it for metal pouring under pressure. Strict control of dewaxing and preheat temperatures is vital for process repeatability and defect minimization.

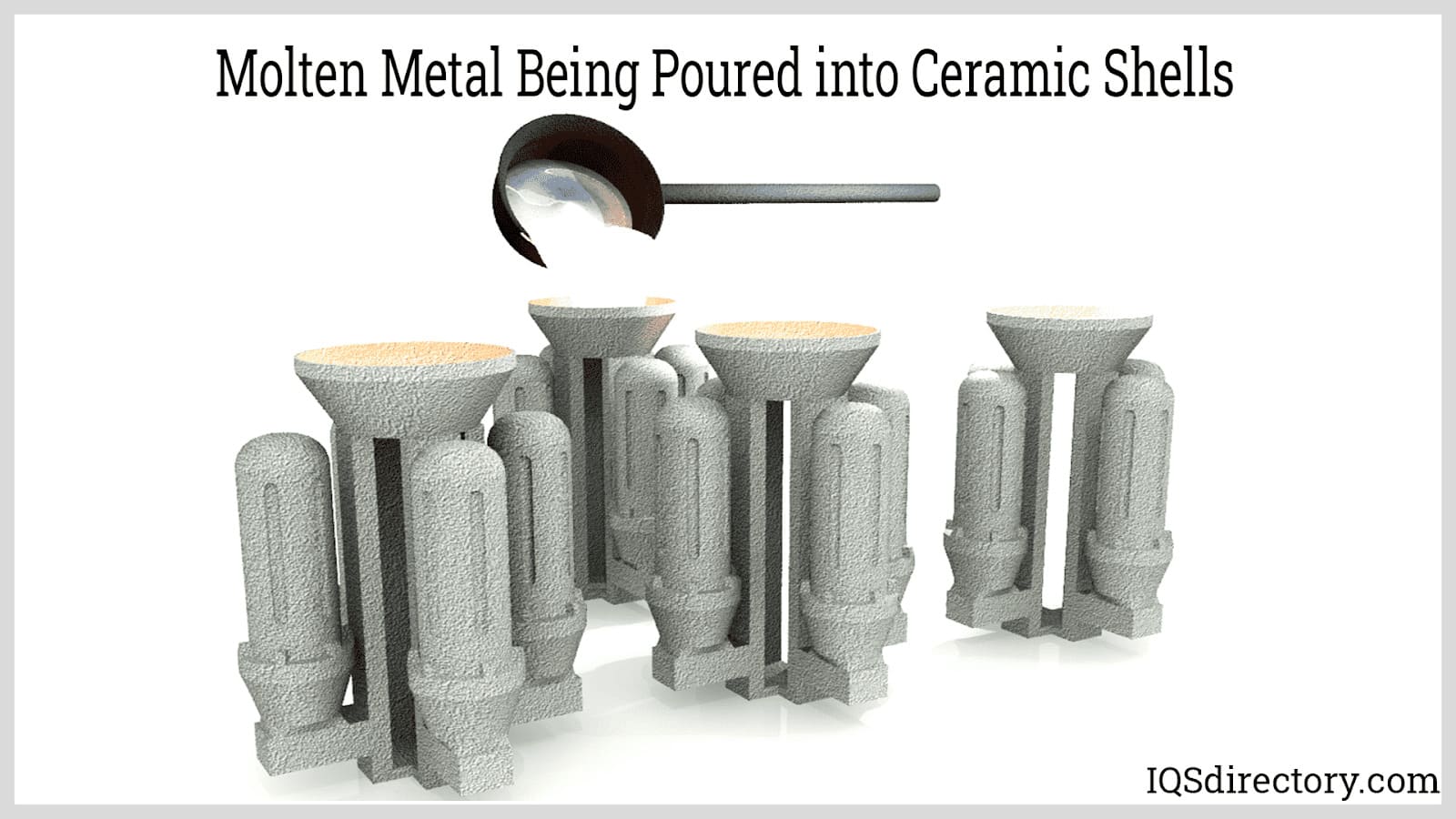

Casting involves pouring, injecting, or gravity-feeding molten metal into the preheated shell cavities. The quality of the casting is highly dependent on both the timing and the precise temperature of this process, as well as melt cleanliness and metal chemistry. After introducing the molten metal—often a steel, aluminum, or superalloy formulation—a vibrating table or shaker may gently agitate the shell assembly for several seconds to ensure even metal distribution and prevent trapped air or cold shuts. The melted metal, sourced from high-purity ingots or scrap, rapidly fills the entire shell cluster and is then allowed to cool and solidify at controlled rates. Properly managed solidification is critical to reducing porosity and producing a dense, high-integrity casting suitable for load-bearing or high-performance applications.

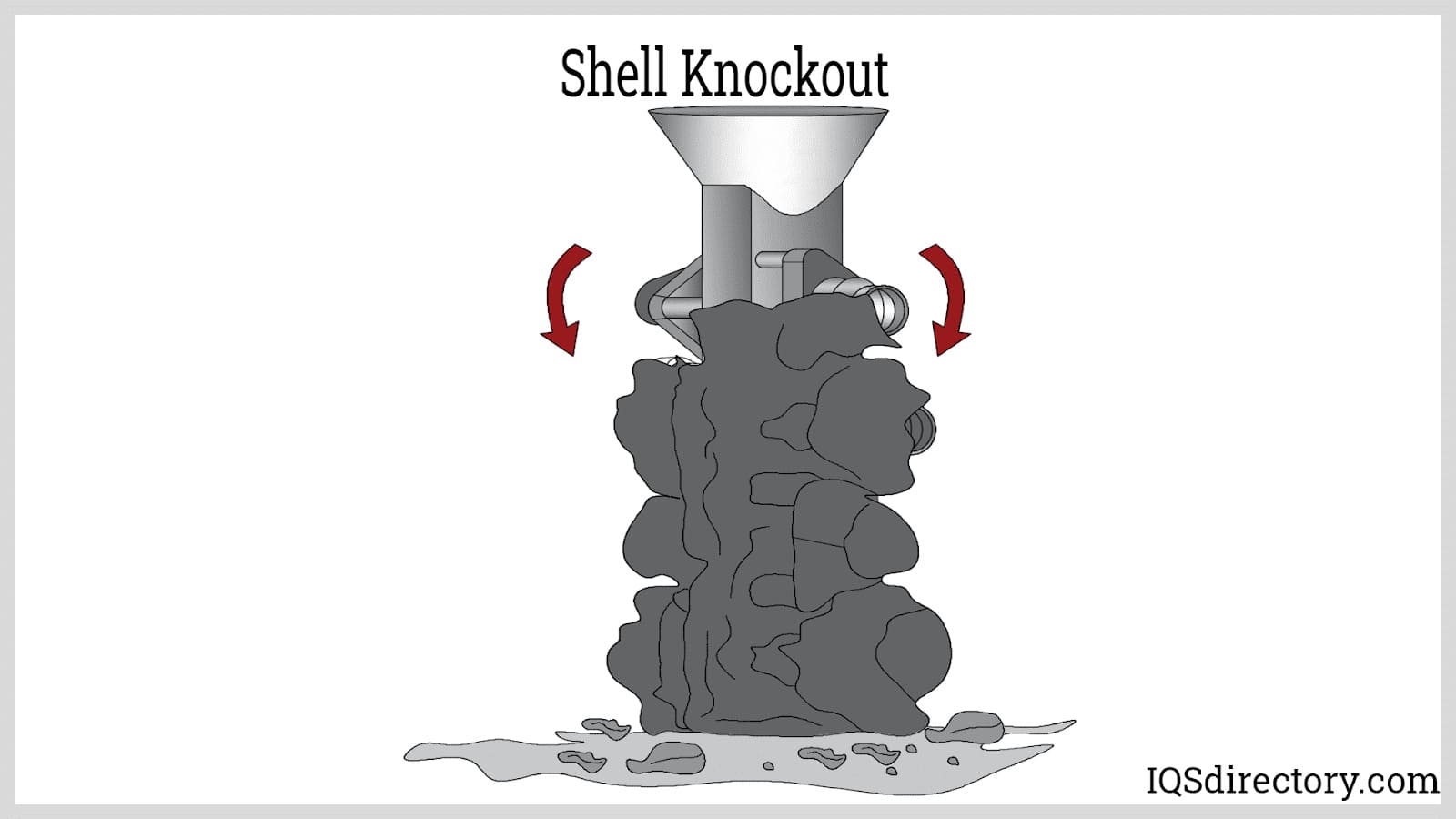

After the shell and its metal contents have cooled, the brittle ceramic shell is removed—a step called shell knockout. Knockout may use mechanical, hydraulic, or pneumatic methods such as hammers, high-pressure water blasting, vibratory tables, or even chemical dissolution for highly intricate designs. Investment cast parts with intricate or delicate cross-sections may require specialized knockout equipment to avoid damaging the newly cast metal. The removal process is precisely controlled to preserve small or fragile features while ensuring the complete elimination of the ceramic shell for subsequent finishing.

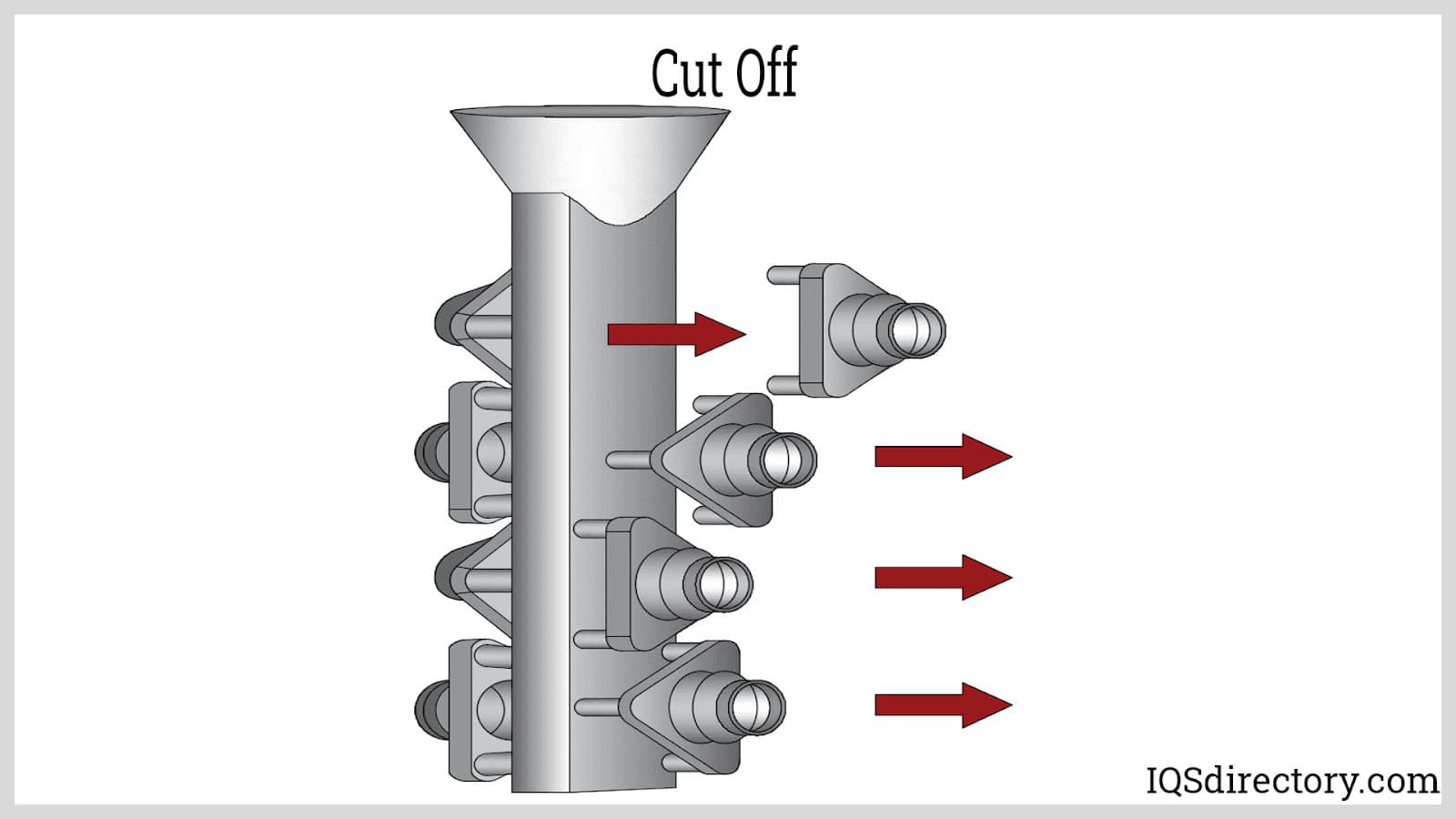

Cutting off involves separating the individual cast parts from the main sprue or runner tree. Once the part is detached, gate stubs and any remaining vestiges are ground away, a process essential for delivering parts that meet the stringent dimensional and surface finish requirements of industries like defense, energy, and transportation. Methods for cut-off include abrasive or diamond saws, oxy-fuel torches, laser cutting, or programmable robotic cutting—especially in high-volume or high-complexity production settings seeking repeatable, high-efficiency workflow.
Finishing processes vary based on the casting’s material, geometry, and application requirements. The goal of finishing is to remove any imperfections, achieve the required tolerances, and deliver the final surface quality demanded by the end user. Common finishing operations include precision grinding, surface polishing, deburring, or dimensional machining. Many cast parts boast excellent surface finish “as-cast,” but certain applications—such as components in medical devices, instrumentation, or visual assemblies—may require multi-stage post-processing for a flawless, mirror-like result.

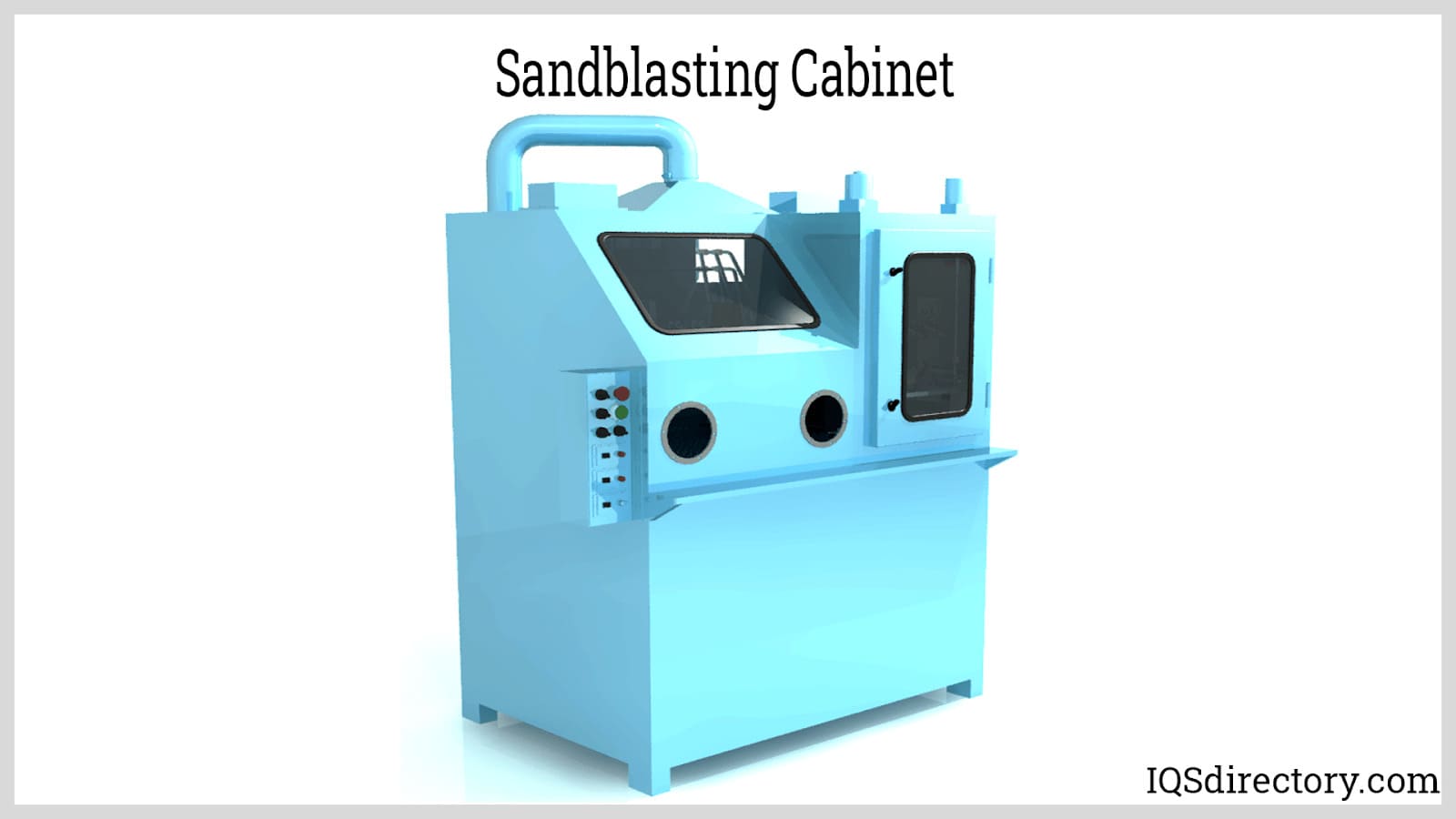

Finishing can be performed via sandblasting (abrasive blasting), shot peening, vibro finishing, barrel tumbling, or advanced machining and EDM (electrical discharge machining). Each technique is selected based on alloy type, desired microfinish, and the needs of downstream assembly.
Heat treatment is crucial for improving the mechanical properties and functional performance of the investment cast part. Although the casting process can introduce internal stresses and sometimes reduce a metal's inherent strength and ductility, heat treatments—customized for the cast alloy type—restore and enhance these characteristics. For investment casting, common post-casting heat treatments include vacuum solution annealing, hardening, tempering, and precipitation (age) hardening. These treatments are essential for producing parts used in mission-critical settings, such as jet engines or medical implants, where reliability and longevity are paramount.
Vacuum solution annealing is a heat treatment aimed at removing precipitates and achieving a single-phase crystalline structure within the workpiece. Following this process, the workpiece becomes soft and ductile, ready for further hardening or machining. The vacuum environment prevents oxidation, ensuring clean, scale-free surfaces and superior corrosion resistance—crucial for stainless steel and high-nickel alloys used in harsh operating environments.
Hardening involves heating the casting to its austenitizing temperature, inducing a phase transformation, followed by rapid cooling (quenching) to trap a hard microstructure. This technique increases the workpiece's tensile strength and resistance to abrasive wear, making it ideal for gear components, pump impellers, and high-load machinery parts.
Tempering reheats the hardened workpiece to a carefully controlled temperature just below the critical phase. By holding and then slowly cooling, the process reduces brittleness and stress concentration while maintaining necessary hardness levels. This step optimizes toughness and resilience for parts subjected to fluctuating or cyclic loading.
Precipitation hardening, or “age hardening,” is performed in a vacuum at temperatures ranging from 900 °F (482 °C) to 1150 °F (621 °C). The multi-step process promotes the formation of fine precipitate particles, which block dislocation motion in the alloy matrix, significantly boosting hardness, strength, and high-temperature performance for steel, aluminum, and superalloy castings.
Surface treatments for investment cast products encompass a variety of finishing and protective processes tailored to the application, base alloy, and requirements for corrosion resistance or visual appeal. The surface finish of an investment cast part can vary greatly depending on the alloy selected, surface roughness requirements, and intended use. Typical post-casting surface treatments include:
Choosing the right surface treatment is integral for optimizing product longevity, functional performance, and customer satisfaction. Leading foundries often offer value-added finishing services in-house or through certified partners, ensuring that your investment cast parts arrive ready for final assembly or immediate installation—saving time, reducing costs, and streamlining your supply chain management.
Although investment casting—often called lost wax casting—has been utilized for thousands of years to manufacture precise metal components, modern advancements have dramatically improved both its efficiency and versatility. These ongoing innovations focus on the development of more accurate pattern-making methods and improved management of wax or other pattern materials. Broadly, investment casting falls under the category of evaporative pattern casting, which refers to any foundry method where the pattern material is removed or evaporated to leave a mold cavity prior to metal pouring.
While several alternative foundry methods use different ways to create temporary mold patterns, they are fundamentally similar to investment casting and can be classified as variations or offshoots of the technique. The most significant distinctions among these methods lie in the materials selected for pattern formation—ranging from wax, foam, or water glass binders—to the detailed techniques employed in producing these patterns. As a result, each investment casting variant offers specific benefits in terms of production complexity, cost-effectiveness, and achievable surface finish.
Lost foam casting has become increasingly recognized in the metal casting industry as a cost-effective alternative to traditional investment casting, especially for mass production and high-volume, automated processes. Initiated by H. F. Shroyer in 1958, this modern method—also called expanded polystyrene casting—employs a polystyrene foam pattern rather than wax to create the mold. Because of its adaptability and reduced tooling requirements, it is well-suited for automotive casting applications, engine blocks, and other complex, near-net-shape metal parts.

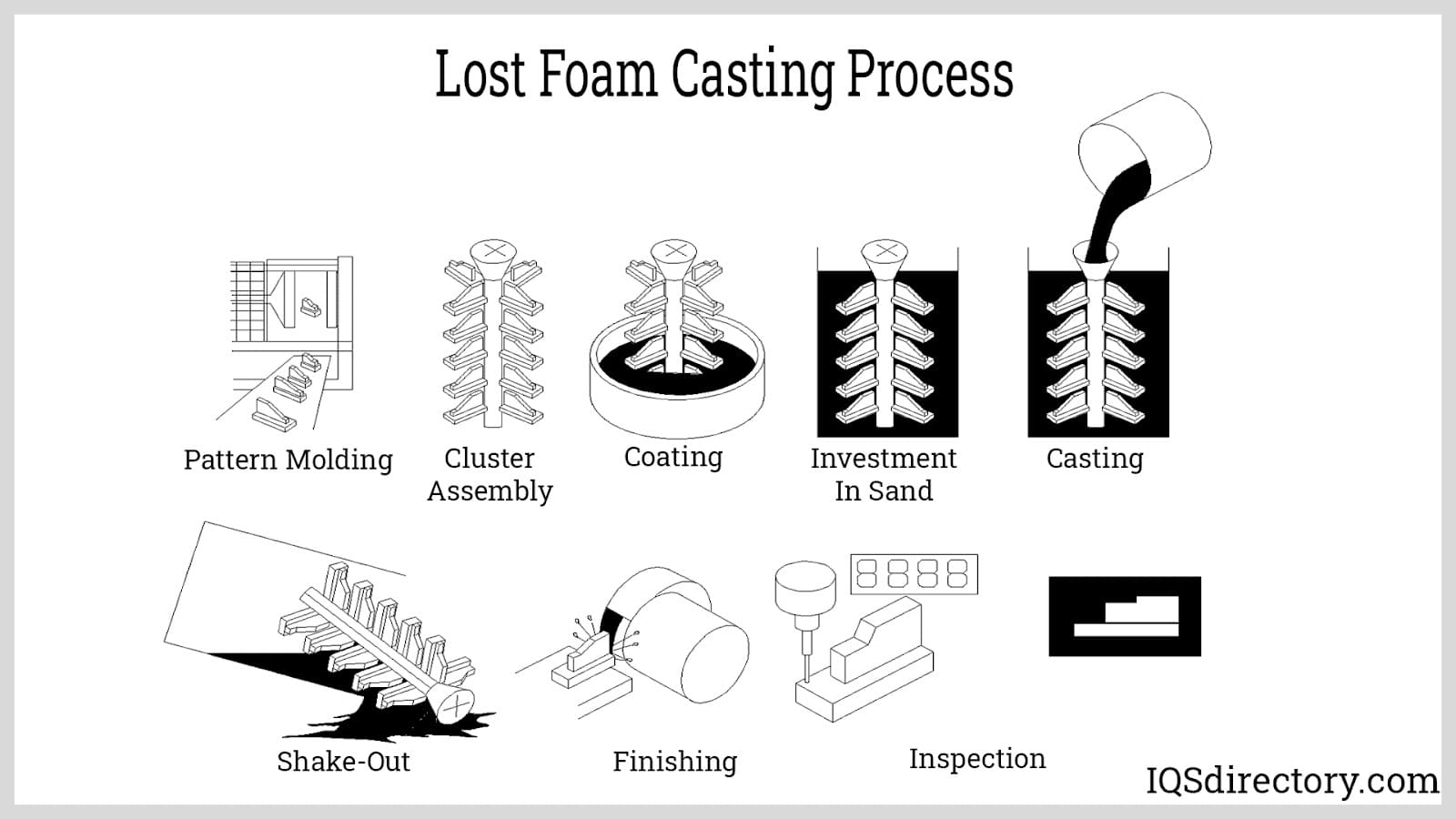

In the lost foam casting process, an aluminum die is typically used to create the pattern. Polystyrene beads are injected into the die and heated with steam, causing the beads to expand and fill the cavity's intricate contours. The foam patterns are then joined to a sprue or runner system, after which a refractory ceramic coating is applied to ensure mold integrity and minimize defects. The coated assembly is placed in a vented flask and stabilized with unbonded casting sand.
Once the mold is prepared, molten metal—such as aluminum, cast iron, or steel—is carefully poured into the sand-filled flask. The foam instantly evaporates upon contact with the high-temperature liquid, seamlessly allowing the metal to take the shape of the original model. This efficient transition produces high-precision, detailed castings with excellent dimensional accuracy. As such, lost foam casting offers key advantages for manufacturing intricate, decorative, or thin-walled geometries that are challenging for other processes.
Patterns for lost foam casting can also be manually carved or machined using CNC equipment for custom or prototype applications. The ease with which polystyrene can be cut, shaped, and bonded enables flexible design changes and rapid iteration, making this method ideal for rapid prototyping and limited production runs alongside large-scale manufacturing.
Because of its ability to deliver superior surface finishes and reduce the need for secondary machining, lost foam casting has become a preferred option among engineers and designers creating complex three-dimensional metal components across industries such as aerospace, automotive, and marine engineering.
Direct investment casting, in contrast to the traditional indirect investment casting process, varies primarily in its approach to pattern creation. In indirect casting, the first step is generating a wax model using a metal die; many wax patterns are assembled around a gating system, coated with layers of refractory ceramic slurry, then dewaxed to create a hollow mold that will ultimately receive the molten metal. This process is ideal for batch production and mass manufacturing of identical components such as impellers, turbine blades, and precision gears.
Direct casting, however, often suits situations demanding rapid prototyping, design validation, or low-volume manufacturing. Here, the pattern may be hand-carved or machined directly from wax or other suitable materials, bypassing the need for dedicated metal dies. This enables quick production of functional parts, short-run investments, or evaluation of new component dimensions without major tooling costs.
One of the most significant advances in direct investment casting is the adoption of computer-aided design (CAD) and 3D printing technology. CAD software allows for precise, digital modeling of complex parts, while additive manufacturing methods—such as stereolithography (STL)—produce tangible, high-fidelity wax or polymer patterns based on these digital designs. In stereolithography, a laser selectively cures layers of a photosensitive resin, gradually building the 3D pattern for the casting process.

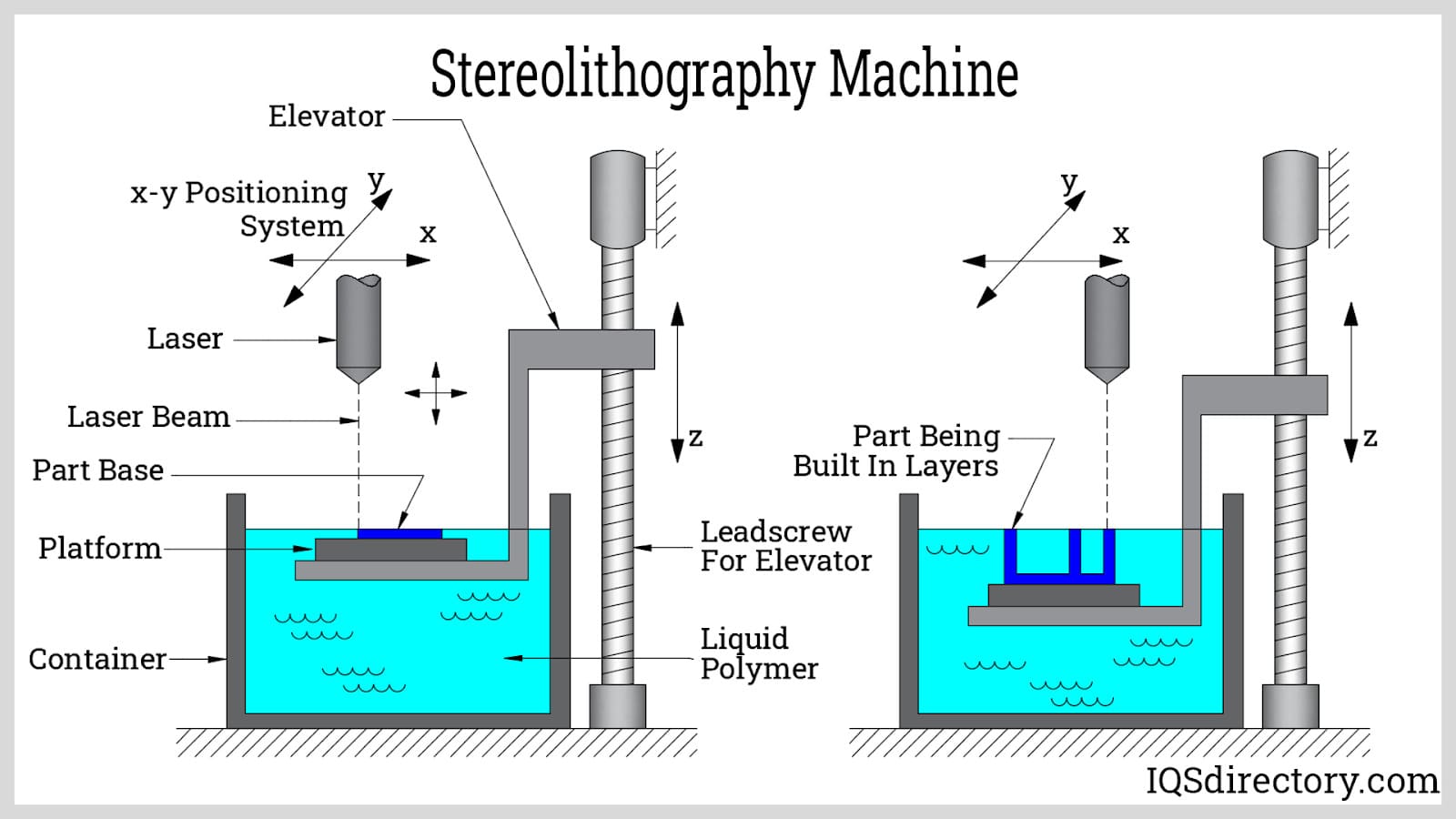

The use of STL-produced patterns in the investment casting industry accelerates the transition from concept to production, enabling manufacturers and design engineers to deliver customized cast components with reduced lead times and remarkable accuracy. This capability is particularly valuable in industries where time-to-market and design flexibility are crucial, such as aerospace, medical device manufacturing, and advanced engineering.
Water glass investment casting, also known as sodium silicate investment casting, is a widely used technique in China and other global foundry markets. This process utilizes sodium silicate (commonly called water glass) as the main binder in the shell, replacing more expensive ethyl silicate binders. Developed in Russia during the 1950s, water glass casting is valued for its lower material costs, faster shell building cycles, and suitability for producing medium to large-sized steel and iron castings.
While water glass investment casting typically results in a slightly lower surface finish quality compared to the highest-grade silica sol methods, it still produces components with minimal defects, excellent dimensional tolerance, and reduced labor intensity. Its streamlined process flow and straightforward operation enable reliable quality—even with operators who lack advanced training. This makes the method especially favored for the efficient production of agricultural machinery parts, pump and valve bodies, mining equipment components, and a variety of industrial hardware.
Water glass investment casting is often selected where cost savings and production volume are key priorities, and surface finish or intricate detail is less critical than in high-performance aerospace or medical castings. Foundries utilizing this method can provide rapid turnaround, lower production costs, and robust cast components, making water glass casting an optimal solution for heavy industry, construction, and general engineering applications. Manufacturers seeking dependable, scalable, and economical metal casting solutions often turn to water glass investment casting for its proven reliability and operational advantages.
Investment casting is a highly versatile metalworking process used to shape a variety of components, including pipe fittings, automotive parts, marine hardware, and food machinery. It accommodates a broad range of metals, each offering distinct properties that enhance their suitability for different applications.

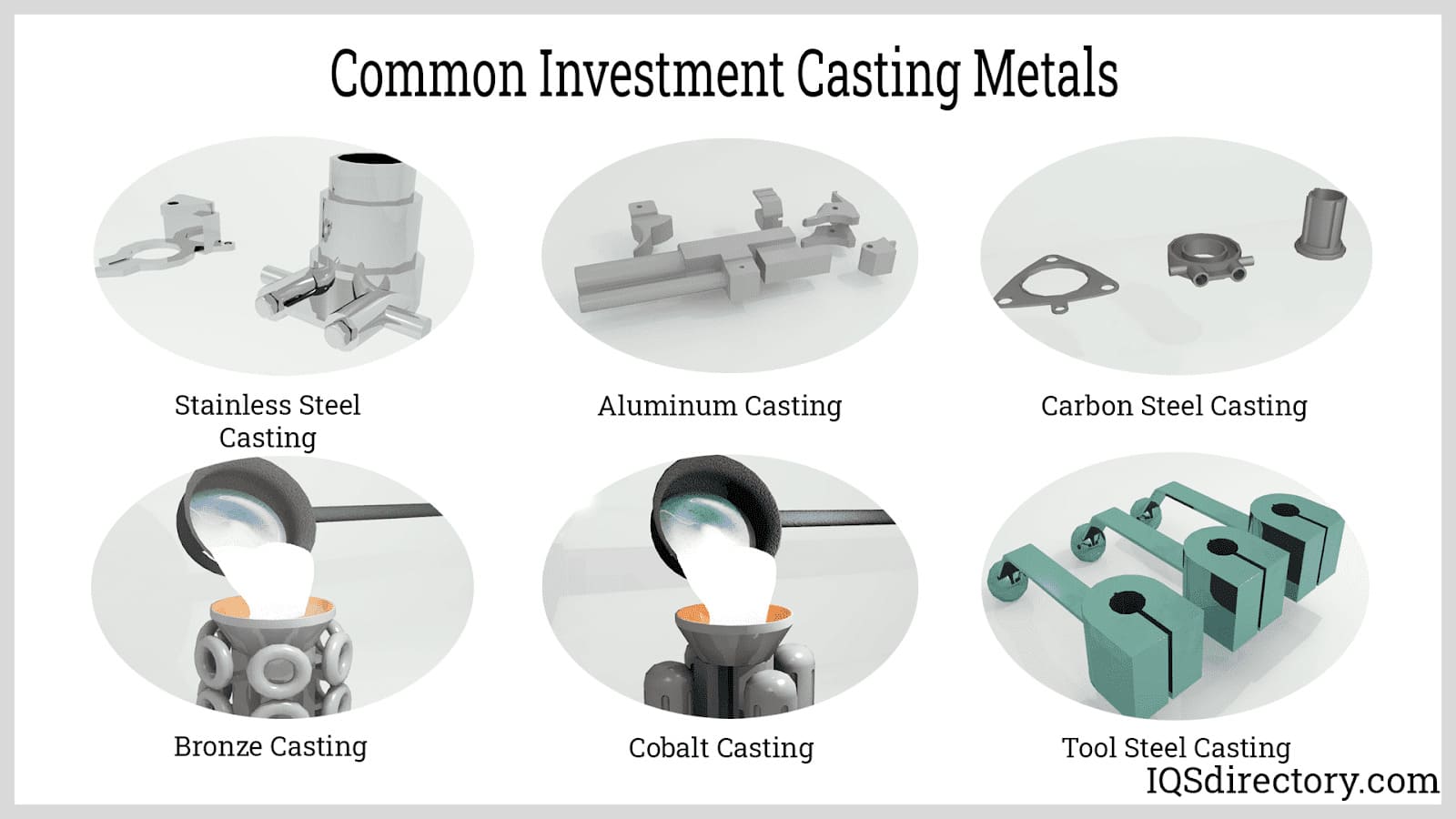

Investment casting can shape both ferrous and non-ferrous metals. Among ferrous metals, ductile iron, carbon and alloy steels, and certain grades of stainless steel are commonly used. For non-ferrous metals, copper alloys, magnesium, and aluminum are suitable, with aluminum being the most popular choice.

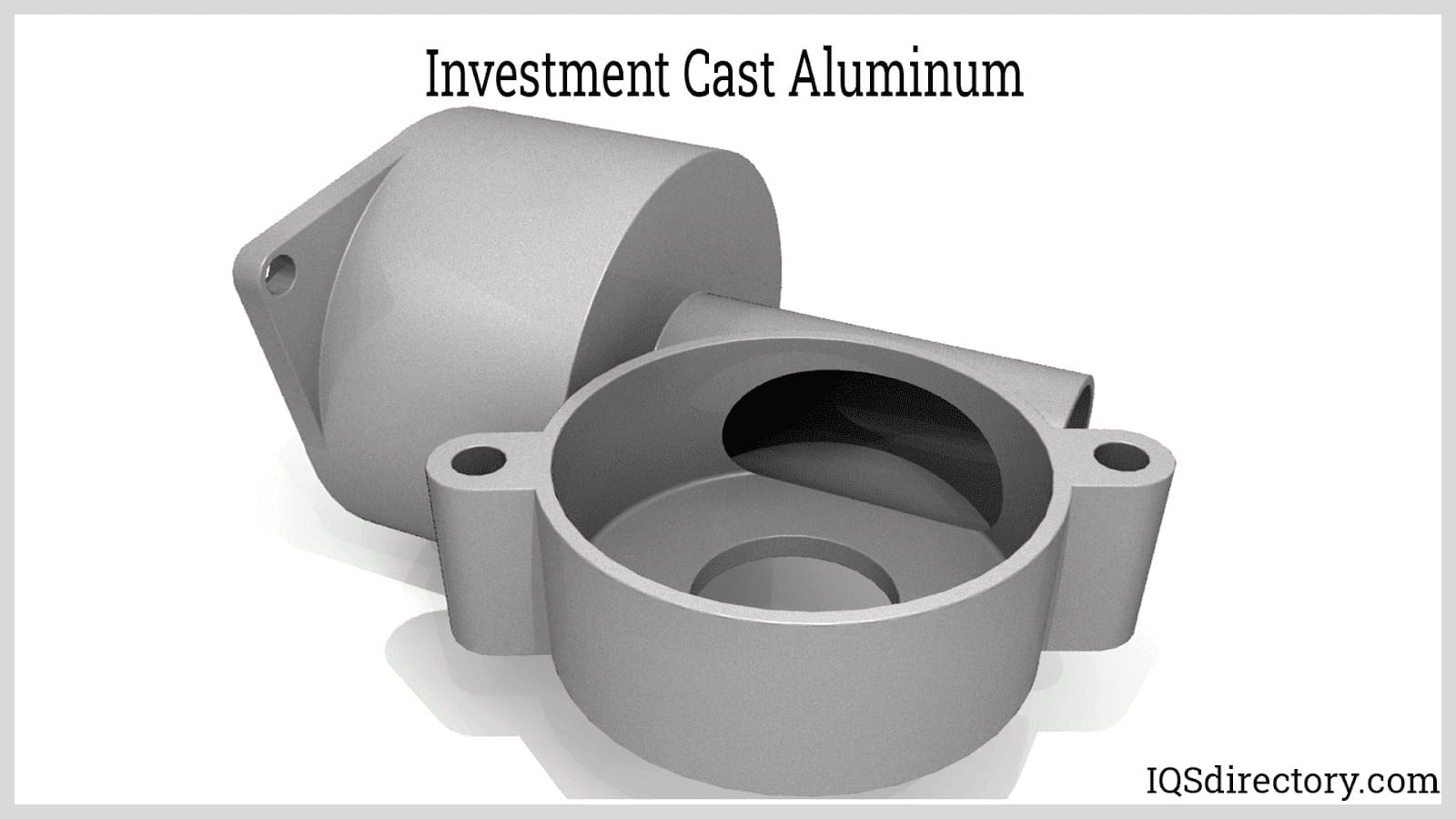

Aluminum alloys used in investment casting typically have a density of around 2.7 g/cm³ or slightly higher. These alloys are commonly used to produce parts for aircraft and engines. The most frequently used aluminum alloys in investment casting include A-356, A-357, C-355, and F-357, which contain elements such as silicon, magnesium, iron, and zinc. Components made from these alloys benefit from corrosion resistance, weldability, and, in some cases, exceptional strength.
Stainless steel is a ferrous metal alloyed with chromium to enhance its resistance to stains and corrosion. Various grades of stainless steel offer different beneficial properties, depending on their chemical composition. Due to its durability and resistance to high temperatures and corrosive environments, stainless steel is an ideal choice for components exposed to such conditions.
The primary grades of stainless steel used in investment casting are the 300 and 400 series. The austenitic 300 series stainless steel offers excellent corrosion resistance but does not achieve increased strength through heat treatment. In contrast, the martensitic 400 series stainless steel provides exceptional strength and machinability. It can be hardened through quenching and tempering, which enhances its strength further.
Carbon steel is a preferred choice for investment casting due to its ability to perform well under high-pressure conditions, as well as its wear resistance, exceptional strength, toughness, and hardenability. The properties of carbon steel are influenced by its carbon content, which enhances its hardness and strength during heat treatment.
Mid and low-carbon steels are commonly used in investment casting. Mid-carbon steel offers a balance of ductility, strength, and wear resistance and can be hardened and tempered through heat treatment. Low-carbon steel, while easily shapeable, does not gain strength from heat treatment but is valued for its ease of forming.
Nickel alloys are known for their high strength and resistance to heat, corrosion, and wear. They are weldable and fabricable and exhibit resistance to cracking and stress corrosion. Nickel alloy investment castings are primarily used in environments that involve high temperatures and corrosive elements.

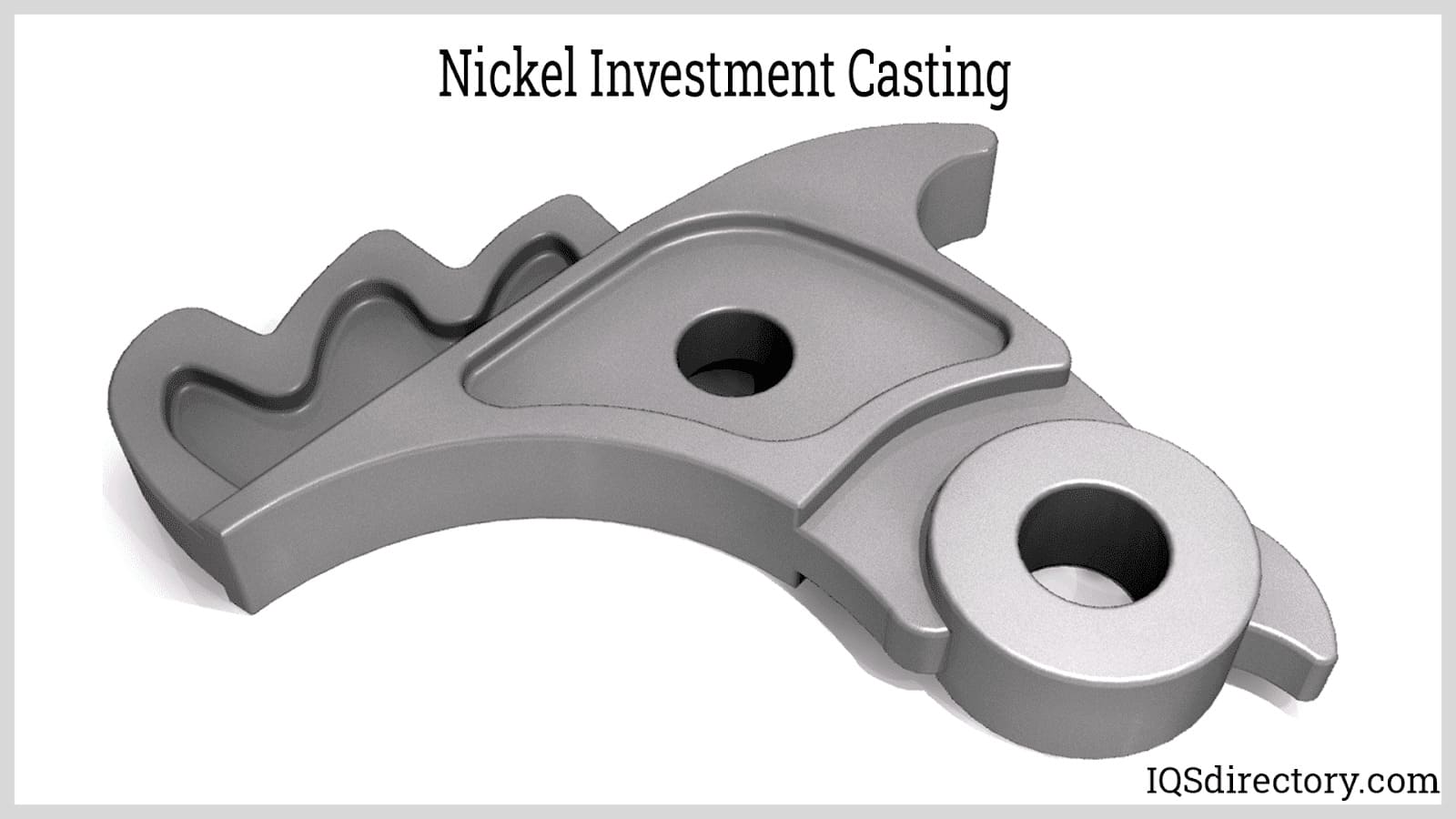

Nickel alloy investment castings are favored for their tight tolerances and exceptionally smooth finishes, as well as their capability to be molded into complex and intricate shapes. Among the various metals used in investment casting, nickel alloys offer a cost-effective solution while maintaining high-quality performance.
Copper alloys are valued in investment casting for their corrosion resistance, thermal conductivity, and toughness. They are easy to cast and possess excellent machinability. Additionally, copper alloys offer impressive mechanical properties, along with strong resistance to friction and wear.
The copper alloys used in investment casting include series C-84500, C-85800, C-86000, C-87000, C-90000, and C-95000. This diverse range of alloys offers a broad selection to ensure the appropriate choice for various applications.
Cobalt alloys are known for their high strength, exceptional resistance to heat and wear, and natural resistance to oxidation. Their very high melting point makes them ideal for use in corrosive and chemically aggressive environments. Additionally, cobalt alloys exhibit creep resistance and resistance to thermal fatigue, making them suitable for high-temperature applications.
Cobalt alloys are composed of varying combinations of chromium, nickel, tungsten, and molybdenum, which affect their properties and types of resistance. For investment casting, commonly used cobalt alloys include grades 6, 21, 25, 31, and 93.

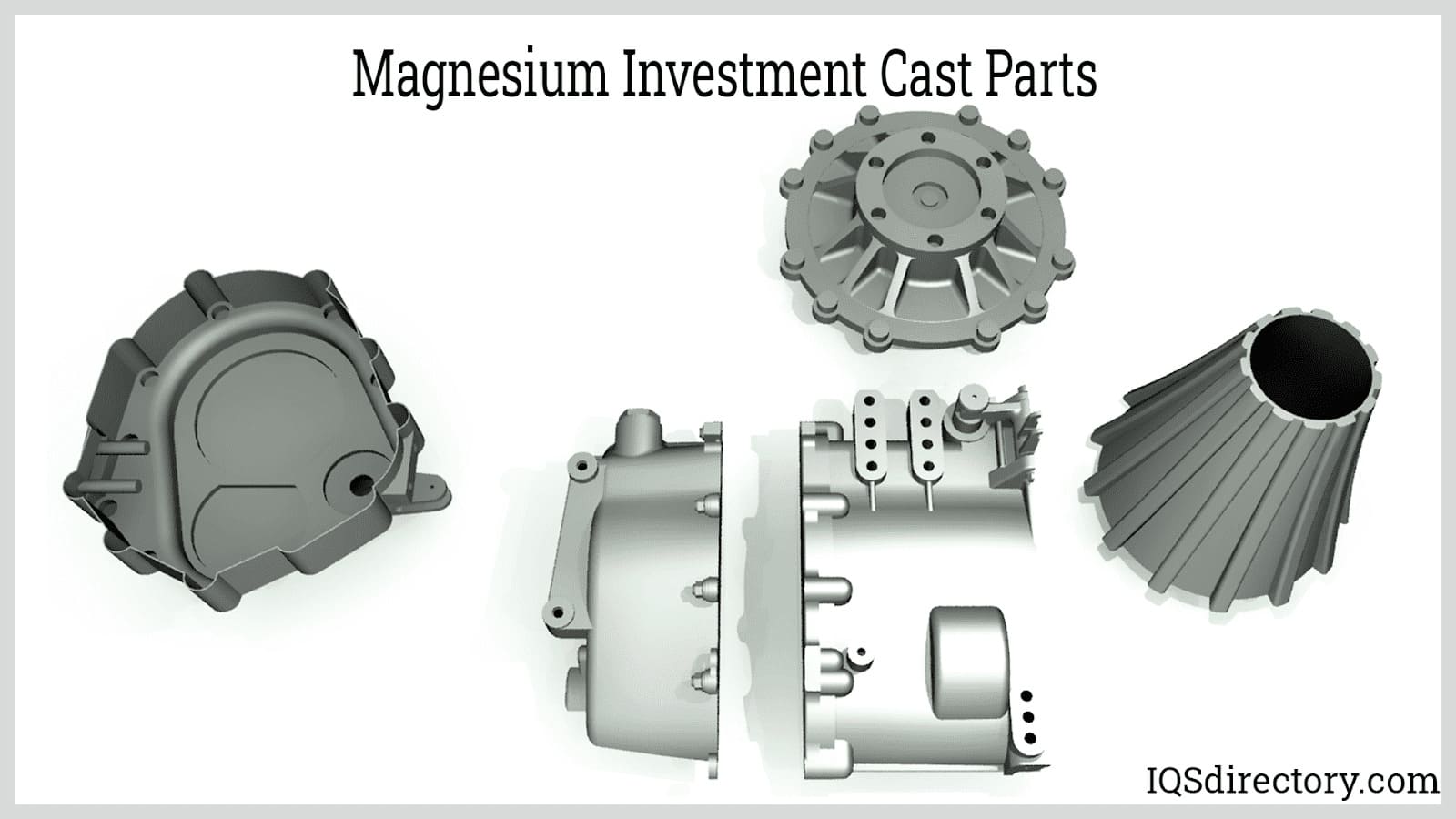

For many years, casting magnesium using investment casting was challenging due to the reaction between molten magnesium and the silica mold shell. Recently, the introduction of an inhibitor has addressed this issue, enabling the successful use of magnesium in investment casting.
Magnesium is prized for its lightweight nature and excellent strength-to-weight ratio. It is available in various alloys, such as AZ91D and AM60B, and other alloys like AZ81, AM50A, AM20, AE42, and AS41B are specifically chosen for their creep resistance and suitability for high-temperature applications.
Investment casting and centrifugal casting both produce exceptionally high-quality parts but differ in their processes and dies. Investment casting utilizes ceramic molds that are destroyed after the casting, while centrifugal casting employs permanent, reusable dies.
In addition to the differences in dies, there is a significant variation in the processes used to achieve well-formed, high-quality parts. Investment casting is a traditional method where molten metal is poured into a ceramic mold designed for single-use production.
In contrast, centrifugal casting involves a more dynamic approach where the mold is rapidly rotated as the molten metal is poured. The centrifugal force generated by the spinning mold ensures that the molten metal is evenly distributed against the interior surfaces of the mold or die.
Unlike investment casting, centrifugal casting is suited primarily for producing simple geometries with exceptional accuracy and high tolerances. Horizontal centrifugal casting is ideal for creating long parts like pipes, while vertical centrifugal casting is used for producing cylindrical shapes.
Centrifugal casting starts by pouring molten metal into a preheated spinning die, which can be oriented horizontally or vertically depending on the part configuration. The spinning die generates centrifugal force, which exerts pressure up to 100 times the force of gravity, ensuring the molten metal is evenly distributed over the interior surface of the die.
As the die spins, the denser portions of the molten metal are pushed against the walls of the die or its outer diameter (OD), while the less dense material and impurities accumulate towards the interior diameter (ID). This separation allows for the removal of impurities during the finishing process through machining.
An essential aspect of the centrifugal casting process is the equipment used, which must endure extreme heat and constant operation. Despite variations in equipment, all centrifugal casting systems share fundamental components, including a ladle, pouring basin, core, rollers, motor, and mold.
There are three main types of centrifugal casting: horizontal, vertical, and vacuum, each selected based on the part's requirements. In vertical centrifugal casting, the die rotates around a vertical axis. In horizontal centrifugal casting, the die rotates around a horizontal axis. Vacuum centrifugal casting involves pulling molten metal into the die under vacuum to minimize oxidation effects.

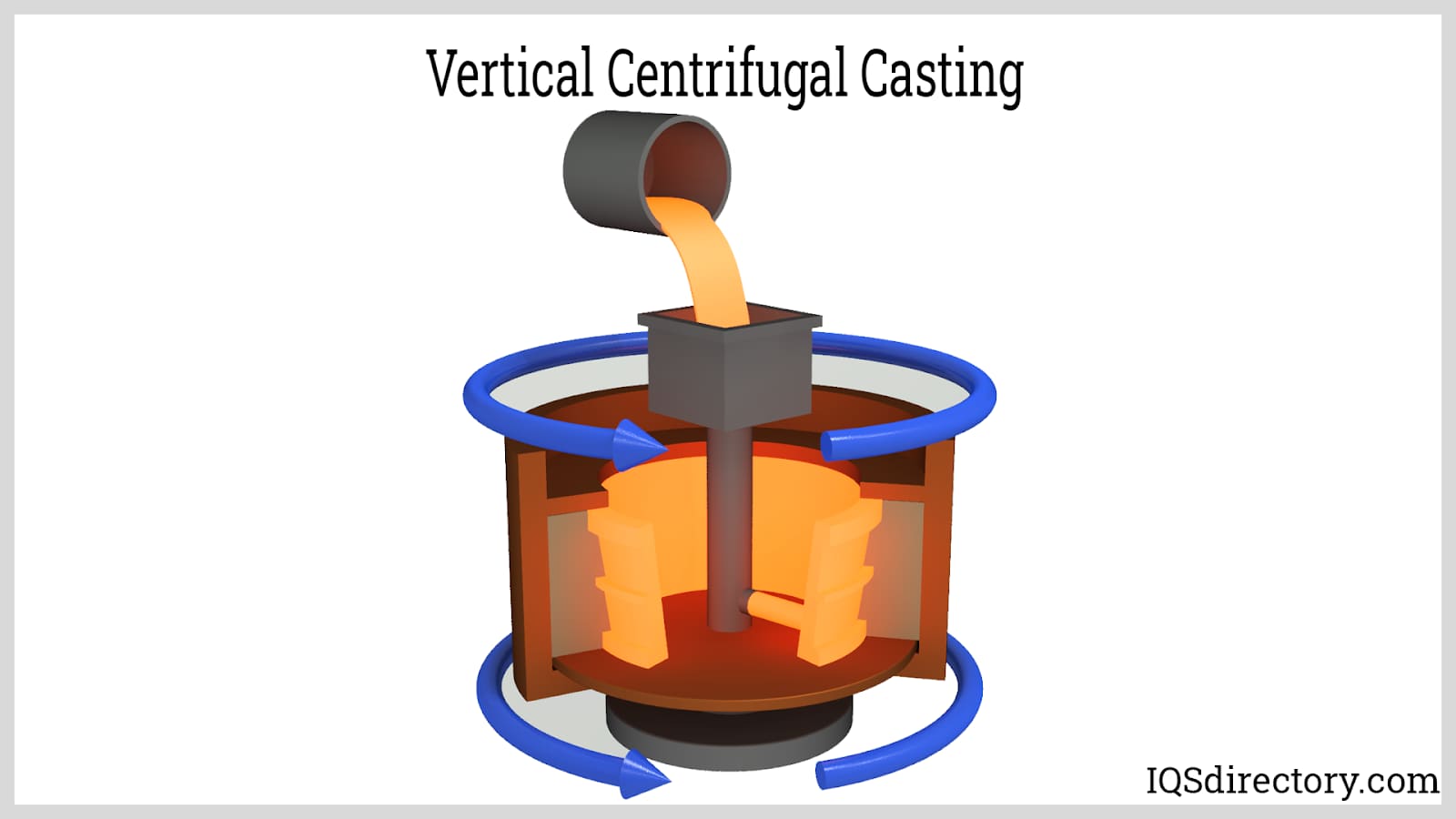

In vertical centrifugal casting, the equipment is oriented vertically, with the die spinning around its vertical axis. Molten metal is poured into the pouring basin located at the top of the apparatus. This method is ideal for producing cylinders where the diameter is greater than the height of the cast. It is commonly used for manufacturing components in the military, aerospace, and petrochemical industries.

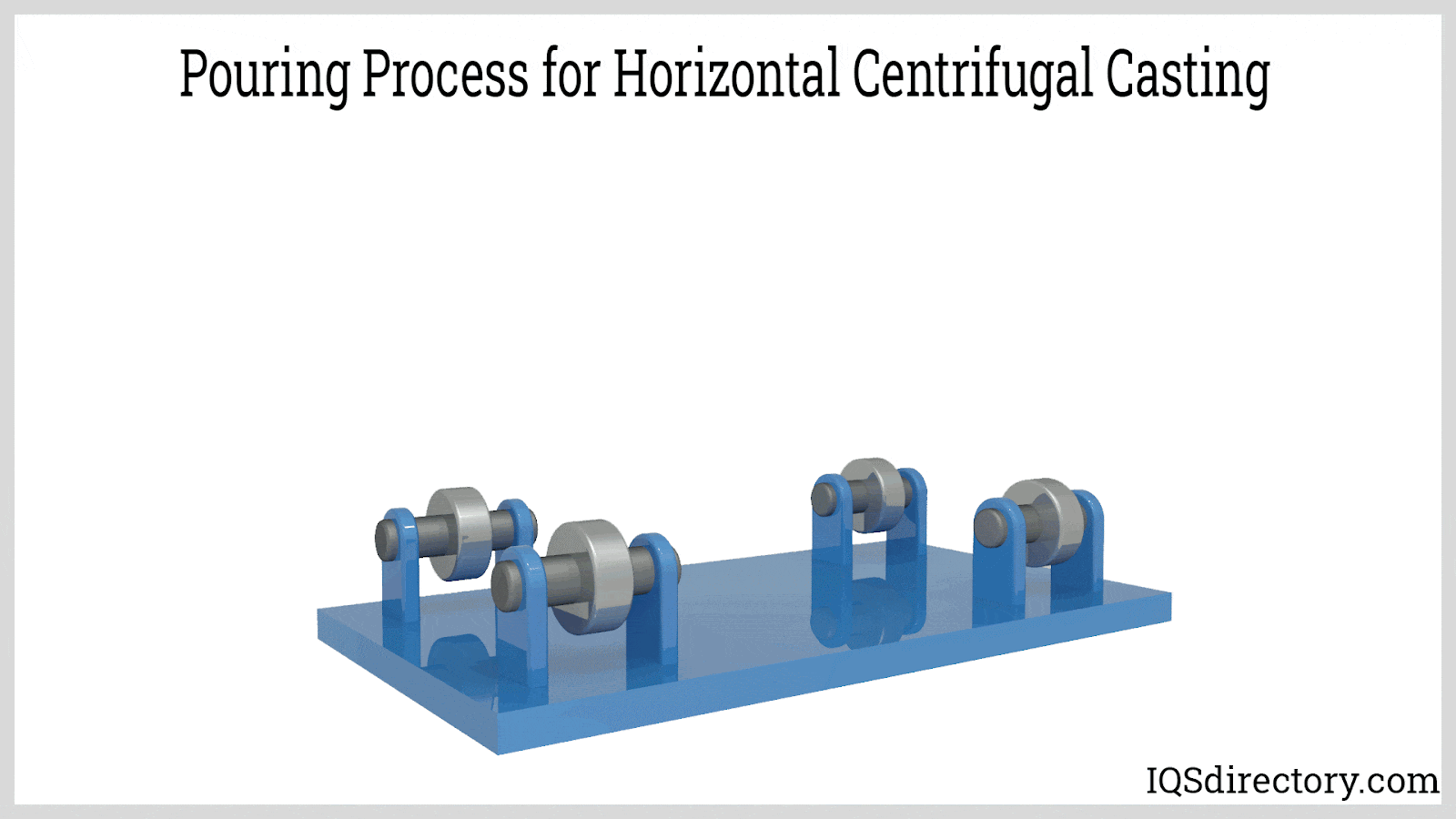

In horizontal centrifugal casting, the die rotates around a horizontal axis. This method is well-suited for casting long tubular parts where the length exceeds the diameter. To counteract the effects of gravity on the molten metal, horizontal centrifugal casting requires exceptionally high rotational speeds. The mold features a closed and sealed cover at one end, with a pouring basin located at the opposite end.
Vacuum centrifugal casting was developed to address the challenges of casting metals that react with oxygen. In this process, a high-pressure vacuum pump is used to melt the metal, and a vacuum is employed to draw the molten metal into the centrifugal machine. Combining vacuum casting with centrifugal casting yields parts with directional solidification, eliminating porosity and reducing the need for finishing.
The vacuum centrifugal casting process minimizes oxidation, enabling better flow rates and precise temperature control. This results in parts that are uniform and possess tight tolerances.
A key benefit of centrifugal casting is its ability to produce components free of voids and shrinkage. During solidification, which occurs from the exterior shape of the mold inward, the process utilizes exothermic materials added to the interior diameter (ID) and a heat sink on the outer diameter (OD). This creates a temperature gradient that ensures directional solidification from the OD to the ID, enhancing the quality of the final component.
In centrifugal casting, the liquid metal from the interior diameter (ID) fills the casting, eliminating voids and defects. Despite the casting being solid, it still requires machining to address surface roughness and ensure concentricity.
The primary benefit of centrifugal casting is its increased yield, as the process eliminates the need for gates or risers, thereby reducing finishing time. The control over directional solidification ensures the production of uniform parts and components.
Centrifugal casting may be the ideal choice for the following reasons:

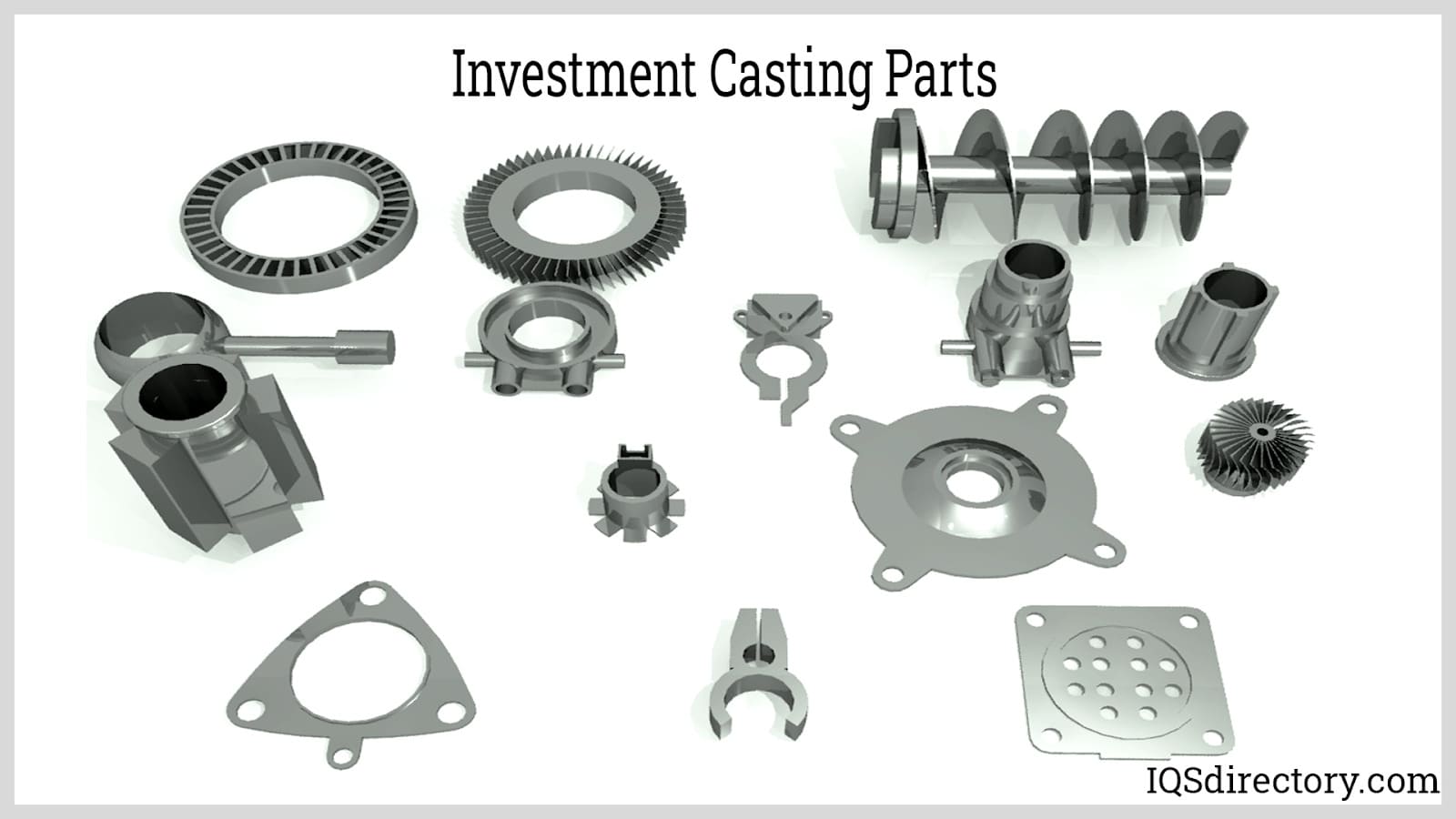

Investment casting is a widely favored method for producing a diverse range of parts and components. This process enables the creation of intricate and complex shapes from a broad selection of metals and alloys.
The simplicity of investment casting makes it ideal for high-production runs with exceptional dimensional accuracy. Originally adopted in the 20th century for the production of jet engine components in the 1940s where any inconsistencies or imperfections could not be tolerated investment casting has become a crucial method in modern manufacturing due to its ability to meet stringent quality standards.
The aerospace industry was the first to adopt investment casting for producing parts with exceptional tolerances and finishes. This method supports a wide range of metals suitable for flight components, ensuring precision and quality. Investment casting not only allows for the use of various metals but also produces high-precision parts with minimal material waste and limited energy consumption.
Aerospace components must endure extreme weather conditions, fluctuating pressures, and various forms of operational wear, demanding exceptional durability. Investment cast products provide the required consistency, precision, and tensile strength to meet and surpass these demands. Their primary advantage in aerospace applications is their precision, which ensures that interlinked parts align perfectly and integrate seamlessly.
Firearm manufacturers depend on investment casting for its ability to accommodate unique and intricate designs. Given the demands for precision and accuracy in firearm production, investment casting provides the necessary net shapes and can be executed with a range of alloys to meet specific requirements.
Investment casting reduces the amount of metal that needs to be removed during the finishing process. By utilizing CNC machining, manufacturers can produce uniform parts with minimal variation and at a lower cost.
The medical and dental fields require instruments and components with exceptional precision to meet stringent tolerances and dimensional standards. Investment casting is utilized to produce a variety of items, including surgical tools, implants, machines, stretchers, and wheelchairs.
The lifesaving potential of investment cast parts underscores the critical importance of their proper production. Each piece of equipment must be manufactured to the highest quality standards.
The primary requirement for locks is durability and resilience. Investment casting facilitates the production of both specialized and standard locks for various applications. The need for precise fitting means that casting must be accurate to the finest detail.

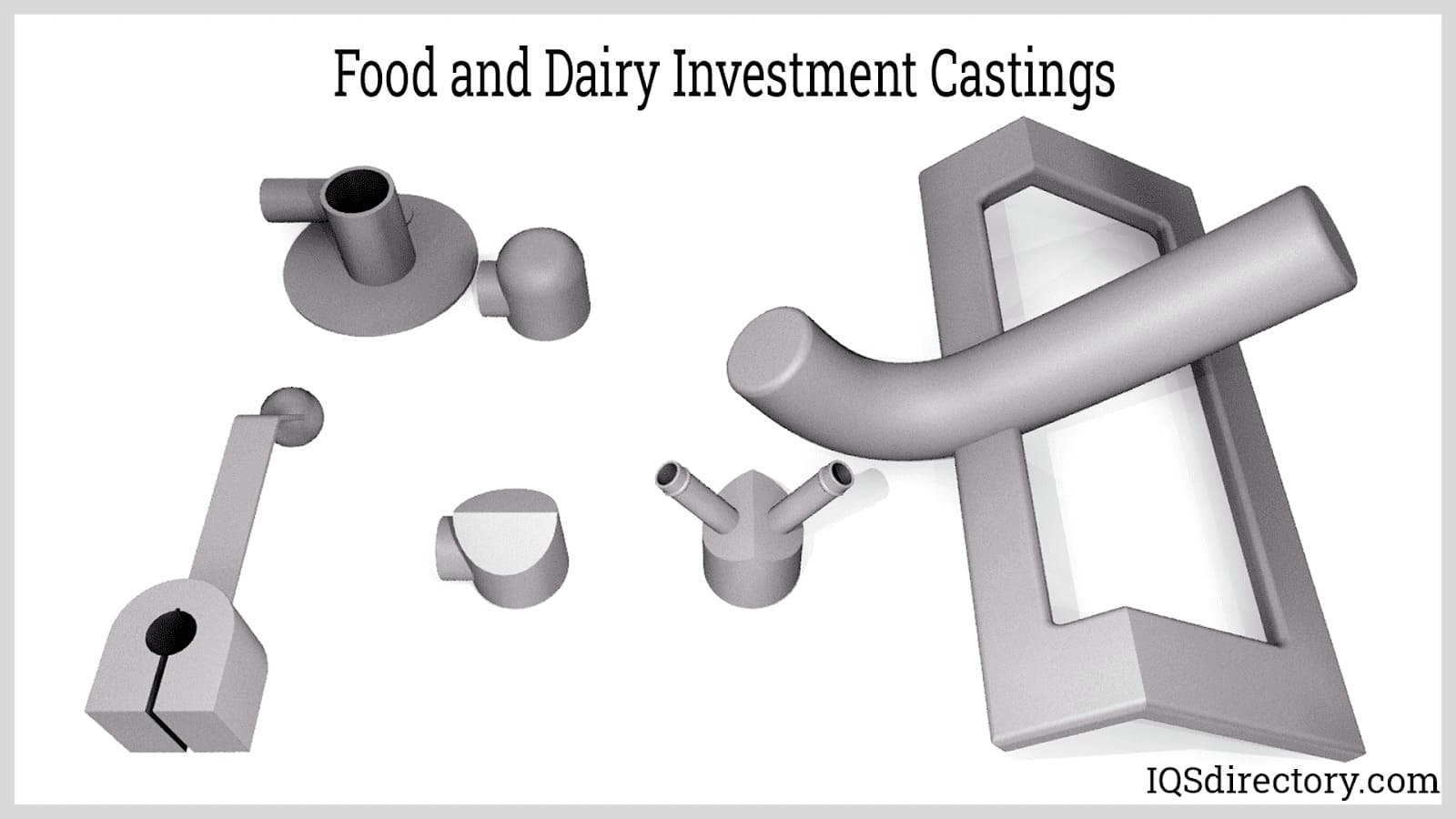

A diverse range of equipment is employed in food production, with many of its components relying on investment casting for manufacturing. Parts for the food industry are typically made from stainless steel or specialty alloys to ensure precision and durability. Investment casting is used to produce components for meat slicers, poultry processing equipment, ice machines, grills, and warming machines, among other food-related machinery.
Hydraulic and pneumatic equipment utilizes fluid power to transmit energy through gases or fluids. This sector requires various components, including ball valves, steam traps, impellers, needle valves, compressors, and pumps. Similar to the food and dairy industry, the hydraulics industry often employs stainless steel, aluminum, and specialty metals for these components to ensure durability and performance.
There are numerous methods available for producing metal parts, each offering distinct advantages in terms of production efficiency, quality, and precision. Among these methods, investment casting stands out due to its ability to produce precision parts with exceptional surface finishes. Its cost-effectiveness, design flexibility, and capacity for high-volume production make investment casting a preferred choice for modern manufacturing needs.
The numerous advantages of investment casting have established it as the premier metal fabricating process for both industrial and commercial products. Its precision, versatility, and efficiency make it the top choice for producing high-quality, complex parts across various applications.
Design freedom is crucial for creating complex and intricate parts with various internal and external shapes. Investment casting excels in this area, offering unparalleled flexibility as it is not constrained by size, thickness, or configuration limitations. This adaptability allows it to meet a wide range of manufacturing challenges, making it ideal for producing highly detailed and customized components.
Among the numerous advantages of investment casting, tighter tolerances are perhaps the most crucial. For parts that need to integrate seamlessly with other components, exact adherence to design specifications is essential. Investment casting achieves this by offering varying tolerances based on the part design. Symmetrical shapes with uniform walls can be produced with tighter tolerances compared to non-uniform or asymmetrical shapes, ensuring high precision and consistency in the final product.
Investment casting is renowned for producing superior surface finishes that require minimal post-production work. The process is distinguished by its ability to achieve a level of finish that surpasses other casting methods. This high-quality surface finish, coupled with the tight tolerances that investment casting can achieve, sets it apart from other manufacturing techniques. No other production method offers the same combination of precision and exceptional finishing quality, making investment casting the preferred choice for parts requiring both accuracy and a refined surface.
Production managers often highlight that defects are a major source of delays and increased labor costs. Defects in the manufacturing process lead to waste, additional machining, and slower production runs. Investment casting is highly valued for its ability to minimize defects, resulting in fewer adjustments and modifications. This low defect rate contributes to smoother production processes and reduced overall costs, making investment casting an attractive option for high-quality, efficient manufacturing.
Another significant cost in manufacturing is waste the material leftover after production. Investment casting excels in this area by requiring minimal post-production finishing, which greatly reduces the amount of waste generated. This reduction in waste offers several benefits, including lower production costs, reduced labor expenses, and quicker turnaround times. By optimizing material use and minimizing waste, investment casting contributes to both cost efficiency and environmental sustainability.
The reduction in waste also means there's no need for specialized equipment like deburring machines, heavy-duty grinders, or various cutting tools, which can be costly. This contributes to lower energy costs and increased efficiency, enhancing overall company performance. The streamlined process of investment casting ensures that resources are utilized effectively, further promoting economical and sustainable manufacturing practices.
Investment casting offers unmatched flexibility in production scale, capable of handling both small and large runs with precision. Whether the requirement is for a few parts or thousands, investment casting can efficiently produce components ranging from very small to those weighing hundreds of pounds. This adaptability ensures that investment casting remains a viable and effective solution for a wide variety of manufacturing needs, accommodating diverse production volumes and part sizes.
Investment casting's versatility extends to its ability to work with a vast array of metals and alloys, which is a significant advantage over other casting methods. Whether dealing with ferrous, non-ferrous, or specialty alloys, investment casting can accommodate nearly any type of molten metal, ensuring the production of reliable and high-quality parts. This broad material compatibility makes investment casting an ideal choice for manufacturing components across various industries, meeting diverse and demanding requirements.
Sustainability is a crucial factor in modern business practices, and investment casting aligns well with this principle. The process allows for the reuse of patterns, wax, and metal from runners, significantly reducing waste and lowering costs. By recycling these materials, investment casting not only contributes to environmental conservation but also enhances cost-efficiency, making it a popular choice for companies focused on sustainable production practices.
Investment casting's ability to produce components with minute, intricate details is unmatched by many other casting processes. This precision is why it was selected to support the aerospace industry and the development of the first jet-powered aircraft. As technological advancements continue to evolve, the demand for flawless parts and accurate dimensional tolerances will only grow, reinforcing investment casting's role in producing high-quality, detail-oriented components.
From the initial pattern creation to the formation of the ceramic shell and the final cut-off of parts, every step in the investment casting process is meticulously designed to ensure the production of intricate and precise details with exceptional accuracy.
Several factors influence the quality and accuracy of investment cast parts. Key considerations include the structure of the part, the casting material, the molding process, shell making, and the injection of molten metal. Any errors in these stages can affect the shrinkage rate, leading to deviations in the final dimensions and impacting the overall quality of the cast parts.
The first crucial step in the investment casting process is the creation of the wax pattern. This pattern must be produced with a high degree of precision and accuracy, as any imperfections or deviations at this stage can be transferred to the final cast part. The quality of the wax pattern directly impacts the overall success of the casting, influencing the final dimensions, surface finish, and functionality of the component.
The casting structure is significantly influenced by the thickness of the part's walls. If the walls are too thick, they can lead to increased rates of shrinkage, potentially causing defects such as voids or warping. Conversely, if the wall thickness is too thin, it may result in inadequate strength and potential issues with the structural integrity of the casting. Additionally, if the free systolic rate referring to the rate at which the molten metal flows into the mold is too large, it can impede proper shrinkage, leading to smaller-than-intended dimensions and other defects.
In casting processes, the material used plays a crucial role in determining the final quality of the part. Specifically, low carbon content in the material can reduce the rate of shrinkage during solidification. This is because materials with lower carbon levels typically have less propensity for volumetric contraction, which helps in achieving more stable and consistent dimensions in the final cast part.
The injection pressure and temperature are crucial factors in the casting process. Proper pressure ensures complete and uniform filling of the mold, while temperature affects the metal's flow and filling ability. Balancing these variables is essential for achieving accurate and defect-free cast parts.
The choice of material for making the shell can significantly impact the shrinkage rate. Materials like zircon sand, with a low expansion coefficient, are preferred as they help maintain dimensional accuracy throughout the casting process.
Improper heating of the shell can lead to decreased shell expansion, negatively affecting the dimensional accuracy and overall quality of the cast part.
The injection temperature is critical for casting quality. If it is too high, it can cause defects like coarse grains in the internal structure, while a low temperature may affect the fluidity of the molten metal. The optimal injection temperature depends on the specific alloy being used.
Maintaining a constant injection temperature is crucial to prevent shrinkage during the injection process. A higher, consistent temperature helps ensure the production of precise and accurate parts without requiring additional energy.
An iron casting is a hard product obtained from combining iron with carbon. This can be readily cast in a mold, and it contains a higher proportion of carbon compared to steel. The proportion typically ranges from 2 to 4.3...
Lost wax casting is a casting process that uses a wax pattern to create a ceramic mold for creating a part or product design. It has been known over the years as lost wax or precision casting due to its accuracy in recreating parts with precise tolerances...
The casting process is an ancient art that goes back several thousand years to the beginning of written history. The archeological record has finds that document the use of the casting process over 6000 years ago around 3000 BC or BCE...
Aluminum casting is a method for producing high tolerance and high quality parts by inserting molten aluminum into a precisely designed and precision engineered die, mold, or form. It is an efficient process for the production of complex, intricate, detailed parts that exactly match the specifications of the original design...
Aluminum forging is a method for processing aluminum alloys using pressure and heat to form high strength, durable products. The process of aluminum forging involves pressing, pounding, and...
Cold forging is a metal shaping & manufacturing process in which bar stock is inserted into a die and squeezed into a second closed die. The process, completed is at room temperature or below the...
Copper and brass forging is the deformation of copper and brass for the purpose of manufacturing complex and intricate shapes. The temperature at which copper and brass are forged is precision controlled and...
Die casting is a high pressure metal casting process that forces molten metal into a mold. It produces dimensionally accurate precision metal parts that have a flawless smooth finish...
Forging is a metal working process that manipulates, shapes, deforms, and compresses metal to achieve a desired form, configuration, or appearance outlined by a metal processing design or diagram...
Permanent molding casting is a casting process that uses strong durable reusable molds to produce parts and components using molten metals. The molds for permanent mold casting are made from steel or...

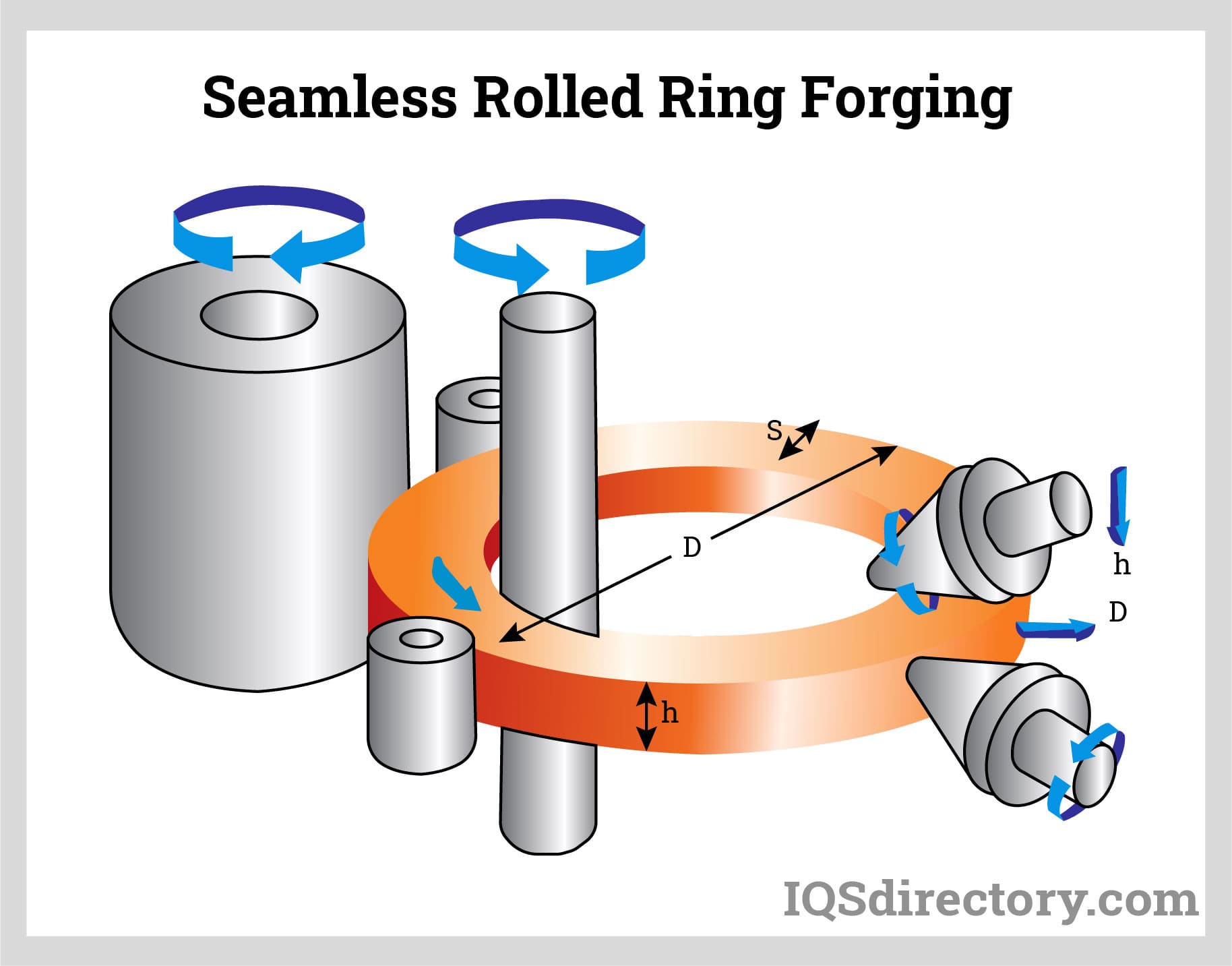

Rolled ring forging is a metal working process that involves punching a hole in a thick, solid, round metal piece to create a donut shape and then squeezing and pressuring the donut shape into a thin ring...
