Introduction

This article takes an in-depth look at extruded rubber.

Read further to learn more about topics such as:

  • What is Extruded Rubber?
  • Common Extruded Rubber Products
  • Extruded Rubber Materials
  • The Rubber Extrusion Process
  • And Much More…
Extruded Rubber

Chapter 1: What is Extruded Rubber?

Extruded rubber is a group of products made by softening and pressurizing an elastomeric compound and forcing it to flow through a hard tool called a die. The resulting product is a continuous piece of material that has the same cross-section throughout its length. The shape of the cross-section depends on the die profile. Thousands of different die profiles are used by many industries, such as automotive, aerospace, electronics, building construction, consumer goods, and much more.

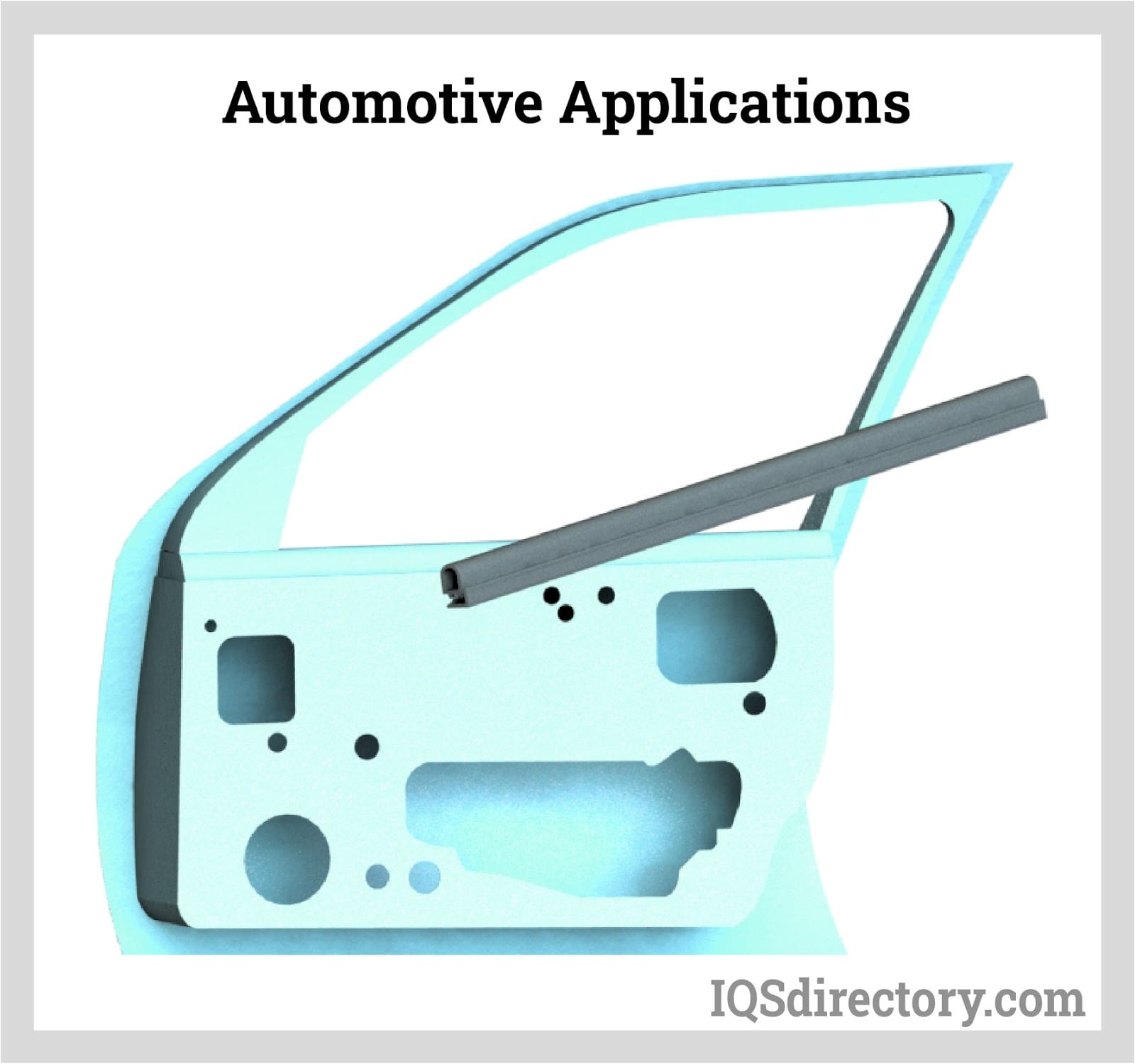

Automotive Applications

Chapter 2: Benefits of Extruded Rubber

Rubber extrusion is a widely used process that creates uniform shapes and profiles with little to no waste at an economical cost. Products produced by rubber extrusion are durable, long-lasting, and resistant to the effects of chemicals, heat, cold, impact, and abrasion.

Extrusion is a popular process that was introduced in the 1930s for producing products with a continuous profile, such as rods, pipes, and tubes. It is a simple process that has been adapted to the manufacture of all sorts of materials that can be softened and extruded. Aside from rubbers, other materials that can be extruded are metals and plastics.

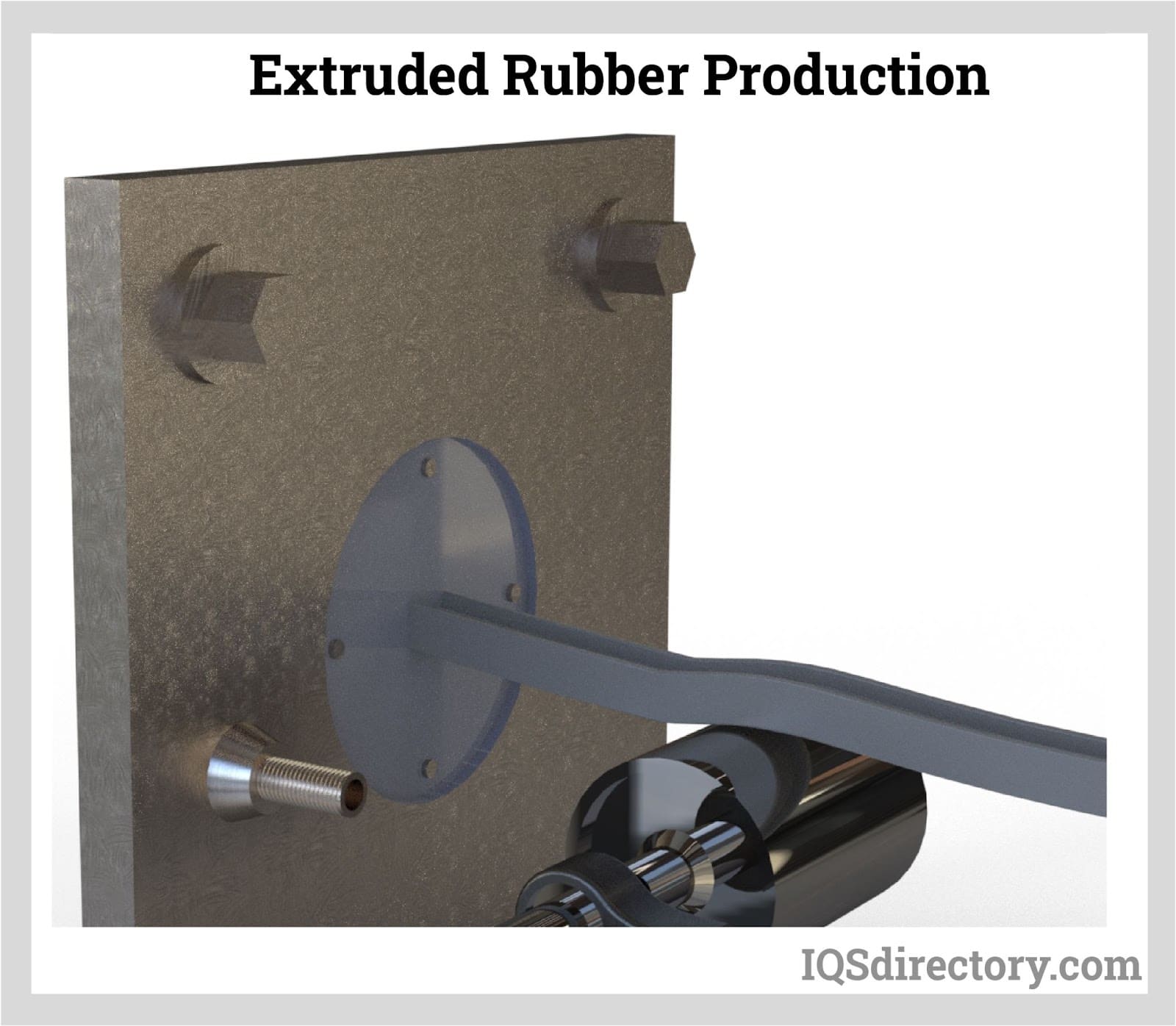

Rubber Extrusion Production

Rubber is an elastic material that can be transformed using different compounding ingredients. Like plastic, it is light, durable, and easily shaped using a profile die. Although processing and shaping rubber takes less energy, the final products have all of rubber’s beneficial properties. One of the main attractions of rubber is its low production cost regardless of the type of rubber being processed.

Plastic and rubber can be extruded together under a process referred to as co-extrusion, producing products that are rigid yet soft. The process of co-extrusion makes it possible to take advantage of the positive properties of both materials. Combining the two yields a more economical product that is readily available, high-quality, and versatile.

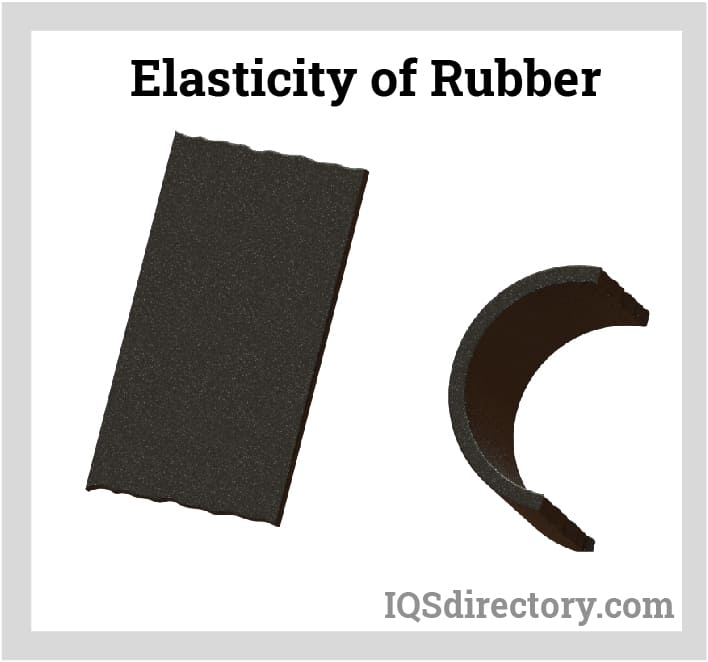

Elasticity of Rubber

There are an endless number of benefits derived from the extrusion of rubber since it allows for the production of many products. Customers can choose products of different shapes, configurations, designs, and lengths that are produced efficiently with a limited amount of waste.

Benefits of Extruded Rubber

Quality – One of the main benefits of extruded rubber products is their quality due to their resistance to heat, cold, aging, friction, abrasion, and normal wear and tear.

Resistance – Extruded rubber is able to withstand the normal abuse that products endure during their use.

Cost Savings – One of the main reasons that extruded rubber is so widely used is its cost, which is due to the small amount of waste produced by the process.

Diversity – Rubber extrusion is capable of producing any form of product or design including special, unique, and unusual ones. There is an endless number of varieties, types, and shapes regardless of how different.

Leading Manufacturers and Suppliers

GET YOUR COMPANY LISTED ABOVE

Chapter 3: Common Extruded Rubber Products

The rubber industry is currently dominated by tire production, which accounts for two-thirds of global demand. The balance is split between non-tire automotive applications, industrial, footwear, electrical, and others. Extruded rubber is used in the majority of non-tire automotive and industrial applications. Examples of extruded rubber products are detailed below.

  • Rubber Bushings: Extruded rubber bushings are used as shock absorbers in a working piece of equipment. They isolate moving parts from each other and prevent vibration and noise from being transferred throughout the equipment. They are commonly seen in automotive systems, particularly in suspension components.
Extruded Rubber Bushing with Metal Sleeve

  • Most rubber bushings are shaped as hollow cylinders, which can be easily produced from an extrusion process. It is cut to length according to the dimensions of the part or shaft where it goes into. Some rubber bushings are used as bare rubber only, while some are enclosed and bonded in metal casings or sleeves.
  • Rubber Trims: Rubber trims are extruded products that are used to protect the edges or surfaces of rigid objects from sudden impacts. Examples of such objects are panels, windows, doors, removable covers, and hatches. Aside from impact protection, they also provide an air-tight or water-tight seal between the mating parts.
Rubber Trim

  • There are thousands of rubber trims profiles available, and often, they are custom-made to suit a special application. One of the most common rubber trim shapes is a U-channel. The edge of the rigid part is inserted on the channel and is fixed into place by fasteners and adhesives.
  • Rubber Tubing, Hoses, and Piping: Tubes, hoses, and pipes, regardless of the material type, are produced by an extrusion process. They are used with hydraulic and pneumatic equipment with silicone tubing capable of being used to manufacture food and drugs.

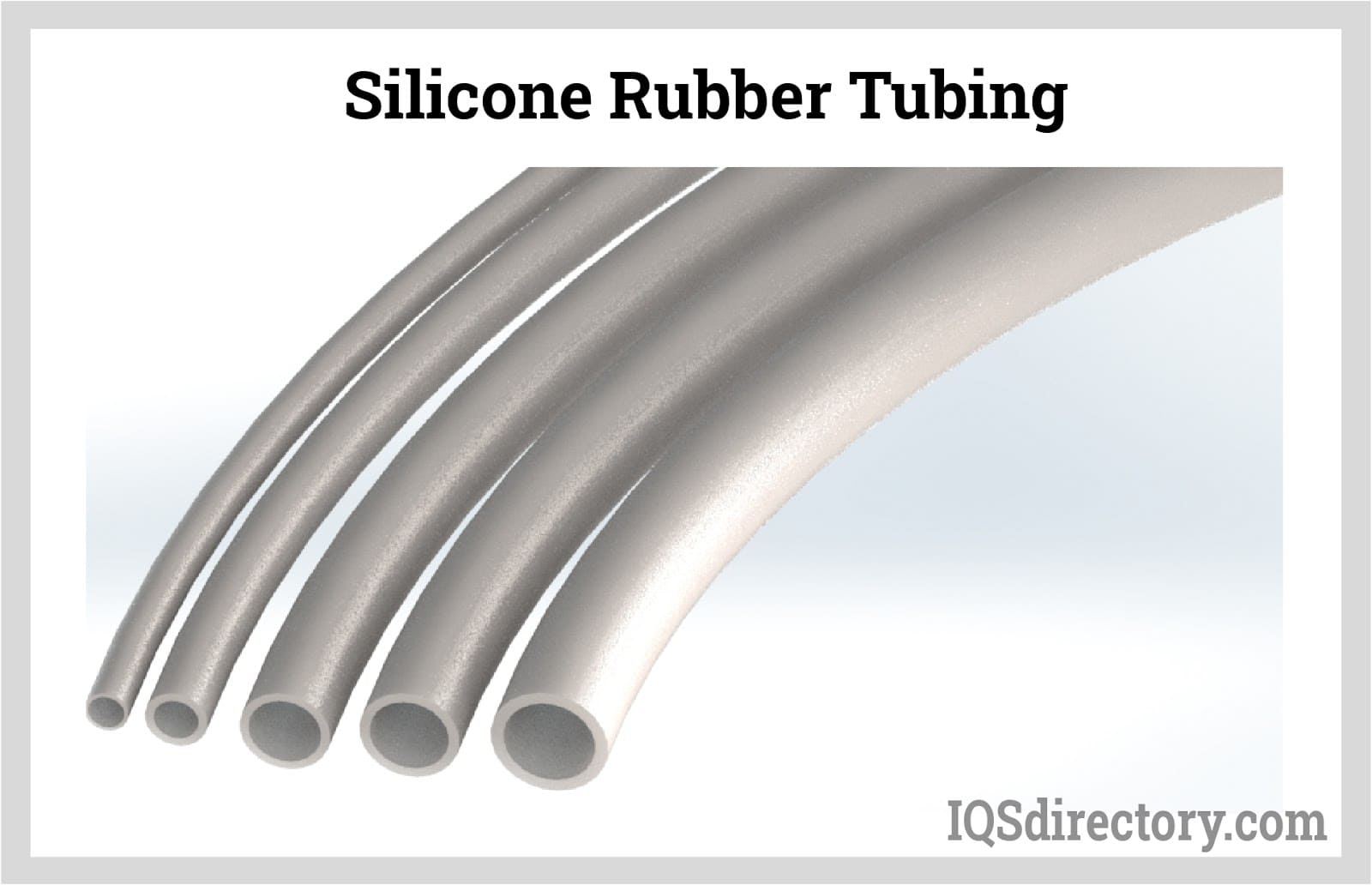

Silicone Rubber Tubing

  • Rubber’s excellent flexibility allows it to be bent into shape without incurring damage. This property makes these types of products desirable for connecting different parts of equipment for transferring fluids such as compressed air, oil, water, and chemicals.
  • Rubber Bumpers: Like rubber trims and rubber bushings, rubber bumpers take advantage of the material’s shock-absorbing capabilities. Aside from this property, the compounding ingredients for making rubber bumpers add some amount of abrasion resistance to enhance their durability. They are commonly used in trailer truck docks and loading bays, jetty and boat fenders, and road safety devices. The typical cross-section of rubber bumpers is a D-shape profile. This allows one side of the bumper to be fixed on a wall while the other side absorbs the impact. The circular shape of the impact-absorbing side prevents damage to the colliding vehicle.

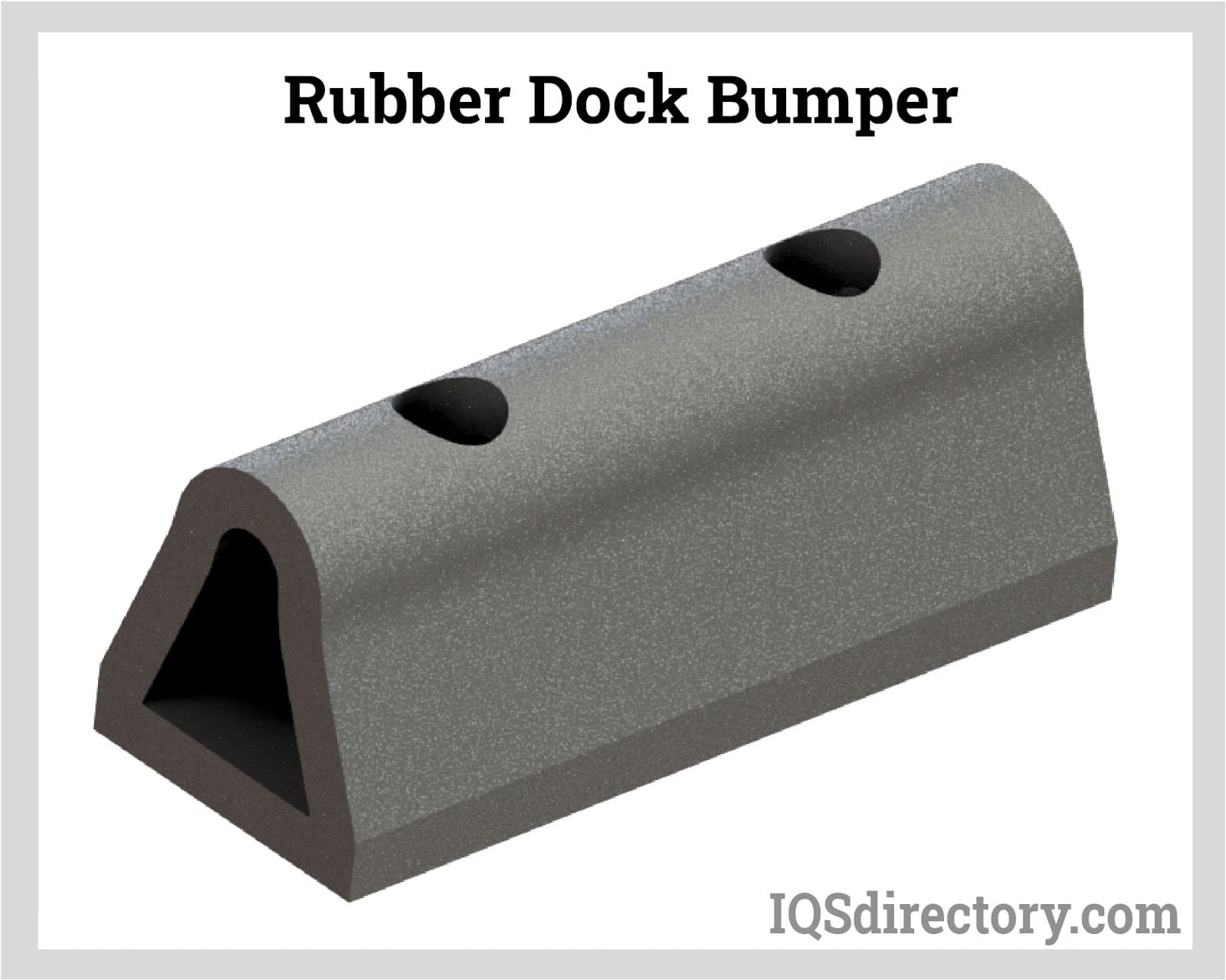

Rubber Dock Bumper

  • Rubber Gaskets and Seals: While most gaskets and seals are made from die-cutting and injection molding, they can also be made from extrusion. Extruded gaskets and seals are typically used in weatherproofing cabins, enclosures, cars, equipment housings, and electrical panels. The rubbers used in the production of these products are selected for their chemical resistance and resilience against external harm such as heat, sunlight, and oxidation. Rubber gaskets and seals are available in both hollow and solid profiles. Regardless of the profile, it is important that the material can easily be compressed between the mating surfaces to properly form a tight seal.

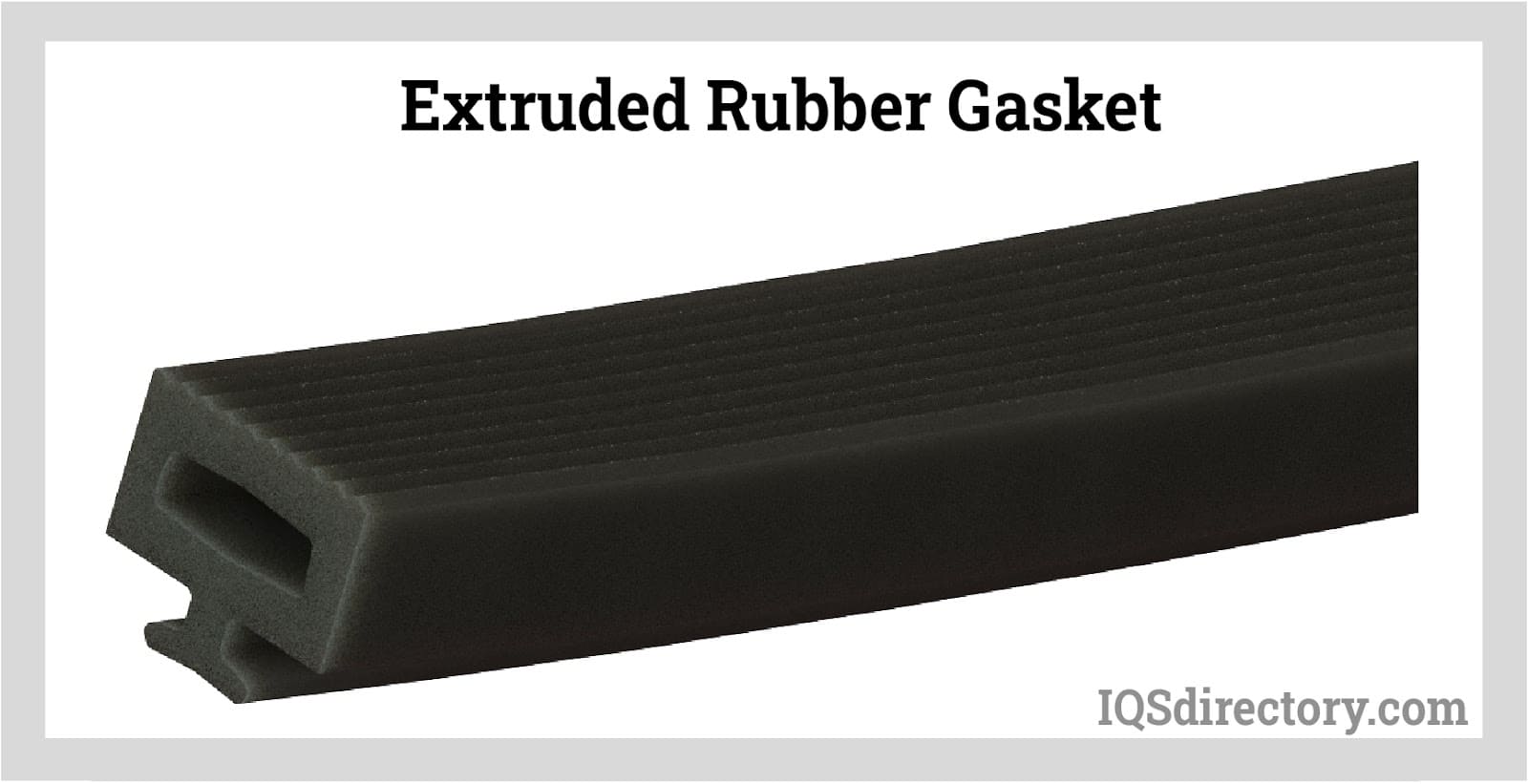

Extruded Rubber Gasket

  • Rubber Cord Stock or O-Rings: O-rings are special types of gaskets that have a uniform cross-section and have ends connected together forming a ring. While popularly known as having a circular cross-section, other shapes are sometimes used. Typical O-rings made from injection or compression molding processes are limited to small equipment such as valves and quick-connect joints. However, when it comes to large equipment such as vessels and tanks, they are made from a long cord stock. The cord stock is an extruded rubber cut to length according to the circumference or perimeter of the mating parts. To form the O-ring, the ends of the cord stock are bonded together by a strong adhesive or through vulcanizing.

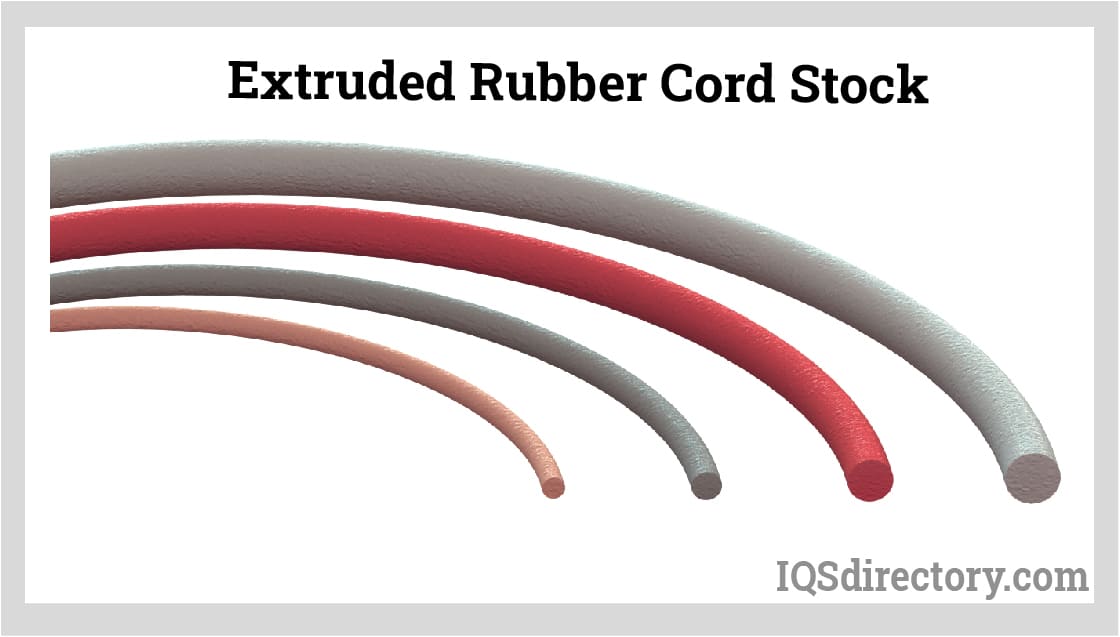

Extruded Rubber Cord Stock

  • Rubber Weatherstrips: Extruded rubber weatherstrips are similar to rubber gaskets but are more exclusively used in automotive and building construction. They are made to effectively isolate the inside room from external elements such as outdoor air and pollution, extreme heat and cold, and water. They are also designed to have great elasticity to allow for frequent opening and closing of doors and windows. When used in automotive vehicles, they must also resist vibrations while maintaining a tight seal.
  • Medical Silicone Rubber Tubing: Of the various types of extruded rubber products, medical silicone rubber tubing is the highest quality and most well designed due to the high standards required by the medical industry. Manufacturers are required to adhere to strict standards in medical products, including medical silicone tubing.
    • The low production cost, versatility, and strength of medical tubing make it a perfect product for helping medical professionals assist patients. Since it is unaffected by high temperatures, it can be sterilized multiple times without degrading. In addition, its transparency makes it ideal for monitoring the flow of medications or drainage.

Chapter 4: Rubber Extrusion Materials

The inherent characteristics of extruded rubber products depend on the chemical and physical properties of its base elastomer chain. The elastomer chain is composed of the carbon-based polymer backbone with several active sites or functional groups. The chemical composition of the elastomer chain determines the type of rubber material.

On top of the general properties such as elasticity, thermal and electrical insulation, and shock-absorbing properties, a specific kind of rubber material is chosen for its inherent chemical resistance, aging and degradation resistance, mechanical properties, and cost. Below are the different types of rubber materials used in the production of extruded rubber.

  • Butadiene Rubber (BR): Butadiene rubber or BR is an elastomer from the polymerization of the monomer, butadiene. It accounts for about 25% of the world’s production of synthetic rubbers. Most of the BR produced are used to make tires, while some are blended with other rubbers to improve the final product's properties. Generally, BR has good cracking, abrasion, and rolling resistance but is prone to ozone degradation.
  • Styrene-Butadiene Rubber (SBR): Styrene-butadiene or SBR is a product of copolymerization between styrene and butadiene. SBR is one of the most important types of rubber which are used to produce not just extruded rubber parts but also to manufacture tires, gaskets, and shoes. It is a general-purpose rubber that competes with natural rubber in terms of market share. SBR is preferred due to its better abrasion, tear, and thermal resistance than natural rubber.

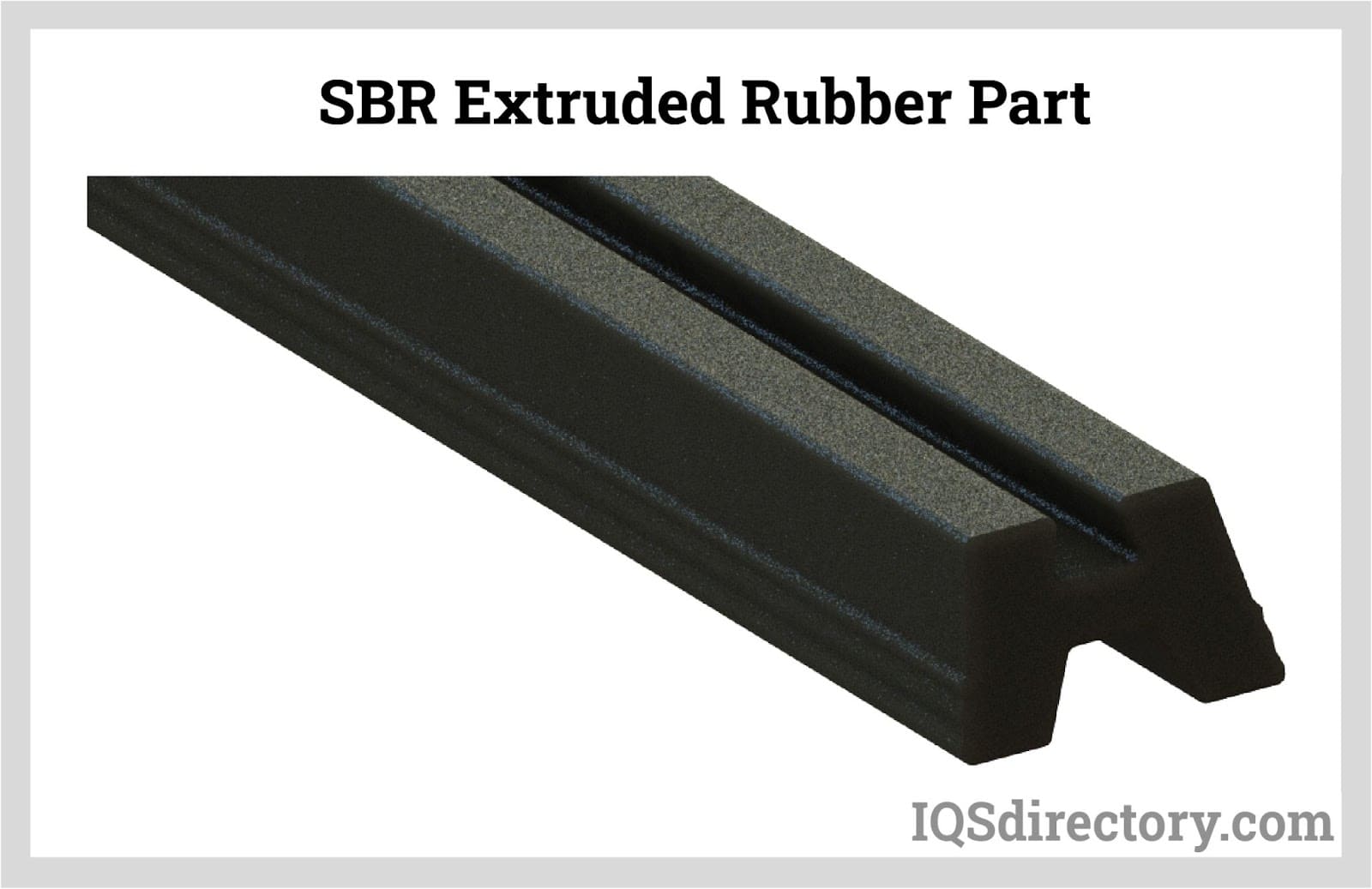

SBR Extruded Rubber Part

  • Acrylonitrile Butadiene (Nitrile) Rubber (NBR): Nitrile rubber, more popularly known as NBR or Buna-N, is made from the copolymerization of acrylonitrile and butadiene. It is the most common rubber-type when it comes to automotive applications because of its resistance to petroleum-based chemicals such as oils, fuels, and grease. Thus, they are used as excellent gaskets and sealants. However, they have low tensile strength and poor low-temperature performance, which is mitigated by compounding reinforcing fillers.
  • Ethylene Propylene Rubber (EPM, EPDM): EPDM is made from the copolymerization of ethylene and propylene with the addition of diene, which facilitates curing. When diene is not used, the result is referred to as EPM and is only curable by peroxide. Both EPDM and EPM have good weathering resistance, good insulating and dielectric properties, excellent mechanical properties both at high and low temperatures and chemical resistance. They compete with NBR in terms of production volume when used in automotive sealing applications.

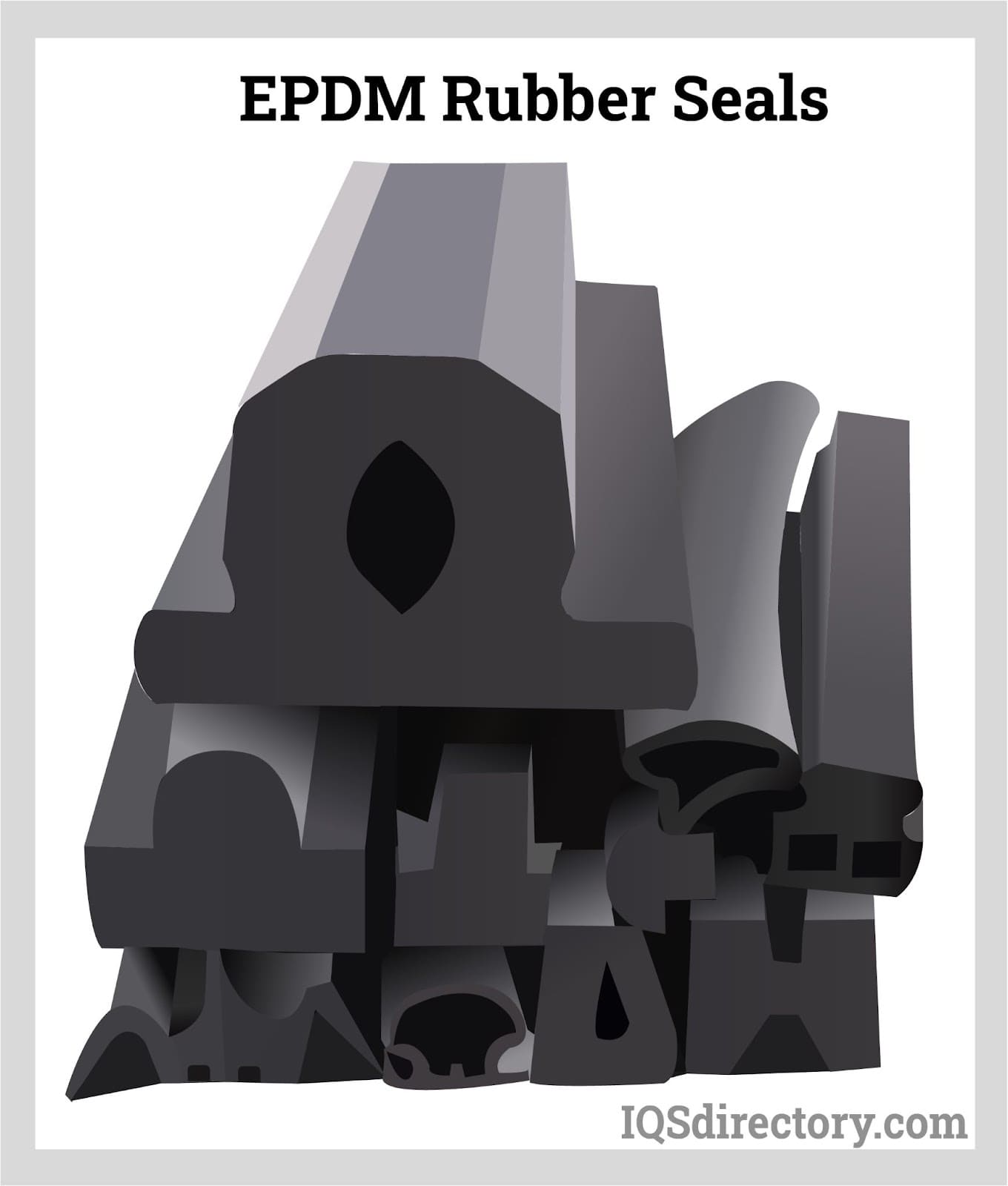

EPDM Rubber Seals

  • Butyl Rubber (IIR): Butyl rubber or IIR is a copolymer of isobutylene and isoprene. Its elastomer chain is mostly unsaturated because of its isoprene content which is only around 3% of the copolymer. The low unsaturation of IIR enables it to repel most chemicals (gas and liquids) and is highly resistant to aging when vulcanized properly. Because of this property, IIR is used to produce O-rings, gaskets, window and door trims, and hoses.
  • Halogenated Butyl Rubber (CIIR, BIIR): This type of rubber is produced from the modification of butyl by reacting allylic chlorine and bromine. This improves the ozone and chemical resistance of the material but decreases its insulation capabilities and water resistance when compared to IIR. Regardless, its permeability to moisture and gas is still low compared to other rubber types. Its areas of applications are similar to IIR.
  • Chloroprene (Neoprene) Rubber (CR): Chloroprene, known commercially as Neoprene, is one of the first synthetic rubbers ever made. Developed by DuPont in 1930, it is made to have better aging resistance and durability than natural rubber. Natural rubber shortage during World War 2 only made chloroprene more prevalent. Today, it is widely used in the production of weatherstripping seals, gaskets, and hoses because of its inherent chemical inertness. However, because of its many compounding additives, it is much more expensive than natural rubber.
  • Fluorocarbon (Viton) Rubber (FKM): FKM rubbers are known as fluoro-elastomer materials. They are made from the copolymerization of vinylidene fluoride (VDF) with other chemicals such as hexafluoropropylene (HFP), tetrafluoroethylene (TFE), and so on. It is known commercially as Viton, which is a trademark of DuPont. FKM is generally known to be highly resistant to almost all chemicals, aside from having good mechanical properties. They are perfect to produce cord stocks for making O-rings and other sealing products.

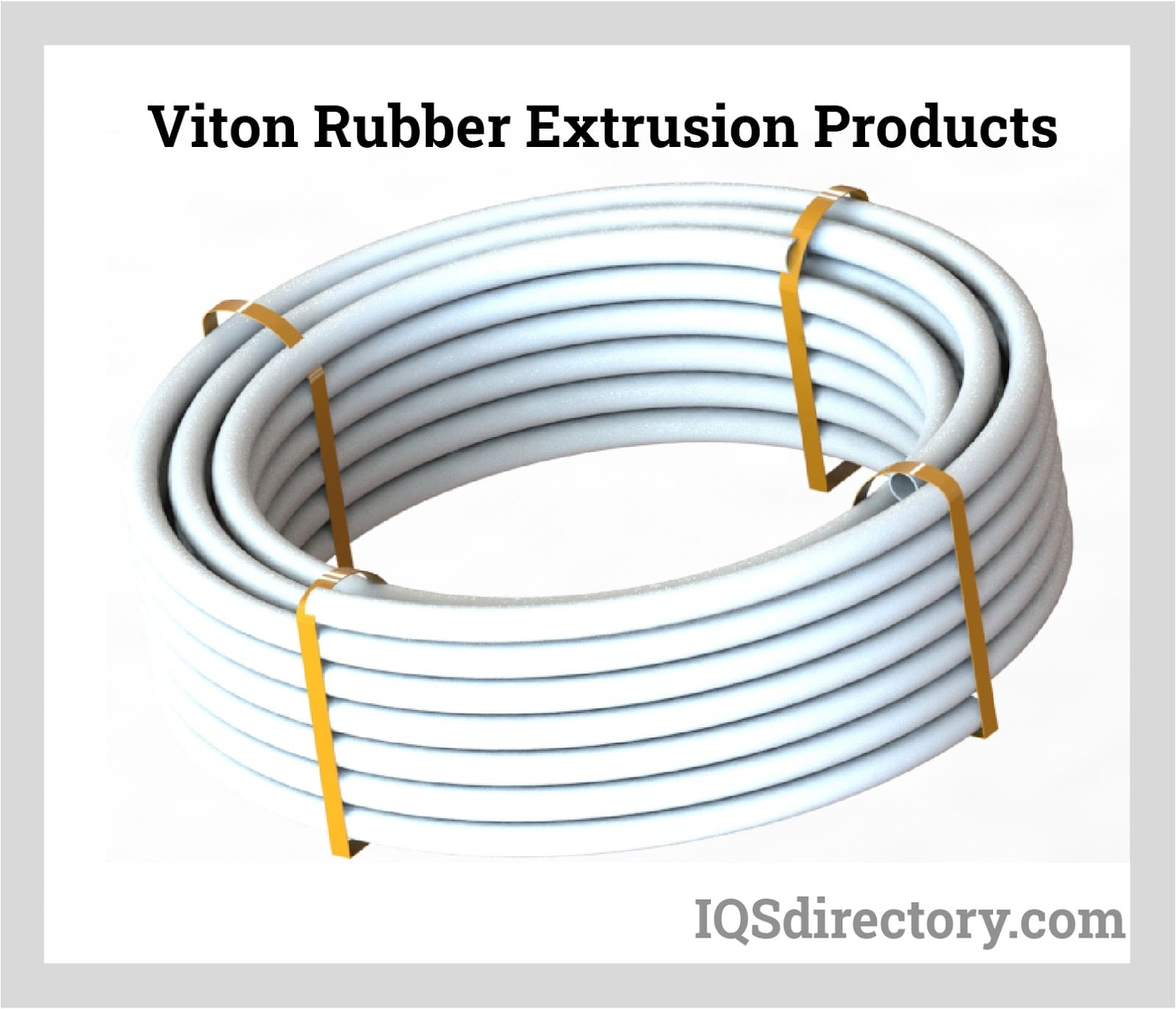

Viton Rubber Extrusion Products

  • Natural Rubber (NR): The discovery of natural rubber paved the way for the development of vulcanization, a key process in the production of more advanced rubber materials. Its main chemical compound, latex (polyisoprene), is harvested from barks of plants, particularly the Hevea tree. Natural rubber is preferred because of its excellent heat buildup and fatigue resistance compared with other rubbers.
  • Isoprene Rubber (IR): Isoprene or IR is similar to natural rubber in terms of polymer chain structure. IR are widely-used, general-purpose rubber made from the polymerization of isoprene monomers. Since they are made artificially, they are purer than natural rubber, with more controlled and superior properties. Like natural rubber, they have good heat buildup and fatigue resistance, on top of their inherent impact absorbing capability. Thus, they are well-suited in producing shock absorbers and rubber bushings.
  • Silicone Rubber: Unlike other rubber materials, which have a carbon-based polymer backbone, silicone rubbers have a silicon-oxygen chain bonded with methyl, vinyl, and phenyl functional groups. These materials are characterized to have good oxygen, ozone, heat, light, and moisture resistance. However, they are more expensive and have poorer mechanical properties than organic rubber. They are used in many industrial applications, but they are most popularly used in food and drug manufacturing.

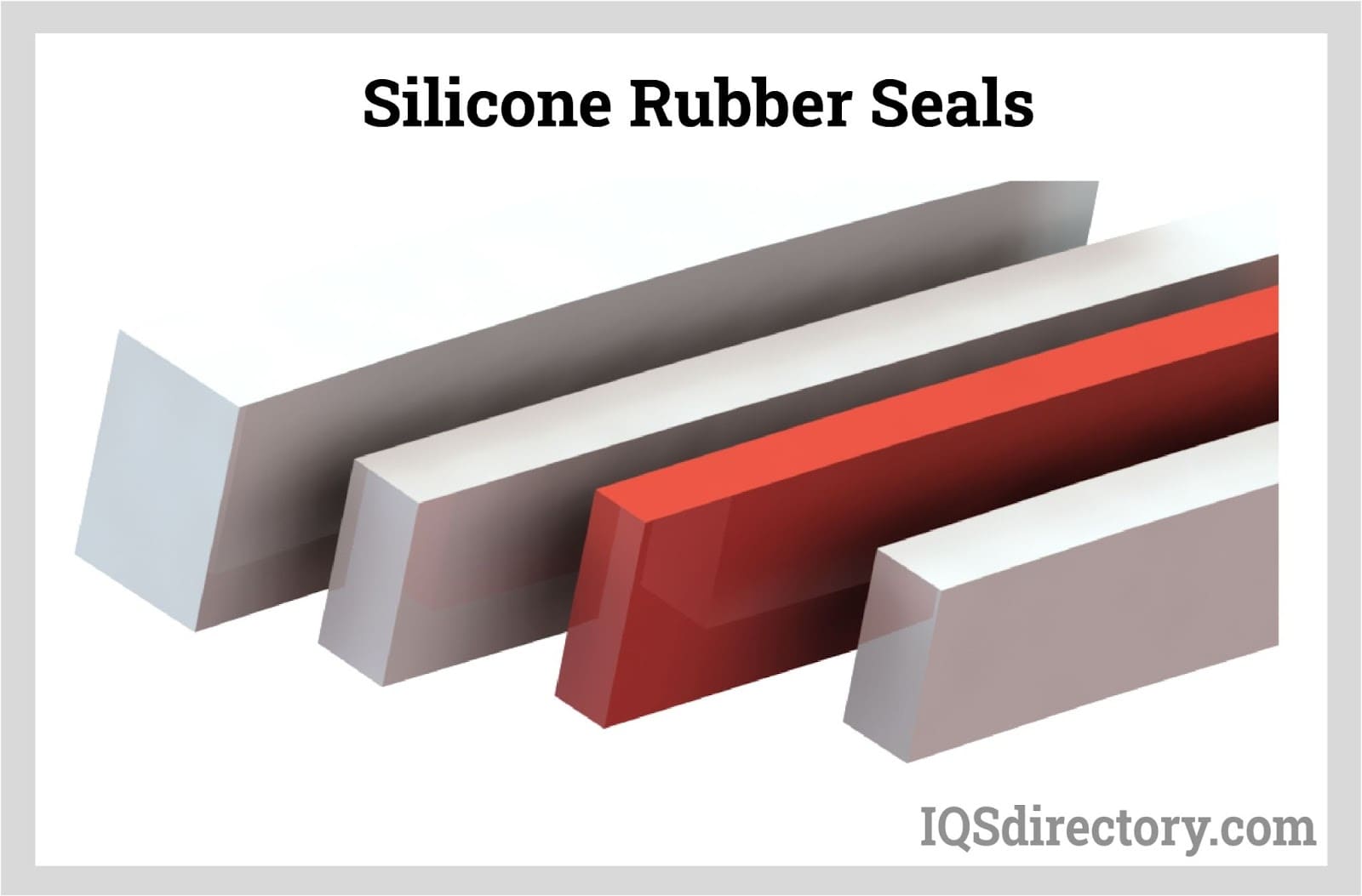

Silicone Rubber Seals

  • Polyurethane Rubber: Polyurethane rubber is one of the most versatile types since it can be formulated in various ways to have specific properties. It combines the design flexibility of both plastic and rubbers. Different degrees of hardness, compression set, tensile strength, abrasion resistance, and chemical resistance can be obtained by using different types and amounts of compounding ingredients. They are used in shock absorbers, dampers, protective sleeves, trims, and bushings.

Chapter 5: The Rubber Extrusion Process

Rubber extrusion is a downstream process that involves compounding, heating, kneading, pressurizing, extrusion, and vulcanizing. It uses rubber and chemical feedstock from a number of primary plant processes in the chemical and petrochemical industries.

By itself, rubber extrusion is a fairly straightforward process. In the simplest sense, it only involves feeding the rubber material into the extruding machine, gathering the extrudate, vulcanizing it, and then cutting and splicing according to the client’s specifications. However, there are many parameters at play. One is the formulation of the rubber compound. The second is the extruding parameters such as temperature, throughput rate, and vulcanizing time. The process must be carefully controlled to create a reliable product.

Below is the step-by-step rubber extrusion process.

  • Rubber Compounding: The compounding process is where the formulation of the rubber material takes place. The main elastomer compound, which can either be NBR, SBR, BR, FKM, and so on, is thoroughly mixed with additive ingredients to obtain the desired properties of the product. The additive ingredients improve and complement the intrinsic set of properties of the main elastomer. Below are some of the compounding ingredients manufacturers use in rubber extrusion.
Rubber Compounding

    • Fillers: Fillers are used to increase the strength of the elastomer structure. They act as reinforcing materials that enhance the tensile strength, impact strength, tear resistance, and abrasion resistance of the finished rubber compound. Typical fillers are carbon black, clays, silica, and calcium carbonate.
    • Stabilizers: Stabilizers are compounded with rubber to enhance their resistance to weathering and degradation. They act as antioxidants and antiozonants. Stabilizer molecules become free radical scavengers that bind to the elastomer’s active sites that are prone to oxidation. Oxidation of these sites makes the rubber stiff and prone to tearing and fatigue. Common antioxidants are phosphites, phenols, and hydroquinones. Antiozonants, on the other hand, are typically PPDs of paraphenylene diamines.
    • Vulcanizing and Curing Agents: Vulcanizing is an important part of extruder rubber production, which fixes the final properties of the rubber material. To achieve a perfect vulcanizing process, certain chemicals are added to the rubber mix. Examples of these are sulfur, peroxides, accelerators, activators, and retarders. Depending on the rubber compound and manufacturing processes involved (primary and secondary), the composition of the vulcanizing agents may vary.
    • Special Ingredients: These are chemicals added to the rubber compound which impart minor property modifications. Some of these include colorants and pigments for adding color, process oils for improving processability, and resins and fibers for improving tensile strength and chipping resistance.
    • Heating and Pressurizing: This process involves further masticating the rubber compound. The typical equipment for performing this process is a screw extruder which can either be a single screw or twin screw. A single screw is commonly used since its control is much simpler and its cost is cheaper. The screw is enclosed in a large, pipe-like chamber called the extruder barrel. Depending on the complexity of the machine, the rubber compound is fed into the machine using a hopper, a set of counter-rotating drums, or an injection port.
Rubber Extruder

As the rubber goes through the extruder barrel, the constant rotation of the screw masticates and mixes the material. The screw is composed of a set of engineered and carefully machined screw elements that have a profile that either heats, kneads, or pressurizes the rubber. As the rubber is heated, its flowability increases, which prepares it for the next stage of the production process.

  • Extrusion: The extrusion operation takes place at the end of the extruder barrel. At this point, a tool called a die is installed, which has an opening that contains the cross-section of the finished material. This opening is designed to compensate for any dimension changes that occur after extrusion. Typically, the extrudate swells after leaving the die and during the vulcanization process.

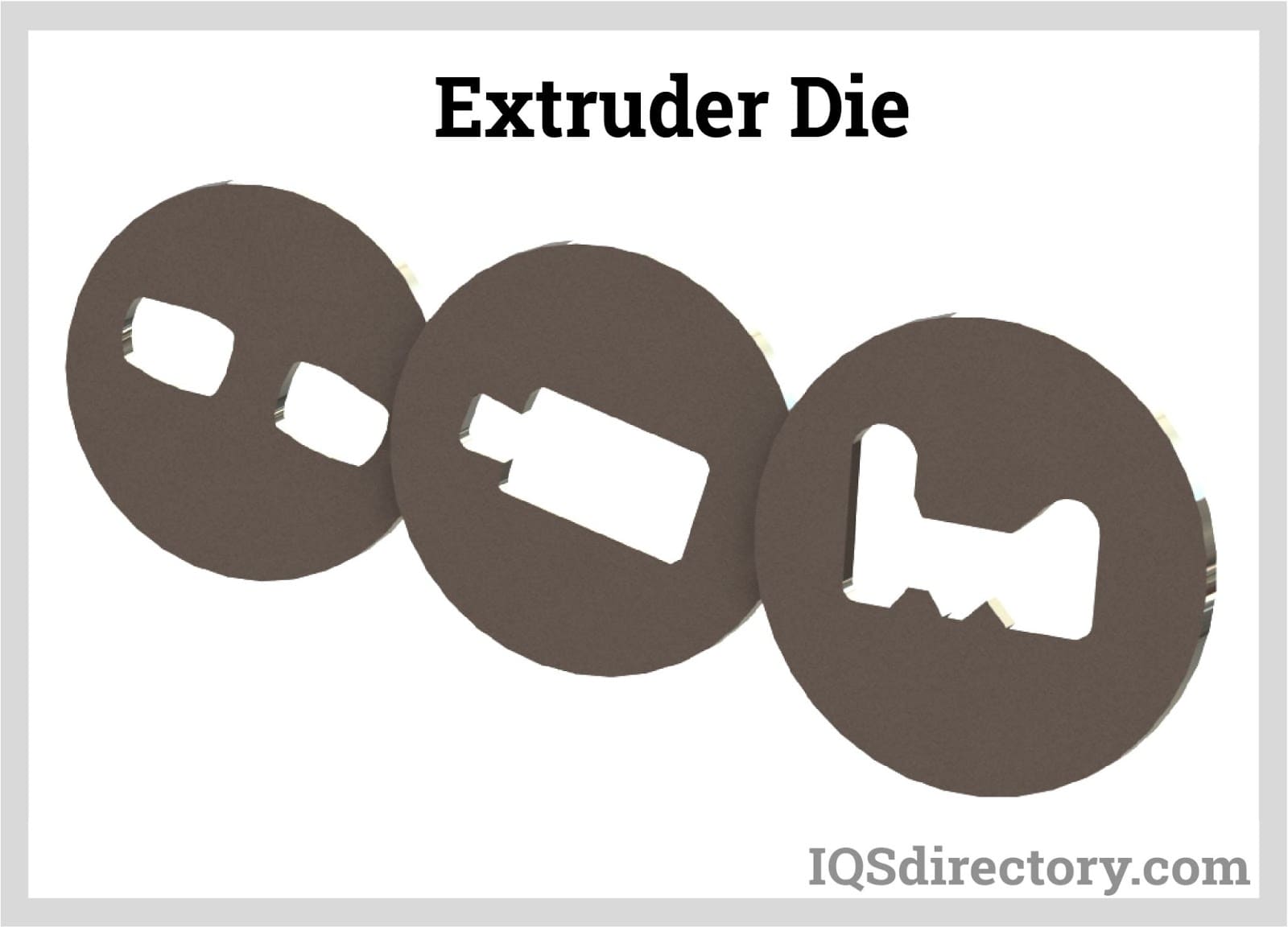

Extruder Die

As the rubber is pressurized by the screw, it is forced to flow through the die to become an extrudate. This extrudate now resembles the physical features of the final product. The extrudate is ejected from the machine and guided by a set of rollers and wheels to bring it to the next step.

  • Vulcanizing or Curing: The vulcanizing stage, as mentioned earlier, is done to fix the physical and chemical properties of the finished product. In a more detailed perspective, this process is where the cross-links between elastomer chains are created. Sites within the rubber’s long molecular chain bind with each other using vulcanizing agents such as sulfur and peroxide. This yields an interconnected molecular structure that acts like a stretchable, meshed material that returns to its original shape in its rested state.
    • To initiate the vulcanizing process, the extrudate is further heated or held at elevated temperatures of around 140 to 160°C. This could take several minutes depending on the rubber compound and vulcanizing agents used. Vulcanizing time is shortened by vulcanizing modifiers such as activators and accelerators.
  • Secondary Processes: This stage of the production process involves several operations such as cutting, splicing, spooling, drilling, notching, coating, and so on. Such operations are performed according to the general features of the product. The most common secondary processes are cutting and splicing, where the extruded rubber is cut into shape and the ends connected to form a continuous loop of rubber. These are used to manufacture extruded rubber gaskets, seals, and trims.

Chapter 6: The Co-Extrusion Process

Various plastics and rubbers can be combined in the co-extrusion process. The design of the produced component determines the types of rubber and plastics that will be used. This aspect of the process has to be carefully monitored to ensure the quality of the final product.

The process of co-extrusion includes the extrusion of layers of material at the same time, requiring multiple extruders to melt the rubber and plastic before they are combined. The combination of the two materials takes advantage of their beneficial properties to create a stronger and more resilient product.

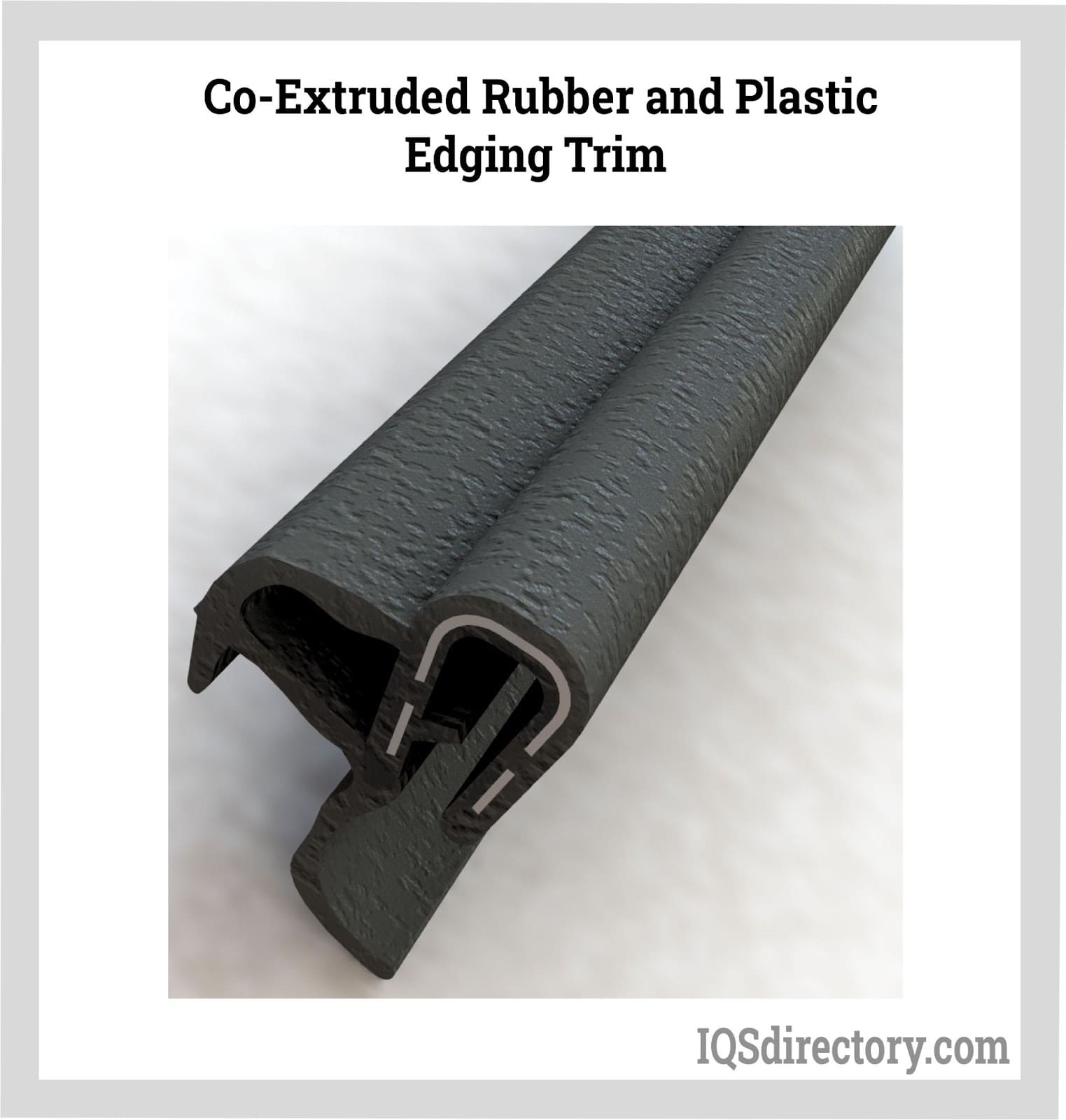

Co-Extruded Rubber and Plastic Edging Trim

Salient Factors in Regard to Co-Extrusion

  • Temperature – As with the production of so many products, temperature is a vital consideration in the co-extrusion process. Every type of plastic and rubber reacts differently to a specific environment and temperature. During the design phase of the process, engineers select materials that can endure the conditions for which the product is being created.
  • Adhesives – Adhesives are a necessary part of combining plastic and rubber. In most cases, rubber adhesives are used since plastic adhesives are more expensive. A factor that determines the type of adhesive is the overall needs of the application and the component being produced.
  • Recyclability – The choice of plastic is strongly influenced by the environmental concerns of the manufacturer. Adherence to environmental standards determines the type of plastic that will be used, which, in this case, would be one that is recyclable.
  • Color – Plastic combined with rubber offers several varieties of color in the final product. While rubber does not offer many choices in this area, plastic can be colorized in multiple ways using different colorants.
  • Cost – The main cost in the co-extrusion process is the cost of the die that has to be produced from a CAD rendering. In most cases, rubber co-extrusions are less expensive than plastic co-extrusions.

Conclusion

  • Extruded rubber is a group of products characterized by having the same cross-section throughout its length. It is made by softening and pressurizing an elastomeric compound and forcing it to flow through a hard tool called a die.
  • Common extruded rubber products are rubber bushings, trims, tubes, hoses, pipes, gaskets, seals, O-rings, and weatherstrips.
  • The type of rubber material is determined by the kind of elastomer chain used in the production process. Examples are NBR, SBR, BR, EPDM, FKM, etc.
  • Rubber extrusion involves compounding, heating, kneading, pressurizing, extrusion, and vulcanizing. These processes are done in an extruder and a vulcanizing oven or autoclave.
