Introduction

This article will take an in-depth look at linear rails.

The article will bring more detail on topics such as:

  • Principle of Linear Rails
  • Types of Linear Rails
  • Applications & Benefits of Linear Rails
  • And Much More…

Chapter 1: Principle of Linear Rails

This chapter will discuss what linear rails are, their design, and their function.

What are Linear Rails?

Linear Rails are ideal for moving items through a production process with great precision and as little friction as possible if creating, packing, and distributing products. Linear Rail is a type of gadget that is frequently utilized in a variety of industries.

Linear Rails

A linear rail system is one that is designed to sustain the movement and load of a piece of equipment in a vertical or horizontal direction. It's a pretty simple piece of mechanical equipment that does a very simple task well, allowing the movement of goods through the production or packaging process to be easy and safe.

Linear rails are referred to by a variety of names, including linear guide rails, linear guides, linear guideways, linear slides, and linear guiding systems. A linear rail efficiently transfers weights along a predetermined horizontal or vertical course with the least amount of friction or resistance.

Linear guide rails are normally made of corrosion-resistant high-strength, toughened, and galvanized steel. Before installing a roller runner, the metal is formed and contoured using a cold drawing method. Profiled rail guides are typically the best choice for large loads since they are designed to produce a very precise linear motion. Rail guides are available in a variety of sizes, starting with minuscule linear rails for moving small components in tight spaces.

Design of Linear Rails

Based on application, linear rails can be constructed in short lengths or in larger dimensions (>2m) to provide a wide range of motion. Two types of linear guides are used in the industrial sector today: the runner with ball bearings and the runner with rollers. The rail and the runner are the two components of the linear guidance system. The latter moves from front to rear inside the rail. The assembly's moving parts are recirculating balls or roller bearings. They have threads to secure the object that has to be transferred.

Linear Rail Bearings

Bearings used for linear slides are rolling element bearings, ball bearings, and roller bearings. Secondly there are plain surface bearings: metal-to-metal, dry lubrication, hydrostatic, and aerostatic lubrication. Finally there are magnetic bearings.

Rolling Element Bearing

Rolling element bearings are the most prevalent of the three primary classes. Rolling elements, as opposed to greased and magnetic bearings, are more durable and versatile. They are more effective in both dynamic and static environments. Furthermore, industry best practices and standards can easily forecast their performance and service life. Magnetic and hydrostatic bearings are utilized in a limited number of applications, primarily in laboratories and specialist instruments.

Rolling element bearings for linear slides are classed based on the amount of rolling element recirculation. The linear slide's travel distance is restricted by the length of the rolling element row in setups without recirculation. The rolling elements rotate with the carriage but do not travel completely with it.

Rolling elements that are not recirculated travel at half the speed of the carriage, covering half the distance. The race has a return path built into the carriage for recirculating rolling elements. The rolling elements recirculate by following the carriage's looped course. The rollers and carriage can both go along the guide rail simultaneously. Ball bearings are the rolling elements for recirculating linear slides.

Linear Rail Carriage

The carriage is the portion that moves around and is guided by the bearings. It is the portion that supports the linearly moving tool, instrument, or sub-assembly. Within the X-Y plane, their linear movement is essentially restricted.

Bearing Carriage

Power screws or screw drives are used in carriages that move in the Z direction. The carriage is frequently connected to a drive unit. This generates the required force or torque to propel the carriage forward.

Guide Rail

The gliding surfaces of plain bearings or rolling elements slide against these fixed surfaces. Plain surface bearing guide rails are essentially flat surfaces with or without lubrication. They can also have a cylindrical shape, which is known as a shaft or journal. The races in rolling element bearings are designed to balance the contact covered area with the magnitude of contact stress. Because this is more noticeable in ball bearings, they have a racing profile that is divided into two types: circular arch and gothic arch.

Double Axle Roller Guide Rail

The ball bearings are contained in circular and gothic arches in two courses. The races only make touch with the ball at two locations in circular arches, but four points in gothic arches. Theoretically, gothic arches should be preferred because they can carry higher loads.

Differential slip, on the other hand, has detrimental repercussions for gothic arches. Bent races with differing rolling diameters create differential slip. As a result, differing rolling speeds are created, resulting in sliding friction. Differential slip is more apparent on gothic arches because there are distinct mechanisms between the effective rolling diameters. Ergo, a circular arch is recommended over a gothic arch. Gothic arch is typically utilized for smaller systems that require higher load ratings than circular arch races of the same size.

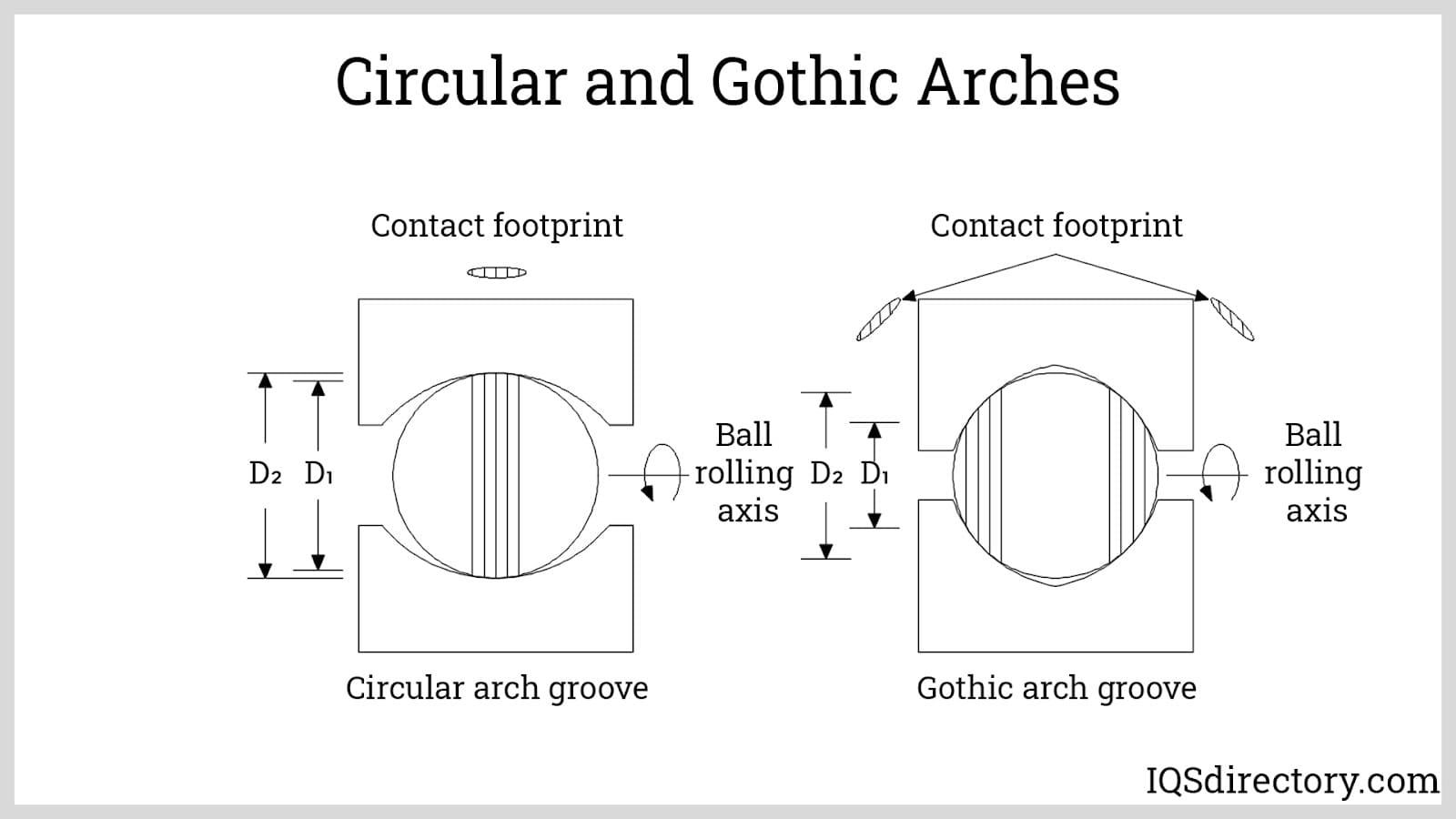

Gothic and Circular Arches

End Cap

In recirculating rolling elements, these are mounted on the carriage's front and back sides. The rolling elements are guided from the load-bearing section to the return path by the end caps.

Linear Slide Basic Parts

Lubrication Port

These are built into the end caps, which are used to lubricate the recirculating bearings within the carriage races.

Rail Seals

External pollutants such as dirt and metal debris are prevented from entering the bearing races by seals built into the end caps. Dirt is abrasive and can harm the guide rails and bearings' surfaces.

Bellows and Covers

Guide rail surface is protected by the use of these. Machines that deal with metal chips, abrasive materials, and coolants require protective covers. The majority of this trash is found on lathes and milling machines.

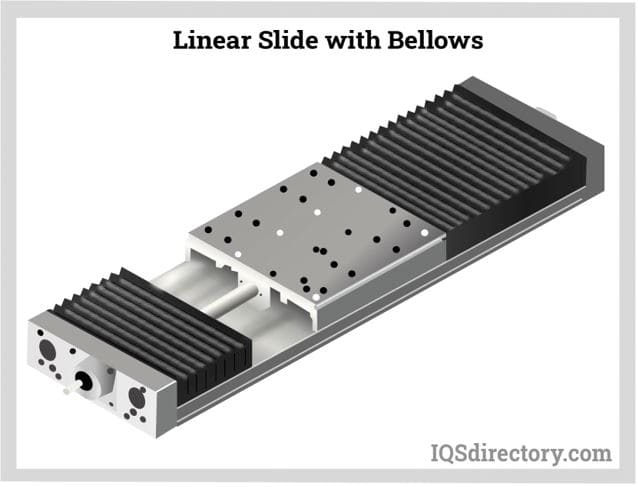

Linear Slide with Bellows

Impact Dampers

Impact dampers are situated at the carriage's ends and serve as a safety net in the event of excessive travel.

Control System

For linear slides with drive units, a control system is integrated. These are utilized to regulate the carriage's movement by supplying power to the drive unit or actuator through operator controls or feedback signals provided by sensors and switches.

Drive Unit

The component that provides or transmits the forces that move the carriage is known as the drive unit or actuator. Ball screw, toothed belt, rack and pinion, linear motor, and pneumatic systems are some of the driving units offered.

Position Sensors

Sensors offer feedback to the controller and driving unit via position sensors. Linear slide position sensors have two primary functions. The first is to keep the carriage from moving beyond its planned range of motion. The second step is to figure out where the carriage is.

Linear Rail Specifications

This chapter will discuss the specifications of linear rails.

Number of Axes

The number of axes in a single-axis system is one, and it moves along the X-axis only. Vertical lift devices, on the other hand, move along the Z-axis. Multi-axis positioning systems are stacked or connected units that move along two axes in the X-Y plane, usually orthogonal.

A carriage that moves along the X-axis and another carriage that moves along the Z-axis are among the others. Three-axis motion is provided by three orthogonal axes in three-axis systems. The X-axis linear travel, Y-axis linear travel, and Z-axis linear travel are all important travel characteristics for linear slides and linear stages.

Side Accuracy

The bearing or manner system utilized determines the accuracy of the slide. Linear bearings are capable of delivering exceedingly precise and repeatable motion.

Linear Travel

The whole stroke of the slide from one side to the other.

Load Capacity

Maximum load that a slide can support without sustaining any permanent damage.

Linear Speed

Total velocity the carriage can move with along the axis of position.

Load, Stiffness, and Moment Ratings

The load capacity, moment rating, and stiffness of the slide are determined by the slide's construction and bearing or way system.

Drive Mechanism Type

A ball screw drive with a motor may be required for particularly stiff, reproducible slides. A ball or lead screw with a handwheel are better for manual positioning applications. For quick actuation that does not necessitate the accuracy and repeatability of a motor driven slide, pneumatic and hydraulic drives can be employed.

Operating Specifications

It is critical to maintain proper lubrication in any application requiring linear guides or roller or ball bearings. In cleanrooms, the lube may need to be categorized as "permanent" and approved by the FDA, depending on the cleanroom class. It's also worth mentioning that the same seals that keep the bearing clean will keep the clean working environment clean as well. If nothing can get in from the outside, lubricants inside the bearing won't be able to get out either.

This is especially critical in harsher conditions like high-speed metalworking, where metalworking fluids used for cooling can enter poorly sealed linear motion components and tamper with, or even wash out, the lubricant. In addition to fortifying the seals in these machines, hard chrome plating of the parts, the use of corrosion-resistant steel types, lubrication changes, and other measures may be necessary.

Function of Linear Rails

Linear rails support and guide moving parts as they make a reciprocating linear motion in a specific direction. Linear rails are classified as sliding friction guides, rolling friction guides, elastic friction guides, fluid friction guides, and so on, based on their friction qualities.

Automation machinery, like machine tools supplied from Germany, bending machines, laser welding machines, and so on, employ linear bearings. Linear bearings and linear shafts are, of course, used in tandem. There is no need for transitional media between moving parts and permanent elements of linear guides, as there is with linear rails, which are mostly utilized on mechanical systems with high precision requirements. Instead, rolling steel balls are used.

The rolling steel ball can meet the working requirements of moving parts such as tool holders and carriages of machine tools due to its suitability for high-speed movement, low friction coefficient, and high sensitivity. If the force acting on the steel ball is too great, the steel ball will be subjected to the preloading time for an excessive amount of time, increasing the bracket's kinematic resistance.

Linear Rail, Fatigue, and Lifespan

How long a linear rail lasts is a frequently asked question among design engineers. It's a good question, and it might be the most important: A quick recap of how to compute theoretical life expectancy and a review of additional factors that could reduce it could be beneficial.

A linear bearing's theoretical or nominal life expectancy is always the best starting point because it represents the bearing's greatest conceivable lifespan. It's usually calculated in terms of how far something is. The theory published by Lundberg and Palmgren in Sweden (1974) calculates nominal life expectancy as a function of the load size placed on the bearing:

  • L = Nominal Life (100km for linear rails)
  • C = dynamic load capacity measured in Newtons (N)
  • F = bearing loading with/or summation of external force parts acting on the bearing (N)
  • p = exponent of the nominal life equation, depending on the rolling element type – ball bearing or rollers
  • p = 3 in the case of linear ball bearings
  • p = 3.33 in the case of linear roller bearings

This method depends on the Hertz theory of impact, which allows for the computation of the maximum surface pressure between two curved bodies. The dynamic load capabilities, which are dependent on the surface factors, are computed from this. The Nominal Life calculation for both guides and screws is based on the rolling bearings approach from DIN ISO 281.

However, even this calculation falls far short of determining how long a bearing will endure in a real-world application. As a result, DIN ISO 281 also specifies how to calculate what is known as "Modified Nominal Life Expectancy." The probability that a reasonably large sample of equivalent bearings operating under uniform conditions will accomplish or surpass the theoretical life expectancy before material fatigue is calculated using modified nominal life expectancy calculations, which apply a life expectancy coefficient to the formula above.

In this calculation, a 90% survival rate (the industry standard) is given a coefficient of 1, implying that a higher survival rate will result in a shorter life expectancy. As a result, the formula now reads:

  • Lna = life expectancy, modified (100km for linear rails)
  • a1 = coefficient of life expectancy
  • C = dynamic load capacity (N)
  • F = bearing loading with/or sum of external force parts acting on the bearing (N)
  • p = exponent of the nominal life equation, depending on the rolling element type as mentioned before
  • p = 3 for linear ball bearings
  • p = 3.33 for linear roller bearings

To put it another way, to assure a 99 percent bearing chance of survival, the Modified Nominal Life Expectancy is reduced to one-fifth of what you'd expect from a 90 percent life expectancy. These estimates are, of course, merely a starting point for evaluating how long a certain linear rail will last in real-world use. Environmental, operational, and installation circumstances are the three types of parameters that determine the projected lifespan of linear motion components.

Chapter 2: Types of Linear Rails

There are a variety of conceivable combinations that can serve a specific application, including different types of bearings, recirculating or non-recirculating designs, bearing contacts, race profiles, drive units, and precision controls. However, due to their simplicity, load-bearing capability, stiffness, and adaptability, several combinations stand out. These are always being engineered to match their desired use. Some of the most commonly used linear slides are listed below.

Dovetail Rails

These are linear rails with simple surface bearings that rely on lubrication and a low coefficient of friction. The dovetail-shaped protrusion that fits into an identical negative geometry gives them their name.

Dovetail Rails

The protrusion is normally on the stationary rail or foundation, while the carriage's negative is built into it. A dovetail table is a term used to describe this setup. Dovetail rails are tough, with the ability to endure radial and lateral loads. Large machine tools, such as lathes, shapers, and milling machines, are commonly utilized with these.

Boxway Rails

Boxway rails, like dovetail rails, are simple surface bearings. However, instead of a dovetail-shaped protrusion, these feature a square gib with T-shaped flanges at the top.

Boxway Rail

Due to the higher projected surface area in contact between the carriage and the rail, they can handle stronger loads than dovetail rails.

Sleeve Bearing Slides

This type uses cylindrical surfaces instead of a matching tongue and groove shape. Bushings and journals are the terms for these types of surfaces. The bushing is a hollow cylinder built into the carriage, whereas the journal is a lengthy shaft that serves as the base's guide rail.

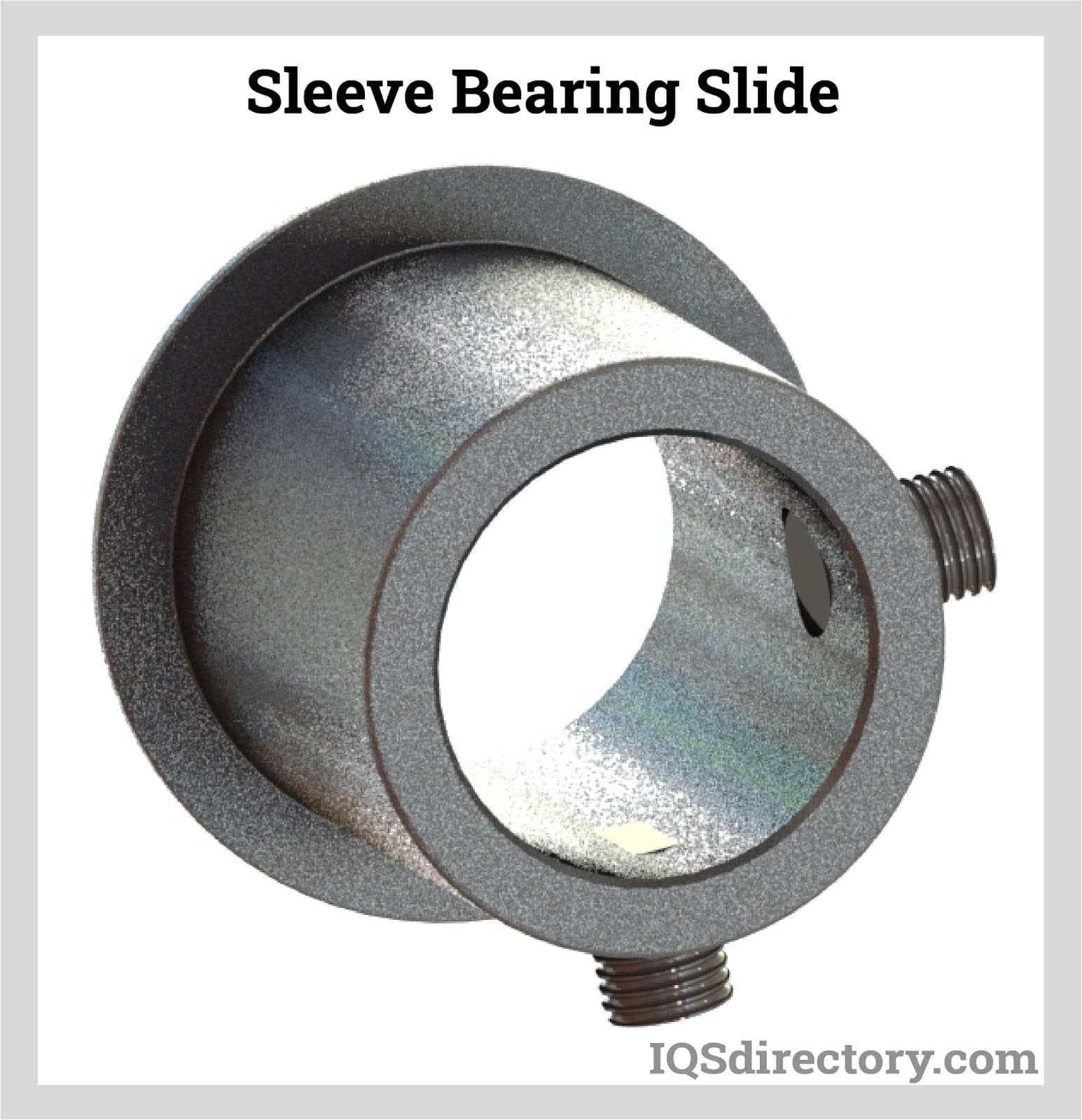

Sleeve Bearing Slide

The ease of use and capacity to handle weights applied in any direction are two advantages of using sleeve bearing slides. They are not as sturdy as dovetail and boxway slides, hence they are only suitable for light to medium weight applications.

Linear Ball Bushings

This type is analogous to sleeve bearing slides; however it employs ball bearings instead of simple bushings. Recirculating ball bearings are included within the bushings. The recirculation might be tangential or radial in nature. The return path of the balls in tangential recirculation is oriented from the side or tangent to the shaft. This allows for a more compact design. The return path in radial recirculation, on the other hand, is perpendicular to the axis. This enables for the installation of more weight-bearing rows, resulting in higher load capabilities.

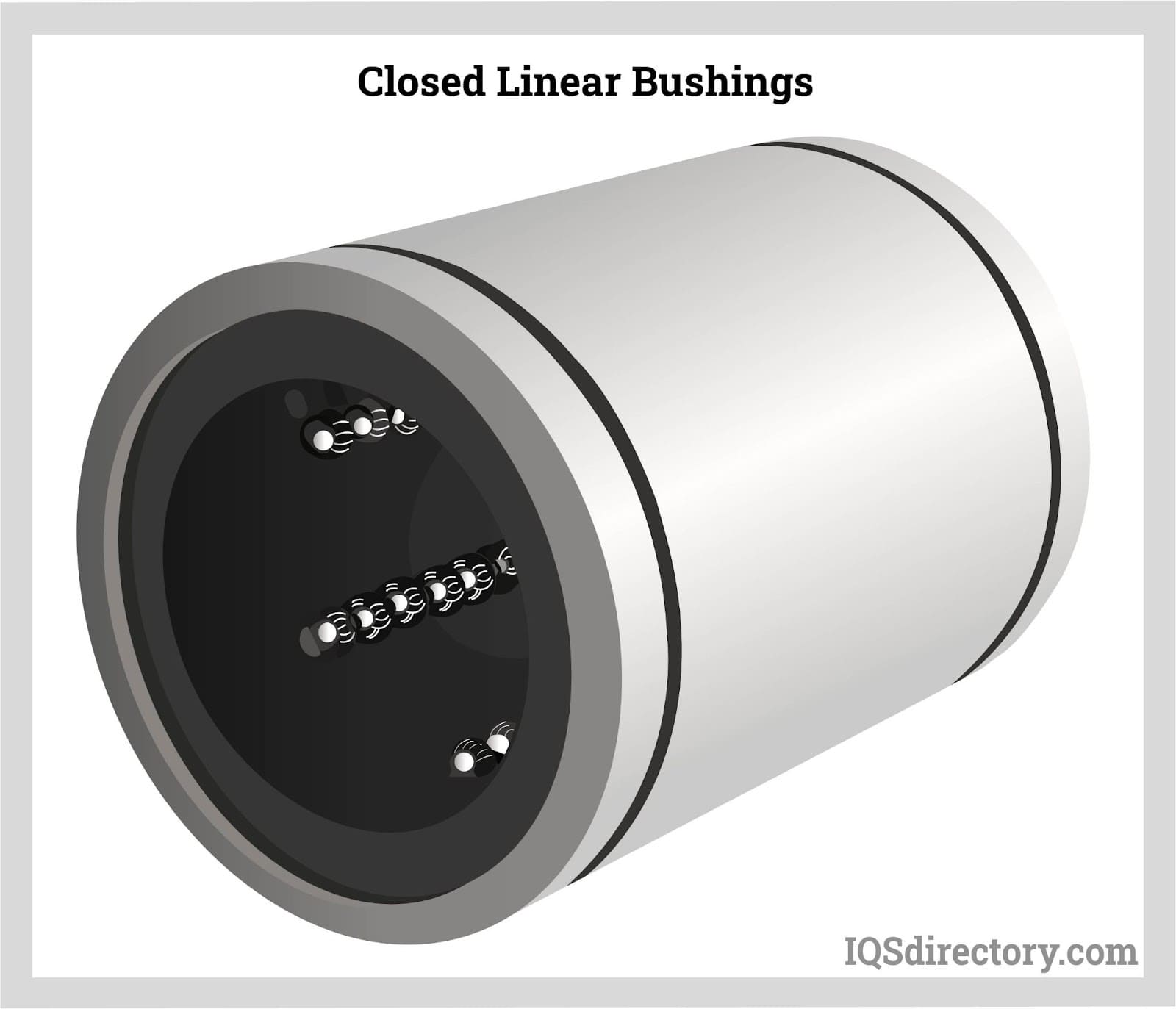

Closed Linear Bushings

Bushings are also classified by their form, which can be either closed or open. Closed bushings solely support the shaft at the ends, whereas open bushings offer shaft support from underneath. The presence of support beneath the shaft prevents shaft deflection when transporting heavy weights.

Linear Ball Rails

One of the most prevalent kinds of rolling element slides is this one. Linear ball rails are comparable to linear ball bushings, however they use a runner block instead of bushings. A return path for recirculation can also be built inside the runner block.

Linear Ball Rails

Linear ball rails are superior to linear bushings in terms of load capacity and adaptability. There is guide rail deviation since the races are immediately on the base. In addition, the race profiles can be designed in a variety of ways to benefit either load capacity or minimalism.

Crossed Roller Rails

This kind uses rollers that are aligned at 45° and 135° relative to the horizontal, as the name implies. The rollers can be arranged in a single row with 90° alternating orientations, or in many rows, each row perpendicular to the others.

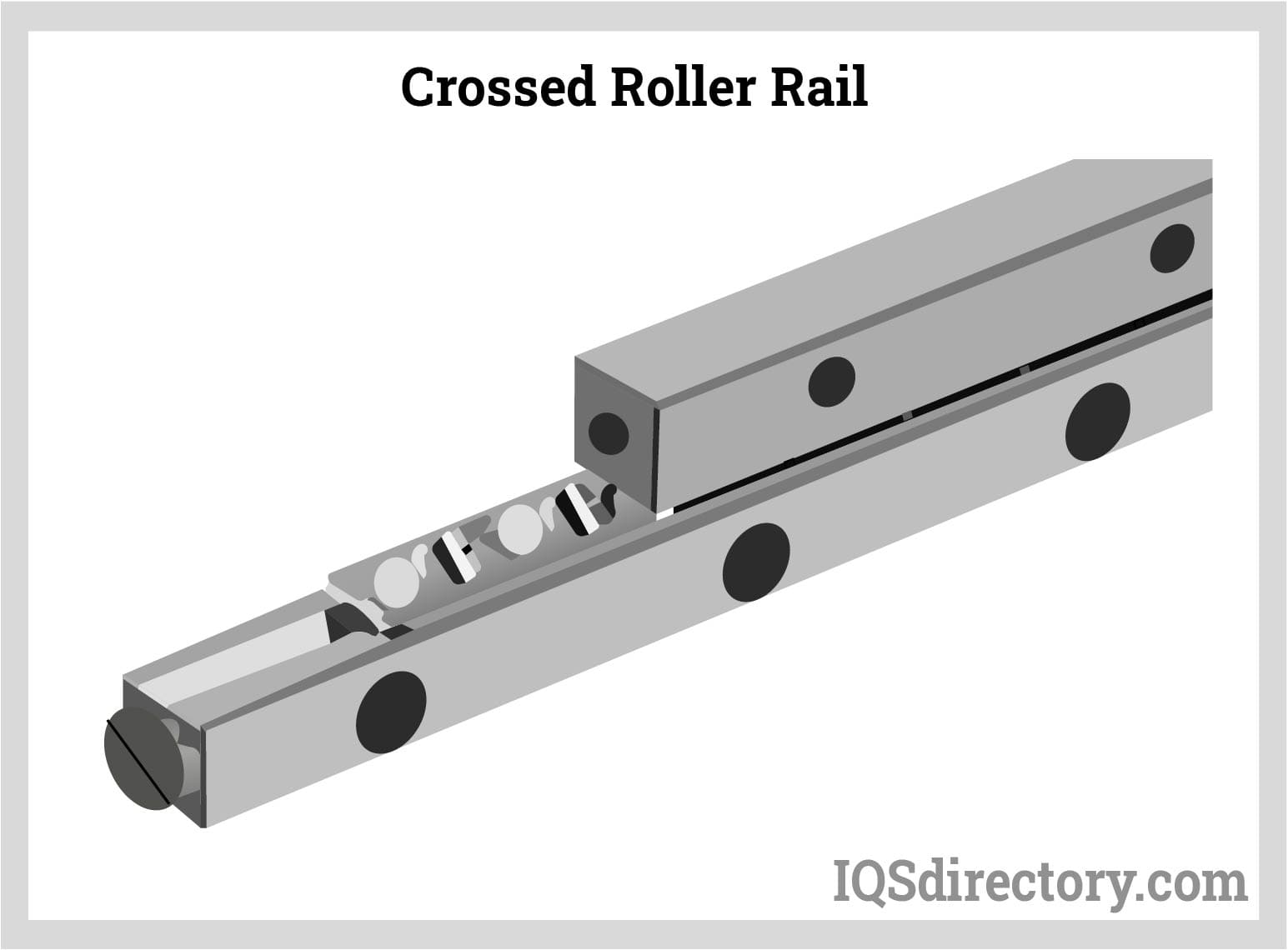

Crossed Roller Rail

Due to the larger contact area inherent in roller bearings, this type offers a higher load capacity than comparably sized ball rails.

Ball Screw Rail

This unique linear slide incorporates both ball bearings and power screws. The Acme profile of a common power screw drive engages the nut built into the carriage through sliding contact.

Ball Screw Rail

The introduction of balls as rolling element bearings in a ball screw reduces friction even more. The nut is designed to have a recirculation return passage.

Leading Manufacturers and Suppliers

GET YOUR COMPANY LISTED ABOVE

Chapter 3: Applications & Benefits of Linear Rails

This chapter will discuss the applications and benefits of linear rails.

Applications of Linear Rails

Linear guides provide a high level of travel accuracy due to the fine machining of one or both rail edges, which serve as reference surfaces. Stiffness is high and bearing block deflection is minimal with two, four, or six rows of rolling elements - either spherical balls or cylindrical rollers. All of these characteristics work together to provide a linear guide system that is ideal for applications requiring high precision, stiffness, and extended life.

Single Rail Applications

Even when only a single rail is utilized, linear rails can bear overhung loads because they feature load-supporting balls (or rollers) on each side of the rail. (When overhung loads are present, round shaft linear guides should be used in pairs.) Because of this functionality, many applications use a single linear rail to conserve space or avoid misalignment difficulties among other system components. Here are some applications that make use of a single linear rail.

Linear Actuators

Because of their ability to sustain moment loads, linear rails are frequently used as the guide mechanism for actuators driven by belts, screws, or pneumatic cylinders.

Single Linear Rail

They can also handle travel speeds of up to 5 m/sec, which is critical in belt and pneumatic systems.

Overhead Transport Systems

Linear rails are an excellent choice for guidance when weights are centered below the rail and bearing block, as is commonly the case with overhead transport systems.

High Capacity Overhead Transport System

Heavy weights can be conveyed thanks to their high load capacity, and the linear rail's rigidity serves to stiffen the entire system.

Gantry Robots

A gantry is distinguished by its two X (and occasionally two Y and two Z) axes. Individual axes are usually operated by a screw or a belt and pulley system and consist of a single linear rail.

Gantry

Even though each axis has just one linear rail, very good moment capacities can be achieved when two axes work in tandem (X and X', for example).

Dual Rail Applications

When there are substantial moment loads, linear rails can be employed in pairs to resolve the moment load into forces on the bearing blocks. The drive system can be positioned between the linear rails in this layout, making the total system exceedingly compact. The following are examples of dual linear rail applications:

Linear Stages

Stages are often quite precise systems, therefore travel accuracy and little deflection are critical.

Linear Rails Stage

Dual linear rails are frequently utilized to ensure that stiffness and bearing life are maximized, even when the load is centered on the stage with little or no moment loading.

Machine Tools

Machine tools, like stages, require extremely high levels of travel accuracy and stiffness in order to manufacture high-quality products. Deflection is minimized by running two rails in parallel - often with two bearing blocks per rail.

Dual linear Rails (Ball or Roller)

Machine tools are subjected to extremely high loads, therefore distributing the load across four bearing blocks extends bearing life.

Cartesian Robots

Because cartesian robots generally only have one linear system per axis, each axis must be able to handle significant moment loads. This is why most cartesian robot axes are made up of linear actuators with two parallel linear guides.

Individual Axes Using Dual Linear Rails (Ball Screw)

Robot Transport Units

Six-axis robots are ideal for applications that demand a lot of reach and rotation in different directions. Dual-rail systems, on the other hand, can operate as a "seventh axis," transferring the entire robot to a new position if the robot has to travel to another station or work area.

Robot Transport Units

The capacity to join several rails for very long trip lengths – frequently surpassing 15 meters – is a significant advantage of linear rails in many applications.

Benefits of Linear Rails

Linear rails are advantageous over other types of guide devices for a variety of reasons, but their load capacity, displacement precision, and rigidity are the most important.

  • Assembly is quick and straightforward; with a little practice, one can finish high-quality assembly in no time. Because the machine tool's accuracy is too high, the transmission mechanism's accuracy is determined. A wire rail and a screw are the most common components of the transmission mechanism. That is to say, the machine's accuracy is determined by the accuracy of the wire rail and the screw itself. They're all available as standard parts. As long as the manufacturer's recommended accuracy, there should be no major issues.
  • There are numerous options, ranging from the rail's structural form to its level of accuracy, lubrication method to load bearing capacity, processing method to running speed, and other factors. Machines can be set in whatever one chooses based on the exact conditions of the design.
  • The runner's pace is quick. Many machine tools now run at exceptionally high speeds, particularly at idle. This is largely attributable to the linear rail's credit, as the machine tool is protected by the rolling friction operation mode and high-precision processing. The processing efficiency and precision have substantially improved thanks to the accuracy and stability of high-speed operation.
  • High machining precision. Both the material and the production procedure have reached a benign controlled range as a linear rail, as a standard product. As a result, high-precision linear guides are used in most precision machining machine tools. This also considerably ensures the machine tool's machining accuracy as a machine tool guide.

Drawbacks of Linear Rails

  • Because of their high cost, linear rails aren't usually ideal for consumer applications like door guides and drawer slides. And linear rails necessitate extremely accurate mounting surfaces not only to reap the rewards of their high travel accuracy but also to prevent bearing block binding, which can result in shorter bearing life. In contrast to linear shaft systems, which can only be supported at one end, they must be fully supported. This means that a linear rail's initial cost is often greater than that of a round shaft or plain bearing system, as is the cost of preparation and mounting.
  • Linear rails' running qualities might also be seen as less smooth or "notchy," compared to other bearing types. Because of the contact between the load-carrying balls (or rollers) and the raceways, this happens. When the bearing block is moved along the rail, preloading a linear rail system, which is commonly done to increase stiffness, can exacerbate the impression of "notchiness." (As stress is applied to the bearing, this effect fades, although the perception often persists.)
  • The line rail, which is more susceptible to damage, must be protected during the shipping and assembly process.

However, the benefits of linear rails outweigh the linear rail's drawbacks.

Conclusion

Linear slides, also known as linear guides or linear-motion bearings, are bearings that allow for smooth, friction-free motion in a single axis. Linear slides use rolling element bearings, plain surface bearings, and magnetic bearings as its working principles. A linear slide's main components are the bearings, carriage, and guide rails. The linear motion guide system is made up of other parts such as drive units, sensors, controllers, lubrication systems, and others. Dovetail, boxway, sleeve bearing, linear bushing, linear slide, crossing roller, and ball screw slides are the most popular types of linear slides.

From a purely performance perspective, linear rails are the best. They offer greater precision, better mounting, and smoother motion and reliability. However other linear guides, including round shaft systems, plain bearing guides, and even crossed roller slides, may be suitable and less expensive for applications that do not require the load capacity, rigidity, or travel accuracy of a linear rail.

Leading Manufacturers and Suppliers

GET YOUR COMPANY LISTED ABOVE
