This article will take an in-depth look at spring latches.
The article will bring more understanding on topics such as:
Spring latches are mechanical devices engineered to fasten two parts securely, preventing unintentional movement or opening. By leveraging spring compression, they stay locked and are resistant to vibrations that might otherwise cause them to disengage. Typically constructed from rust-resistant materials, the latch arm guarantees both durability and robustness.
There are two main variations of spring latches: deadbolts and slam latches. Deadbolt types feature solid rods with blunt ends designed to fit into a corresponding hole on a door or cabinet frame. Slam latches, however, utilize an angled load bolt; as the door closes, the angled end makes contact with the edge or lip of the strike plate, sliding securely into a hole to lock the door in place.
The simplest form of a spring latch has an L-shaped bolt, referred to as a plunger, with a small hole for a pin or clip insertion. Designed with two notched lips on the back plate, it supports the plunger, while a spring placed between the pin and lips holds the plunger in its intended position.
Spring latches can be produced with several surface finishes, such as zinc plating, nickel plating, chrome plating, or a stainless steel tumbling process.
There is a wide range of spring latch designs, each intended to offer secure fastening when locked. Known for their stability, strength, and reliability, they are available for numerous applications and can withstand forces reaching up to 7,000 kg. Certain spring latches incorporate a handy quick-release feature, facilitating rapid and effortless access, advantageous for machinery and equipment applications.
The fundamental principle behind a spring latch involves a calibrated cam mechanism ensuring the latch remains firmly locked. A definite force must be applied to overcome the cam system. The handle’s length influences the needed force, providing adequate leverage for effortless latch unlocking.
Common materials for manufacturing spring latches include brass, aluminum, bronze, stainless steel, and iron. These materials are typically chosen for their exceptional quality and capability to withstand outdoor conditions. Durability is of utmost importance when selecting spring latches, and prices vary according to the chosen material.
Brass is a robust and somewhat heavy metal well-suited for exterior latches. Its classic or "colonial" style introduces a unique design element to either doors or machinery. Nonetheless, a downside to brass is its tendency to tarnish over time.
Bronze, a high-cost copper alloy, distinguishes itself with a dense feel and appealing finish. Aging gracefully, it generally doesn't require a protective powder coat. Moreover, bronze reduces the danger of chipping and the necessity for frequent refinishing.
While stainless steel and aluminum spring latches might appear similar, stainless steel is significantly heavier. Highly resilient, stainless steel resists bending, denting, or warping under intense pressure or extreme temperatures, making it an outstanding choice for durable latch applications, albeit at a higher cost. Stainless steel is inherently rust-resistant, albeit powder-coated versions offer additional protection in corrosive settings like coastal regions.
Spring latches commonly utilize two types of stainless steel: Stainless Steel 304 and Stainless Steel 201.
This variety is globally the most prevalent form of stainless steel due to its value and outstanding corrosion resistance. Composed of 16% to 24% chromium and at least 35% nickel, it also contains small quantities of carbon and manganese. The principal form of 304 stainless steel is 18-8 and 18/8, containing 18.5% nickel and 17% chromium. While resistant to oxidation from most acids, it can corrode in chloride solutions, which leads to localized corrosion or "pitting," compromising the protective chromium layers and attacking internal structures.
Stainless steel 201 is an alloy comprising chromium, nickel, and manganese, developed to lessen reliance on nickel. More budget-friendly compared to traditional chromium-nickel steels like 301 and 304, it substitutes nickel with nitrogen and manganese. Uniquely, 201 doesn't toughen through thermal treatment but can gain magnetism when cold-worked, despite being non-magnetic when annealed.

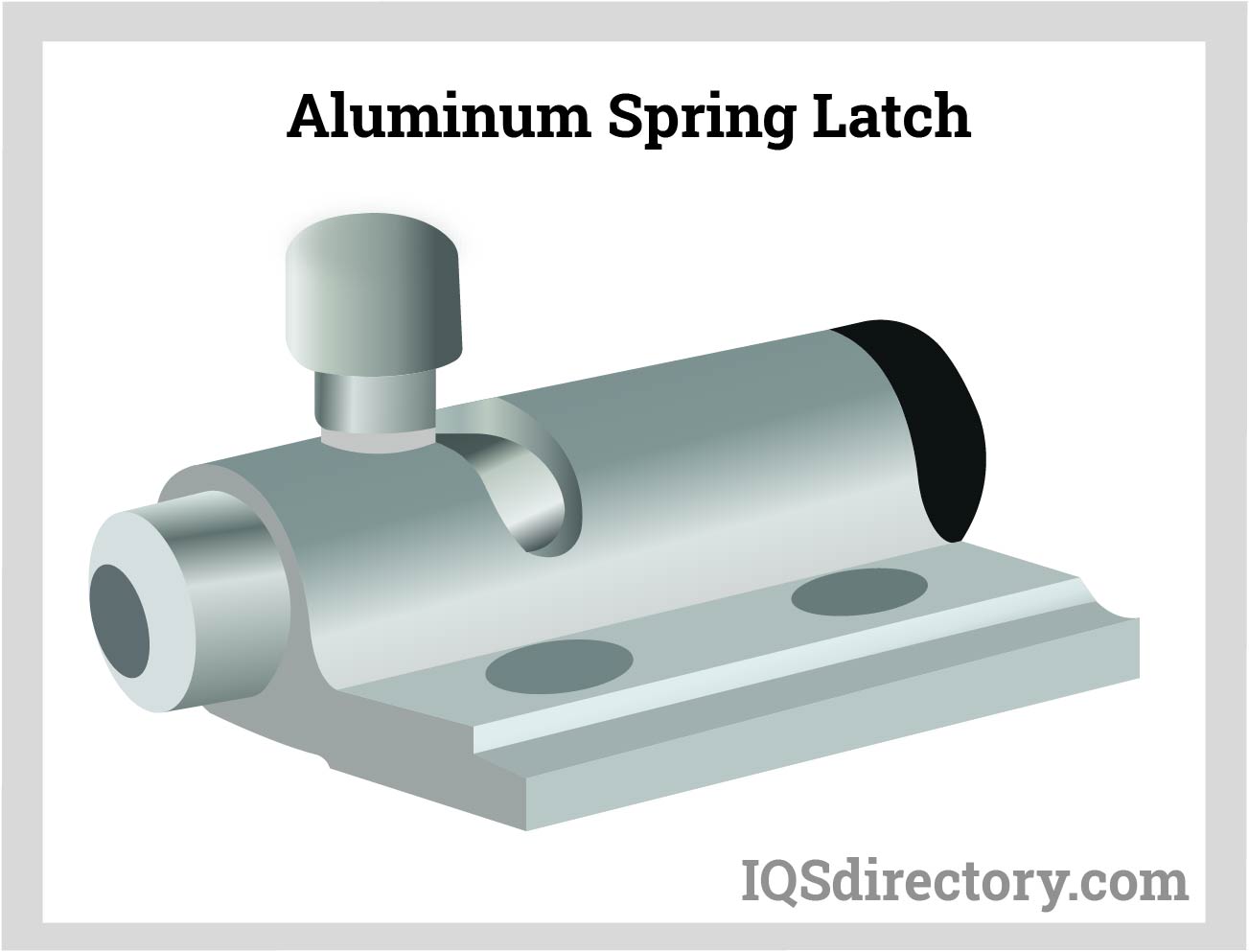

Aluminum, celebrated for its effectiveness and durability, offers impressive resistance to both corrosion and wear. Thanks to its lightweight nature and inherent corroded element resistance, it fits a broad spectrum of environments. However, aluminum spring latches are considered more brittle compared to iron ones. When anodized, it achieves a bright, shiny silver or satin finish, available in colors resembling bronze or bright brass.
Cost-effective yet functional, aluminum spring latches offer visual appeal and can suit a multitude of design aesthetics, from modern and antique to traditional and vintage styles.
Iron is favored for spring latches, especially for gates and doors, noted for its affordability and versatility across numerous styles, including traditional, antique, colonial, and old-world designs. Often coated with a powder-black finish to shield it from the elements, iron is fitting for areas with minimal corrosive exposure. Valued for its reliable durability and affordability, iron is a strong candidate for many uses.

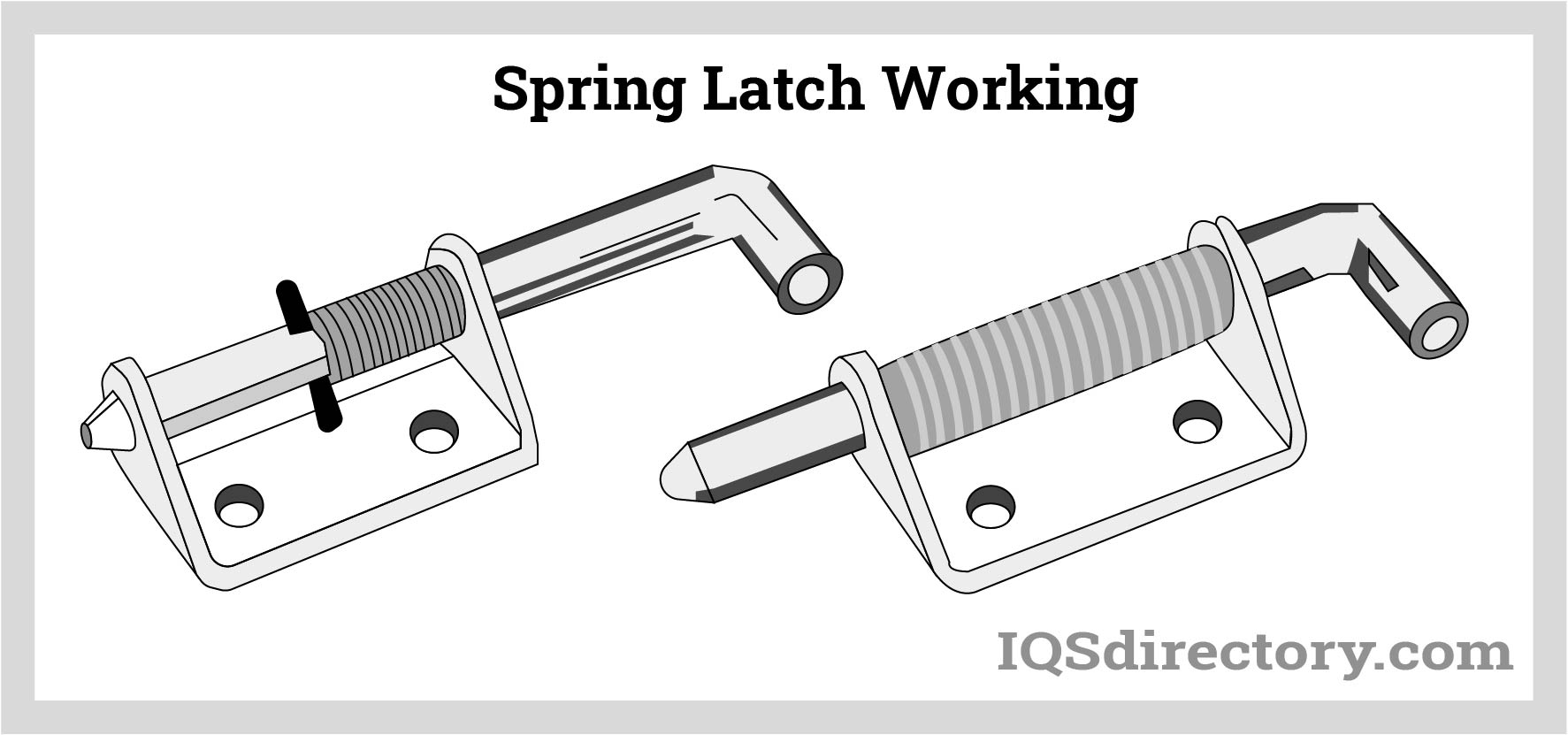

Upon pulling the bolt in a spring latch, the spring compresses, facilitating the bolt's release from its locked position. Once released, the spring decompresses, and the bolt returns to its original locked state. This operation parallels a pinball machine: inserting a quarter releases a ball resting on the bolt. Pulling the bolt enhances spring tension, and releasing it propels the ball to commence the game.

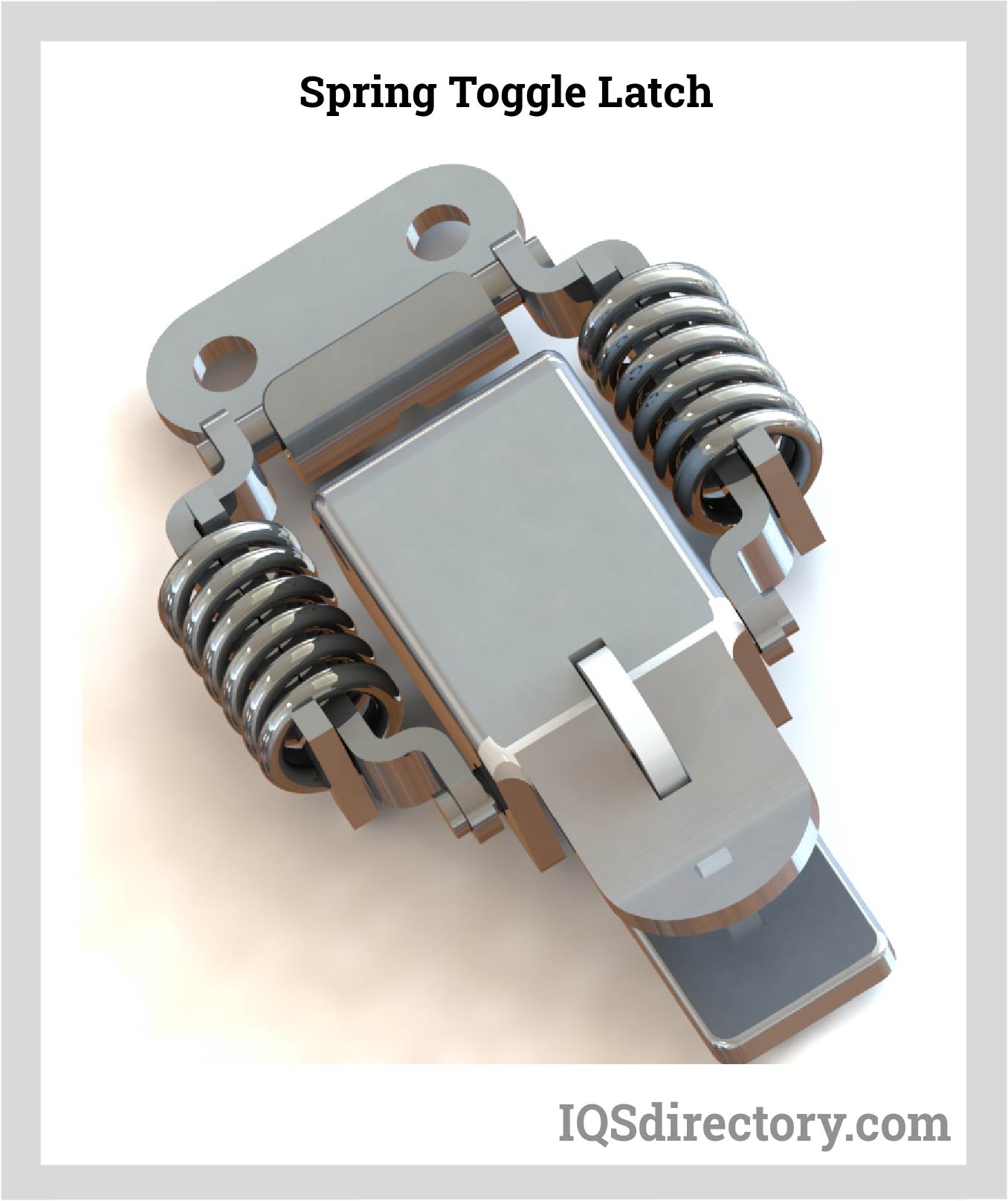

Spring toggle latches are frequently utilized across numerous industries due to their reliable and secure locking mechanism, making them a fundamental option in both light-duty and heavy-duty applications. Industries such as automotive manufacturing, specialized off-highway vehicles, transportation/trucks, ventilation and HVAC systems, farm and agricultural equipment, industrial machinery, electrical enclosures, and metal fabrication equipment all rely on spring toggle latches for dependable fastening solutions. Whether chosen for their ease of use, rapid installation, or vibration resistance, spring toggle latches and their robust counterparts—heavy-duty spring latches—are designed to maintain safety and durability under repeated use and environmental stressors.
Alternate terminology is often used to describe specific functional characteristics of spring toggle latches, and users may encounter any of the following related latch types:
To suit a wide range of functional and mechanical requirements, spring toggle latches are categorized by their ultimate tensile strength (UTS) into the following types:

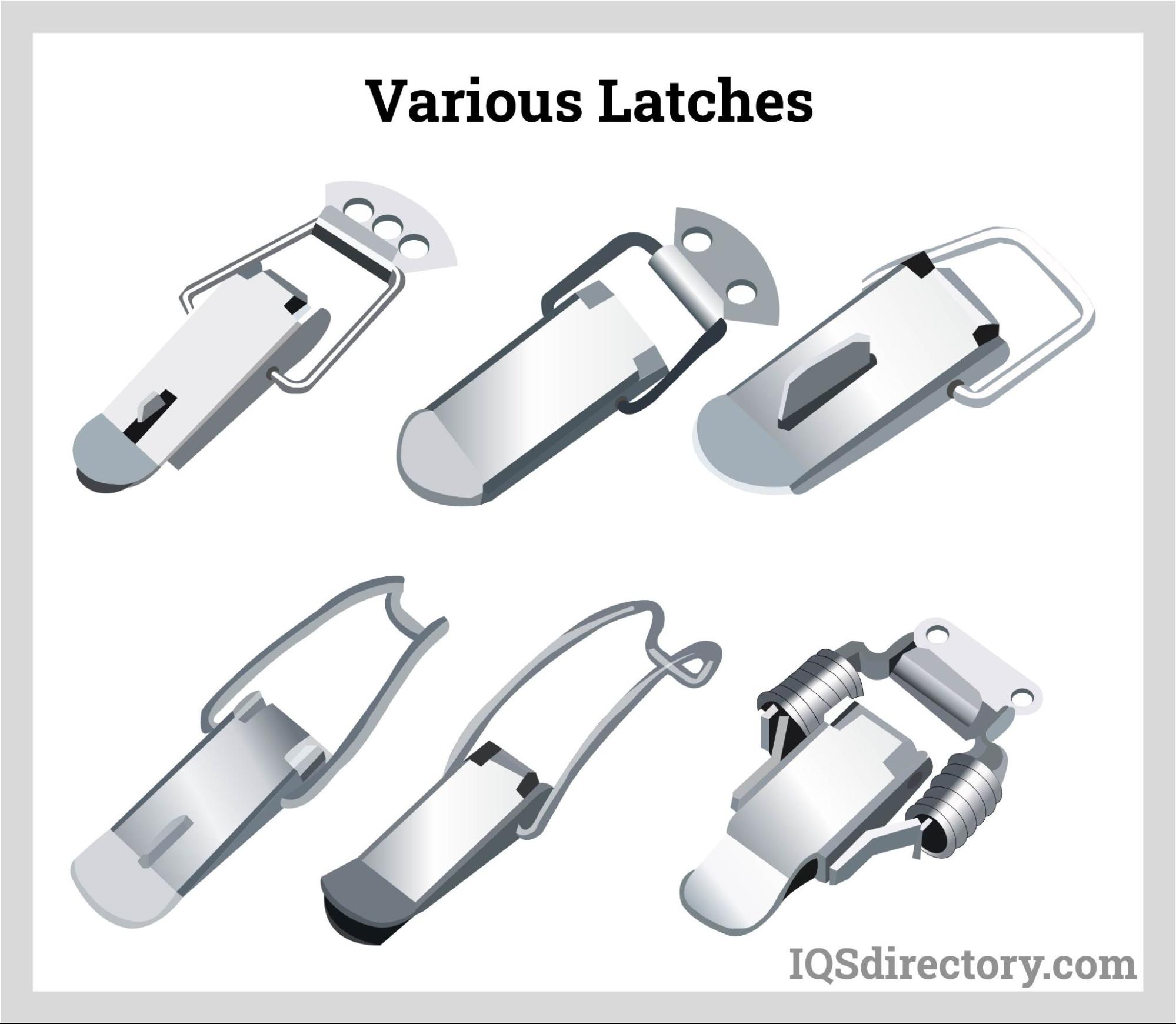

Beyond spring toggle latches, the spring latch family encompasses a variety of models to accommodate different installation needs, access requirements, and safety considerations. Selecting the right latch type is often determined by panel thickness, mounting orientation, environmental conditions, vibration resistance, and desired security features. These additional options include:
For high-security or tamper-resistant requirements, spring latches can incorporate advanced locking mechanisms to deter theft, prevent unauthorized access, and safeguard contents from accidental opening—especially in environments with frequent vibration or jarring movement. Locking features include:
Optimizing the locking angle of draw latches is vital for maximum holding force and vibration resistance. Ideally, standard draw latches function best when the attachment or keeper aligns with the mount base at a locking angle of roughly 15 degrees. This configuration ensures full engagement and maximum compression. However, if the keeper protrudes past the mounting surface, some force may be lost or transferred inefficiently, potentially requiring the use of a two-angle or custom-configured spring latch. For best results, the attachment hole should be positioned along the pivot’s centerline, and a contoured or multi-angle design may be required for extended alignment to maintain secure closure and prevent loosening—even in high-vibration or off-road applications.

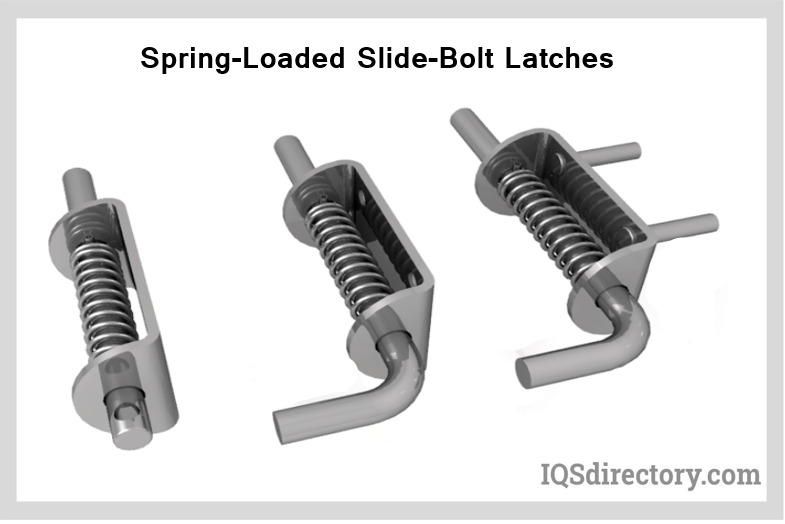

Spring-loaded slide-bolt latches are mechanical locking devices that use a spring-actuated bolt to automatically secure doors, access panels, gates, safety shields, and storage compartments. These latches remain securely engaged until the operator applies a pulling force to retract and release the bolt, allowing quick and effortless access. Spring-loaded slide-bolt latches are valued in industrial enclosures, electrical panels, and transport containers due to their straightforward installation, durability, and reliable performance under vibration and repeated use. They also offer tamper resistance and can be found in a variety of sizes and finishes to suit commercial, industrial, and residential hardware applications.

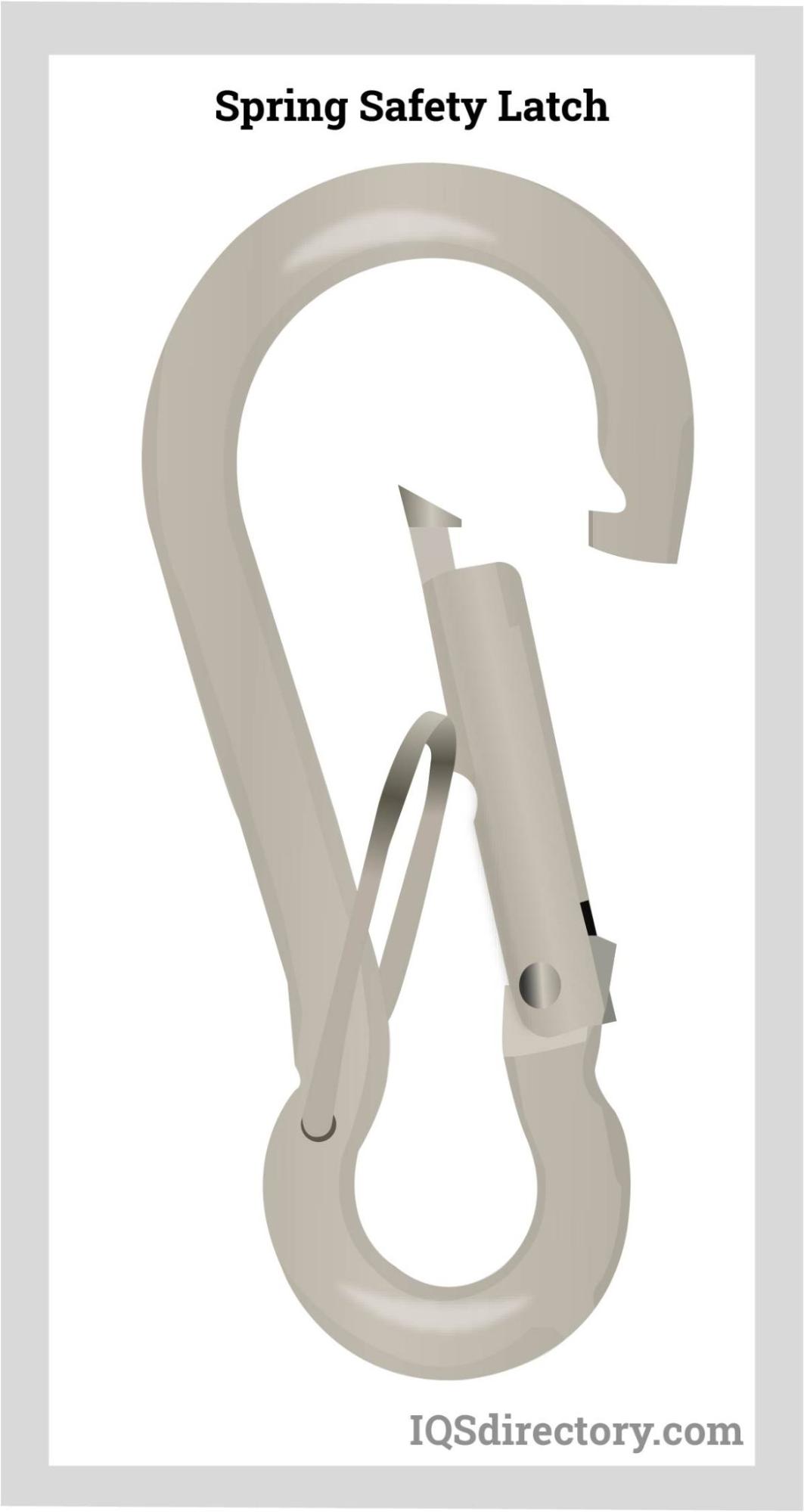

Engineered for enhanced safety, spring safety latches employ a hook-and-pinhole design, optimized for rigging, lifting, and load-securing operations in construction, marine, manufacturing, and material handling industries. These safety latches are crafted from corrosion-resistant stainless steel, making them suitable for harsh environments and exposure to chemicals or saltwater. Their robust mechanism prevents accidental disengagement and reduces the risk of the latch tip snagging on equipment or cables. Spring safety latches are compatible with most lifting hooks and hardware, playing a critical role in occupational safety and load retention. They are a top choice for operations that must adhere to OSHA and ISO load-handling standards.

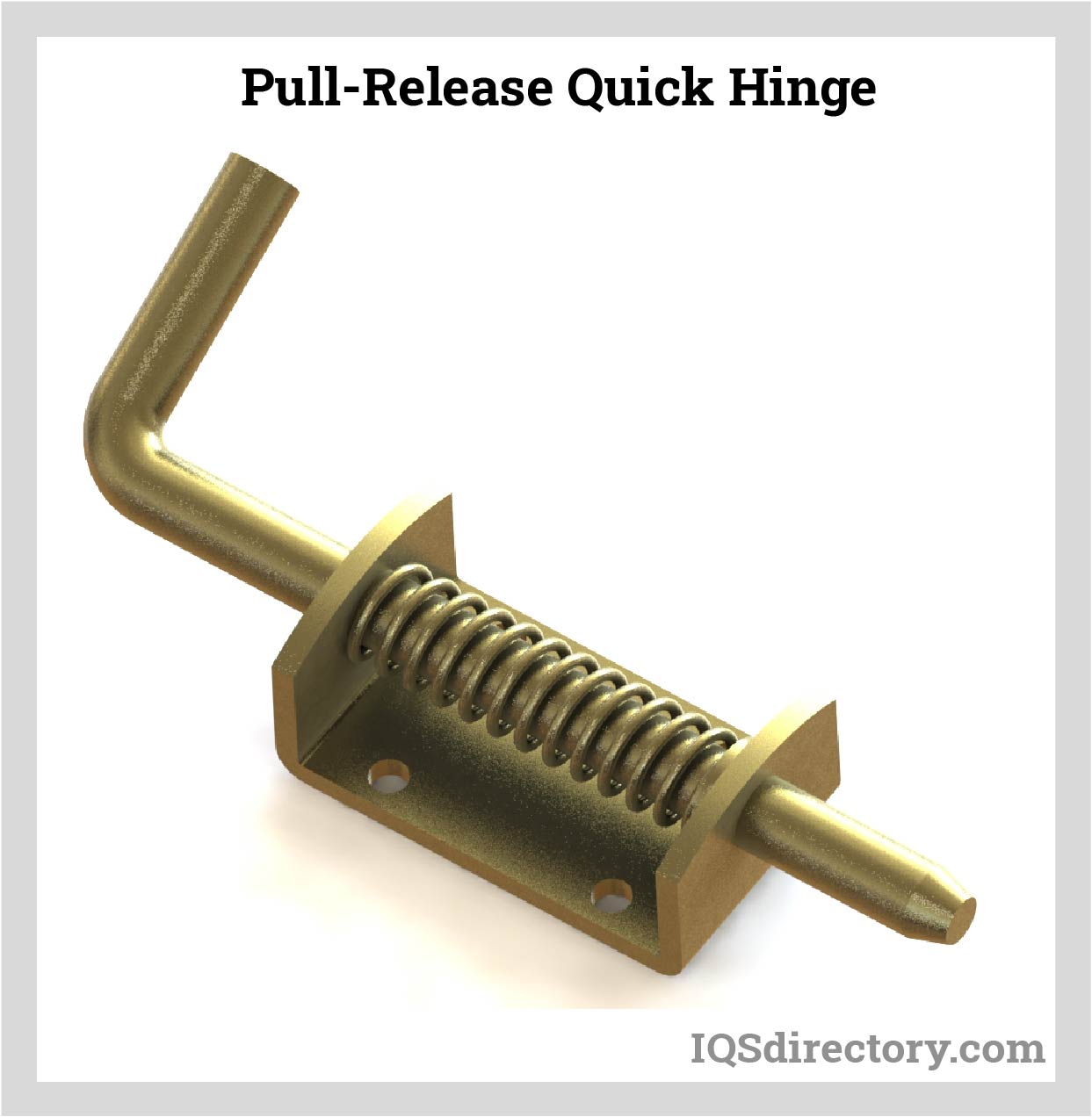

These advanced hinges utilize a spring-loaded pin mechanism: pulling the handle rapidly retracts the pin and disengages the door or panel, while releasing the handle allows for fast and automatic re-engagement. Pull-release quick-disconnect hinges are favored in electrical cabinets, computer equipment enclosures, industrial machinery covers, and other situations requiring regular removal and reattachment without tools. Their “pin travel” (the distance the pin must move for full disengagement) is a key specification, impacting hardware compatibility and ease of use. In addition to serving as hinges, these spring-loaded connectors are sometimes used as latches, combining flexible access with secure closure, making them an excellent choice for modular or maintenance-intensive systems.
Spring-loaded chain-grip slide-bolt latches allow for remote or awkward access to doors, access panels, or machinery guards by employing a pull chain mechanism. When the chain is activated, the spring-loaded bolt retracts, releasing the latch. This hands-free or extended-reach operation is ideal for maintenance hatches, industrial cabinet doors, storage closets, and utility panels located in hard-to-reach areas. These latches also feature 180° bolt rotation for compatibility with both pull and push applications and are reversible, enabling installation on either left- or right-handed doors.

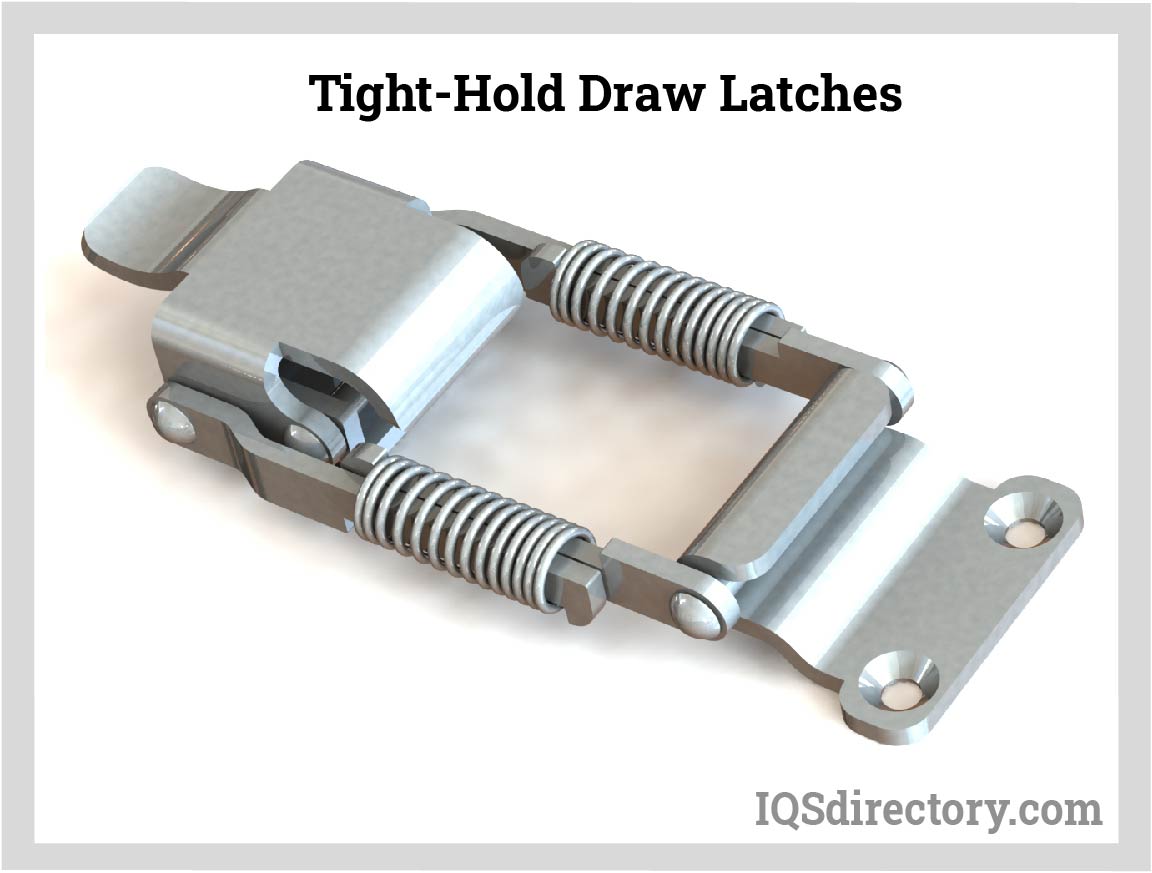

Tight-hold draw latches are engineered with integrated compression springs, making them ideal for applications where resistance to vibration and achieving a secure, rattle-free hold are imperative. These latches outperform standard draw latches by maintaining consistent pressure and locking capacity, which is critical for mobile equipment, industrial machinery, HVAC access panels, and heavy-duty toolboxes. In addition to withstanding frequent jarring, tight-hold draw latches are specified by both their maximum latch capacity (the highest retention force they can provide) and total length (including the strike plate), making them a versatile and secure choice for high-reliability closure solutions.
Corner-mount tight-hold draw latches are specifically designed to pull perpendicular surfaces together, securing corner joints with enhanced holding force. The use of compression springs delivers superior vibration resistance, a necessity in environments prone to shock and dynamic movement. Applications include industrial machinery, transport containers, HVAC units, and frames where joining two surfaces at a right angle is required. The overall listed length of these latches also includes the strike plate, which is critical for accurate fitment.

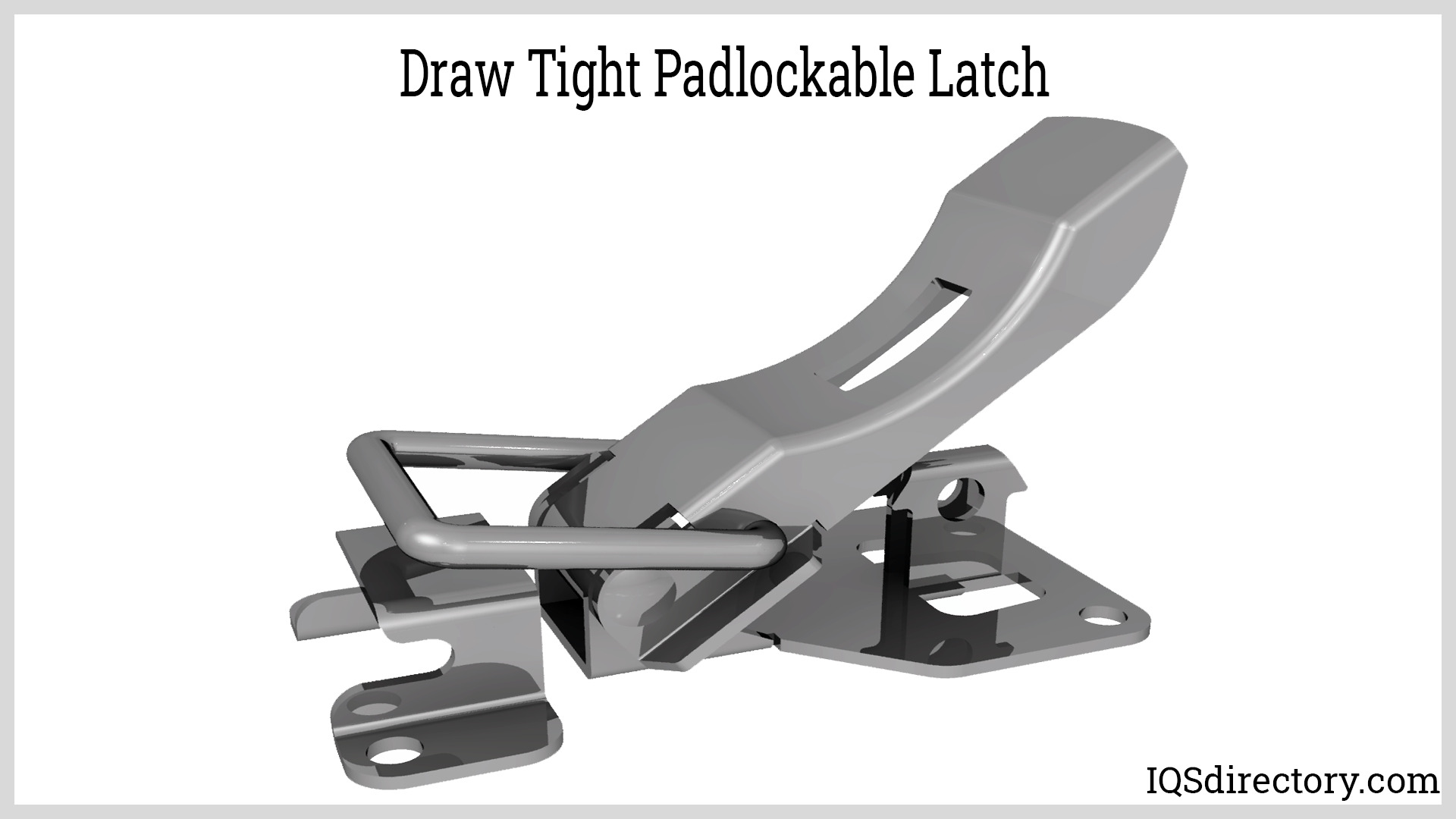

Combining compression springs with built-in padlock compatibility, tight-hold padlockable draw latches provide uncompromising security and high resistance to vibration. These latches are favored in environments where equipment is subjected to movement or tampering risks, such as trucks, tool chests, industrial enclosures, and secure storage units. The ability to add padlocks enhances tamper resistance and complies with security protocols for critical infrastructure or valuable assets.
Slam latches are spring-activated door hardware designed for fast, automatic closure—ideal for high-traffic or safety-critical installations. These latches, also known as push-to-close latches, use a spring-driven sliding pin and a notched catch to secure doors, panels, and access hatches automatically once they are pushed shut. The spring is preloaded, so when the door closes, the pin rides up the ramped notch and locks securely into position. This design eliminates the need for manual locking and is especially advantageous for emergency exits, warehouse doors, utility cabinets, and automotive compartments.
There are several slam latch subtypes, each tailored to specific user needs:
While paddle latches exhibit many similarities to slam latches, they are differentiated by their more complex and heavy-duty construction, with springs designed for constant load and a lever (or paddle) that actuates the lock. For applications requiring durability, longevity, and user safety, understanding the differences between these latching mechanisms helps engineers and purchasing managers specify the best fit for doors, hatches, compartments, and panels.
Spring latches, in all their variations, are comprised of key components such as leaf, clip, retractable pins, and springs. Their main advantage lies in the automatic spring-loaded retractable pin, which simplifies the opening and closing of doors, covers, lids, or gates and ensures reliable engagement. Industries spanning construction, automotive, manufacturing, and HVAC frequently specify spring latches for this reason.
Slam latches offer a self-engaging, push-to-close convenience that eliminates the need for a separate handle or manual locking mechanism. Particularly effective for swing panels or doors used in commercial, emergency, and industrial settings, the slam latch’s cam will engage a striker or press against a contacting surface, locking into place via spring force to ensure a secure and vibration-resistant fit. This hands-free security makes it desirable for quick-access compartments and safety doors.
Draw latches provide tension-based fastening—drawing surfaces tightly together and compressing gaskets, seals, or noise-dampening pads. Their two-part design, consisting of a base and keeper, creates a dependable closure with minimized rattle and vibration. Draw latches are distinguished by their broad utility for external applications on engine hoods, HVAC access covers, marine hardware, and even packaging transport crates, valued for their strength, versatility, and cost efficiency.
Sliding latches, either rotating or sliding in design, are attached to one surface, while a keeper fastens to the adjacent surface. The moving part—operated manually—slides or rotates behind the keeper to lock two surfaces together. Sliding latches are utilized in scenarios requiring less frequent access or greater control over force, such as gates, access doors, and storage cabinets. Design variations address different load-bearing needs and environmental exposures, offering material choices like zinc-plated steel, stainless, or plastic to suit interior or exterior conditions.
Cam or twist latches feature a cam lever and base. These latches are commonly selected to secure cabinet doors, access hatches, and machinery panels due to their straightforward operation and broad selection of mounting styles: flush, concealed, and surface mount. Options for customization include T-handles, wing handles, locking mechanisms, and compressible bushings for improved vibration resistance. Cam latches (also known as pawl latches) offer simple installation and are available in corrosion-resistant finishes, making them favored hardware for environments where both security and operational efficiency are vital.
The method by which a latch is installed significantly impacts its usability and security. Blind mounting uses fasteners that are inaccessible when the panel or door is closed, providing anti-tamper features and making the latch ideal for lockable doors. Many latch hardware manufacturers also offer hybrid designs where mounting screws are hidden by the closed latch, delivering comparable anti-theft protection as true blind mounts. Concealed latches, installed within drawer pockets, hidden compartments, or inside door frames, further increase security and minimize visual clutter. The two primary mounting options for spring latches include flush mounts—where the latch is recessed and virtually invisible when viewed from the exterior—and surface mounts—where the latch is visible and accessible for quick servicing or replacement. Choosing the right mounting style depends on desired aesthetics, frequency of maintenance, and security considerations for your application.
This chapter will explore the applications and advantages of spring latches.

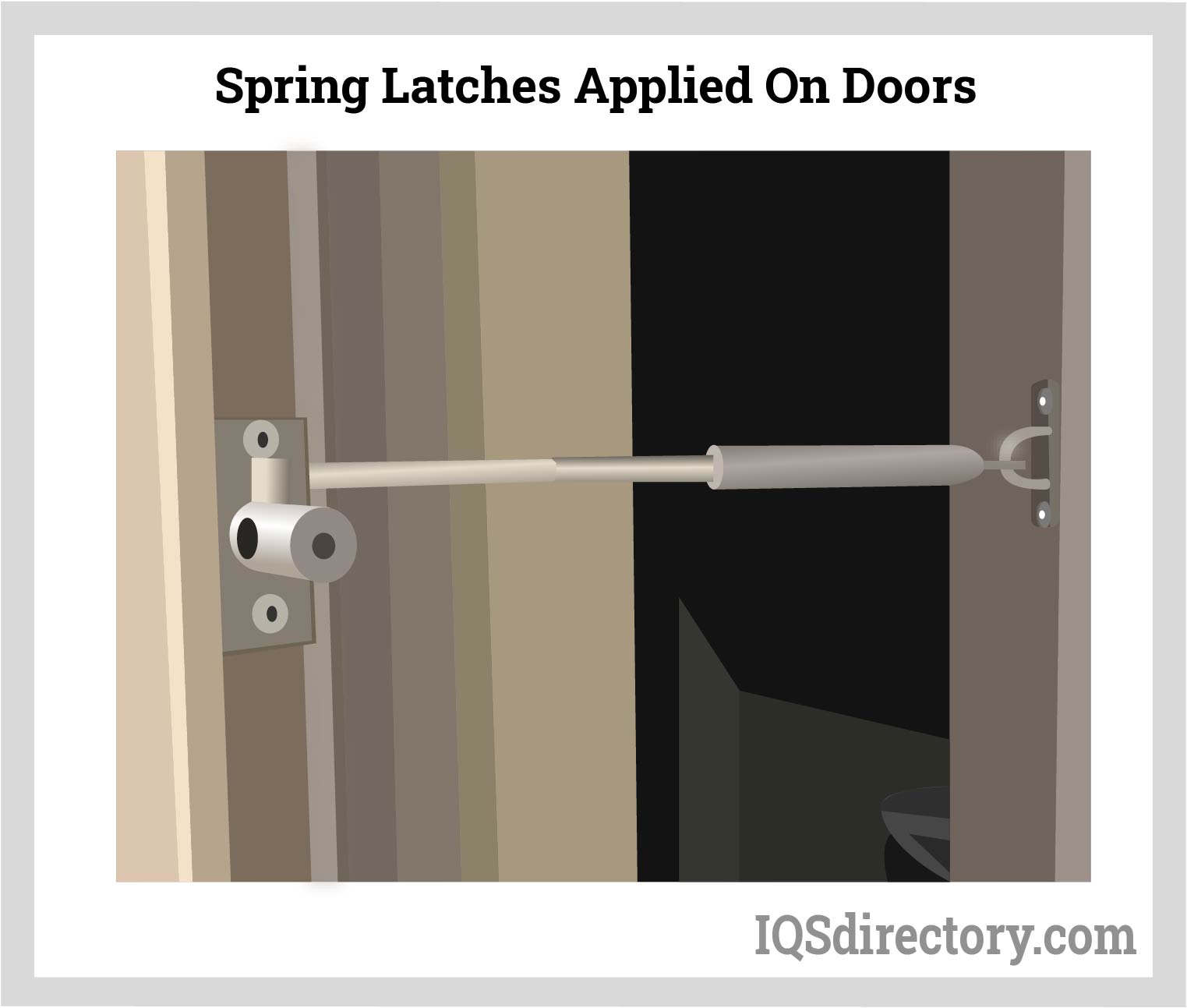

Spring latches are widely used in various construction applications, often found in openings and doors. They are integral to devices such as clamps, seat belts, retractable parts, and straps. Certain spring latch designs use springs to keep the bolt retracted, allowing for automatic extension of the bolt when needed. Common industries and applications include automotive and truck equipment, ventilation and air conditioning systems, industrial machinery, construction equipment, metal cutting tools, garden equipment, and machine tools.
Spring latches hold a workpiece and keep it fixed. Some of their benefits are:
Setting up a spring toggle latch is straightforward and efficient. These latches offer exceptional reliability during operation. Thanks to their effective design, they enable precise and rapid adjustments. The robust locking mechanism reduces the amount of material required for an application, significantly cutting down on overall work time.
Spring toggle latches can be customized to accommodate workpieces of varying heights. Over-center draw latches are designed to handle latching points and bases that are within 12 degrees or less, allowing them to settle into place securely. These latches provide reliable panel securing for a range of applications. They are especially useful when the catch plate must be attached to a flat surface or at an angle. The distance needed to engage the catch plate can be adjusted by turning the threaded screw loop. Adjustable latches are also available in aesthetically pleasing designs for applications that require frequent access.
There is a wide variety of spring latches available on the market. Among these, spring toggle latches are particularly diverse. Key differentiators include handle placement, design, and pressure ratings, which vary from one latch to another. They come in both manual and automatic versions and are offered in various finishes such as chrome, nickel, zinc, and stainless steel, enhancing their resistance to corrosion. These latches are designed with safety in mind, offering positive locking mechanisms that keep workpieces and tools securely in place, thus preventing accidents caused by loose grips or slippage. Many spring latches are capable of exerting significant force on the workpiece, which increases overall safety during use. Fasteners are commonly used to operate these latches, though frequent use can lead to muscle strain, fatigue, and increased wear and tear on the equipment.
The advantage of spring latches is their design, which facilitates safer maintenance and operation of equipment. This is because a single pull of the lever can activate all power latches simultaneously through a unified power circuit, simplifying the process and improving efficiency.
Spring toggle latches are designed to minimize physical strain during use, promoting greater efficiency. They are adaptable, which helps to mitigate strain-related injuries, fatigue, and other issues. Typically, these latches are manufactured from mild steel or 304 stainless steel materials.
Spring latches are ideal for use in applications that rely on latch mechanisms, such as machinery, HVAC systems, industrial enclosures, and cabinets. Available in various models, these latches are well-suited for packaging and industrial cleaning equipment. They offer manual operation and are excellent for secure locking and connecting two components. Their versatility makes them a favored choice for both hobbyist and residential uses.
Spring latches often contain several moving components that necessitate regular maintenance.
Vibrations can gradually loosen mounting hardware, potentially leading to its detachment. This can cause damage and leave the application exposed.
Spring latches must be protected from debris, dust, and moisture ingress. If not, the performance of the latches will suffer and they may not work as intended. Not only will the elements suffer, but security will be jeopardized. For door latches, the handle stows away when not used, avoiding catching skin or clothes.
For spring latches constructed from stainless steel, it's recommended to use a stainless steel finishing powder. This powder is compatible with most materials and can be easily mixed into a paste for application, requiring no specialized tools. To maintain optimal corrosion resistance, it's best to avoid abrasives and keep the latch clean. Although stainless steel is more resistant to rust compared to iron, it should still be repainted every two years to ensure longevity.
Spring latches hold two or more components together. A spring latch is locked with a spring compression so that it will not be released because of vibration. The arm is made of different rustproof materials to cater to the tightening strength. The latches consist of a barrel, compression spring, a plunger, and/or a coupler/split ring (or another pulling mechanism). There are various types of spring latches: spring toggle latches, spring-loaded slide-bolt latches, spring safety latches, pull-release quick disconnect hinges without holes, spring-loaded chain-grip slide-bolt latches, tight-hold draw latches, and corner-mount tight-hold draw latches. These spring latches can be made with different materials like bronze, iron, stainless steel, or aluminum.
