This article will take an in depth look at friction hinges and their applications.
In this article we will discuss topics such as:
A friction hinge offers resistance to the pivoting action of a hinge, enabling it to manage or maintain the movement of items as they open and close. Commonly known as free motion, positioning, torque, or free stop hinges, they ensure a specific tolerance between mechanical components.
Operating through torque generated by applying certain force levels, friction hinges introduce additional resistance via lubricants or springs. Often installed on both sides of a door or window, these hinges don't force the door or window to fully open or close but instead allow them to maintain a stable, fixed position.
Friction hinges are designed to hold their position for extended periods, customizable to meet specific needs, such as one-way or two-way classification. One-way hinges resist motion in one direction, whereas two-way hinges dampen movement in both directions. Moreover, friction hinges can be tailored to combine one-way and two-way resistance in a single unit, with customizable viscosity, temperature tolerance, and resistance attributes.
Both pragmatic and secure, friction hinges are ideal for machinery and equipment applications. They might also integrate additional features, such as lift assistance, to minimize the effort required for use.
The friction or torque strength of these hinges can differ based on their type, design, and internal makeup. Each torque hinge generally comes with a specified range of torque strength, characterized by a tolerance noted as plus or minus (±). Recognizing the torque or friction strength that a hinge can deliver is vital for its peak performance.
For efficient functioning, the torque strength of friction hinges should ideally be close to the lower end of their defined range. If the torque or friction surpasses this limit, the hinges might not provide a free stop nor sustain a fixed position unaided. On the contrary, if the torque strength is excessively high, the movable parts might become too rigid and hard to adjust.
Friction hinges, also known as torque hinges or adjustable hinges, are critical hardware components designed to provide controlled resistance in movement for doors, windows, and a wide range of industrial applications. These precision-engineered mechanical devices are typically manufactured from high-quality metal materials to ensure optimal durability, reliability, and long-lasting performance. Selecting the right hinge material is a vital consideration for both manufacturers and buyers, as it directly affects the hinge's load-bearing capacity, environmental resistance, longevity, and functional suitability for specific usage scenarios.
Different metals exhibit distinctive characteristics in terms of hardness, tensile and yield strength, corrosion resistance, rust resistance, machinability, and surface finish. These material properties are essential to consider when choosing hinges for various settings, especially for friction hinges that must securely support the weight and frequent movement of mounted panels. For instance, a friction hinge is designed to hold windows or doors—which can weigh between 1 and 10 pounds (0.45 to 4.5 kg)—in stationary open or closed positions without slippage or excessive wear.
Key considerations when selecting a friction hinge include:
The alloy or base metal chosen for manufacturing a friction hinge determines its optimal application—whether in residential, commercial, industrial, marine, automotive, or aerospace environments. As a result, specifying the correct metal is a foundational step in friction hinge design and purchasing. The most commonly used metals include cold rolled steel, stainless steel, aluminum, bronze, and brass. Each material offers unique advantages and suitability for different use cases, from corrosion resistance to weight optimization and cost effectiveness.
Cold rolled steel is an iron alloy processed at room temperature without the application of heat, creating a dense, uniformly smooth microstructure. This cold rolling method preserves the metal's robust physical properties while enhancing surface finish and dimensional accuracy. Friction hinges made from cold rolled steel deliver exceptional strength, durability, and abrasion resistance, making them a popular choice for heavy-duty cabinet, machinery, and industrial enclosure applications. However, cold rolled steel typically requires supplementary surface treatments or coatings (such as zinc plating or powder coating) to resist corrosion in humid or outdoor environments.
“Stainless steel” denotes a group of alloys composed primarily of iron, with at least 2% carbon and chromium. The key feature that sets stainless steel apart from other metals is its chromium content, which reacts with oxygen in the air to form a protective layer of oxidation. This makes stainless steel friction hinges highly resistant to rust, staining, and chemical damage, even in harsh or corrosive environments.

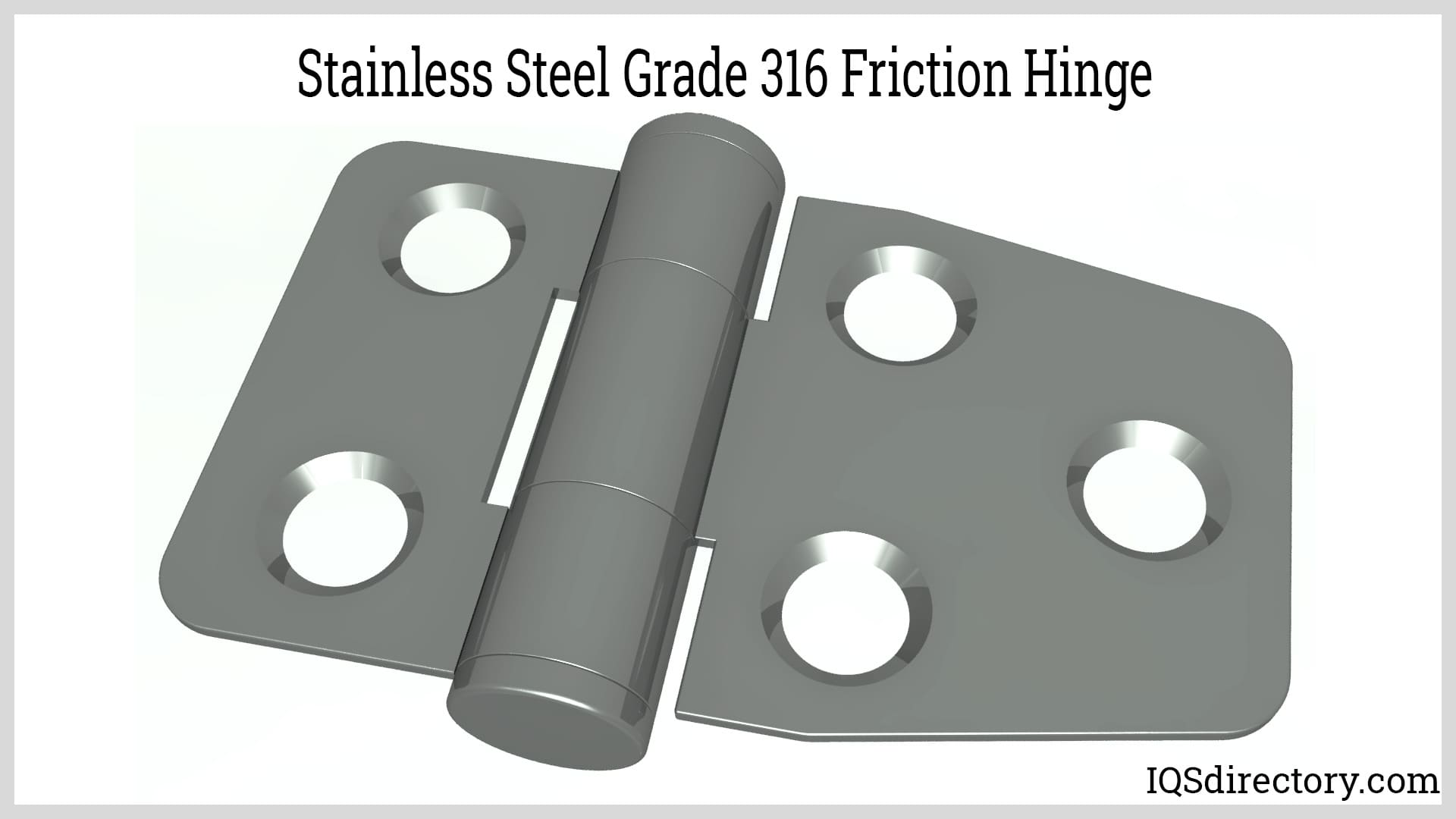

The proportions of chromium and carbon vary depending on the stainless steel grade. These variations affect the steel's properties, enhancing its resistance to corrosion, temperature fluctuations, and improving its weldability and formability. Two commonly used grades of stainless steel for manufacturing friction hinges are Grade 316 and Grade 18-8.
Stainless steel is highly valued in industries requiring food-grade hinges, medical equipment, marine hardware, outdoor architectural elements, and commercial window and door systems. Its versatility, rustproof nature, and low maintenance requirements make stainless steel a top choice for high-performance friction hinge applications.
In addition to its inherent corrosion resistance, aluminum offers several properties that make it an excellent choice for friction hinges. Notably, its exceptional strength-to-weight ratio surpasses that of many other metals. The lightweight nature of aluminum also facilitates easier installation and removal, making it highly sought-after for applications requiring reduced overall weight, such as mobile devices, consumer electronics, RV cabinetry, and aerospace panels.
Regardless of its light weight, aluminum has the same durability and strength as heavier metals. Aluminum hinges can withstand the required weight of connected doors and windows without cracking or experiencing strain damage.
Aluminum friction hinges often feature anodized or powder-coated finishes, which provide additional resistance to oxidation, UV degradation, and wear. They are frequently used in environments where both functionality and aesthetics are critical, such as architectural glazing systems, automotive components, or high-end furniture hardware.

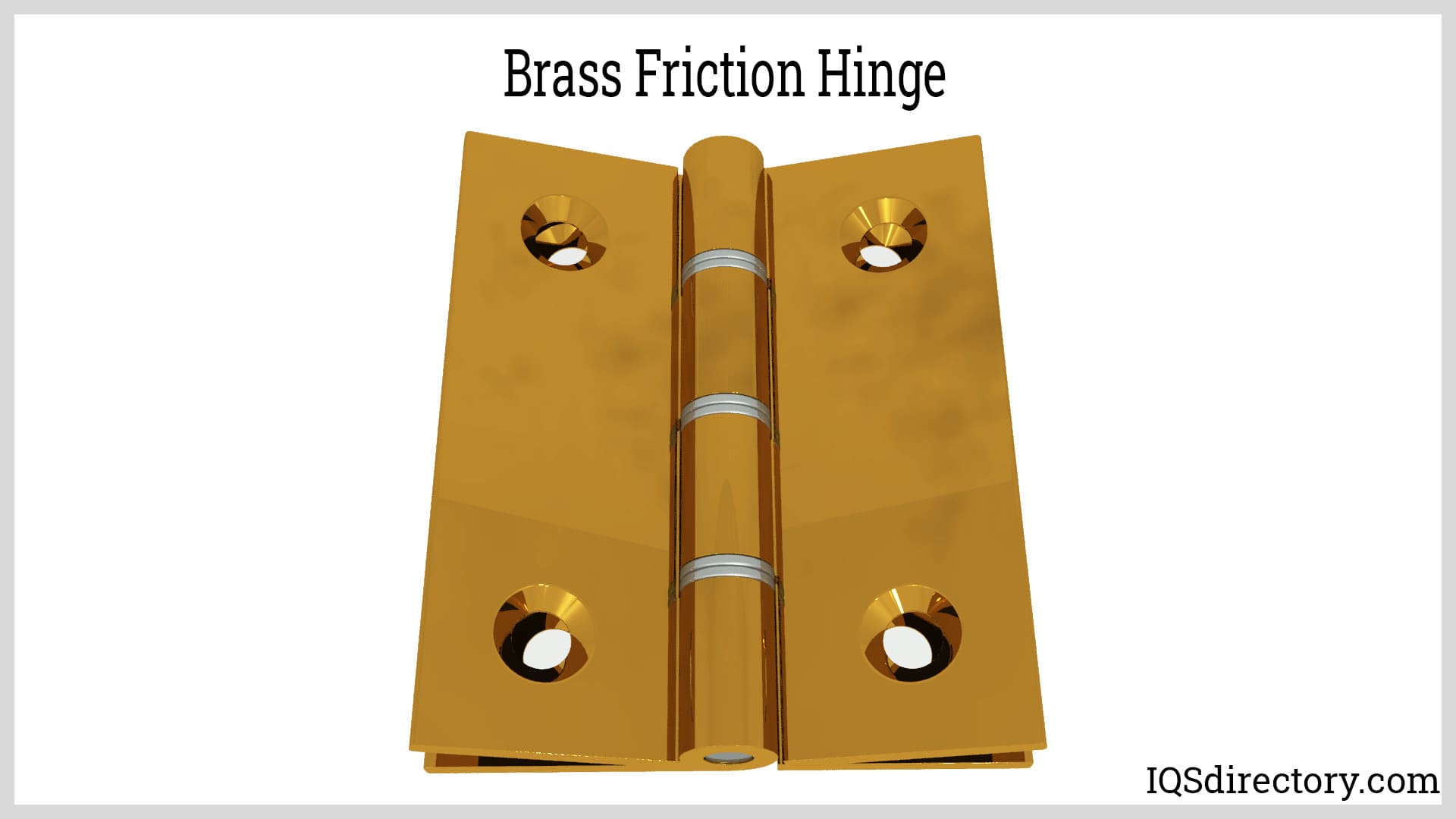

Brass is an alloy of zinc and copper. Modern brass is a combination of 67% copper and 33% zinc, with a 2% lead content to improve its machinability. Much like aluminum, stainless steel, and copper, brass is resistant to the effects of corrosion from saltwater, making it an ideal solution for friction hinges for boats.
Brass friction hinges offer a distinctive gold-toned finish and are often selected for decorative, high-end cabinetry, classic window fixtures, and marine-grade hardware. The innate antimicrobial properties of brass also make it a preferred material in healthcare, laboratory settings, and environments requiring hygiene and biosecurity.
Bronze hinges are known for their strength, outstanding ductility, and resistance to corrosion. They can endure friction from other metals without deteriorating. Additionally, bronze hinges offer an attractive aesthetic, which contributes to their higher cost compared to other types of friction hinges.
Due to their excellent resistance to wear and atmospheric conditions, bronze hinges are commonly used in outdoor installations, historical building restorations, and coastal properties where exposure to moisture and salt air can quickly corrode lesser metals.
Steel, an alloy composed of iron, carbon, and trace elements, is renowned for its strength, durability, and long lifespan. Due to its widespread availability, steel hinges are generally more affordable than those made from other metals. Consequently, steel hinges are used in a diverse range of applications and settings, from general-purpose furniture and door hardware to industrial machinery and construction access panels.
Different types of steel include:
Galvanized and hot rolled steel friction hinges are popular in agricultural, automotive, and infrastructure projects where robust mechanical strength and long-term value are prioritized.
When exposed to oxygen, titanium forms a protective titanium oxide layer on its surface. This oxide layer provides resistance to chemicals, corrosion, and rust, while offering impressive strength-to-weight and strength-to-density ratios. Certain grades of titanium have tensile strength comparable to steel but are significantly lighter.
Titanium is widely used in aerospace applications due to its exceptional strength and low density. Various grades of titanium exist, each with unique properties and suitable for different applications.
Titanium friction hinges are engineered to rigorous tolerance standards for use in industries demanding the highest performance—such as medical devices, military equipment, and specialized industrial automation. Although more expensive than other metals, titanium’s blend of ultra-high strength, biocompatibility, and lightweight characteristics cannot be matched for demanding hinge requirements.
When evaluating friction hinge materials, consider your main use case, environmental factors (such as exposure to moisture, chemicals, or salt air), required load-bearing capacity, desired appearance, and budget constraints. If you need corrosion-resistant hinges for marine or outdoor installations, stainless steel or brass may be best. For lightweight designs or electronic devices, aluminum and titanium stand out. For cost-effective performance in indoor environments, cold rolled or galvanized steel may be most appropriate. Consult with experienced friction hinge manufacturers and review technical datasheets to match product offerings to your application’s unique requirements. Understanding these material differences empowers buyers and engineers to make informed decisions, ensuring maximum lifespan, safety, and reliability for all hinge projects.
Friction hinges, also known as torque hinges or position control hinges, utilize an integrated mechanism that creates resistance, or friction, to control the pivoting motion between two surfaces. These specialty mechanical hinges are specifically engineered to maintain the position of lids, doors, access panels, displays, and windows—ensuring that they stay securely open, closed, or at a desired angle for convenient access and increased safety. By delivering controlled motion and holding power, friction hinges help prevent unexpected movement and equipment damage, elevating user experience in a wide range of applications.
The smooth, adjustable movement provided by a friction hinge minimizes required effort for operation while offering stable, reliable positioning. Their innovative design eliminates issues such as springback, hard slamming, or sudden closure of doors, windows, or display screens. By reducing accidental closures, friction hinges help protect both valuable objects and people. This advanced motion control feature provides seamless, consistent access to equipment, electronics, cabinetry, and other devices, enhancing functionality and user safety in environments such as homes, offices, healthcare facilities, and industrial machinery.
When a friction hinge is put into use, a rotational force (torque) is generated, which produces resistance to movement and functions as a controlled stopping mechanism. The three main types of friction incorporated in friction hinge construction are curl friction, disc friction, and pipe friction—each with unique mechanical properties that suit various industry needs, including electronics, automotive, furniture, aerospace, and medical device manufacturing.
Curl friction is produced by a spring steel sheet precisely wound around a shaft, which develops resistance due to the inherent elasticity and durability of spring steel. This allows the hinge to return to its original position without permanent deformation, making it ideal for high-cycle applications. Like other mechanisms, the curl friction assembly is enclosed within the hinge body for protection and performance. This method is popular in applications like automotive glove boxes and access doors requiring frequent movement without loss of holding power.
Disc friction results from the contact between rotating, disc-shaped elements and non-moving surfaces. As the hinge rotates, the fixed surface opposes the disc’s motion, generating consistent resistance. This construction is valued for its durability, fine adjustability, and precise position control, making it a frequent choice in monitor mounts, medical equipment, and point-of-sale displays where secure, incremental positioning is required.
Pipe friction involves the connection of closely fitting cylindrical components joined by force to achieve reliable alignment and holding strength. In a friction hinge, pipe friction is created when the shaft is compressed through hinge knuckles, producing resistance and stability. This method is favored in rugged industrial environments and heavy-duty enclosures, where long-term durability and resistance to vibration are necessary.
Torque is the driving force behind the friction mechanism that maintains doors, panels, or windows in a desired position. For optimal performance, the torque capacity of the friction hinge should match the weight and size of the application. Selecting a hinge with the correct torque specification is crucial to prevent premature wear, overloading, or insufficient holding force. To accurately determine required torque, multiply the object's weight by the distance from the pivot point to the center of gravity. For custom or irregular designs, such as “L”-shaped doors, consult with manufacturers or use engineering calculations to achieve precise results. Proper torque selection ensures consistent performance and extends product lifespan.
The longevity, or service life, of a friction hinge is dictated by the frequency and intensity of its operation—referred to as the cycle life. Factors including material quality, manufacturing precision, and appropriate torque levels all contribute to overall durability and operational reliability. Robust hinges designed with advanced materials can deliver millions of cycles, making them suitable for demanding environments and mission-critical applications.
A well-engineered friction hinge delivers reliable, uniform torque output over its service life. This consistency is vital for applications requiring repeatable, stable positioning. Look for products that feature internal lubrication, high-quality alloys, or composite materials to enhance operational smoothness and minimize wear over time.
Dynamic torque describes the resistance experienced during the rotation of the hinge. Maintaining stable dynamic torque ensures user comfort, controlled motion, and precise positioning. This is particularly essential for adjustable displays, device lids, and interactive panels subjected to frequent repositioning.
Static torque measures the holding strength exerted when the hinge is stationary. This attribute keeps a door, panel, or flap securely in place, preventing unwanted movement due to gravity, vibration, or incidental force. Regular inspection and maintenance help ensure static torque remains within the optimal range for your application.
Springback is the natural tendency of some hinges to revert to their initial position after the applied force is removed. This phenomenon can impact the usability and positioning accuracy of access panels and should be factored in when specifying a friction hinge for applications requiring precise, fixed positioning or controlled closure.
Free play refers to the small amount of movement before the hinge achieves sufficient torque and begins to hold the object firmly. Minimal free play allows users to adjust a door, flap, or display to the exact angle they desire. However, excessive free play can result in unintended movement or insufficient holding force. Leading manufacturers clearly specify acceptable free play tolerances for their friction hinges. Always review technical datasheets to confirm compatibility with your application's requirements.
The design and visual appearance of a friction hinge may be important for high-visibility installations, such as retail displays, premium appliance doors, or luxury furniture. In visible fixtures, hinges must be both functional and aesthetically pleasing—blending with surrounding hardware or product finishes. For concealed applications (like internal components of laptops or medical devices), low-profile or hidden hinges offer sleek integration without compromising performance or durability.
Environmental resistance is critical when selecting a friction hinge for use in harsh, corrosive, or outdoor environments. Materials such as stainless steel, zinc alloys, or specialty coatings deliver long-lasting corrosion resistance against moisture, chemicals, UV exposure, and extreme temperatures. Reference manufacturer guidelines to match hinges with the optimal material composition for your specific use case, ensuring compliance with industry standards and reliability over the long term.
With a wide range of sizes, materials, torque ratings, and mounting configurations, friction hinges can be tailored to suit virtually any application. Whether for kitchen cabinets, industrial enclosures, medical devices, or aerospace installations, manufacturers can collaborate with clients on custom engineering, advanced prototyping, and bulk production. Custom friction hinge solutions enable unique functionalities such as multi-axis rotation, damped motion, or anti-vibration performance. For specialized needs, discuss requirements such as load ratings, environmental testing, or certification with your hinge supplier. This tailored approach ensures precise functionality and maximizes usability, safety, and longevity in your application.
By taking these essential features and operational factors into account, you can select a friction hinge that optimally balances torque, durability, aesthetics, and safety. The versatility, adaptability, and broad range of material options make friction hinges an ideal choice for controlled opening mechanisms, where reliable position holding and smooth movement are required in diverse industries.
Friction hinges are available in various sizes, shapes, and torque levels, each suited for specific functions. Their distinctive and versatile characteristics make them ideal solutions for doors, flaps, panels, or windows.
The three prevalent types of friction hinges are one-way, detent, and adjustable. These hinges are designed to offer support and ease of use, ensuring both protection and convenient access for users.
For all friction hinges, torque is crucial for maintaining the position of an open device. In a one-way friction hinge, consistent torque is applied in only one direction, with no torque affecting the reverse movement.

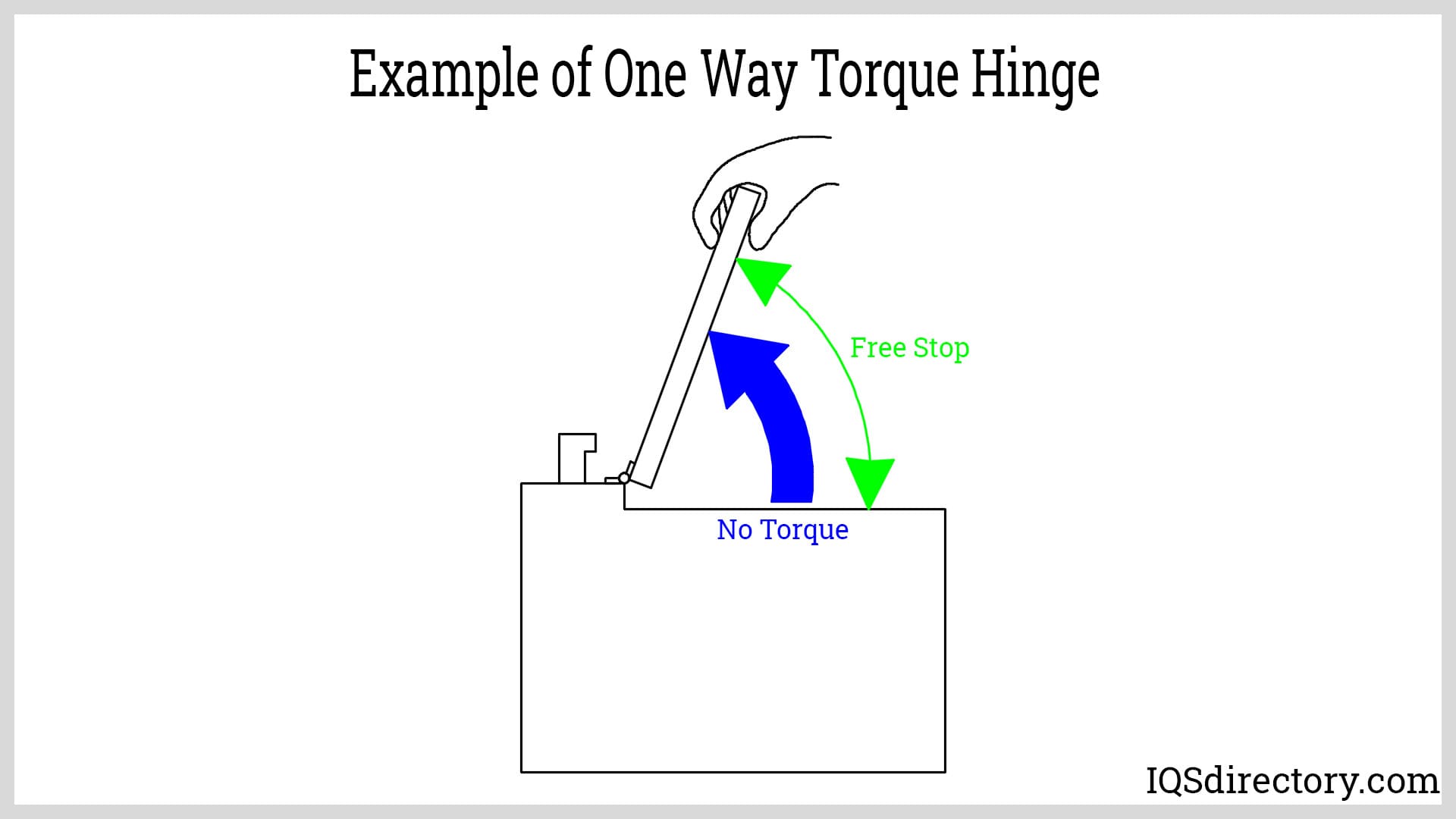

One-way friction hinges facilitate the opening of lids, devices, panels, doors, or displays, but they can make closing these items more challenging. This feature is particularly useful for managing large or heavy doors.
Detent friction hinges offer the advantage of keeping an opening securely closed to prevent springback and maintain the position of connected objects. Once a door or opening is set, it stays open and fixed in place. Unlike conventional hinges that allow for unrestricted movement, detent friction hinges restrict motion and keep the door or opening stationary, eliminating any potential for repositioning.
Similar to other hinges, detent hinges consist of two leaves and a connecting knuckle. The key feature that sets them apart is an embedded spring that applies force to secure the door or opening in its set position. When installed correctly, detent friction hinges address concerns about a door or opening moving or closing unintentionally.
Adjustable friction hinges allow for torque adjustment by turning a screw that rotates 180° at the top of the hinge shaft. Often called position control hinges, they offer the flexibility to define and modify the movement, operation, and placement of a panel or door. These adjustments can be made without incurring extra costs or requiring additional hardware or installations. Furthermore, adjustable friction hinges can be designed with concealed mountings for a sleek appearance.
For applications requiring a hinge that maintains its position despite applied force, a friction torque positioning hinge is the preferred choice. These hinges, sometimes known as free stop hinges, enable a lid or top to stay at a set angle.
Friction hinges can be customized with varying torque levels to suit specific needs, providing torque in any direction.
Friction stay hinges are variable torque hinges designed for security and safe operation of windows. They are adjustable hinges mounted on a slide to allow controlled movement of windows.
Standard Friction Stay Hinges are the most common and are used in most windows. They are designed in a way such that the movement of the window is restricted and controlled. These are used in storm-proof casement windows and uPVC flush windows.

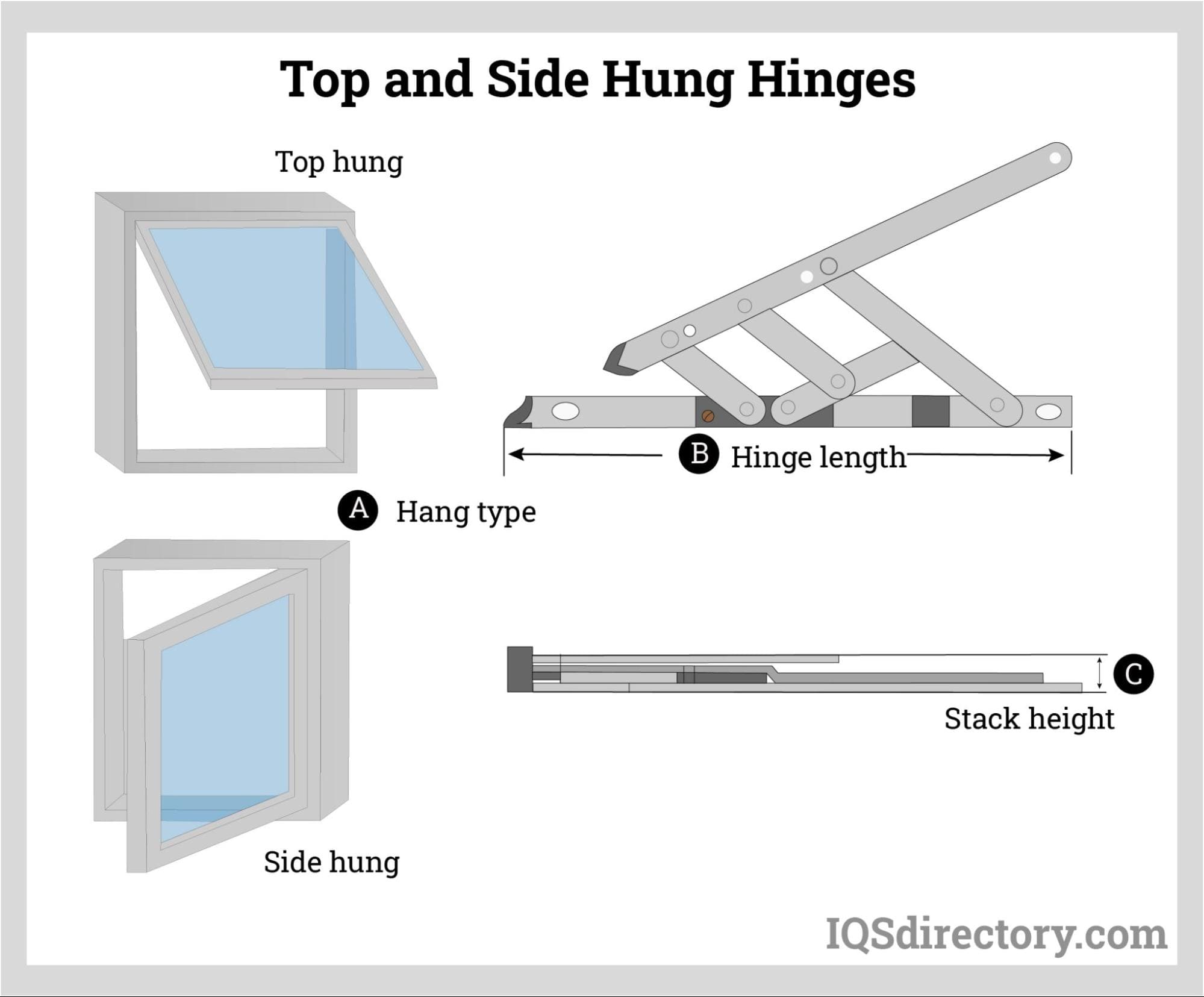

Top hung friction hinges feature a handle at the bottom of the window, with the friction hinge positioned at the top. The window opens from the bottom, with the hinge providing a springback mechanism to aid in the opening process. Windows equipped with top hung friction hinges are pushed outward from the bottom.
Top hung hinges are adjustable in size to fit different window dimensions, ranging from 8 to 24 inches (20 to 61 cm). They are typically made of stainless steel with a thickness between 0.1 and 0.2 inches (2.6 to 3 mm). These hinges are suitable for use with both double-glazed and aluminum windows.
Side hung friction hinges are engineered to allow a window to open in a manner similar to a door. The handle is located on the side of the opening, with the hinges positioned at either the bottom or top. This design enables the window to open from the side like a door or from the top like a hatch.
Torque or friction hinges are sometimes referred to as constant torque hinges, where the leaf and pin maintain the hinge in a fixed position. These complex, specially-designed hinges come in a wide variety of configurations, each tailored to meet the specific needs of various applications.
Among the many types of friction hinges, the constant torque hinge is the most fundamental. It can be opened to any position and will hold that position until a sufficient force is applied, unlike other models that are designed to remain at a preset angle.
The SB-188 series offers a torque range from half an inch-pound to 14 inches-pound. It is commonly used in medical equipment, small LCDs, lids, covers, and safety guards.

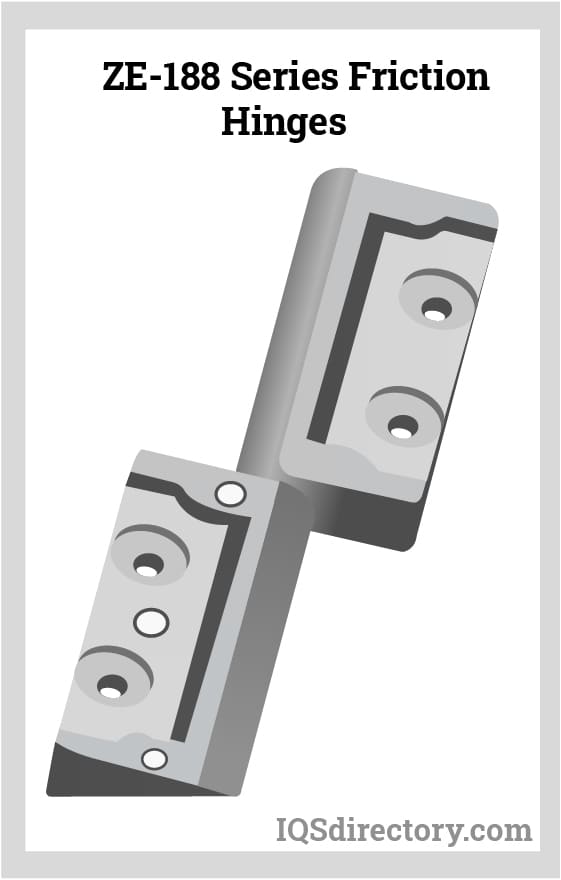

The ZE-188 model series features both balanced and unbalanced torque configurations, available in right- and left-hand versions. It offers torque ranges from 1 to 8 inches-pound, with a slim profile and robust mounting geometry.
The ZC-188 series friction hinge offers a torque range from 3 to 8 inches per pound and features a closed housing. Similar to the ZE-188, it comes in both balanced and unbalanced torque configurations. It is constructed from various materials depending on the manufacturer and boasts a 30,000-cycle lifespan.

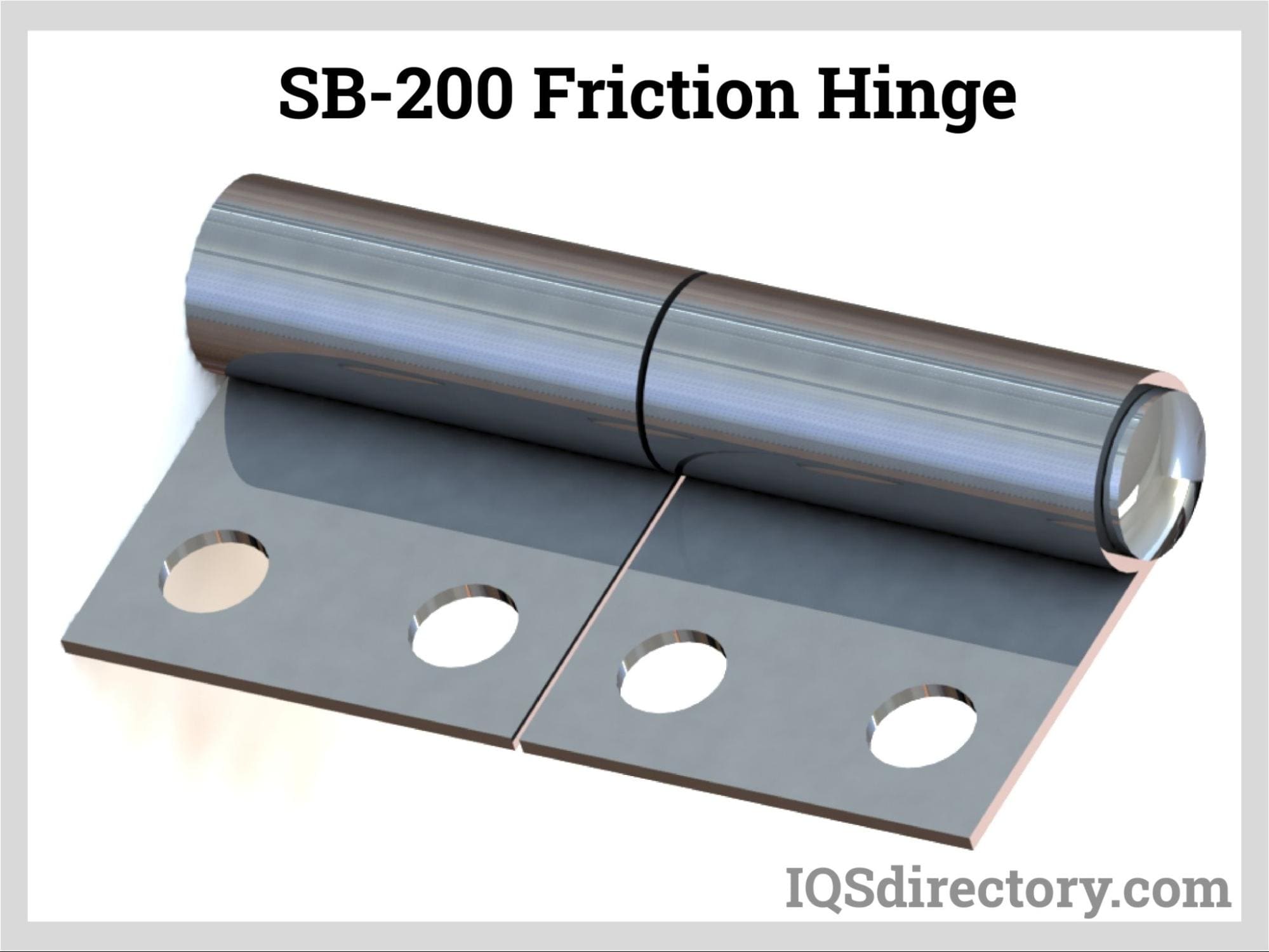

The SB-200 series provides a torque range from 3 inches per pound to 20 inches per pound or more. It is commonly used in headrests, medical devices, lids, covers, and LCDs. The SB-200 series hinge offers high torque in a compact design.

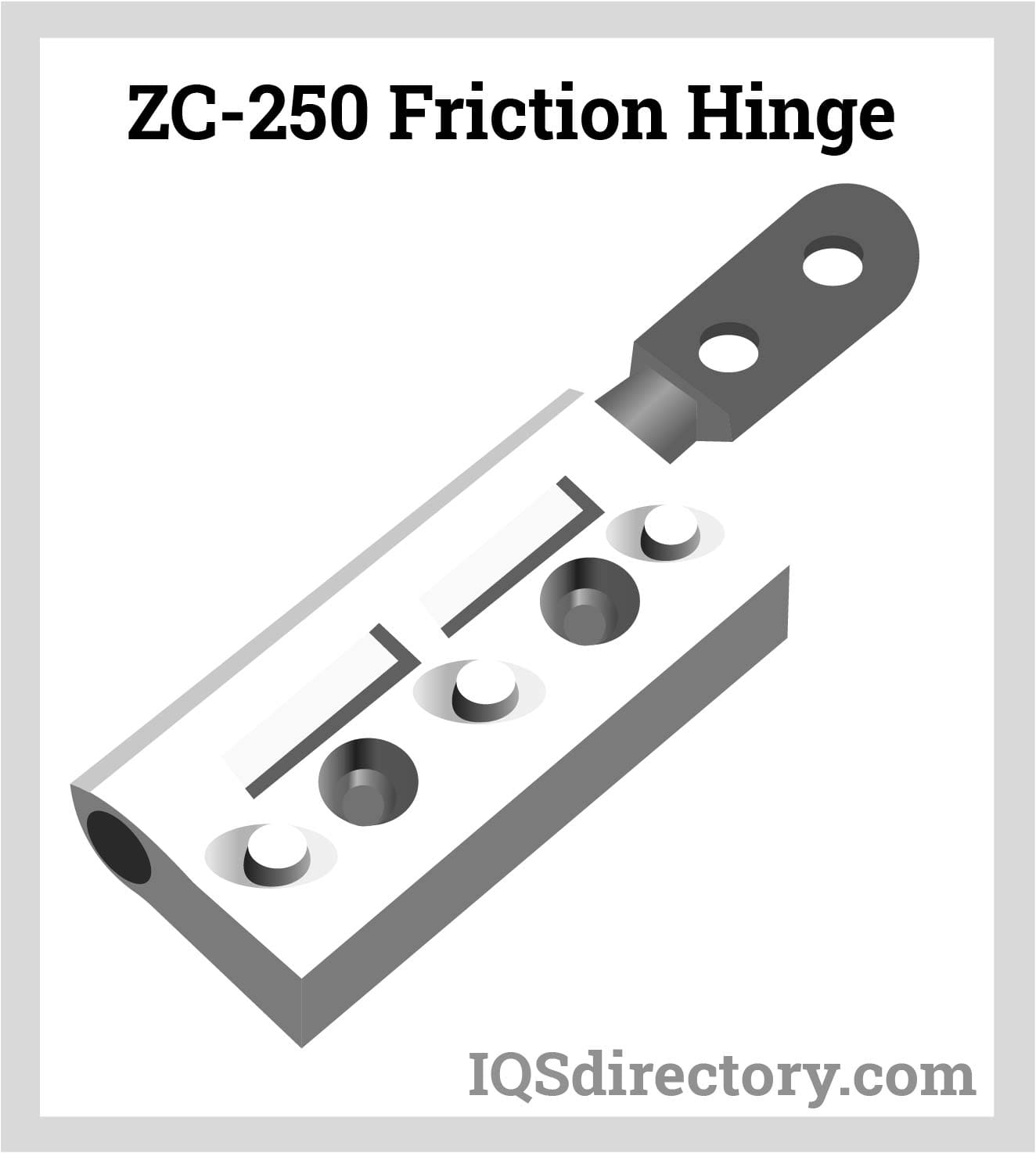

The ZC-250 series offers a torque span ranging between 5 inches and 17 inches per pound. This series features a uniquely coined and bent shaft design. It boasts a durability of up to 30,000 cycles and allows for continuous 360° rotation, holding its position precisely at any point during the rotation.

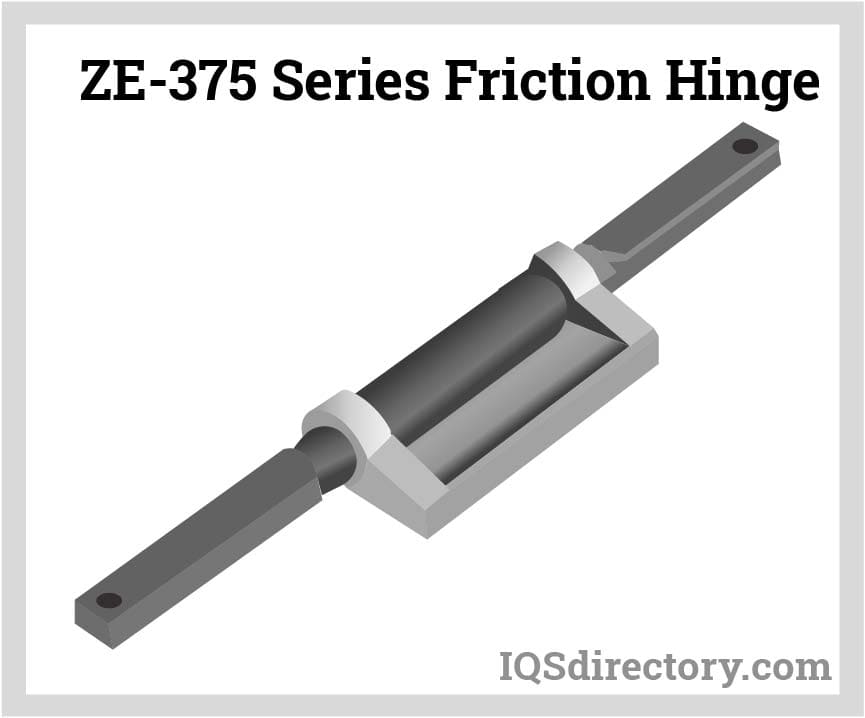

The ZE-375 series features a torque range from 10 inches per pound to 120 inches per pound, depending on the specific model. It offers options for either one-way or centralized torque configurations and can accommodate both left- and right-hand openings. This series is commonly employed in applications such as arm supports, headrests, medical apparatuses, lids, and covers.
The SB-500 series offers various torque ranges tailored to different hinge models, spanning from 20 to 70 inches per pound. This series finds applications in medical equipment, LCD screens, headrests, and arm supports. The SB-500 hinges are known for their compact size while delivering a robust torque range.

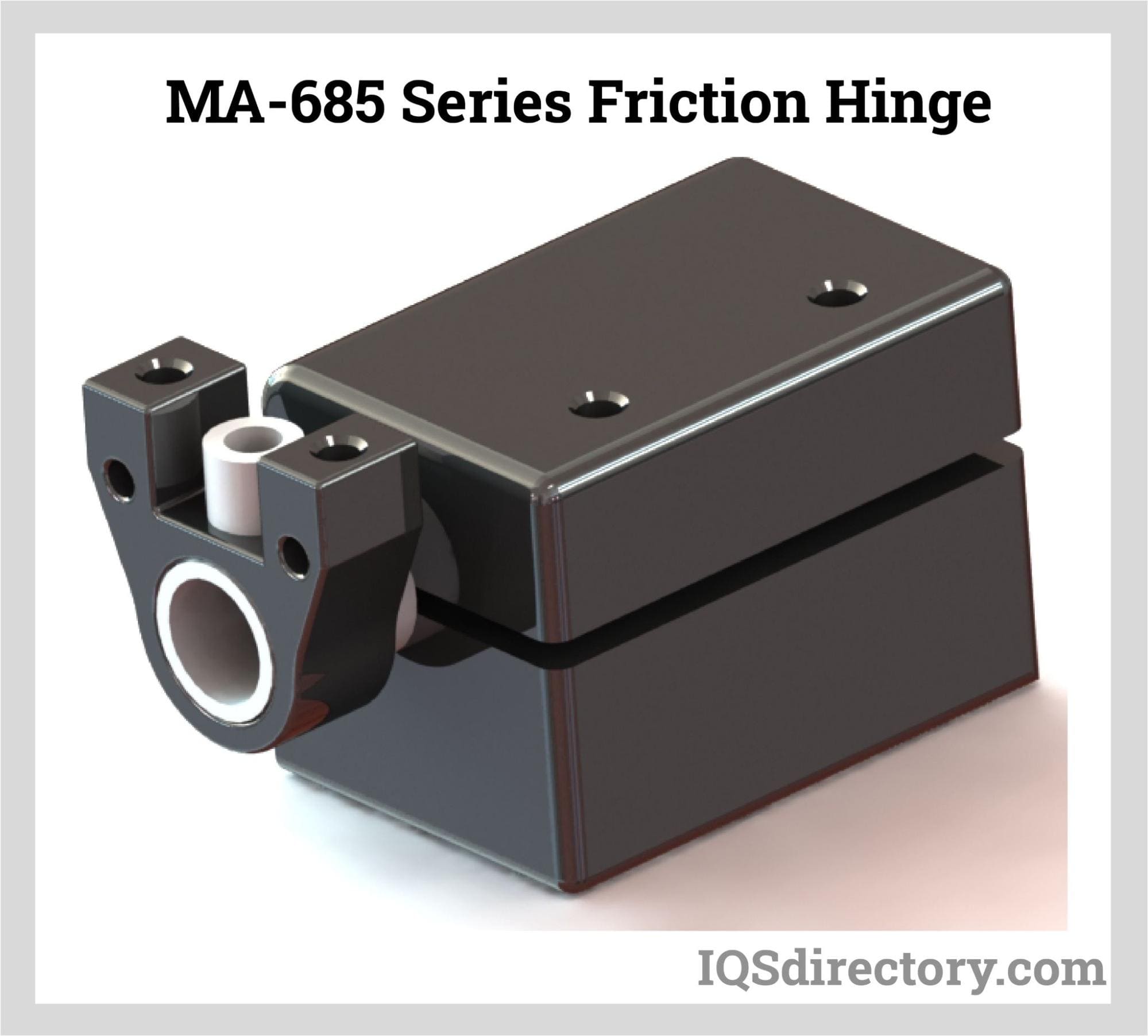

The MA-685 series friction hinges offer outstanding holding torque and adjustability. Featuring a 360° rotation hollow tube shaft, these hinges can pivot and remain securely in any desired position without backlash. The torque range for the MA-685 series varies from 25 to 100 inches per pound, providing balanced and symmetrical torque capabilities.
