This article will take an in-depth look at butt hinges.
The article will bring more detail on topics such as:
This chapter will discuss what butt hinges are, how they work and considerations when choosing butt hinges.
A hinge is a movable joint or mechanism that joins two items together. The hinge is one of the most popular categories of mechanical bearings. Butt hinges are a particular kind of hinge that have rectangular pieces that fasten to two different, parallel parts that close on each other, joining them and enabling swinging motion of up to one hundred and eighty (180) degrees. Like all hinges, butt hinges are made up of a knuckle, a pin, and two leaves.
The leaves are held together by the pin that is placed through the knuckle. However, unlike other hinges, butt hinges have a mortised construction, which is a hole, groove, or slot into or through which another component in a set of components fits. As a result, mortise hinges are another name for butt hinges. A hinge with two identical leaves is known as a butt hinge. Compared to other types of hinges, they often have a larger knuckle. The two leaves will sit flat with one another when the butt hinge is closed due to their wide knuckles.
A butt hinge's main function is to carry out swinging motions for the opening and closing of doors, gates, shelves, and windows, and other items. Pulling the rotating object away from the fixed object will allow it to be opened. The butt hinge also works as the support for the rotating object. For instance, without the butt hinge, the door would need to be picked up and positioned every other time.
The butt hinge is the only thing holding the door to the door frame. One leaf is fastened to a stationary part, like a door frame, and the other leaf is fastened to a moving component, like a door. The curled barrel, also known as the knuckle, is seen when the leaves are closed and remain flat with one another. The threaded fasteners, such as screws, are used to install butt hinges’ leaves to the two objects. On the other hand, the knuckle needs a pin. Either the pin is fixed, or it can be removable.
A butt hinge is a compact, strong, and dependable hinge solution appropriate for nearly every sort of door installation, including cabinet doors, entrance doors, and exterior gates. However, several factors need to be considered when one is to choose a butt hinge. These factors depend on the area of application of the hinge and its main purpose.
Sometimes hinges are required to support some very heavy doors or gates. As a result, this means a heavy-duty hinge must be selected which will be able to sustain the weight. Usually, hinges made for strength are made from galvanized steel, stainless steel, die-cast zinc, or acrylonitrile butadiene styrene (ABS).
When a hinge is working in a moist environment, one must consider oxidation as a limiting factor and select a suitable hinge that is corrosion resistant. Corrosion-resistant materials include galvanized steel, stainless steel, aluminum, and nylon. Painting can also be used as a way to reduce the rate of corrosion.
Sometimes a hinge is to be applied in an area where there are very high temperatures. Selecting a hinge made from the wrong material could be a major drawback. One needs to check the area of application and the usual temperature ranges to select the right hinge. Galvanized steel is one material used to make butt hinges that is heat resistant.
Impact is the act of bringing two objects into forceful touch. When a hinge is to be designed with impact resistance in mind, acrylonitrile butadiene styrene (ABS) is a good material.
Wear and tear affects hinges depending on the material they are working with. One should select a hinge relative to the material they are applied to. Some of the durable materials used to make hinges include die-cast zinc, nylon, stainless steel, and galvanized steel.
When the objects to be hinged are of lightweight material, the butt hinge must also be of lightweight material such as aluminum for proper compatibility.
Butt hinges are ideal when a door needs to be easily removed. If the hinge itself is to be cleaned regularly, replaced often, or maintained frequently, stainless steel is a suitable material.
Doors and furniture hinges frequently have good aesthetics added to them. Hinges are useful for protecting aesthetics since they help provide furniture with a seamless, uninterrupted appearance while performing their function.
The direction of end play, or how the hinge rotates or moves about the door, is known as hinge orientation. There are left-handed and right-handed hinges. Depending on the door's swing and style, one should decide whether to use right- or left-handed hinges.
This chapter will discuss the design and manufacture of butt hinges.
The design features of butt hinges include:
Leaf: The leaf consists of a hinge's flat portion that extends from the knuckle or barrel and is attached to surfaces, usually by the means of screwing or gluing.
Leaf Width: Leaf width is the length measured across the knuckle from the pin's center to the leaf's outer edge.
Leaf Length: This is also known as leaf height and is measured perpendicularly to the pin.
Leaf Thickness: This is often referred to as the gauge.
Knuckle or Barrel: The knuckle (barrel) is the rolling, round portion of the hinge that houses the pin to hold the hinge. It is also known as the bearing. Although butt hinges with pins are frequently utilized, they are not the only element.
Pitch: Pitch is the distance between one knuckle's side to the identical edge of the knuckle next to it. This value reflects the strength of the hinge about normal wear and stress.
Paint Clearance: This is region that lies between a leaf and a knuckle. The paint clearance on your hinges allows the hinge to open and close when painting without scraping paint off the knuckle.
Countersunk Holes: These are the holes where the screws will be placed to fasten the leaf to the surfaces.
Pin: This is the rod-like part that is placed through the knuckle in order to hold the two leaves together.
End Play: The amount of axial movement between the leaves is known as end play.
Some of the methods for producing butt hinges are heat treatment and cold working, extrusion, forming, casting, or cutting and milling. Each method has a benefit of its own, and the one picked depends on the hinge size, the source material, the price, and the technology available. Consider the simple and affordable method of forming, which may be used to create hinges in large quantities with acceptable tolerance. However, given the low strength of its products, if heavy-duty hinges are required, one may choose to employ milling or casting as a technique instead.
Butt hinges can be manufactured, mainly from metal sources, using hand tools only. Here are the simple steps illustrating how this can be done. Plan the desired size of the butt hinges before cutting the source material; drawings and designs are a good way to accomplish this. Cut the parts after marking the source material with the butt hinge's dimensions. Using a sharp cutting tool, trace the outline of the leaves and cut them out. Make sure the cutting edge is sufficient to deliver a clean cut.
After cutting, file the edges with a hand file to make them smooth. The alternate wings on the butt hinges' leaves will be rolled to create the hinge pin insertion hole. Before rolling the wings, clamp the metal sheet to provide support. Grab the edge of the wing with long-nosed pliers and roll it to create the knuckles.
Ensure that the rolls on the left and right leaves match. To see if it fits, try inserting the hinge pin into the rollers. Simply adjust the rolls until they form a perfect fit if the hinge pin does not fit initially. Insert the hinge pin after attempting to mate the left and right leaves. Drive the pin inside the rolls with a hammer.

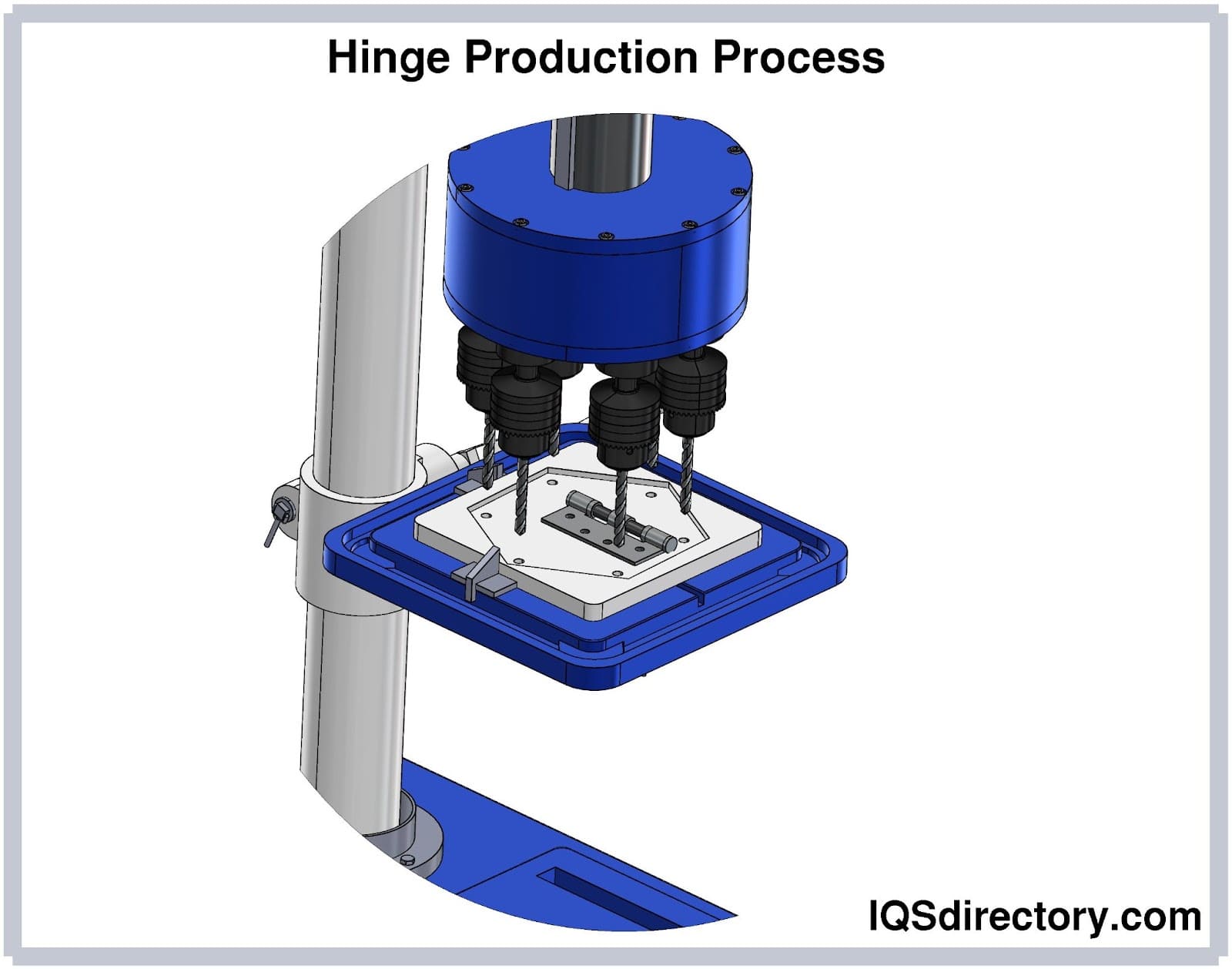

Once it is determined that the hinge pit fits well, mark the locations on the leaves where the screw holes will be drilled, then calculate how many screws the butt hinges will require. The hole should be large enough for the screw shaft to fit through, but tiny enough to prevent the screw head from doing the same. Complete the butt hinge by drilling the holes in the leaves.
Extreme temperatures enable metals to harden or soften. Most of the time, after being heated to make it malleable, metal for hinges is cast or forged into the necessary shape. By heating or freezing a material, heat-treating can change its physical, and possibly, chemical characteristics. On the other hand, cold working is a kind of metalworking that strengthens the metal by shaping it without the use of heat. In this method, the metal is put under mechanical stress to permanently alter its crystalline structure. This procedure receives its name because it is carried out below the metal's recrystallization point. Steel, aluminum, and copper are frequently subjected to cold working, which increases their tensile strength and hardness.

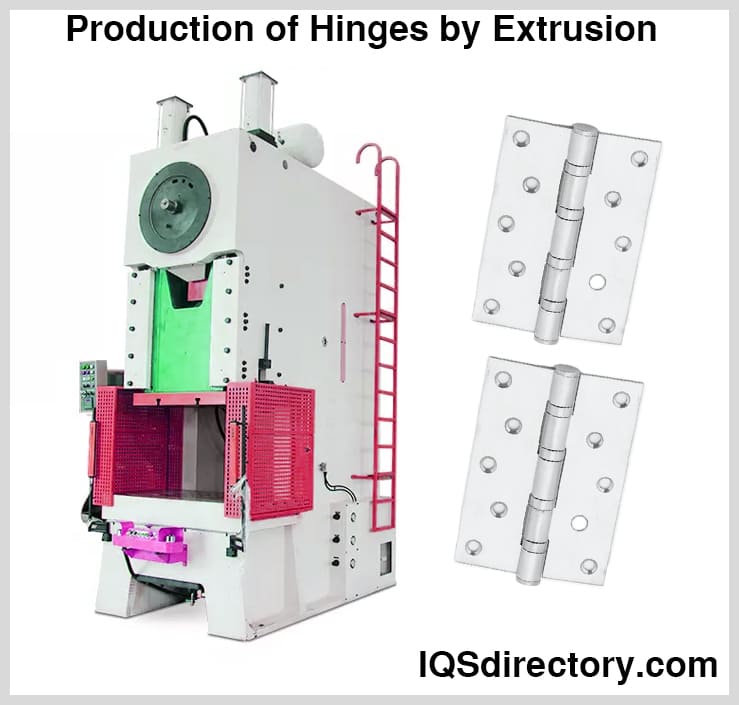

High pressure is used in this technique to press the metallic component into a die with a specified form. The hinges can take on different shapes according to the die used. Hinges made using the extrusion process are superior to stamped hinges in strength, thickness, and quality. Although the hinges produced through this process are rather pricey, they also produce the best quality product required to satisfy the needs of a variety of applications.
Forming can also be referred to as stamping. To make a metal hinge, a thin blank sheet must first be cut before being bent, spun, rolled, or forged. The cut piece is stretched until it takes on the required shape.
Stamping, which involves pressing blanks onto a die, is a typical method of forming. The dies are made to precisely produce the desired shape of the hinge when the necessary pressure is applied. Compared to cast and extruded hinges, stamped hinges can be produced at a lower cost and with superior dimensional accuracy. The hinges are also cold worked, which results in a material that is stronger and tougher gauge. The fact that the gauge of the hinge is constrained when it is formed is a drawback, it is harder to produce thicker plates.

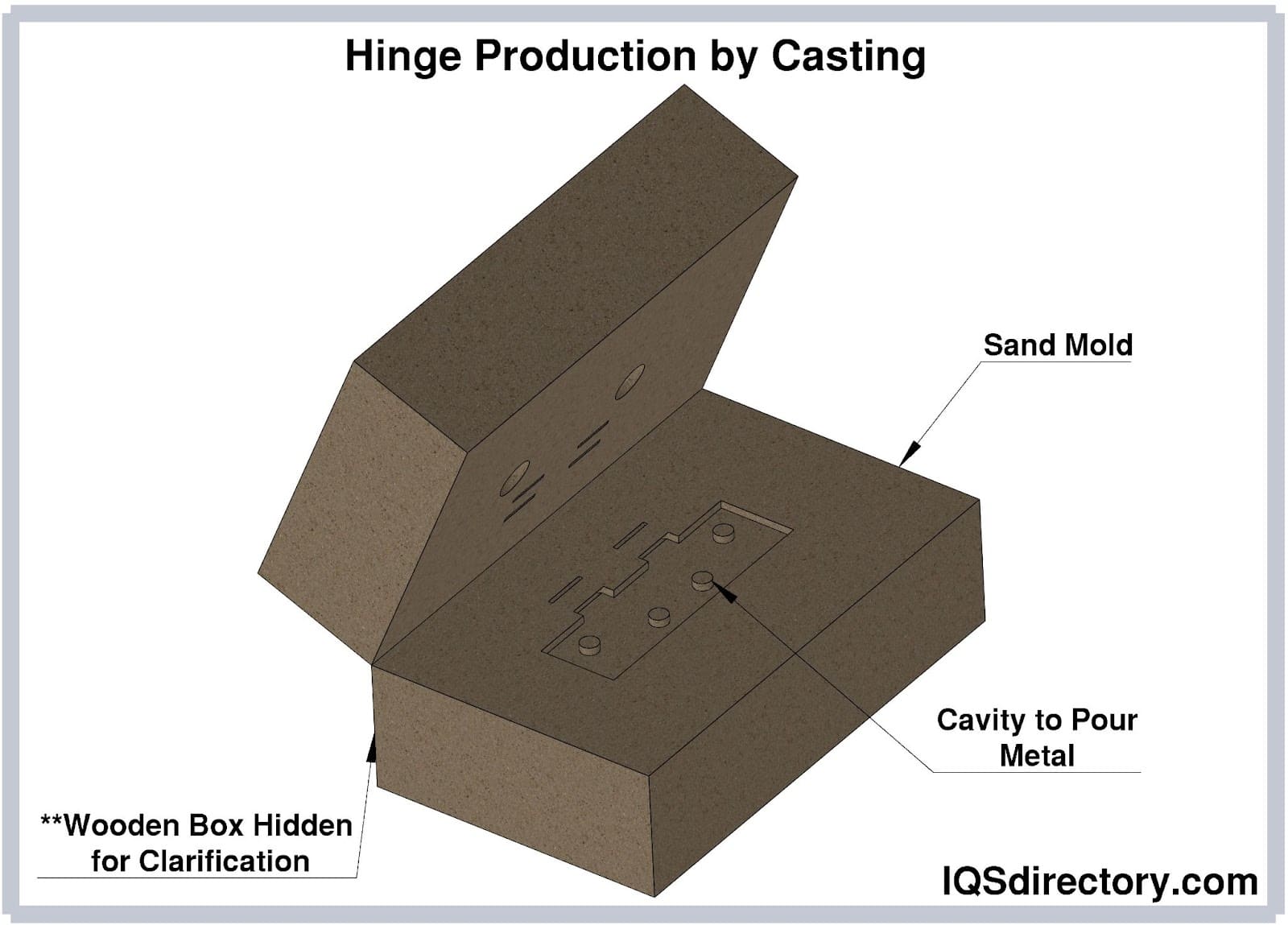

In the casting process, liquid metal is poured into a cavity in a mold that has the product's shape. Casting is one of the oldest methods utilized to produce metal hinges. A copy of the desired shape is created onto a piece of wood, metal, plastic, or plaster to create a cast hinge. For the barrel, an extra sculpture made of metal or sand hollows out the interior. The next step is to prepare the mold, which involves packing a special kind of sand around the design housed in a frame called a flask.
The hinge design can then be eliminated when the sand has been packed. The molten metal is poured into the cavity of the mold after it has been prepared, then allowed to solidify. After the casting has solidified, the mold is shattered and the sand is taken out. The cast is then cleaned, made smoother, and heated to improve its quality.

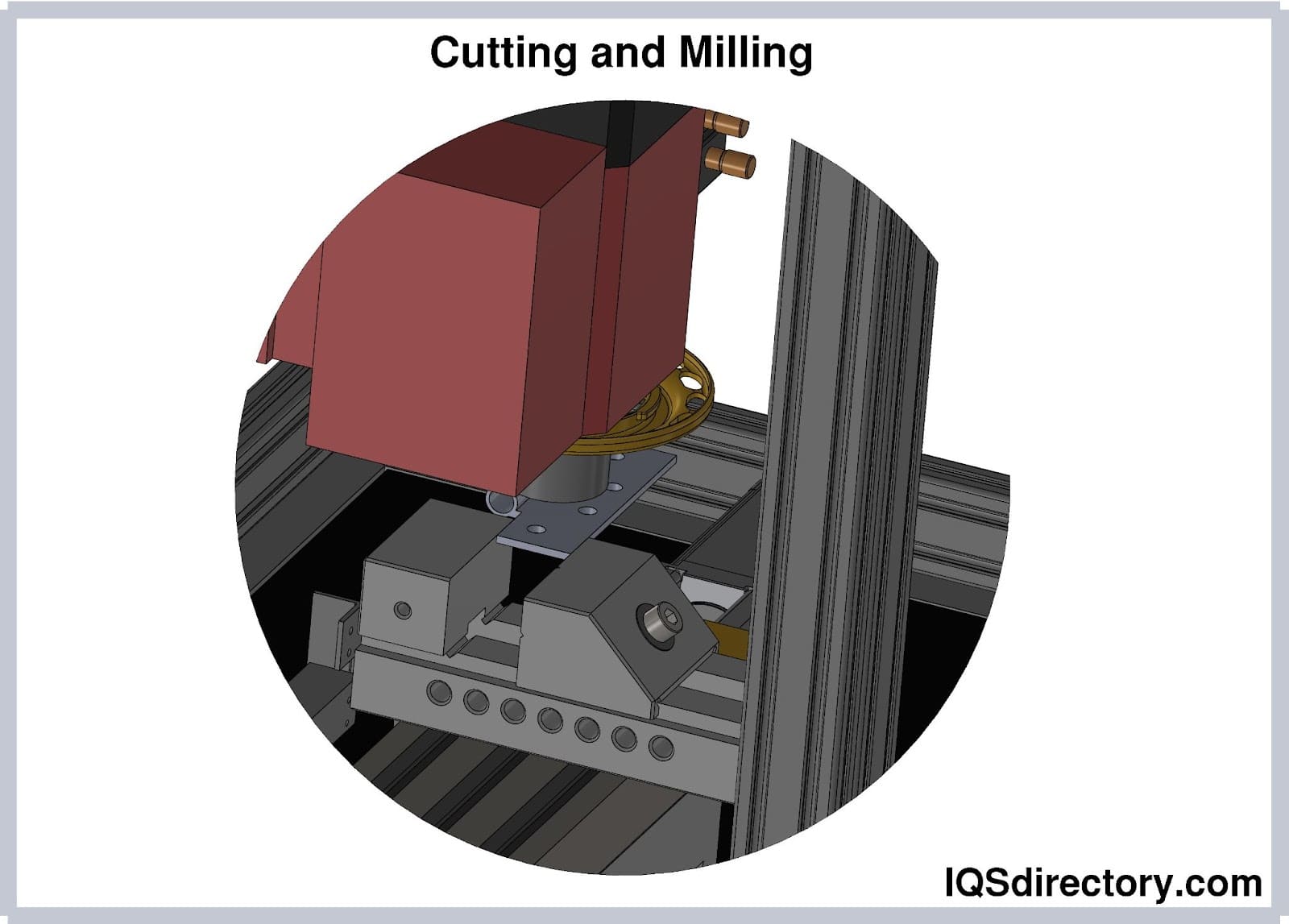

Extra material from a workpiece must be removed in order to shape it into a hinge component when utilizing the cutting and milling process. This can be done using modern techniques including waterjet or laser cutting, as well as with more traditional shearing, sawing, shrilling, and cutting methods.
Several secondary and auxiliary treatments can be performed to assist with hinge wear or deterioration once the primary stages of production are finished. For instance, some manufacturers choose to assemble hinge components with ball bearings between each joint since a small amount of metal is worn away from a hinge with each use. These ball bearings are a useful addition to heavy doors or large hatches because they provide a smoother glide when the hinge is moving. A hinge's ornamental appeal can be increased for aesthetic reasons by using finishing techniques like painting, burnishing, polishing, or smoothing, while rust-proofing can assure the hinge will have a longer and more effective life as an essential component.
Butt hinges are available in a variety of designs, materials, and styles and there are many things to consider when choosing the best one for your needs. The best hinge to use will generally depend on the application. Frequently, problems with doors can be attributed to using the incorrect hinge. If the door is heavy, an appropriate hinge with the ability to support it will be needed. Right or left butt hinges are available, depending on the intended function, and they can be made of various materials. One can utilize a hinge that is exposed or hidden. Here are some of the different types of hinges and specific applications for each type.
The most common butt hinges are plain bearing hinges; builders typically utilize plain butt hinges for internal and lightweight doors. At the hinge's knuckles, a pin joins the two plates (or leaves). There's a chance the pin can be removed or not. Plain bearing hinges should only be used sparingly. They are a straightforward butt hinge with metal-on-metal contact but lack any additional components in the knuckle to aid in the reduction of friction, such as a ball bearing or washer. The hinge flaps or leaves are attached together by the interlocking knuckle parts, which then wrap around the pin. Lightweight storage rooms, closets, or temporary doors are prime examples employing these hinge installations. They should never be put on an entry door; only extremely light-duty home or business interior doors should have them.

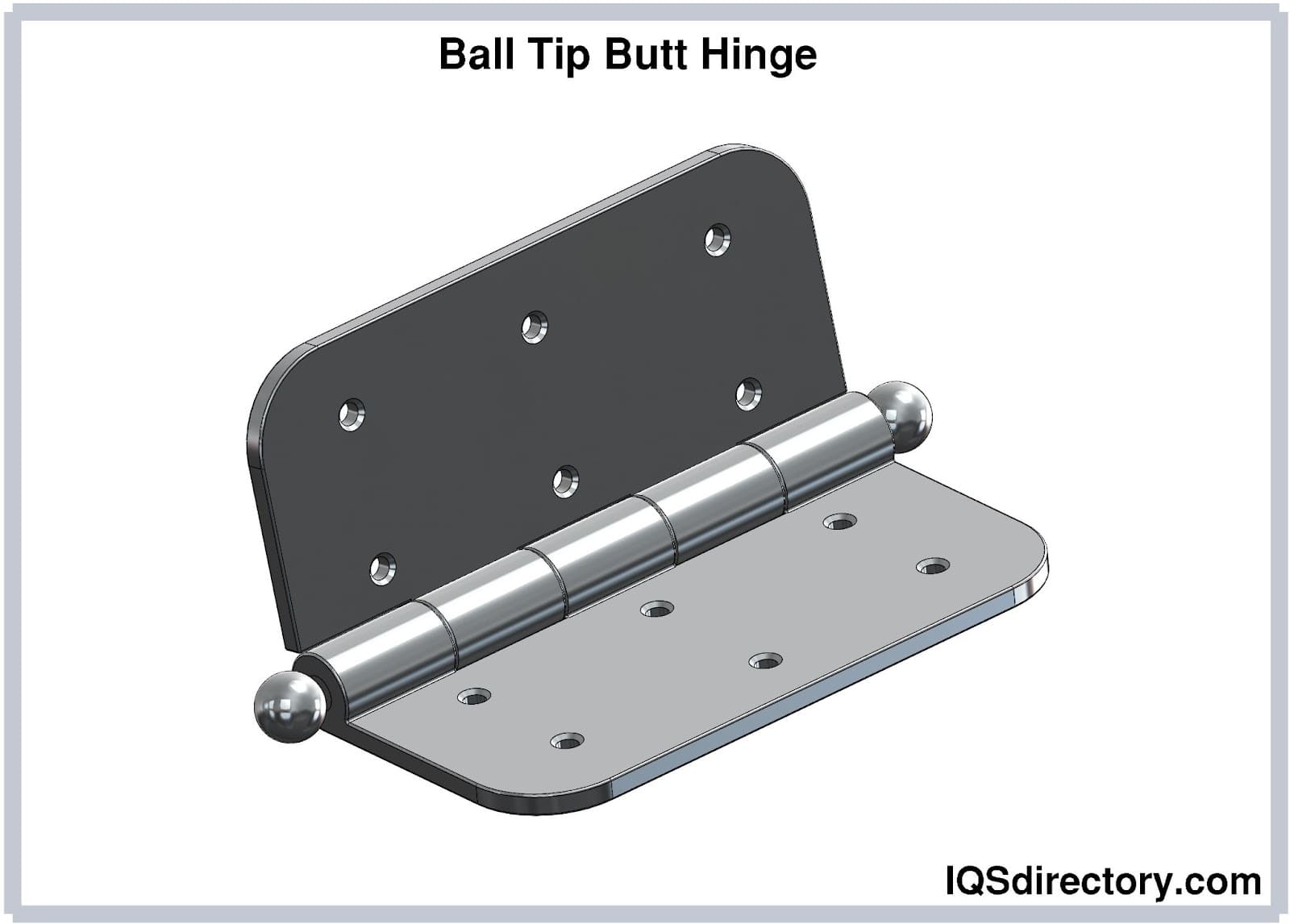

A ball tip butt hinge features an additional decorative element at the top and bottom of the barrel and performs the same function as a regular butt hinge. It's an excellent choice if one desires more visual detail.
Heavy doors with high usage requirements, and doors with door closers, are excellent candidates for ball-bearing butt hinges. Lubricated hinges are present between the hinges' knuckles on ball-bearing hinges. This helps to lessen the friction that heavier doors frequently produce. These hinges are best used on big entryway doors and doors that get a lot of wear because they are made with durability in mind.
Rising butt hinges are a solution in situations where it may be desired to have a door rise while being opened. For example, they are ideal for doorways with thick floor coverings that make it difficult for the door to open and close smoothly. As the door opens, rising butt hinges elevate the door a little over the carpet and, then, lower the door when shut so there is no gap at the bottom. Additionally, they make it simple to remove the door from the hinges, when necessary, which is useful for cabinet doors in garages and workshops where one needs to store and access larger goods.

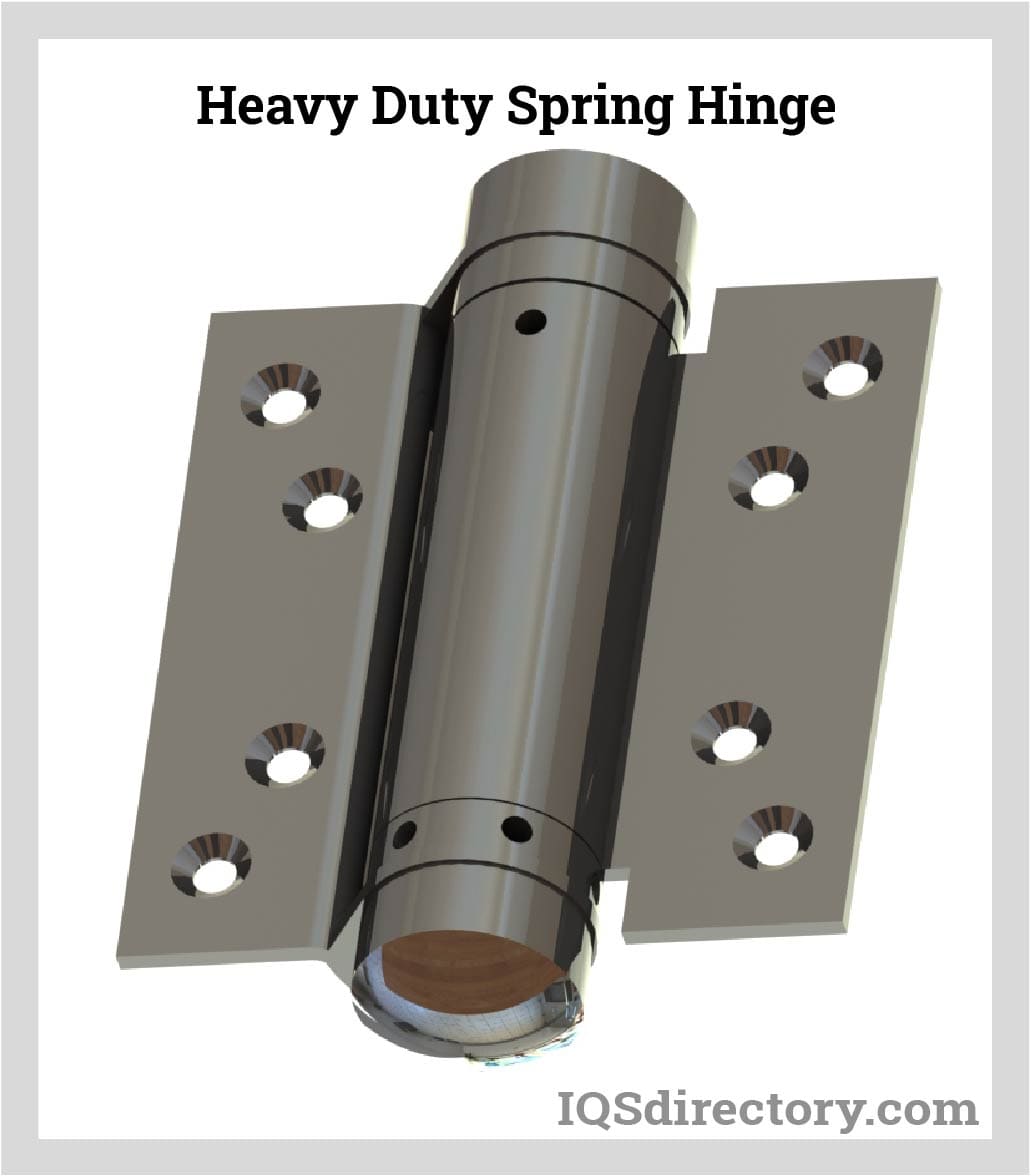

Spring butt hinges can also be referred to as self-closing hinges. A spring mechanism is attached to spring hinges, often known as spring-loaded hinges or self-closing hinges. Doors can now automatically close after being opened thanks to these marvels. They may be adjusted and have a variety of leaf thicknesses. They are typically used for screen doors and these hinges can be adjusted to open and close with various levels of stress.
Electric butt hinges allow a low-voltage current to flow from the door-frame leaf to the door-side leaf of a normal hinge. They are exactly what they sound like: electrified butt hinges. This option is used when electric features like electric locks, alarms, and access-control devices are present. Electric butt hinges are commonly used in jails, prisons, detention facilities, and secured homes and businesses.
Offset hinges are specialty hinges which make it simple to swing the door away from the doorframe. Typically, this makes the opening two inches wider overall. These hinges make it easier to fit through small entrances. One can open the door out of the way with offset hinges, sometimes referred to as swing-clear hinges, providing them full access to the entire width of the doorway. Without them, a wider entrance and door would need to be installed. Offset hinges are also very helpful in situations where a design is required to accommodate people with disabilities.
A butt hinge variation known as a strap hinge allows the plates to be seen for a more aesthetically pleasing appearance. Strap hinges are an early-model hinge design and the only thing that genuinely distinguishes a strap hinge from other traditional hinges is its long, slender shape.
Strap hinges are composed of two triangular-shaped metal parts joined by a central rotating axis. Once fastened to two items or surfaces, the strap hinge may open and close due to the rotating axis. They take up very little space because of their long and thin shape, which firmly joins the two items or surfaces on which they are employed.
Both businesses and individual consumers use strap hinges. For instance, strap hinges may be used on kitchen cabinets to enable opening and closing, or, with interior and exterior doors. Businesses frequently utilize strap hinges as a statement of class and style.
Although they all have a relatively long and slender shape, strap hinges come in a range of characteristics. If you want to buy a strap hinge for your company, start by thinking about the material. Aluminum, iron, steel, brass, copper, and other materials are used to make strap hinges, and each of these materials has unique properties. For instance, steel strap hinges are very robust and long-lasting, whereas aluminum strap hinges are lighter and more corrosion-resistant. To further guard against rust and corrosion, certain strap hinges are even covered in a protective coating, such as zinc
Additionally, you must also think about a strap hinge's size and whether or not it will suit the items or surfaces on which you plan to use it. If a strap hinge is too large it could feasibly extend past the items it is affixed to. On the other hand, if the hinge is too small, it might not provide a firm grip.

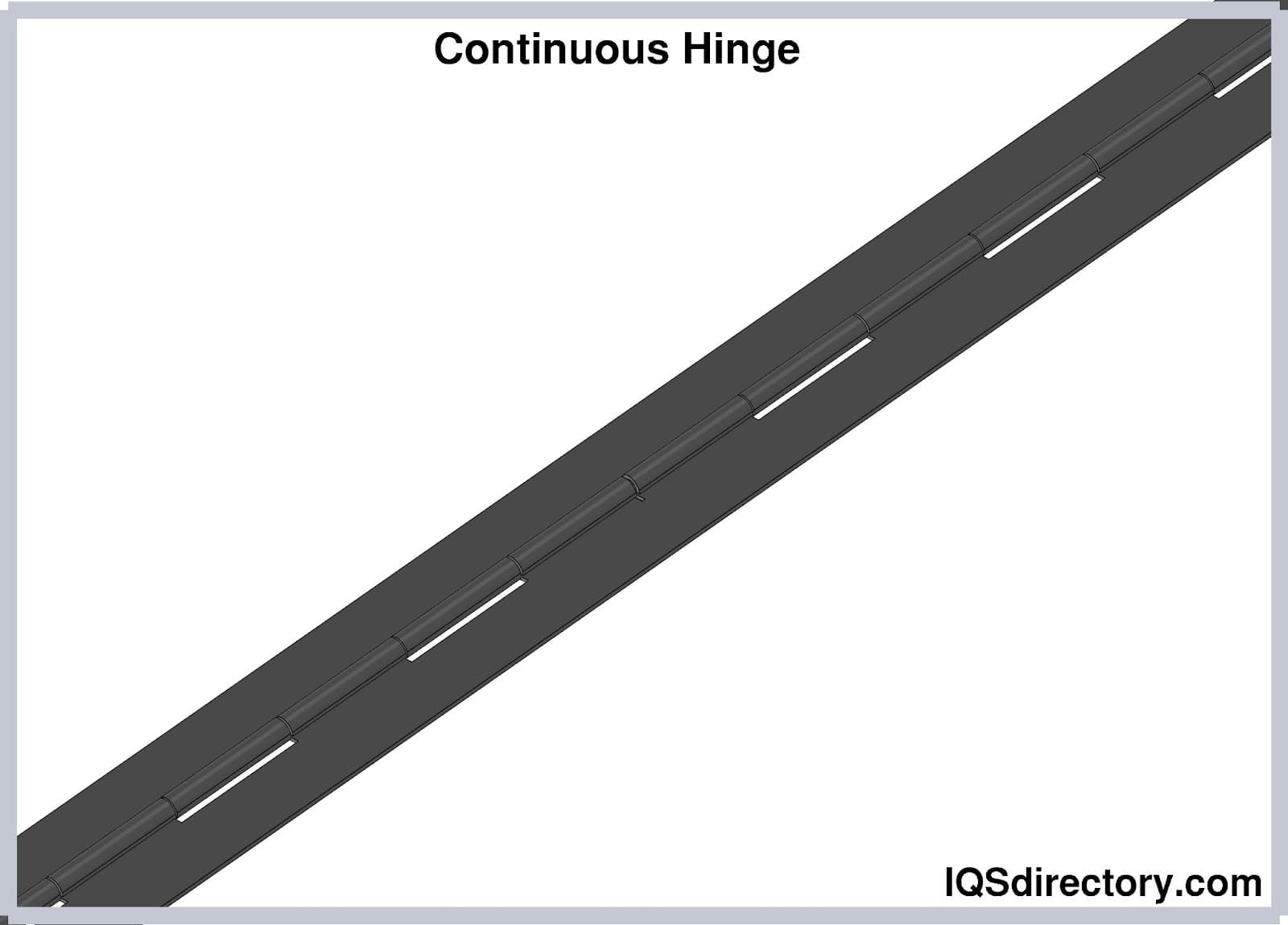

A piano hinge is a continuous hinge that spans the entire length of the door. They are useful for cabinet doors and any storage container with a lid. They disperse weight and lessen stress on the door or cabinet and are also referred to as continuous hinges. Doors and cabinets that are frequently opened and closed and are prone to significant wear and tear are ideal candidates for piano hinges.
Even though it is obvious that butt hinges and standard door hinges make it simple to open and shut a door, there are a number of other types of hinges that also make it simple to open and close chests, toy boxes, and even pianos. A piano hinge is one kind of hinge. Piano hinges, which are also called continuous hinges, are lengthy and frequently provide support throughout the whole length of a cabinet, chest, or toy box door. Understandably, piano hinges are also frequently used on upright piano lids, thus the name.
A piano hinge has the advantage of being able to be installed on the surface either as an exposed or concealed hinge, much like a strap door hinge. A furniture chest's piano hinge may be easily mortised to the frame and lid so that it is disguised when the lid is closed for a discreet appearance.
The idea that piano hinges can span the whole length of a surface they support—hence the name "continuous"—is a significant distinction between them and other types of hinges. There are many different thicknesses, pin sizes, widths, finishes, and unique designs for piano hinges. Regardless of the application, piano hinges are simple to install, relatively economical, and quite strong. They are thus ideal choices for applications that experience heavy usage (or abuse) and severe wear and tear. Piano hinges can be utilized in situations where strength is required.

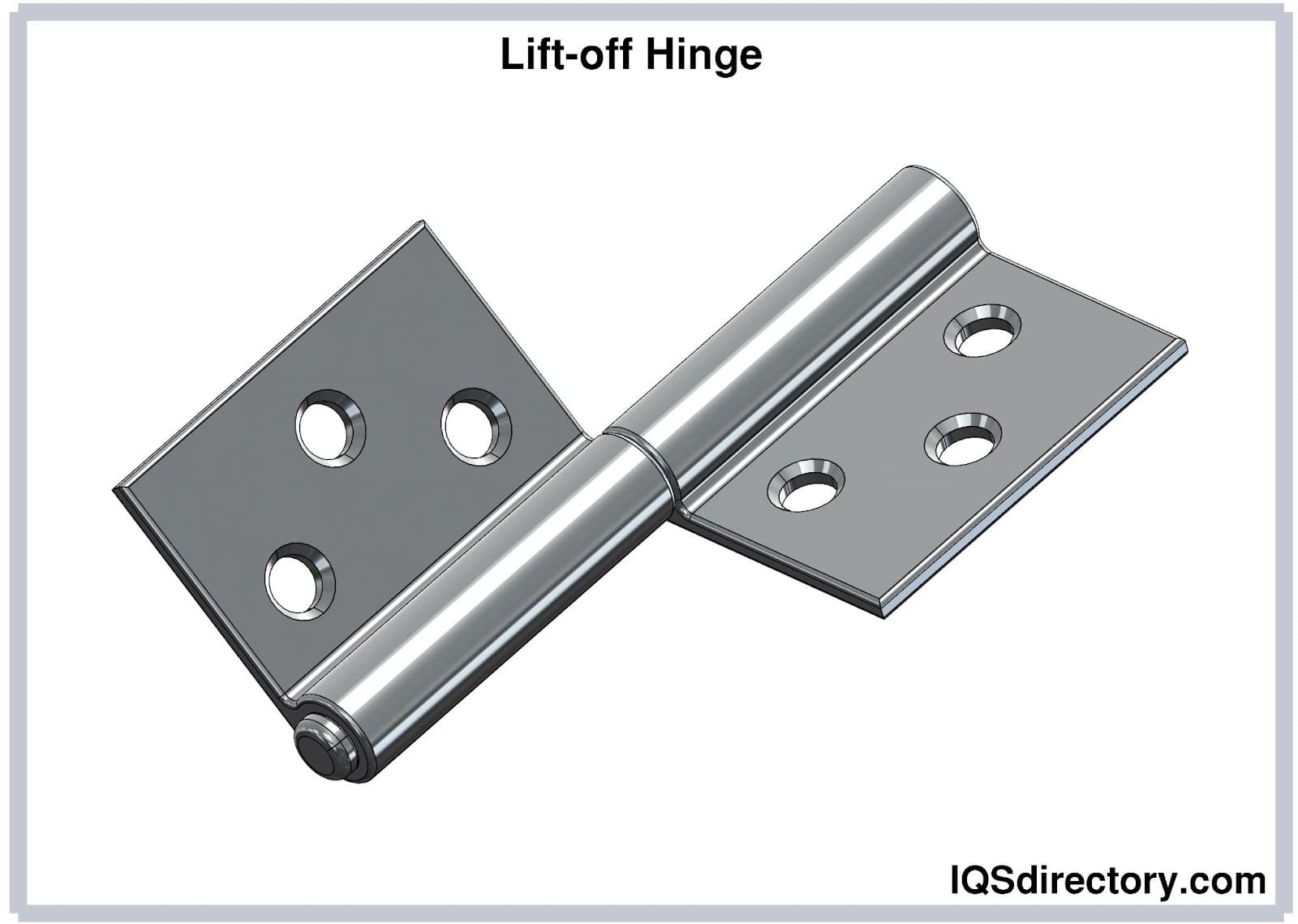

Doors can be taken off easily with the use of lift-off hinges.They are commonly called door-removal hinges. Some lift-off hinges rotate up to 360 degrees. One leaf is male, and it is fastened to the door by a pin. The opposite leaf, which is female and without a pin, is fastened to the doorjamb. Lift-off hinges are ideal if regular large deliveries require the removal of the door. Lift-off hinges also make it easier to remove doors from industrial generators or heating, ventilation, and air conditioning (HVAC) system elements when one wants quick access to maintenance and repair.

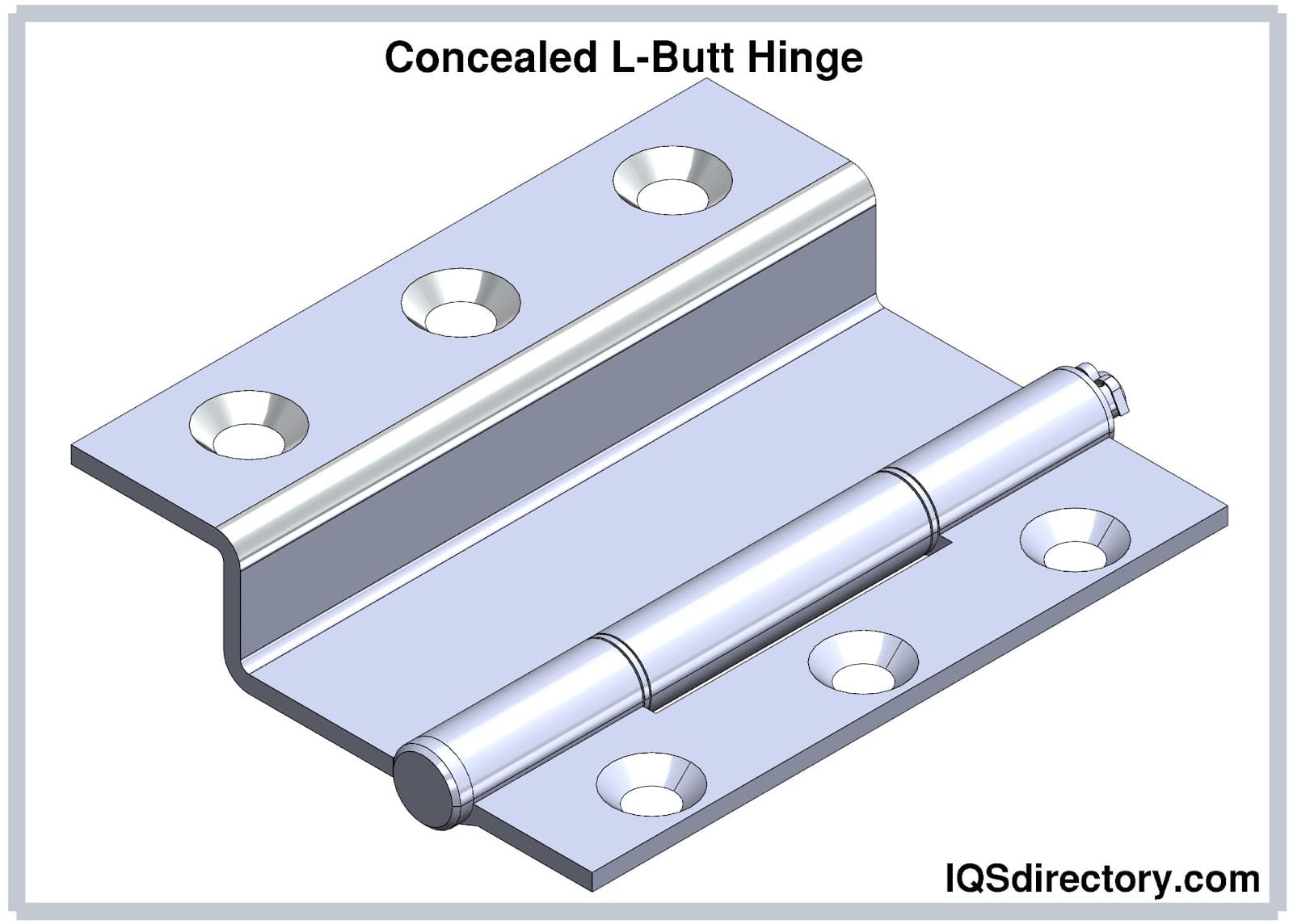

A concealed hinge, as the name implies, is made to blend in with the surrounding material. Because no hardware is visible, concealed hinges give off a minimalist aesthetic emphasizing the natural appeal of furniture or cabinets for example. These hinges provide superior security than standard hinges because they are not intended to be exposed and are tamper-proof. To prevent tampering from the outside, concealed cabinet hinge types are frequently fitted inside enclosures like an outdoor telecom equipment cabinet. They can also close on their own. Screws can be used to adjust some hidden hinges. They are a good solution for doors of average weight that will get moderate usage. Additionally, there are larger concealed hinges that are perfect for larger items such as larger doors.
Some hinges are made to allow the cabinetry's thickness to be incorporated. Utilizing overlay hinges can reduce this thickness. These hinges can independently fold back, allowing the door to rest flush against the front of a cabinet.
Overlay cabinet hinges can be hidden entirely or partially. They aren't visible unless the cabinet door is open, as its name would suggest. Otherwise, these hinges are completely hidden. Cabinet doors can "lie over" the cabinet frame when using overlay cabinet hinges, as the name suggests. You may already have overlay hinges if your present doors are bigger than the frames, i.e., if they don't settle into the frame when closed (hidden or semi concealed). Overlay hinges are typically defined by how much the door extends over the cabinet frame. Among the most common sizes are ¼”, ⅜”, and ½”.
The overlay is regarded as the connection between the cabinet face frames and cabinet doors. The sort of hinge you use is determined by the cabinet overlay. The overlay describes the door's size or type, the hinge, or the construction of the cabinet. Individual cabinets or cabinets at each end of a row of cabinets employ full overlay hinges. For a pair of cabinet doors in the midst of a row of cabinets, when two doors have their hinges located on opposite sides of a common middle partition, half or partial overlay hinges are utilized.
Leaf hinges have a maximum rotation of 270 degrees. They are typically constructed of die-cast zinc alloy. Both left and right-handed applications and plain or flush-mounted doors are suitable for leaf hinges.
Corner hinges sit parallel to the surface and are commonly used on metal cabinets and machine covers. They are placed internally to avoid tampering, except for external metal corner hinges, which are typically found on machines. When a door is open, a pin in a corner hinge can be removed and, as a result, corner hinges allow for the removal of the door for access or maintenance.

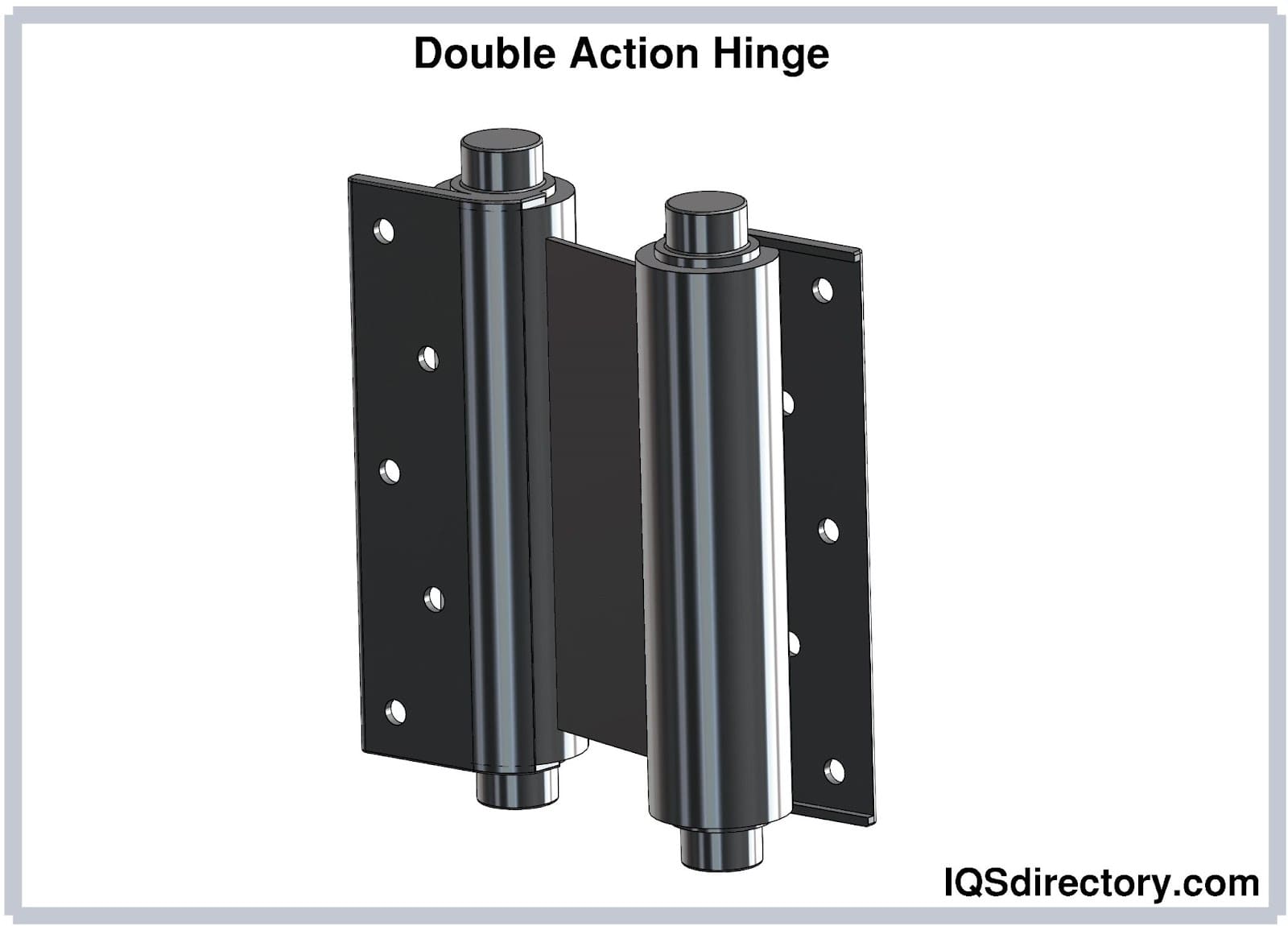

Typically, double-action hinges are utilized in commercial buildings where a door must swing in both directions. Other names for double-action hinges include café door hinges, saloon door hinges, double-winged hinges, and double-acting hinges. Regardless of the nomenclature, using these hinges will accomplish the same goal: enabling the doors to span in both directions and returning them to the closed position (the center) when not in use.
Some characteristics of double-action hinges are universal. Double-action hinges will automatically bring the doors back to the center using either a spring or gravity. These hinges make it possible to push the door without a handle. An arm, hip, or hand can be used to force open double-action hinges. After being pushed open, the doors will swing back and forth until coming to a halt at the center-closed position.
Double-action spring hinges move doors toward the center using a spring that is housed inside the barrels. The opening provided by spring hinges may be changed by applying either less or greater spring stress, but there is no hold-open function available on these hinges. These hinges enable you to have a door that is "full height" (minimum gapping is required). Although these spring hinges have a quicker swing, there is considerable noise when using them. Double-action spring hinges are designed with barrels and mounts on both sides of the door. The flange in between barrels will accommodate the door. Typically, these hinges are utilized in business settings
Double-action gravity hinges, meanwhile, pull doors back to the center using gravity. These hinges include a hold-open function that makes them ideal for use in commercial or domestic applications, among their many other characteristics. These hinges swing more slowly than spring hinges do and operate without making any noise. There must be some space provided at the top and bottom of doors since that’s where these hinges get mounted. Double-action gravity hinges are also known as “self-function hinges” or “pivot hinges” since these hinges function where the lower hinge will carry out the necessary function, while the top hinge serves as the pivot. Double-action gravity hinges are represented in the minds of most people by traditional saloon doors.
This chapter will discuss the applications, benefits and disadvantages of butt hinges.
Butt hinges are employed extensively in virtually every aspect of life including domestic, medical, industrial, military, and agricultural settings, among others. The selection of the appropriate type of butt hinge utilized, however, varies depending on its utilization.
The medical industry requires heavy, lead-lined doors for use with radiation and neutron shielding, vault doors, and various medical equipment; heavy door hinges are used in research and development to shield facilities from radiation pollution. Heavy doors in guarded locations, transporters, and armored vehicles all use hinges in the military and defense sectors. In domestic settings, hinges are frequently used for doors, windows, cupboards, TV racks, and numerous other household objects.
To preserve the environment, chemical processing factories use heavy-duty hinges on their enormous processing containers. Additionally, shipping containers include hinges to keep them securely locked. The ball-bearing butt hinges are ideal for heavy entryway doors or those that sustain frequent use.
These hinges are regularly used in industries like oil and gas plants to make mobility easier since their length provides additional stability for large gates. A lot of lighting panels, including LCD screens, laptop screens, and illuminating wall cladding, utilize such hinges as well. For easy loading and unloading of large doors, many marine devices and ships also include hinges on their doors.
Different types of hinges are also utilized in the gates and equipment at building sites and agricultural machinery. The piano hinge can find usefulness in fold-down desks and storage benches as well. Sometimes when entrances need to be wide open to accommodate people living with disabilities, the offset hinge can find application there.
As has already been highlighted, there are many different types of butt hinges readily available for a wide range of applications. Even if one is looking for a specific replacement, an appropriate butt hinge can be readily found. As a bonus, butt hinges are quite easy to install.
They only require a little knowledge and experience for one to install or replace a damaged one. The simplicity of butt hinges makes them easy to maintain too. They are economical and designed to be resistant to chemicals, harsh working conditions, and corrosion. Butt hinges may appear small in size, but some designs are highly secure due to their strength and sturdiness. They can be designed with an extra aesthetic appeal as well.
In as much as butt hinges are commonly used and readily available, they have their disadvantages. Everyone wants to live in a home that is both comfortable and secure. The visibility of butt hinges makes it easier for intruders to break in by removing the butt hinges and then the door itself. In this way, robbers can bypass locked doors.
Butt hinges can also loosen after being used for an extended time. This leads to greater damage to furniture since the hinges are installed using screws. When they become obsolete, it can be difficult to replace the hinge alone. One may need to change their furniture just because of a hinge. When a hinge is hanging loosely, it becomes a hazard and can cause accidents in the home.
Butt hinges are usually less durable when compared to other invisible hinges. Choosing a proper butt hinge requires careful attention, especially when they need to be applied to heavy material. The mass production of strong butt hinges is still quite expensive, potentially compromising their quality.
The wide variety of butt hinges can prove to be a constraint since one will be required to have the proper knowledge in order to select an appropriate proper hinge for the specific application. Selecting a butt hinge which is inapplicable to the specific task could prove to be costly if extra materials and additional labor are required to compensate for an incorrect selection.
