Introduction

This article will take an in-depth look at stainless steel hinges.

You will understand more about topics such as:

  • What are stainless steel hinges?
  • How stainless steel hinges are made
  • Components of stainless steel hinges
  • Considerations when choosing stainless steel hinges
  • Types of stainless steel hinges
  • Advantages of stainless steel hinges
  • Applications of stainless steel hinges
  • Maintenance of stainless steel hinges
  • And much more...
Stainless Steel Hatch Hinge

Chapter 1: What are Stainless Steel Hinges and How are They Made?

What are Stainless Steel Hinges?

Stainless steel hinges connect two components while allowing them to move in relation to one another. They can have various leafs shaped like rectangles and other forms depending on the type of stainless steel hinge. Stainless steel hinge leafs are connected by knuckles and have holes where screws or bolts can connect the hinge to a door. Pins are placed through the knuckle to connect the leafs.

The array and number of stainless steel hinges are as wide and varied as any other type of material. The factors that make stainless steel attractive are its silver appearance and its resistance to corrosion and rust. Added to these beneficial features are its superior strength and endurance. As a result, manufacturers depend on stainless steel to provide long-lasting, resilient hinges that provide customers with exceptional performance.

The flawless revolute joint of a stainless steel hinge allows rotation about a single axis and has one degree of freedom (1-DOF). Some hinges have more intricate motions that allow windows and doors to swing open first, then move straight out of a recess. Stainless steel hinges with intricate motion need more than one pin and are placed as a four-bar linkage.

Stainless Steel Hinge

How are Stainless Steel Hinges Made?

Stainless steel is an iron alloy with various elements added to enhance its durability and appearance. The key element to be alloyed with iron is chromium, which is instrumental in creating stainless steel's silver appearance. Other elements, such as nickel, silicon, manganese, nitrogen, and carbon, are added with chromium to produce the various grades of stainless steel and further enhance its properties.

The key process for creating various grades of stainless steel is tuning, where adjustments are made to the chemical composition of the alloys. During the tuning process, unwanted elements are removed, and the consistency of the metal is improved.

After tuning, stainless steel is formed into slabs, rods, tubes, and billets. To manufacture hinges, billets are hot rolled above the recrystallization temperature of the stainless steel to create plates, strips, and sheets. Cold rolling is also completed below the recrystallization temperature to produce wide sheets of stainless steel with a superior surface finish.

Before stainless steel is shipped to manufacture hinges, it is subjected to other processes such as annealing, descaling, cutting, and finishing for hinges that require a quality aesthetic appearance. Once the sheets of stainless steel are properly prepared, they are shipped to hinge manufacturers for processing.

Stainless Steel Stamping

Stainless steel sheets and coils are the raw material for hinges made of stainless steel. A stamping press shapes or cuts the thin sheets of stainless steel to the size of the leaves of the hinges. Stamping is a cost-effective way to produce high-quality stainless steel hinges with precision and efficiency.

Once the leafs have been stamped, a press is used to cut holes in the hinge and form the knuckles, also known as loops or nodes, encircle the pin. Each leaf has knuckles that join the leafs and provide placement for the pin. The sharp edges of the leafs are removed before the hinge is polished and put together with a temporary pin.

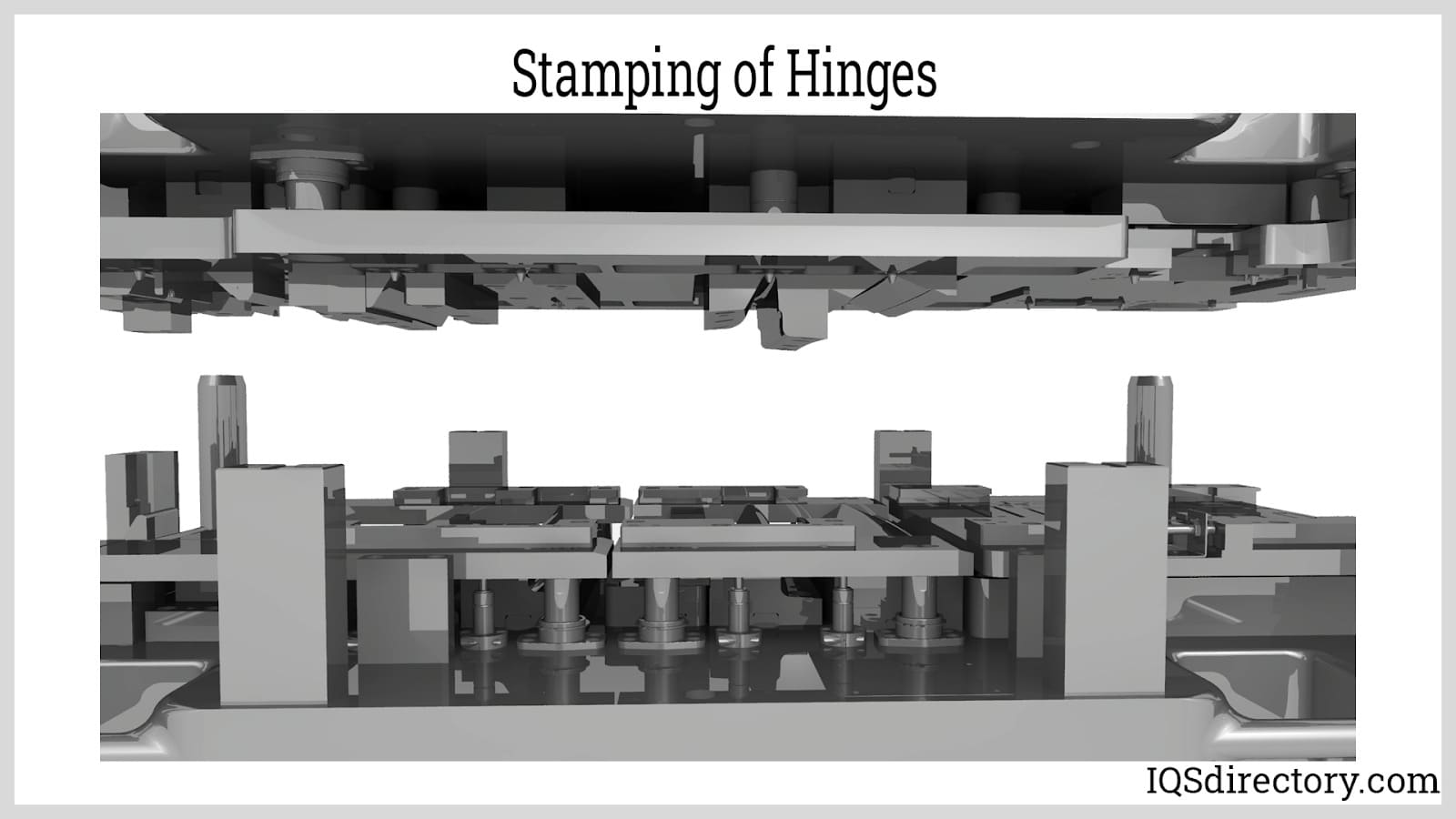

Stamping of Hinges

If stainless steel hinges are to be plated, they are polished and finished first. Then, the semi-finished hinges have their temporary pins removed to make way for the final assembly, which combines the hinge leaves and pin ends or headed pins.

Stainless Steel Casting

Casting involves forming metals in molds, after which the hinges are polished or smoothed by hand or machined. The casting process is labor-intensive and time-consuming, which makes it expensive.

Stainless Steel Extrusion

Extrusion creates hinges by compressing a heated billet of stainless steel against a die in the shape of a hinge leaf using pressure and force. Extruded hinges are thicker and stronger than stamped hinges and are more expensive.

Stainless Steel Deformation Machining

Deformation is a machining process that bends, spins, rolls, or forges stainless steel into the hinge shape. A turret punching machine presses the workpiece and modifies its dimensions, a process that pulls and stretches the metal. Excess material on the shaped workpiece is removed by cutting, which alters the shape of the hinge. Drilling, sawing, shearing, or other techniques may be used in deformation machining.

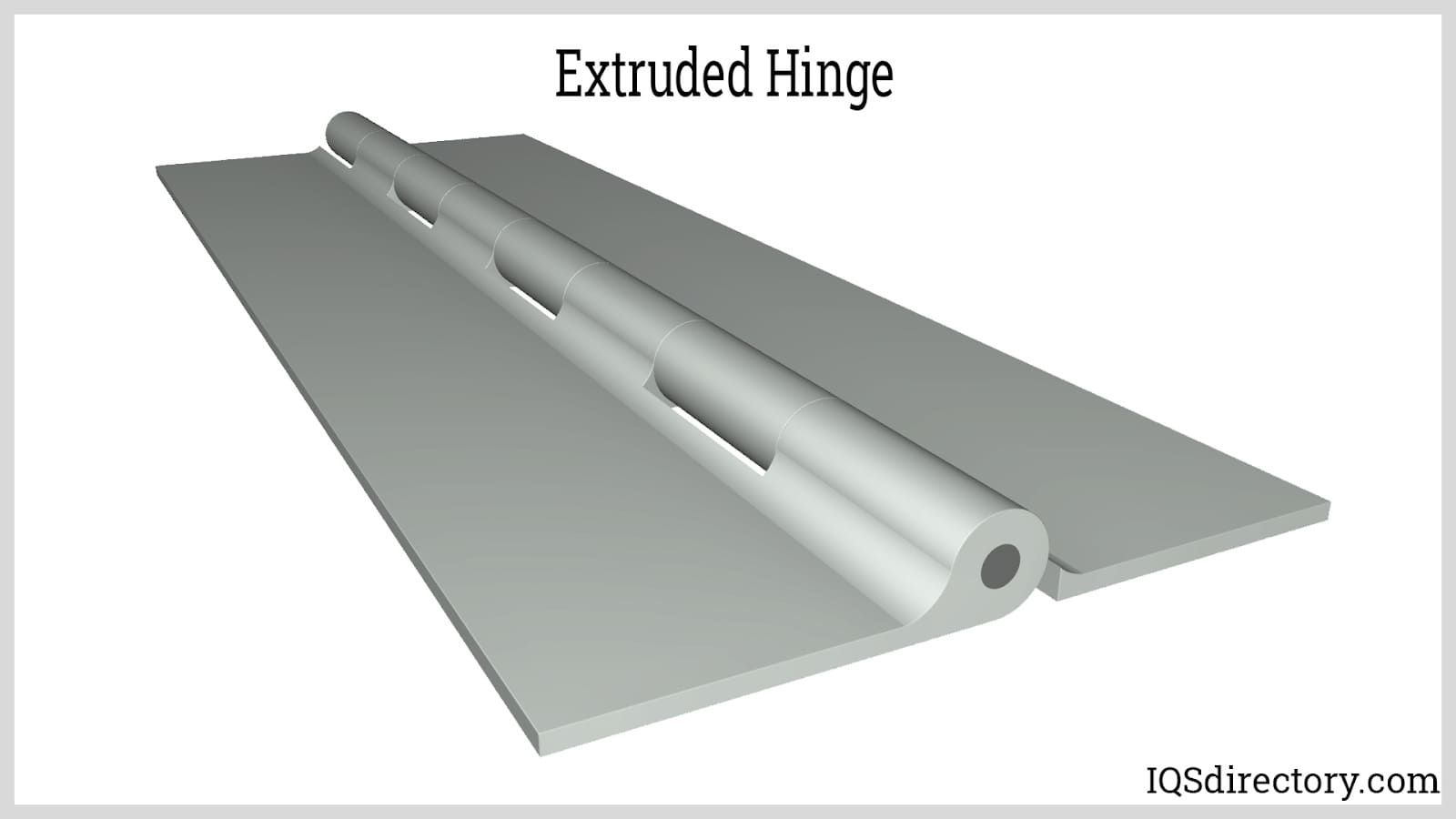

Extruded Hinge

Manufacturers have additional procedures and ancillary treatments they use to perfect their products. For example, ball bearings may be placed between the joints for smoother motion and rotation. In addition, stainless steel hinges may come with holes or without holes. Pre-drilled holes determine how a stainless steel hinge will be installed, while hinges without holes make it possible for the installer to customize the position of the holes to fit the application.

Chapter 2: Components of Stainless Steel Hinges

Stainless steel hinges, as with all hinges, have certain basic parts that allow limited rotation. The basic structure of hinges has remained the same over the centuries, regardless of the improvements in materials and manufacturing processes. As a result, hinges, especially stainless steel hinges, are a common and necessary part of daily life.

Components of Stainless Steel Hinges

Hinge Leaf

The leaf is the plate that protrudes laterally from the knuckle or barrel. It is screwed, welded, or glued to the fixed or moving body. Leafs for stainless steel hinges can take various shapes to fit a door's needs or process. They come with or without holes and are attached using screws or bolts.

Hinge Barrel or Knuckles

The barrel or knuckles are machined into the sides of the leafs by bending the edges and are the weight-bearing portion of a stainless steel hinge. The leafs are connected when a pin is inserted through the knuckles from each leaf. Once secured, the leafs can rotate around the knuckles.

Leafs Rotating Around the Knuckle

Hinge Pin

The pin is a rod or shaft that holds the leafs together and passes through the knuckles. Also known as a pintle, it has a narrow cylindrical shape to interlock the leafs and keep them connected. It is a simple and practical method for keeping the leafs together and assisting in their rotation.

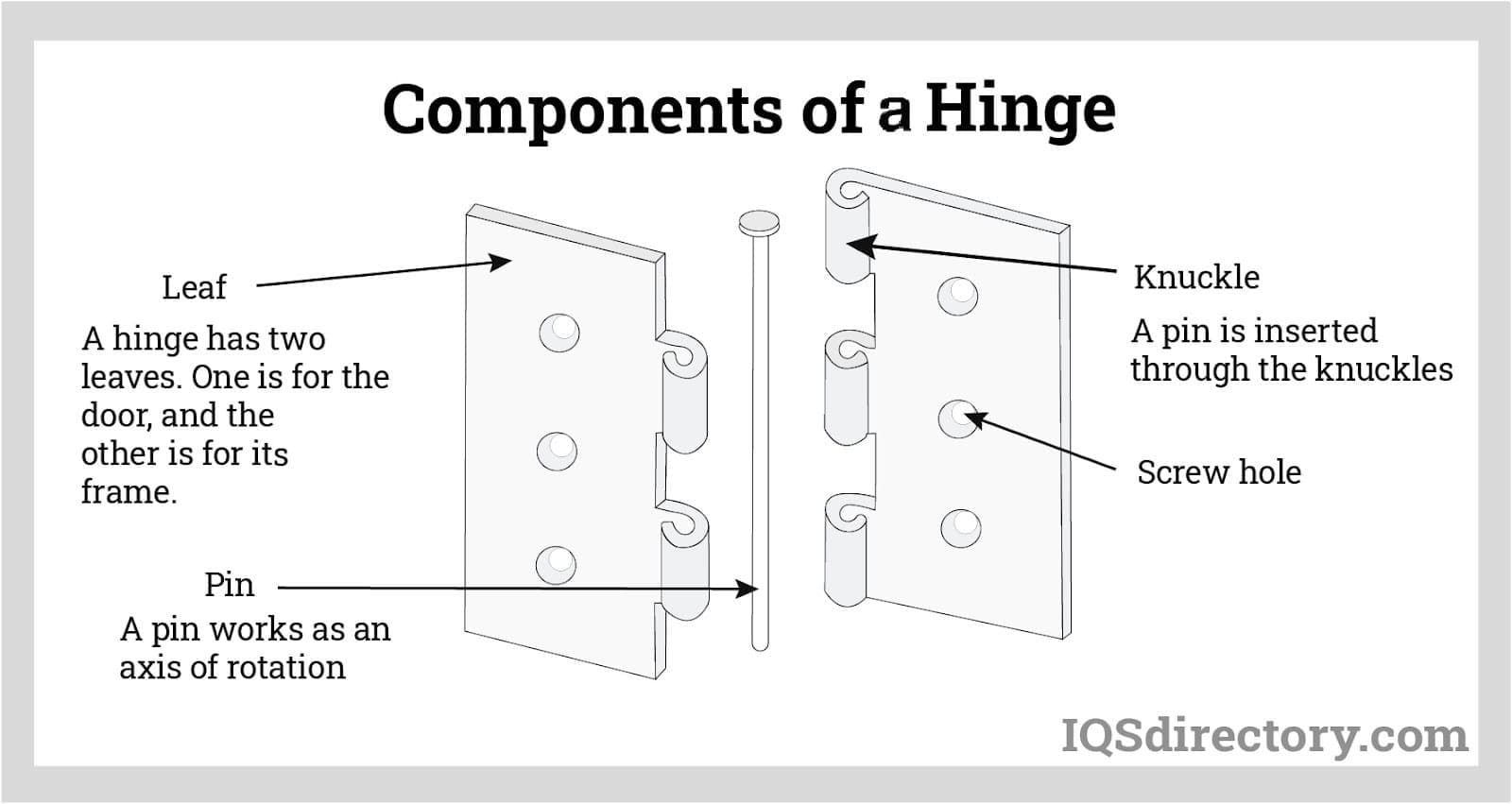

Components of a Hinge

Holes in the leafs are where screws or bolts are inserted to attach the hinge to a door. The hinge or revolute joint allows rotation along one axis between the leafs. It restricts the rotational ability of a hinge.

Considerations When Choosing Stainless Steel Hinges

  • Stainless steel is used for applications that need exceptional strength and corrosion resistance.
  • When choosing a hinge, it's important to consider the load it will support, which decides the size and material needed. It's critical to consider external and dynamic loads in addition to the weight of the moving item, which is often the part being carried and determines the load specifications.
  • Stainless steel hinges experience torque due to the door's center of gravity. When the door is wide and heavy, stainless steel hinges must support a door to prevent it from sagging.
  • Depending on the service or load, hinges can be welded, fastened, or screwed to the frame. Stainless steel hinges can be surface mounted, concealed, flush mounted, or overlayed.
  • Doors can have a full 180 or 90° rotation. The swing of a door determines the type of stainless steel hinge, if it can fit the available space, and whether it will interfere with passing through the door. Several types of stainless steel hinges are available, including friction or spring-loaded hinges to fix the position of the moving component.
  • Stainless steel hinges are ideal for doors and furniture due to their added aesthetic value. They can include ornate hinge patterns, such as butterfly and strap hinges. Hinges may need to be hidden for aesthetic reasons to provide a seamless, uninterrupted appearance.
  • End play, which refers to the lateral movement of the leaves along the pin, is called hinge orientation. Whether a hinge is left-handed or right-handed depends on the style of the door.

Leading Manufacturers and Suppliers

GET YOUR COMPANY LISTED ABOVE

Chapter 3: Types of Stainless Steel Hinges

Knife Hinges

Knife stainless steel hinges are known as pivot hinges because they are attached at the pivot point of a door. One hinge leaf is mortised into the cabinet door's end, while the other is placed on the cabinet's frame. Once placed, stainless steel knife hinges are not visible. Knife hinges enable doors to pivot open and close in both directions. Due to their load bearing and function, knife hinges are larger and sturdier than other hinges.

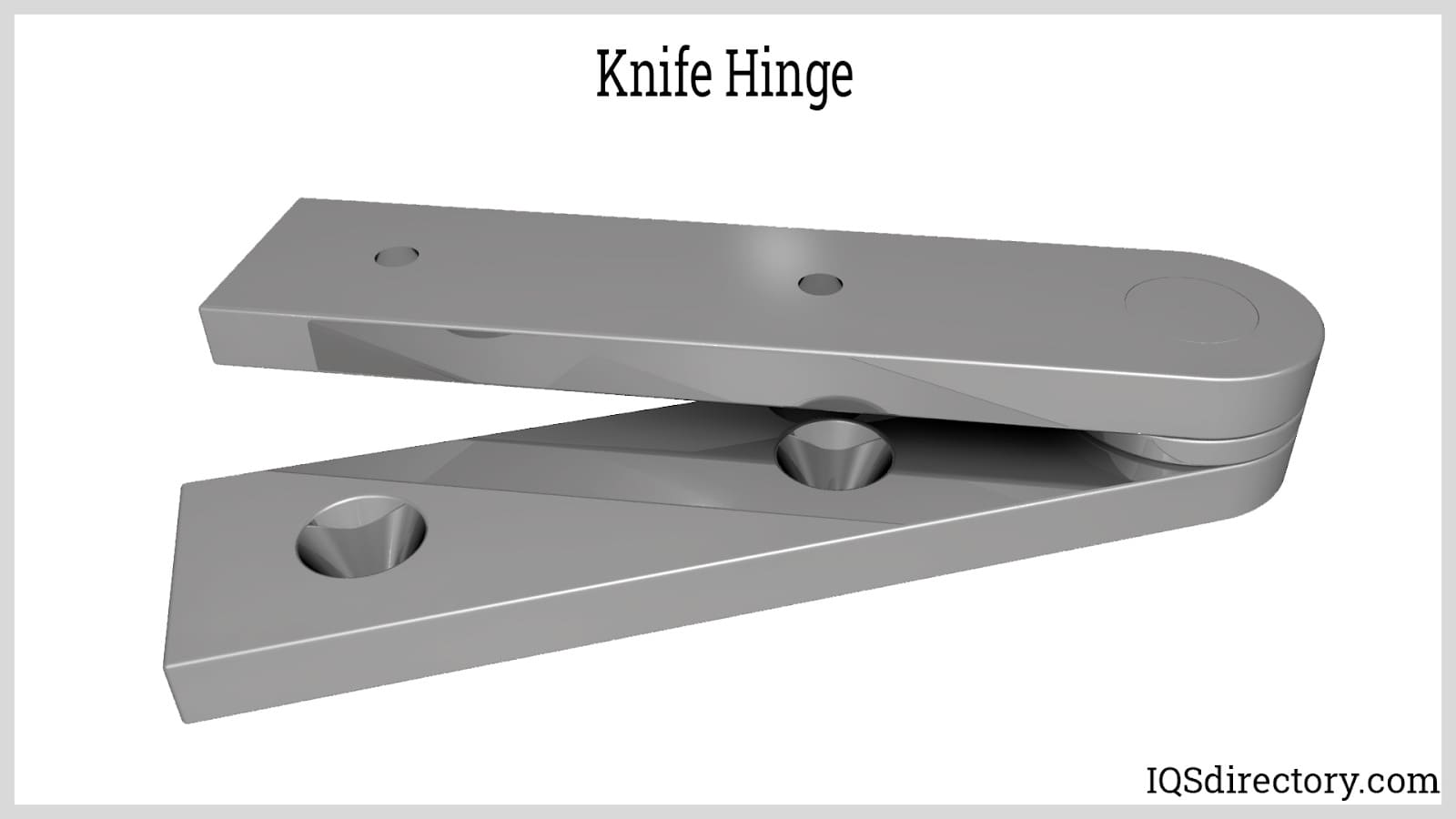

Knife Hinge

Butt Hinges

Butt hinges are the most common form of door hinge. Their two leaves are mortised to the frame and door, “butting” up against each other when the door is closed. The three varieties of butt hinges are simple, ball-bearing, and spring-loaded. Lightweight interior doors have conventional butt hinges. At the knuckles of a butt hinge, a pin, which may be detachable or undetachable, attaches the two leaves of the hinge.

Ball-Bearing Butt Hinges:

Ball-bearing butt hinges are very strong, durable, and used on heavy doors. The pin of a ball-bearing butt hinge has ball bearings surrounding it, which allows doors to swing smoothly with little force.

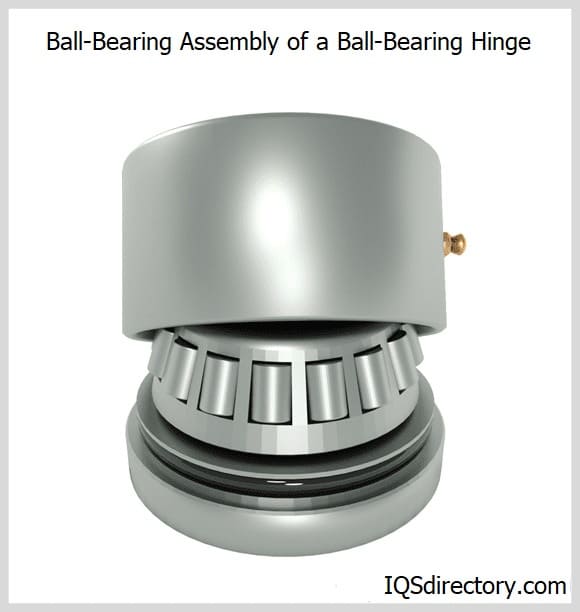

Ball-Bearing Assembly of a Ball-Bearing Hinge

Spring Loaded Butt Hinges:

Spring-loaded butt hinges have a spring in the knuckles or barrel that forces a door shut. They are used in doors that need to remain closed. While the door can swing both ways, the spring always closes the door once it is in the middle.

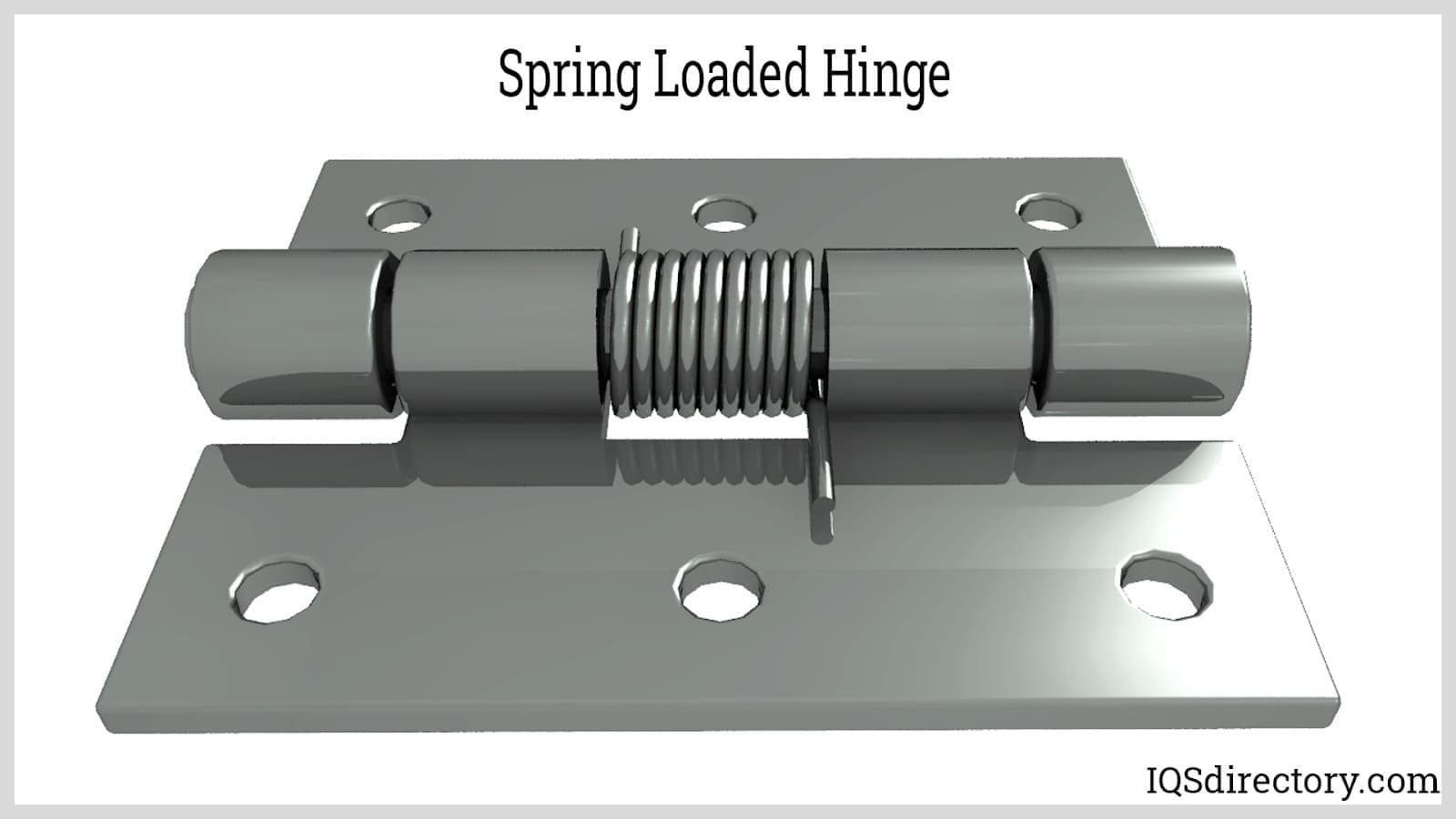

Spring Loaded Hinge

Simple Butt Hinges:

Simple butt hinges have the standard two rectangular leafs with knuckles and a pin that joins the leafs. They are used on lightweight doors that are not load-bearing. Simple butt hinges are the most common form of hinge used on interior home doors with less use.

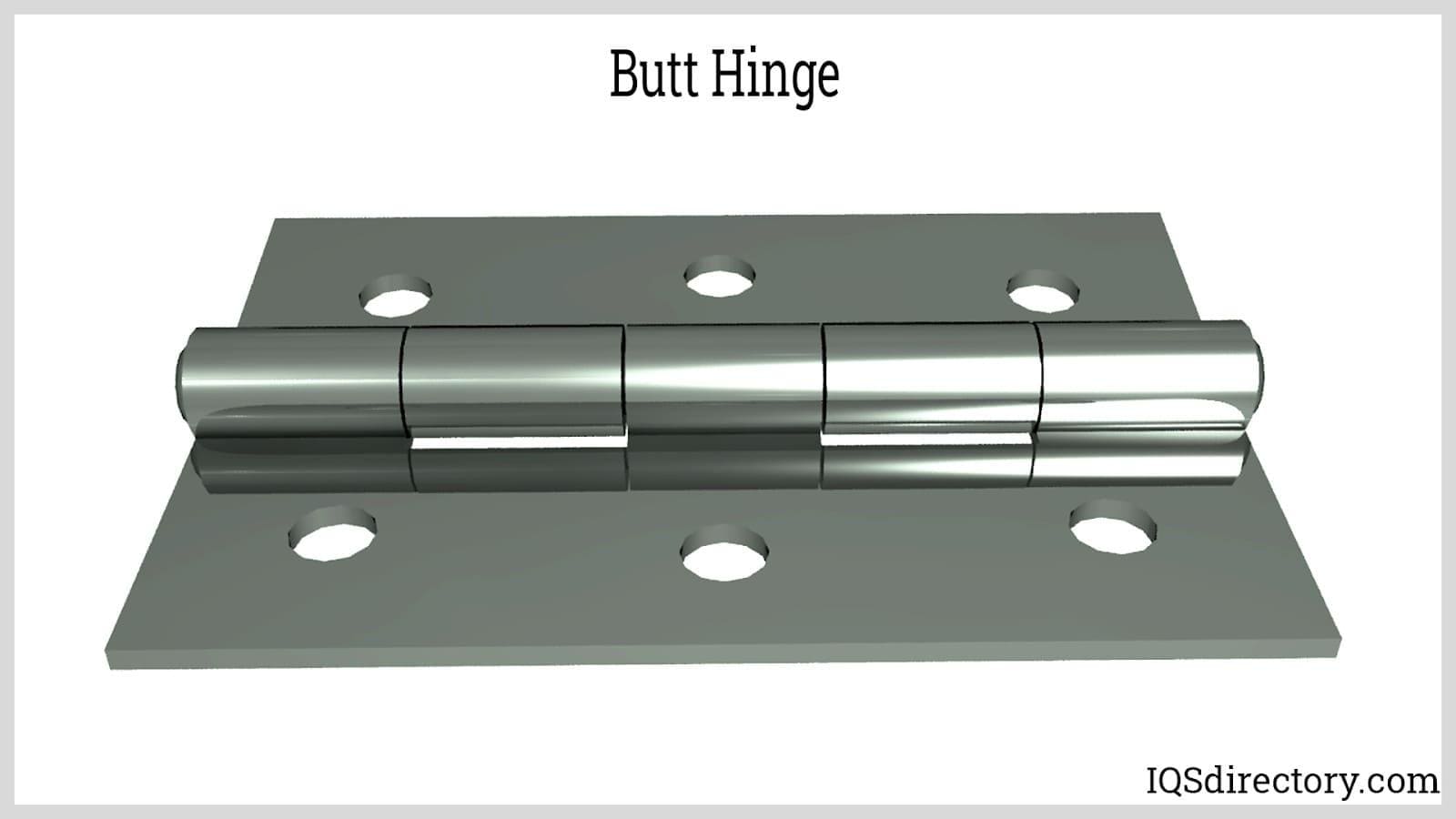

Butt Hinge

Concealed Hinges

Concealed hinges, also called invisible, hidden, or European hinges, are made not to be seen, so they do not deter from the beauty of expensive furniture or cabinetry. Since they are not visible, they provide a smooth, classic, aesthetically pleasing appearance. In addition, concealed hinges are tamper-proof because they are out of sight.

The standard concealed hinge can be adjusted to be self-closing and properly align with a door. Larger versions of concealed hinges are weight-bearing to be used on large doors.

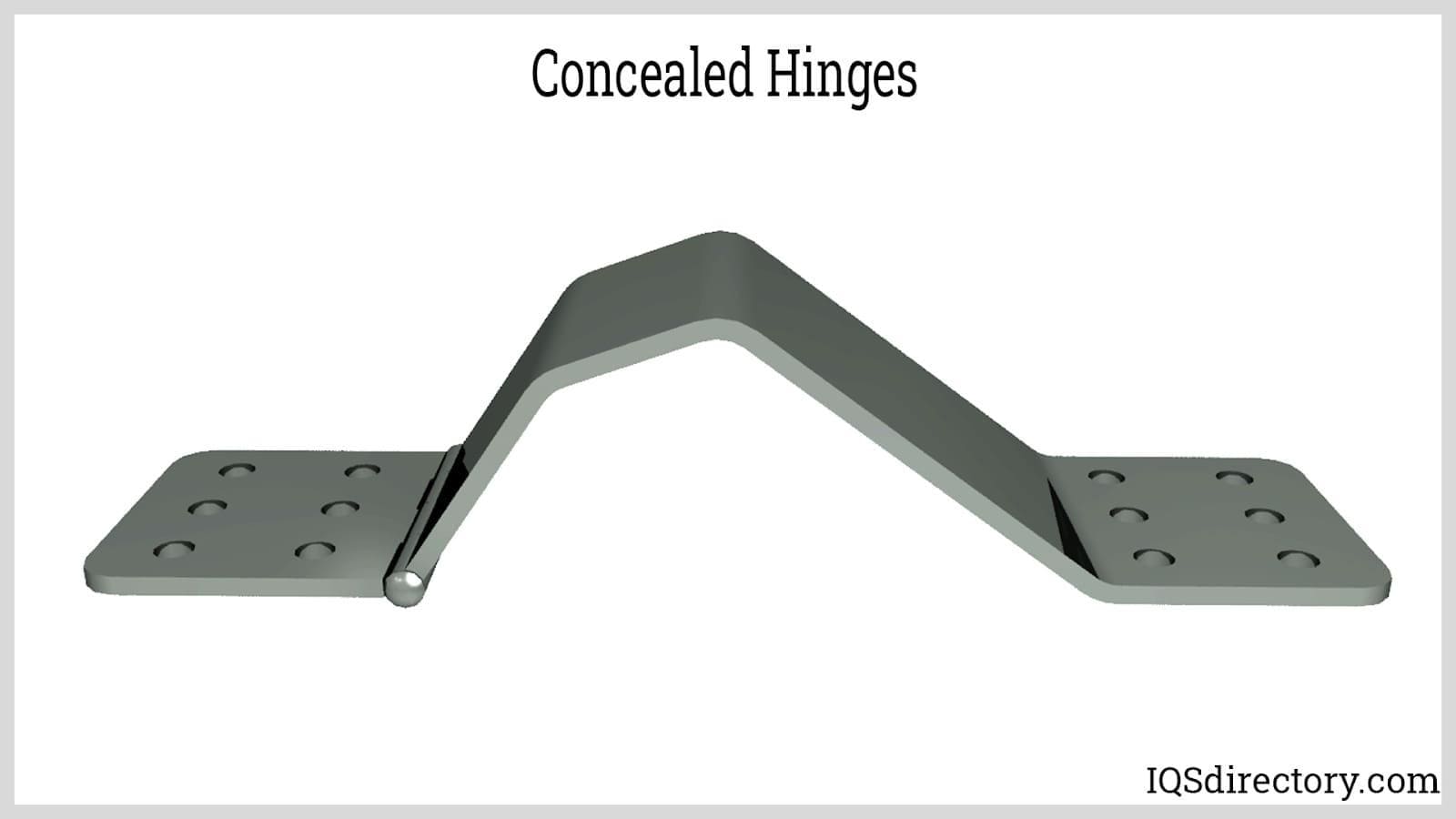

Concealed Hinges

Bullet or Barrel Hinges

Barrel or bullet hinges are also called weld-on and lift-off hinges. They are a compact and sturdy method used with metal doors and are normally manufactured from stainless steel. The three parts of a barrel hinge are its female leaf side, male pin side, and brush.

The characteristic of bullet hinges that differentiates them from other types is how they are attached. Unlike traditional hinges with wings, bullet hinges do not have wings and are attached by being welded to the door and frame, with the female side welded to the frame, and the male side welded to the door.

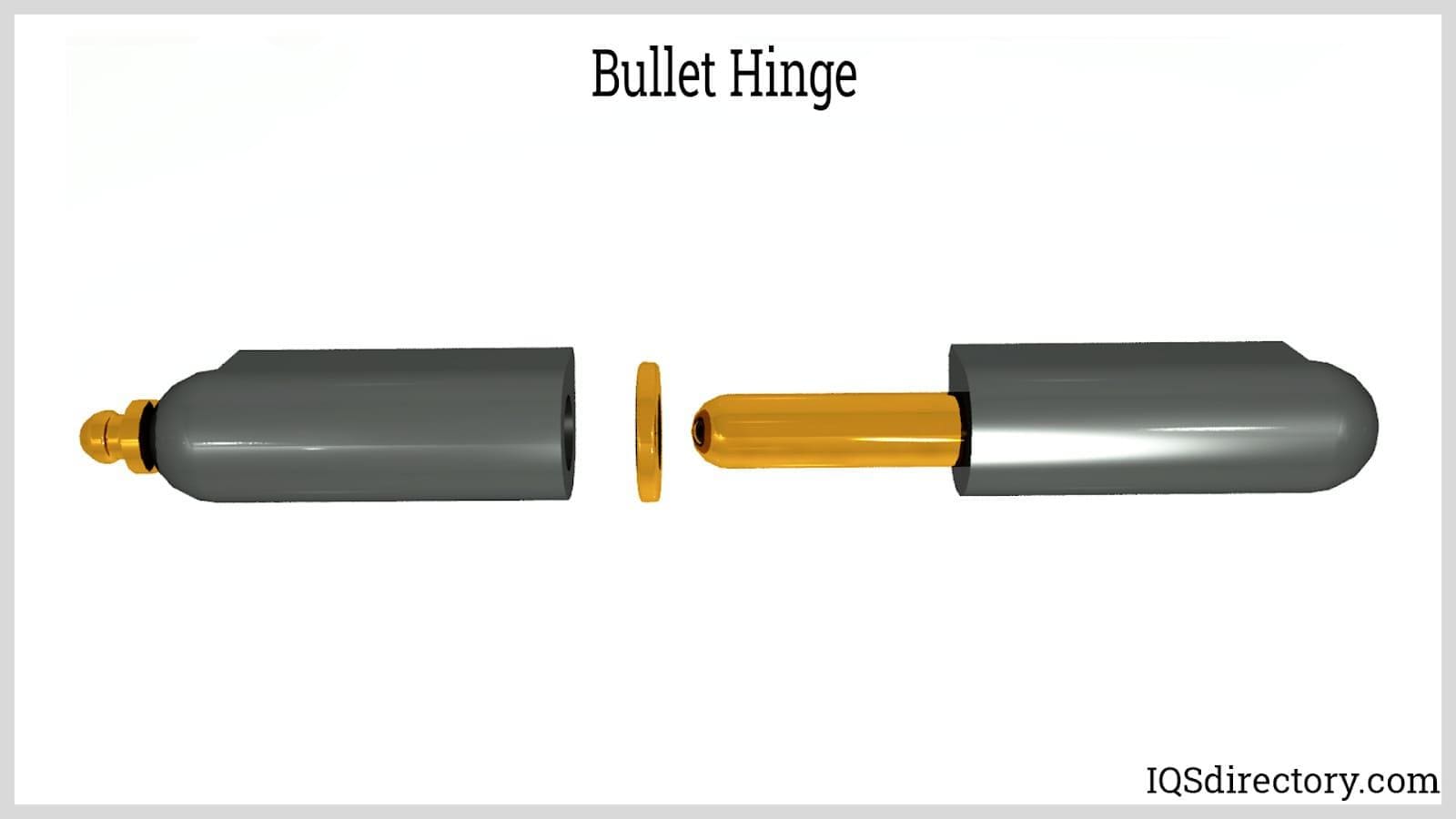

Bullet Hinge

Offset Hinges

Offset hinges change the pivot point of a door and increase clearance, making it possible for large objects, wheelchairs, and people to enter the opening. They swing the door away from its frame to widen the opening by two inches. Offset hinges have been approved as being compliant with the Americans with Disabilities Act (ADA).

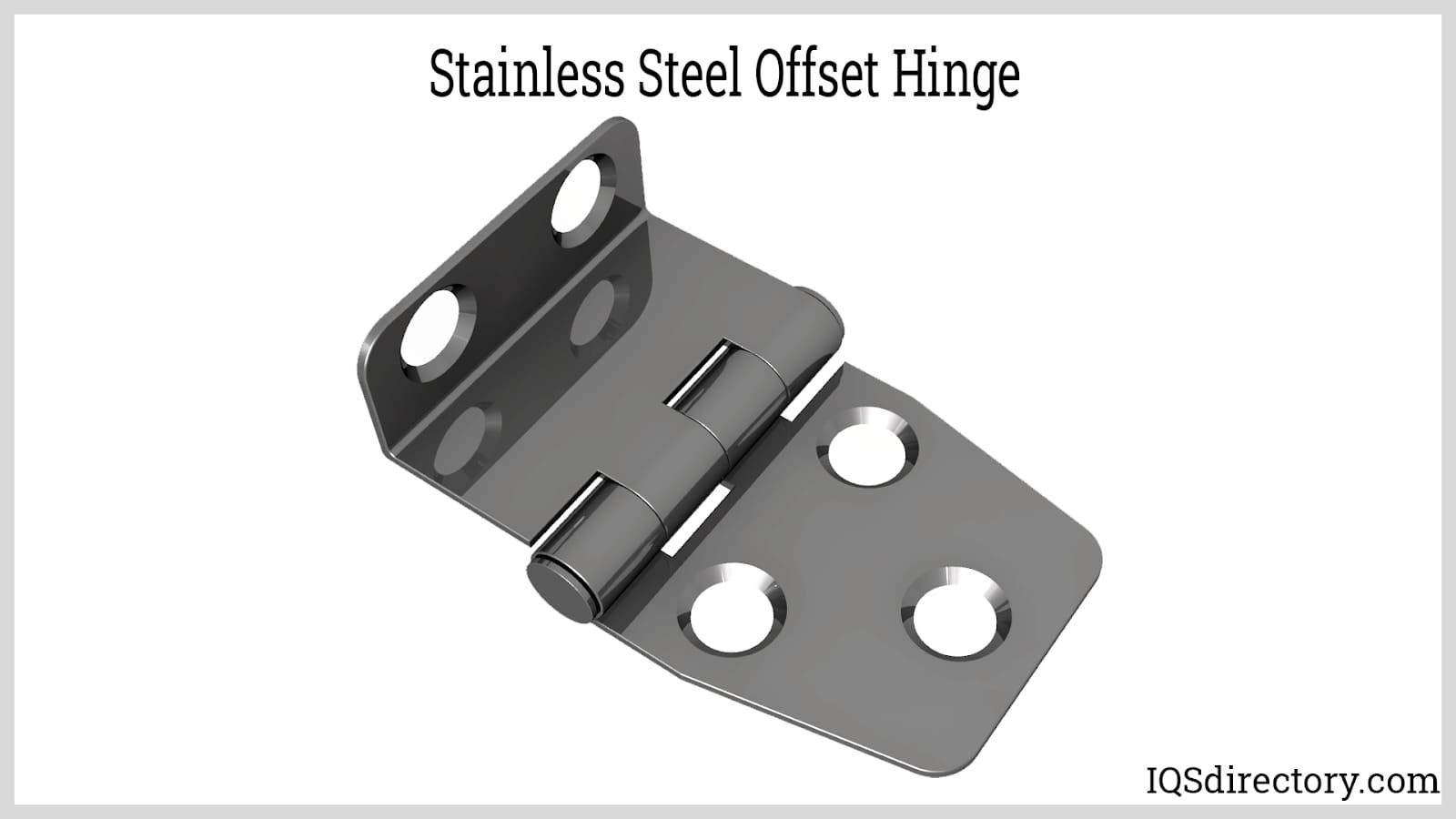

Stainless Steel Offset Hinge

Continuous Hinges

Continuous or piano hinges have long, narrow leaves that span the length of an opening to give a door or window strength and support. They were originally developed for piano lids but have expanded their use to toolboxes, desk doors, cabinets, and doors. Continuous hinges can be mortised into the surface to which they are fastened.

As with all types of stainless steel hinges, continuous hinges are manufactured in different thicknesses, pin diameters, and widths. The standard lengths of continuous hinges are six, seven, and eight feet, which can be adjusted to fit a specific application.

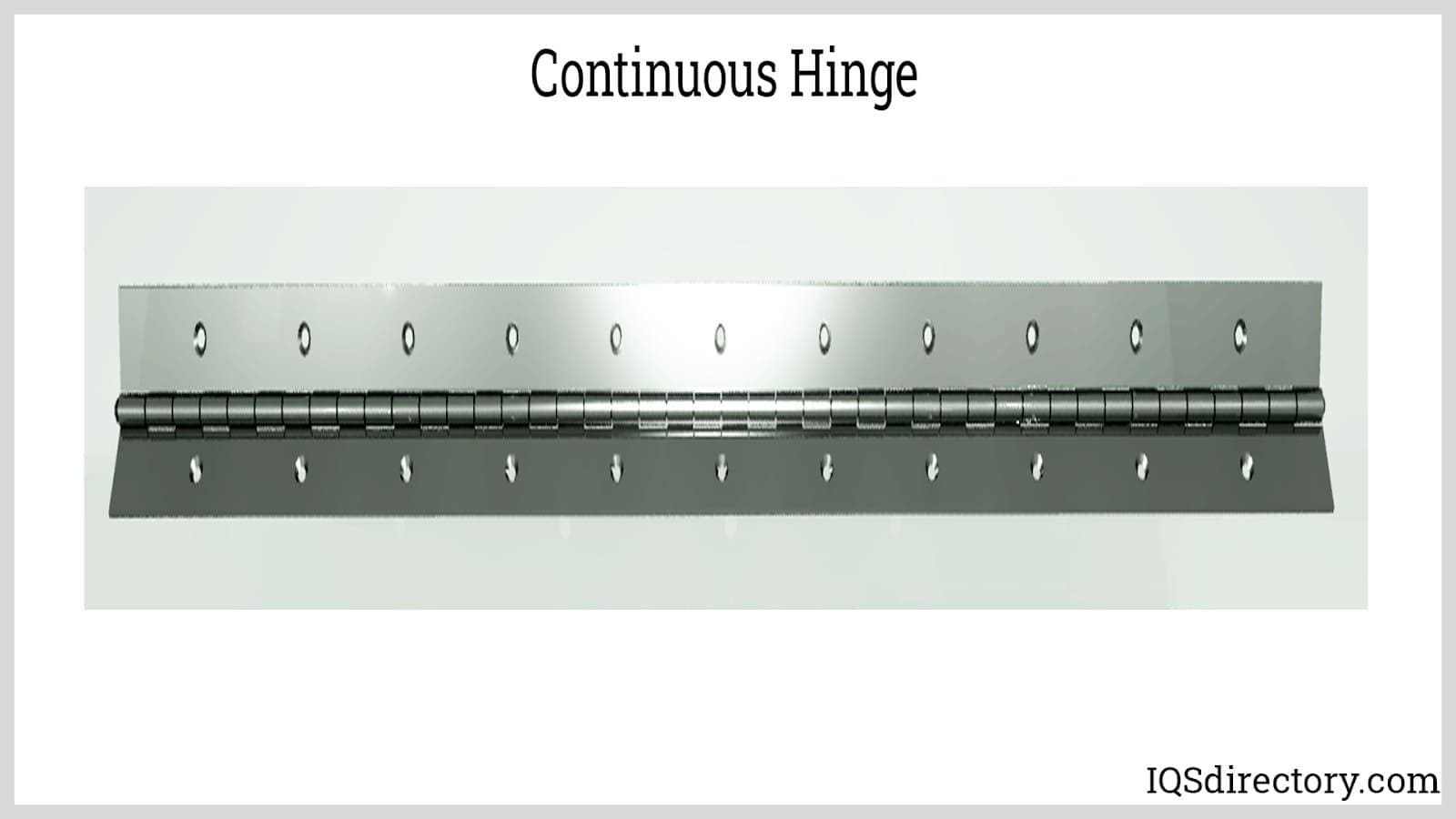

Continuous Hinge

Overlay Hinges

An overlay hinge is another invisible hinge that fits inside a door and is not visible when the door is closed. The portion of the hinge connected to the door frame can be a right-angle bracket secured to the frame and wrapped around its edge.

Overlay hinges have a pocket into which the hinge section connected to the door passes when the door closes. They are mainly used in cabinets when an insert, full overlay, or partial overlay is required.

Butterfly Hinges

Butterfly hinges are designed to be seen and have leafs that have the shape of butterfly wings. They are flat surface mounted, with one butterfly wing attached to the door and the other attached to the door frame. They are mainly used on cabinets or ornamental boxes.

Block Hinges

Block hinges are extremely strong hinges bolted or welded to fences, doors, and frames. They are similar to bullet hinges but without the bullet shape and have mounting holes. Block hinges do not have leafs, providing a finished, polished appearance. They take up little room and provide a smooth, sturdy rotation.

Constant Torque Hinges

Constant torque hinges provide constant resistance, whether they are open or closed. They use frictional force to hold doors or flaps in any position. Monitors have these hinges to change angles. Constant torque hinges increase efficiency and make accessing cabinets, cupboards, and computers easier.

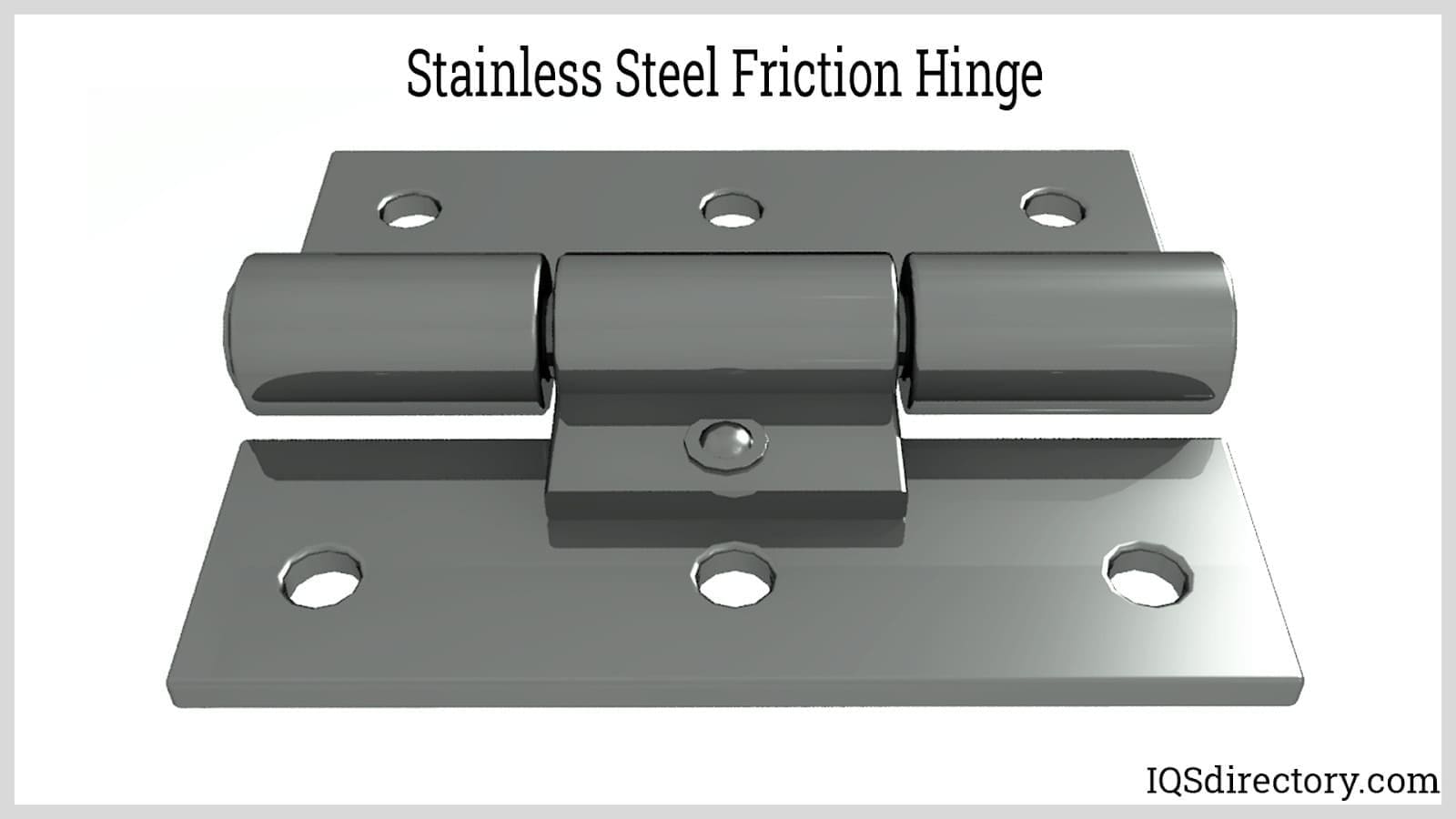

Stainless Steel Friction Hinge

Flag Hinges

With flag hinges, also known as lift-off hinges, the pin is fixed to one of the leaves (male or female) that make up the flag hinge. The term flag hinge refers to the male leaf's permanently linked pin to the plate, which resembles a flagpole. Flag hinges can be easily assembled and disassembled. Gravity keeps the male end attached to the female end.

Floating Hinges

With a floating hinge, a door or cover can pivot away from the fixed component that acts like a butt hinge.

Flush Hinges

The leafs of flush hinges rest flush against one another, with one leaf inserted inside the other. Since flush hinges do not require a mortise or recess, they are attached to and have an advantage over butt hinges. Flush hinges are used with light loads.

Geared Continuous Hinges

Geared continuous hinges have one gear for the leaf and one for the frame, held together by a cover channel. The components of a geared continuous hinge rotate on a series of bearings. As with continuous piano hinges, geared continuous hinges run the full length of a door, reduce hinge failure, and decrease the amount of stress placed on a door.

The design of geared continuous hinges helps attach two large, heavy objects enabling one or both to rotate slightly. However, despite their power, geared continuous hinges are restricted in their range of motion.

"H" Hinges

An "H" hinge consists of two long rectangular flat plates hinged together with knuckles shorter than the long rectangles. The main material used to produce "H" hinges is stainless steel due to its appearance and resistance to corrosion. H hinges are decorative hinges like butterfly hinges installed on the cabinets' exterior.

To enhance the appearance of "H" hinges, the stainless steel plates may be embossed or decorated with a pattern.

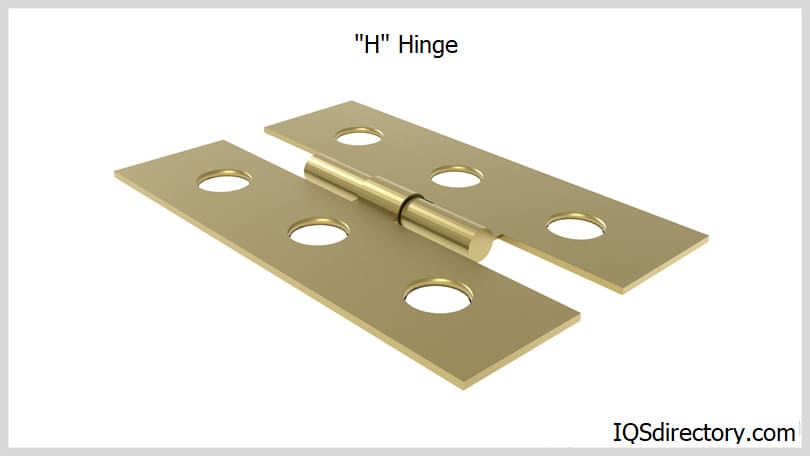

H Hinge

“HL” Hinges

"HL" hinges are "H" hinges that are stronger and more resilient than typical "H" hinges. They are useful for supporting heavy wooden doors with the L-shaped arm attached to the door for extra support. The main body of the hinge has the shape of an H hinge, with one of the rectangles having a rectangle jutting out from it at a 90° angle.

As with all hinges, "HL" hinges come in various sizes, including 3, 4, 5, 7, and 9 inches, with the 9-inch size used on barn doors and heavy entrance doors.

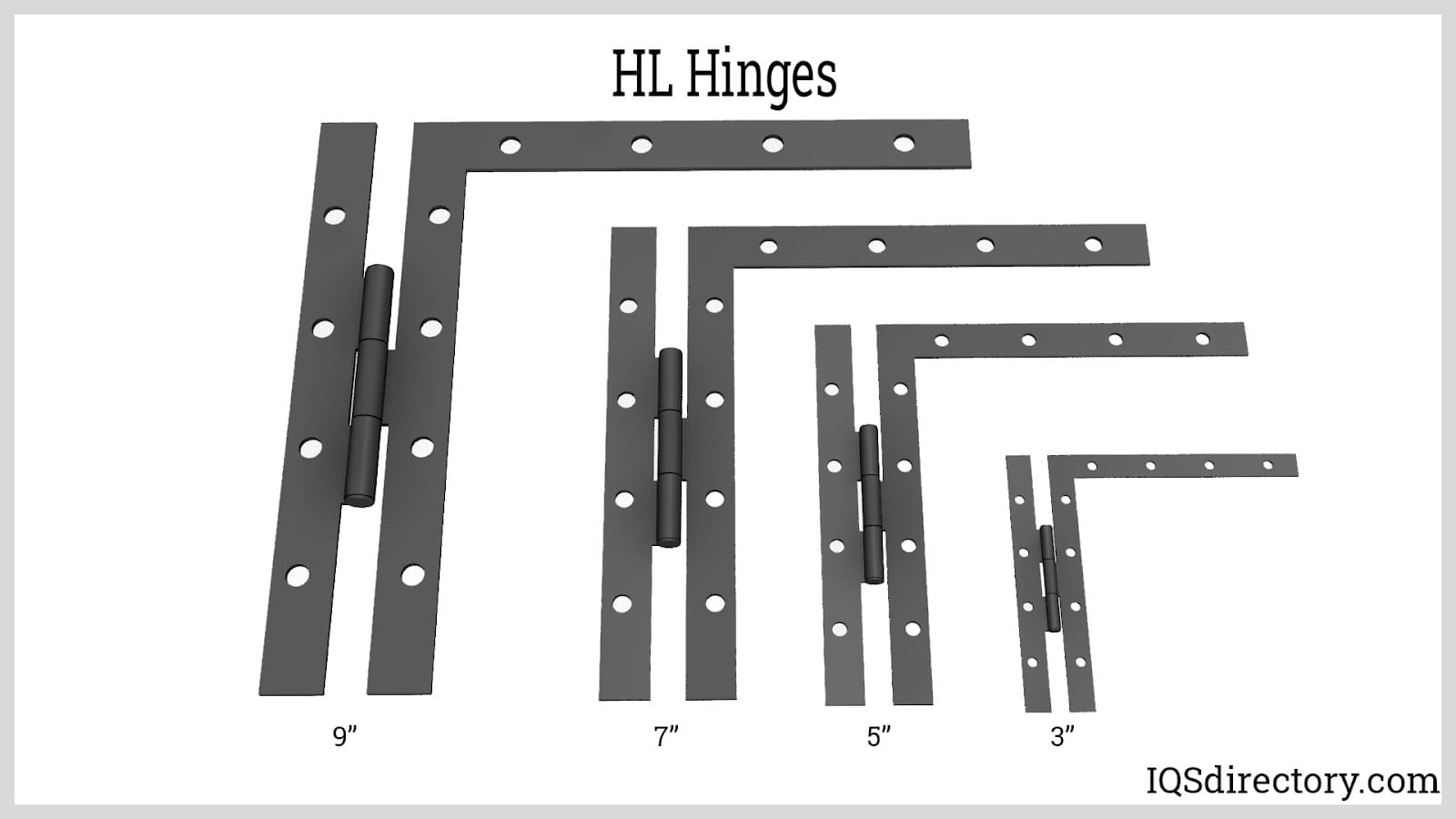

HL Hinges

Quick Release Hinges

Quick-release hinges make it easy to remove doors from cabinets and entryways. They have retractable pins that pull into the hinge barrel when squeezed. After the pins are retracted, a door can be easily lifted without side or upward motion.

A spring release hinge uses a pin release mechanism to disassemble a door without additional tools. It has a pin release mechanism that is spring-loaded. A knob is rotated and pushed to release the hinge.

Hydraulic Self-Closing Hinges

Hydraulic self-closing hinges allow doors to close smoothly and have a compact design. They eliminate the need for hydraulic arms above the door. The main benefit of hydraulic self-closing doors is how softly they close a door, a feature not available with spring-hinged doors. The hydraulic damper causes the door's spinning to slow as it closes.

With a hydraulic self-closing door, a small oil cylinder is located in the hinge shaft with a piston that slides back and forth in the cylinder to generate hydraulic pressure. The cylinder's small oil hole prevents the hydraulic hinge's torsion spring from closing the door quickly.

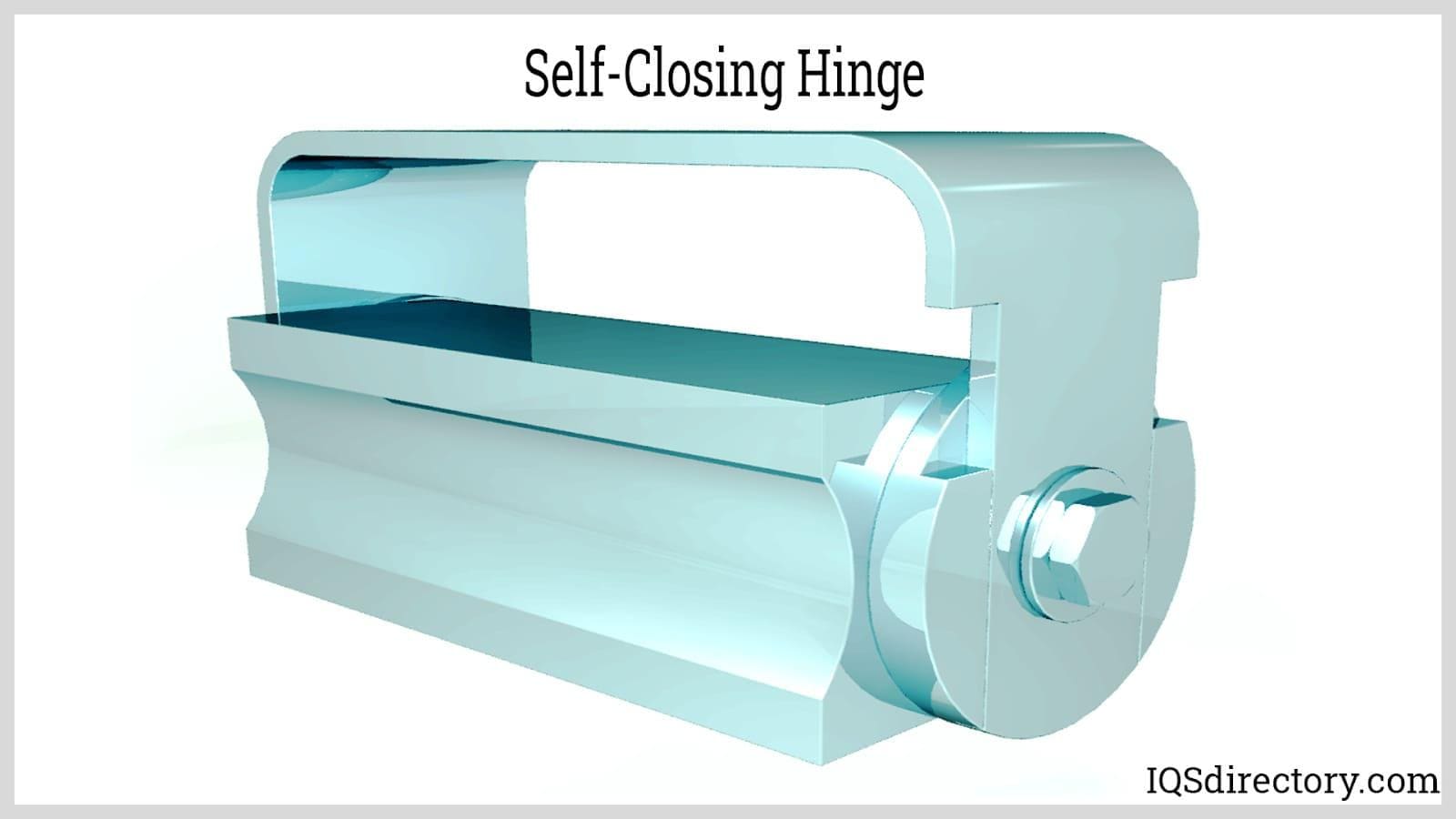

Self-Closing Hinge

Stop Hinges

Stop hinges limit the rotation of one leaf of a hinge and allow minimal endplay. The end play of stop hinges is typically 90 degrees. They are available in butt, continuous, strap, and weld-on hinge configurations.

Strap Hinges

Like butt hinges, strap hinges have broader leaves and shorter pins (straps). They are for aesthetics and adornment and are frequently used on sheds and garage doors.

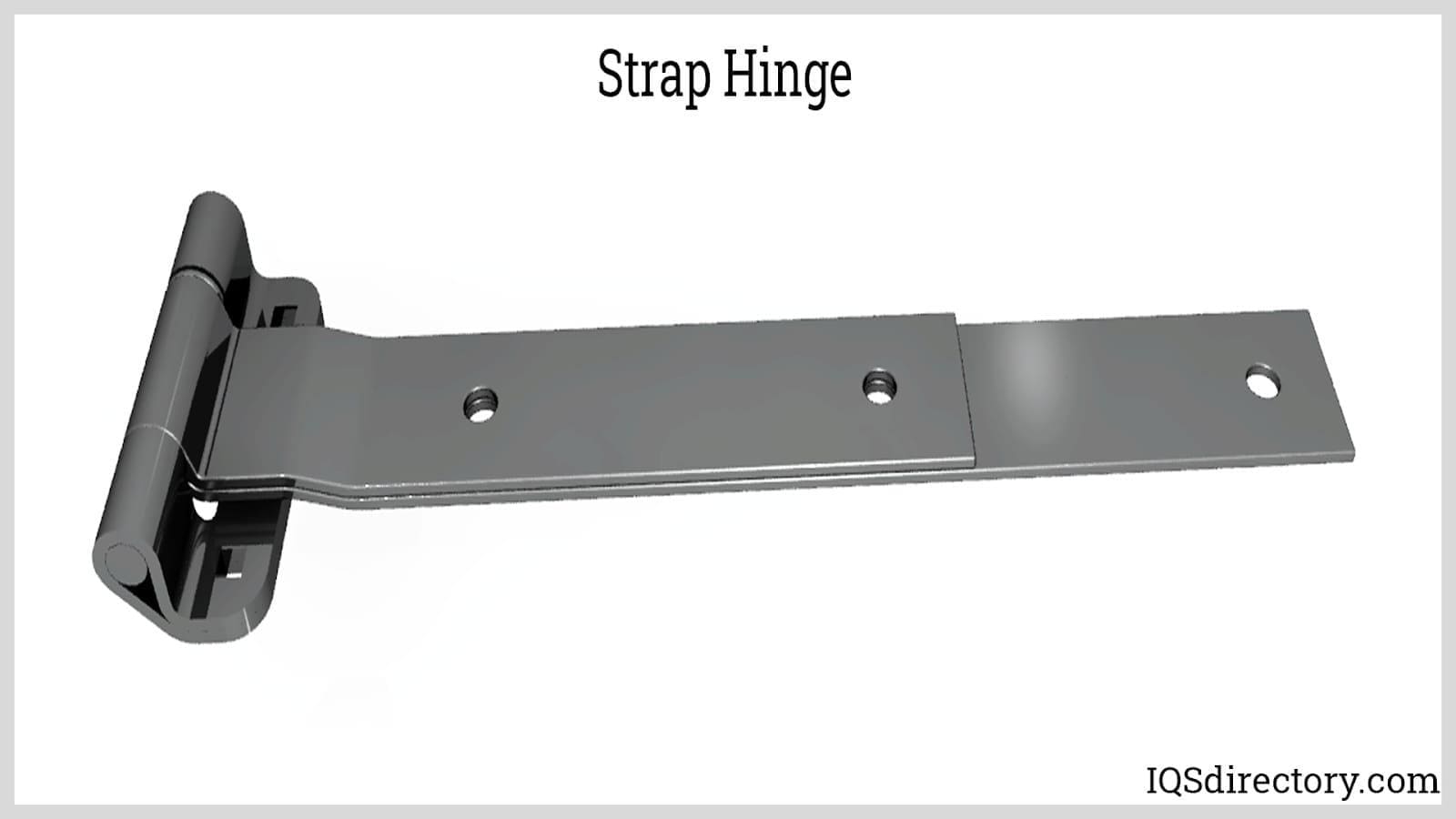

Strap Hinge

Weld-on Hinges

When a hinge needs to be permanently fixed through weldings, such as on metal gates or enclosures, weld-on hinges are employed. They are built similarly to butt hinges.

Four-Bar Hinges

Four-bar hinges, also known as multi-bar hinges, are made of several bars that enable the attached component to rotate outward rather than into the frame's edge. Casement, projecting, and parallel-opening windows and panels can all use these hinges.

Hook-and-Eye Hinges

A hook and eye hinge comprises an L-shaped hook and an eye-shaped loop or screw. Most of the time, outdoor applications like gates use these hinges.

Gate Hinges

Gate hinges can endure the significant stress caused when a gate cantilevers out from its gate post. In addition, they have an adjustment that enables the gate's height and angle to be changed.

Structural Frames and Trusses

Several technologies are available for building structural frames and trusses using common components. Examples include T-slotted aluminum profile systems and scaffolding made of round tubes. These systems frequently have hinges to form pin joint connections between structural parts.

Hinge Switches

Door hinges with safety switches are known as hinge switches. They are used on doors and hatches for interlocking safety applications such as guarding machinery.

Hinge Systems for Mounting Cylinders

Revolute joints at each end are frequently needed to attach pneumatic and hydraulic cylinders. They might have a pin-accepting design, or their end faces might be used to attach a separate hinge part.

Chapter 4: Advantages, Applications, and Maintenance of Stainless Steel Hinges

Advantages of Stainless Steel Hinges

  • Due to its superior rust resistance versus galvanized steel, bronze, or brass, stainless steel hinges are frequently chosen for marine applications. The corrosion resistance of stainless steel is unpredictable and localized in contrast to traditional rusting with other metals. Tiny holes can penetrate the metal's thickness, leading to cracks and leaks. Lower alloy grades of stainless steel are known to have higher corrosion resistance in air settings, even though stainless steels all have a high level of resistance to rust and corrosion. As an alternative, high alloy grades are renowned for resisting corrosion in alkaline, acidic, and chloride conditions, even at extremely high pressures and temperatures.
  • Hinges are visible and contribute to the aesthetic appeal of a door or gate. Surface finishes for stainless steel hinges make it simple to keep a high level of shine. Stainless steel is the first choice for pharmaceutical, food, kitchen, and medical applications because it is easy to clean.
  • The strength-to-weight ratio of stainless steel makes it possible to use thinner thicknesses than traditional metals, a characteristic that leads to cost reductions. Stainless steel can be molded, cut, forged, welded, and machined as easily as most conventional steels. Although stainless steel hinges are often more expensive than other materials, they have a longer life cycle and come in various styles, shapes, and patterns to satisfy the requirements of numerous applications.
  • Stainless steel hinges are resistant to extreme heat and cold. Even at extremely high temperatures, stainless steel is strong and can withstand scaling. Certain grades of stainless steel maintain their toughness at cryogenically low temperatures.

Applications of Stainless Steel Hinges

  • Stainless steel hinges are used on lead-coated doors for medical equipment, vault doors, and radiation and neutron shielding.
  • Heavy doors are hinged in the research and development sector to shield facilities from radiation pollution.
  • Heavy doors in guarded locations, transporters, and armored vehicles use stainless steel hinges in the military and defense sectors.
  • Doors, windows, cabinets, TV racks, and domestic appliances have stainless steel hinges.
  • Chemical processing factories use heavy-strength stainless steel hinges on their containers to preserve the environment.
  • Shipping containers with stainless steel hinges keep the containers securely locked.
  • Stainless steel hinges are used on gates in industries like oil and gas plants for easier mobility.
  • Many lighting panels, including LCD screens, laptop screens, and illuminating wall cladding, use stainless steel hinges.
  • One of the primary uses of stainless steel hinges is in marine devices and ships for easy loading and unloading large doors.
  • Different varieties of stainless steel hinges are used on gates, equipment at building sites, and agricultural machinery.

Maintenance of Stainless Steel Hinges

Stainless steel hinges facilitate processes and improve accessibility, safety, and security. Maintaining stainless steel hinges reduces the likelihood of breakdowns or malfunctions with any gear or equipment. In addition, stainless steel hinges will last longer and remain stronger if users take extra care of them.

  • Tightening screws is the simplest technique for inspecting and tuning stainless steel hinges. Whether a hinge is spring-loaded for commercial, domestic, or industrial purposes, repetitive actions can dislodge screws and damage threads. They should be retightened to ensure stainless steel hinge screws aren't eroding a door or frame.
  • Stainless steel hinges may require lubricating if they are making noise. Squeaky bullet hinges are frequently ignored due to their strength and compact size. Loud hinges can easily be fixed with simple oil or hinge/lock lubrication supplies. Proper lubrication ensures continued efficiency and facilitates accessibility.
  • Stainless steel hinges are a fantastic defense against rust. They are constructed from marine grade stainless steel, such as stainless steel grade 316, which does not rust like other metals. Stainless steel is strong and resistant to heavy use in industrial settings and is ideal for marine use.
  • Grime accumulates on hinges, particularly in warehouses or factories. Dirt, dust, and filth can harm the mechanism of a hinge. Oils, lubricants, and coatings should safeguard and offer further protection to stainless steel hinges. Silicone sprays can dissolve buildup if it has started to impair a stainless steel hinge's operation.
