Introduction
In this article, you will learn about different types of cardboard balers and their use.
You will learn more about topics such as:
What is a Cardboard Baler
Types of Cardboard Balers
How Cardboard Balers Work
The Reasons for Baling Cardboard
And Much More …
Chapter One – What is a Cardboard Baler?

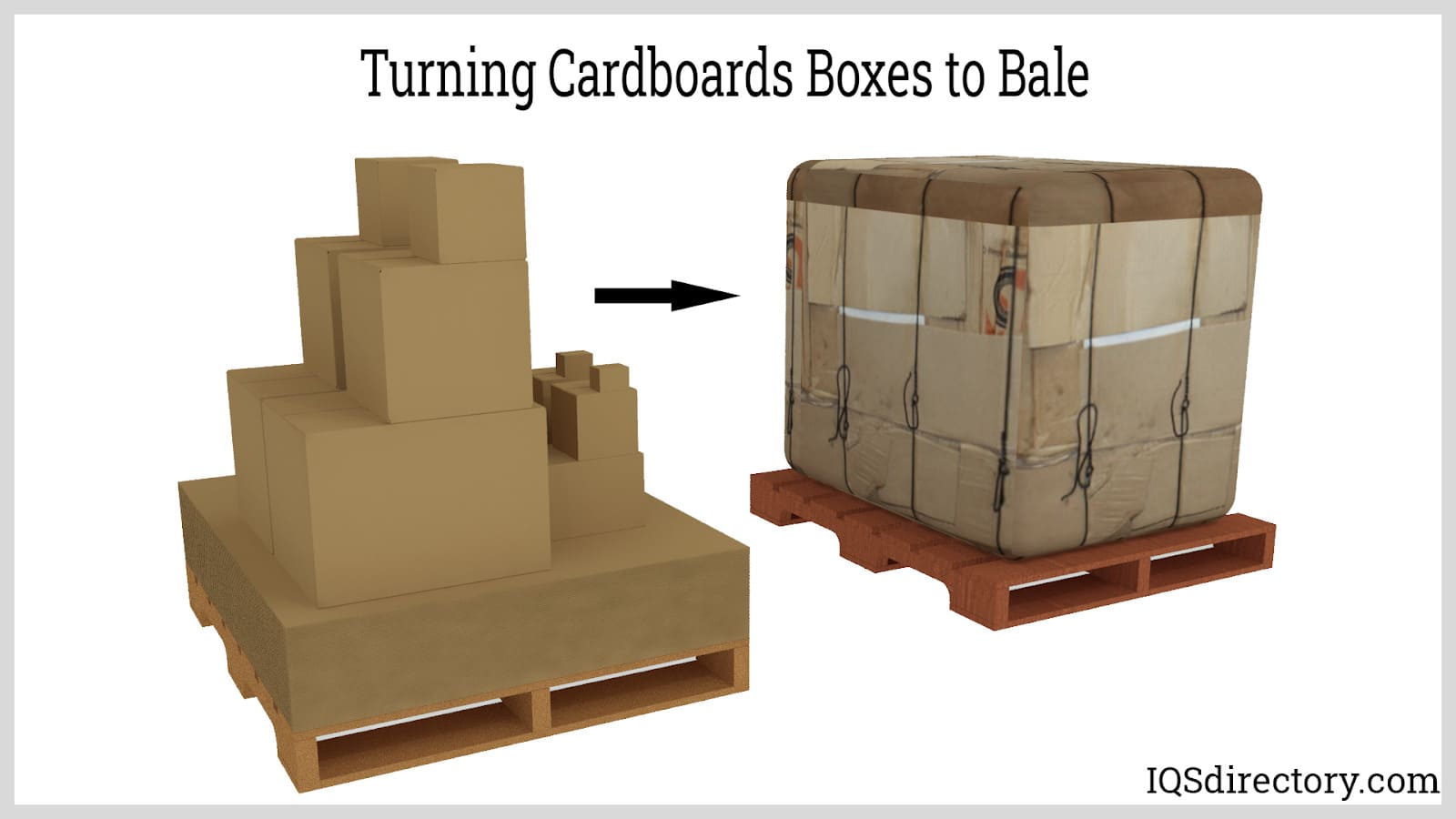

A cardboard baler is a mechanism that uses a metal plate driven by a hydraulic ram to apply tremendous pressure and force to crush, compact, and compress pieces of cardboard into tightly formed and easy to transport cubes and rectangular shaped bales. The design and purpose of cardboard balers is to take the huge volume of cardboard packaging and transform it into manageable bales to be transported to recycling centers.
Every retail or manufacturing operation that consistently receives components, parts, and products uses a cardboard baler to save space and prepare cardboard for transport. The use of cardboard balers has grown steadily in recent years due to the many regulations and laws that communities enact to control pollution and waste materials.
Chapter Two – Types of Cardboard Balers
The initial classification of cardboard balers relates to their orientation, which can be vertical or horizontal depending on the manufacturer, types of cardboard to be crushed, available space, and amount of cardboard. Aside from this single difference, all balers have the same basic principle, purpose, and design that includes a hydraulic powered ram, large compacting box, and a plate driven by the ram.
The many configurations of balers make it possible to fit one to the needs of any business. Offices that receive shipments in small boxes have balers that have visual appeal but still pack the force to create a small bale. Large manufacturing operations that receive cartons of parts have huge balers with rams that weigh over 500 lbs and have a pressing force of hundreds of tons.
Cardboard Baler Types
Cardboard Baler Tonnage
A critical differentiating factor for cardboard balers is the amount of tonnage they produce each day, which can vary from a very few tons for small offices to hundreds of tons for industrial and manufacturing facilities. When users are considering the purchase of a cardboard baler, it is imperative that they are aware of the amount of cardboard that needs to be processed each day. The weights below are regarding the tons of cardboard compacted daily.
2 tons or less: Two tons or less of cardboard can be accommodated by a manually fed machine that produces bales of two feet up to six feet with bales weighing 100 lbs. to 1500 lbs. This amount of cardboard is ideal for vertical balers.
1 to 4 tons: One to four tons of cardboard can be manually or conveyor fed and produce bales of over two feet wide and six feet long, weighing a half ton to one ton. This amount of tonnage requires a horizontal closed end baler.
3 to 200 tons: When the tonnage of cardboard reaches this amount, heavy duty high production cardboard balers are necessary. The quantity of cardboard dictates the use of a horizontal cardboard baler with automatic feed and tying.
Over 200 tons: As with 3 to 200 tons, cardboard waste over 200 tons demands a horizontal cardboard baler with automatic feed and tying. The handling of this volume of cardboard can be enhanced by a two ram baler.
Horizontal Balers
Horizontal balers are larger than vertical balers and are semi-automatic. They have a hopper at the top where cardboard is fed manually or by conveyor belt, forklift, or cyclone, which is a set of pipes at work locations that are fed small pieces of cardboard. Horizontal balers are designed for large amounts of cardboard with an hourly output of one to 15 tons.
A significant aspect of horizontal balers is their pressure range, which can be from 20 tons up to several hundred tons. Their large capacity makes it possible to feed them continuously. Once they reach a preset capacity, they can self activate.

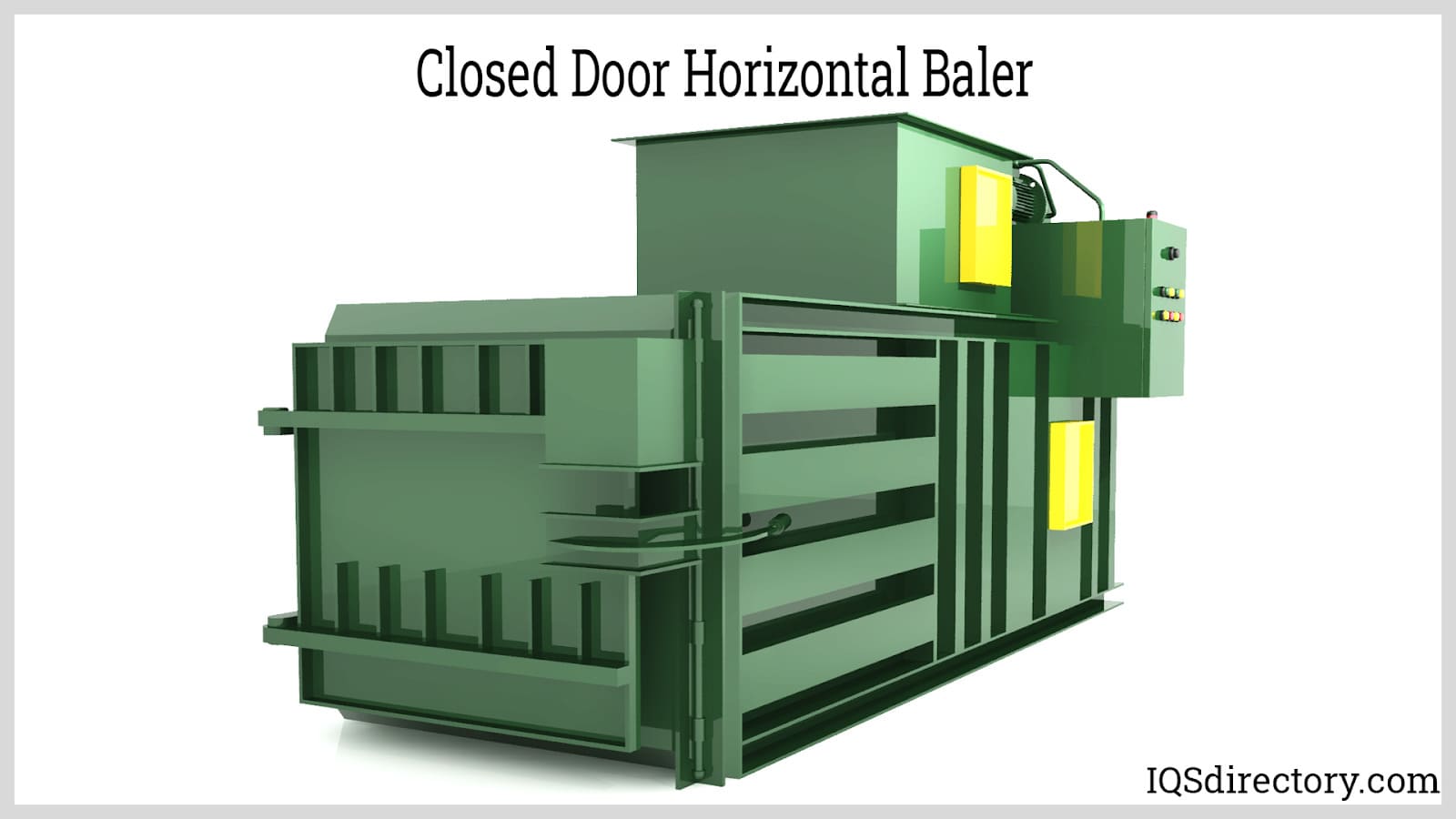

Horizontal balers can be open ended or closed ended with closed end horizontal balers designed for low bale production and open end horizontal balers for high production.
Closed End Horizontal Baler: A closed end horizontal baler has a closed off compression chamber and is smaller than open end horizontal balers. Waste is automatically compressed against a closed door without the need of an operator. At the end of the baling process, the bale is removed by a rear or side door and is pushed out by extending the ram or by the next bale. Closed end balers are limited by the number of bales they produce each hour, which is generally one.

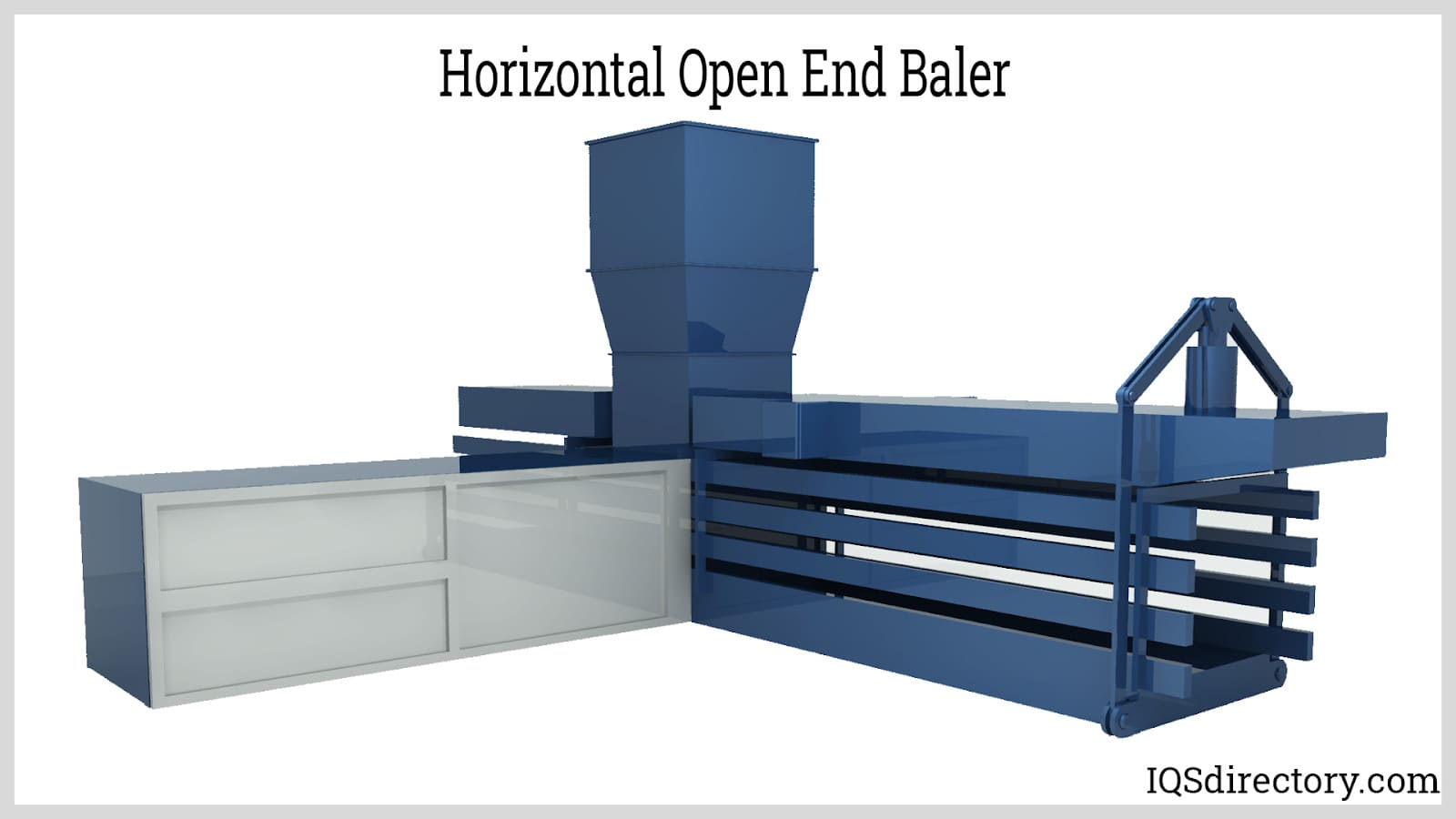

Open End Horizontal Baler: An open end horizontal baler has an open rear end of the extrusion chamber with an automatic bale tying system. They are designed for heavy duty high capacity baling for organizations that have a high volume of cardboard waste. Materials are loaded into the hopper via conveyor, manually, or forklift. Once the hopper is full, the ram pushes the material toward the open end of the extruder.
Horizontal open end balers are more labor saving than vertical balers since they do not necessitate manual loading or activation. Most varieties have automated tying or wiring of bales though some versions include manual tying and wiring. The baling process continuously produces four times as many bales per hour than closed end horizontal balers.
The high capacity of an open end horizontal baler necessitates the meeting of certain criteria before the choice is made to purchase one. A company that produces over 25 tons of cardboard per month should have an open end horizontal baler for financial and labor savings as well as optimum control of waste materials.
Portable Cardboard Balers

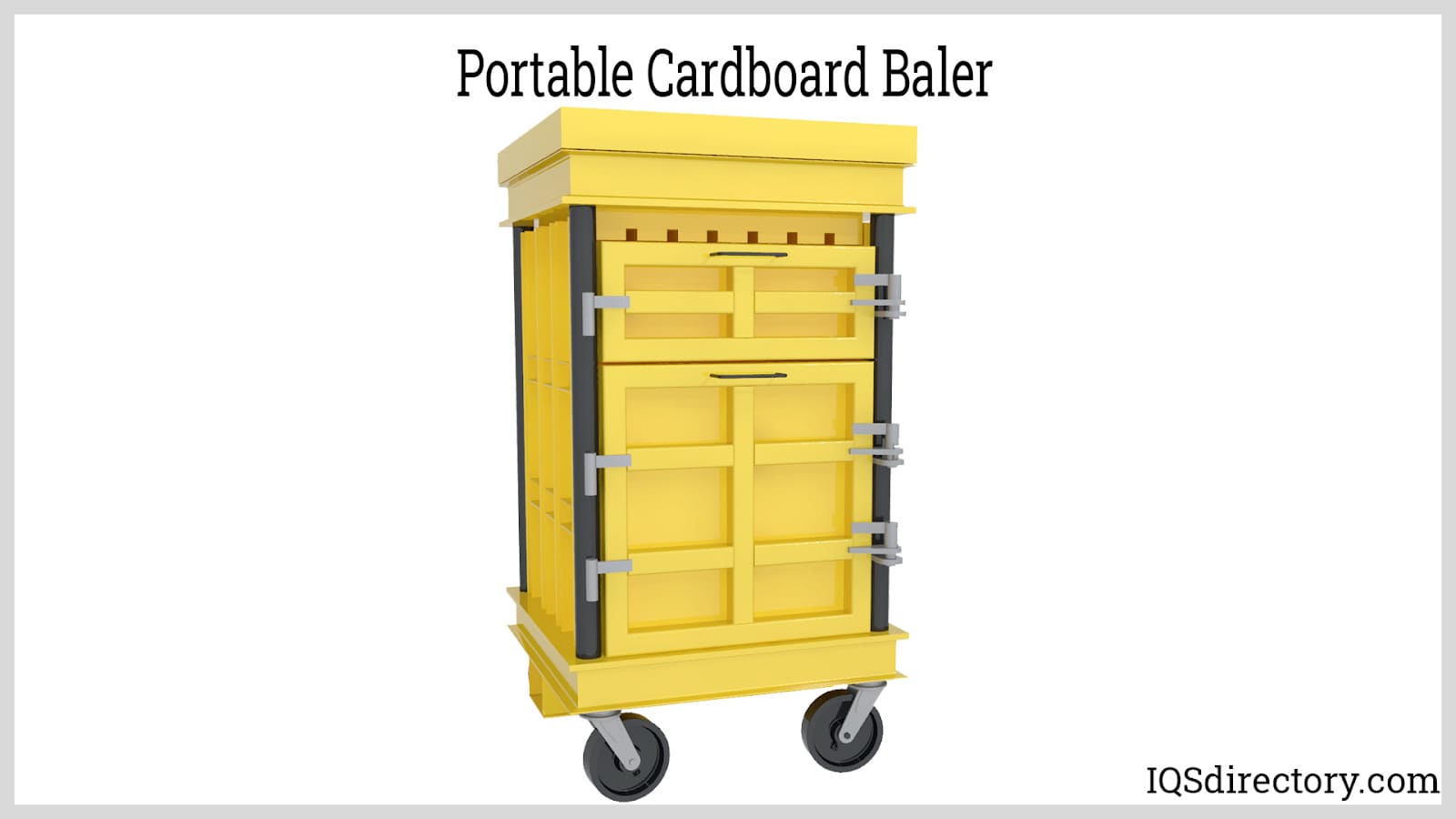

Portable cardboard balers are ideal for organizations with a low volume of cardboard and limited space. The bale size for a portable cardboard baler weighs up to 140 lbs. They use vertical downward force to compress the cardboard material. Though portable cardboard balers are smaller than their more robust contemporaries, they still have the same heavy duty construction.
The low profile of a mobile portable cardboard baler makes it possible for it to fit through a standard sized door and be carried by freight elevators. Certain designs have castors for ease of movement and more flexible placement.
Top Loading Cardboard Baler

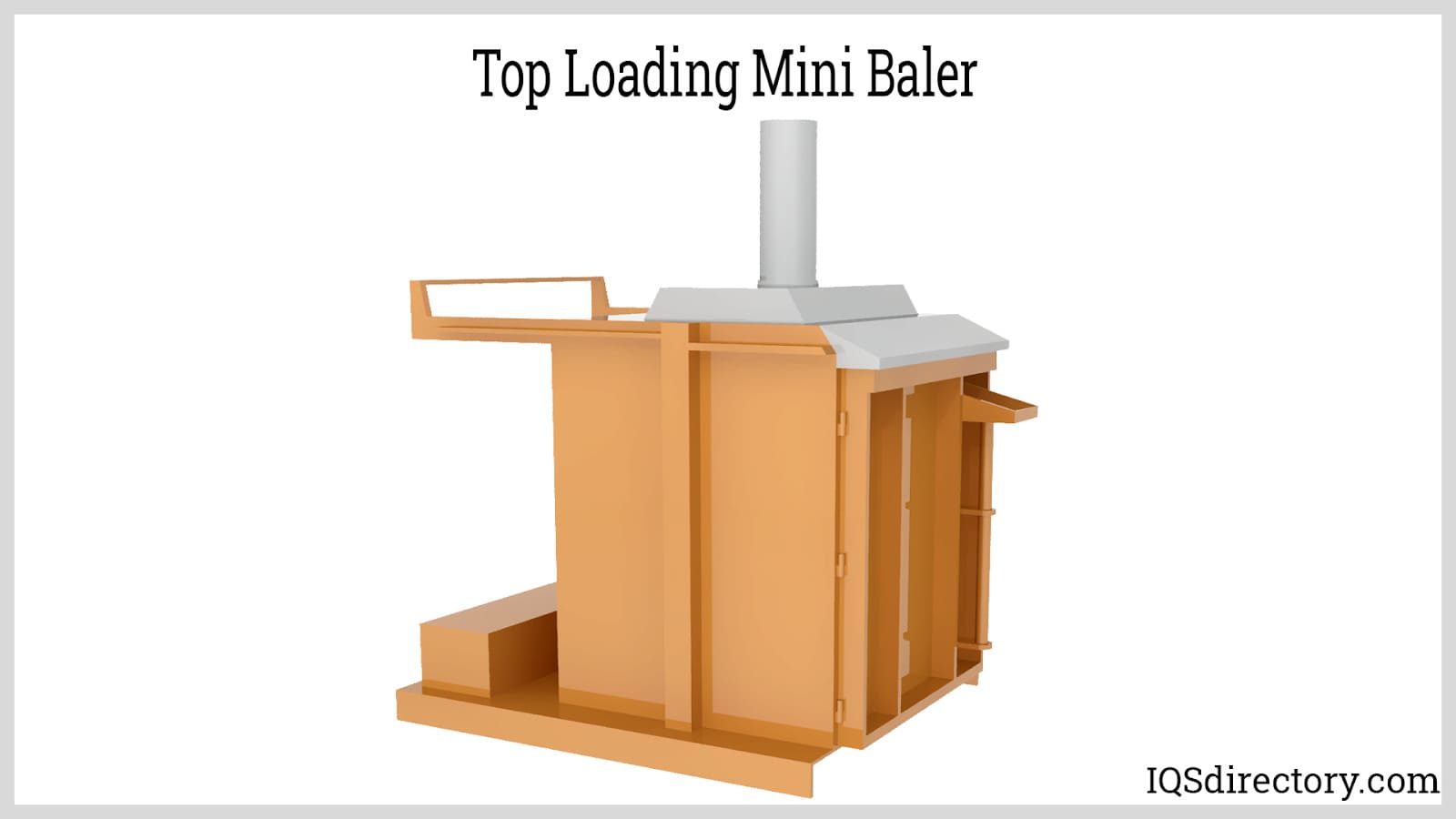

A top loading cardboard baler is a form of mini baler that is smaller than a portable baler and has cardboard loaded from the top. They are ideal for companies that generate very little cardboard and produce bales of 90 lbs. to 130 lbs. Their small footprint makes it possible to place them where cardboard waste is created. Bales are light enough to be removed using a dolly.
A unique feature of top loading mini balers is their ability to be preset to create a specific size bale.
Two Ram Horizontal Baler
A two ram horizontal baler has two rams that complete similar but different functions. When material is dumped into the hopper, and the compression chamber is full, the first ram compresses and compacts the material into a bale. In many ways, the first ram functions much like a closed end horizontal baler.
What differentiates a two ram cardboard baler from a closed end baler is the second ram that completes the baling process in two ways. Once the cardboard has been compacted, pressed, and shaped into a bale, the second ram attaches the wire or twine to the bale to hold the compacted material in place. The compacted bale is then ejected from the baler by the second ram.

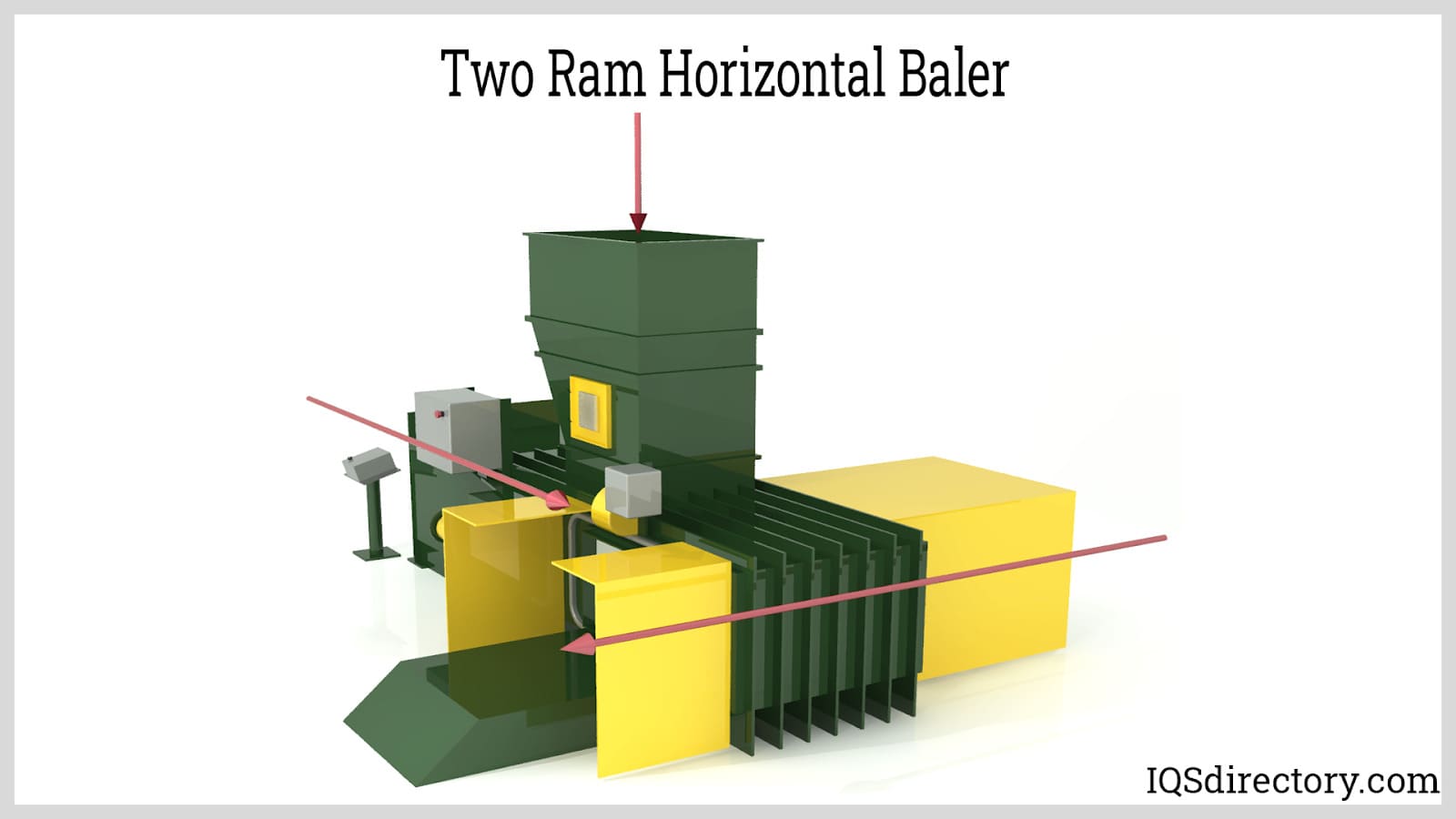

The image below provides a graphic representation of the workings of a two ram horizontal baler. As can be seen on the left, the first ram moves down the compression chamber to compact the cardboard material, while the second ram on the right waits for the completion of the compacting process. Once the bale is shaped, the second ram secures the bale and ejects it out to the left.
Vertical Cardboard Baler
A vertical cardboard baler compresses cardboard using a vertically placed ram that crushes cardboard into a bale through the use of downward force. They are the most economical form of baler and require very little space. A factor to consider regarding vertical balers is ceiling height that has to have sufficient clearance to accommodate the height of the baler.
There are different configurations of the hydraulic ram system for vertical balers, with ones with a single hydraulic cylinder while others may have two or more cylinders. The amount of pressure applied by the different systems can vary from 10 tons to over 200 tons. The number of cylinders and amount of pressure are dependent on the number of waste cycles of an operation or facility.
The use of a baler depends on the type and style of the baler since the size, capacity, and feeding method play a large part in deciding how cardboard is baled. Although large horizontal production balers are normally fed by forklift or conveyor, they can also be fed manually.
With the growing concern regarding the preservation of the environment, the use of balers to prepare cardboard for recycling has become a standard practice for all businesses. Cardboard balers make the process more efficient and labor saving and assist in packaging cardboard for easy handling.
Operating a Cardboard Baler
Using a Vertical Baler
Vertical balers are normally fed manually. The style of vertical baler determines how it will be used.
Knowing the types of cardboard is critically important for the baling process. If the cardboard being baled by a company is all the same, then the separation of cardboard is a step that can be eliminated from the baling process. This is normally true for high volume operations. The steps of the baling process change if there are several types of cardboard being baled that vary from paperboard to triple walled.
In those instances, it may be necessary to separate the lighter cardboards from the heavier ones since heavier cardboards require the baler to apply more pressure and mechanical energy while lighter cardboards, especially paperboard, require less energy.
The first step in the process of using a vertical baler is to ensure that the baling chamber has a flat surface for loading cardboard. Normally, a sheet of cardboard is placed on the bed. In the image below, the front of the vertical baler is opened to expose the bed of the baler.

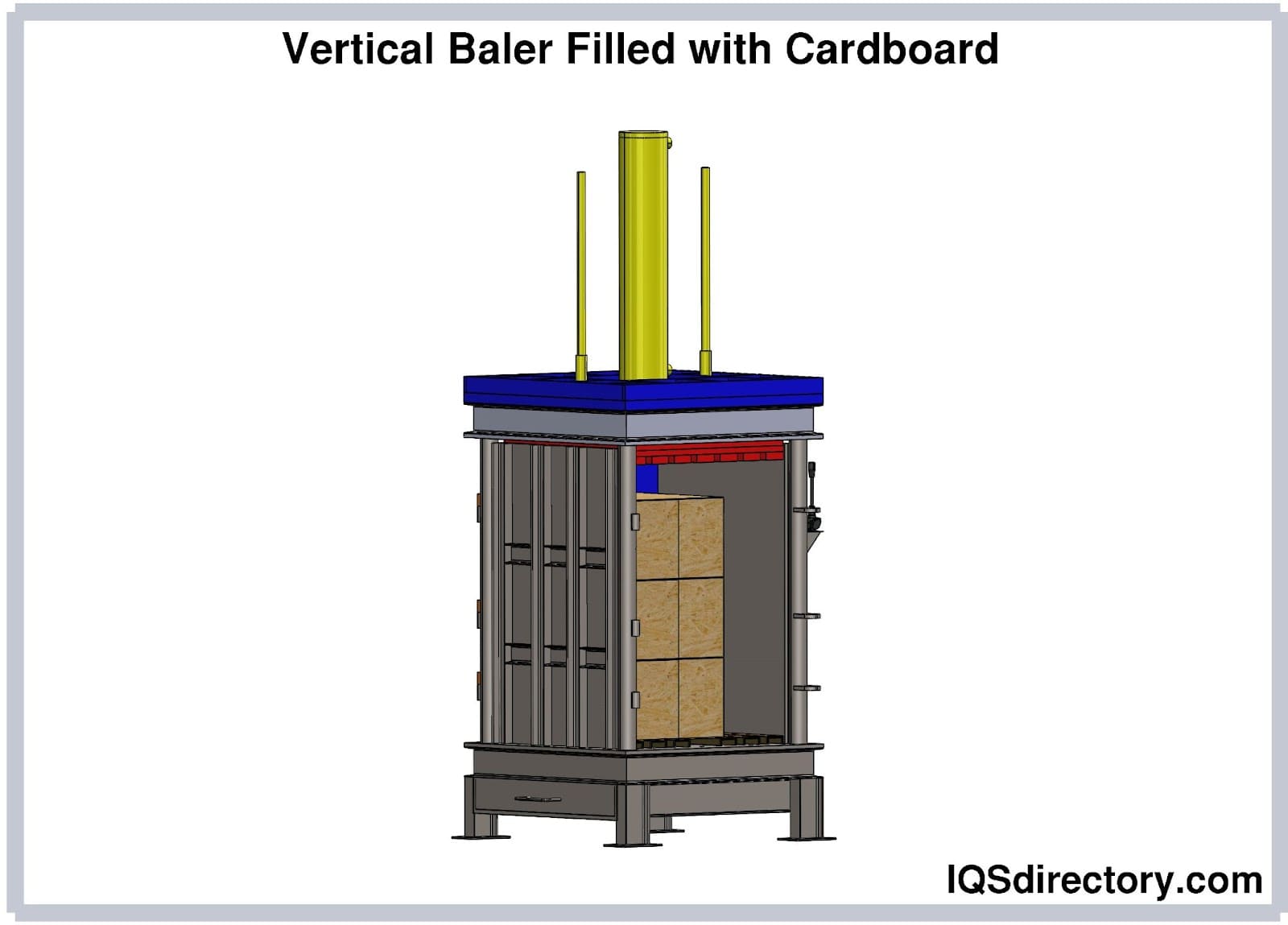

Once a flat surface has been assured, cardboard can be placed in the baler.

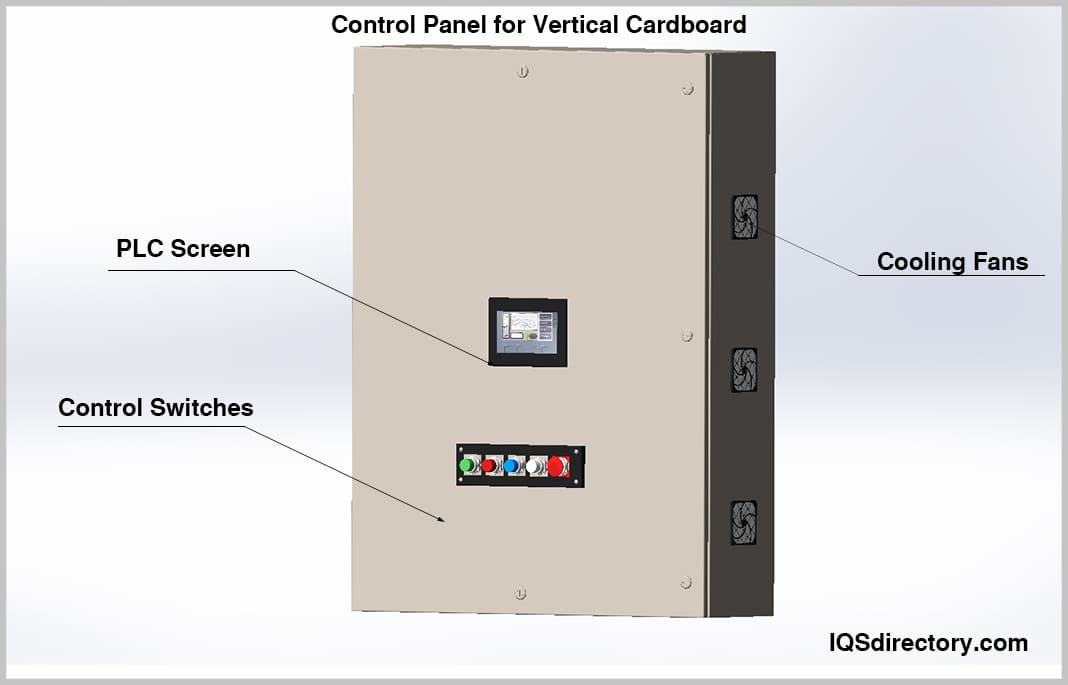

The top of the baler should be securely closed and the on switch be activated. To ensure activation, the down bottom is held until the downward moving ram begins its motion.

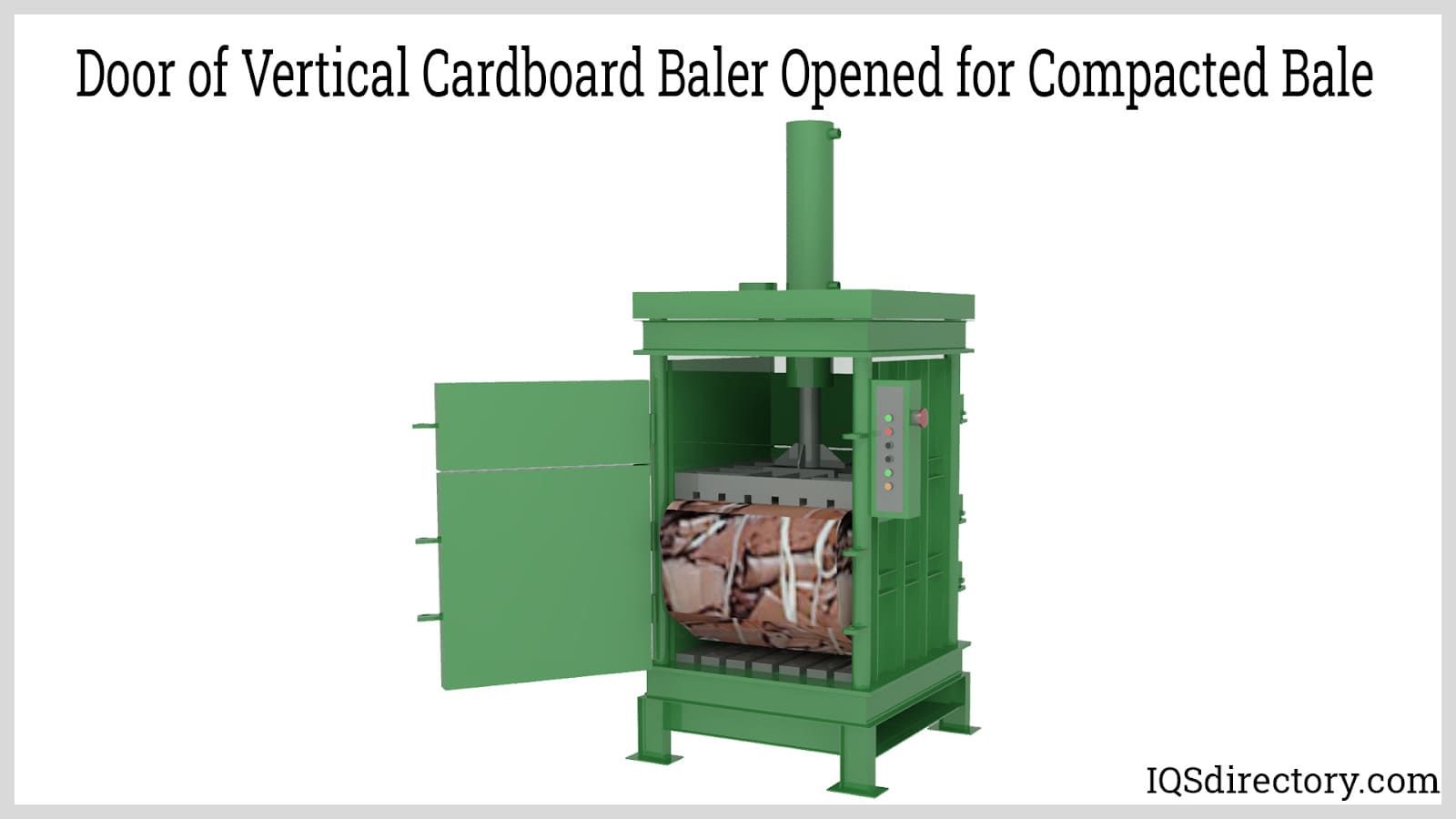

When the ram stops its motion, the baler should be turned off, and the door opened to the compacted cardboard.

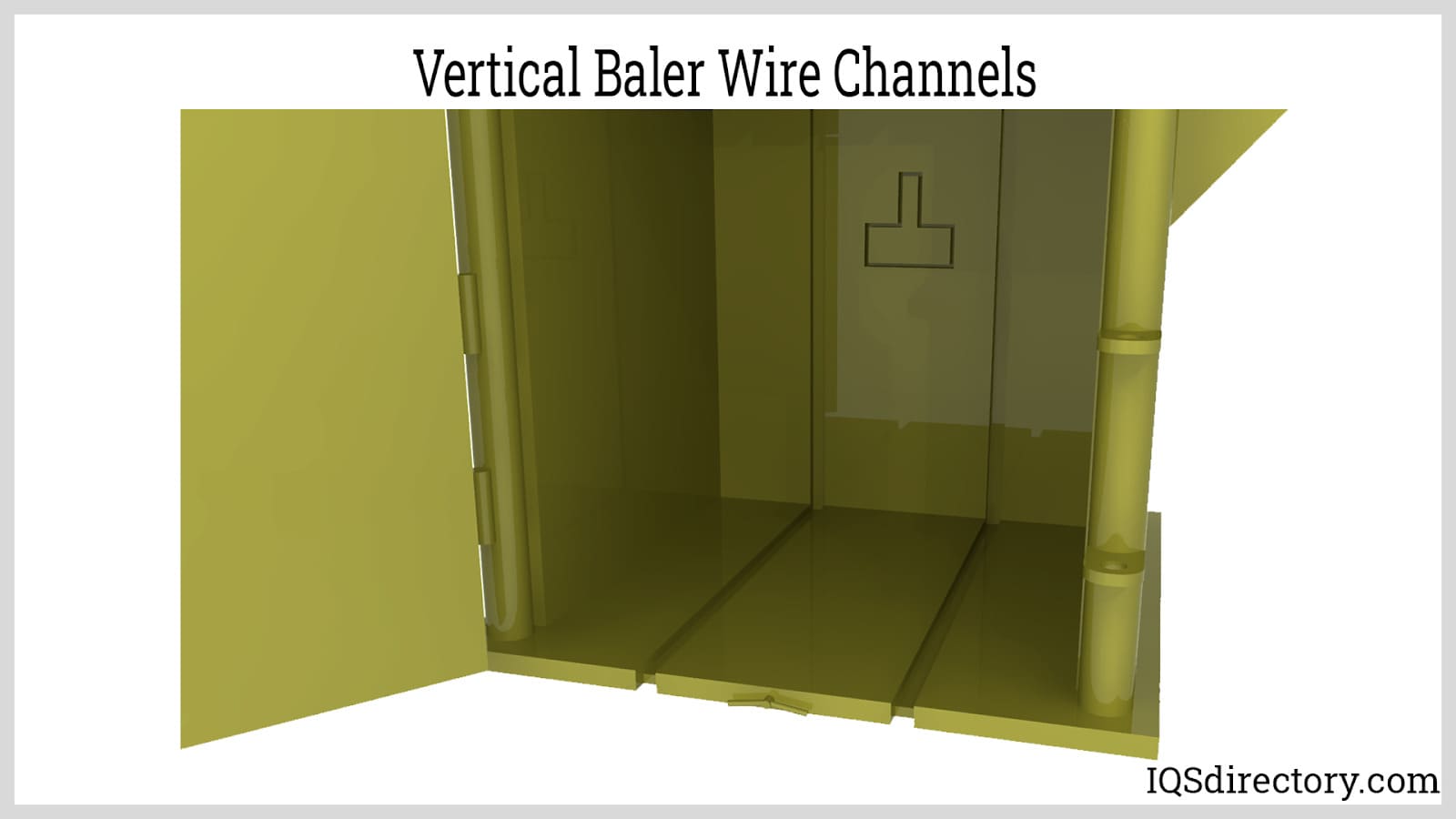

The bales from vertical balers are tied manually. To insert the baling wire, there are channels at the bottom and top of the baler. Wire is pushed through the channels at the bottom of the baler, pulled up, and pushed across the top of the bale. The two channels for this yellow baler can be seen at the bottom and back of the image.
One end of the wires has loops through which the straight end of the wire can be inserted. The connections between the ends are then twisted tightly to secure the bale. The application of wires for vertical balers takes a variety of forms. In some cases, the wire is inserted prior to loading the cardboard and compressing. With the wide array of vertical balers, it can be expected that there are several methods for applying the wire to fasten the bale.

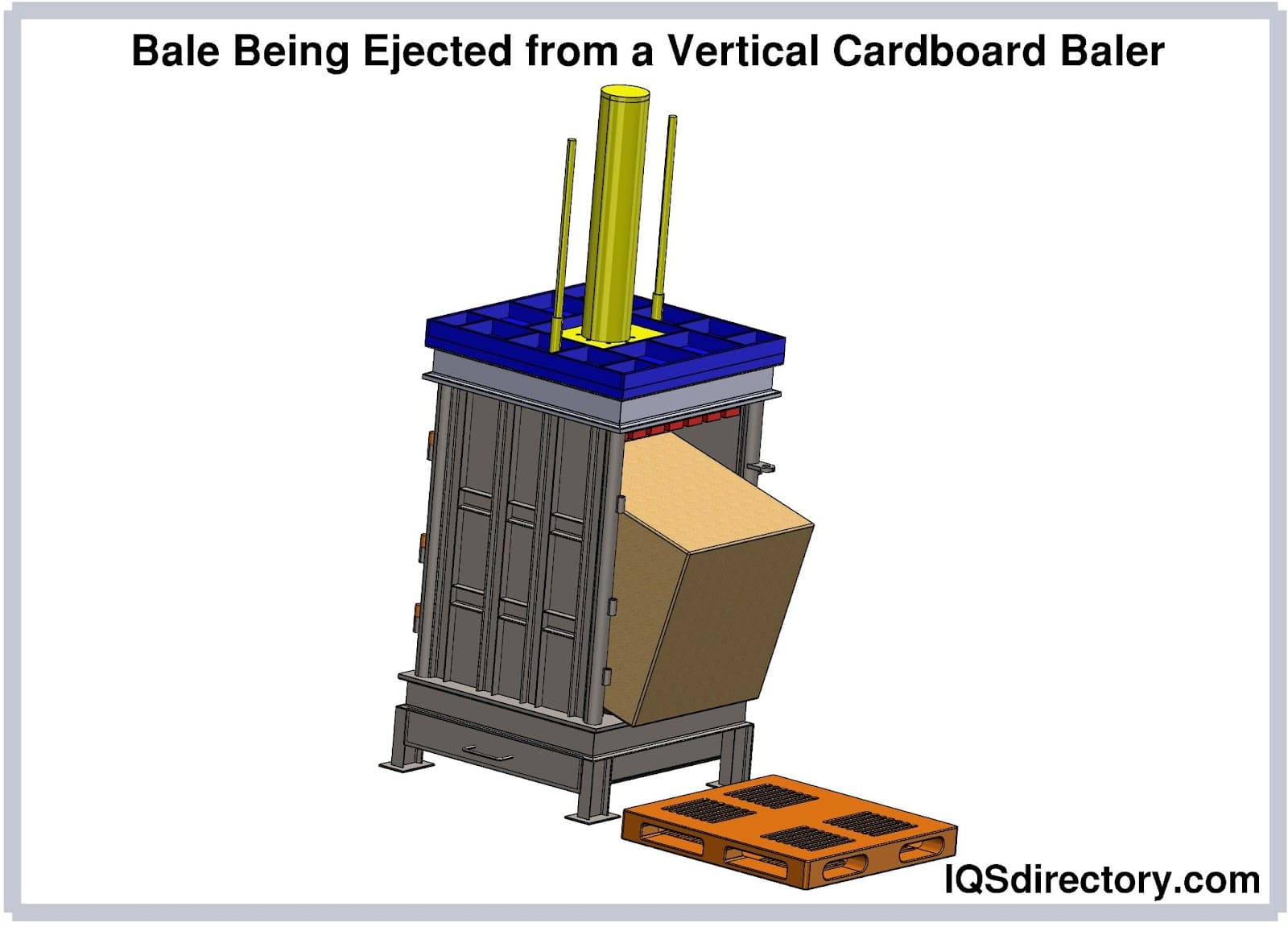

To remove the wired bale from the baler, the pressure of the ram has to be released by an unlocking clamp such that the bale can be moved forward and out of the baler. The methods for ejecting bales vary according to the type of vertical baler. With some versions, there is an ejection strap upon which the bale sits that extends up the back of the baling chamber. When the mechanism for the strap is activated, it raises and tightens, pushing the bale onto a pallet or dolly.
Using a Horizontal Baler
Unlike a vertical cardboard baler, the process for a horizontal baler is automated. The key features of the process are loading the bin with cardboard and removing the completed bale. Horizontal balers have a larger footprint than vertical balers and load from the top.

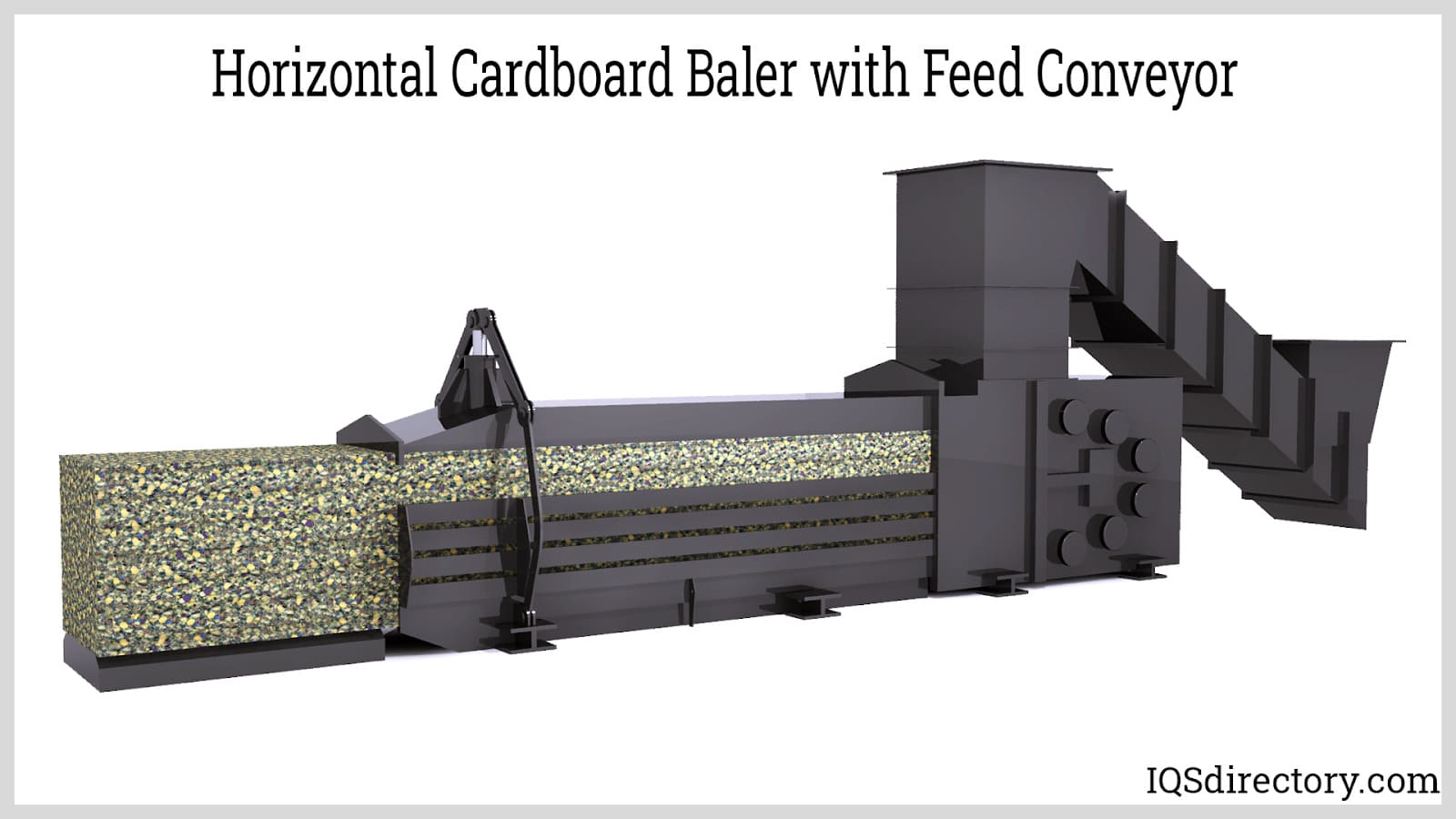

Though the feeding process for a horizontal baler can be manual, in the majority of cases, horizontal balers are fed by a conveyor, forklift, cart dumper, skid steer, or front loader. When the amount of cardboard reaches a predetermined level, a photocell activates the mechanism of the ram to begin the baling process. Some horizontal baler designs are activated manually from a control panel, much like the control panel on a vertical baler. For high volume cardboard operations, photocells are preferred to keep materials moving.
Shearing Capabilities of Balers
A necessary feature of horizontal balers is their shearing capabilities. Once the ram has been activated manually or by a photocell, it moves forward to compress the cardboard in the compression chamber. While the ram is in motion, cardboard continues to fill the hopper and rest on the top of the moving ram. A shearing blade or knife cuts away material above the bale compression chamber that could potentially jam and obstruct the movement of the ram.
Shearing blades are extremely tough and resilient. They are designed with tapered cutting edges and serrated blades, which lowers the amount of area where the blade makes contact with the material. In the process, more recyclable material is cut at once.
Baling Process

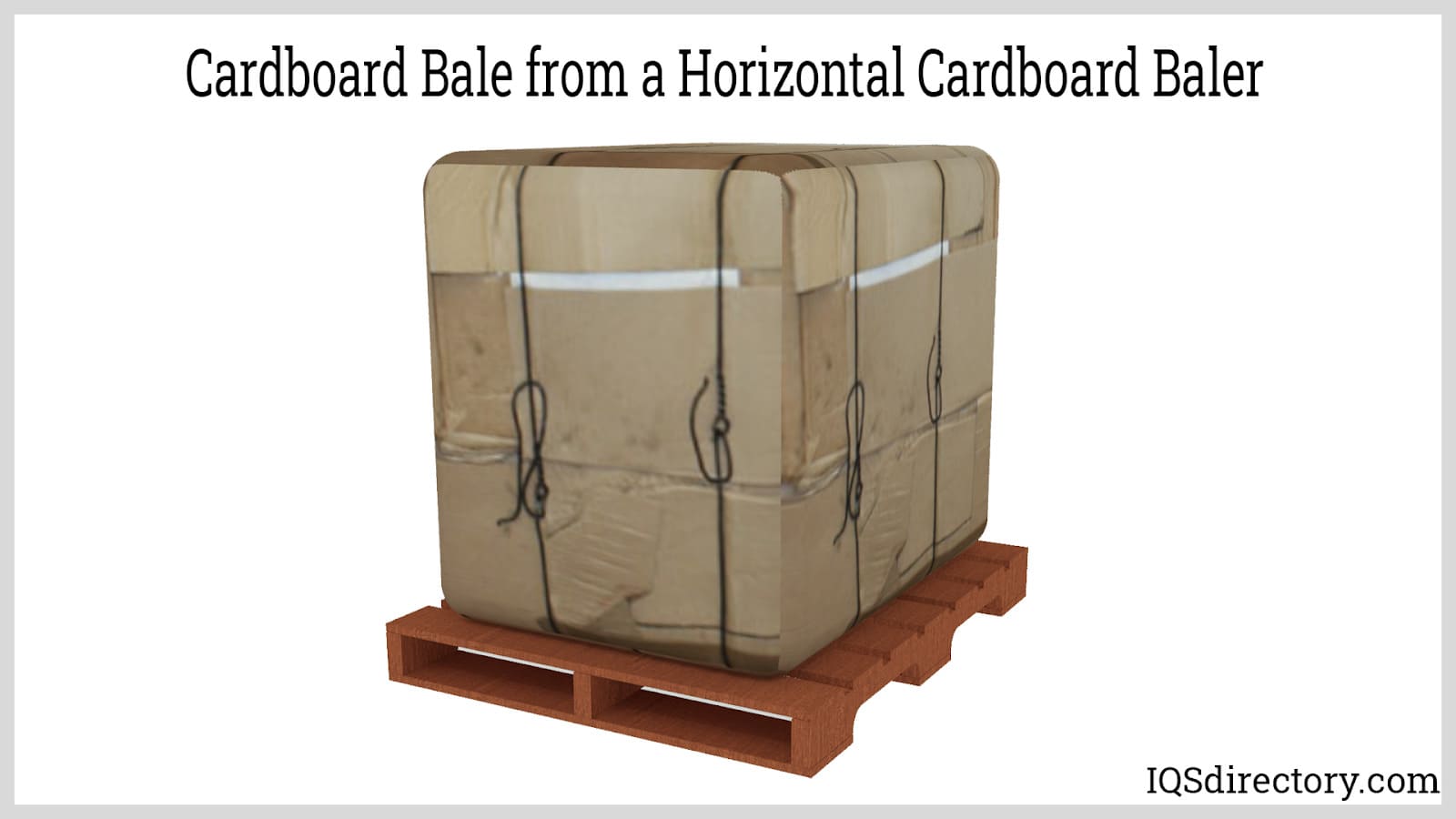

The tying off of the bale for a horizontal cardboard baler can be completed manually or automatically. This is determined by the type of horizontal baler. Since open end cardboard balers operate continuously, automatic typing off is more efficient and productive. Closed end cardboard balers do not produce as many bales per hour as open end cardboard balers, making it possible to use a manual tying off process.
Manual baling, regardless of the type of cardboard baler, is basically the same for all cardboard balers. Using channels or slots built into the baler, wire or twine is fed through the slots and wrapped around the bale. It is tightly secured by twisting with wire and tying with twine. The compressed cardboard material tends to adhere to itself, making the manual baling process easier.

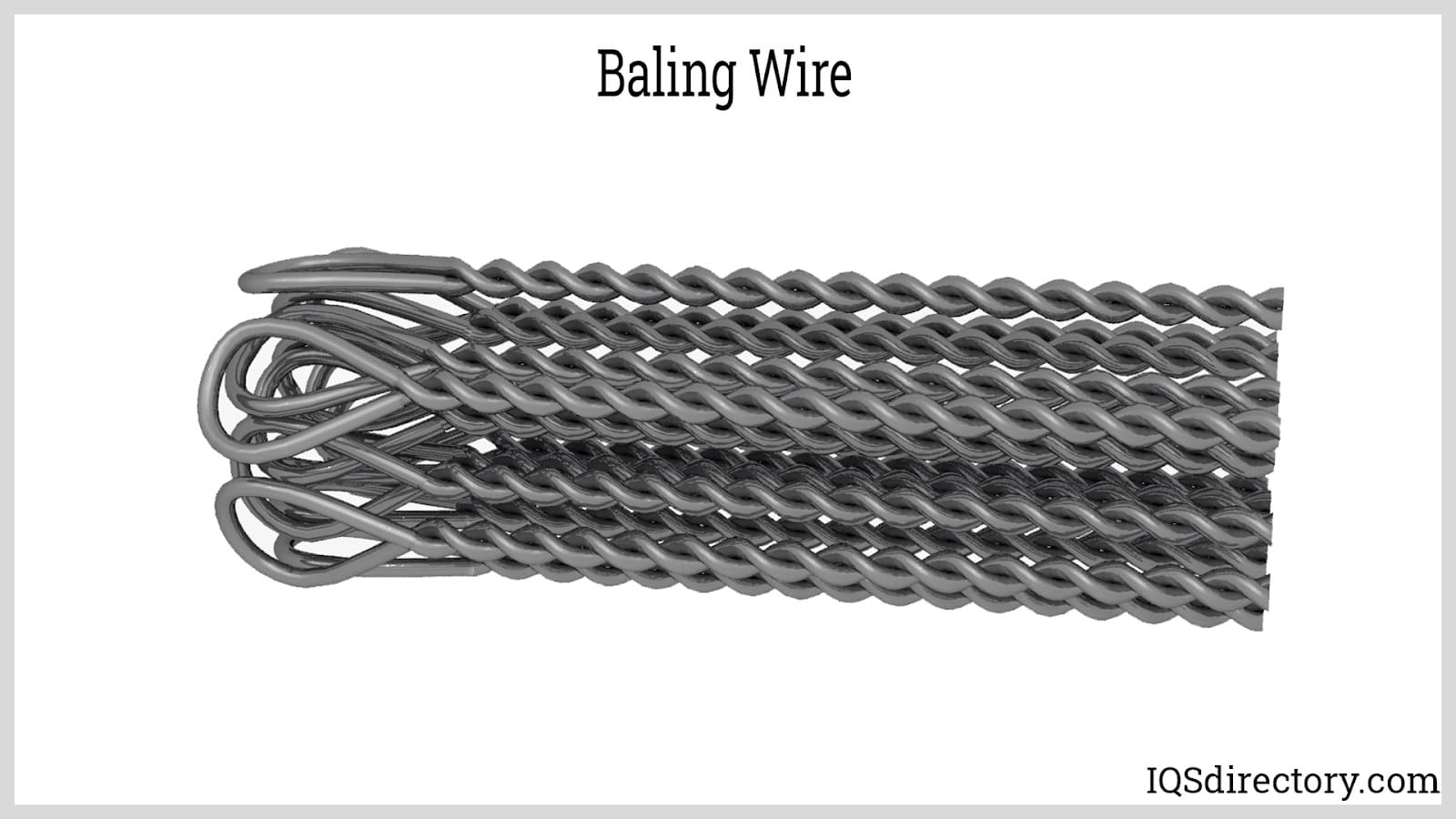

Wire is the most common form of bale securing method since it is highly durable, has excellent tensile strength, and is long lasting. There are baler users that prefer twine over the wire for its cost effectiveness, takes up less space, is easier to work with, and can be recycled.
Chapter Four – Key Components of a Cardboard Baler
The design and configuration of cardboard balers has been developed to perform the process of condensing and compacting cardboard into viable shapes for appropriate reuse of the raw material. Though the various factors and components of the process can be diagrammed as a large formation crushing soft material, there are aspects of the process that are necessary for its successful completion.
At the center of cardboard baling technology is the crushing and compacting mechanism that is composed of forces provided by hydraulic power. These pump driven devices are capable of compressing far more intricate materials than cardboard but are ideal for taking large volumes of cardboard and turning them into little cubes.
A Cardboard Baler’s Key Components

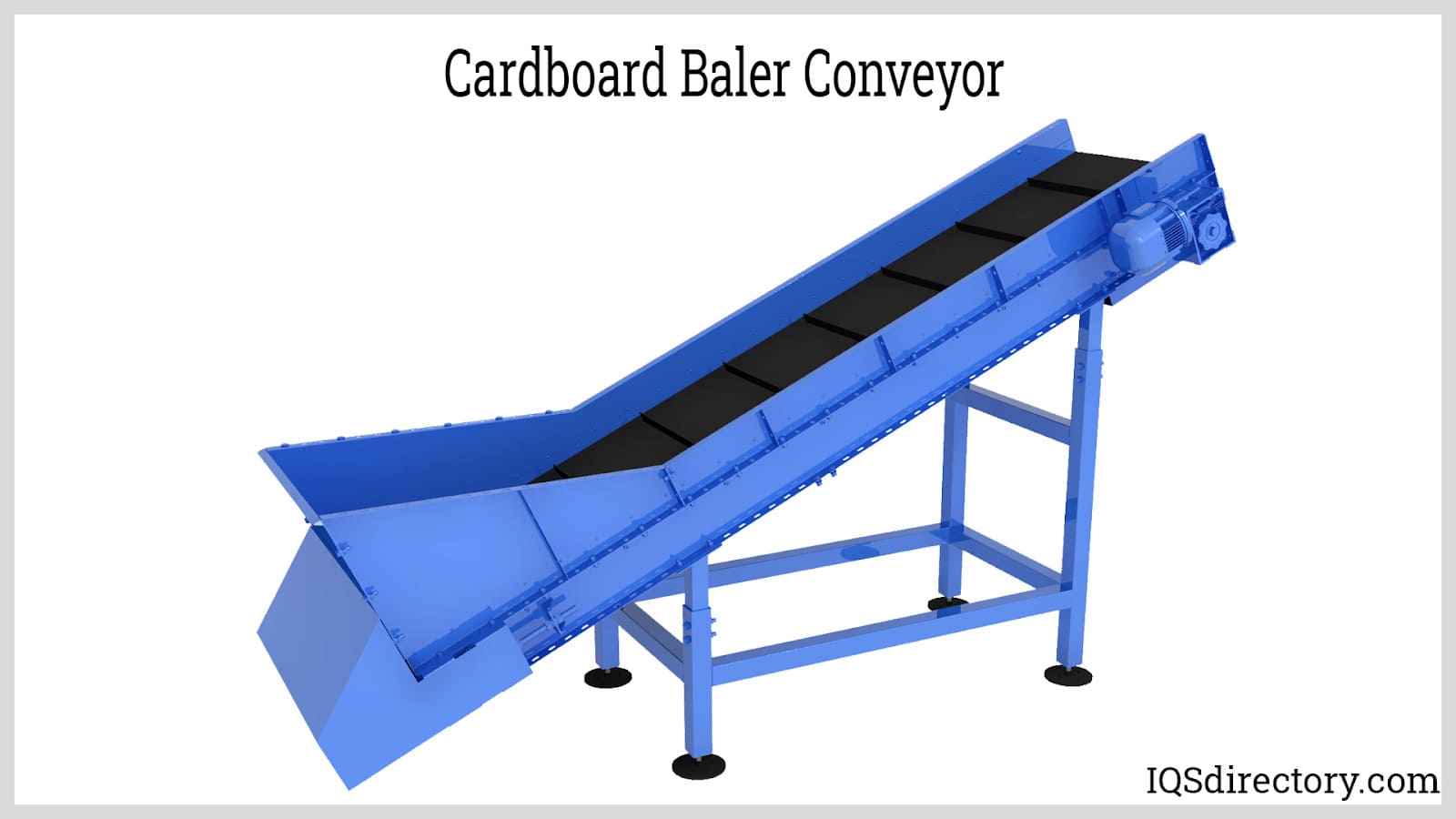

Conveyor Belts and Chains
Conveyor belts and chains are essential for high volume cardboard balers. They make the process of baling more efficient and automated. Massive amounts of cardboard can be quickly compacted and stored for shipping.

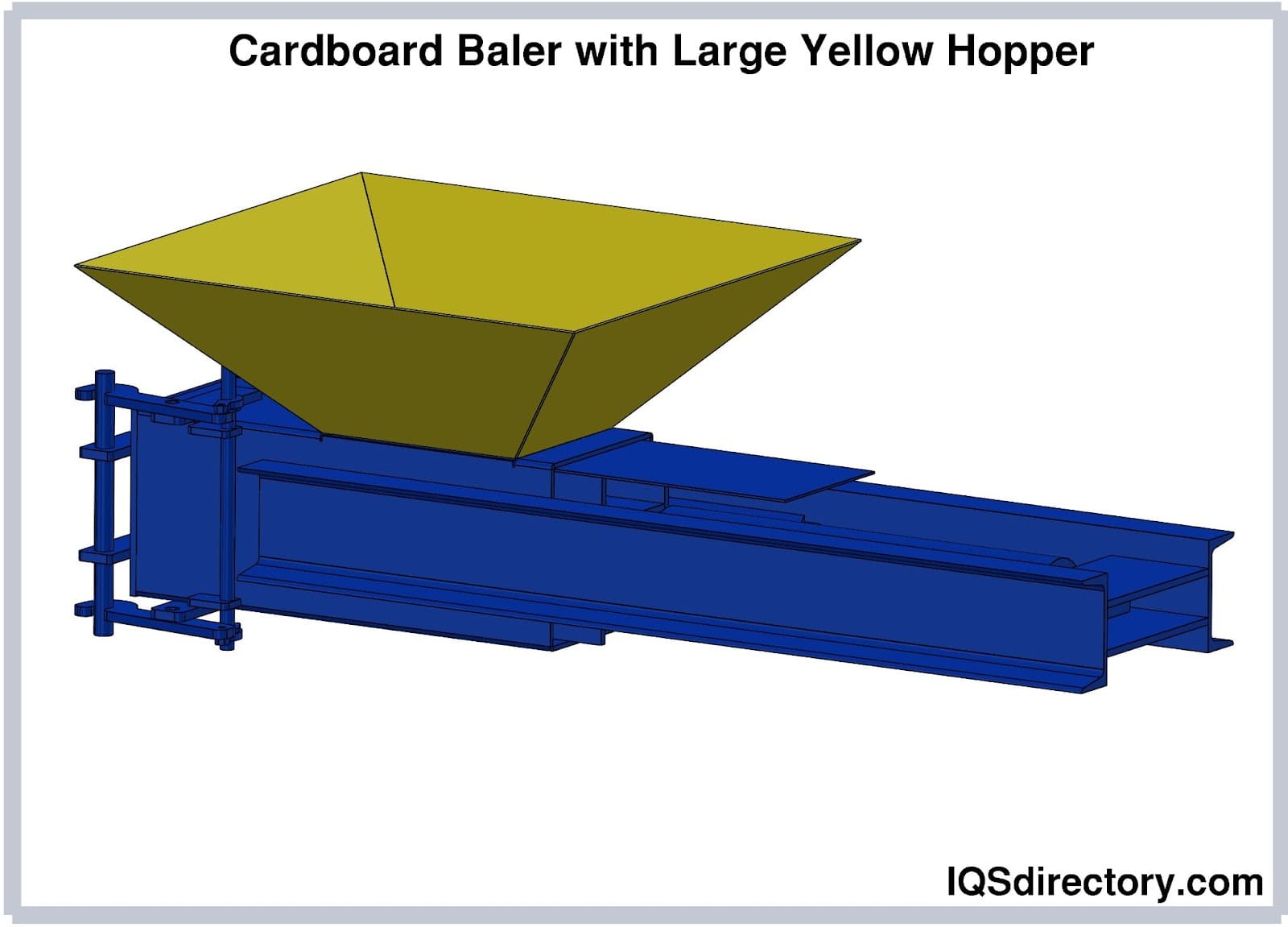

Hopper Component
Regardless of the feeding method, whether it is manual, conveyor, forklift, or another system, the section of the baler that collects the cardboard is the hopper, which is only present on horizontal cardboard balers. There are a few varieties of hoppers, with the majority having metal angled walls designed to catch cardboard as it is sent to the baler.
The hopper holds the cardboard above the ram until the rams are positioned to allow the cardboard to pass through into the compression chamber. At the bottom of the hopper is a shearing knife designed to prevent the held cardboard from jamming the ram. The image below is of a three sided hopper in the middle of a horizontal cardboard baler.
Hydraulic Systems
The crushing, compressing, and compacting power of cardboard balers is embodied in their hydraulic systems. The force of hydraulic systems is how the bales are shaped and formed into their geometric configurations. The hydraulic components are the workhorse of the baling system and perform the bale making function.
As essential as the feeding mechanisms and other parts of a baler may be, without the hydraulic system, the remaining components are without purpose. The driving force of the baler and hydraulic system is the hydraulic cylinder that accumulates the compressive force to drive the ram.
Regardless of the differentiation between vertical and horizontal cardboard balers, both types depend on hydraulic power to produce their bales. In a more general sense, hydraulic power is the essential element of all balers regardless of the material being compressed.

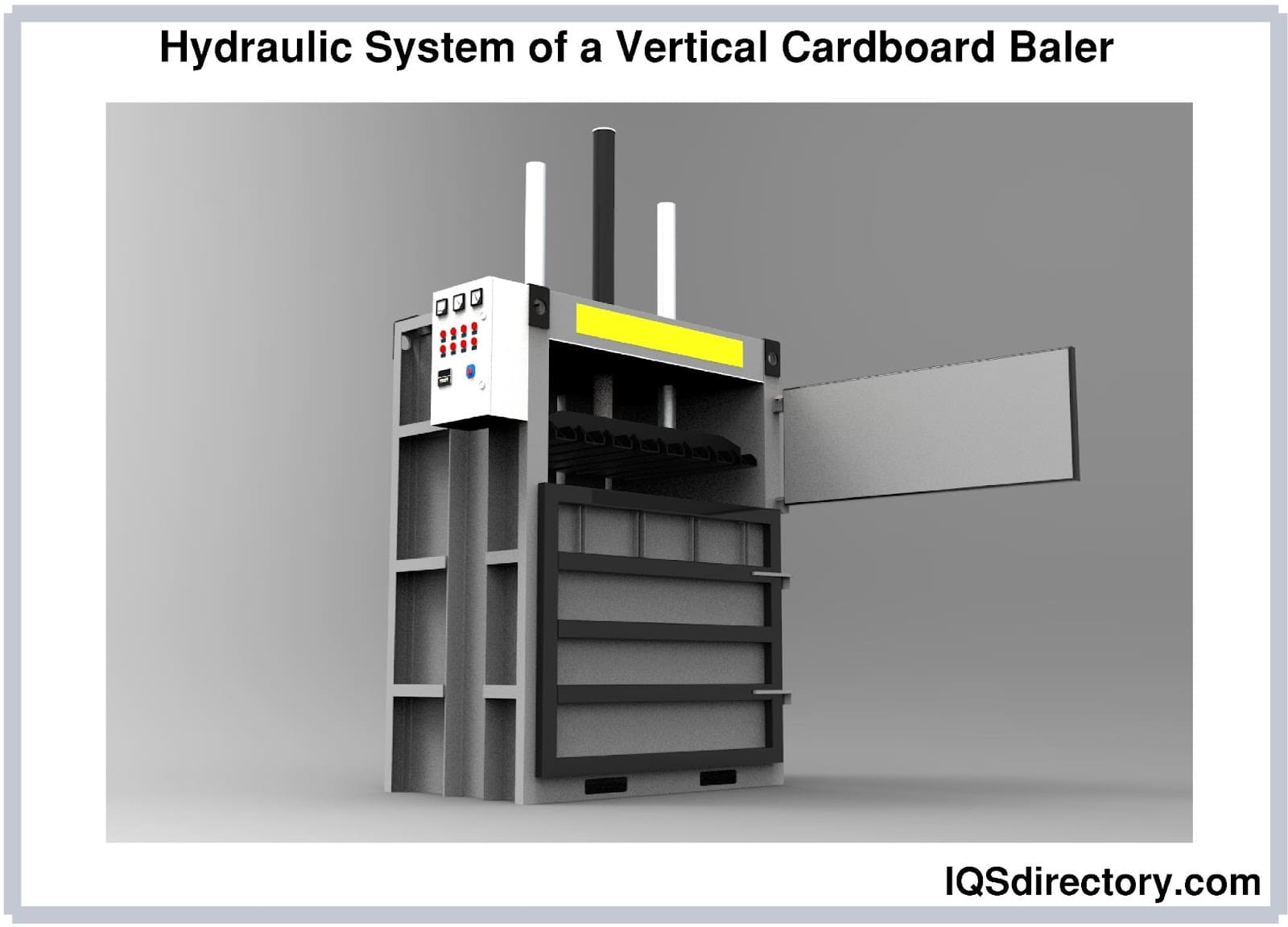

In the image below, of a vertical cardboard baler, the hydraulic system can be seen at the top of the baler.
Chapter Five – Reasons to Own a Cardboard Baler
As global awareness regarding recycling has been growing, more and more companies have been assessing their waste material production to find methods for reusing, repurposing, and remanufacturing waste as raw materials for new products. Waste that was formally left to languish in a bin for garbage pickup has been evaluated for its content such that it can be broken into its basic elements.
The wide proliferation of cardboard for shipping has made it the primary target for recycling efforts. An asset for companies in their recycling efforts is using cardboard balers with their robust and dynamic method for crushing cardboard into convenient and shippable shapes.
Owning a Cardboard Baler
Space Saver
Placing cardboard boxes in bins or piling them for garbage collection takes up space and becomes a fire hazard. A cardboard baler can take a massive pile of cardboard and turn it into a compact compressed cube for shipment or storage.
Labor Costs
Any aspect of an operation that requires the handling of materials is heavily reliant on labor costs. Disposing and storing of waste requires the handling of several workers from those who remove it from a work location to those who place it in a storage location.
These costs can be avoided by purchasing and implementing the use of a cardboard baler that removes the need for multiple handling of waste cardboard and significantly diminishes it.
Overhead Costs
There are many costs related to running a business. Overhead costs are one of the fixed costs that are difficult to adjust. A component of overhead costs is handling waste, which is an inevitability for all businesses. A cardboard baler provides a smooth and seamless method for handling waste and cutting into overhead costs.
Environmental Awareness
Every business is working to demonstrate to its customers that it is an eco-friendly operation that is well aware of sustainability and preserving the environment. This single factor has moved to the forefront of customer concerns and motivates customers to purchase from and work with certain companies.
Repurposing and recycling waste materials is the ultimate demonstration of a well run organization and concern for the environment. Cardboard balers are a central part of taking waste and converting it into raw material for future use, which is a goal of all ecological programs.
Time Saving
Though cardboard can appear anywhere in an organization, the shipping dock receives and handles the most. In a normal operation, without a cardboard baler, cardboard is collected during the day and removed by the cleaning staff or by dock workers. The collection, gathering, and disposing of cardboard from shipping is time consuming and labor intensive. Having a cardboard baler closely positioned to where cardboard collects can remove clean up time and the waste of workers’ time.
As items and packing materials are removed, they can be immediately placed in the baler that can operate automatically during high volume periods or when needed manually. The amount of time for collecting and disposing of cardboard is eliminated with efficiency as well as the savings of time.
Chapter Six – Types of Cardboard
An important key to baling cardboard is being aware of the different types, which can affect the operation of the baler. The term cardboard is a generic term used to describe a wide variety of paper materials that have been shaped and formed into the cardboard. Different grades of cardboard are designed to perform specific tasks that vary from shipping heavy machinery to cardboard for protecting electronic devices.
Essentially, the type of cardboard baler and its durability has to match the type and grades of cardboard that will be processed. Using a vertical cardboard baler to process heavy thick cardboard can radically affect a baler’s performance.
Corrugated Fiberboard
Cardboard is known as corrugated fiberboard, which is made of kraft paper that is fluted with one or more flutes. All forms of corrugated fiberboard can be baled. Knowing what type of fiberboard is to be baled can be beneficial in preserving and protecting the integrity of a cardboard baler.

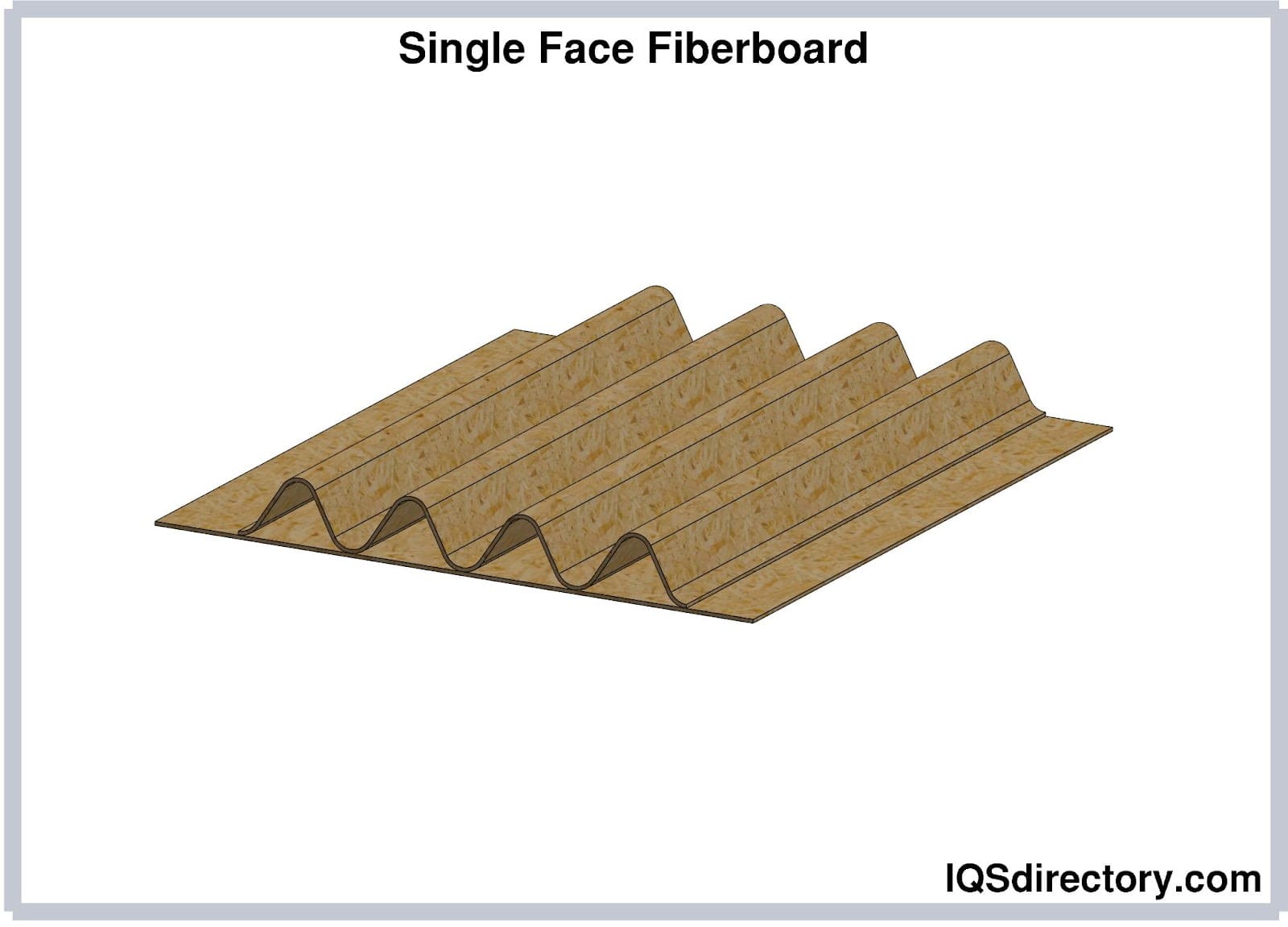

Single Face Fiberboard
Single face fiberboard is very thin, inexpensive, lightweight, and offers very limited protection. Of the various types of cardboard, a single face is the least durable and very easy to crush.

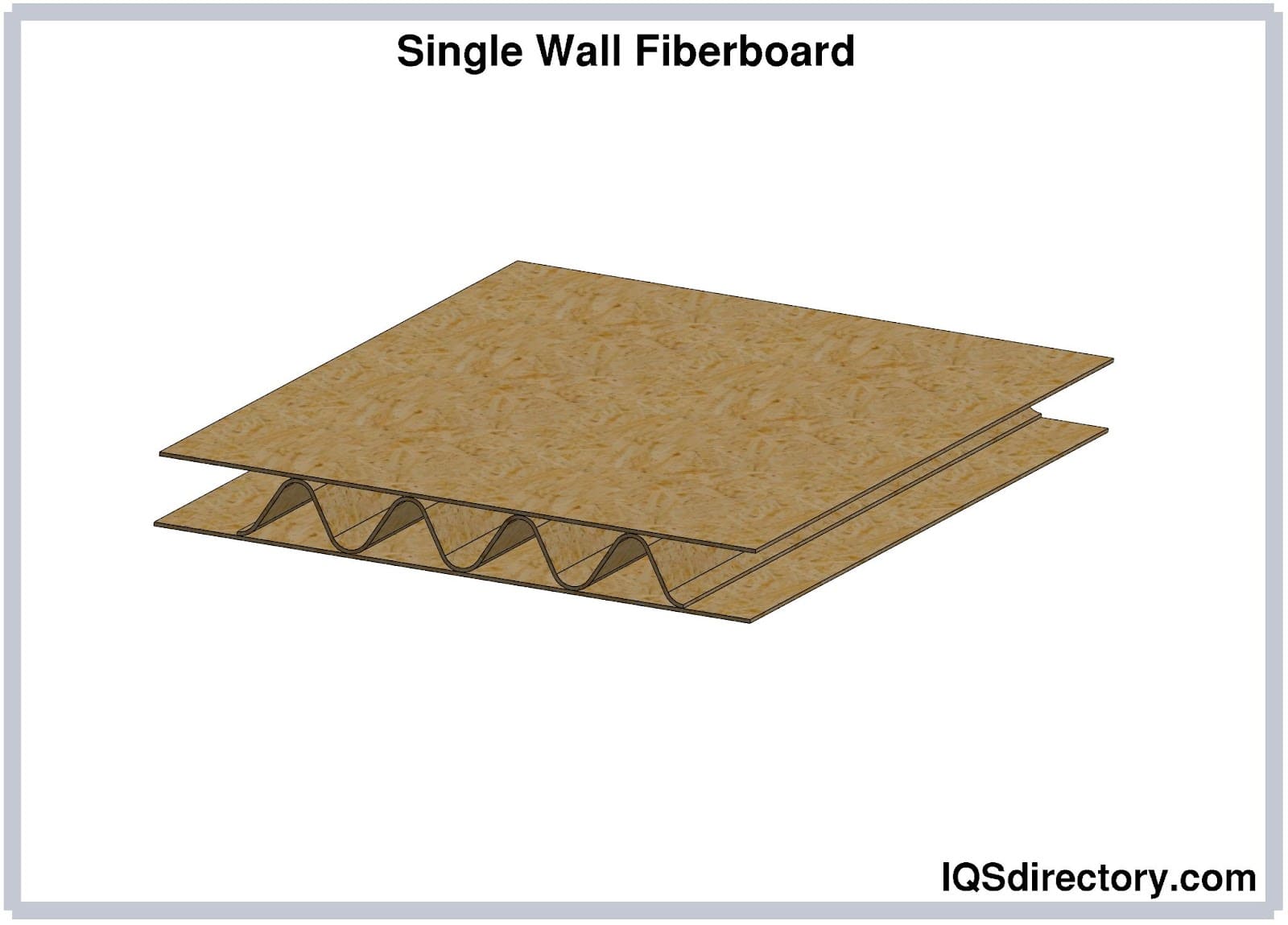

Single Wall Fiberboard
Single wall fiberboard is the type that is used for shipping boxes for consumer products. It has one wall of flutes, or wavy paper, with paper glued on either side of the flutes. There are various sizes of flutes that run from size A to size F, where size A is 3/16 inch, and size F is 1/16 inch.

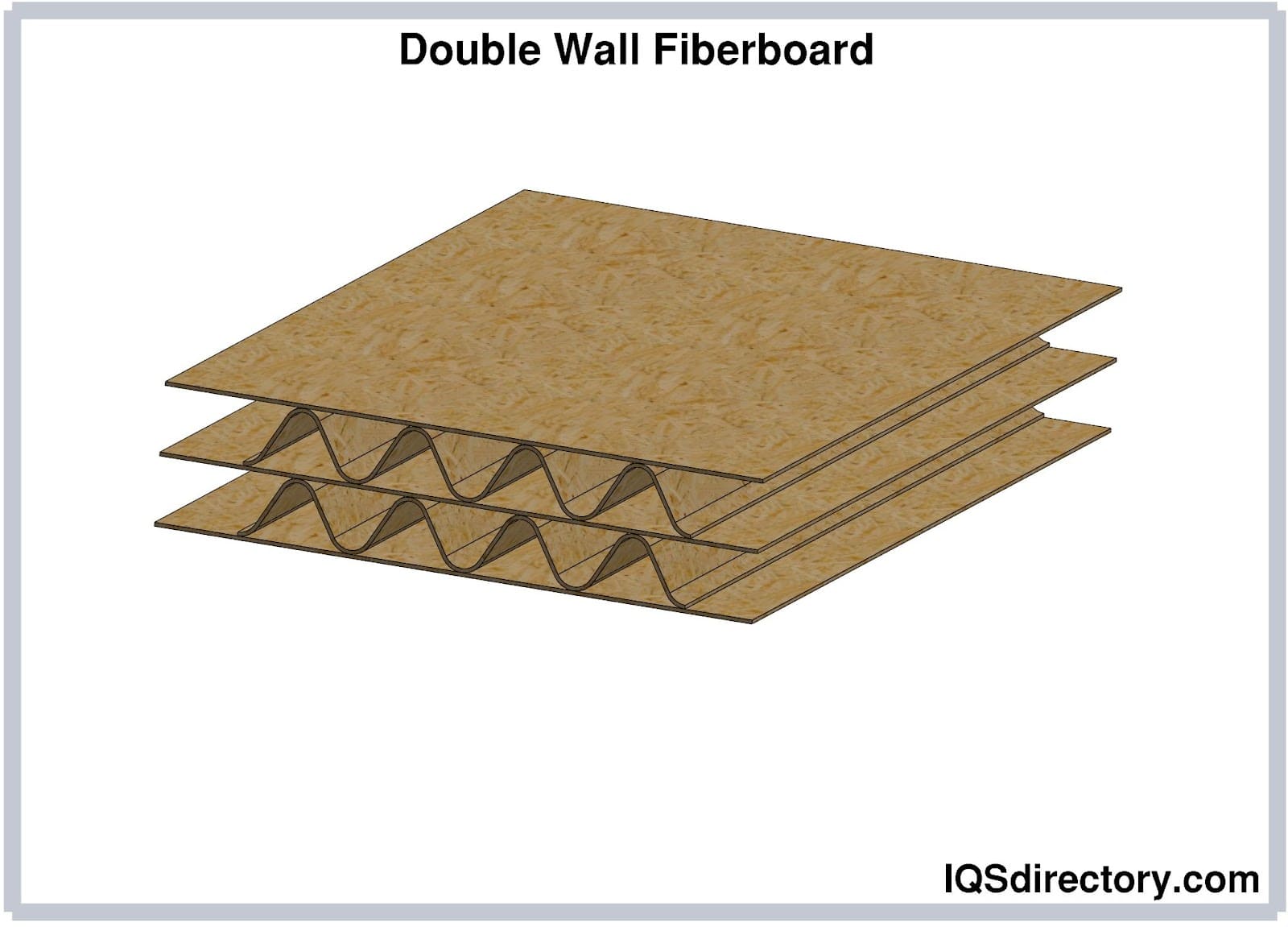

Double Wall Cardboard
Double wall cardboard has two sets of flutes divided into two sections with a piece of kraft paper separating the flutes. Different sizes and shapes of flutes are used depending on the cardboard’s design.

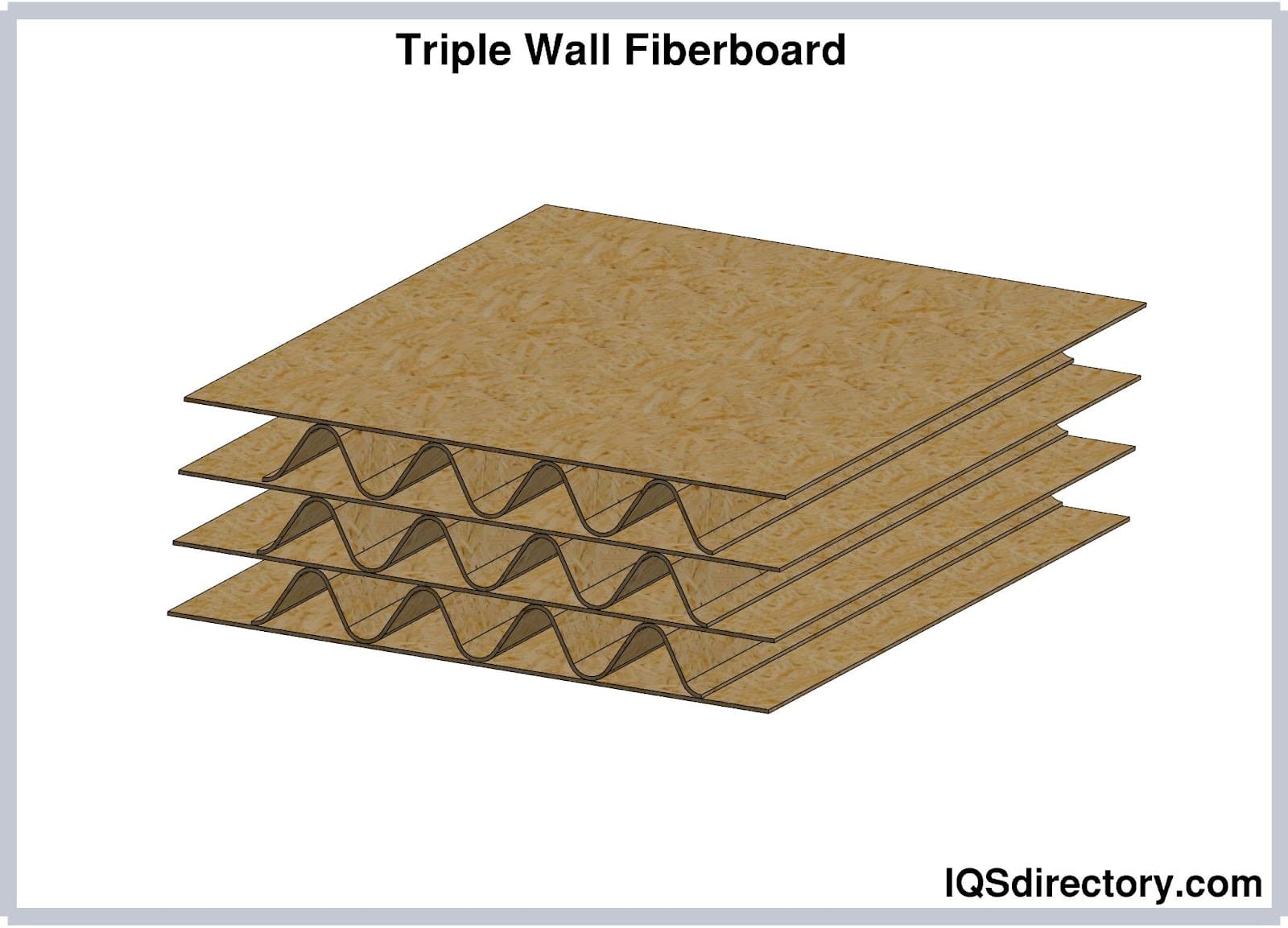

Triple Wall Cardboard
Triple wall cardboard has three sets of flutes that are separated with two pieces of kraft paper. The increased number of flutes enhances the durability of triple wall cardboard and makes it capable of replacing wooden boxes. It is extensively used in industrial settings.

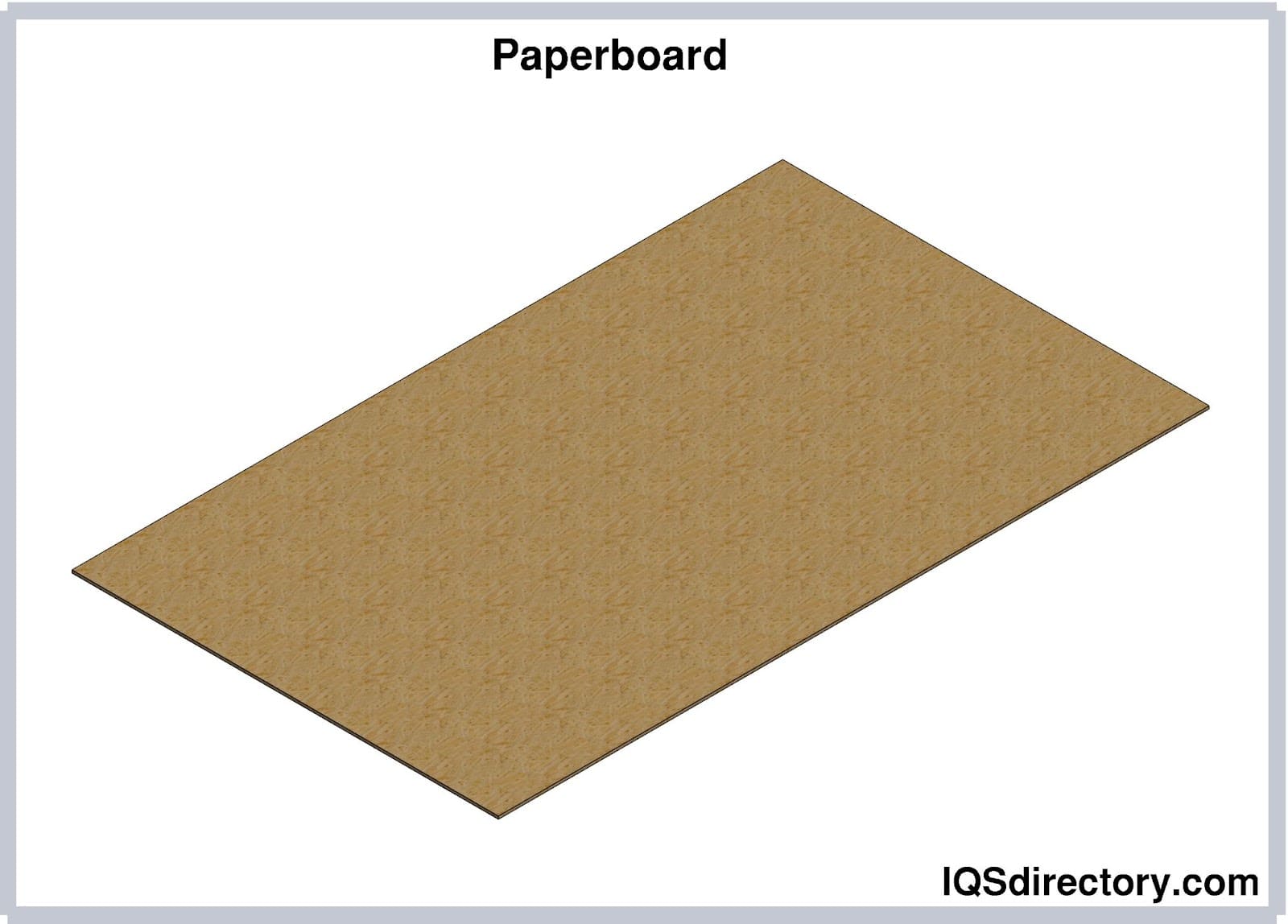

Paperboard Material
Paperboard lacks durability and is used to ship protects that are not fragile, breakable, and prone to wear or tear. It is the least expensive form of protective material and is widely used.
Conclusion
A cardboard baler is a mechanism that uses a metal plate driven by a hydraulic ram to apply tremendous pressure and force to crush, compact, and compress pieces of cardboard into tightly formed and easy to transport cubes and rectangular shaped bales.
The many configurations of balers make it possible to fit one to the needs of any business.
A critical differentiating factor for cardboard balers is the amount of tonnage they produce each day, which can vary from a very few tons for small offices to hundreds of tons for industrial and manufacturing facilities.
An asset for companies in their recycling efforts is the use of cardboard balers with their robust and dynamic method for crushing cardboard into convenient and shippable shapes.
The design and configuration of cardboard balers have been developed to condense and compact cardboard into viable shapes for appropriate reuse of the raw material.
