A conveyor oven is a continuous flow oven featuring open ends with a conveyor belt running through from one side to the other. Similar in design to a batch oven, conveyor ovens provide the added advantage of maintaining product movement while delivering consistent and even heating. They are particularly well-suited for the mass production of large-volume manufacturing processes.
Various conveyor oven designs are available, including horizontal, vertical, inclined, and spiral motion configurations. Different conveying methods such as powered rollers, belts, chain-on-edge, overhead systems, and power-and-free arrangements are also options. These setups are perfect for high-output production facilities where time efficiency makes batch ovens less feasible.
Conveyor ovens incorporate diverse conveying systems, including overhead systems, chain-on-edge, rollers, belts, and a variety of chain setups available in different dimensions and configurations. These systems are adaptable enough to accommodate products weighing anywhere from a few pounds to several hundred pounds.
Industrial ovens play a pivotal role in today's manufacturing, food processing, and finishing industries by delivering a controlled, high-temperature environment for essential heat treatment processes, such as curing, drying, annealing, or baking. These thermal processing systems create a completely enclosed heating chamber, ensuring parts and materials receive uniform, repeatable results. Conveyor ovens are a specialized category within industrial ovens, designed for high-throughput operations and continuous processing. By using automated conveying systems, conveyor ovens enable parts, products, or food items to move consistently through the controlled heat zones—maximizing efficiency, process reliability, and product uniformity.
Modern custom conveyor oven systems are engineered for specific throughput requirements, material types, and product dimensions. These industrial solutions incorporate various conveyor technologies—such as belt, chain-on-edge, overhead, and carousel methods—as well as diverse heating elements, including electric, infrared, gas-fired, and hybrid systems. The strategic configuration of airflow (horizontal/vertical, or vertical/horizontal) and multi-zone temperature controls further optimize process consistency and energy efficiency, serving critical needs in sectors like automotive, aerospace, electronics, and food production.

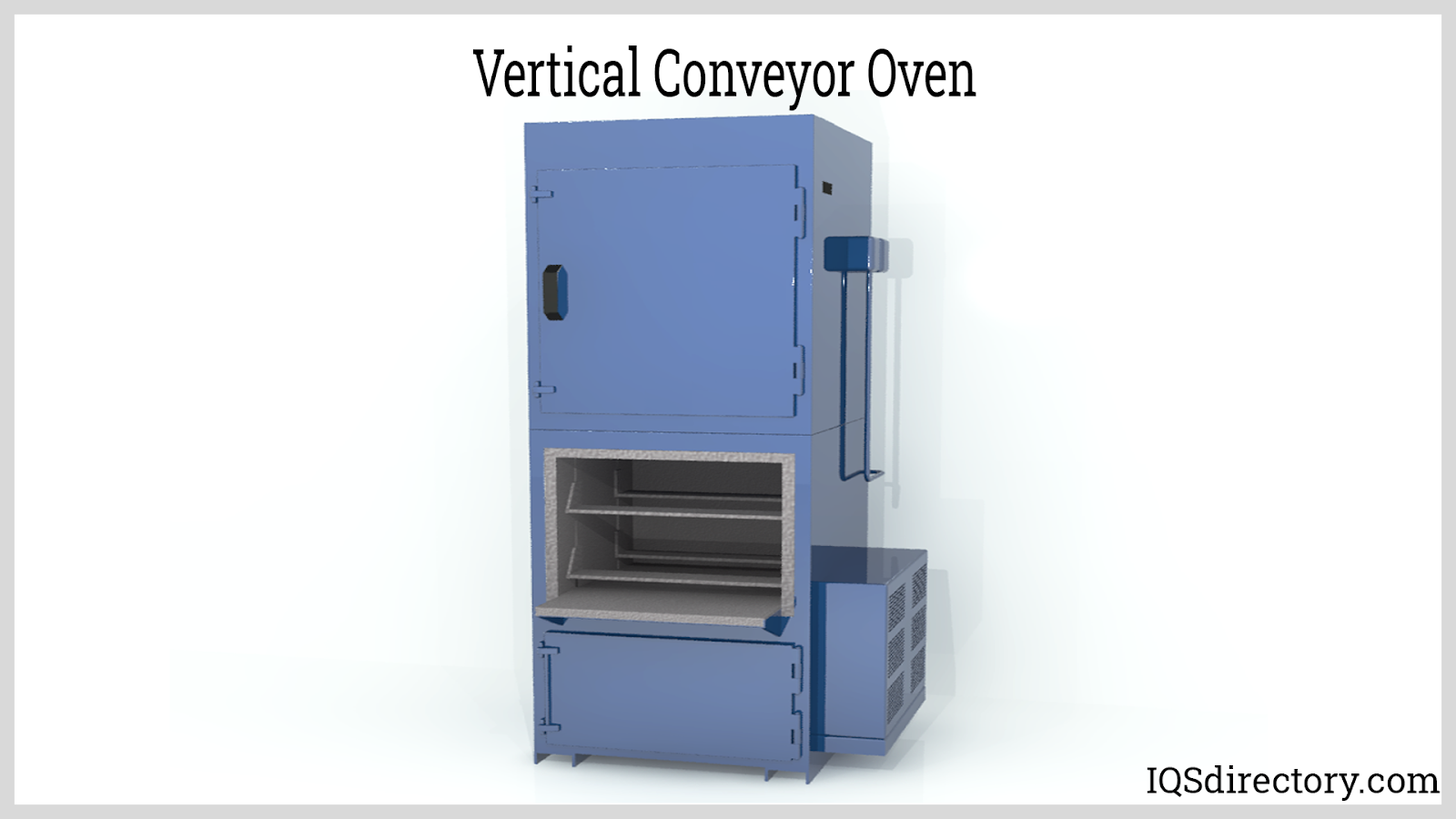

Vertical conveyor ovens, including advanced paternoster oven models, are an optimal choice for manufacturing environments with limited production floor space. These vertically oriented conveyor ovens rely on automated trays that cycle continuously or index in stages, securely attached to conveyor chains in a vertically looping paternoster sequence. With their compact footprint, vertical conveyor ovens are renowned for outstanding temperature uniformity, extended equipment lifespan, dependable mechanical operation, and minimal maintenance requirements. Their ergonomic design allows for straightforward loading and unloading, streamlining integration into batch and continuous processing lines for applications such as powder coating, composite curing, and electronics drying.
Overhead conveyor ovens employ a rugged monorail-style conveying mechanism to transport parts or products across multiple processing zones. These ovens excel in high-volume operations, such as parts finishing, paint curing, or thermal cleaning, where automated handling and high throughput are essential. Heavy-duty conveyor chains, capable of navigating vertical and horizontal curves, enable customized oven layouts—maximizing use of factory floor space while maintaining efficient workflow. Overhead conveyor ovens feature air-tight entrances to prevent thermal loss and contamination, and the conveying path can be engineered in serpentine or looped circuits for enhanced energy efficiency and optimized parts dwell time. These systems are popular in automotive, metalworking, and appliance manufacturing facilities where versatility and precision are paramount.

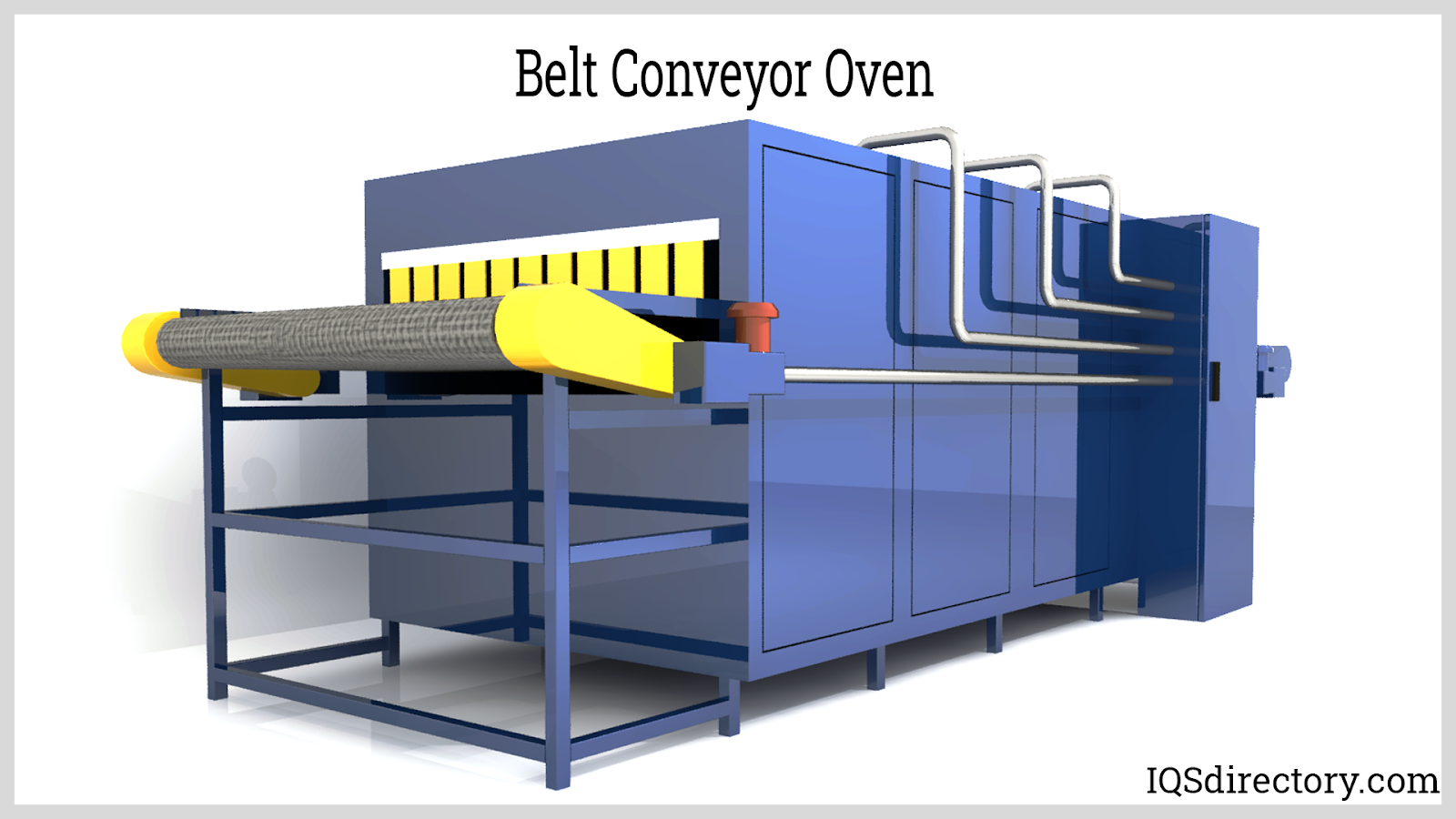

Belt conveyor ovens utilize a heat-resistant woven wire or mesh belt to convey parts through the heating process. These continuous conveyor ovens provide excellent flexibility for processing large quantities of small to medium-sized components, such as stamped metal parts, circuit boards, or food products. The conveyor belt can be adjusted for continuous transport or indexing, depending on dwell time requirements and production flow. Precise temperature controls, zoned heating, and adjustable conveyor speeds make these ovens highly adaptable for use in processes ranging from preheating and drying to thermal curing and dehydration. The open or closed mesh belt designs also support optimal airflow, contributing to uniform thermal profiles and consistent product quality across the entire batch.

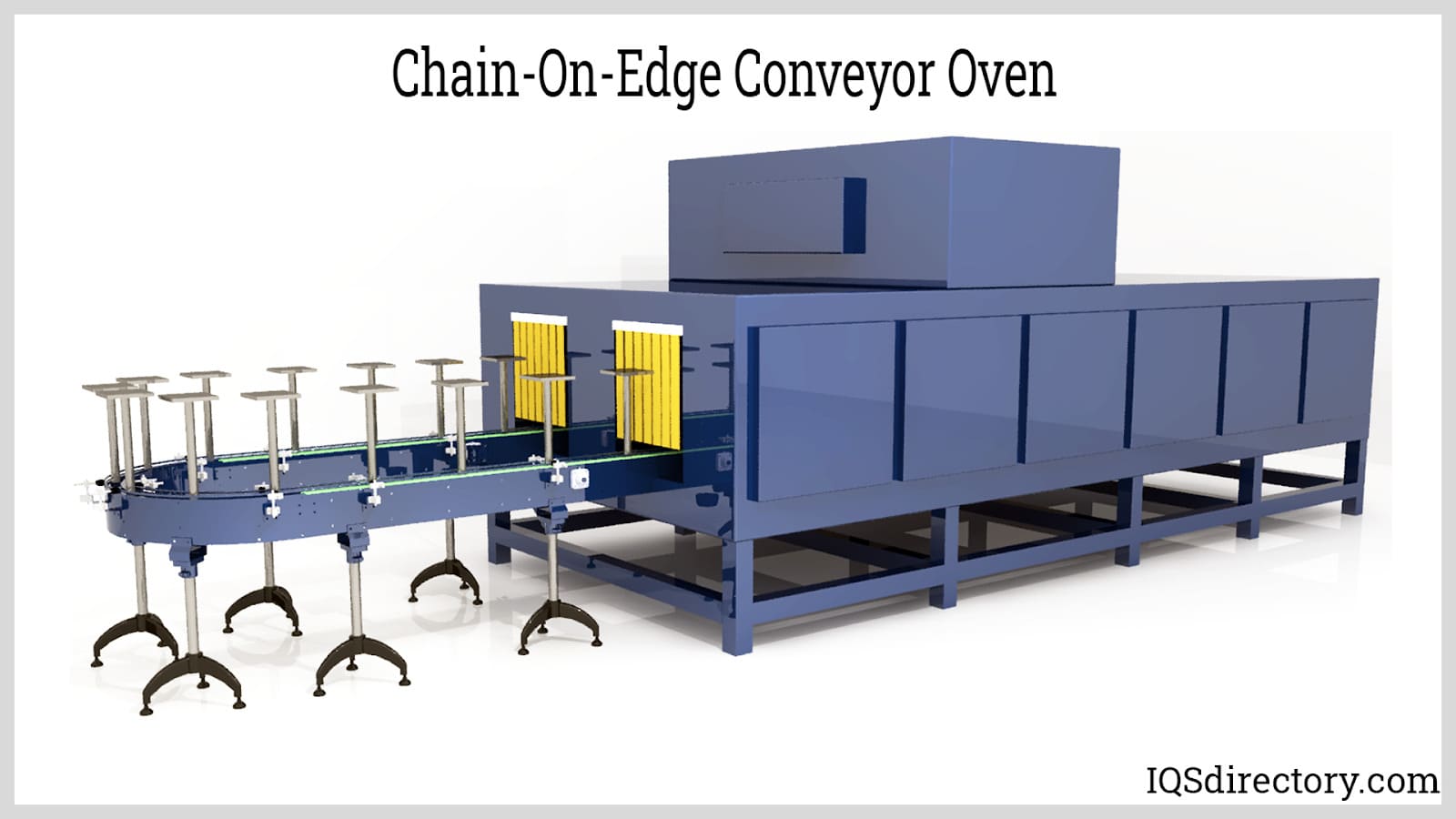

Chain-on-edge conveyor ovens, also known as spindle conveyors, feature a robust floor- or frame-mounted chain drive. Fixtures or spindles attached to the chain securely hold each part in place, maintaining precise orientation as products are conveyed through the heating zones. This conveyor system is well-suited for coating, drying, or curing small, cylindrical, or irregularly shaped items—such as bearings, rollers, fasteners, or painted components—by enabling complete 360-degree exposure to heat or coating sprays. Multiple passes and multiple-zone control deliver exceptional process flexibility, supporting both continuous and indexed operation to match diverse production demands. The ability to execute intricate twists and turns in the conveyor layout means that even complex process requirements are easily accommodated in a chain-on-edge oven system.

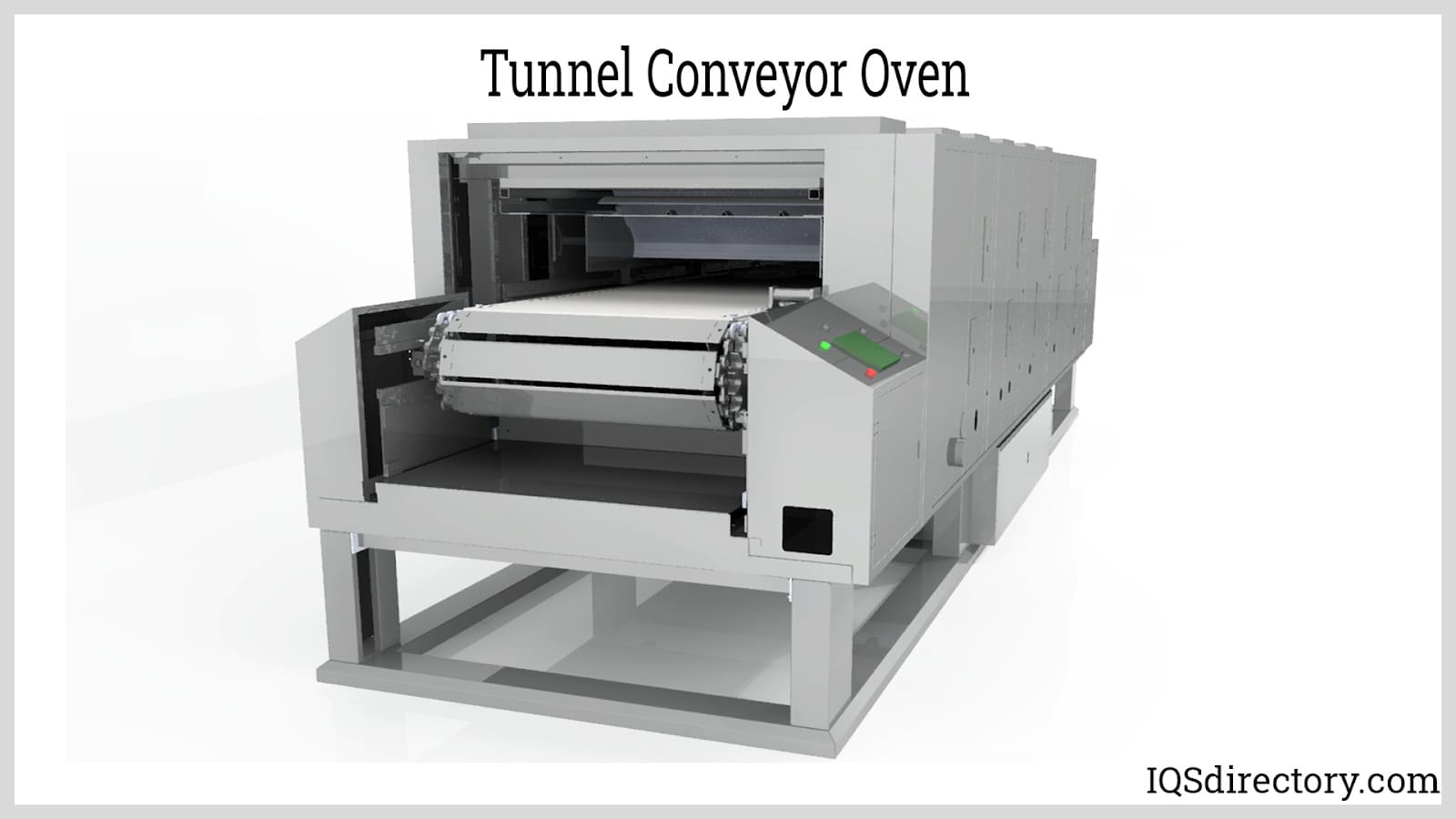

Tunnel ovens represent a core technology for high-capacity, continuous-flow thermal processing in industries such as commercial baking, pizza production, and snack manufacturing, as well as non-food applications like ceramics calcination or powder coating. These linear ovens offer configurable length, width, and height dimensions, high temperature capabilities, and precise zone-by-zone temperature control for superior product consistency. Tunnel conveyor ovens accommodate various heat sources, including electric, infrared, and direct or indirect gas-fired systems, enabling rapid, energy-efficient processing and quick recovery time. The modular design allows for integration with upstream and downstream automated conveyor lines, streamlining large-scale, 24/7 production processes and supporting regulatory compliance for safety, food hygiene, and environmental emissions.

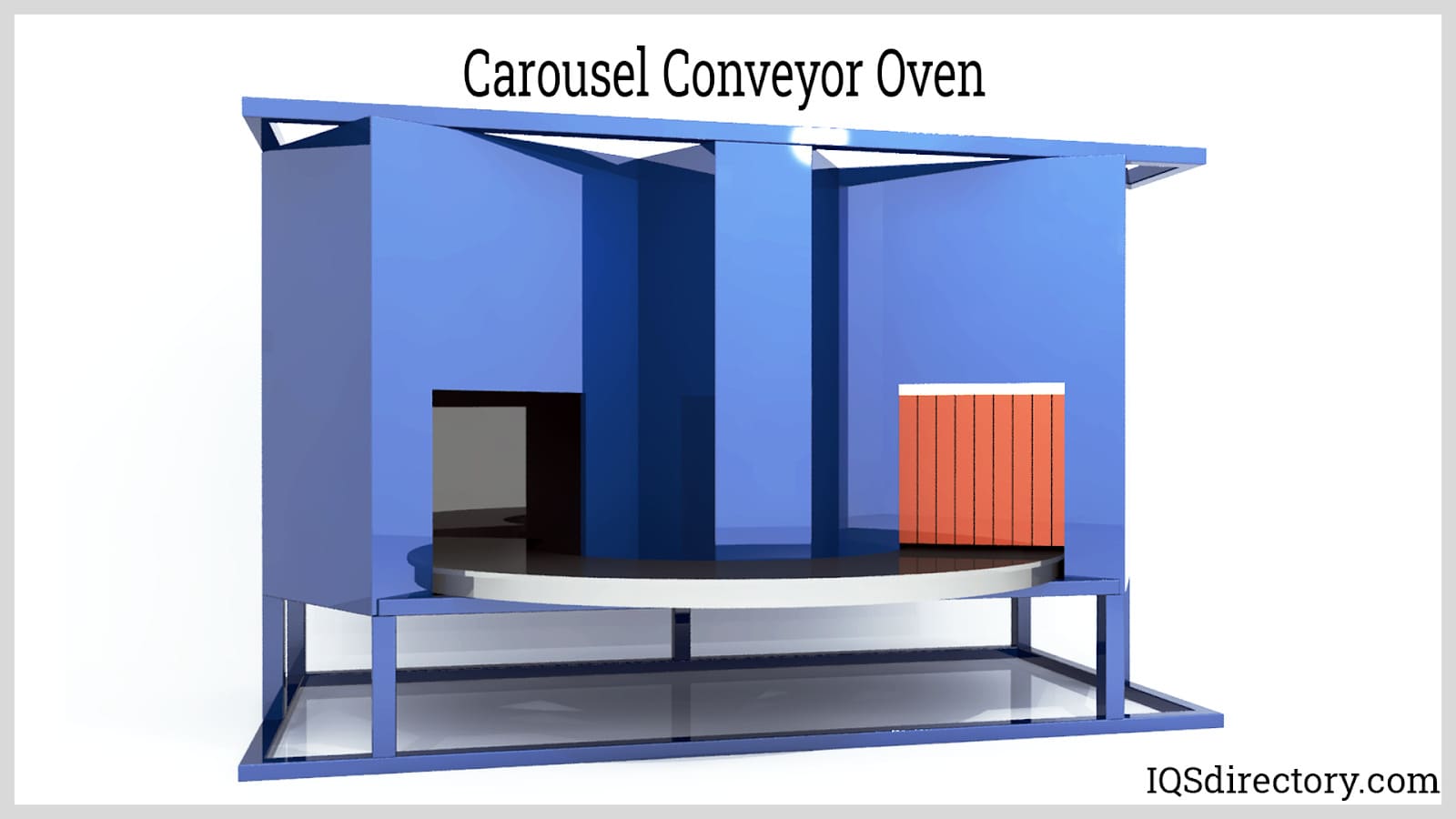

Carousel conveyor ovens provide a unique advantage for operations requiring flexible loading and unloading at a single point, which enhances operator safety and streamlines workflow. These compact ovens utilize a circular or oval conveyor path, combining the benefits of horizontal airflow for even temperature distribution with efficient use of floor space. Carousel conveyor ovens are ideal for precision heat treating, solder reflow, or batch drying, where variable load sizes and frequent part changeover may be required. Their design supports high process repeatability and easy integration into laboratory, electronics, and high-mix manufacturing environments.

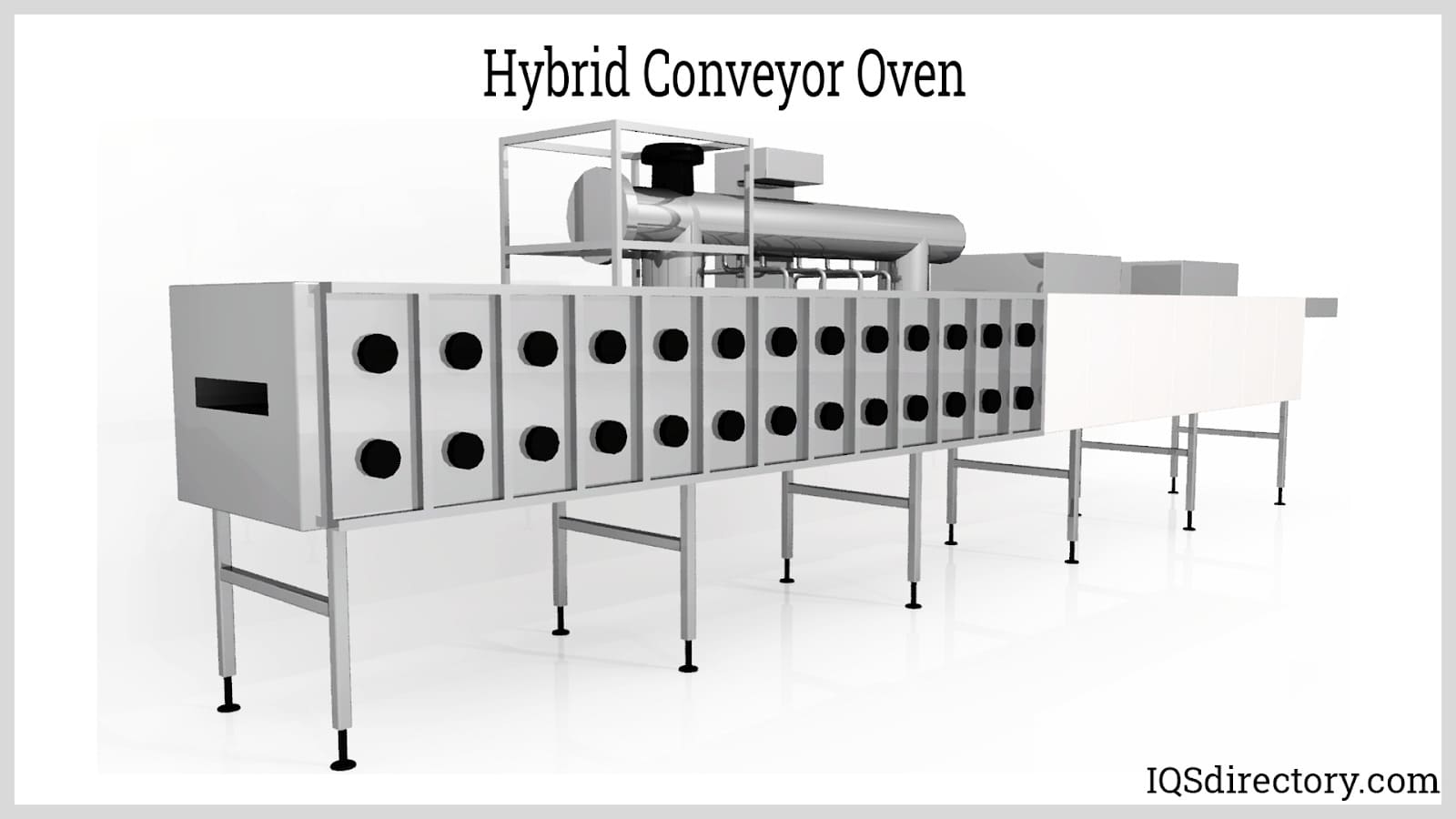

Hybrid conveyor ovens combine multiple heating technologies within a single system to provide customized, application-specific performance. Common combinations include gas-fired heat with indirect radiant panels, or the integration of convection and infrared heating for maximum energy efficiency and rapid processing times. These industrial ovens are tailored for complex manufacturing needs, such as multi-stage paint curing, precision adhesive drying, or advanced material processing, where variable temperature profiles and targeted heat application are crucial. By selecting the ideal hybrid configuration, manufacturers can optimize operational costs, reduce cycle times, and improve final product quality, all while meeting strict compliance and sustainability goals.
Determining the ideal conveyor oven for your process relies on an in-depth assessment of throughput needs, product dimensions, temperature requirements, heat source availability (gas, electric, infrared, or hybrid), and integration with your existing facility layout and automation systems. Manufacturing sectors—such as metal finishing, powder coating, electronics assembly, automotive parts production, food baking, and pharmaceutical drying—each have specific specifications that guide oven selection. Important criteria include required conveyor type (belt, chain-on-edge, overhead, carousel), desired dwell time and heating rate, uniformity and control accuracy, footprint limitations, energy consumption, and compliance with regulatory standards. Consulting with recognized conveyor oven manufacturers or suppliers can help you design or select a system that delivers peak thermal performance and process reliability, supporting your company’s production, quality assurance, and operational efficiency goals.
Conveyor ovens are custom-designed to address specific customer requirements. When selecting a conveyor oven, several factors must be taken into account, including the type of material being processed, the oven’s configuration, its integration into the manufacturing workflow, and the choice of belt material.
Conveyor oven belts can be made from several materials; these include fabric and metals. The determination of the belt material hinges on the oven's purpose—sintering, drying, annealing, or curing to name a few.

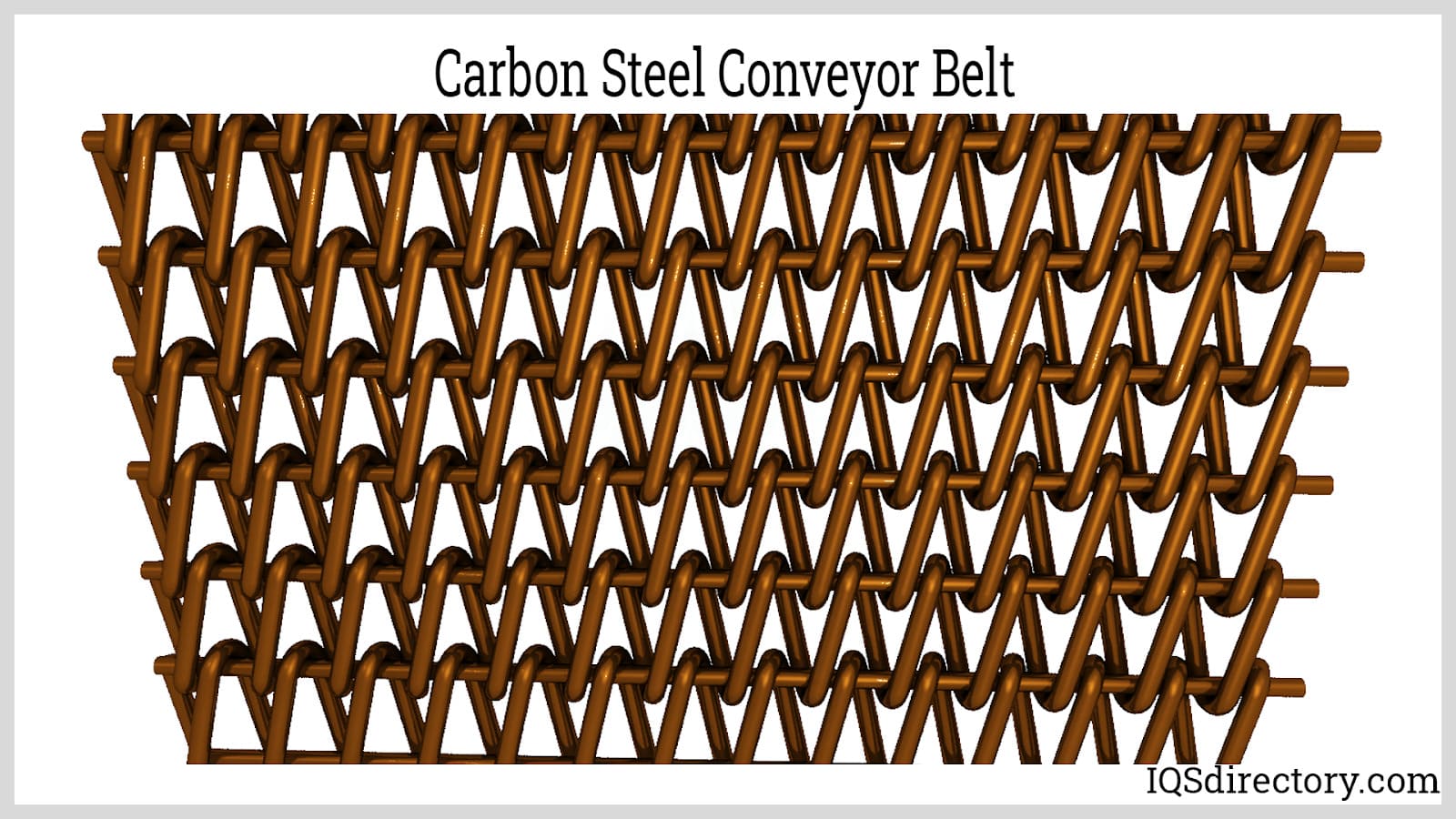

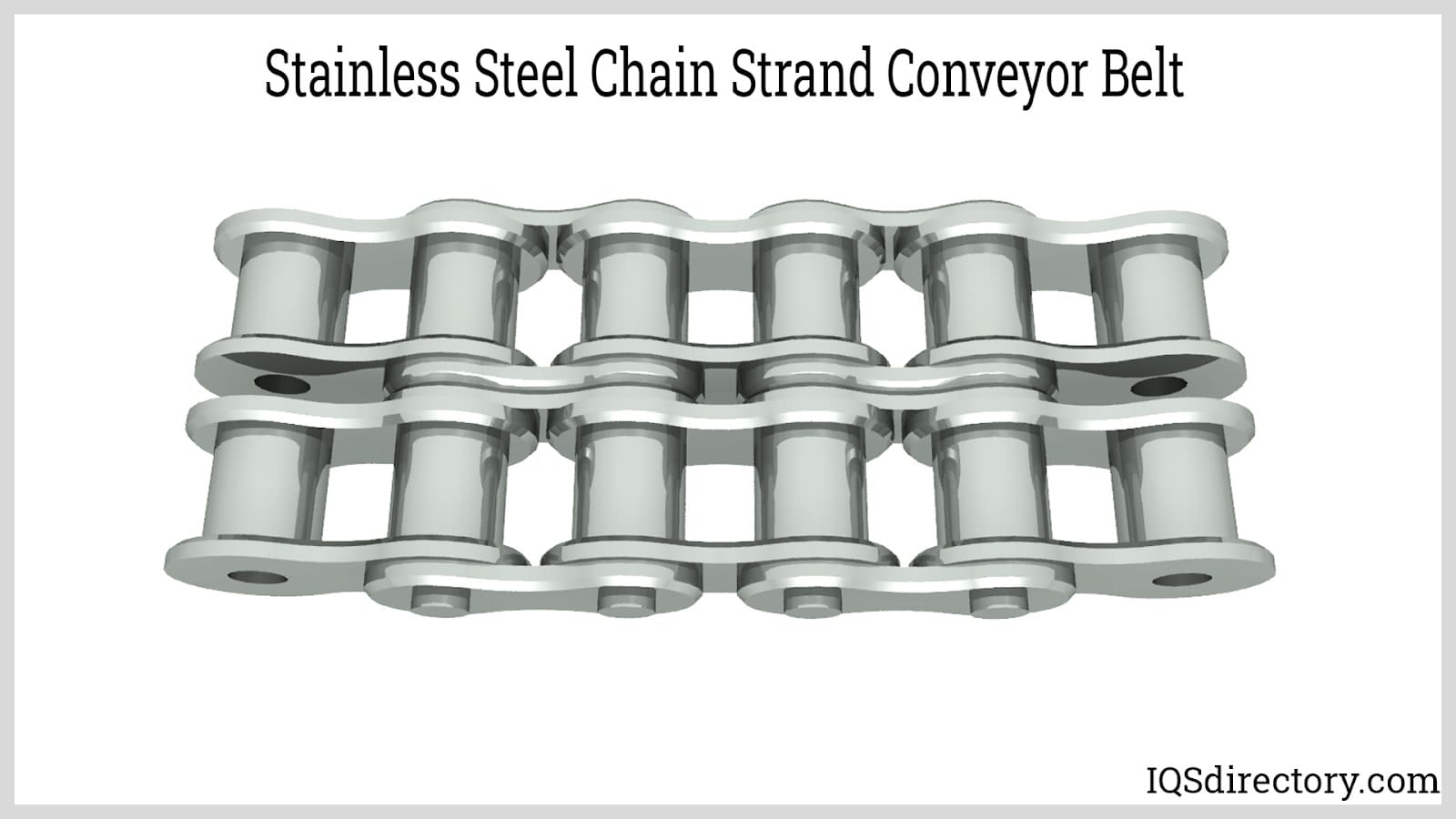

Carbon steel belts offer durability, precise tracking, and excellent straightness and flatness. They are easy to clean, hygienic, and resistant to abrasion, making them ideal for applications in baking and food preparation. However, a drawback of carbon steel is its tendency to rust and discolor over time.

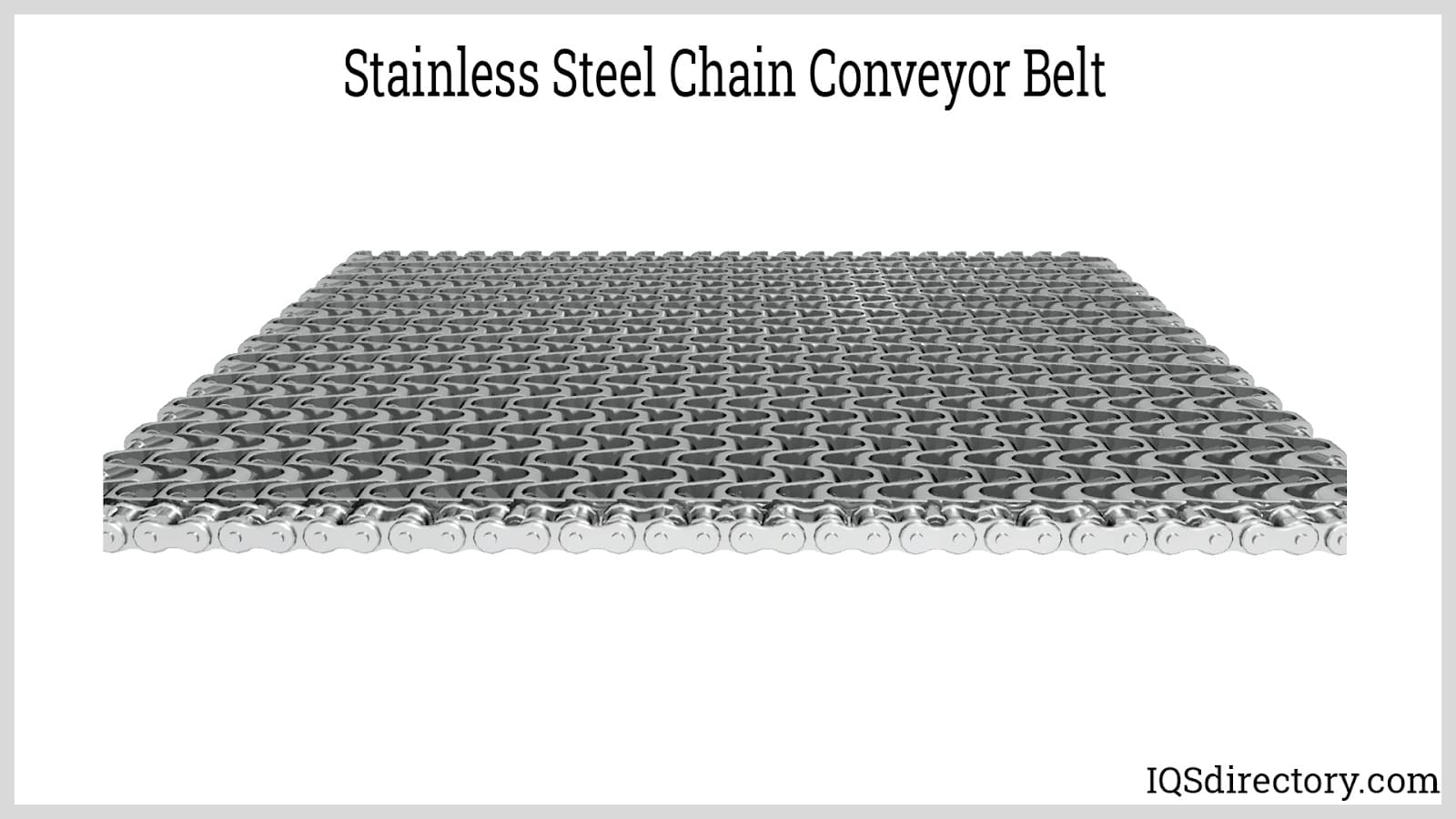

Stainless steel is a highly durable metal often used in industrial applications. It is the preferred material for conveyor belts due to its resistance to rust and corrosion, as well as its low maintenance requirements. The strength, durability, and toughness of stainless steel make it an ideal choice for conveyor belts across various industries, including rubber, lamination, wood, and chemicals.

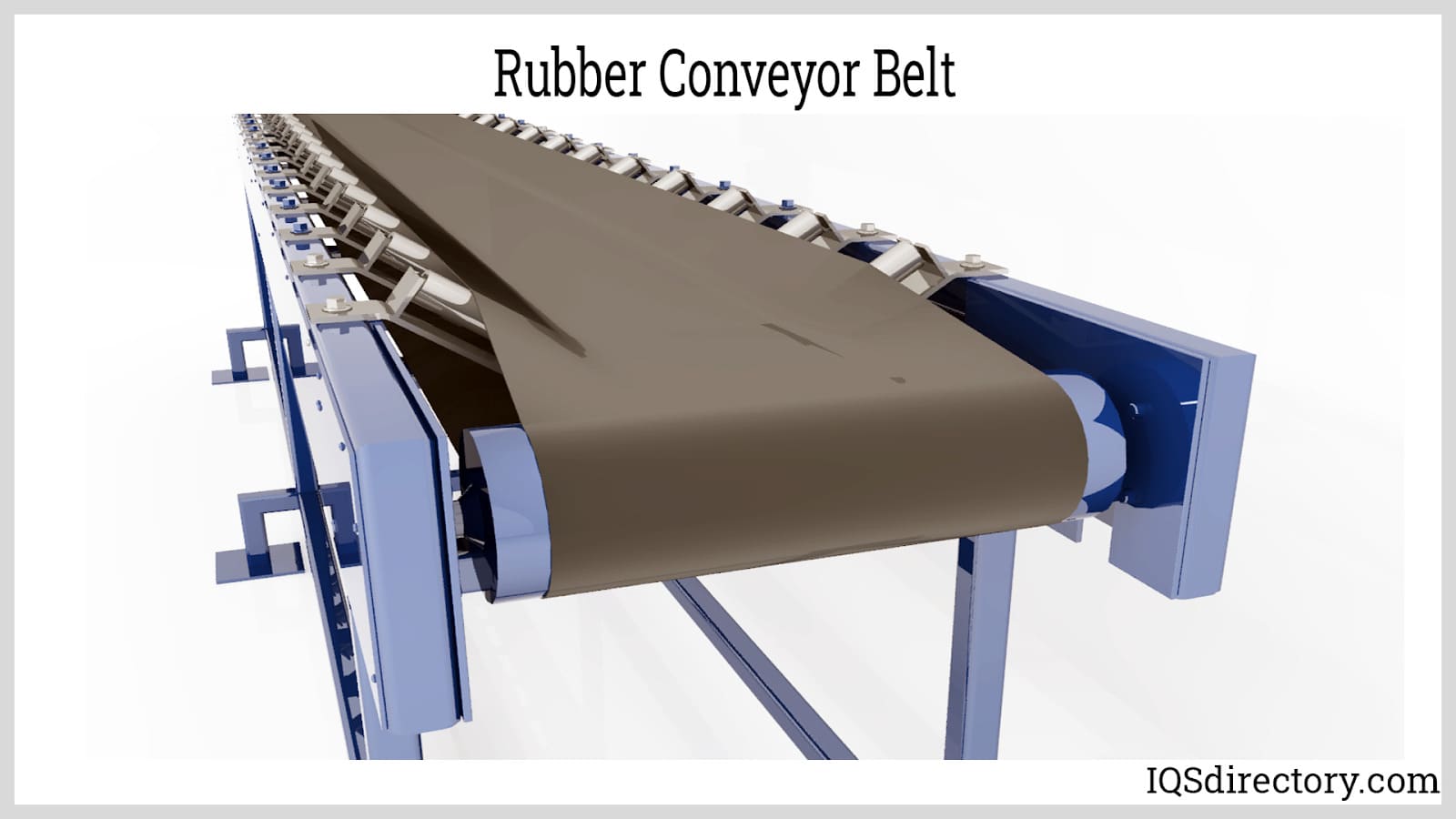

Although rubber might seem an unconventional choice for conveyor belts in ovens due to its tendency to melt, specially treated rubber can withstand temperatures up to 450°F (232°C). Once treated, rubber becomes an excellent option for conveyor belts in food preparation ovens due to its durability and suitability for high-temperature environments.

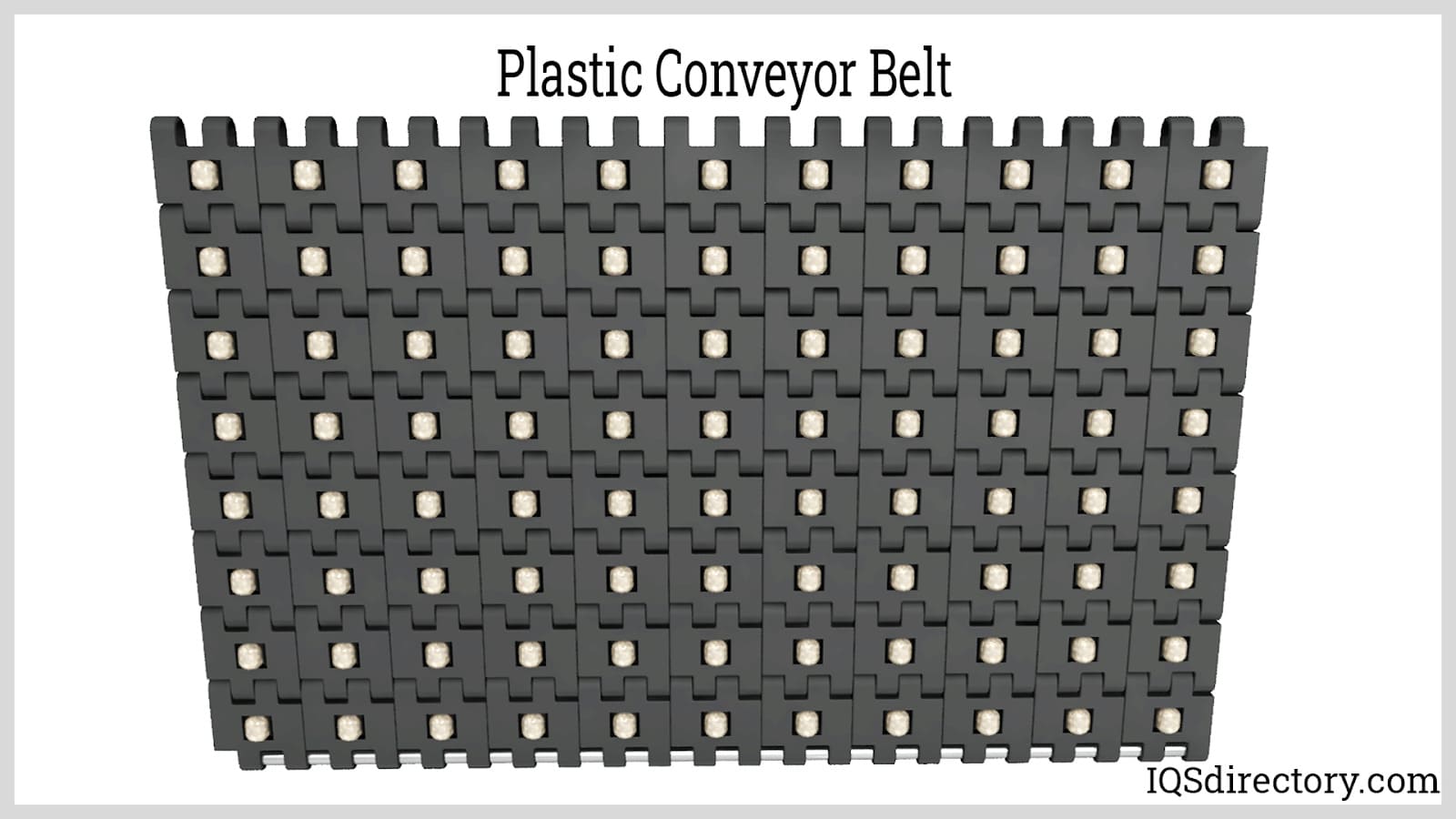

While plastic might seem like an unlikely choice for conveyor belts in high-temperature applications, it is well-suited for cooling chambers and low-heat processes. Plastic belts are cost-effective, long-lasting, and low-maintenance. They are typically constructed in linked sections, which facilitates easier removal and replacement.

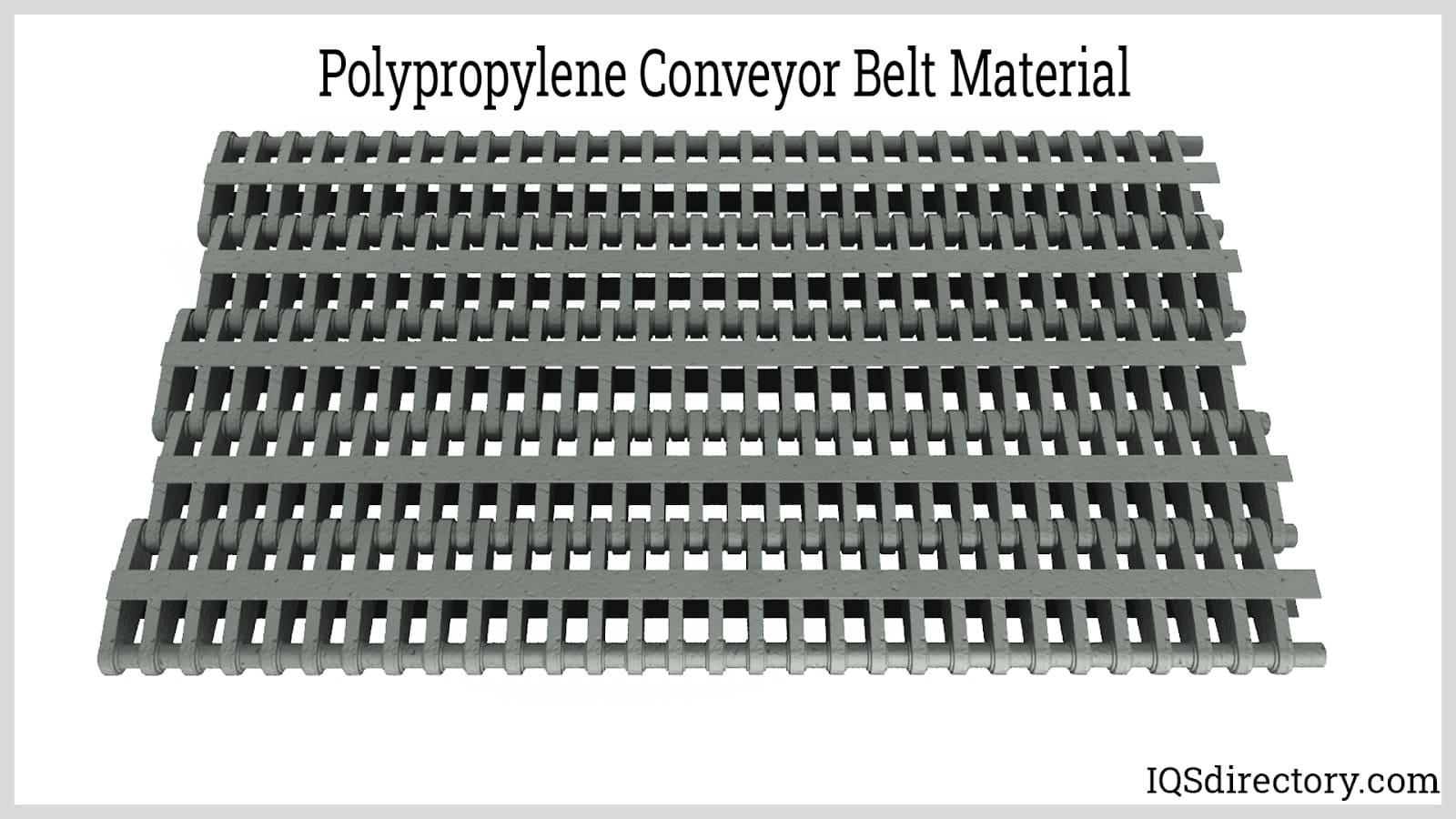

Polypropylene is a highly versatile material suitable for various applications. It combines the benefits of plastic belts with additional advantages, such as being lightweight, durable, and flexible. It also offers resistance to water, mold, abrasion, chemicals, and corrosion, making polypropylene one of the most adaptable materials available.

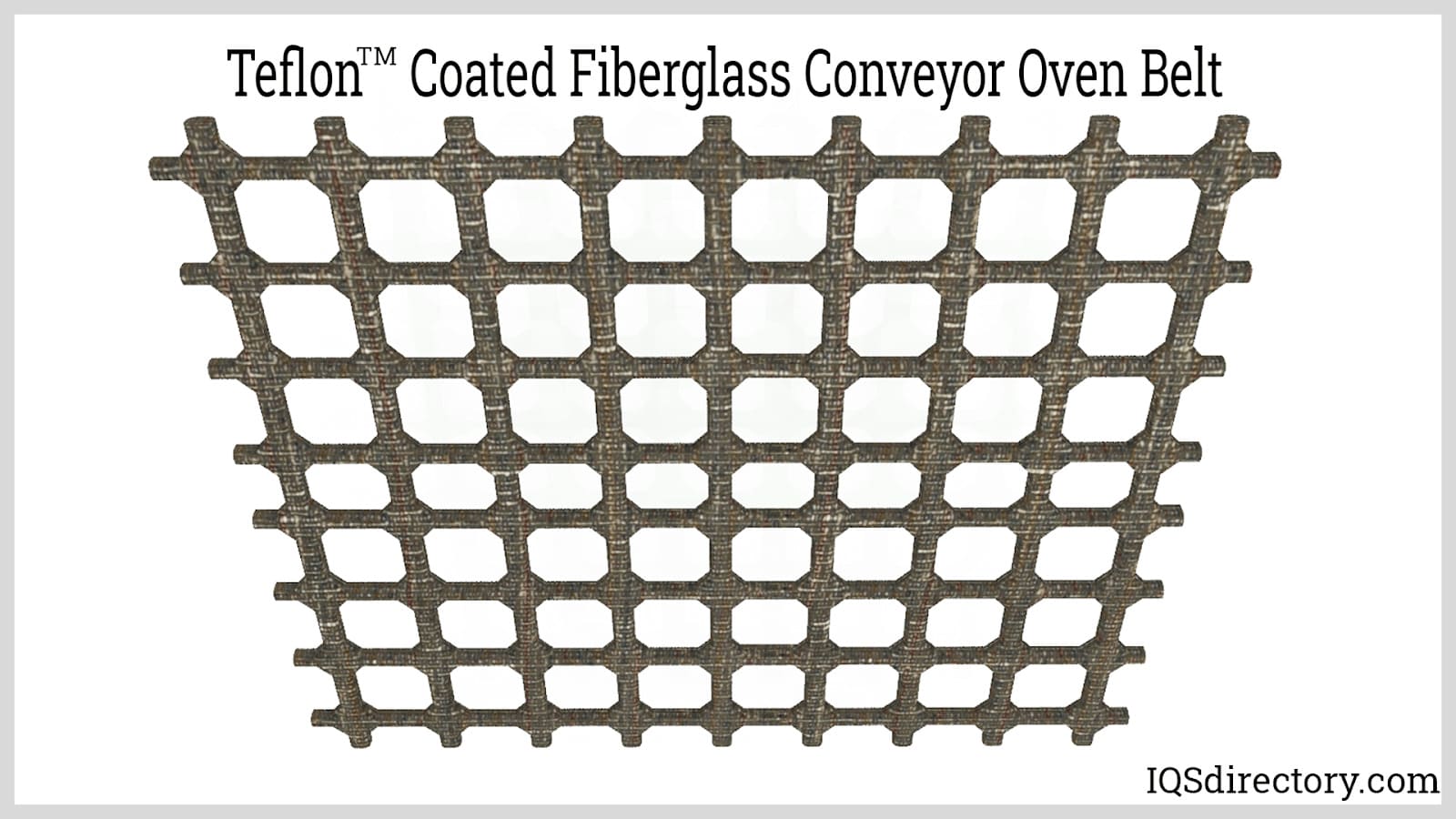

Fabric conveyor belts used in ovens are coated with Teflon™ to enhance their non-stick and heat-resistant properties. This coating makes the belts suitable for industrial ovens involved in baking and drying food products, ensuring compliance with Federal Food and Drug Administration (FDA) regulations.
Chain-driven roller conveyor belts utilize multiple chains to support a flat board-like product placed on top. An alternative design involves securing steel slats between the chains, which facilitates the processing of smaller parts.

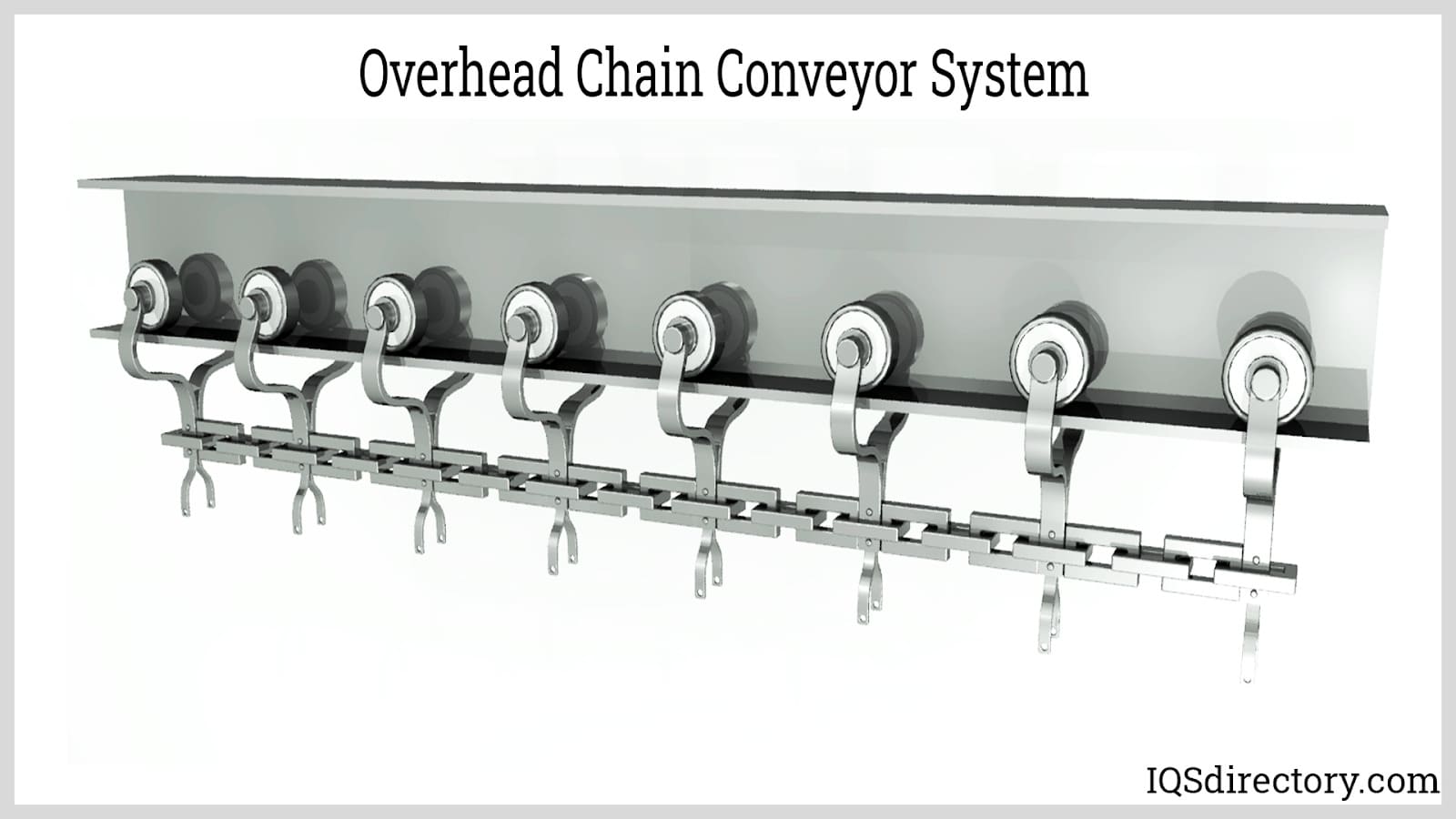

In an overhead conveying system, each link of the conveyor belt is connected to form a continuous loop. These systems can accommodate turns and changes in elevation. The chain, driven by a motor, is suspended from a trolley or rail to facilitate its movement.

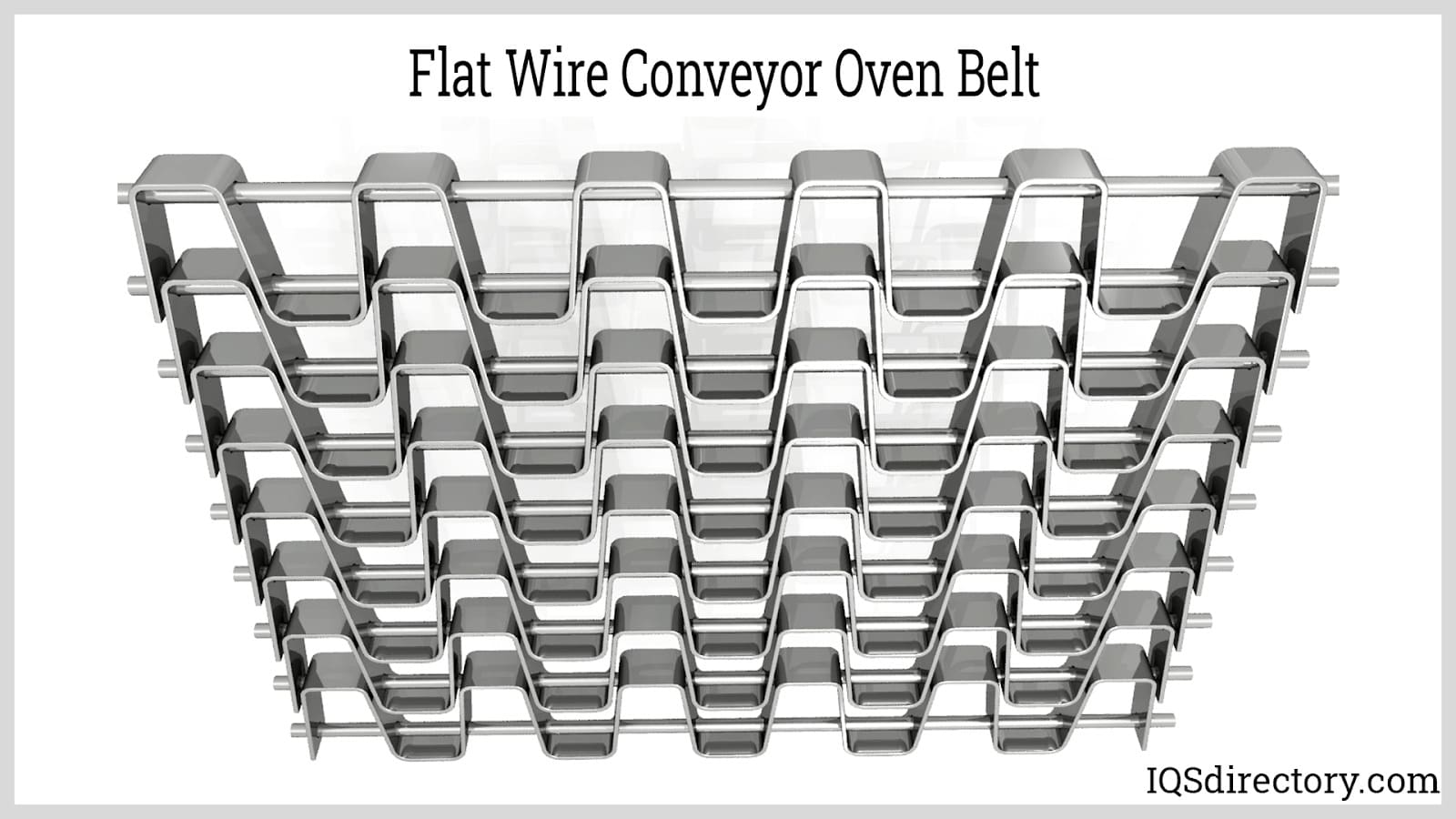

Flat wire conveyor oven belts are among the most commonly used types. These belts consist of flat wire bent into a series of interlocked segments, connected by pins that span the width of the belt. The wire used can vary in thickness to match the strength needed for different applications.

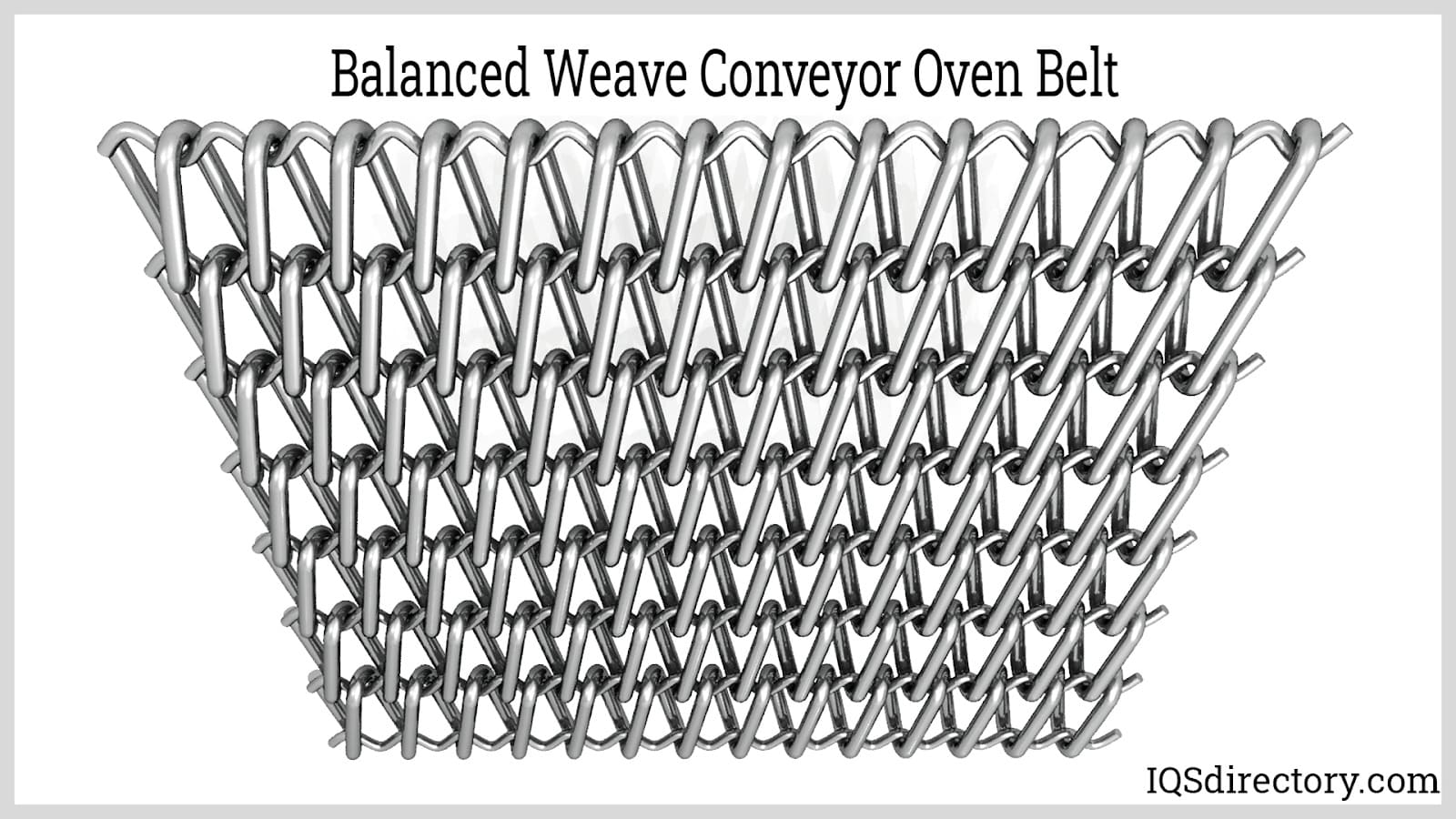

Balanced weave conveyor belts resemble woven fabric but are made from wire threads. They are available in various mesh sizes and wire gauges. The weave is designed to allow air flow while preventing small parts from falling through the mesh.

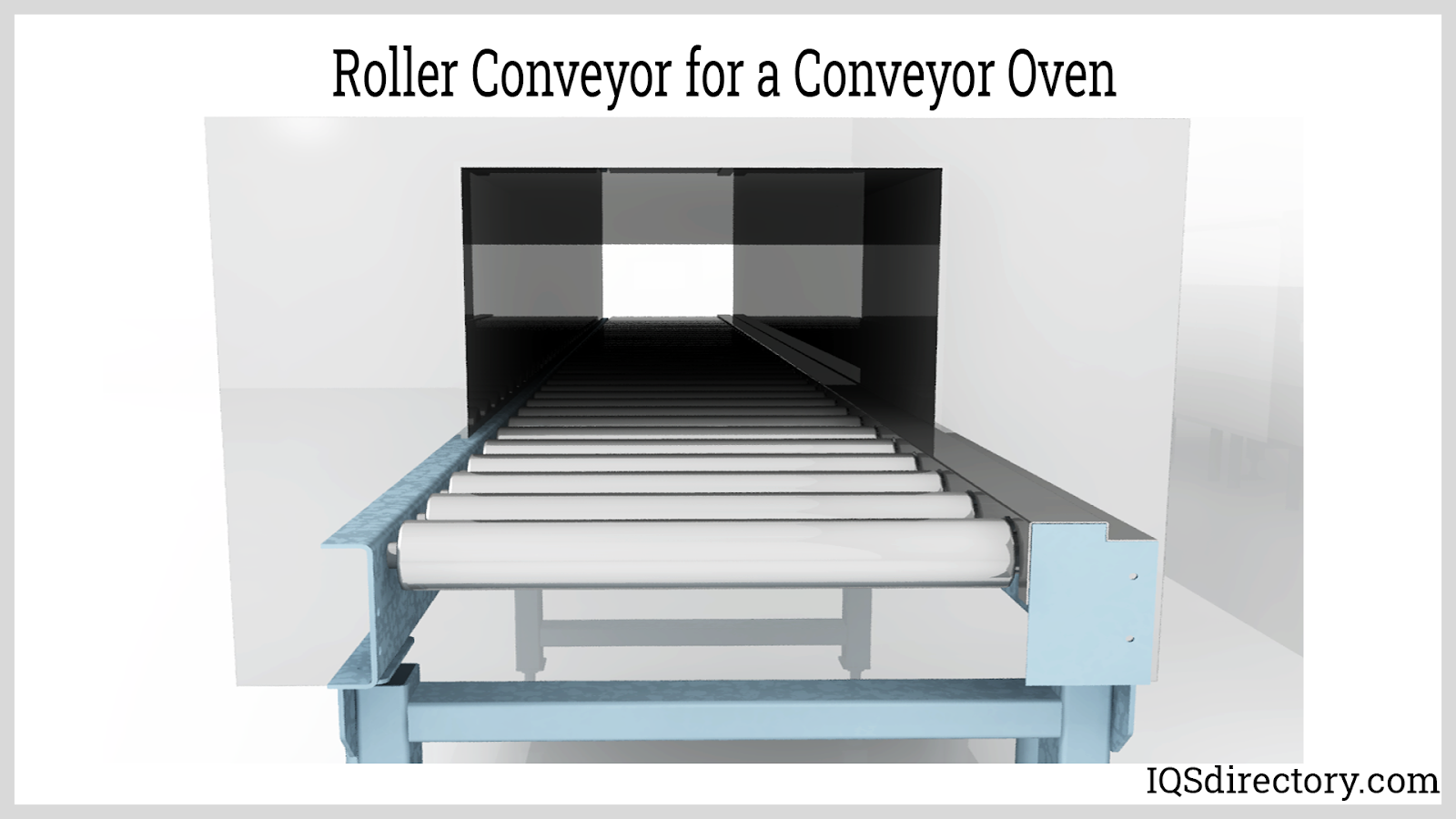

Belt driven live roller conveyors are used for heavy loading applications and have flexibility of motion. Their use depends on the processing temperature.They have shaft bearings on the outside of the oven with a power transmission unit that includes bearings, a system of chains, and a motor.
A walking beam conveying system is ideal for applications where spacing between materials is necessary. It operates by using a combination of static and moving supports to index the materials through the oven. The static support holds the material in place while the moving support shifts it from one static position to the next. This lifting, moving, and holding process occurs along the entire length of the conveying system.
Walking beam systems are particularly suited for environments where other conveying methods are impractical. Key components of this system include drive mechanisms and positioning sensors, which are essential for its operation.
Conveyor ovens can be designed to use electric, natural gas, liquefied petroleum gas, or radiant infrared heat. Some specialized models combine multiple heat sources, such as electric and gas. Facilities using gas must ensure they have the proper supply, while electric heating requires the appropriate voltage.
The selection of a heat source depends on the specific requirements of the thermal processing application, as each type of heat source offers distinct advantages and results.

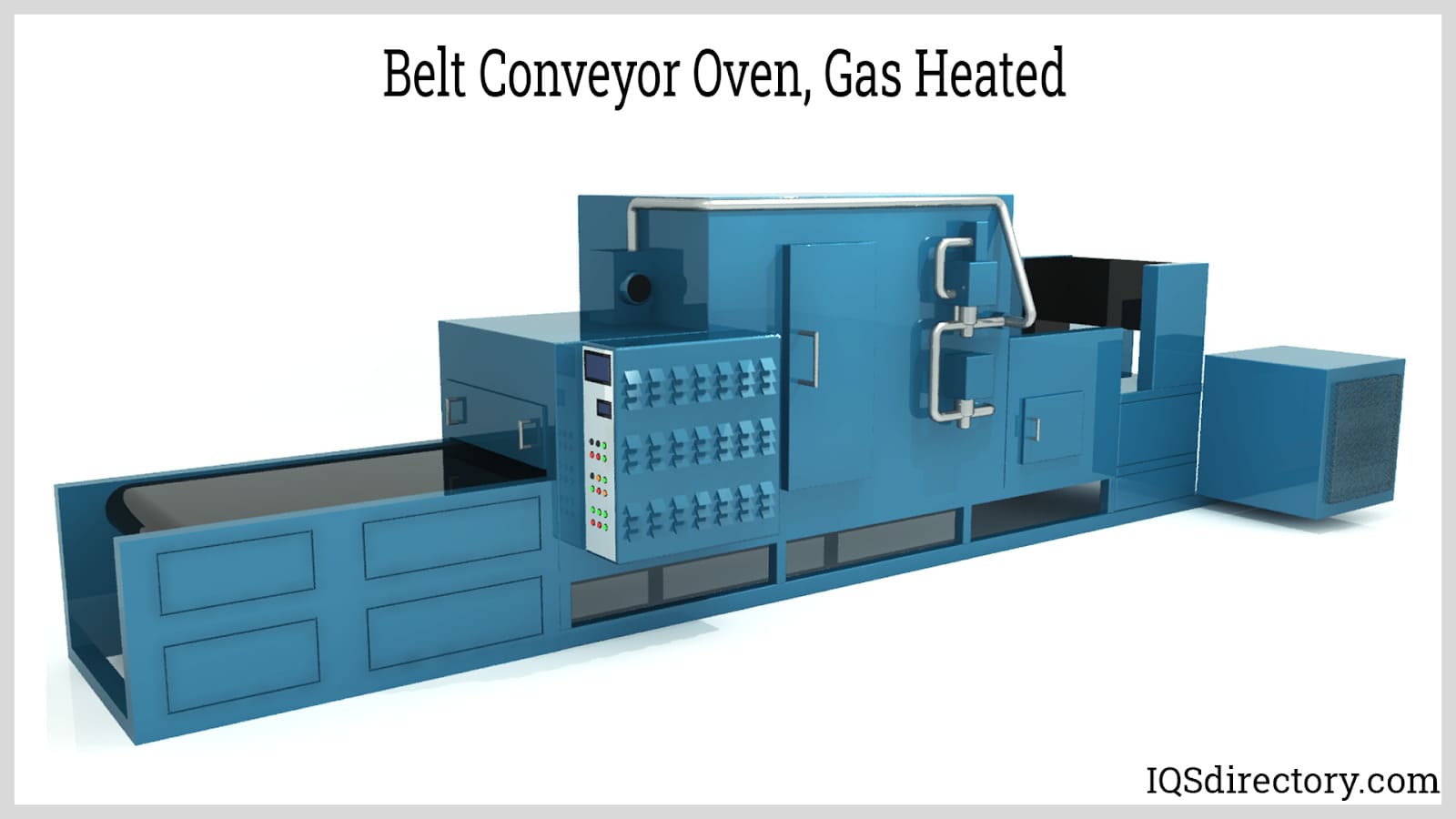

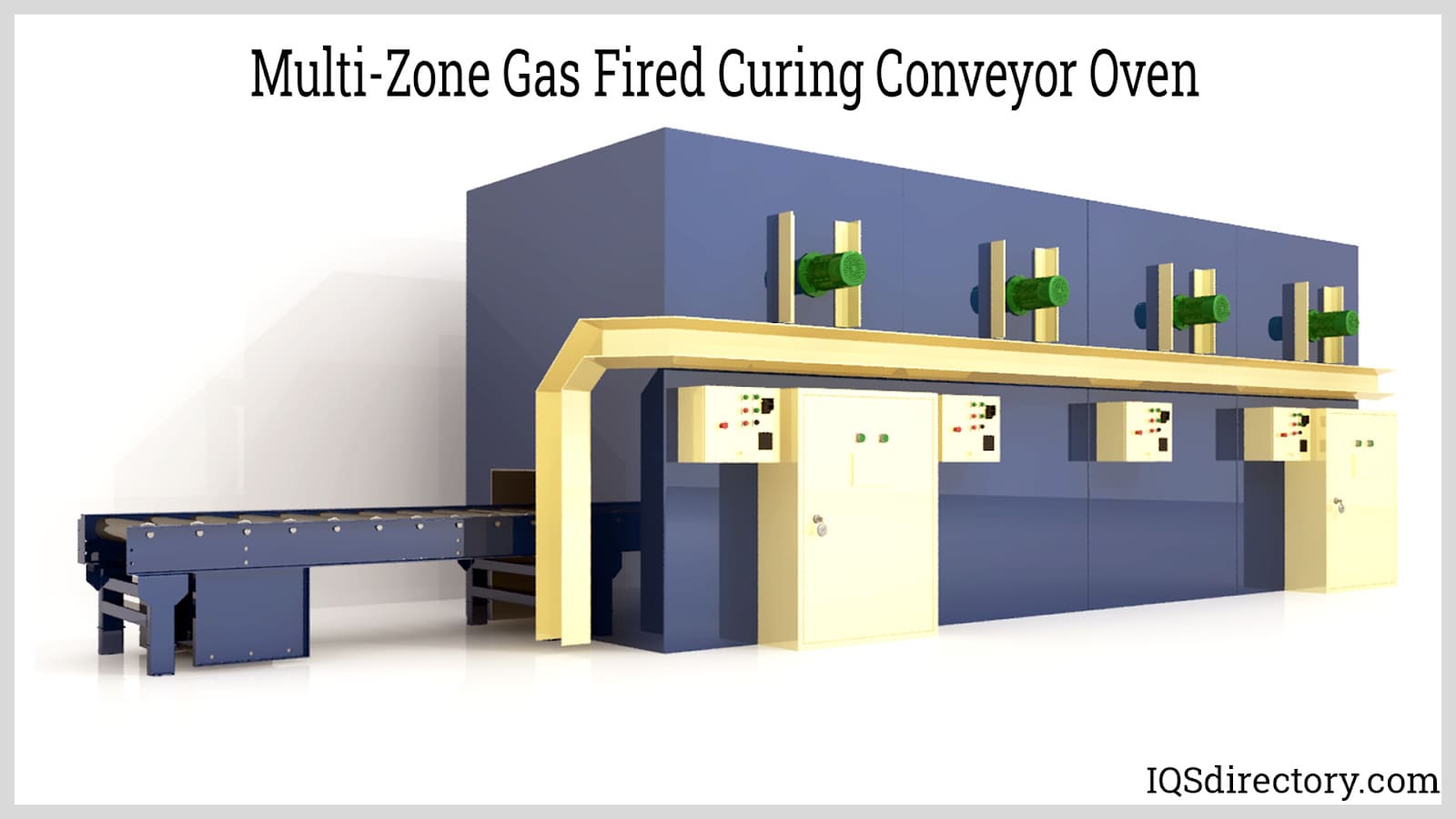

Gas-powered conveyor ovens feature burners positioned above and below the conveying mechanism. To ensure uniform heating, a mixture of gas and air is supplied to the burners, which are ignited by a spark electrode. Heat is transferred from the gas flames to the oven’s top, base, and walls through radiation or direct flames. These ovens operate with zero gas pressure and use blowers to supply the necessary air. The conveyor belt is typically constructed from woven wire mesh or heavy-duty steel mesh.
Direct gas ovens are equipped with nozzles and dosage pumps for their heating elements. Although their initial cost is higher compared to electric ovens, they are generally more economical to operate. In these ovens, the gas flame directly heats the objects, making them suitable only for specific materials.
In direct gas ovens, burners are situated beneath the cooking cavity, allowing gas to pass through and deliver heat directly to the objects. These ovens feature multiple zones with adjustable air turbulence to precisely control temperature and humidity.
Indirect gas ovens utilize a heat exchanger, often made of stainless steel, to transfer heat to the objects. Air is blown through the exchanger into the heating chamber, protecting the objects from direct flames. These ovens are highly versatile and suitable for a broad range of applications.

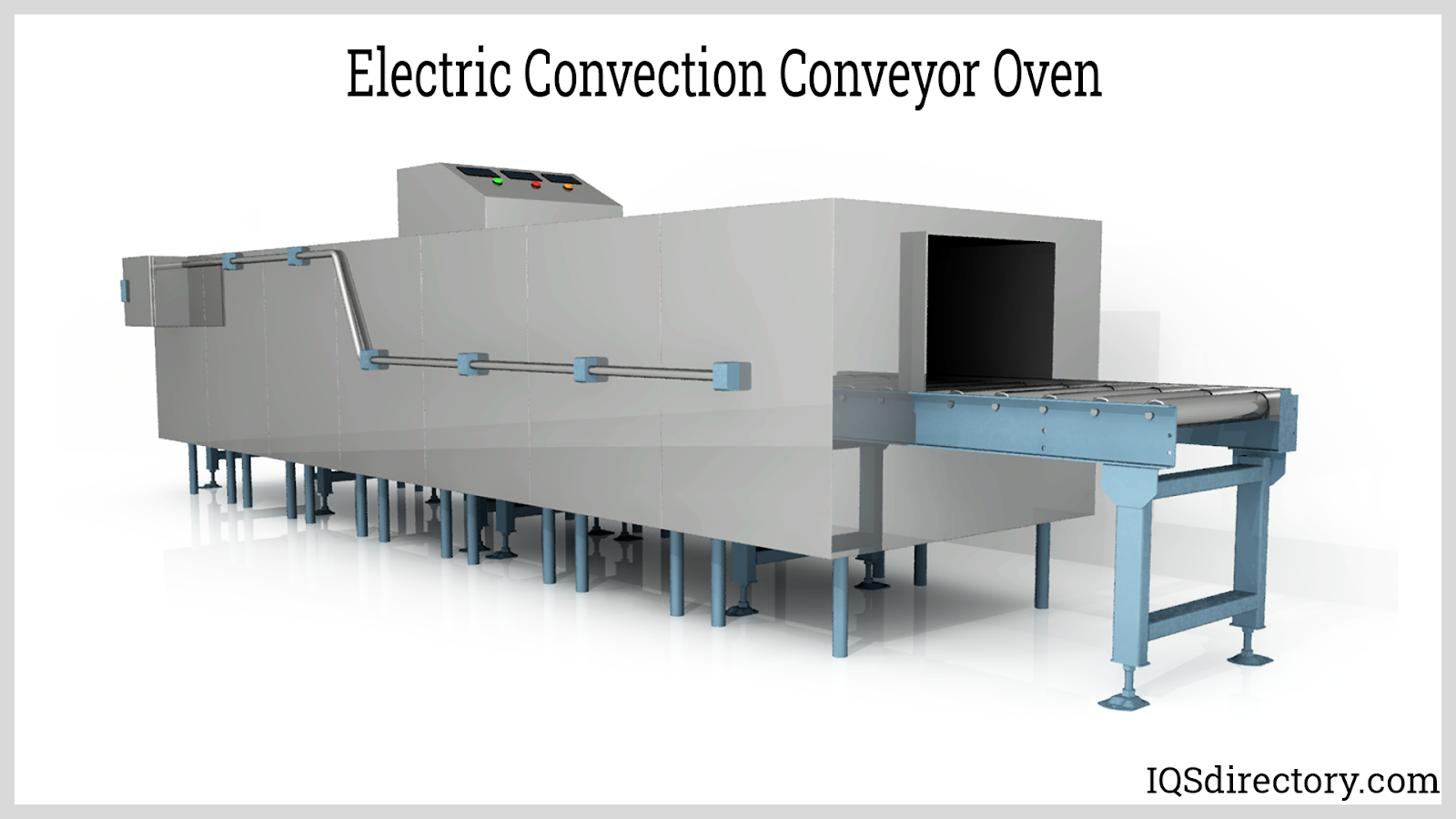

The essential feature of an electric convection conveyor oven is the continuous circulation of heated air, typically achieved by a fan or similar mechanism. This system draws air from one part of the oven and redistributes it, ensuring consistent temperature throughout the cooking chamber. The circulating air enhances heat transfer, bringing more heated air into contact with the items being processed.

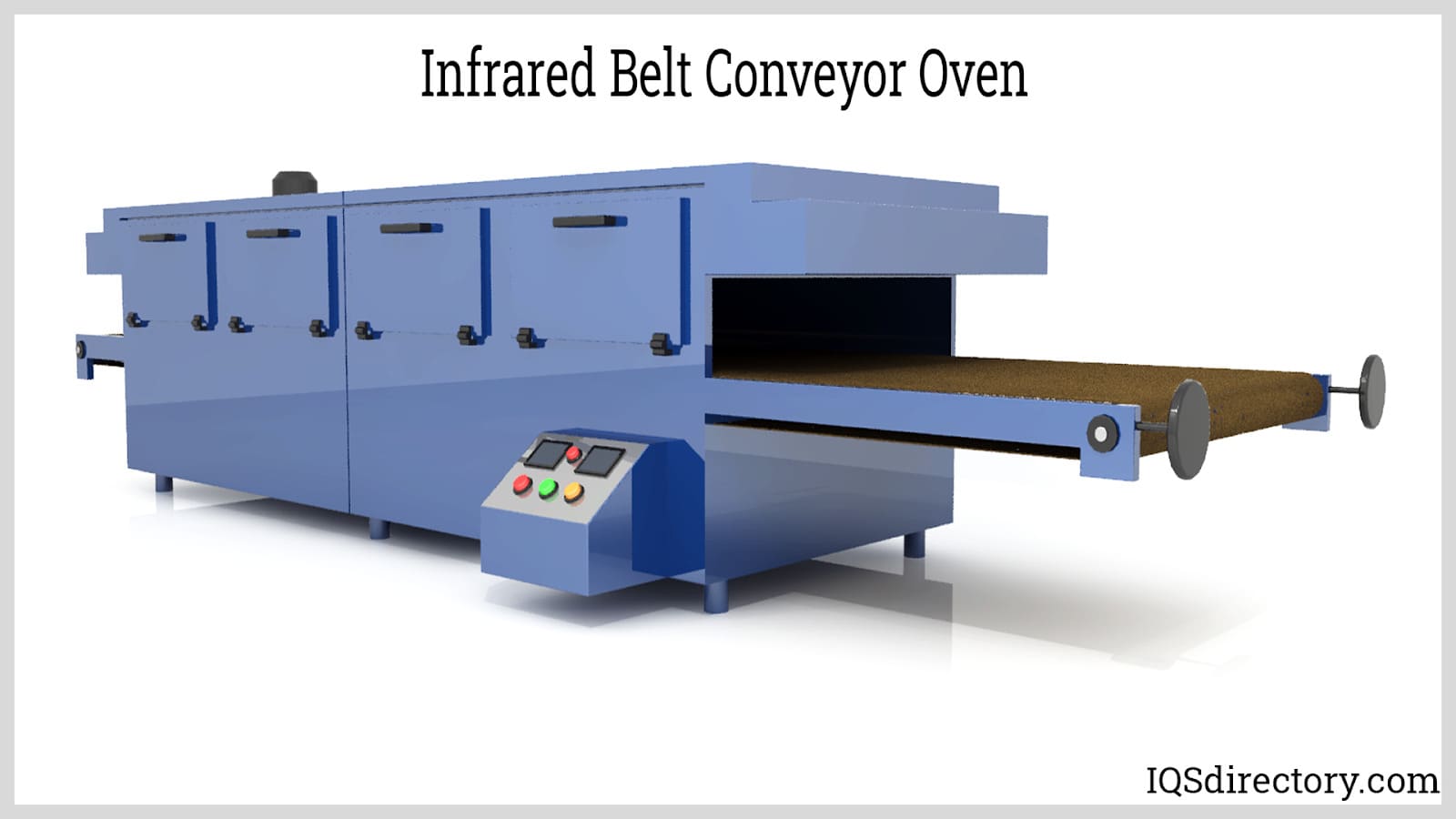

Infrared heating operates by converting electrical energy into infrared wavelengths emitted from the surface of the heating element. These heat waves travel directly to the objects, providing efficient and uniform heating. Infrared conveyor ovens often feature controllable and programmable heat zones, allowing precise thermal control throughout the heating process.
Steam zone ovens process items through multiple compartments where they are exposed to steam flows to maintain optimal humidity levels. Steam is delivered directly to the products from both sides of the oven to ensure even distribution. The compartments are separated by moisture-resistant materials, and the zones are controlled by adjustable dampers to regulate steam flow and maintain consistent conditions.
Hot water ovens offer a clean heating method by using hot water circulating through radiator coils. A fan blows air through these coils to distribute the heated vapor evenly throughout the chamber. However, hot water ovens are limited in the temperatures they can reach, which restricts their use to applications requiring lower temperature ranges where rapid heating is not critical.
Industries involved in finishes, coatings, annealing, or heat treatments rely on conveyor ovens for their efficiency and cost-effectiveness. Conveyor ovens are essential in many industrial settings where large quantities of products require consistent heat treatment.
Conveyor ovens excel in processes such as drying and curing by providing continuous and rapid processing. They can be customized to integrate seamlessly into existing assembly lines and conveying systems.
In a drying operation, a conveyor oven is used to eliminate moisture or other liquids from products. Typically, multiple heating zones are required to ensure optimal drying performance. For safety, an exhaust system is incorporated into the conveyor oven to handle the moisture release effectively.
Curing involves heating a product to the required temperature, maintaining it there, and then allowing it to cool. This process is applied to cure coatings like powders, paints, and adhesives. Curing hardens and strengthens the coating through chemical changes in the material.
The aging process involves raising the temperature of a product to alter its properties, also known as precipitation hardening to enhance material hardness. The material is heated and maintained at this elevated temperature for an extended period, making conveyor ovens well-suited for this task.
Annealing is a heat treatment used on metals to modify their microstructure for easier shaping and deformation. This process increases ductility and relieves internal stress. Annealing requires precise temperature control to prevent damaging the microstructure.
Stress relieving involves heating metal to just below its critical temperature and then allowing it to cool. The metal is held at the elevated temperature long enough to reduce stress. Conveyor ovens are ideal for this process as they heat materials without using open flames.
Bonding is a process where heat is used to join different materials into a single cohesive unit. This process improves the strength of the bonded materials, resulting in seams that are stronger and more durable than the original materials.

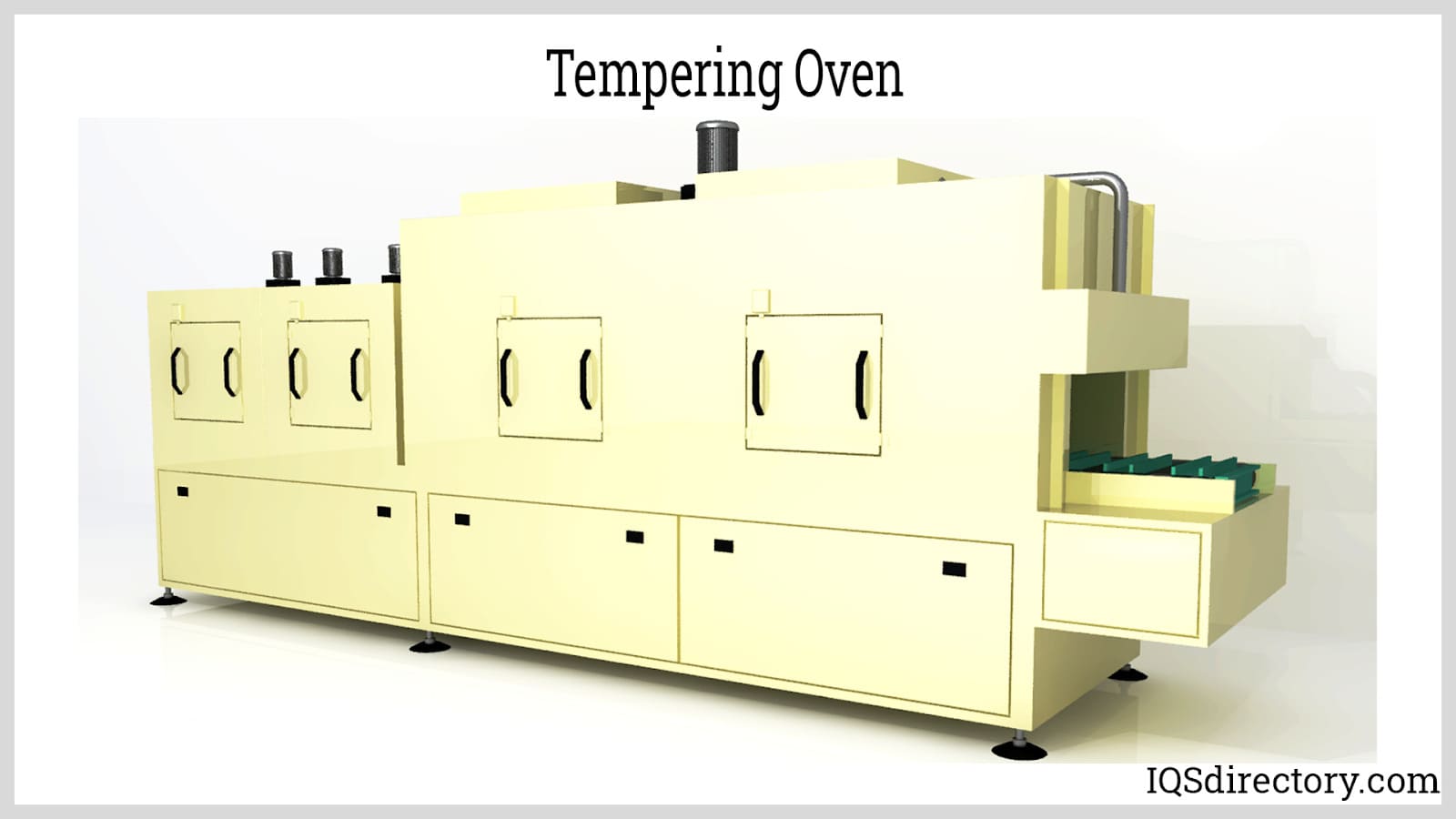

Tempering is used to decrease the hardness of metals such as steel and cast iron. By reducing hardness, the metal gains greater toughness. This makes the metal more ductile and less brittle.
In food preparation, conveyor ovens are commonly used for cooking items like pizza, hot sandwiches, and donuts. These ovens offer consistent heat and rapid cooking, making them ideal for high-volume production. Conveyor ovens greatly enhance efficiency in food production by enabling the baking or cooking of large quantities of products simultaneously.
In manufacturing processes that involve heat treatment, conveyor ovens are often custom-designed to align with specific production methods. Industrial operations require ovens tailored to their unique products and processing needs.
When companies set out to purchase and install a conveyor oven, they gather detailed information for the oven manufacturer to ensure the final product meets operational requirements. While each manufacturer may have unique criteria, there are several common factors to consider during the planning of a conveyor oven system.

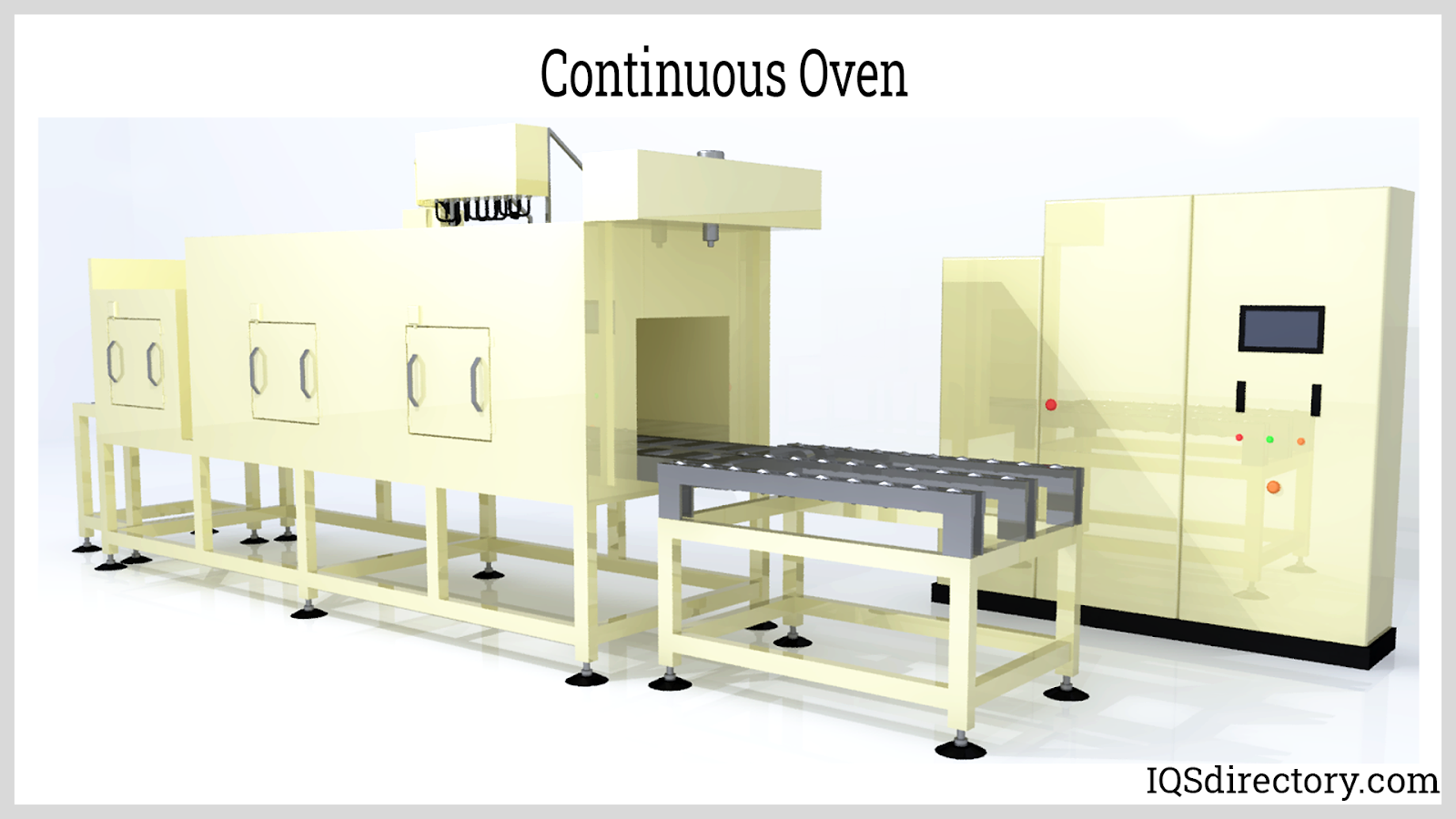

Conveyor ovens generally fall into two categories: continuous and indexed. Continuous ovens maintain a steady movement of products through the system, making them suitable for high-volume operations. Indexed ovens operate in a stop-and-go fashion, using incremental movements to automate the heating and cooling stages.
The heat source is often the most costly component and may require adjustments to the facility. Conveyor ovens can be powered by electricity, natural gas, petroleum gas, or radiant heat. Some models combine multiple heating methods for cost efficiency. Electrical systems depend on the facility’s voltage requirements, with some units accommodating both 120 and 240 volts.
The temperature requirements are based on the product and the heating process needed. Identifying both minimum and maximum temperatures is crucial when selecting a conveyor oven. These ovens are designed to manage different heat treatments across various zones. Programmable logic controllers (PLC) allow operators to adjust heat settings in different sections of the oven.
The thermal profile describes how quickly a product should be heated, the duration of the heating phase, and whether cooling is required. This profile helps determine the necessary temperature settings and ensures the product is heated safely and effectively.
The heating phase dictates the amount of heat required, while the cooling phase focuses on safely reducing the temperature. Proper management of these phases is key to the effectiveness of the conveyor oven.
Temperature considerations are central to the decision-making process for purchasing a conveyor oven, as they directly impact the oven’s performance.
Effective air flow is crucial in any heating operation. A well-designed conveyor oven features optimized air flow patterns to ensure efficient heat transfer and consistent temperature throughout the oven. Air flow may be directed from top to bottom, bottom to top, or a combination of both.
Proper air flow design improves oven performance and safety.
Conveyor systems vary widely, including traditional belt configurations, monorail systems, and tray designs. The choice of conveying system depends on factors like product size, weight, material, and portability. While most conveyor ovens have a rectangular shape with open ends, this configuration may not suit all processes.
Options for conveying system materials include wire mesh, rubber, and Teflon-coated fabric.
When selecting a conveyor oven system, assessing the available space is straightforward. Manufacturers offer ovens that can accommodate any spatial constraints, whether the setup is compact or expansive. Options include vertical systems with minimal footprint or horizontal systems available in various sizes, from large units suitable for entire buildings to smaller models for tighter spaces.
It's essential for managers and planners across industries to evaluate the space available for new equipment and materials. Larger, more robust ovens will require more space, making this a crucial consideration in the planning process.
The main goal in acquiring and setting up a conveyor oven is to enhance the quality and performance of the product. When selecting a conveyor oven, factors such as the product’s flammability, shape, size, orientation, weight, and the method of heat treatment—whether individual or batch processing—must be carefully considered.
Modern conveyor ovens feature a range of control systems tailored to their specific design. Producers utilize PLC systems to manage every aspect of the oven’s operation precisely. As manufacturing processes become more automated, the need for advanced control systems increases to ensure optimal performance.
The speed setting of a conveyor oven impacts both the duration of heating and the time materials spend in the oven. Production rates influence the speed settings, which can be adjusted to ensure efficient heating of large volumes of products.
Control systems in conveyor ovens manage both temperature and speed. The chosen speed setting directly affects the amount of heat applied to the products, ensuring they meet the desired specifications.
In manufacturing heat treatment processes, conveyor ovens stand out as dynamic systems compared to traditional batch ovens. Essentially, a conveyor oven is a continuous flow system that moves items through various paths, such as horizontal, vertical, inclined, or spiral, while applying heat.
Unlike batch ovens that keep products stationary during thermal treatment, conveyor ovens facilitate ongoing heat treatment, repositioning for subsequent processes, or performing multiple functions as the items traverse the system. This capability makes conveyor ovens a superior choice for automating manufacturing processes.
For high-volume production scenarios, conveyor ovens offer a significant advantage over static treatment systems. While static systems require manual loading and unloading of products, conveyor ovens automate these processes, thereby saving time and reducing labor. The high volume of product handling often makes conveyor ovens essential for efficient operation.
Conveyor ovens integrate seamlessly with robotic and automated production systems. They enhance consistency and uniformity in product quality and ensure adherence to production standards by automating the heat treatment process.
Equipped with programmable logic controllers (PLC), conveyor ovens provide operators with extensive control over the heating parameters. Adjustments can be made to residence time, oven temperature, speed, air flow, and feed time to accommodate variations in the product treatment process.
Each zone within a conveyor oven can be customized and regulated independently, allowing for precise adjustments tailored to specific treatment requirements.
Conveyor ovens excel in maintaining consistent and uniform temperatures throughout the heat treatment process. The precise control over temperature ensures that products are treated evenly as they move through each designated zone.
