Introduction

This article will take an in-depth look at steel channels.

The article will bring more detail on topics such as:

  • Principle of Steel Channels
  • How Steel Channels are Roll Formed
  • Types of Steel Channels
  • Applications and Advantages of Steel Channels
  • And much more…
Cold Rolling Steel Channels

Chapter 1: Principle of Steel Channels

This chapter will discuss what steel channels are, how they are made, and why steel is used for channels.

What are Steel Channels?

Steel channels are "C"-shaped hot-rolled carbon steel built with vertical web and inside radius corners on the top and bottom horizontal flanges. Steel channels consist of a wide web and two flanges, which can be parallel or tapered. Steel's strength and durability make it excellent for use in the production of metal channels.

Steel Channel

Its structural strength is used to make building frames and braces, as well as supports for a variety of machines and heavy equipment. Steel channels are used in the building industry to absorb sound by being put between the two sides of plasterboard walls. The channels attenuate the sound waves by muffling the vibrations created by the sound when the walls vibrate due to sound on each side of the wall. This is only one of the many applications for metal channels, which are extremely tough and long-lasting.

Stainless Steel Channels

How Steel Channels are Made

A steel channel is a structure made of hot-rolled mild steel. The interior corners of steel channels have a specified radius. This provides the strength and rigidity they need to sustain steel angles and building projects. With the correct equipment and proportions, they're fairly simple to prepare. Steel channels are usually manufactured to ASTM 36 dimensional specifications.

Steel channels are usually subjected to extra inline fabrication after being hot-rolled. They are coated or galvanized after fabrication to make them corrosion-resistant. Steel channels can be cut, drilled, or machined according to given specifications. They can also be easily welded. The laser fusion technique is commonly used to create large channels.

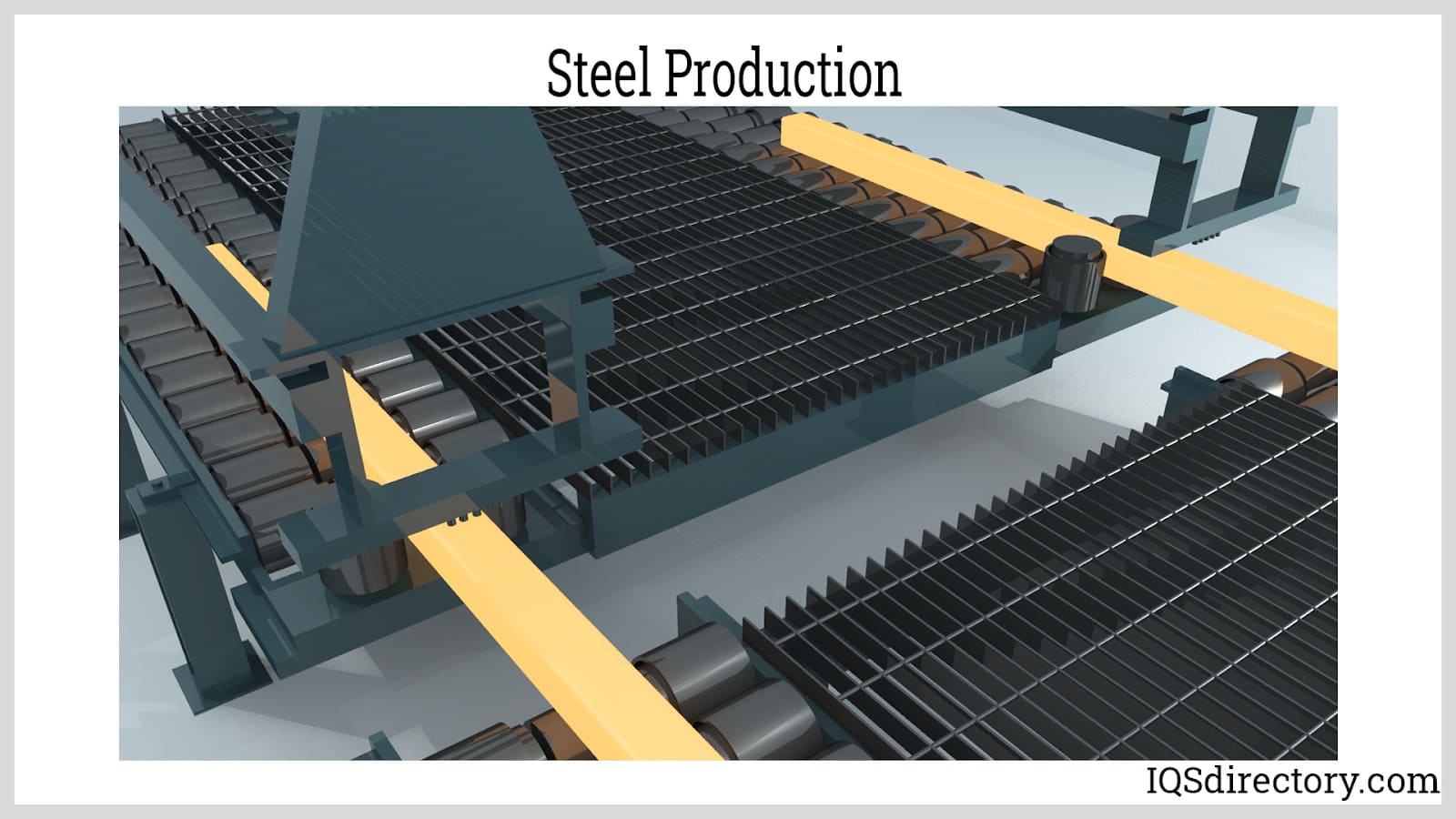

Steel Production

Why Steel Materials in Channels?

Steel is regarded as the best metal to use when making metal channels because of its mechanical properties.

  • Hardness: The capacity to tolerate surface indentation (localized plastic deformation) and scratches is referred to as hardness. Hardness can suggest scratch resistance, abrasion resistance, indentation resistance, and even shaping or localized plastic deformation resistance; therefore, it is perhaps the most poorly defined material attribute. From an engineering aspect, hardness is significant because it increases resistance to wear caused by friction or erosion caused by steam, oil, and water.
  • Toughness: The ability to absorb energy without cracking or rupturing. Toughness is also the ability of a substance to resist fracture when strained. The difference between toughness and hardness is that a material that deforms extensively without breaking can be called exceedingly tough but not hard.

Chapter 2: How Steel Channels are Roll Formed

Roll shaping a sheet or strip of metal produces metal channels. Roll forming is the process of continuously bending a metal strip as it goes between a series of rollers, also known as supports, that distort a piece of the metal until the required shape is attained. After the shaping and configuring is completed, the formed parts are cut to the desired lengths. Roll forming is a low-cost method for mass-producing parts that don't require any extra processing or finishing. Roll forming allows for the creation of an infinite number of metal channel profiles.

Steel Hot Rolling Process

Hot rolling is a metalworking procedure that takes place above the material's recrystallization temperature. Mechanical properties of hot rolled metals are generally unidirectional, and deformation-induced residual stresses are common. Non-metallic inclusions, on the other hand, can sometimes transmit directionality. Non-uniform cooling causes many residual stresses, common in shapes with non-uniform cross-sections like I-beams and H-beams.

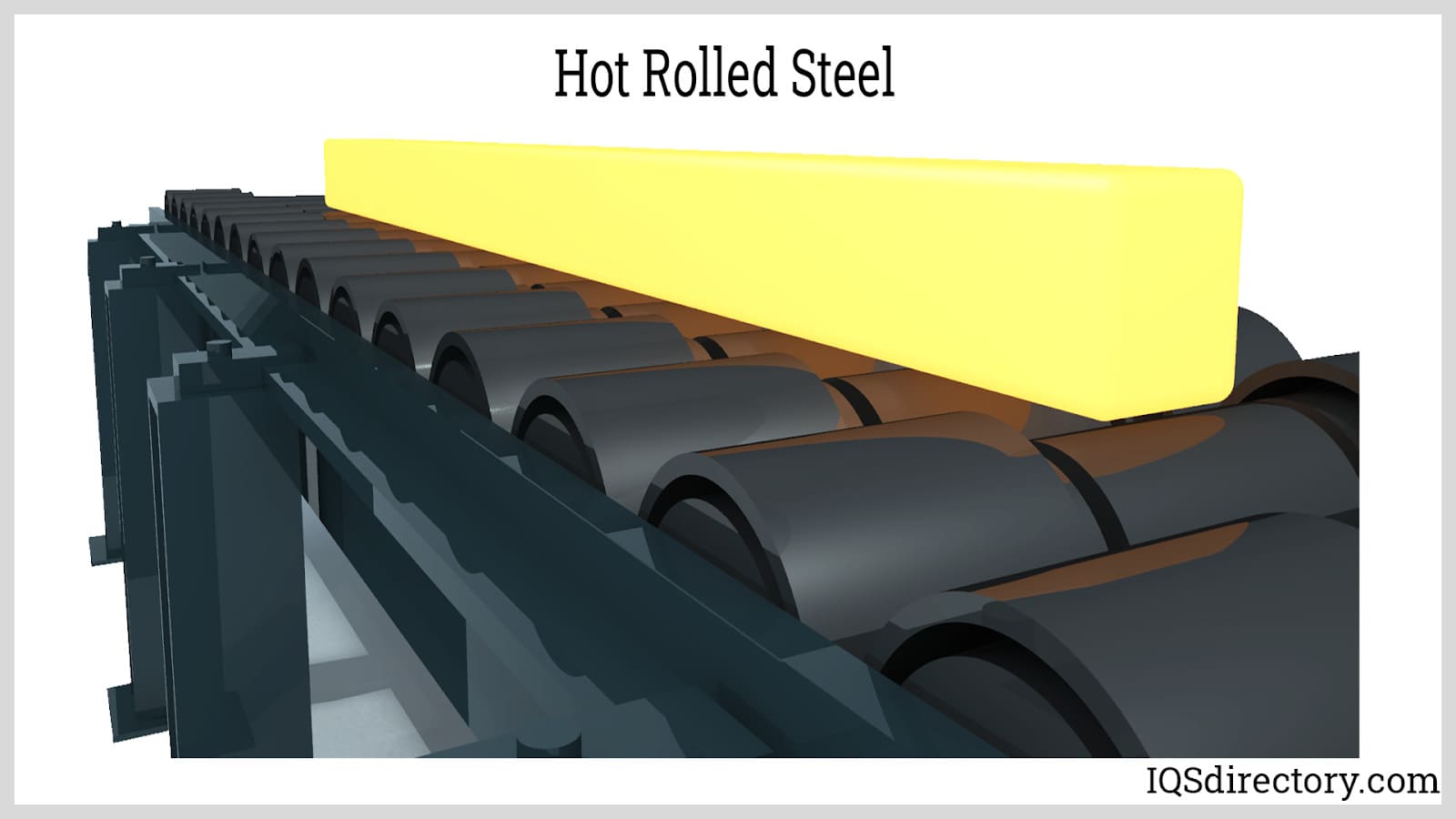

Hot Rolled Steel

Steel Cold Rolling Process

In cold rolling, the metal is rolled at a temperature below its recrystallization temperature (typically room temperature). It also improves the surface finish and keeps tolerances tighter. Four-high or cluster mills are employed because the workpieces are smaller and have more strength than hot-rolled stock. Sheets, strips, and rods are common cold-rolled products, which are often smaller than their hot-rolled counterparts.

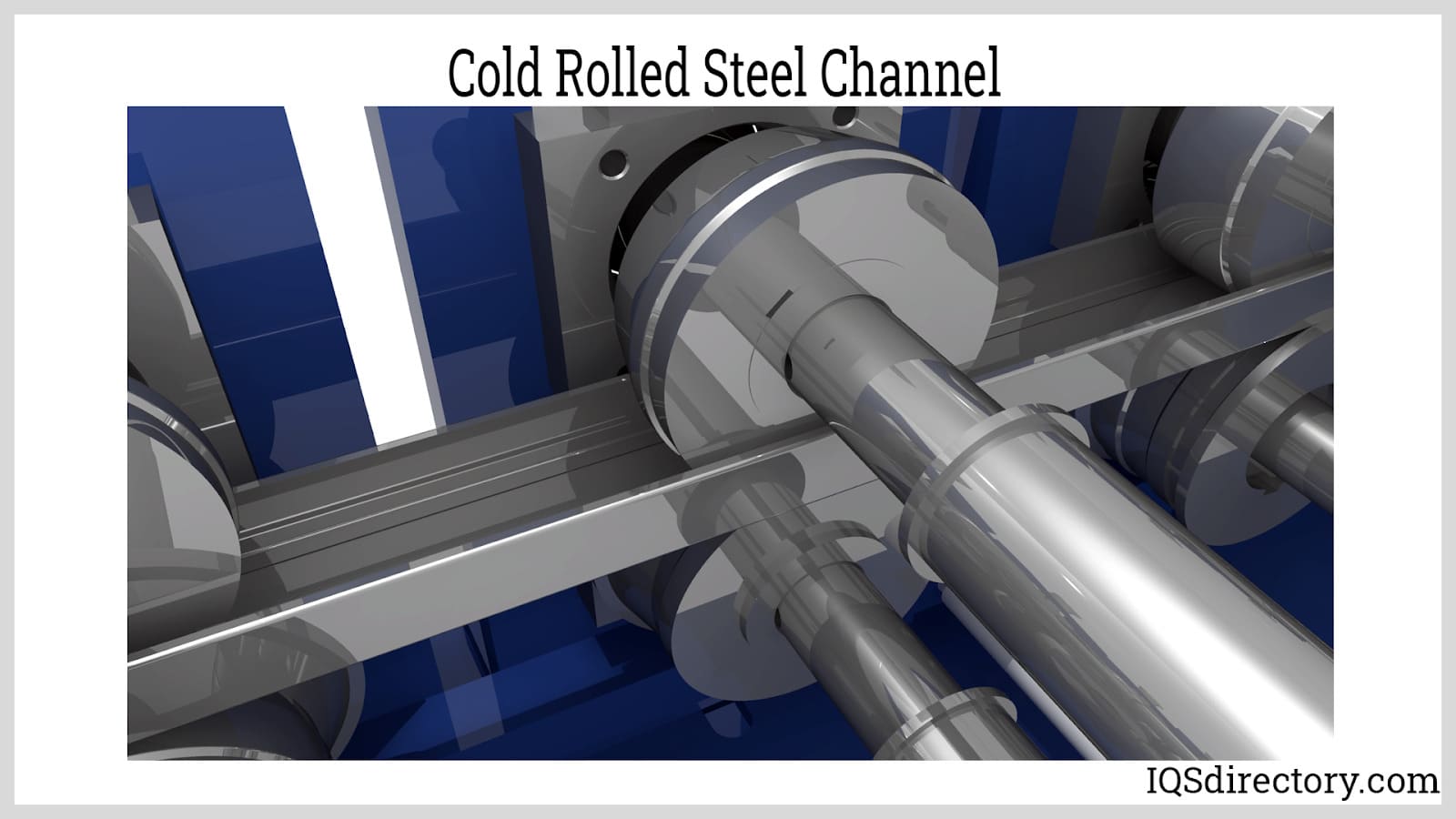

Cold Rolled Steel Channel

CAD Designing & Steel Channel Roll Forming Process

All roll-formed items, including metal channels, start with a computer-aided design (CAD) that comprises geometry, length, and metal design features. The design's goal is to present it as a single structure to streamline manufacture. Due to CAD's flexibility, the part can be built by either entering its dimensions or sketching it directly into the program.

The program generates a nested and separated representation of the metal channel based on the input data. Both diagrams depict the part's evolution through the roll forming process from stand to stand. The data for the roll forming progressions can be obtained straight from CAD and converted into G codes, which can then be fed into a CNC roll forming machine.

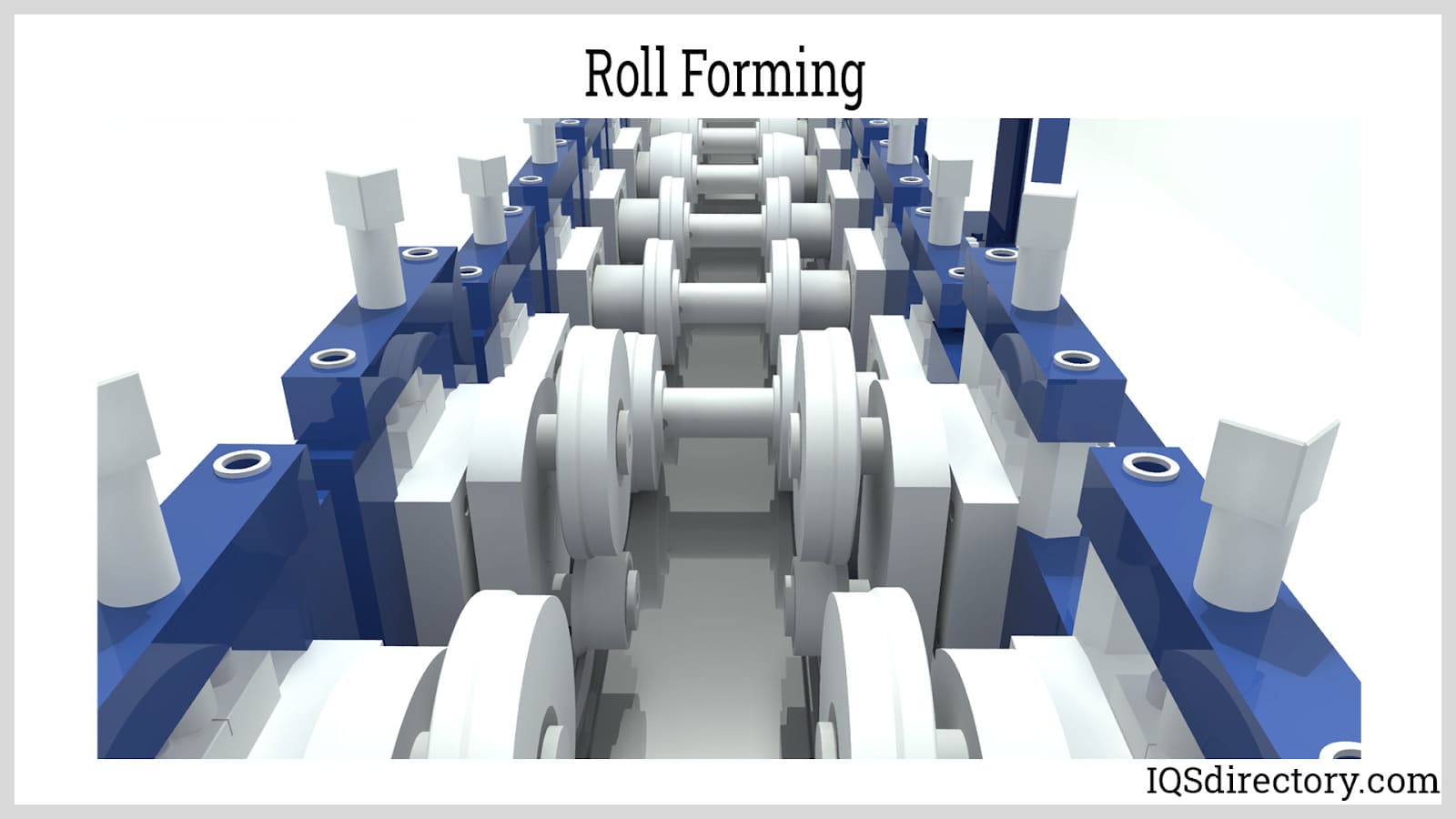

Roll Forming

The first step in the roll forming process is to install a coil of metal on an uncoiler, also known as a decoiler. The decoiler feeds the roll of sheet metal into the roll forming machine in a steady stream. The uncoiler or decoiler may be seen to the right of the roll-making machine in the image below.

Roll Forming Machine

Inline pre-processing is frequently used to punch slots, holes, notches, or special custom designs in metal channel roll-formed parts. A programmable mechanical, pneumatic, or hydraulic machine applies force to the metal sheet using hardened tools with sharp cutting edges.

The roll forming machine includes precisely engineered dies in each of the stands in preparation for the roll forming operation. These specialized tools are made to meet the exact specifications of the metal channel to be formed. Roll forming dies are divided into stations, with a roller for each station that molds the metal sheet gradually.

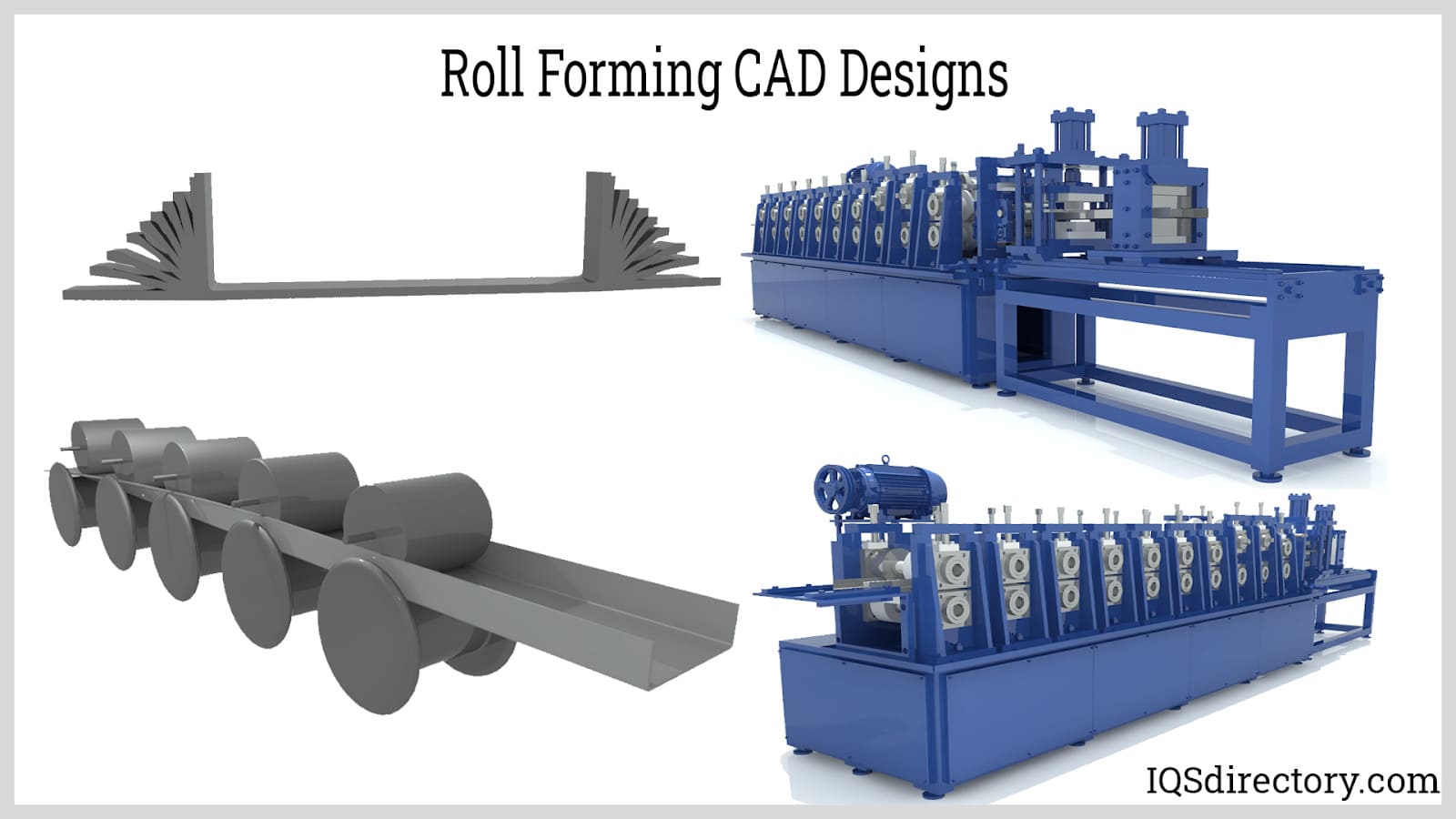

Roll Forming CAD Designs

The roll forming process begins after the dies are put in the roll forming machine, and the CAD program is downloaded. As the metal strip exits the uncoiler, it is pre-processed before being fed onto an entry guide or table, which ensures a square, straight entry into the first pass. This step is critical for assuring the final product's quality. Depending on the complexity of the metal channel, the number of passes required can range anywhere from a few to thirty or more.

Metal Dies

The beginning and end of roll forming can be accomplished in a variety of ways. Straightening occurs at the start of some processes, whereas it occurs at the end of others. After the channel has been shaped, the required length feeds out at the end and is chopped to the exact specifications before being gathered on a table or set of rollers, regardless of the method employed.

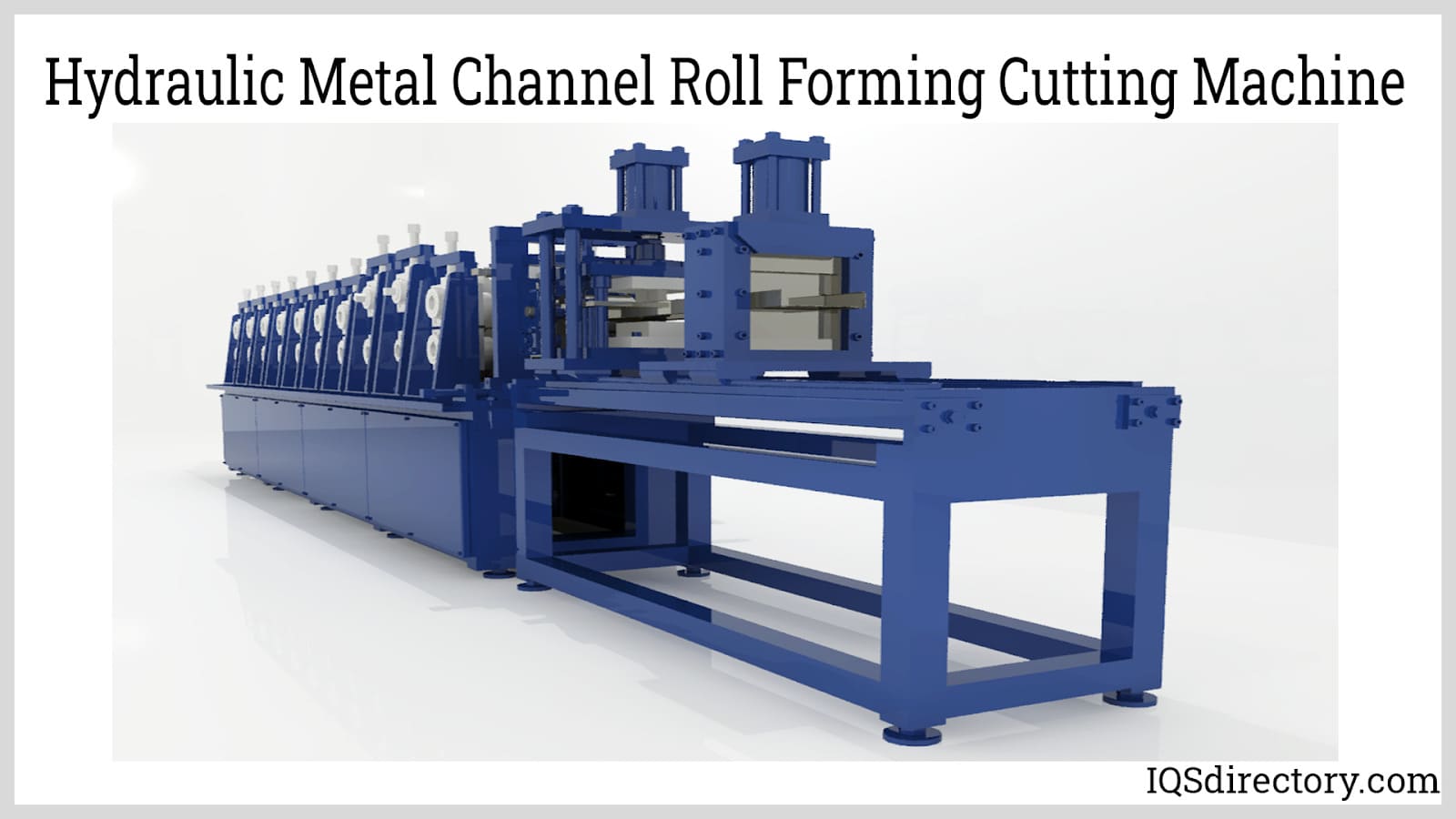

Roll Forming Cutting Machine

Leading Manufacturers and Suppliers

    Mouse Over Company Names to see their previews

    Chapter 3: Types of Steel Channels

    Steel channels are made by converting steel metal into linear roll-formed channel shapes using high-speed roll forming. The roll-formed channels' shapes and dimensions are determined by the needs of the application in which they will be utilized. Steel channels provide various purposes, including continuous support and strengthening for other components.

    Steel channels start with a web with legs on both sides, referred to as the basis in the design process. The metal strips are molded into various forms during the roll forming process that are deliberately tailored for specific uses. Steel channels are more commonly found in C channel structures.

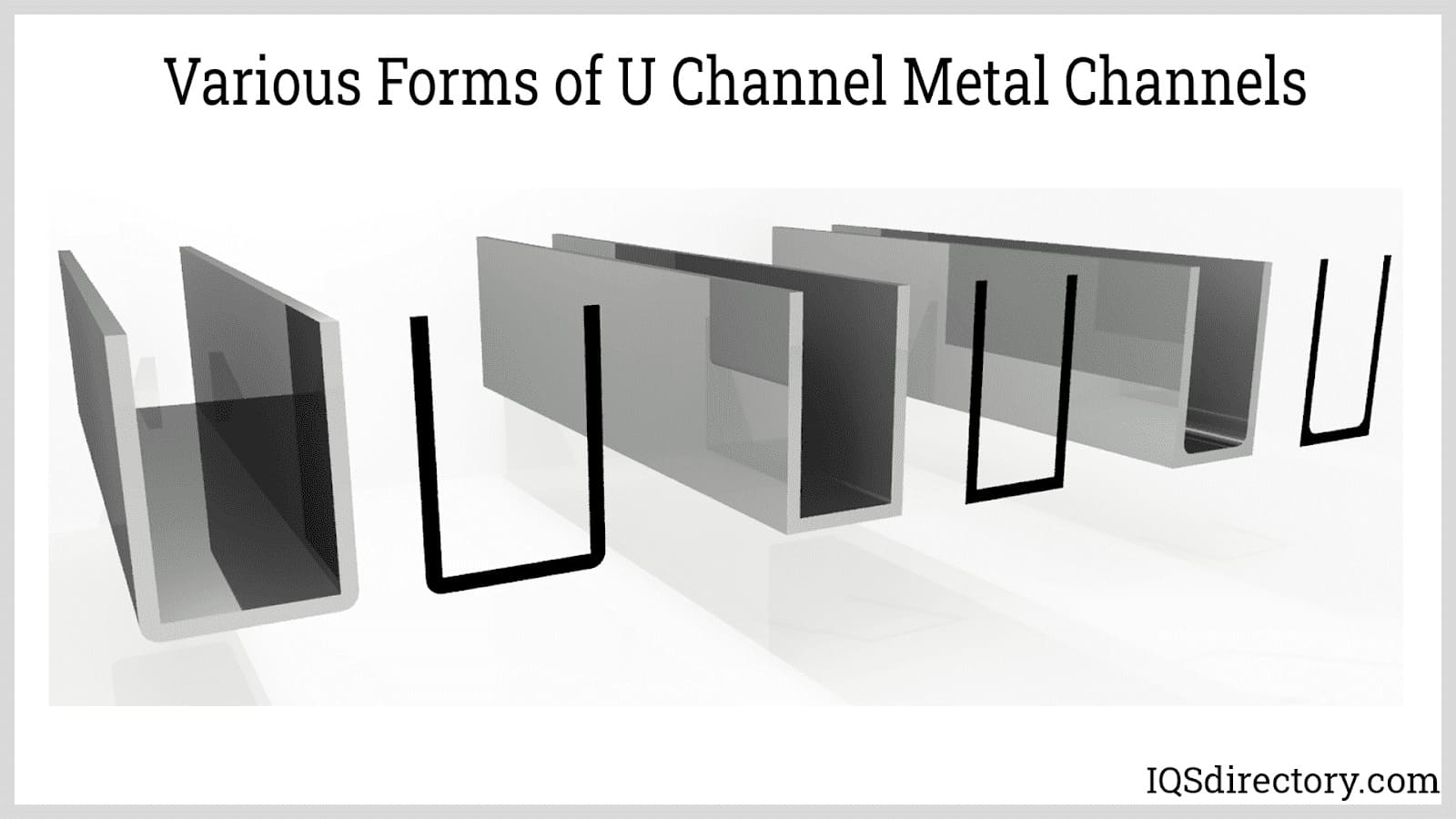

    U Steel Channels

    In what used to be just a flying cutoff die operation, inline post fabricating can now comprise a variety of die operations. Inline post-fabrication dies may now perform all the hole punching and other notchings previously performed in the pre-punch process. This decreases the number of dies needed and enables tighter tolerances on the notching sites without the distortion that would occur if the U channel or J channel was pre-punched and then bent.

    Tight tolerance and greater speed inline fabricating necessitate sophisticated inline flying die accelerators and die boosters that use close tolerance length measurement systems in the post-punching and pre-punching presses. The die accelerator may perform up to 12 separate tasks in the same die and run pre-punching and post-punching/cutoff presses simultaneously. The thickness of a J channel can range from 0.003" to 0.150".

    Thicknesses of up to 0.250" are possible on 1/4 and 1/2 hard aluminum. When more than 0.030" thickness is required, several different decorative pre-coated metals are not normally recommended unless bigger than standard corner radii may be used. Some coatings, such as a pre-finished Hot Dip Galvanized coating, can be utilized up to 0.125" thick. Additional tooling expenses may be incurred on special corner radii, Ampco bronze for highly polished stainless steel that cannot be covered with a protective strippable PVC covering, or legs bent more or less than 90 degrees. This includes other more advanced forming requirements.

    U Channel

    Z Steel Channels

    When there are returns at the top of each leg, tooling is normally required unless the size is one for which there are already dies. New dies may be required for Z channels with a short web between the legs, though these dies are less expensive than dies for channels with longer webs. In the framing and metal building industries, they are particularly common. These similar inward flanges can be found on Z channels, but they are not common.

    When they are used in other industries, they're known as Purlins. Some channels are so large that they are referred to as panels. Purlins can be manufactured of any metal, including aluminum and stainless steel, and are normally pre-finished with galvanized or similar rust-inhibiting coating.

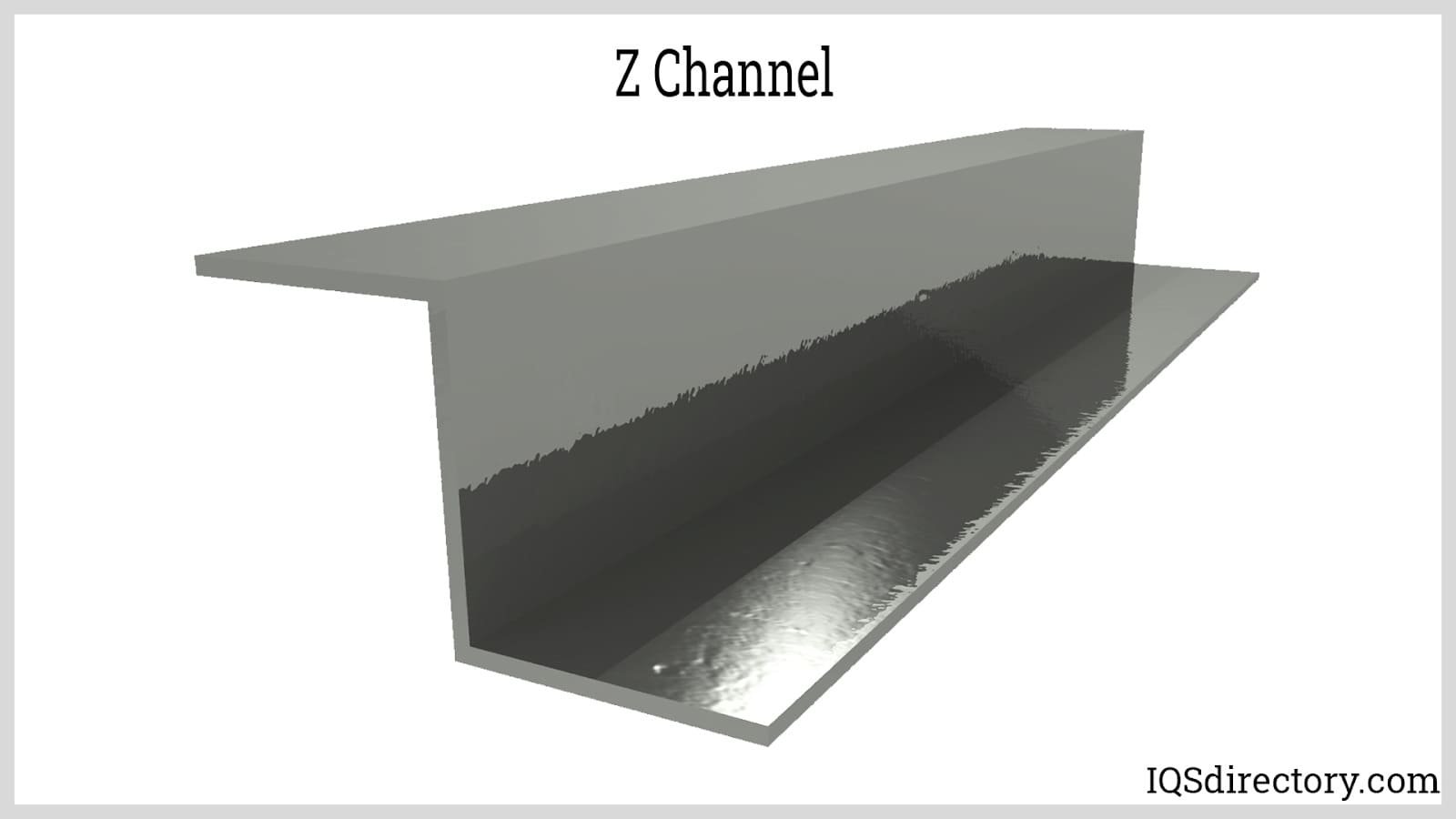

    Z Channel

    C Steel Channels

    C channels are one of the most frequent forms of metal channels, and they're used to support buildings, walls, roofs, and ceilings. Sheet metal can be roll-formed to match any exact demand; hence, the word C channel embraces a wide range of channel forms, dimensions, and sizes. The letter C refers to the metal's roll-formed structure, which is in the shape of a C.

    Modernized inline post fabricating can now include multiple die operations in what used to be just a flying cutoff die operation. All hole punching and other required notching that used to be done during the pre-punch process can now be handled by inline post fabrication dies. This reduces the number of dies required and allows for tighter tolerances on the notching positions without the distortion that would occur if the C channel, box channel, or open seam tubing was pre-punched and then bent.

    In tight tolerances, greater speed inline fabrication requires sophisticated inline flying die accelerators and die boosters that use close tolerance length measurement systems in the post-punching and pre-punching presses. The die accelerator may perform up to 12 separate tasks in the same die and run pre-punching and post-punching/cutoff presses simultaneously.

    The thickness of the C channel and box channel ranges from 0.003" to 0.150". Metal C channel and aluminum box channel thicknesses can reach 0.250 on 1/4 and 1/2 hard aluminum thickening. When the thickness of the metal is greater than 0.030, several different decorative pre-coated metals are generally not suggested. Unless bigger than normal corner radii may be used, thickness is necessary.

    However, up to 0.125 mm of coating can be utilized, such as a hot dip galvanized coating that has been pre-finished. The length of a box channel or a C channel can range from 3 to 15 feet (9 to 4.5 m) within close tolerances, up to 40 feet (12 m) long.

    C channels

    Hat Steel Channel

    Two horizontal outward flanges (the brim) and two vertical flanges make up the hat channel. The top of a hat channel exposes a flat, horizontal surface from a three-dimensional perspective. Hat channels feature a square base with straight or angled sides. The borders of the sides flare out away from the center towards the top, giving it the profile of a wide-brimmed hat on its crown. Like a C channel, a hat channel starts as a U shape during the roll forming process, then has the top edges twisted outward. Hat channels' construction and shape make them excellent for use in roof framing, earning them the nickname hat purlins, which refers to a longitudinal, horizontal structural element of a roof.

    Hat Channel

    A roll-formed metal U channel with a bottom horizontal web and two vertical legs with outward flanges is also known as a hat channel. Outward flanges are often known as wings or fins. Due to the minimal forming requirements, hat channels can be fabricated with cheaper tooling costs than most roll-formed items. Forming up to 19" broad with a 0.060" thickness and 14" wide with a 0.150" thickness is possible.

    Hat channels can be as small as 0.250" wide when the material is thin enough to be roll formed. Hat channels can be roll-formed to be as high as 5.25" and as low as 3/16"; and even less with thinner metals. There is no need for blind or air forming while roll forming hat channels; hence, tight tolerances are easy to achieve. As a result, the roll dies used to produce the hats will completely enclose all sections of the headwear. Other, more intricate profiles require blind or air shaping to create the desired shape.

    J Steel Channel

    A J channel's configuration is achieved by making one of the channel's sides longer than the other, resulting in a profile that resembles the letter J. Although the basic J channel comes in a range of sizes and applications, other types of J channels are tailored to meet specific application needs. Simple J channels without a hem, hemmed J channels, and J channels with a flat part that can be screwed or nailed on are the three most frequent types.

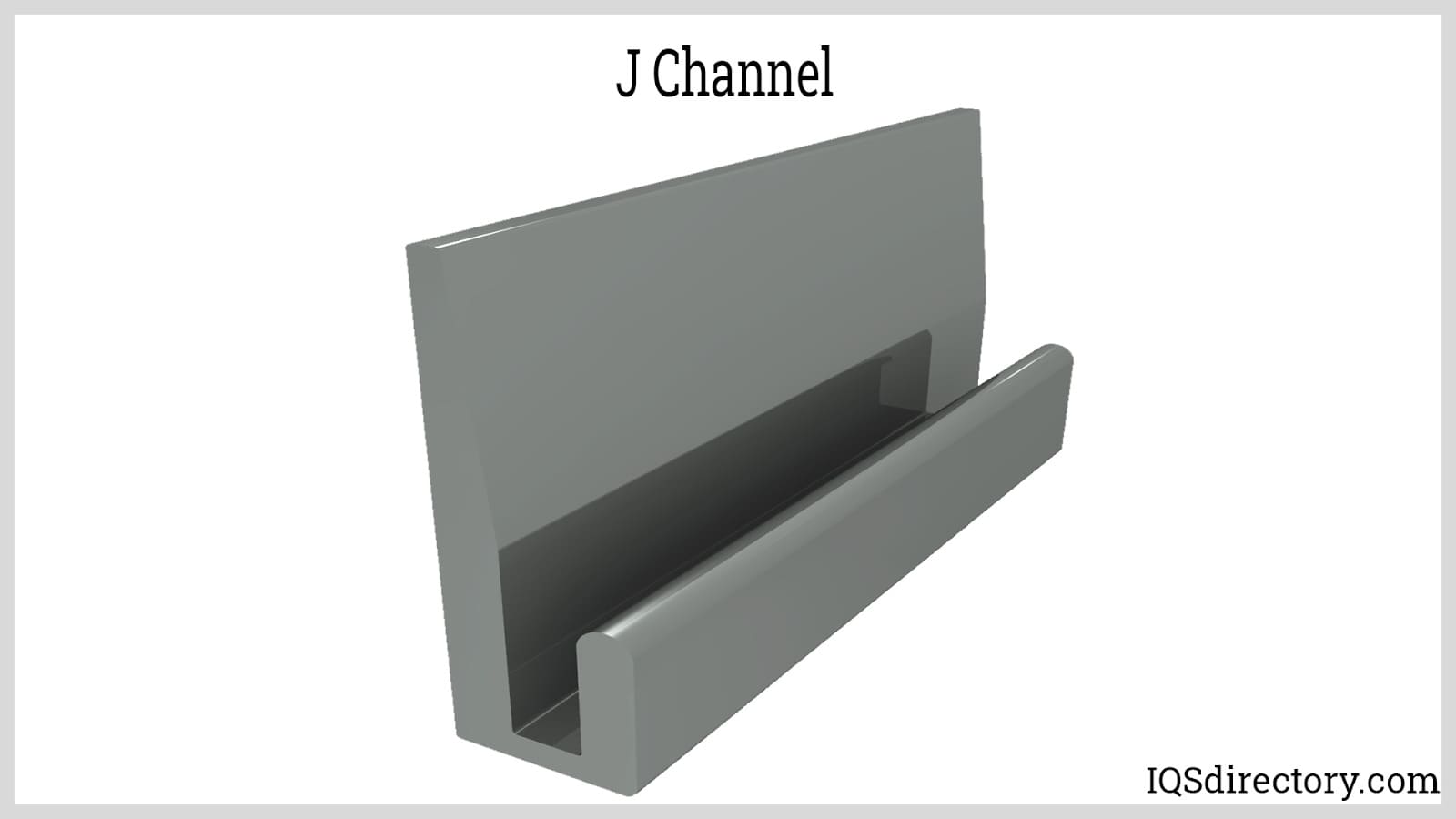

    J Channel

    Chapter 4: Applications and Advantages of Steel Channels

    This chapter will discuss the applications, uses, and benefits of steel channels.

    Applications of Steel Channels

    • Steel channels are commonly used to construct walls for garages, warehouses, and other metal structures, where it is employed similarly to studs. The studs run vertically from the bottom to the top plate of the wall. The studs bear the building's vertical load. When compared to wood studs, a steel channel can hold significantly more weight and is much stiffer, although the weight difference between wood studs and steel channels is insignificant. On the other hand, steel channels are more difficult to install than nailing.
    • Steel channel can be used to build the walls of pole barns, where it is run horizontally from pole to pole to give an attachment point for the outside siding, which is often sheet metal. It can also be used to support drywall, or other internal wall finishes on the interior. The distance between the poles can be increased without affecting the wall's stability by employing steel channels instead of wood slats or other items. Wood can readily warp or twist over longer lengths, causing the finished wall to seem wavy or uneven and lowering its rigidity and load-bearing ability.
    • Steel channels can be used as rafters on light-duty roofs, running from the eaves to the ridge and providing support for the roof deck. Steel channel, rather than wood rafters, allows smaller and lighter rafters to sustain the same weight. Steel channel is stronger, lasts longer than wood, and is resistant to rot, fungal decay, and moisture. I-beams are commonly used as rafters and ridges on heavy-duty roofs, and a steel channel is installed perpendicularly on top of the rafters every few feet from the ridge down to the eave. The steel channel bridges the spaces between the rafters, allowing them to be spaced further apart, and also serves as an attachment point for the steel deck.

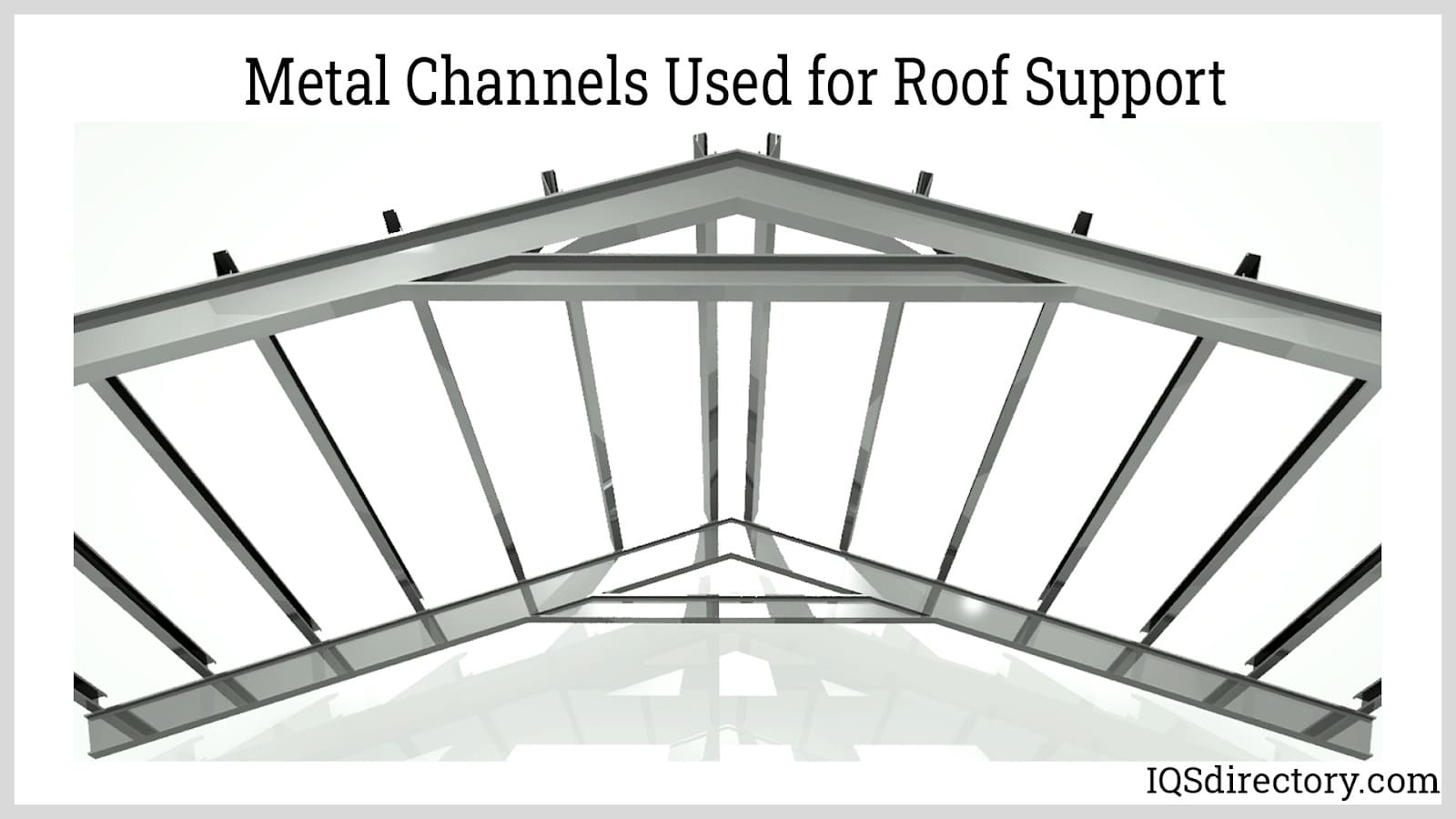

    Steel Channels as Roof Supports

    • Steel channels can be utilized in both metal and wood-framed buildings to provide strong frames for windows and doors. The channel is made up of four parts with miter joints on each end, and it glides over the wall in the window or door opening. This creates a flat surface in the opening on which a door or window can be mounted and is far more secure than wood frames. Commercial fire doors, as well as sub-grade basement doors, are frequently framed with steel channels.
    • Steel channels can be used to strengthen the rigidity and strength of hardwood beams in a wood-framed building when extra strength is required. Wood beams can be placed inside a large steel channel for added strength while still allowing joists and other components to be easily attached to the wood beam. Alternatively, a smaller steel channel can be added at the bottom of the beam and supported by supports to boost the strength of an existing beam during a redesign. It could also be used as a cap on top of the beam to add more strength during home construction.
    • Steel channels are frequently used to make car frames. The primary frame rails run from the front to the back of the vehicle and are usually made of heavy-duty steel channels. Cross members, braces, and structural components like radiator supports can all be made from lighter steel channels. Steel channel provides adequate strength and rigidity in a vehicle to prevent excessive flexing while still allowing for some movement to compensate for the torque produced by the engine.
    • Steel channels are commonly used in building trailers, such as flatbed trailers, box trailers, and even travel trailers and recreational vehicles (RVs). The main frame rails and the tongue, where it attaches to the towing vehicle, can both be made of heavy-duty steel channel. It can also be utilized to construct the floor structure and the trailer's exterior edges by running joists perpendicular to the frame rails. The trailer's deck would subsequently be finished with wood or metal flooring fastened to the joists. Steel channels can also be used to make load-securing rails or studs for an enclosed trailer's walls and roof, such as a box trailer.
    • Steel channels are frequently used in commercial and industrial buildings, such as warehouses, in conjunction with I-beams and other steel items. It can be used as girts, studs, braces, joists, or other structural components that do not require the extra strength of an I-beam. It's frequently welded, bolted, or riveted into place, and it's strong and inflexible for its size. Steel channels can also be used for railings, stair stringers, bridge trusses, and guard rails, among other things. It's a multipurpose product that's sturdy, lightweight, and low-maintenance.

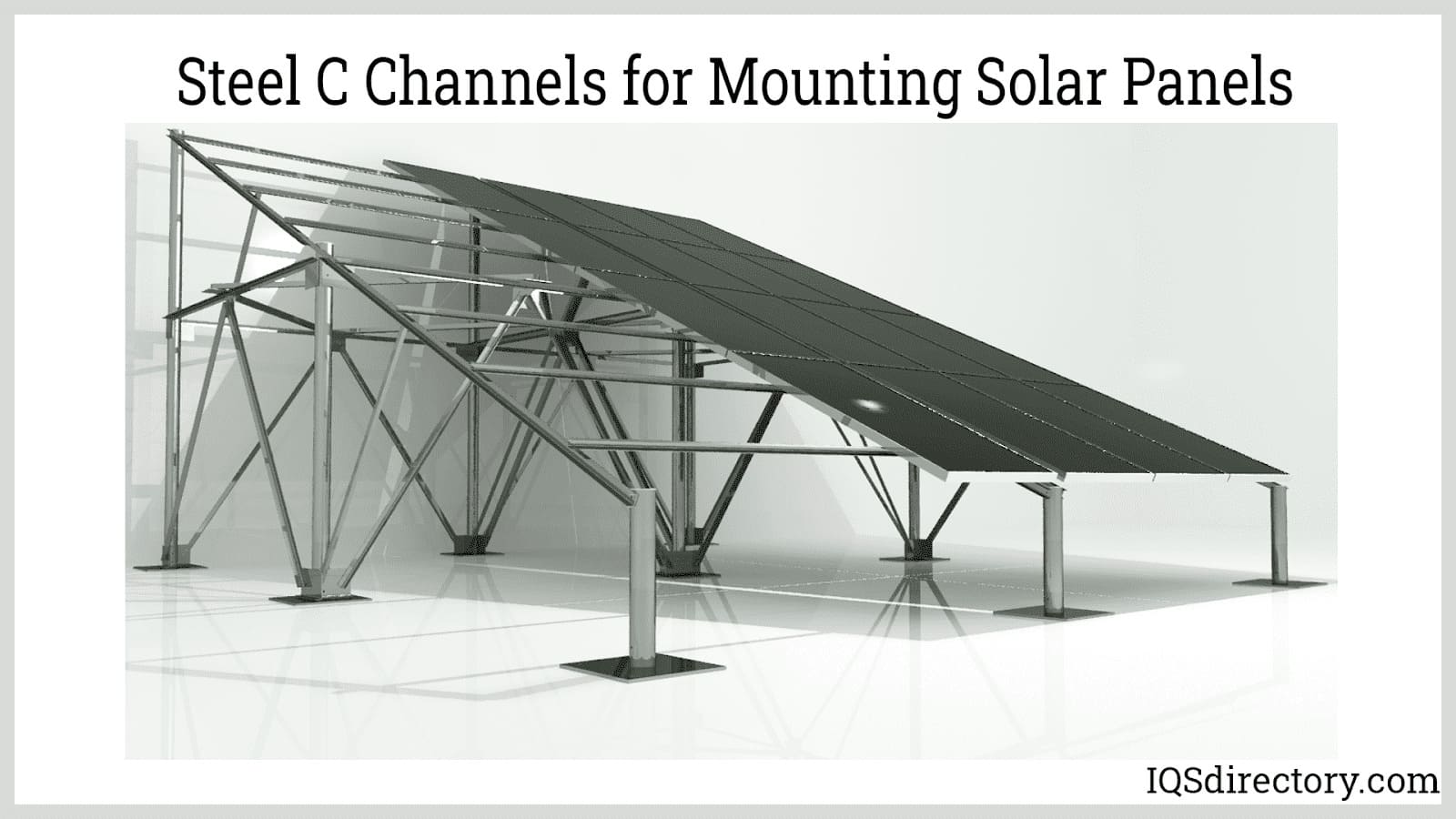

    • Solar panels must be lightweight yet durable enough to survive extreme environments. Metal channels are appropriate in these situations since they meet both requirements. Metal channels' tensile strength ensures that they can withstand the harsh conditions in which solar panels are mounted. Metal channels are lightweight, allowing solar panel manufacturers to install their goods in a wide range of situations.
    Steel Channels Used as Solar Panel Supports

    • In the transportation business, metal channels can be found in window tracks, bumpers, reinforcement bars, structural components, and vehicle trim. Metal channels have become needed in the basic structural design of modern automobiles to decrease overall vehicle weight and improve gas consumption. Design engineers use metal channels to create novel designs and lightweight structural support. Designers and engineers rely on metal channels as a vital component in the development of new transportation systems because of their flexibility and versatility.

    Advantages of Steel Channels

    • Steel constructions have a high level of dependability. Consistent and homogeneous qualities, superior quality control due to factory fabrication, high elasticity, and ductility are all factors for its reliability. When different specimens of a particular type of steel are tested in the lab for yield stress, ultimate strengths, and elongations, the variation is significantly less than with other materials such as concrete and wood. Due to the fact that steel is a homogeneous and elastic material, it meets the majority of the design formulae assumptions. This ensures that the findings obtained are accurate. Due to the heterogeneous material, cracking, and non-linearity of the stress-strain relationship, this may not be the case with concrete structures.
    • Steel has a high strength per unit weight; therefore, the dead loads will be lower. It should be noted that dead loads make up a larger portion of total structure loads. There is less weight acting on the beneath parts as the dead load decreases; hence, they become even smaller. This is particularly important for long-span bridges, big buildings, and structures with deteriorating foundations.
    • Steel follows Hooke's law for all stresses, large or small. Steel acts more like the design assumption than most other materials. The stress created remains proportional to the strain applied, resulting in a straight line on the stress-strain diagram. Steel sections do not break or tear before reaching their ultimate load; therefore, the moments of inertia of a steel structure may be calculated with certainty. For a reinforced concrete building, the moments of inertia obtained are quite ambiguous.
    • The property of a material's ductility is its ability to withstand extensive deformation without failure under high tensile stresses. Mild steel is a supple and malleable metal. After a fracture, the percentage elongation of a conventional tension test specimen can be as high as 25% to 30%. In the event of overloads, this results in obvious deflections of signs of impending failure. To avoid collapse, the excess loads may be eliminated from the building. High-stress concentrations form at various sites in structural members under normal loads. Due to the ductile nature of structural steel, it can give locally at such points, spreading stresses and minimizing early failures.
    • Steel is a fairly uniform and homogeneous material. As a result, it meets the basic assumptions of the majority of analysis and design formulas. Steel qualities do not vary much over time if properly maintained by painting, etc.; however, the properties of concrete in a reinforced concrete structure change significantly over time. As a result, steel structures are more long-lasting.

    Disadvantages of Steel Channels

    • Most steels are sensitive to corrosion when exposed to air and water; therefore, they must be coated on a regular basis. This comes at a higher price and necessitates more caution. Steel members can lose 0.04 to 0.06 inches (1-1.5 mm) of thickness per year if they are not properly maintained. As a result, such structures can lose up to 35% of their weight throughout their stated life and fail under external loads.
    • Steel is the preferred architectural form for some types of structures. Steel structures without false ceilings and cladding, on the other hand, are deemed to have a poor aesthetic aspect in the majority of residential and office buildings. To improve the appearance of such constructions, a significant amount of money will be spent. Cladding is the process of applying one material over another to create a layer or skin. Cladding is used in construction to offer thermal insulation, weather protection, and to improve the aesthetic of structures. The cladding not only preserves the part but also improves its aesthetic.
    • Steel sections are usually made up of a series of thin plates. The overall dimensions of steel are less than those of reinforced concrete. When these skinny members are compressed, they have a higher likelihood of buckling. Buckling is a type of member collapse caused by critical compressive stress that causes rapid, significant bending. When it comes to columns, steel isn't always the most cost-effective option because a lot of material is required only to keep the columns from buckling.
    • Steel members are incombustible, but their strength is greatly diminished at the temperatures seen in fires. Creep becomes noticeable at around 752 °F (400 °C). Creep is described as long-term plastic distortion caused by a steady load. This causes abnormally significant deflections/deformations in the primary members, putting additional stress on the other members or potentially causing them to collapse. Steel is a great heat conductor; it can transport enough heat from a burning compartment of a building to start fires in other areas of the building. The building must be adequately fireproofed, which will incur additional costs.

    Conclusion

    Steel channel is a "C"-shaped hot-rolled carbon steel built with a vertical web and inside radius corners on the top and bottom horizontal flanges. Steel channels consist of a wide web and two flanges, which could be parallel or tapered. Steel's strength and durability make it excellent for use in the production of metal channels.

    A steel channel is a structure made of hot-rolled mild steel. The interior corners of steel channels have a specified radius. This provides the strength and rigidity it needs to sustain steel angles and building projects. With the correct equipment and proportions, they're fairly simple to prepare. Steel channels are usually manufactured to ASTM 36 dimensional specifications.

    It is thus critical to choose a steel channel cognizant of the steel channel type, its characteristics, applications, and benefits.
