This article will take an in-depth look at thermoplastic molding.
The article will bring more detail on topics such as:
In this section, we delve into the concept of thermoplastic molding and explain the intricacies of its process.
Thermoplastic molding involves forming plastic parts by injecting molten resin into a mold to create functional items. Unlike thermosetting polymers, thermoplastics are notably favored in injection molding because they can be reheated and reshaped repeatedly. This flexibility makes thermoplastics particularly advantageous for recycling and reusability.
Residual materials from prior molding operations are reprocessed and combined with new granules before being introduced into the injection chamber. However, to preserve the inherent quality and performance of the plastic, the proportion of recycled content is limited to 30%.
Within thermoplastic molding, there are several subdivisions, such as rapid injection molding, which is ideal for refining prototypes before moving to full-scale production. Another subtype, production injection molding, is best suited for complete product manufacturing runs. Developers leverage thermoplastic injection molding across various applications, allowing for the creation of components ranging from cell phone cases to automobile door panels with high precision and surface finish.
Renowned as the prevalent technique for fabricating plastic parts, this method assures superior quality in product development. Over the years, the domain of thermoplastic injection molding has advanced greatly. Initially geared towards producing items such as combs and buttons, it now caters to a diverse array of industries including automotive, healthcare, aerospace, consumer products, toys, plumbing, packaging, and construction. This molding methodology capitalizes on the unique attributes of thermoplastics to inject molten plastic into molds, allowing for exact shaping. It is especially effective for extensive and large-scale production runs.

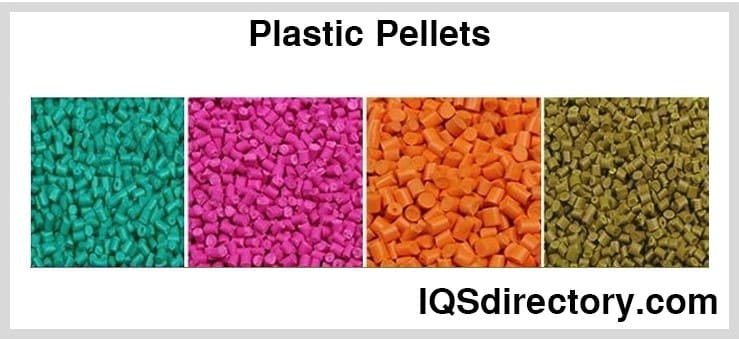

The essence of plastic injection molding lies in heating thermoplastic (TP) pellets until they turn malleable. The softened pellets are then mixed and forced through a rotating screw under pressure, driving the material into a mold. Inside the mold, the material takes the shape of the mold, cooling and solidifying to form the desired object. Once cooled, the resulting part is ejected, and the mold can be reused for subsequent production cycles. This technique is highly advantageous for manufacturing numerous identical high-quality components, proving ideal for both massive and extensive production due to the mold’s reusable and efficient nature.
A significant benefit of this approach is that components produced typically require minimal to no post-machining. However, there is a cost involved in creating a steel mold essential for high-volume part production. Consequently, this method may not be the best choice for smaller production runs. For low-volume manufacturing, alternatives such as silicone molding are usually more suitable.
Thermosets and thermoplastics require different production processes and mold injection techniques. Here are some fundamental differences in molding thermosets as opposed to thermoplastics.
| Thermosets | Thermoplastics |
|---|---|
| The material is injected into a hot mold in a cold state | The plastic is melted and injected into a mold |
| Non-remoldable and non-recyclable | Remoldable and recyclable |
| Creates a permanent chemical bond | Fully reversible as there's no chemical bonding |
| Surface finishing is relatively challenging | Provides accurate and aesthetically pleasing surfaces |
| Less heat and pressure requirements | Requires significant heat and pressure |
| Produced through condensation polymerization | Formed by additional polymerization |
| Includes compression, transfer, and casting processes | Involves injection, extrusion, and blow molding processes |
| Common products: tool handles, billiard balls, insulation, computer and TV parts, various electronic and gardening equipment, sprockets, and cooking tools | Common products: vacuum cleaners, toys, machine screws, gear wheels, kettles, packaging films, sacks, power tool housings, toasters, gas lines, and connections |
| Drawbacks include inability to recycle and emission of VOCs | Drawbacks are costliness, ease of melting, and difficulty in prototyping |
The thermoplastic injection molding process is a cornerstone of modern plastics manufacturing—widely used to produce high-precision, cost-effective components for industries such as automotive, medical devices, packaging, consumer products, and electronics. This complex cycle takes place within a sophisticated injection molding machine, comprised of three essential components: the injection unit, the clamping unit, and the mold. Understanding each stage and component is crucial for professionals seeking to optimize part quality, increase production efficiency, and reduce manufacturing costs.

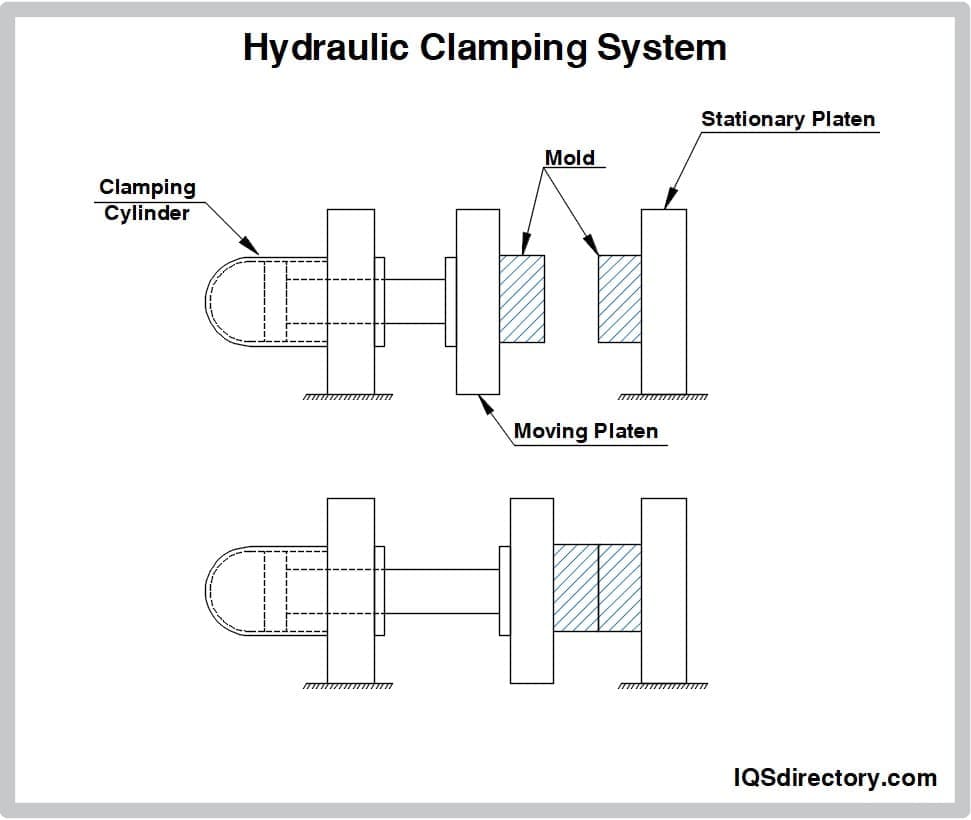

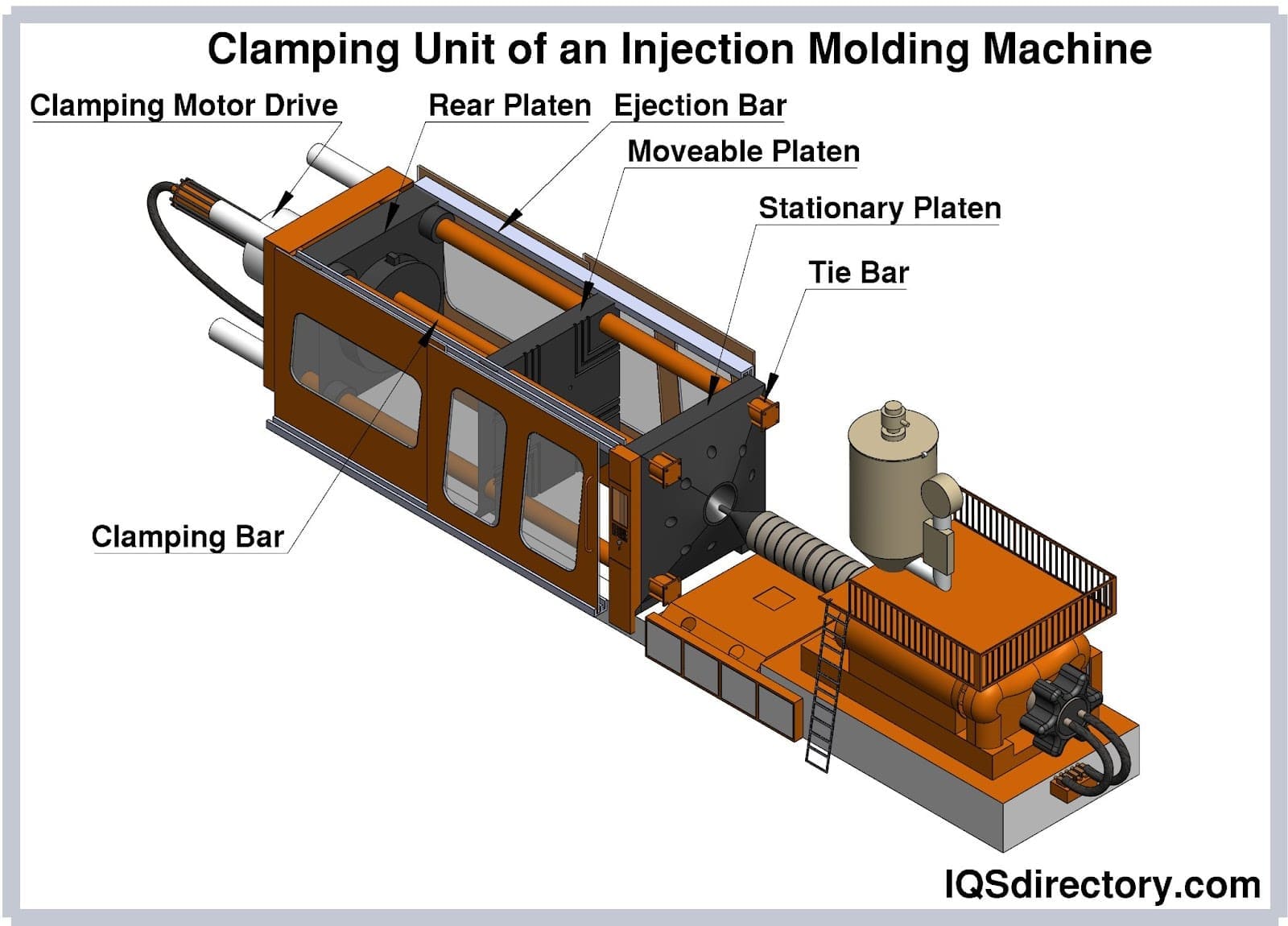

During the clamping stage—a foundational step in the injection molding cycle—the mold halves are securely closed before molten plastic is introduced. Proper clamping is vital for maintaining cavity integrity and preventing plastic leakage (known as "flash"). The clamping unit applies the necessary force (clamping force or tonnage) to withstand the substantial pressures generated during the injection phase, ensuring the mold halves remain tightly sealed until the part has adequately cooled and solidified. This action guarantees both dimensional accuracy and high part quality.
Beyond holding the mold closed, the clamping unit performs several other critical functions: ejecting the molded part following the cooling cycle, facilitating the opening and closing of the mold plates between cycles, and ensuring the precision alignment required for repeatable, high-volume production. Reliable clamping units help manufacturers achieve minimal downtime, increased process consistency, and reduced defect rates—making them a key element in optimizing the overall efficiency of plastic part production.
The clamping unit is composed of:

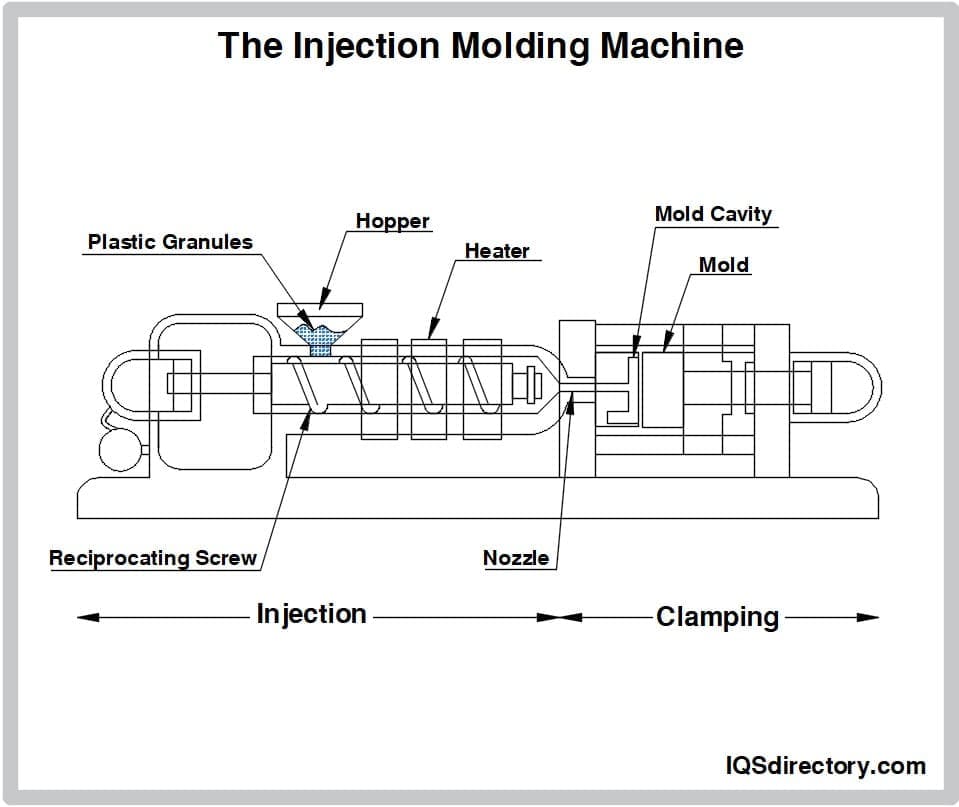

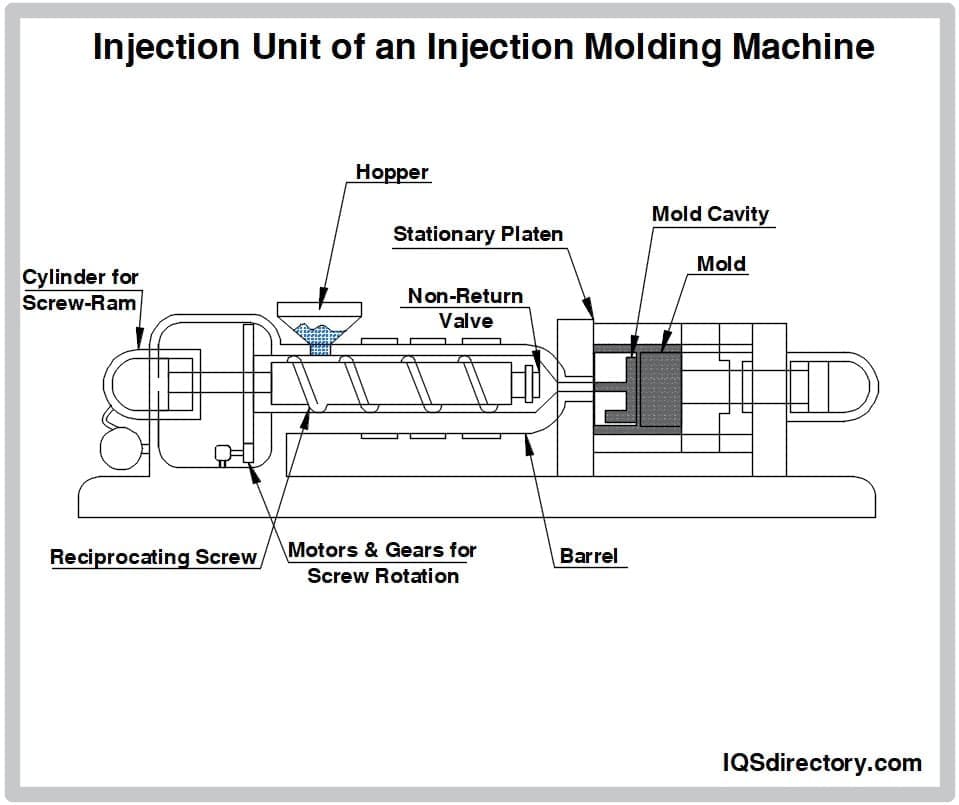

The injection unit is at the heart of the thermoplastic molding process. Its primary responsibility is to melt, mix, and inject raw plastic material—commonly in the form of thermoplastic resin pellets—into the mold. The process begins as these pellets are gravity-fed from a hopper for plastic injection molding and move into the heated barrel, where they are gradually melted by a combination of external heaters and friction generated by a reciprocating screw. Modern injection units provide precise control over temperature, injection speed, and pressure, ensuring part consistency and enabling the use of advanced engineering polymers and high-performance plastics.
Uniform melting and thorough mixing are essential for eliminating material inconsistencies, preventing flow lines, and reducing molding defects. The shot size—the exact volume of plastic injected for each cycle—is calculated based on the part's size, wall thickness, and number of cavities, and must be precisely metered to optimize cycle time and minimize material waste. Advanced injection units meet these requirements through programmable controllers and precise monitoring, facilitating multi-shot, overmolding, and insert molding operations for more complex product geometries.
The injection unit consists of:
After molten plastic is injected, the dwelling phase begins: holding pressure replaces injection pressure to compensate for material shrinkage and fill any minute voids within the cavity. This is crucial to maintaining dimensional stability and minimizing internal stresses in the molded component. The cooling process commences as soon as the plastic makes contact with the colder mold surfaces, rapidly lowering the part's temperature. Molds are equipped with a sophisticated water or oil coolant channel system that extracts heat, expediting the solidification of the thermoplastic resin. Efficient cooling system design is pivotal in shortening cycle times, increasing output, and improving the overall economics of injection molding manufacturing.
To further address common defects such as sink marks, warpage, or incomplete filling, engineers can optimize cooling time, pressure profiles, and mold design. This data-driven approach helps ensure part consistency, exceptional surface finishes, and the production of high-quality plastic parts for end-use applications.
The ejection phase marks the removal of the finished, cooled component from the mold, a step handled within the robust clamping unit. The ejection system typically uses a combination of ejector pins, plates, and bars to push the solidified part free from the mold cavities as the mold opens. Due to the strong adhesion of plastic to metal, sufficient ejection force is essential to prevent damage to delicate or complex features. Applying a mold release agent—either manually or via permanent coatings—facilitates a smooth part release, reduces mold wear, and prevents sticking that could disrupt high-volume production runs. An optimized ejection process limits scrap and ensures downstream steps such as assembly or packaging proceed efficiently.
Trimming, also called deflashing or finishing, is the final step in creating accurate, customer-ready plastic components. As molten plastic flows into the mold cavities, it also fills the sprue, runners, gates, and sometimes forms slight "flash" along parting lines. Specialized trimming equipment, whether automated or manual, is used to precisely remove these excess materials without damaging the finished product. Clean, consistent trimming is especially important in medical, automotive, or consumer products, where aesthetics and functional tolerances are critical for market acceptance and regulatory compliance.

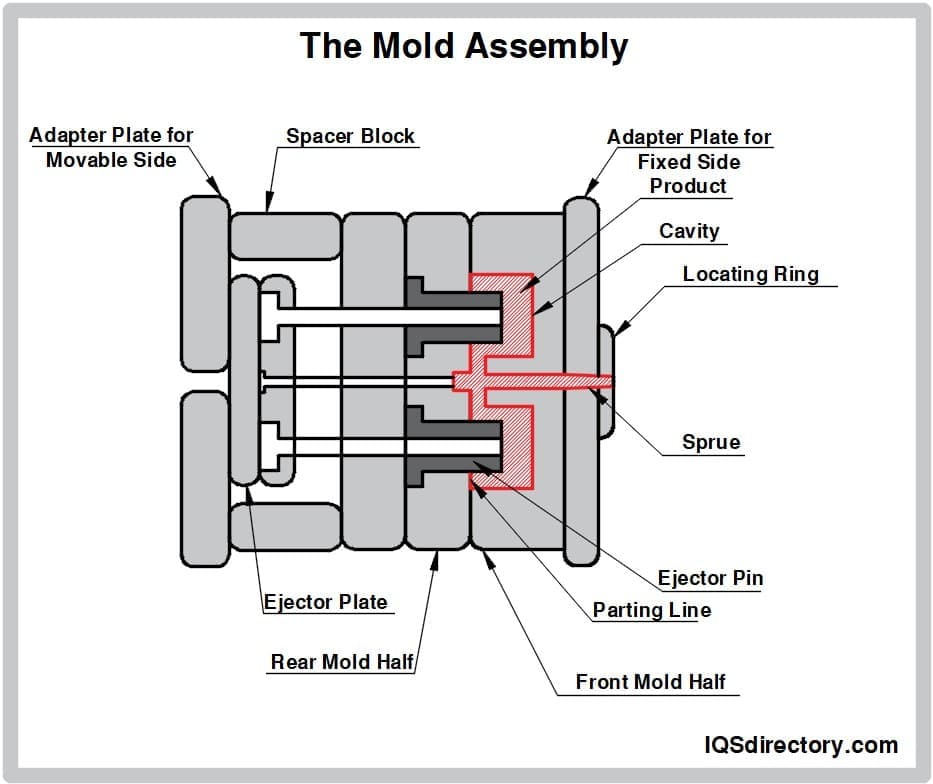

The mold, or tooling, is often the most significant investment in injection molding projects. Precision mold tools consist of two or more plates attached to the clamping system, incorporating ejector mechanisms, cooling channels, and complex mold cavities. The rear mold half interfaces with the movable platen for automatic opening and closing, while the front half remains stationary. Proper cleaning and maintenance of the mold plates before each production cycle help avoid contamination, reduce the risk of part defects, and prolong tool life—key components for lowering the overall cost-per-part in injection molding operations.
The mold cavity is where the desired shape is formed—its design dictates part geometry, surface finish, and dimensional tolerances. The front mold half may support single-cavity or multi-cavity designs, enabling increased productivity for volume manufacturing. The visible parting line between mold halves is a key feature in both venting and quality control: it allows trapped gases to escape during filling, preventing incomplete mold filling or burn marks. The optimization of parting lines, gate locations, and vent design is an essential aspect of professional mold design and toolmaking.

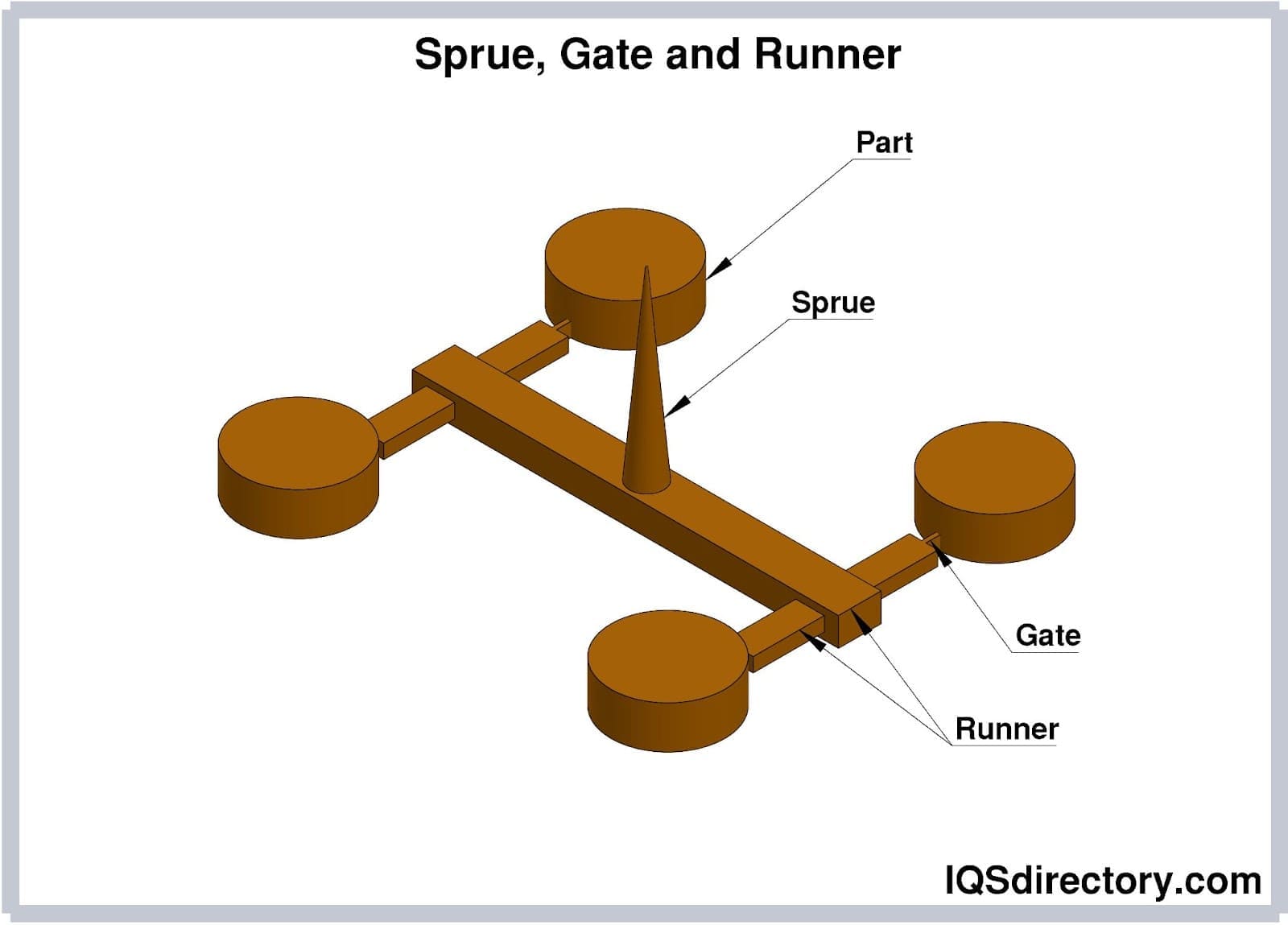

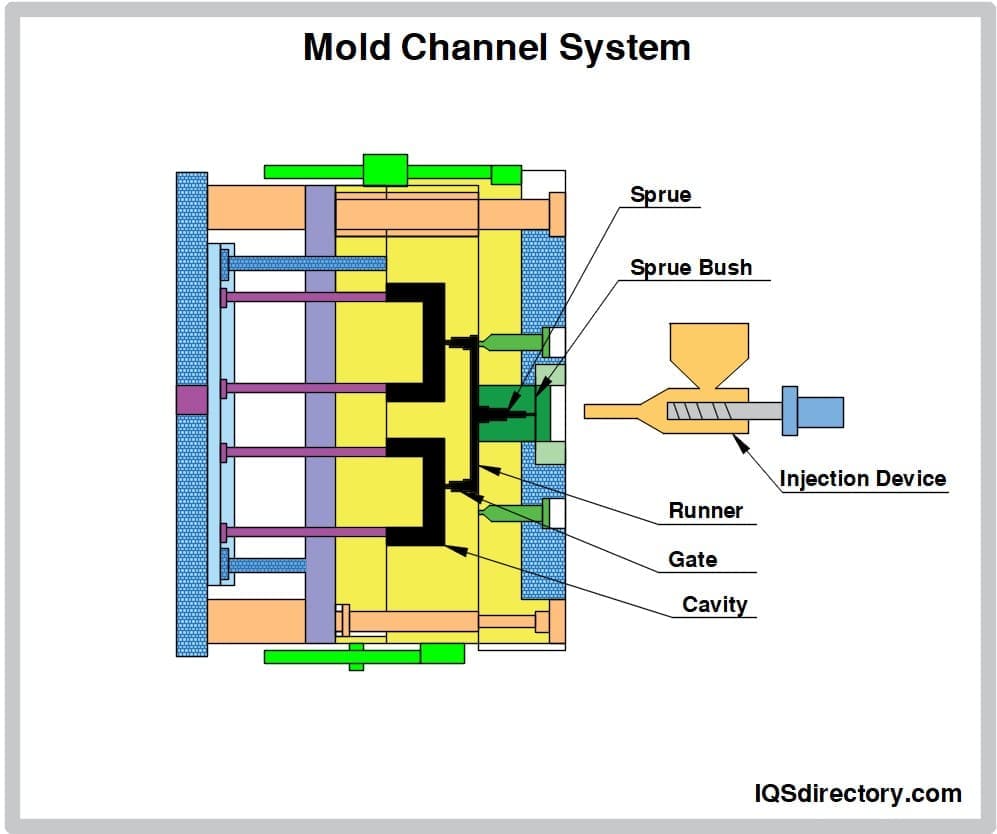

Within the mold, a series of channels ensures that molten plastic is delivered efficiently and evenly:
Additional mold features include air vents, which expel trapped gases and improve part quality, and internal cooling channels, which dissipate heat efficiently to maintain fast, repeatable production cycles. Selecting optimal mold materials (such as tool steel or aluminum), employing advanced surface coatings, and integrating tight-tolerance machining practices are best practices for ensuring mold durability and injection molding process reliability.
Controlling and optimizing key injection molding parameters is fundamental to consistent, high-quality, and cost-effective plastic part production. The most significant process parameters include:
By mastering the thermoplastic injection molding process—including understanding machine operations, mold tool design, processing parameters, and downstream finishing—manufacturers can deliver high-performance plastic components that meet stringent quality, safety, and regulatory requirements. Whether producing small prototypes or large-scale production runs, advanced injection molding technologies, and vigilant process control ensure parts with optimal dimensional stability, mechanical properties, and cost efficiency for a broad range of applications.
Thermoplastic molding, also referred to as plastic injection molding, is a cornerstone of the manufacturing sector in both the United States and Canada. This crucial industry enables the cost-effective production of high-precision plastic parts for countless applications. Companies specializing in thermoplastic molding leverage advanced materials science and custom manufacturing techniques to serve key sectors such as automotive, healthcare, aerospace, consumer goods, electronics, and packaging. North America's robust network of experienced thermoplastic molding manufacturers allows for rapid prototyping, mass production, and flexible design services to support the evolving needs of modern industry. Below are five of the top companies celebrated for their innovation, reliability, and leadership in thermoplastic molding services:
Proto Labs, headquartered in Minnesota, is a leading provider of rapid prototyping and on-demand production services, with a primary focus on thermoplastic injection molding. Their cutting-edge manufacturing technologies, robust automation, and digital manufacturing processes enhance efficiency and enable rapid turnaround times, making Proto Labs an ideal partner for both small-batch and large-scale plastic component production. Utilizing an advanced online quoting platform, customers can upload their CAD designs and receive almost instant quotes for a wide range of custom molding projects. Their commitment to high-quality precision molding, speed, and personalized customer service cements their position as an industry leader in thermoplastic part production for sectors such as medical devices, automotive, and electronics.
Nypro, now part of Jabil, stands out as a global leader in contract manufacturing and thermoplastic molding. With headquarters in Massachusetts, Nypro delivers comprehensive solutions encompassing product design, tooling, precision molding, and final assembly. Their expertise extends to high-performance plastic part manufacturing for sectors like healthcare (medical devices and diagnostics), consumer electronics, and automotive components. Nypro’s integrated supply chain, focus on advanced molding technologies, and ability to manage complex production runs make them a go-to source for large-scale, high-complexity plastic injection molding solutions.
Berry Global, based in Indiana, is a top manufacturer and supplier specializing in plastic packaging, engineered materials, and customized thermoplastic molding products. Serving industries as varied as food and beverage, personal care, pharmaceuticals, and industrial markets, Berry Global excels in designing and producing durable, innovative plastic containers and components. Their large-scale manufacturing facilities, commitment to sustainability through recyclable and lightweight materials, and dedication to research and development allow them to lead in the creation of cutting-edge, cost-effective thermoplastic solutions that meet diverse client demands.
U.S. Farathane, located in Michigan, is renowned for its thermoplastic injection molding expertise and ability to provide engineered plastic solutions tailored primarily for the automotive industry, but also for industrial, electrical, and consumer goods markets. Their comprehensive capabilities span product engineering, custom tooling, prototyping, and high-volume manufacturing, offering clients end-to-end support throughout the product lifecycle. U.S. Farathane is recognized for adhering to rigorous quality standards, advanced materials selection, and continuous innovation in overmolding, insert molding, and 2-shot molding techniques, which contribute to their strong industry reputation.
Crescent Industries, located in Pennsylvania, offers comprehensive custom thermoplastic molding and contract manufacturing solutions. Serving critical sectors such as medical device manufacturing, aerospace and defense, electronics, and consumer packaged goods, Crescent Industries is known for its ability to handle tight-tolerance molding, complex assemblies, and value-added secondary operations. With ISO-certified facilities and a strong emphasis on process validation and quality control, Crescent meets stringent regulatory and customer requirements, making them a trusted thermoplastic molding partner for clients seeking precision and dependability.
When evaluating thermoplastic molding suppliers, key factors to consider include the company's experience with specific resin materials (such as ABS, polycarbonate, nylon, and polypropylene), in-house tool and die capabilities, engineering and prototyping support, production scalability, quality certifications (such as ISO 9001, ISO 13485 for medical), and post-molding services like ultrasonic welding, pad printing, or metal insert installation. Choosing a trusted, full-service thermoplastic molding company ensures product performance, cost-efficiency, and supply chain reliability for both short-run prototyping and high-volume manufacturing projects.
It's important to note that advancements in plastic processing technologies and reshoring trends continue to impact the thermoplastic molding landscape. For the most current information on these and other companies' technical capabilities, quality standards, and geographic reach, consult recent industry reports and company announcements.
This chapter will explore various types of injection molds and examine the common thermoplastics utilized in the injection molding process.

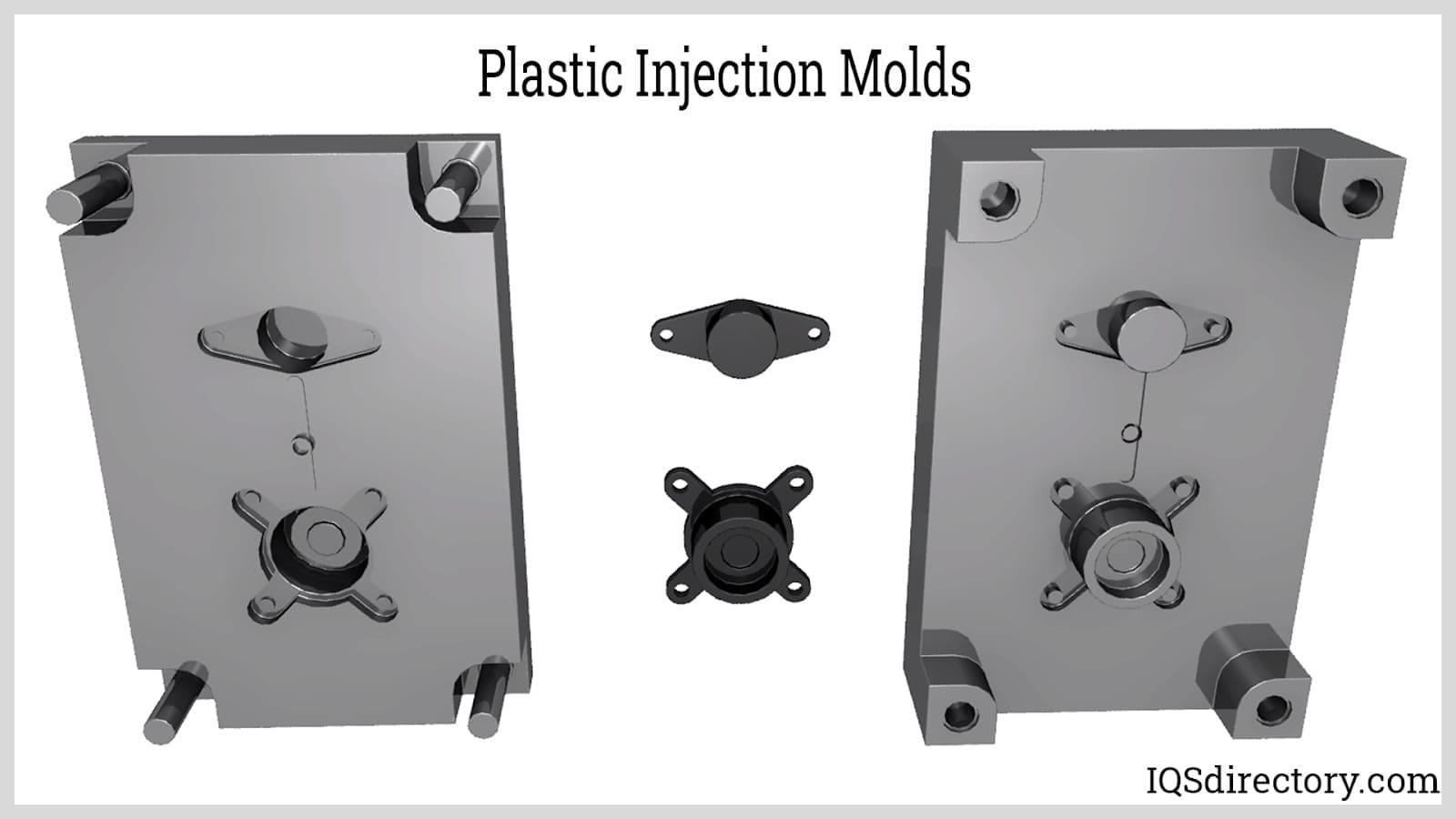

The choice of injection mold depends on factors such as part geometry, production volume, budget, and tool design. The type of mold selected can influence both the manufacturing costs and the quality of the finished components.
Single cavity molds are designed to produce one part per cycle. They are a cost-effective option for low production volumes due to their lower construction costs and shorter lead times. However, the downside is that they result in a higher cost per part during production.

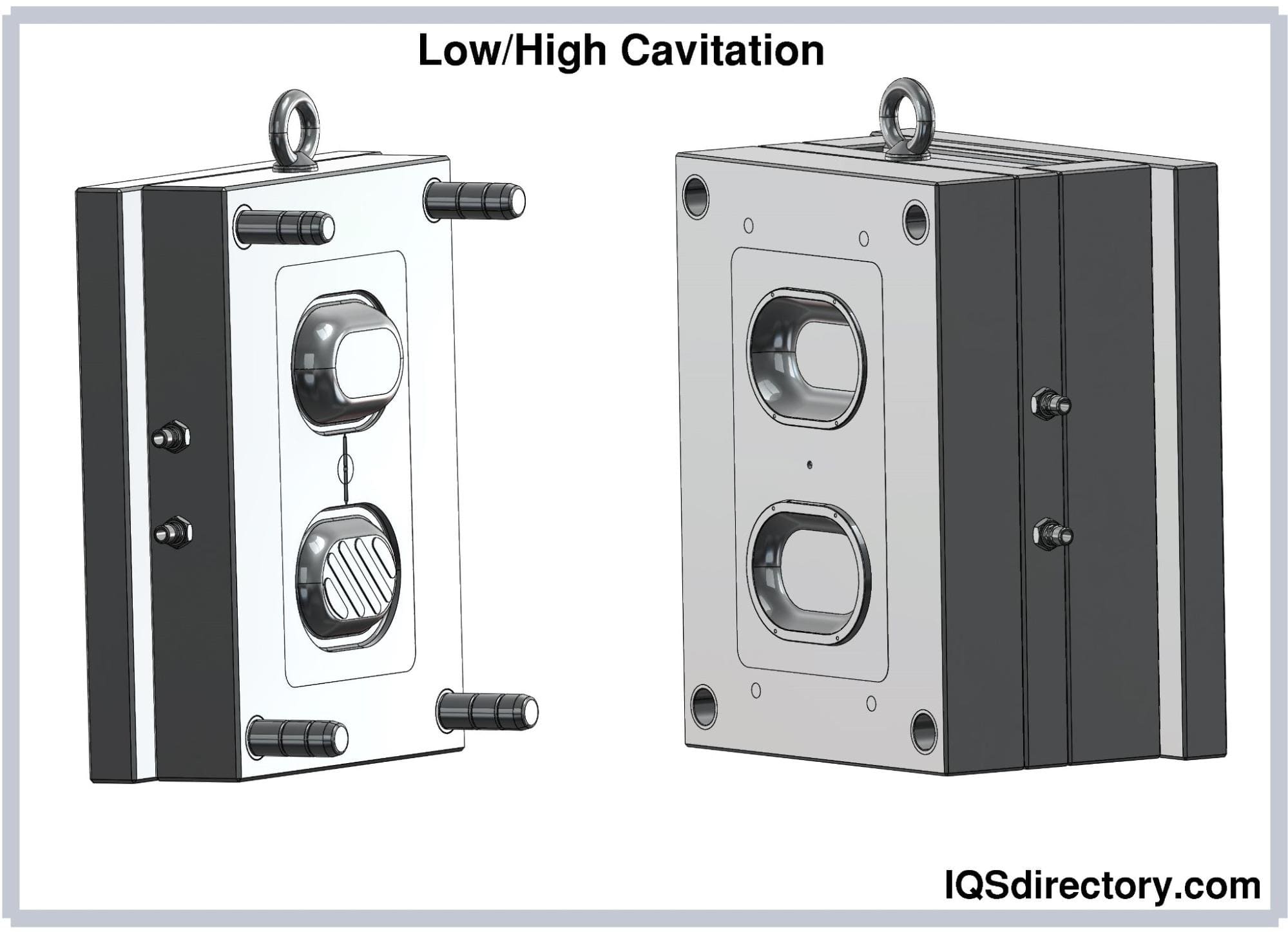

Multi-cavity molds are designed to produce multiple parts per cycle. Advantages of these molds include increased production capacity and reduced cost per part, as more components are manufactured within the same cycle time.

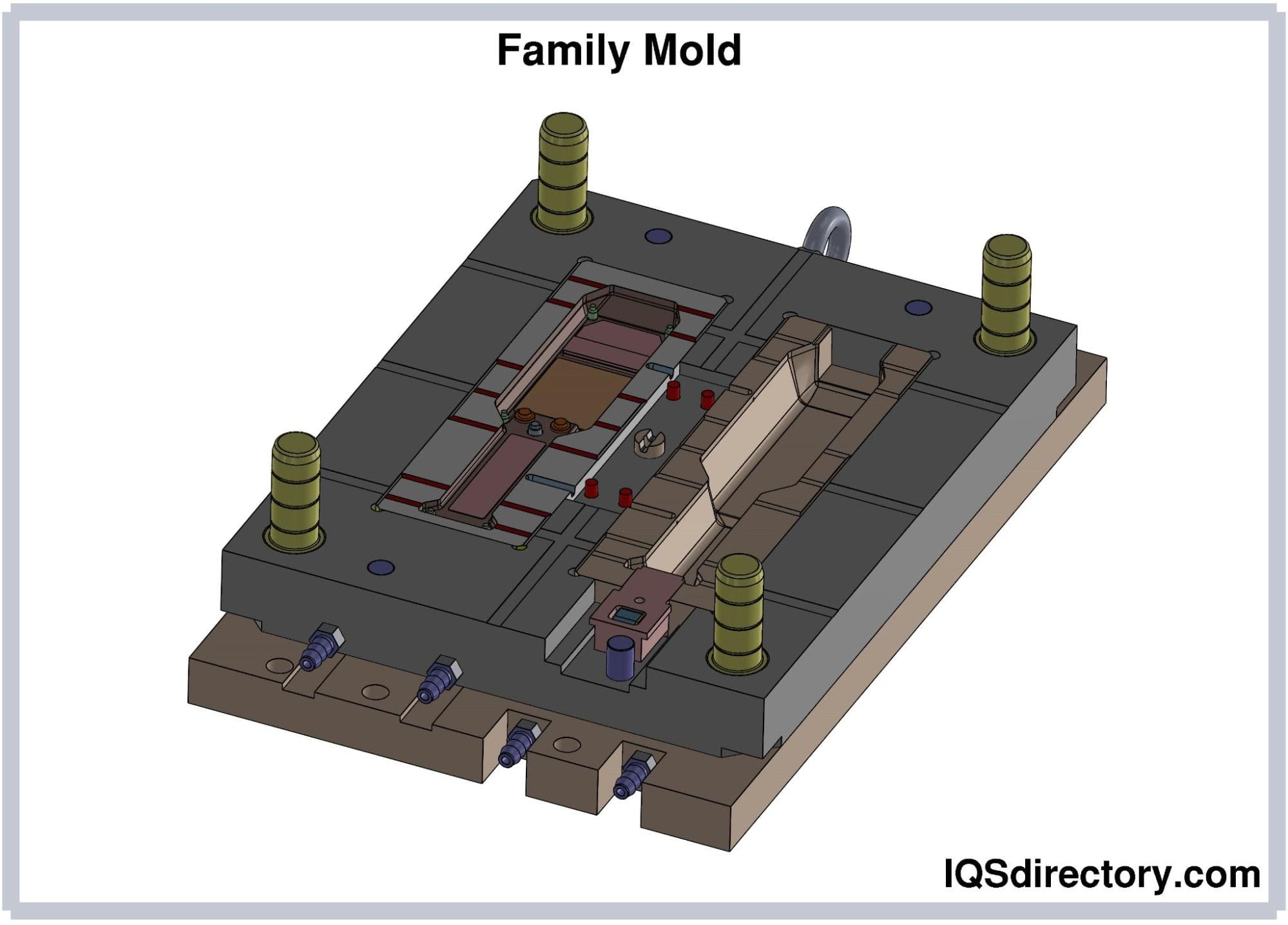

A family mold features a single mold base with multiple cavities, each designed to produce different parts. This setup allows for the simultaneous manufacturing of several distinct components, or selective production using shut-offs to isolate specific cavities. To achieve optimal results, the parts should be similar in shape, material, size, and expected production volumes.
Ensuring that the parts are similar is crucial when running all parts simultaneously. Automation might be required to separate the pieces either during or after production. A family mold can offer cost savings and flexibility, particularly when mold costs are a significant consideration and production volumes are low.

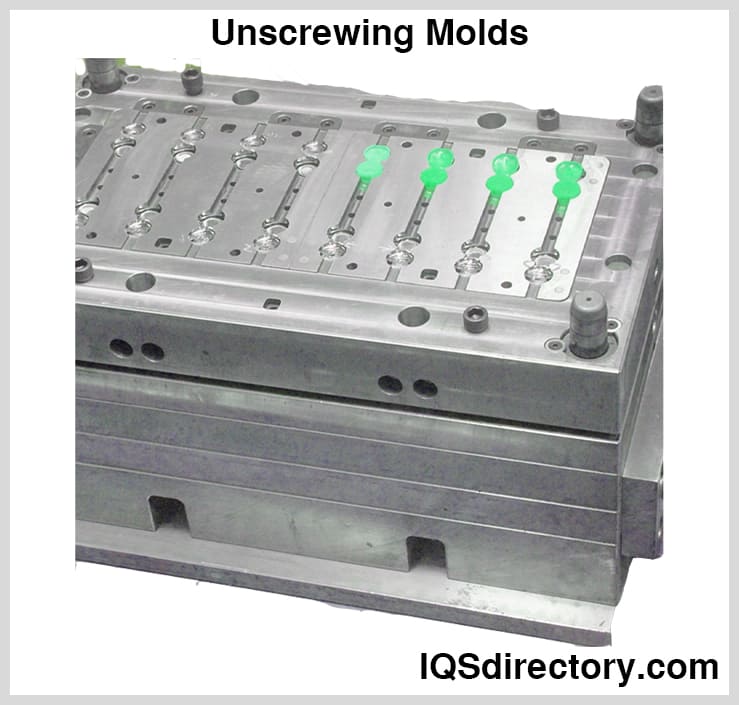

Unscrewing molds are commonly used to create threaded holes within a plastic part. Unscrewing molds are automated with small drive systems, including rack & pinion, electric, or hydraulic motors. These drive systems are tied into the process and rotate threaded features to extract undercut features. Threads can either be internal or external, and the extraction is tied into the press cycle. Multi-shot or multi-component tooling allows a product designer to use two or more materials that are not similar on one part within the same cycle.
Different materials may be required in molding to achieve varying physical properties or aesthetic effects. Unscrewing molds frequently incorporate multiple manifolds within a single tool. Multi-shot tooling is particularly useful for complex products or for incorporating color changes within a product line. This approach necessitates the us

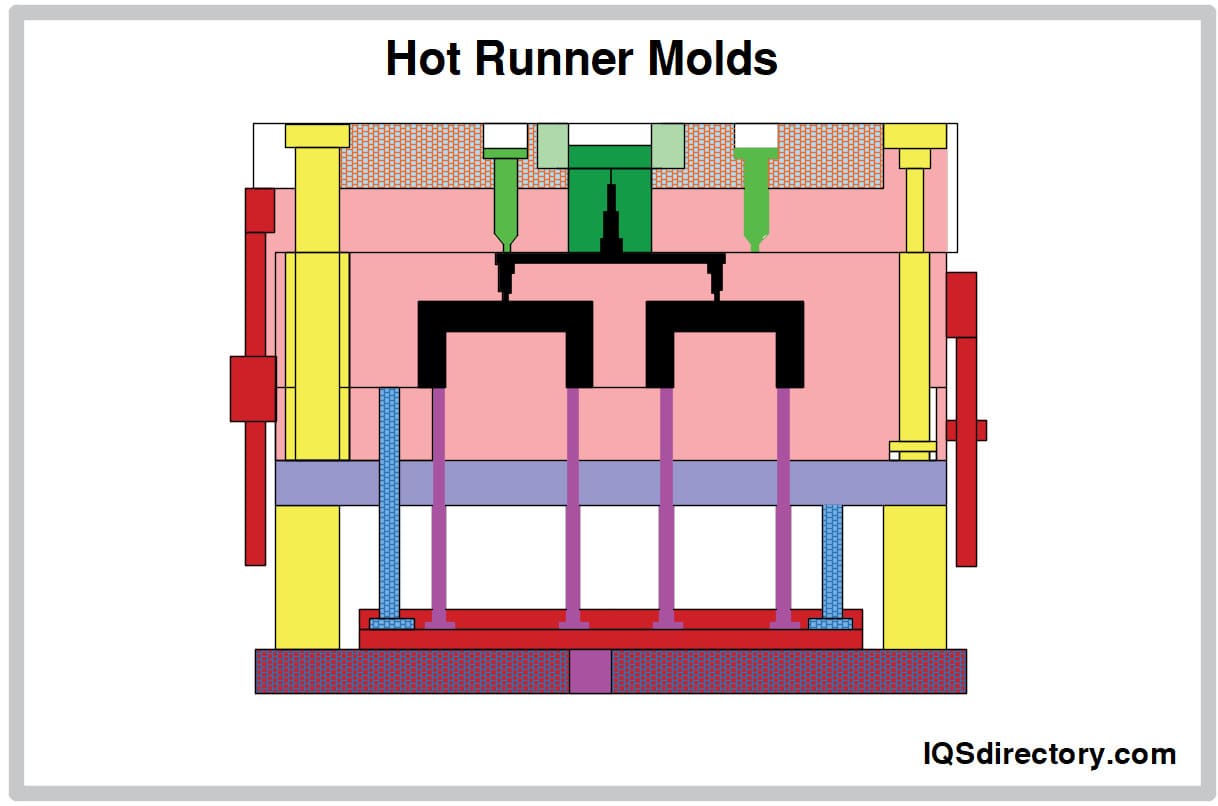

Hot runner systems use a temperature-controlled manifold to minimize or eliminate runner scrap during the molding cycle. Injection points can be positioned either outside or directly within the part. The presence of a sprue system, also known as a runner system, affects the overall cycle time of the mold. By eliminating the runner, hot runner systems help reduce material waste, leading to cost savings.
The controller must be appropriately sized to match the manifold in the mold. Although the initial investment may be higher, the long-term savings in material and cycle time can offset these costs. This is especially true for applications requiring costly engineering-grade resins or for high-volume production runs.
Cold runner molds are traditional tools that use sprues and runners to direct material into the part. While this method is simpler, it often results in greater material waste and longer cycle times. Depending on the application, some of the waste material can be re-ground and reused, although this may impact the physical properties of the resin. For more advanced or high-cost materials, such as those used in medical or engineering applications, a hot runner system may be more suitable. This is also the case when re-grinding of components is not feasible.
Insulated runner molds are similar to traditional cold runner molds but incorporate cartridge heaters or other heating methods to maintain a layer of molten resin around the runner system. This creates an insulating effect that mimics the performance of a hot runner system. Insulated runners are more cost-effective than hot runners, which require a temperature controller, and they facilitate quicker changes in color and material. However, they are not suitable for all types of materials and may not be effective with more demanding engineering-grade resins.
Three-plate molds are categorized as cold runner tools. The addition of a third plate to the runner system allows for flexibility in placing the injection point anywhere on the mold. This setup is generally more cost-effective than incorporating a hot runner system. However, three-plate molds can be more challenging to automate due to their large and cumbersome runners.
Some common types of thermoplastics used in injection molding include:

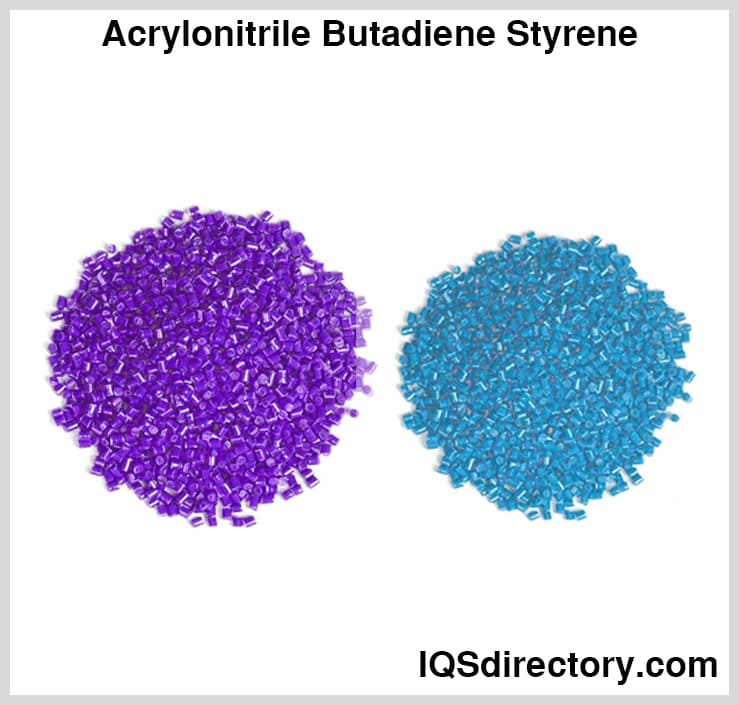

Acrylonitrile Butadiene Styrene (ABS) is an opaque, amorphous thermoplastic polymer. ABS is a terpolymer, composed of three different monomers: acrylonitrile, butadiene, and styrene. This combination results in a material that is flexible, lightweight, and easily moldable, making it suitable for a wide range of everyday products.
One of the advantages of ABS is its versatility in modifying properties to enhance impact resistance, toughness, and heat resistance. Molding ABS at higher temperatures can improve both the gloss and the heat resistance of the final product. Molding ABS at lower temperatures yields the highest impact resistance and strength. Beyond its use in molded plastics, acrylonitrile butadiene styrene is also employed in applications such as drain pipe systems, golf club heads, and auto
Polyethylene is a thermoplastic polymer characterized by its variable crystalline structure. It is among the most versatile and widely used plastics, with applications spanning a broad range of uses depending on the specific type of polyethylene.
Polyethylene is available in two common forms: high-density polyethylene (HDPE) and low-density polyethylene (LDPE). It is known for its high ductility, tensile strength, impact resistance, moisture resistance, and recyclability.
A polyethylene material with a higher density produces plastic that is stronger, more rigid, and more heat-resistant. The primary applications of this material are plastic bags, plastic films, containers, and geomembranes.
Polycarbonate plastics are naturally transparent, amorphous thermoplastics. They are used in applications that require both impact resistance and clarity, such as in the production of bulletproof glass and other durable, see-through materials.
Polycarbonate can experience large plastic deformations without cracking or breaking. As a result, polycarbonate is commonly used for greenhouses, eyewear lenses, medical devices, automotive components, and cellular phones.
Thermoplastic molding provides numerous applications and benefits, including:
Thermoplastic molding is versatile and used for producing items like bottle caps, wire spools, packaging materials, automotive dashboards, and pocket combs. This technology supports the manufacture of both small and large series with the appropriate material. Its applications are diverse within the plastics industry, spanning automotive, packaging, medical, and electronics sectors. Particularly in fields with stringent regulations, like the medical industry, thermoplastic molding meets rigorous testing and certification requirements. Additionally, it accommodates the production of both tiny components, such as electronic parts, and large items, like car panels.
To ensure high quality in the final product, selecting the appropriate material for injection molding enhances the durability and mechanical properties of thermoplastic components, making them suitable for testing and small-scale production. Molds used in this process deliver superior quality, with thermoplastic injection molding accommodating both tiny and large molds as required, while maintaining precise accuracy. This versatility makes it a popular choice for rapid prototyping, particularly in the medical and automotive industries.
Thermoplastic molding is a manufacturing process that works to create fully functional parts by injecting plastic resin into a pre-made mold. Thermoplastic polymers are more widely used than thermosetting polymers in injection molding. The main reason is that thermoplastics can be repeatedly softened by heating and solidified by cooling, making them highly recyclable materials. Materials left over from a previous molding process cycle are re-grinded and added back to the injection chamber along with virgin pellets. An injection mold is selected depending on the part geometry, production volumes, budget, and tool design. The type of injection mold has the ability to affect the manufacturing cost and quality of the components.
