Introduction

This article provides a comprehensive look at bevel gears, include the following information:

  • What is a Bevel Gear?
  • Efficiency of Bevel Gears
  • Bevel Gear Types
  • Geometry and Terminologies
  • Manufacturing Processes
  • Applications of Bevel Gears
  • And much more…

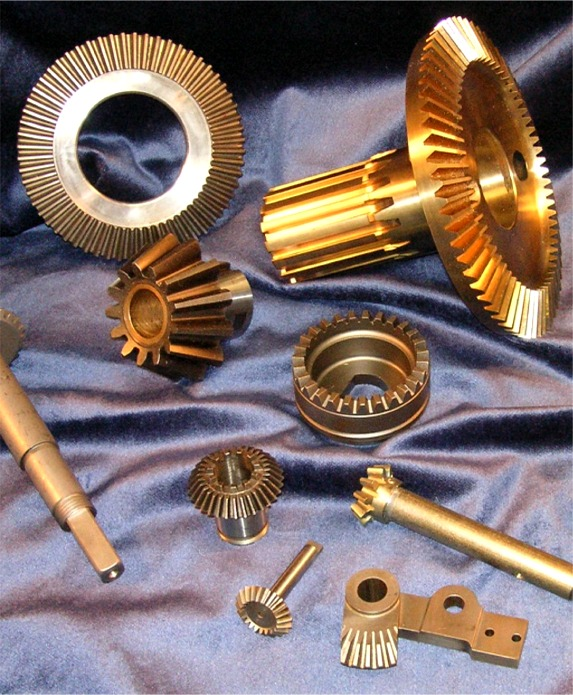

Bevel and Miter Gears

Chapter 1: Understanding Bevel Gears

Bevel gears are toothed, rotating devices designed to transmit mechanical energy or power between intersecting shafts, often at right angles. They alter the axis of rotation and can adjust torque levels, either enhancing or reducing it, while inversely impacting angular speed.

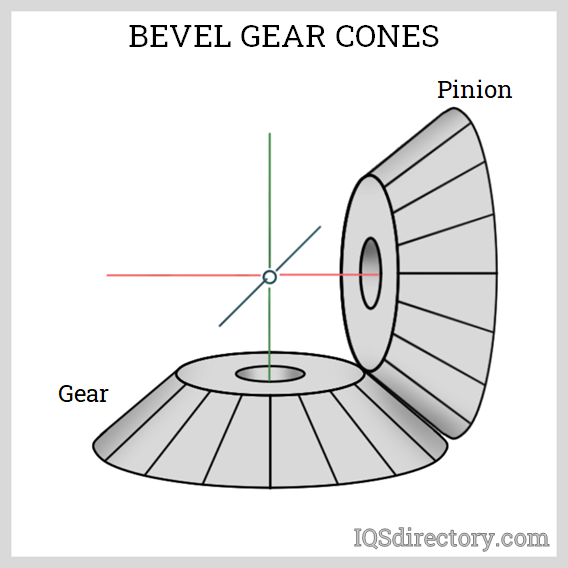

Bevel Gear Cones

Structurally, a bevel gear is akin to a truncated cone, featuring teeth along its sloped surface that engage with the teeth of other gears. The gear imparting power to the shaft is termed the driver gear, whereas the one receiving this power is known as the driven gear. The driver and driven gears generally differ in their tooth count to generate a mechanical advantage. The gear ratio represents the number of teeth on the driven gear relative to those on the driver gear, and mechanical advantage is the ratio of output torque to input torque. This relationship is illustrated by the following formula:

\begin{equation} \ MA = \frac{T_b}{T_a} = \frac{r_b}{r_a} = \frac{N_b}{N_a} \end{equation}

The mechanical advantage (MA) is a function of several parameters, including the torques (τb and τa), radii (rb and ra), and teeth numbers (Nb and Na) of the driven and driver gears. The equation clearly indicates that increasing the teeth on the driven gear yields higher output torque.

In contrast, a boost in mechanical advantage results in a reduction in the driven gear's output speed. This dynamic is articulated by this equation:

\begin{equation} \ MA = \frac{W_a}{W_b} \end{equation}

ωa and ωb represent the angular speeds of the driver and driven gears, respectively. Typically, a 10:1 gear ratio is ideal for a bevel gear set, whereas a 1:5 ratio is advised for elevating the driven gears' speed.

Bevel Gear Pair

It is important to remember that bevel gears come as matched pairs and should not be interchanged. Bevel gears are precisely assembled to handle transmission of both thrust and radial loads, differentiating them from spur gears, which primarily manage radial loads. The assembly of all bevel gears is performed at an optimal position to ensure peak performance.

Chapter 2: How efficient are bevel gears?

Efficiency, a core consideration in mechanical power transmission, is defined as the ratio of output power to input power in a given system. Unlike mechanical advantage—which centers on amplifying forces or torque with a trade-off in speed—efficiency directly measures how effectively power is transferred from a driving gear to a driven gear, minimizing energy losses. In bevel gear systems, power loss primarily stems from friction between meshing gear teeth, sliding action, and forces exerted on bearings or the gear housing. Proper lubrication and precision engineering are crucial for reducing these losses, thereby increasing the operational efficiency and lifespan of your gear assemblies. Understanding gear efficiency is vital when selecting the right gear type for applications in automotive, industrial machinery, robotics, and heavy equipment, where performance, reliability, and energy savings are paramount.

Bevel gears, including straight bevel gears, spiral bevel gears, zerol bevel gears, and hypoid gears, are widely used to change the direction of shaft rotation and transmit power between intersecting axes. The efficiency of bevel gears varies based on their geometry, application, load carrying capacity, and alignment precision. The following table compares the efficiency ranges and bearing loads of common gear types, highlighting how bevel gears typically outperform other right-angle drives such as worm gears.

Type of Gear Approximate Range of Efficiency Type of Load Imposed in Bearings
Straight Bevel Gear 97 – 99.5% Radial and thrust
Spiral Bevel Gear 97 – 99.5% Radial and thrust
Zerol Bevel Gear 97 – 99.5% Radial and thrust
Hypoid Bevel Gear 90 – 98% Radial and thrust
External Spur Gears 97 – 99.5% Radial
Internal Gears 97 – 99.5% Radial
Worm Gear 50 – 90% Radial and thrust
Common Types of Gears
Common Types of Gears

Factors Affecting Bevel Gear Efficiency

Several elements influence the efficiency of bevel gears, including:

  • Tooth geometry and surface finish: High-precision, accurately machined teeth reduce frictional losses and allow optimal meshing, lowering heat generation.
  • Quality of lubrication: Using specialty gear oil or synthetic lubricants minimizes wear, reduces sliding friction, and sustains higher efficiency over prolonged operation.
  • Alignment and installation: Misaligned shafts or improper assembly can increase load on bearings and gear teeth, reducing overall efficiency and causing premature failure.
  • Speed and load: Operating at excessively high speeds or under heavy loads can accelerate wear, increase friction, and slightly decrease efficiency compared to running under nominal recommendations.

For optimal performance, bevel gear selection should consider not only efficiency ratings but also maximum torque, gear ratio, noise levels, backlash tolerance, and suitability for the intended application—whether in differential drives, conveyors, or precision instrumentation. Consulting with a leading bevel gear manufacturer or specialized supplier can help identify the right gear type, material (such as alloy steel or hardened cast iron), and customization options to meet unique system requirements.

Looking to purchase high-efficiency bevel gears? OEMs and maintenance engineers frequently compare suppliers based on gear quality, manufacturing certifications (such as ISO 9001), customization capabilities, lead time, and after-sales support. Use the list below of industry-leading manufacturers to help streamline the sourcing process and ensure long-term reliability for your power transmission systems.

Leading Manufacturers and Suppliers

    Mouse Over Company Names to see their previews

    Chapter 3: What are the different types of bevel gears?

    Bevel gears are a fundamental component in mechanical power transmission, renowned for their capability to transfer motion between intersecting shafts, typically at right angles. They come in various types, classified by tooth profile, geometry, and orientation—attributes that significantly influence their application in industrial machinery, automotive systems, and precision equipment. Advancements in gear manufacturing, such as CNC machining, gear hobbing, and precision grinding, have enabled the production of increasingly complex forms, including spiral, Zerol, and hypoid bevel gears with superior performance characteristics.

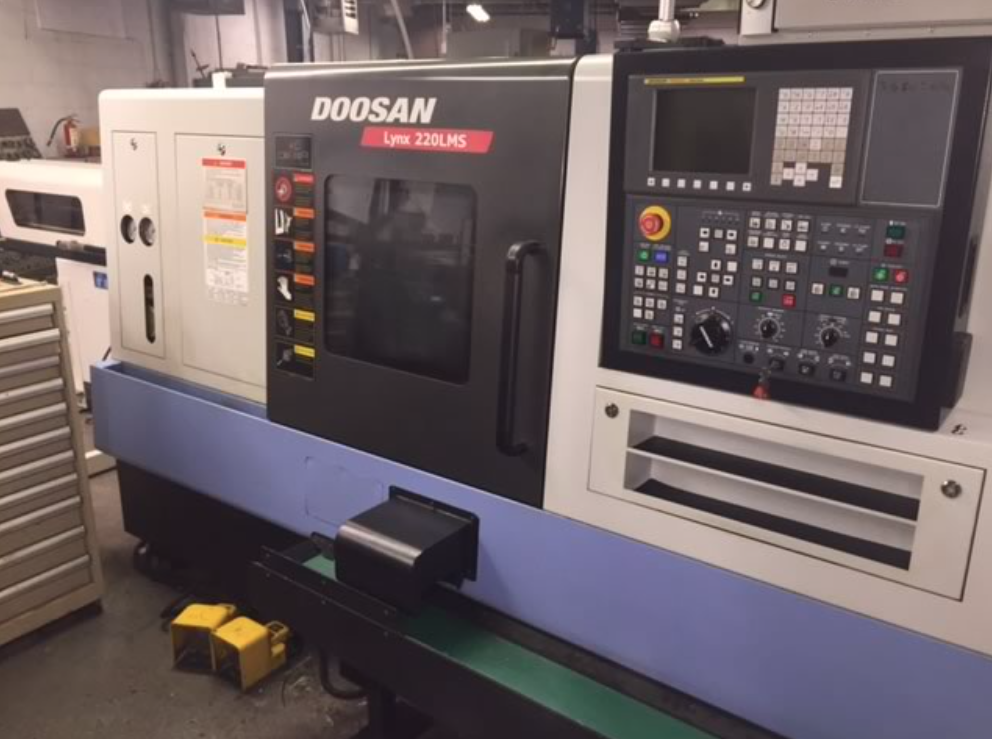

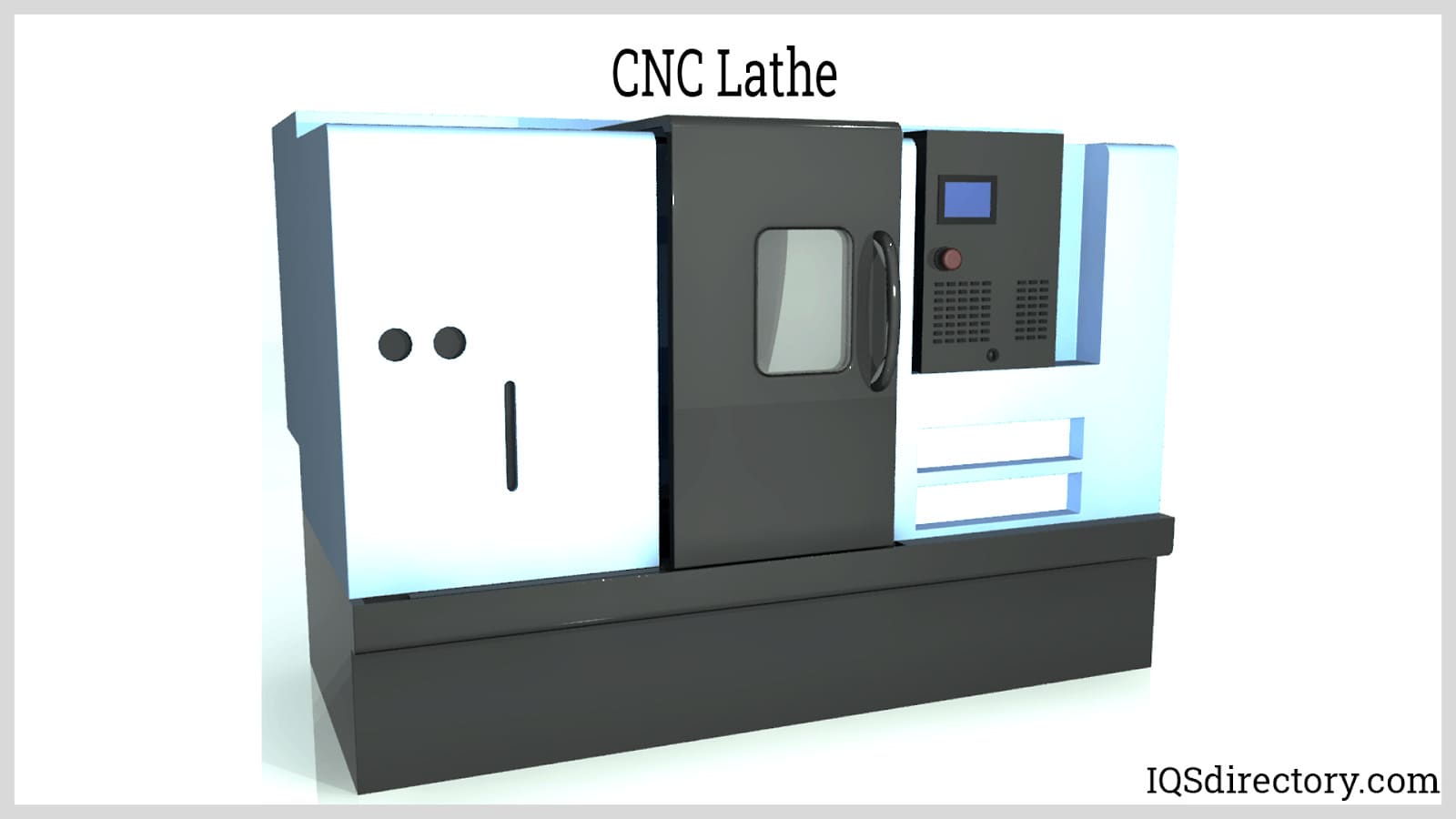

    CNC Lathe

    Straight Bevel Gears

    The straight bevel gear is the most traditional and straightforward type of bevel gear, featuring teeth that are cut straight and extend toward the apex of the gear cone. These gears have tapered teeth, with the outer section (heel) wider than the inner part (toe), and the lines of contact are instantaneous. This arrangement creates simplicity in assembly and greater mounting tolerance. Although straight bevel gears are valued for their ease of manufacture and cost-effectiveness, they tend to produce higher vibration and noise—characteristics that limit their use to low-speed or static load applications, such as the differential systems in automobiles and manual machinery.

    Manufacturing straight bevel gears typically involves processes such as gear planing with an indexing head, but innovations like the Revacycle and Coniflex systems from Gleason Works have increased production efficiency, accuracy, and cost competitiveness. These gears are frequently found in agricultural equipment, industrial gearboxes, and railway track inspection vehicles, where moderate load handling and straightforward power transmission are prioritized over quiet operation.

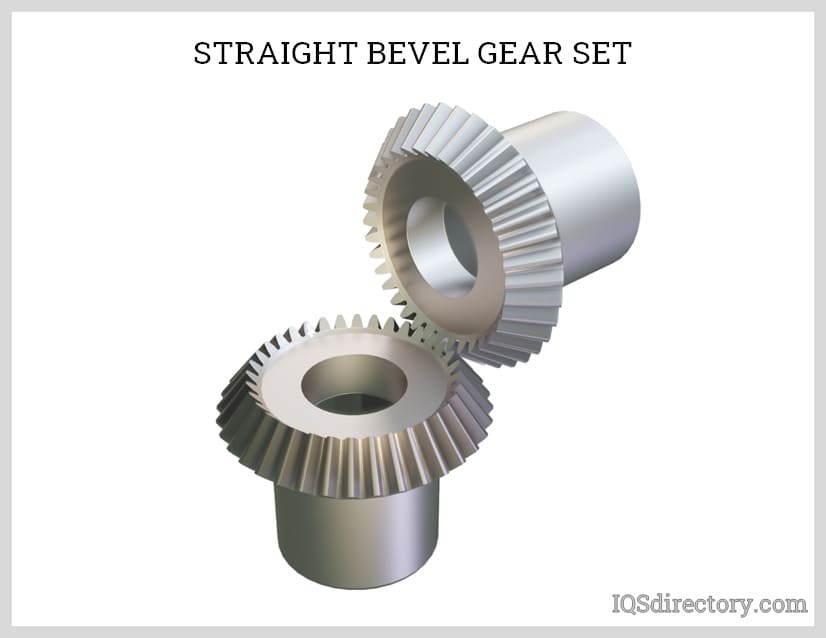

    Straight Bevel Gear Set

    Spiral Bevel Gears

    Spiral bevel gears represent a significant advancement in bevel gear technology. Their teeth are curved and obliquely oriented, unlike the linear teeth of straight bevel gears. This spiral tooth design allows for greater contact ratio and gradual engagement, which leads to smoother, quieter, and more efficient power transmission. Due to higher load capacity and reduced vibration, spiral bevel gears are ideal for high-speed, heavy-duty applications such as automotive rear axles, industrial drives, helicopter transmissions, and precision robotics.

    Spiral Bevel Gear Set

    One trade-off of spiral bevel gears is the increased thrust load generated, necessitating robust rolling element thrust bearings for proper support. Spiral bevel gears are usually manufactured and paired as matched sets, ensuring optimized meshing and precise backlash settings; replacement without specific matching can lead to failure. Manufacturing involves specialized gear generating machines — a process resulting in excellent accuracy and finish. Post-machining processes such as lapping or grinding further refine tooth surface quality and operational smoothness, extending service life in demanding environments.

    Zerol Bevel Gears

    Zerol bevel gears offer a unique blend of design features found in both straight and spiral bevel gears. Originally developed by Gleason Works, these gears have teeth that are curved along their length but feature a 0° spiral angle, setting them apart from conventional spiral bevel gears, which typically exhibit a 35° spiral angle. As a result, Zerol bevel gears provide a moderate amount of tooth overlap, improving smoothness while minimizing the thrust loads seen in spiral designs.

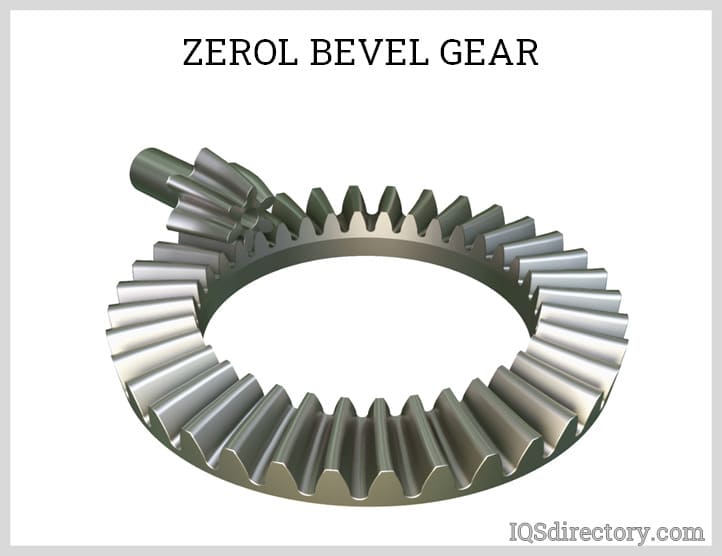

    Zerol Bevel Gear

    Zerol bevel gears are commonly used in industrial power transmission, precision motion devices, and applications where quiet operation and high assembly flexibility are desired. They permit the use of simpler plain contact bearings and can often replace straight bevel gears without major design modifications. Manufacturing is accomplished using rotary mill cutters, imparting a curved profile that delivers enhanced lubrication retention, reduced stress concentration, and improved durability. Finishing processes include lapping and grinding to achieve tight tolerances and a fine surface finish, essential for high-precision or high-speed uses.

    Hypoid Bevel Gears

    Hypoid bevel gears provide a sophisticated solution for transmitting power between non-intersecting, right-angle shafts. Unlike standard bevel gears, the axes of hypoid gears do not intersect, resulting in an "offset" that allows for larger diameter pinions, increased gear ratio choices, and elevated torque transmission. These factors make hypoid gears the preferred choice in automotive rear axles (e.g., truck differentials), heavy machinery drives, and high-performance industrial equipment where greater strength and compact installation are required.

    The spiral angle of the hypoid pinion is typically greater than that of the mating gear, further increasing the number of teeth in mesh and reducing noise, vibration, and harshness (NVH). However, the significant sliding action across the hypoid tooth face introduces higher friction and heat generation, demanding the use of specialized extreme-pressure (EP) lubricants. Application-specific considerations—such as bearing selection, housing rigidity, and careful gear alignment—are critical for maximizing efficiency and service life. Excessive offset, while beneficial for design flexibility, may reduce gear train efficiency.

    Hypoid Bevel Gear Set

    To ensure optimal performance and longevity, manufacturers employ advanced gear cutting and shaping methodologies, similar to those for spiral bevel gears. When considering hypoid bevel gears for your application, it is essential to evaluate lubrication requirements, potential for thermal expansion, and load-carrying capabilities.

    Miter Bevel Gears

    Miter gears are a specialized class of bevel gears uniquely characterized by their 1:1 gear ratio—meaning the driving and driven gears have the same number of teeth. Unlike other gear types, miter gears do not alter torque but are commonly used to change the direction of rotational motion, making them invaluable for transmission systems where input and output shafts need to be oriented at various angles. The most frequent shaft arrangement is at 90° (perpendicular), but variants can be engineered for intersecting angles between 45° and 120°—a configuration known as angular miter bevel gears.

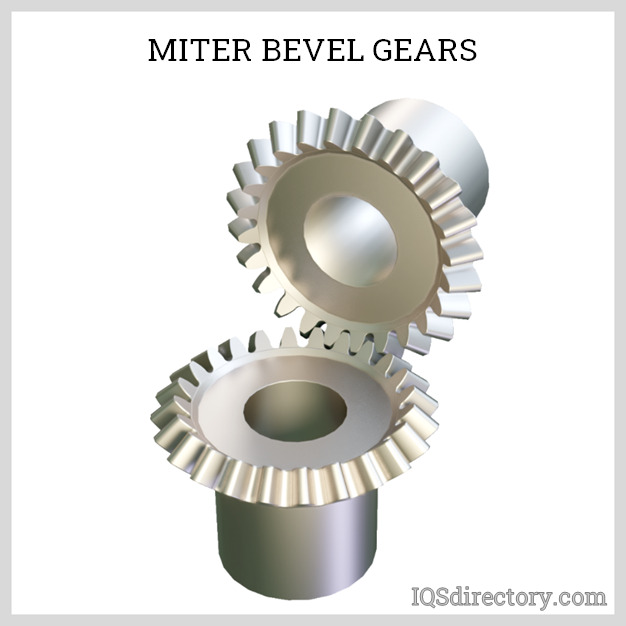

    Miter Bevel Gears

    Miter bevel gears are produced in several tooth forms—straight, spiral, or Zerol—each offering different advantages depending on application requirements. Industries such as robotics, conveyor systems, printing presses, and machine tools frequently choose miter gears for their efficiency in transmitting power and reliability over long operational cycles. Proper selection entails evaluating factors such as tooth geometry, mounting arrangements, material selection, load requirements, and operational speed.

    When specifying or sourcing bevel gears—whether straight, spiral, Zerol, hypoid, or miter—it is crucial to align gear type selection with your application's design requirements, torque needs, noise tolerance, lubrication preferences, and installation constraints. Working with experienced gear manufacturers can help optimize not only transmission efficiency but also system longevity and operational reliability.

    Chapter 4: What are the basic geometries and terms for bevel gears?

    To gain a clearer understanding of gears and gear systems, it's essential to familiarize oneself with key terminology. The terms listed below describe various aspects of gears and their tooth profiles and are applicable to all types of gears, not just bevel gears.

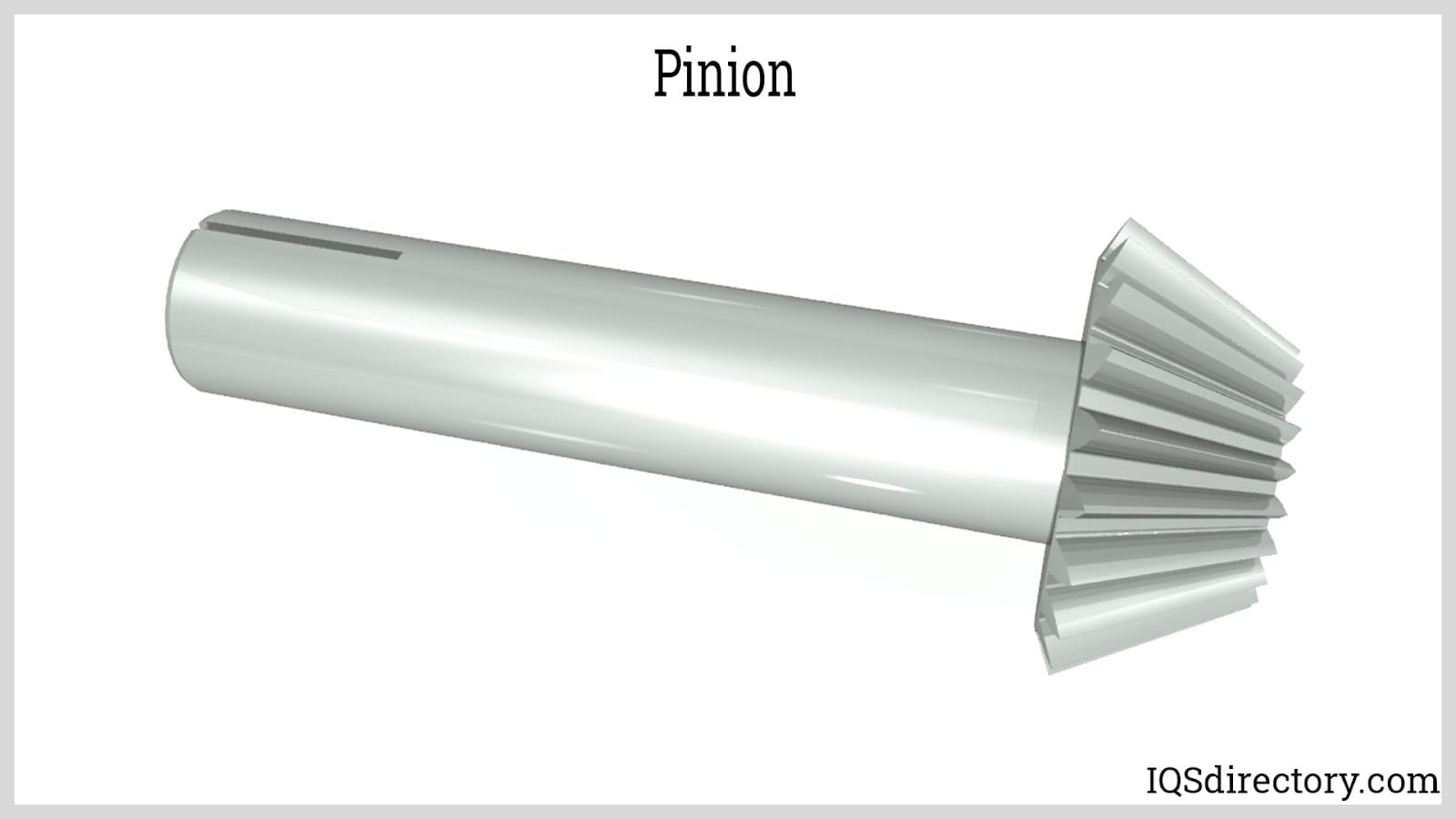

    Pinion

    Pinion

    The smaller gear in a bevel gear set that drives the larger gear.

    Gear

    The larger gear in a bevel gear set that is driven by the smaller pinion gear.

    Pitch

    Also known as circular pitch, this is the distance between corresponding points on adjacent teeth of the same gear.

    Pitch Diameter

    The diameter of the pitch circle, which is a critical design parameter for determining tooth thickness, pressure angles, and helix angles of the gear.

    Diametral Pitch

    The ratio of the number of teeth to the pitch diameter of a gear.

    Pitch Angle

    The angle between the face of the pitch surface and the axis of the shaft.

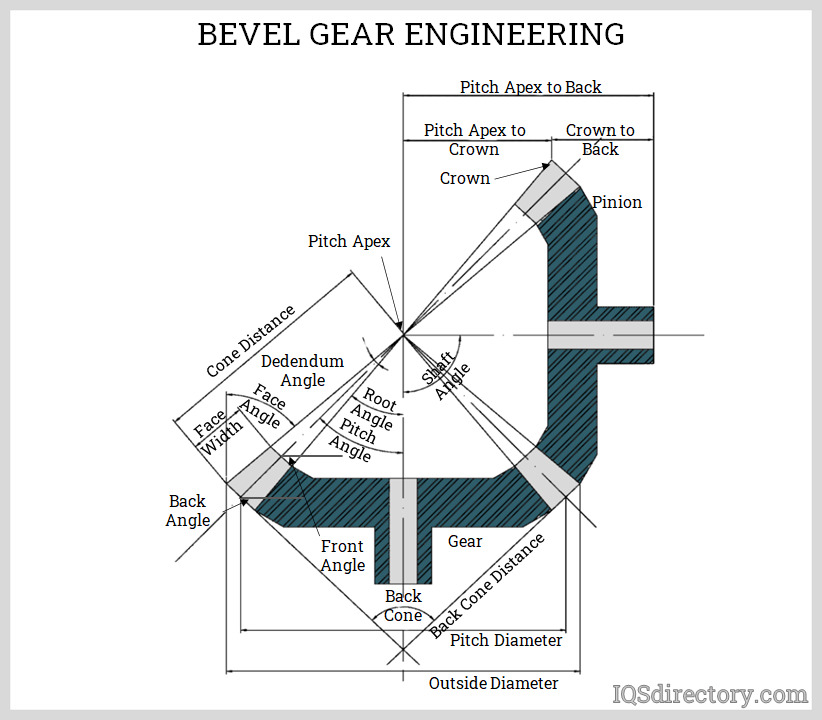

    Bevel Gear Engineering

    Pitch Surface

    The imaginary truncated cone where the base diameter corresponds to the pitch circle.

    Pressure Angle

    The angle between the line of force of the meshing teeth and the tangent to the pitch circle at the contact point. For proper meshing, gears must have the same pressure angle. The recommended pressure angle for straight bevel gears is 20°.

    Shaft Angle

    The angle between the shafts of the driver and driven gears.

    Addendum

    The upper outline of the gear teeth, extending from the pitch circle to the top of the teeth.

    Dedendum

    The lower outline of the gear teeth, extending from the pitch circle to the bottom of the teeth.

    Total Depth

    The radial distance between the addendum and dedendum circles. Due to the slight taper of bevel gear teeth, this depth is not constant along the tooth. Addendum and dedendum angles are used to describe the teeth more accurately than the circles.

    Addendum Angle

    The angle between the top surface of the teeth (top land) and the pitch surface.

    Dedendum Angle

    The angle between the bottom surface of the teeth (bottom land) and the pitch surface.

    Depth of Taper

    The variation in tooth depth along the face, measured perpendicular to the pitch surface.

    Space Width Taper

    The variation in space width along the face, measured on the pitch surface.

    Thickness Taper

    The variation in tooth thickness measured on the pitch surface.

    Working Depth

    The total depth of the teeth plus the clearance value.

    Clearance

    The difference between the addendum of one gear and the dedendum of the mating gear.

    Backlash

    The space between the mating gear teeth that exceeds their thickness. Different types of backlash are defined based on movement orientation:

    Circular

    The arc along the pitch circle.

    Normal

    The space between the surfaces of mating teeth.

    Angular

    The angular movement described by the backlash.

    Radial

    The linear movement perpendicular to the axis.

    Axial

    The linear movement parallel to the axis.

    Backlash is crucial for preventing gear jamming due to contact. It allows lubricants to enter and protect the mating teeth surfaces and accommodates thermal expansion during operation.

    The relationship between these terms is illustrated in the table of equations below.

    Straight Bevel Gear Formulas (20° Pressure Angle, 90° Shaft Angle)
    To Find Having Formula
    Pitch diameter of pinion Number of pinion teeth and diametral pitch d = Np / Pd
    Pitch diameter of gear Number of gear teeth and diametral pitch D = Ng / Pd
    Pitch angle of pinion Number of pinion teeth and number of gear teeth γ = tan^-1(Np / Ng)
    Pitch angle of gear Pitch angle of pinion Γ= 90°-γ
    Outer cone distance of pinion and gear Gear pitch diameter and pitch angle of gear Ao = D / (2sinΓ)
    Circular pitch of pinion and gear Diametral pitch p = 3.1416 / Pd
    Dedendum angle of pinion Dedendum of pinion and outer cone distance δp = tan-1(bop / Ao)
    Dedendum angle of gear Dedendum of gear and outer cone distance δg = tan-1(bog / Ao)
    Face angle of pinion blank Pinion pitch angle and dedendum angle of gear γo = γ + δg
    Face angle of gear blank Gear pitch angle and dedendum angle of pinion Γo = Γ + δp
    Root angle of pinion Pitch angle of pinion and dedendum angle of pinion γr = γ - δp
    Root angle of gear Pitch angle of gear and dedendum angle of gear Γr = Γ - δg
    Outside diameter of pinion Pinion pitch diameter of gear, pinion addendum, and pitch angle of pinion do = d +2aop cosγ
    Outside diameter of gear Pitch diameter of gear, gear addendum, and pitch angle of gear Do = D + 2aog cosΓ
    Pitch apex to crown of pinion Pitch diameter of gear, addendum, and pitch angle of pinion xo = (D/2) - aop sinγ
    Pitch apex to crown of gear Pitch diameter of pinion, addendum, and pitch angle of gear Xo = (d/2) - aog sinΓ
    Circular tooth thickness of pinion Circular pitch and gear circular tooth thickness t = p - T
    Chordal thickness of pinion Circular tooth thickness, pitch diameter of pinion and backlash tc = t - (t3/6d2) - (B/2)
    Chordal thickness of gear Circular tooth thickness, pitch diameter of gear and backlash Tc = T - (T3/6D2) - (B/2)
    Chordal addendum of pinion Addendum angle, circular tooth thickness, pitch diameter, and pitch angle of pinion acp=aop + (t2 cosγ / 4d)
    Chordal addendum of gear Addendum angle, circular tooth thickness, pitch diameter, and pitch angle of gear acg=aog + (T2 cosΓ / 4D)
    Tooth angle of pinion Outer cone distance, tooth thickness, dedendum of pinion, and pressure angle (3.438/Ao)(t/2)+bop tanφ

    min

    Tooth angle of gear Outer cone distance, tooth thickness, dedendum of gear, and pressure angle (3.438/Ao)(T/2)+bog tanφ

    min

    Spiral Bevel Gear Formulas (20° Pressure Angle, 90° Shaft Angle)
    To Find Having Formula
    Pitch diameter of pinion Number of pinion teeth and diametral pitch d = Np / Pd
    Pitch diameter of gear Number of gear teeth and diametral pitch D = Ng / Pd
    Pitch angle of pinion Number of pinion teeth and number of gear teeth γ = tan-1(Np / Ng)
    Pitch angle of gear Pitch angle of pinion Γ= 90°-γ
    Outer cone distance of pinion and gear Pitch diameter of gear and pitch angle of gear Ao = D / (2sinΓ)
    Circular pitch of pinion and gear Diametral pitch p = 3.1416 / Pd
    Dedendum angle of pinion Dedendum of pinion and outer cone distance δp = tan-1(bop / Ao)
    Dedendum angle of gear Dedendum of gear and outer cone distance δg = tan-1(bog / Ao)
    Face angle of pinion blank Pitch angle of pinion dedendum angle of gear γo = γ + δg
    Face angle of gear blank Pitch angle of gear and dedendum angle of pinion Γo = Γ + δp
    Root angle of pinion Pitch angle of pinion and dedendum angle pinion γr = γ - δp
    Root angle of gear Pitch angle of gear and dedendum angle of gear Γr = Γ - δg
    Outside diameter of pinion Pitch diameter, addendum, and pitch angle of pinion do = d +2aop cosγ
    Outside diameter of gear Pitch diameter, addendum, and pitch angle of gear Do = D + 2aog cosΓ
    Pitch apex to crown of pinion Pitch diameter of gear, pitch angle, and addendum of pinion xo = (D/2) - aop sinγ
    Pitch apex to crown of gear Pitch diameter of gear, pitch angle, and addendum of gear Xo = (d/2) - aog sinΓ
    Circular tooth thickness of pinion Circular pitch of pinion and circular pitch of gear t = p - T

    Chapter 5: What are the common manufacturing processes?

    There are four main methods of manufacturing gears. These are metal cutting, casting, forming, and powder metallurgy. Metal cutting is the most widely used process because of its dimensional accuracy. The second two, casting and forming, are used in special circumstances- for example, producing a large gear through casting, which reduces machining expenses by casting closer to the final shape. Another form of casting, known as injection molding, is used to manufacture plastic gears. Forming, on the other hand, can take the form of cold drawing or forging. Cold drawing involves a stock pulled or extruded into a series of dies to form the shape of the gear. Forging presses the stock against dies with the desired tooth configuration. Because of work hardening through continuous deformation, the resulting gear is harder, with a more contoured grain flow.

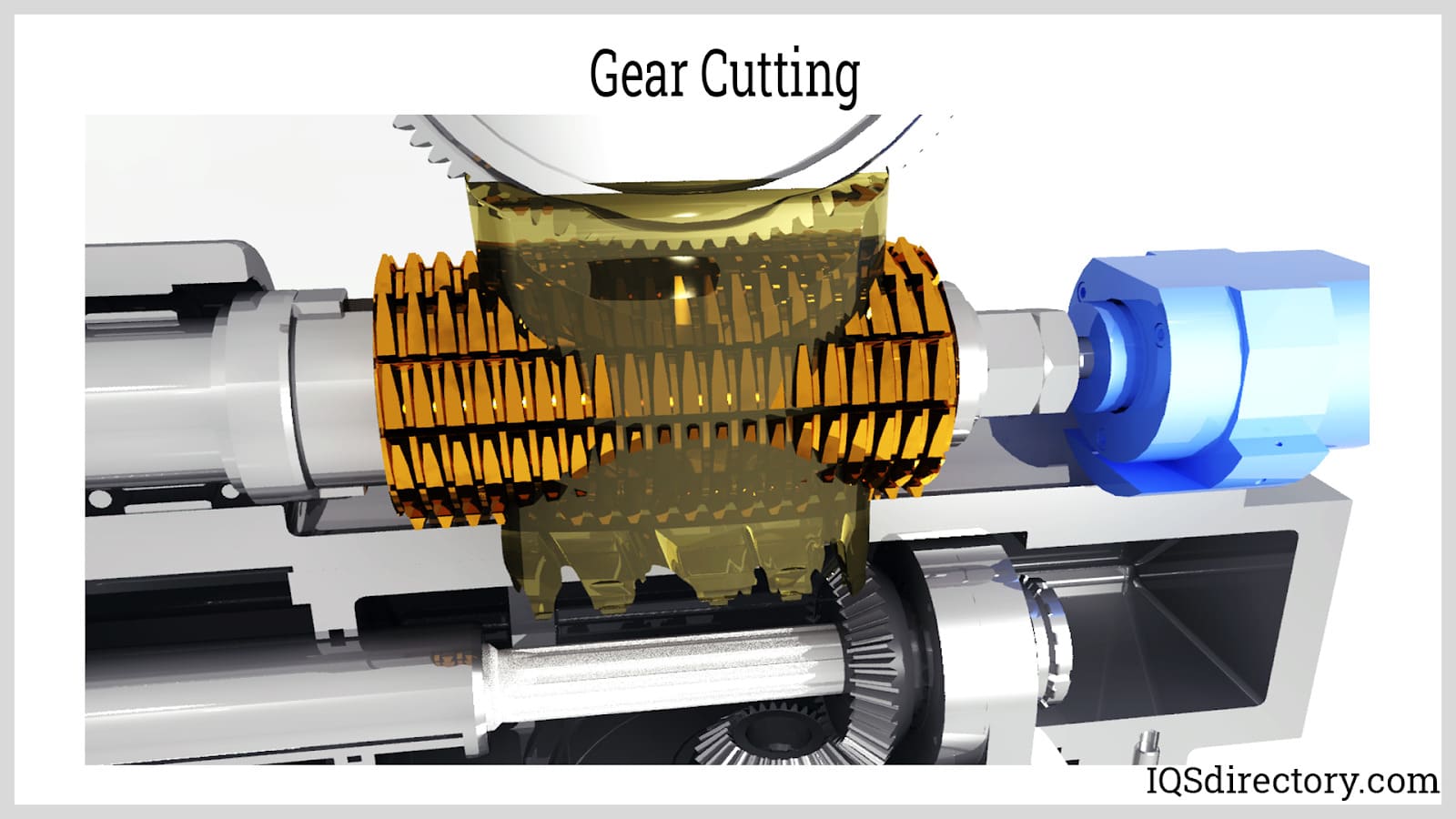

    Gear Cutting

    Gear cutting can be categorized into four distinct methods, summarized as follows:

    • Rotating threaded tool: hobbing, generating
    • Rotating and reciprocating tool: shaping, shaving, generating
    • Rotating disc wheel: milling, form grinding, thread grinding
    • Linear motion tool: broaching, punching

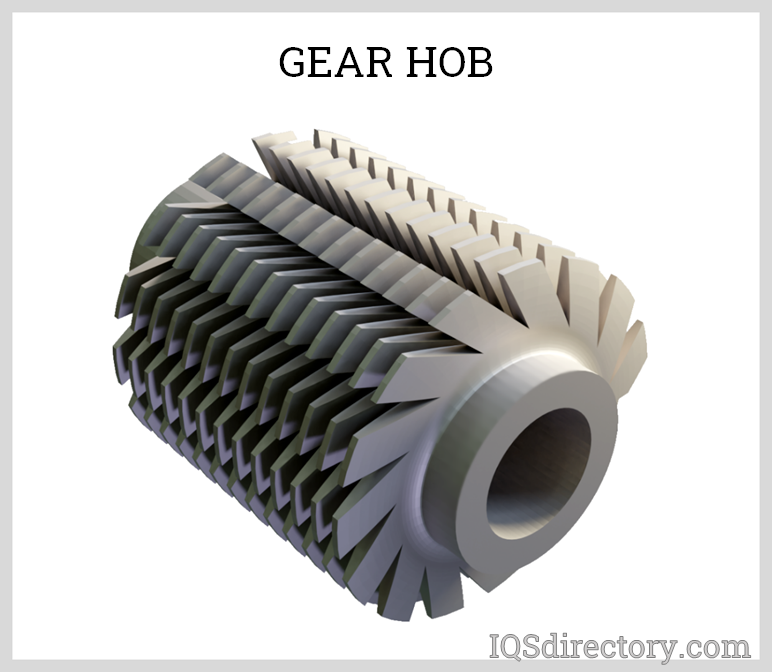

    Gear Hob

    Due to the conical shape of bevel gears, which introduces both depth and width taper, not all cutting techniques are applicable. For bevel gear cutting, metal cutting methods are generally classified into two categories: face hobbing and face milling.

    • Face Hobbing: Face hobbing is a continuous indexing gear generation process. This involves groups of cutting blades that cut all teeth gradually until the desired depth is achieved. As one blade group cuts one tooth, the next blade group enters the next tooth space. The cutting tool and the workpiece rotate simultaneously.

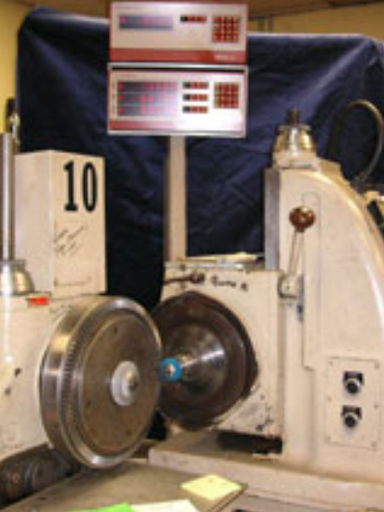

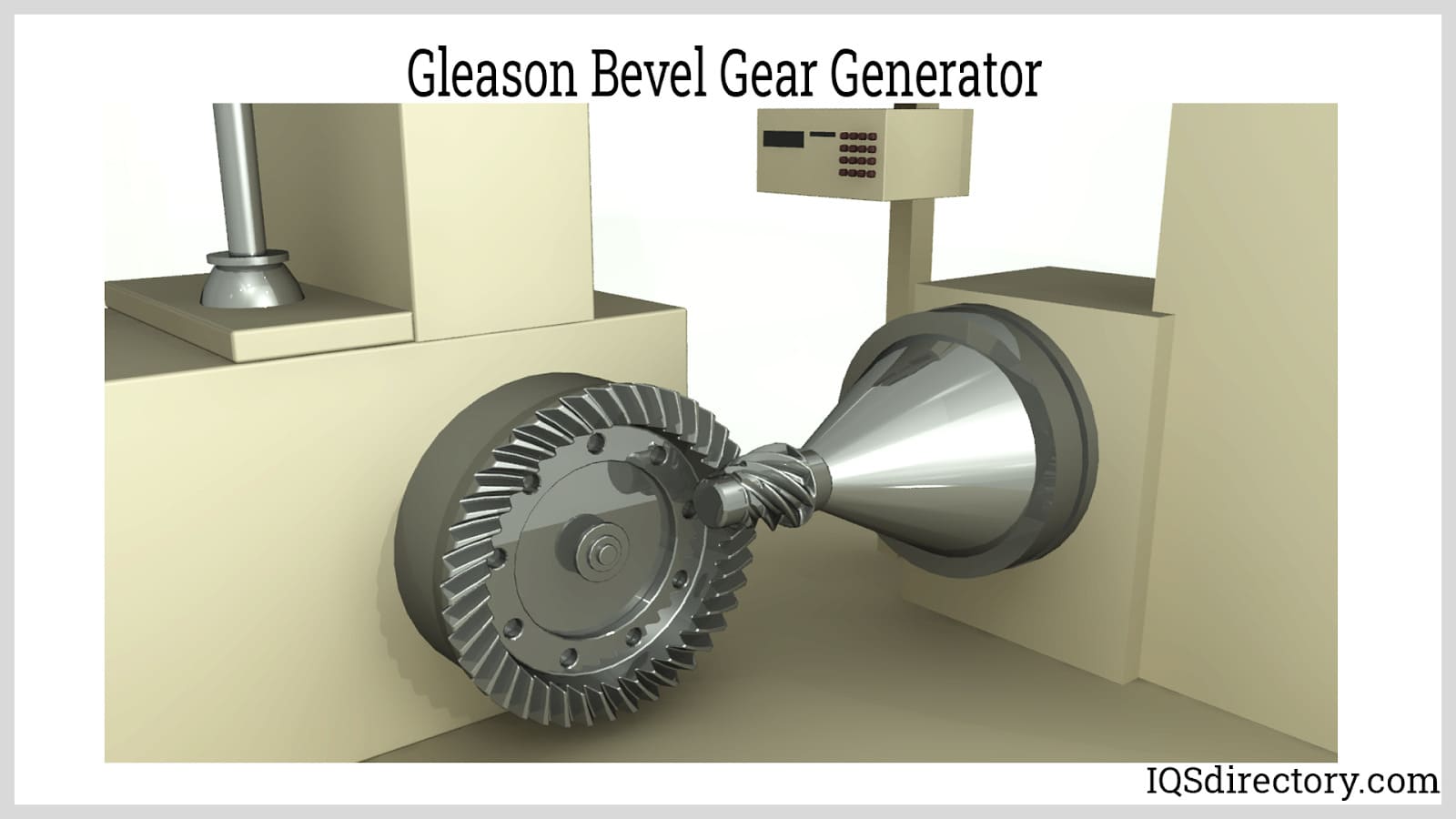

      Gleason Bevel Gear Generator

    • Face Milling: Face milling is a single indexing method where the cutting wheel or tool is fed to cut one tooth space and is then indexed to the next tooth location. The cutting tool and the workpiece are synched together to perform the cut. Each tooth is milled until all teeth are cut to the required depth. Face milling can be done by a two-tool planer, double rotary blade, single row mill cutter, or five-axis CNC milling machines.

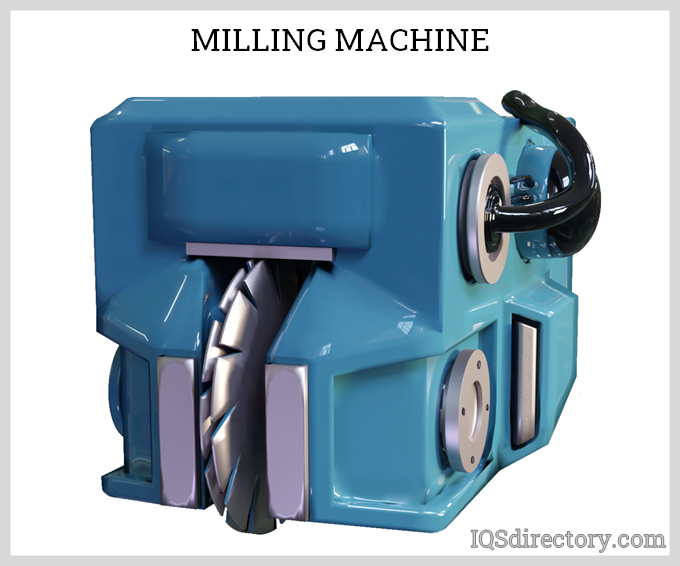

      Milling Machine

    • Powder Metallurgy: Powder metallurgy is a process in which metal powders are formed into products or materials. In its most basic form, this is achieved by pulverizing the desired material into a powder, compacting the powder into a die, and then sintering. This manufacturing process is valued due to the fact that metal removal processes are often not needed for secondary finishing, which results in less waste and, therefore lower costs. Gears that are formed by this process are lighter and make less noise, due to their naturally porous nature.

    Chapter 6: What are some applications of bevel gears?

    Bevel gears offer a straightforward and effective solution for altering the axis of rotation in drivetrains. The choice of bevel gear type, as well as the manufacturing and finishing techniques, depends on the specific application. Below are some common applications of bevel gear systems.

    Bevel Gears in Automotives

    The most popular application of bevel gears is in the differential of an automotive vehicle. The differential is the part of the front or rear axle assembly that allows the wheels to rotate at different speeds. This allows the vehicle to turn corners while maintaining handling and traction. The driveshaft is connected to the hypoid gear assembly, which consists of a pinion and a ring gear. The ring gear is mounted to the carrier with other bevel gears in a planetary gear train.

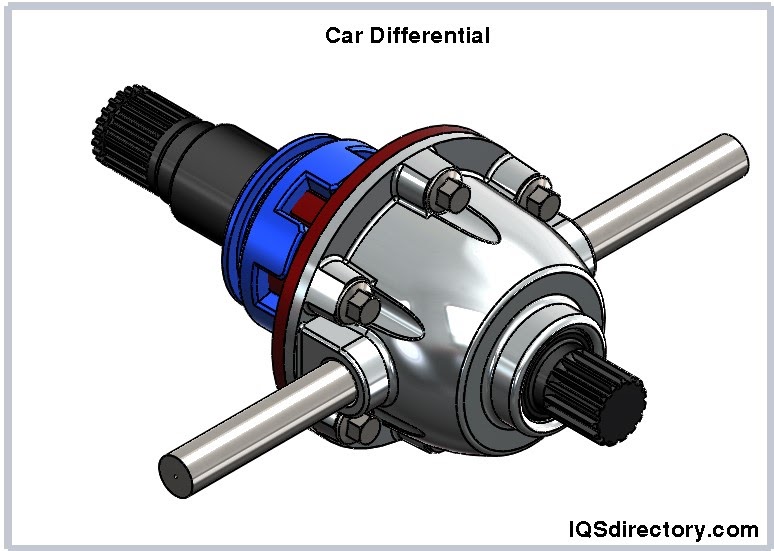

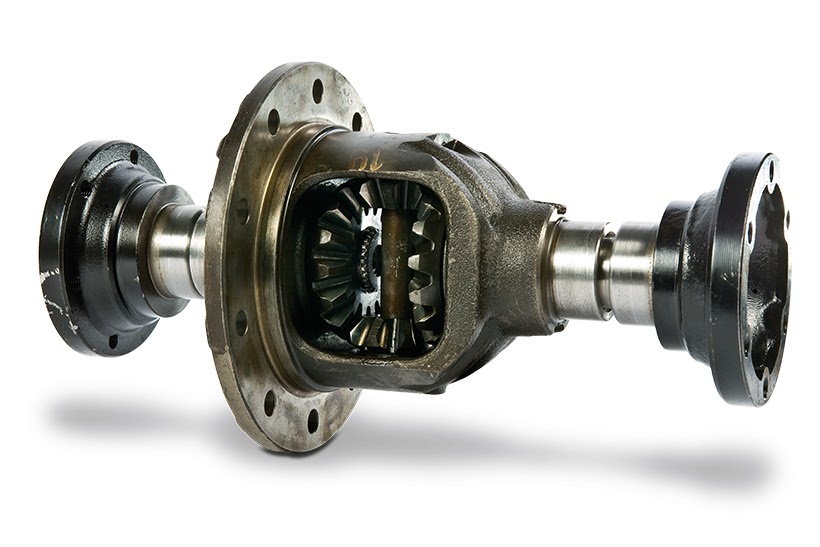

    Car Differential

    Bevel Gears in Heavy Equipment

    Bevel gears are utilized in heavy machinery for both propulsion, similar to an automotive differential system, and for driving auxiliary units.

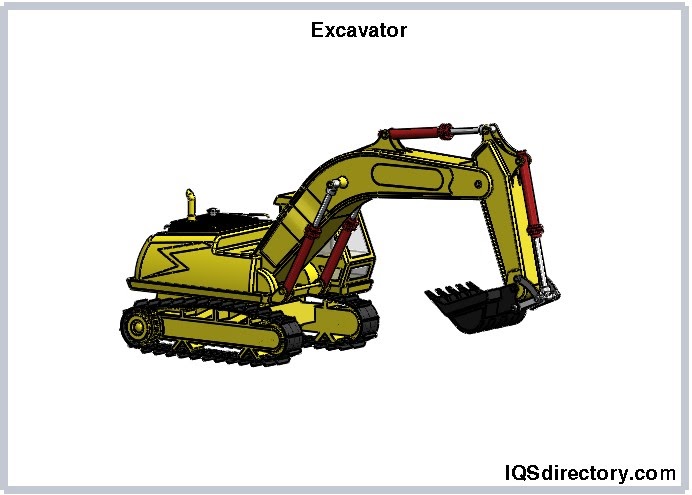

    Excavator

    Bevel Gears in Aviation

    In the aviation industry, bevel gears are employed in power transmission systems for helicopters and aircraft accessory gearboxes.

    Bevel Gears in Industrial Plant Equipment

    An example of industrial plant equipment that uses bevel gears is cooling tower fans. The motor is usually mounted at the deck of the cooling tower with the shaft axis oriented horizontally. A gearbox assembly reduces the speed and increases the torque while also reorienting the axis of rotation vertically.

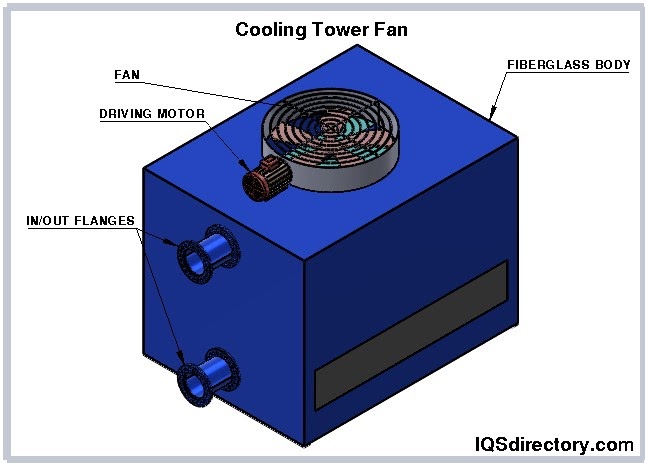

    Cooling Tower Fan

    Bevel Gears in Marine Transmission

    In marine transmissions, bevel gears are frequently utilized as part of the stern drive system. Typically, two bevel gear sets are employed between the engine and the propeller.

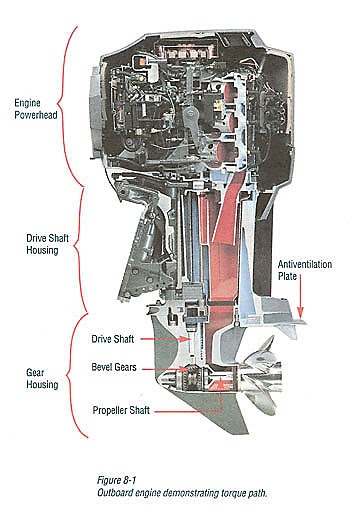

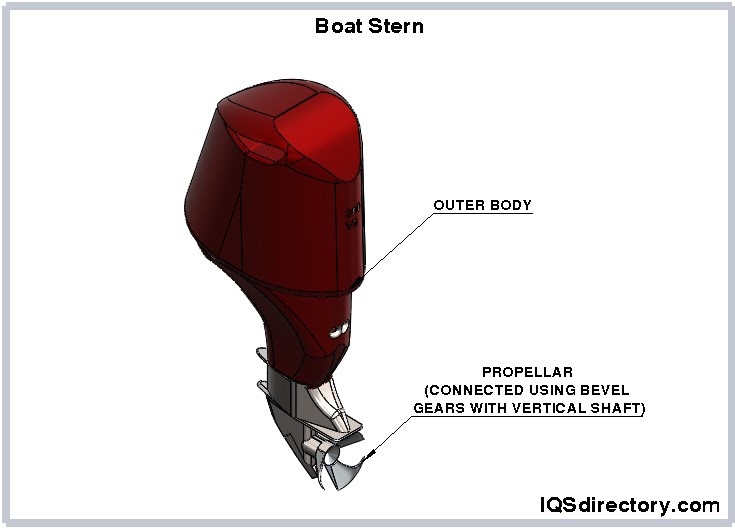

    Boat Stern

    Bevel Gears in Hand Tools

    • Drills - The use of bevel gears in drills is one of their most common uses. As the handle of the drill turns vertically, the bevel gear changes the direction to horizontal at the chuck. Additionally, bevel gears are used to control the rotation speed, making it possible to drill several types of material.
    • Planers - Planers are used to shape a workpiece using linear motion. Bevel gears in planers allow for adjustments during the planing process and displacement caused by deflection.

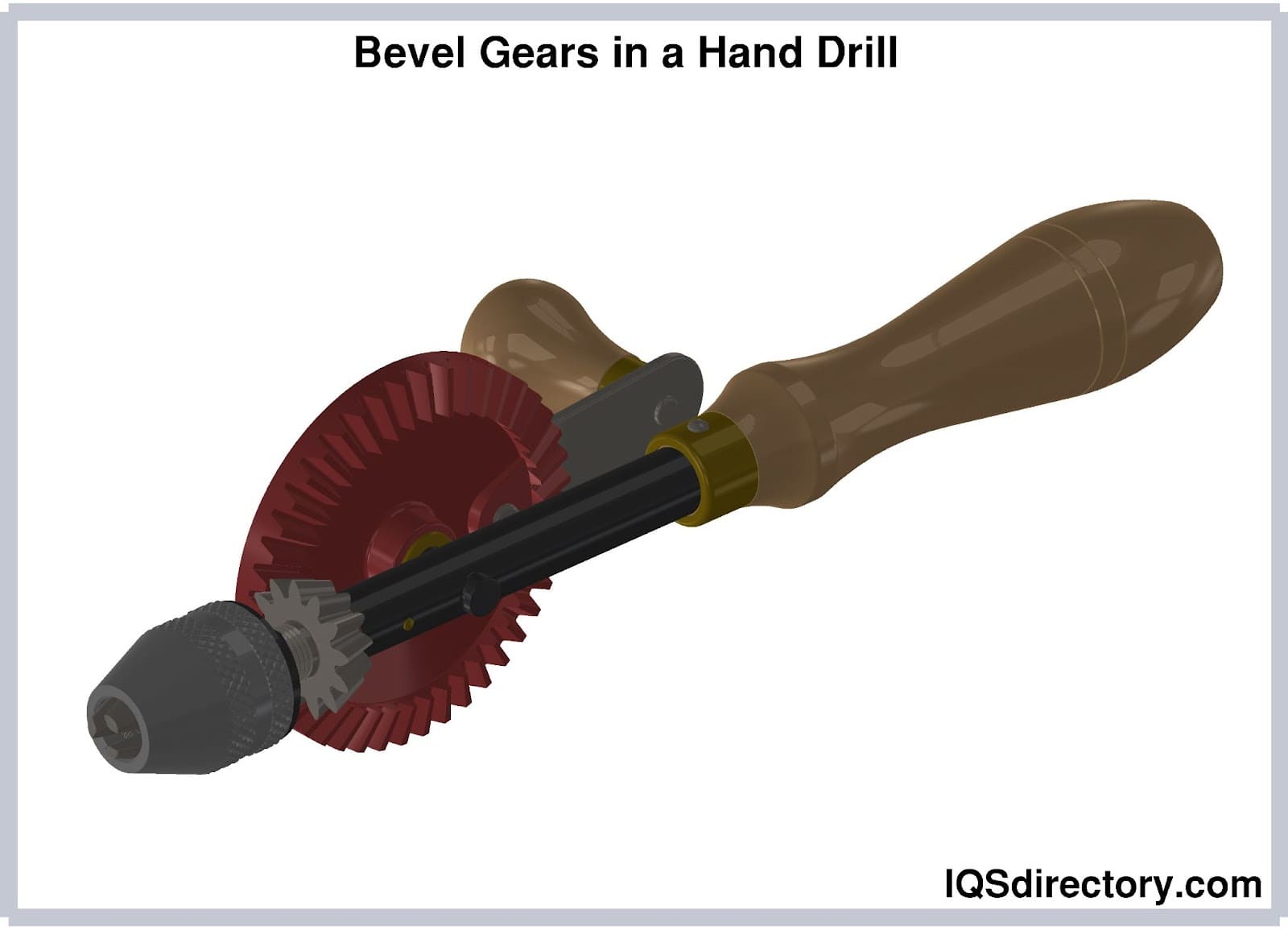

    Bevel Gears in a Hand Drill

    Conclusion

    • Bevel gears are rotating machine elements used to transmit mechanical power between two intersecting shafts, either perpendicular or at an angle. Aside from changing the axis of rotation, bevel gears can also produce a mechanical advantage by increasing the output torque.
    • Producing a mechanical advantage, however, decreases the angular speed of the driven shaft. Thus, bevel gears can also be used as speed reduction mechanisms.
    • Efficiency is the ratio between output power and input power. Power loss from bevel gears is mostly due to friction from sliding contact. This is then dissipated as heat, which is usually removed by lubricating oils.
    • Bevel gears are classified according to the tooth profile and orientation. The types of bevel gears are straight, spiral, Zerol, and hypoid.
    • Efficiencies of bevel gears range from 97-99.5%, except for hypoid bevel gears- with an efficiency of 90-98%. A larger offset of a hypoid gear causes a further decrease in efficiency.
    • There are many terms used to describe gears. The most important for bevel gears are the pitch diameter, pressure angle, shaft angle, and number of teeth. These are the key values that will define the geometry of the gear.
    • There are three main methods of manufacturing gears: cutting, casting, and forming. Among the three, cutting is the most widely used. Powder metallurgy is also used.
    • Gear cutting is further broken down into several methods. One is by using a rotating threaded tool such as a hob. Next is by using a rotating or reciprocating cutting tool that mates together with the gear blank. Third is cutting using a rotating disc wheel as seen in milling processes. Lastly is gear cutting using a linear shaper or broaching tool.
    • The most popular application of bevel gears is the automotive differential. This is seen not only in automotive vehicles, but also in light and heavy equipment. Other main uses are in the aviation and marine industries.

    Leading Manufacturers and Suppliers

      Mouse Over Company Names to see their previews

      Table of Contents

      What is a Bevel Gear?

      Efficiency of a Bevel Gear

      Types of Bevel Gears

      Geometry and Terminologies

      Manufacturing Processes

      Bevel Gear Applications

      Loading Leading
      Category Companies:

      • IQS Homepage
      • All Articles
      • GET YOUR COMPANY LISTED

      Related Posts

      Helical Gears

      Helical Gears

      A gear is a particular kind of simple machine that controls the strength or direction of a force. A gear train is made up of multiple gears that are combined and connected by their teeth. These gear trains allow energy to move from...

      Planetary Gears

      Planetary Gears

      A planetary gear is an epicyclic gear that consists of a central gear, referred to as the sun gear and serves as the input gear, which has three or more gears that rotate around it that are referred to as planets...

      Plastic Gears

      Plastic Gears

      A plastic gear is a toothed wheel made up of engineering plastic materials that work with others to alter the relation between the speed of an engine and the speed of the driven parts. The engineering plastic materials used in manufacturing plastic gears can be...

      Spur Gears

      Spur Gears

      A spur gear is a cylindrical toothed gear with teeth that are parallel to the shaft and is used to transfer mechanical motion and control speed, power, and torque between shafts. They are the most popular types of cylindrical gears and...

      Worm Gears

      Worm Gears

      A worm gear is a staggered shaft gear that creates motion between shafts using threads that are cut into a cylindrical bar to provide speed reduction. The combination of a worm wheel and worm are the components of a worm gear...

      Types of Gears

      Types of Gears

      A rotary circular machine with a tooth in its structure and is used to transfer torque and speed from one shaft to another is called a gear. Gears are also known as cogs and have cut teeth in the cogwheel or gear wheel...

      Ball Screws

      Ball Screws

      Ball screws are mechanical linear actuators that consist of a screw shaft and a nut that contain a ball that rolls between their matching helical grooves. The primary function of ball screws is to convert rotational motion to linear motion. Ball nuts are used in...

      Lead Screw

      Lead Screw

      A lead screw is a kind of mechanical linear actuator that converts rotational motion into linear motion. Its operation relies on the sliding of the screw shaft and the nut threads with no ball bearings between them. The screw shaft and the nut are directly moving against each other on...

      Powder Metallurgy

      Powder Metallurgy

      Powder metallurgy is a manufacturing process that produces precision and highly accurate parts by pressing powdered metals and alloys into a rigid die under extreme pressure. With the development and implementation of technological advances...

      Thread Rolling

      Thread Rolling

      Thread rolling is a type of threading process which involves deforming a metal stock by rolling it through dies. This process forms external threads along the surface of the metal stock...

      © IQS Directory . All Rights Reserved.
