Introduction
This article contains everything you need to know about magnetic flow meters.
You will learn more about topics such as:
What is a magnetic flow meter?
How do magnetic flow meters work
Types of magnetic flow meters
Industries that use magnetic flow meters
And much more …

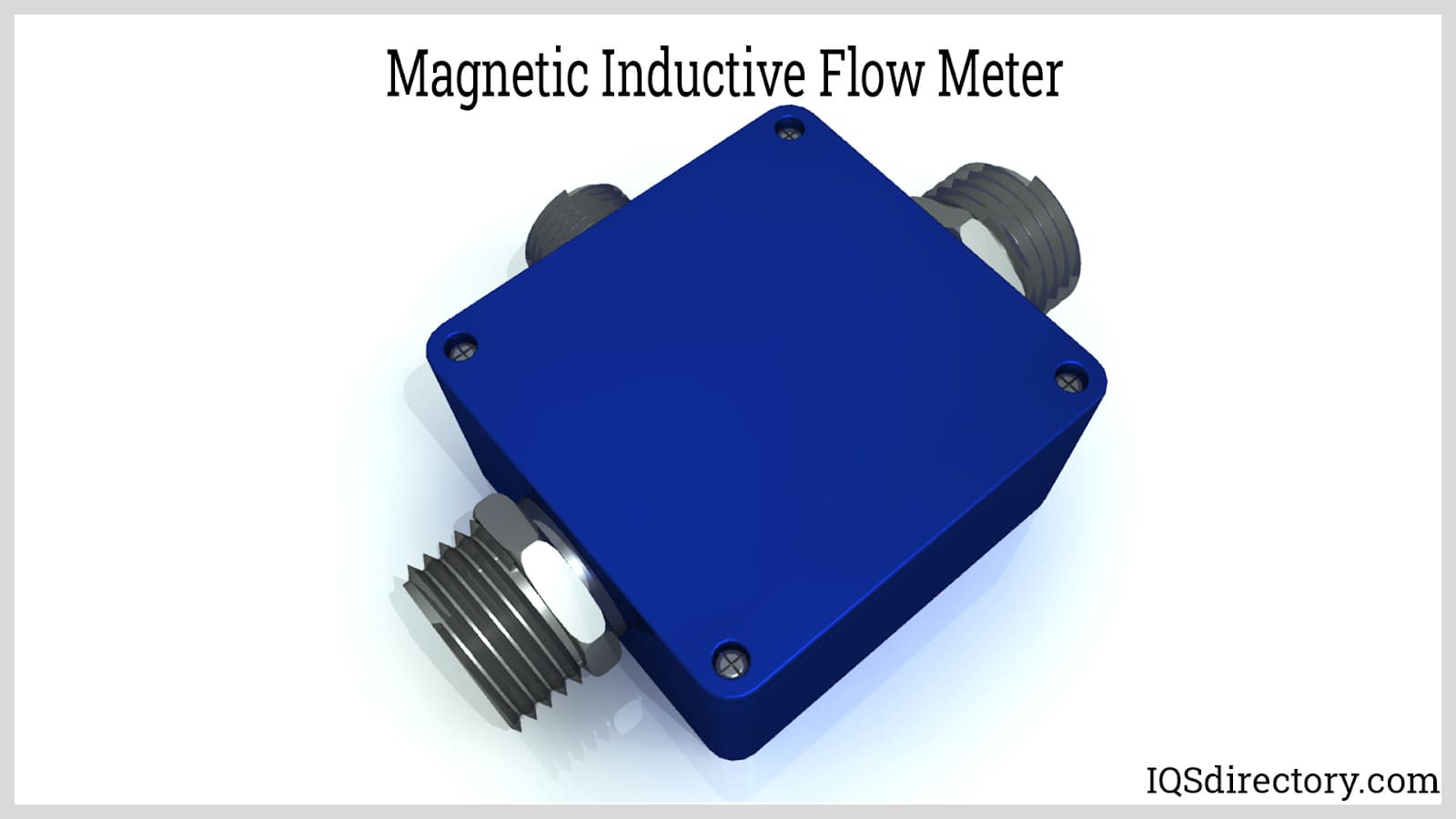

Chapter One: What is a Magnetic Flow Meter?
A magnetic flow meter is a type of mass or volumetric flow meter that leverages electrodes attached to the fluid flow to determine the velocity within a pipe or tube. This innovative design eliminates the necessity for moving components, permitting accurate readings even in high-pressure environments without concerns about leakage or seepage.
These flow meters operate with fluids possessing a conductivity of at least three microsiemens, utilizing Faraday's law to measure both voltage and fluid velocity. The required voltage is generated by maintaining the fluid's conductivity within specific ranges, usually between 3 to 10 microsiemens, though some manufacturers may stipulate higher minimum conductivity levels.
Magnetic flow meters are renowned for delivering precise and reliable measurements regardless of variations in temperature, pressure, or liquid viscosity and density. They are especially adept at efficiently measuring viscous and greasy substances.
Engineers often refer to magnetic flow meters using different terms, such as electromagnetic meters and magmeters, with "magmeters" being the most frequently used designation.
Chapter 2 - How do Magnetic Flow Meters Work?
A magnetic flow meter, also known as a mag meter or electromagnetic flow meter, is a modern industrial instrument designed to provide accurate and reliable flow measurement of conductive fluids. This advanced flow technology operates based on the magnetic field it generates, which is used to measure the flow rate of a conductive liquid such as water, wastewater, slurries, and chemical solutions. As the flow velocity of the fluid increases within a pipeline, the voltage produced by the moving conductive liquid also increases, sending a measurable signal to the meter’s electronics. In essence, magnetic flow meters are widely utilized to monitor and control the velocity and volume of various electrically conductive liquids as they move through a pipe or conduit, making them indispensable in industries such as water treatment, chemical processing, food and beverage, pulp and paper, and pharmaceuticals.

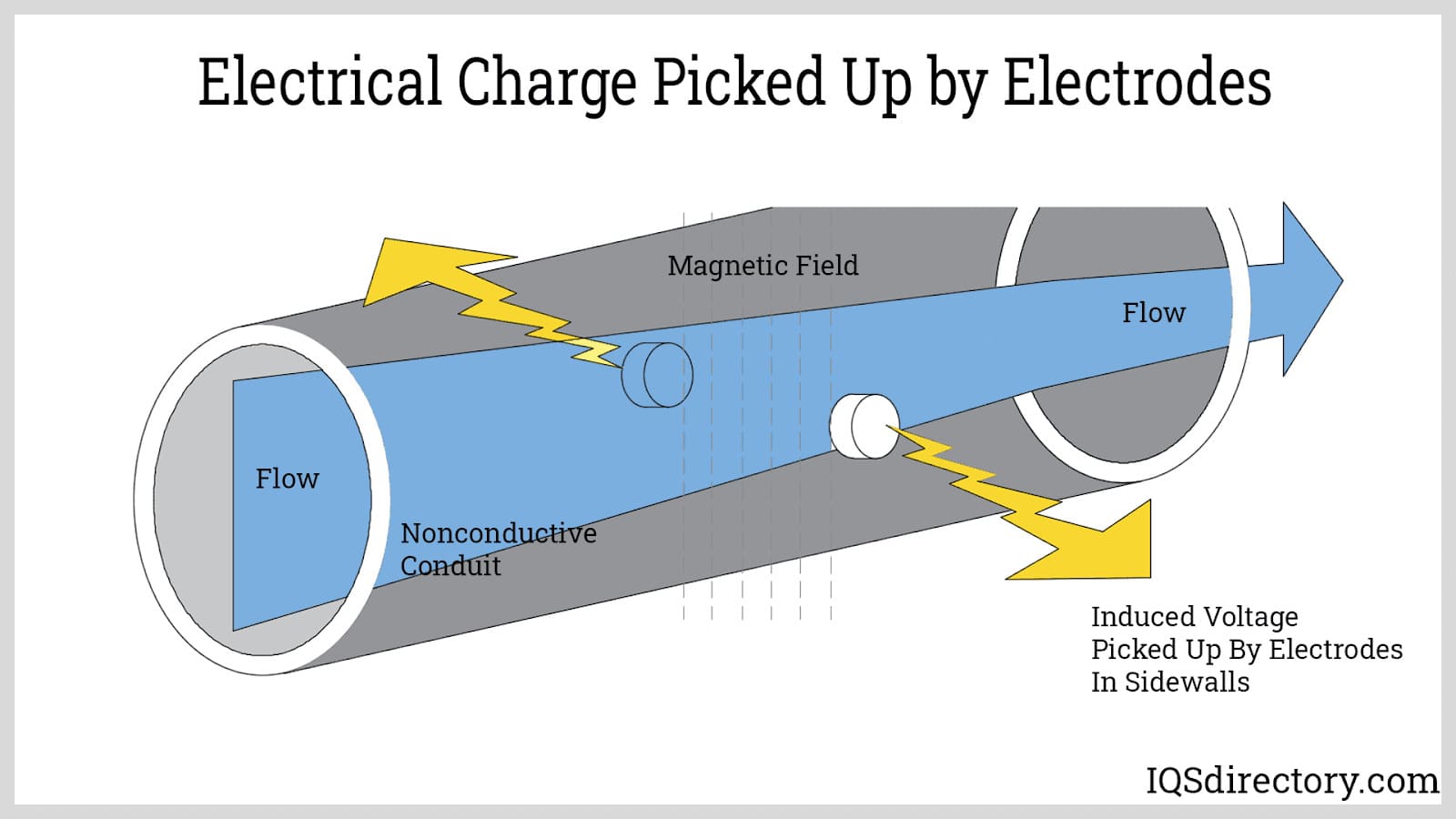

The fundamental principle behind a magnetic flow meter is rooted in Faraday's Law of Electromagnetic Induction, which states that the induced signal voltage (E) is directly proportional to the flow velocity (v) of the liquid, the magnetic field strength (B), and the distance (D) between the electrodes. For this flow measurement to be accurate, the measured fluid must be electrically conductive—typically with a minimum threshold of 5 μS/cm—making mag meters ideal for measuring the flow of saline water, acids, bases, and other conductive liquids, but unsuitable for hydrocarbons or distilled water.
Renowned scientist Michael Faraday demonstrated that a magnetic field generates an electrical current when a conductor moves perpendicularly through the field. This phenomenon induces an electromagnetic field (EMF) in the conductor, which in the context of magnetic flow meters, enables precise detection of volumetric flow without any moving parts, reducing maintenance and ensuring long-term reliability.

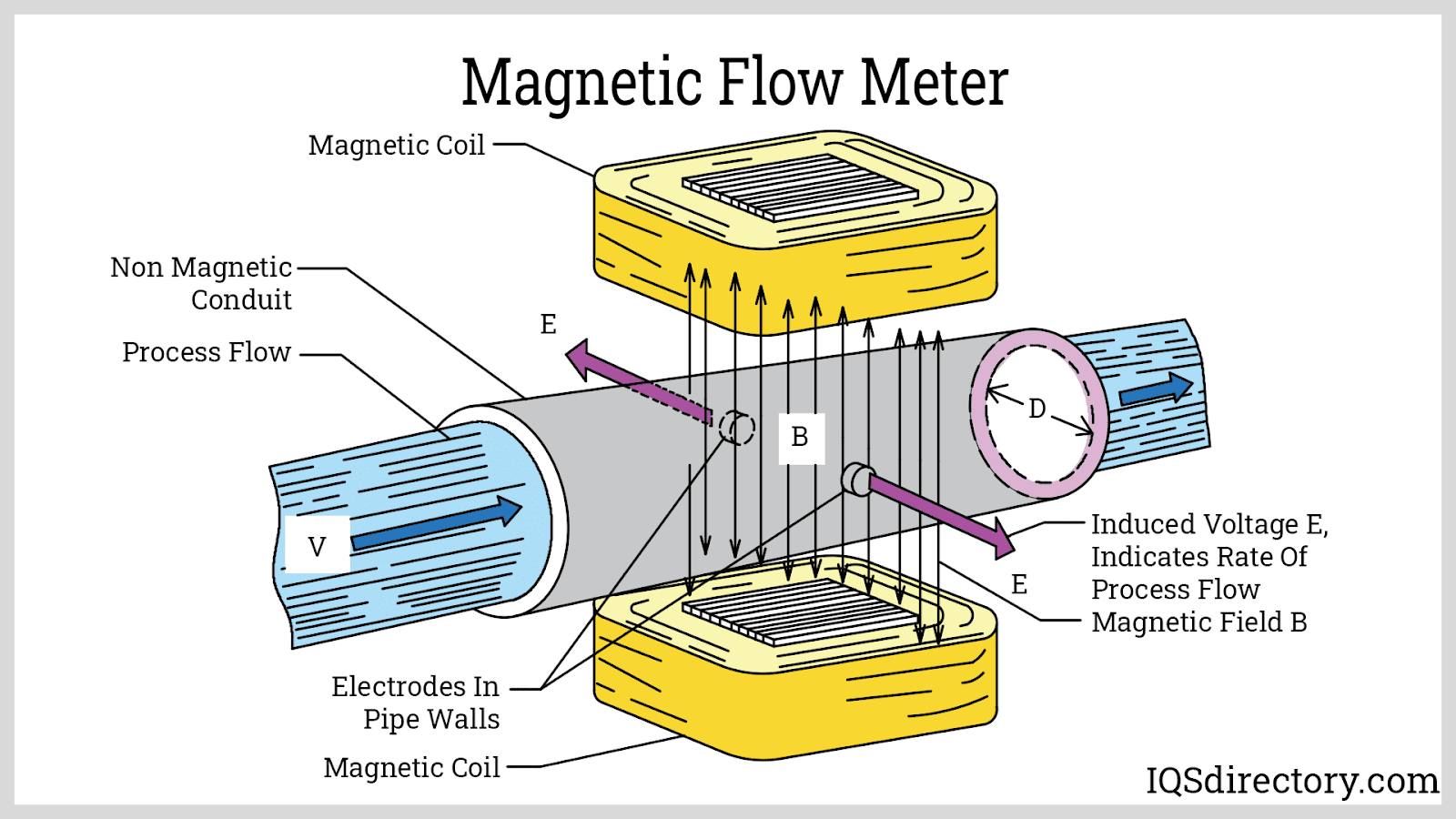

Magnetic Field Coils
Two specialized field coils are strategically positioned inside the magnetic flow meter using robust rods to create a uniform magnetic field across the measurement tube. Modern electromagnetic flow meters utilize either AC or pulsed DC coils, depending on the application and required measurement stability. Precisely placed electrodes, installed at right angles in the sides of the pipe or sensor body, pick up the electrical voltage generated by the moving liquid. To ensure accurate readings and prevent electrical short circuits, a durable and chemically-resistant liner—often made from PTFE, rubber, or ceramic—is installed inside the sensor to isolate the conductive liquid from the metal meter body.
Flow Measurement

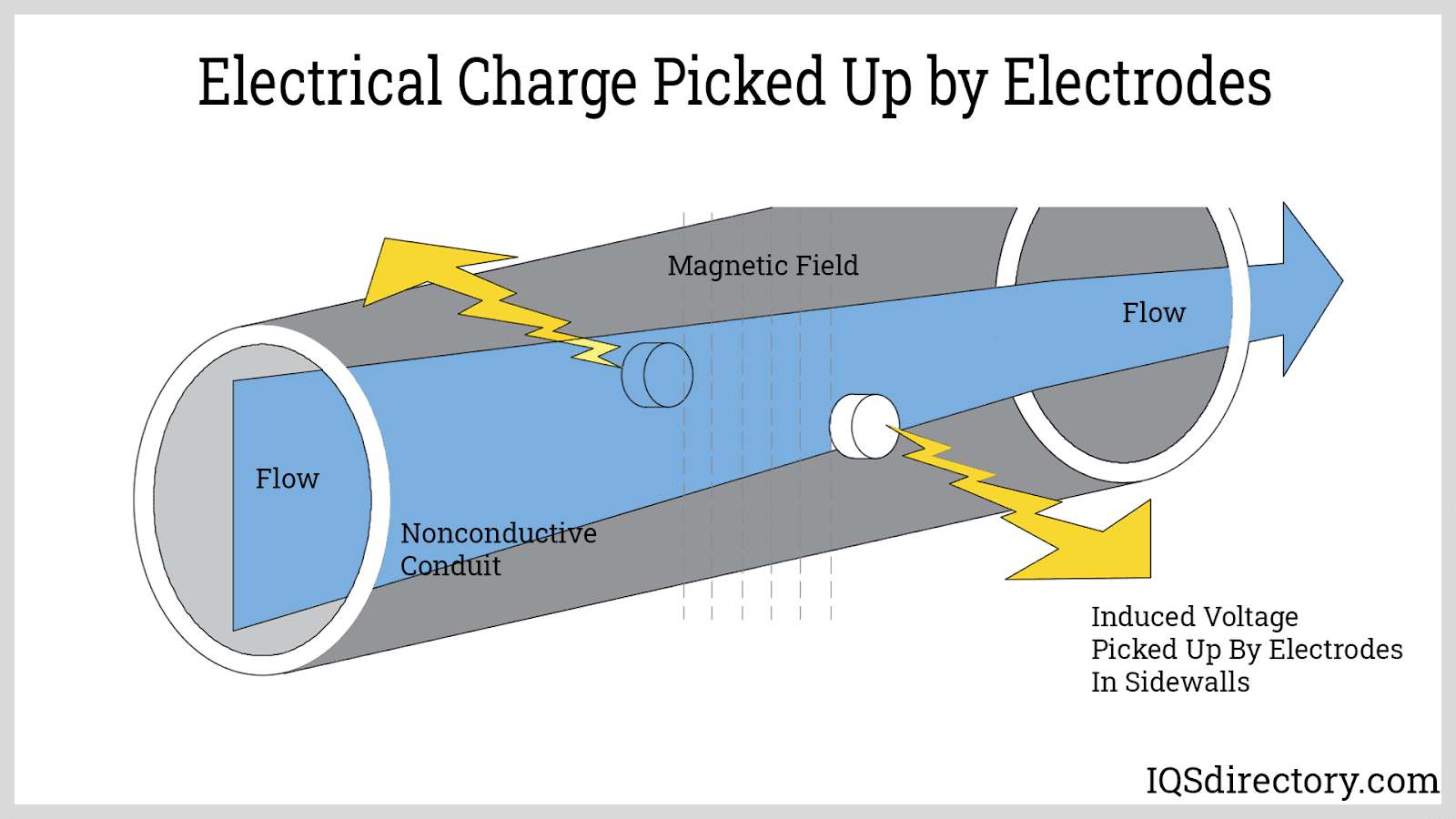

When a pipeline or tube is empty, there is no induced voltage between the electrodes, and the electrically charged particles are distributed evenly throughout the space. As fluid begins to flow, the magnetic field generated by the coils interacts with the moving conductive liquid. This interaction causes the separation of charged particles: negative particles accumulate on one side of the pipe, while positive particles collect on the opposite side. This separation produces a quantifiable electrical voltage proportional to the fluid velocity that the electrodes detect. The magnitude of this induced voltage is a direct indicator of the volumetric flow rate, which is continuously monitored and measured by the flow meter’s electronics.
Non-intrusive measurement: With no moving parts or obstructions in the flow path, mag meters are not affected by suspended solids, pressure loss, or viscosity, making them ideal for contaminated or abrasive fluids.
Bidirectional flow detection: The symmetrical design of the electromagnetic coils enables accurate flow measurement in both directions, allowing for flexible installation and advanced process monitoring.
Accuracy and repeatability: High-precision magnetic flow meters regularly achieve accuracy ratings of ±0.2% to ±2% of measured value, making them highly reliable in critical process control applications.

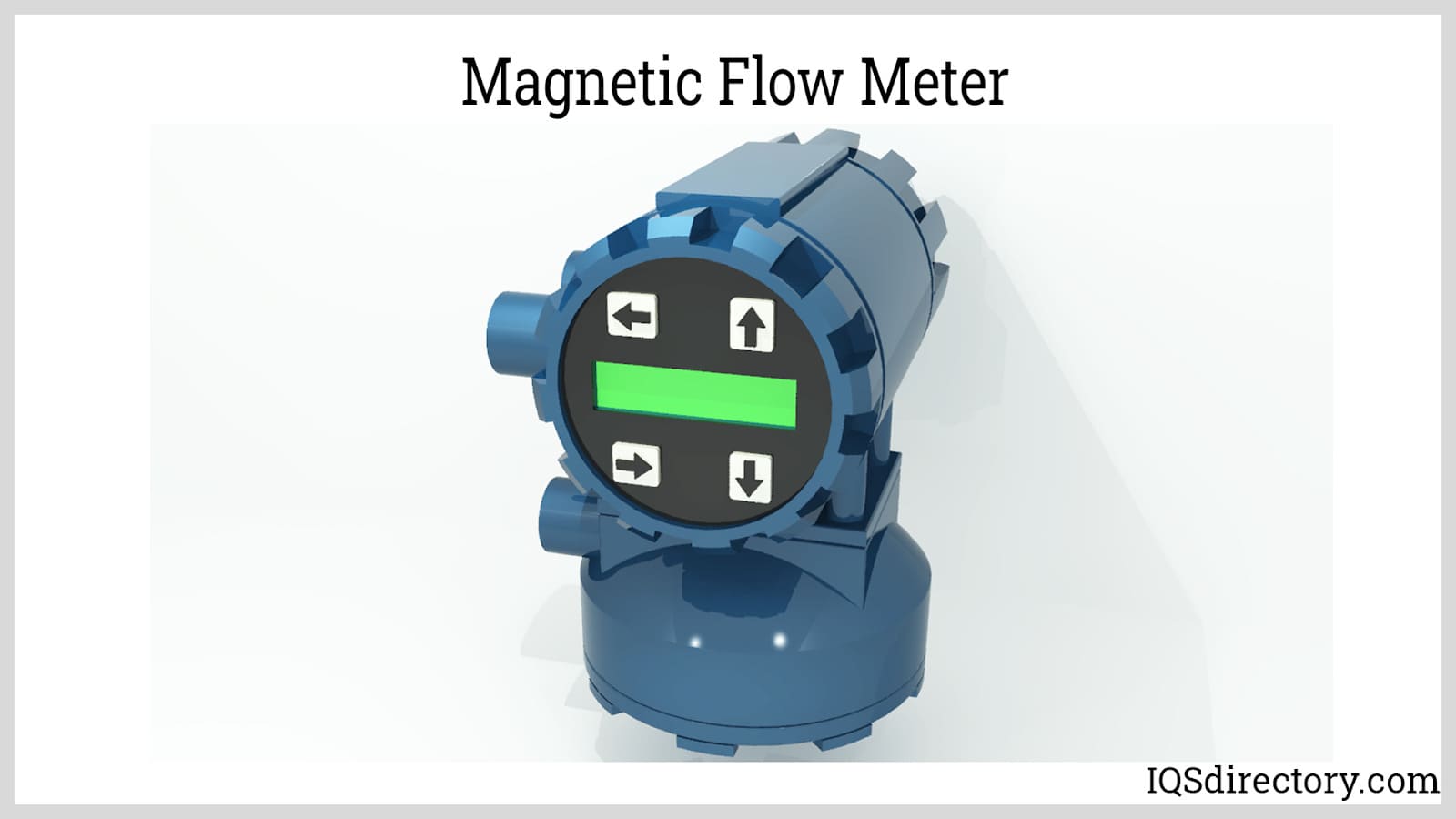

Meter
The magnetic flow meter determines both instantaneous flow rate and totalized flow by analyzing the induced voltage across the electrodes, combined with the set magnetic field strength and electrode spacing. This real-time data enables the device to measure the flow of a broad range of conductive fluids—including potable water, caustic chemicals, viscous polymers, slurries, and even corrosive substances used in process industries.
The induced voltage is transmitted via shielded electrode leads to the flow meter's transmitter unit. This transmitter then amplifies, filters, and converts the analog voltage into a digital flow velocity signal. Modern mag meters often integrate remote monitoring, digital communication protocols (such as HART, Profibus, or Modbus), and diagnostic features, allowing for easy integration into distributed control systems (DCS) or SCADA systems. By multiplying the measured velocity with the pipe's calibrated cross-sectional area, the meter precisely calculates and displays the volumetric flow rate, often in units of gallons per minute (GPM), liters per second (L/s), or cubic meters per hour (m³/h).

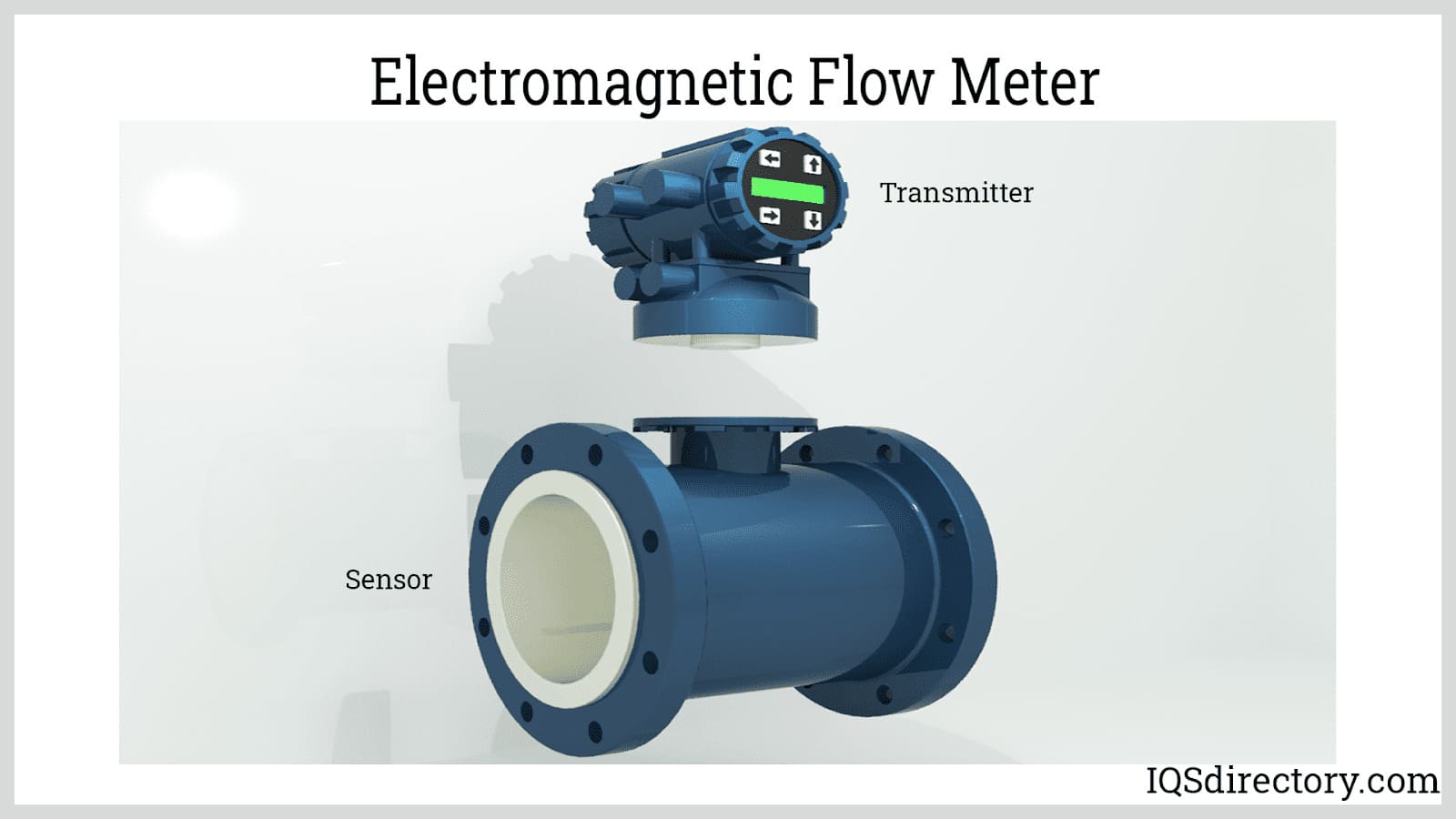

Parts of a Magnetic Flow Meter
A key benefit of electromagnetic flow meters is their robust yet simple design. They consist of two primary components: the sensor (flow tube or detector) and the transmitter (signal converter). The sensor, equipped with field coils, electrodes, and an insulating liner, is mounted directly on the process pipe where it interacts with the flowing medium. The transmitter, typically mounted atop or remotely from the sensor, analyzes the electrode signals, applies necessary temperature or conductivity compensation, and outputs standardized signals (e.g., 4-20mA, pulse, or digital). This modular design streamlines installation, commissioning, and maintenance, making mag meters a popular choice for continuous flow monitoring in municipal water facilities, industrial plants, and chemical processing units.
When selecting a mag meter, key considerations include pipe size, fluid conductivity, process temperature, chemical compatibility of the liner and electrodes, and specific industry standards. Well-known magnetic flow meter manufacturers offer a variety of models suited for different industrial applications, from hygienic sanitary designs to explosion-proof enclosures suitable for hazardous locations.

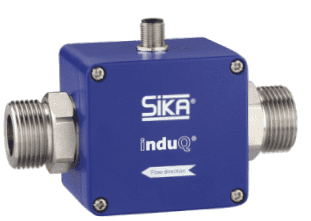

Leading Manufacturers and Suppliers
In summary, magnetic flow meters offer contactless, obstruction-free volumetric flow measurement for a variety of conductive fluids. Their durability, accuracy, and adaptability for harsh environments position them as a top choice in flow instrumentation for process automation, water and wastewater management, and chemical dosing systems. As you evaluate the best flow meter solution for your facility, consider factors such as overall system compatibility, desired connectivity, operational environment, and support from established magnetic flow meter manufacturers and suppliers.
Chapter 3 - What are the different types of magnetic flow meters?
Different industries that manage flow rates need metering devices tailored to their specific operational requirements. This principle also applies when selecting an electromagnetic flow meter. The variety of electromagnetic flow meters available ranges from basic, cost-effective models to more advanced and precise ones, with the latter being more expensive due to their complexity and accuracy.
There are three common types of electromagnetic flow meters: insertion, in-line, and low flow. The choice among these types depends on the specific needs of the application and the type of data required.
Insertion Magnetic Flow Meters
Insertion magnetic flow meters can be installed through a ball valve or by drilling a hole in the pipe where hot tap or insertion installation is desired. They can be installed in pipelines with an internal diameter of two to 360 inches through a small tapping. As with other magnetic flow meters, insertion magnetic flow meters have an electromagnetic sensor and flow converter. A major benefit of insertion flow meters is that they can be installed where there is limited space.
To install the flow meter, it is screwed into a pipe joint. During installation, ensure that the indicators are aligned parallel to the pipe and the direction of the fluid flow. The probe should be inserted so that the sensor is centered within the pipe, following the meter’s installation depth guidelines.

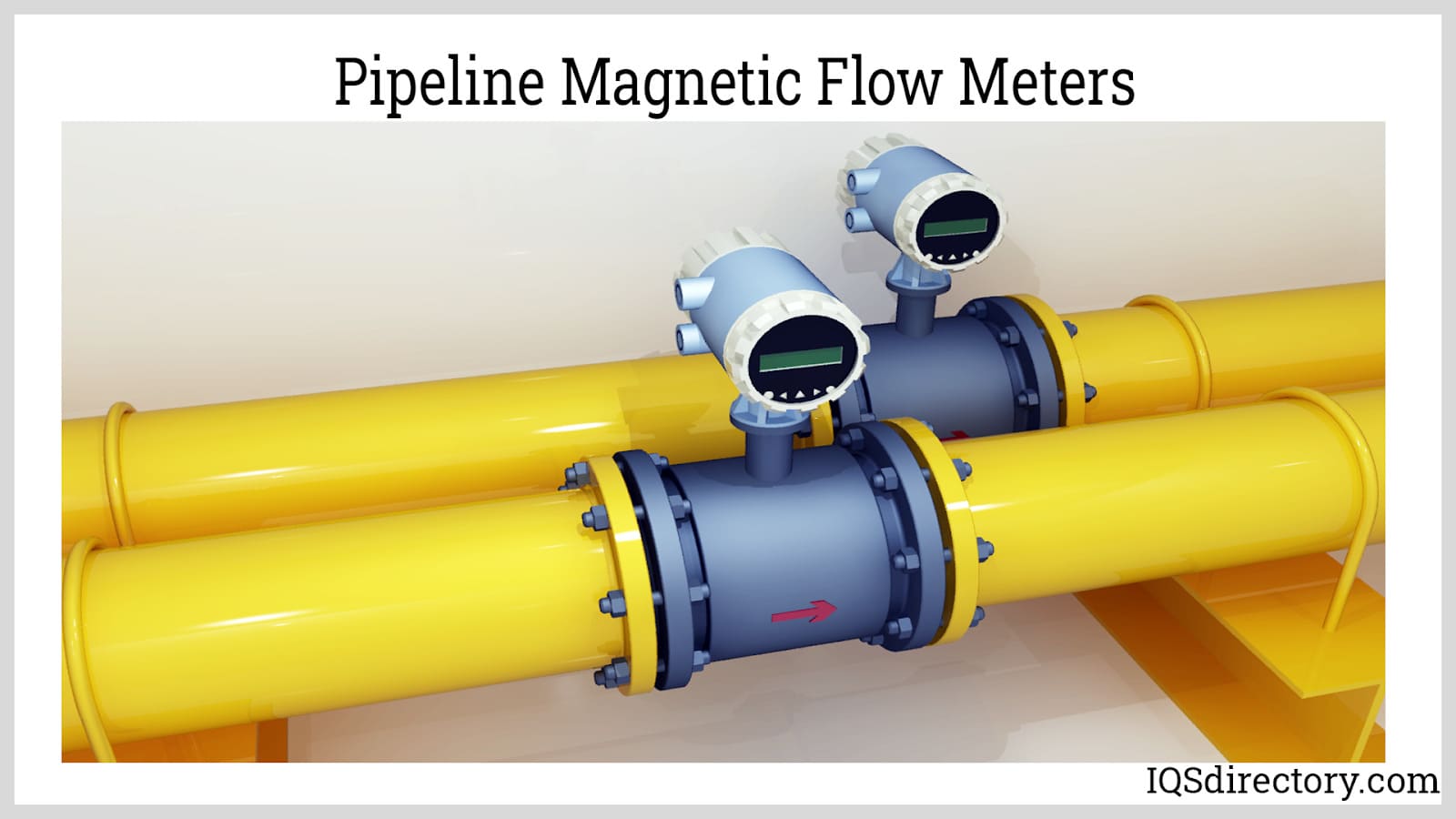

In-Line Flow Meters
In-line flow meters are installed by cutting a section out of the pipe and inserting the flow meter directly into the pipe. It is essential that the diameter of the flow meter sensor matches the pipe diameter or that an adapter is used. Flanges and gaskets are used to secure the flow meter in place. In-line magnetic flow meters are available in various sizes, ranging from portable handheld models to larger units that require mechanical assistance for installation.
When installing the meter, ensure that the flow direction aligns with any directional arrow on the meter, if present. Because in-line electromagnetic flow meters are sensitive to acoustic interference, they should be installed away from motors, transformers, and other sources of electromagnetic fields.
Low Flow Magnetic Flow Meters
Measuring very slow-moving liquids, such as those used in chemical injections, can be challenging. For these situations, low flow magnetic flow meters are utilized, especially with pulsating metering pumps. These specialized meters are designed to handle fluids containing particulate matter without causing blockages or jams in the flow pipe. Their construction enables them to accurately measure fluids with a wide range of viscosities and densities.
Electromagnetic Flow Meter Installation

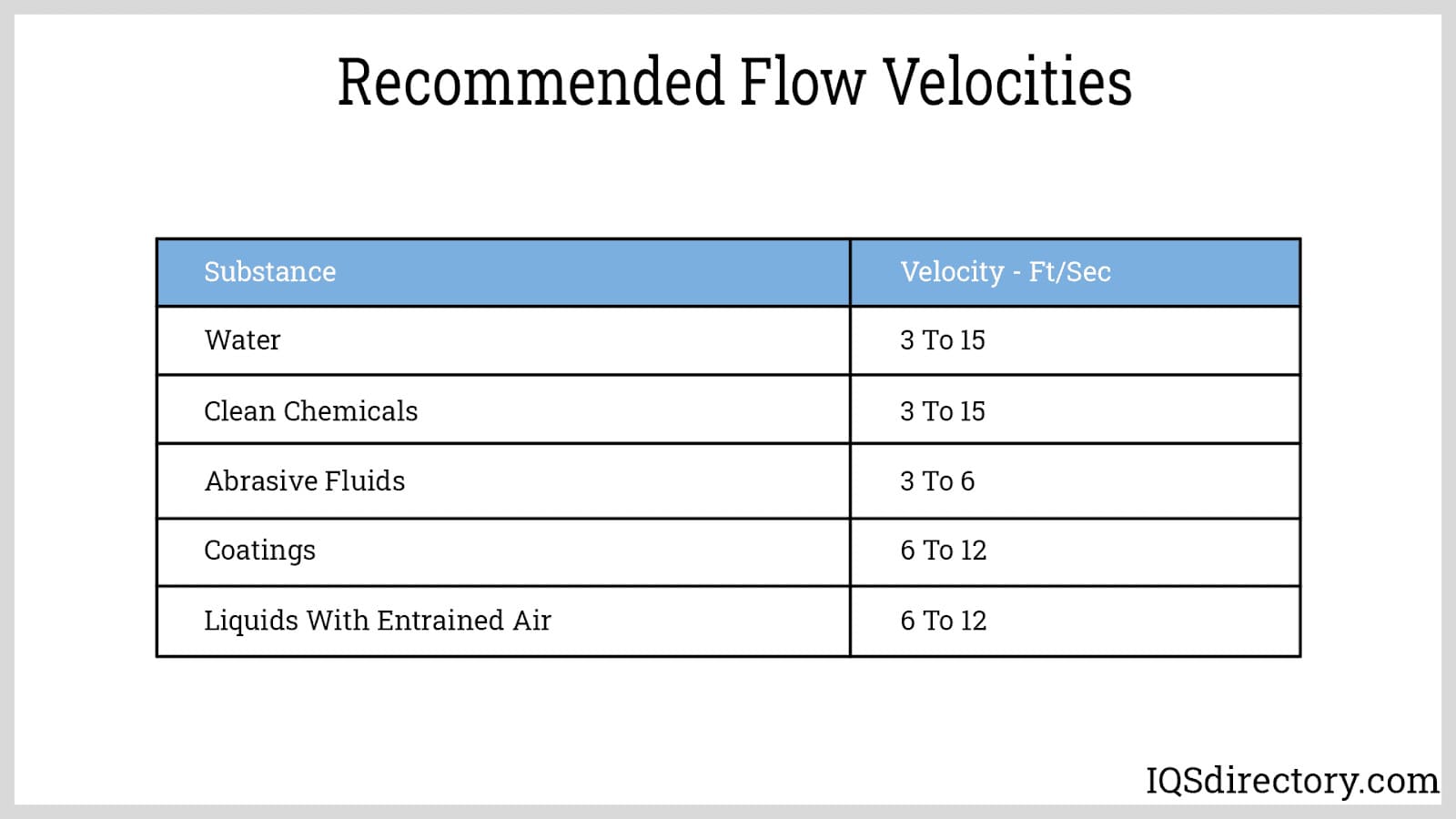

When choosing a magnetic flow meter, several factors must be considered. One key criterion is the flow velocity of the fluid. While there are many variations in fluid types, some standard norms apply. The properties of fluid flow are determined by the ratio of inertial force to drag force. Magnetic flow meters measure this flow rate in feet per second.
Horizontal and Vertical Installation
Magnetic flow meters are most commonly installed horizontally, ensuring that the meter remains consistently filled with liquid and that the electrodes are aligned in the axial direction. To fit smaller diameter magnetic flow meters to the flow pipe, pipe fitting reducers can be used without affecting the accuracy of the meter’s readings.
The meter must be properly grounded and maintain electrical contact with the liquid being measured. Factors such as viscosity, temperature, and the presence of sludge or grease do not impact the accuracy of the meter's readings.
Full Pipeline
During operation, the pipeline must be completely filled with fluid for the magnetic flow meter to function correctly.
Location
Magnetic flow meters should be installed with straight pipe sections both before and after the sensors, avoiding placement between elbows, valves, and pumps.

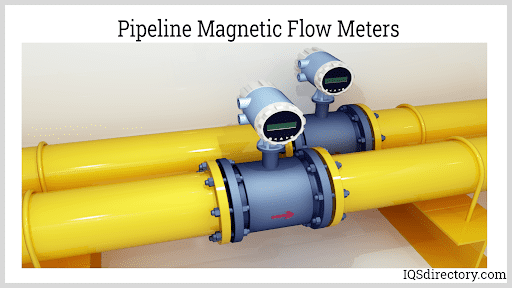

Serial Installation
When installing multiple magnetic flow meters, ensure that they are spaced at least two sensor diameters apart. If installing sensors in parallel, they should be positioned more than one meter apart from each other.
Grounding

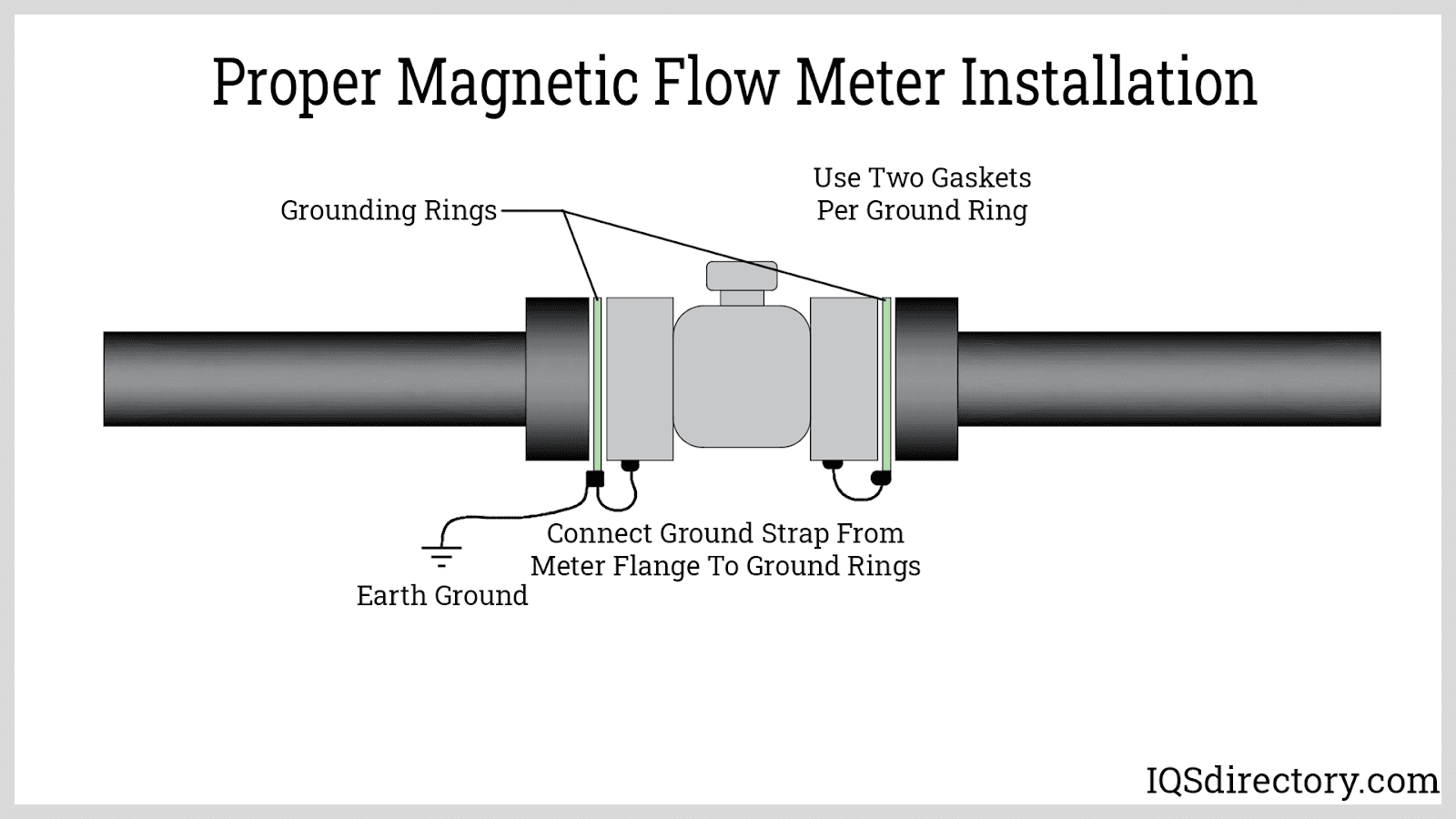

Magnetic flow meters generate very small signals and thus require proper grounding to ensure accurate measurements.

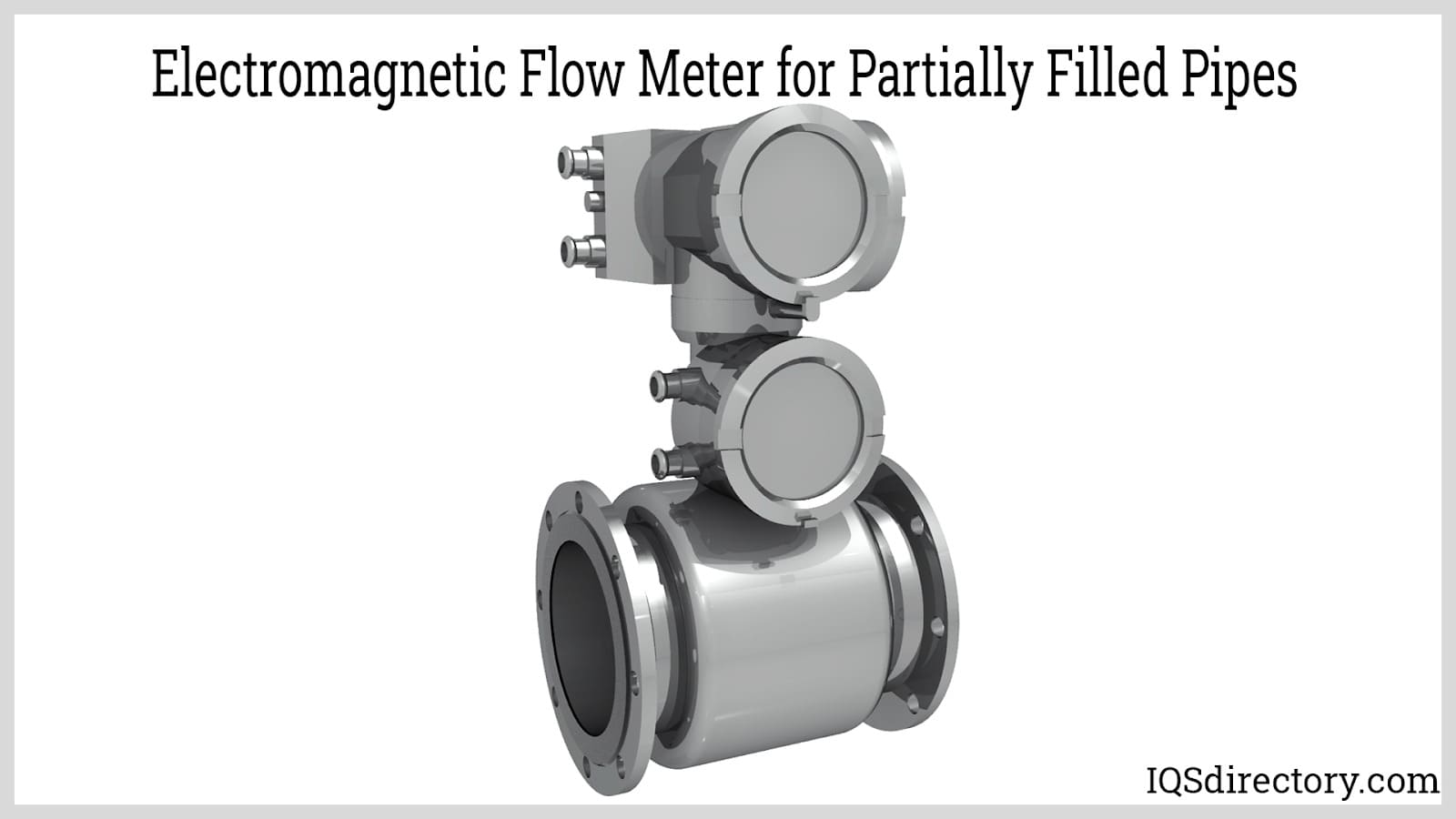

Electromagnetic Flow Meters for Partially Full Pipes
For pipes that are not fully filled, magmeter electrodes are positioned at the bottom of the pipe, at a distance of 0.1 times the pipe diameter, ensuring they remain submerged in the fluid. The flow meter uses capacitance level sensors embedded in the pipe liner to measure the flow rate. It is crucial for the flow meter to include compensation for wave action, calibration for full pipe, no flow or static conditions, and operation with partially filled pipes.
Electromagnetic flow meters designed for partially full pipes feature a magnetic field distribution that allows for precise measurement at both full and low levels. They are particularly suited for measuring municipal and industrial wastewater in pressureless transport lines. These flow meters are bidirectional and intended for use in gravity pipelines and sewers.
Chapter 4 - What are the uses for magnetic flow meters?
Magnetic flow meters are primarily used to measure the flow rate of conductive fluids and dirty liquids. While these are their main applications, they can also measure the volumetric flow of other fluids due to their ease of maintenance and lack of moving parts.
However, a key limitation is that the fluid must be conductive for the meter to function. This requirement may restrict the use of magmeters with certain fluids. Among the various types of flow meters available, electromagnetic meters are the third most commonly used and offer the highest precision.
Slurry Measurement

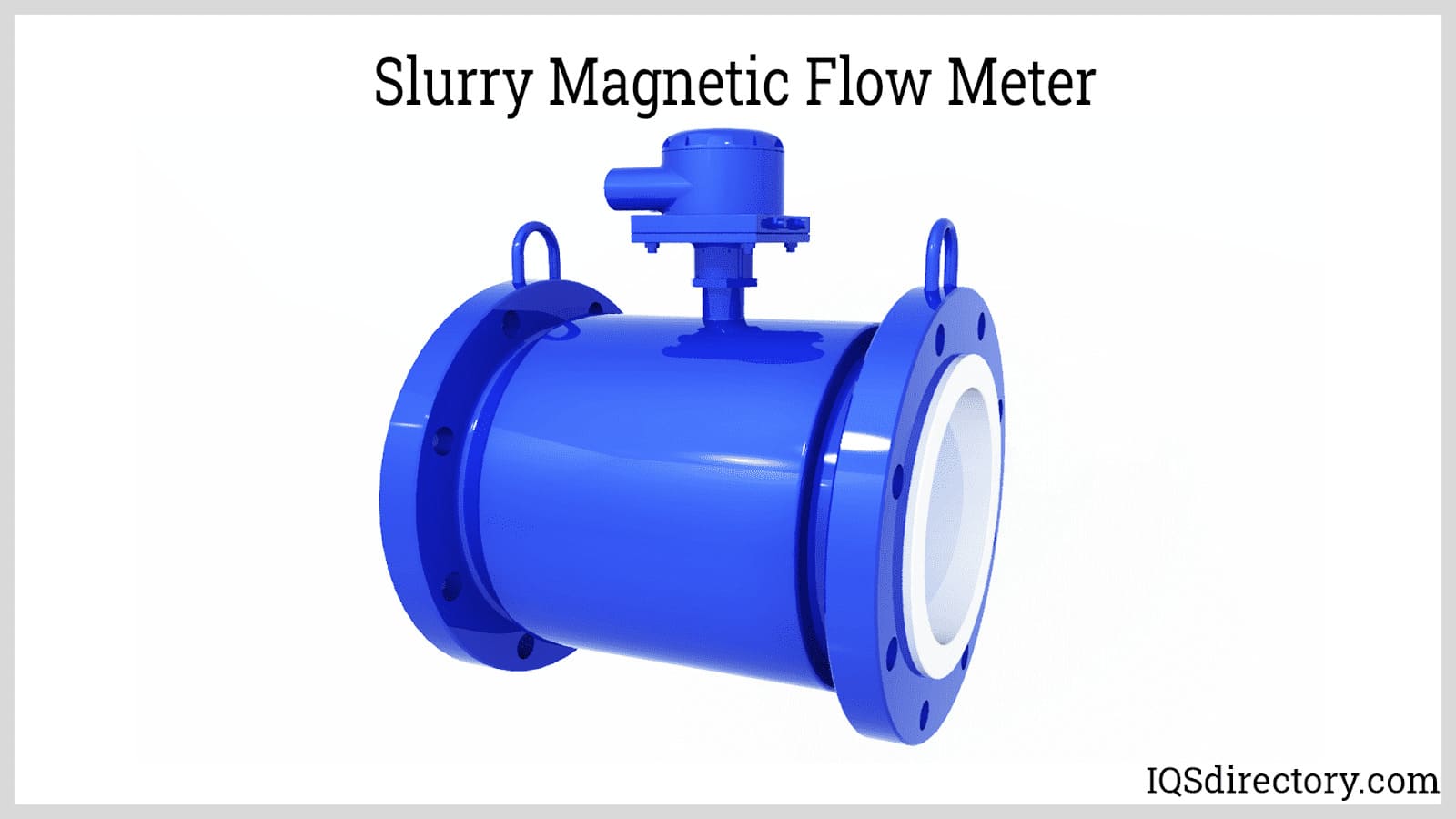

Fluids containing suspended solids, like cement, coal, and fly ash mixed into a slurry, present significant challenges for measurement due to their abrasive nature, which can damage flow meters. Additionally, caustic or acidic fluids can exacerbate these issues. To address these conditions, specially designed magnetic flow meters are employed, as they are not affected or damaged by the abrasive or corrosive properties of the flow material.
Heated Fluids
In various applications, it’s crucial to accurately measure the volume of heated fluids and liquids that need to be disposed of, recycled, cleaned, or stored. Among the different flow measurement methods, magnetic flow meters are uniquely capable of enduring high temperatures and withstanding particulate content in heated fluids while providing precise measurements.
Water

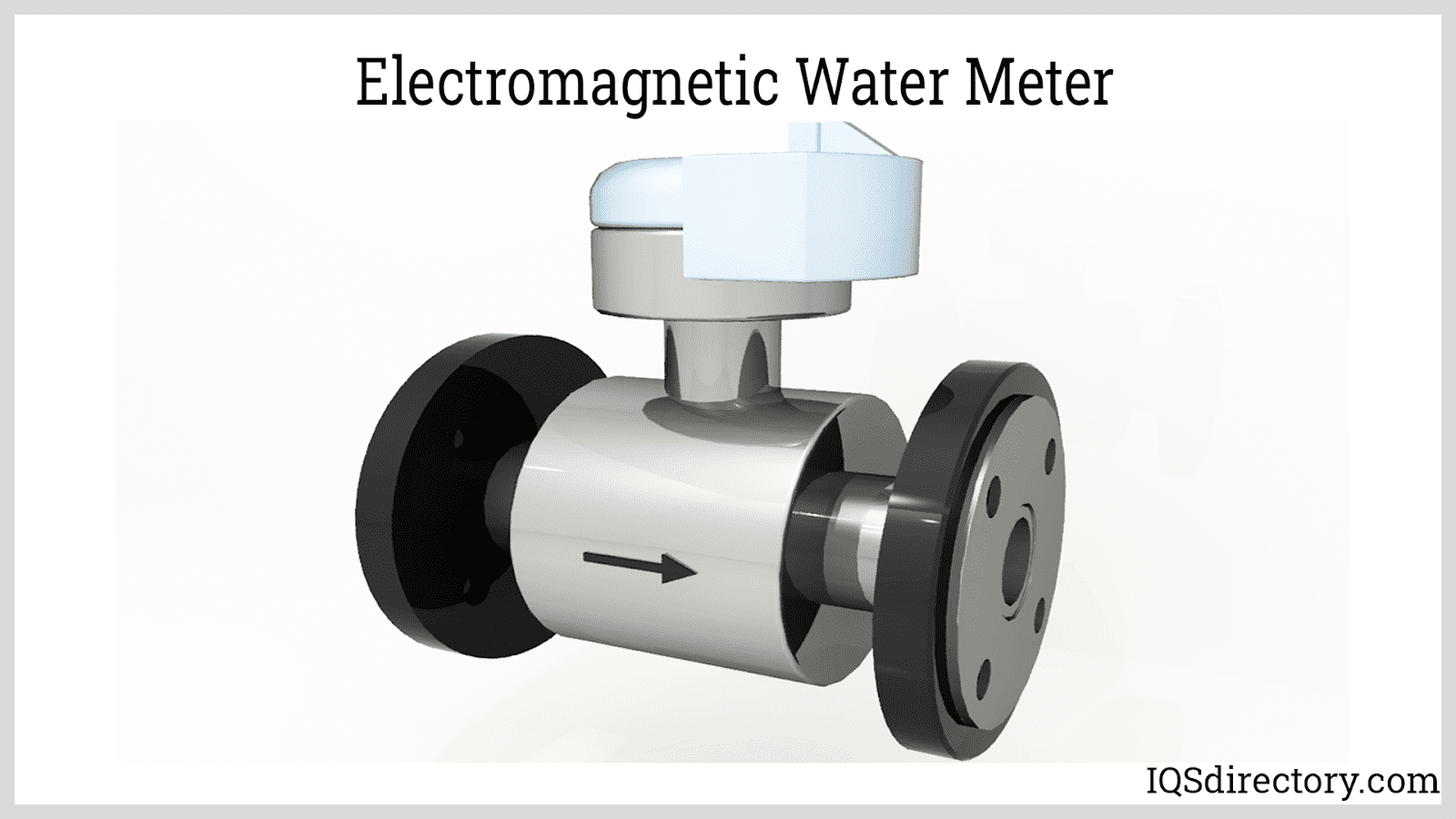

Modern water usage demands metering devices that are durable, accurate, and reliable, utilizing the latest technologies. These attributes are essential for effectively capturing revenue and managing operational costs. Electromagnetic meters offer a comprehensive solution for precise water utility metering and monitoring, regardless of the application.
Magnetic flow meters are versatile and can be employed across a broad range of water flow rates and under diverse conditions. Equipped with advanced technology, they provide up-to-date and accurate data for monitoring water usage.
Chapter 5 - Which industries use magnetic flow meters?
Magnetic flow meters are used across a wide range of industries due to their adaptability and versatility. Their cost-effectiveness in installation, operation, and maintenance makes them a valuable tool for providing accurate and reliable data on fluid movement.

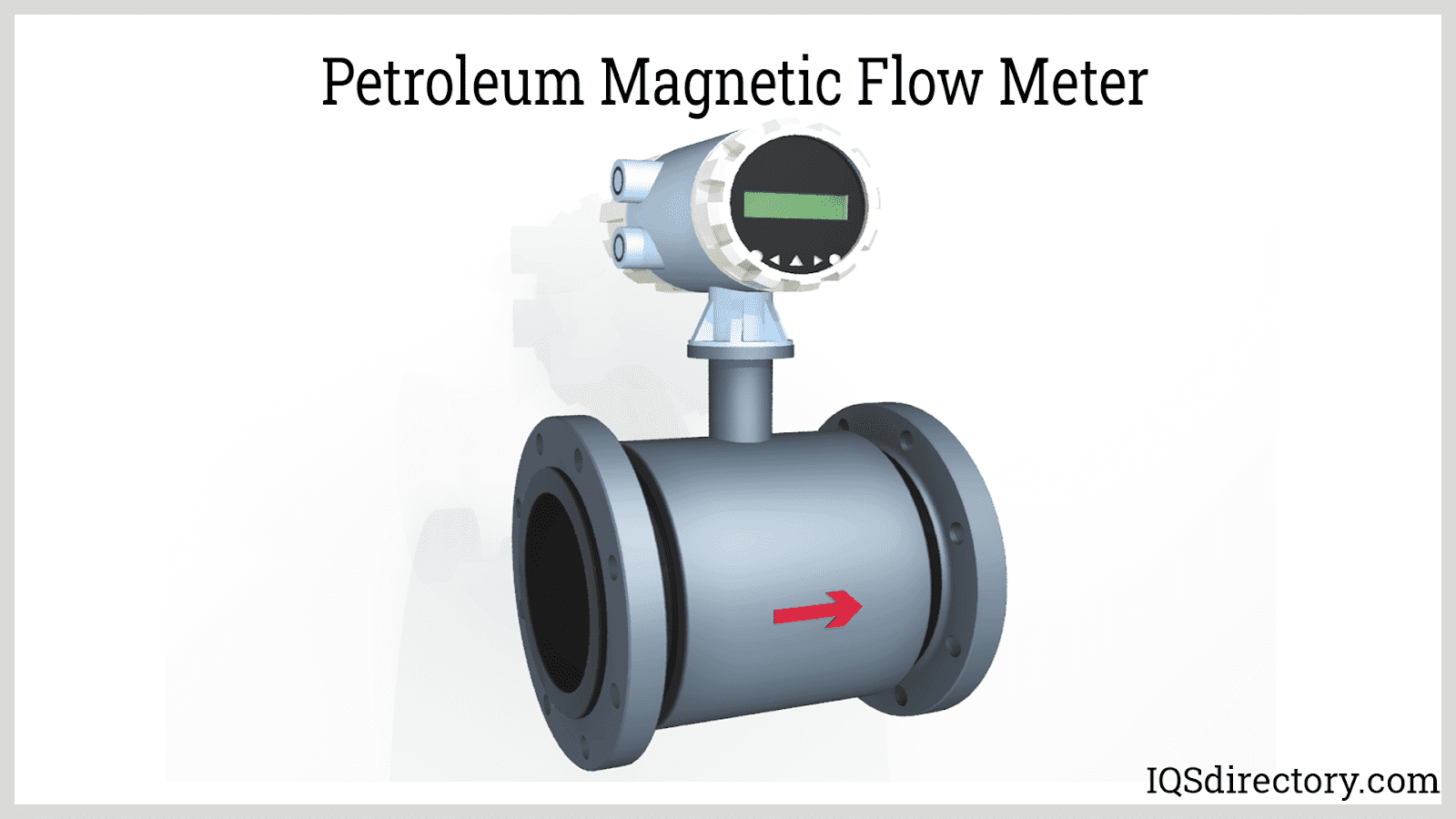

As electromagnetic flow meters have become more precise and accurate, they have increasingly been adopted by industries that manage fluid flow. This growing reliance on magnetic flow meters reflects their efficiency in measuring and calculating liquid usage.
Chemical Production
Similar to the petroleum industry, the chemical industry depends on magnetic flow meters for accurate and precise measurement of product flow. These meters are crucial for safety, as any errors or inaccuracies could lead to severe consequences. Magnetic flow meters are essential for maintaining accurate chemical measurements, ensuring product quality, and protecting the system.

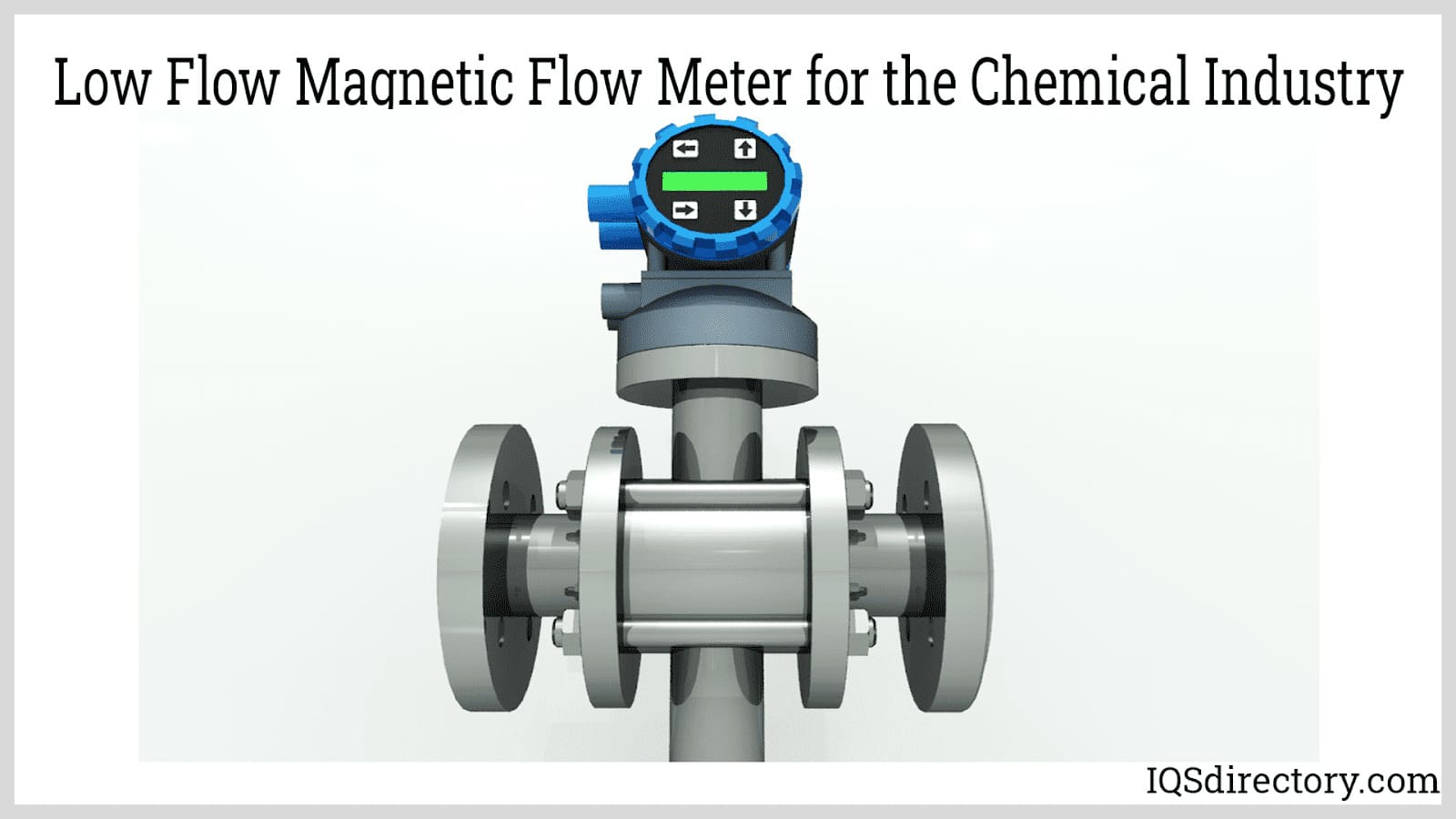

In the chemical industry, low flow rate magnetic flow meters are particularly valuable. These meters can handle flow rates as low as 0.33 liters per minute, making them ideal for precise measurement in various chemical processes.
Gas Stations
It is easy to understand why magnetic flow meters are necessary for gas station use since it involves the sales and supplying of the product. Though there is a major need for mass flow meters at gas stations, magnetic flow meters are used for volumetric measurement of the flow of fuel. They are used for accurate billing of customers and measuring of fuel being supplied to the station.

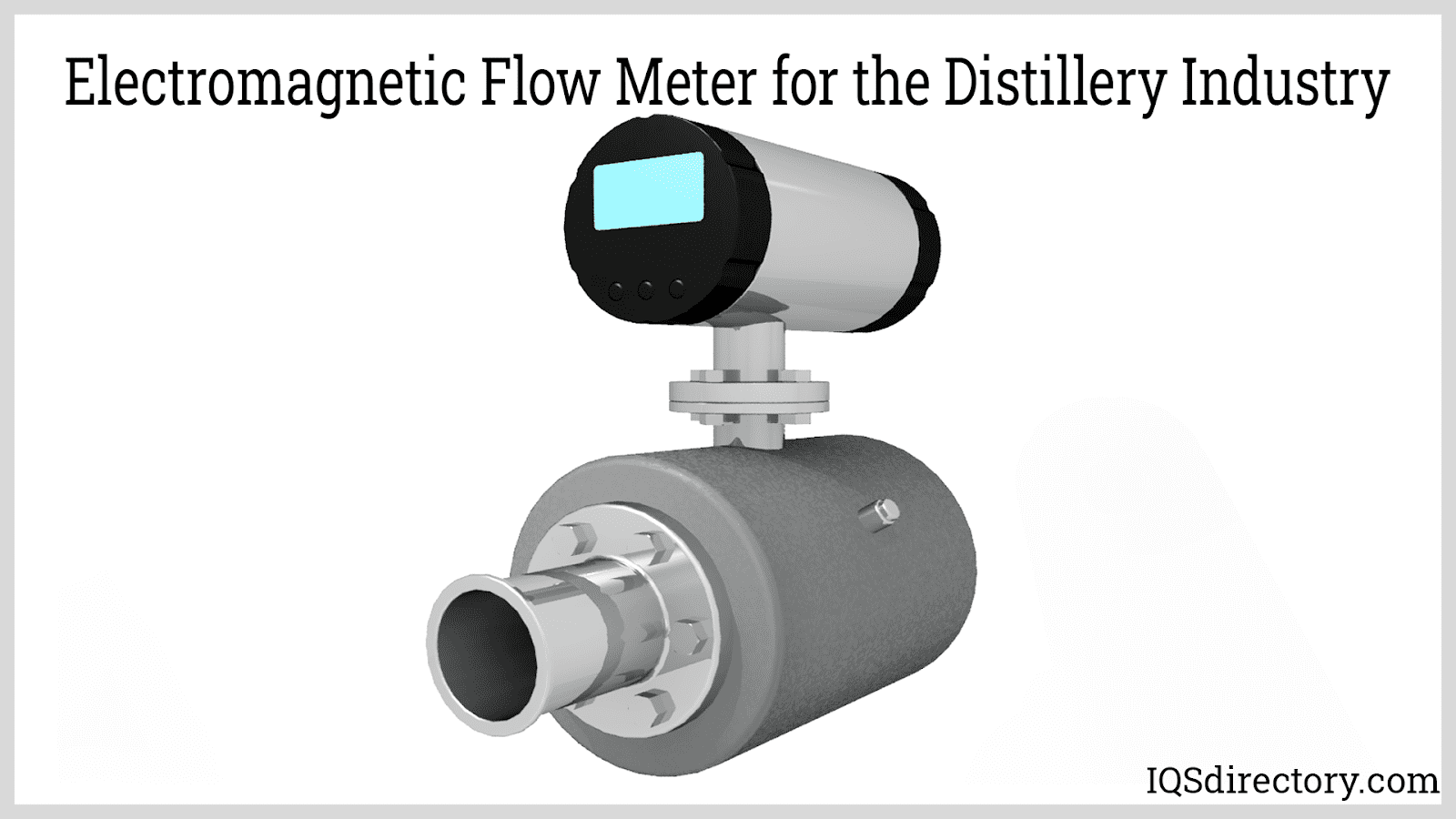

Distilleries
Distilleries face the challenge of handling various types of liquids throughout their production processes. Magnetic flow meters are ideal for this purpose, as they remain unaffected by changes in fluid types. In the distillery industry, these meters are used for measuring, recording, monitoring, and regulating fluid flow, all of which are essential for maintaining product quality and standards. Additionally, they help control fluid flow during packaging. A significant advantage of magnetic flow meters for distilleries is their resilience to temperature, pressure, and fluid variations, eliminating the need for meter adjustments during process changes.
Water Supply Industry
In the water supply industry, accurate readings are crucial for billing purposes. Whether for businesses, homes, offices, or industries, precise measurement of water usage is essential to ensure fair billing. Magnetic flow meters play a vital role in delivering these accurate readings, directly impacting the billing process. They also help in detecting leaks and pipeline issues, further ensuring that water usage is correctly accounted for and that any system abnormalities are identified.
Mining
Mining operations produce thick, heavy sludge as a by-product during the extraction of minerals. This dense and abrasive material requires precise control and monitoring to ensure operational safety. Magnetic flow meters are ideal for this task due to their ability to measure flow accurately, regardless of density or viscosity. These meters capture data that is then translated into mass flow measurements, allowing for close monitoring and control of slurry movement and flow.

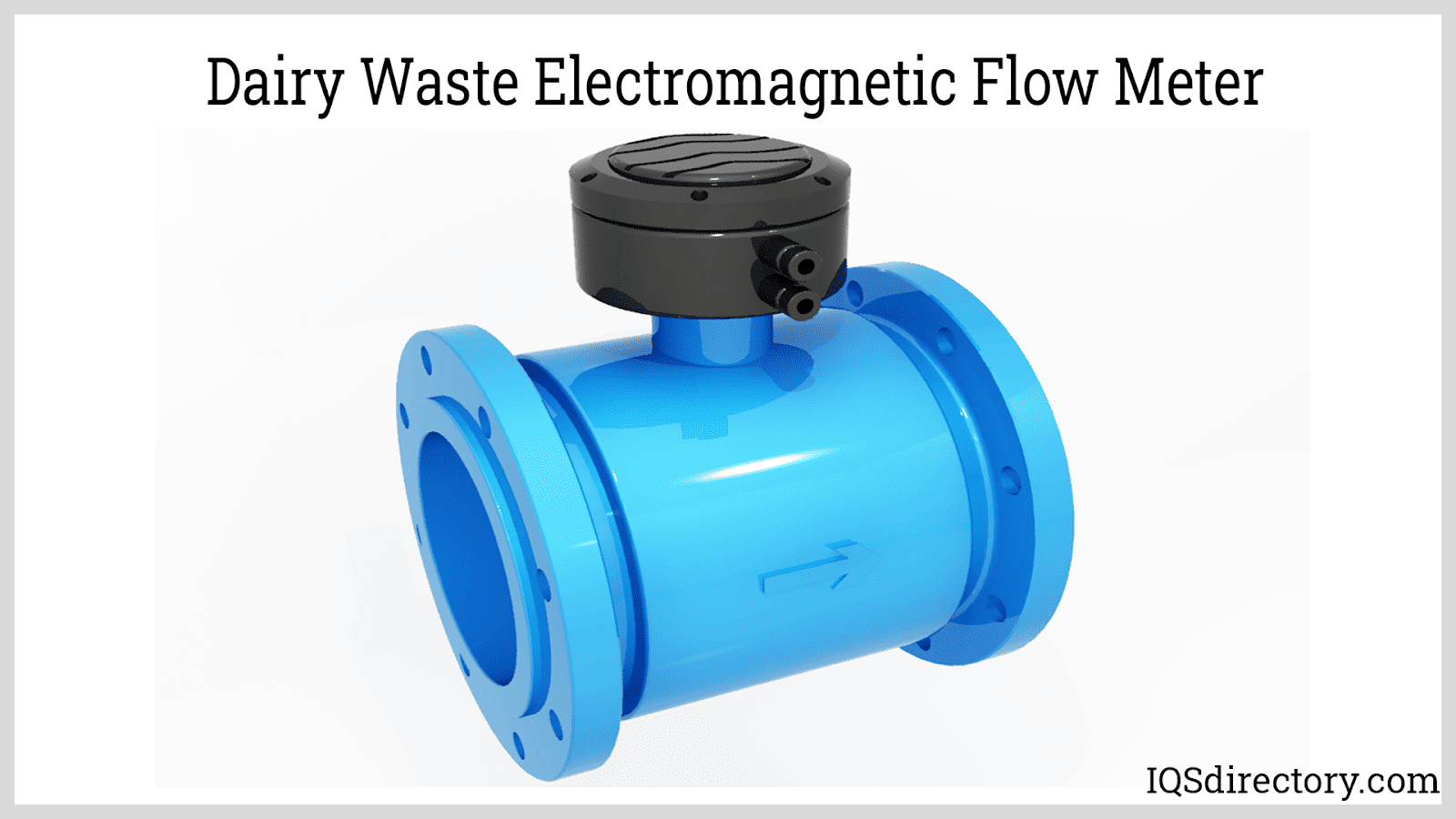

Dairy
Dairies rely on flow meters to measure and regulate the amount of waste produced, which is crucial for managing waste and its repurposing. Additionally, these measurements help determine the quantity of waste available for fertilizer production, aiding in conservation efforts. Magnetic flow meters, with their adaptability and adjustability, can be installed at various points along the waste pipeline. Their primary function is to provide accurate and reliable data, essential for effectively managing and utilizing waste material.
Wastewater Management
In wastewater management, accurately measuring flow is crucial for determining the plant’s full treatment capacity (FFT), which indicates the maximum volume of wastewater the facility can process. The design and operation of wastewater treatment plants are based on estimates of flow volumes. According to Environmental Protection Agency (EPA) guidelines, facilities must be designed to handle peak dry weather flow (DWT) and additional volumes from light rainfall.
This requires plants to calculate their minimum flow capacity during dry conditions and then design their systems to handle up to three times that capacity to accommodate additional flows. Monitoring and controlling this flow rely on data provided by magnetic flow meters, which are essential for effective wastewater management and processing.
Chapter 6 - What do magnetic flow meters measure?
The primary function of an electromagnetic flow meter is to measure and record the volumetric flow of various fluids and liquids. These measurements are typically expressed in feet per minute or meters per second, depending on the meter's design and calibration. While these are the intended functions of the meter, the data it provides can also be utilized for additional calculations.
Most of the data generated by a magnetic flow meter is obtained directly from the meter itself. However, when used in conjunction with other devices, the meter can offer a range of supplementary readings and measurements.
What Magnetic Flow Meters Measure
Electromagnetic flow meters measure the movement and consumption of a liquid substance in a pipeline through the use of a magnetic field. The readings of the meter are converted into flow capacity parameters and transmitted to a control system.
While electromagnetic meters are primarily designed to measure volumetric flow, they can also be used to gauge mass flow. By inputting the fluid's density into the meter, it can compute the mass flow rate. For accurate mass flow calculations, the density must remain stable and consistent.
The accuracy of the data collected by a magnetic flow meter hinges on the proper placement of the sensor, which is installed inline with the flow direction. As the fluid moves through the sensor, it generates an induced voltage proportional to the flow rate. This voltage is transmitted to the meter’s transmitter, which then converts it into a flow measurement.
This straightforward process yields critical data on volumetric flow, aiding in the assessment of usage, fluid control, and other operational needs. The information provided by the meter is vital for engineers and managers to understand and manage the quantities of fluid being processed or utilized.
Chapter 7 - What are the benefits and advantages of magnetic flow meters?
Magnetic flow meters offer numerous advantages as a non-invasive technique for fluid measurement and calculation. Their ability to maintain pipeline pressure without impacting it significantly reduces piping expenses. Once installed, these meters require minimal maintenance due to the absence of moving parts, and they operate accurately with any type of liquid.
Magnetic flow meters are highly beneficial and are widely regarded as reliable tools for fluid measurement. Users consistently highlight their cost-effectiveness and precise data as major advantages.
The Benefits and Advantages of Magnetic Flow Meters
Real Time Readings
Measurements from the magnetic flow meter can be immediately transmitted to a computer. This data can then be analyzed to monitor liquid consumption, detect potential leaks, and predict future usage.
No Moving Parts
One key benefit of magnetic flow meters is their lack of moving parts. Equipment with moving parts is prone to wear and tear. A magnetic flow meter, with no moving components, has a longer lifespan, resulting in long-term cost savings. The absence of moving parts contributes to its growing popularity in fluid movement industries.
The in-line electrodes and sensors do not disrupt the fluid flow, allowing the meter to function without requiring maintenance or repairs.
Durability and Strength
Manufacturers of magnetic flow meters emphasize their products' durability and high quality. Each meter undergoes rigorous testing to ensure longevity and performance. This minimizes the need for replacements and results in cost savings. Electromagnetic meters provide a dependable and consistent solution for measuring conductive liquids over an extended period.
Power Usage
Magnetic flow meters are known for their low power consumption, typically using just 15 watts on average. This efficiency contributes to cost savings over time.
Versatility
Magnetic flow meters are capable of measuring the flow rate of any conductive substance, regardless of its acidity or corrosiveness. Manufacturers enhance their performance by lining the sensor section with abrasion and corrosion-resistant materials, allowing them to handle toxic and harmful substances effectively.
Effects of Fluid Properties
Magnetic flow meters remain unaffected by the properties of the fluid being measured. Factors such as temperature, density, viscosity, and pressure do not impact the meter’s ability to take accurate readings. Once calibrated, these meters can measure the conductivity of any fluid without needing further adjustments.
Flow Rates
Magnetic flow meters maintain accuracy across a wide range of flow rates. Whether measuring a flow rate through a meter with a diameter of 0.125 inches or up to 10 cubic feet, they perform consistently. Both very low and very high flow rates do not compromise the meter’s accuracy.
Additionally, magnetic flow meters can handle fluids with laminar, turbulent, and transitional flows without requiring adjustments or recalibration.
Multi-Directional
Unlike other flow meters, magnetic flow meters are unaffected by changes in flow direction. They can measure flow rates regardless of direction, which reduces the need for adjustments and recalibration and saves time during operational changes.
Types of Fluids
Magnetic flow meters are particularly effective for measuring the flow rate of dirty, thick, and viscous substances. Their performance is not influenced by a fluid’s consistency or contaminants, as long as the fluid is conductive.
Pressure
One advantage of magnetic flow meters is their minimal impact on pipeline pressure. They do not cause a pressure drop, which helps protect the pumping mechanism and results in cost savings for pump operation and performance.
Pipeline Size
Magnetic flow meters are available in various sizes and can be adapted to fit different pipe diameters without losing efficiency. This flexibility in sizing has contributed to their widespread adoption.
Cost
Although the initial cost of magnetic flow meters can be high, particularly for specially designed models, their long-term benefits often outweigh the initial expense. Their durability, low maintenance requirements, and accuracy contribute to overall cost savings, making them a cost-effective choice over their lifetime.
Conclusion
A magnetic flow meter is a volumetric flow meter that uses electrodes connected to the liquid flow to measure the velocity of fluids in a tube or pipe.
To engineers, magnetic flow meters are known as electromagnetic meters and magmeters. The three names are used interchangeably with magmeters being the most common.
The basis of a magnetic flow meter is the magnetic field that it generates, which is used to measure and calculate the flow of a conductive liquid.
Each type of electromagnetic flow meter varies according to the needs of the application and its cost with inexpensive varieties being very simple while more accurate and complicated versions are more costly.
The use of magnetic flow meters is based on their many benefits as a non-invasive method for measuring and calculating fluid movement.
