This article presents a comprehensive guide to blister packaging. Read further to learn more about:
You will learn:
Advantages of Blister Packaging
Blister Packaging Operation
Components of a Blister Pack
Methods of Blister Foil Forming
And much more…
Chapter One – What is Blister Packaging?
Blister packaging, or blister packs, are pre-formed packaging materials composed of a thermoformed plastic cavity and a pliable lid. In this type of packaging, the product is placed in deep-drawn pockets or cavities resembling a blister. A backing material, or lidding mates to the flat area of the plastic cavity enclosing the product inside, and A heat seal bonds the two structures. Blister packaging has various types depending on the application. The most popular use of blister packs is for packaging pharmaceutical products such as pills, tablets, capsules, and lozenges. Because of its low cost, cheap raw materials, and high operating speed, they are also used for packaging consumer goods such as foods, electronics, toys, and tools. Enumerated below are the benefits of using blister packaging.
Advantges of Blister Packaging
The first notable use of blister packs was for packaging birth control pills. Blister packaging is a cheap and convenient way of packaging individual doses of a drug. Also, the packaging can be marked to aid effective administration. Individual packaging helps maintain the quality of the contents through containment in separate cavities or pockets. Damage to any part of the packaging material will not affect the whole
Maintaining Product Integrity:
Forming films and lidding structures are created according to the sensitivity of the product to moisture, oxygen, and light. The packaging components can be laminated with barriers that block the penetration of external elements. Opaque materials such as aluminum block light, preventing product degradation through UV radiation.
Blister packs, when opened, cannot be returned to their original form. Blister packaging has an inherent tamper-evident mechanism since it is impossible to separate the lidding to the blister card without causing visible damage. This helps deter package pilferage not only in pharmaceuticals but also in consumer goods such as electronics.
Preventing Accidental Drug Misuse:
Blisters and lidding structures can be designed so that they cannot be opened easily without following instructions specified by a manufacturer. This prevents children, and even seniors, from accidentally taking the drug. This design is known as child-resistant (CR) packaging
Visibility of Product:

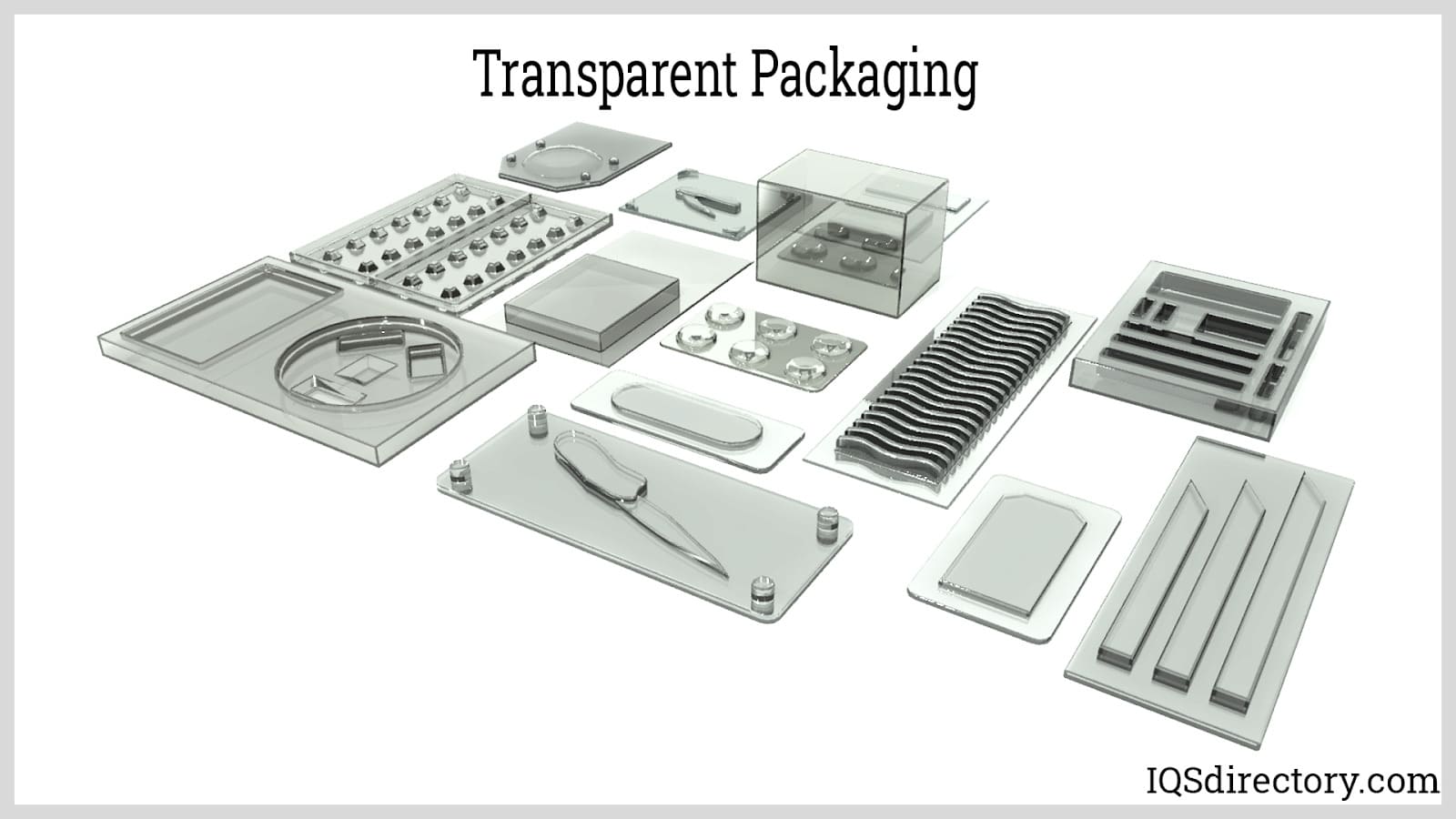

Blister packs, and skin and clamshell packaging are also used for retail products since they allow consumers to see the product through the packaging. In addition, the lid or backing material is colored and designed to attract prospective buyers
Minimal Movement Within Packaging:

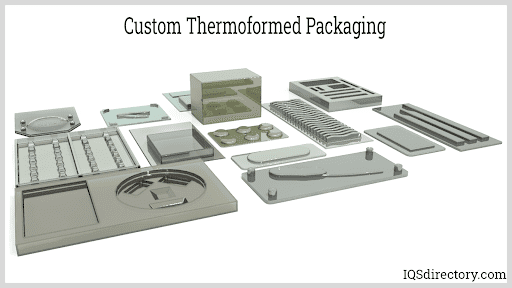

It is easy for blister packs to take the shape of the product. The product‘s shape can be fed through a computer-aided machining program that controls a milling machine for creating a mold. The mold can be prepared to factor in only small clearances between the product and the packaging.
Since packaging is often not a part of the production process, manufacturing plants often employ third-party services dedicated to the packaging process. Contract packaging is a service provided by packaging companies that usually comprises the supply of labor and equipment for product packaging. Contract packaging companies invest in sophisticated equipment such as blister packaging machines accredited by regulating bodies. This allows the manufacturer to focus its human resources and business process solely on production while benefiting from of a specialized packaging system. A contract packaging setup also enables more investment into quality testing of packaging raw materials impractical for manufacturing plants. In broader scopes, the packaging company is responsible for producing graphic materials and product manuals, controlling inventory, warehousing, and distribution.
Chapter Two – The Blister Packaging Process

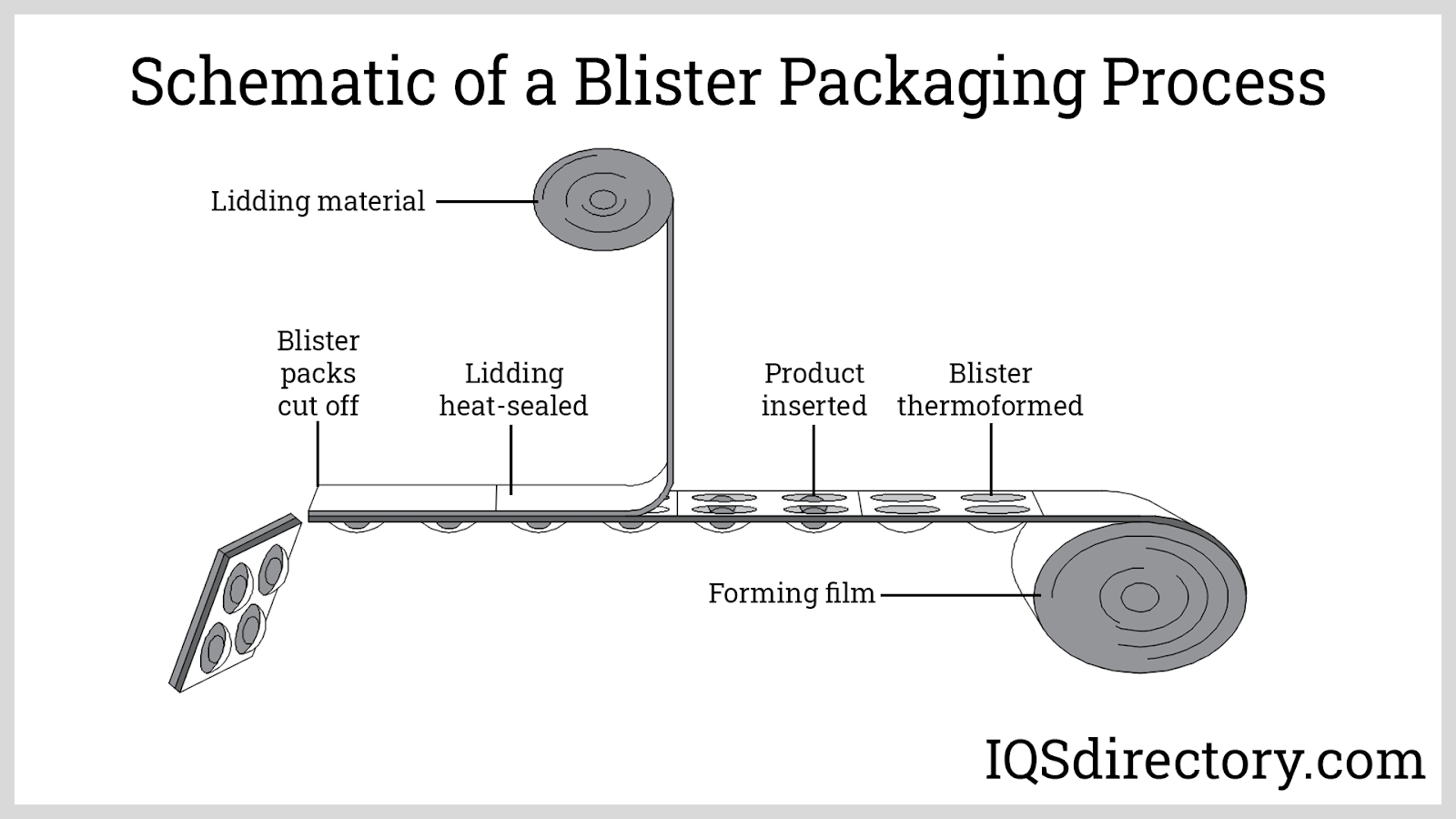

The packaging process starts by designing the packaging format. Next, the manufacturer fabricates a negative die according to the shape of the product. A metal stock is milled with an array of cavities to prepare the negative die using a CNC machine. The die is then installed into the forming machine.
The forming process can either be thermoforming or cold forming. Plastic films such as PVC are processed by thermoforming, while laminated aluminum forming films employ cold forming. For thermoforming machines, a preheating process is done at temperatures below the plastic's melting point. As the film moves through the machine, it is formed to shape by air pressure (thermoforming) or by pressing a positive die (cold forming).
Meanwhile, before packaging, the products are visually inspected in a staging area. Then, the products are placed manually or automatically into the pocket for sonsumer goods. A packaging machine with hopper feeding is used for products with smaller profiles but large volumes, such as medicine tablets. The products are loaded into the hopper and then carefully fed into the pockets of the blister sheets. Brushes and paddles help disperse and arrange the product through the whole blister card.

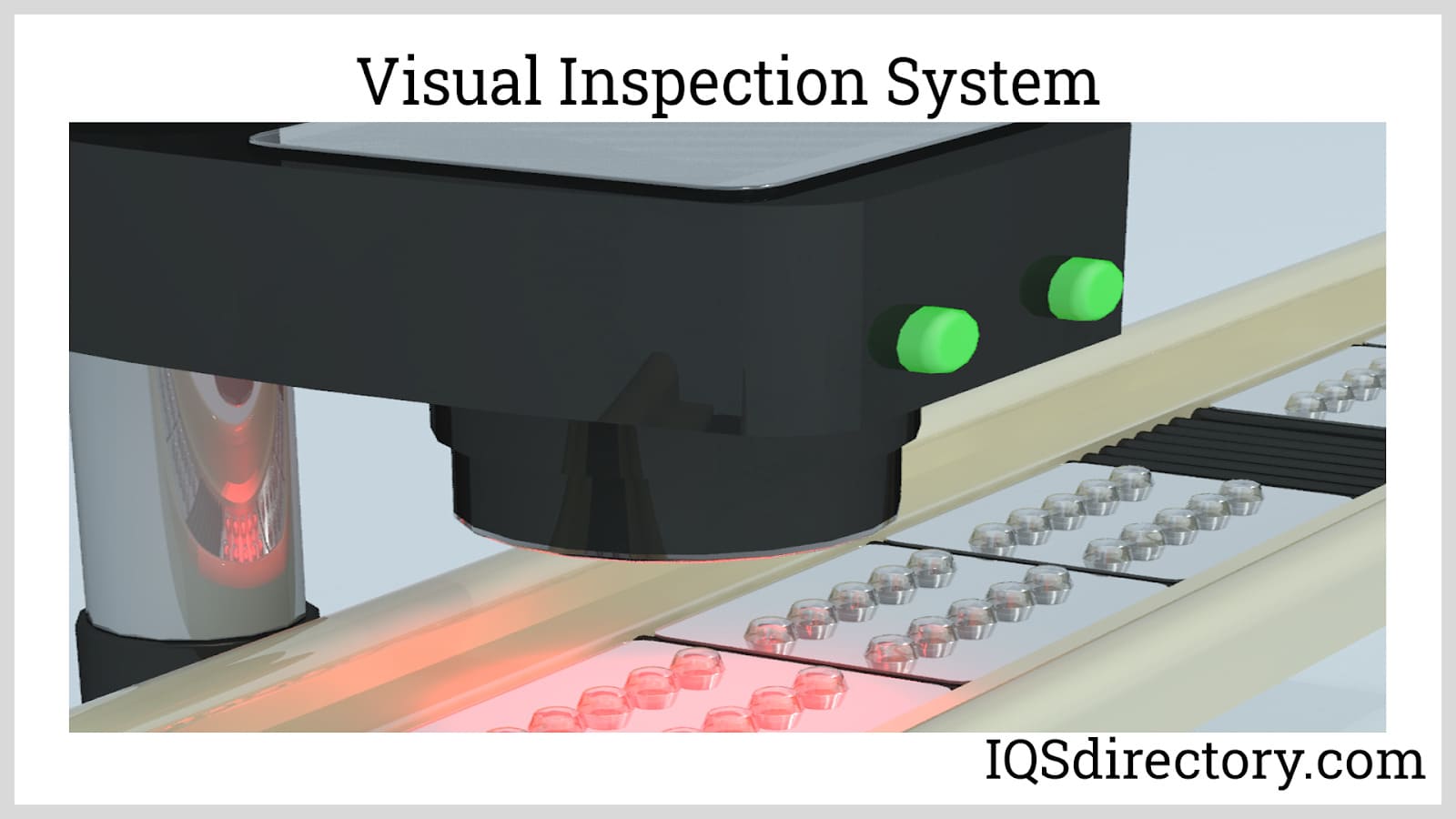

The product then moves into the inspection station. Here, an inspector or visual sensor checks any damaged or broken items and marks them for rejection at the end of the packaging line. After inspection, the sheets are transferred into the sealing station.
Before sealing, a cylinder with embossed texts or graphics prints on one side of the lidding before being fed into the machine. The cylinder picks up the ink and then presses it onto the lidding film. At the sealing station, the lidding film and the blister sheet meet by pressing them against each other. Heat is applied to re-activate the sealing resin creating a bond between the two substrates. After bonding, the sealed blister packs are transferred into a cooling station that sets the bond.
The sealed blister sheets are then transferred into a trimming station where whole blister packs are cut into blister cards. Additional cuts are made by the machine depending on the intended application, such as child-resistant packs. Afterward, the blister cards pass through a conveyor system, where an automatic rejection system removes flagged items from the packaging line. The conveyor leads the blister cards through robotic arms that automatically collect and place them into boxes or larger packs.
Process operators select samples from the packaging line for quality checks. Packaging quality inspection is usually done for pharmaceutical products. A simple method is water submersion testing or blue dye testing. This leak test that involves subjecting the blister card to a vacuum for several minutes. Once a flaw in the sealing or damage to the film is present, a vacuum is created inside the blister. The blister card is then submerged in the dyed water. The packs are removed from the water and manually opened for visual inspection. Advances in probing and scanning technology allow automated visual inspections for finished blister packs. The water submersion method is limited since it does not inspect the whole production. Scanning and visual inspection systems can now reliably check each pocket and pinpoint the location of the cavity with defects.
Leading Manufacturers and Suppliers
Chapter Three – Components of Blister Packaging
There are four main components involved in blister packaging. These are the forming film, lidding, heat-seal coating, and prints. The forming film and lidding are the main structural components that account for almost the total weight of the packaging. The heat seal layer creates a bond between the two structures. Lastly, the labels, batch numbers, codes, and other important information are added by printing.
Forming Film in Blister Packaging:
The forming film creates the cavity. The forming film's selection depends its properties, grade, and thickness. The cavity has the contour of the product with a slight clearance, to allow for small deformations that could potentially damage the product. For the filming fim to have the correct rigidity, it must be the right grade, have the proper thickness, and allow for convenient and easy opening. The film must have the right grade and thickness to provide sufficient rigidity into the whole packaging while at the same time allow convenient and easy opening. If it is too rigid, the product will be hard to remove. If it is too flexible and soft, the product could be damaged.
Backing Material or Lidding

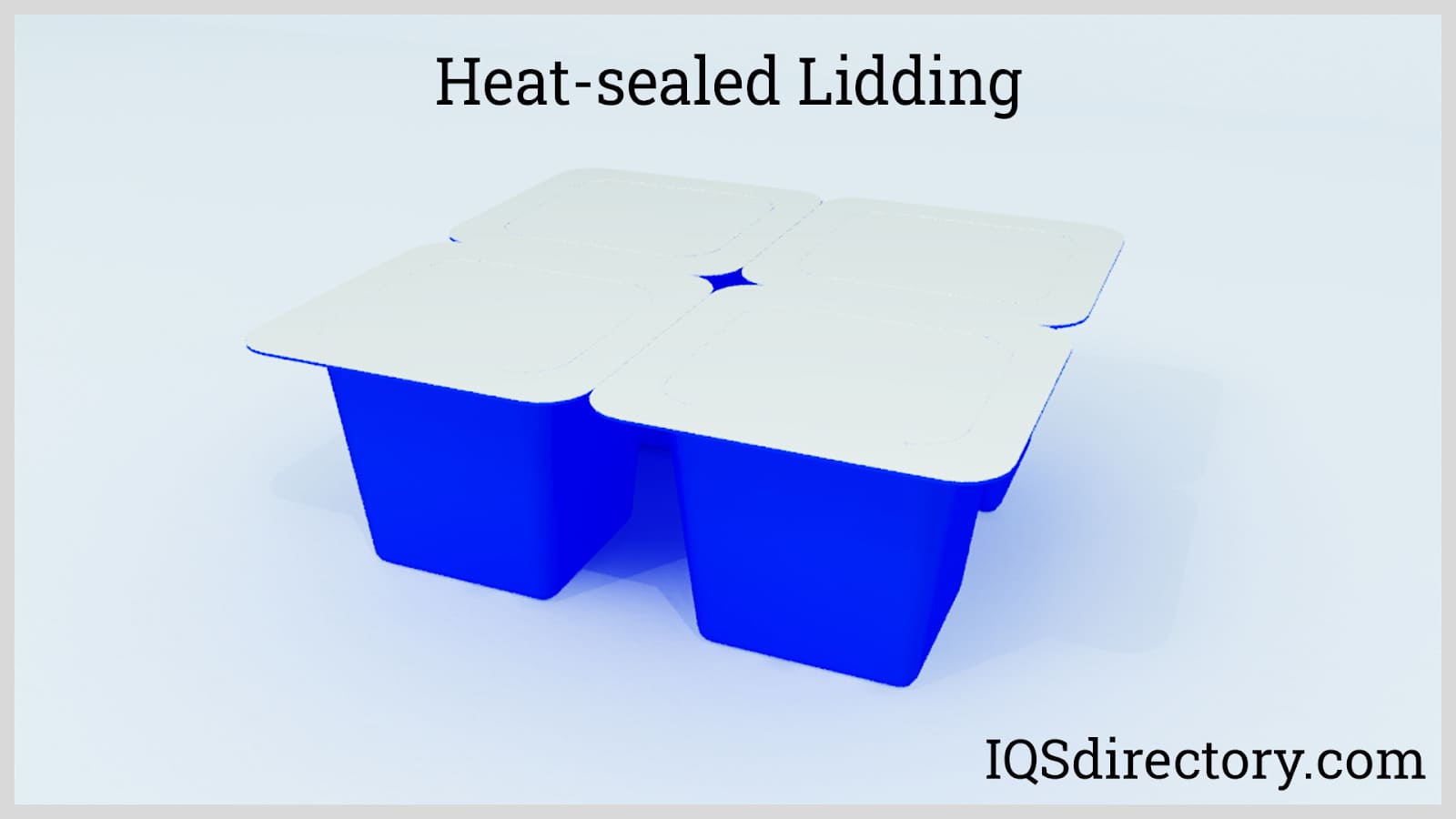

The lidding secures the product into the cavity. Classifications of lidding structures are divided into Push-Through-Packs (PTP), peelable lids, or a combination of both. PTPs are designed to be broken or torn while pressing into the pocket, as seen in typical medicine packaging. Lidding can also be made peelable without deforming the pocket, as seen in most consumer goods packaging. Push-peel lidding types are specially designed to be opened by performing a sequence of actions. These proprietary lid types are used for medicines for seniors and children known as child-resistant blister lidding.
Common lidding materials can be aluminum foil, PET, paper, or a combination of these materials. Aluminum foil is characterized by its temper, which can be soft or hard. Soft-tempered aluminum foil is more malleable and is suitable for packaging hard materials such as tablets and lozenges. Their malleability allows some amount of deformation before breaking. Because of this characteristic, soft aluminum lids are used for child-resistant blister packaging which helps prevent children from pushing tablets out of it. Soft aluminum foils used in blister lidding typically have 1.0 mil thickness(1/1000th of an inch).
Hard-tempered aluminum foils do not allow any elongation and can be torn easily with sufficient force. They are used for lids that are designed to be pushed through or peeled off. For a single layer, hard aluminum lid structure, the foil thickness is around 0.8 mils. This type of structure is used for push-through-packs.
Hard aluminum foils can also be combined with paper and PET to be used for child-resistant packages that can be pushed through, peeled off, or a combination of both. A common design features the paper and PET layers to be first peeled off from the aluminum. The tablet is then pushed through, which tears the aluminum foil.

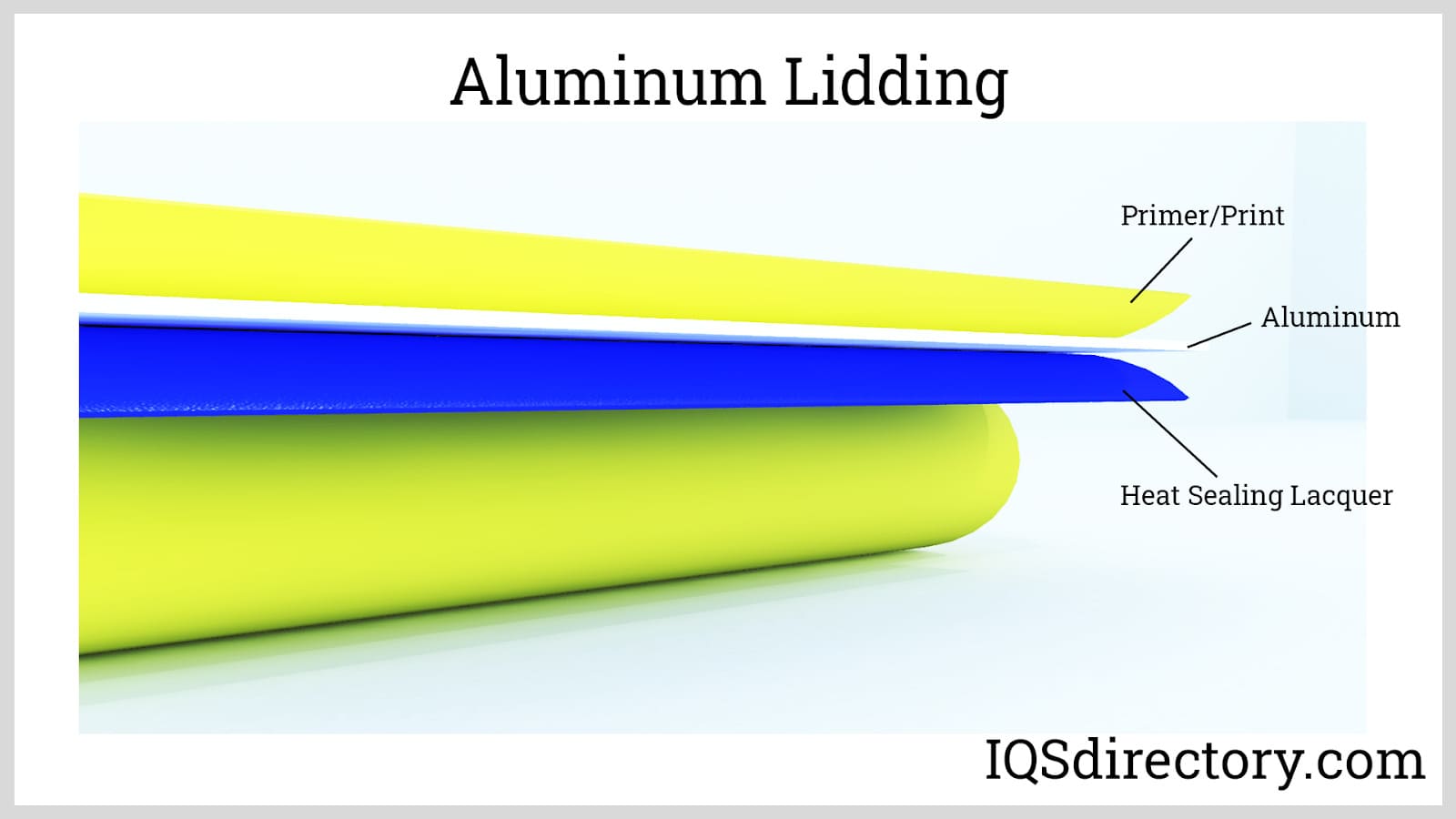

Heat-seal coatings bind the plastic blister pack and the lidding together. They are molten or liquid polymer resins applied on the lidding material's surface using roll coaters, knives, gravure, brushes, or sprays. The right amount must be applied to create an air-tight sealing. After application, the resin is allowed to dry on the surface of the foil. This resin will be reactivated once the bonded foil-seal coat film is used for packaging.
Conventional characteristics of heat-seal coating resins used for blister packaging are low-temperature activation, low coefficient of friction, high gloss, and high transparency. The FDA must approve the polymer resin for direct food contact compliance for pharmaceutical and food packaging. General types of heat seal coatings are solvent and water-based. Examples are polyvinylidene chloride (PVDC), acrylic, and ethylene acrylic acid (EAA). Other types are extrusion-coated and co-extruded polyolefin films. These types of films can be low-density polyethylene (LDPE), linear low-density polyethylene (LLDPE), and ethylene-vinyl acetate (EVA).
Prints in Blister Packaging

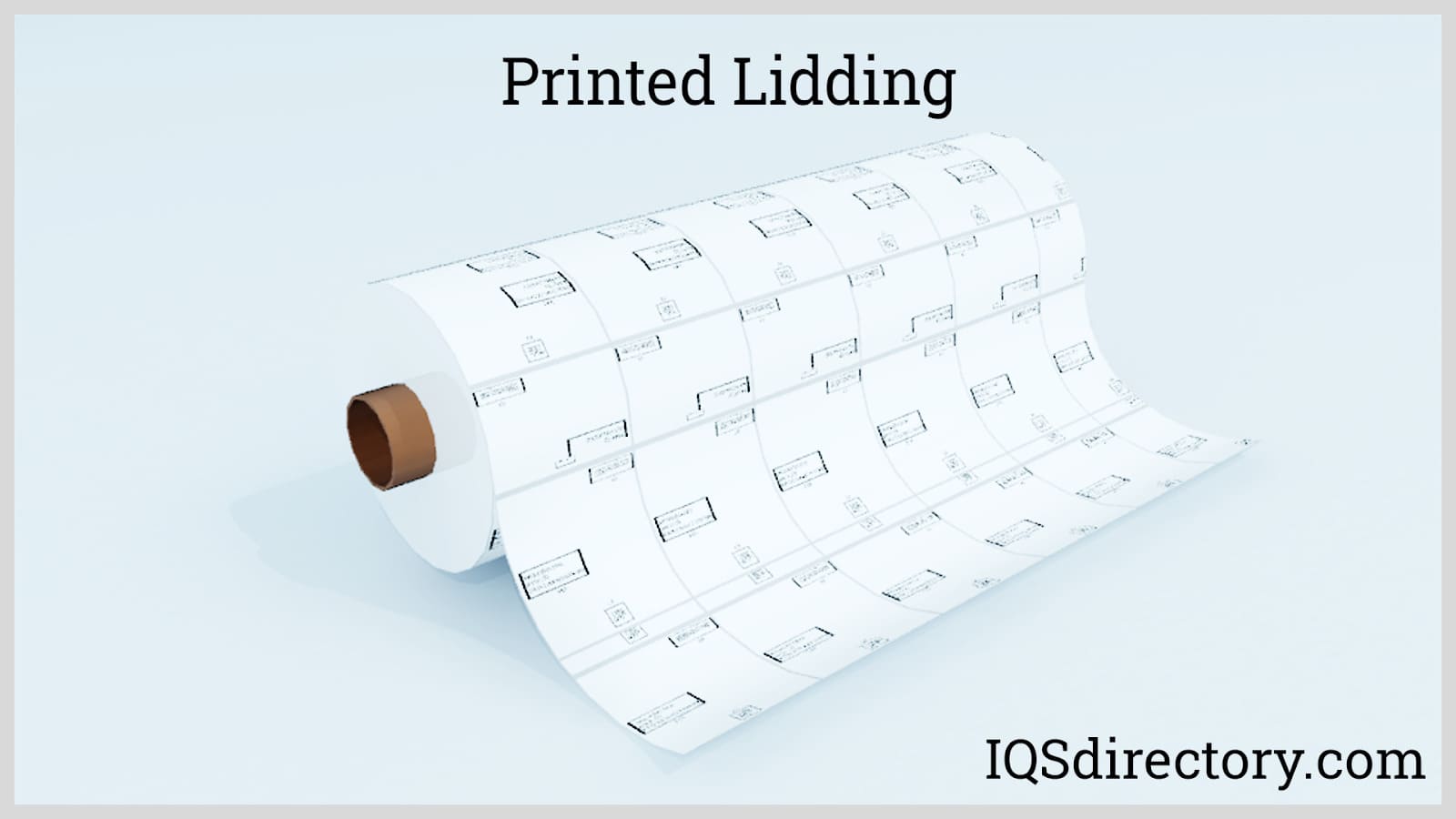

Prints are added to the lidding structure to provice product information and attract buyers' attention. They are usually applied by flexographic printing. Since these are applied before the heat-sealing process, they must withstand the heat-sealing temperatures of about 572 ° F (300°C).
Chapter Four – Methods of Foil Forming
Two main methods are used in foil forming: thermoforming and cold forming. The most common material used in blister packaging is PVC. PVC is formed by thermoforming, which makes the process widely used. For applications requiring better barrier properties, laminated aluminum is the better option, which is formed by cold forming.
Thermoforming in Foil Forming:

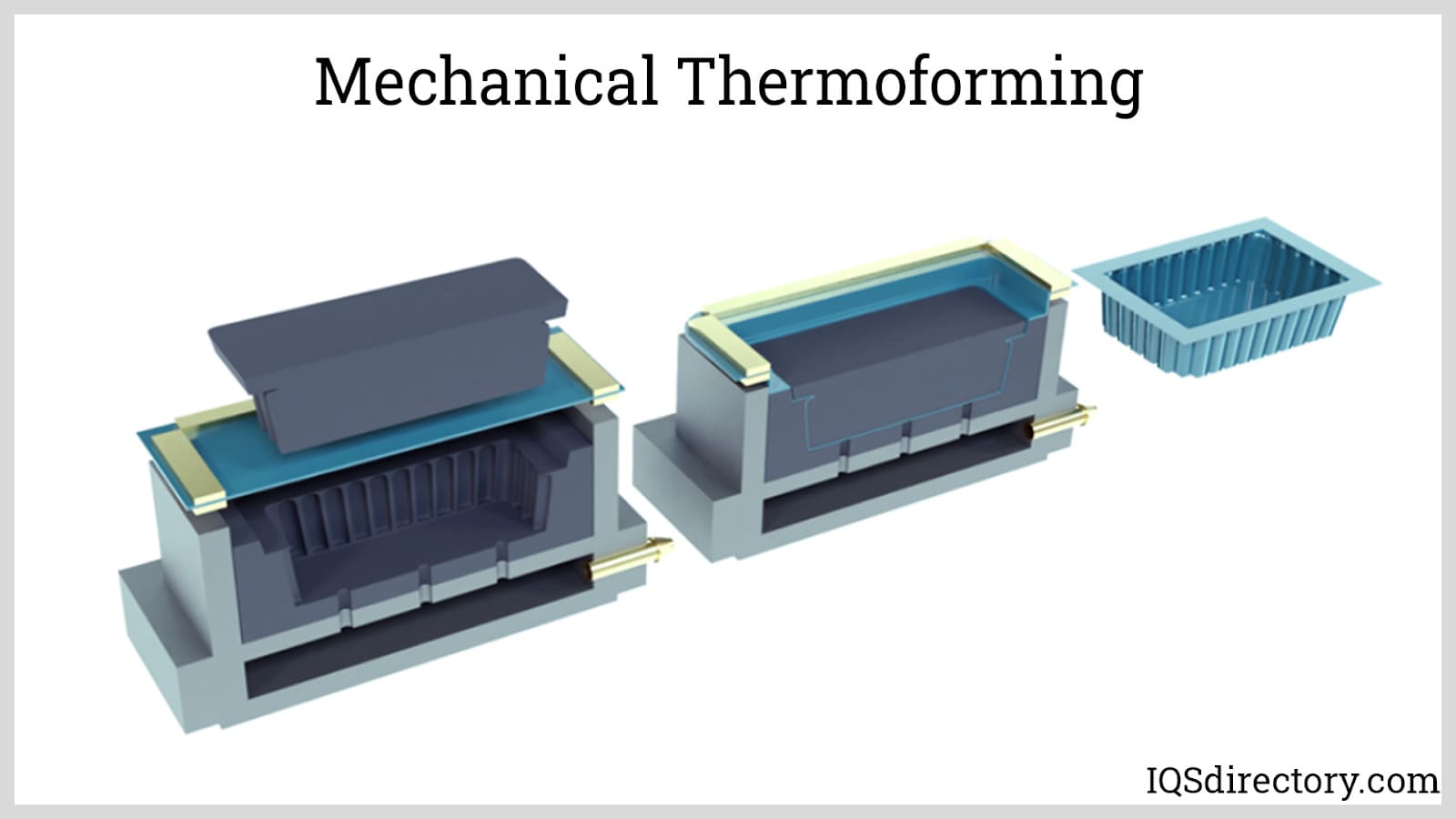

Thermoforming is the process of heating thin plastic sheets to their forming temperature and stretching them over a mold to take its shape. This is the most common forming method used for blister packaging because of its simplicity and ability to produce high volumes
This process starts by feeding the plastic sheet into a preheating station, which initially heats slightly above the plastic‘s glass transition temperature. This makes the plastic soft and malleable without fully melting it. After heating, the film is transferred into the forming station. Finally, a die presses onto the sheet that imprints the profile of the blister pack. Several thermoforming processes are used for blister pack manufacturing, with vacuum and pressure forming being the most commonly used.
In vacuum forming, the air is evacuated from the cavity that draws the heated film acquiring the profile of the die. Pressure forming, on the other hand, pushes the film into the cavity. For instances when the shape is difficult to form by air pressure alone, a plug-assist feature is used to push down the film into the die. This results in a more uniform wall thickness. After the forming process, refrigerated plates press against the formed films which set into their new shape. They are then trimmed to size using a die cutter.
Cold Forming In Thermoforming
This process is commonly used for packaging products sensitive to moisture and light. Instead of using clear plastic films, cold forming uses thin sheets of polymer-aluminum laminates. Laminated aluminum has a typical thickness of 1.8 mils of aluminum and 3 mils of combined polymer layers. This thickness, it eliminates water permeability. In contrast to the thermoforming process, this type does not use heat to shape the film. Rather, the film is plastically deformed by pressing it into the die. Thus, this type of forming is mechanical, involving a negative tool (die) and a positive tool (plug). This brings the disadvantage of having another tool making the cold forming machine more expensive than the thermoforming. Another drawback is that the film cannot be formed with near-90° angles. There will always be draft angles that increase the size of the blister. Though the price per meter of the laminated aluminum is comparable with plastic films, a given area can only accommodate a smaller number of products. This, in turn, increases the material cost.
Chapter Five – Materials Used in Manufacturing Blister Packs
There are various materials used in blister packaging. PVC is the most suitable because of its low cost and ease of forming. However, there are moves to replace PVC due to its negative effects on the environment. Polymers containing chlorine and fluorine elements can discharge harmful acids into the atmosphere and are now being regulated in developed countries. Materials used for blister pack manufacturing are listed below.
Polyvinyl Chloride (PVC) in Blister Packs
This is the most widely used material for blister packaging due to its low cost and ease of forming. PVC dominates around 95% of the blister packaging market. The PVC forming film is rigid because of the absence of any plasticizers or softening agents. Due to its toughness and clarity, it is ideal for protecting goods while adding value by allowing prospective buyers to see the product. Moreover, PVC films have good barrier characteristics and chemical resistance. The typical thickness of the forming film is in the range of 0.08-0.012 inches (0.2 to 0.3 mm). However, an important thing to note for using rigid PVC is its tendency to degrade at high temperatures, known as dehydrochlorination, and produce hydrogen chloride. Since heating is an integral operation in PVC film forming processes, stabilizers are added to withstand the thermal and shear conditions throughout the process. Stabilizers must be FDA approved for food contact applications.
Polyvinylidene Chloride (PVDC) in Blister Packs:
PVDC, though not a forming film material in itself, is applied to other substrates such as PVC and aluminum to impart better barrier properties by a factor of five to ten. PVDC coatings are one of the few compounds that can provide both moisture and oxygen barriers. Other desirable characteristics of PVDC are heat-sealability, high gloss, transparency, and flexibility. These are applied not only to the forming film but also to the lidding structure as well. PVDC is applied on the surface in contact with the product. Like PVC, it can also undergo thermally induced dehydrochlorination, which threatens the environment.
Polychlorotrifluoroethylene (PCTFE) in Blister Packs:
This compound belongs to a family of polymers called fluoropolymers. Polychlorotrifluoroethylene is popularly known as Aclar film, a trade name from Honeywell. Like PVDC, PCTFE is laminated to PVC to enhance its barrier properties. PCTFE allows an extremely low transmission of moisture and gases, has inertness to strong chemicals, and can resist external degrading factors such as UV light and ozone. In itself, it is not particularly strong or tough, but it has high abrasion resistance. Its other notable physical properties are transparency and better thermal stability. Aclar film is widely used in military, electronic, and aerospace applications. Its laminates are designed to perform in oxygen-rich environments for packaging items in liquid nitrogen. In pharmaceuticals, Aclar laminates are suited for aseptic blister packs since they can be sterilizable by heat.
Polypropylene (PP) in Blister Packs:

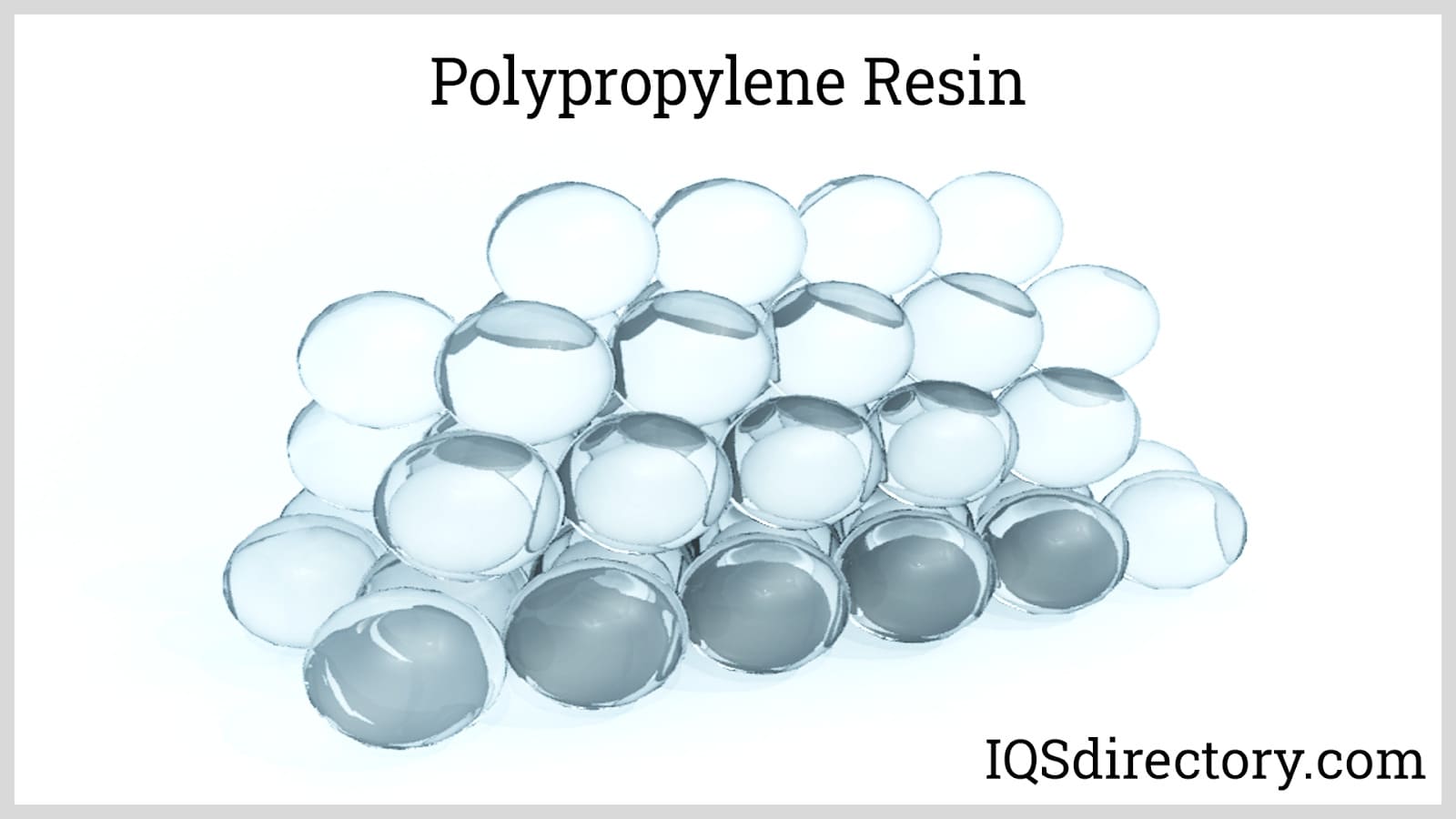

Polypropylene emerged as an alternative forming film to PVC. Its water vapor permeability is comparable to PVDC-coated PVC. It is preferred in some regulated regions since it does not produce harmful chemicals when incinerated. Also, it can easily be recycled than PVC. Its main disadvantage is the difficulty of processing. PP cannot be readily fed to a standard blister packing machine. The range of operating temperatures for thermoforming PP is very narrow and must be controlled precisely. Warping and post-processing shrinkage can occur, which decreases the quality of packaging.
Polyethylene (PET) in Blister Packs
Another candidate to replace PVC is PET. Polyethylene is used for packaging food and consumer goods but is less often for blister packaging of medicines. This is because PET has a higher water vapor permeability than PVC. It can be solved by adding a layer of PVDC, but it defeats the purpose of preventing the release of harmful gases.
Cyclic Olefin Copolymers (COC) in Blister Packs

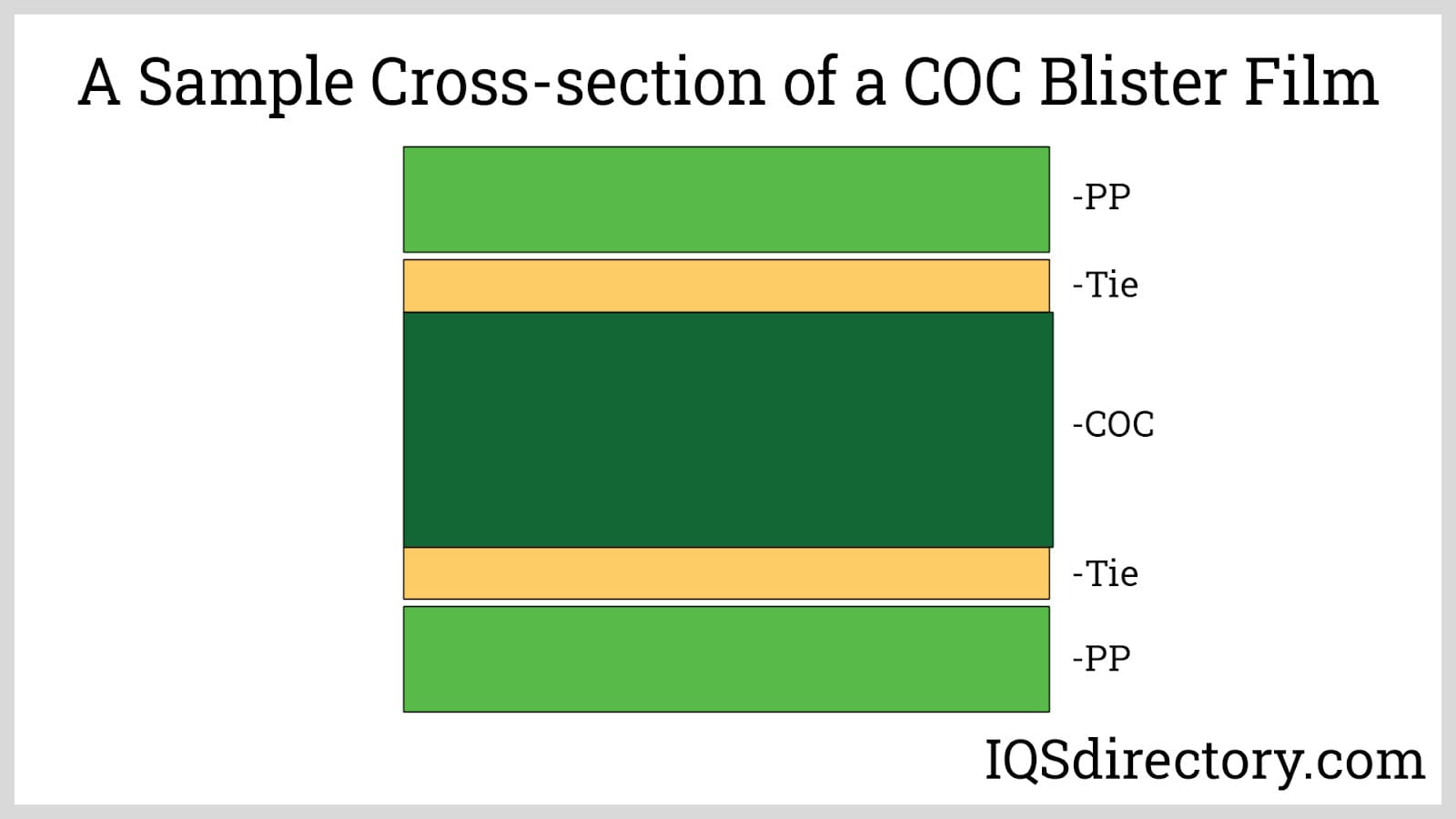

COC is a family of fully amorphous polymer resins that are desired because of its comparable properties with PVC without the negative effects. COCs that have a multilayer structure are best suited for blister packaging because of their low water vapor permeability. The properties of a COC film can be altered by developing specific blends of polyolefins. Some of the properties that can be modified are its elasticity, transparency, vapor transmission rate, and coefficient of friction.
Laminated Aluminum Foil in Blister Packs
This type is a combination of aluminum, PVC, and polyamide or polyester films. Laminated aluminum films are cold-formed. They completely eliminate water-vapor permeability, which makes them suitable for medicines with long storage life. It also provides complete protection from light and oxygen.
Chapter 6: Types of Blister Packaging
The keys to the different types of blister packaging are the blister, cavity, box, and shape, which differ depending on the product to be packaged. The various substrates, materials, and heating sealing methods further separate the types of the products to be packaged, their sizes and shapes, defining the packaging method.
The four types of packaging methods are divided into plastic and paper, plastic with plastic, aluminum foil and plastic, and aluminum foil and aluminum foil. Initially, blister packaging was designed to be packaging to seal medicines in tamper=free containers securely. From its beginnings as medical packaging in the middle of the twentieth century and the rapid advancement of technology, blister packaging has expanded into a wide array of industries and brought an innovative approach to product display and safety.

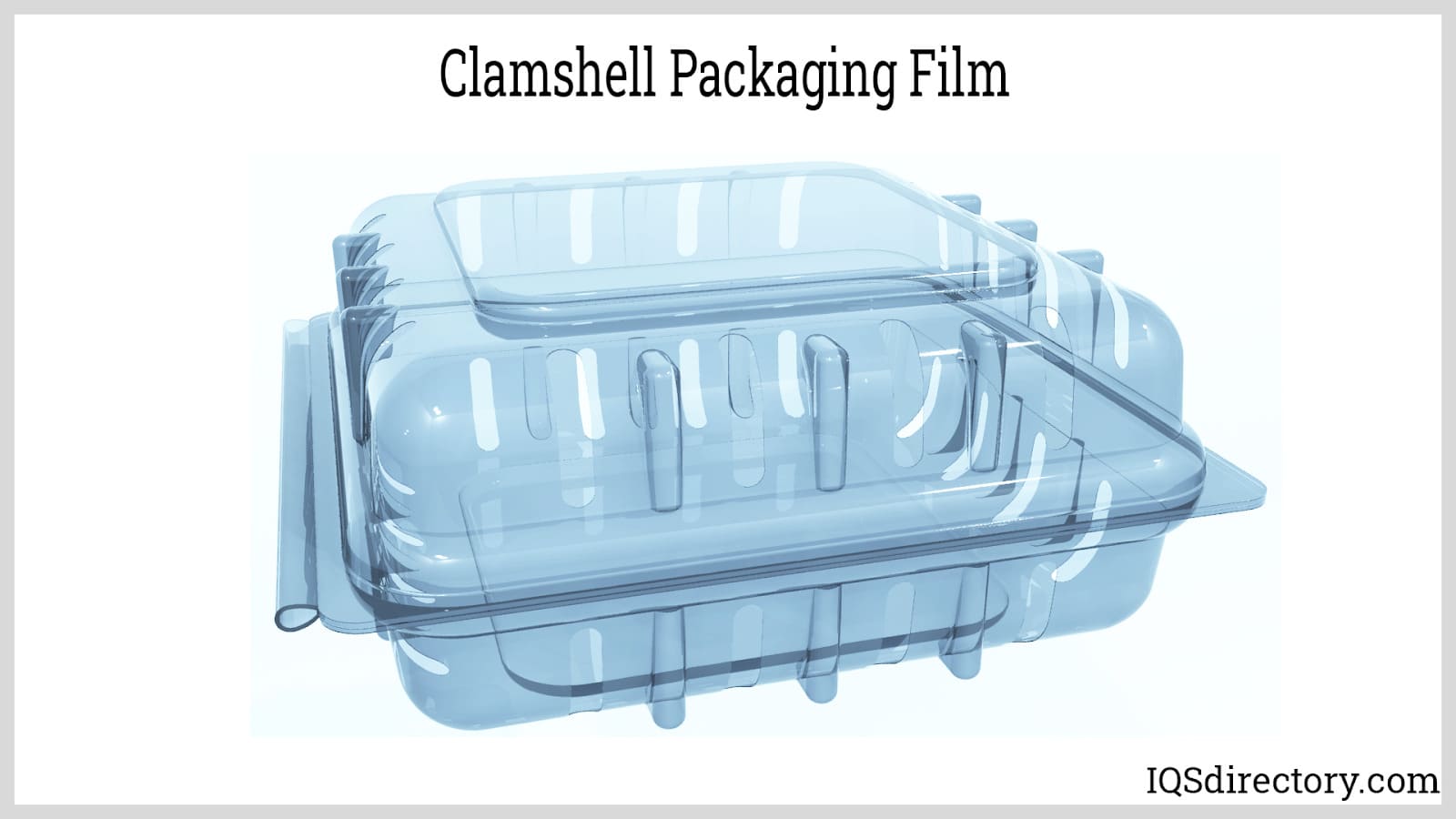

Clamshell packaging consists of an external shell with two similar-sized parts connected on one side. It gets its name from its appearance when it opens, which is similar to that of large clams in the ocean. Clamshell packaging comes in multiple sizes and is made from several different plastics. They are used in the fast-food industry as a replacement for boxes.
Plastic and Paper Packaging
Plastic and paper blister packaging is known as blister cards or face seals and is a very common type of blister packaging. The plastic material is heated and shaped to the dimensions of the product, after which it is heat-sealed to a piece of cardboard.
Trapped Blister Packaging
Trapped blister packaging is an innovation designed to replace the use of face seal blisters and clamshell packaging. It is a process that is similar to plastic and paper blister packaging. Unlike the plastic and paper method, where a sheet of plastic in the shape of the product, is attached to a piece of cardboard, the trapped blister packaging method places the product, enclosed in plastic, between two pieces of cardboard.
The appeal of the trapped blister packaging process is its low cost and its use of eco-friendly materials. Additionally, it is a highly secure method of packaging that is not easily opened. Trapped blister packaging has become very common, especially in club store merchandising.
Plastic and Plastic Packaging
Plastic and plastic blister packaging is mainly a form of clamshell-style packaging that consists of a single piece molded container that makes a plastic casing, which cannot be easily opened when sealed and closed. As a backing, plastic and plastic blister packaging has a piece of paper or cardboard placed inside or outside the casing for decoration and information. Plastic and plastic blister packaging allows customers full visual access to a product without having to open the package.
Aluminum Foil and Plastic Packaging
Aluminum foil and plastic blister packaging has the same structure as plastic and paper blister packaging, where plastic is shaped to the form of the product. Instead of the backing being a piece of cardboard, in aluminum foil and plastic blister packaging, the backing is a piece of aluminum foil. It is an ideal packaging for medicines because it allows for easy accessibility but is an excellent sealing material.
Aluminum Foil and Aluminum Foil Packaging
In aluminum foil and aluminum foil packaging, both the front and back of the packaging are aluminum foil such that customers are unable to see the product. In some cases, the contents may be wrapped in sheets of plastic. Aluminum foil and aluminum foil packaging is seldom used due to its cost of manufacturing. Its purpose and development is for light-sensitive products that are protected by the opaque aluminum foil.
Slide Blister Packaging
Slide blister packaging is a variation of paper and plastic blister packaging where plastic in the shape of the product is attached to a piece of cardboard that completely encases the product. The variation of slide blister packaging is that it has flanges that wrap around the sides of the cardboard with an opening on one side that does not have a flange, which allows the piece of cardboard to slide in and out.
Blister packaging, or blister packs, are pre-formed packaging materials composed of a thermoformed plastic cavity and a pliable lid. In this type of packaging, the product is placed in deep-drawn pockets or cavities that resemble a blister.
Blister packaging offers the following benefits: individual packaging, maintaining product integrity, tamper protection, preventing accidental drug misuse, visibility, and allowing minimal movement within the packaging.
Contract packaging is the process of outsourcing the packaging process to specialized service providers. This enables the manufacturer to focus on its operation and business process.
There are four main components involved in blister packaging. These are the forming film, lidding, heat-seal coating, and prints.
Two main methods are used in foil forming: thermoforming and cold forming. Thermoforming is used for polymer-based materials, while cold forming is for laminated aluminum.
PVC is the main material used for blister packaging; however, it is now being replaced due to its negative effects on the environment.
