Please fill out the following form to submit a Request for Quote to any of the following companies listed on
Get Your Company Listed on this Power Page
Introduction
This article gives complete industry insights on plastic materials.
Read further to learn more about topics such as:
What is a Plastic Material?
Advantages of Plastic Materials
Production of Raw Plastics
Types of Plastics
Plastic Fabrication Process
And much more...
Chapter 1: What is a Plastic Material?
Plastic materials are synthetically produced compounds that are made from polymers, long molecules built into chains of carbon atoms. A polymer is a very large molecule made from the repetition of small pieces called monomers. Spaces in the chains are filled in with atoms of hydrogen, nitrogen, oxygen, and sulfur.

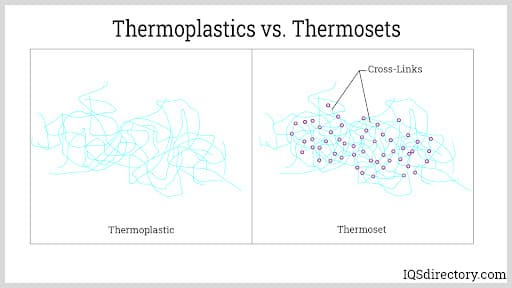

Plastic is divided into thermoplastics and thermosets, which behave differently when they are heated. Thermoplastics are a recyclable set of plastics that soften when they are heated and can be used multiple times to produce different products. Thermoset plastics are one-time-use plastics that never soften after being molded and are not recyclable. Unlike thermoplastics, thermoset plastics are made up of very long and large polymer chains heated and compressed to form dense, hard cross-linked molecular chains, which is the reason they do not soften when heated.
Before the development of plastics in the middle of the first industrial revolution, natural and readily available materials were used to produce products for industrial, commercial, and home use. Trees were plentiful, which made wood accessible. For centuries, crude processes were used to produce metals like iron and bronze, while another set of crude processes was used to make glass.
The introduction of plastic was revolutionary and changed the landscape for manufacturing common products as well as industrial ones. As a pliable, malleable, and durable material, plastic became a fascination that scientists and inventors hoped to improve and perfect.
The various formulations of plastic can be engineered to have different properties, characteristics, and strengths. Using a variety of chemical processing techniques, plastic material can be manipulated and changed to have varying degrees of strength, toughness, resilience, hardness, and heat resistance.
History of Plastics
The original meaning of the word plastic was "pliable and easily shaped," referring to a group of materials called polymers, meaning “of many parts.” There are several natural polymers, the most notable of which is cellulose that forms the walls of plants. Since the discovery of the first polymer, scientists have learned to create synthetic polymers from petroleum and fossil fuels. All polymers, natural or synthetic, consist of long chains of atoms, with synthetic polymers having chains that are far longer than the ones found in nature.
In 1856, Alexander Parkes produced a flexible material called Parkesine that was made by mixing nitrocellulose, alcohol, camphor, and oil. His discovery is considered to be the birth of the modern plastic industry. Parkes’ work inspired other scientists and inventors to perfect and improve on his formula in the development of the most common material known to the modern world.
John Wesley Hyatt continued Parkes’ work in 1869 in an attempt to find a replacement for the ivory used to make billiard balls. Hyatt treated cellulose nitrate with camphor to produce a plastic that could be shaped, configured, and formed in several ways to imitate the qualities of ivory from elephants. To enhance the production of the new material, Hyatt worked with Charles Burrough to design machinery to mass-produce his invention.
Further advancements in technology led to the rise of fully synthetic plastic. The first was Bakelite, which was developed in 1907 by Leo Baekeland, who used the term “plastics.” Bakelite was formed from the reaction of phenol with formaldehyde. It was successfully mass-produced and was used as a raw material for products such as sealants, lacquers, laminations, and moldable materials.
Throughout the 20th century, the emergence of different types of plastics followed. Mass production of plastics experienced a boom when World War II began. Plastics were extensively used in the military for producing synthetic silks, vehicle parts, and containers to replace rubber. After the war, the surge in demand settled. In time, production continued with the intent of satisfying the consumer goods market. Since then, the plastics industry has grown rapidly to become essential worldwide.
A material that was developed at the same time as plastic was fish paper, also known as fiber paper, vulcanized fiber, or red fiber, which was patented in England in 1859 by Thomas Taylor. It is vulcanized cellulose fibers that have been gelatinized with zinc chloride, acids, or bases, which are removed during a pressing process to form the fiber sheets. Fish paper comes in thicknesses of 0.093 inches (2.4 mm) up to 0.375 inches (9.5 mm), which is achieved by laminating the pressed sheets.
Fish paper is lightweight, easy to form, and more resistant to heat and cold than comparable plastic materials. Unlike plastic, fish paper retains its strength at extremely low temperatures and comes in sheets, rolls, or coils. It is mainly used as an insulation material due to its excellent durability.
Chapter 2: Advantages of Plastics
Plastic materials were once considered a "wonder material." They surpass steel in almost every aspect of engineering design. Plastics have many desirable inherent characteristics that most metals do not possess. They are also cheaper to produce, making them suitable for mass production. The only drawback of using plastics is their threat to the environment.
Below are some of the advantages of plastics.
Formability:
Plastics are great materials when it comes to formability. Plastics can be molded, cast, rolled, pressed, stamped, extruded, and so on. They can be formed into complex shapes, including those that are difficult or impossible for other materials to achieve. The dies and tools used to form plastics are also easier to make.
Resistant to degradation from chemicals and water:
Plastics do not corrode or degrade the same way as metals. Metals develop rust, which weakens the structural integrity of the product. Rust also poses a threat of product contamination, especially for food and pharmaceutical products.
Lightweight
Plastics have densities around 0.8 to 1.5 times that of water. However, steels have densities of around 7.8 times that of water, while glass and ceramics are around 2 to 3 times the density of water. This shows that plastics are significantly lighter than metals and glass and can be and we know they can be used for many of the same applications. Moreover, some plastics are engineered to have a high strength-to-mass ratio.
Can be made extremely flexible or high strength:
Each type of plastic has inherent mechanical properties. These properties are modified by compounding special additives that can improve their flexibility and strength. Examples of these additives are glass and carbon fibers. Adding fibers into a plastic matrix creates a composite material with better tensile and flexural strength.
High impact and tear resistance:
Plastics are made from long, chained molecules that arrange themselves in crystalline structures or amorphous structures. Their structure gives them their inherent elasticity. Plastics do not fail easily through brittle fracture and cracking. Tearing is an issue that is resolved by including additives or by using a polymer base with high tensile strength.
Good aesthetics and surface characteristics:
Plastic can be made into clear, translucent, or fully opaque products. They can also be made into different colors by adding pigments. When it comes to surface characteristics, plastics possess a variety of finishes and textures, negating the need for expensive secondary operations.
Long service life:
Because of its chemical and wear resistance, plastic does not degrade easily under normal conditions, giving them a long service life. Some plastic additives further enhance their durability by imparting resistance to oxidation and ultraviolet radiation. However, the downside of their long life is their negative impact on the environment. When not managed properly, they can quickly accumulate and harm ecosystems.
Recyclability
Like glass and metals, some varieties of plastics can be recycled. Traditionally, plastics are recycled through heating and melting. Through heating, plastics are melted and formed into raw materials for manufacturing new plastic products. However, melting is only applicable to thermoplastics. Advanced processes are also being developed for processing other types. In general, these methods chemically convert plastics into monomers that are used as fuels for power generation.
Low production cost
Plastics are easy to form. They require less energy to produce than metal and glass. When heated, plastics are easily shaped; shaping requires only a moderate amount of pressure. Plastics can even be formed by compressed air. The temperature in their melted state is not as high as that of metals and glass. Plastics in this state can be injected and molded without the need for expensive dies and tools.
Leading Manufacturers and Suppliers
Chapter 3: Production of Raw Plastics
Manufacturing plastic goods starts with the production of raw plastics. Raw plastics are materials containing the basic properties of the polymer from which they were made. They are produced in petrochemical plants, where petrochemical feedstocks are converted into raw plastics through a chemical process known as polymerization. Raw plastics are supplied to manufacturing and fabrication shops in liquid, powder, or pellet form, where the pellets are processed to create the final product.
Polymerization is the process of forming macromolecules called polymers by joining hundreds to thousands of unit molecules called monomers. Polymerization is made possible by the fact that organic compounds contain double-bonds and active functional groups to form long-chained molecules.
Different polymerization processes exist to produce a specific type of polymers. Examples of such processes are bulk, solution, suspension, and emulsion polymerization. Each process has different chemical mechanisms to carry out the reaction.
The long list of polymerization processes can be categorized into step growth or condensation polymerization and chain growth or addition polymerization. Addition polymerization happens when an additional reaction occurs, while condensation polymerization has molecules of monomers reacting.
Addition polymerization - During polymerization, the monomers rearrange and change to form new structures without any loss of atoms or molecules. The four types of addition polymerization are:
Free Radical Polymerization: An addition polymer forms by adding atoms with free electrons to their valence shells, known as free radicals, that join in a chain during polymerization.
Cationic Polymerization: Polymerization begins with the formation of a cation, a positively charged ion, that causes a chain reaction to form long chains of repeating monomers.
Anoionic Vinyl Polymerization: This is the polymerization process for vinyl polymers with strong electronegative groups to create the chain reaction.
Coordination Polymerization: It is a process that includes a catalyst, which allows engineers to control free radical polymerization. It produces polymers with greeter density and strength.
Condensation Polymerization - Condensation polymerization is a step growth polymerization process where small molecules or monomers react with other monomers to form polymers. Various reactions can take place between similar, different, or groups of monomers. The reaction always combines smaller molecules to form larger ones. The resulting polymers can be linear or cross-linked.
The type of polymer formed by condensation polymerization depends on the types of monomers. When the monomers have reactive groups, the polymer has low molecular weight. Two reactive monomer groups create linear polymers, while more than two reactive groups result in three-dimensional polymer networks.
Polymerization can also be done with one or more types of monomer feedstocks. Combining two or more types of monomers is a common way to give raw plastics better characteristics. Polymers made from more than one monomer are called copolymers.
After polymerization, plastics are further processed by blending an initial set of additives. Additives such as stabilizers and antioxidants prevent the raw plastic from degrading when exposed to air, light, or heat. This stabilizes the raw plastic so that it can endure further processing and storage.

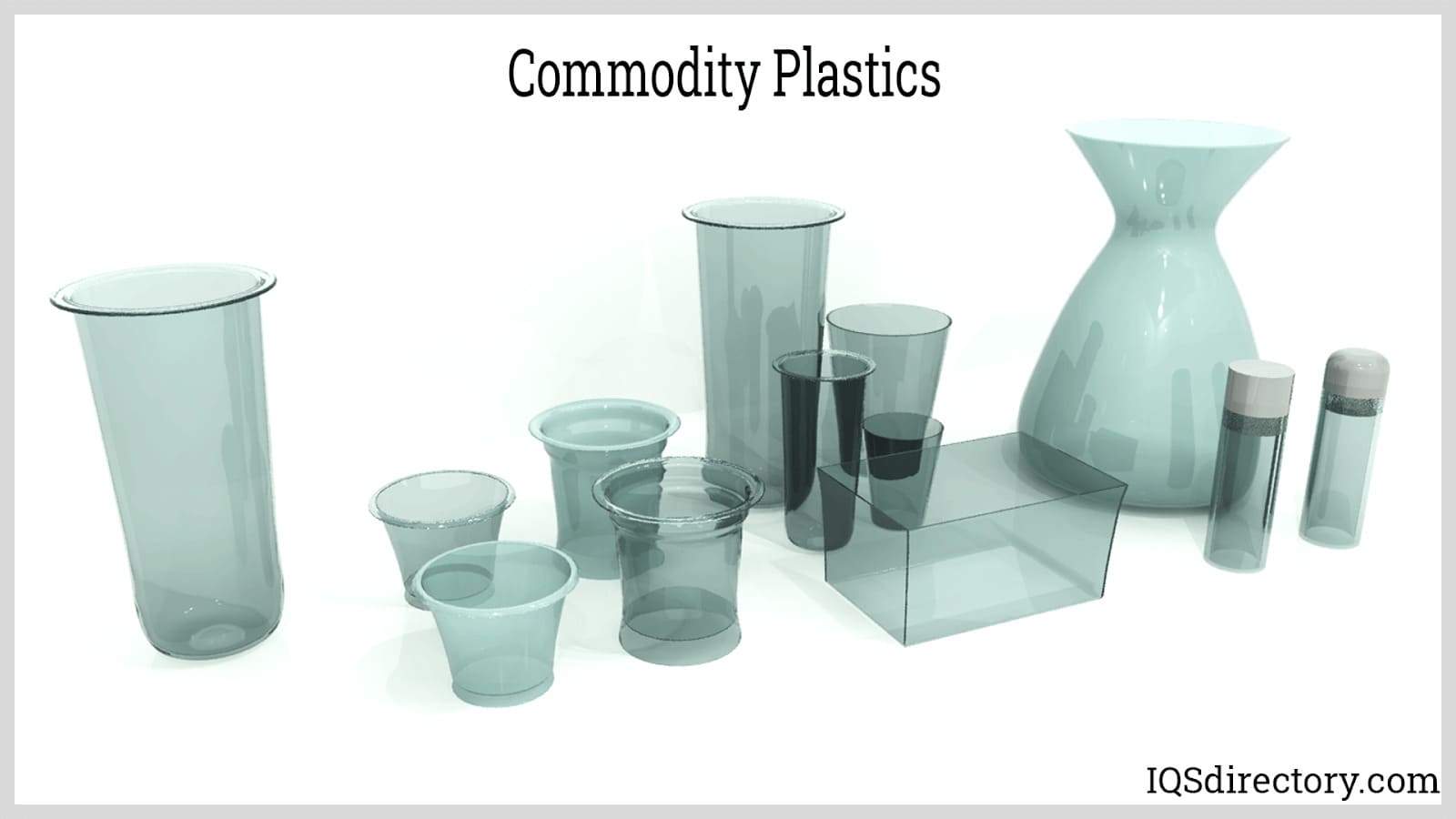

To produce a commodity plastic with desired properties, they are further blended and compounded. Various formulations add a specific set of physical, mechanical, electrical, Durometer hardness, and chemical properties to plastic. Aside from stabilizers and antioxidants, plastic additives include processing aids, performance enhancers, and aesthetic modifiers.
Another set of additives, such as pigments, fillers, and reinforcing materials, are added to the plastic in manufacturing plants and fabrication shops. These additives give the plastic its final specifications according to the manufacturer’s standards to suit an end-use.
Chapter 4: Types of Plastic Materials
Plastic polymers can be broadly classified as thermoplastic and thermosetting polymers.
Thermoplastic Polymers: Thermoplastic polymers or thermoplastics have polymer molecules that can be repeatedly rearranged by heating and cooling. Heating thermoplastics liquifies or softens them, but no chemical change takes place during this process. This is because of the absence of cross-linking that is evident in thermosetting polymers. Subsequent cooling returns the material to its solid state. This heating and cooling process allows the plastic to be formed into different shapes.
Thermosetting Polymers: Plastics made from these types of polymers have functional groups that form the cross-links between the molecules. Thermosetting polymers or thermosets cannot be softened through heating. Once heated, they undergo a chemical reaction that permanently changes their properties. Processing thermosets includes an additional process called curing. Curing is the process of creating crosslinks between polymer chains, finalizing the properties of the plastic.
In addition to being classified as thermosetting or thermoplastic, plastics are divided according to the type of polymer used in producing the raw resin.

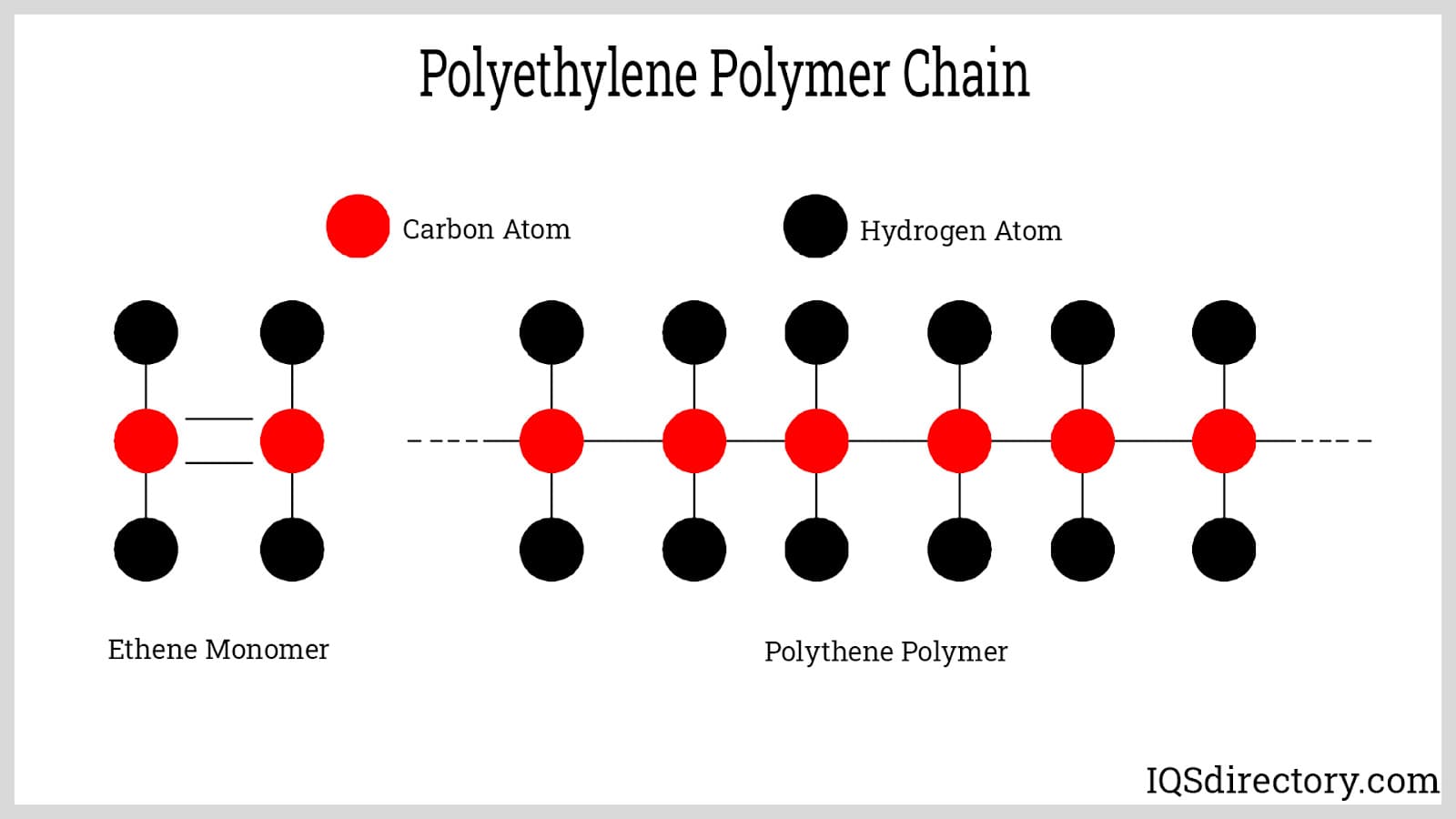

Polyethylene (PE): Polyethylene is the most extensively used plastic material. PE has many desirable characteristics, such as easy processability, toughness, and flexibility, which are all retained even at low temperatures. PE is odor and toxin-free and has excellent clarity, good water barrier properties, good electrical insulation properties, and a low cost. It has two main types: high-density polyethylene (HDPE) and low-density polyethylene (LDPE).
High-Density Polyethylene (HDPE): Among the types of polyethylene, HDPE is the more dominant raw material in terms of market share. Its molecular structure is linear with little branching, resulting in higher intermolecular forces. This gives HDPE its high specific strength.
Low-Density Polyethylene (LDPE): LDPE has a branched polymer chain that has weak intermolecular forces. This results in lower tensile strength and barrier properties. Nevertheless, it has better impact strength and resilience than HDPE.

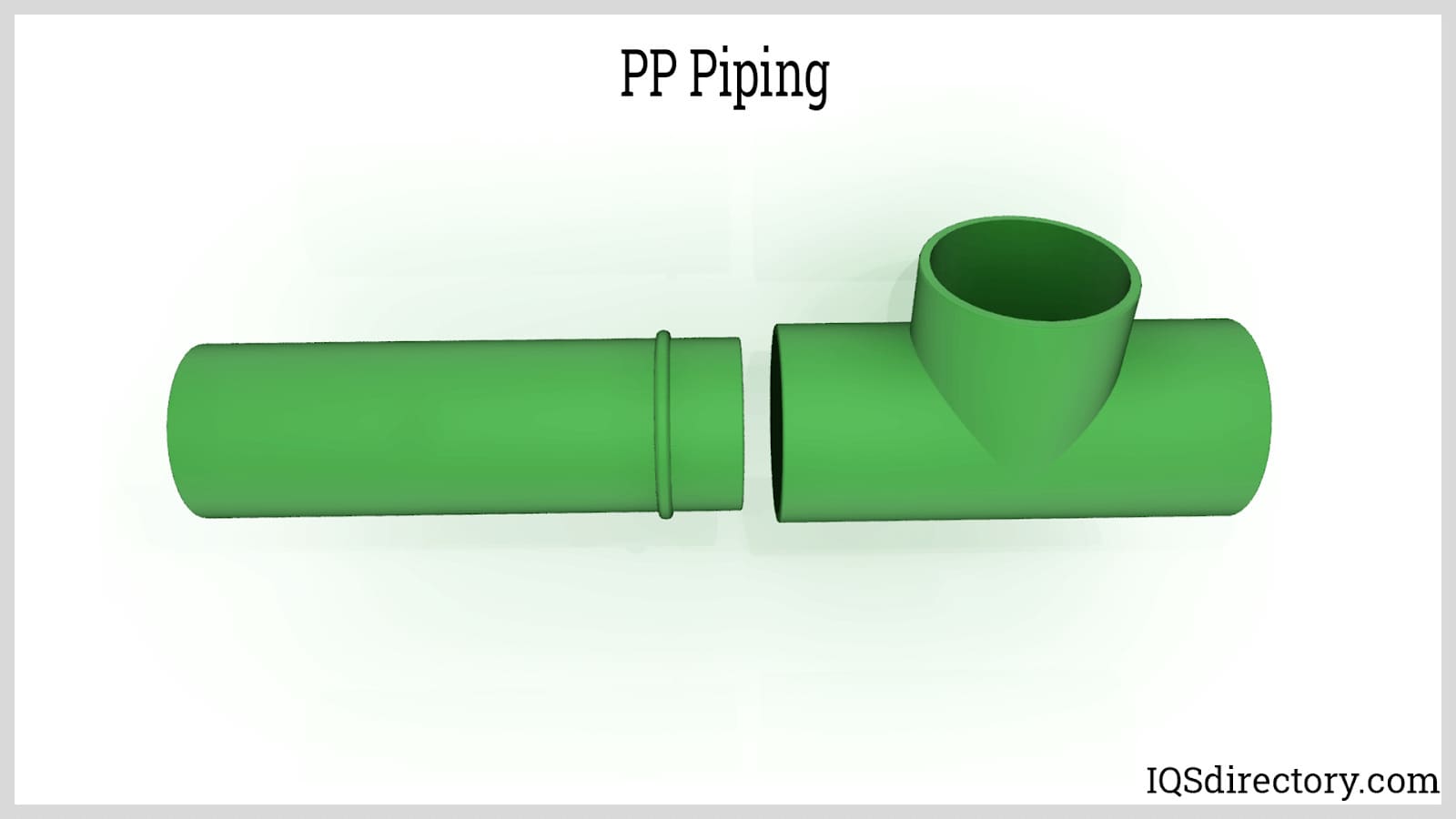

Polypropylene (PP): PP is a polymer that can have a wide range of properties, which depend on its molecular weight, morphology, crystalline structure, additives, and copolymerization. It can be made into polymers with a high degree of crystallinity, resulting in higher tensile strength and hardness comparable to HDPE. Moreover, it can withstand higher temperatures without loss of strength or degradation. The disadvantage of using PP is its susceptibility to UV degradation and oxidation.

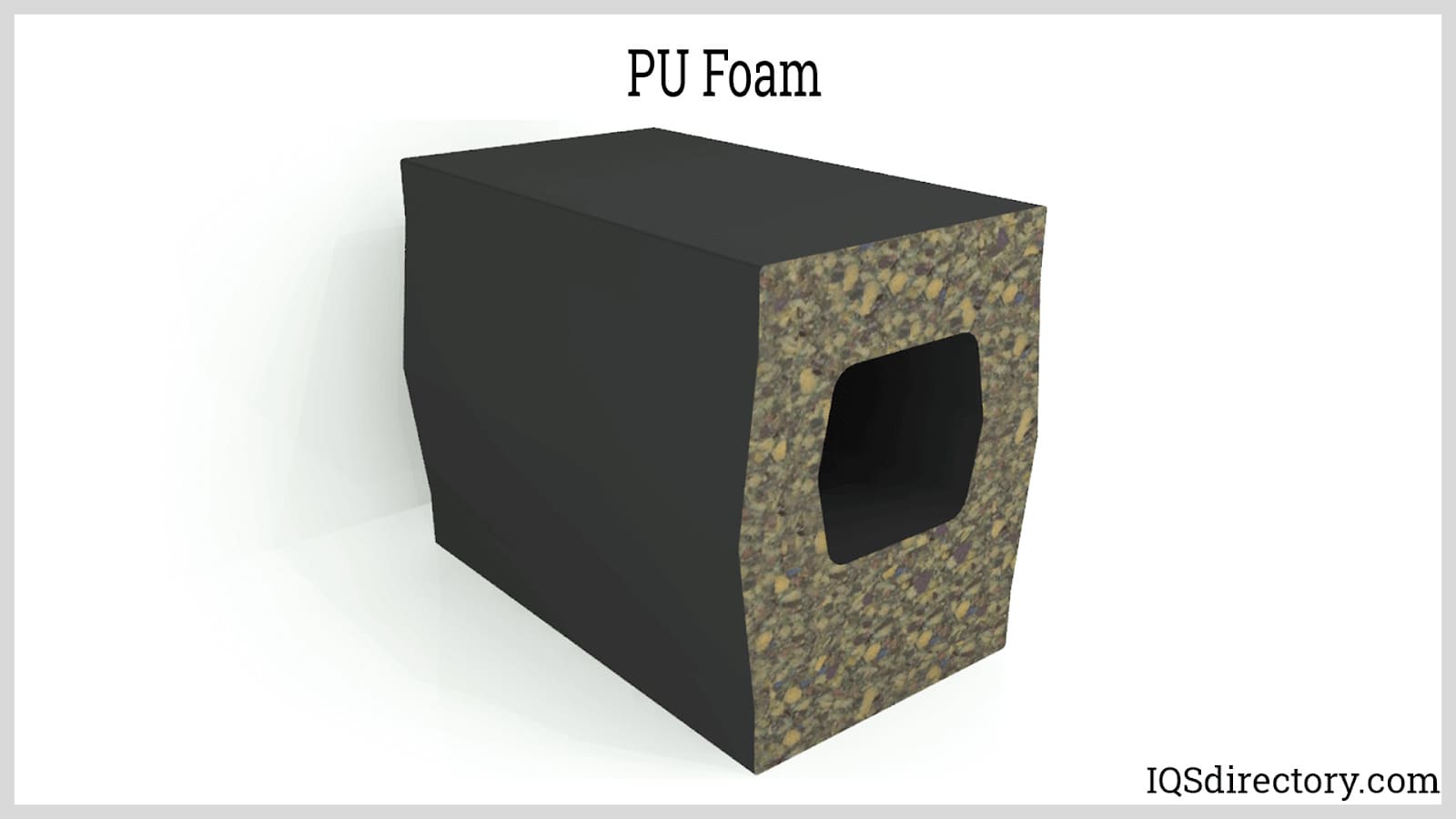

Polyurethane (PU):
PU is produced from polyester or polyether polyols, diisocyanate compounds, curatives, and additives. They are suitable for making high-performance, engineering-grade products. Their mechanical properties can vary from soft and flexible to hard and rigid.

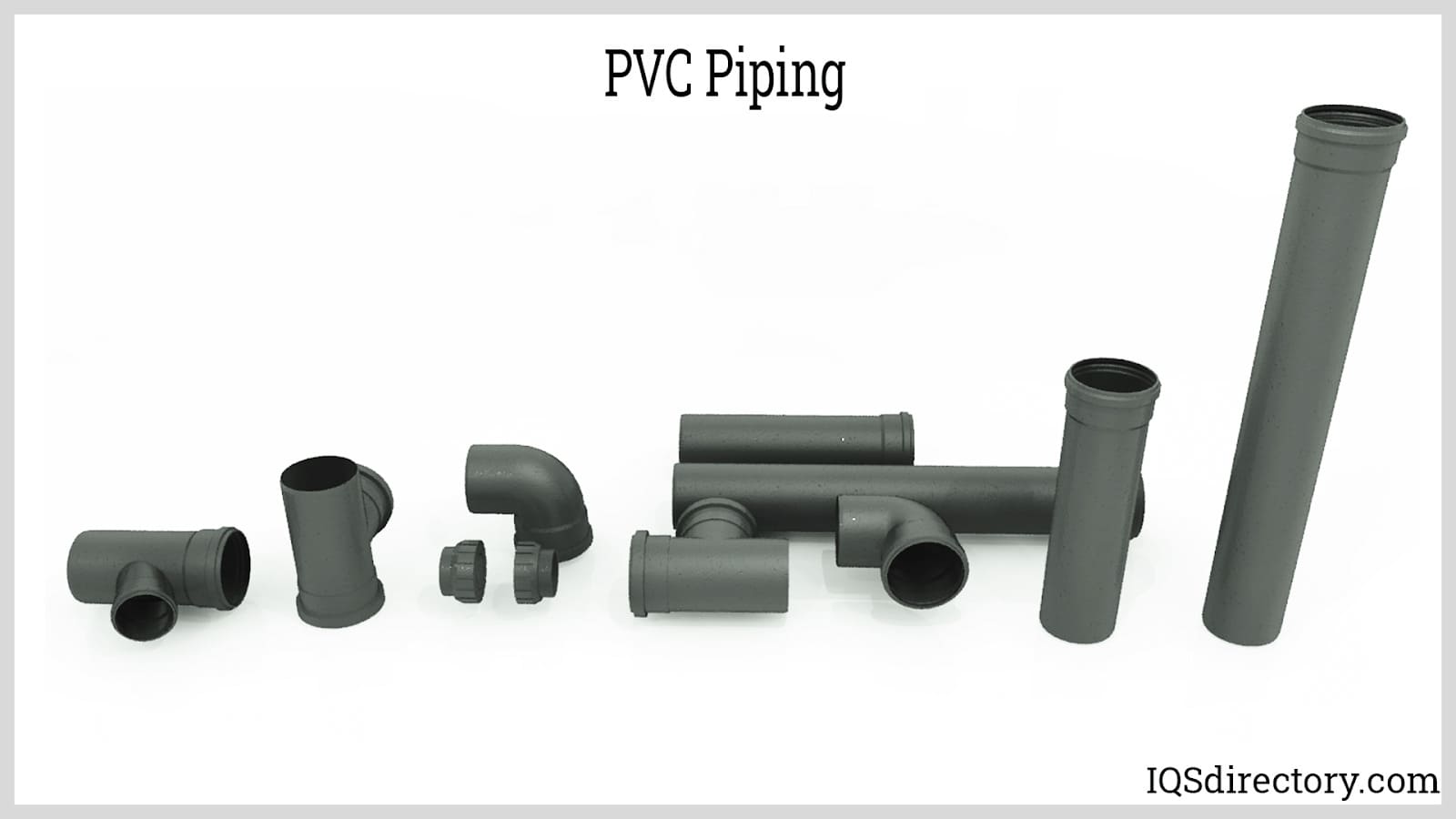

Polyvinyl Chloride (PVC): PVC is a plastic that can be formulated with different stabilizers, plasticizers, impact modifiers, processing aids, and other additives. It can be made into rigid or flexible plastic by modifying the amount of plasticizers. Moreover, they offer better clarity than other versatile plastics. However, PVCs have the potential to release harmful pollutants, acids, and toxins during processing or degradation. Its compounding ingredients are now being regulated by FDA, EPA, and other organizations.

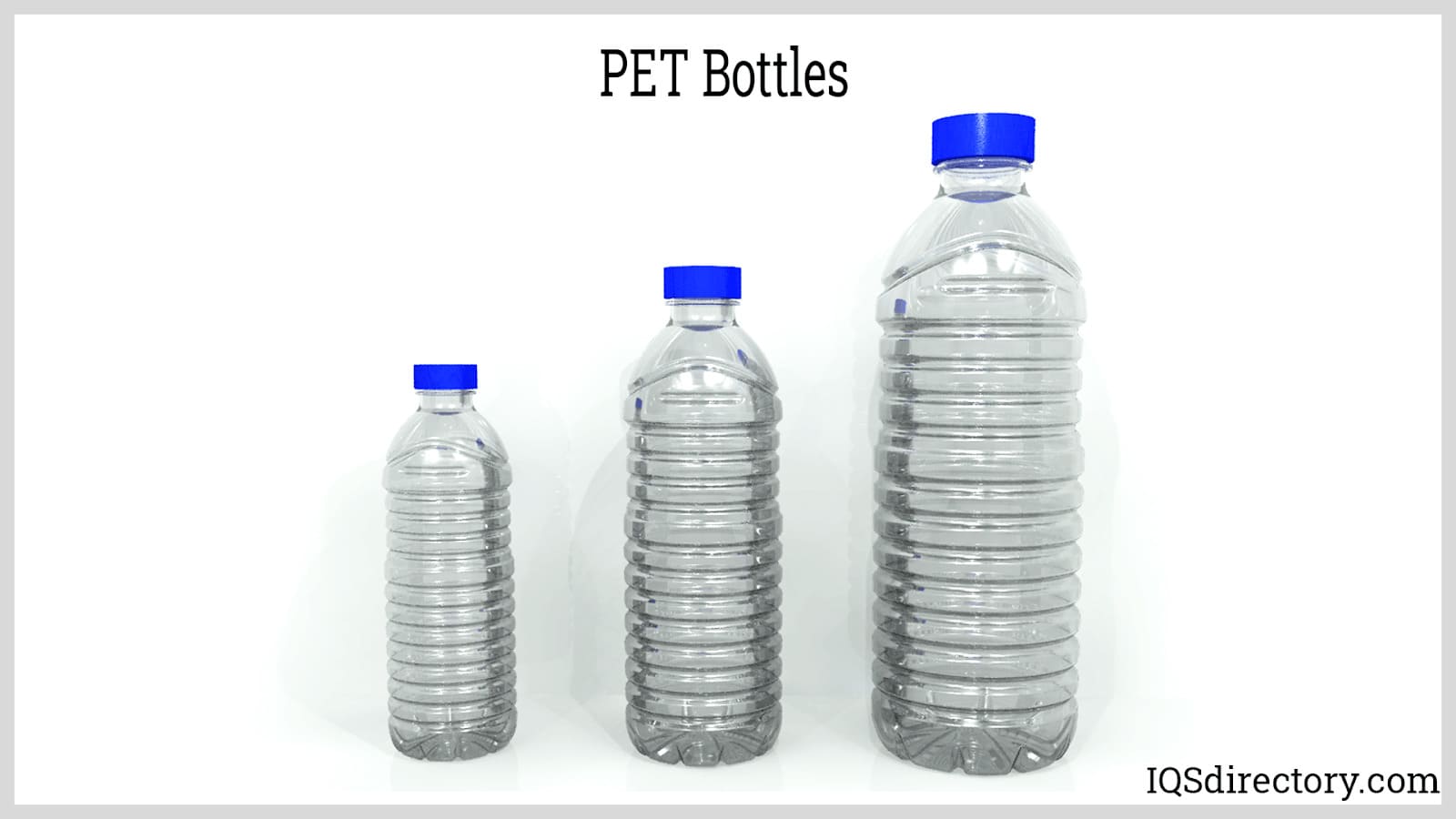

Polyethylene Terephthalate (PET): PET, specifically biaxally oriented PET, is known for its low permeability to moisture, carbon dioxide, and alcohol. It also has an excellent intrinsic viscosity. The downside of using PET, however, is its affinity for water. It tends to absorb water, which makes processing difficult as the resin needs to be dried before extrusion.

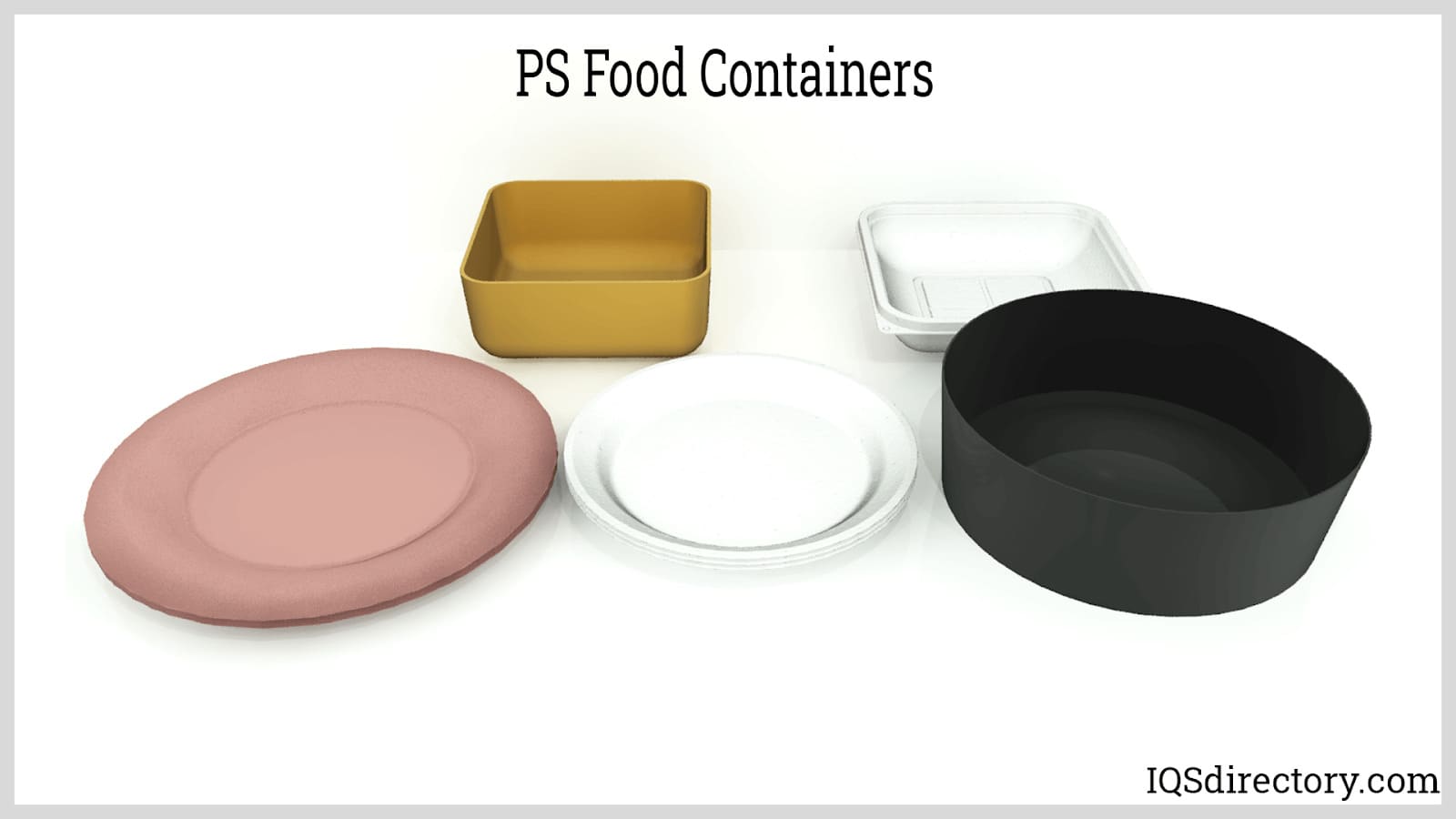

Polystyrene (PS): PS is another versatile plastic modified by copolymerization and additives. They can be made into flexible, rigid, or cellular (foam) plastic forms. PS is generally prone to oxidation. Thus, repeated recycling is not recommended. Furthermore, their sensitivity to oxidation causes their color to become yellowish.
Polyamide (PA): PA is considered an engineering plastic characterized by its high toughness, high impact strength, resistance to solvents, abrasion resistance, and ability to be modified to possess heat resistance. PA production mostly goes into the manufacturing fibers. Only about 10% of PA production volume is used in plastic forming processes.
Acrylonitrile Butadiene Styrene (ABS): ABS is a common plastic material characterized by good hardness and rigidity with some degree of toughness. Protective coatings are usually applied due to the material‘s poor resistance to UV and merely adequate resistance to most acids and alkalis.

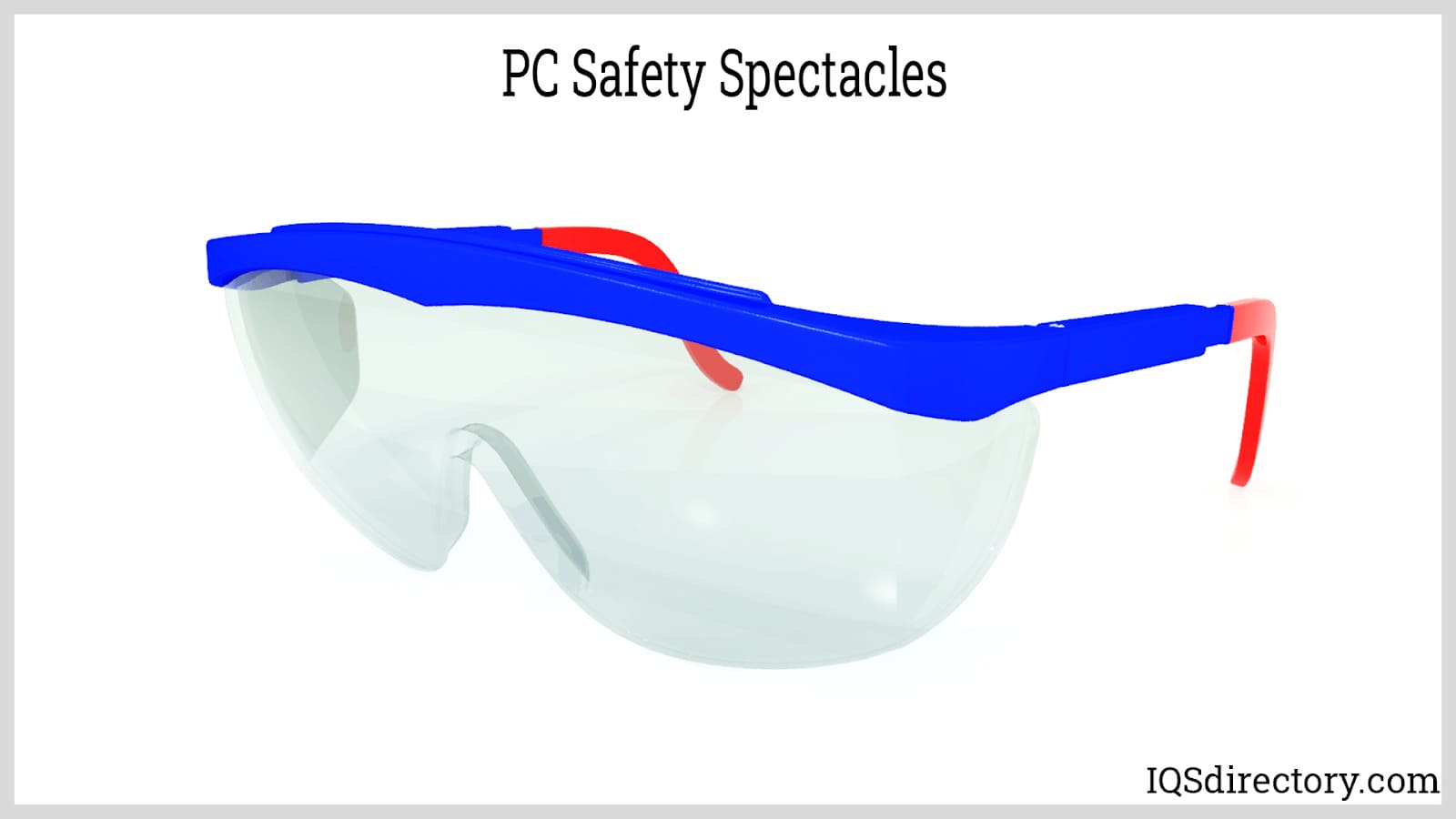

Polycarbonate (PC): PC is easily processed by different molding methods, with injection molding and sheet extrusion being the most common. Polycarbonates are known for their high impact strength, heat resistance, good electrical insulation, transparency, good water barrier properties, and inherent flame retarding properties.
Polytetrafluoroethylene (PTFE): PTFE is one of the most common types of fluorocarbon polymers. It has many desirable characteristics, such as low coefficient of friction, self-lubrication, chemical resistance, and hydrophobicity. This makes PTFE desirable as a coating material. Its hydrophobic property also prevents the growth of microbes, which further extends its applications to manufacturing food and drugs.

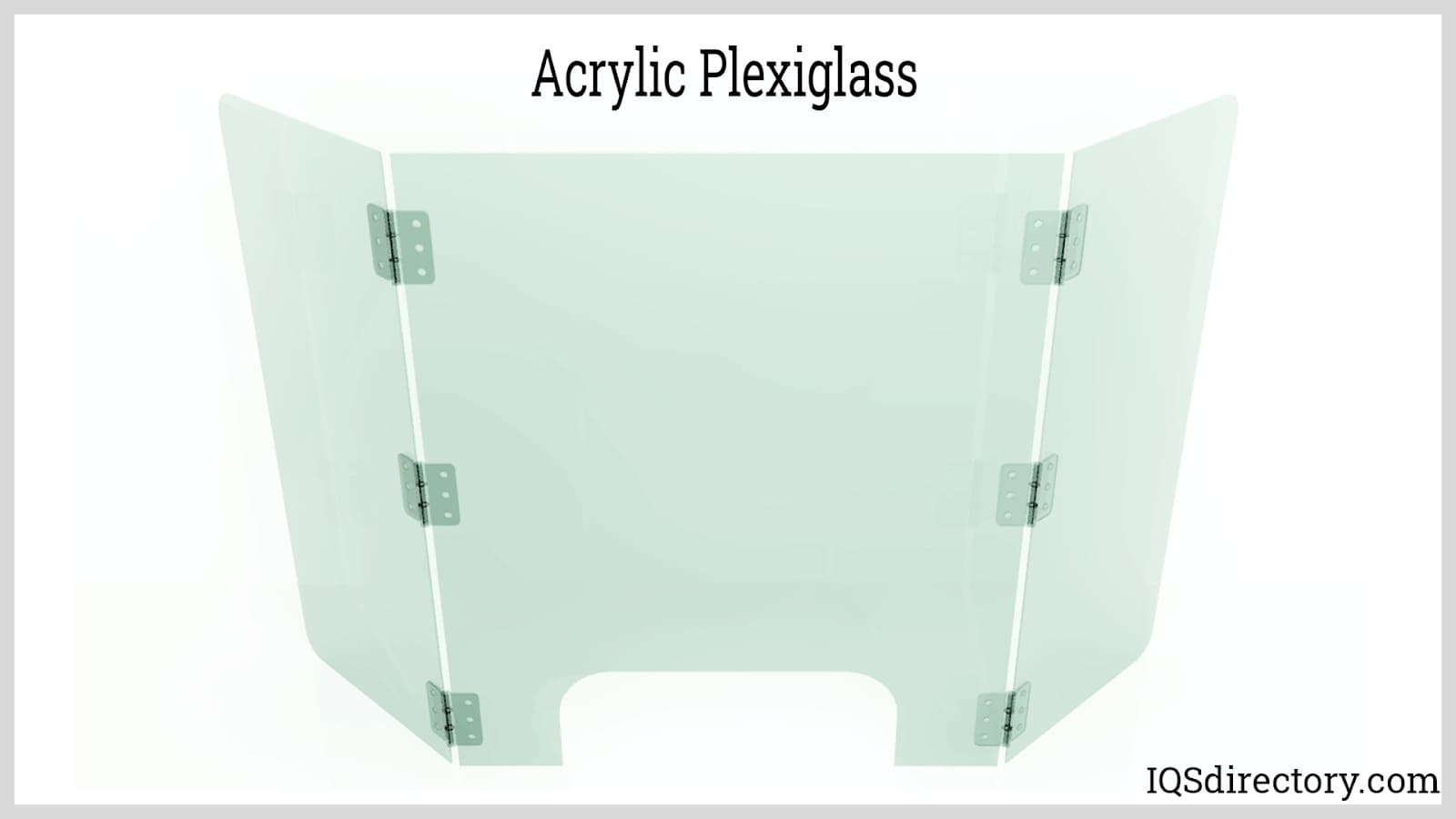

Polymethyl Methacrylate (PMMA): This type of plastic is also known as acrylic. It is a type of thermoplastic with distinctive properties such as superb transparency, lightness, tensile and flexural strength, and UV resistance. They are commonly used as a substitute for transparent glass. Examples of their applications are windows, lenses, safety barriers, and screens.
Single Use: Of the broad spectrum of plastics, single-use plastics have raised the greatest amount of worldwide concern. In essence, they are a form of disposable plastics designed to be used once and thrown away. Items that fall into this category include plastic bags, plastic stirrers, straws, soda and water bottles, and food packaging. Of the 300 million tons of plastic produced each year, half of it is single-use.
Small single-use plastic items are often conveniences that are used to mix coffee, bring a purchase home, or display new merchandise. Other forms of single-use plastics play a more vital role, such as surgical gloves and tools, breathing masks, and other items for medical care. Regardless of the material, these items can only be used once for safety and protection. The original reason for the development of single-use plastics was to prevent the spread of disease, cut labor costs, and serve as a means for keeping items fresh for a longer period of time.
The flexibility, cost-effectiveness, and safety provided by single-use plastics are the main reasons they are so widely used. With rising concerns for environmental impact, several multinational companies have developed methods for recycling and repurposing single-use plastics, from making paving materials for roads to producing outdoor buildings. Every company and country are doing their part to make use of these convenient and vital materials.
Because of their excellent formability, different fabrication methods for plastics have been developed. Plastics can easily be molded, cast, extruded, stretched, or spun. They tend to flow according to the profile of the mold or die without the need for extreme heat and pressure. After undergoing the primary fabrication processes, their mechanical properties allow them to undergo secondary processes, such as trimming, cutting, grinding, drilling, gluing, and welding, similar to that of metals.
Enumerated below are the primary fabrication processes for plastic materials.
Injection Molding Plastics

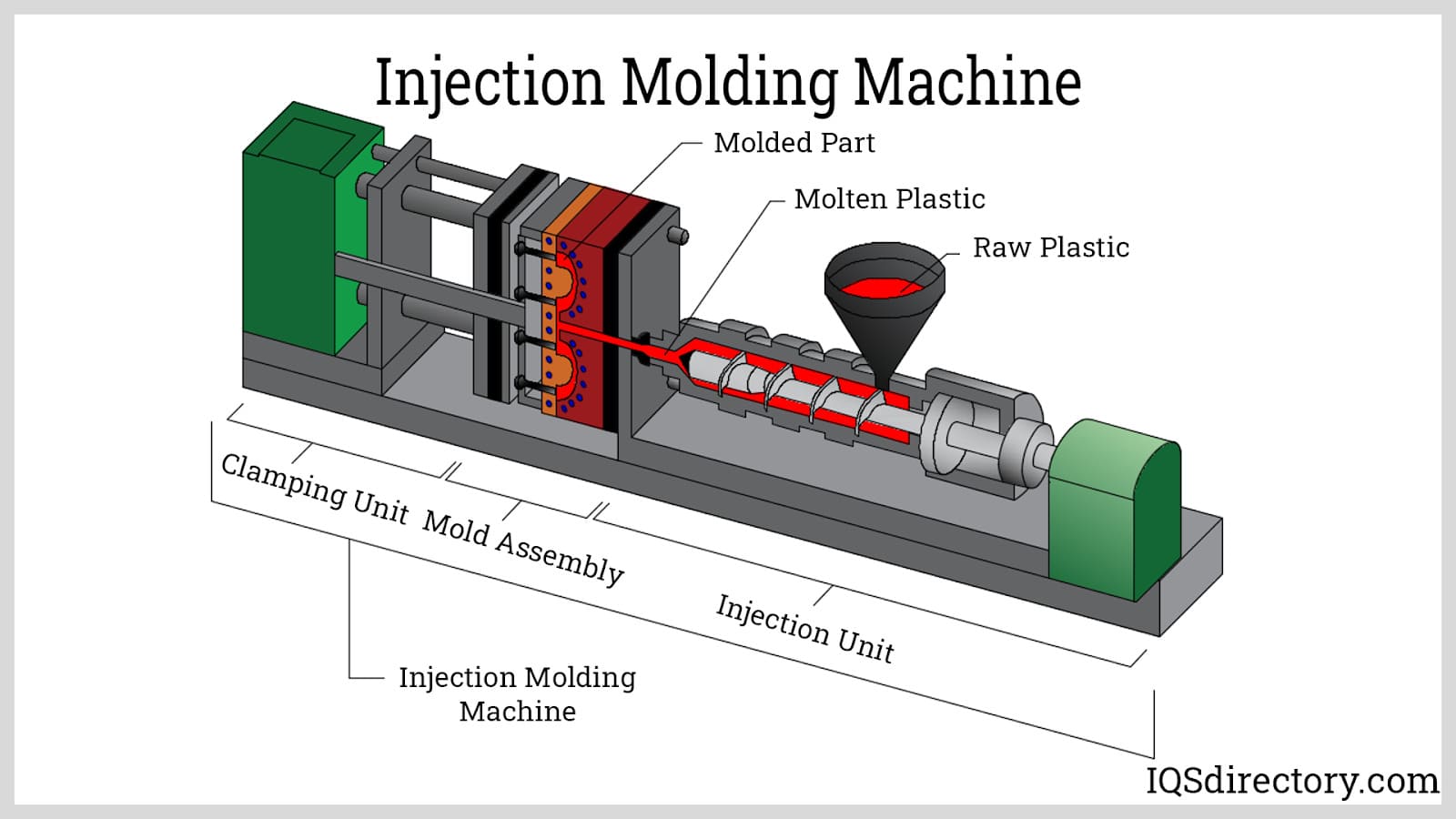

Injection molding is one of the most common plastic forming processes. It involves injecting molten plastic into a closed chamber or mold. This process has four main operations:
Heating and grinding the plastic until it flows under pressure
Injecting the plastic inside the mold
Cooling the molded plastic
Opening the mold to eject the product
Injection molding is limited to producing plastic parts that are open on one side. By itself, injection molding is not suited for producing closed, hollow products such as plastic bottles. To produce these products, an inert gas is released into the mold partially filled with molten plastic. This pushes the plastic on the surface of the mold, creating a hollow part. This process is known as gas-assisted injection molding.
Casting
Casting is the basic process of pouring liquid plastic into a mold without the help of pressure. This process is used in processing both thermosets and thermoplastics. Casting involves:
Liquefying and blending the resin (some resins are already in liquid form, though for solid or viscous plastics, heat is applied)
Pouring the liquid resin into the mold
Removing trapped air bubbles using a vacuum
Hardening and cooling the molded plastic (curing is required to harden thermosets)
Opening the mold and releasing the product
Similar to injection molding, casting is not suitable for producing hollow parts. This process is limited to producing simple, solid shapes. Moreover, additional machining processes are required to remove flashes and extra material from gates, risers, and runners.
Blow molding forms hollow plastic products by inflating a softened plastic compound inside a mold. The main operations of blow molding are:
Heating the plastic and forming it into a tube called a parison or preform
Enclosing and clamping the preform between two dies
Inflating the preform
Cooling and ejecting the product

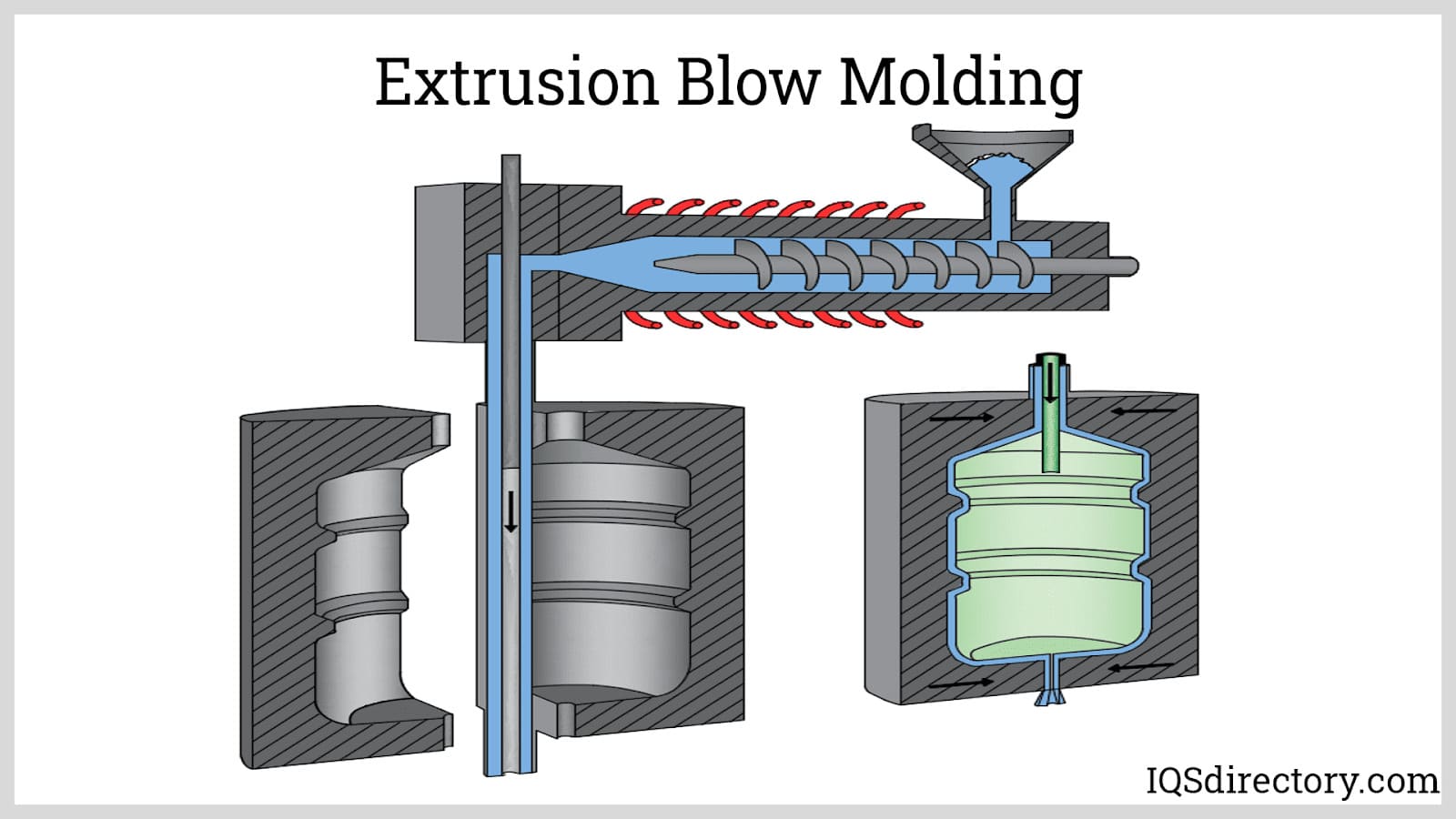

Blow molding can be categorized into two main types: extrusion blow molding and injection blow molding. Extrusion blow molding extrudes the preform into a hollow tube suspended on one end. On the other hand, injection blow molding creates the preform by injecting plastic into a mold with a core for air supply. Both processes use air to shape the preform against the mold.
Rotational Molding Plastics

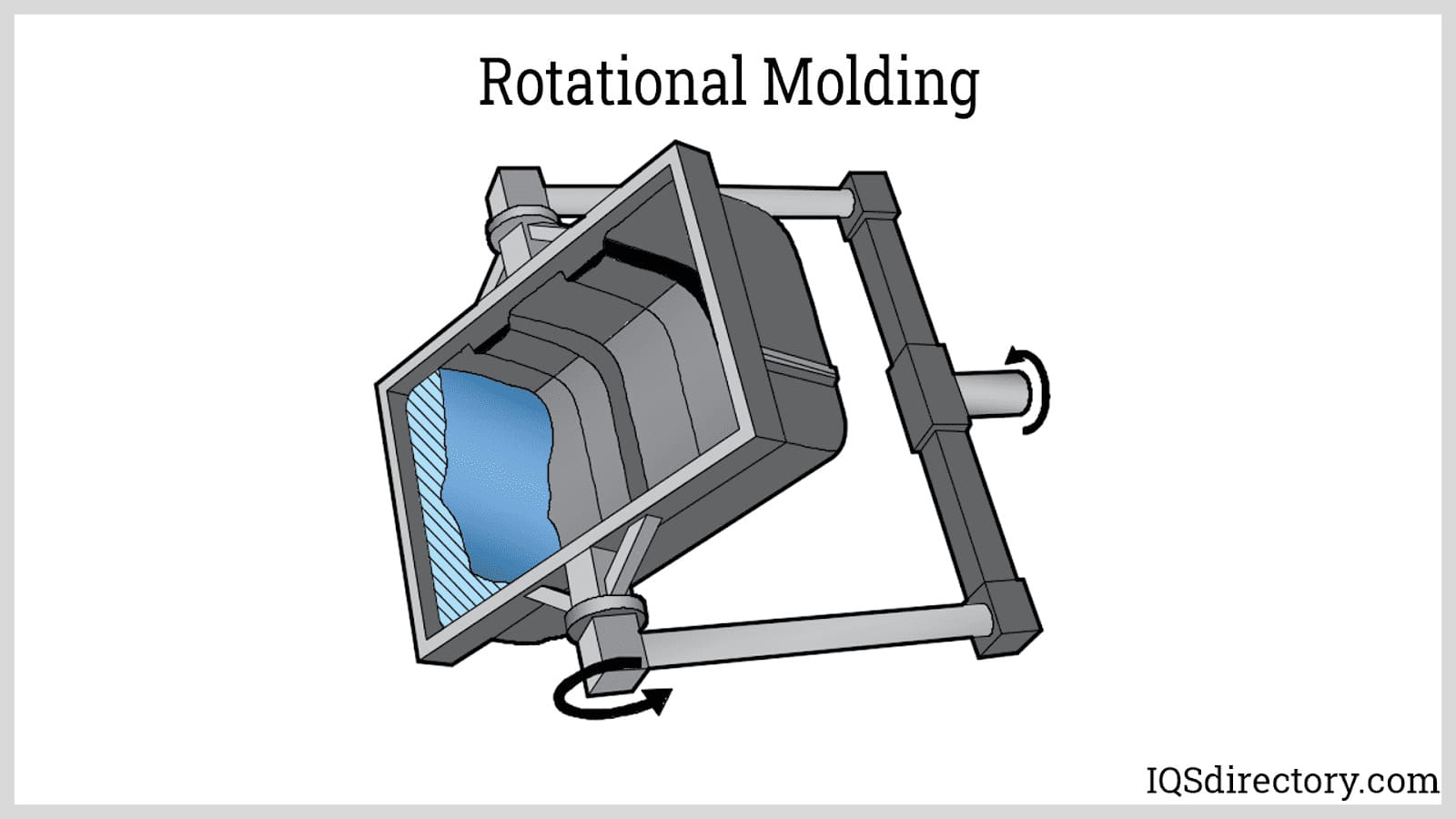

Rotational molding, commonly referred to as "roto molding," is a plastic casting technique used to produce hollow and seamless plastic products. This process does not use high pressures for melt extrusion or injection. Instead, it forms the container by spreading the plastic melt on the inner surfaces of the mold through rotation. Its operation is summarized as follows:
Loading the powdered plastic resin into the mold
Heating and melting the plastic while rotating the mold
Cooling the molded plastic
Demolding and unloading the product
Since there are no high pressures involved, the molds used for rotational molding are inexpensive. This allows the fabrication of larger products with minimal investment. Rotational molding can also produce double-walled parts without any secondary processing.
Compression Molding Plastics

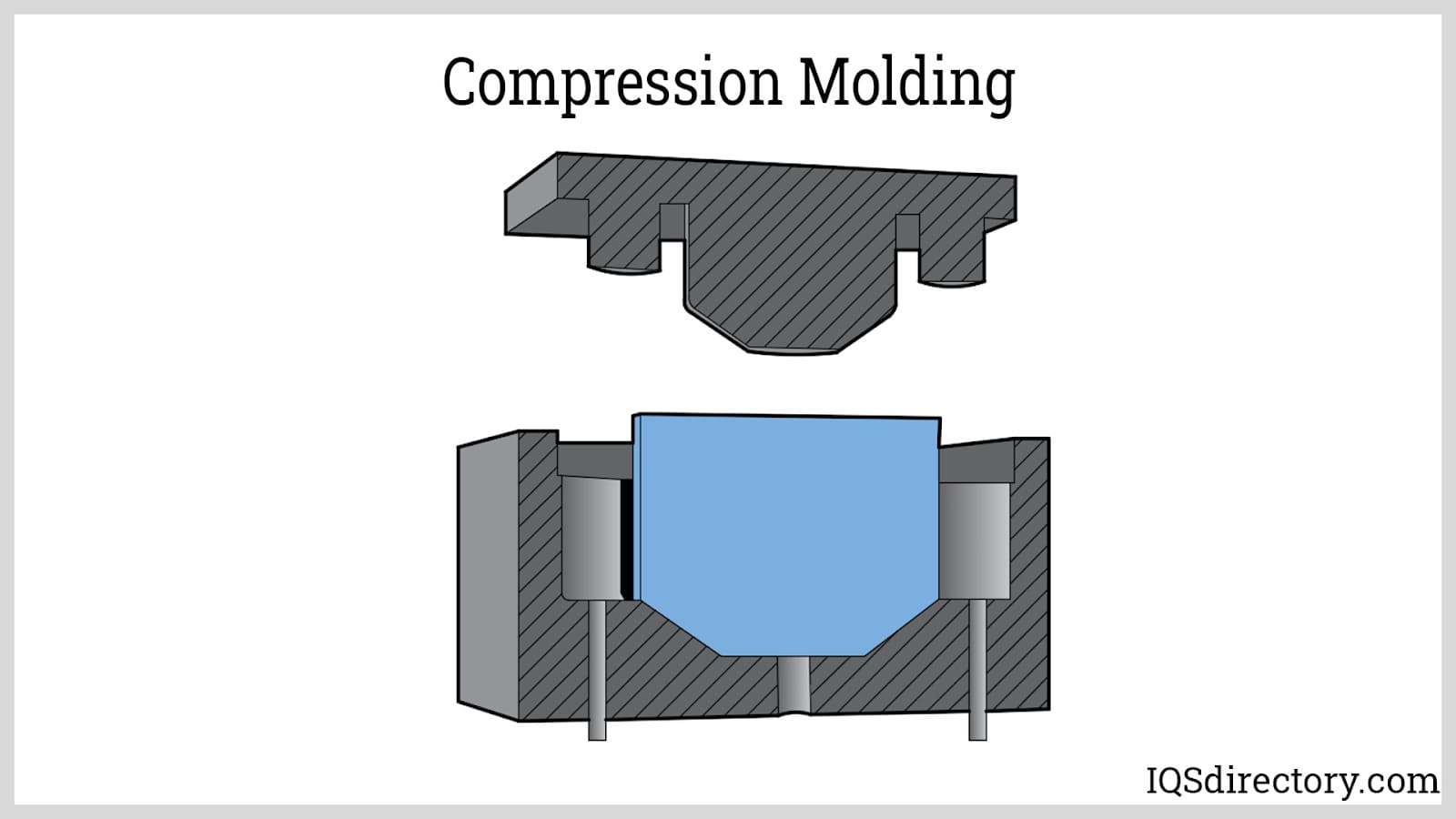

Compression molding shapes the plastic resin by pressing it against two molds. This process is preferred when forming large thermosetting plastics products. The process is summarized below:
Placing a compounded plastic charge with predefined mass onto the lower mold
Compressing the plastic by lowering the upper mold
Curing of the plastic resin
Cooling and removing the product from the mold
Typically, the compression press is downward-closing, but upward-closing compression presses are also available. The mold has internal heating elements that soften the plastic charge. This allows the plastic to flow according to the shape of the mold. The heat also cures the plastic. During curing, some plastic may release gases that are vented through an additional phase called degassing.
Extruding Plastics
Plastic extrusion is the process of forcing molten plastic through a die, producing a product with a continuous shape. This is a common method of producing films, sheets, rods, and tubes. Extrusion is also combined with other processes such as blow molding, where the plastic is first processed and fed by an extruder, followed by a molding process. The operations involved in plastic extrusion are outlined below:
Feeding the powdered or granular plastic resin into the extruder
Heating, kneading, compounding, conveying, and pressurizing the resin as it passes the extruder
Introducing the pressurized molten plastic against the die
Curing and cooling the final product
Plastic extrusion covers different types of related processes based on the product. Examples are sheet and blown-film extrusion. Extrusion is also employed for applying coatings and jacketing to wires and cables.

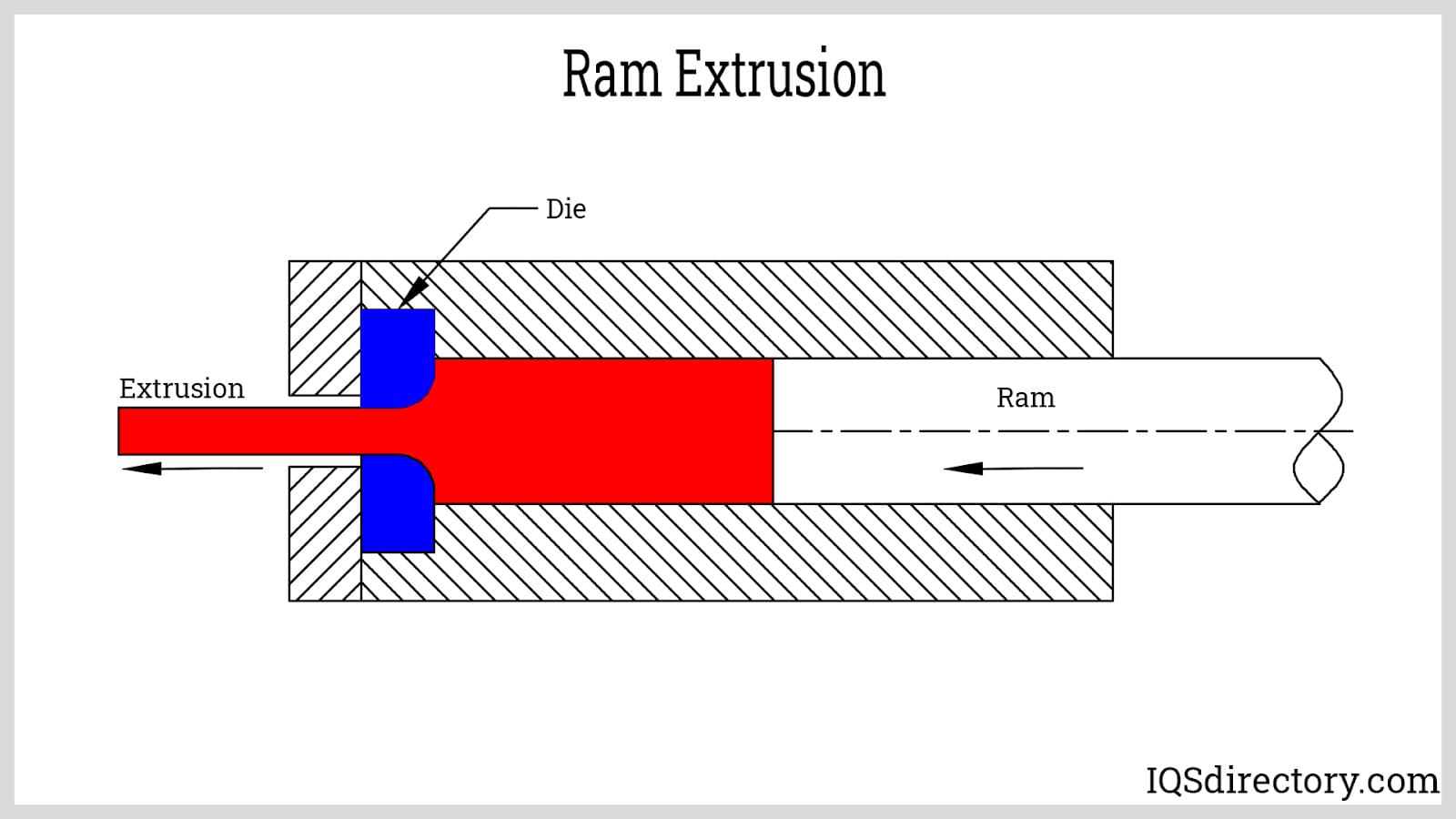

Ram Extruding Plastics
The traditional method of extrusion includes the use of a hopper, throat, and screw or auger as a means of feeding resin or pellets down the barrel to the die or profile. This has become a standard and widely-accepted method of extrusion.
The original form of extrusion did not include a screw or auger but used a ram. This process is still used today to extrude certain types of plastics, such as PTFE and UHMW, to produce sleeves, rods, blocks, tubing, and lining sheet bars. Unlike traditional extruding, ram extrusion uses powder as its raw material. It is fed by gravity into the extruding chamber, where it is sintered before being pushed by a hydraulic ram to the die. The remaining aspects of the process are similar to traditional extrusion.
The two forms of ram extrusion are horizontal and vertical. Each of the forms follows the use of a powder being forced by a ram through the die. Like powder metallurgy, the quality of the final products depends on the design of the extruder, properties of the powder, extrusion rate, amount of pressure, and sintering temperature.
Calendering Plastics
Calendering is a forming process that involves heating and rolling a plastic mass into films, sheets, or lamination coatings. This process is widely used in processing rubbers but is now being adopted in the fabrication of thermoplastics. It consists of the following stages:
Heating of the plastic mass
Squeezing the mass through an initial set of rolls, forming a continuous sheet
Progressive rolling to produce the desired thickness and surface qualities
Passing the plastic sheets into cooling rolls and a thickness gauge for final dimension checking
Calendering is most suitable for producing multilayered products. Textile or paper are examples of materials that are fed into the final rolling stages together with the plastic sheet or film. This process creates a double-ply product that combines the strength of the main material and the surface and barrier properties of plastic.
Thermoforming Plastics
Thermoforming is the process of heating thin plastic sheets to their forming temperature and stretching them over a mold. It is a secondary plastic forming process that does not use raw plastic resin for compounding. Rather, it uses a plastic sheet or film produced from preliminary processes such as extrusion or calendering. The steps involved in thermoforming are:
Heating the plastic sheet
Forming the plastic sheet using mechanical or pneumatic action to give its three-dimensional shape
Trimming the formed part from the rest of the sheet

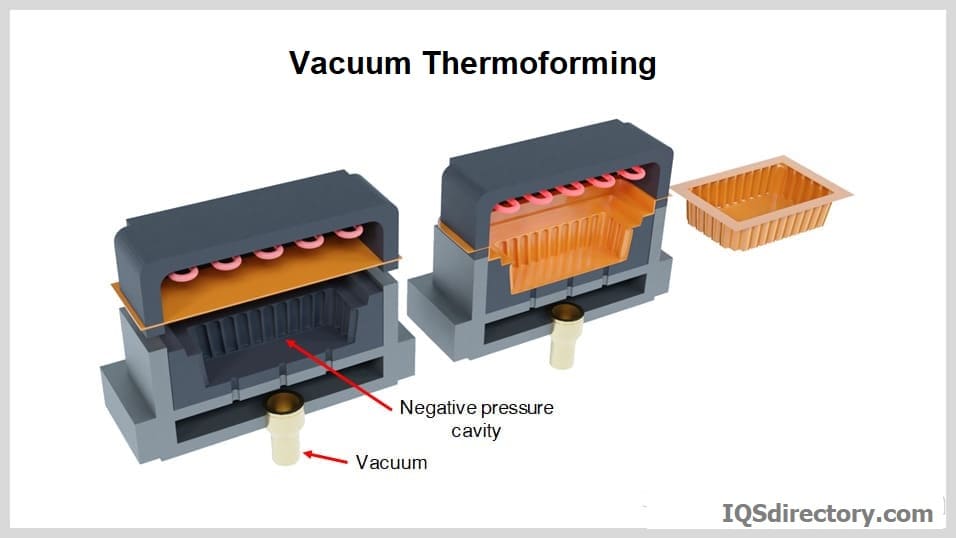

There are four different methods to create the three-dimensional shape of a thermoformed product: vacuum, pressure, mechanical, and twin sheet forming. Each method differs in how pressure is applied to create the thermoform. Vacuum, pressure, and twin sheet processes all use compressed air to press the plastic sheet against the mold. Mechanical thermoforming has two dies that press against each other to deform the plastic.
Thermoforming is limited to producing parts with relatively thin walls. Moreover, the process is prone to defects such as inconsistent thickness, webbing, and warping.
Spinning
In plastic fabrication, spinning refers to the method of twisting and stretching short strands into fibers with continuous lengths. The product is a synthetic fiber that can be used for making synthetic textiles, ropes, and cables. A typical spinning process involves:
Liquefying the solid plastic resins
Pumping the molten polymer or polymer solution
Filtering and spinning the polymer into fibers
Solidification and cooling of fibers
The steps mentioned above are the general operations for plastic fiber spinning. Spinning can be further divided into three main types: melt, dry and wet spinning. These processes differ in how the dimensional stability of the fiber is attained.
Conclusion
Plastic materials are highly formable materials that are artificially made from organic compounds called polymers, along with additive components.
Aside from formability, plastics are generally known to be lightweight, flexible, durable, corrosion-resistant, and cost-effective.
Polymerization is the process of converting petrochemical feedstocks into raw plastic resins. Raw plastic resins are produced in a petrochemical plant.
Plastic polymers can be broadly classified as thermoplastic and thermosetting polymers. They can further be divided according to their main polymer.
Several fabrication processes for plastics include injection molding, casting, blow molding, rotational molding, compression molding, extrusion, calendering, thermoforming, and spinning.
Leading Manufacturers and Suppliers
Related Posts
Plastic Fabrication
Plastic fabrication is the process of designing, manufacturing, and assembling a product made out of plastic material or composites that contain plastic. There are numerous plastic fabrication methods known today, considering the wide variety of products made out of plastic...
Blow Molding
Blow molding is a type of plastic forming process for creating hollow plastic products made from thermoplastic materials. The process involves heating and inflating a plastic tube known as a parison or preform. The parison is placed between two dies that contain the desired shape of the product...
Plastic Bottles
Plastic bottles are bottles made of high or low-density plastic, such as polyethylene terephthalate (PET), polyethylene (PE), polypropylene (PP), polycarbonate (PC), or polyvinyl chloride (PVC). Each of the materials mentioned has...
Plastic Channel
Plastic channels are plastic products that have linear extruded profiles. They have a constant cross-sectional shape across their axis. They are long and narrow structures, and their depth is relatively short. These products serve a variety of functions and uses...
Plastic Extrusion
Plastic extrusion, also known as plasticating extrusion, is a continuous high volume manufacturing process in which a thermoplastic material -- in a form of powder, pellets or granulates -- is homogeneously melted and then forced out of the shaping die by means of pressure...
Plastic Rods
A plastic rod is a solid plastic shape made by the process of plastic extrusion or plastic co-extrusion. These have a contrast of plastic tubing and hollow plastic profiles. Plastic rods are found in various industries, including...
Plastic Trims
Plastic trim products are extruded linear profiles that can be made to any length. Because of its ability to attach, hold, and seal, plastic trim has many applications. Plastic, HDPE, LDPE, butyrate, PVC, acrylic, and...
Rotational Molding
Rotational molding, commonly referred to as "rotomolding", is a plastic casting technique used to produce hollow, seamless, and double-walled parts. It uses a hollow mold tool wherein the thermoplastic powdered resin is heated while being rotated and cooled to solidify...
