Introduction
This article contains complete information about bottle brushes and their use.
You will learn the following:
What is a Bottle Brush?
Uses for Bottle Brushes
Types of Bottle Brushes
How Bottle Brushes are Made
And much more…
Chapter One – What is a Bottle Brush?
A bottle brush is a brush with flexible and pliable bristles connected to a long stem or handle made of plastic, wood, or wire. The bristles of a bottle brush can run about halfway up the handle and form a shape similar to a tube or be clustered at the very end of the brush several inches up the tip.
The bristles are connected in various ways depending on how the brush is manufactured. Though the term bottle brush presumes that they are used for cleaning bottles, they have several other purposes due to their flexibility and adaptability. Although the standard design of a bottle brush has a long stem and bristles at the end, the arrangement and shape of the bristles differentiate the various types.

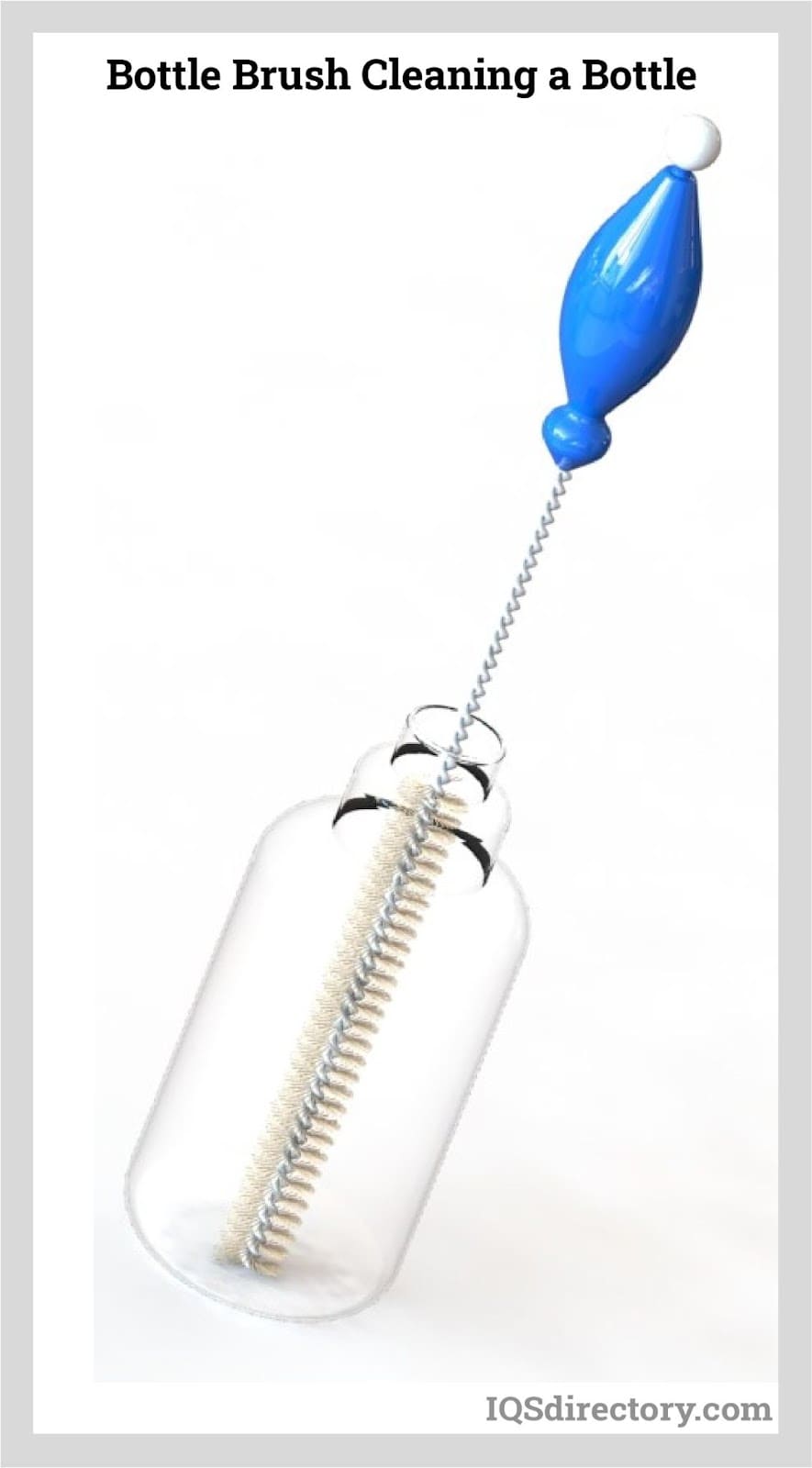

Bottle brushes are ideal for cleaning bottles, as their name implies, because of their long tube of bristles. They can reach portions of a bottle that cannot be reached by other types of brushes or water sprays. Aside from cleaning bottles, bottle brushes are used to clean test tubes, rubber tubes, cylinders, and other tube-shaped and cylindrical items.
Bottle brushes are made for industrial, kitchen, and home use. Each type is manufactured to meet the demands of the application for which it was made.
Chapter Two – Types of Bottle Brushes
Bottle brushes are available in configurations and sizes for any application. The differences can include the diameter of the bristles, the types of bristles, the materials for the handle, and the length of the brush. As an example, extremely small bottle brushes are used for cleaning delicate equipment and have small handles with soft bristles. On the other hand, powered bottle brushes are capable of cleaning pipes, tubing, and large cylinders.
Handles for bottle brushes are made of wood, wire, and plastic, with bristles attached using different methods. For wire brushes, the bristles are twisted into the handle using two or more pieces of wire, while brushes with plastic or wood handles have the bristles inserted into a handle with pre-drilled holes.
Bottle Brush Types

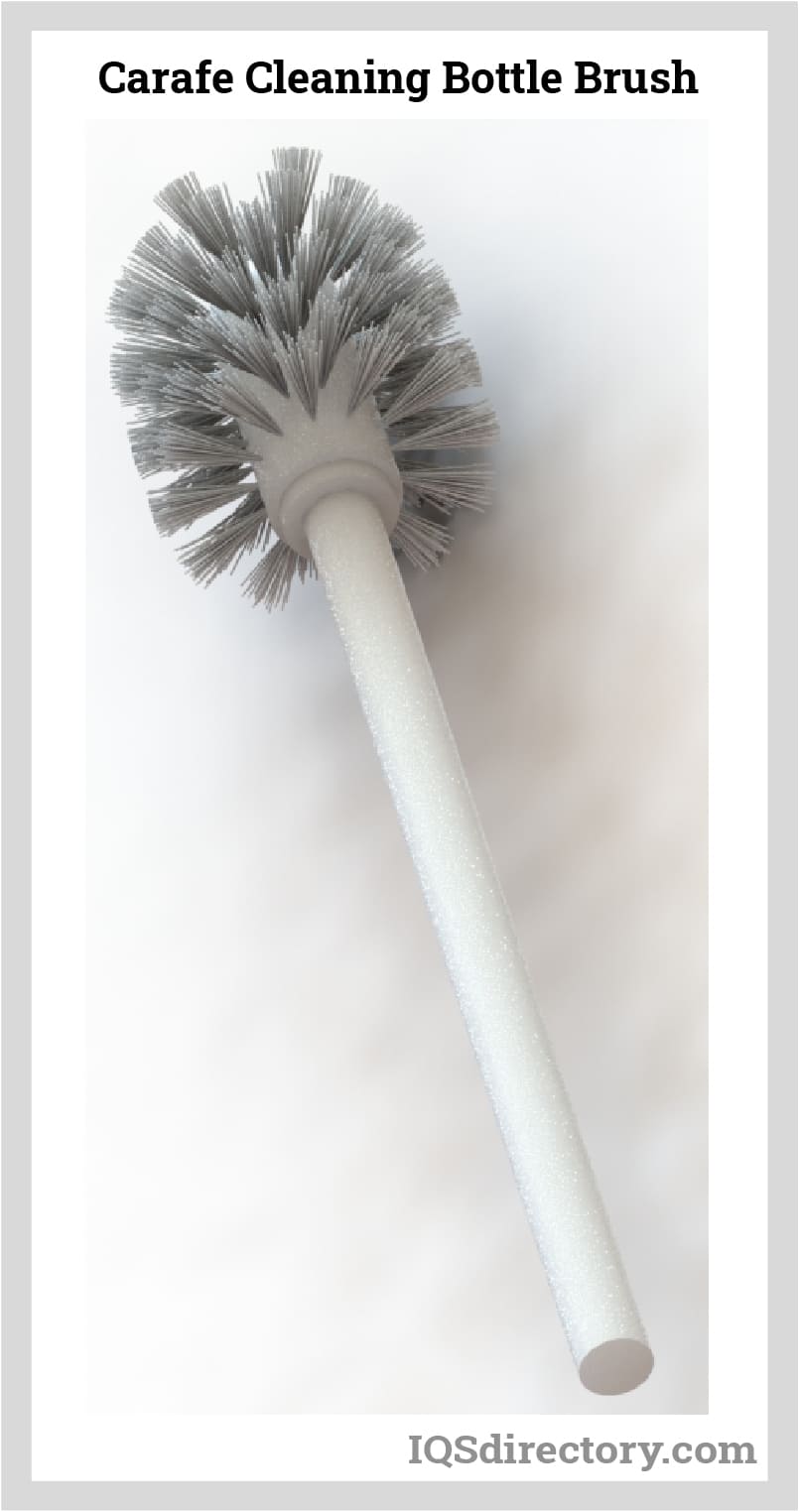

Carafe Cleaning Brush
As with all bottle brushes, carafe cleaning brushes are used for cleaning bottles, jars, glasses, and refreshment serving containers. They have a long plastic handle with crimped, staple-set bristles. The bristles are soft and pliable but sturdy enough to clean dried liquids. Most carafe bottle brushes have a hole in the top of the handle for easy storage.

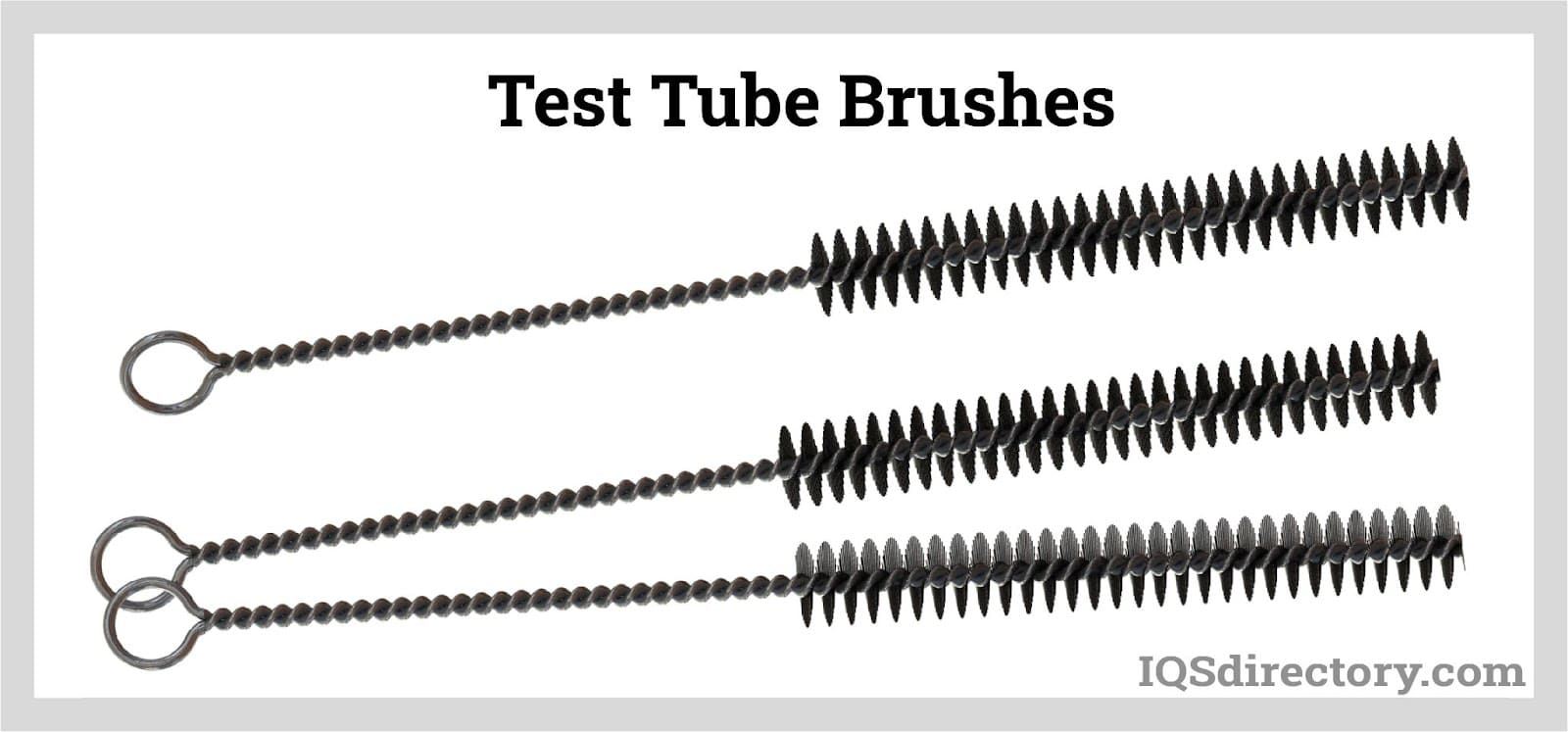

Test Tube Brush
Test tubes are challenging to clean because the residue of extraneous materials will cause contamination. For this reason, test tube bottle brushes have a unique design and tend to be smaller than industrial or household bottle brushes. In addition, they are made of galvanized wire to prevent corrosion from chemicals dried at the bottom of test tubes.
Test tube bottle brushes have extra bristles at their tip, referred to as tufts, designed to dislodge any accumulated materials on the bottom of a test tube. They thoroughly and completely clean test tubes and other laboratory bottles with narrow openings.

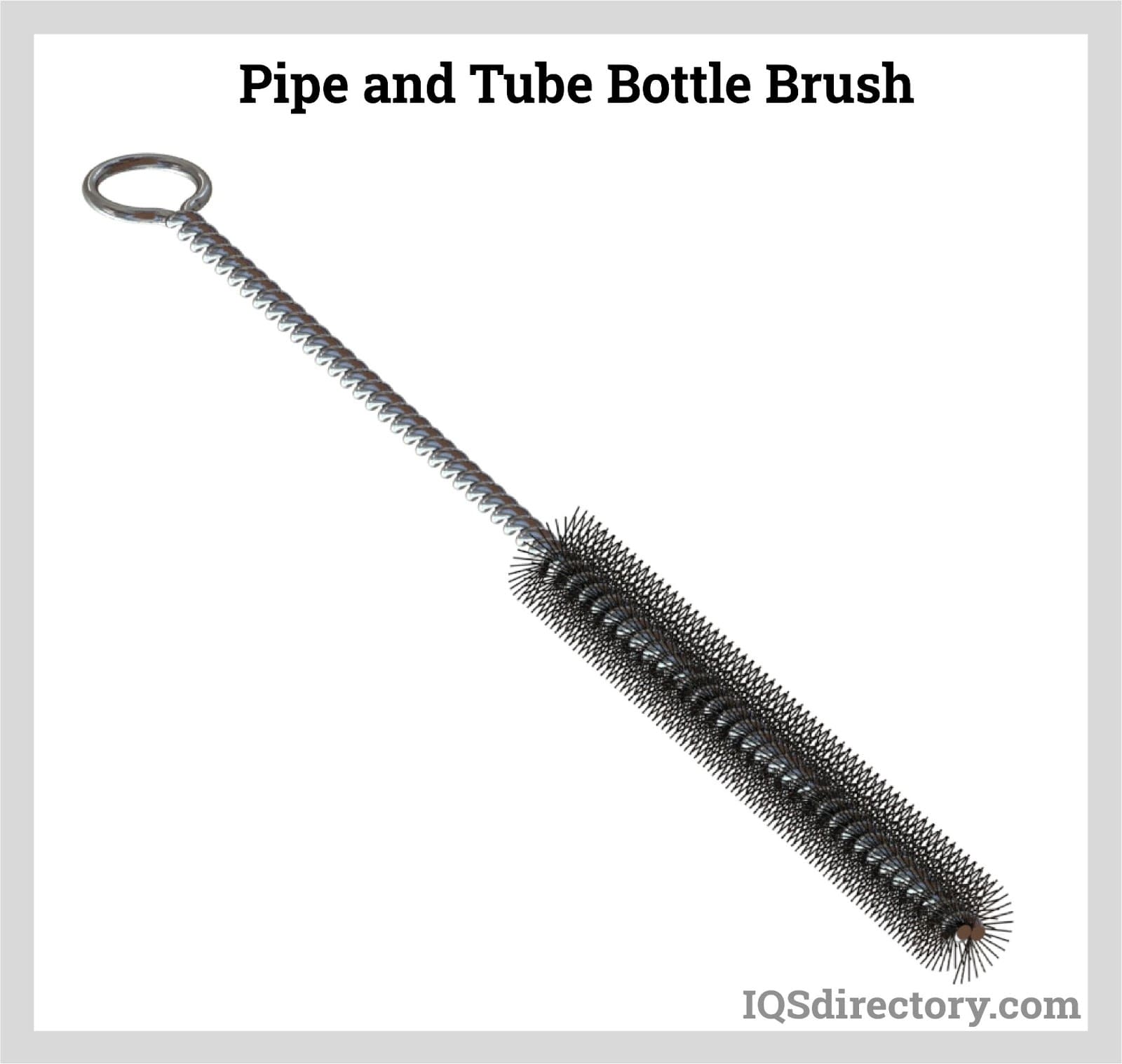

Pipe and Tube Bottle Brush
Pipe and tube bottle brushes must be sturdy, durable, and resilient since they have to remove hard or built-up materials. They have exceptionally stiff bristles and are capable of reaching hard-to-reach places such as tees, elbows, and valves. Pipe and tube bottle brushes have long handles ranging from one to two feet. The diameters of the bristles on a pipe and tube bottle brush differ depending on the design of the brush and its use.
Pipe and tube bottle brushes are constructed of wire that is doubled over. The bristle material is placed between the wire stem folds, which are then twisted to secure them.

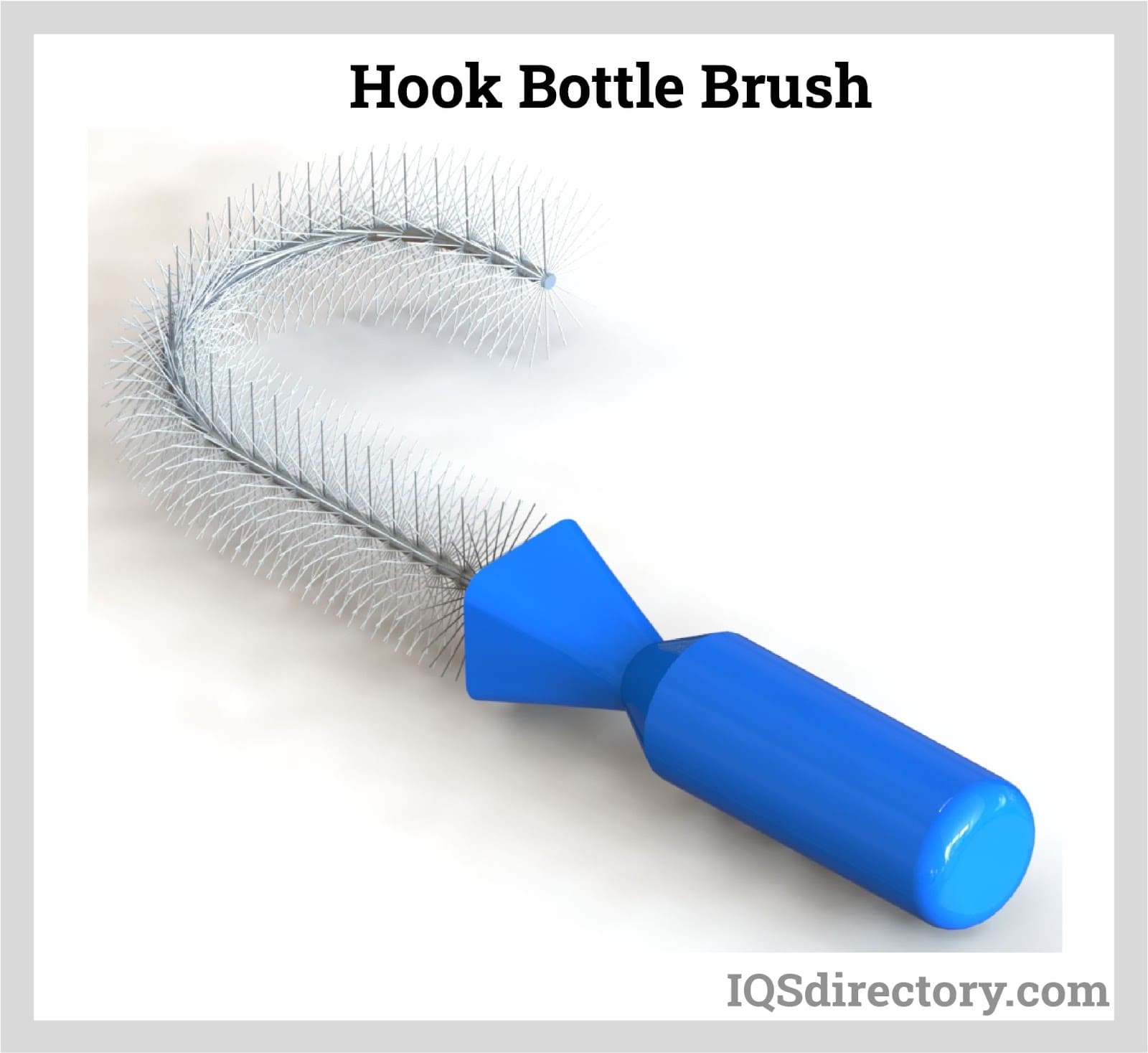

Hook Bottle Brush
The hook bottle brush's curved design makes it easier to clean around the curves in piping. The construction of the brush makes it possible to clean high or difficult-to-reach places. The wires for hook bottle brushes must be metals resistant to corrosion and rust, increasing their longevity and protection from harmful materials found in pipes.

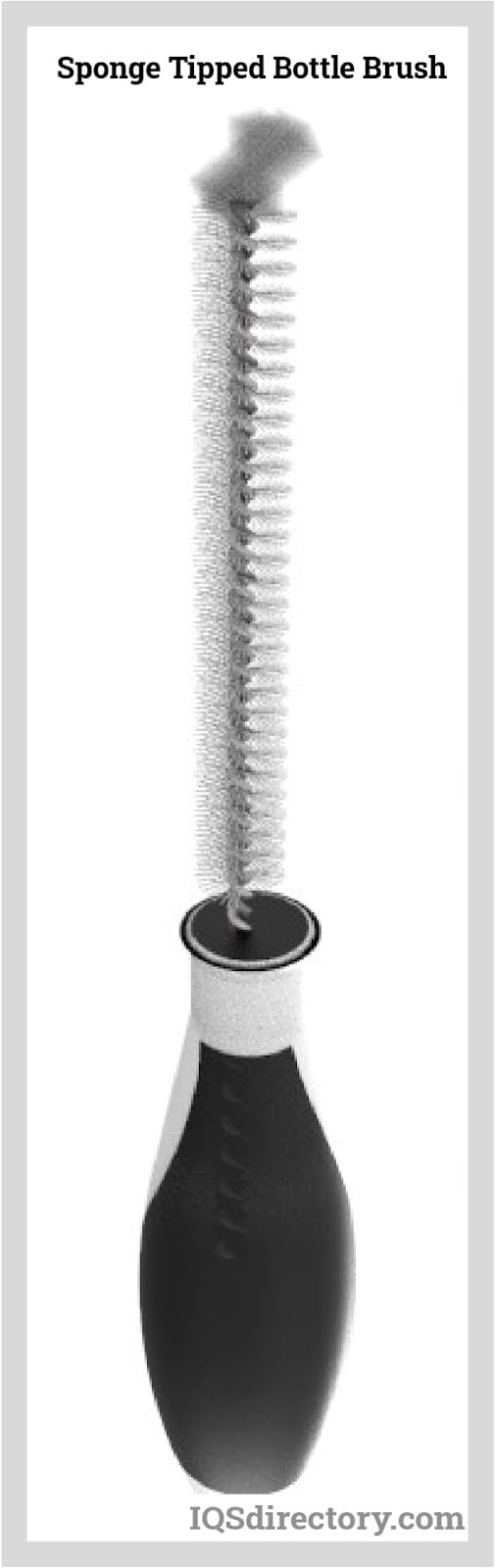

Sponge Bottle Brush
A sponge bottle brush has a sponge on the tip after the bristles. A sponge bottle brush's design improves the brush's cleaning power by providing an alternate cleaning surface. Much like the test tube bottle brush, a sponge bottle brush can easily remove stuck-on particles and small matter at the bottom of different containers.

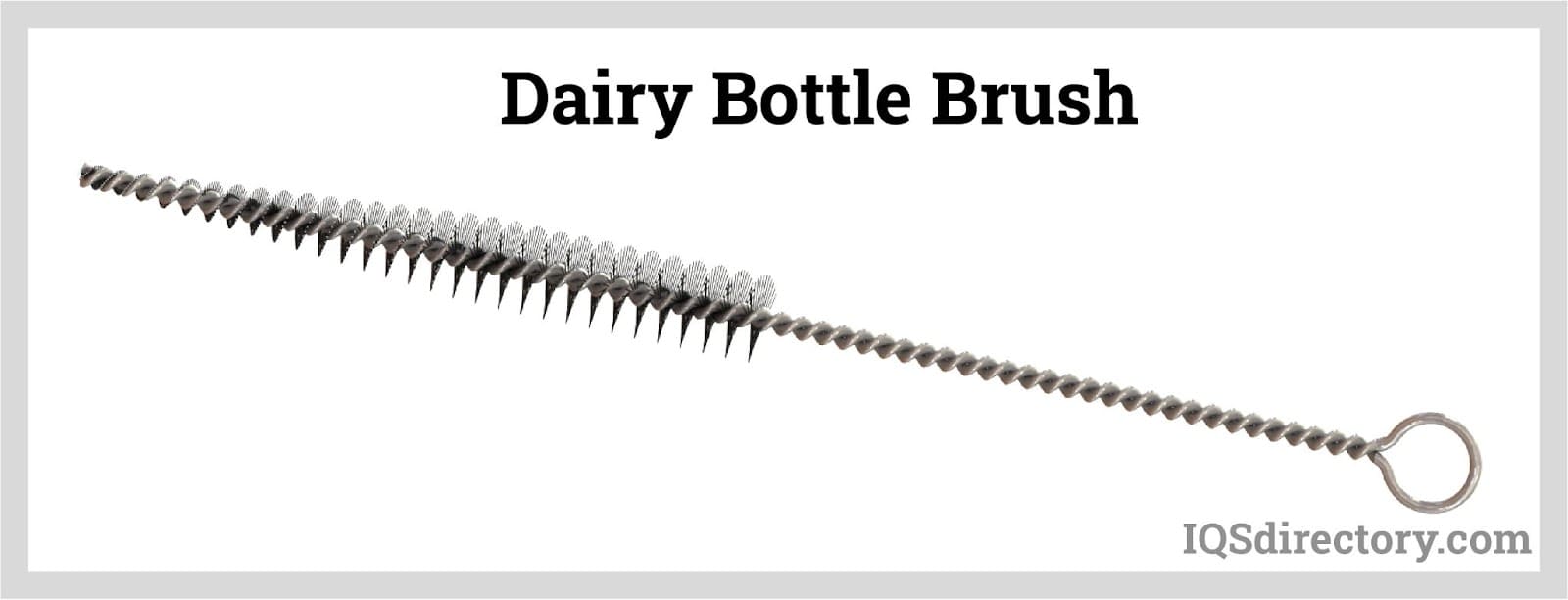

Dairy Bottle Brush
Though the name may indicate that a dairy bottle brush is just for use at dairies, it is a multipurpose bottle brush for cleaning tubing, spouts, and plungers. Dairy bottle brushes have the standard design with bristles twisted into heavy gauge galvanized steel, enhancing the brushes' ability to clean several types of materials. In addition, the tapered tip increases the brush's flexibility and adaptability.
As with all bottle brushes, dairy bottle brushes come in many sizes with different types of handles.

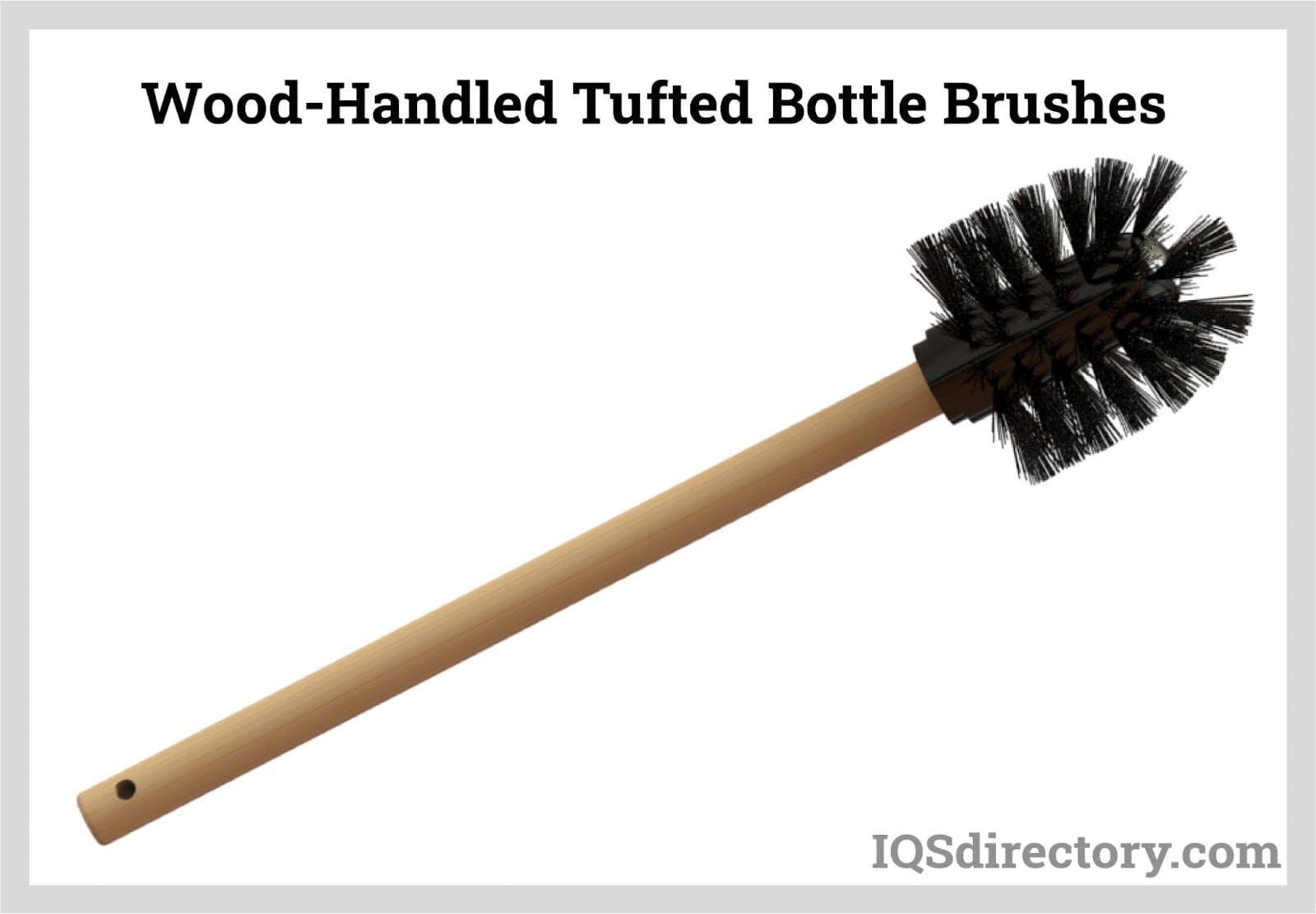

Tufted Bottle Brush
Tufted bottle brushes are designed for heavy-duty cleaning in commercial and restaurant kitchens. The bristles of tufted bottle brushes are soft, pliable, and tightly secured at their tip to prevent scratching, with ends that are four to seven inches long and handles of one to two feet. Tufted bottle brushes have chemically resistant bristles due to the nature of their cleaning applications. Their strength and endurance are enhanced with wood, wire, or plastic handles.
The radial tip of tufted bottle brushes makes it possible to remove dried deposits at the bottom of a container without scratching or damaging it. Folding tip or double tufted bottle brushes fold at the entrance of a container and expand as they are pushed through. This design allows the brushes to fit containers of any size.

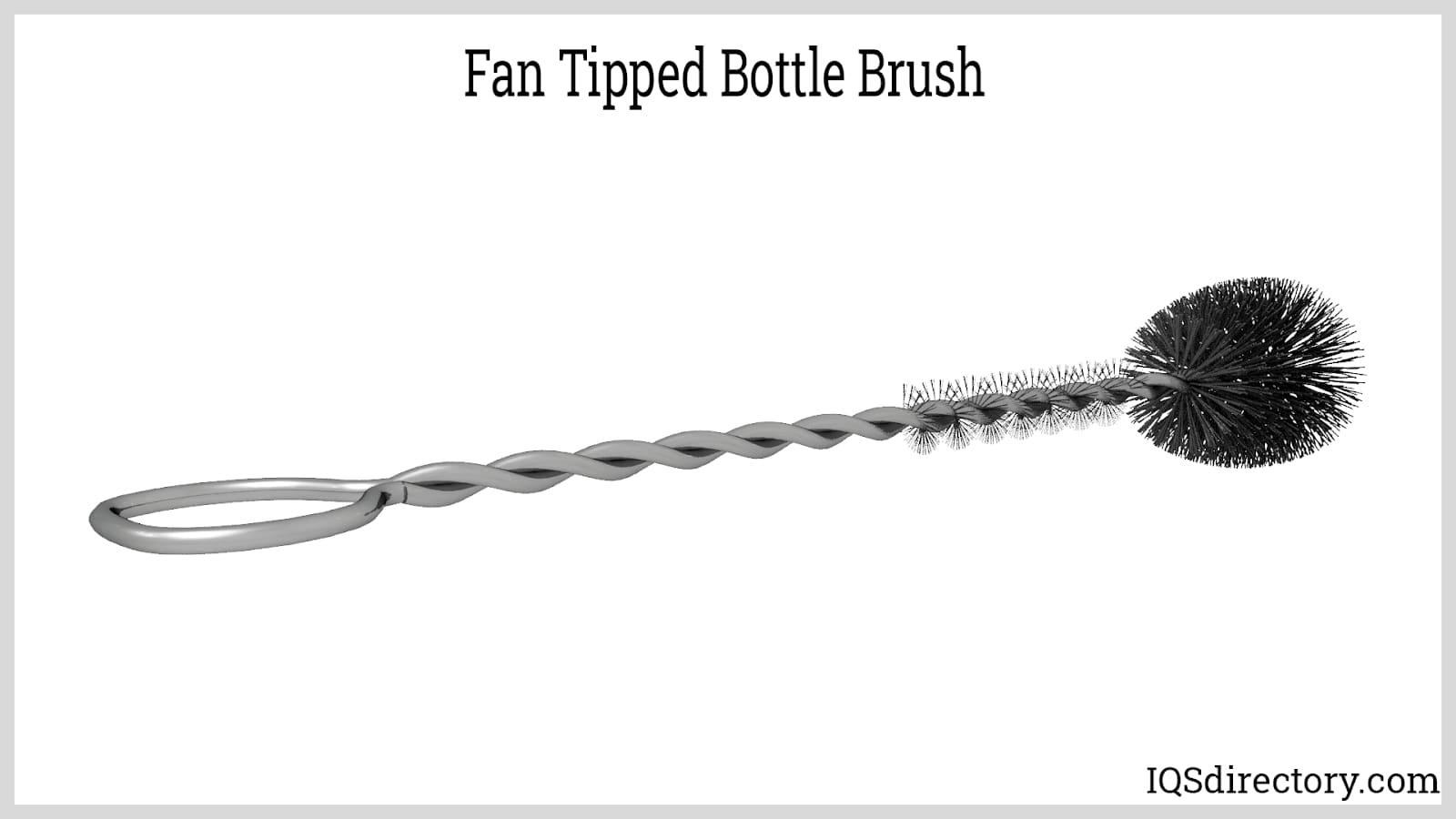

Fan Tipped Bottle Brush
Fan tipped bottle brushes can clean open or closed cylinders and tubing. They are effective brushes with plastic or looped handles. On specific fan-tipped bottle brushes, tubed-shaped bristles can be located from the tip down to the handle. The polyester bristles are designed for use with containers containing acids, petroleum distillates, hydrocarbons, ethyl acetate, or esters.
The fan tip and tube bristle design places the bristles in the exact position they need for efficient and complete cleaning of the bottom and top of a container.

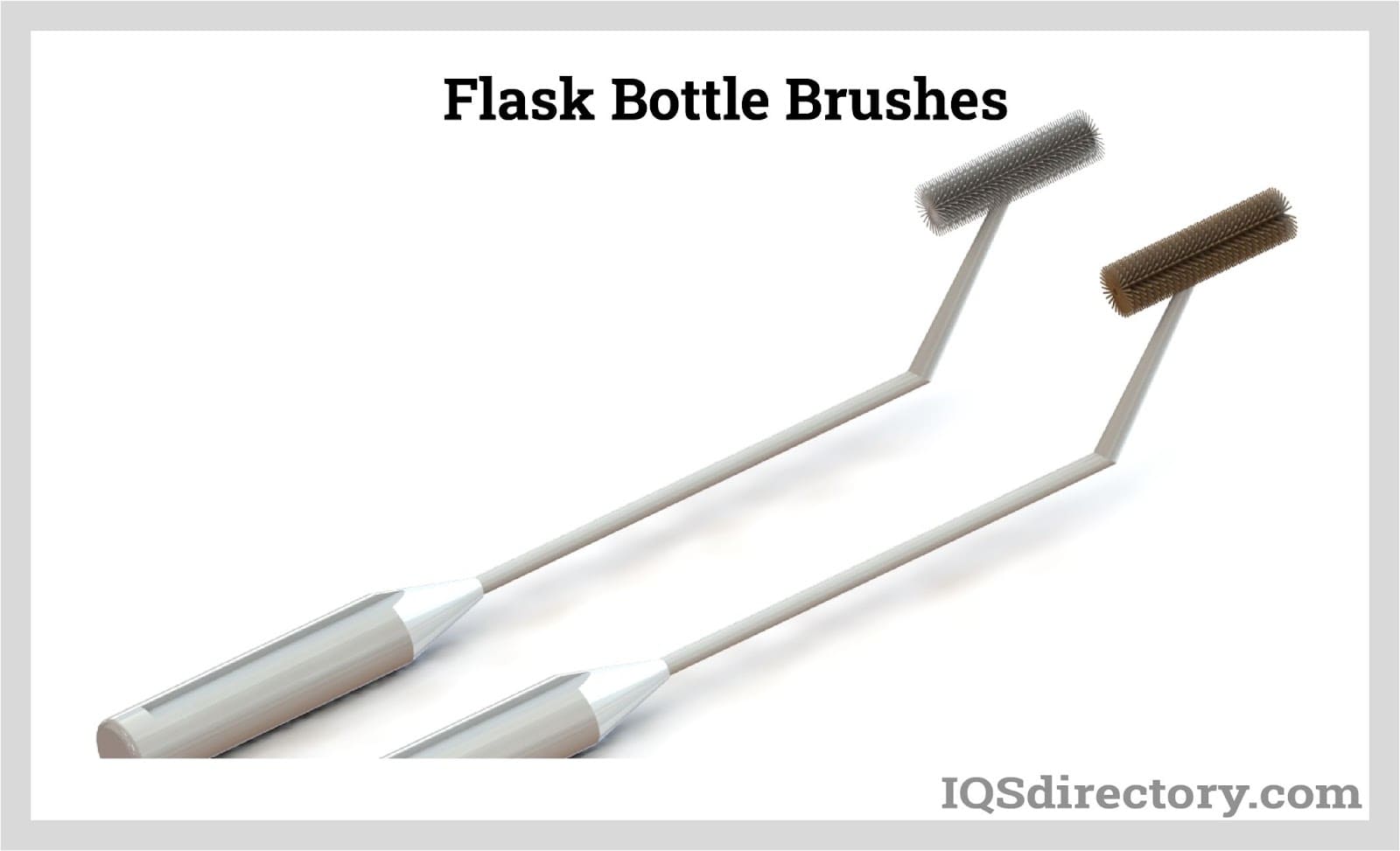

Flask Bottle Brush
Flask bottle brushes are specially designed offset brushes capable of cleaning the curves, bottom, and shoulders of different types of bottles and flasks. They come with nylon bristles in various colors, including black and white.
The eight bottle brushes described above are only a tiny sampling of the available variety. Manufacturers are continually developing, engineering, and designing new bottle brushes to meet the ever-growing demands of new applications and uses.
Leading Manufacturers and Suppliers
Chapter Three – Uses for Bottle Brushes
Bottle brushes have become an essential cleaning tool for various applications, from cleaning built-up particles in pipes and cylinders to cleaning glasses, containers, and bottles for restaurants. In addition, they have found several uses above and beyond cleaning bottles. They are highly versatile tools initially made to clean bottles but have found use in many other cleaning applications.
Regardless of what has to be cleaned, bottle brushes can clean the hard-to-reach and difficult places where bacteria, contaminants, and particles build up. In addition, they are made to clean areas that standard-style brushes can't.
Things to Know Before Choosing a Bottle Brush
Bottle Brush Bristle Material
Bottle brush bristles are made from a wide variety of materials. The most common bristle type is nylon, which is exceptionally durable, inexpensive, easy to clean, and long-lasting. However, nylon is highly abrasive and can scratch the surface of containers.

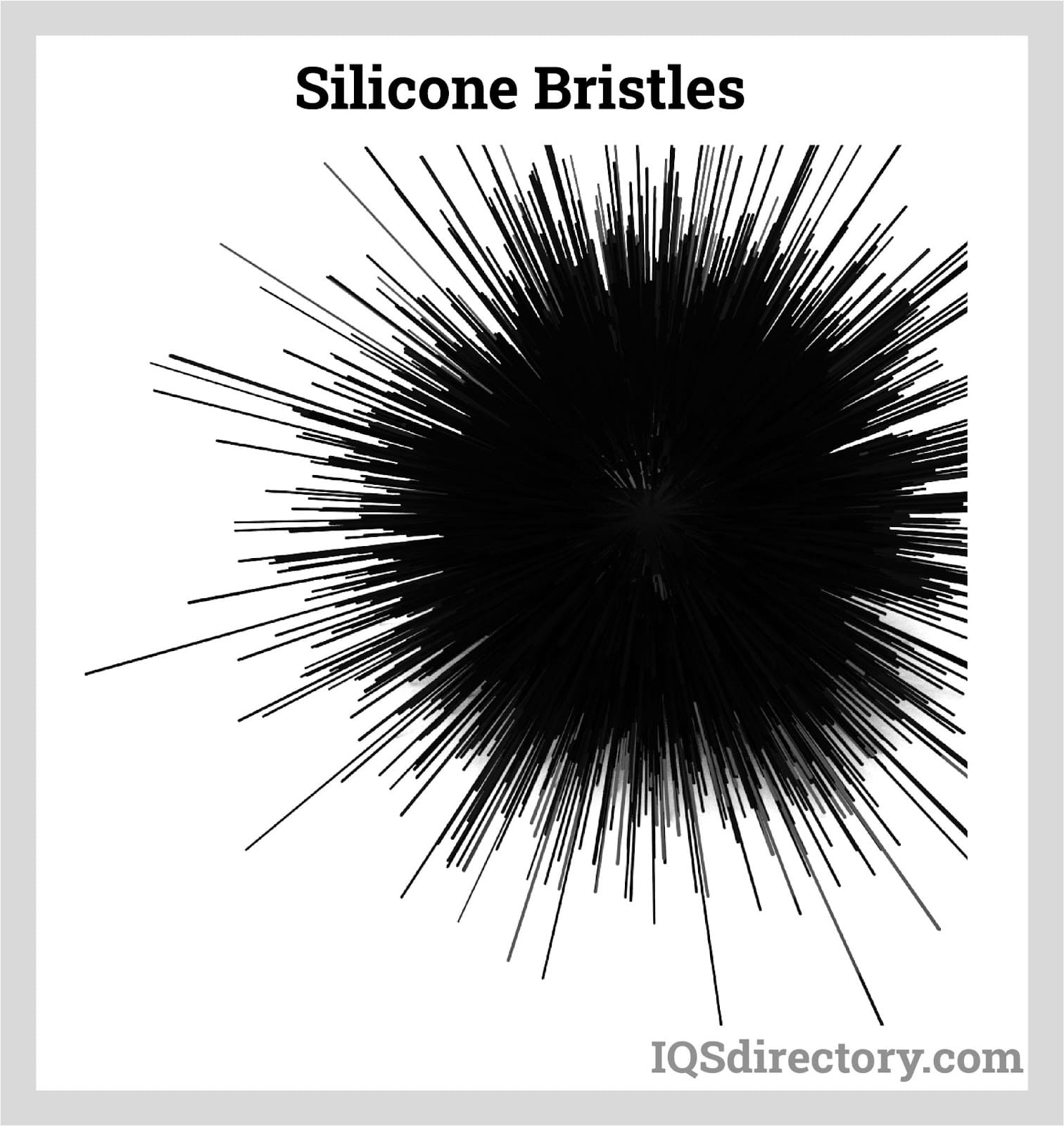

Silicone bristles are softer, but they should not be used for applications that require aggressive cleaning. Instead, they are ideal for cleaning delicate instruments such as graduated tubes and test tubes. Silicone is more expensive than nylon but has several properties to provide a better cleaning process. Notably, silicone bristles have a flexible nub shape.
Polyester bristles are stiff and rigid for cleaning materials stuck on the surface. They can clean several different textures and remove hardened or solid particles. In addition, polyester bristles are highly durable and resistant to moisture absorption.
Characteristics of Bottle Brush Bristles
Soft – Soft bristles are longer, thinner, and are good for removing fine materials.
Medium – Medium bristles are ideal for wet and dry applications and for removing large particles.
Stiff – Stiff, tough bristles are shorter, thicker, and somewhat similar to scrub brush bristles. They are capable of removing stubborn debris and supporting potent cleaning agents.
Bottle Brush Length
Bottle brushes come in several lengths depending on the application. The determining factor regarding the length of a bottle brush is the handle since handles can be a few inches up to two or three feet. The handle holds the bristles securely and tightly. For cleaning pipes and cylinders, long handles with sturdy bristles may be necessary, while cleaning lab equipment requires less aggressive fibers.
When speaking of the length of a bottle brush, it is essential to understand that bottle brushes have two lengths: the bristles' length and the handle's length. The bristle and handle lengths make the total length of the brush, which can be seen in the example below.
Something to consider when examining the dimensions of a brush is the bristles' diameter compared to the application. Brushes with diameters that exactly match the diameter of the item to be cleaned may be too tight to clean sufficiently.
Bottle Brush Flexibility
The flexibility of a bottle brush is not a factor in most applications. However, it becomes important when cleaning pipes, valves, elbows, and connectors. Since bottle brushes are specifically designed to meet the needs of an application, one of the factors manufacturers consider is whether the application requires a curved and flexible brush.
Bottle Brush Handle
The traditional view of a bottle brush is a brush with a wire handle and a loop at the end. However, over the years, manufacturers have developed reliable handles that can tightly hold the bristles. When choosing a bottle brush, it is important to consider certain factors about the handle, including durability, comfort, and the items to be cleaned.
For industrial use, handles are galvanized or stainless steel since industrial applications may use substances that will damage the handle. In addition, when bottle brushes are used for cleaning food preparation equipment, the handle and bristles have to meet the established regulations of the Food and Drug Administration.
Bottle Brush Uses
Tube Cleaning
Bottle brushes are used to clean short pipes and hard-to-reach spots on machinery. They have a flexible handle to fit into tight and difficult-to-reach areas. The diameter of the bristles for cleaning pipes has to be large enough to reach the edge of the pipe but small enough to fit easily in the tube.
Drain Cleaning
Drain cleaning brushes have exceptionally long, flexible handles to move through elbows and turns in the piping. They are designed to clean drains without needing chemicals. The resilience and durability of drain cleaning bottle brushes make them capable of removing built-up clogs from food waste, oil, grease, sand, and dirt. The length of the line of drain cleaning brushes varies from a couple of feet to several feet.
Valve Cleaning
Valve cleaning requires bottle brushes with extremely stiff and durable bristles capable of cleaning narrow valves and removing sticky, built-up, stubborn substances. Cleaning valves requires the application of solvents and cleaners. The bristles must be soft enough to hold the cleaner but strong enough to remove unwanted materials.
Pipe Cleaning
Pipes can be cleaned with many different bottle brushes as long as they have bristles that fit the application. Though the process is referred to as pipe cleaning, it involves cleaning other forms of pipe-like fixtures, such as outlets and drains for large tanks.
As with valve cleaning, pipe cleaning can involve solvents and cleaners. The difference between the processes is that the bristles for pipe cleaning may not be as soft and pliable as valve cleaning bottle brushes.
Test Tube Cleaning
One widespread use of bottle brushes is test tube cleaning, which uses precision-designed bottle brushes to clean test tubes, beakers, and graduated cylinders.
Bottle Cleaning
As expected, bottle brushes are used to clean various containers, including bottles. They are found in commercial kitchens for cleaning and sanitizing bottles and other narrow containers. The flexibility of bottle brushes allows them to be inserted into openings of any size to clean the bottles’ tops, sides, and bottoms.
Chapter Four – How Bottle Brushes are Made
Several methods are used to produce bottle brushes, including twisting wires, stapling bristles, and placing them in holes in wood or plastic. The production method is determined by the type of brush and its use. For example, brushes for industrial use must be more resilient and durable than brushes used for cleaning bottles and containers. These factors determine the types of materials and manufacturing methods.
Though the construction of bottle brushes is relatively simple, with just a handle and bristles, engineers consider several factors when planning the design of a bottle brush to ensure proper performance. In addition, new and more substantial bottle brushes are becoming necessary as technology and innovation progress.
Brush Bristle or Filament Materials
The working end of all brushes is the bristles or filaments. There are three basic types of filaments: natural, synthetic, and wire. Unfortunately, not all types are used to produce bottle brushes since not all can be configured for bottle brush designs.

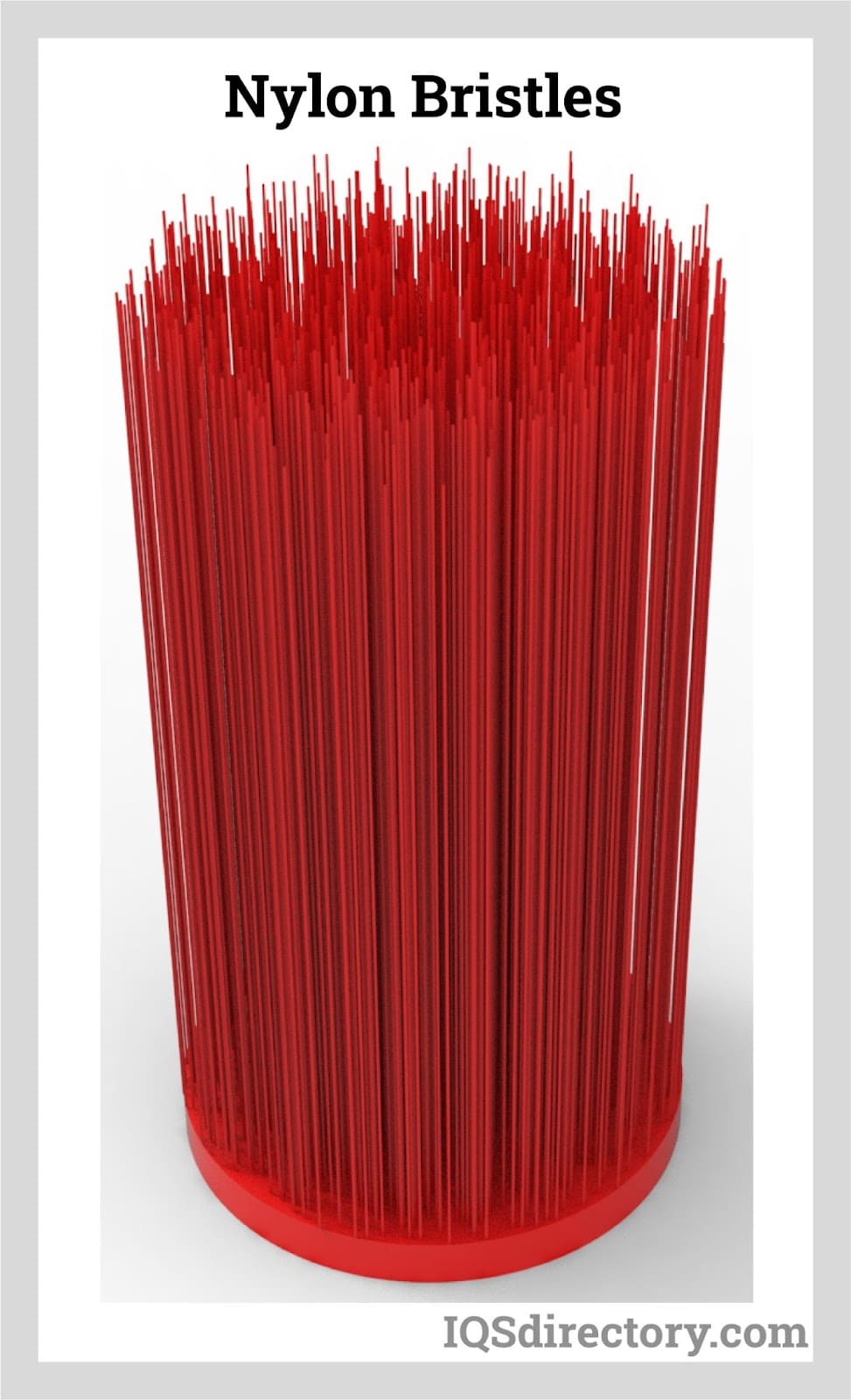

Nylon – Nylon, a synthetic material, is the most widely used and versatile type of brush filament. It is exceptionally durable due to its high abrasion resistance and bend recovery. Nylon is resistant to common chemicals and has a softening point of 350°F (176.6°C).
Silicone – Silicone bristles, a synthetic material, are exceptionally flexible and durable. They are less likely to scratch or damage the surface of the cleaned material.

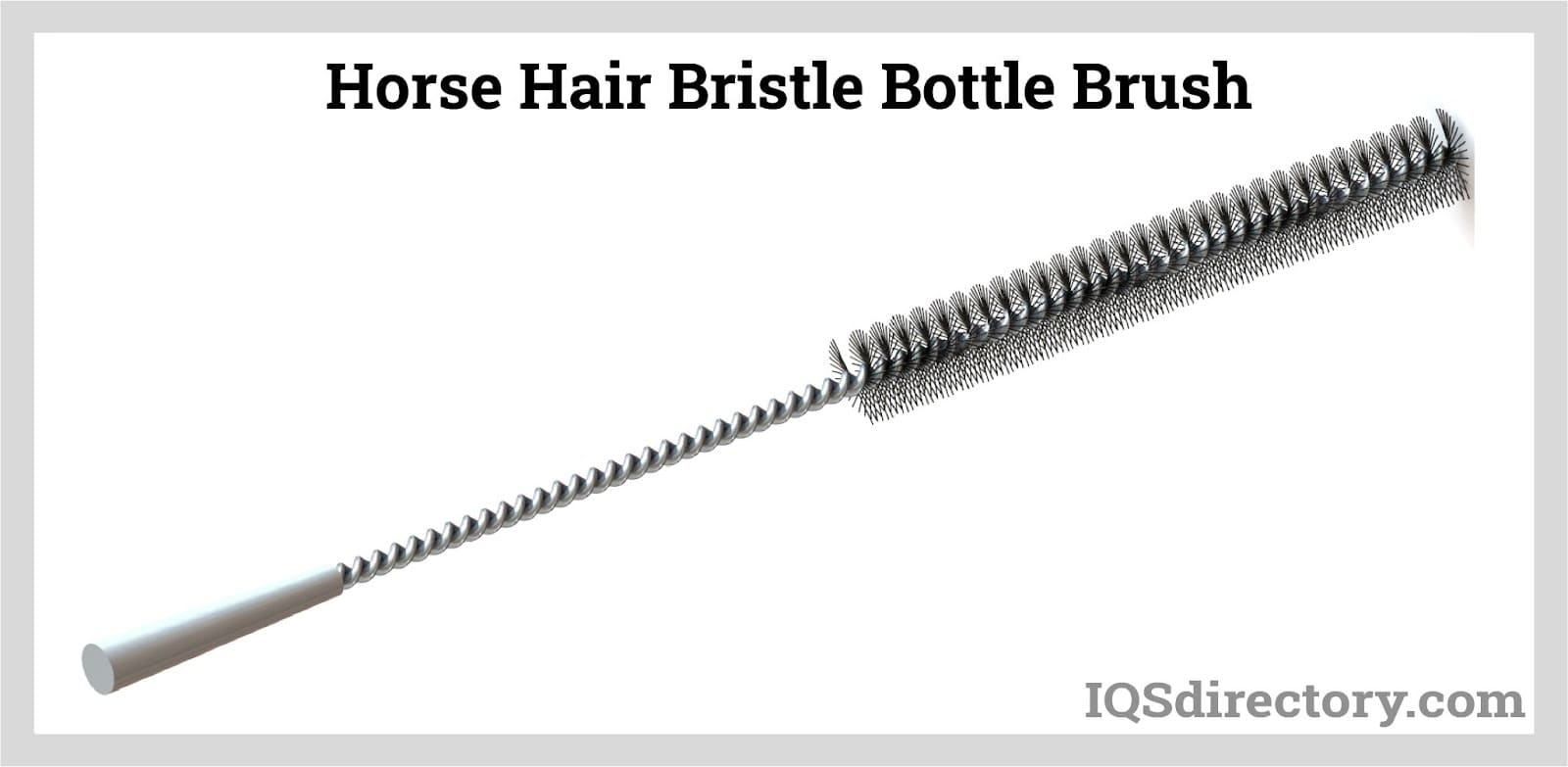

Horsehair – Horsehair is a natural material that holds its shape for a long time and is soft but durable enough to clean any surface. Horsehair brushes are typically used for cleaning bottles. Horsehair is used due to its strength, stiffness, and length. It is also a non-conductive material.
Polypropylene – Polypropylene is less expensive than nylon but does not have nylon’s bend properties. When wet, it has excellent stiffness and is non-reactive with solvents, oils, acids, and chemicals.
Polyester – Polyester has excellent bend recovery, solvent resistance, and resistance to oxidation at high temperatures. Its properties do not change when wet or dry since it does not absorb water.
The filaments and bristles listed above are the most commonly used materials for bottle brush manufacturing. However, other materials can be used to make bottle brushes and vary according to the manufacturer.
Brush Handle Materials
The handles for bottle brushes are as varied as the different bottle brushes since the handle is the means for the bristles to do their work. The determining factors for the handle are its length and type of material, which commonly includes wire, plastic, or wood.
Wire – With wire stemmed or handled brushes, the bristles are wound or twisted into the handle with two or four stem wires. The bristles are placed between the wires and turned into place.

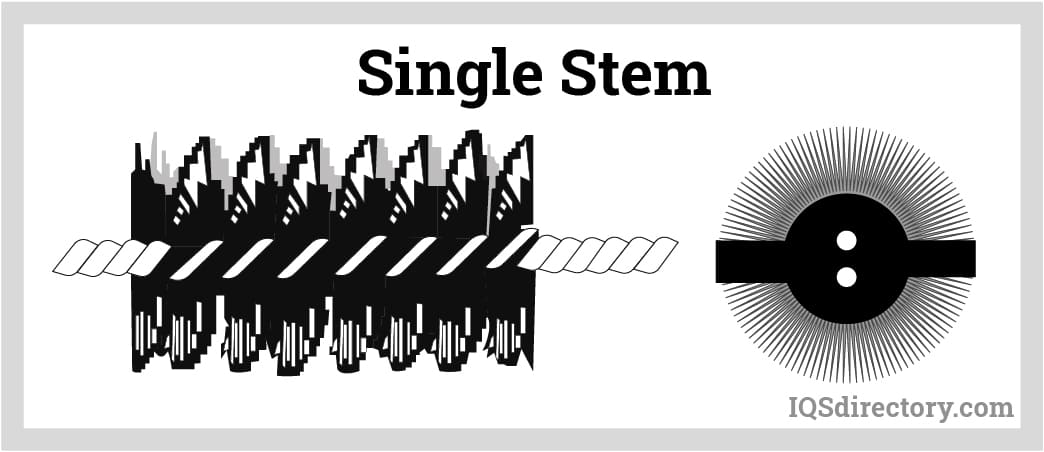

Single – With a single stem, the bristles are placed between two stem wires, with one on each side of the length of the bristles.
Double – Double stem bottle brushes have four heavy-duty wire stems. The bristles are twisted between all four stems to create an exceptionally heavy-duty bottle brush.

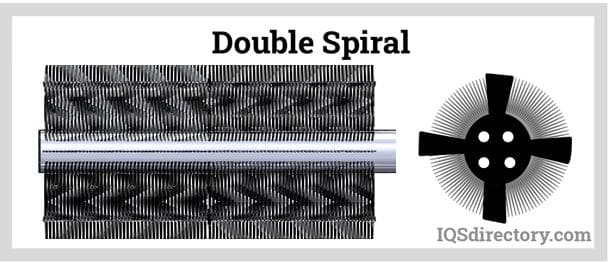

Double Spiral – In the case of dual spiral bottle brushes, four wire stems and two sets of bristles are wound together. The fill bristles are perpendicular to each other.
Wooden Brush Handles

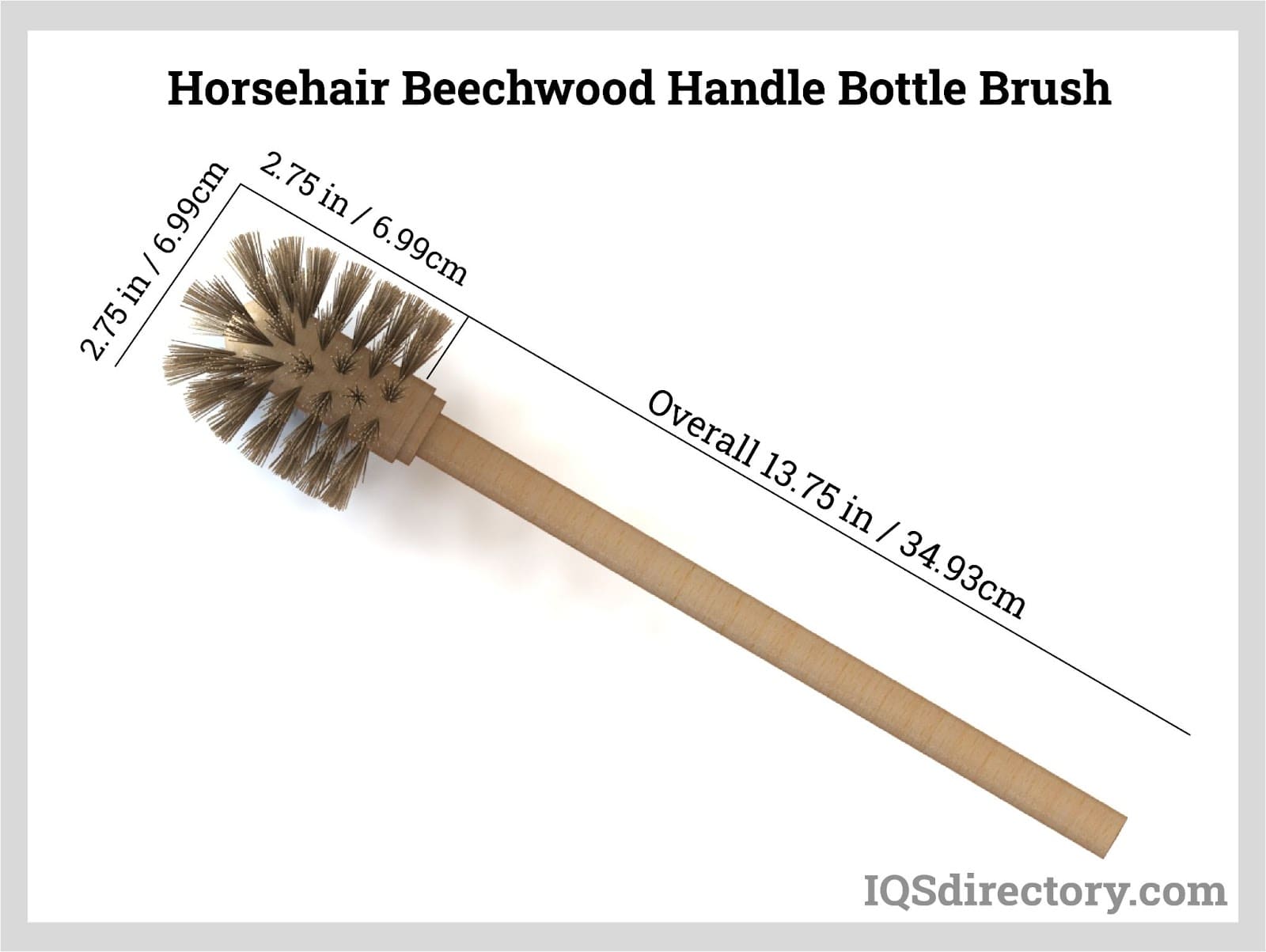

Wood-handled bottle brushes are designed for use commercially and residentially. Bristles are forced into holes drilled in the handle, positioned, and held in place by staples.
This particular configuration is an example of the different varieties of bottle brushes.

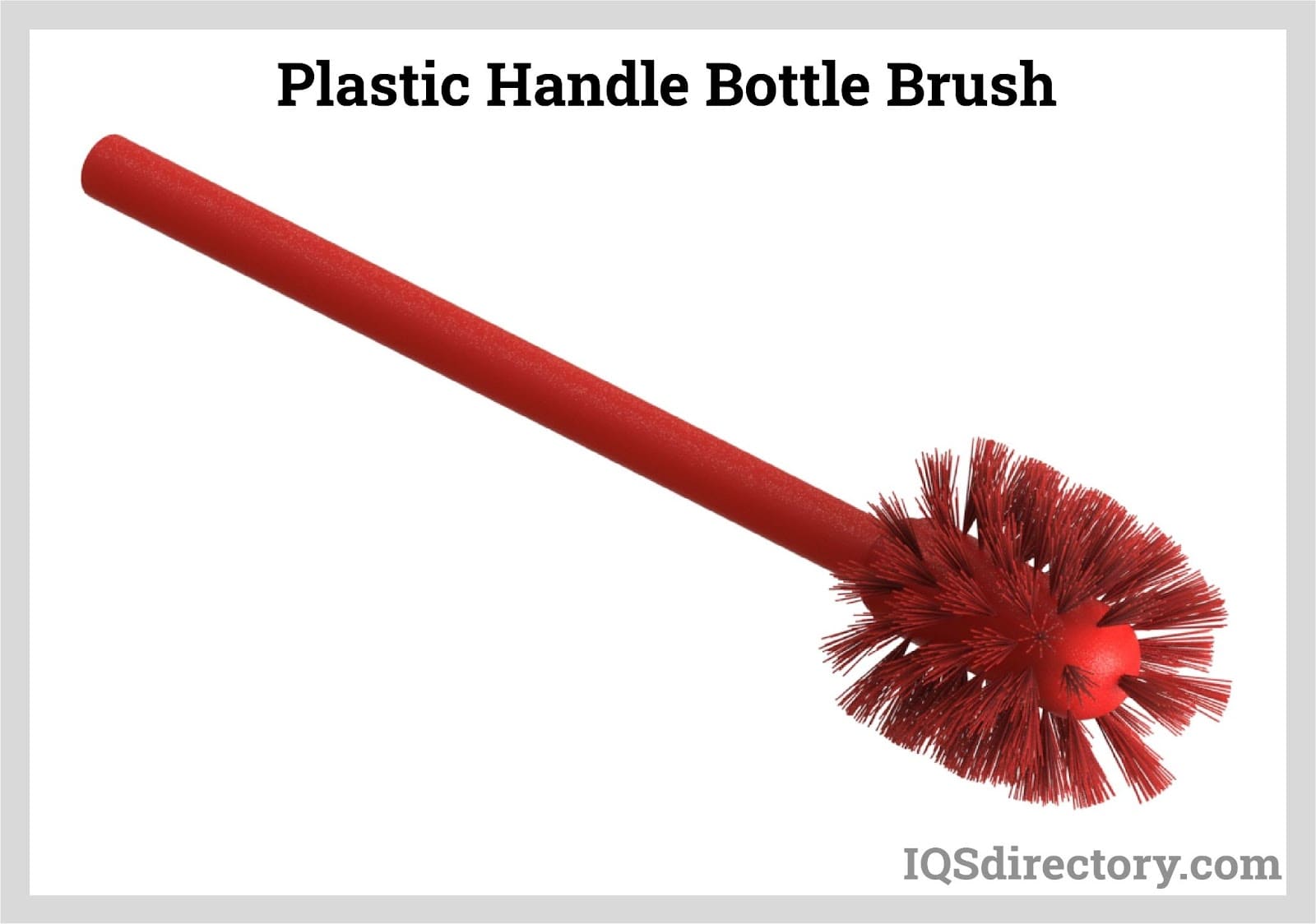

Plastic Brush Handles
The bristles for a plastic handle bottle brush are placed in holes that were formed in the handle when the brush handle was molded. Different methods are used to hold the bristles in place, including wires attached to the bottom of the bristles. In some cases, glue or adhesive may place the bristles in the holes on the handle. Again, the methods vary depending on the manufacturer.
Plastic-handled bottle brushes vary according to how they will be used, with exceptionally sturdy and durable ones used in commercial kitchens and manufacturing operations.
Like wooden-handled bottle brushes, plastic-handled ones can have single twisted wire bristles attached to a plastic handle. This form of plastic handle bottle brush is quite common.
Chapter Five - Reasons to Use Bottle Brushes
With modern technology, a wide range of automated cleaning methods are designed to economically and efficiently clean tools, equipment, and instruments. As effective as these modern tools may be, they are limited in the size of the items they can clean, especially for containers with narrow openings. Automated cleaning methods can generally reach the large surfaces of bottles but struggle with the small, dried areas at the bottom. Those difficult-to-reach areas need to be cleaned using the bristles of a bottle brush.
As simplistic as bottle brushes may seem, they serve a major cleaning need and are shaped, formed, and configured for the task.
Benefits of Bottle Brushes
Bottle brushes clean contaminated bottles. Any residue in a refillable bottle can contaminate and spoil its new contents. When bottles are emptied and allowed to sit, a small amount of their content dries and hardens at the bottom of the bottle. To ensure a completely sanitized container, the sides and bottom of the bottle should be thoroughly scrubbed using bottle brush bristles.
Wet sponges do not provide the cleaning power of the bristles of a bottle brush, which can reach into the most minute areas to remove any type of grime. It is for this reason that bottle brushes are found in kitchens, laboratories, bottling plants, and food processing plants.
Bottle brushes are superior to other cleaning methods. Several cleaning methods have been used to try to decontaminate and remove microns of material from the bottom of containers. The methods chosen vary from highly aggressive to gentle, like simply soaking a container. However, no other cleaning process can thoroughly scrub a container with stiff bristles as bottle brushes can.
Bottle brushes clean hygienically. The best testament to the use of bottle brushes is how they hygienically and completely clean the interior of a bottle or container. There is a bottle brush designed to meet the cleaning needs of any container, with bristles capable of wiping away any dried-on, stuck-on, or oily residue. Bottle brush bristles can be chemically-resistant and stiff enough to remove any material.
To disinfect and decontaminate containers, a thorough and complete cleaning of containers is required. This is especially true in the pharmaceutical and food industries. In the pharmaceutical industry, there are established levels of cleaning that have to be met for a container to be used for the first time.
Bottle brushes are valuable cleaning tools found in residential kitchens and industrial processes. Regardless of the simplicity of their design, they have the power and strength to guarantee a complete and effective cleaning.
Summary
A bottle brush is a brush with flexible and pliable bristles connected to a long stem or handle made of plastic, wood, or wire.
The design and shape of bottle brushes, as long tubes of bristles, make them ideal for cleaning bottles, as their name implies. They can reach portions of a bottle that cannot be reached by other cleaning means, including water sprays.
As with all brushes, bottle brushes come in various sizes, types, configurations, and dimensions. Each style is produced to meet multiple applications' specific requirements, from small and thin ones with delicate handles to large and sturdy ones for scrubbing and removing burrs.
Bottle brushes have become an essential cleaning tool for various applications, from cleaning built-up particles in pipes and cylinders to cleaning glasses, containers, and bottles for restaurants and have found several uses above and beyond cleaning bottles.
Several varying methods are used to produce bottle brushes that include twisting of wires, stapling bristles, and placing them in holes in wood or plastic. The production method is determined by the type of brush and its use.
